An Introduction to Hashing. By: Sara Kennedy Presented: November 1, 2002.

Similar presentations


Presentation on theme: "An Introduction to Hashing. By: Sara Kennedy Presented: November 1, 2002."— Presentation transcript:

1 An Introduction to Hashing. By: Sara Kennedy Presented: November 1, 2002

2 What is hashing? Hashing is a method of inserting data into a table. Tables can be implemented in many ways. Examples include a fixed array (limiting number of elements), array of linked lists (potentially unlimited number of elements)

3 Why use hashing? There is the potential to retrieve data faster. Using the proper hash function will distribute the elements throughout the table. To retrieve the element, apply the hash function until it is found or it is clear that it was not found.

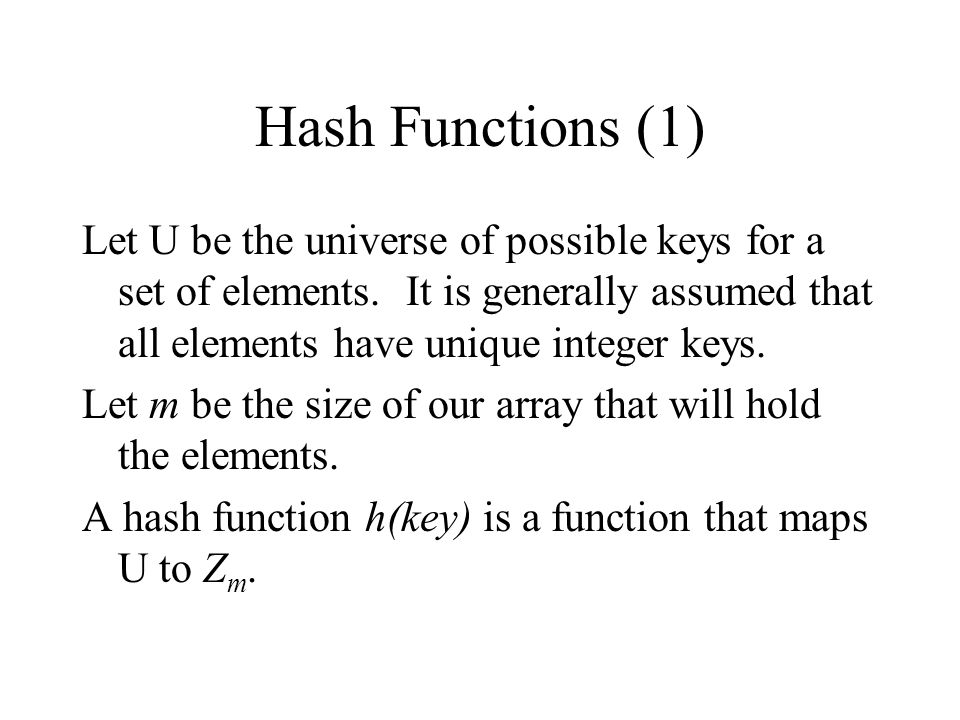

4 Hash Functions (1) Let U be the universe of possible keys for a set of elements. It is generally assumed that all elements have unique integer keys. Let m be the size of our array that will hold the elements. A hash function h(key) is a function that maps U to Z m.

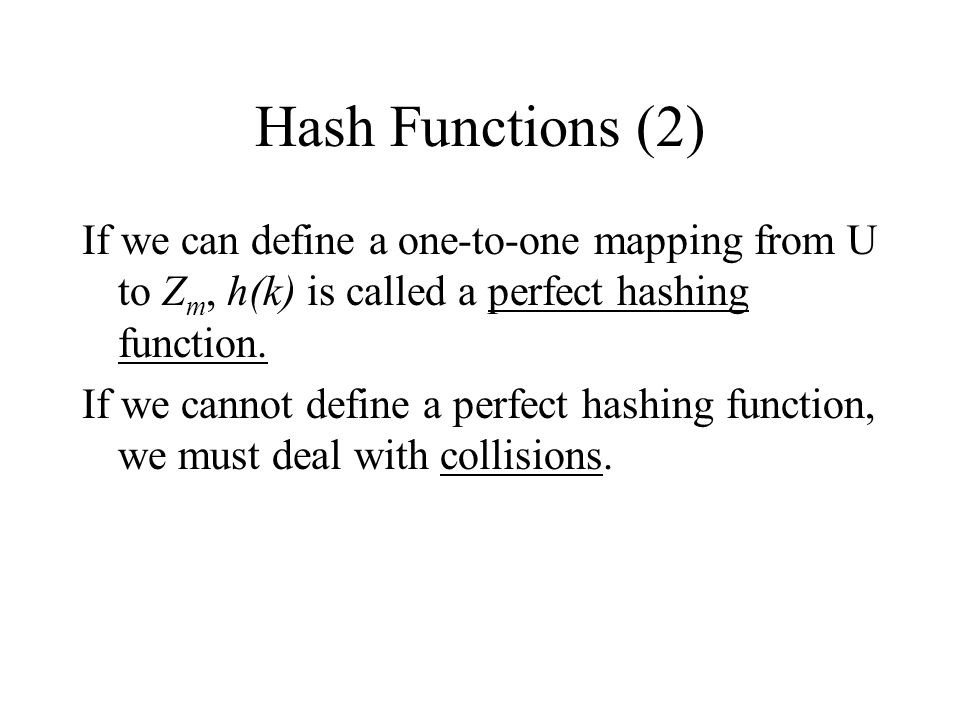

5 Hash Functions (2) If we can define a one-to-one mapping from U to Z m, h(k) is called a perfect hashing function. If we cannot define a perfect hashing function, we must deal with collisions.

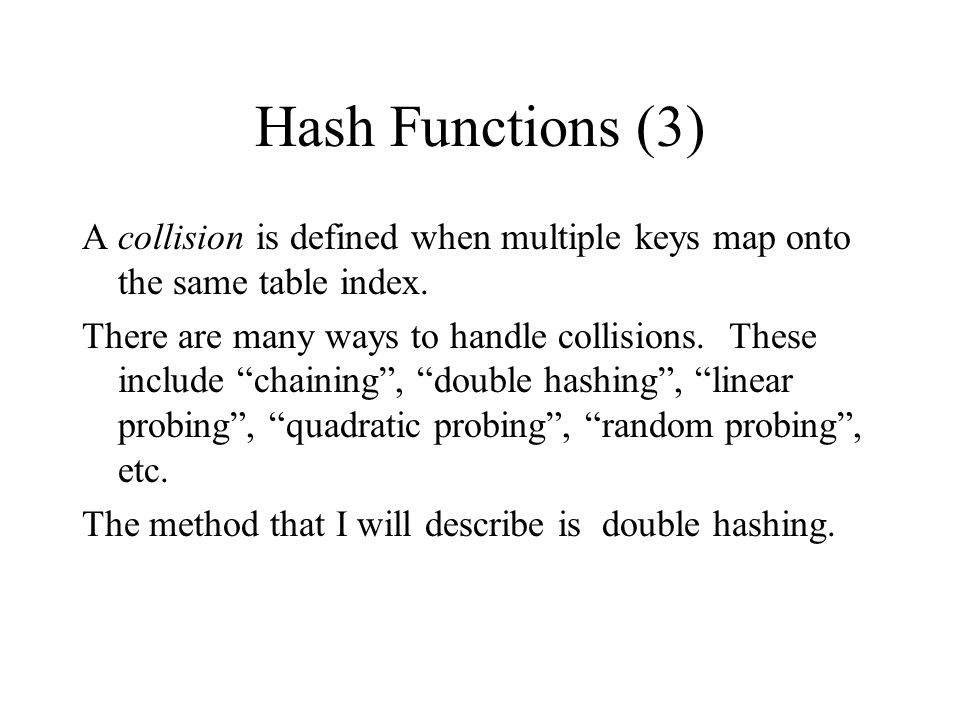

6 Hash Functions (3) A collision is defined when multiple keys map onto the same table index. There are many ways to handle collisions. These include “chaining”, “double hashing”, “linear probing”, “quadratic probing”, “random probing”, etc. The method that I will describe is double hashing.

7 MIS for Hash Table INTERFACE: TYPE Element; PROCEDURE Put(key: INTEGER); PROCEDURE Find(key: INTEGER): BOOLEAN; PROCEDURE Delete(key: INTEGER);

8 (* Title: Hash.m Author: Sara Kennedy Last Revised: November 1, 2002 Description: An implementation of a hash table using double hashing. Interface: TYPE Element; PROCEDURE Put(key: INTEGER); PROCEDURE Find(key: INTEGER): BOOLEAN; PROCEDURE Delete(key: INTEGER); *) MODULE Hash; TYPE Element* = RECORD key: INTEGER; data: REAL; status: INTEGER; END;

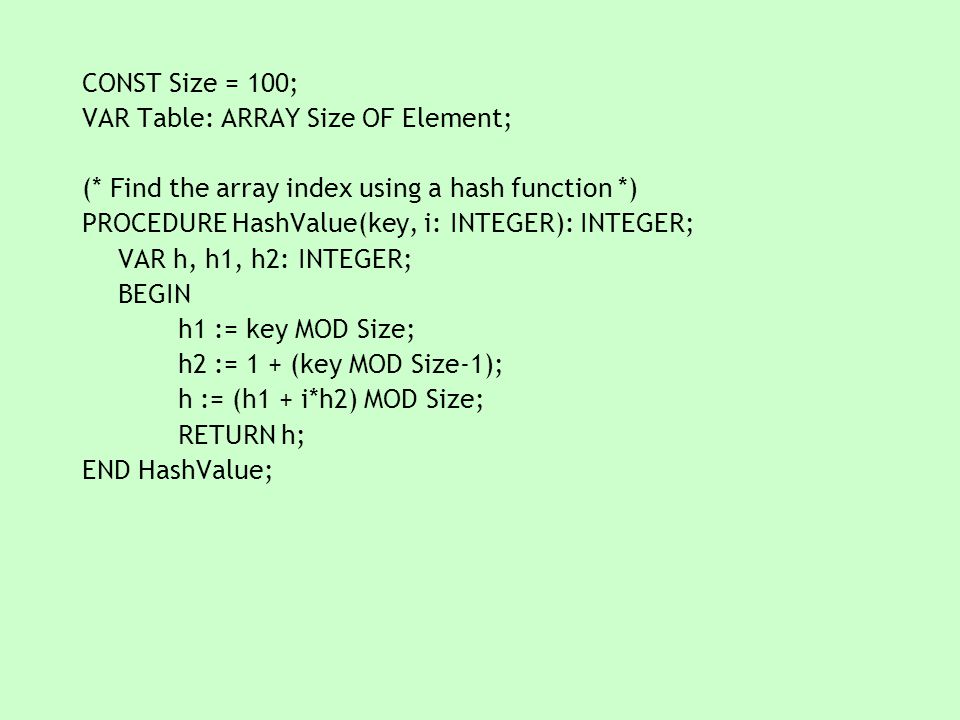

9 CONST Size = 100; VAR Table: ARRAY Size OF Element; (* Find the array index using a hash function *) PROCEDURE HashValue(key, i: INTEGER): INTEGER; VAR h, h1, h2: INTEGER; BEGIN h1 := key MOD Size; h2 := 1 + (key MOD Size-1); h := (h1 + i*h2) MOD Size; RETURN h; END HashValue;

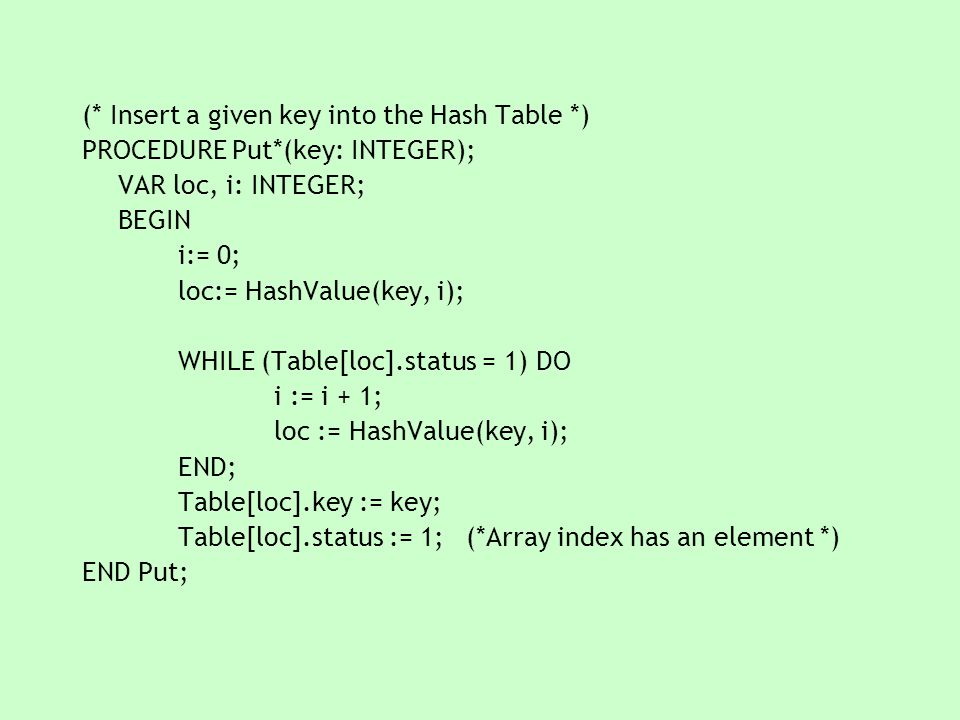

10 (* Insert a given key into the Hash Table *) PROCEDURE Put*(key: INTEGER); VAR loc, i: INTEGER; BEGIN i:= 0; loc:= HashValue(key, i); WHILE (Table[loc].status = 1) DO i := i + 1; loc := HashValue(key, i); END; Table[loc].key := key; Table[loc].status := 1;(*Array index has an element *) END Put;

11 (* Find location of key if it exists in the hash table *) PROCEDURE FindLoc(key: INTEGER; VAR loc: INTEGER): BOOLEAN; VAR i: INTEGER; BEGIN i := 0; loc := HashValue(key, i); WHILE ((Table[loc].status # -1) & (i < Size)) DO IF ((Table[loc].key = key) & (Table[loc].status = 1)) THEN RETURN TRUE; ELSE i := i + 1; loc := HashValue(key, i); END; RETURN FALSE; END FindLoc;

12 (* Find if the key exists in the table *) PROCEDURE Find*(key: INTEGER): BOOLEAN; VAR loc: INTEGER; BEGIN RETURN FindLoc(key, loc); END Find; (* Remove a key from the table *) PROCEDURE Delete*(key: INTEGER); VAR loc: INTEGER; BEGIN IF FindLoc(key, loc) THEN Table[loc].status := 0; END; END Delete;

13 VAR init: INTEGER; BEGIN init := 0; (* Initialize the table as an empty table *) WHILE (init < Size) DO Table[init].key := 0; Table[init].status := -1; init := init + 1; END END Hash.

14 MODULE TestHash IMPORT Out, Hash; PROCEDURE Insert(key: INTEGER); BEGIN Hash.Put(key); Out.Int(key, 0); IF Hash.Find(key) THEN Out.String(“ inserted.”); ELSE Out.String(“ not inserted.”); END Out.Ln; END Insert;

15 PROCEDURE Delete(key: INTEGER); BEGIN Out.Int(key, 0); IF Hash.Find(key) THEN Hash.Delete(key); IF Hash.Find(key) THEN Out.String(" not deleted."); ELSE Out.String(" deleted."); END; ELSE Out.String(" not deleted."); END; Out.Ln; END Delete;

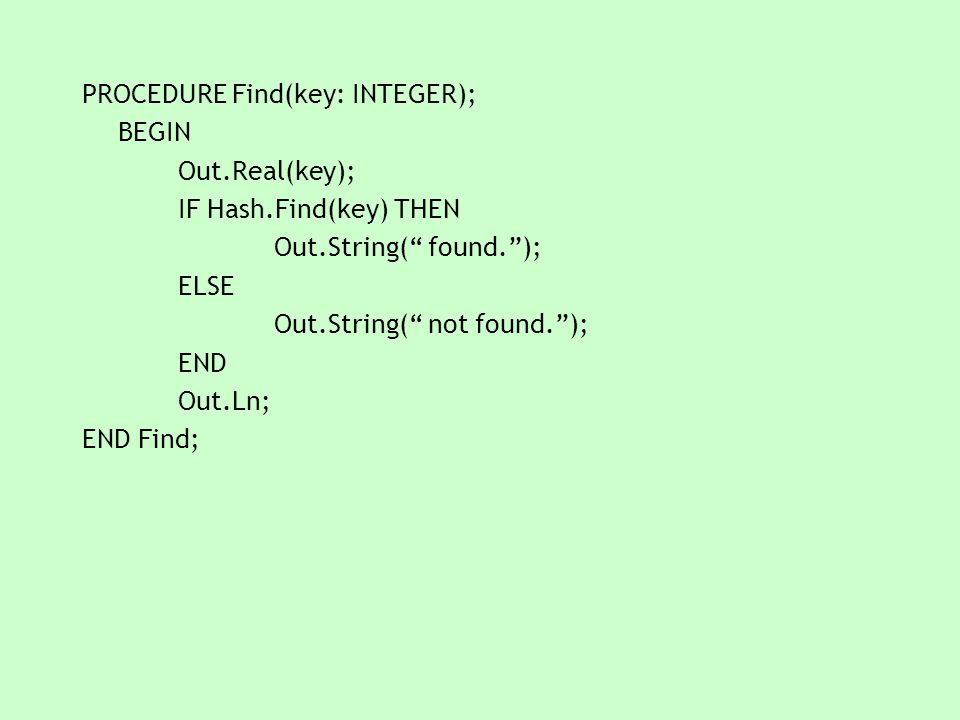

16 PROCEDURE Find(key: INTEGER); BEGIN Out.Real(key); IF Hash.Find(key) THEN Out.String(“ found.”); ELSE Out.String(“ not found.”); END Out.Ln; END Find;

17 BEGIN Insert(3); Insert(200); Insert(2056); Insert(-97); Find(3); Delete(200); Delete(5); Insert(5); Insert(103); Find(200); Find(103); Find(100); END TestHash.

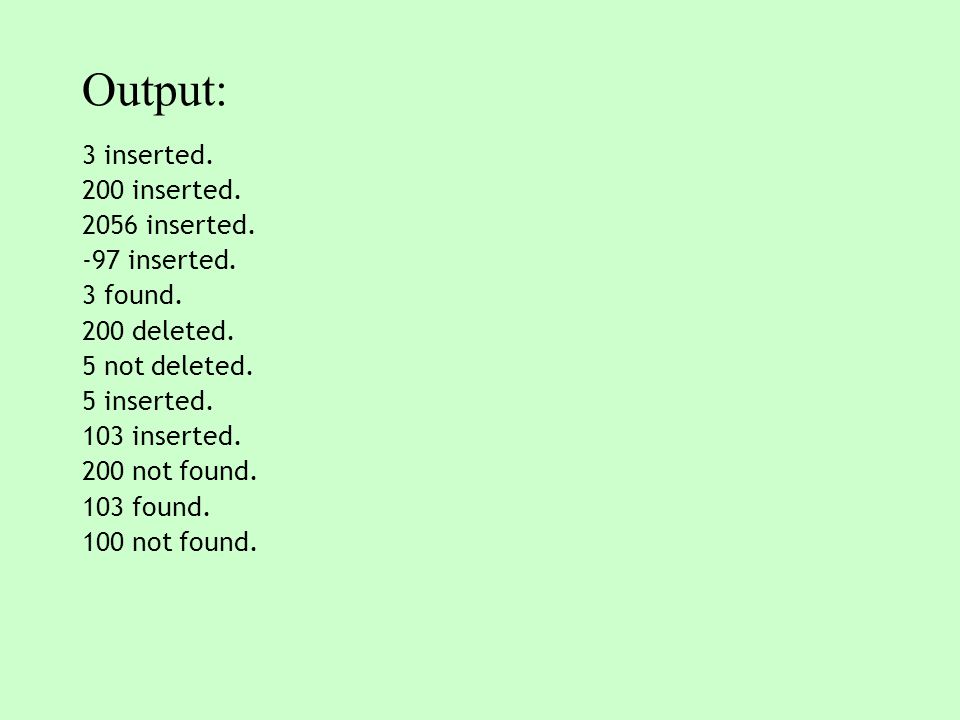

18 Output: 3 inserted. 200 inserted inserted. -97 inserted. 3 found. 200 deleted. 5 not deleted. 5 inserted. 103 inserted. 200 not found. 103 found. 100 not found.

19 (* Title: Hash.m Author: Sara Kennedy Last Revised: November 1, 2002 Description: An implementation of a hash table using double hashing on 2D vectors with integer coordinates. Interface: TYPE Element; PROCEDURE Put(x, y: INTEGER); PROCEDURE Find(x, y: INTEGER): BOOLEAN; PROCEDURE Delete(x, y: INTEGER); *) MODULE Hash; TYPE Element* = RECORD x, y: INTEGER; status: INTEGER; END;

20 CONST Size = 1000; VAR Table: ARRAY Size OF Element; (* Find the array index using a hash function *) PROCEDURE HashValue(key, i: INTEGER): INTEGER; VAR h, h1, h2: INTEGER; BEGIN h1 := key MOD Size; h2 := 1 + (key MOD Size-1); h := (h1 + i*h2) MOD Size; RETURN h; END HashValue; (* Calculates the key *) PROCEDURE GetKey(x, y: INTEGER): INTEGER; BEGIN RETURN x + y; END GetKey;

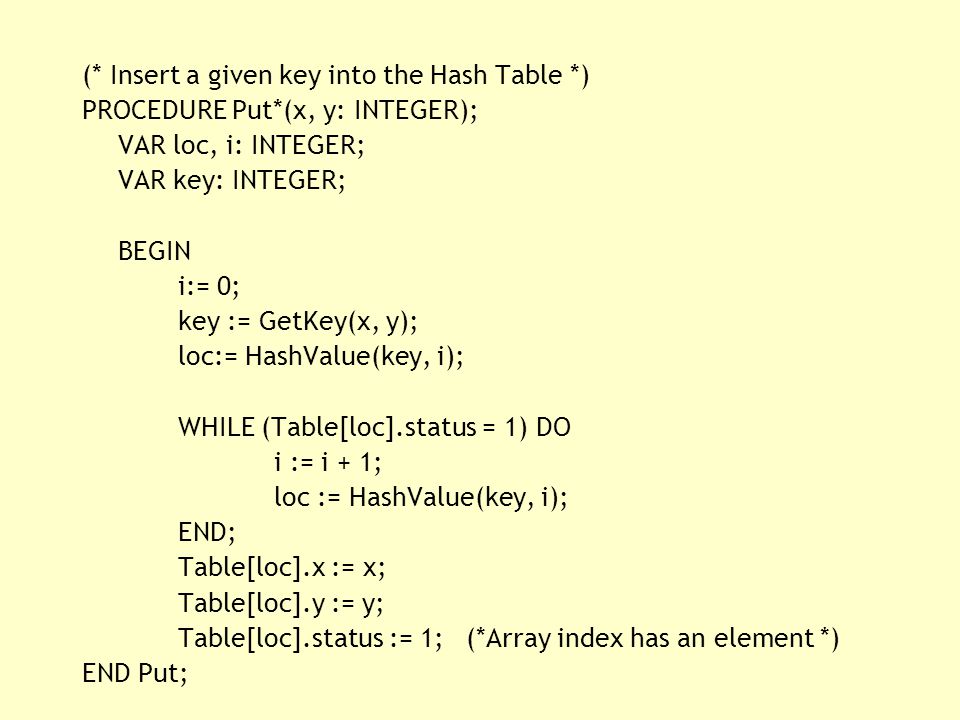

21 (* Insert a given key into the Hash Table *) PROCEDURE Put*(x, y: INTEGER); VAR loc, i: INTEGER; VAR key: INTEGER; BEGIN i:= 0; key := GetKey(x, y); loc:= HashValue(key, i); WHILE (Table[loc].status = 1) DO i := i + 1; loc := HashValue(key, i); END; Table[loc].x := x; Table[loc].y := y; Table[loc].status := 1;(*Array index has an element *) END Put;

22 (* Find location of key if it exists in the hash table *) PROCEDURE FindLoc(x, y: INTEGER; VAR loc: INTEGER): BOOLEAN; VAR i, key: INTEGER; BEGIN i := 0; key := GetKey(x, y); loc := HashValue(key, i); WHILE ((Table[loc].status # -1) & (i < Size)) DO IF ((Table[loc].x = x) & (Table[loc].y = y) & (Table[loc].status = 1)) THEN RETURN TRUE; ELSE i := i + 1; loc := HashValue(key, i); END; RETURN FALSE; END FindLoc;

23 (* Find if the key exists in the table *) PROCEDURE Find*(x, y: INTEGER): BOOLEAN; VAR loc: INTEGER; BEGIN RETURN FindLoc(x, y, loc); END Find; (* Remove a key from the table *) PROCEDURE Delete*(x, y: INTEGER); VAR loc: INTEGER; BEGIN IF FindLoc(x, y, loc) THEN Table[loc].status := 0; END; END Delete;

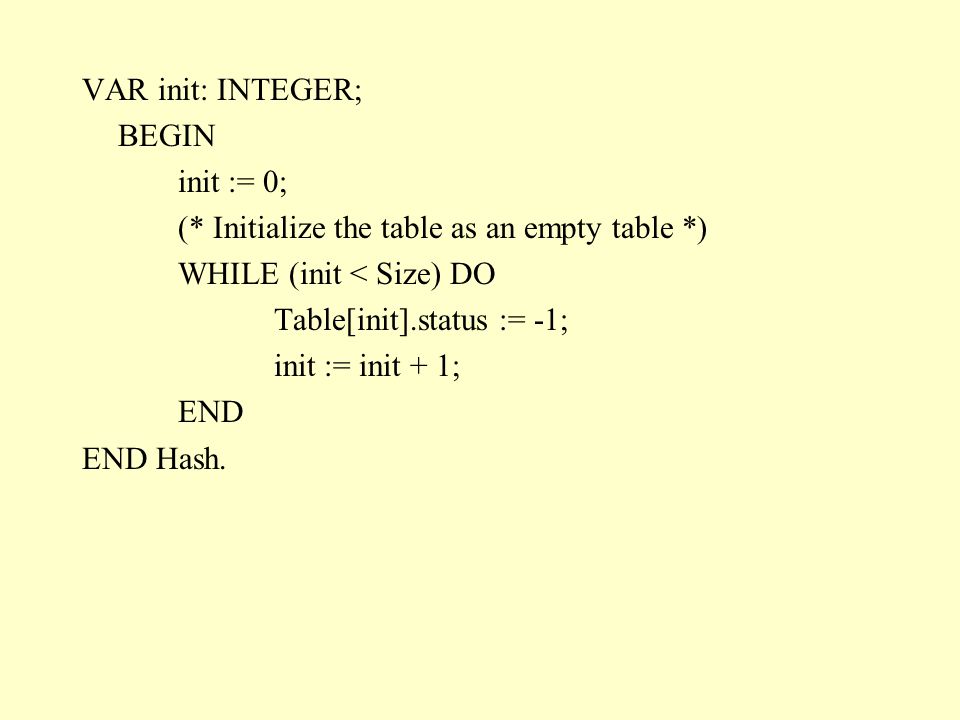

24 VAR init: INTEGER; BEGIN init := 0; (* Initialize the table as an empty table *) WHILE (init < Size) DO Table[init].status := -1; init := init + 1; END END Hash.

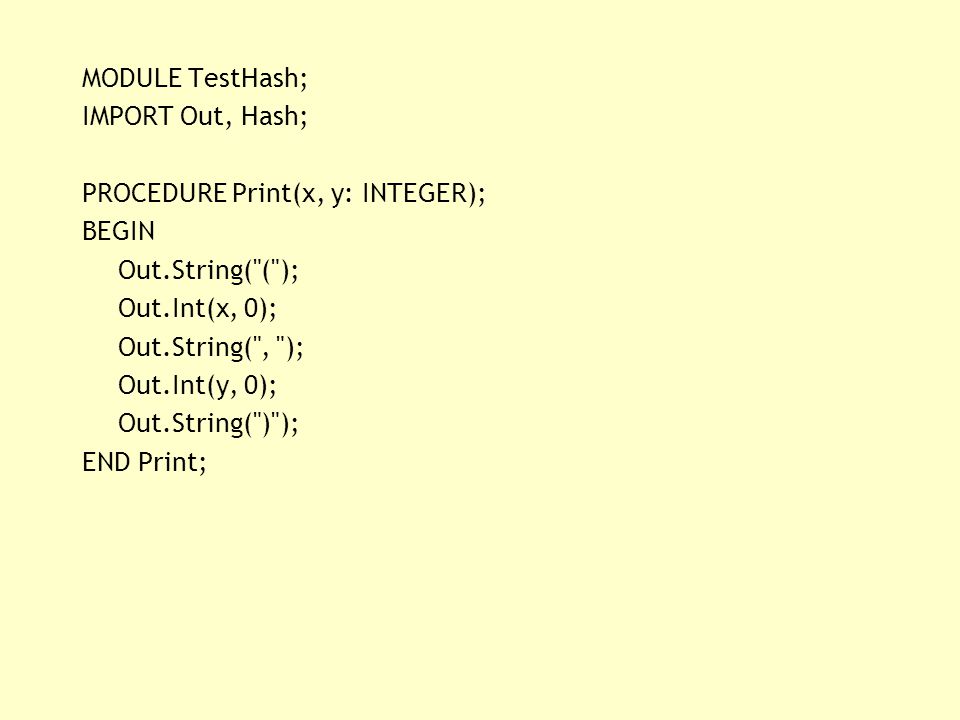

25 MODULE TestHash; IMPORT Out, Hash; PROCEDURE Print(x, y: INTEGER); BEGIN Out.String("("); Out.Int(x, 0); Out.String(", "); Out.Int(y, 0); Out.String(")"); END Print;

26 PROCEDURE Insert(x, y: INTEGER); BEGIN Hash.Put(x, y); Print(x, y); IF Hash.Find(x, y) THEN Out.String(" inserted."); ELSE Out.String(" not inserted."); END; Out.Ln; END Insert;

27 PROCEDURE Delete(x, y: INTEGER); BEGIN Print(x, y); IF Hash.Find(x, y) THEN Hash.Delete(x, y); IF Hash.Find(x, y) THEN Out.String(" not deleted."); ELSE Out.String(" deleted."); END; ELSE Out.String(" not deleted."); END; Out.Ln; END Delete;

28 PROCEDURE Find(x, y: INTEGER); BEGIN Print(x, y); IF Hash.Find(x, y) THEN Out.String(" found."); ELSE Out.String(" not found."); END; Out.Ln; END Find;

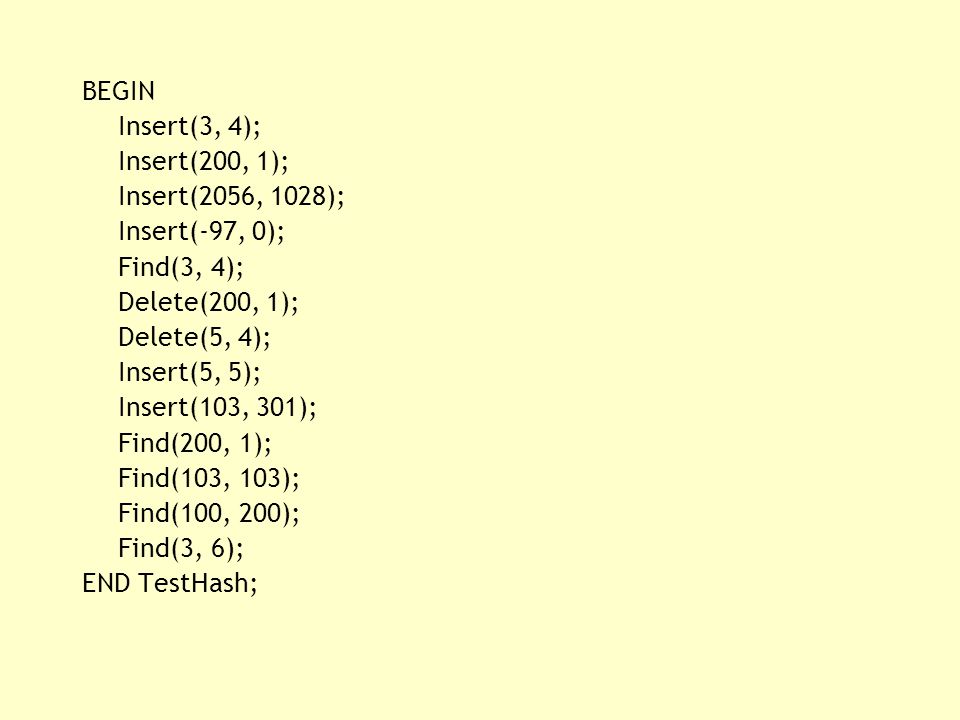

29 BEGIN Insert(3, 4); Insert(200, 1); Insert(2056, 1028); Insert(-97, 0); Find(3, 4); Delete(200, 1); Delete(5, 4); Insert(5, 5); Insert(103, 301); Find(200, 1); Find(103, 103); Find(100, 200); Find(3, 6); END TestHash;

30 Output: (3, 4) inserted. (200, 1) inserted. (2056, 1028) inserted. (-97, 0) inserted. (3, 4) found. (200, 1) deleted. (5, 4) not deleted. (5, 5) inserted. (103, 301) inserted. (200, 1) not found. (103, 103) not found. (100, 200) not found. (3, 6) not found.
