**Morgan Kaufmann Publishers Multicores, Multiprocessors, and Clusters**

11 April, 2017 Chapter 7 Multicores, Multiprocessors, and Clusters Chapter 7 — Multicores, Multiprocessors, and Clusters

2
**Morgan Kaufmann Publishers**

11 April, 2017 Introduction §9.1 Introduction Goal: connecting multiple computers to get higher performance Multiprocessors Scalability, availability, power efficiency Job-level (process-level) parallelism High throughput for independent jobs Parallel processing program Single program run on multiple processors Multicore microprocessors Chips with multiple processors (cores) Chapter 7 — Multicores, Multiprocessors, and Clusters — 2 Chapter 7 — Multicores, Multiprocessors, and Clusters

3
**Morgan Kaufmann Publishers**

11 April, 2017 Hardware and Software Hardware Serial: e.g., Pentium 4 Parallel: e.g., quad-core Xeon e5345 Software Sequential: e.g., matrix multiplication Concurrent: e.g., operating system Sequential/concurrent software can run on serial/parallel hardware Challenge: making effective use of parallel hardware Chapter 7 — Multicores, Multiprocessors, and Clusters — 3 Chapter 7 — Multicores, Multiprocessors, and Clusters

4
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.1 Hardware/software categorization and examples of application perspective on concurrency versus hardware perspective on parallelism. Chapter 7 — Multicores, Multiprocessors, and Clusters — 4 Chapter 7 — Multicores, Multiprocessors, and Clusters

5
**What We’ve Already Covered**

Morgan Kaufmann Publishers 11 April, 2017 What We’ve Already Covered §2.11: Parallelism and Instructions Synchronization §3.6: Parallelism and Computer Arithmetic Associativity §4.10: Parallelism and Advanced Instruction-Level Parallelism §5.8: Parallelism and Memory Hierarchies Cache Coherence §6.9: Parallelism and I/O: Redundant Arrays of Inexpensive Disks Chapter 7 — Multicores, Multiprocessors, and Clusters — 5 Chapter 7 — Multicores, Multiprocessors, and Clusters

6
**Morgan Kaufmann Publishers**

11 April, 2017 Parallel Programming Parallel software is the problem Need to get significant performance improvement Otherwise, just use a faster uniprocessor, since it’s easier! Difficulties Partitioning Coordination Communications overhead §7.2 The Difficulty of Creating Parallel Processing Programs Chapter 7 — Multicores, Multiprocessors, and Clusters — 6 Chapter 7 — Multicores, Multiprocessors, and Clusters

7
**Morgan Kaufmann Publishers**

11 April, 2017 Amdahl’s Law Sequential part can limit speedup Example: 100 processors, 90× speedup? Tnew = Tparallelizable/100 + Tsequential Solving: Fparallelizable = 0.999 Need sequential part to be 0.1% of original time Chapter 7 — Multicores, Multiprocessors, and Clusters — 7 Chapter 7 — Multicores, Multiprocessors, and Clusters

8
**Morgan Kaufmann Publishers**

11 April, 2017 Scaling Example Workload: sum of 10 scalars, and 10 × 10 matrix sum Speed up from 10 to 100 processors Single processor: Time = ( ) × tadd 10 processors Time = 10 × tadd + 100/10 × tadd = 20 × tadd Speedup = 110/20 = 5.5 (55% of potential) 100 processors Time = 10 × tadd + 100/100 × tadd = 11 × tadd Speedup = 110/11 = 10 (10% of potential) Assumes load can be balanced across processors Chapter 7 — Multicores, Multiprocessors, and Clusters — 8 Chapter 7 — Multicores, Multiprocessors, and Clusters

9
**Scaling Example (cont)**

Morgan Kaufmann Publishers 11 April, 2017 Scaling Example (cont) What if matrix size is 100 × 100? Single processor: Time = ( ) × tadd 10 processors Time = 10 × tadd /10 × tadd = 1010 × tadd Speedup = 10010/1010 = 9.9 (99% of potential) 100 processors Time = 10 × tadd /100 × tadd = 110 × tadd Speedup = 10010/110 = 91 (91% of potential) Assuming load balanced Chapter 7 — Multicores, Multiprocessors, and Clusters — 9 Chapter 7 — Multicores, Multiprocessors, and Clusters

10
**Morgan Kaufmann Publishers**

11 April, 2017 Strong vs Weak Scaling Strong scaling: problem size fixed As in example Weak scaling: problem size proportional to number of processors 10 processors, 10 × 10 matrix Time = 20 × tadd 100 processors, 32 × 32 matrix Time = 10 × tadd /100 × tadd = 20 × tadd Constant performance in this example Chapter 7 — Multicores, Multiprocessors, and Clusters — 10 Chapter 7 — Multicores, Multiprocessors, and Clusters

11
**Morgan Kaufmann Publishers**

11 April, 2017 Shared Memory SMP: shared memory multiprocessor Hardware provides single physical address space for all processors Synchronize shared variables using locks Memory access time UMA (uniform) vs. NUMA (nonuniform) §7.3 Shared Memory Multiprocessors Chapter 7 — Multicores, Multiprocessors, and Clusters — 11 Chapter 7 — Multicores, Multiprocessors, and Clusters

12
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.2 Classic organization of a shared memory multiprocessor. Chapter 7 — Multicores, Multiprocessors, and Clusters — 12 Chapter 7 — Multicores, Multiprocessors, and Clusters

13
**Example: Sum Reduction**

Morgan Kaufmann Publishers 11 April, 2017 Example: Sum Reduction Sum 100,000 numbers on 100 processor UMA Each processor has ID: 0 ≤ Pn ≤ 99 Partition 1000 numbers per processor Initial summation on each processor sum[Pn] = 0; for (i = 1000*Pn; i < 1000*(Pn+1); i = i + 1) sum[Pn] = sum[Pn] + A[i]; Now need to add these partial sums Reduction: divide and conquer Half the processors add pairs, then quarter, … Need to synchronize between reduction steps Chapter 7 — Multicores, Multiprocessors, and Clusters — 13 Chapter 7 — Multicores, Multiprocessors, and Clusters

14
**Example: Sum Reduction**

Morgan Kaufmann Publishers 11 April, 2017 Example: Sum Reduction half = 100; repeat synch(); if (half%2 != 0 && Pn == 0) sum[0] = sum[0] + sum[half-1]; /* Conditional sum needed when half is odd; Processor0 gets missing element */ half = half/2; /* dividing line on who sums */ if (Pn < half) sum[Pn] = sum[Pn] + sum[Pn+half]; until (half == 1); Chapter 7 — Multicores, Multiprocessors, and Clusters — 14 Chapter 7 — Multicores, Multiprocessors, and Clusters

15
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.3 The last four levels of a reduction that sums results from each processor, from bottom to top. For all processors whose number i is less than half, add the sum produced by processor number (i + half) to its sum. Chapter 7 — Multicores, Multiprocessors, and Clusters — 15 Chapter 7 — Multicores, Multiprocessors, and Clusters

16
**Morgan Kaufmann Publishers**

11 April, 2017 Message Passing Each processor has private physical address space Hardware sends/receives messages between processors §7.4 Clusters and Other Message-Passing Multiprocessors Chapter 7 — Multicores, Multiprocessors, and Clusters — 16 Chapter 7 — Multicores, Multiprocessors, and Clusters

17
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.4 Classic organization of a multiprocessor with multiple private address spaces, traditionally called a message-passing multiprocessor. Note that unlike the SMP in Figure 7.2, the interconnection network is not between the caches and memory but is instead between processor-memory nodes. Chapter 7 — Multicores, Multiprocessors, and Clusters — 17 Chapter 7 — Multicores, Multiprocessors, and Clusters

18
**Loosely Coupled Clusters**

Morgan Kaufmann Publishers 11 April, 2017 Loosely Coupled Clusters Network of independent computers Each has private memory and OS Connected using I/O system E.g., Ethernet/switch, Internet Suitable for applications with independent tasks Web servers, databases, simulations, … High availability, scalable, affordable Problems Administration cost (prefer virtual machines) Low interconnect bandwidth c.f. processor/memory bandwidth on an SMP Chapter 7 — Multicores, Multiprocessors, and Clusters — 18 Chapter 7 — Multicores, Multiprocessors, and Clusters

19
**Morgan Kaufmann Publishers**

11 April, 2017 Sum Reduction (Again) Sum 100,000 on 100 processors First distribute 100 numbers to each The do partial sums sum = 0; for (i = 0; i<1000; i = i + 1) sum = sum + AN[i]; Reduction Half the processors send, other half receive and add The quarter send, quarter receive and add, … Chapter 7 — Multicores, Multiprocessors, and Clusters — 19 Chapter 7 — Multicores, Multiprocessors, and Clusters

20
**Morgan Kaufmann Publishers**

11 April, 2017 Sum Reduction (Again) Given send() and receive() operations limit = 100; half = 100;/* 100 processors */ repeat half = (half+1)/2; /* send vs. receive dividing line */ if (Pn >= half && Pn < limit) send(Pn - half, sum); if (Pn < (limit/2)) sum = sum + receive(); limit = half; /* upper limit of senders */ until (half == 1); /* exit with final sum */ Send/receive also provide synchronization Assumes send/receive take similar time to addition Chapter 7 — Multicores, Multiprocessors, and Clusters — 20 Chapter 7 — Multicores, Multiprocessors, and Clusters

21
**Morgan Kaufmann Publishers**

11 April, 2017 Grid Computing Separate computers interconnected by long-haul networks E.g., Internet connections Work units farmed out, results sent back Can make use of idle time on PCs E.g., World Community Grid Chapter 7 — Multicores, Multiprocessors, and Clusters — 21 Chapter 7 — Multicores, Multiprocessors, and Clusters

22
**Morgan Kaufmann Publishers**

11 April, 2017 Multithreading Performing multiple threads of execution in parallel Replicate registers, PC, etc. Fast switching between threads Fine-grain multithreading Switch threads after each cycle Interleave instruction execution If one thread stalls, others are executed Coarse-grain multithreading Only switch on long stall (e.g., L2-cache miss) Simplifies hardware, but doesn’t hide short stalls (eg, data hazards) §7.5 Hardware Multithreading Chapter 7 — Multicores, Multiprocessors, and Clusters — 22 Chapter 7 — Multicores, Multiprocessors, and Clusters

23
**Simultaneous Multithreading**

Morgan Kaufmann Publishers 11 April, 2017 Simultaneous Multithreading In multiple-issue dynamically scheduled processor Schedule instructions from multiple threads Instructions from independent threads execute when function units are available Within threads, dependencies handled by scheduling and register renaming Example: Intel Pentium-4 HT Two threads: duplicated registers, shared function units and caches Chapter 7 — Multicores, Multiprocessors, and Clusters — 23 Chapter 7 — Multicores, Multiprocessors, and Clusters

24
**Multithreading Example**

Morgan Kaufmann Publishers 11 April, 2017 Multithreading Example Chapter 7 — Multicores, Multiprocessors, and Clusters — 24 Chapter 7 — Multicores, Multiprocessors, and Clusters

25
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.5 How four threads use the issue slots of a superscalar processor in different approaches. The four threads at the top show how each would execute running alone on a standard superscalar processor without multithreading support. The three examples at the bottom show how they would execute running together in three multithreading options. The horizontal dimension represents the instruction issue capability in each clock cycle. The vertical dimension represents a sequence of clock cycles. An empty (white) box indicates that the corresponding issue slot is unused in that clock cycle. The shades of gray and color correspond to four different threads in the multithreading processors. The additional pipe line start-up effects for coarse multithreading, which are not illustrated in this figure, would lead to further loss in throughput for coarse multithreading. Copyright © 2009 Elsevier, Inc. All rights reserved. Chapter 7 — Multicores, Multiprocessors, and Clusters — 25 Chapter 7 — Multicores, Multiprocessors, and Clusters

26
**Future of Multithreading**

Morgan Kaufmann Publishers 11 April, 2017 Future of Multithreading Will it survive? In what form? Power considerations simplified microarchitectures Simpler forms of multithreading Tolerating cache-miss latency Thread switch may be most effective Multiple simple cores might share resources more effectively Chapter 7 — Multicores, Multiprocessors, and Clusters — 26 Chapter 7 — Multicores, Multiprocessors, and Clusters

27
**Instruction and Data Streams**

Morgan Kaufmann Publishers 11 April, 2017 Instruction and Data Streams An alternate classification Data Streams Single Multiple Instruction Streams SISD: Intel Pentium 4 SIMD: SSE instructions of x86 MISD: No examples today MIMD: Intel Xeon e5345 §7.6 SISD, MIMD, SIMD, SPMD, and Vector SPMD: Single Program Multiple Data A parallel program on a MIMD computer Conditional code for different processors Chapter 7 — Multicores, Multiprocessors, and Clusters — 27 Chapter 7 — Multicores, Multiprocessors, and Clusters

28
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.6 Hardware categorization and examples based on number of instruction streams and data streams: SISD, SIMD, MISD, and MIMD. Chapter 7 — Multicores, Multiprocessors, and Clusters — 28 Chapter 7 — Multicores, Multiprocessors, and Clusters

29
**Morgan Kaufmann Publishers**

11 April, 2017 SIMD Operate elementwise on vectors of data E.g., MMX and SSE instructions in x86 Multiple data elements in 128-bit wide registers All processors execute the same instruction at the same time Each with different data address, etc. Simplifies synchronization Reduced instruction control hardware Works best for highly data-parallel applications Chapter 7 — Multicores, Multiprocessors, and Clusters — 29 Chapter 7 — Multicores, Multiprocessors, and Clusters

30
**Morgan Kaufmann Publishers**

11 April, 2017 Vector Processors Highly pipelined function units Stream data from/to vector registers to units Data collected from memory into registers Results stored from registers to memory Example: Vector extension to MIPS 32 × 64-element registers (64-bit elements) Vector instructions lv, sv: load/store vector addv.d: add vectors of double addvs.d: add scalar to each element of vector of double Significantly reduces instruction-fetch bandwidth Chapter 7 — Multicores, Multiprocessors, and Clusters — 30 Chapter 7 — Multicores, Multiprocessors, and Clusters

31
**Example: DAXPY (Y = a × X + Y)**

Morgan Kaufmann Publishers 11 April, 2017 Example: DAXPY (Y = a × X + Y) Conventional MIPS code l.d $f0,a($sp) ;load scalar a addiu r4,$s0,# ;upper bound of what to load loop: l.d $f2,0($s0) ;load x(i) mul.d $f2,$f2,$f0 ;a × x(i) l.d $f4,0($s1) ;load y(i) add.d $f4,$f4,$f2 ;a × x(i) + y(i) s.d $f4,0($s1) ;store into y(i) addiu $s0,$s0,#8 ;increment index to x addiu $s1,$s1,#8 ;increment index to y subu $t0,r4,$s0 ;compute bound bne $t0,$zero,loop ;check if done Vector MIPS code l.d $f0,a($sp) ;load scalar a lv $v1,0($s0) ;load vector x mulvs.d $v2,$v1,$f0 ;vector-scalar multiply lv $v3,0($s1) ;load vector y addv.d $v4,$v2,$v3 ;add y to product sv $v4,0($s1) ;store the result Chapter 7 — Multicores, Multiprocessors, and Clusters — 31 Chapter 7 — Multicores, Multiprocessors, and Clusters

32
**Morgan Kaufmann Publishers**

11 April, 2017 Vector vs. Scalar Vector architectures and compilers Simplify data-parallel programming Explicit statement of absence of loop-carried dependences Reduced checking in hardware Regular access patterns benefit from interleaved and burst memory Avoid control hazards by avoiding loops More general than ad-hoc media extensions (such as MMX, SSE) Better match with compiler technology Chapter 7 — Multicores, Multiprocessors, and Clusters — 32 Chapter 7 — Multicores, Multiprocessors, and Clusters

33
**Morgan Kaufmann Publishers**

11 April, 2017 History of GPUs Early video cards Frame buffer memory with address generation for video output 3D graphics processing Originally high-end computers (e.g., SGI) Moore’s Law lower cost, higher density 3D graphics cards for PCs and game consoles Graphics Processing Units Processors oriented to 3D graphics tasks Vertex/pixel processing, shading, texture mapping, rasterization §7.7 Introduction to Graphics Processing Units Chapter 7 — Multicores, Multiprocessors, and Clusters — 33 Chapter 7 — Multicores, Multiprocessors, and Clusters

34
**Morgan Kaufmann Publishers**

11 April, 2017 Graphics in the System Chapter 7 — Multicores, Multiprocessors, and Clusters — 34 Chapter 7 — Multicores, Multiprocessors, and Clusters

35
**Morgan Kaufmann Publishers**

11 April, 2017 GPU Architectures Processing is highly data-parallel GPUs are highly multithreaded Use thread switching to hide memory latency Less reliance on multi-level caches Graphics memory is wide and high-bandwidth Trend toward general purpose GPUs Heterogeneous CPU/GPU systems CPU for sequential code, GPU for parallel code Programming languages/APIs DirectX, OpenGL C for Graphics (Cg), High Level Shader Language (HLSL) Compute Unified Device Architecture (CUDA) Chapter 7 — Multicores, Multiprocessors, and Clusters — 35 Chapter 7 — Multicores, Multiprocessors, and Clusters

36
**Morgan Kaufmann Publishers**

11 April, 2017 Example: NVIDIA Tesla Streaming multiprocessor 8 × Streaming processors Chapter 7 — Multicores, Multiprocessors, and Clusters — 36 Chapter 7 — Multicores, Multiprocessors, and Clusters

37
**Morgan Kaufmann Publishers**

11 April, 2017 Example: NVIDIA Tesla Streaming Processors Single-precision FP and integer units Each SP is fine-grained multithreaded Warp: group of 32 threads Executed in parallel, SIMD style 8 SPs × 4 clock cycles Hardware contexts for 24 warps Registers, PCs, … Chapter 7 — Multicores, Multiprocessors, and Clusters — 37 Chapter 7 — Multicores, Multiprocessors, and Clusters

38
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.7 Comparing single core of a Sun UltraSPARC T2 (Niagara 2) to a single Tesla multiprocessor. The T2 core is a single processor and uses hardware-supported multithreading with eight threads. The Tesla multiprocessor contains eight streaming processors and uses hardware-supported multithreading with 24 warps of 32 threads (eight processors times four clock cycles). The T2 can switch every clock cycle, while the Tesla can switch only every two or four clock cycles. One way to compare the two is that the T2 can only multithread the processor over time, while Tesla can multithread over time and over space; that is, across the eight streaming processors as well as segments of four clock cycles. Copyright © 2009 Elsevier, Inc. All rights reserved. Chapter 7 — Multicores, Multiprocessors, and Clusters — 38 Chapter 7 — Multicores, Multiprocessors, and Clusters

39
**Morgan Kaufmann Publishers**

11 April, 2017 Classifying GPUs Don’t fit nicely into SIMD/MIMD model Conditional execution in a thread allows an illusion of MIMD But with performance degredation Need to write general purpose code with care Static: Discovered at Compile Time Dynamic: Discovered at Runtime Instruction-Level Parallelism VLIW Superscalar Data-Level Parallelism SIMD or Vector Tesla Multiprocessor Chapter 7 — Multicores, Multiprocessors, and Clusters — 39 Chapter 7 — Multicores, Multiprocessors, and Clusters

40
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.8 Hardware categorization of processor architectures and examples based on static versus dynamic and ILP versus DLP. Chapter 7 — Multicores, Multiprocessors, and Clusters — 40 Chapter 7 — Multicores, Multiprocessors, and Clusters

41
**Interconnection Networks**

Morgan Kaufmann Publishers 11 April, 2017 Interconnection Networks Network topologies Arrangements of processors, switches, and links §7.8 Introduction to Multiprocessor Network Topologies Bus Ring N-cube (N = 3) 2D Mesh Fully connected Chapter 7 — Multicores, Multiprocessors, and Clusters — 41 Chapter 7 — Multicores, Multiprocessors, and Clusters

42
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.9 Network topologies that have appeared in commercial parallel processors. The colored circles represent switches and the black squares represent processor-memory nodes. Even though a switch has many links, generally only one goes to the processor. The Boolean n-cube topology is an n-dimensional interconnect with 2n nodes, requiring n links per switch (plus one for the processor) and thus n nearest-neighbor nodes. Frequently, these basic topologies have been supplemented with extra arcs to improve performance and reliability. Chapter 7 — Multicores, Multiprocessors, and Clusters — 42 Chapter 7 — Multicores, Multiprocessors, and Clusters

43
**Morgan Kaufmann Publishers**

11 April, 2017 Multistage Networks Chapter 7 — Multicores, Multiprocessors, and Clusters — 43 Chapter 7 — Multicores, Multiprocessors, and Clusters

44
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.10 Popular multistage network topologies for eight nodes. The switches in these drawings are simpler than in earlier drawings because the links are unidirectional; data comes in at the bottom and exits out the right link. The switch box in c can pass A to C and B to D or B to C and A to D. The crossbar uses n2 switches, where n is the number of processors, while the Omega network uses 2n log2n of the large switch boxes, each of which is logically composed of four of the smaller switches. In this case, the crossbar uses 64 switches versus 12 switch boxes, or 48 switches, in the Omega network. The crossbar, how ever, can support any combination of messages between processors, while the Omega network cannot. Chapter 7 — Multicores, Multiprocessors, and Clusters — 44 Chapter 7 — Multicores, Multiprocessors, and Clusters

45
**Network Characteristics**

Morgan Kaufmann Publishers 11 April, 2017 Network Characteristics Performance Latency per message (unloaded network) Throughput Link bandwidth Total network bandwidth Bisection bandwidth Congestion delays (depending on traffic) Cost Power Routability in silicon Chapter 7 — Multicores, Multiprocessors, and Clusters — 45 Chapter 7 — Multicores, Multiprocessors, and Clusters

46
**Morgan Kaufmann Publishers**

11 April, 2017 Parallel Benchmarks Linpack: matrix linear algebra SPECrate: parallel run of SPEC CPU programs Job-level parallelism SPLASH: Stanford Parallel Applications for Shared Memory Mix of kernels and applications, strong scaling NAS (NASA Advanced Supercomputing) suite computational fluid dynamics kernels PARSEC (Princeton Application Repository for Shared Memory Computers) suite Multithreaded applications using Pthreads and OpenMP §7.9 Multiprocessor Benchmarks Chapter 7 — Multicores, Multiprocessors, and Clusters — 46 Chapter 7 — Multicores, Multiprocessors, and Clusters

47
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.11 Examples of parallel benchmarks. Copyright © 2009 Elsevier, Inc. All rights reserved. Chapter 7 — Multicores, Multiprocessors, and Clusters — 47 Chapter 7 — Multicores, Multiprocessors, and Clusters

48
**Morgan Kaufmann Publishers**

11 April, 2017 Code or Applications? Traditional benchmarks Fixed code and data sets Parallel programming is evolving Should algorithms, programming languages, and tools be part of the system? Compare systems, provided they implement a given application E.g., Linpack, Berkeley Design Patterns Would foster innovation in approaches to parallelism Chapter 7 — Multicores, Multiprocessors, and Clusters — 48 Chapter 7 — Multicores, Multiprocessors, and Clusters

49
**Morgan Kaufmann Publishers**

11 April, 2017 Modeling Performance Assume performance metric of interest is achievable GFLOPs/sec Measured using computational kernels from Berkeley Design Patterns Arithmetic intensity of a kernel FLOPs per byte of memory accessed For a given computer, determine Peak GFLOPS (from data sheet) Peak memory bytes/sec (using Stream benchmark) §7.10 Roofline: A Simple Performance Model Chapter 7 — Multicores, Multiprocessors, and Clusters — 49 Chapter 7 — Multicores, Multiprocessors, and Clusters

50
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.12 Arithmetic intensity, specified as the number of fl oat-point operations to run the program divided by the number of bytes accessed in main memory [Williams, Patterson, 2008]. Some kernels have an arithmetic intensity that scales with problem size, such as Dense Matrix, but there are many kernels with arithmetic intensities independent of problem size. For kernels in this former case, weak scaling can lead to different results, since it puts much less demand on the memory system. Copyright © 2009 Elsevier, Inc. All rights reserved. Chapter 7 — Multicores, Multiprocessors, and Clusters — 50 Chapter 7 — Multicores, Multiprocessors, and Clusters

51
**Morgan Kaufmann Publishers**

11 April, 2017 Roofline Diagram Attainable GPLOPs/sec = Max ( Peak Memory BW × Arithmetic Intensity, Peak FP Performance ) Chapter 7 — Multicores, Multiprocessors, and Clusters — 51 Chapter 7 — Multicores, Multiprocessors, and Clusters

52
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.13 Roofline Model [Williams, Patterson, 2008]. This example has a peak floating-point performance of 16 GFLOPS/sec and a peak memory bandwidth of 16 GB/sec from the Stream benchmark. (Since stream is actually four measurements, this line is the average of the four.) The dotted vertical line in color on the left represents Kernel 1, which has an arithmetic intensity of 0.5 FLOPs/byte. It is limited by memory bandwidth to no more than 8 GFLOPS/sec on this Opteron X2. The dotted vertical line to the right represents Kernel 2, which has an arithmetic intensity of 4 FLOPs/byte. It is limited only computationally to 16 GFLOPS/s. (This data is based on the AMD Opteron X2 (Revision F) using dual cores running at 2 GHz in a dual socket system.). Chapter 7 — Multicores, Multiprocessors, and Clusters — 52 Chapter 7 — Multicores, Multiprocessors, and Clusters

53
**Morgan Kaufmann Publishers**

11 April, 2017 Comparing Systems Example: Opteron X2 vs. Opteron X4 2-core vs. 4-core, 2× FP performance/core, 2.2GHz vs. 2.3GHz Same memory system To get higher performance on X4 than X2 Need high arithmetic intensity Or working set must fit in X4’s 2MB L-3 cache Chapter 7 — Multicores, Multiprocessors, and Clusters — 53 Chapter 7 — Multicores, Multiprocessors, and Clusters

54
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.14 Roofline models of two generations of Opterons. The Opteron X2 roofline, which is the same as Figure 7.11, is in black, and the Opteron X4 roofline is in color. The bigger ridge point of Opteron X4 means that kernels that where computationally bound on the Opteron X2 could be memory-performance bound on the Opteron X4. Chapter 7 — Multicores, Multiprocessors, and Clusters — 54 Chapter 7 — Multicores, Multiprocessors, and Clusters

55
**Optimizing Performance**

Morgan Kaufmann Publishers 11 April, 2017 Optimizing Performance Optimize FP performance Balance adds & multiplies Improve superscalar ILP and use of SIMD instructions Optimize memory usage Software prefetch Avoid load stalls Memory affinity Avoid non-local data accesses Chapter 7 — Multicores, Multiprocessors, and Clusters — 55 Chapter 7 — Multicores, Multiprocessors, and Clusters

56
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.15 Roofline model with ceilings. The top graph shows the computational “ceilings” of 8 GFLOPs/sec if the floating-point operation mix is imbalanced and 2 GFLOPs/sec if the optimizations to increase ILP and SIMD are also missing. The bottom graph shows the memory bandwidth ceilings of 11 GB/sec without software prefetching and 4.8 GB/sec if memory affinity optimizations are also missing. Chapter 7 — Multicores, Multiprocessors, and Clusters — 56 Chapter 7 — Multicores, Multiprocessors, and Clusters

57
**Optimizing Performance**

Morgan Kaufmann Publishers 11 April, 2017 Optimizing Performance Choice of optimization depends on arithmetic intensity of code Arithmetic intensity is not always fixed May scale with problem size Caching reduces memory accesses Increases arithmetic intensity Chapter 7 — Multicores, Multiprocessors, and Clusters — 57 Chapter 7 — Multicores, Multiprocessors, and Clusters

58
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.16 Roofline model with ceilings, overlapping areas shaded, and the two kernels from Figure Kernels whose arithmetic intensity land in the blue trapezoid on the right should focus on computation optimizations, and kernels whose arithmetic intensity land in the gray triangle in the lower left should focus on memory bandwidth optimizations. Those that land in the blue-gray parallelogram in the middle need to worry about both. As Kernel 1 falls in the parallelogram in the middle, try optimizing ILP and SIMD, memory affinity, and software prefetching. Kernel 2 falls in the trapezoid on the right, so try optimizing ILP and SIMD and the balance of floating-point operations. Chapter 7 — Multicores, Multiprocessors, and Clusters — 58 Chapter 7 — Multicores, Multiprocessors, and Clusters

59
**Morgan Kaufmann Publishers**

11 April, 2017 Four Example Systems 2 × quad-core Intel Xeon e5345 (Clovertown) §7.11 Real Stuff: Benchmarking Four Multicores … 2 × quad-core AMD Opteron X (Barcelona) Chapter 7 — Multicores, Multiprocessors, and Clusters — 59 Chapter 7 — Multicores, Multiprocessors, and Clusters

60
**Morgan Kaufmann Publishers**

11 April, 2017 Four Example Systems 2 × oct-core Sun UltraSPARC T (Niagara 2) 2 × oct-core IBM Cell QS20 Chapter 7 — Multicores, Multiprocessors, and Clusters — 60 Chapter 7 — Multicores, Multiprocessors, and Clusters

61
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.17 Four recent multiprocessors, each using two sockets for the processors. Starting from the upper left hand corner, the computers are: (a) Intel Xeon e5345 (Clovertown), (b) AMD Opteron X (Barcelona), (c) Sun UltraSPARC T (Niagara 2), and (d) IBM Cell QS20. Note that the Intel Xeon e5345 (Clovertown) has a separate north bridge chip not found in the other microprocessors.. Chapter 7 — Multicores, Multiprocessors, and Clusters — 61 Chapter 7 — Multicores, Multiprocessors, and Clusters

62
**Morgan Kaufmann Publishers**

11 April, 2017 And Their Rooflines Kernels SpMV (left) LBHMD (right) Some optimizations change arithmetic intensity x86 systems have higher peak GFLOPs But harder to achieve, given memory bandwidth Chapter 7 — Multicores, Multiprocessors, and Clusters — 62 Chapter 7 — Multicores, Multiprocessors, and Clusters

63
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.18 Characteristics of the four recent multicores. Although the Xeon e5345 and Opteron X4 have the same speed DRAMs, the Stream benchmark shows a higher practical memory bandwidth due to the inefficiencies of the front side bus on the Xeon e5345. Chapter 7 — Multicores, Multiprocessors, and Clusters — 63 Chapter 7 — Multicores, Multiprocessors, and Clusters

64
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.19 Roofline model for multicore multiprocessors in Figure The ceilings are the same as in Figure Starting from the upper left hand corner, the computers are: (a) Intel Xeon e5345 (Clovertown), (b) AMD Opteron X (Barcelona), (c) Sun UltraSPARC T (Niagara 2), and (d) IBM Cell QS20. Note the ridge points for the four microprocessors intersect the X-axis at the arithmetic intensities of 6, 4, 1/3, and 3/4, respectively. The dashed vertical lines are for the two kernels of this section and the stars mark the performance achieved for these kernels after all the optimizations. SpMV is the pair of dashed vertical lines on the left. It has two lines because its arithmetic intensity improved from to based on register blocking optimizations. LBHMD is the dashed vertical lines on the right. It has a pair of lines in (a) and (b) because a cache optimization skips filling the cache block on a miss when the processor would write new data into the entire block. That optimization increases the arithmetic intensity from 0.70 to It’s a single line in (c) at 0.70 because UltraSPARC T2 does not offer the cache optimization. It is a single line at 1.07 in (d) because Cell has local store loaded by DMA, so the program doesn’t fetch unnecessary data as do caches. Chapter 7 — Multicores, Multiprocessors, and Clusters — 64 Chapter 7 — Multicores, Multiprocessors, and Clusters

65
**Morgan Kaufmann Publishers**

11 April, 2017 Performance on SpMV Sparse matrix/vector multiply Irregular memory accesses, memory bound Arithmetic intensity 0.166 before memory optimization, 0.25 after Xeon vs. Opteron Similar peak FLOPS Xeon limited by shared FSBs and chipset UltraSPARC/Cell vs. x86 20 – 30 vs. 75 peak GFLOPs More cores and memory bandwidth Chapter 7 — Multicores, Multiprocessors, and Clusters — 65 Chapter 7 — Multicores, Multiprocessors, and Clusters

66
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.20 Performance of SpMV on the four multicores. Chapter 7 — Multicores, Multiprocessors, and Clusters — 66 Chapter 7 — Multicores, Multiprocessors, and Clusters

67
**Morgan Kaufmann Publishers**

11 April, 2017 Performance on LBMHD Fluid dynamics: structured grid over time steps Each point: 75 FP read/write, 1300 FP ops Arithmetic intensity 0.70 before optimization, 1.07 after Opteron vs. UltraSPARC More powerful cores, not limited by memory bandwidth Xeon vs. others Still suffers from memory bottlenecks Chapter 7 — Multicores, Multiprocessors, and Clusters — 67 Chapter 7 — Multicores, Multiprocessors, and Clusters

68
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.21 Performance of LBMHD on the four multicores. Chapter 7 — Multicores, Multiprocessors, and Clusters — 68 Chapter 7 — Multicores, Multiprocessors, and Clusters

69
**Achieving Performance**

Morgan Kaufmann Publishers 11 April, 2017 Achieving Performance Compare naïve vs. optimized code If naïve code performs well, it’s easier to write high performance code for the system System Kernel Naïve GFLOPs/sec Optimized GFLOPs/sec Naïve as % of optimized Intel Xeon SpMV LBMHD 1.0 4.6 1.5 5.6 64% 82% AMD Opteron X4 1.4 7.1 3.6 14.1 38% 50% Sun UltraSPARC T2 3.5 9.7 4.1 10.5 86% 93% IBM Cell QS20 Naïve code not feasible 6.4 16.7 0% Chapter 7 — Multicores, Multiprocessors, and Clusters — 69 Chapter 7 — Multicores, Multiprocessors, and Clusters

70
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.22 Base versus fully optimized performance of the four cores on the two kernels. Note the high fraction of fully optimized performance delivered by the Sun UltraSPARC T2 (Niagara 2). There is no base performance column for the IBM Cell because there is no way to port the code to the SPEs without caches. While you could run the code on the Power core, it has an order of magnitude lower performance than the SPES, so we ignore it in this figure. Chapter 7 — Multicores, Multiprocessors, and Clusters — 70 Chapter 7 — Multicores, Multiprocessors, and Clusters

71
**Morgan Kaufmann Publishers**

11 April, 2017 Fallacies Amdahl’s Law doesn’t apply to parallel computers Since we can achieve linear speedup But only on applications with weak scaling Peak performance tracks observed performance Marketers like this approach! But compare Xeon with others in example Need to be aware of bottlenecks §7.12 Fallacies and Pitfalls Chapter 7 — Multicores, Multiprocessors, and Clusters — 71 Chapter 7 — Multicores, Multiprocessors, and Clusters

72
**Morgan Kaufmann Publishers**

11 April, 2017 Pitfalls Not developing the software to take account of a multiprocessor architecture Example: using a single lock for a shared composite resource Serializes accesses, even if they could be done in parallel Use finer-granularity locking Chapter 7 — Multicores, Multiprocessors, and Clusters — 72 Chapter 7 — Multicores, Multiprocessors, and Clusters

73
**Morgan Kaufmann Publishers**

11 April, 2017 Concluding Remarks Goal: higher performance by using multiple processors Difficulties Developing parallel software Devising appropriate architectures Many reasons for optimism Changing software and application environment Chip-level multiprocessors with lower latency, higher bandwidth interconnect An ongoing challenge for computer architects! §7.13 Concluding Remarks Chapter 7 — Multicores, Multiprocessors, and Clusters — 73 Chapter 7 — Multicores, Multiprocessors, and Clusters

74
**MPC Intel Multicore Roadmaps**

75
**Morgan Kaufmann Publishers**

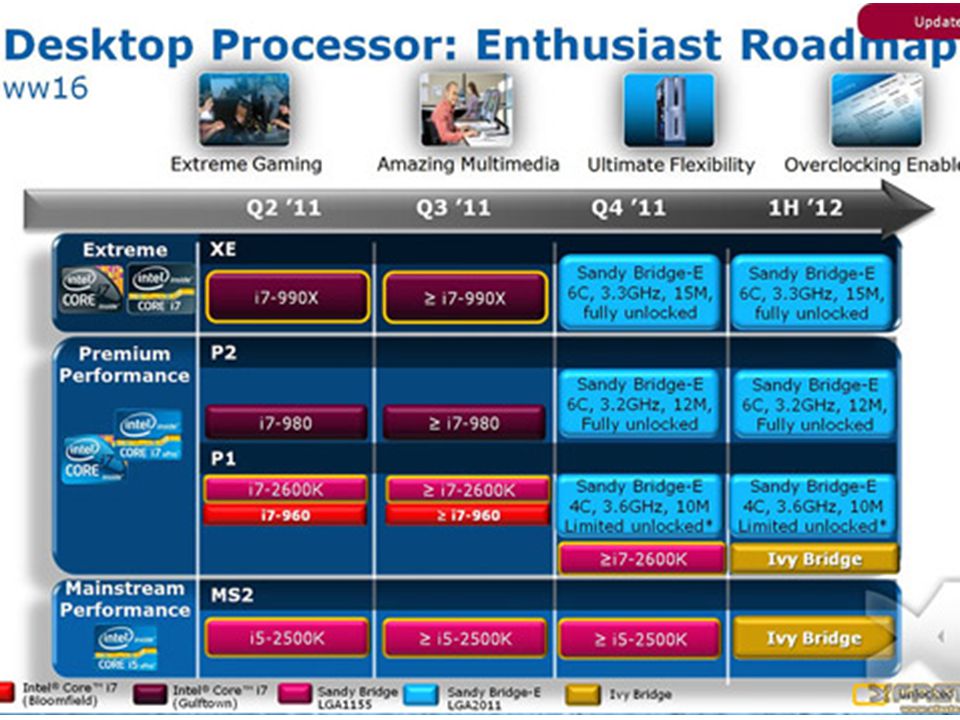

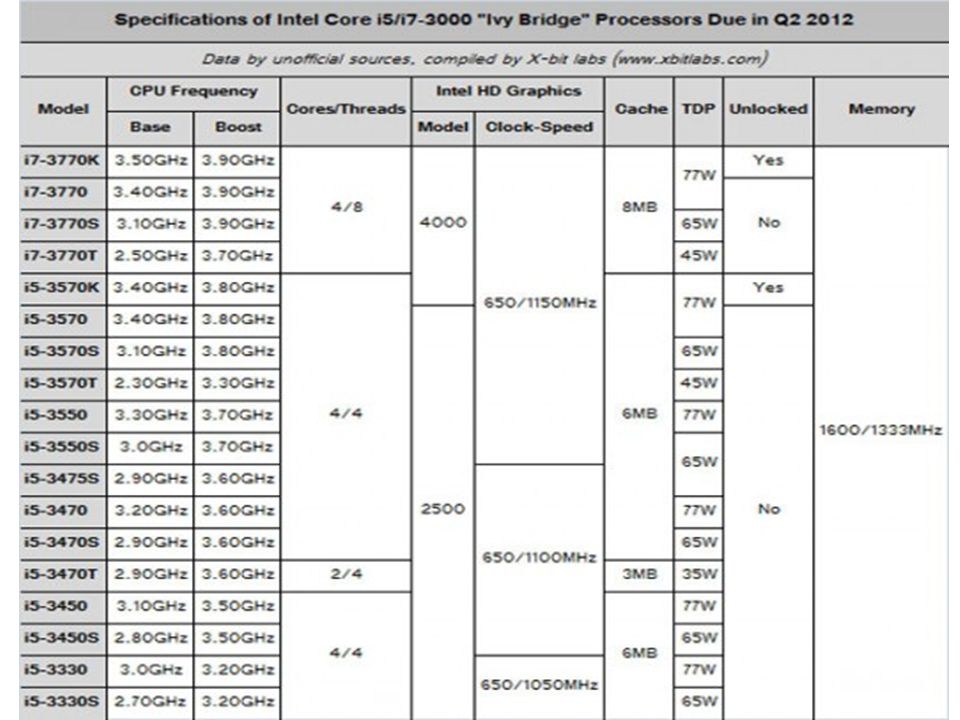

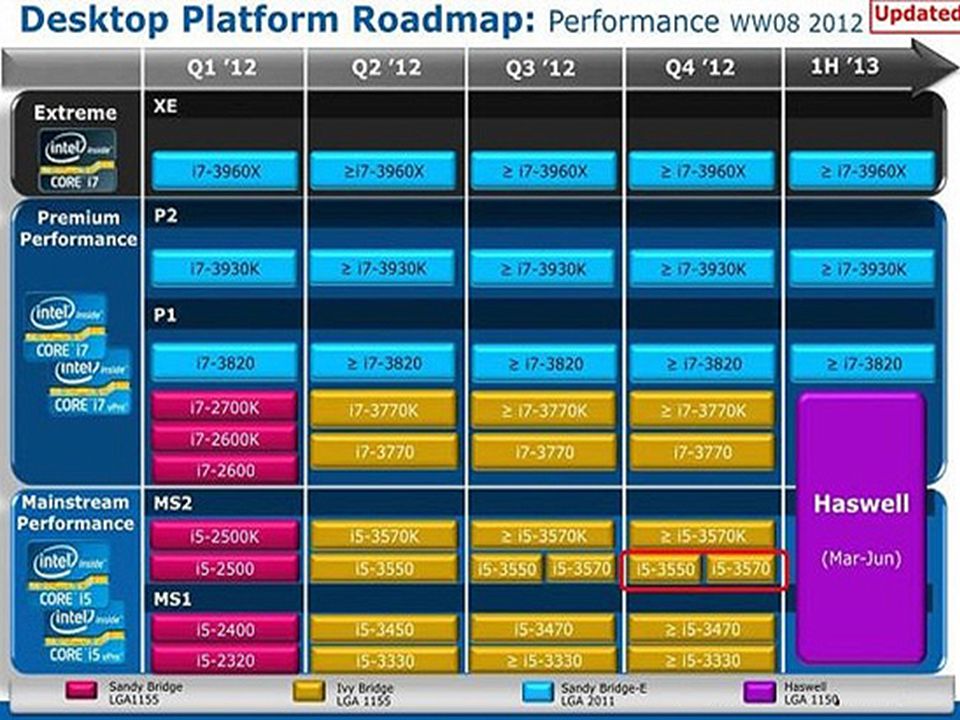

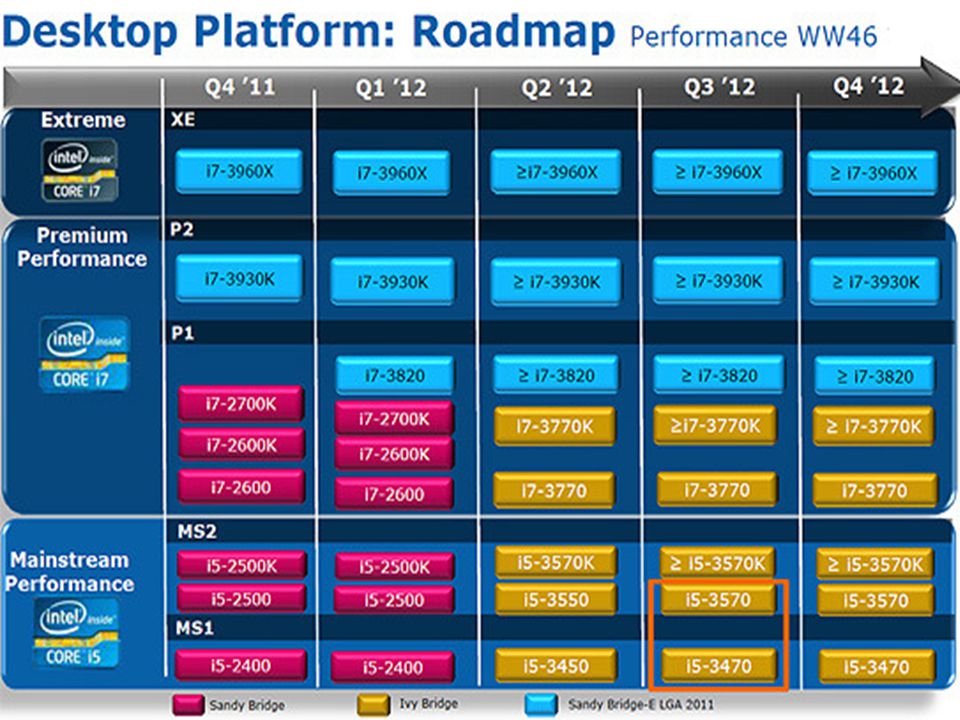

11 April, 2017 Intel® Pentium M (Pentium M = P6 Modified for Low Power Mobile) Pentium M Mobile Pentium 4 Mobile Intel® Celeron Basados en Pentium M (Celeron M) Basados en Microarquitectura Core Intel® Core Basados en Pentium M Core Duo Core Solo Basados en Microarquitectura Core Core 2 Solo Core 2 Duo Core 2 Quad Core 2 Extreme Basados en Microarquitectura Nehalem Core i3 Core i5 Core i7 Core vPro Chapter 7 — Multicores, Multiprocessors, and Clusters

76
**Morgan Kaufmann Publishers**

11 April, 2017 Chapter 7 — Multicores, Multiprocessors, and Clusters

86
**Morgan Kaufmann Publishers**

11 April, 2017 History of GPUs Early video cards Frame buffer memory with address generation for video output 3D graphics processing Originally high-end computers (e.g., SGI) Moore’s Law lower cost, higher density 3D graphics cards for PCs and game consoles Graphics Processing Units Processors oriented to 3D graphics tasks Vertex/pixel processing, shading, texture mapping, rasterization §7.7 Introduction to Graphics Processing Units Chapter 7 — Multicores, Multiprocessors, and Clusters — 86 Chapter 7 — Multicores, Multiprocessors, and Clusters

87
**Morgan Kaufmann Publishers**

11 April, 2017 Graphics in the System Chapter 7 — Multicores, Multiprocessors, and Clusters — 87 Chapter 7 — Multicores, Multiprocessors, and Clusters

88
**Morgan Kaufmann Publishers**

11 April, 2017 GPU Architectures Processing is highly data-parallel GPUs are highly multithreaded Use thread switching to hide memory latency Less reliance on multi-level caches Graphics memory is wide and high-bandwidth Trend toward general purpose GPUs Heterogeneous CPU/GPU systems CPU for sequential code, GPU for parallel code Programming languages/APIs DirectX, OpenGL C for Graphics (Cg), High Level Shader Language (HLSL) Compute Unified Device Architecture (CUDA) OpenCL Chapter 7 — Multicores, Multiprocessors, and Clusters — 88 Chapter 7 — Multicores, Multiprocessors, and Clusters

89
**Morgan Kaufmann Publishers**

11 April, 2017 Example: NVIDIA Tesla Streaming multiprocessor 8 × Streaming processors Chapter 7 — Multicores, Multiprocessors, and Clusters — 89 Chapter 7 — Multicores, Multiprocessors, and Clusters

90
**Morgan Kaufmann Publishers**

11 April, 2017 Example: NVIDIA Tesla Streaming Processors Single-precision FP and integer units Each SP is fine-grained multithreaded Warp: group of 32 threads Executed in parallel, SIMD style 8 SPs × 4 clock cycles Hardware contexts for 24 warps Registers, PCs, … Chapter 7 — Multicores, Multiprocessors, and Clusters — 90 Chapter 7 — Multicores, Multiprocessors, and Clusters

91
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.7 Comparing single core of a Sun UltraSPARC T2 (Niagara 2) to a single Tesla multiprocessor. The T2 core is a single processor and uses hardware-supported multithreading with eight threads. The Tesla multiprocessor contains eight streaming processors and uses hardware-supported multithreading with 24 warps of 32 threads (eight processors times four clock cycles). The T2 can switch every clock cycle, while the Tesla can switch only every two or four clock cycles. One way to compare the two is that the T2 can only multithread the processor over time, while Tesla can multithread over time and over space; that is, across the eight streaming processors as well as segments of four clock cycles. Copyright © 2009 Elsevier, Inc. All rights reserved. Chapter 7 — Multicores, Multiprocessors, and Clusters — 91 Chapter 7 — Multicores, Multiprocessors, and Clusters

92
**Morgan Kaufmann Publishers**

11 April, 2017 Classifying GPUs Don’t fit nicely into SIMD/MIMD model Conditional execution in a thread allows an illusion of MIMD But with performance degredation Need to write general purpose code with care Static: Discovered at Compile Time Dynamic: Discovered at Runtime Instruction-Level Parallelism VLIW Superscalar Data-Level Parallelism SIMD or Vector Tesla Multiprocessor Chapter 7 — Multicores, Multiprocessors, and Clusters — 92 Chapter 7 — Multicores, Multiprocessors, and Clusters

93
**Morgan Kaufmann Publishers**

11 April, 2017 FIGURE 7.8 Hardware categorization of processor architectures and examples based on static versus dynamic and ILP versus DLP. Chapter 7 — Multicores, Multiprocessors, and Clusters — 93 Chapter 7 — Multicores, Multiprocessors, and Clusters
