3M Electronic Solutions Division © 3M All Rights Reserved. 3M™ Transport Products Introduction

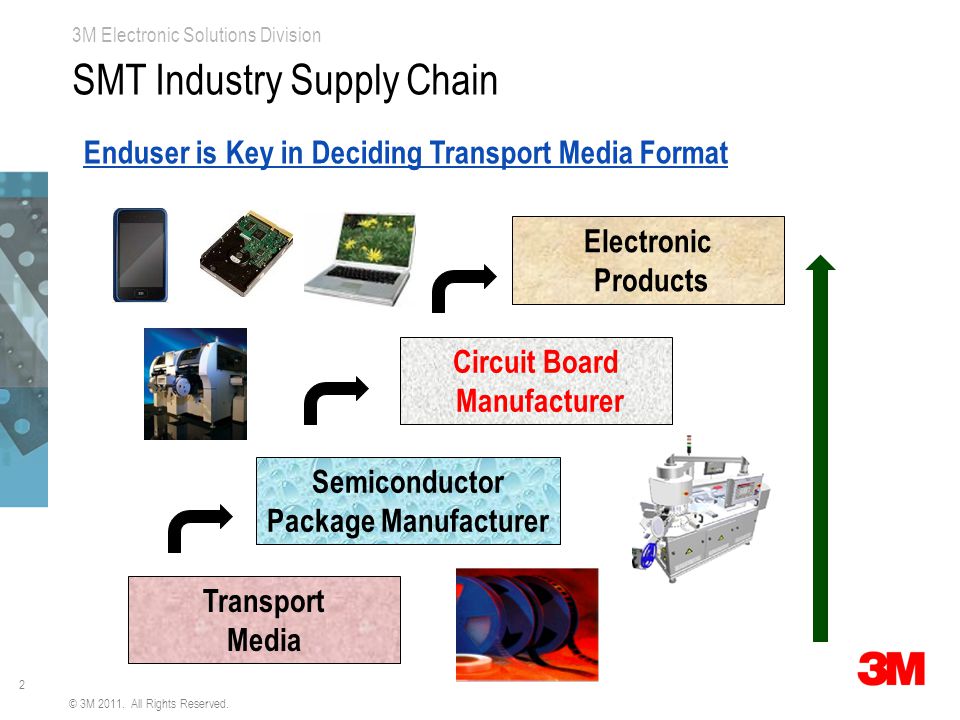

2 3M Electronic Solutions Division SMT Industry Supply Chain Enduser is Key in Deciding Transport Media Format © 3M All Rights Reserved. Transport Media Semiconductor Package Manufacturer Circuit Board Manufacturer Electronic Products

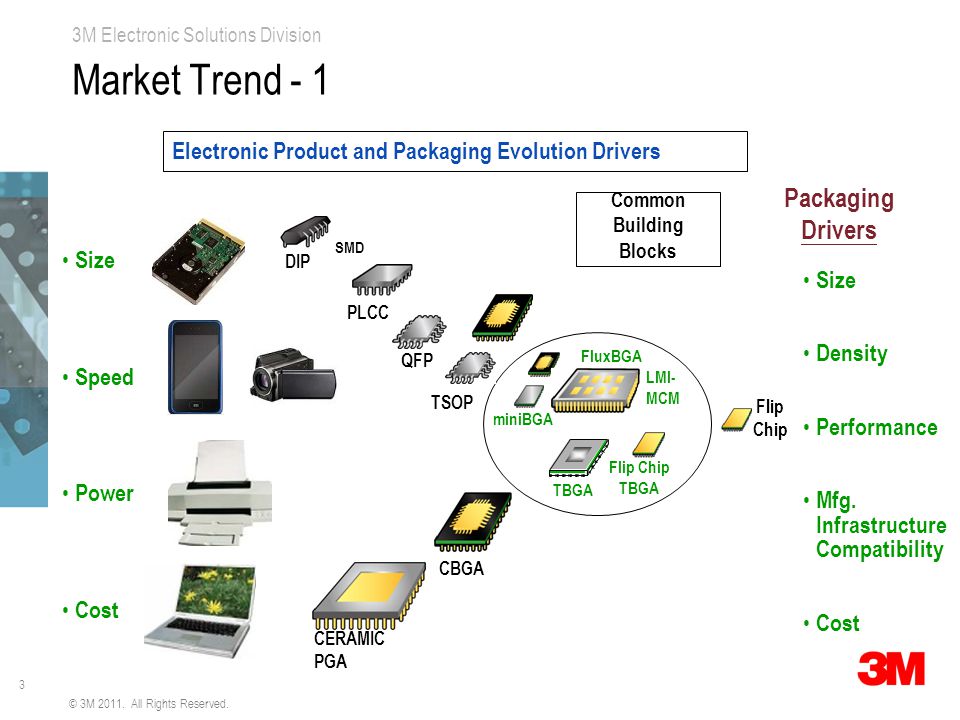

3 3M Electronic Solutions Division Market Trend - 1 Size Density Performance Mfg. Infrastructure Compatibility Cost Packaging Drivers Size Speed Power Cost Common Building Blocks TSOP CBGA CERAMIC PGA DIP PLCC TBGA LMI- MCM FluxBGA Flip Chip Flip Chip TBGA SMD Electronic Product and Packaging Evolution Drivers QFP miniBGA © 3M All Rights Reserved.
4 3M Electronic Solutions Division Transport Market Segments © 3M All Rights Reserved.

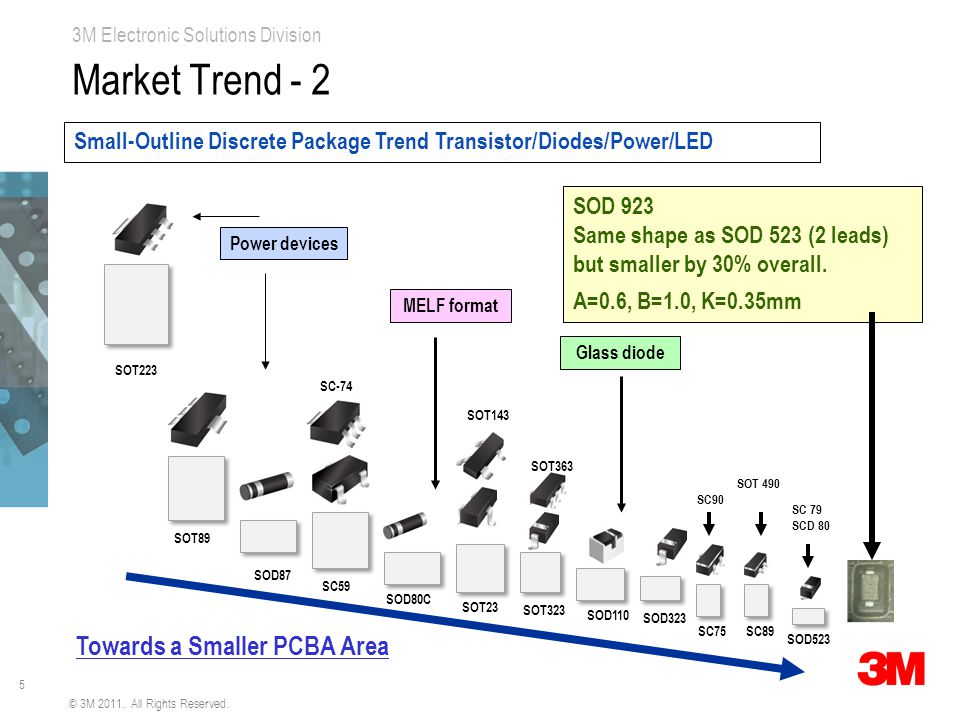

5 3M Electronic Solutions Division Market Trend - 2 Small-Outline Discrete Package Trend Transistor/Diodes/Power/LED SOD 923 Same shape as SOD 523 (2 leads) but smaller by 30% overall. A=0.6, B=1.0, K=0.35mm Towards a Smaller PCBA Area SOT 490 SC 79 SCD 80 SC90 Glass diode Power devices MELF format SOT223 SOT89 SOD87 SC-74 SC59 SOD80C SOT143 SOT23 SOT363 SOT323 SOD110 SOD323 SC75SC89 SOD523 © 3M All Rights Reserved.

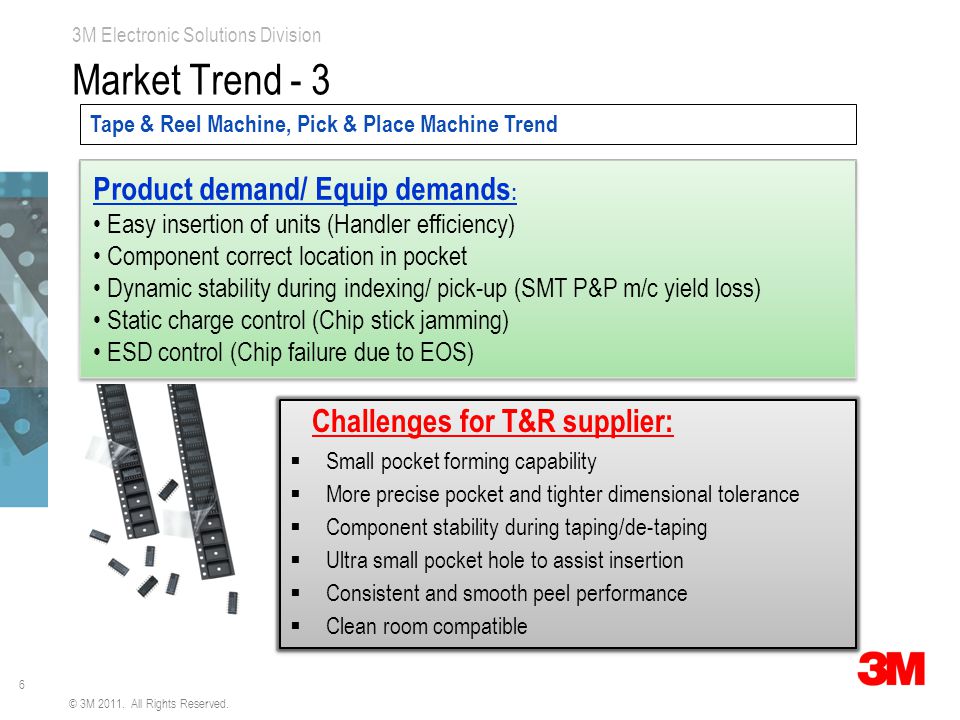

6 3M Electronic Solutions Division Market Trend - 3 Tape & Reel Machine, Pick & Place Machine Trend Product demand/ Equip demands : Easy insertion of units (Handler efficiency) Component correct location in pocket Dynamic stability during indexing/ pick-up (SMT P&P m/c yield loss) Static charge control (Chip stick jamming) ESD control (Chip failure due to EOS) Product demand/ Equip demands : Easy insertion of units (Handler efficiency) Component correct location in pocket Dynamic stability during indexing/ pick-up (SMT P&P m/c yield loss) Static charge control (Chip stick jamming) ESD control (Chip failure due to EOS) Challenges for T&R supplier: Small pocket forming capability More precise pocket and tighter dimensional tolerance Component stability during taping/de-taping Ultra small pocket hole to assist insertion Consistent and smooth peel performance Clean room compatible Challenges for T&R supplier: Small pocket forming capability More precise pocket and tighter dimensional tolerance Component stability during taping/de-taping Ultra small pocket hole to assist insertion Consistent and smooth peel performance Clean room compatible © 3M All Rights Reserved.

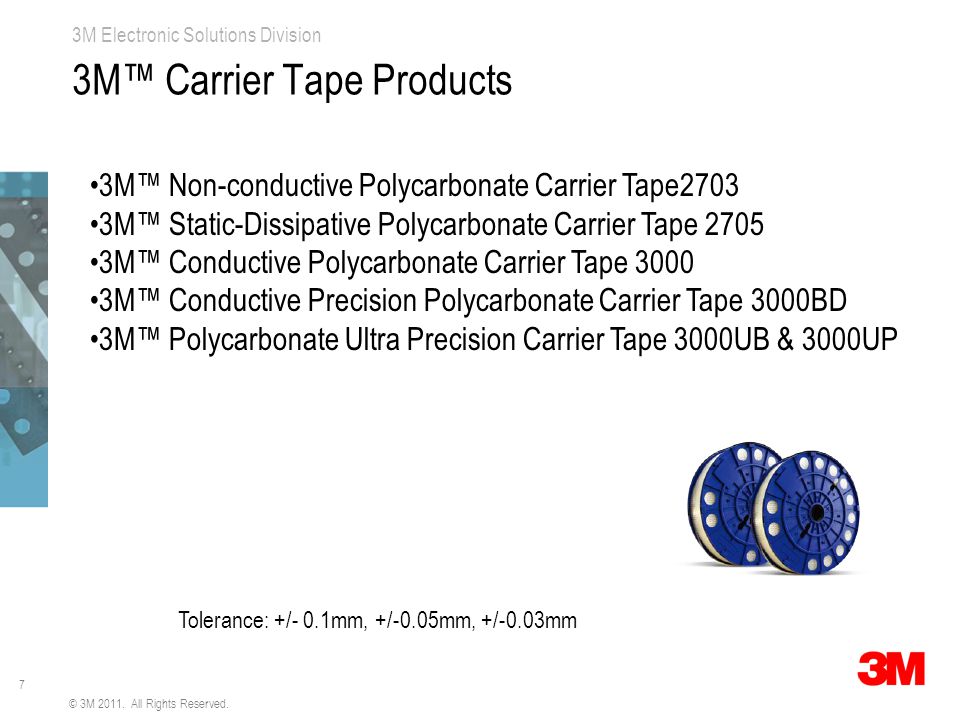

7 3M Electronic Solutions Division 3M™ Carrier Tape Products 3M™ Non-conductive Polycarbonate Carrier Tape2703 3M™ Static-Dissipative Polycarbonate Carrier Tape M™ Conductive Polycarbonate Carrier Tape M™ Conductive Precision Polycarbonate Carrier Tape 3000BD 3M™ Polycarbonate Ultra Precision Carrier Tape 3000UB & 3000UP Tolerance: +/- 0.1mm, +/-0.05mm, +/-0.03mm © 3M All Rights Reserved.

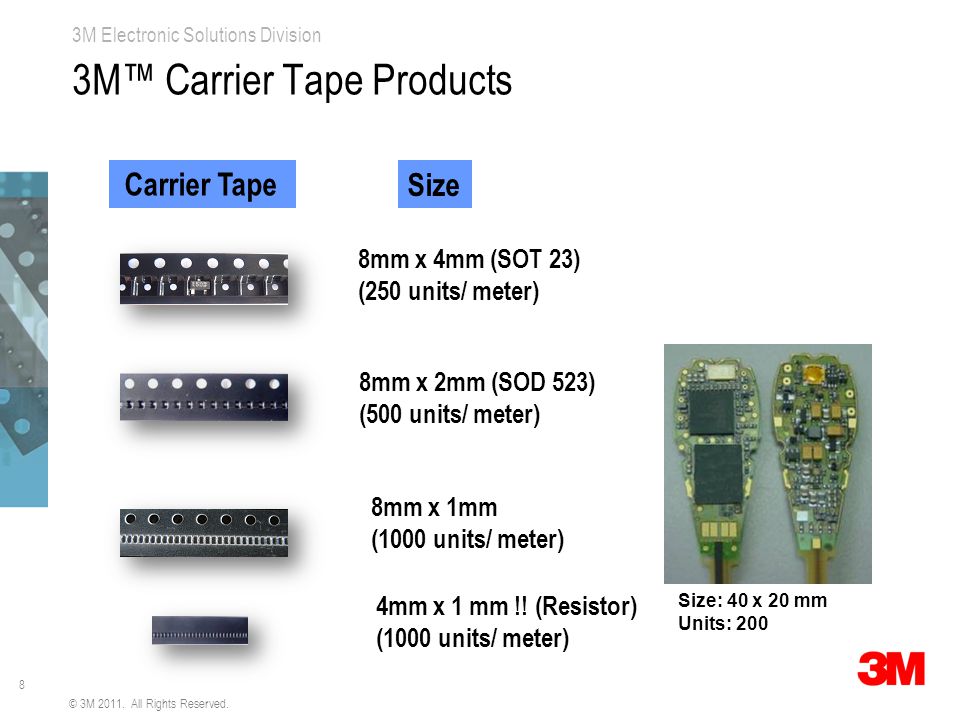

8 3M Electronic Solutions Division 3M™ Carrier Tape Products 4mm x 1 mm !! (Resistor) (1000 units/ meter) 8mm x 2mm (SOD 523) (500 units/ meter) 8mm x 1mm (1000 units/ meter) Size Carrier Tape 8mm x 4mm (SOT 23) (250 units/ meter) Size: 40 x 20 mm Units: 200 © 3M All Rights Reserved.

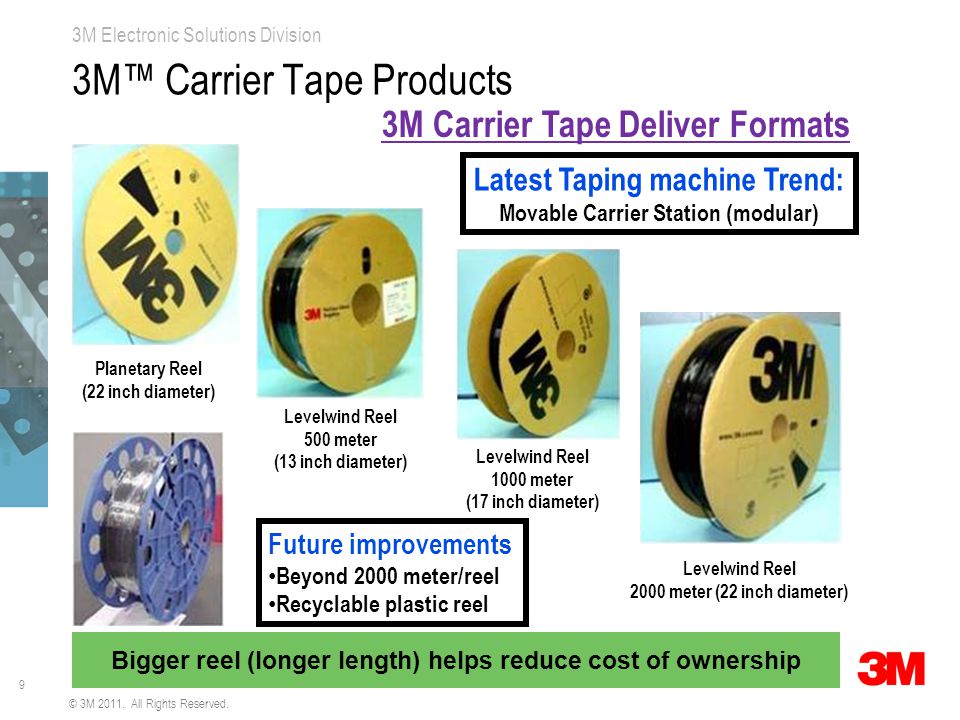

9 3M Electronic Solutions Division 3M™ Carrier Tape Products 3M Carrier Tape Deliver Formats Planetary Reel (22 inch diameter) Levelwind Reel 500 meter (13 inch diameter) Levelwind Reel 1000 meter (17 inch diameter) Levelwind Reel 2000 meter (22 inch diameter) Latest Taping machine Trend: Movable Carrier Station (modular) Future improvements Beyond 2000 meter/reel Recyclable plastic reel Bigger reel (longer length) helps reduce cost of ownership © 3M All Rights Reserved.

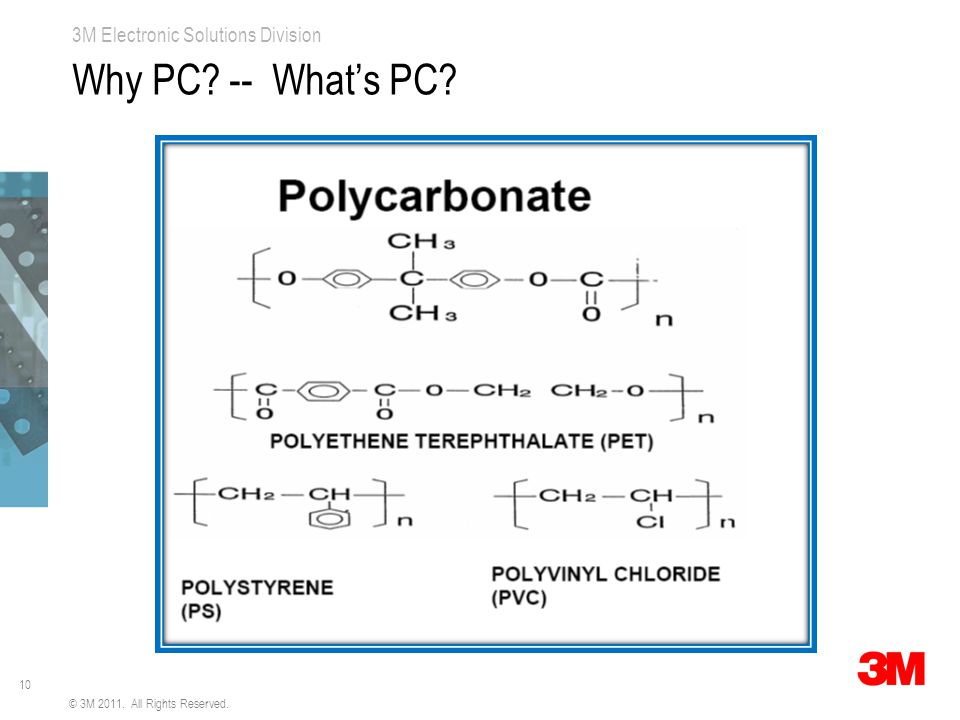

10 3M Electronic Solutions Division Why PC? -- What’s PC? © 3M All Rights Reserved.

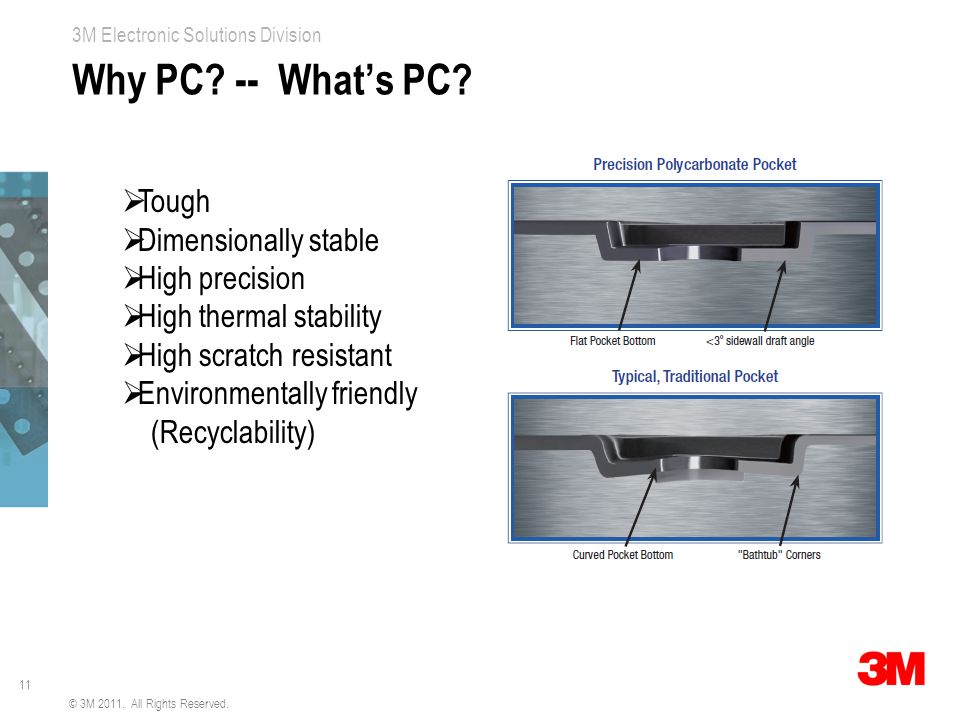

11 3M Electronic Solutions Division Why PC? -- What’s PC? Tough Dimensionally stable High precision High thermal stability High scratch resistant Environmentally friendly (Recyclability) © 3M All Rights Reserved.
12 3M Electronic Solutions Division Why PC? – Typical Data PolycarbonatePolystyrenePETGPVC Shrinkage (60C/85%RH) 0.5%>1.0% Max Usage Temp125°C 80°C65°C 65°C Tensile Yield9.5E3 psi7.0E3 psi7.0E3 psi9.0E3 psi Heat Deflection Temp 135 °C100°C 80°C 90°C IZOD Impact Resistance 16<142 Recyclability YesYesYesNo © 3M All Rights Reserved.

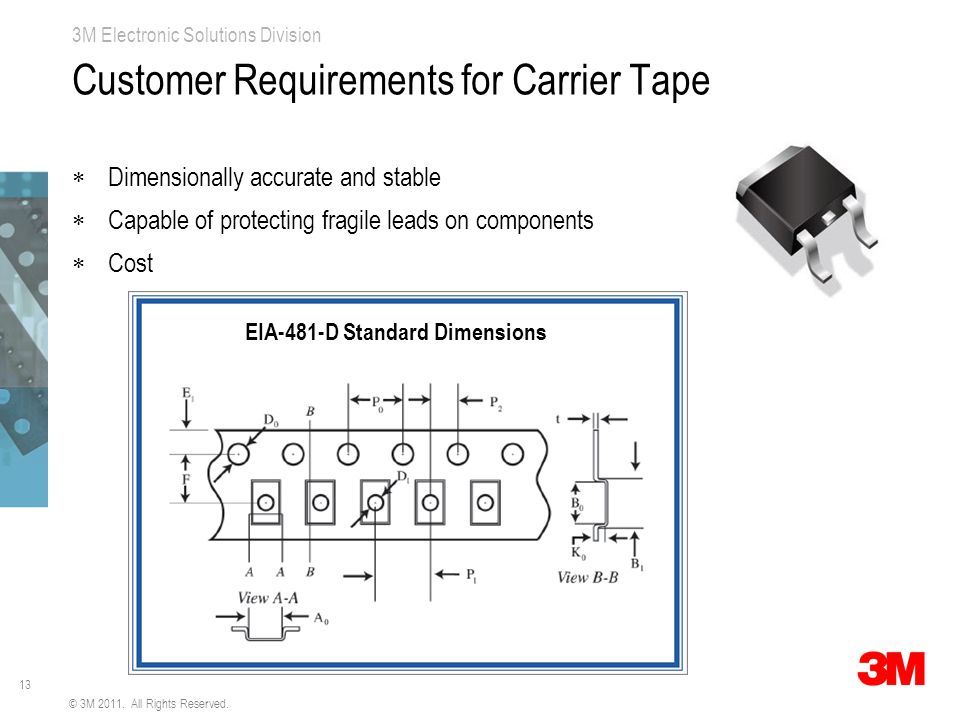

13 3M Electronic Solutions Division Customer Requirements for Carrier Tape Dimensionally accurate and stable Capable of protecting fragile leads on components Cost © 3M All Rights Reserved. EIA-481-D Standard Dimensions
14 3M Electronic Solutions Division 3M™ Cover Tape Roadmap HAA Cover Tape 2672 NC 2675 SD 2678 SD PSA Cover Tape 2656 NC 2666 SD 1994 PSA Cover Tape 2658 HS -NC 2668 HS - SD 2000 Universal Cover Tape 2688A – SD HAA Cover Tape 2671A - SD ’s NC = Non Conductive SD = Static Dissipative HS = High Shear HAA = Heat Activated Adhesive PSA = Pressure Sensitive Adhesive © 3M All Rights Reserved.
15 3M Electronic Solutions Division 3M™ Cover Tape Products HAA -- Heat Activated Adhesive 3M™ Non-Conductive Cover Tape 2672 3M™ Static Dissipative Cover Tape 2675 3M™ Static Dissipative (High Transparency) Cover Tape 2678 3M™ Static Dissipative Cover Tape 2671A PSA -- Pressure Sensitive Adhesive 3M™ Non-Conductive Cover Tape 2656 3M™ Static Dissipative Cover Tape 2666 3M™ Non-Conductive (High shear type) Cover Tape 2658 3M™ Static Dissipative (High shear type) Cover Tape 2668 UCT – Universal Cover Tape 3M™ Static Dissipative Cover Tape 2688A © 3M All Rights Reserved.
16 3M Electronic Solutions Division Backing: Plastic Film Tie-layer Adhesive © 3M All Rights Reserved. 3M™ Heat Activated Adhesive (HAA) Cover Tape Construction
17 3M Electronic Solutions Division Backing: Plastic Film Primer Adhesive Static-Dissipative/Non-Conductive layer Blocker: Plastic Film © 3M All Rights Reserved. 3M™ Pressure Sensitive Adhesive (PSA) Cover Tape Construction
18 3M Electronic Solutions Division 3M™ Universal Cover Tape (UCT) Construction Plastic Film PSA Adhesive Static Dissipative Coating Peel Initiation Feature

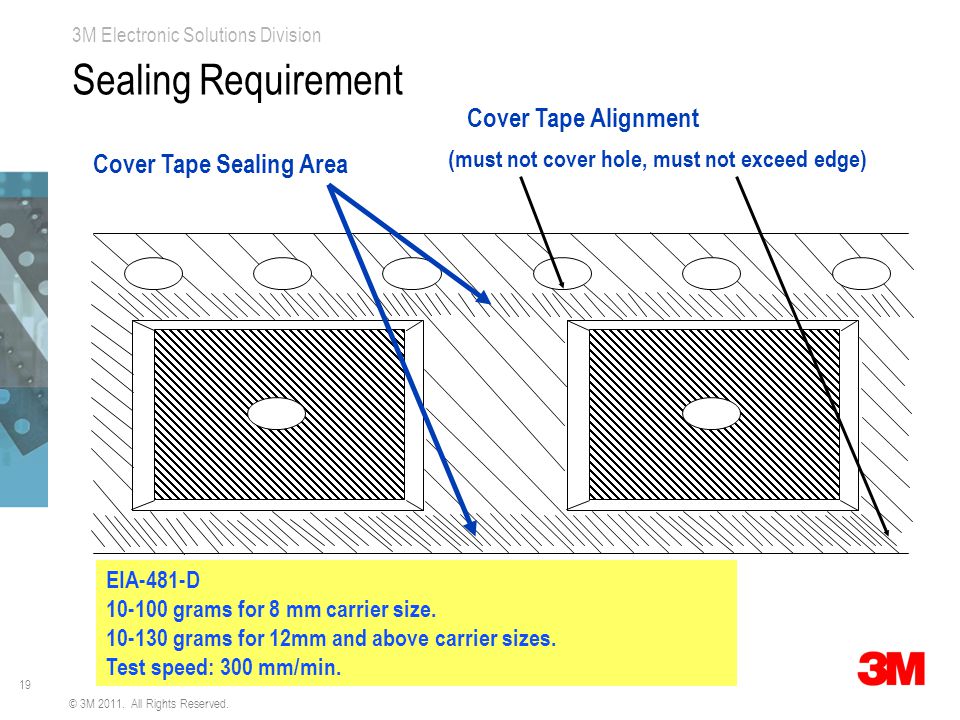

19 3M Electronic Solutions Division Sealing Requirement Cover Tape Sealing Area Cover Tape Alignment (must not cover hole, must not exceed edge) EIA-481-D grams for 8 mm carrier size grams for 12mm and above carrier sizes. Test speed: 300 mm/min. © 3M All Rights Reserved.

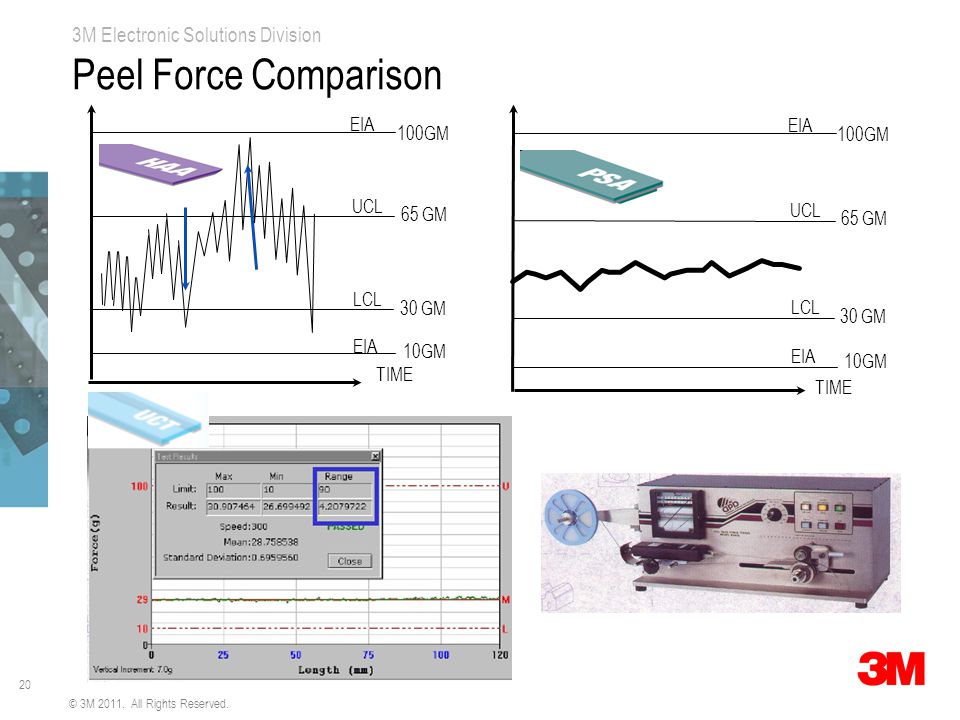

20 3M Electronic Solutions Division Peel Force Comparison TIME UCL 65 GM 30 GM EIA LCL 100GM 10GM TIME UCL LCL EIA 65 GM 30 GM 10GM 100GM EIA © 3M All Rights Reserved.
21 3M Electronic Solutions Division Customer Requirements for Cover Tape Smooth and consistent removal force, tight range. Removal force within EIA standard. No unsealing during transit. ESD protection No adhesive or debris buildup on feeder. No tape break during detaping. © 3M All Rights Reserved.

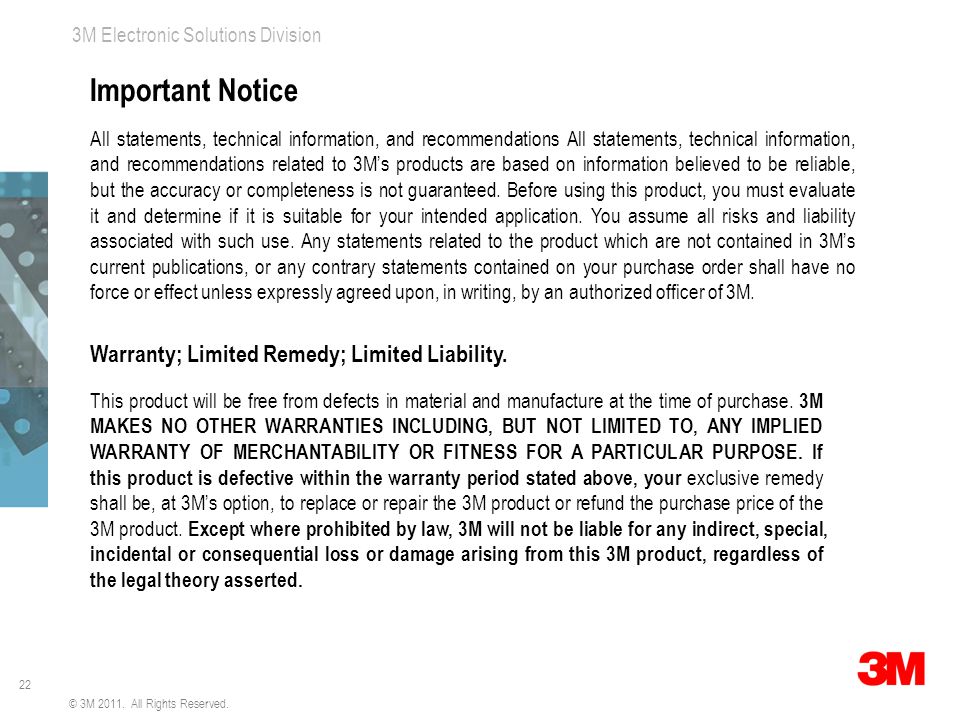

22 3M Electronic Solutions Division © 3M All Rights Reserved. All statements, technical information, and recommendations All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M. Important Notice This product will be free from defects in material and manufacture at the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted. Warranty; Limited Remedy; Limited Liability.
23 3M Electronic Solutions Division Thank You © 3M All Rights Reserved.
