Last Mile Convergence for Business/Residential Connection and 2G/3G Backhauling Kevin Wang Product Manager, RAISECOM

2 Raisecom creates future
Total solution provider of optical broadband access, focuses on the high-end carrier-grade market worldwide Ubiquitous Ethernet delivery applications over existing E1/T1, E3/DS3 and STM-1 infrastructure with better flexibility in terms of guaranteed bandwidth, and network QoS. Providing an easily accessible solution for corporation users. Striving to lead in the invention, development and manufacture of the industry’s most advanced broadband access technologies. Raisecom technologies is a leading global provider of optical + Ethernet networking, TDM leased line and multi-service solution for rapid and cost effective provisioning of high speed, data, voice and video services in Metropolitan area. Leveraging core competencies in optical, Ethernet, TDM and multi-service technologies together with expertise in carrier applications. Raisecom technologies focuses on delivering Carrier Ethernet service and Multi-service from enterprise sites to carriers regional infrastructure. Raisecom creates future

3 Raisecom Global Presence
RAISECOM employees Sales 180 R&D 320 Management 25 Technical 215 Manufacture 271 Marketing

4 Production Facility world class efficiency
Shenzhen section: 4,000M2, mass production. Beijing section 3,600M2 Pilot production, SMT, and wave-soldering Typical production period: days

5 Global customer reference

6 RAISECOM Targeted Market
Carrier • Access/DSLAM backhaul • Leased line service • Carrier Ethernet service • Backhaul hybrid for 2G BTS to BSC and 3G NodeB to RNC • High speed data communication Enterprise • Financial & healthcare • research & education • Government/Federal Carrier and Enterprise application leadership Optical+Ethernet and TDM+multi-service innovation leadership

7 Quality assurance and services
Warranty: 2-year, 6-year, life-time Average problem rate: <0.3%, based on 3-year statistics for over 2,000,000 pc devices Replacement & repair: <30 days Services : Telephone assistance (9:00am to 6:00pm) Remote Internet Analysis for performance on-line On site support Training course Authorized distributors and engineers

8 Trends of Network Convergence
Network Convergence for Operator, Service Provider and Carrier Meeting the ever-growing customer demands Extending presence of major business locations Able to provide cost-effective solution for voice, date, and video services Unified management Providing On demand bandwidth Lowest CAPEX & OPEX : invest as the business grow Now network operator meet the challenges as followings for the customer convergence. Carrier must meet the ever-growing customer demand such as on demand bandwidth and cost-effective solution for multi-service under the single platform with lowest CAPEX and OPEX

9 Technology Leadership
Brings advantages of core competence to operators and carriers Leads Innovative Access Solution to operators and carriers One access platform covers almost all services for carriers One access platform hybrid meets access extension using copper (G.SHDSL or E1 technology) and fiber resource All service modules can be deployed into C.O chassis and remote standalone chassis to save the inventory cost and spare/maintenance parts cost and space of cabinet and All service modules is designed for plug&play&manage to maximum save the OPEX of technician training Unified SNMP management platform are available for all service both in C.O and remote site to meet Carrier-class requirement Pay as grow to optimized CAPEX

10 Raisecom Innovative Solutions with Multiple Product lines
Ethernet Services and Delivery Multi-Service Modem Pool Multi-Service Access Platform Multi-Service Access Node CWDM system Video Surveillance Raisecom diversified solutions can meet these challenges and provide cost effective multiservice solutions for carriers

11 Ethernet Services and Delivery
Ethernet over Fiber Ethernet over PDH (E1/E3/DS3) Ethernet over SDH (STM1/STM4)

12 Ethernet over fiber- Ethernet service delivery and aggregation
I believe this is the most popular solution for delivering Carrier Ethernet service to residential and business building. Raisecom winning benefit is we deploy all of the L2 function on demarc point such as SLA guarrantte bandwidth management VLAN stacking for transparent transmitting enterprise VLAN, IP stacking for diagnosing and testing without truck rolls.

13 RC551 is served as an Ethernet demarcation point between carriers and end-users
IEEE802.3ah OAM enhancement End-to-end management and SLA agreement for end-users VLAN stacking (Q-in-Q) and QoS guarantee Unique IP stacking technology for network diagnostic and troubleshooting Deployment of carrier-class intelligent demarcation device at customer premises enables carrier to deliver managed Ethernet service end-to-end over fiber local loop. This approach facilitates service differentiation so that the operator can prioritize and separate each user’s traffic and offer the services such as inter-office LAN connectivity, Internet Access and secure VPN service. It permits end-to-end control up to customer premise and enforcement of service level agreement. This application could feature per service rate limitation and traffic prioritization to enable the service provider to roll out multiple services and VPNs with different class of service parameters, over packet-switched network. These devices also support VLAN stacking, for mapping the user’s private VLAN to carrier’s service VLAN and assigning different attributes to different users or services.

14 L2/L3 Switches – Ethernet service switching and aggregation
Targeted at both carrier and enterprise market Many carriers also utilize Raisecom intelligent L2 access switch and aggregation switch to replace Cisco equivalent switch to build the campus, federal and enterprise network.

15 Various applications for Switches
OneTouch Network Platform VIP: Ethernet Leased Line Residents: Internet, IPTV ISCOM 1008E ISCOM 2126E ISCOM 2828F RC552 ISCOM 3026E ISCOM 2008 Softswitch gateway RC551 IPTV gateway ISCOM 3026E ISCOM 2026 ISCOM 1005M ISCOM 2924GF Metro Ethernet ISCOM 3026E ISCOM 3012GF ISCOM 3012GF ISCOM 2826E ISCOM 2852 ISCOM 2017 Residents: Internet, IPTV ISCOM 3012GF Enterprises: Internet, E-commerce ISCOM 2812GF ISCOM 2926 ISCOM 2828F ISCOM 2826E ISCOM 2126F PSE 12 DSLAM Power over Ethernet ISCOM 2016 Residents: Internet ISCOM 2008 ISCOM 2026 Residents: Internet

16 FTTH – future-oriented GEPON provides Triple-Play or Multi-Play services
Another reason why fibre will eventually become a cost-effective replacement for copper at the home and office might very well turn out to be the proliferation of passive optical networks (PONs), a high-bandwidth, passive point-to-multipoint optical architecture. PONs divide wavelengths of light into timeslots so that each wavelength can be shared by a number of users. This is accomplished by using passive devices to split the optical signal and PON protocols to control the traffic across the shared access facility. In this way, a single fibre from the carrier’s exchange can be shared by separate final users, drastically reducing the costs of provisioning FTTH and FTTO. 4*GEPON interfaces for tributary and 4*Combo interfaces for aggregation trunk 1:32 ratio in 20km and 1:64 ratio in 10km per PON interface 4k VLAN, QoS, and L2~L4 ACL support for SLA agreement IEEE802.3ah OAM enhanced end-to-end management

17 Ethernet over 1/4/8E1 P-to-MP Carrier Ethernet service deployment and aggregation
Effective backhauling IP DSLAMs to SDH network Easy and fast Carrier Ethernet service delivery and aggregation on existing PDH/SDH infrastructure VLAN-unaware and VLAN-aware transparent services with different bandwidth requirement SNMP/Telnet/Local Craft Terminal support for end-to-end management

18 Ethernet over 16E1 inverse multiplexing
Ethernet over E3/DS3 Ethernet over 16E1 inverse multiplexing We can deliver Carrier Ethernet service on remote site using TDM backbone. The bandwidth depends on customer growing requirement. The traffic will be aggregated in channelized STM-1 or 16 E1 lines in central office. This is state of art solution to meet carrier Ethernet deployment. RC952-FEDS3/E3 Provides 34M/44Mbps; RC959-4FE16E1 provides 32Mbps throughput End-to-end management

19 Extending Guaranteed Bandwidth Carrier Ethernet over TDM network
Accessing diversified services such as IP DSLAM, IAD, WiMax and enterprise customer service from a LAN switch Aggregating up to 96 E1 carrying diversified Ethernet services from remote sites to central chassis

20 Fast/Gigabit Ethernet over SDH STM-1
Gigabit Ethernet over protected SDH STM-4 Backhauling IP DSLAMs to SDH network End-to-end management

21 Gigabit Ethernet over STM-4 deployment and aggregation
Backhauling and aggregating IP DSLAMs over SDH network End-to-end management

22 Multi-Service Modem Pool
Raisecom ‘s multiservice modem pool offers a winning and innovative access network deployment strategy for CLEC and incumbent carriers. It enables carrier to speed up the return on the investment of access network equipment as well as generate additional revenue streams from enhanced services.

23 All-in-one modem pool – the versatility of access network
Fiber Modem/G.SHDSL Modem/Interface Converter Media converter /Mode converter /Multi-Service PDH Multiplexer /4-8 E1s inverse multiplexer/CWDM converter/Video converter

24 All-in-one modem pool (cont.)
This is another multi-service modem pool to feed simultaneously high speed and legacy data service, analog voice service, leased line service and backhauling of Mobile BTS and connectivity WiMAX CPE to Metro Ethernet. it could hybrid support for multiple level PDH products 1.cost effective E1 extension PDH product up to 16E1 2.PCM multiplexers analog voice and legacy data service for enterprise customers 3.carrier grade multi-service PDH product with up to 16 E1s and 1V.35 and 10/100M Ethernet interface. Redundant fiber optic links and power supply could guarantee the maximum networking uptime. Switching over time from primary fiber link to secondary is less than 50ms. This platform could supply SNMP management, TELNET, and local craft terminal management through RS232 interface. Full range of management makes carrier to easily operate and monitor local and remote device anywhere.

25 Multi-Service STM-1 CPE

26 Next generation SDH ADM - 16*E1 + 8*FE transportation over STM-1

27 STM-1 Multiplexer Backhaul E1 lines to Microwave STM-1
Backhaul BTS to BSC for Mobile network

28 Multi-Service Access Platform

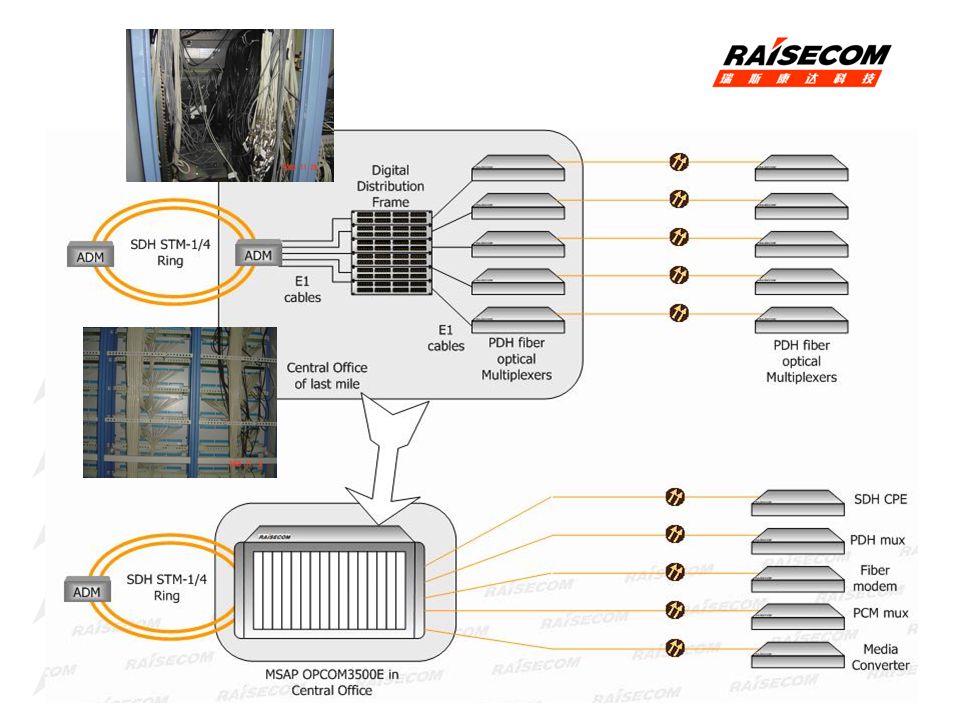

Until recently, service model for carriers and service providers focuses on delivering bandwidth to a stable, predictable customer base through the deployment of various transport technologies. In today’s telecommunication jungles, unfortunately, the old paradigm no longer holds. Successful carriers will be those that can build out new service quickly, while keeping a tight rein on the infrastructure outlays and maintenance costs.


30 One platform, all services - trunk: up to 4 STM-1/2 STM-4/2GE - tributary: up to 160 E1/80 V.35/20 STM-1/80 FE/80 G.SHDSL

31 Interoperate between Access Backhaul Provider and Wholesale Carrier

32 Multi-Service Access Node

33 Enterprise PCM total solution
Although our world is moving to broadband packet based future, legacy narrow band application still has a big market. Raisecom combined ethernet v.35, rs 232 fxs, fxo, Em and E1 service into single box with STM-1 and fractional E1 uplink. Multi-service application with DS0 cross connect function will bring the optimized TDM investment. Services supported: V.35, FXO, FXS, E&M, Magneto Telephone, 10Base-T, RS232/V.24 128 E1 DXC matrix 96 E1 capacity per RC 1+1 transmission redundancy

34 Coarse Wavelength Division Multiplexing
For optimizing fiber resource of curb, Raisecom provides CWDM system to access customers.

35 Point-to-point solution
Expanding fiber capacity effectively and instantly to 40Gbps Point-to-point solution This is a typical solution for the transmission of 8 services over one fiber pair by utilizing SNMP manageable RC chassis, Fast/gigabit Ethernet to CWDM specific wavelength converter, optical wavelength converter and CWDM MUX/DE-MUX. It is hub-and-spoke topology which is a chain topology in physical and point-to-multipoint in logical, the central office can communicate with up to 8 dispersed branches through one fiber pair. In central office RC slot chassis is installed for high-density CWDM wavelength conversion and CWDM MUX/DE-MUX OPCOM200-OMD8 is used for the multiplexing and de-multiplexing. In each branch, a single slot chassis with CWDM wavelength converter is installed for a single CWDM wavelength conversion and Optical Add/Drop module OPCOM200-OAD1D is used for a specific CWDM channel termination. Daisy-chain solution

36 Protection for mission-critical applications
Optical Channel Protection High availability and reliability is very important for mission-critical networks. Few seconds’ interruption of high-speed optical connection of CWDM system will result in a huge loss of data information, which means a huge loss of money. Redundant links of line site can greatly improve the reliability and maximize the uptime of the CWDM system. Raisecom CWDM system provides carriers with both optical line protection & restoration card for the 1+1 protection for line site and optical channel protection card for a particular important channel. Optical Line Protection

37 Video Surveillance For optimizing fiber resource of curb, Raisecom provides CWDM system to access customers.

38 Video surveillance with aux reverse control signal
For optimizing fiber resource of curb, Raisecom provides CWDM system to access customers. Video multiplexer modules are available in 3U & 6U modem pools

39 Raisecom NView NNM5 Platform

40 Topology, device and alarm management
