E3 – Stellar distances

2

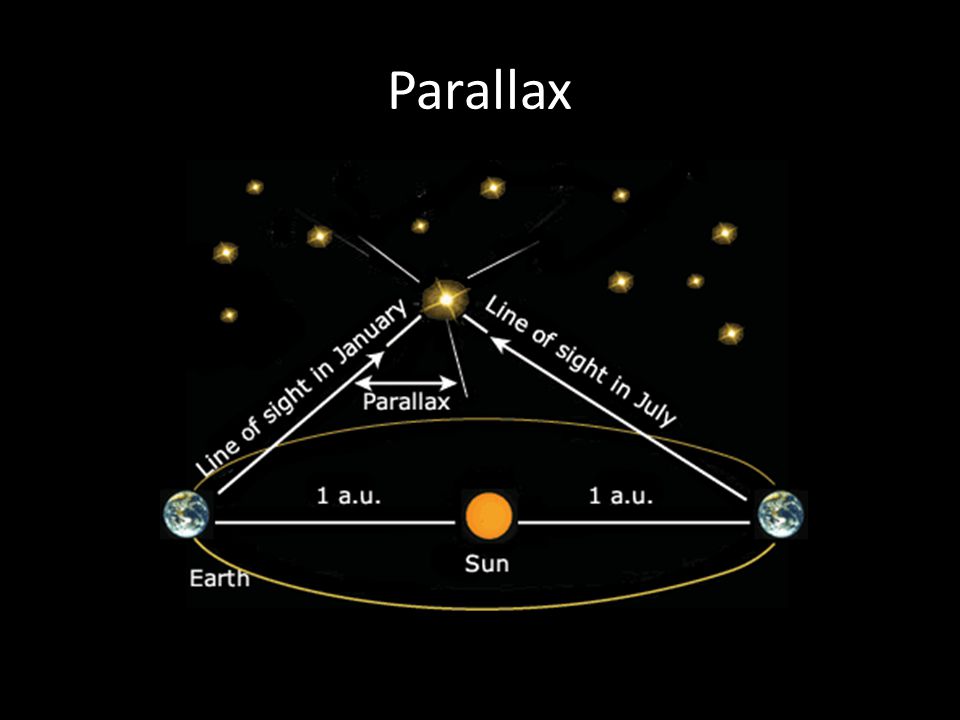

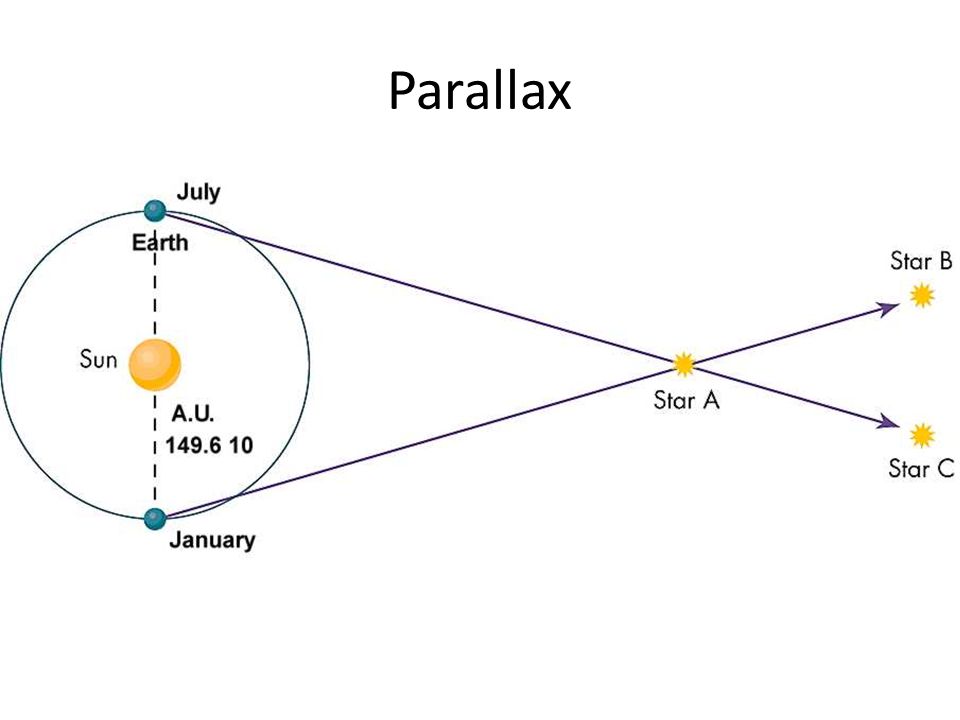

Parallax

5
Parallax angle

6
» Tan p R (=1 AU) d P (in rads) tan p = R/d for small p, tan p ≈ p so d = R/p

7

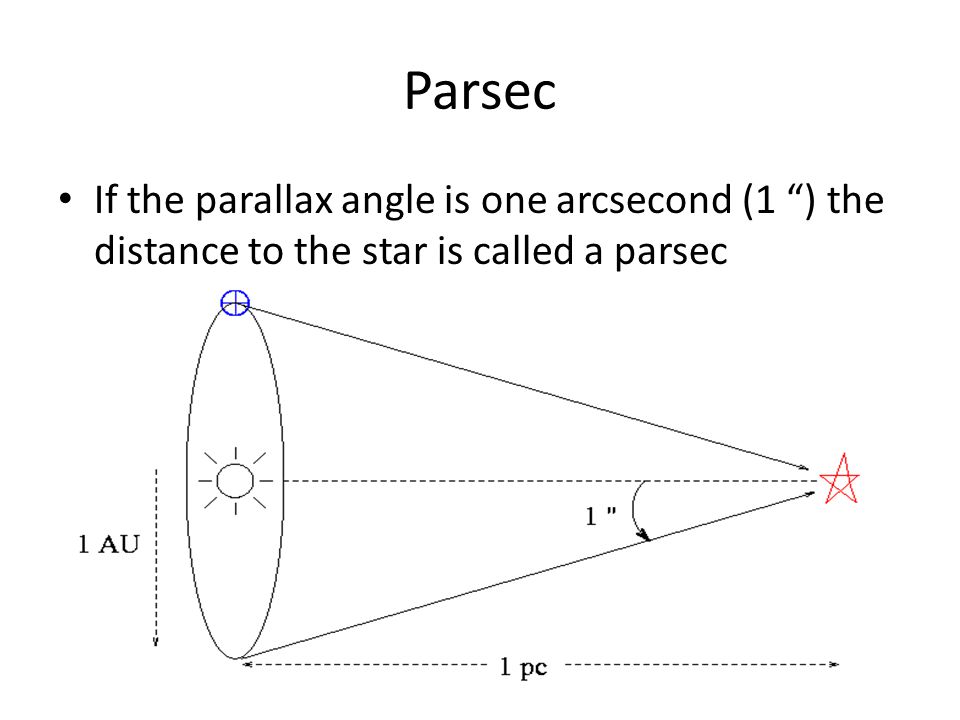

Parsec If the parallax angle is one arcsecond (1 “) the distance to the star is called a parsec

8

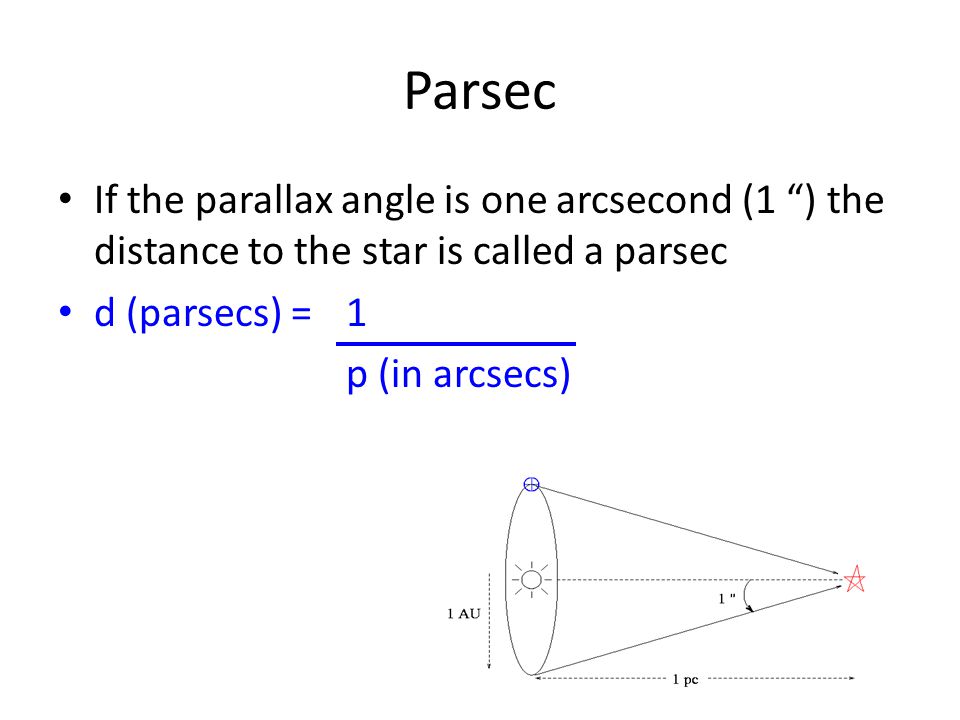

Parsec If the parallax angle is one arcsecond (1 “) the distance to the star is called a parsec d (parsecs) = 1 p (in arcsecs)

9

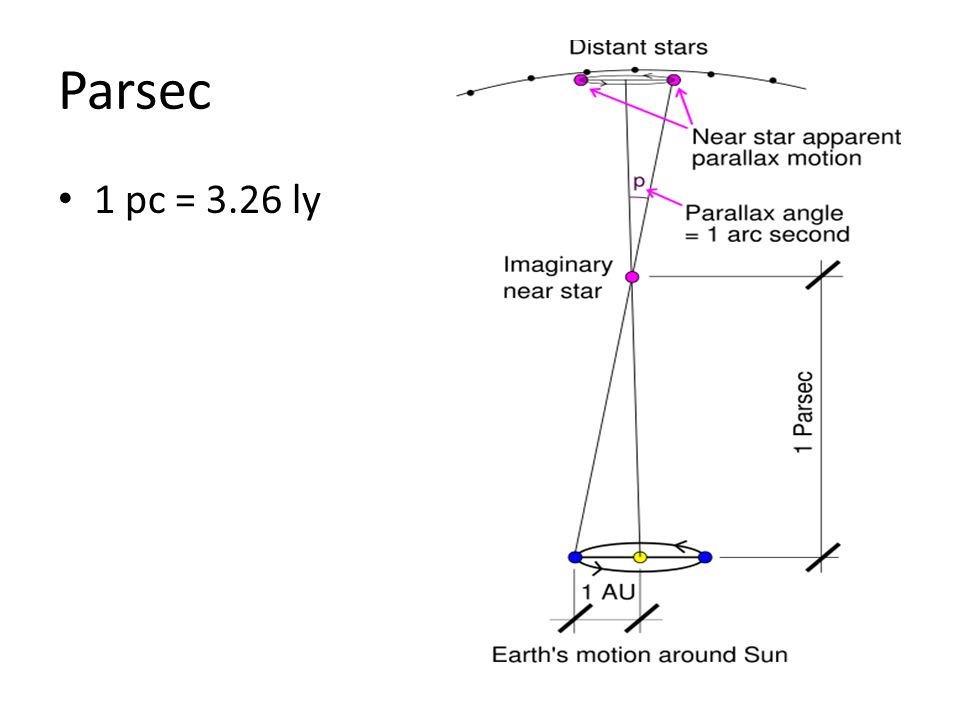

Parsec 1 pc = 3.26 ly

10

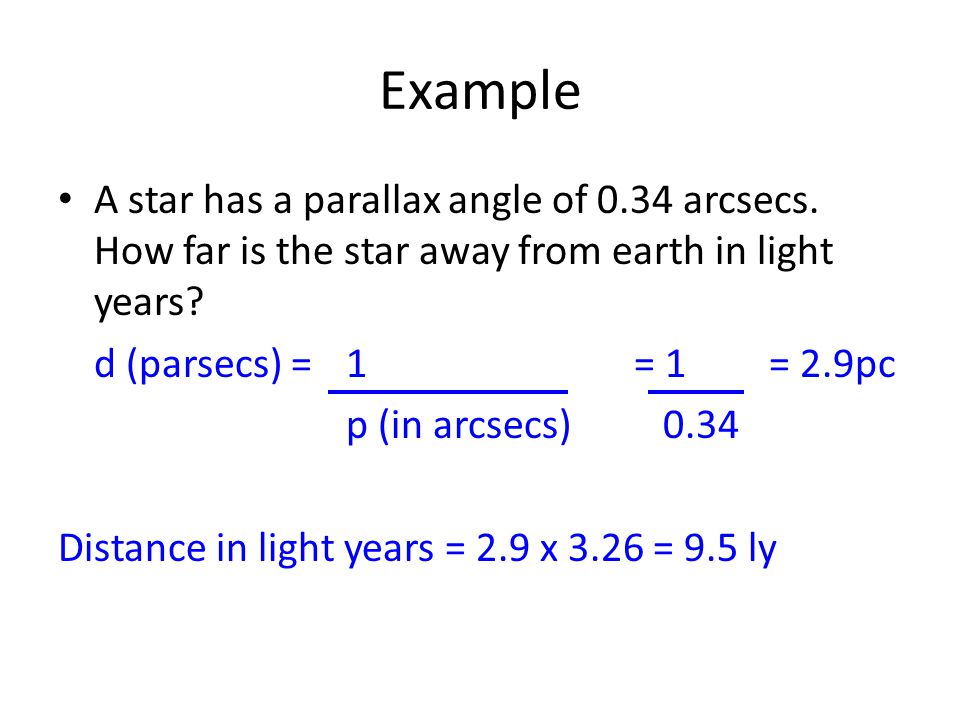

Example A star has a parallax angle of 0.34 arcsecs. How far is the star away from earth in light years? d (parsecs) = 1= 1 = 2.9pc p (in arcsecs) 0.34 Distance in light years = 2.9 x 3.26 = 9.5 ly

11

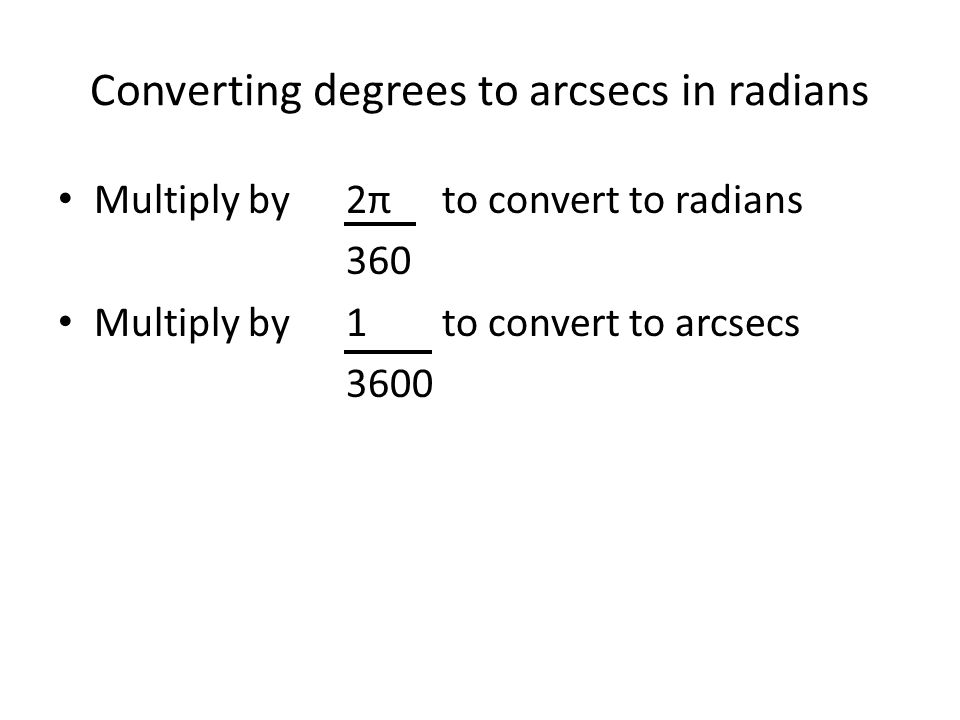

Converting degrees to arcsecs in radians Multiply by 2πto convert to radians 360 Multiply by 1to convert to arcsecs 3600

12

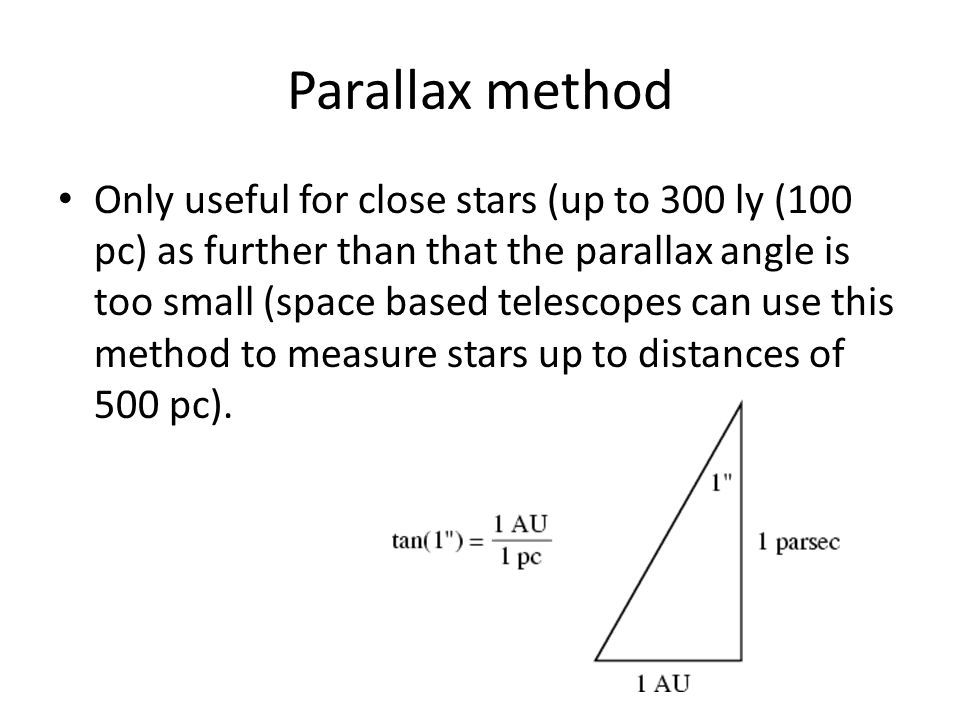

Parallax method Only useful for close stars (up to 300 ly (100 pc) as further than that the parallax angle is too small (space based telescopes can use this method to measure stars up to distances of 500 pc).

13
Apparent and absolute magnitudes

14
Hipparchus Greek astronomer Lived 2000 years ago

15
Hipparchus compared the relative brightness of stars (as seen from earth) Brightest star – magnitude 1 Faintest star – magnitude 6

16
Apparent magnitude and brightness Magnitude 1 star is 100 times brighter than a magnitude 6 star

17
The difference between a magnitude 1 star and a magnitude 6 star is ‘5 steps’ on the magnitude scale and the scale is logarithmic. This means that each ‘step’ equated to a brightness decrease of 2.512 since The difference between a magnitude 1 star and a magnitude 6 star is ‘5 steps’ on the magnitude scale and the scale is logarithmic. This means that each ‘step’ equated to a brightness decrease of 2.512 since (2.512 )5= 100 (2.512 )5= 100

18
Magnitude 1 Magnitude 2 Magnitude 3 Magnitude 4 Magnitude 5 Magnitude 6 r 5 = 100 r = 2.512

19
* Under what conditions? Clear sky When viewed from earth As visible to the naked eye

20
Can a star have a magnitude greater than 6?

21
Yes, but these stars are only visible through a telescope

22
A star of apparent magnitude less than 1

23
Negative apparent magnitude? They are very bright!!

24
Guess the apparent magnitude of Sun It is -26.7

25
Apparent magnitude The apparent magnitude m, of a star of apparent brightness b is defined by m = -(5/2)log (b/b 0 ) where b 0 is taken as a reference value of 2.52 x 10 -8 W.m -2 This can also be written as b/b 0 = 2.512 -m

26

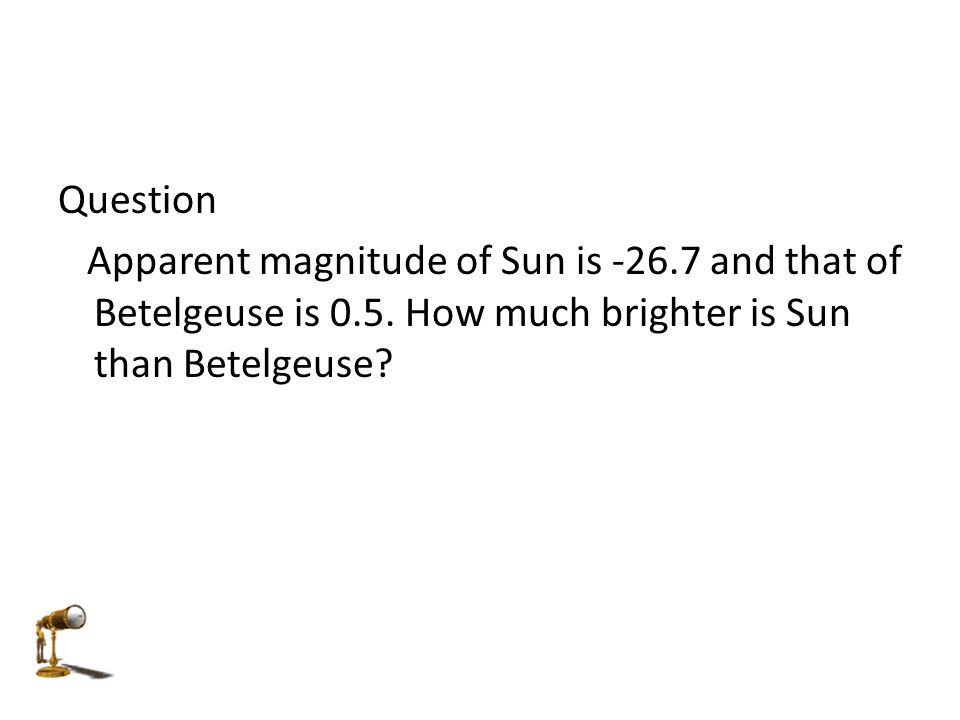

Question Apparent magnitude of Sun is -26.7 and that of Betelgeuse is 0.5. How much brighter is Sun than Betelgeuse?

27
Difference in magnitudes is 0.5 - -26.7 = 27.2 (2.512 )5= 100 ) Each difference in magnitude is a difference of 2.512 in brightness ((2.512 )5= 100 ) Therefore the difference in brightness = 2.512 27.2 Therefore the difference in brightness = 2.512 27.2 = 7.6 x 10 10

28
Sun is 76 billion times brighter than Betelgeuse

29

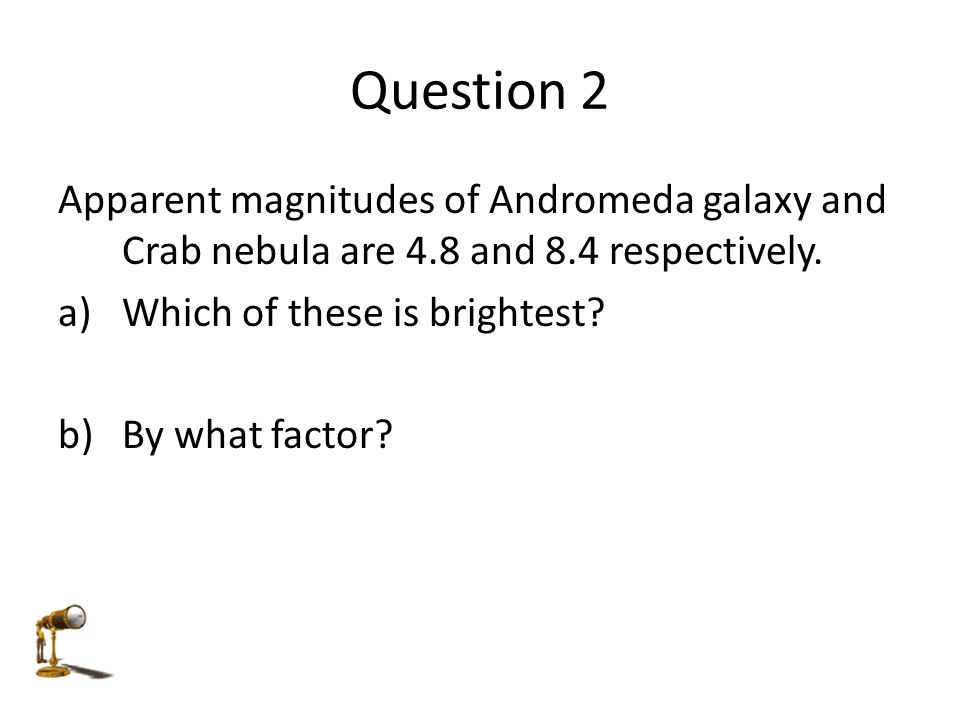

Question 2 Apparent magnitudes of Andromeda galaxy and Crab nebula are 4.8 and 8.4 respectively. a)Which of these is brightest? b)By what factor?

30
Galaxy is brighter Difference in apparent magnitudes = 8.4 – 4.8 = 3.6 Difference in brightness therefore = 2.512 3.6 = 27.5 times

31
The Andomeda Galaxy is a vast collection of stars The Crab Nebulae is a debris of supernova and is the birth place of the new star.

32

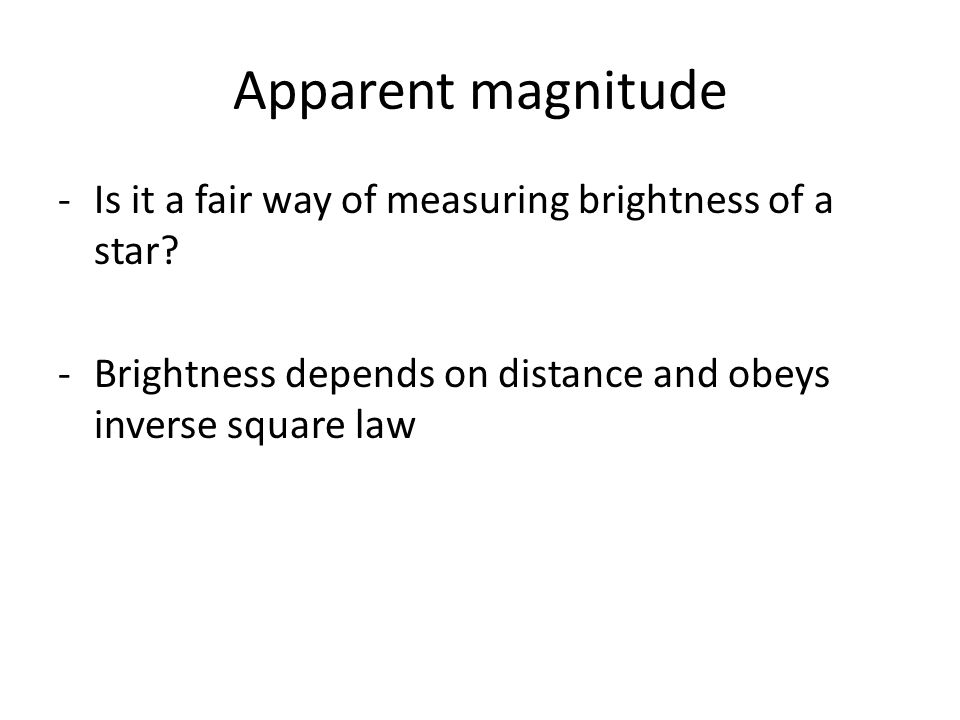

Apparent magnitude -Is it a fair way of measuring brightness of a star? -Brightness depends on distance and obeys inverse square law

33
ABSOLUTE MAGNITUDE Let the standard distance be 10 pc 1 pc = 3.086 x 10 16 m = 3.26 ly = 206265 AU

34
Absolute magnitude is the apparent magnitude of a star when viewed from a distance of 10 pc.

35
Absolute magnitude M and apparent magnitude m m – M = 5 log (d/10) d is in parsecs!

36
Question Calculate the absolute magnitude of Sun. Apparent magnitude = -26.7 Distance from earth = 4.9 x 10 -6 pc

37
m – M = 5 log(d/10) -26.7- M = 5 log (4.9 x 10 -6 /10) M =-26.7 – 5log(4.9 x 10 -7 ) M = 4.85

38
This means at a standard distance of 10 parsecs the sun would appear to be a dim star.

39

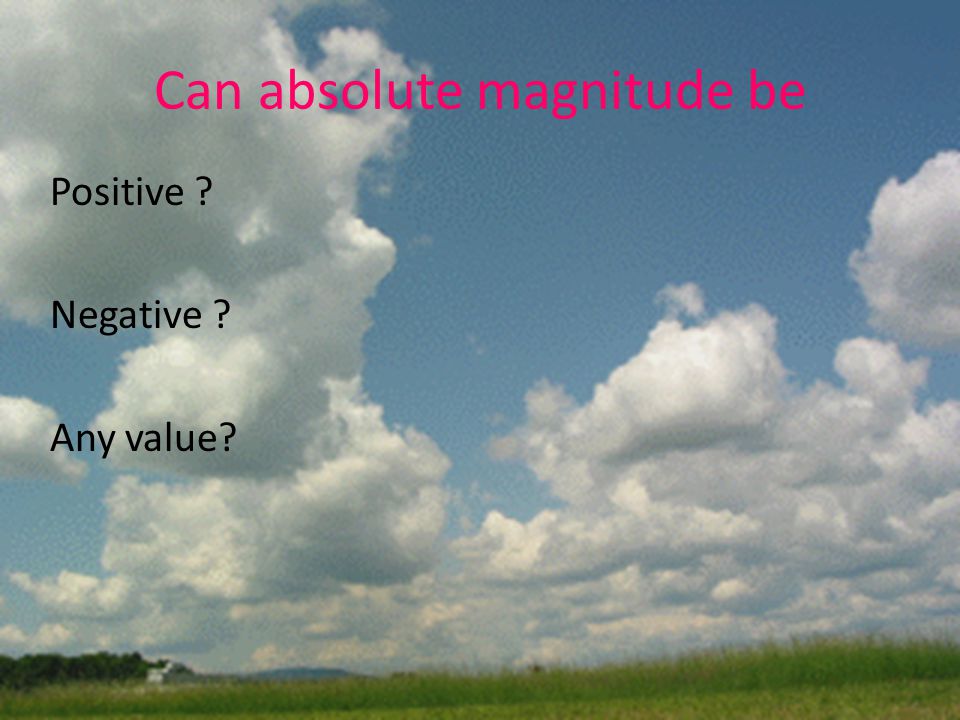

Can absolute magnitude be Positive ? Negative ? Any value?

40
Spectroscopic parallax

41
This refers to the method of finding the distance to a star given the star’s luminosity and apparent brightness. It doesn’t use parallax! Limited to distances less than 10 Mpc We know that b = L/(4πd 2 ) so d = (L/(4 πb)) ½

42
Spectroscopic parallax - Example A main sequence star emits most of its energy at λ = 2.4 x 10 -7 m. Its apparent brightness is measured to be 4.3 x 10 -9 W.m -2. How far away is the star? λ 0 T = 2.9 x 10 -3 Km T = 2.9 x 10 -3 / 4.3 x 10 -9 = 12000K

43

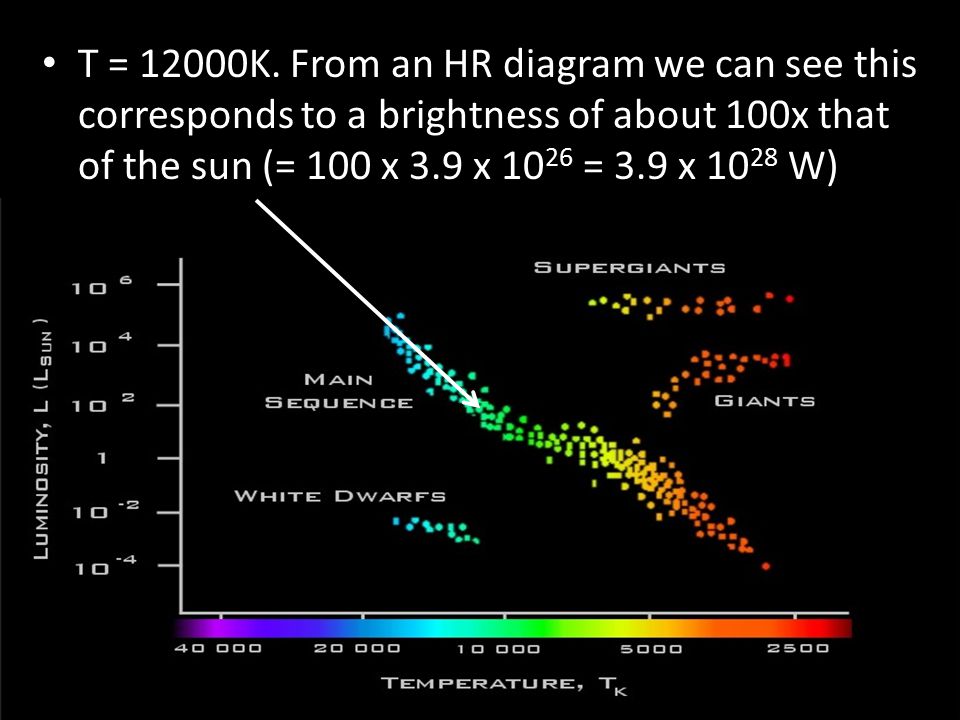

T = 12000K. From an HR diagram we can see this corresponds to a brightness of about 100x that of the sun (= 100 x 3.9 x 10 26 = 3.9 x 10 28 W)

44

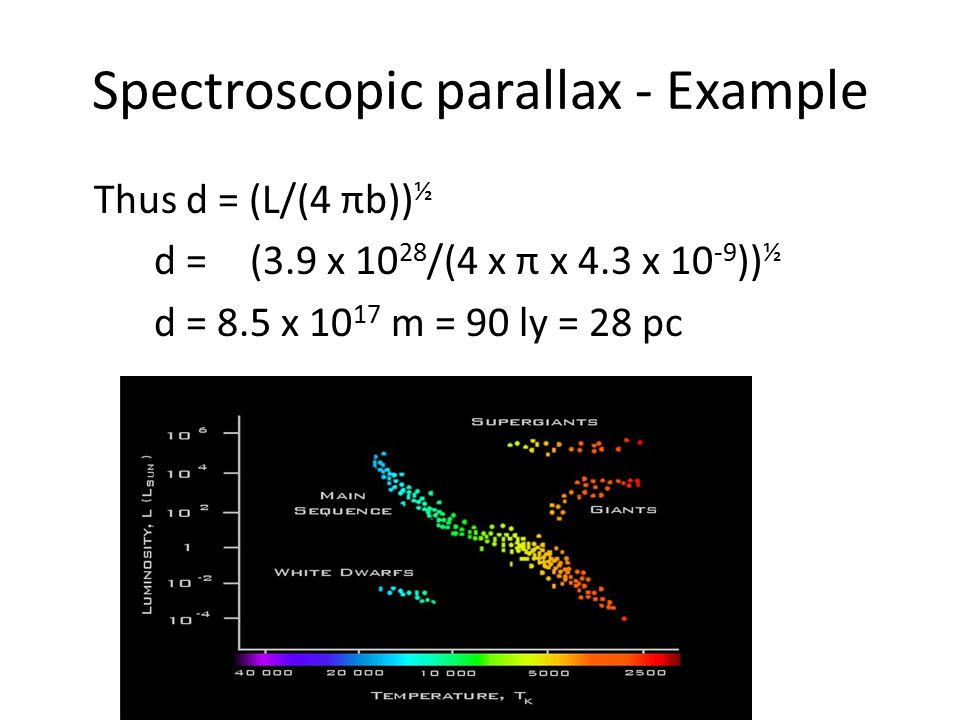

Spectroscopic parallax - Example Thus d = (L/(4 πb)) ½ d = (3.9 x 10 28 /(4 x π x 4.3 x 10 -9 )) ½ d = 8.5 x 10 17 m = 90 ly = 28 pc

45
Using cepheids to measure distance

46
At distances greater than Mpc, neither parallax nor spectroscopic parallax can be relied upon to measure the distance to a star. At distances greater than Mpc, neither parallax nor spectroscopic parallax can be relied upon to measure the distance to a star. When we observe another galaxy, all of the stars in that galaxy are approximately the same distance away from the earth. What we really need is a light source of known luminosity in the galaxy. If we had this then we could make comparisons with the other stars and judge their luminosities. In other words we need a ‘standard candle’ –that is a star of known luminosity. When we observe another galaxy, all of the stars in that galaxy are approximately the same distance away from the earth. What we really need is a light source of known luminosity in the galaxy. If we had this then we could make comparisons with the other stars and judge their luminosities. In other words we need a ‘standard candle’ –that is a star of known luminosity. The outer layers of Cepheid variable stars undergo periodic expansion and contraction, producing a periodic variation in its luminosity. The outer layers of Cepheid variable stars undergo periodic expansion and contraction, producing a periodic variation in its luminosity. Cepheid variables

47
Cepheid variable stars are useful to astronomers because of the period of their variation in luminosity turns out to be related to the average absolute magnitude of the Cepheid. Thus the luminosity of the Cepheid can be calculated by observing the variation in brightness.

48

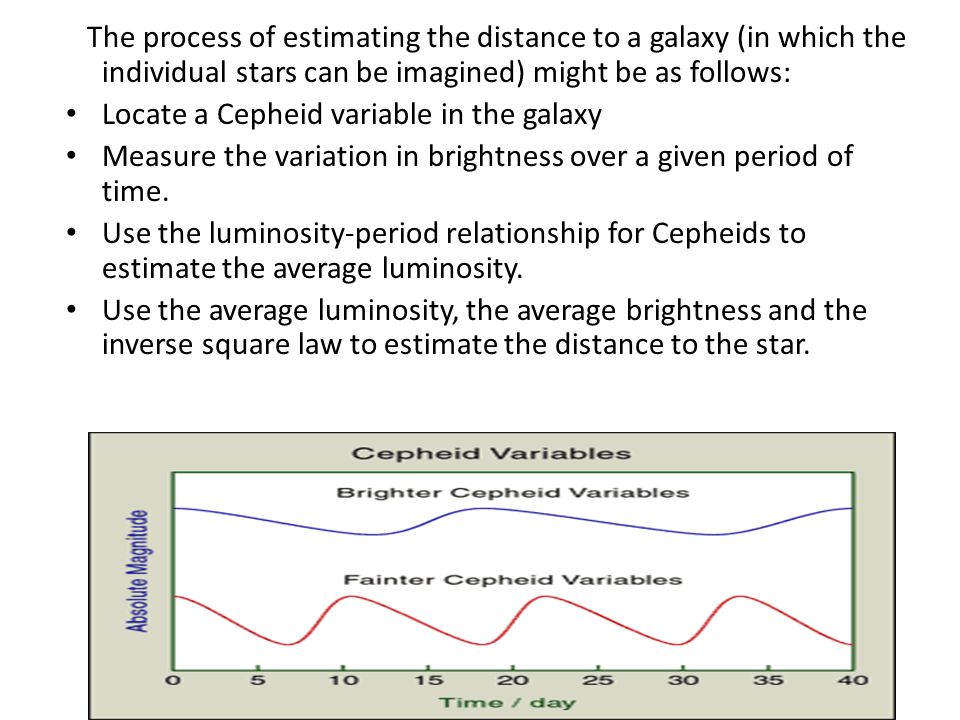

The process of estimating the distance to a galaxy (in which the individual stars can be imagined) might be as follows: The process of estimating the distance to a galaxy (in which the individual stars can be imagined) might be as follows: Locate a Cepheid variable in the galaxy Locate a Cepheid variable in the galaxy Measure the variation in brightness over a given period of time. Measure the variation in brightness over a given period of time. Use the luminosity-period relationship for Cepheids to estimate the average luminosity. Use the luminosity-period relationship for Cepheids to estimate the average luminosity. Use the average luminosity, the average brightness and the inverse square law to estimate the distance to the star. Use the average luminosity, the average brightness and the inverse square law to estimate the distance to the star.

49
Cepheid calculation - Example

50

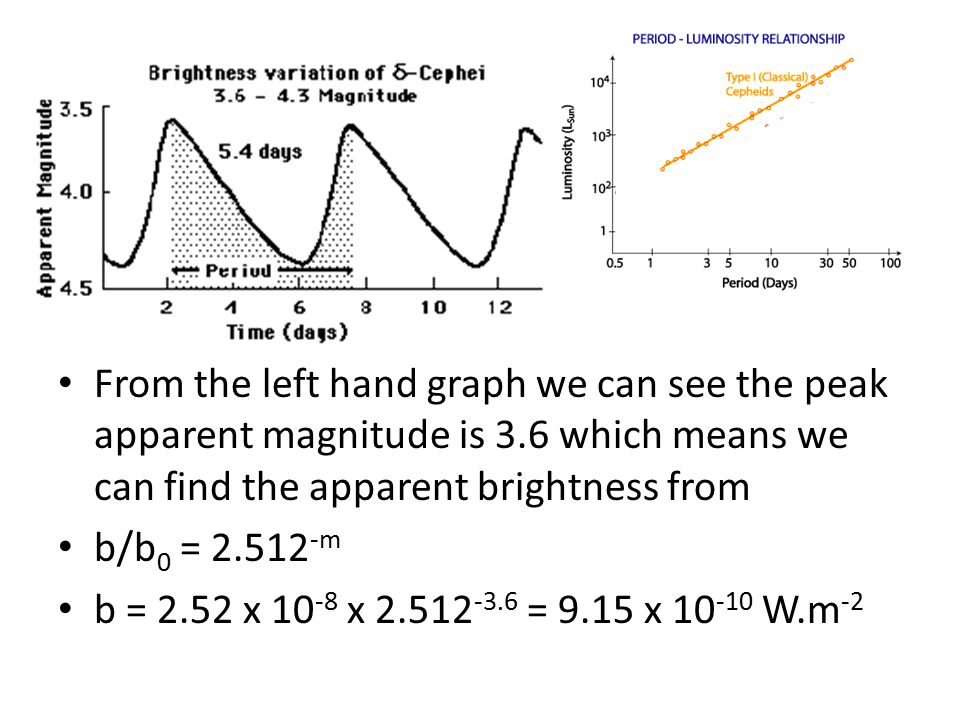

From the left-hand graph we can see that the period of the cepheid is 5.4 days. From the second graph we can see that this corresponds to a luminosity of about 10 3 suns (3.9 x 10 29 W).

51
From the left hand graph we can see the peak apparent magnitude is 3.6 which means we can find the apparent brightness from b/b 0 = 2.512 -m b = 2.52 x 10 -8 x 2.512 -3.6 = 9.15 x 10 -10 W.m -2

52
Now using the relationship between apparent brightness, luminosity and distance d = (L/(4πb)) ½ d = (3.9 x 10 29 /(4 x π x 9.15 x 10 -10 )) ½ d = 5.8 x 10 18 m = 615 ly = 189 pc

53
Questions Page 512 questions 3, 4, 6, 7, 8, 10, 11, 13, 14, 15, 16.
