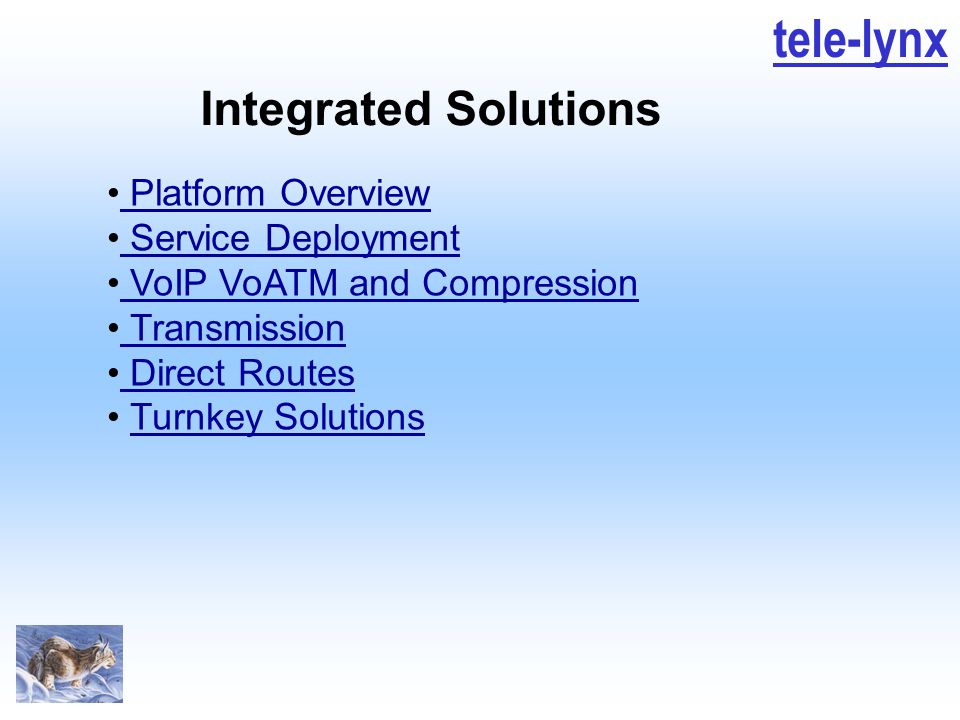

1 tele-lynx Integrated Solutions Platform Overview Service Deployment VoIP VoATM and Compression Transmission Direct Routes Turnkey Solutions

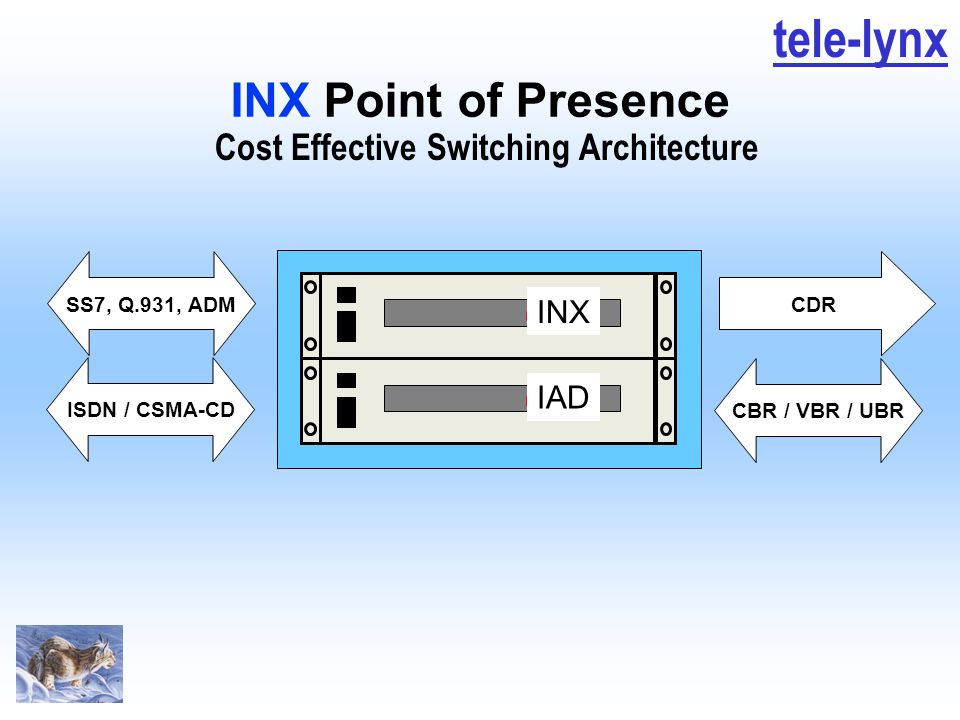

2 tele-lynx SS7, Q.931, ADMCDR ISDN / CSMA-CD CBR / VBR / UBR Cost Effective Switching Architecture IADINX INX Point of Presence

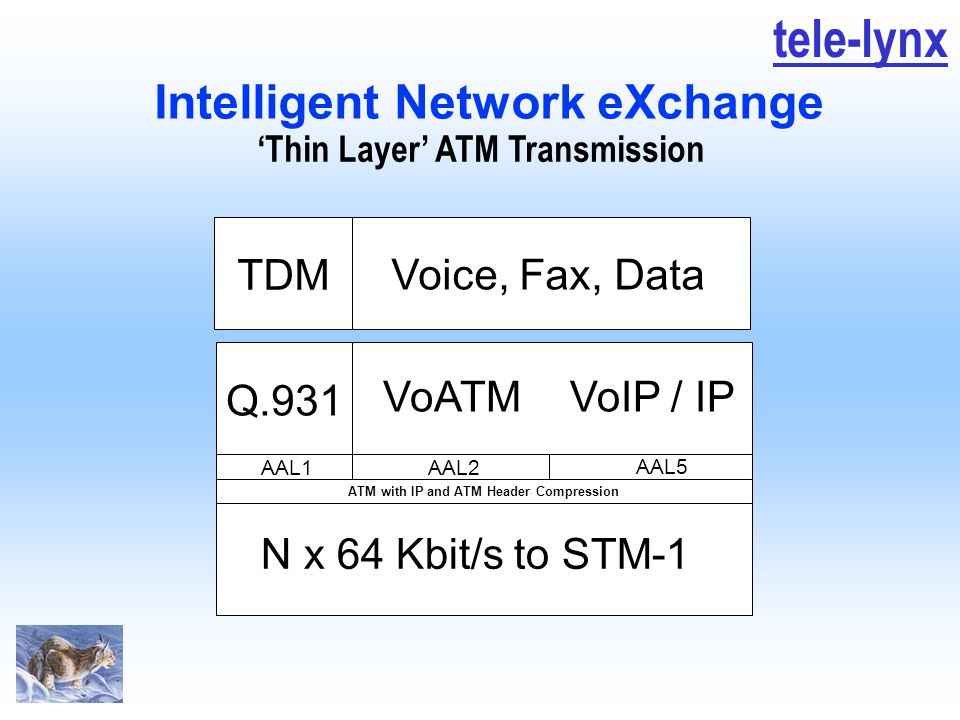

3 tele-lynx AAL1 AAL5 AAL2 N x 64 Kbit/s to STM-1 ATM with IP and ATM Header Compression ‘Thin Layer’ ATM Transmission Intelligent Network eXchange Q.931 Voice, Fax, Data TDM VoIP / IPVoATM

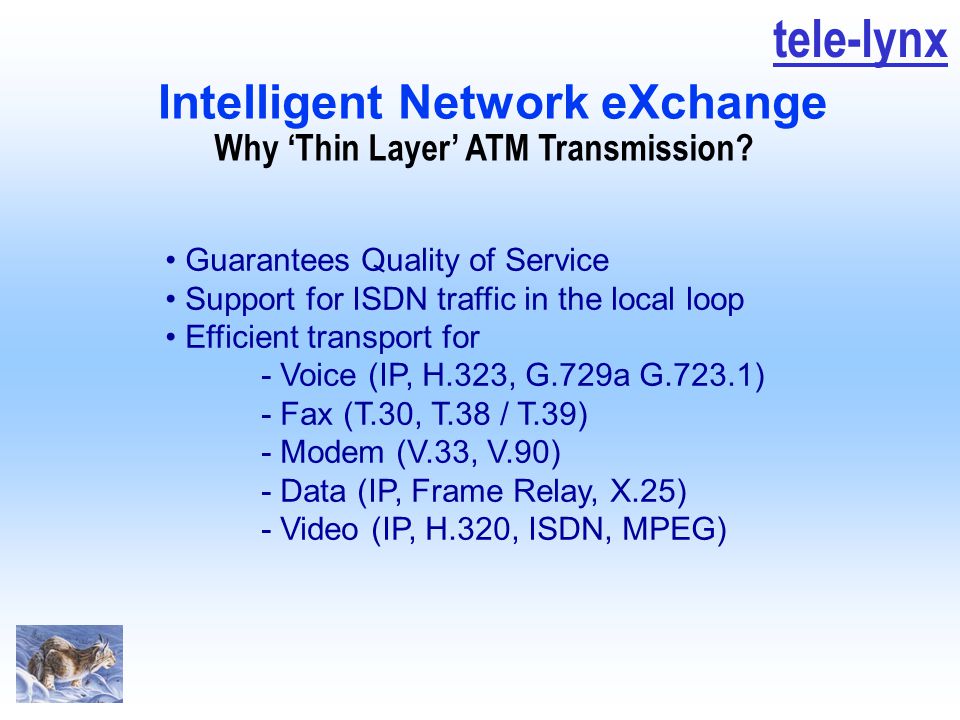

4 tele-lynx Why ‘Thin Layer’ ATM Transmission? Intelligent Network eXchange Guarantees Quality of Service Support for ISDN traffic in the local loop Efficient transport for - Voice (IP, H.323, G.729a G.723.1) - Fax (T.30, T.38 / T.39) - Modem (V.33, V.90) - Data (IP, Frame Relay, X.25) - Video (IP, H.320, ISDN, MPEG)

5 tele-lynx IADINX Cost Effective Enhanced Services Unified Messaging - Voice  Text - Text  Text - Voice Mail - E Mail - Fax - SMS SS#7 Switch Integral ADM Card Platform Fax Store and forward Voice VPN Audio Bridging Voice Mail Call Back Audiotext Intelligent Network eXchange

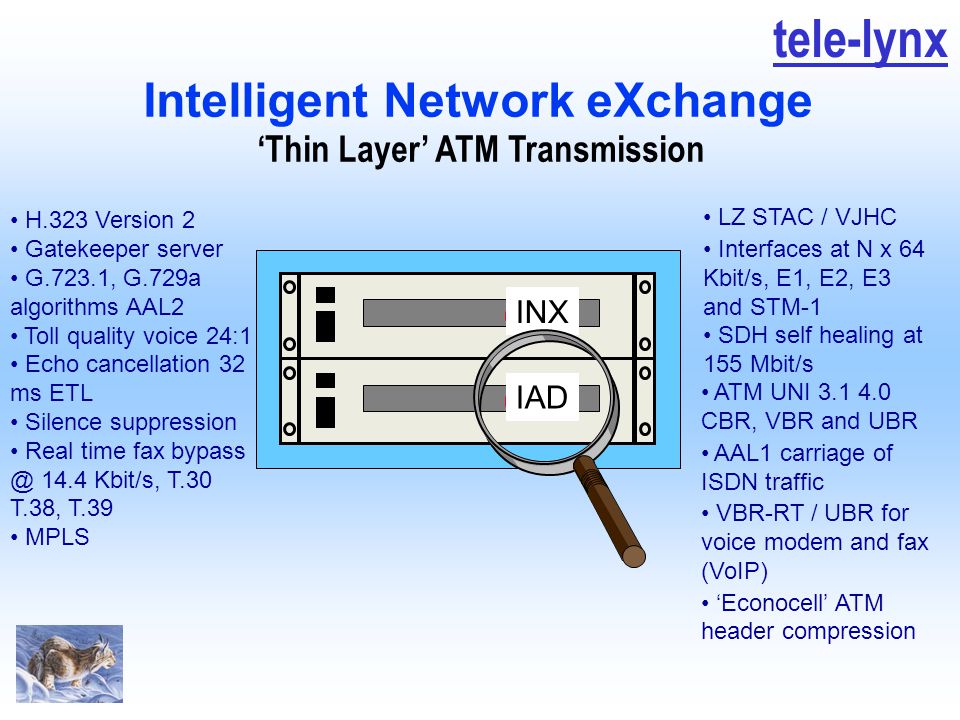

6 tele-lynx ‘Thin Layer’ ATM Transmission ATM UNI CBR, VBR and UBR AAL1 carriage of ISDN traffic VBR-RT / UBR for voice modem and fax (VoIP) ‘Econocell’ ATM header compression LZ STAC / VJHC Interfaces at N x 64 Kbit/s, E1, E2, E3 and STM-1 SDH self healing at 155 Mbit/s Intelligent Network eXchange IADINX H.323 Version 2 Gatekeeper server G.723.1, G.729a algorithms AAL2 Toll quality voice 24:1 Echo cancellation 32 ms ETL Silence suppression Real time fax 14.4 Kbit/s, T.30 T.38, T.39 MPLS

7 tele-lynx Gate Keeper OLO MS Net Meeting Enhanced VoIP Gateway www NSP H.323 V2 Gateway Card Platform IVR Audio Bridging Incumbent PTT Intelligent Network eXchange IAD INX

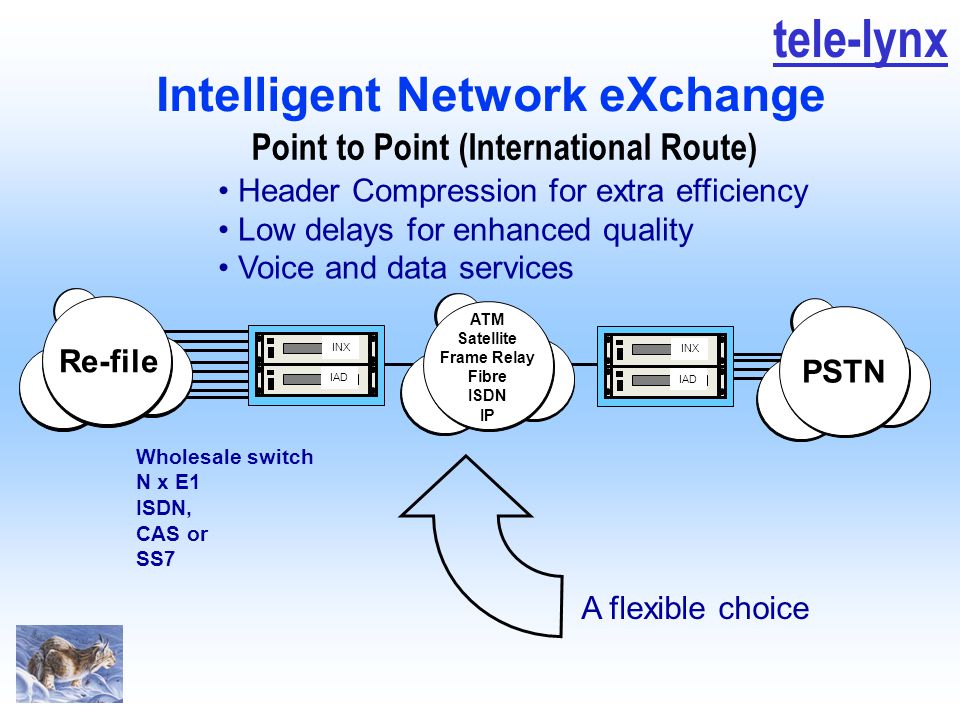

8 tele-lynx Point to Point (International Route) Re-file Wholesale switch N x E1 ISDN, CAS or SS7 PSTN ATM Satellite Frame Relay Fibre ISDN IP A flexible choice Header Compression for extra efficiency Low delays for enhanced quality Voice and data services Intelligent Network eXchange IAD INX IAD INX

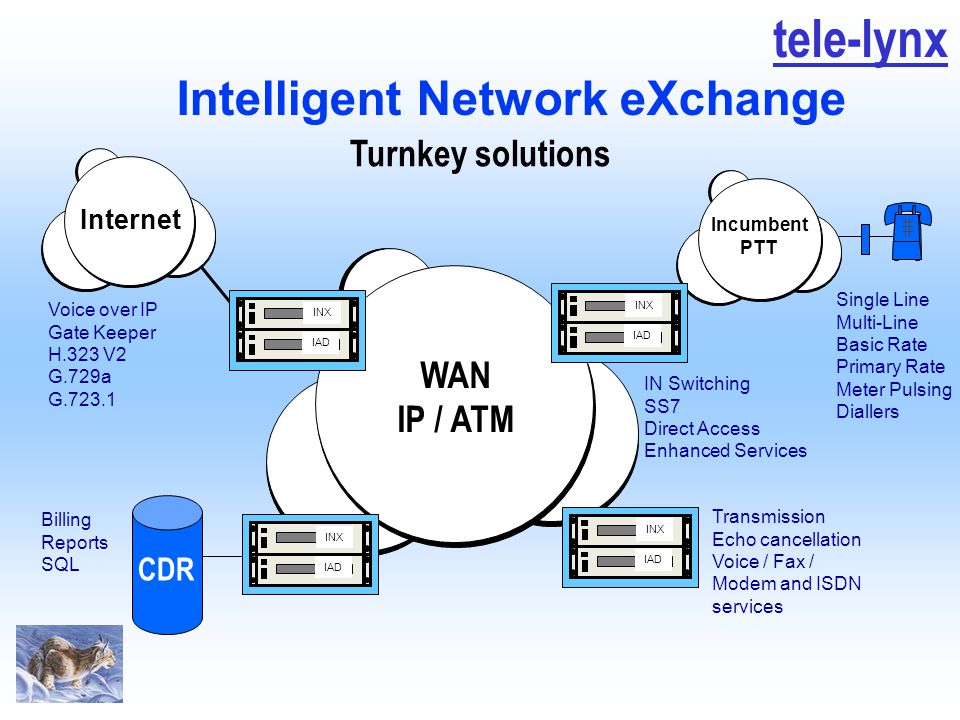

9 tele-lynx Turnkey solutions Incumbent PTT Single Line Multi-Line Basic Rate Primary Rate Meter Pulsing Diallers Transmission Echo cancellation Voice / Fax / Modem and ISDN services WAN IP / ATM CDR Billing Reports SQL Voice over IP Gate Keeper H.323 V2 G.729a G Internet IN Switching SS7 Direct Access Enhanced Services Intelligent Network eXchange IAD INX IAD INX IAD INX IAD INX
