1 1 Structure and function in the Reactome datamodel Bernard de Bono

2 2

3 3 1) Data Model 2) Orthology projections 3) Interfacing 1) Data Model 2) Orthology projections 3) Interfacing

4 4

5 moduleexpert (curator)release Cell cycle, G2/M and checkpointsT Lorca (LM)2005-12 Chromosome maintenance - telomeresE Blackburn, J Seidel (MG)2005-12 DNA replication - REVISIONJ Borowiec, B Tye, et al. (GG)2006-03 Transcription, PolI - REVISION(MG)2006-03 Cell cycle, mitotic + checkpointsT Lorca (LM)late 2006 Chromosome maintenance - trinucleotide repeats(LM)future Electron transport chain (oxidative phosphorylation)S Ferguson (BJ)2005-12 Xenobiotic metabolism phase 2(BJ)2006-06 Intermediary metabolism - REVISION(tbn+PD)future HIV life cycleF Bushman, A Rice, J Skowronski, et al. (GG)2005-12 Influenza virus life cycleR Scheuermann (MG)2006-03 Immune System - Complement CascadeJ Trowsdale (BdB)2006-03 Hematopoiesis - B-lymphopoiesisSingh (GG)future Insulin receptor cascade, DrosophilaL Partridge et al. (BJ)2005-12 Signaling pathways - opioid signalingLeNovere (BJ)2006-03 Signaling pathways - NGF signalingS Nasi (BJ)2006-06 Insulin receptor cascade, humanJ Scott (BdB)late 2006 P53-related signalingS Lowe (GG)late 2006 Formation of gap junctions(LM)future Cell motility: actinT Parsons, A Westbrook et al. (LM)future ABC transporters(PD)future Signaling pathways - small GTPases(PD)future Synaptic transmission(GG,MG)late 2006 Hematopoiesis - Erythropoiesis(GG)future Melanization(BdB)future

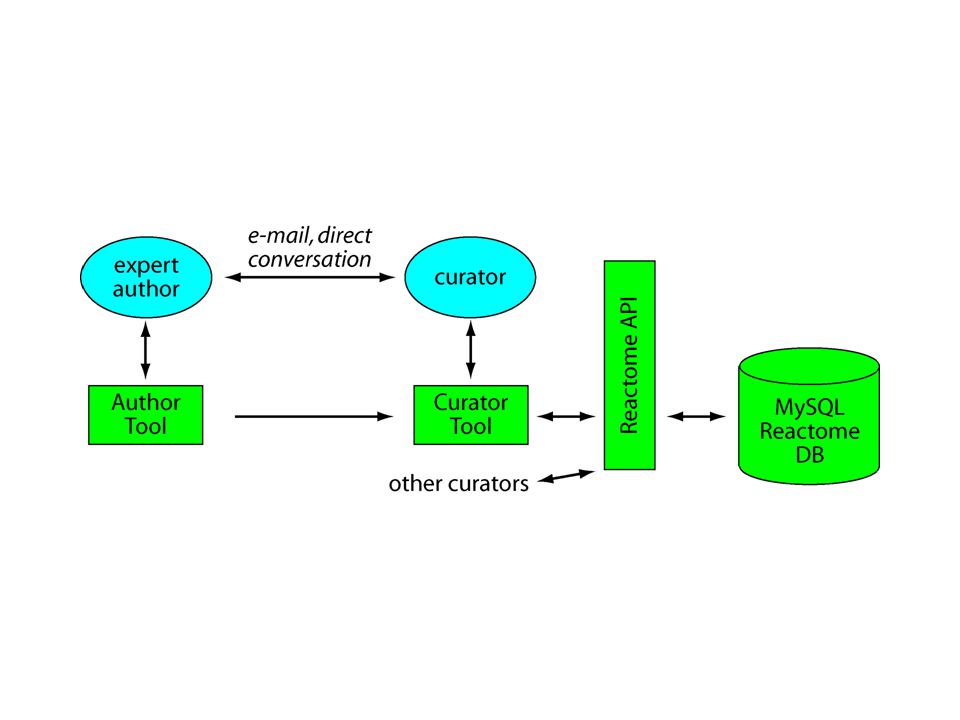

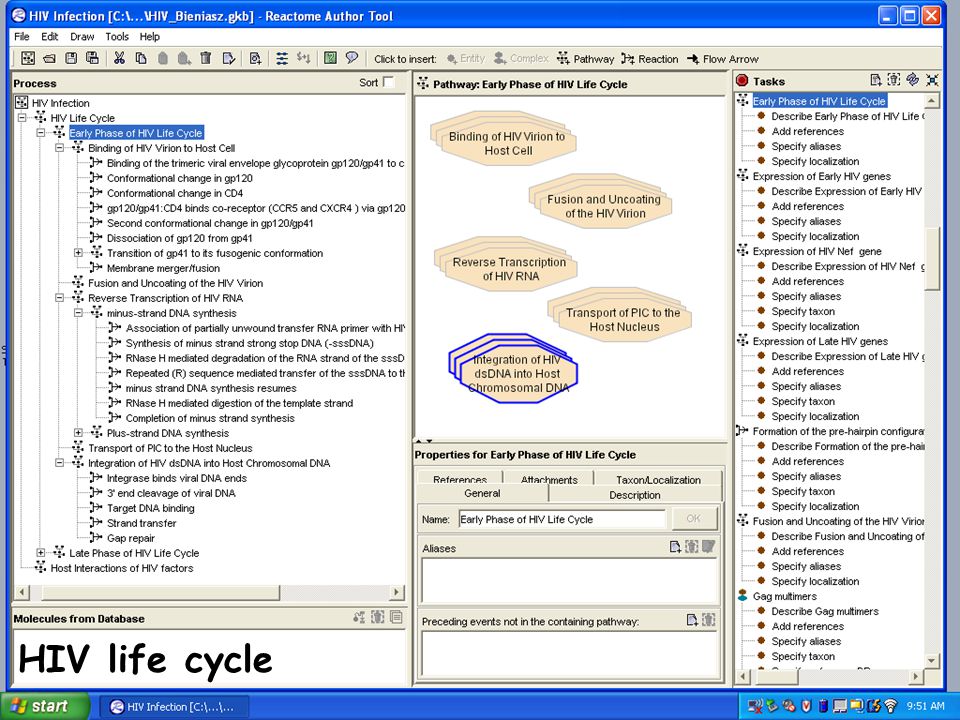

7 HIV life cycle

8 8

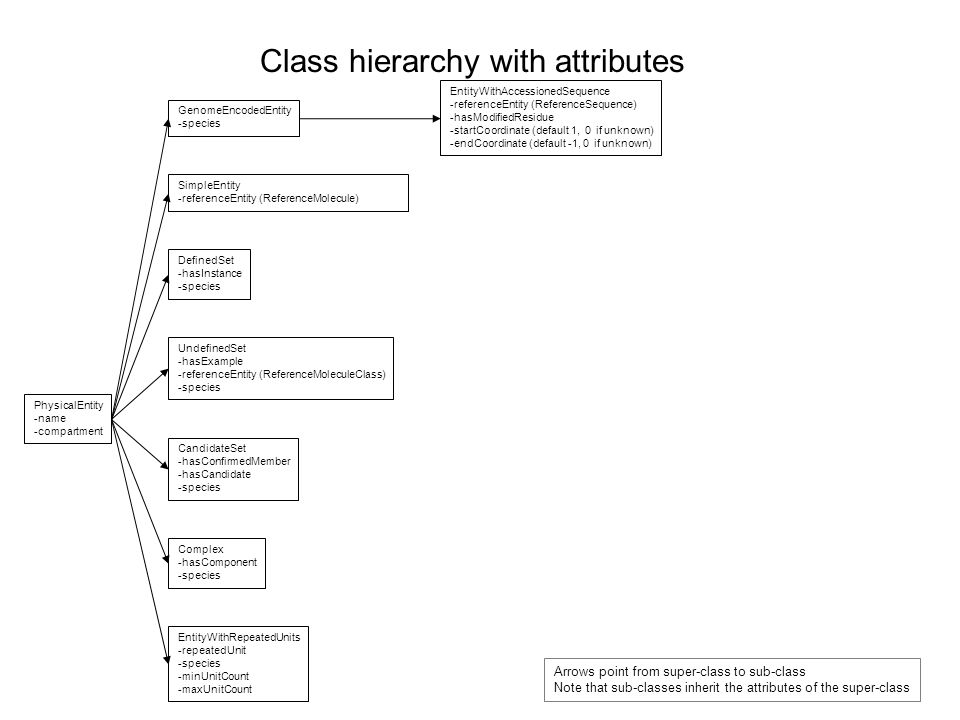

9 EntityWithAccessionedSequence -referenceEntity (ReferenceSequence) -hasModifiedResidue -startCoordinate (default 1, 0 if unknown) -endCoordinate (default -1, 0 if unknown) SimpleEntity -referenceEntity (ReferenceMolecule) DefinedSet -hasInstance -species UndefinedSet -hasExample -referenceEntity (ReferenceMoleculeClass) -species CandidateSet -hasConfirmedMember -hasCandidate -species GenomeEncodedEntity -species PhysicalEntity -name -compartment Complex -hasComponent -species EntityWithRepeatedUnits -repeatedUnit -species -minUnitCount -maxUnitCount Class hierarchy with attributes Arrows point from super-class to sub-class Note that sub-classes inherit the attributes of the super-class

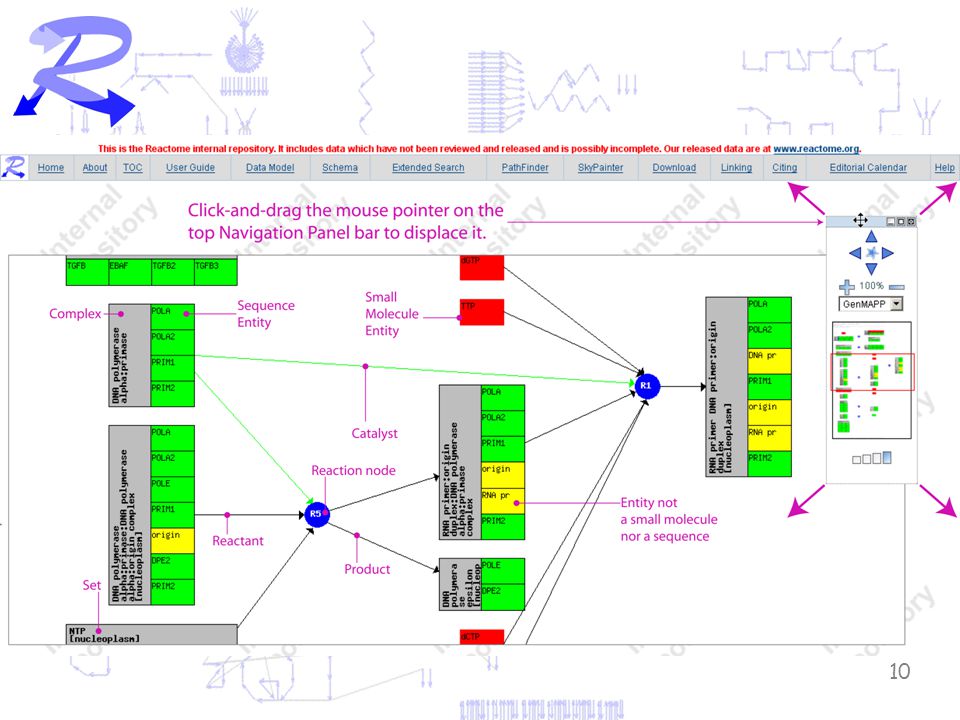

10 10

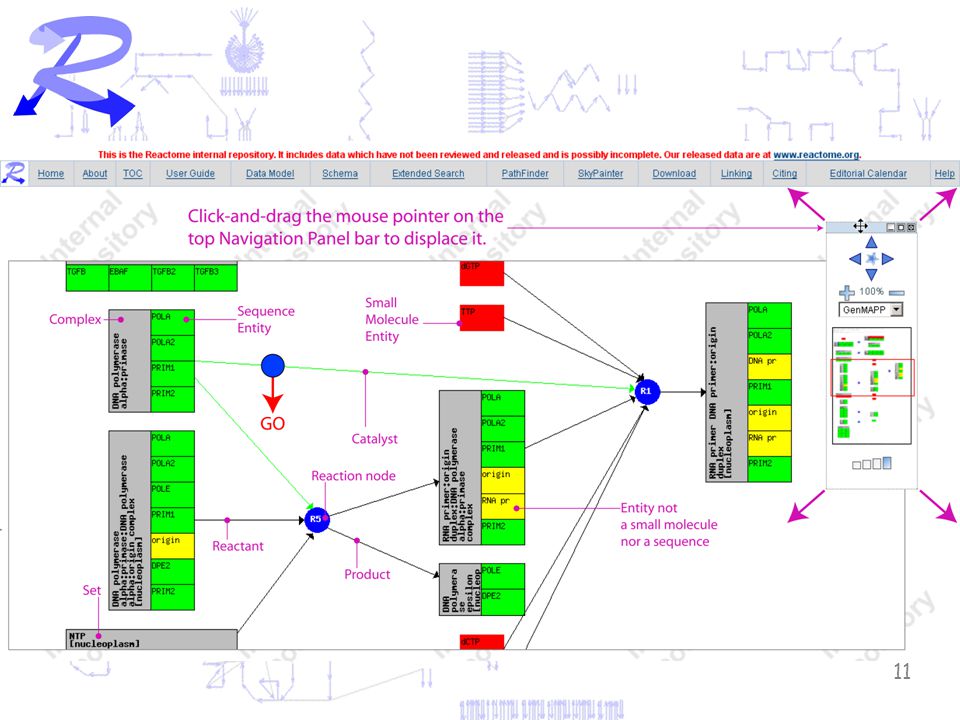

11 11

12 Provides Reactome curated referenced GO annotations where they do not currently exist in GOA Provides stronger experimental evidence for GOA annotation supported only by computational inferences. Improves the accuracy and consistency of the annotations in both databases. Collaboration between GO and Reactome Reactome pathway --> GO Biological Processes Reactome catalyst activity --> GO Molecular Function Cellular location of Reactome reactions --> GO Cellular Compartment Location of Reactome reaction input/output etc.-->GO Cellular Compartment The GO consortium will soon cross-reference GO terms back to their corresponding concepts in Reactome. Cross-references between Reactome and GO Comparison and sharing of annotations between Reactome and GOA


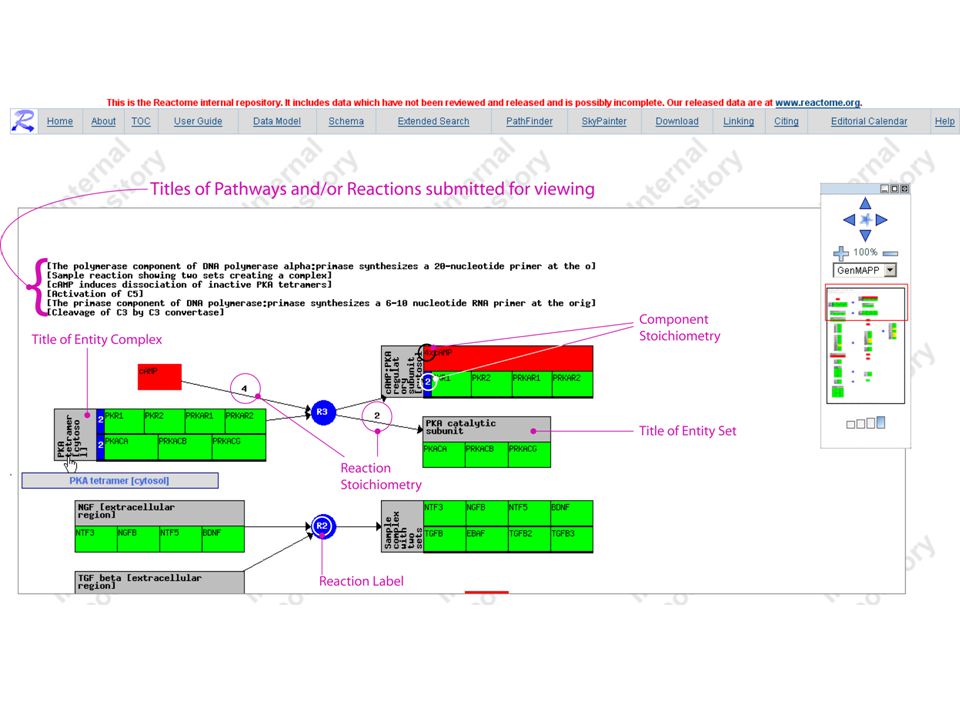

14 14

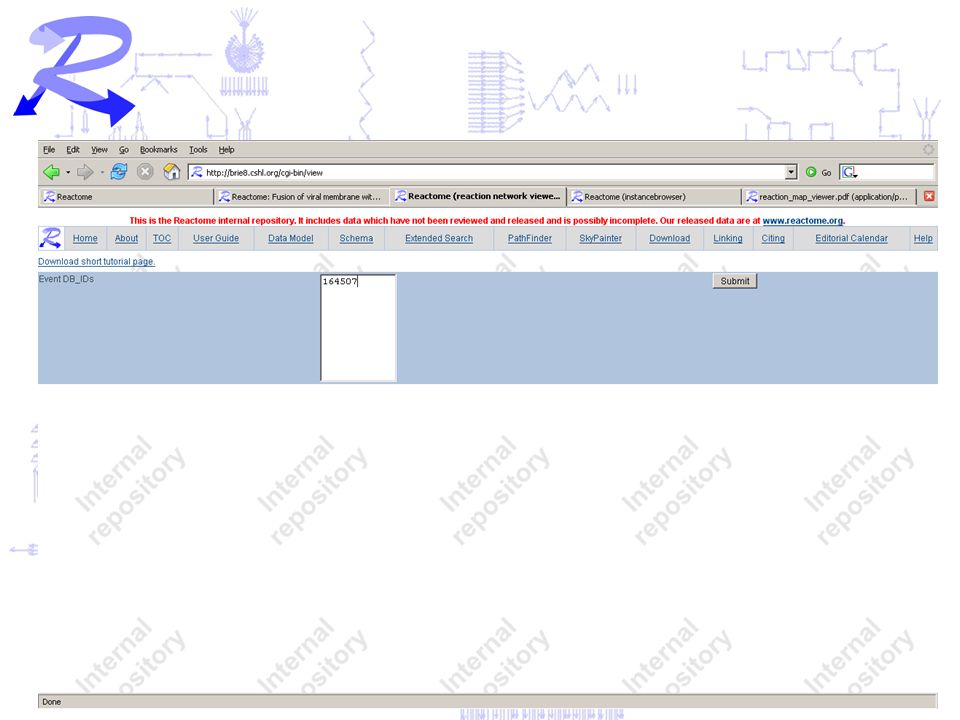

15 15

16 16

17 Other species in Reactome Primary focus: manual curation of human reactions Some human reactions are (manually) inferred from other species (lack of experimental evidence in human) For each release a set of electronically inferred reactions is produced based on orthology data (from human to other species)

18 18

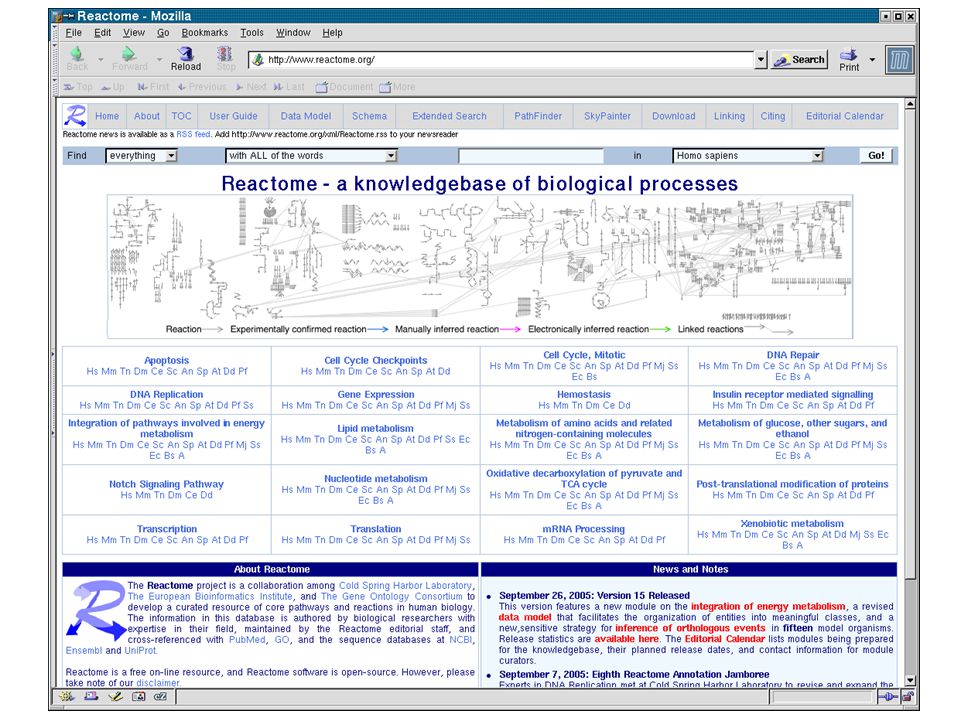

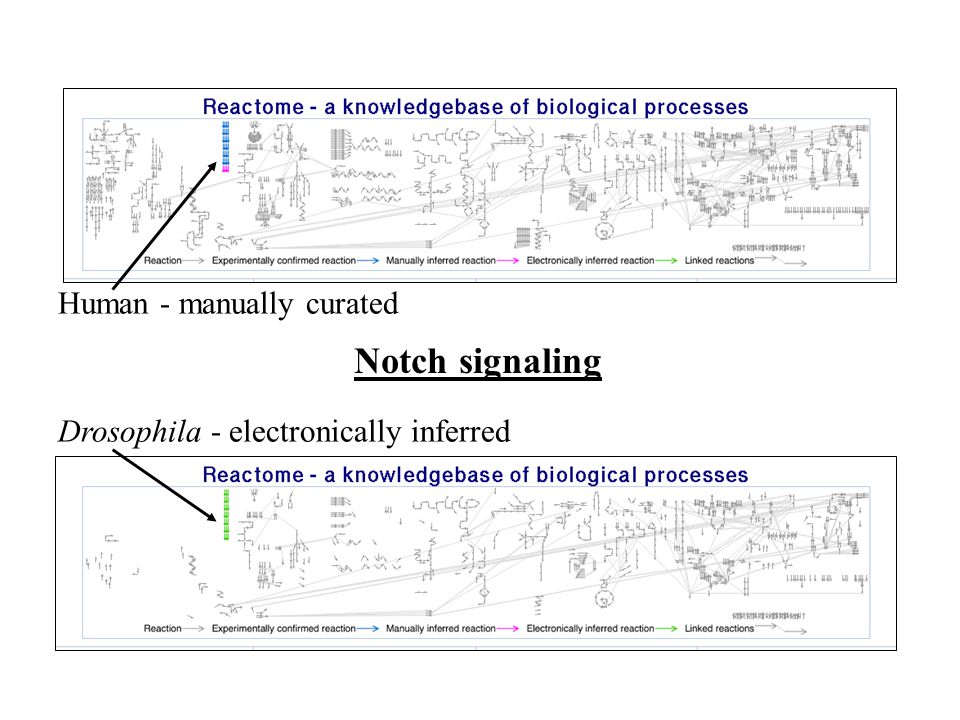

20 Notch signaling Human - manually curated Drosophila - electronically inferred

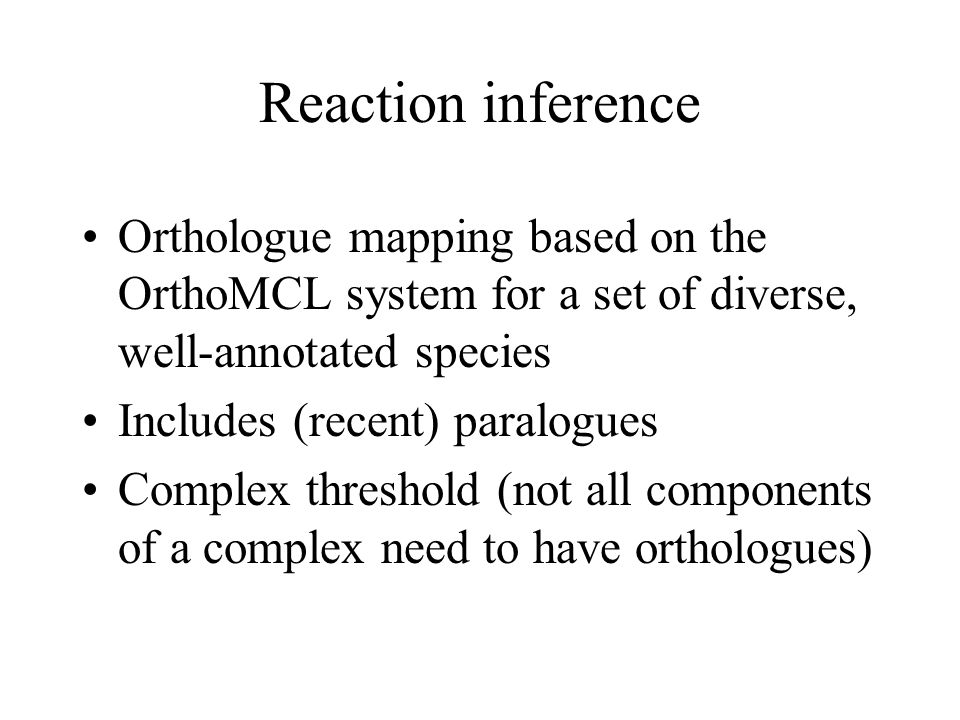

21 Reaction inference Orthologue mapping based on the OrthoMCL system for a set of diverse, well-annotated species Includes (recent) paralogues Complex threshold (not all components of a complex need to have orthologues)

22 OrthoMCL Flow chart

23 Reaction inference - basic principle A + ATP B A B + ADP -P C Human A + ATP B A B + ADP -P C Mouse A B C Drosophila Not inferred

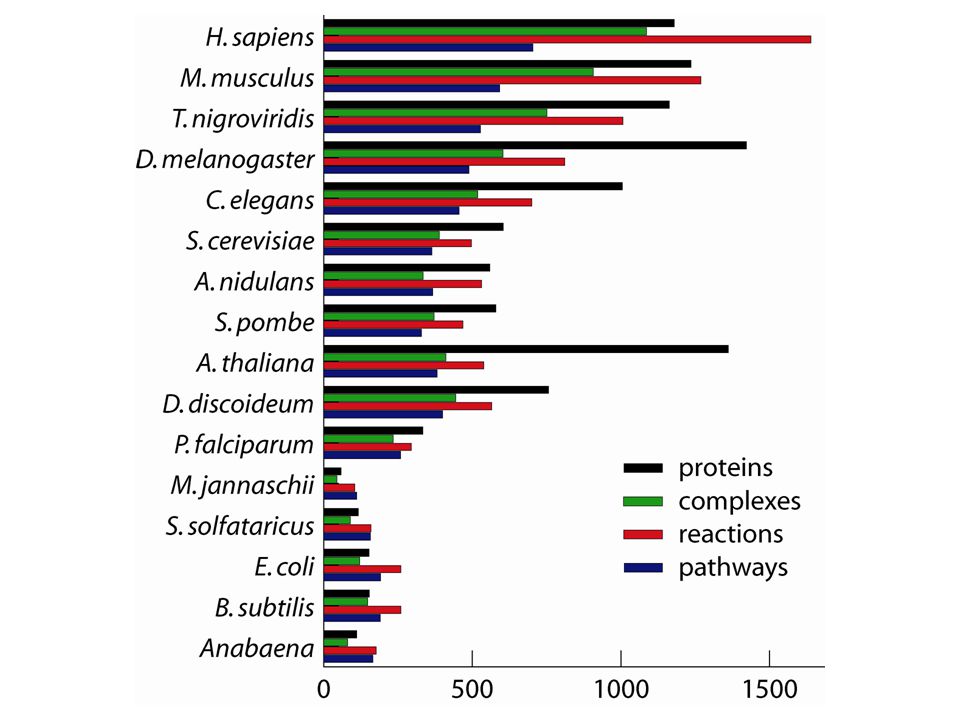

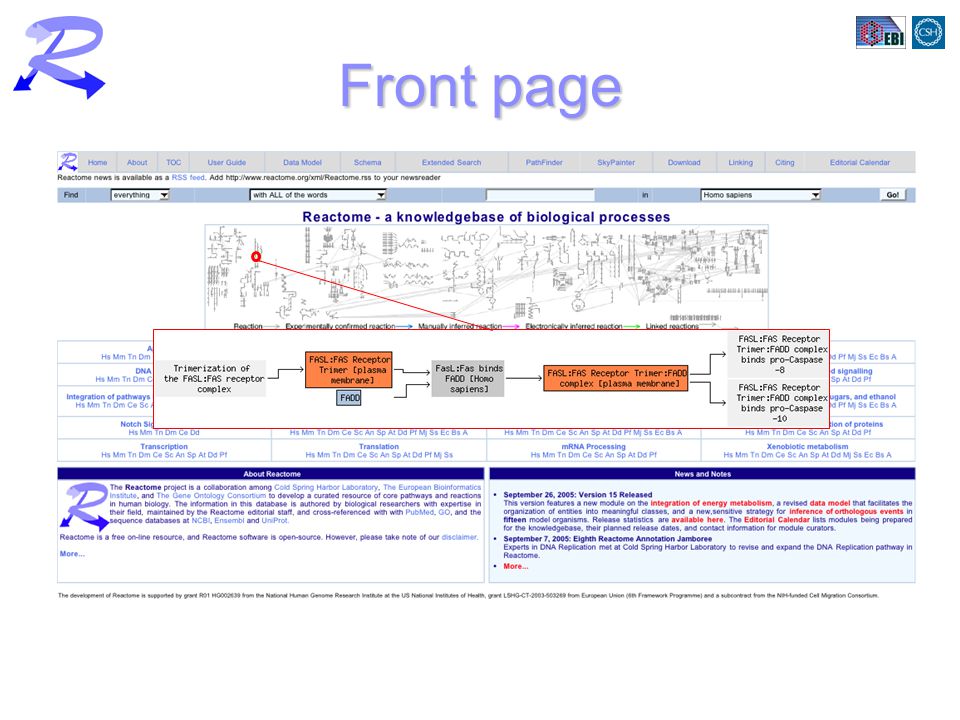

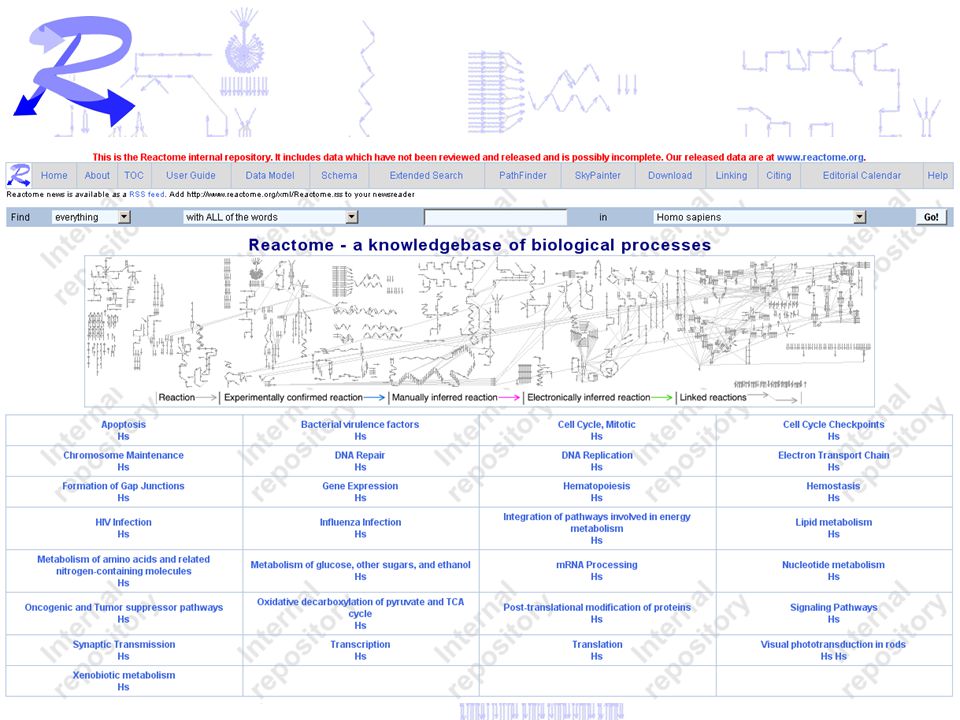

25 Front page

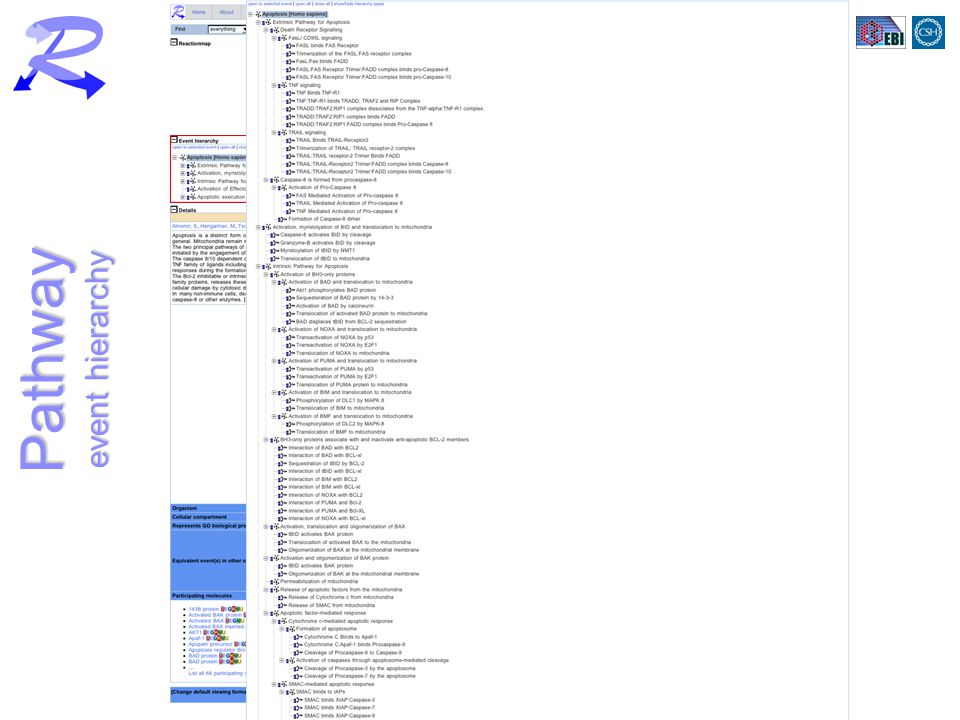

26 Pathway event hierarchy

27 authors summary species GO term other species Pathway description

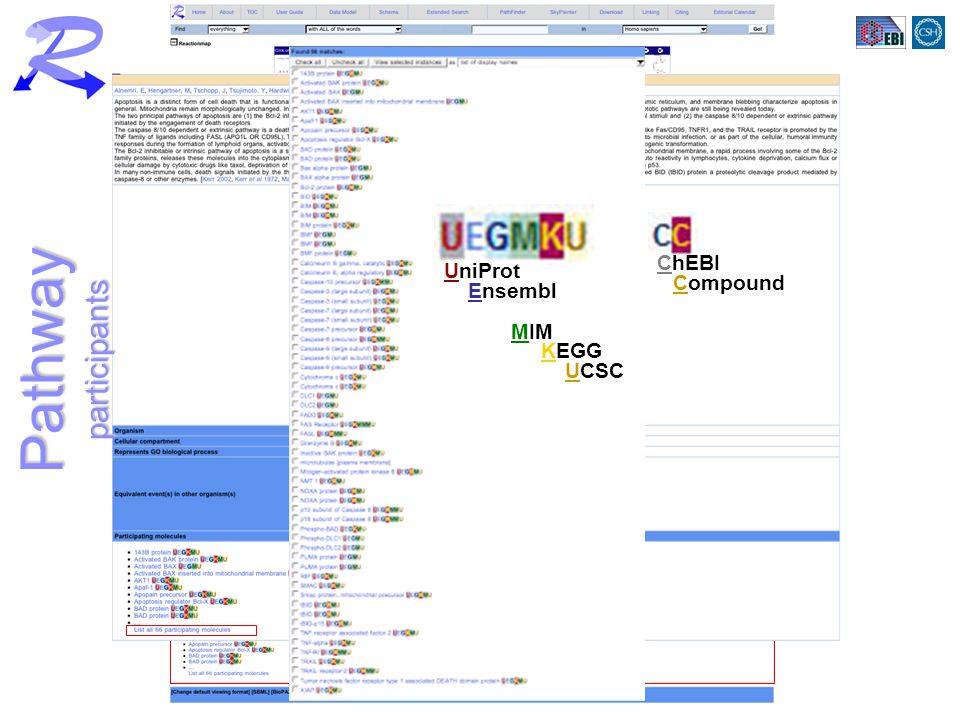

28 UniProt Ensembl MIM KEGG UCSC ChEBI Compound Pathway participants

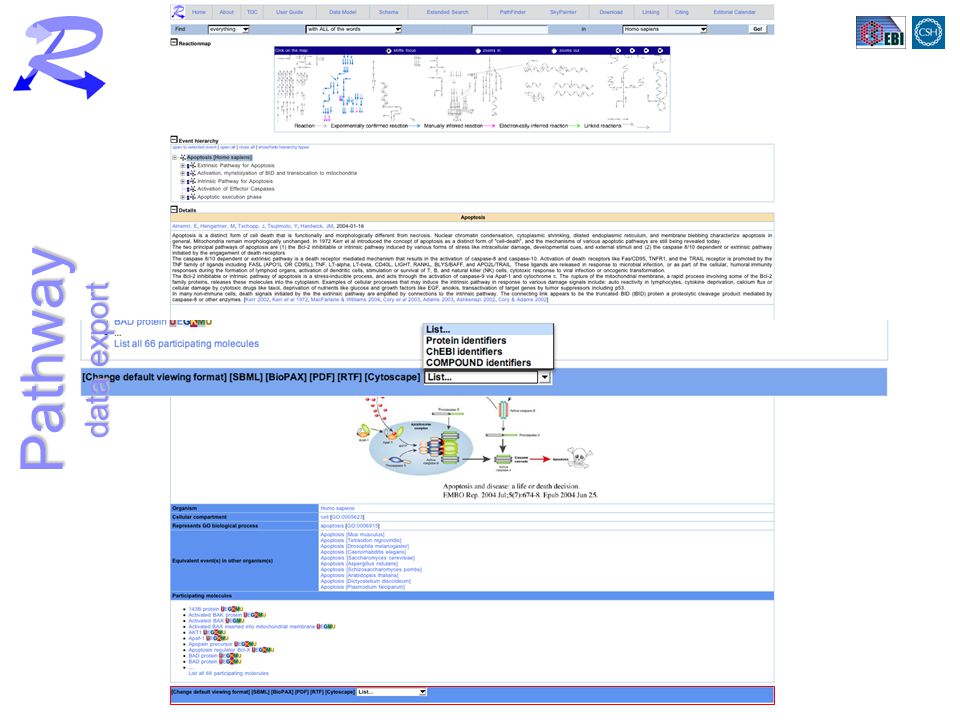

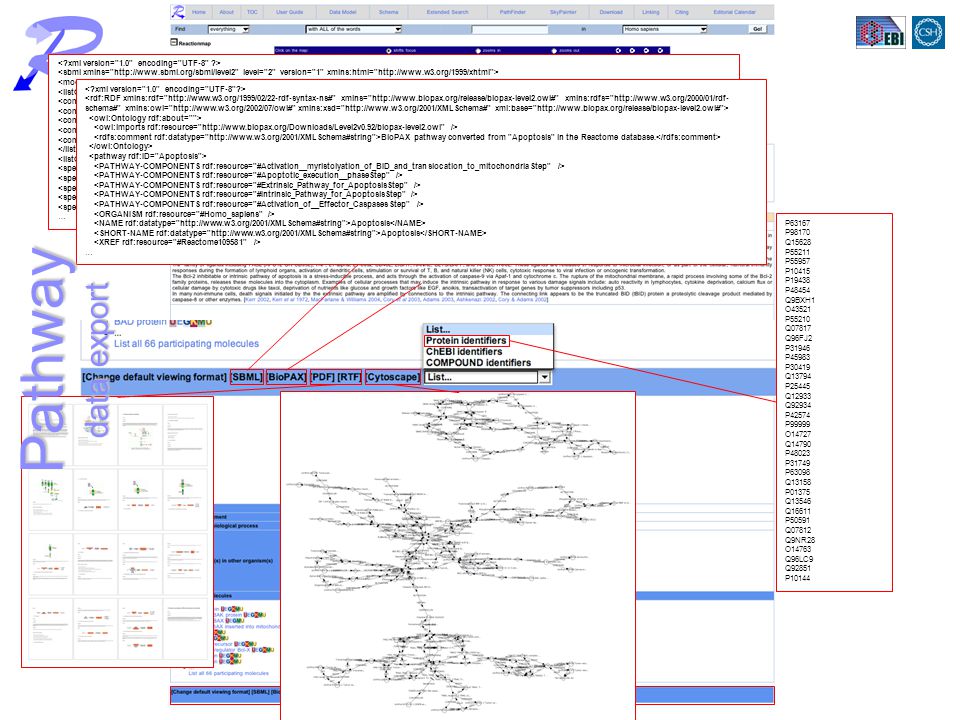

29 Pathway data export

30 … BioPAX pathway converted from "Apoptosis" in the Reactome database. Apoptosis … P63167 P98170 Q15628 P55211 P55957 P10415 P19438 P48454 Q9BXH1 O43521 P55210 Q07817 Q96FJ2 P31946 P45983 P30419 Q13794 P25445 Q12933 Q92934 P42574 P99999 O14727 Q14790 P48023 P31749 P63098 Q13158 P01375 Q13546 Q16611 P50591 Q07812 Q9NR28 O14763 Q96LC9 Q92851 P10144 Pathway data export

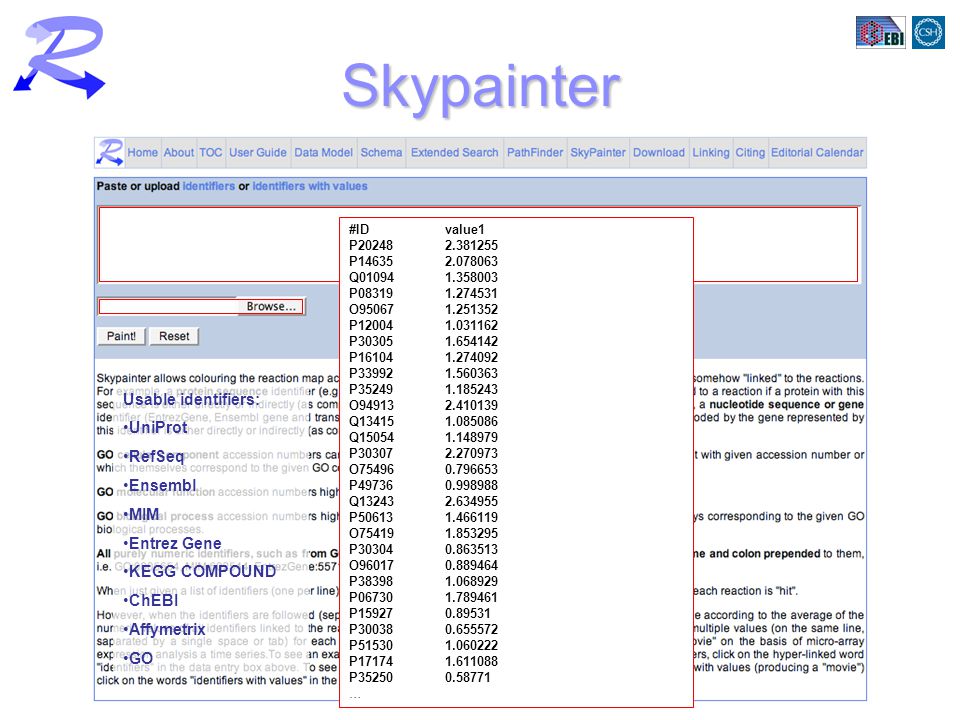

31 #IDvalue1 P202482.381255 P146352.078063 Q010941.358003 P083191.274531 O950671.251352 P120041.031162 P303051.654142 P161041.274092 P339921.560363 P352491.185243 O949132.410139 Q134151.085086 Q150541.148979 P303072.270973 O754960.796653 P497360.998988 Q132432.634955 P506131.466119 O754191.853295 P303040.863513 O960170.889464 P383981.068929 P067301.789461 P159270.89531 P300380.655572 P515301.060222 P171741.611088 P352500.58771 … Usable identifiers: UniProt RefSeq Ensembl MIM Entrez Gene KEGG COMPOUND ChEBI Affymetrix GO Skypainter

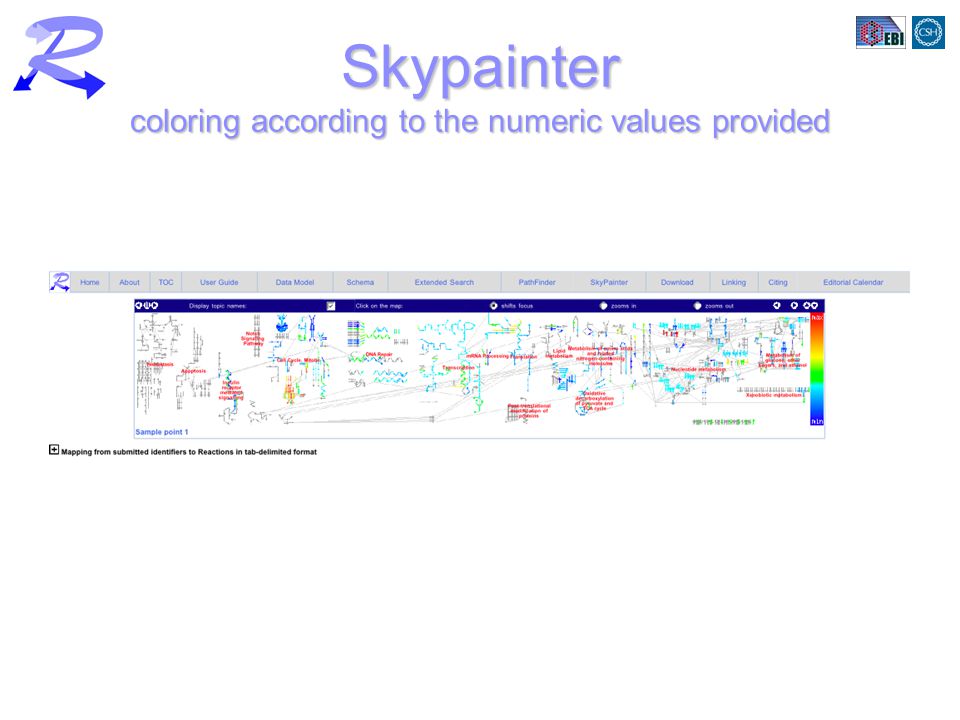

32 Skypainter coloring according to the numeric values provided

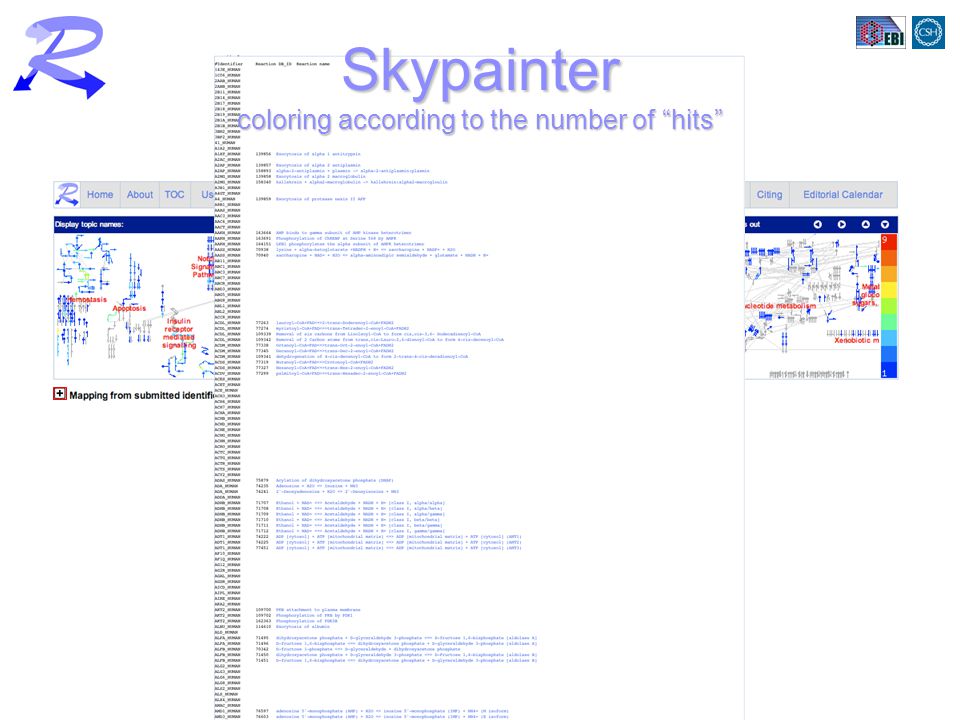

34 Skypainter coloring according to the number of “hits”

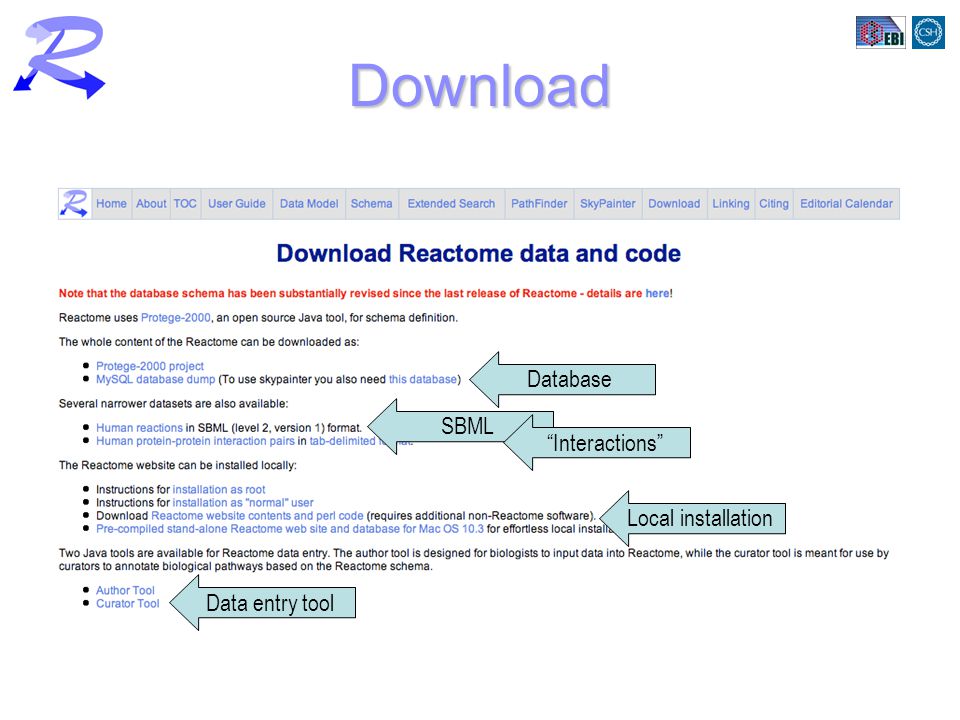

35 Download Database SBML “Interactions” Local installation Data entry tool

36 Thank You
