1 Detecting Malicious Flux Service Networks through Passive Analysis of Recursive DNS Traces Roberto Perdisci, Igino Corona, David Dagon, Wenke Lee ACSAC (Dec, 2009) 2010/3/21

2 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion 2010/3/22

3 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion At 2007 fast-flux domain names Malicious Fast-Flux Network 2010/3/23

4 Malicious flux service networks Be viewed as illegitimate content-delivery networks (CDNs) The nodes of a malicious flux service network is called flux agents Commonly used to host phishing websites, illegal adult content, or serve as malware propagation vectors 2010/3/24

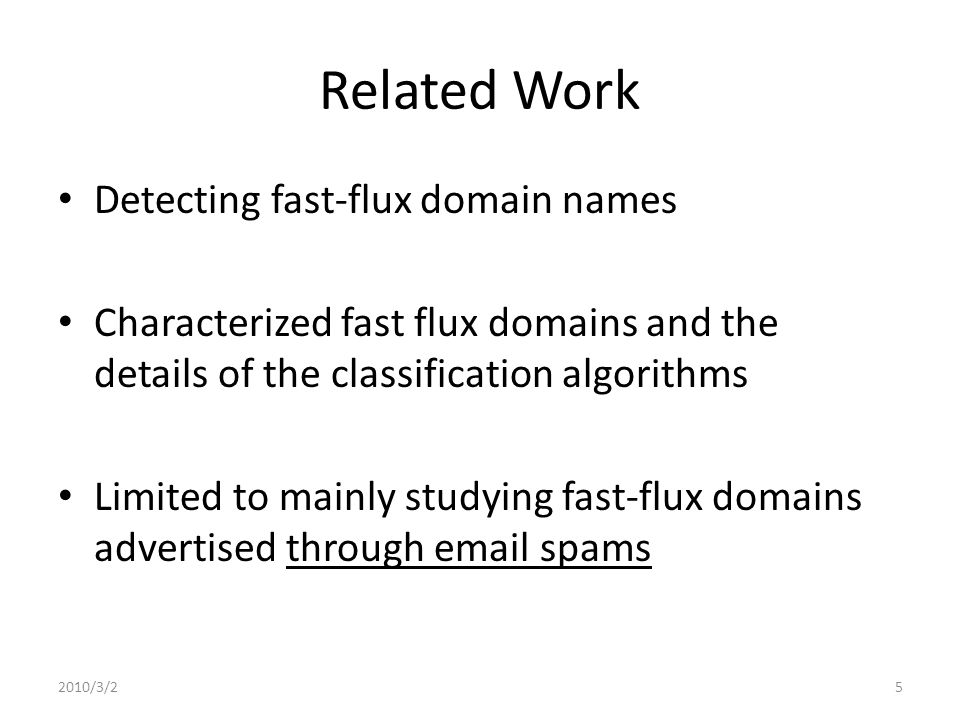

5 Related Work Detecting fast-flux domain names Characterized fast flux domains and the details of the classification algorithms Limited to mainly studying fast-flux domains advertised through spams 2010/3/25

6 Approach Novel and passive Monitor the DNS queries and responses from the users to the RDNS, and selectively store information about potential fast-flux domains into a central DNS data collector By deploying sensors in front of the recursive DNS (RDNS) ? 2010/3/26

7 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion  Focus on detecting malicious flux networks in- the-wild  Passive detection benefit the accuracy of spam filtering applications 2010/3/27

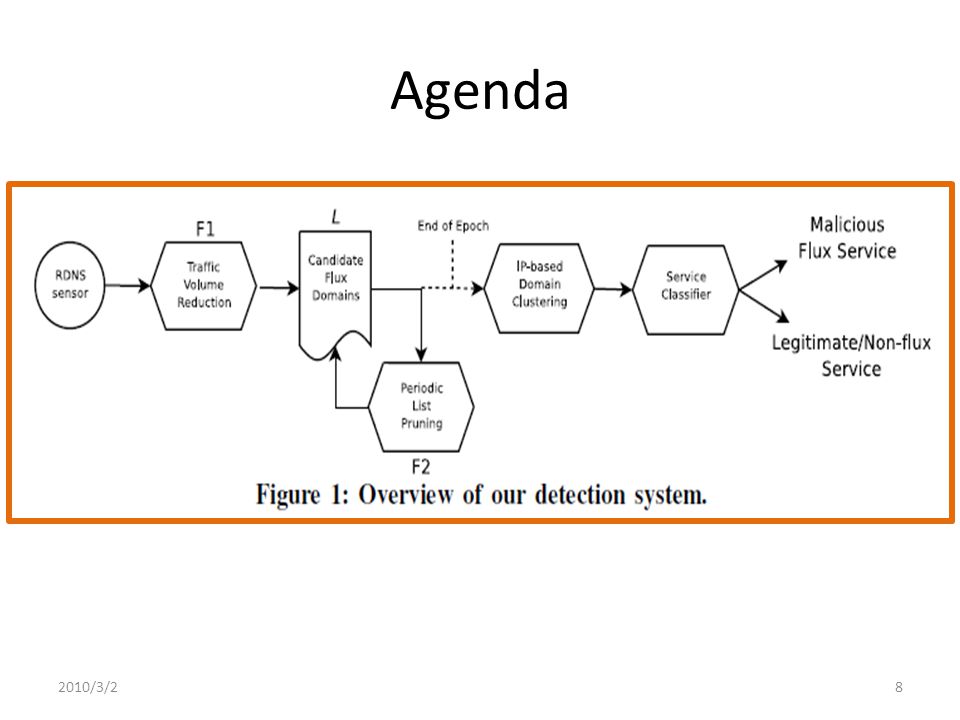

8 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion 2010/3/28

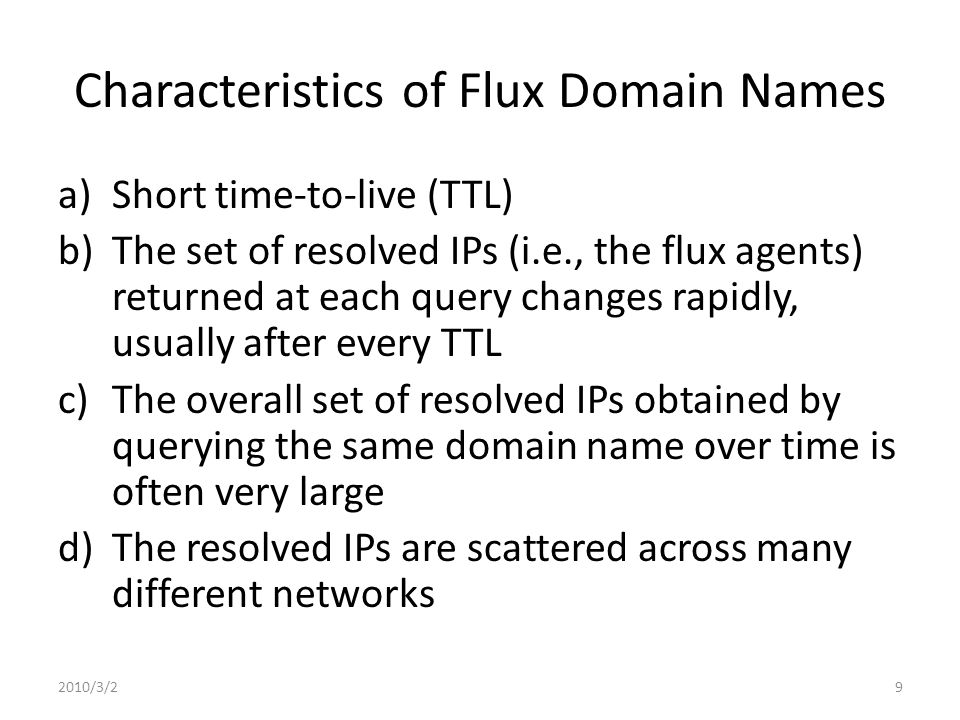

9 Characteristics of Flux Domain Names a)Short time-to-live (TTL) b)The set of resolved IPs (i.e., the flux agents) returned at each query changes rapidly, usually after every TTL c)The overall set of resolved IPs obtained by querying the same domain name over time is often very large d)The resolved IPs are scattered across many different networks 2010/3/29

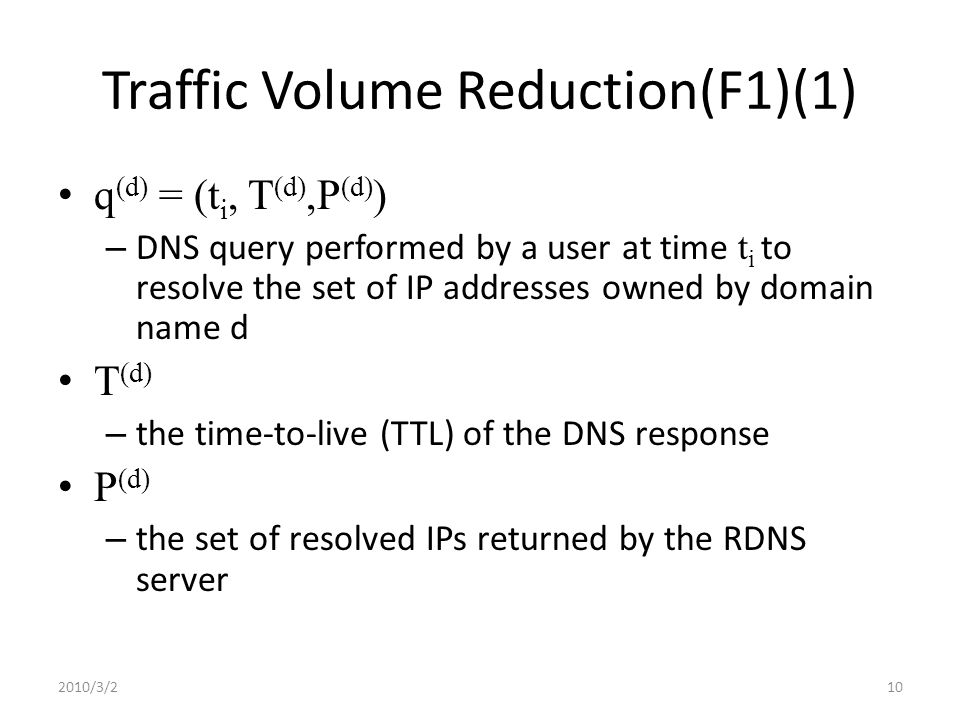

10 Traffic Volume Reduction(F1)(1) q (d) = (t i, T (d),P (d) ) – DNS query performed by a user at time t i to resolve the set of IP addresses owned by domain name d T (d) – the time-to-live (TTL) of the DNS response P (d) – the set of resolved IPs returned by the RDNS server 2010/3/210

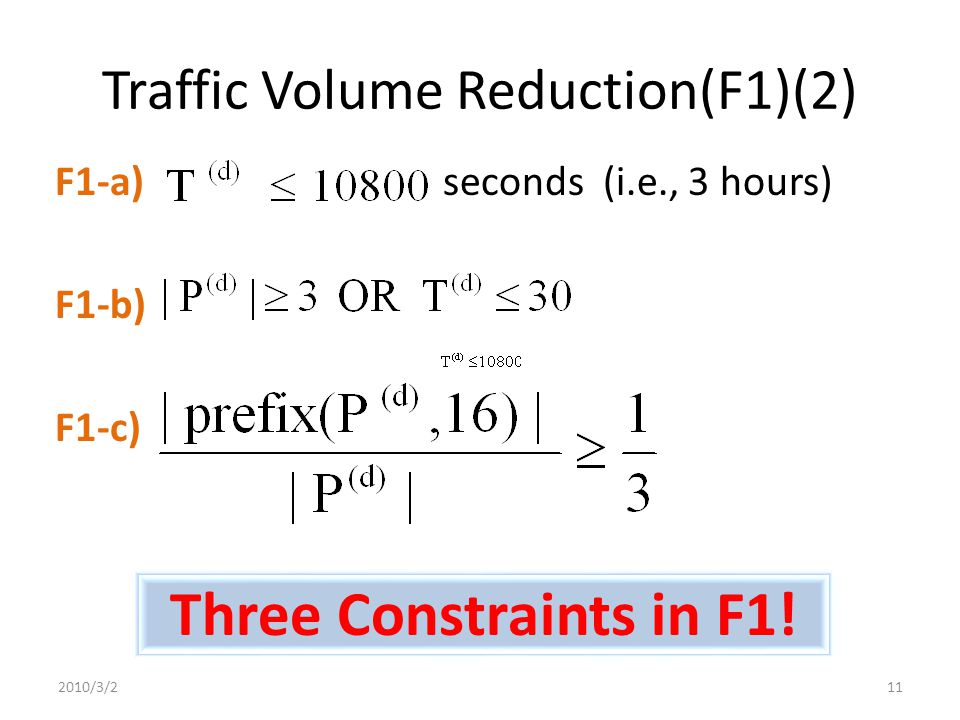

11 Traffic Volume Reduction(F1)(2) F1-a) seconds (i.e., 3 hours) F1-b) F1-c) Three Constraints in F1! 2010/3/211

12 Periodic List Pruning(F2)(1) Candidate flux domain name d – d = : the time when the last DNS query for d was observed : the total number of DNS queries related to d ever seen until : the maximum TTL ever observed for d : the cumulative set of all the resolved IPs ever seen for d until time : a sequence of pairs – where 2010/3/212

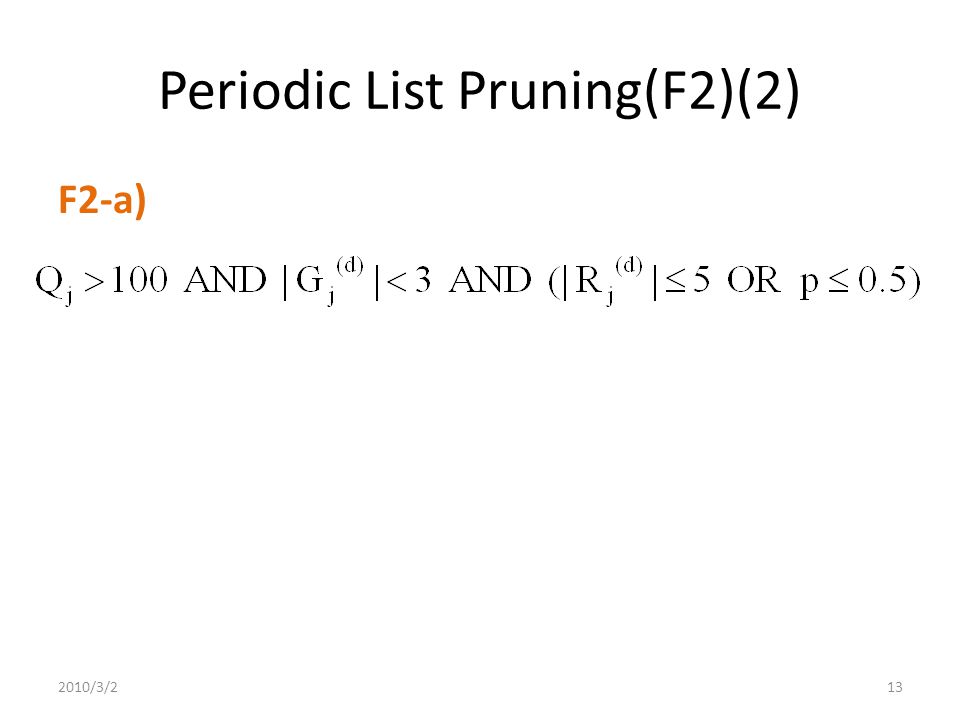

13 Periodic List Pruning(F2)(2) F2-a) 2010/3/213

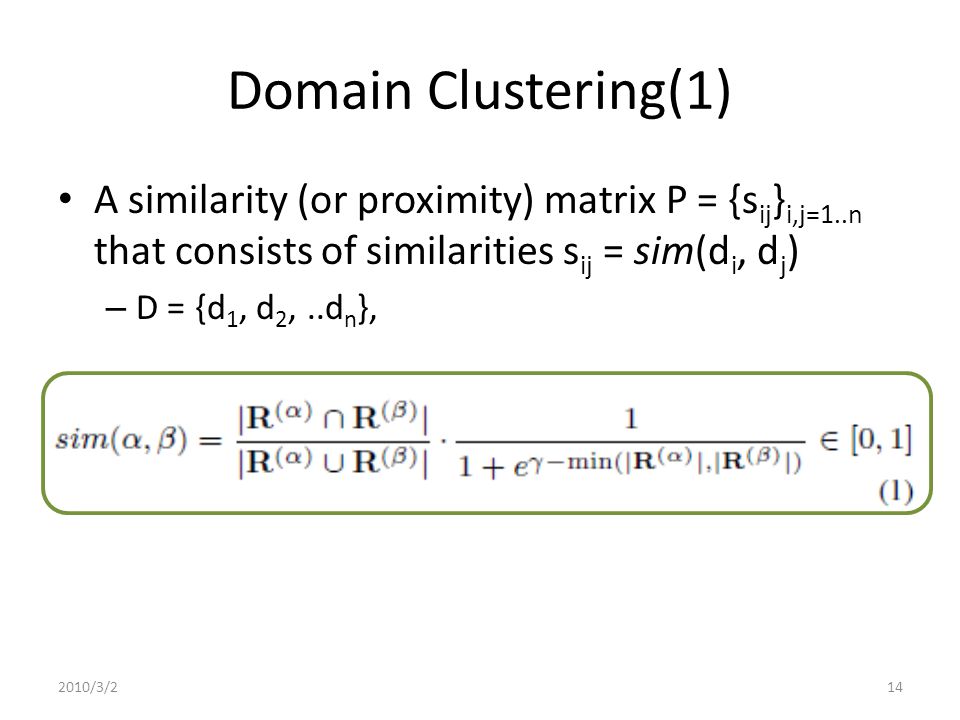

14 Domain Clustering(1) A similarity (or proximity) matrix P = {s ij } i,j=1..n that consists of similarities s ij = sim(d i, d j ) – D = {d 1, d 2,..d n }, 2010/3/214

15 Domain Clustering(2) The hierarchical clustering algorithm takes P as input and produces in output a dendrogram, i.e., a tree-like data structure in which the leaves represent the original domains in D 2010/3/215

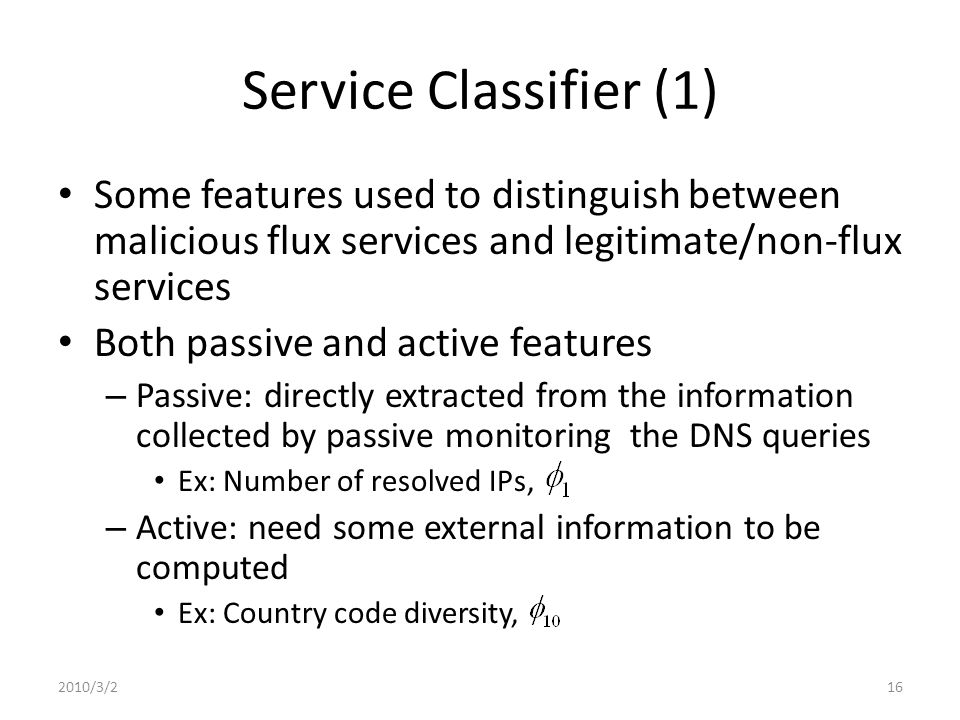

16 Service Classifier (1) Some features used to distinguish between malicious flux services and legitimate/non-flux services Both passive and active features – Passive: directly extracted from the information collected by passive monitoring the DNS queries Ex: Number of resolved IPs, – Active: need some external information to be computed Ex: Country code diversity, 2010/3/216

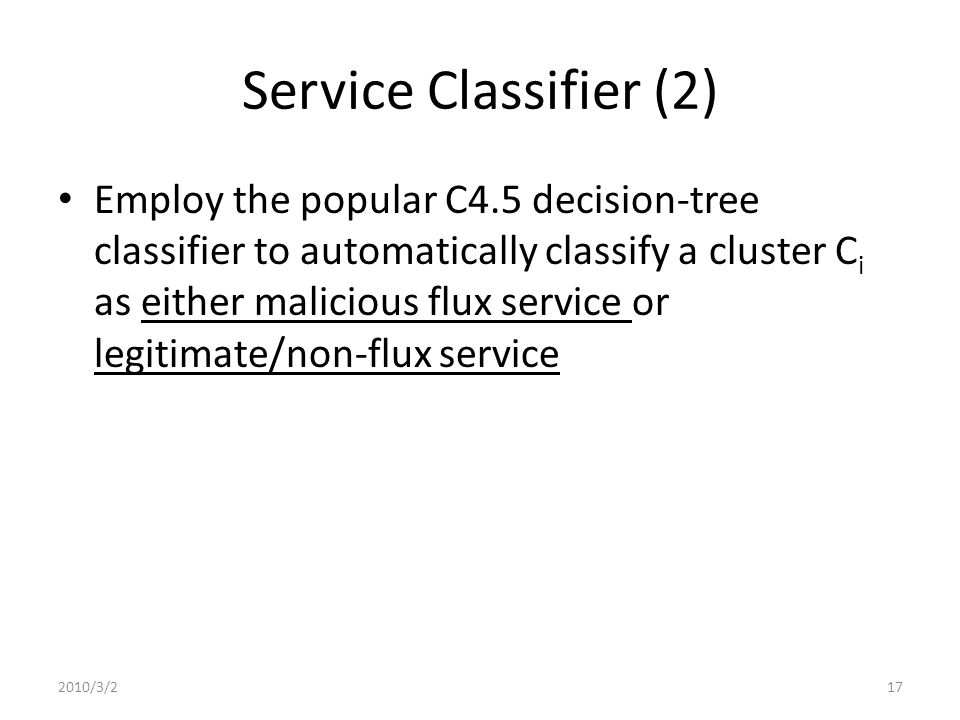

17 Service Classifier (2) Employ the popular C4.5 decision-tree classifier to automatically classify a cluster C i as either malicious flux service or legitimate/non-flux service 2010/3/217

18 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion 2010/3/218

19 Collecting Recursive DNS Traffic Two sensors in front of two different RDNS servers of large north American ISP Between March 1 and April 14, 2009 More than 4 million users Monitor 2.5 billion DNS queries per day Set the epoch E to be one day 2010/3/219

20 Clustering Candidate Flux Domains(1) Apply a single-linkage hierarchical clustering algorithm to group together domains that belong to the same network Need 30 ~ 40 minutes per day and per sensor Obtained 4000 domain clusters per day 2010/3/220

21 Clustering Candidate Flux Domains(2) Manually verified the quality of the results for a subset of the clusters obtained every day With the help of a graphical interface Ex: – NTP server pool in Europe, North America, Oceania, etc 2010/3/221

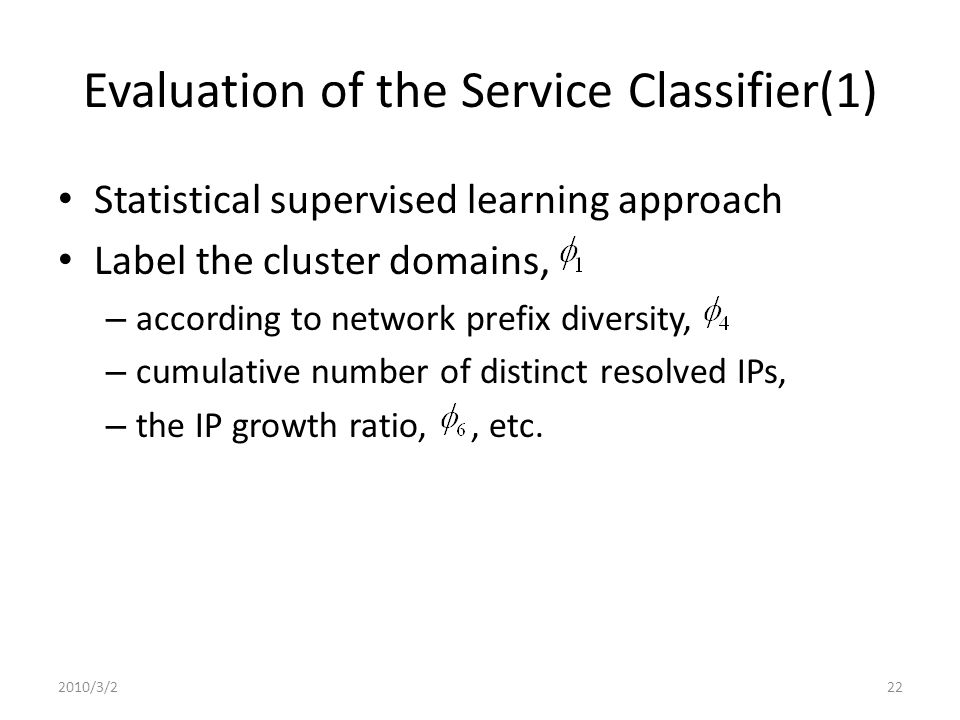

22 Evaluation of the Service Classifier(1) Statistical supervised learning approach Label the cluster domains, – according to network prefix diversity, – cumulative number of distinct resolved IPs, – the IP growth ratio,, etc. 2010/3/222

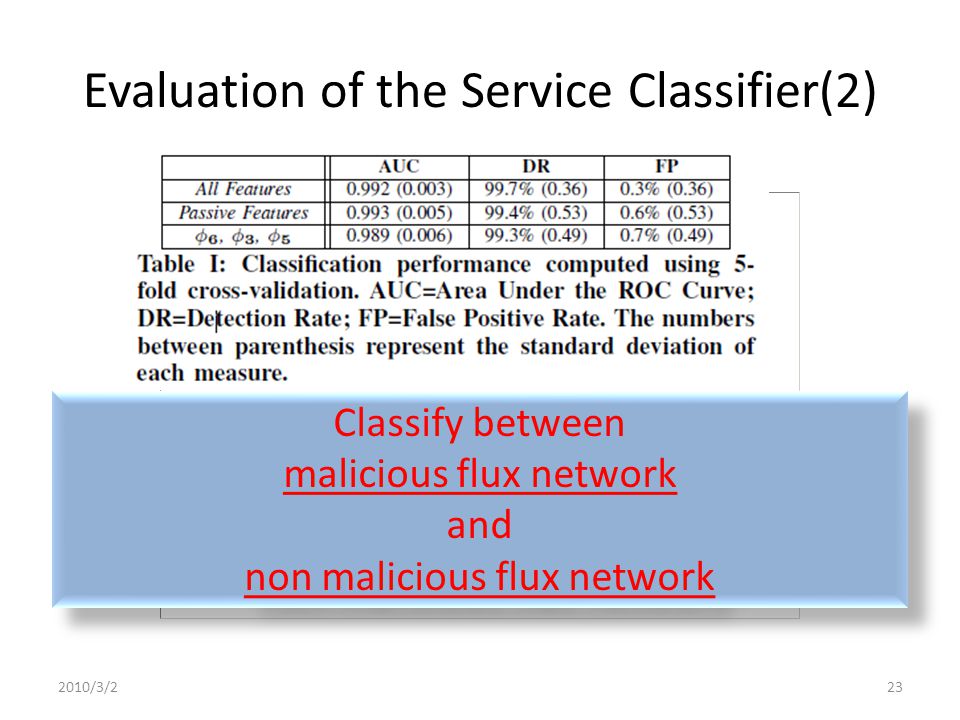

23 Evaluation of the Service Classifier(2) : Avg. TTL per domain : Number of domains per network : IP Growth Ratio Classify between malicious flux network and non malicious flux network Classify between malicious flux network and non malicious flux network 2010/3/223

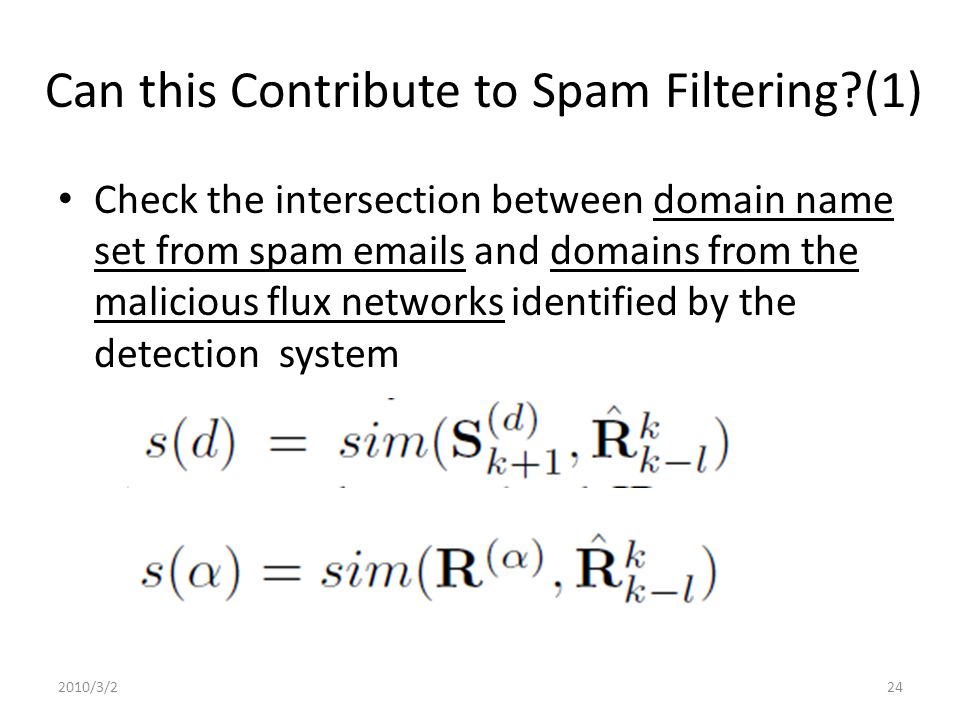

24 Can this Contribute to Spam Filtering?(1) Check the intersection between domain name set from spam s and domains from the malicious flux networks identified by the detection system 2010/3/224

25 Can this Contribute to Spam Filtering?(2) 2010/3/225

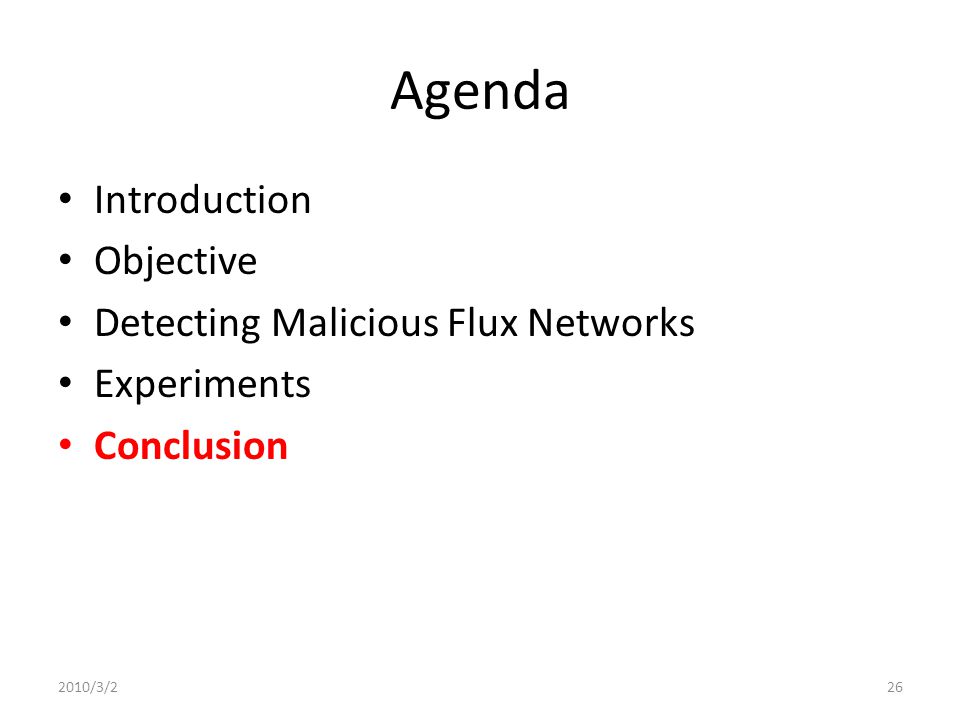

26 Agenda Introduction Objective Detecting Malicious Flux Networks Experiments Conclusion 2010/3/226

27 Conslusion The detection system is based on passive analysis of recursive DNS (RDNS) traffic traces Not limited to the analysis of suspicious domain names extracted from spam s or precompiled domain blacklists Benefit spam filtering applications 2010/3/227
