1 Orion Telecom Networks Inc VCL-LD™ E1, Digital Voice Compression Equipment (Digital Circuit Multiplication Equipment - DCME) Slide 1 Updated : January 1st, , Avenue of Fountains, Suite # 108, Fountain Hills, AZ 85268, U.S.A. Phone: +1 (480) Fax: +1 (480) Web Site:

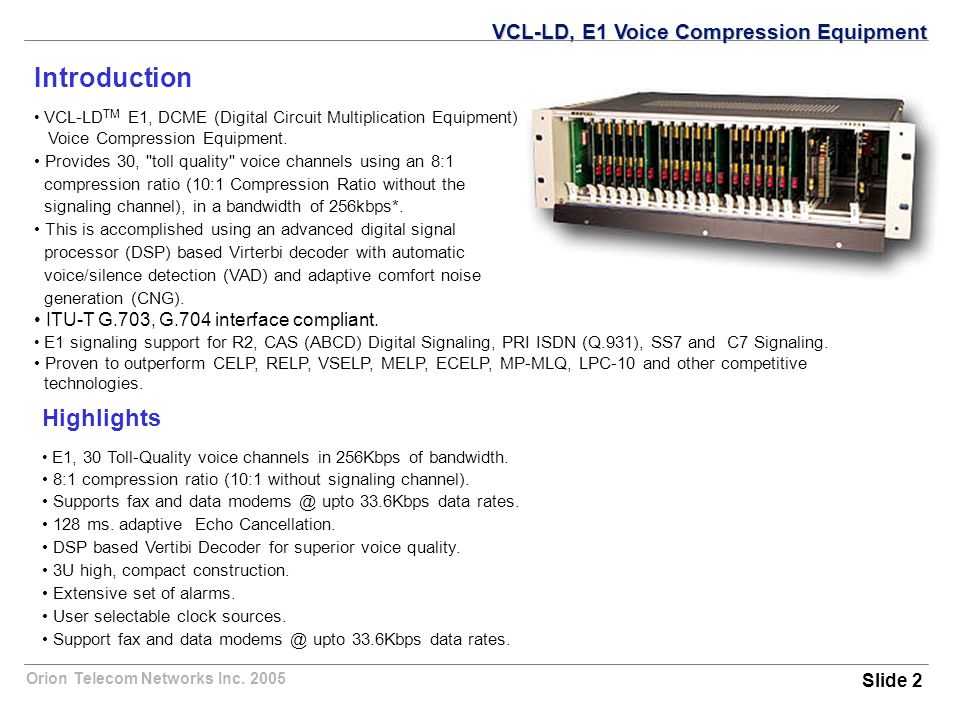

2 Orion Telecom Networks Inc Introduction VCL-LD TM E1, DCME (Digital Circuit Multiplication Equipment) Voice Compression Equipment. Provides 30, "toll quality" voice channels using an 8:1 compression ratio (10:1 Compression Ratio without the signaling channel), in a bandwidth of 256kbps*. This is accomplished using an advanced digital signal processor (DSP) based Virterbi decoder with automatic voice/silence detection (VAD) and adaptive comfort noise generation (CNG). ITU-T G.703, G.704 interface compliant. E1 signaling support for R2, CAS (ABCD) Digital Signaling, PRI ISDN (Q.931), SS7 and C7 Signaling. Proven to outperform CELP, RELP, VSELP, MELP, ECELP, MP-MLQ, LPC-10 and other competitive technologies. Highlights E1, 30 Toll-Quality voice channels in 256Kbps of bandwidth. 8:1 compression ratio (10:1 without signaling channel). Supports fax and data upto 33.6Kbps data rates. 128 ms. adaptive Echo Cancellation. DSP based Vertibi Decoder for superior voice quality. 3U high, compact construction. Extensive set of alarms. User selectable clock sources. Support fax and data upto 33.6Kbps data rates. VCL-LD, E1 Voice Compression Equipment Slide 2

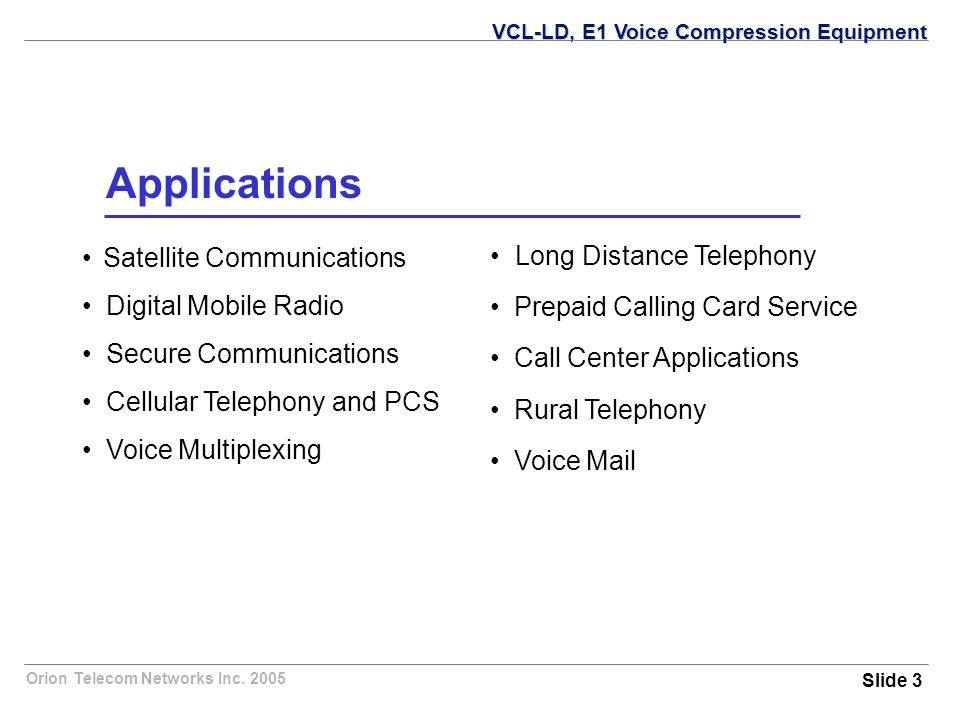

3 Orion Telecom Networks Inc Satellite Communications Digital Mobile Radio Secure Communications Cellular Telephony and PCS Voice Multiplexing Applications Long Distance Telephony Prepaid Calling Card Service Call Center Applications Rural Telephony Voice Mail VCL-LD, E1 Voice Compression Equipment Slide 3

4 Orion Telecom Networks Inc Support for multiple signaling platforms including CAS R2, PRI ISDN C7 and SS7 Signaling. Echo cancellation: Echo Canceller card cancels echo up to 128ms. Support fax and data upto 33.6Kbps data rates. E1, 30 voice channels in 256Kbps bandwidth (4, DS-0's) for voice only application. E1, 30 voice channels in 384Kbps (6, DS-0’s) for voice, fax and data modem support. Ideal choice for satellite communications, digital mobile radios, cellular network, long distance telephony service providers (including pre-paid calling card operators), corporate customers for linking intercity voice networks, national and international call-center applications. Modular Architecture - reduces downtime - dual port per card. Scalable - Build as you grow. Transport over point-to-point satellite links and dedicated leased lines. Superior Voice Quality. Robust to Bit Errors & Background Noise. High Quality Low Data Rate Speech Coding. Forward Error Correction. Voice Activity Detection (VAD) / Comfort Noise Insertion. Single and Dual Tone (DTMF) Detection and Generation. Minimal algorithmic processing delay. DTMF detection and regeneration. Features VCL-LD, E1 Voice Compression Equipment Slide 4

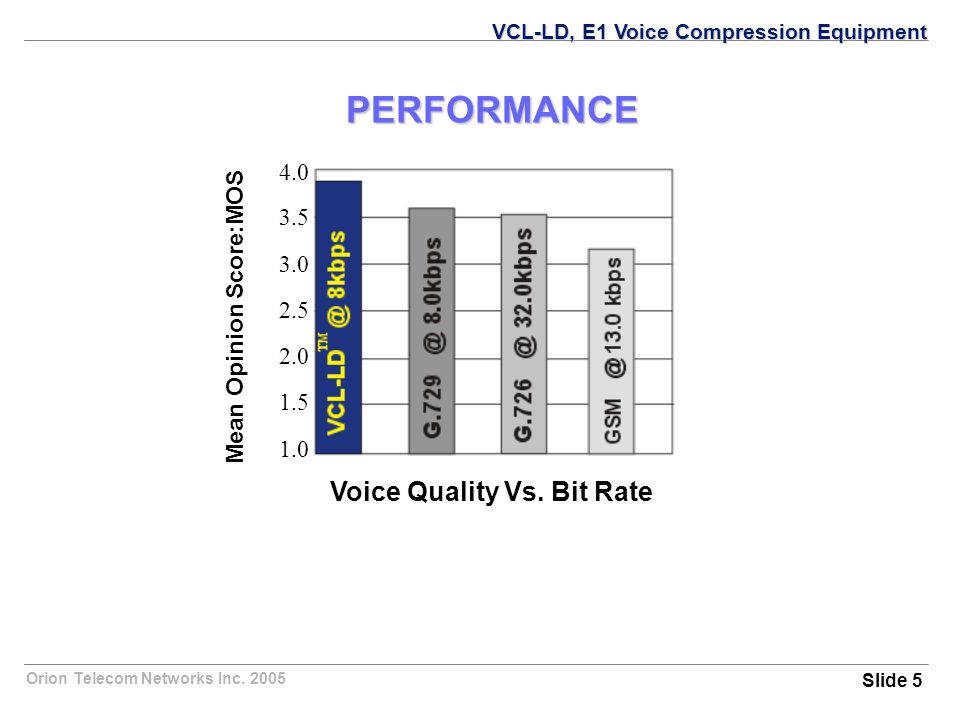

5 Orion Telecom Networks Inc PERFORMANCE Voice Quality Vs. Bit Rate Mean Opinion Score:MOS VCL-LD, E1 Voice Compression Equipment Slide 5

6 Orion Telecom Networks Inc Application of VCL-LD TM DCME International & Domestic Long Distance Telephony - A Fractional E1 256 kbps Satellite / Leased Line E1, CAS R2 PRI ISDN (Euro ISDN) C7, SS7 Signaling E1, CAS R2 PRI ISDN (Euro ISDN) C7, SS7 Signaling PSTN Switch PSTN Switch VCL-LD VCL-LD, E1 Voice Compression Equipment Slide 6

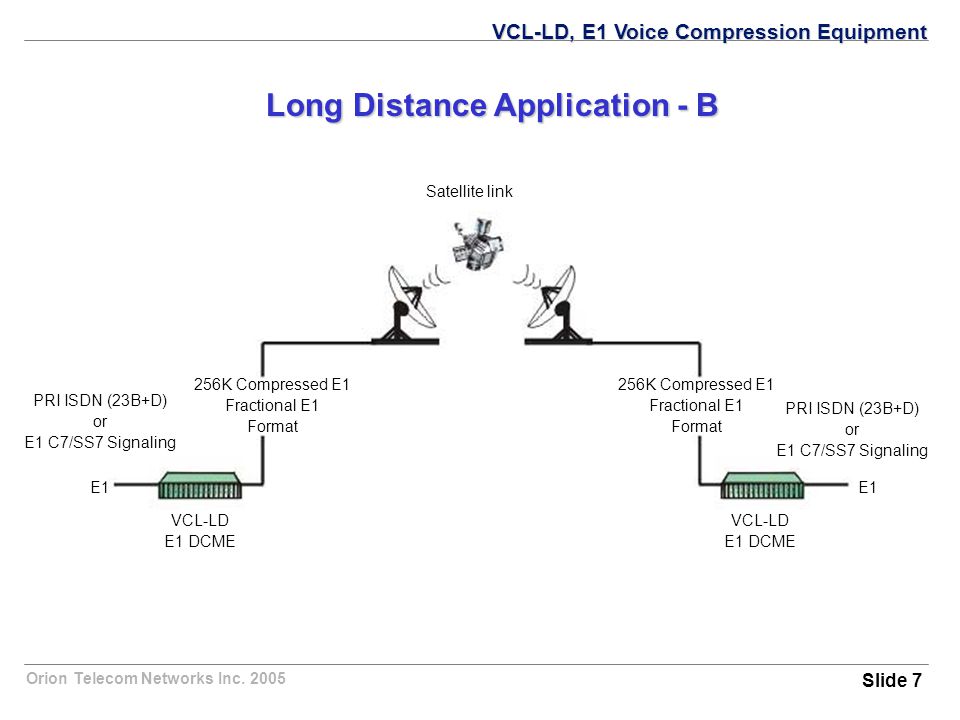

7 Orion Telecom Networks Inc Long Distance Application - B PRI ISDN (23B+D) or E1 C7/SS7 Signaling 256K Compressed E1 Fractional E1 Format 256K Compressed E1 Fractional E1 Format Satellite link PRI ISDN (23B+D) or E1 C7/SS7 Signaling E1 VCL-LD E1 DCME VCL-LD E1 DCME VCL-LD, E1 Voice Compression Equipment Slide 7

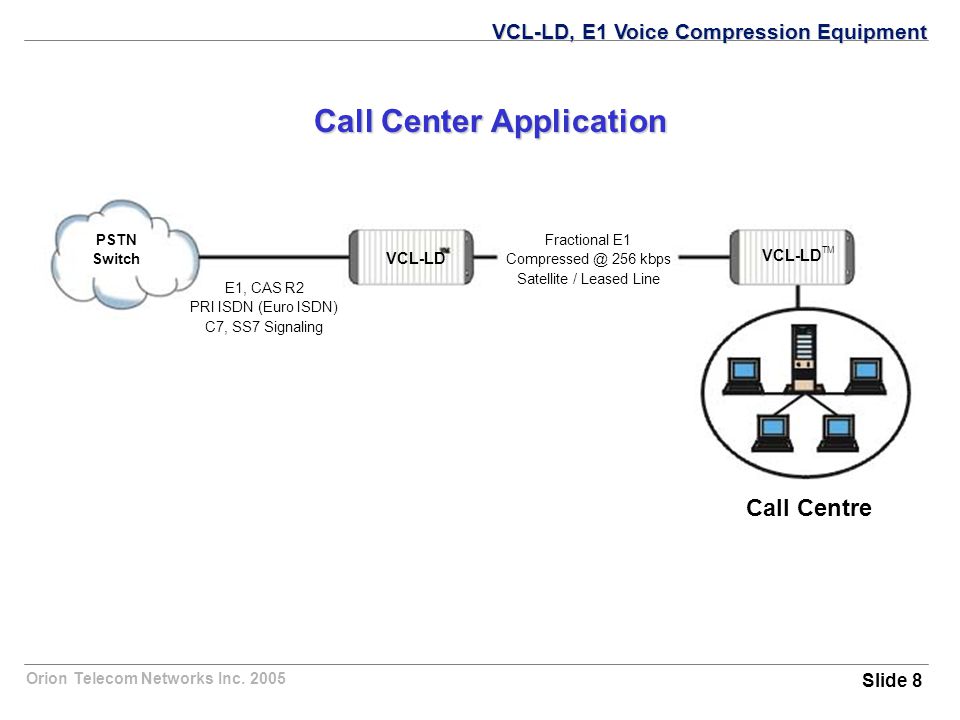

8 Orion Telecom Networks Inc Call Center Application E1, CAS R2 PRI ISDN (Euro ISDN) C7, SS7 Signaling Fractional E1 256 kbps Satellite / Leased Line PSTN Switch Call Centre VCL-LD VCL-LD TM VCL-LD, E1 Voice Compression Equipment Slide 8

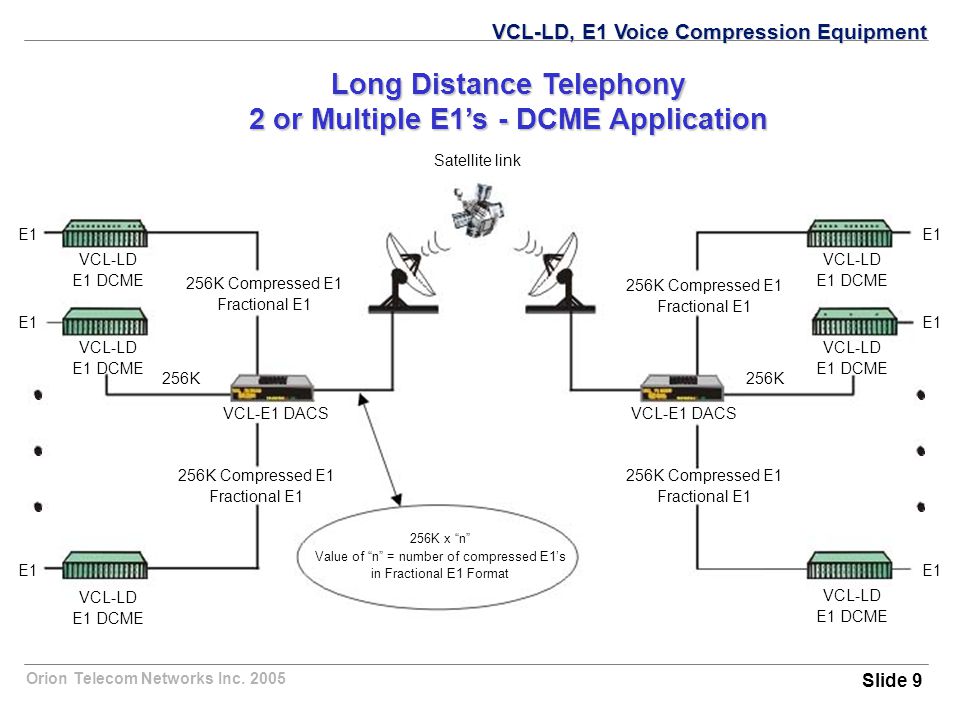

9 Orion Telecom Networks Inc Long Distance Telephony 2 or Multiple E1’s - DCME Application Satellite link E1 256K E1 VCL-LD E1 DCME 256K Compressed E1 Fractional E1 256K Compressed E1 Fractional E1 VCL-LD E1 DCME VCL-LD E1 DCME VCL-LD E1 DCME 256K Compressed E1 Fractional E1 256K Compressed E1 Fractional E1 256K VCL-LD E1 DCME VCL-LD E1 DCME VCL-E1 DACS 256K x “n” Value of “n” = number of compressed E1’s in Fractional E1 Format VCL-LD, E1 Voice Compression Equipment Slide 9

10 Orion Telecom Networks Inc FRONT PANEL VIEW OF VCL-LD 19 inch Shelf The detailed equipment components of the VCL-LD are listed below: 1. One, VCL-LD, 19 inch shelf and Connectorized Backpanel 2. One, -48 VDC, Power Supply Card 3. One, E1, Echo Canceller Card (128 ms. echo cancellation) 4. One, E1, Interface Card, provides one uncompressed E1 interface and one compressed E1 interface. 5. DS-0, aggregate 10 compressed voice channels to a DS-0 (3 cards per system - maximum) 6. Voice compression card, Dual channel voice compression card, (15 cards per system - maximum) Voice Compression Cards DS-0 Card Voice Compression Cards DS-0 Card E1 Interface Card Echo Canceller Card Voice Compression Cards Power Supply Card VCL-LD, E1 Voice Compression Equipment Slide 10

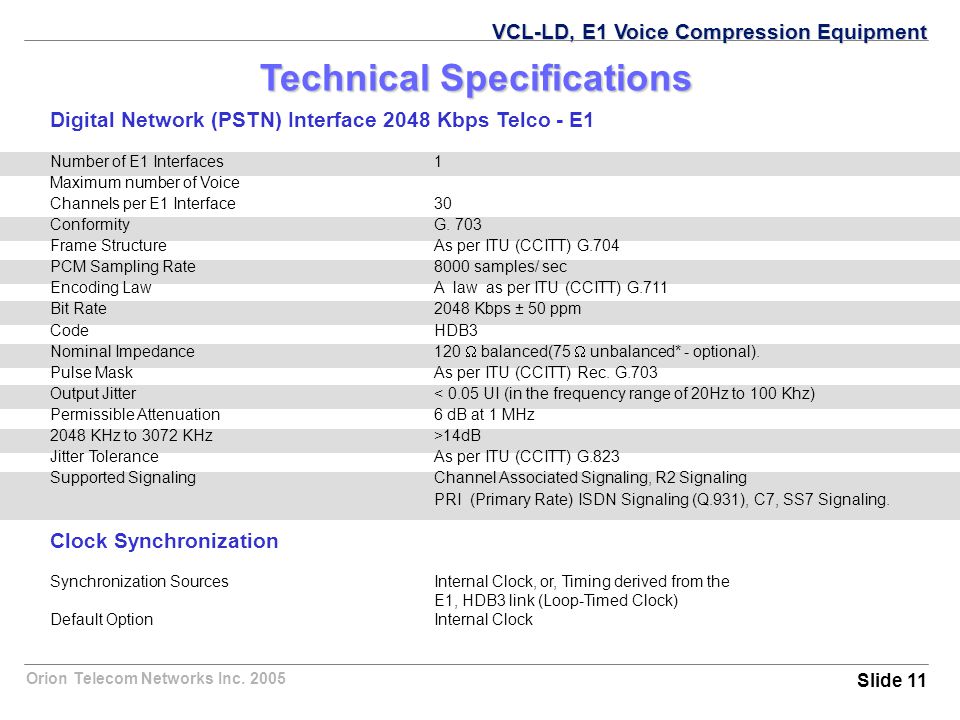

11 Orion Telecom Networks Inc Technical Specifications Digital Network (PSTN) Interface 2048 Kbps Telco - E1 Number of E1 Interfaces1 Maximum number of Voice Channels per E1 Interface30 ConformityG. 703 Frame StructureAs per ITU (CCITT) G.704 PCM Sampling Rate8000 samples/ sec Encoding LawA law as per ITU (CCITT) G.711 Bit Rate2048 Kbps ± 50 ppm CodeHDB3 Nominal Impedance120  balanced(75  unbalanced* - optional). Pulse MaskAs per ITU (CCITT) Rec. G.703 Output Jitter< 0.05 UI (in the frequency range of 20Hz to 100 Khz) Permissible Attenuation6 dB at 1 MHz 2048 KHz to 3072 KHz>14dB Jitter ToleranceAs per ITU (CCITT) G.823 Supported SignalingChannel Associated Signaling, R2 Signaling PRI (Primary Rate) ISDN Signaling (Q.931), C7, SS7 Signaling. Clock Synchronization Synchronization SourcesInternal Clock, or, Timing derived from the E1, HDB3 link (Loop-Timed Clock) Default Option Internal Clock VCL-LD, E1 Voice Compression Equipment Slide 11

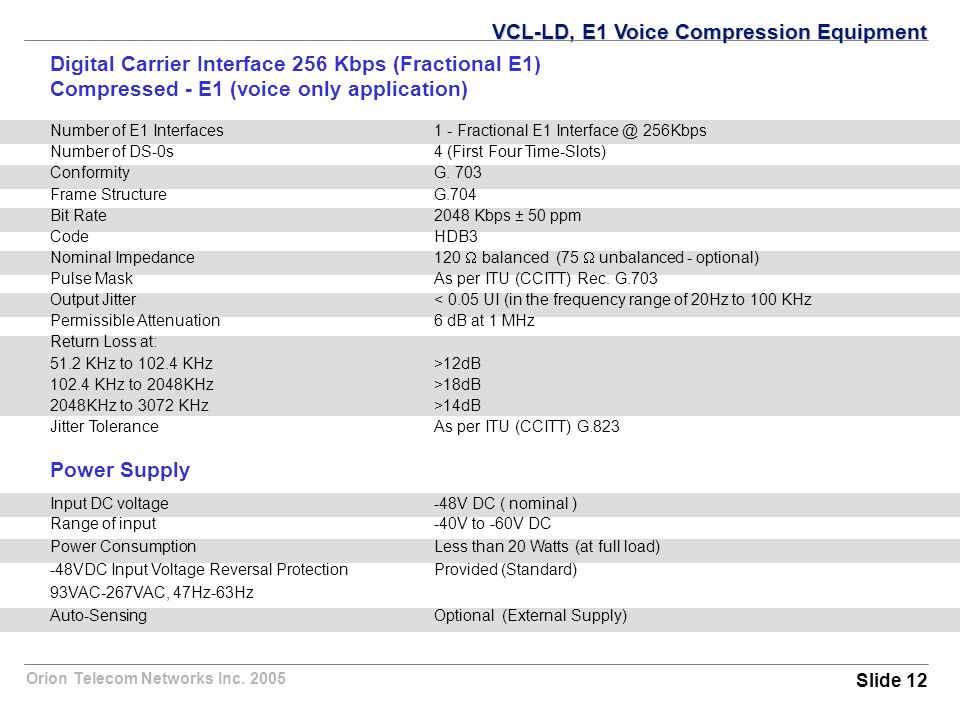

12 Orion Telecom Networks Inc Digital Carrier Interface 256 Kbps (Fractional E1) Compressed - E1 (voice only application) Number of E1 Interfaces1 - Fractional E1 256Kbps Number of DS-0s4 (First Four Time-Slots) ConformityG. 703 Frame StructureG.704 Bit Rate2048 Kbps ± 50 ppm CodeHDB3 Nominal Impedance120  balanced (75  unbalanced - optional) Pulse MaskAs per ITU (CCITT) Rec. G.703 Output Jitter< 0.05 UI (in the frequency range of 20Hz to 100 KHz Permissible Attenuation6 dB at 1 MHz Return Loss at: 51.2 KHz to KHz>12dB KHz to 2048KHz>18dB 2048KHz to 3072 KHz>14dB Jitter ToleranceAs per ITU (CCITT) G.823 Power Supply Input DC voltage-48V DC ( nominal ) Range of input-40V to -60V DC Power ConsumptionLess than 20 Watts (at full load) -48VDC Input Voltage Reversal ProtectionProvided (Standard) 93VAC-267VAC, 47Hz-63Hz Auto-SensingOptional (External Supply) VCL-LD, E1 Voice Compression Equipment Slide 12

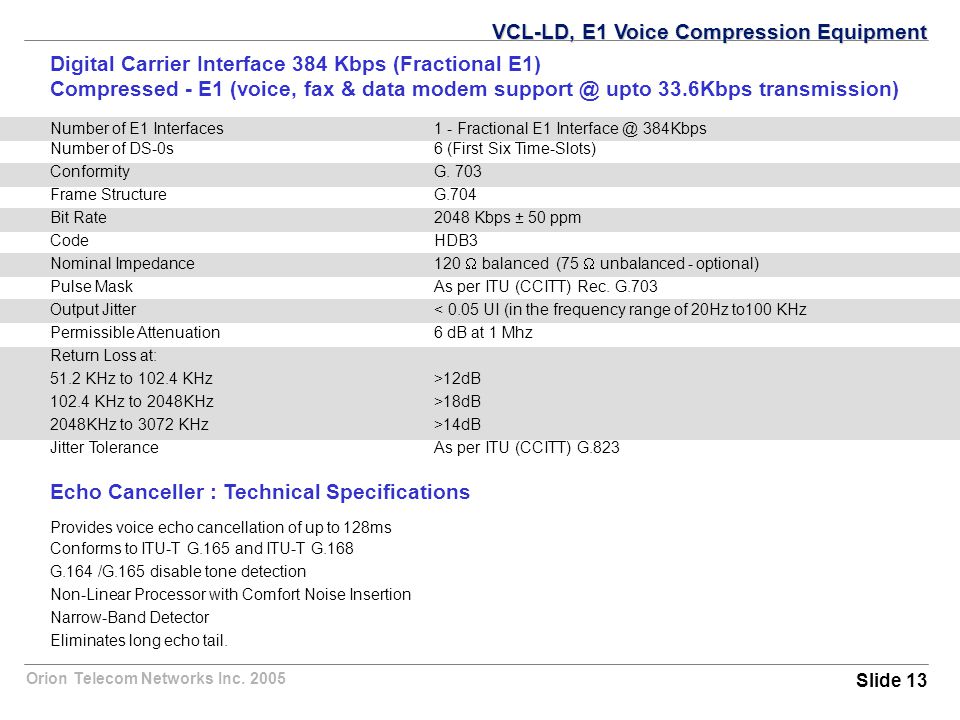

13 Orion Telecom Networks Inc Digital Carrier Interface 384 Kbps (Fractional E1) Compressed - E1 (voice, fax & data modem upto 33.6Kbps transmission) Number of E1 Interfaces1 - Fractional E1 384Kbps Number of DS-0s6 (First Six Time-Slots) ConformityG. 703 Frame StructureG.704 Bit Rate2048 Kbps ± 50 ppm CodeHDB3 Nominal Impedance120  balanced (75  unbalanced - optional) Pulse MaskAs per ITU (CCITT) Rec. G.703 Output Jitter< 0.05 UI (in the frequency range of 20Hz to100 KHz Permissible Attenuation6 dB at 1 Mhz Return Loss at: 51.2 KHz to KHz>12dB KHz to 2048KHz>18dB 2048KHz to 3072 KHz>14dB Jitter ToleranceAs per ITU (CCITT) G.823 Echo Canceller : Technical Specifications Provides voice echo cancellation of up to 128ms Conforms to ITU-T G.165 and ITU-T G.168 G.164 /G.165 disable tone detection Non-Linear Processor with Comfort Noise Insertion Narrow-Band Detector Eliminates long echo tail. VCL-LD, E1 Voice Compression Equipment Slide 13

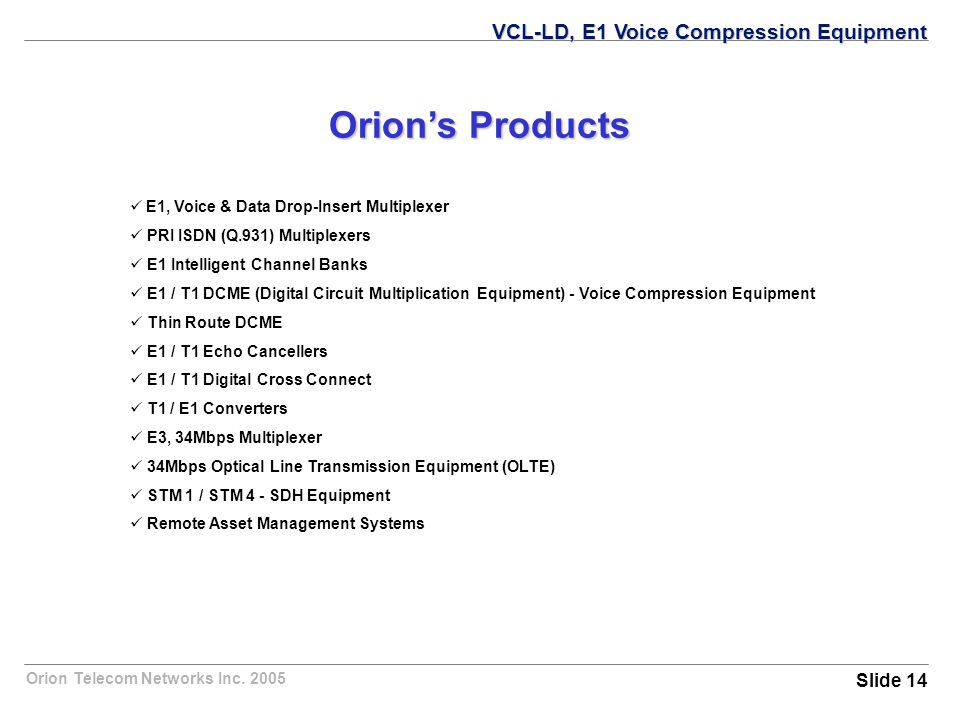

14 Orion Telecom Networks Inc Orion’s Products E1, Voice & Data Drop-Insert Multiplexer PRI ISDN (Q.931) Multiplexers E1 Intelligent Channel Banks E1 / T1 DCME (Digital Circuit Multiplication Equipment) - Voice Compression Equipment Thin Route DCME E1 / T1 Echo Cancellers E1 / T1 Digital Cross Connect T1 / E1 Converters E3, 34Mbps Multiplexer 34Mbps Optical Line Transmission Equipment (OLTE) STM 1 / STM 4 - SDH Equipment Remote Asset Management Systems VCL-LD, E1 Voice Compression Equipment Slide 14

15 Orion Telecom Networks Inc VCL-LD, E1 Voice Compression Equipment Slide 15 Thank you for your attention For more details visit us at our Web Site at , Avenue of Fountains, Suite # 108, Fountain Hills, AZ 85268, U.S.A. Phone: +1 (480) Fax: +1 (480)
