1 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1 Fabian Kato Ingeniero de Pre-Venta Diciembre, 2011

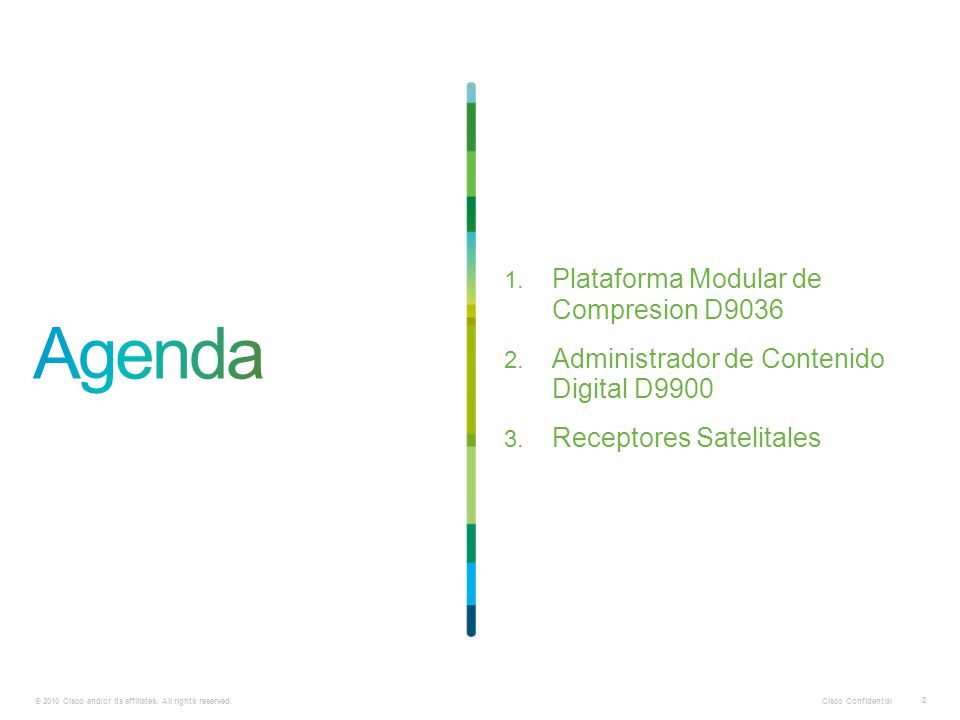

2 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2 1. Plataforma Modular de Compresion D Administrador de Contenido Digital D Receptores Satelitales

3 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3 VIDEO PROCESSING Receivers Decoders Cisco ReceiversCisco Receivers Encoders Cisco ® MEP D9036 Modular Encoder Control Systems Cisco ROSA ® VSM Cisco PNC Cisco ROSA ® VSM Cisco PNC IP Video Gateway Cisco DCM GatewayCisco DCM Gateway Transcoders Cisco DCM Transcoder Video Processing Cisco DCM Video Processor / transcoder

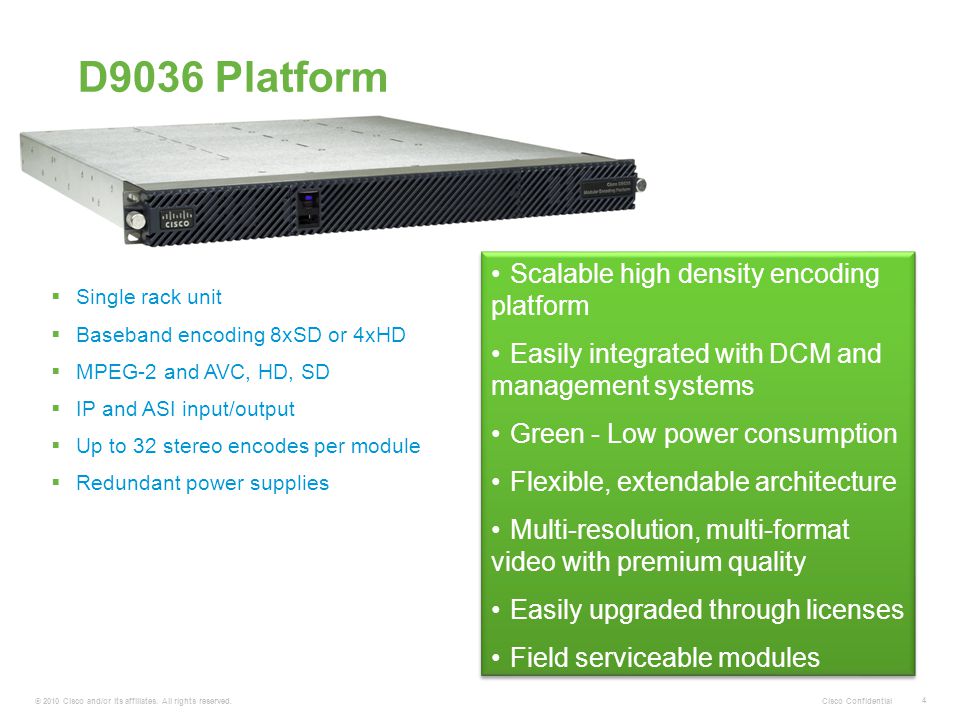

4 Cisco Confidential © 2010 Cisco and/or its affiliates. All rights reserved. 4  Single rack unit  Baseband encoding 8xSD or 4xHD  MPEG-2 and AVC, HD, SD  IP and ASI input/output  Up to 32 stereo encodes per module  Redundant power supplies-replaceable modules, power supplies and air filters D9036 Platform Scalable high density encoding platform Easily integrated with DCM and management systems Green - Low power consumption Flexible, extendable architecture Multi-resolution, multi-format video with premium quality Easily upgraded through licenses Field serviceable modules Scalable high density encoding platform Easily integrated with DCM and management systems Green - Low power consumption Flexible, extendable architecture Multi-resolution, multi-format video with premium quality Easily upgraded through licenses Field serviceable modules

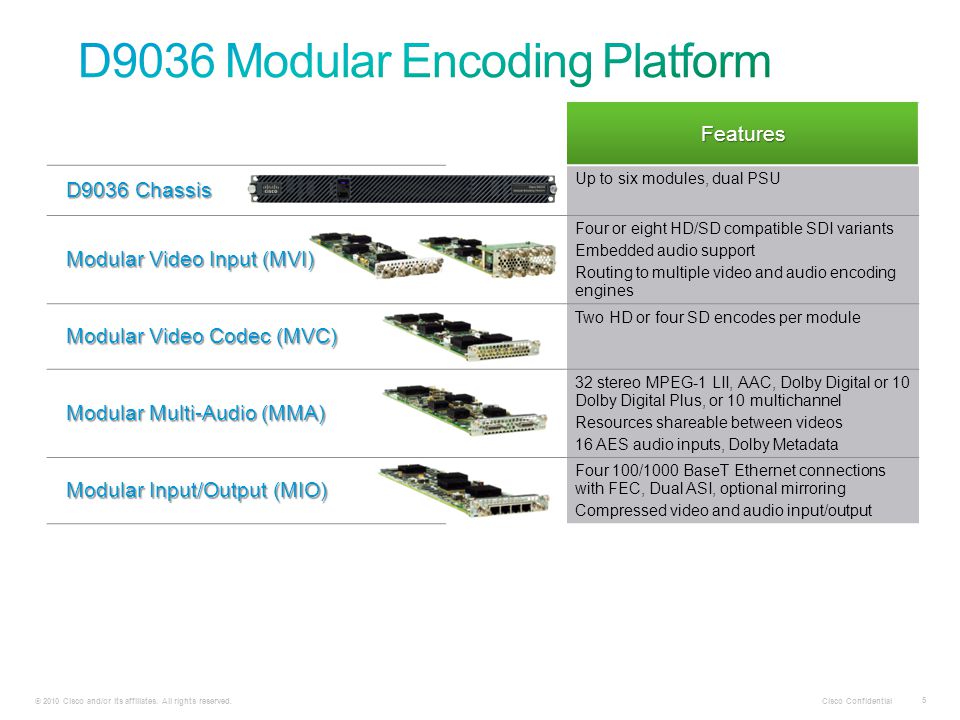

5 Cisco Confidential © 2010 Cisco and/or its affiliates. All rights reserved. 5Features D9036 Chassis Up to six modules, dual PSU Modular Video Input (MVI) Four or eight HD/SD compatible SDI variants Embedded audio support Routing to multiple video and audio encoding engines Modular Video Codec (MVC) Two HD or four SD encodes per module Modular Multi-Audio (MMA) 32 stereo MPEG-1 LII, AAC, Dolby Digital or 10 Dolby Digital Plus, or 10 multichannel Resources shareable between videos 16 AES audio inputs, Dolby Metadata Modular Input/Output (MIO) Four 100/1000 BaseT Ethernet connections with FEC, Dual ASI, optional mirroring Compressed video and audio input/output

6 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6 Multiple audio encode formats, audio decoding Management Ethernet Common Chassis Sync Dual hot- swappable PSUs Alarm and DPI GPIO Mirrored or independent ASI 4x100/1000 BaseT Dense video input (4 or 8) 2xHD or 4xSD per module

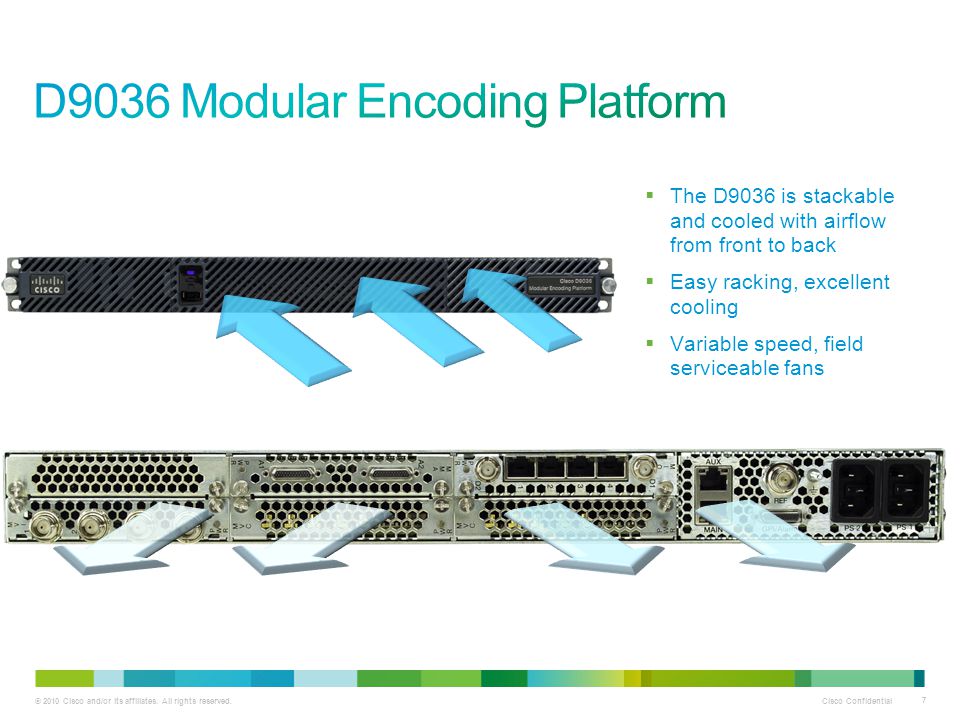

7 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7  The D9036 is stackable and cooled with airflow from front to back  Easy racking, excellent cooling  Variable speed, field serviceable fans

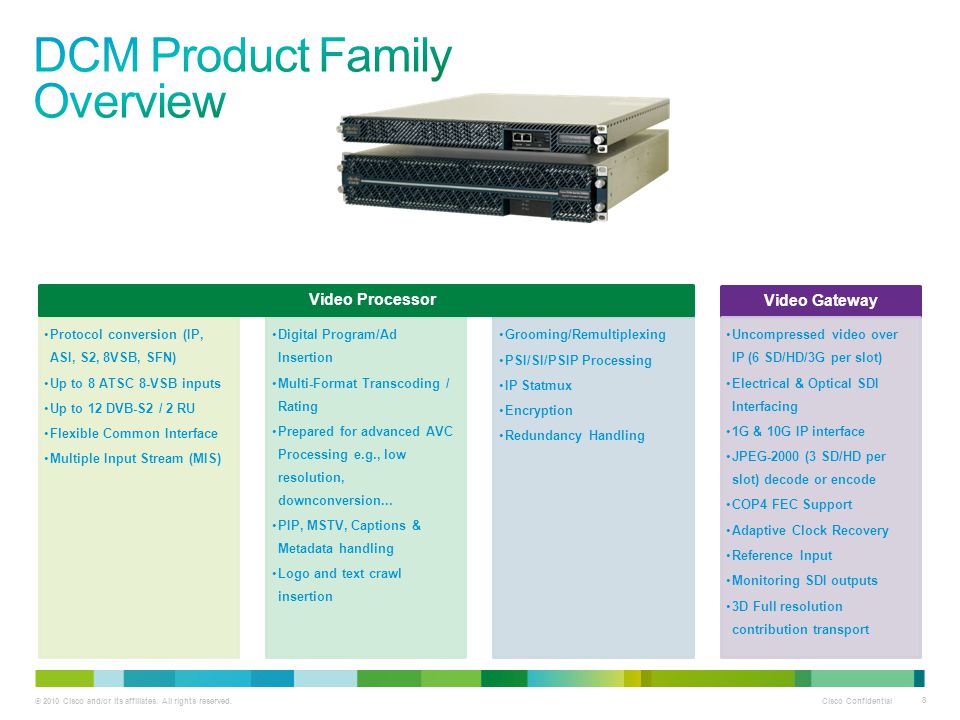

8 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8 Video Interfaces Protocol conversion (IP, ASI, S2, 8VSB, SFN) Up to 8 ATSC 8-VSB inputs Up to 12 DVB-S2 / 2 RU Flexible Common Interface Multiple Input Stream (MIS) Video Transcoding Digital Program/Ad Insertion Multi-Format Transcoding / Rating Prepared for advanced AVC Processing e.g., low resolution, downconversion... PIP, MSTV, Captions & Metadata handling Logo and text crawl insertion Video Processing Grooming/Remultiplexing PSI/SI/PSIP Processing IP Statmux Encryption Redundancy Handling Video Gateway Uncompressed video over IP (6 SD/HD/3G per slot) Electrical & Optical SDI Interfacing 1G & 10G IP interface JPEG-2000 (3 SD/HD per slot) decode or encode COP4 FEC Support Adaptive Clock Recovery Reference Input Monitoring SDI outputs 3D Full resolution contribution transport Video Processor

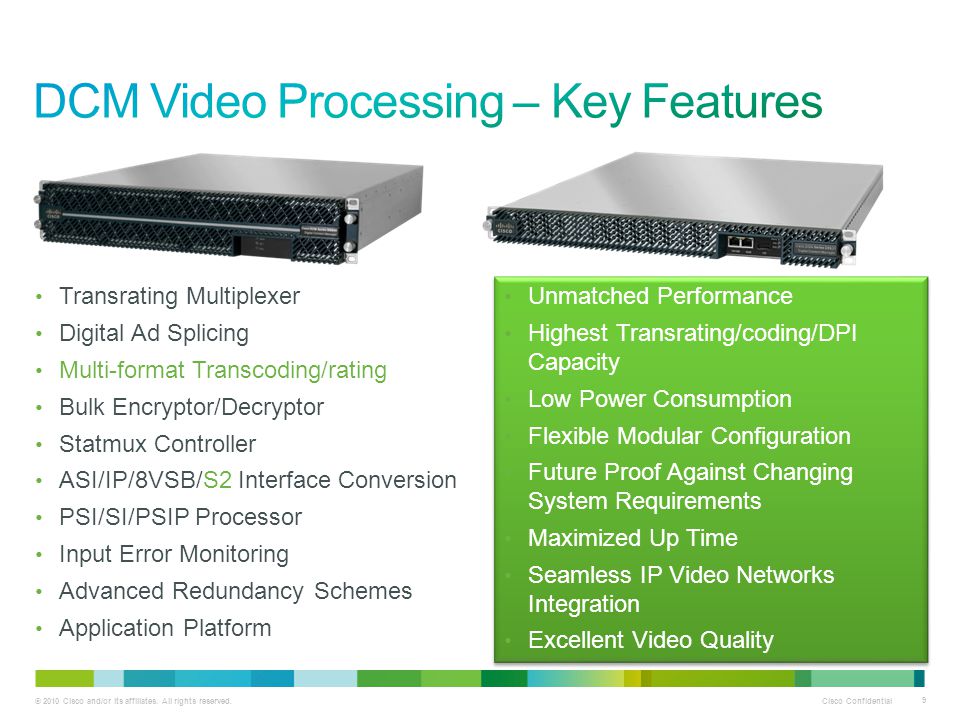

9 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9 Transrating Multiplexer Digital Ad Splicing Multi-format Transcoding/rating Bulk Encryptor/Decryptor Statmux Controller ASI/IP/8VSB/S2 Interface Conversion PSI/SI/PSIP Processor Input Error Monitoring Advanced Redundancy Schemes Application Platform Unmatched Performance Highest Transrating/coding/DPI Capacity Low Power Consumption Flexible Modular Configuration Future Proof Against Changing System Requirements Maximized Up Time Seamless IP Video Networks Integration Excellent Video Quality Unmatched Performance Highest Transrating/coding/DPI Capacity Low Power Consumption Flexible Modular Configuration Future Proof Against Changing System Requirements Maximized Up Time Seamless IP Video Networks Integration Excellent Video Quality

10 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10 Key Features GbE I/O Card  2+2 GbE Ports, full duplex, SFP  Up to 500 streams, 2Gbps  UDP/RTP, VLAN, TOS, IGMP  ETR 290, Advanced MPEG, PSI/SI Processing  Port, Service, TS Redundancy  IP statmux controller ASI I/O Card  10 ASI BNC Ports, SW configurable I/O  Up to 500 streams, 2Gbps  Full 213 Mbps ASI rate support  ETR 290, Advanced MPEG, PSI/SI Processing  Port, Service, TS Redundancy  Digital Transport Formatting ASI SFN I/O Card  8 ASI BNC Ports, 1PPS & 10 MHz SFN Clock Inputs  Similar feature set as ASI I/O module Dense Satellite Reception/ Decryption Card (DRD-S2) Satellite Reception Card with Common Interface 4 independent receivers on single DCM Card 4 CI slots on single DCM Card Unparalleled density: 12 RF/CI slots in DCM 2RU DVB-S2 Multistream (DVB MIS) capable on all inputs Dense Satellite Reception/ Decryption Card (8-VSB) Add ATSC 8-VSB Off-Air reception to DCM 4 and 8 RF Input version Tuning Range: RF Channel 2-69 ( MHz) Input RF Level Range: -80(*) to -20 dBm

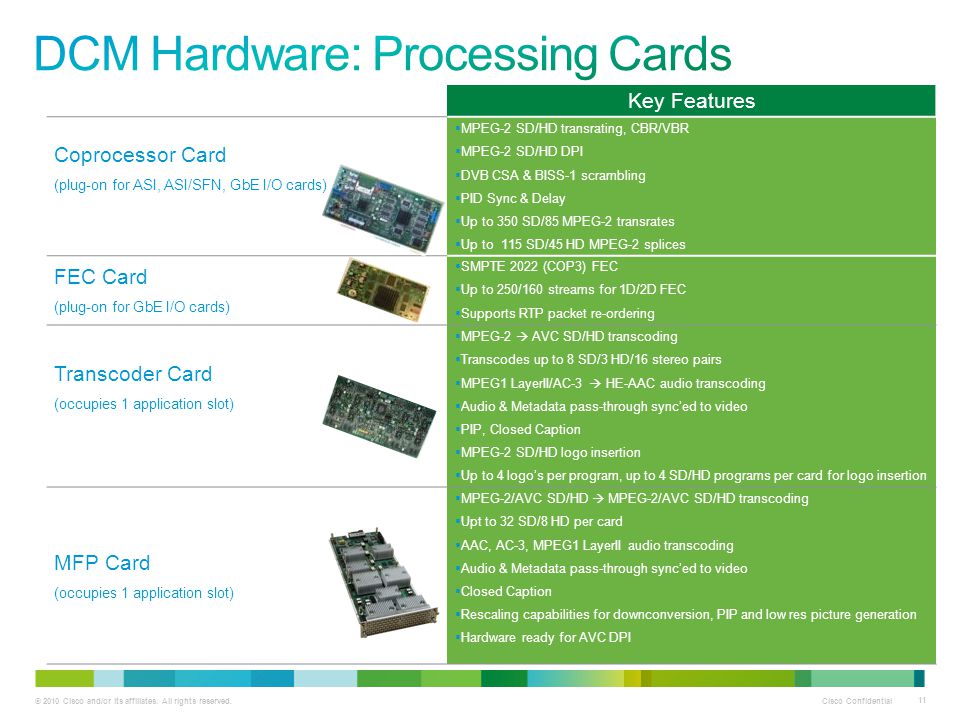

11 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11 Key Features Coprocessor Card (plug-on for ASI, ASI/SFN, GbE I/O cards)  MPEG-2 SD/HD transrating, CBR/VBR  MPEG-2 SD/HD DPI  DVB CSA & BISS-1 scrambling  PID Sync & Delay  Up to 350 SD/85 MPEG-2 transrates  Up to 115 SD/45 HD MPEG-2 splices FEC Card (plug-on for GbE I/O cards)  SMPTE 2022 (COP3) FEC  Up to 250/160 streams for 1D/2D FEC  Supports RTP packet re-ordering Transcoder Card (occupies 1 application slot)  MPEG-2  AVC SD/HD transcoding  Transcodes up to 8 SD/3 HD/16 stereo pairs  MPEG1 LayerII/AC-3  HE-AAC audio transcoding  Audio & Metadata pass-through sync’ed to video  PIP, Closed Caption  MPEG-2 SD/HD logo insertion  Up to 4 logo’s per program, up to 4 SD/HD programs per card for logo insertion MFP Card (occupies 1 application slot)  MPEG-2/AVC SD/HD  MPEG-2/AVC SD/HD transcoding  Upt to 32 SD/8 HD per card  AAC, AC-3, MPEG1 LayerII audio transcoding  Audio & Metadata pass-through sync’ed to video  Closed Caption  Rescaling capabilities for downconversion, PIP and low res picture generation  Hardware ready for AVC DPI

12 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12 Mgmt IP1 (1GbE) PSU Slot1 (AC or DC) PSU Slot2 (AC or DC) GPI I/O Mgmt IP2 (10/100BT) GbE Port1 (GbE Port2 = BU Port) GbE Port3 (GbE Port4 = BU Port) 10 ASI Ports (configurable I/O) Alarm & PSU LEDs Mgmt IP1 (1GbE) PSU Slot1 (AC or DC) PSU Slot2 (AC or DC) GPI I/O Mgmt IP2 (10/100BT) GbE Port1 (GbE Port2 = BU Port) GbE Port3 (GbE Port4 = BU Port) 10 ASI Ports (configurable I/O) Alarm & PSU LEDs DCM 2RU DCM 1RU

13 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13 Program Receivers TS input DVB-S/S2, ASI, IP, 8VSB, DVB-T Decryption (PowerVu, BISS, DVB-CI) Protocol conversion (IP, ASI, S2, 8VSB, SFN) Analog Tier Decoding SD/HD-SDI for re-encoding Service Filtering DPI (Cue Tones/Triggers, SCTE35, SCTE104) Data Delivery (MPE) Multi Decrypt TS input DVB-S/S2, ASI Decryption up to 32 services (PowerVu, BISS, DVB-CI) Digital TS output (IP, ASI) Service Filtering DPI (Cue Tones/Triggers, SCTE35) Decode for monitoring Transcoding Receivers TS input DVB-S/S2, ASI Decryption up to 2 services (PowerVu, BISS) Transcoding MP2/4 HD/SD to MP2 HD/SD Digital HD Down- conversion to MP2 SD Digital TS output (IP, ASI) Service Filtering DPI (Cue Tones/Triggers, SCTE35) Data Delivery (MPE) Analog Tier Decoding Desktop TS input DVB-S/S2 Decryption (PowerVu, DVB-CI) Analog Tier Decoding DTH EPG support Data Delivery (MPE)

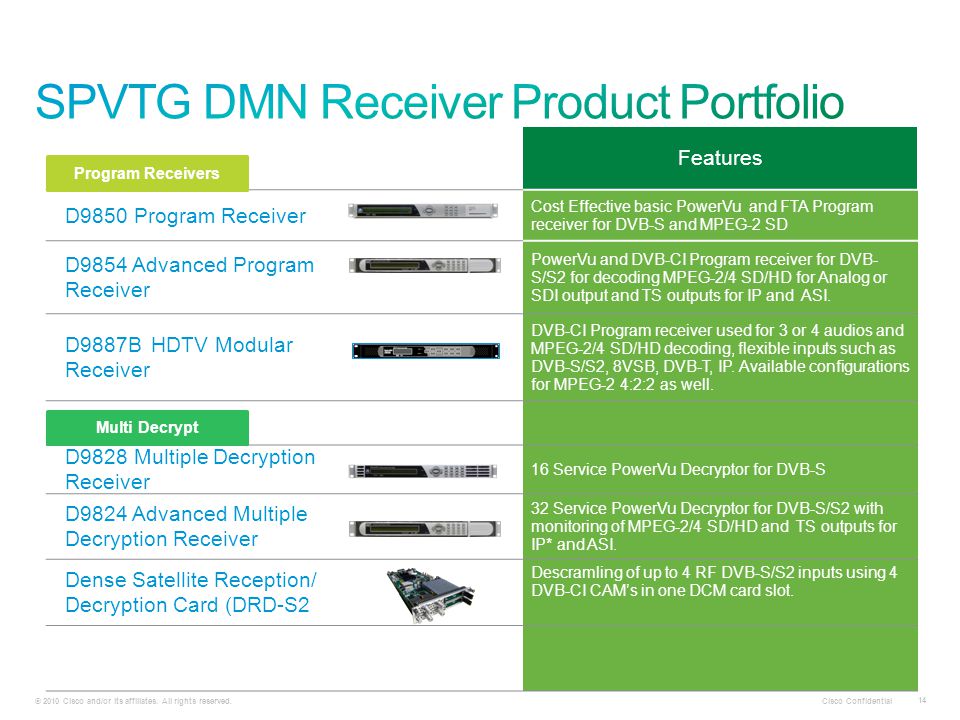

14 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14 Features D9850 Program Receiver Cost Effective basic PowerVu and FTA Program receiver for DVB-S and MPEG-2 SD D9854 Advanced Program Receiver PowerVu and DVB-CI Program receiver for DVB- S/S2 for decoding MPEG-2/4 SD/HD for Analog or SDI output and TS outputs for IP and ASI. D9887BHDTV Modular Receiver DVB-CI Program receiver used for 3 or 4 audios and MPEG-2/4 SD/HD decoding, flexible inputs such as DVB-S/S2, 8VSB, DVB-T, IP. Available configurations for MPEG-2 4:2:2 as well. D9828 Multiple Decryption Receiver 16 Service PowerVu Decryptor for DVB-S D9824 Advanced Multiple Decryption Receiver 32 Service PowerVu Decryptor for DVB-S/S2 with monitoring of MPEG-2/4 SD/HD and TS outputs for IP* and ASI. Dense Satellite Reception/ Decryption Card (DRD-S2 Descramling of up to 4 RF DVB-S/S2 inputs using 4 DVB-CI CAM’s in one DCM card slot. Program Receivers Multi Decrypt

15 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15  2 Channels of HD/SD MPEG2/AVC to MPEG-2 SD or HD transcoding  Single Service Analog Video output  DVB-S/S2 and ASI Input  MPEGoIP & ASI output  PowerVu CA & BISS-1/E  2 Stereo Pairs of MPEG/Dolby audio decoding  Digital Program Mapping Unmatched Features for Price High Quality Video/Audio Decoder for Analog tier Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration Excellent Video Quality Unmatched Features for Price High Quality Video/Audio Decoder for Analog tier Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration Excellent Video Quality

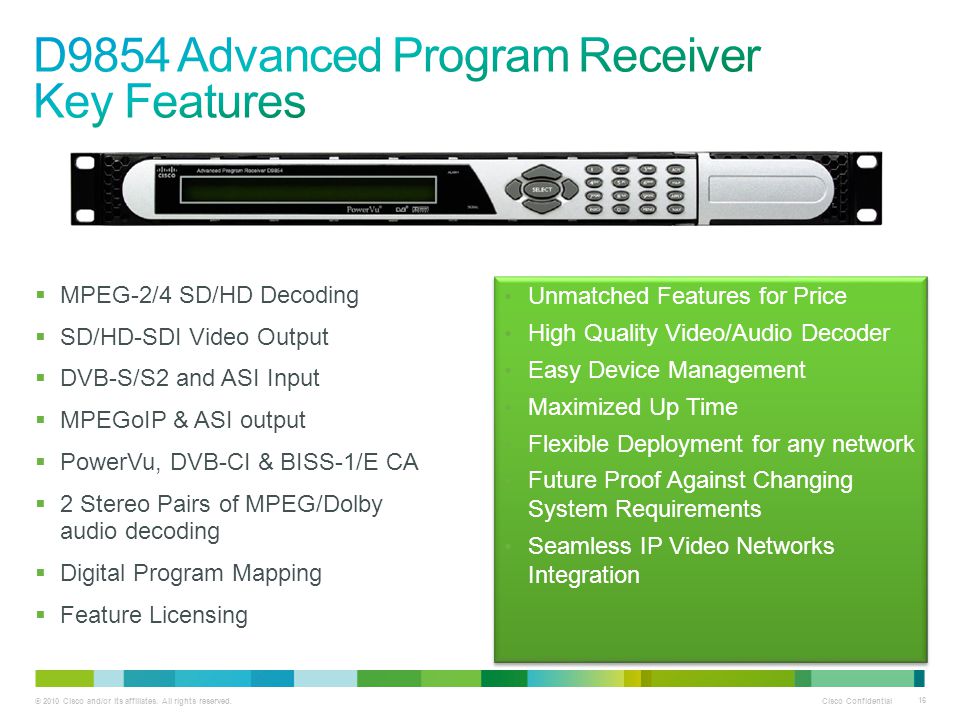

16 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16  MPEG-2/4 SD/HD Decoding  SD/HD-SDI Video Output  DVB-S/S2 and ASI Input  MPEGoIP & ASI output  PowerVu, DVB-CI & BISS-1/E CA  2 Stereo Pairs of MPEG/Dolby audio decoding  Digital Program Mapping  Feature Licensing Unmatched Features for Price High Quality Video/Audio Decoder Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration Unmatched Features for Price High Quality Video/Audio Decoder Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration

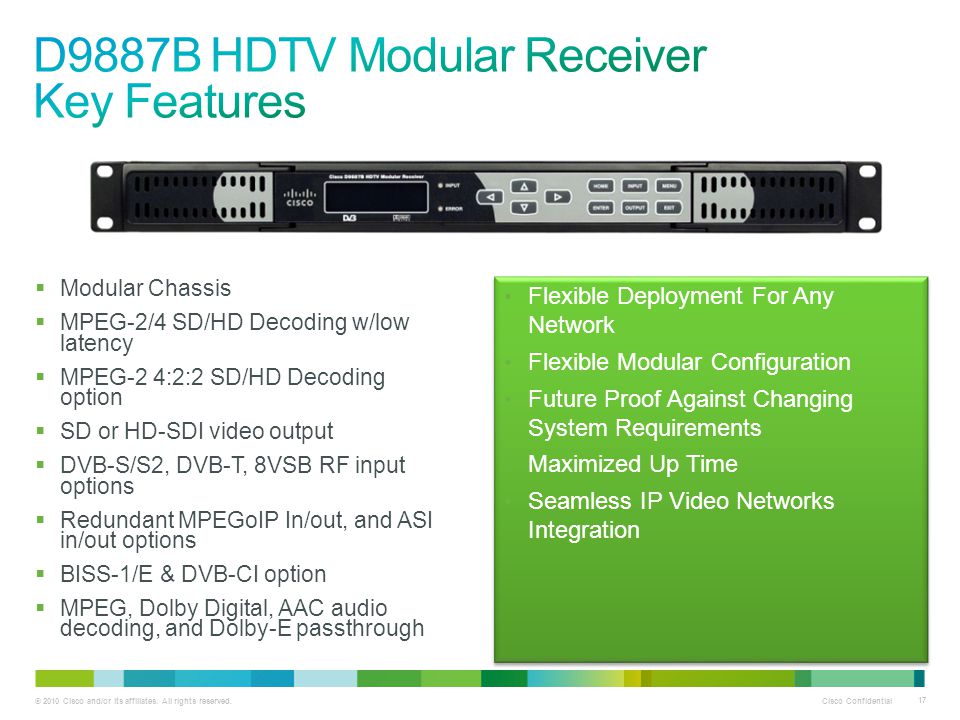

17 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17  Modular Chassis  MPEG-2/4 SD/HD Decoding w/low latency  MPEG-2 4:2:2 SD/HD Decoding option  SD or HD-SDI video output  DVB-S/S2, DVB-T, 8VSB RF input options  Redundant MPEGoIP In/out, and ASI in/out options  BISS-1/E & DVB-CI option  MPEG, Dolby Digital, AAC audio decoding, and Dolby-E passthrough Flexible Deployment For Any Network Flexible Modular Configuration Future Proof Against Changing System Requirements Maximized Up Time Seamless IP Video Networks Integration Flexible Deployment For Any Network Flexible Modular Configuration Future Proof Against Changing System Requirements Maximized Up Time Seamless IP Video Networks Integration

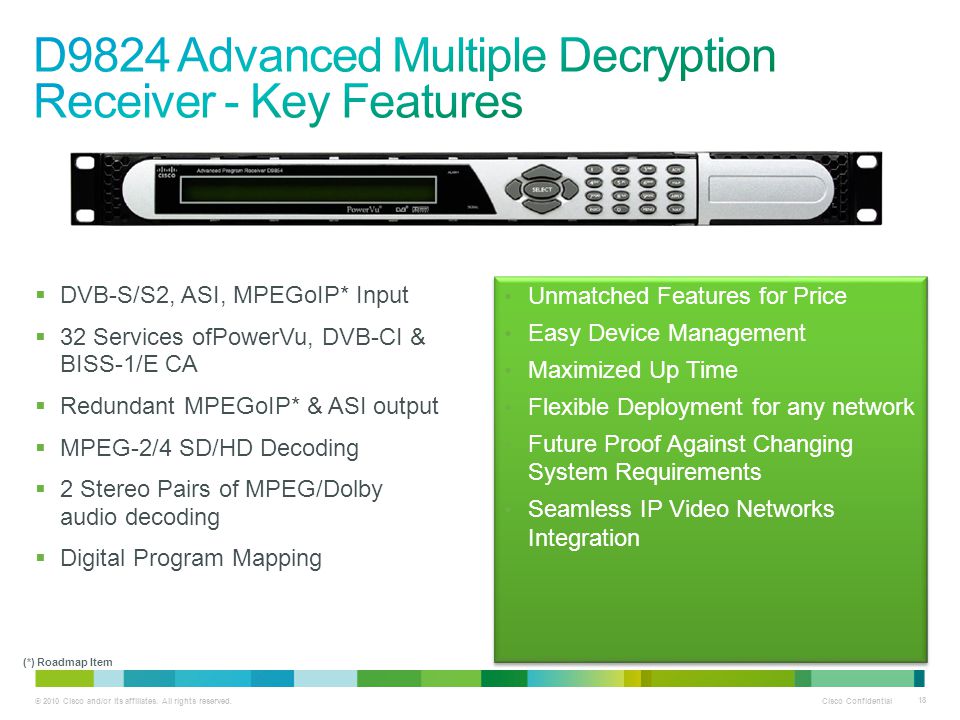

18 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18  DVB-S/S2, ASI, MPEGoIP* Input  32 Services ofPowerVu, DVB-CI & BISS-1/E CA  Redundant MPEGoIP* & ASI output  MPEG-2/4 SD/HD Decoding  2 Stereo Pairs of MPEG/Dolby audio decoding  Digital Program Mapping Unmatched Features for Price Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration Unmatched Features for Price Easy Device Management Maximized Up Time Flexible Deployment for any network Future Proof Against Changing System Requirements Seamless IP Video Networks Integration (*) Roadmap Item

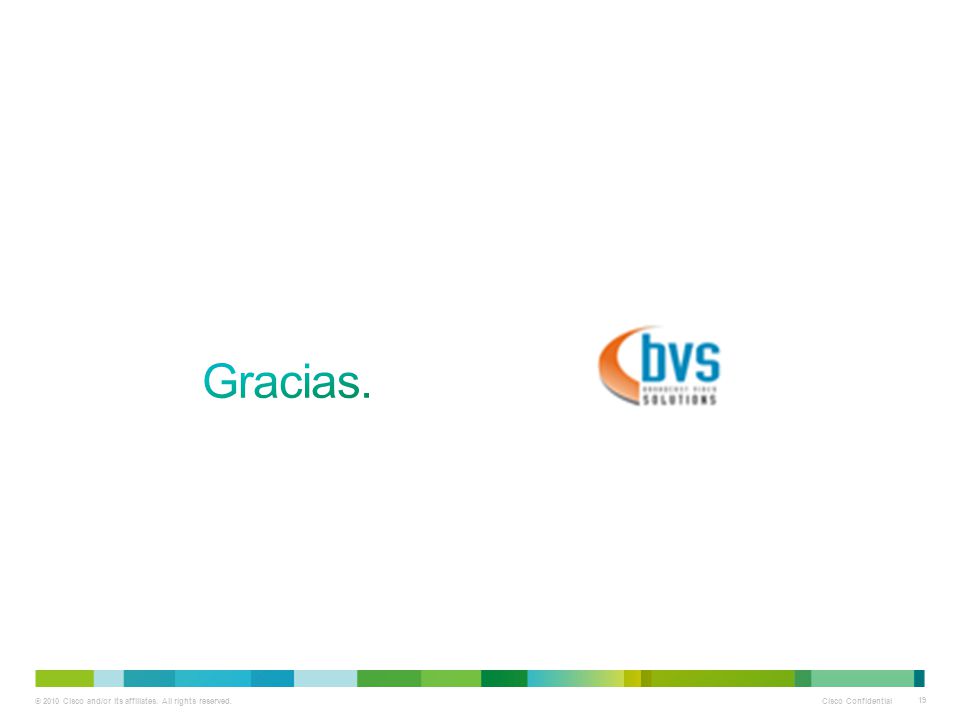

19 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19
