1 240-491 Adv. UNIX: lib/121 Advanced UNIX v Objectives of these slides: –look at some of the less familiar functions in the ANSI C Standard Library 240-491 Special Topics in Comp. Eng. 1 Semester 2, 2000-2001 12. The Standard Libraries

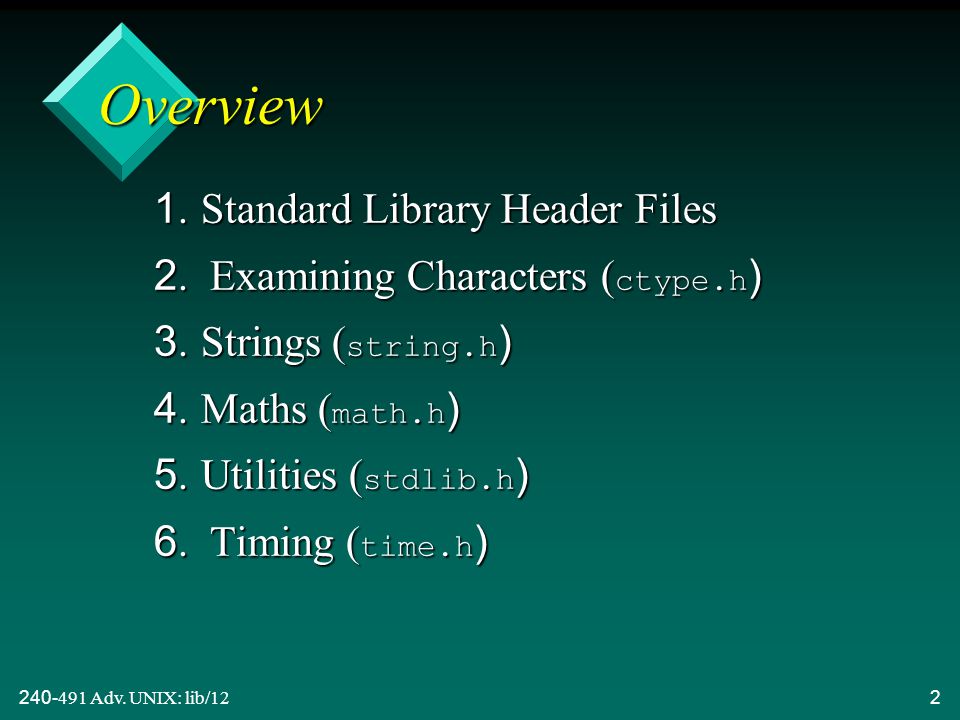

2 240-491 Adv. UNIX: lib/122 Overview 1. Standard Library Header Files 2. Examining Characters ( ctype.h ) 3. Strings ( string.h ) 4. Maths ( math.h ) 5. Utilities ( stdlib.h ) 6. Timing ( time.h )

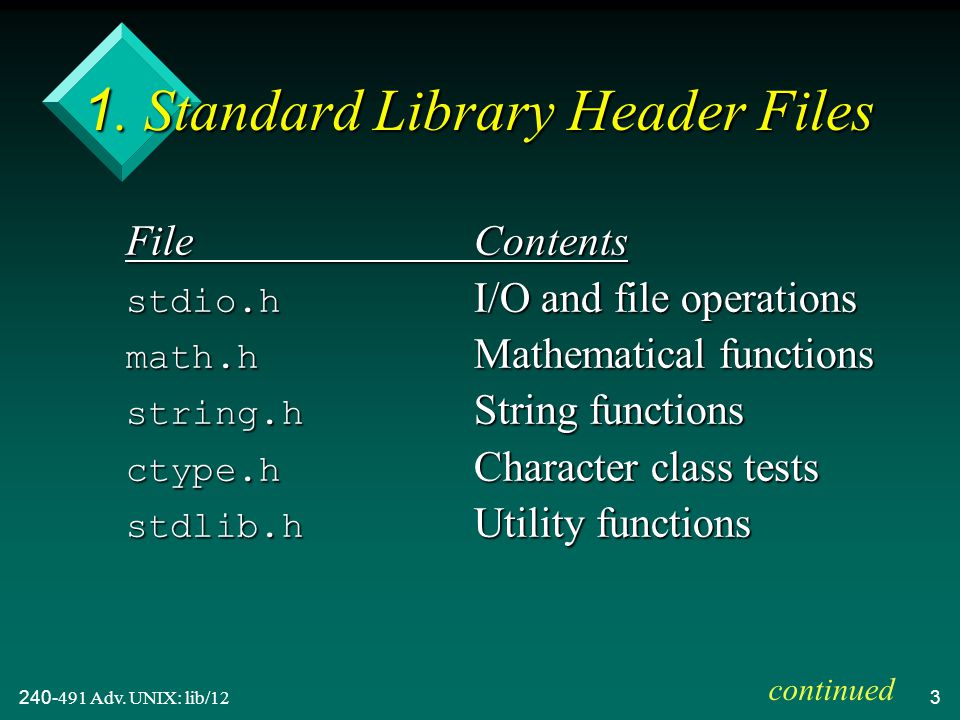

3 240-491 Adv. UNIX: lib/123 1. Standard Library Header Files FileContents stdio.h I/O and file operations math.h Mathematical functions string.h String functions ctype.h Character class tests stdlib.h Utility functions continued

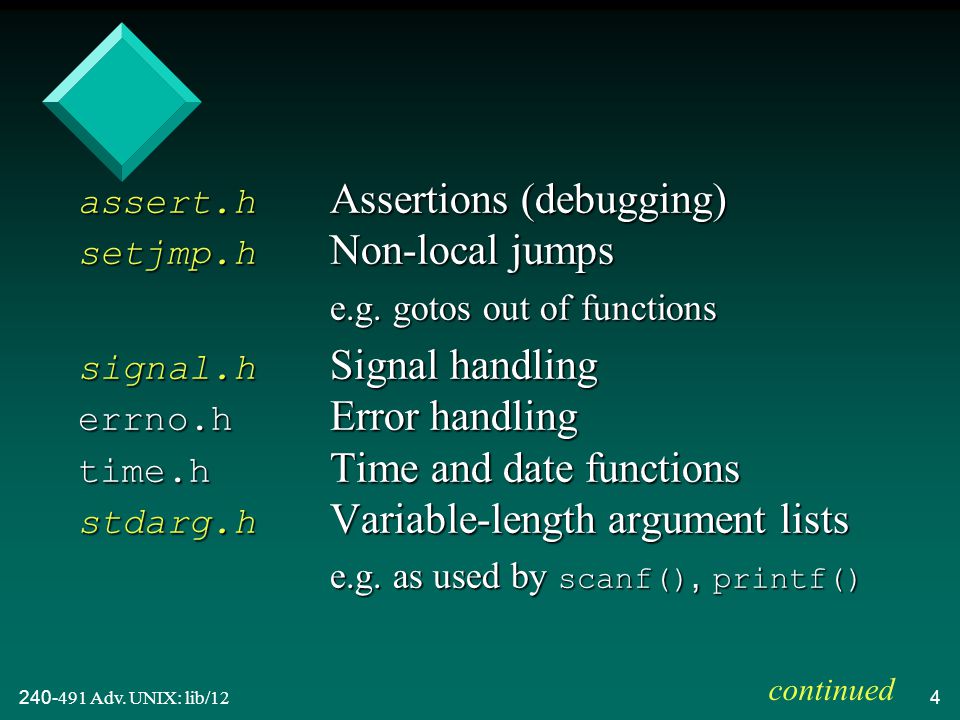

4 240-491 Adv. UNIX: lib/124 assert.h Assertions (debugging) setjmp.h Non-local jumps e.g. gotos out of functions signal.h Signal handling errno.h Error handling time.h Time and date functions stdarg.h Variable-length argument lists e.g. as used by scanf(), printf() continued

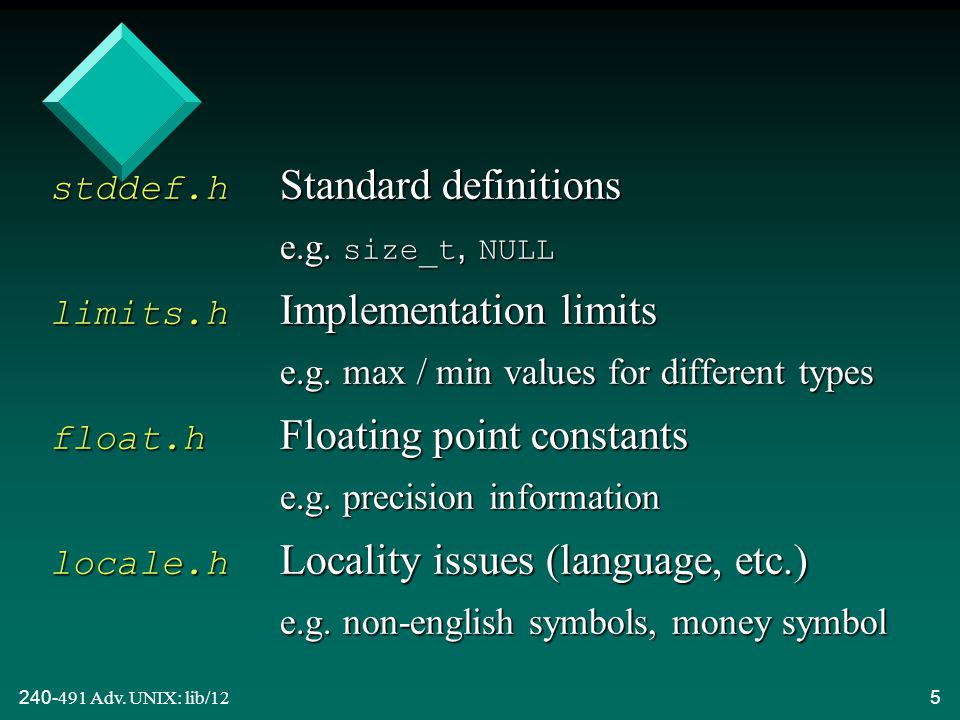

5 240-491 Adv. UNIX: lib/125 stddef.h Standard definitions e.g. size_t, NULL limits.h Implementation limits e.g. max / min values for different types float.h Floating point constants e.g. precision information locale.h Locality issues (language, etc.) e.g. non-english symbols, money symbol

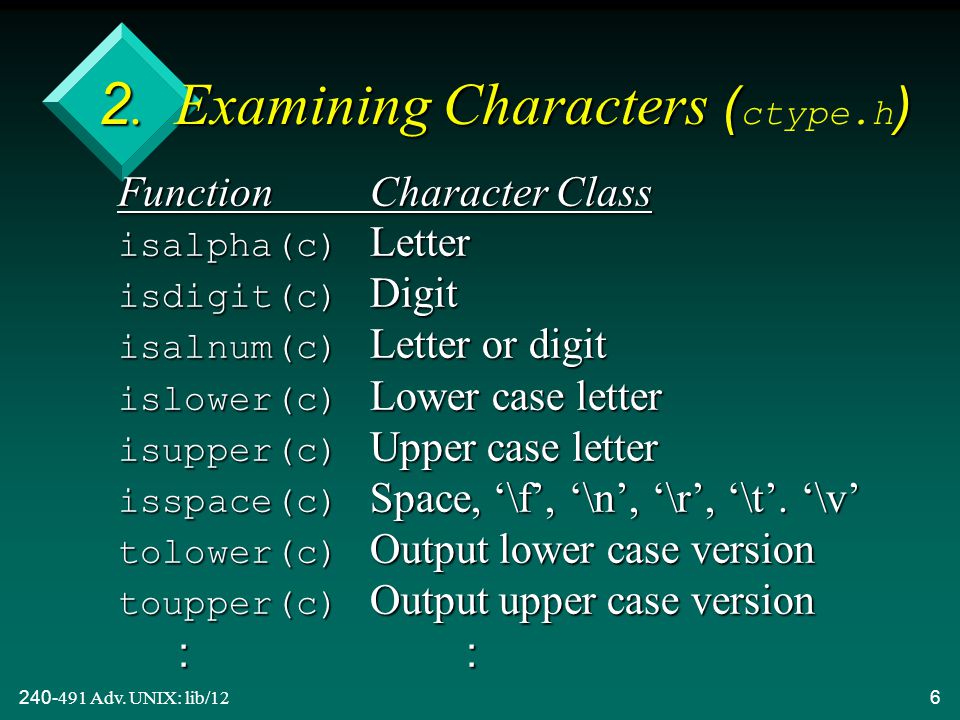

6 240-491 Adv. UNIX: lib/126 2. Examining Characters () 2. Examining Characters ( ctype.h ) FunctionCharacter Class isalpha(c) Letter isdigit(c) Digit isalnum(c) Letter or digit islower(c) Lower case letter isupper(c) Upper case letter isspace(c) Space, ‘\f’, ‘\n’, ‘\r’, ‘\t’. ‘\v’ tolower(c) Output lower case version toupper(c) Output upper case version ::

7 240-491 Adv. UNIX: lib/127 Example int c; c = getchar(); if (isalpha(c)) c = tolower(c);

8 240-491 Adv. UNIX: lib/128 3. Strings () 3. Strings ( string.h ) 3.1. Common Functions 3.2. Limited Length Functions 3.3. Rarely Used (but Useful) 3.4. String Functions in stdio.h 3.5. Memory Functions

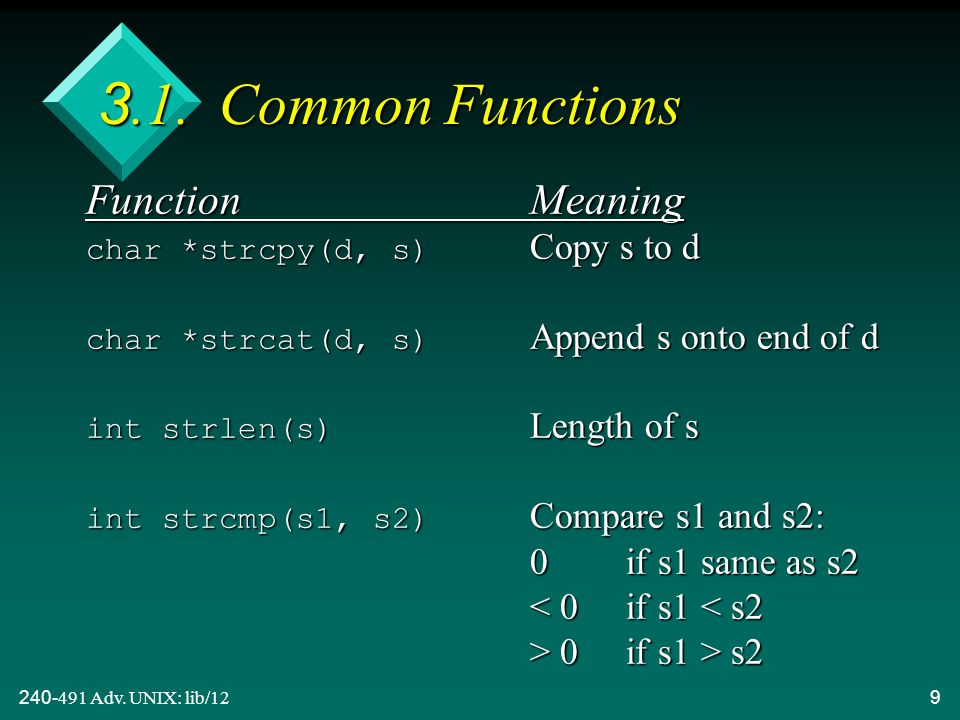

9 240-491 Adv. UNIX: lib/129 3.1. Common Functions FunctionMeaning char *strcpy(d, s) Copy s to d char *strcat(d, s) Append s onto end of d int strlen(s) Length of s int strcmp(s1, s2) Compare s1 and s2: 0if s1 same as s2 0if s1 > s2

10 240-491 Adv. UNIX: lib/1210 Example char s1[20]; char s2[13] = “ Andrew”; strcpy(s1, “Hello”); /* s1 = “Hello”; is wrong */ strcat(s1, s2); if (strcmp(s1, s2) == 0) printf(“the same\n”);

11 240-491 Adv. UNIX: lib/1211 3.2. Limited Length Functions FunctionMeaning int strncmp(s1, s2, n) Compare at most n chars char *strncpy(d, s, n) Copy at most n chars of s to d char *strncat(d, s, n) Append at most n chars of s to end of d

12 240-491 Adv. UNIX: lib/1212 Example char *s1 = “hello; char *s2 = “help”; if (strncmp(s1, s2, 3) == 0) printf(“First 3 chars the same\n”);

13 240-491 Adv. UNIX: lib/1213 3.3. Rarely Used (but Useful) FunctionMeaning char *strchr(s1,c) Find first c in s1 char *strrchr(s1, c) Find last c in s1 char *strstr(s1, s2) Find s2 in s1 (string search) char *strtok(s1, s2) Tokenise s1 using s2 as delimitor :

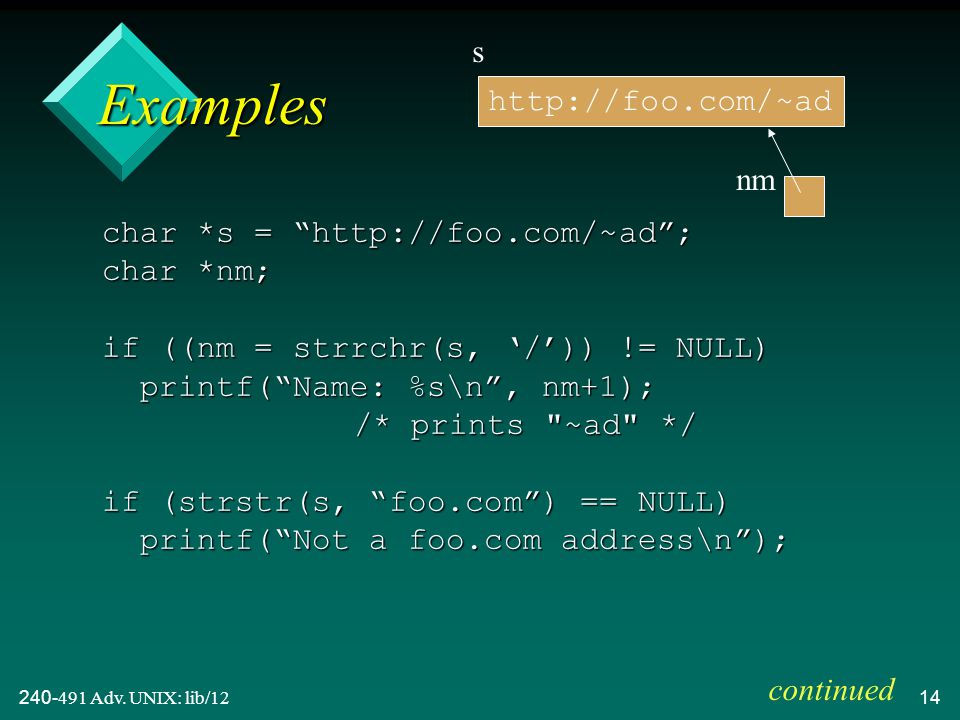

14 240-491 Adv. UNIX: lib/1214 Examples char *s = “”; char *nm; if ((nm = strrchr(s, ‘/’)) != NULL) printf(“Name: %s\n”, nm+1); /* prints "~ad" */ if (strstr(s, “”) == NULL) printf(“Not a address\n”); s nm continued

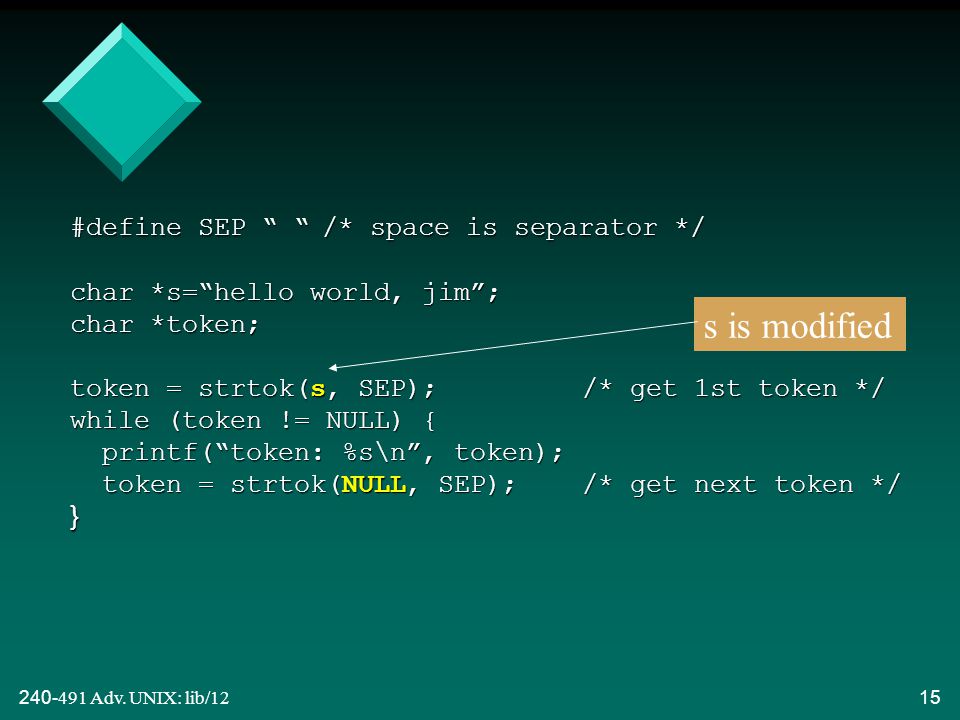

15 240-491 Adv. UNIX: lib/1215 #define SEP “ “/* space is separator */ char *s=“hello world, jim”; char *token; token = strtok(s, SEP); /* get 1st token */ while (token != NULL) { printf(“token: %s\n”, token); token = strtok(NULL, SEP); /* get next token */ } s is modified

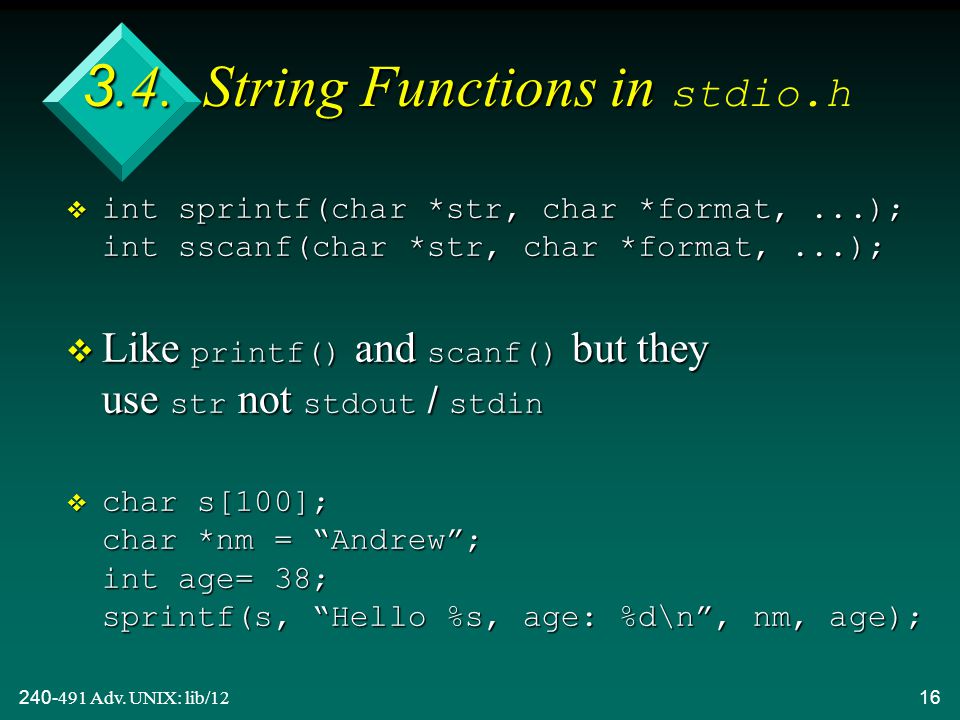

16 240-491 Adv. UNIX: lib/1216 3.4. String Functions in 3.4. String Functions in stdio.h  int sprintf(char *str, char *format,...); int sscanf(char *str, char *format,...);  Like printf() and scanf() but they use str not stdout / stdin v char s[100]; char *nm = “Andrew”; int age= 38; sprintf(s, “Hello %s, age: %d\n”, nm, age);

17 240-491 Adv. UNIX: lib/1217 3.5. Memory Functions FunctionMeaning int memcmp(s1, s2, n) Compare first n chars of s1 and s2 int memcpy(s1, s2, n) Copy n bytes from s2 to s1 int memmove(s1, s2, n) Like memcpy() but s1 and s2 can overlap

18 240-491 Adv. UNIX: lib/1218 Usage  s1 and s2 are of type void * –can be supplied with pointers to anything v Typical use is to manipulate complex data structures efficiently by referring to their location and byte size in memory.  For string manipulation use str*** functions.

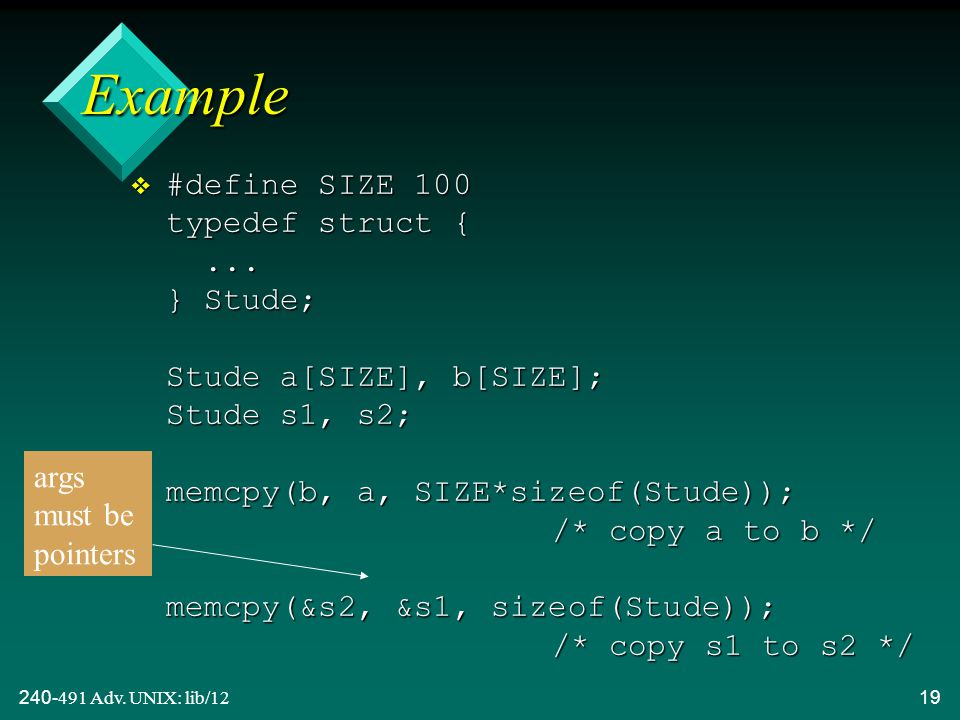

19 240-491 Adv. UNIX: lib/1219 Example v #define SIZE 100 typedef struct {... } Stude; Stude a[SIZE], b[SIZE]; Stude s1, s2; memcpy(b, a, SIZE*sizeof(Stude)); /* copy a to b */ memcpy(&s2, &s1, sizeof(Stude)); /* copy s1 to s2 */ args must be pointers

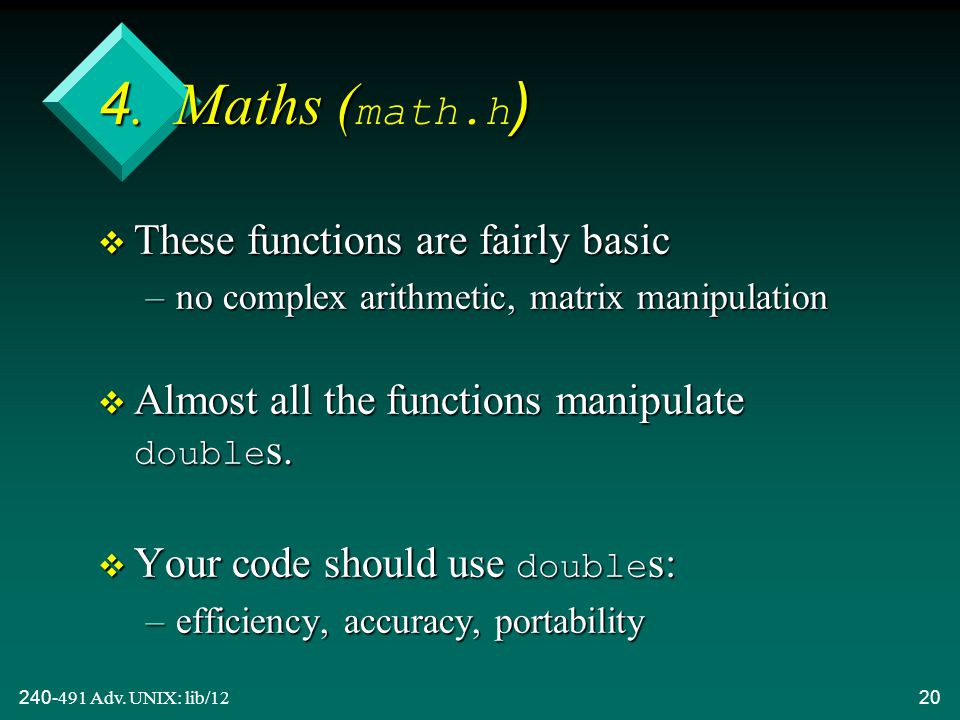

20 240-491 Adv. UNIX: lib/1220 4. Maths () 4. Maths ( math.h ) v These functions are fairly basic –no complex arithmetic, matrix manipulation  Almost all the functions manipulate double s.  Your code should use double s: –efficiency, accuracy, portability

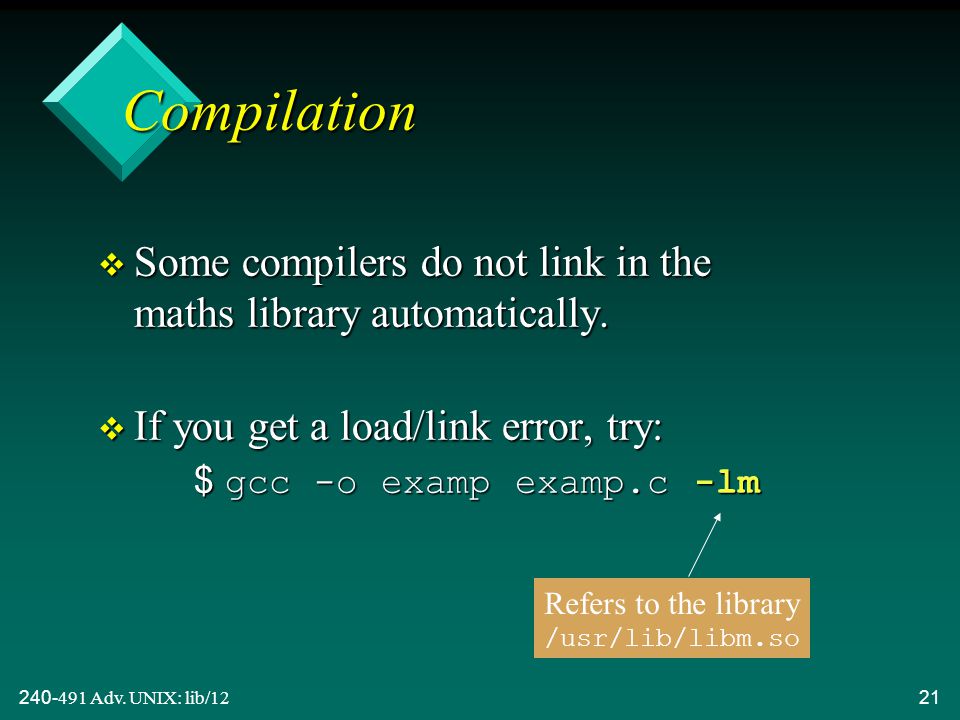

21 240-491 Adv. UNIX: lib/1221 Compilation v Some compilers do not link in the maths library automatically. v If you get a load/link error, try: $ gcc -o examp examp.c -lm Refers to the library /usr/lib/

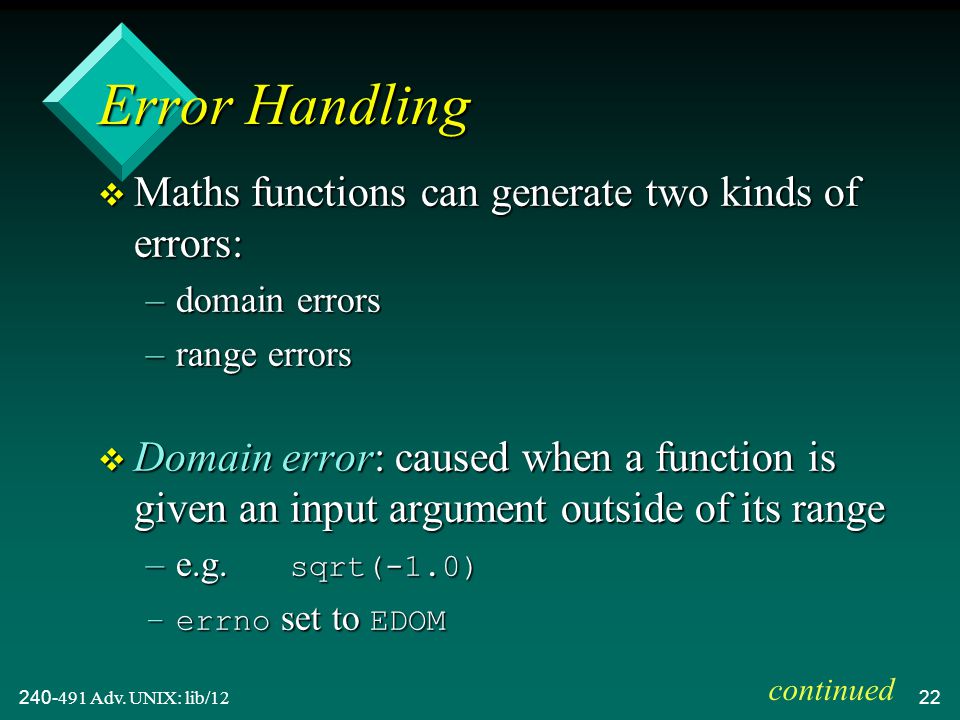

22 240-491 Adv. UNIX: lib/1222 Error Handling v Maths functions can generate two kinds of errors: –domain errors –range errors v Domain error: caused when a function is given an input argument outside of its range –e.g. sqrt(-1.0) –errno set to EDOM continued

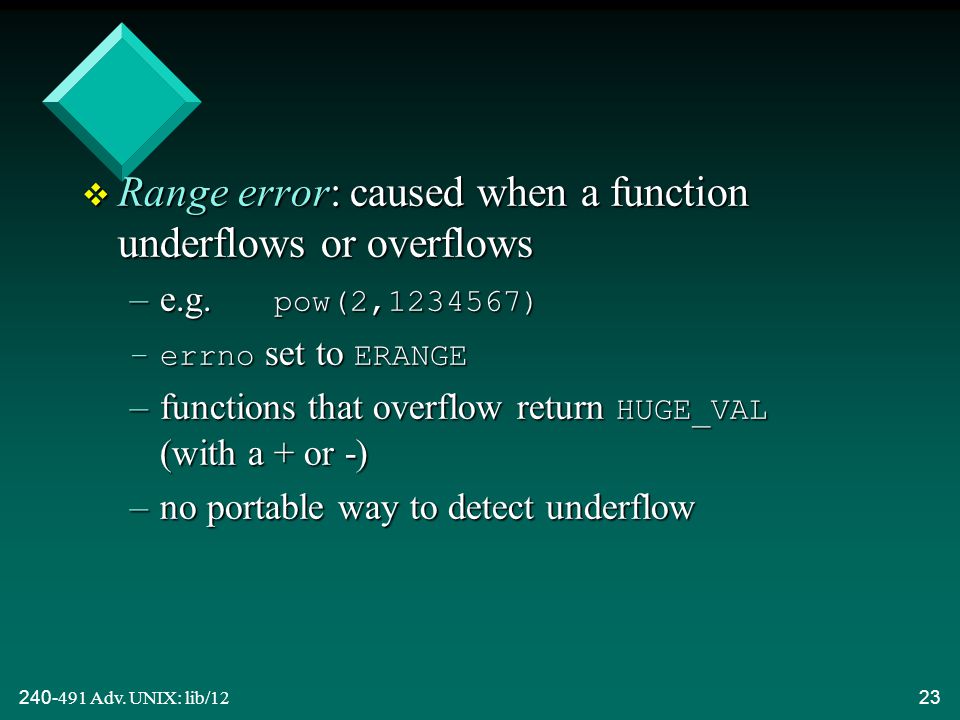

23 240-491 Adv. UNIX: lib/1223 v Range error: caused when a function underflows or overflows –e.g. pow(2,1234567) –errno set to ERANGE –functions that overflow return HUGE_VAL (with a + or -) –no portable way to detect underflow

24 240-491 Adv. UNIX: lib/1224 4.1. Simple Maths Functions FunctionMeaning sqrt(x) square root of x fabs(x) absolute value of x fmod(x,y) float remainder of x/y ceil(x) ceiling of x –ceil(1.4)== 2.0 ceil(-1.4) == -1.0 floor(x) floor of x –floor(1.4) == 1.0 floor(-1.4) == -2.0

25 240-491 Adv. UNIX: lib/1225 4.2. Trigonometry FunctionMeaning sin(x) sine of x cos(x) cosine of x tan(x) tangent of x asin(x) sin -1 x in range [-  /2,  /2] acos(x) cos -1 x in range [0,  ] atan(x) tan -1 x in range [-  /2,  /2] atan2(x,y) tan -1 (x/y) in range [- ,  ] x must be in range [-1,1]

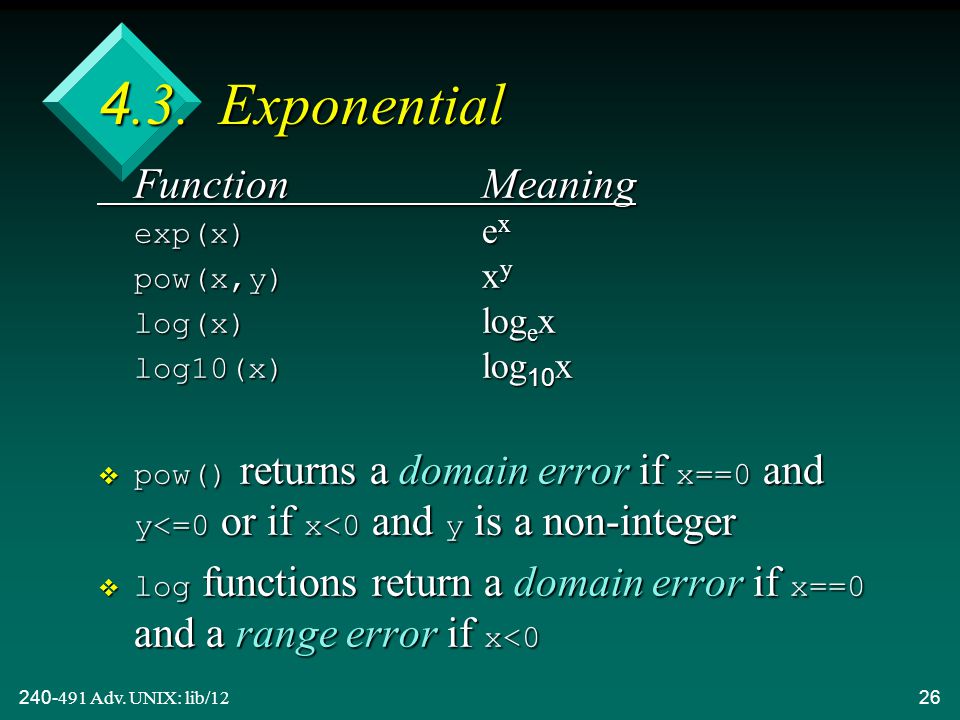

26 240-491 Adv. UNIX: lib/1226 4.3. Exponential FunctionMeaning exp(x) e x pow(x,y) x y log(x) log e x log10(x) log 10 x  pow() returns a domain error if x==0 and y<=0 or if x<0 and y is a non-integer  log functions return a domain error if x==0 and a range error if x<0

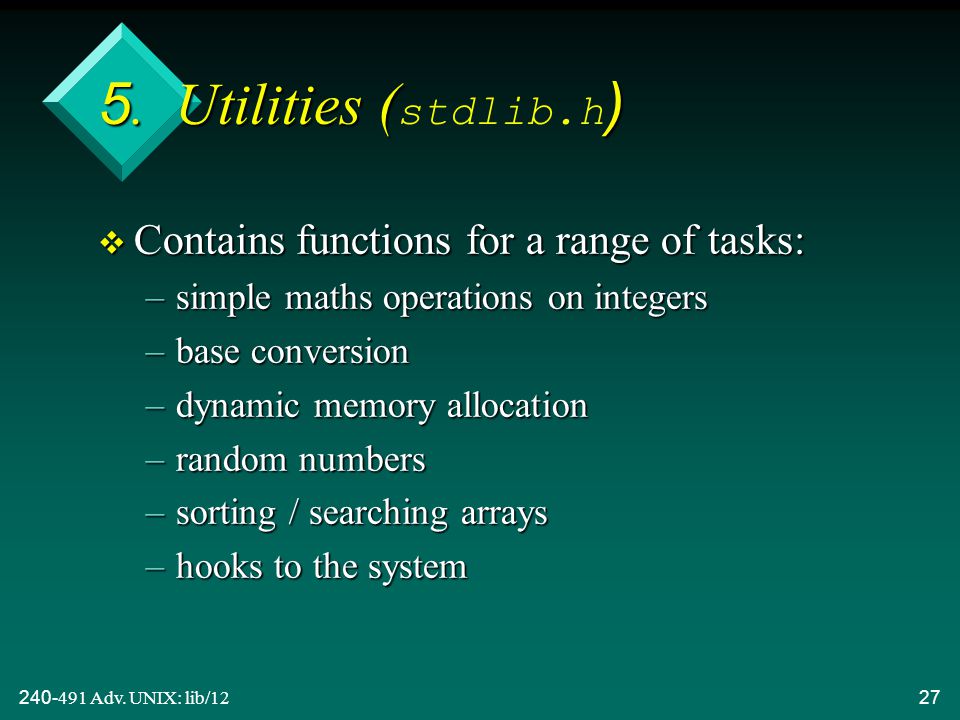

27 240-491 Adv. UNIX: lib/1227 5. Utilities () 5. Utilities ( stdlib.h ) v Contains functions for a range of tasks: –simple maths operations on integers –base conversion –dynamic memory allocation –random numbers –sorting / searching arrays –hooks to the system

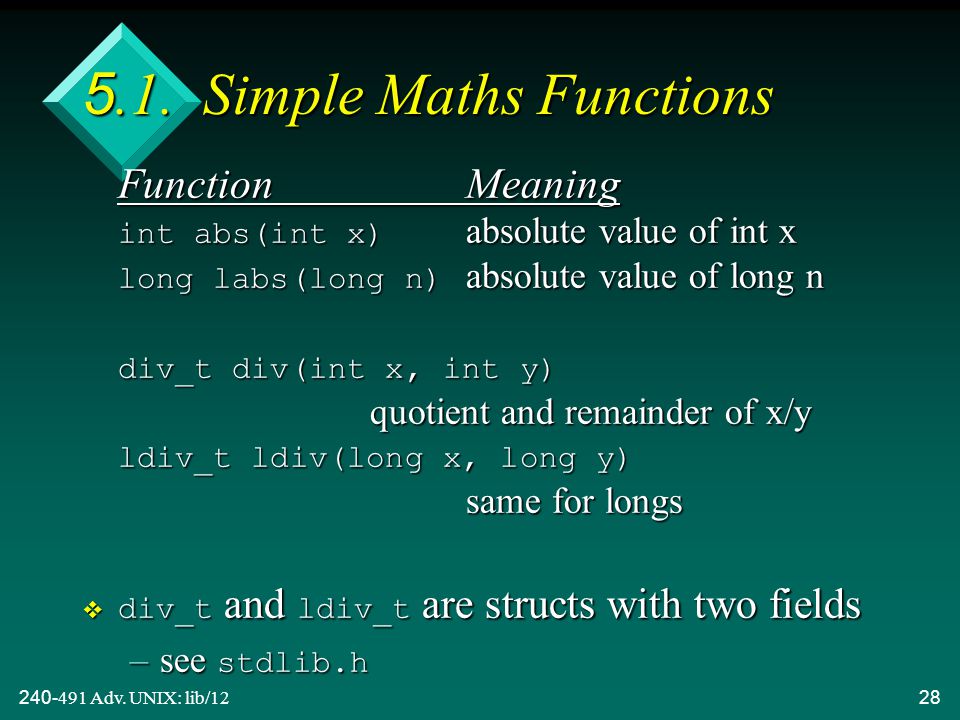

28 240-491 Adv. UNIX: lib/1228 5.1. Simple Maths Functions FunctionMeaning int abs(int x) absolute value of int x long labs(long n) absolute value of long n div_t div(int x, int y) quotient and remainder of x/y ldiv_t ldiv(long x, long y) same for longs  div_t and ldiv_t are structs with two fields –see stdlib.h

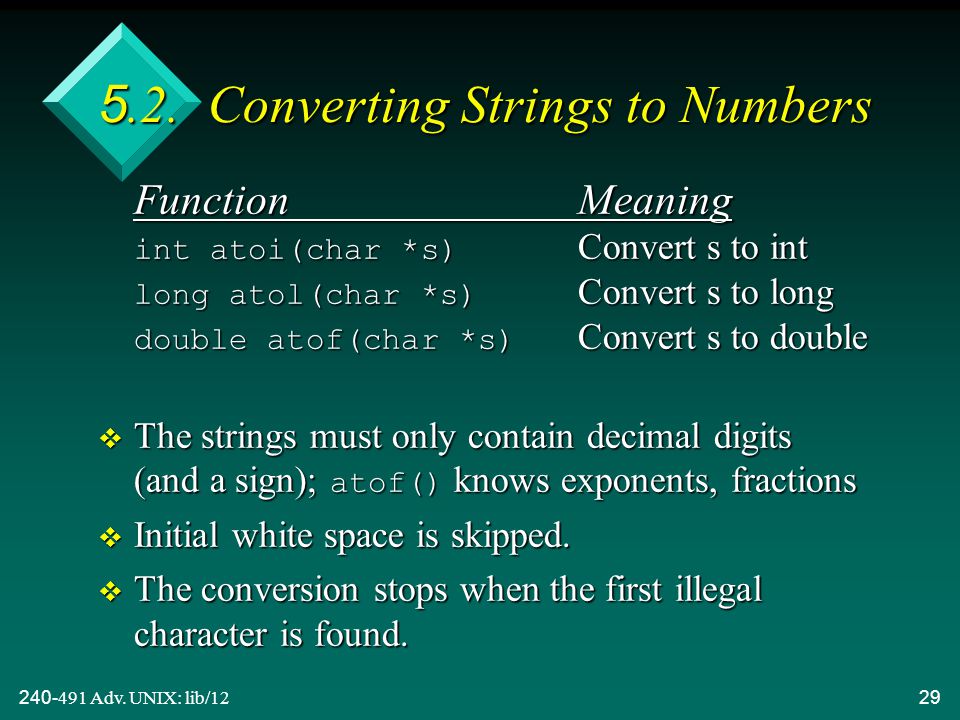

29 240-491 Adv. UNIX: lib/1229 5.2. Converting Strings to Numbers FunctionMeaning int atoi(char *s) Convert s to int long atol(char *s) Convert s to long double atof(char *s) Convert s to double  The strings must only contain decimal digits (and a sign); atof() knows exponents, fractions v Initial white space is skipped. v The conversion stops when the first illegal character is found.

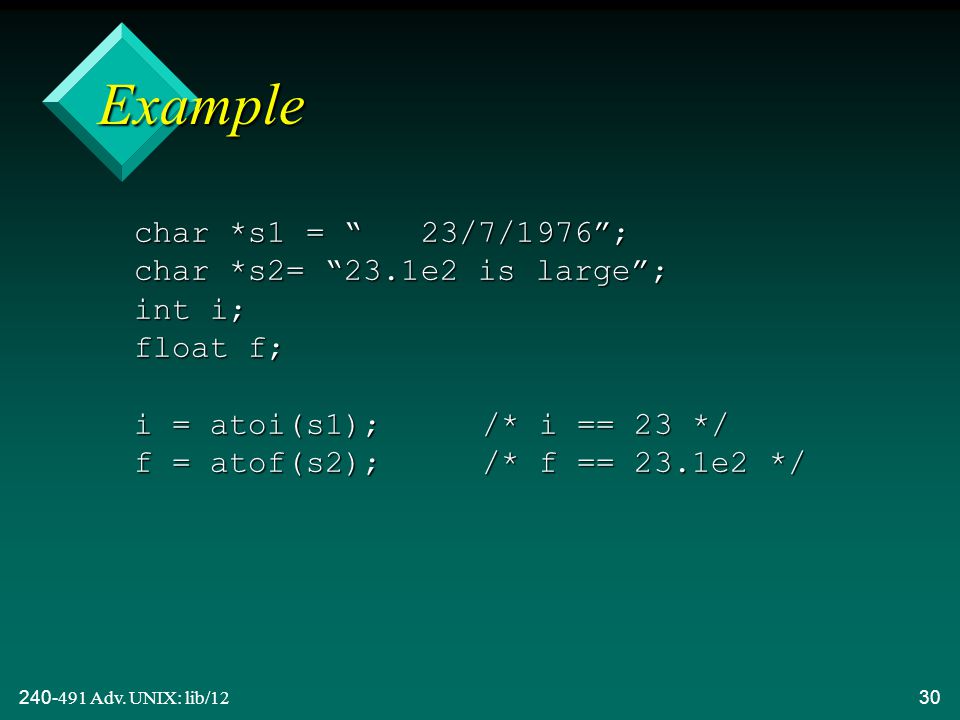

30 240-491 Adv. UNIX: lib/1230 Example char *s1 = “ 23/7/1976”; char *s2= “23.1e2 is large”; int i; float f; i = atoi(s1);/* i == 23 */ f = atof(s2);/* f == 23.1e2 */

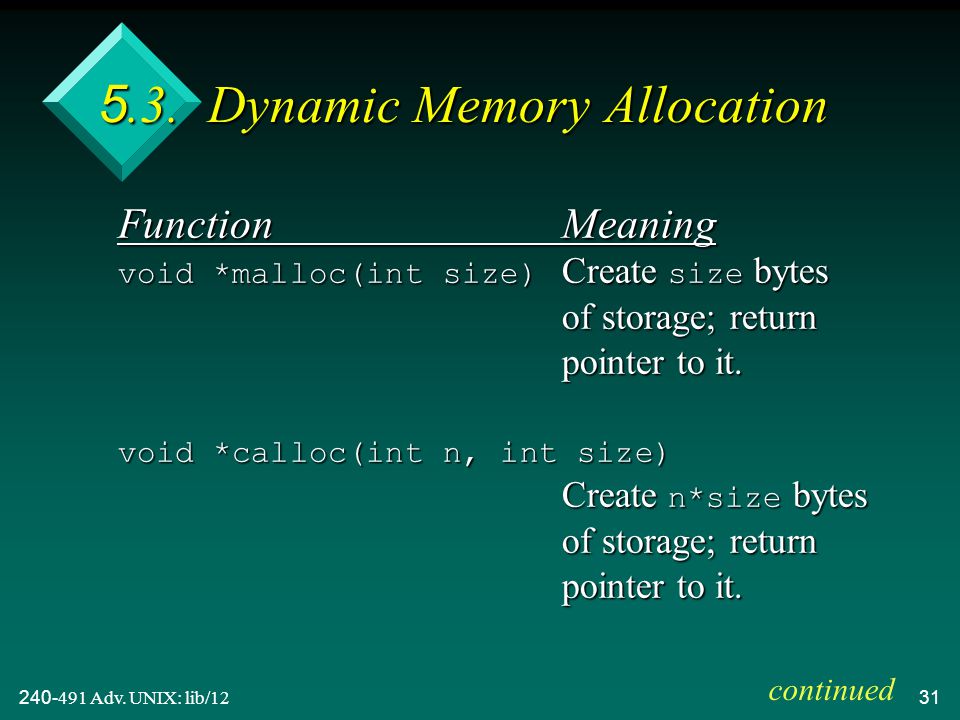

31 240-491 Adv. UNIX: lib/1231 5.3. Dynamic Memory Allocation FunctionMeaning void *malloc(int size) Create size bytes of storage; return pointer to it. void *calloc(int n, int size) Create n*size bytes of storage; return pointer to it. continued

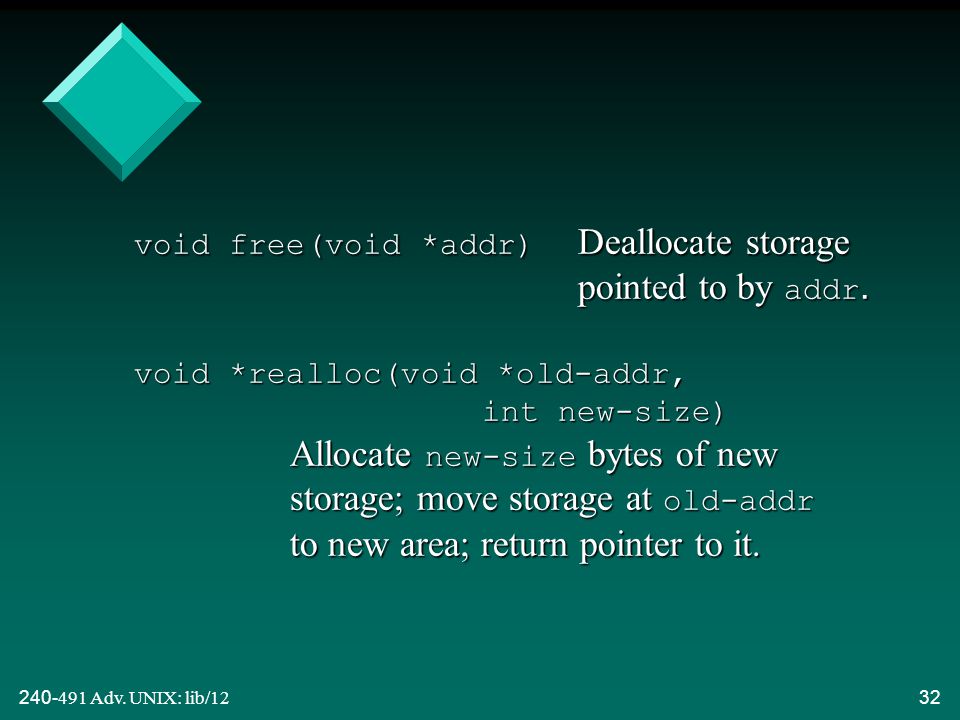

32 240-491 Adv. UNIX: lib/1232 void free(void *addr) Deallocate storage pointed to by addr. void *realloc(void *old-addr, int new-size) Allocate new-size bytes of new storage; move storage at old-addr to new area; return pointer to it.

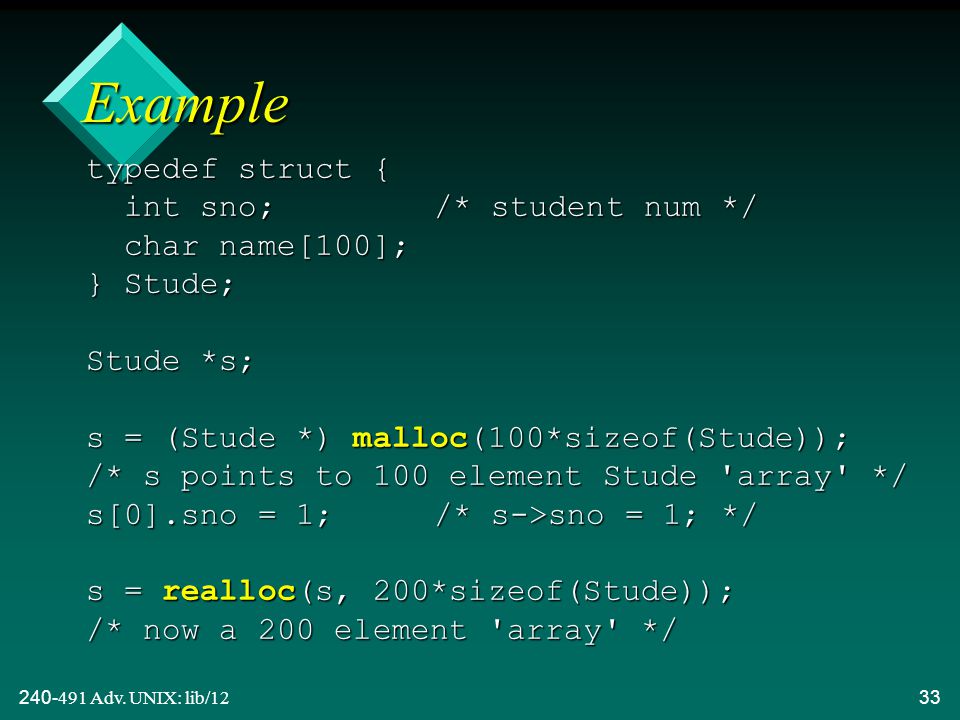

33 240-491 Adv. UNIX: lib/1233 Example typedef struct { int sno;/* student num */ char name[100]; } Stude; Stude *s; s = (Stude *) malloc(100*sizeof(Stude)); /* s points to 100 element Stude 'array' */ s[0].sno = 1;/* s->sno = 1; */ s = realloc(s, 200*sizeof(Stude)); /* now a 200 element 'array' */

34 240-491 Adv. UNIX: lib/1234 5.4. Random Number FunctionMeaning void srand(unsigned int seed) Set up the random number generator. int rand(void) Return a random number in range 0 to RAND_MAX

35 240-491 Adv. UNIX: lib/1235 Example int n; /* to be assigned values between 1 and 100 */ srand( time(NULL) ); /* standard 'trick' for getting a seed */ n = rand() % 100 + 1; : n = rand() % 100 + 1;

36 240-491 Adv. UNIX: lib/1236 5.5. Sorting  void qsort(void *arr, int n, int size, ptr_to_fn compare)  qsort() uses quicksort to sort any type of array ( arr ) of length n. size is the size of an array element.  compare is a pointer to a comparison function; it is used to compare two array elements.

37 240-491 Adv. UNIX: lib/1237 Comparison Type  typedef int (*ptr_to_fn)(void *, void *); v The comparison function takes two pointers to the array elements, and returns an integer: < 0when first element < second 0when first == second > 0when first > second

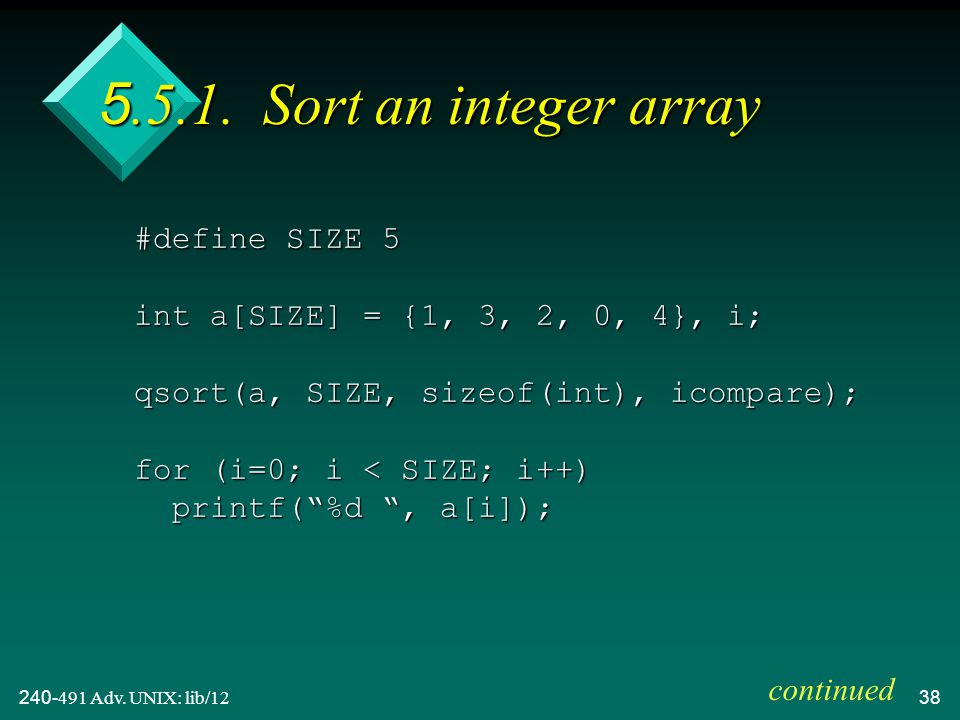

38 240-491 Adv. UNIX: lib/1238 5.5.1. Sort an integer array #define SIZE 5 int a[SIZE] = {1, 3, 2, 0, 4}, i; qsort(a, SIZE, sizeof(int), icompare); for (i=0; i < SIZE; i++) printf(“%d “, a[i]); continued

39 240-491 Adv. UNIX: lib/1239 int icompare(const void *first, const void *second) /* icompare() gets pointers to the array elements */ { int f, s; f = *(int *) first; s = *(int *) second; return f - s; /* to fit return type */ }

40 240-491 Adv. UNIX: lib/1240 5.5.2. Sort an array of students typedef struct { int sno;/* student num */ char name[100]; } Stude; #define SIZE 50 Stude s[SIZE]; /*... fill in s[] */ qsort(s, SIZE, sizeof(Stude), scompare); continued

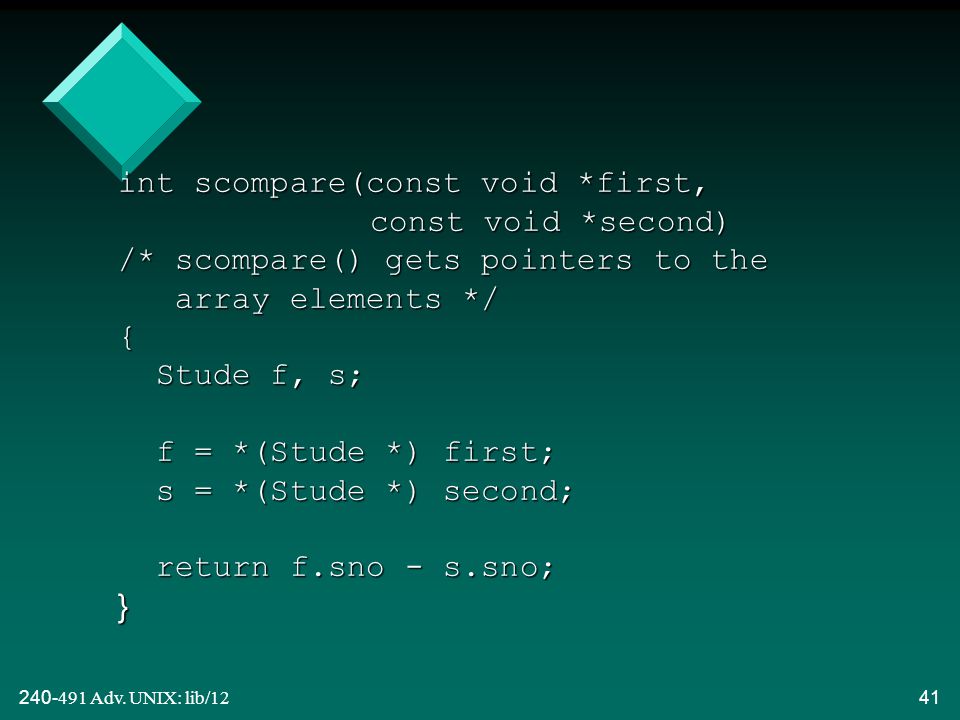

41 240-491 Adv. UNIX: lib/1241 int scompare(const void *first, const void *second) /* scompare() gets pointers to the array elements */ { Stude f, s; f = *(Stude *) first; s = *(Stude *) second; return f.sno - s.sno; }

42 240-491 Adv. UNIX: lib/1242 5.6. Searching Arrays  void *bsearch(void *key, void *arr, int n, int size, ptr_to_fn compare)  bsearch() uses binary search to search any type of sorted array ( arr ) of length n. size is the size of an array element. Search for an element like the one pointed to by key.  Result is a pointer to the found element or NULL. continued

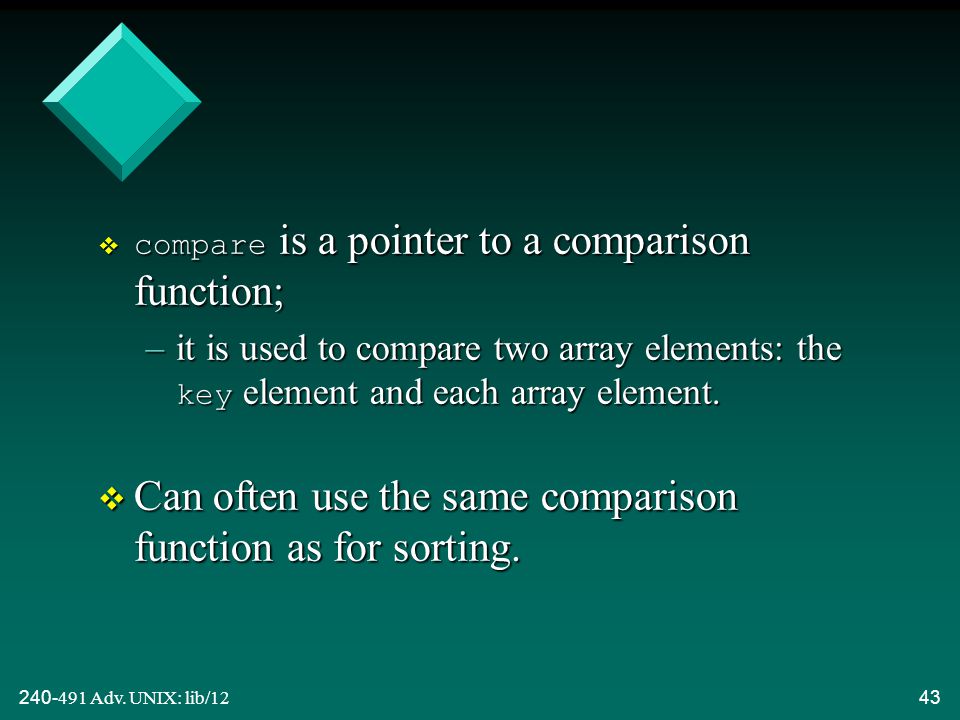

43 240-491 Adv. UNIX: lib/1243  compare is a pointer to a comparison function; –it is used to compare two array elements: the key element and each array element. v Can often use the same comparison function as for sorting.

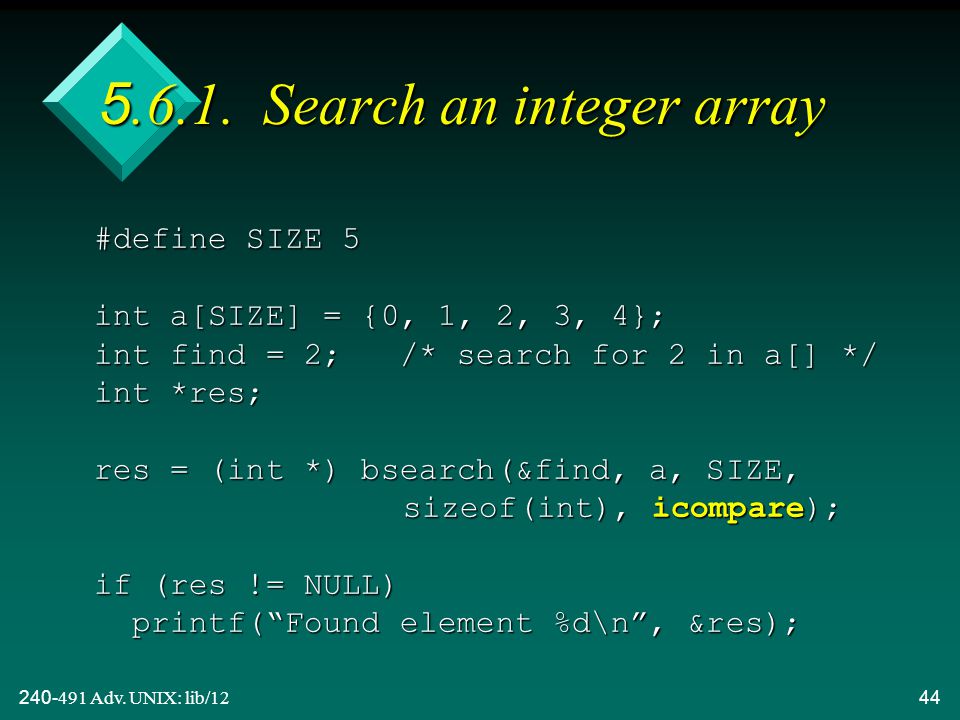

44 240-491 Adv. UNIX: lib/1244 5.6.1. Search an integer array #define SIZE 5 int a[SIZE] = {0, 1, 2, 3, 4}; int find = 2; /* search for 2 in a[] */ int *res; res = (int *) bsearch(&find, a, SIZE, sizeof(int), icompare); if (res != NULL) printf(“Found element %d\n”, &res);

45 240-491 Adv. UNIX: lib/1245 5.6.2. Search for a student  First, we must create a student key which contains a student number. But no name is needed. Why?  Answer: the scompare function only compares student numbers  res will point to the matching student element in s[] (with sno and name values).

46 240-491 Adv. UNIX: lib/1246 #define SIZE 50 Stude s[SIZE], key, *res; /*.... fill in s[] */ /* initialise key */ key.sno = 4710092; res = (Stude *) bsearch(&key, s, SIZE, sizeof(Stude), scompare); if (res != NULL) printf(“Student no, name: %d, %s\n”, res->sno, res->name);

47 240-491 Adv. UNIX: lib/1247 5.7. System Functions FunctionMeaning void exit(int i) Exit program, with i result (use 0 for success, non-0 for failure) int system(char *cmd) Execute OS command string in cmd

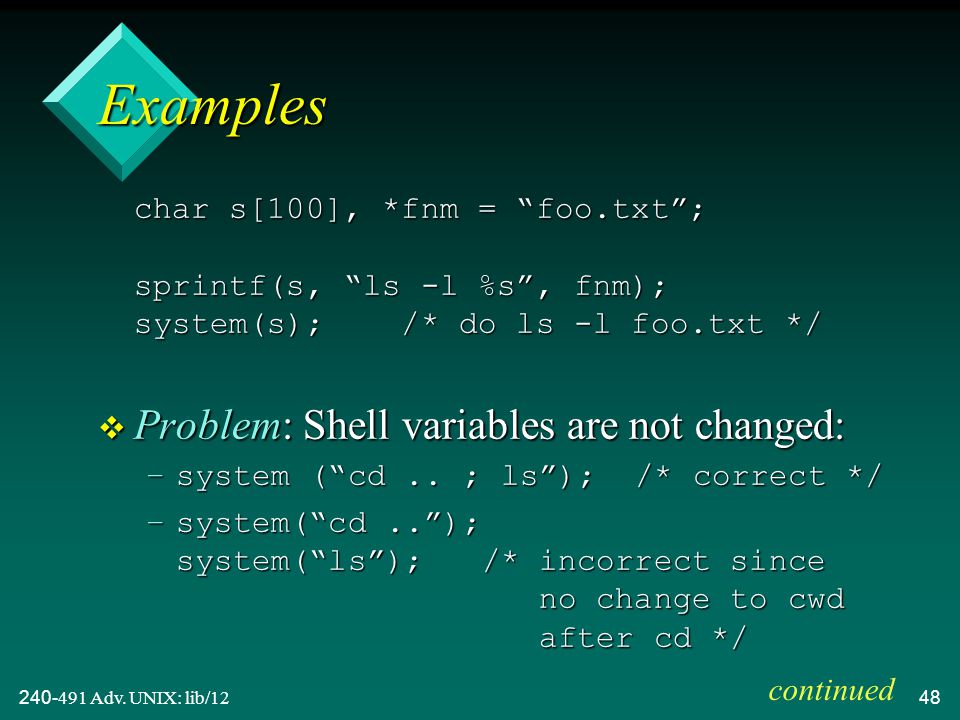

48 240-491 Adv. UNIX: lib/1248 Examples char s[100], *fnm = “foo.txt”; sprintf(s, “ls -l %s”, fnm); system(s); /* do ls -l foo.txt */ v Problem: Shell variables are not changed: –system (“cd.. ; ls”); /* correct */ –system(“cd..”); system(“ls”);/* incorrect since no change to cwd after cd */ continued

49 240-491 Adv. UNIX: lib/1249 v The Bourne shell is used to execute the command.  system() returns the termination status of the command. v We can read results using temporary files: system(“ls -l > temp”); if ((fp = fopen(“temp”, “r”)) != NULL)... –there is another way: see popen() later

50 240-491 Adv. UNIX: lib/1250 5.7.1. Access the environment: 5.7.1. Access the environment: getenv()  Environment variables are shell variables that have been exported (with export in Bourne, setenv in C-Shell)  char *getenv(char *env-var);  Usage: printf(“Home is %s\n”, getenv(“HOME”));

51 240-491 Adv. UNIX: lib/1251 From the argument From the envp main() argument #include #include int main(int argc, char *argv[], char *envp[]) { int i = 0; /* print out envp[] */ while (envp[i] != NULL) printf(“%s\n”, envp[i++]); return 0; } continued

52 240-491 Adv. UNIX: lib/1252  Each envp[i] contains a string of the form: name=value v Possible output: HOME=/user/ad SHELL=/bin/bash TERM=vt100 USER=ad :

53 240-491 Adv. UNIX: lib/1253 and in 5.7.2. popen() and pclose() in stdio.h  FILE *popen(char *cmd, char *mode); int pclose(FILE *fp);  Use popen() to execute a command and open a pipe into it (or out of it). v The pipe can be manipulated using file I/O commands. continued

54 240-491 Adv. UNIX: lib/1254 v The pipe can be used to send input into the command (or receive output from the command).  pclose() closes the pipe and completes the command.

55 240-491 Adv. UNIX: lib/1255 Command input: Command input: wc FILE *fp; int numlines; if ((fp = popen(“wc -l foo.c”, “r”)) == NULL) { perror(“popen() failure of wc”); exit(1); } fscanf(fp, “%d”, &numlines); pclose(fp); program wc -l foo.c fp

56 240-491 Adv. UNIX: lib/1256 Command output: Command output: mail FILE *fp; char *mesg=“hello jim”; if ((fp = popen(“mail -s \”Hi\””, “w”)) == NULL) { perror(“popen() failure of mail”); exit(1); } fprintf(fp, “%s\n”, mesg); pclose(fp); program mail -s "Hi" fp

57 240-491 Adv. UNIX: lib/1257 6. Timing () 6. Timing ( time.h )  time_t time(time_t *ptr) v Common usage: time_t t; /* usually same as int */ t = time(NULL); /* no. of secs since 1/1/1970 */  Most programs convert time_t values to struct tm or char * for better output. Epoch time

58 240-491 Adv. UNIX: lib/1258 struct tm  Look in time.h : struct tm { int tm_sec;/* seconds */ int tm_min;/* minutes */ int tm_hour;/* hours since midnight */ int tm_mday;/* day of month: 1..31 */ int tm_mon;/* month since January: 0..11 */ int tm_year;/* years since 1900 */ : }

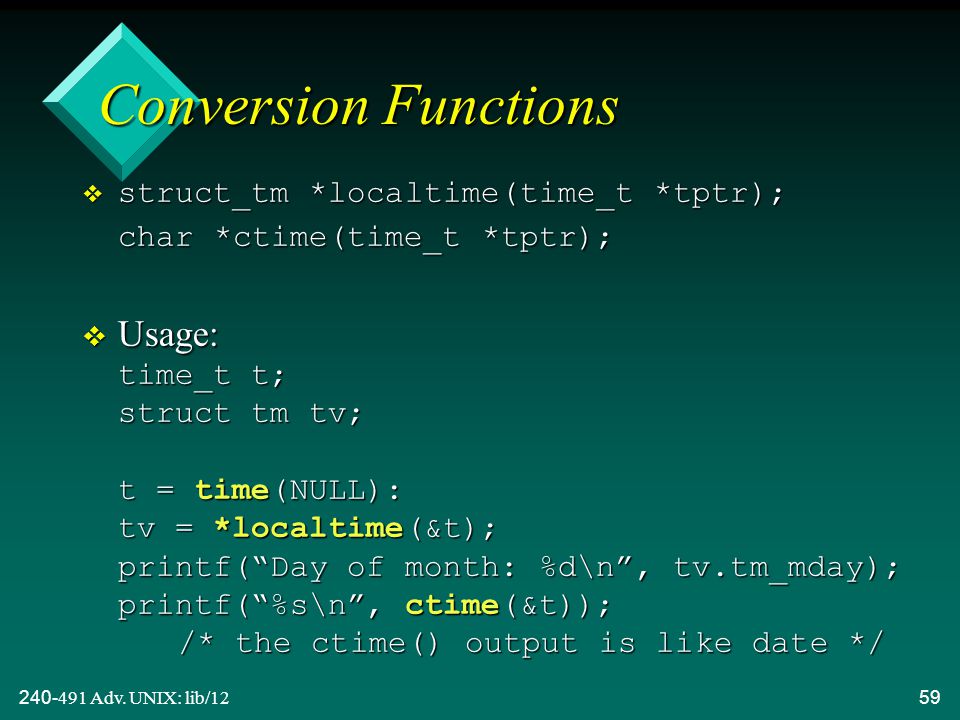

59 240-491 Adv. UNIX: lib/1259 Conversion Functions  struct_tm *localtime(time_t *tptr); char *ctime(time_t *tptr);  Usage: time_t t; struct tm tv; t = time(NULL): tv = *localtime(&t); printf(“Day of month: %d\n”, tv.tm_mday); printf(“%s\n”, ctime(&t)); /* the ctime() output is like date */

60 240-491 Adv. UNIX: lib/1260 Processor Time  clock_t clock(void) –returns the processor time (number of clock ticks) used by the program since its execution began  The number of clock ticks per second is defined in CLOCKS_PER_SEC. v Print execution time in seconds using: –printf(“%f secs running\n”, (double) (clock()/CLOCKS_PER_SEC) );
