Mohammed Almansori MBBS, FRCPC Assistant Professor of Medicine & Interventional Cardiologist University of Dammam ECHO CLUB INVASIVE HEMODYNAMIC EVALUATION.

Similar presentations


Presentation on theme: "Mohammed Almansori MBBS, FRCPC Assistant Professor of Medicine & Interventional Cardiologist University of Dammam ECHO CLUB INVASIVE HEMODYNAMIC EVALUATION."— Presentation transcript:

1 Mohammed Almansori MBBS, FRCPC Assistant Professor of Medicine & Interventional Cardiologist University of Dammam ECHO CLUB INVASIVE HEMODYNAMIC EVALUATION OF REGURGITATION

2

3

4 In every patient in whom it was considered that a decision could be reached by echocardiography alone (>80% of pts) there was 100% agreement from cardiac catheterization. So, in patients with adequate echo data Cath can be omitted. If echo indices are conflicting or significant CAD is suspected catheterization should be considered

5 Indication of invasive hemodynamic evaluation: 1.When pulmonary pressure is disproportionate to the severity of regurgitation assessed noninvasively. 2.When there is a discrepancy between clinical and noninvasive findings.

6

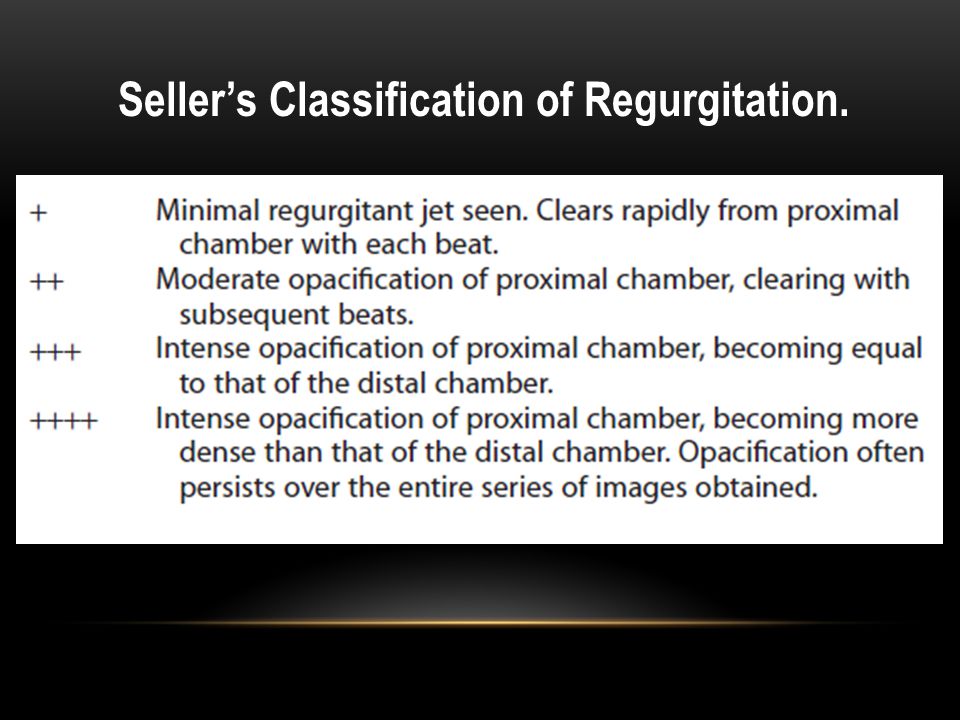

7 Seller’s Classification of Regurgitation.

8

9

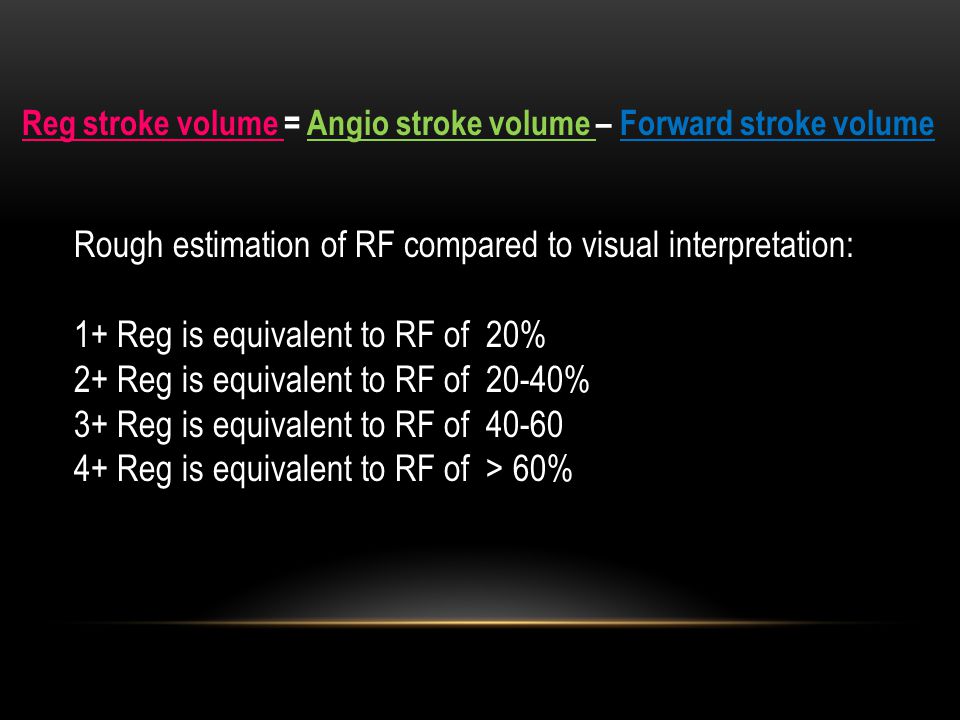

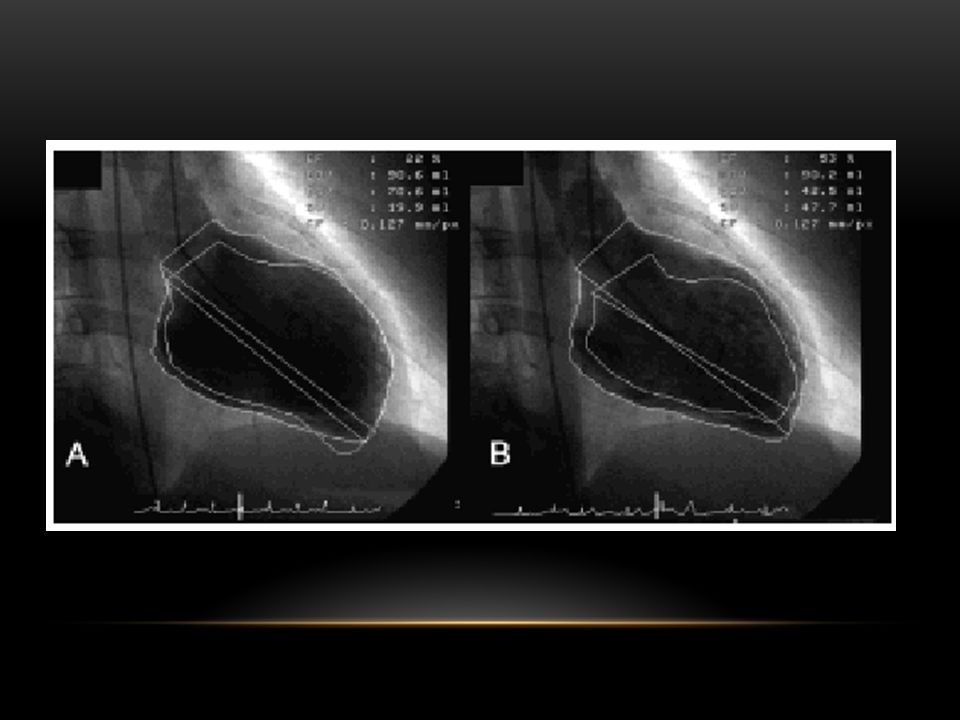

10 Reg stroke volume = Angio stroke volume – Forward stroke volume Rough estimation of RF compared to visual interpretation: 1+ Reg is equivalent to RF of 20% 2+ Reg is equivalent to RF of 20-40% 3+ Reg is equivalent to RF of Reg is equivalent to RF of > 60%

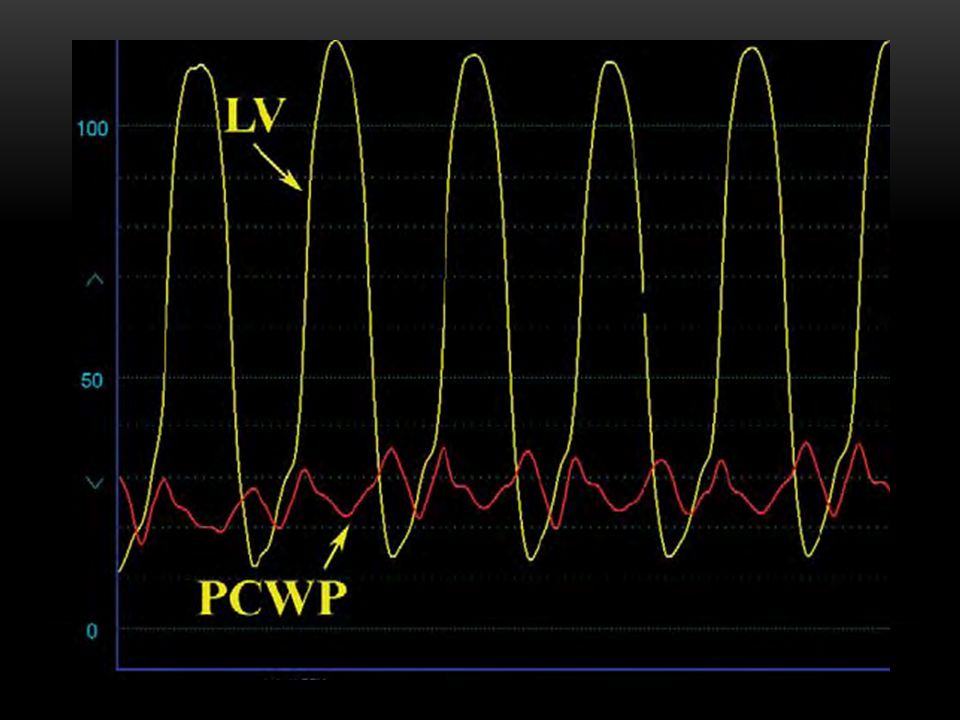

11 Hemodynamics of Mitral Regurgitation

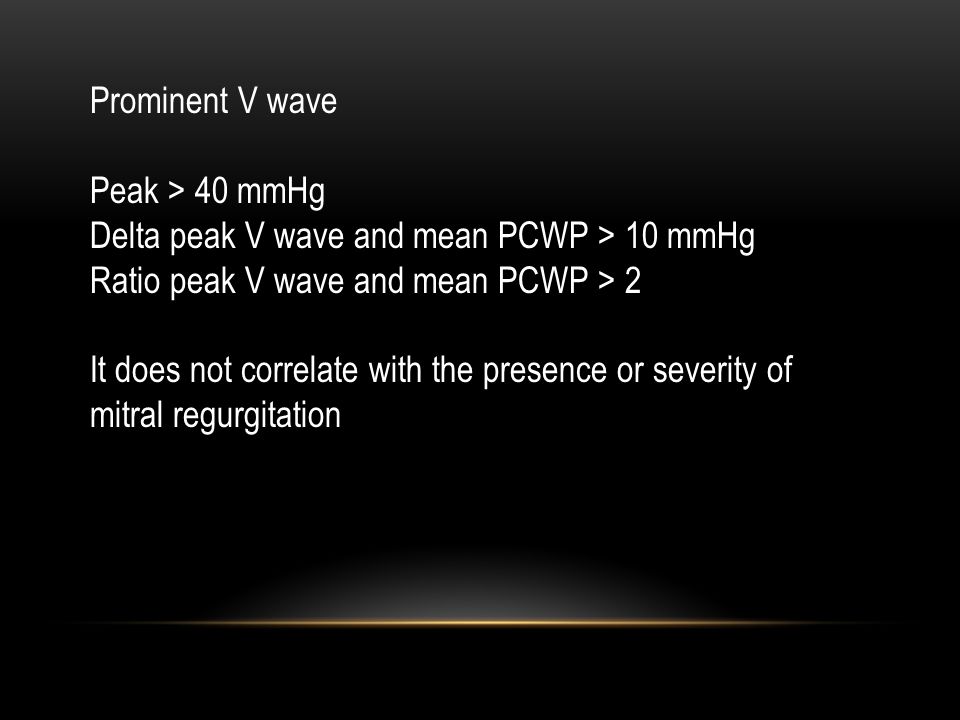

12 Prominent V wave Peak > 40 mmHg Delta peak V wave and mean PCWP > 10 mmHg Ratio peak V wave and mean PCWP > 2 It does not correlate with the presence or severity of mitral regurgitation

13

14

15

16

17

18 A small diastolic pressure gradient may be observed across the mitral valve; however, unlike mitral stenosis, the gradient is present during early diastole only. In addition, the slope of the y descent in mitral regurgitation is steep rather than delayed, as seen in mitral stenosis.

19

20 Camelback PA tracing

21

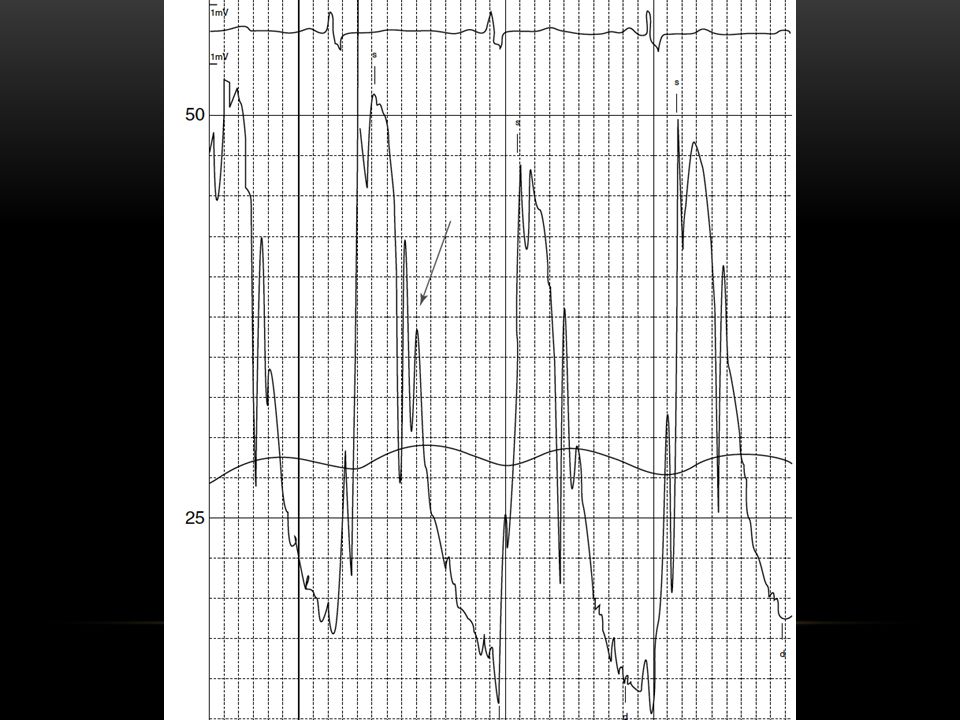

22 The transmission of this pressure wave from the pulmonary veins to the pulmonary artery also explains the occasional phenomenon of a false elevation in the pulmonary artery saturation, in some cases of severe mitral regurgitation.

23

24 In patients with only minor mitral regurgitation which is suspected to contribute to their clinical symptoms, the monitoring of invasive hemodynamic parameters (V- wave) during stress is important

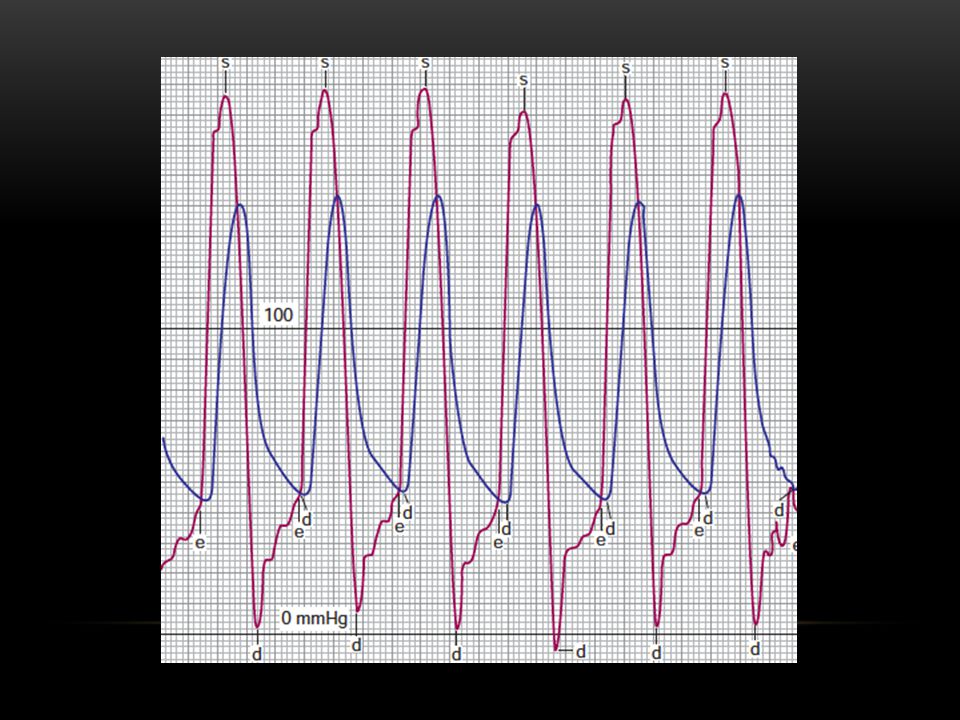

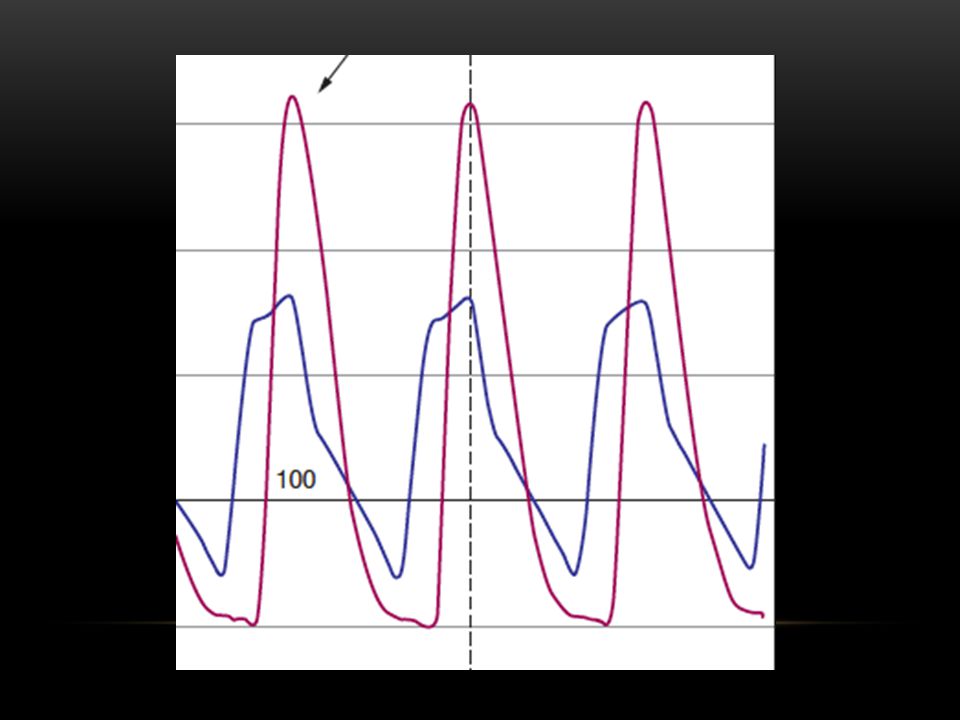

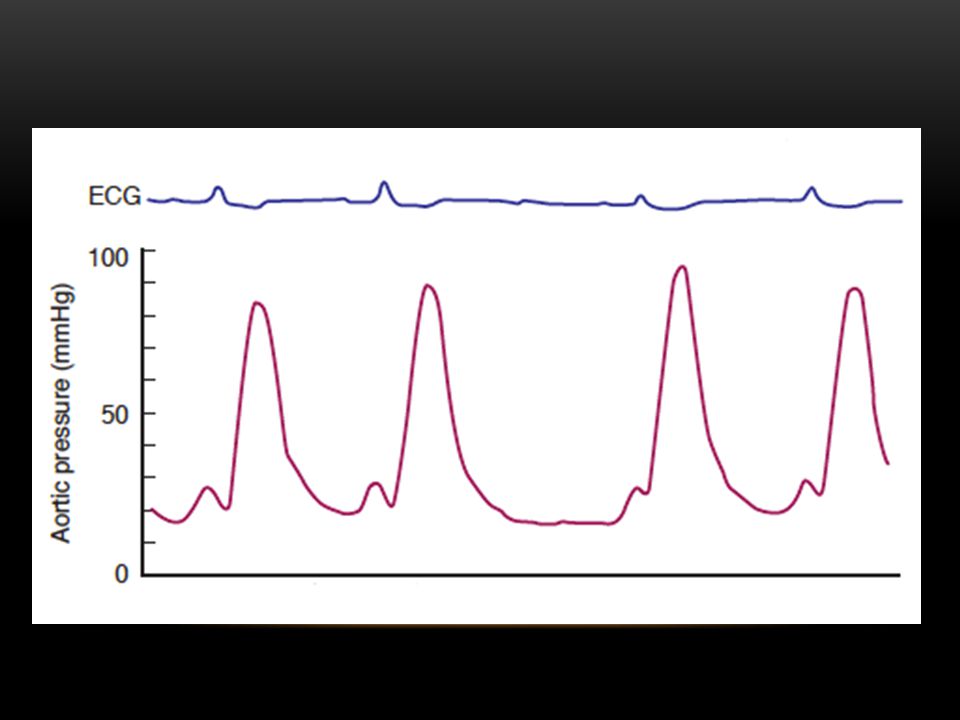

25 Hemodynamics of Aortic Regurgitation

26

27

28

29

30

31

32

33

34 A Case of Aortic Regurgitation

35 A 71-year-old man know to have moderate AR presented with a month of CCS-III angina and shortness of breath. No other medical illnesses. O/E HR 63BP 164/53 JVP 9 cm H2O Early diastolic murmur of AR + Pansystolic murmur of MR + S3 Occasional crepitation on chest auscultation No LL edema CXR cardiomegaly, No pulmonary edema

36 Baseline ECG

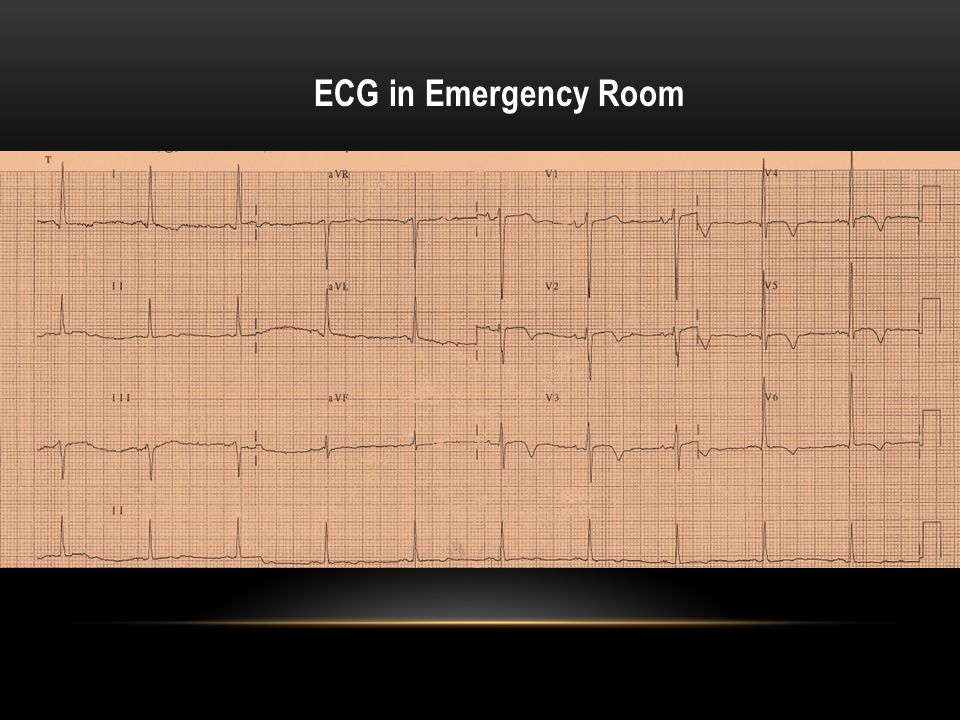

37 ECG in Emergency Room

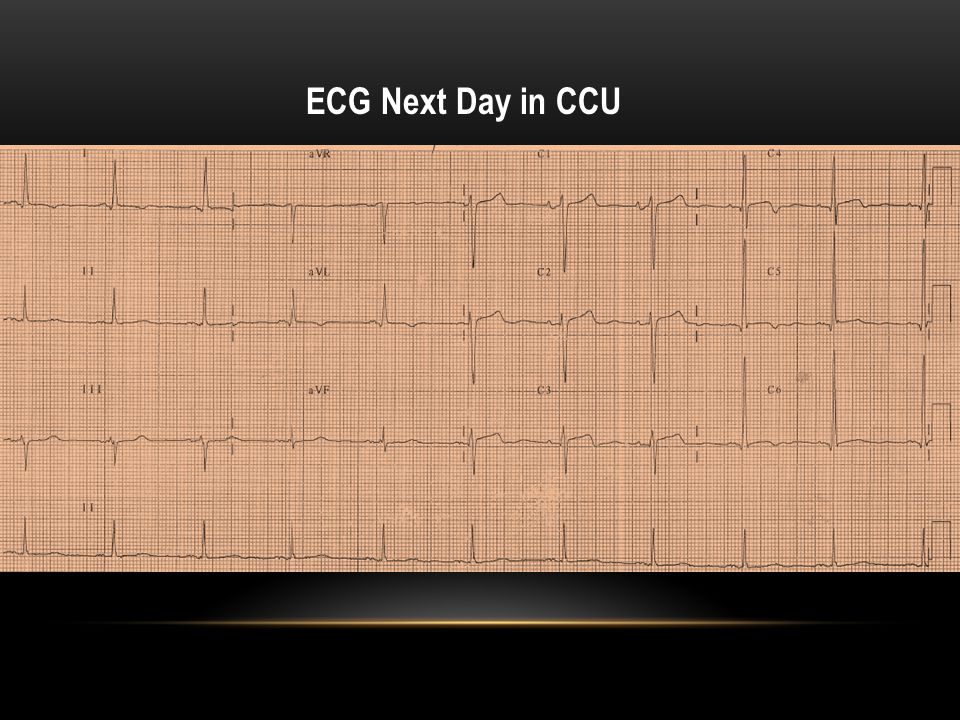

38 ECG Next Day in CCU

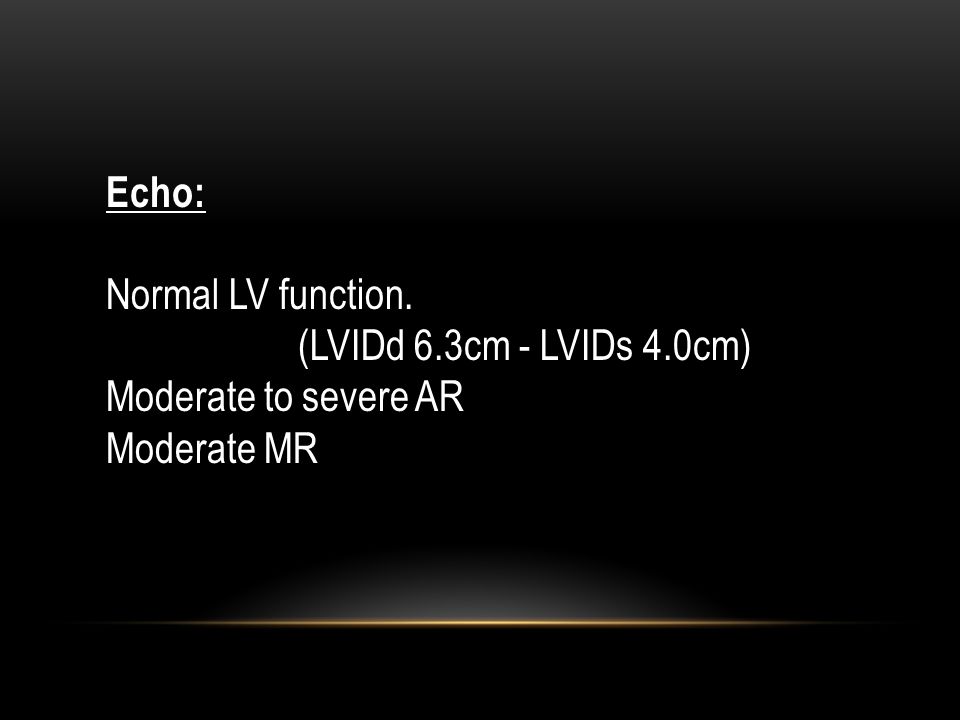

39 Echo: Normal LV function. (LVIDd 6.3cm - LVIDs 4.0cm) Moderate to severe AR Moderate MR

40

41 Coronary angiogram showed mild non-obstructive disease. Aortic root angiogram showed severe aortic regurgitation.

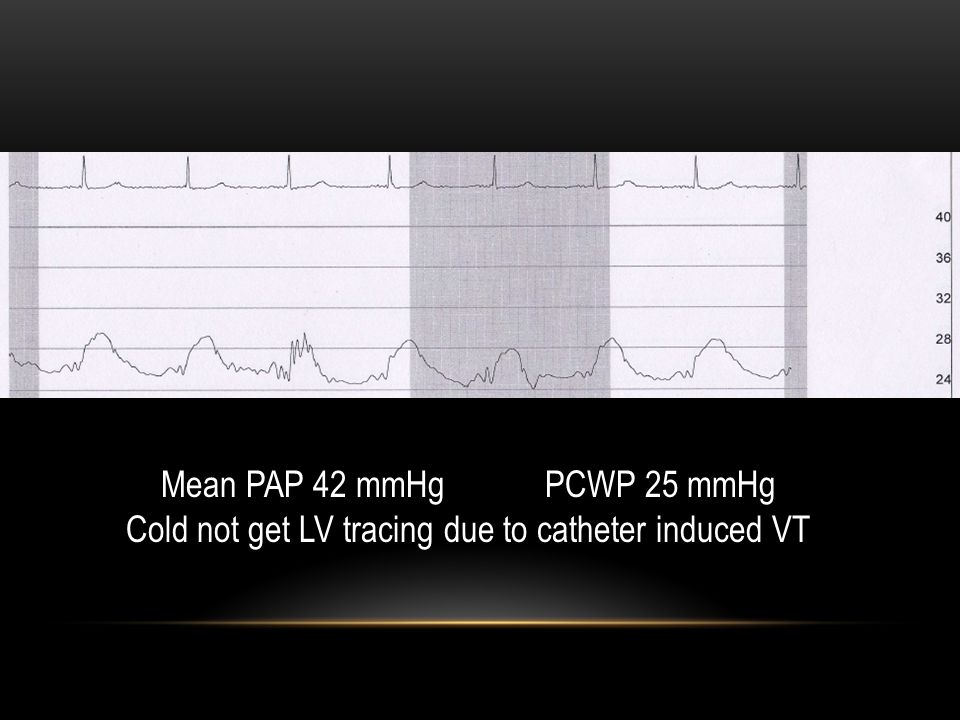

42 Mean PAP 42 mmHg PCWP 25 mmHg Cold not get LV tracing due to catheter induced VT

43 Thank you
