1
Marat Kulakhmetov

2

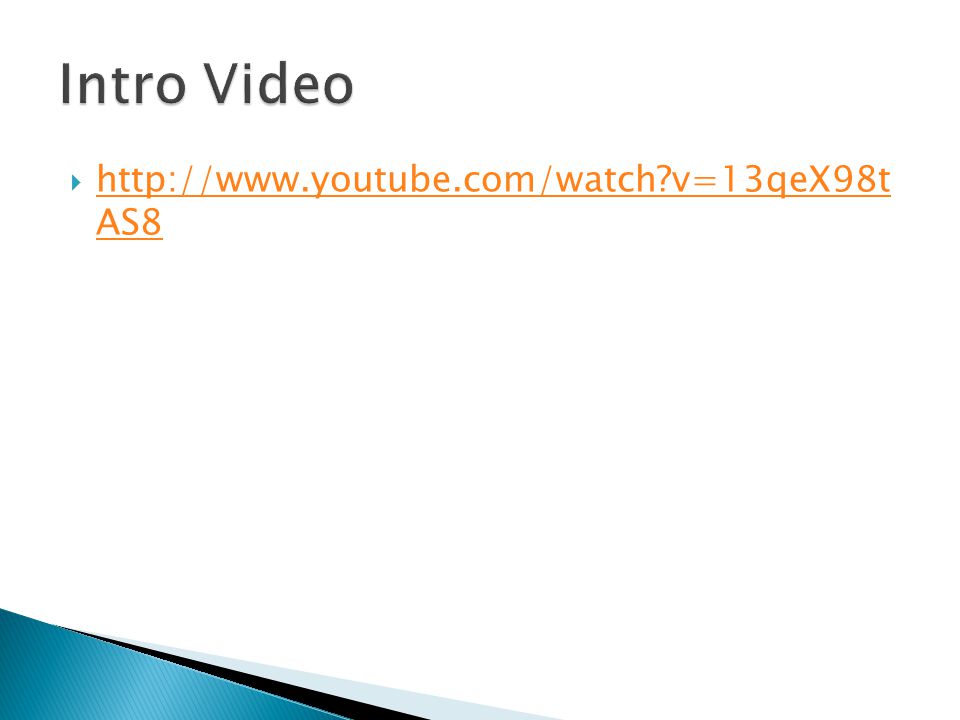

http://www.youtube.com/watch?v=13qeX98t AS8 http://www.youtube.com/watch?v=13qeX98t AS8

3
Did some rockets tumble? Did some rockets wobble? Did some rockets flip over? Maybe some rockets were unstable

4

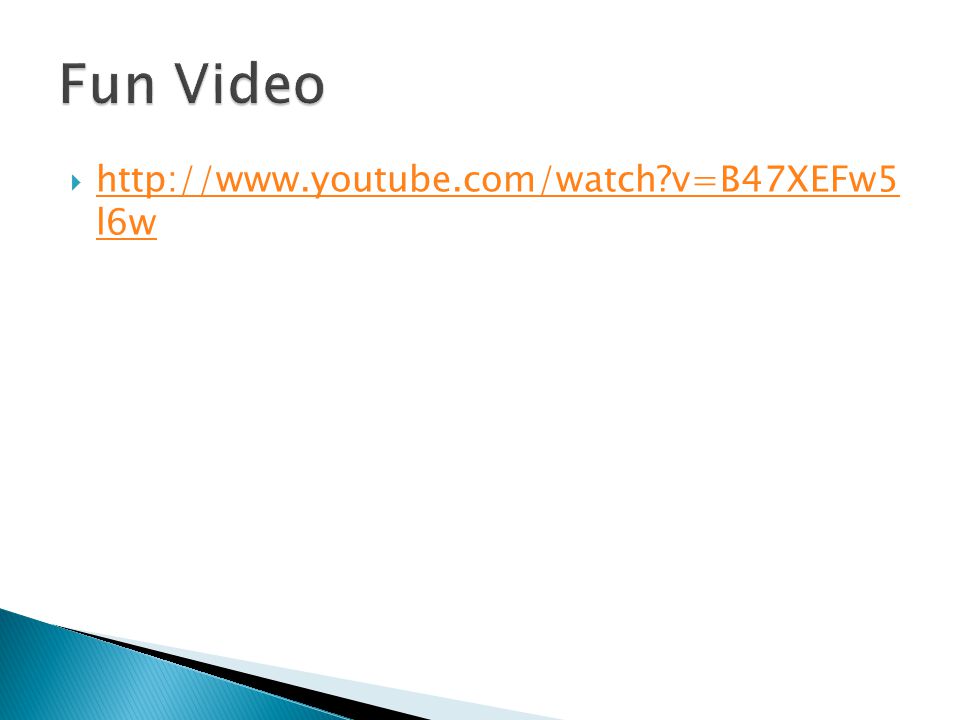

http://www.youtube.com/watch?v=B47XEFw5 l6w http://www.youtube.com/watch?v=B47XEFw5 l6w

5

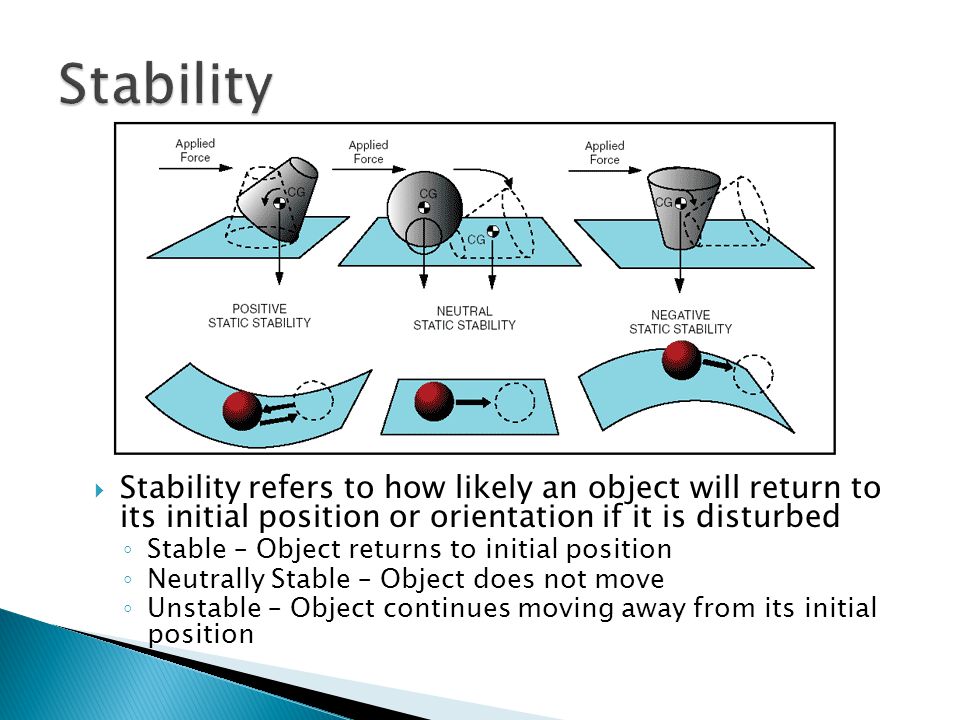

Stability refers to how likely an object will return to its initial position or orientation if it is disturbed ◦ Stable – Object returns to initial position ◦ Neutrally Stable – Object does not move ◦ Unstable – Object continues moving away from its initial position

6

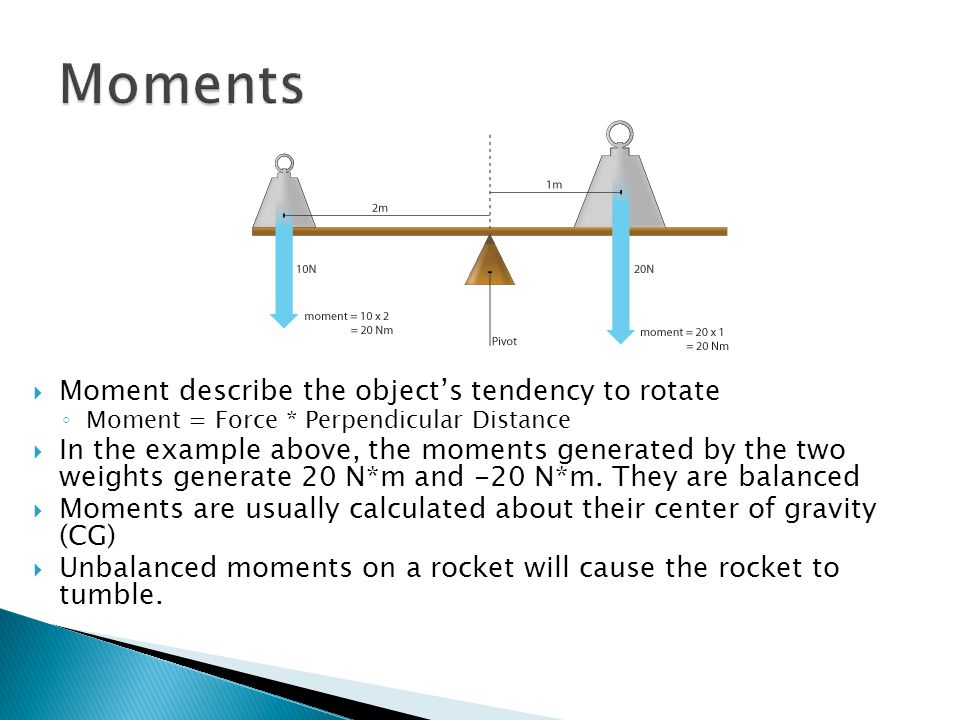

Moment describe the object’s tendency to rotate ◦ Moment = Force * Perpendicular Distance In the example above, the moments generated by the two weights generate 20 N*m and -20 N*m. They are balanced Moments are usually calculated about their center of gravity (CG) Unbalanced moments on a rocket will cause the rocket to tumble.

7
Location where the forces will balance CG = Moment / Total Weight Example: ◦ Moment = 10 * (0) + 20 * 3 = 60 N * m ◦ Total Weight = 10 + 20 = 30 N ◦ CG = Moment / Total Weight = 60 / 30 = 2 m X = 0X = 2 X=3

8

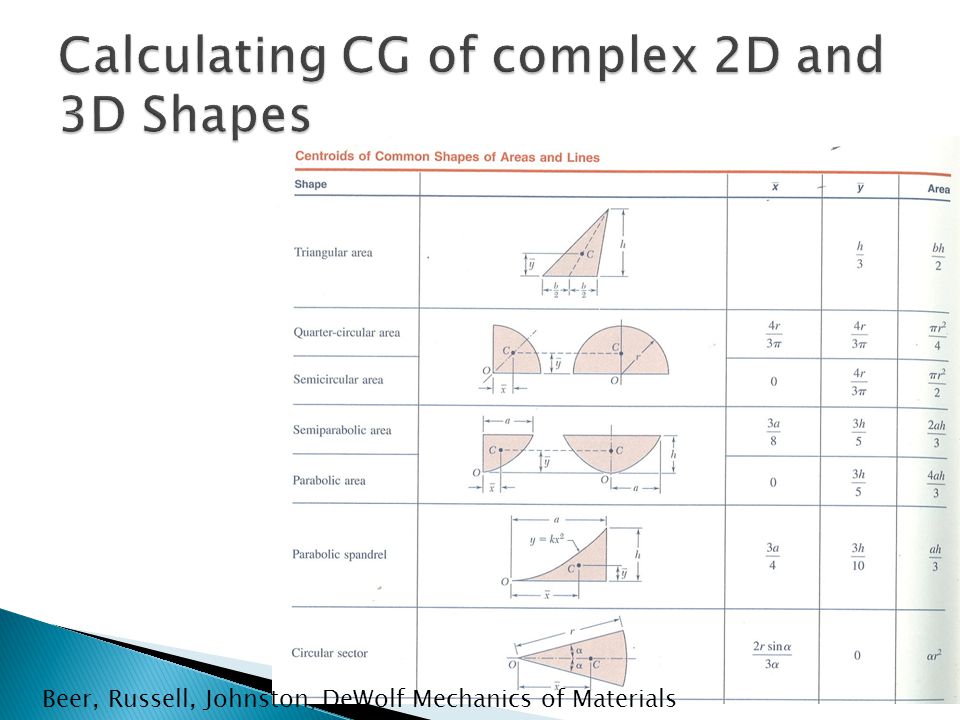

Beer, Russell, Johnston, DeWolf Mechanics of Materials

9

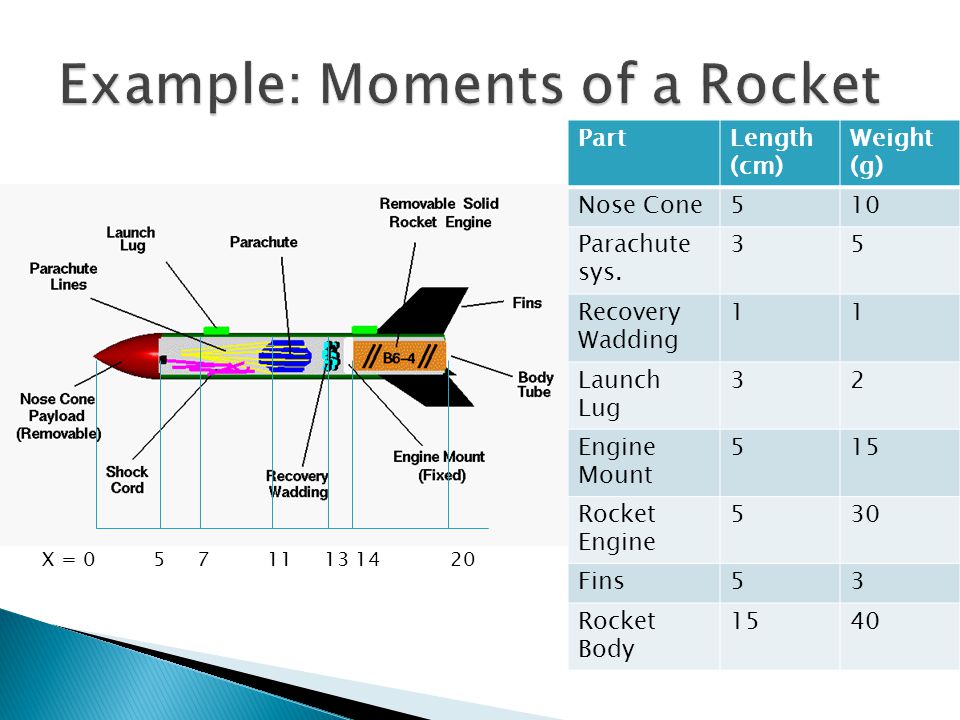

PartLength (cm) Weight (g) Nose Cone510 Parachute sys. 35 Recovery Wadding 11 Launch Lug 32 Engine Mount 515 Rocket Engine 530 Fins53 Rocket Body 1540 X = 0 5 7 11 13 14 20

10

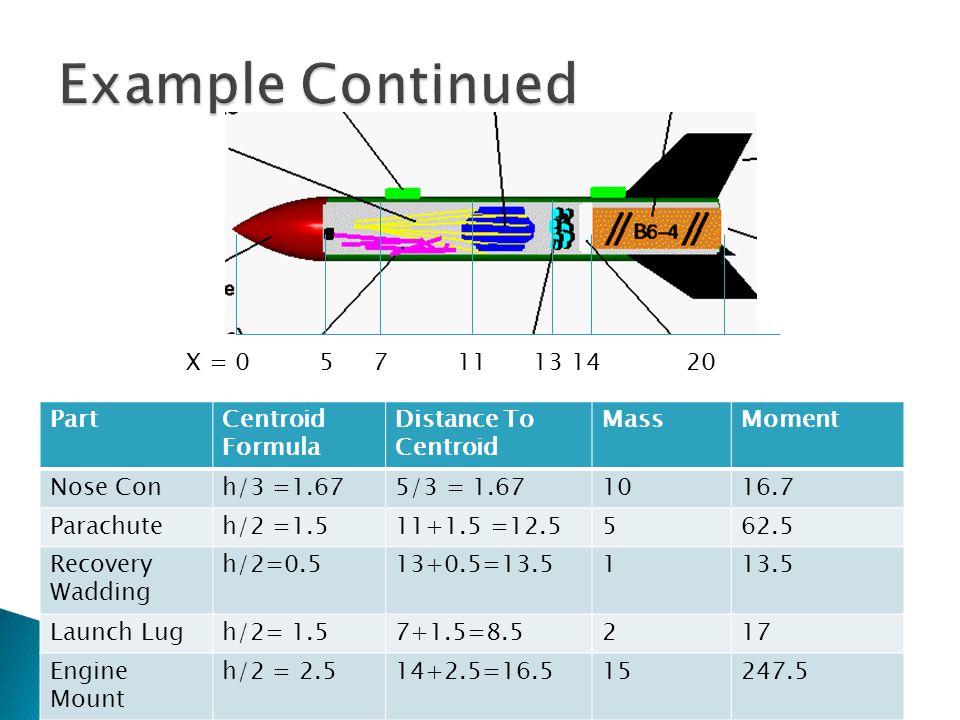

PartCentroid Formula Distance To Centroid MassMoment Nose Conh/3 =1.675/3 = 1.671016.7 Parachuteh/2 =1.511+1.5 =12.5562.5 Recovery Wadding h/2=0.513+0.5=13.5113.5 Launch Lugh/2= 1.57+1.5=8.5217 Engine Mount h/2 = 2.514+2.5=16.515247.5

11
X = 0 5 7 11 13 14 20 PartCentroid Formula Distance To Centroid MassMoment From Above33357.2 Rocket Engine h/2 =2.514+2.5=16.530495 Rocket Bodyh/2=7.55+7.540300 Total1031152.2

12

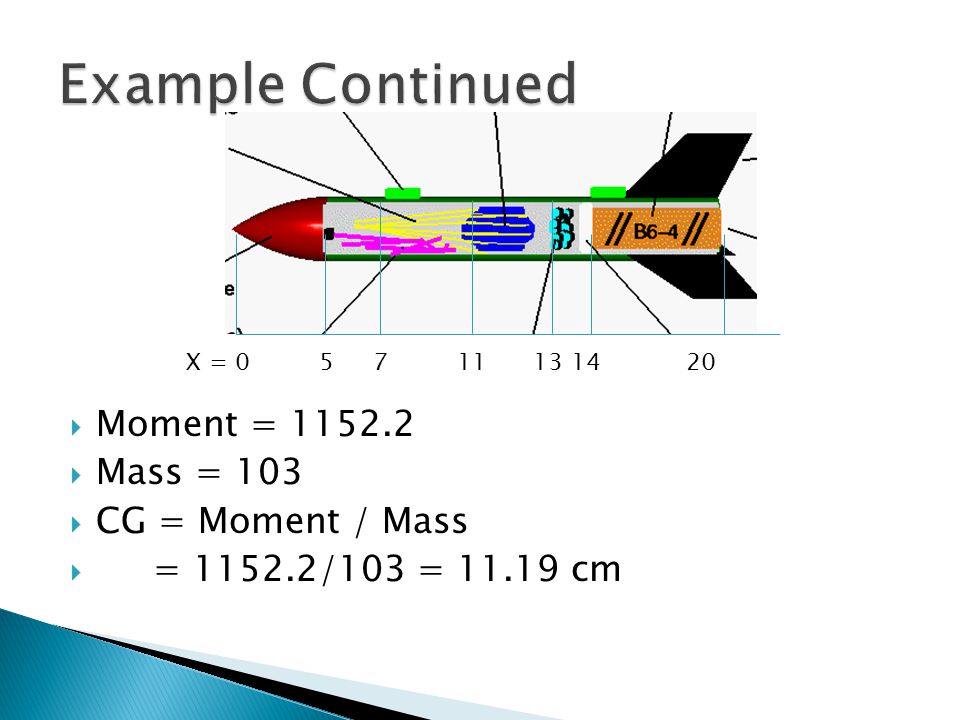

X = 0 5 7 11 13 14 20 Moment = 1152.2 Mass = 103 CG = Moment / Mass = 1152.2/103 = 11.19 cm

13

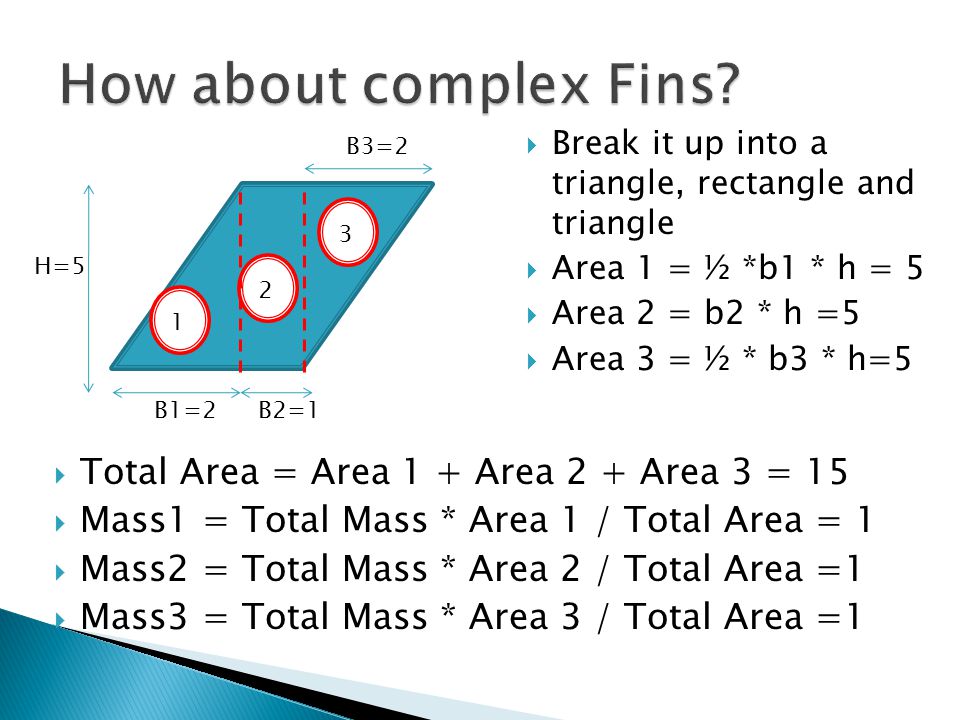

Break it up into a triangle, rectangle and triangle Area 1 = ½ *b1 * h = 5 Area 2 = b2 * h =5 Area 3 = ½ * b3 * h=5 Total Area = Area 1 + Area 2 + Area 3 = 15 Mass1 = Total Mass * Area 1 / Total Area = 1 Mass2 = Total Mass * Area 2 / Total Area =1 Mass3 = Total Mass * Area 3 / Total Area =1 1 1 1 2 1 3 B1=2B2=1 B3=2 H=5

14

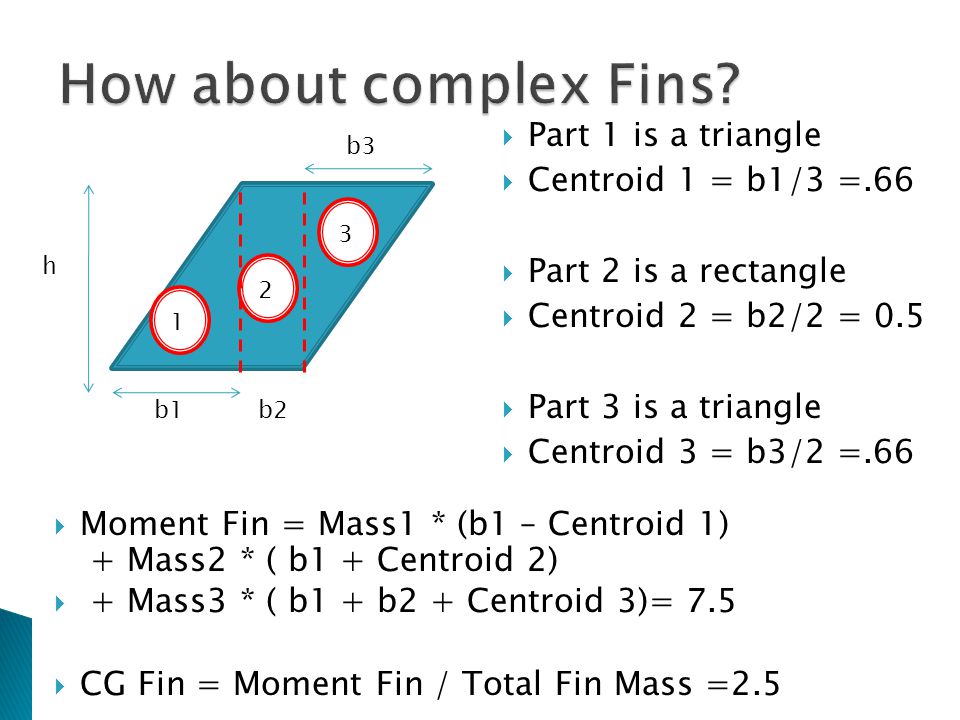

Part 1 is a triangle Centroid 1 = b1/3 =.66 Part 2 is a rectangle Centroid 2 = b2/2 = 0.5 Part 3 is a triangle Centroid 3 = b3/2 =.66 1 1 1 2 1 3 b1b2 b3 h Moment Fin = Mass1 * (b1 – Centroid 1) + Mass2 * ( b1 + Centroid 2) + Mass3 * ( b1 + b2 + Centroid 3)= 7.5 CG Fin = Moment Fin / Total Fin Mass =2.5

15
X = 0 5 7 11 13 14 20 Moment with fins = 1152.2 +(2.5+14)*3 Mass = 103+3 CG = Moment / Mass =11.34 cm

16
If : ◦ Rocket has no fins ◦ Thrust is aligned ◦ Rocket pitched a little Moment = -1*Lift * x This rocket will keep pitching and fly out of control y x X

17
Little DragLots of Drag

18
If : ◦ Thrust is aligned ◦ Rocket turned a little Moment = -1* Lift *x + Fin * x1 If Fin * x1 > Lift * x, the rocket will right itself X Fin Force X1

19
Fin force = ◦ Larger Area = More force provided by fins ◦ Larger Velocity = More Force provided by fins Fin Moment = Fin Force * Distance ◦ Larger Force = Larger Moment ◦ Larger Distance = Larger Moments For stability, we want large fins as far away from CG as possible. If fins are too large they create more drag

20
Calculating aerodynamic center will require Computational Fluid Dynamic (CFD) analysis. We will estimate that the aerodynamic center is at Fin centroid We calculated that this is at 16.5cm X = 0 5 7 11 13 14 20

21

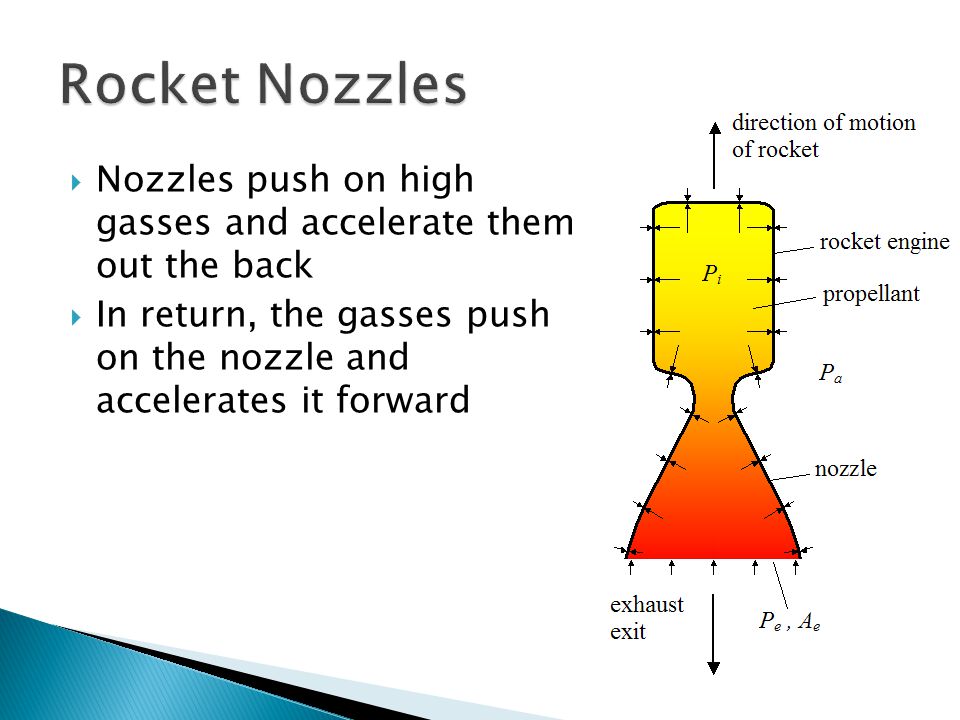

Nozzles push on high gasses and accelerate them out the back In return, the gasses push on the nozzle and accelerates it forward

22

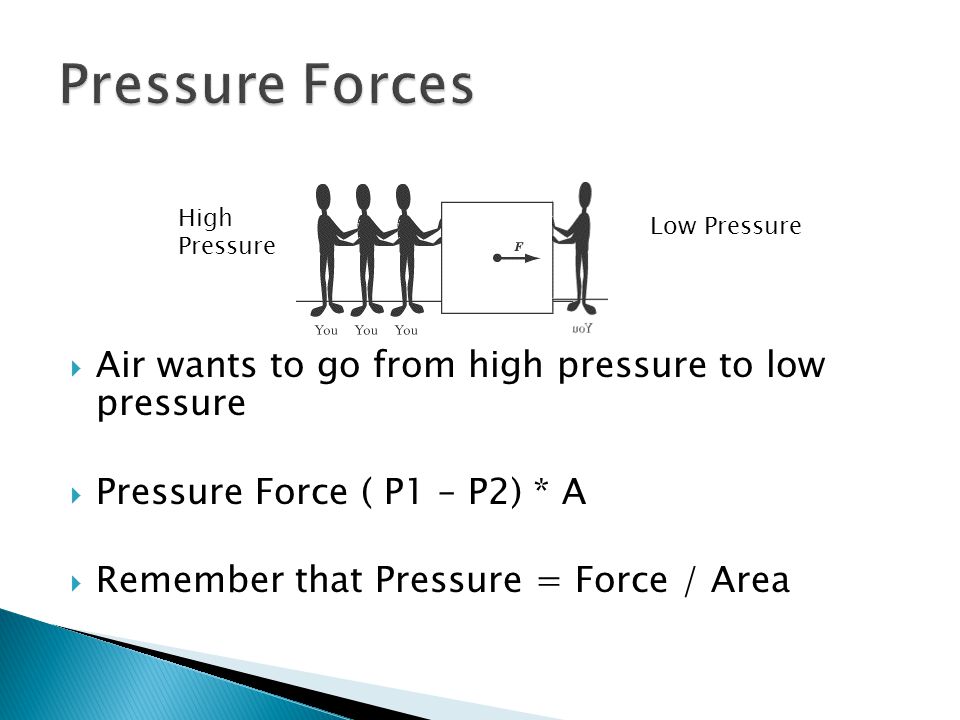

Air wants to go from high pressure to low pressure Pressure Force ( P1 – P2) * A Remember that Pressure = Force / Area High Pressure Low Pressure

23

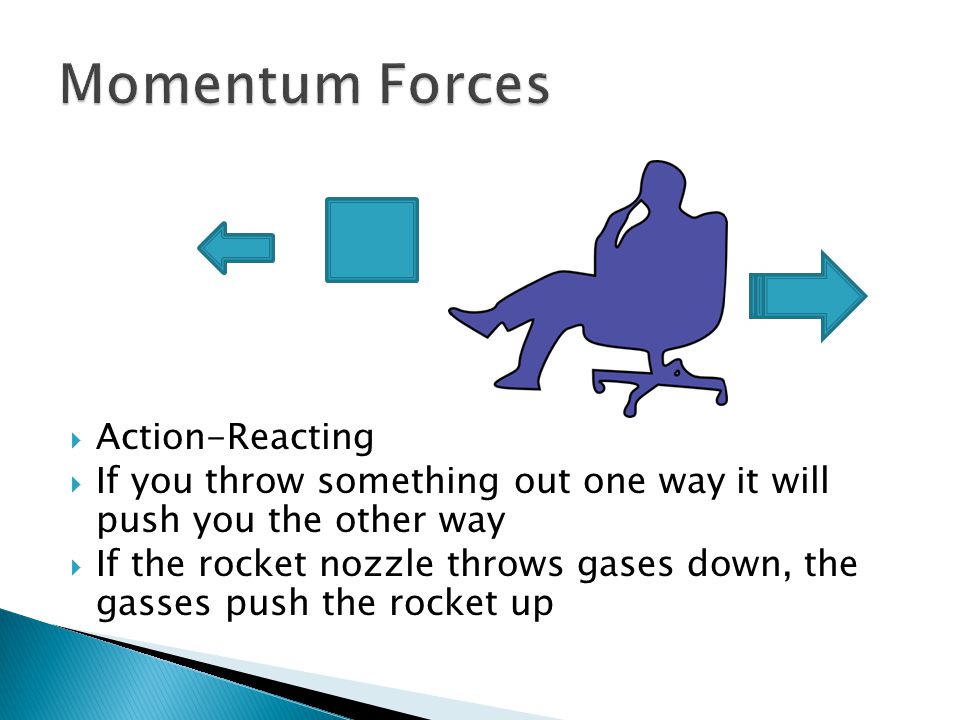

Action-Reacting If you throw something out one way it will push you the other way If the rocket nozzle throws gases down, the gasses push the rocket up

24

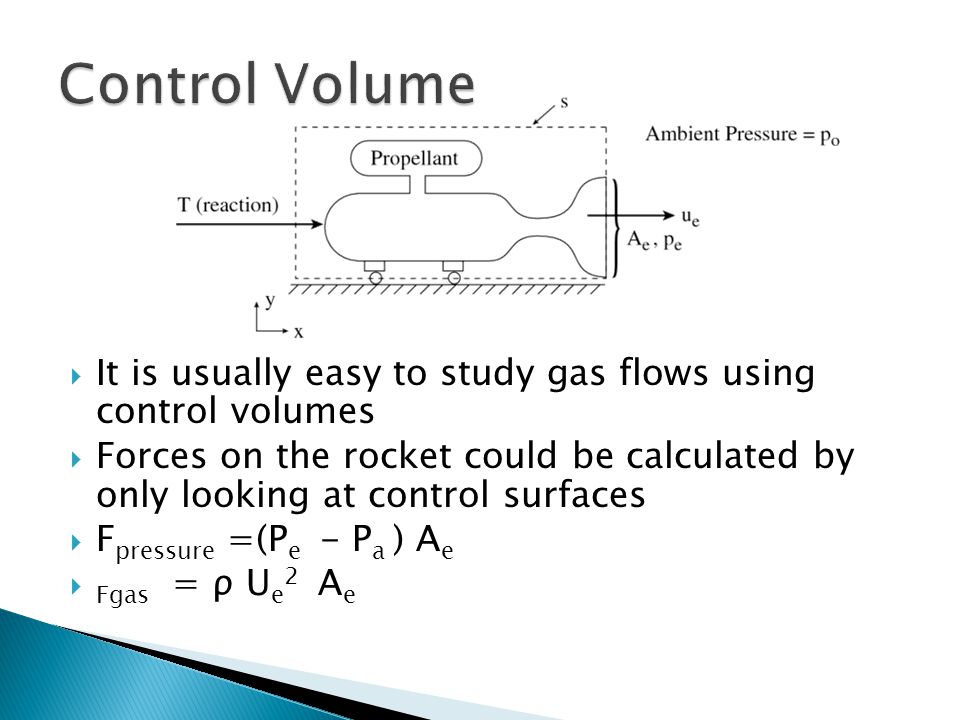

It is usually easy to study gas flows using control volumes Forces on the rocket could be calculated by only looking at control surfaces F pressure =(P e - P a ) A e Fgas = ρ U e 2 A e

25
Why did rockets filled with water go higher than those filled with just air? Ambient Pressure Constant Exit Pressure Constant Exit Velocity Assumed Constant Changes

26

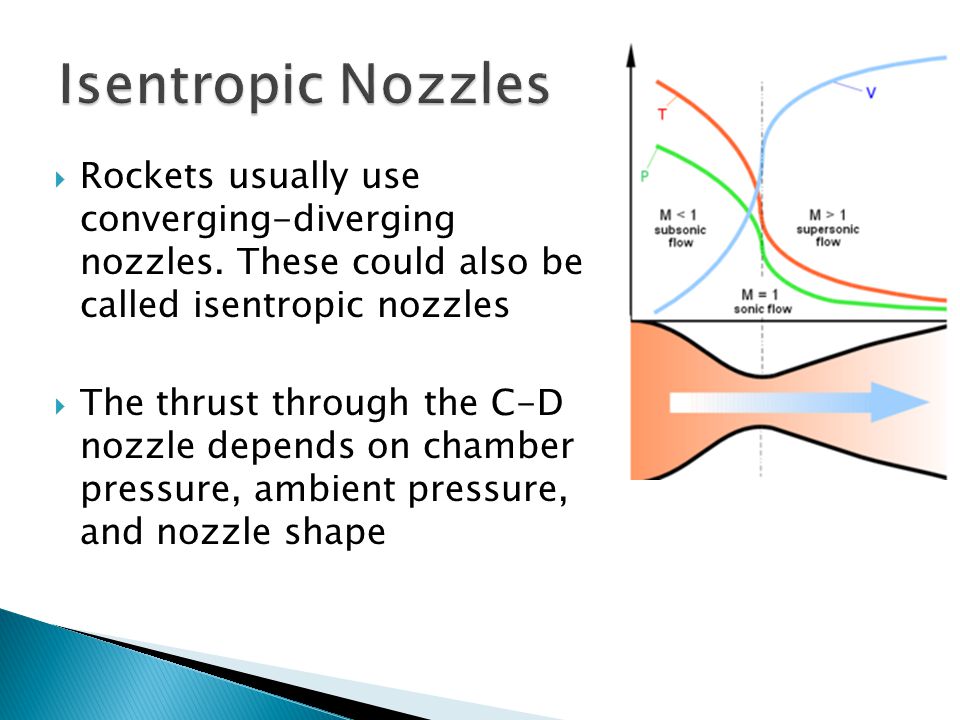

Rockets usually use converging-diverging nozzles. These could also be called isentropic nozzles The thrust through the C-D nozzle depends on chamber pressure, ambient pressure, and nozzle shape

27

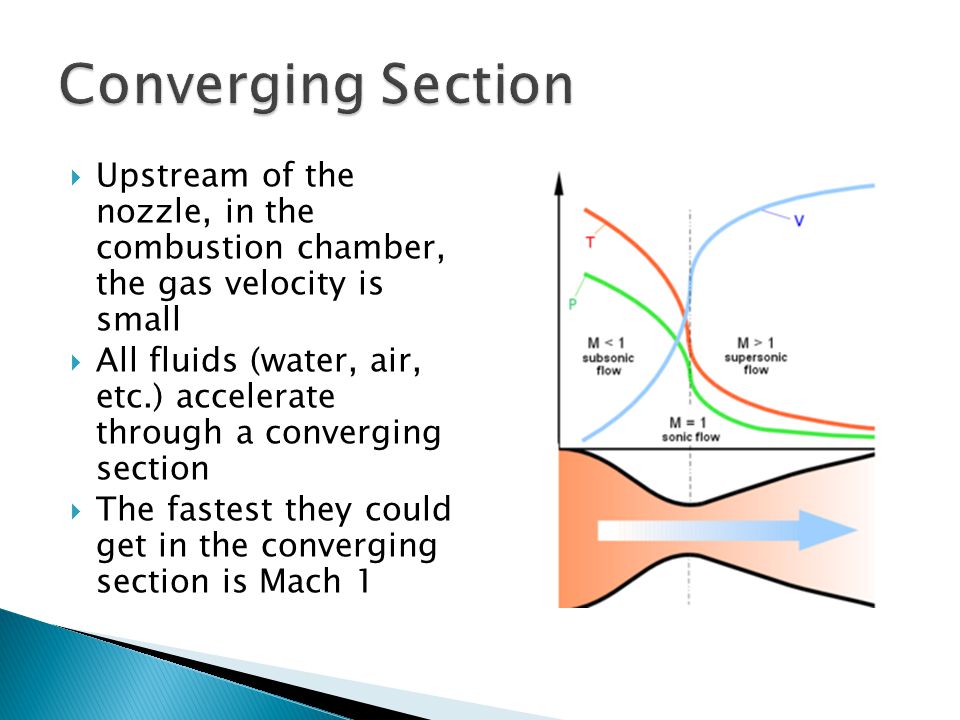

Upstream of the nozzle, in the combustion chamber, the gas velocity is small All fluids (water, air, etc.) accelerate through a converging section The fastest they could get in the converging section is Mach 1

28

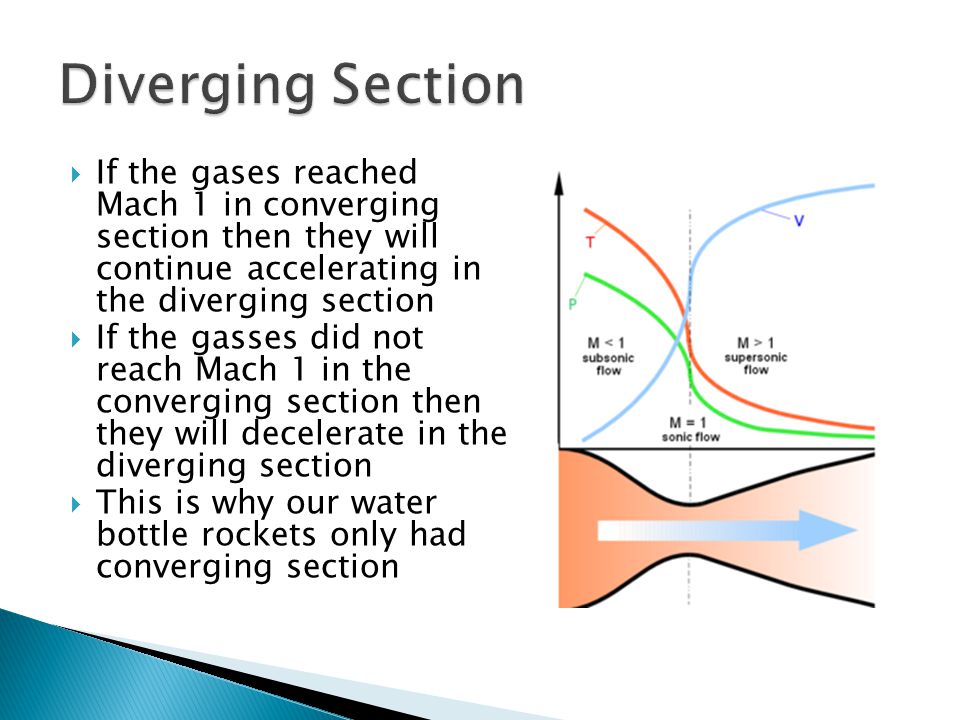

If the gases reached Mach 1 in converging section then they will continue accelerating in the diverging section If the gasses did not reach Mach 1 in the converging section then they will decelerate in the diverging section This is why our water bottle rockets only had converging section

29

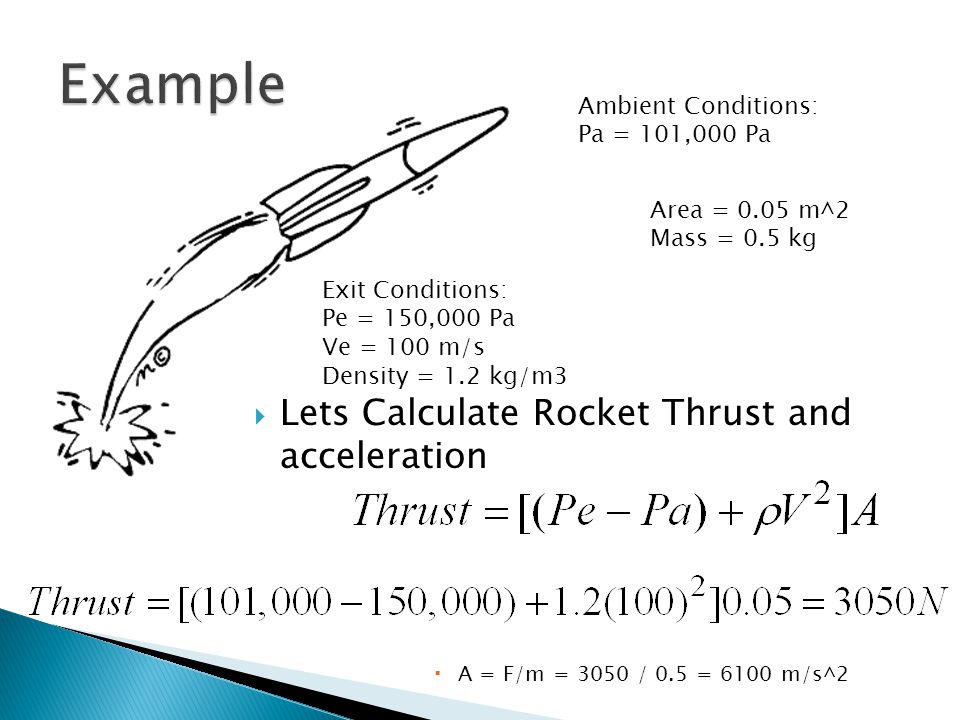

Lets Calculate Rocket Thrust and acceleration A = F/m = 3050 / 0.5 = 6100 m/s^2 Ambient Conditions: Pa = 101,000 Pa Exit Conditions: Pe = 150,000 Pa Ve = 100 m/s Density = 1.2 kg/m3 Area = 0.05 m^2 Mass = 0.5 kg

30

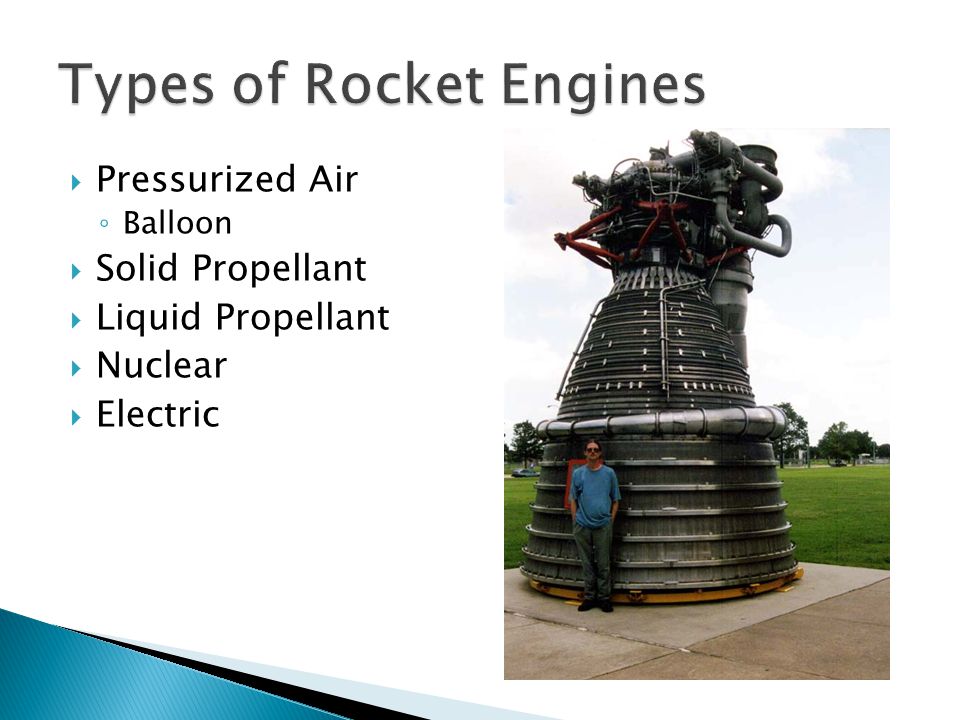

Pressurized Air ◦ Balloon Solid Propellant Liquid Propellant Nuclear Electric

31
ISP is used to classify how well a rocket performs Low ISP = need a lot of fuel to achieve thrust High ISP =do not need as much fuel to achieve same thrust

32

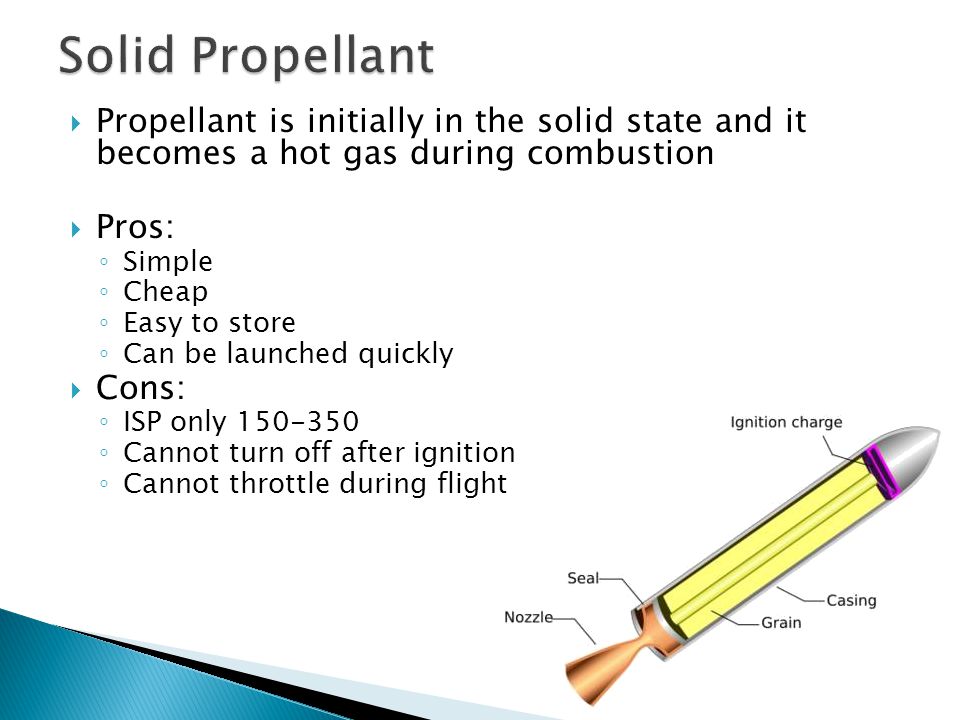

Propellant is initially in the solid state and it becomes a hot gas during combustion Pros: ◦ Simple ◦ Cheap ◦ Easy to store ◦ Can be launched quickly Cons: ◦ ISP only 150-350 ◦ Cannot turn off after ignition ◦ Cannot throttle during flight

33
Fuel and Oxidizer are both stored separately in liquid form Pros: ◦ Better performance (ISP 300-460) Cons: ◦ More complex ◦ Requires pumps or pressurized gas tanks ◦ Heavier

34

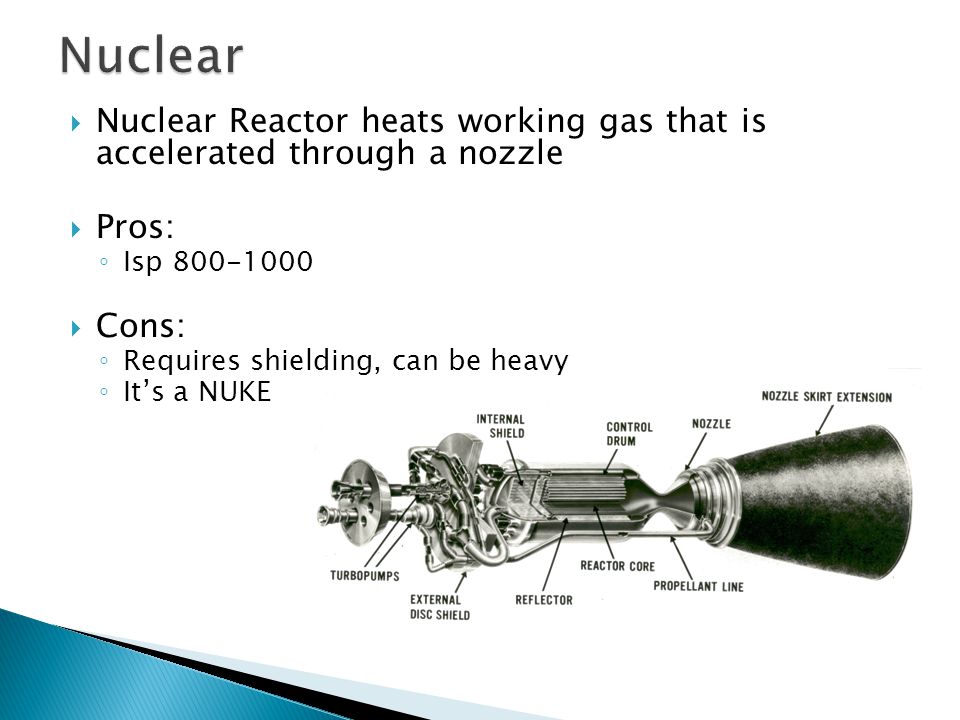

Nuclear Reactor heats working gas that is accelerated through a nozzle Pros: ◦ Isp 800-1000 Cons: ◦ Requires shielding, can be heavy ◦ It’s a NUKE

35
Two types: ◦ Arcjet: Electricity is used to superheat the gases ◦ Ion Thrusters: ionized (charged) atoms are accelerated through an electro-magnetic field Pros: ◦ ISP 400-10,000 Cons: ◦ Thrust usually <1N VASMIR
