1

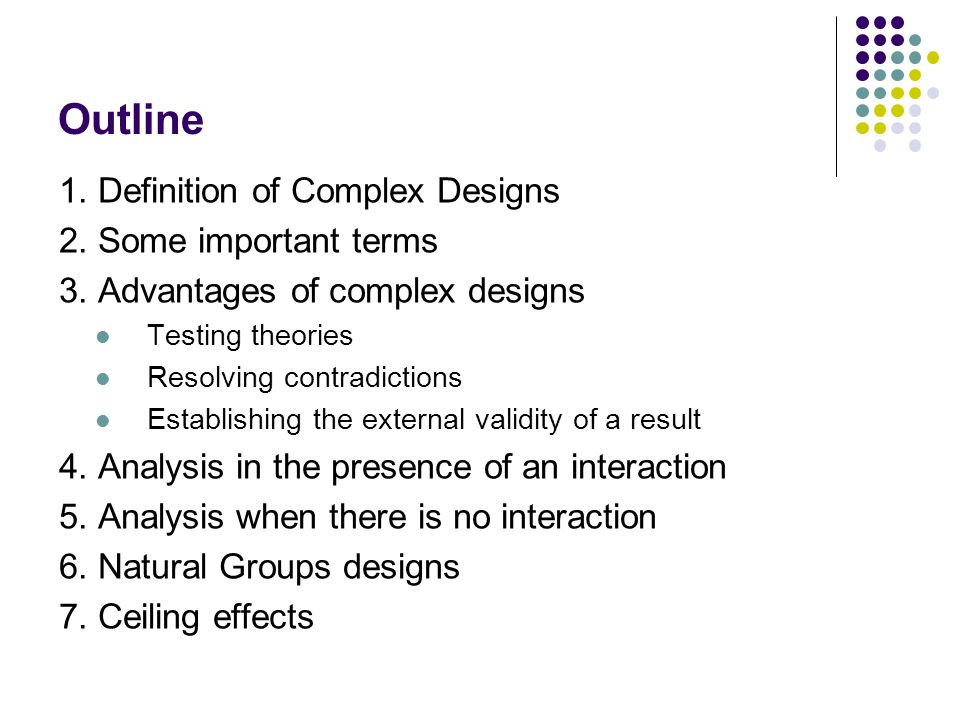

Outline 1. Definition of Complex Designs 2. Some important terms 3. Advantages of complex designs Testing theories Resolving contradictions Establishing the external validity of a result 4. Analysis in the presence of an interaction 5. Analysis when there is no interaction 6. Natural Groups designs 7. Ceiling effects

2

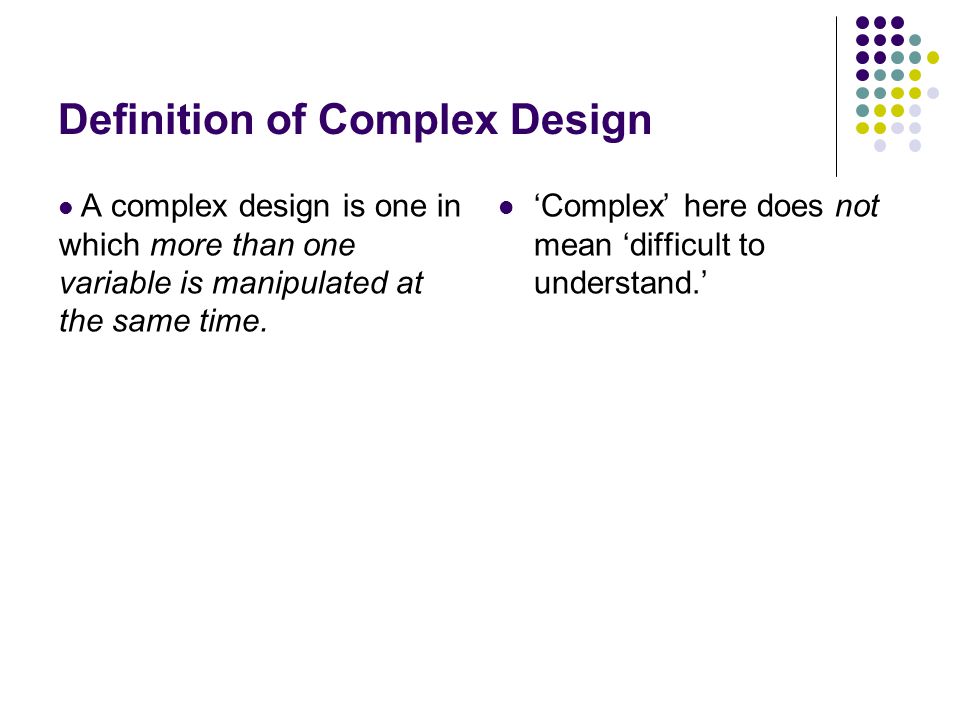

Definition of Complex Design A complex design is one in which more than one variable is manipulated at the same time. ‘Complex’ here does not mean ‘difficult to understand.’

3
Some important terms Factorial design The most useful kind of complex design is the factorial experiment, in which each variable is manipulated at all levels of each other variable.

4

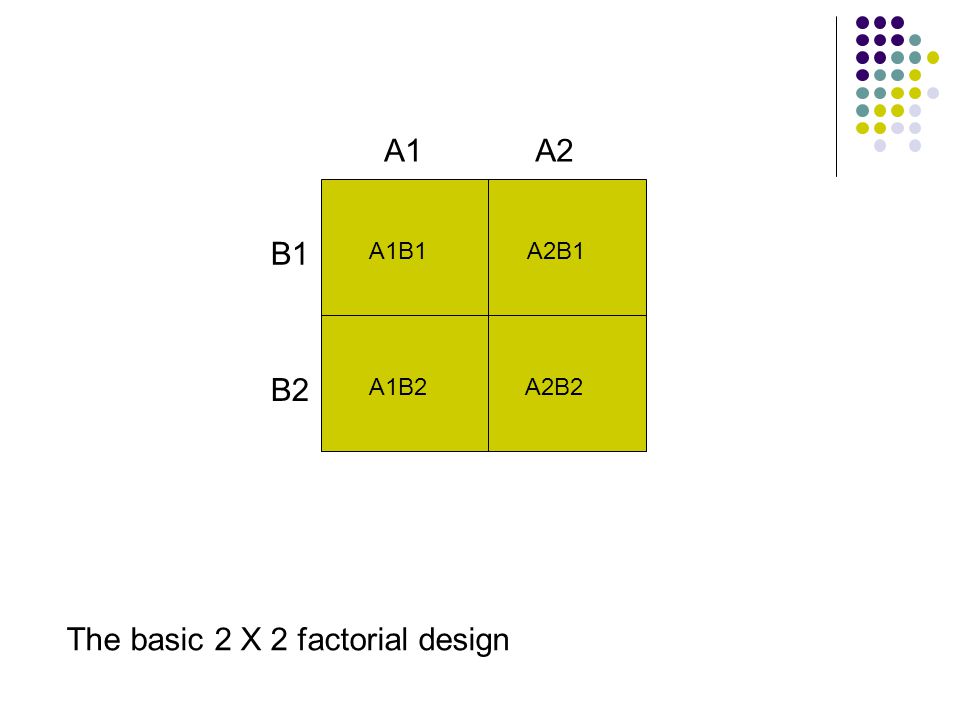

The basic 2 X 2 factorial design A1B1 A1B2 A2B1 A2B2 A1 B1 B2 A2

5

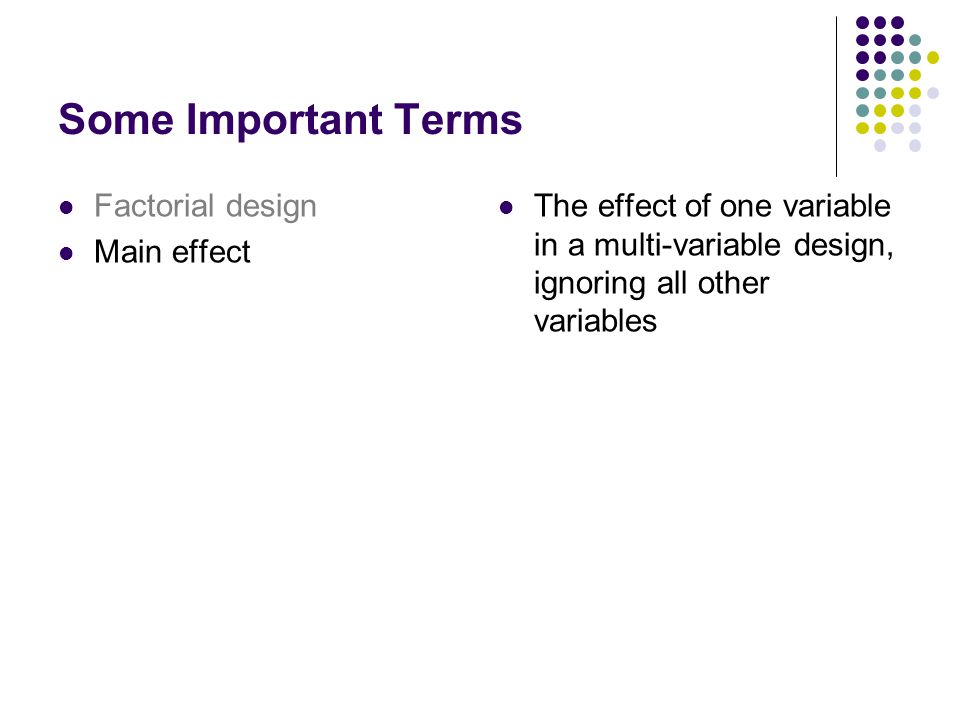

Some Important Terms Factorial design Main effect The effect of one variable in a multi-variable design, ignoring all other variables

6
The basic 2 X 2 factorial design A1A2 Comparing these two means gives us the main effect of A B1 B2 Comparing these two means gives us the main effect of B A1B1 A1B2 A2B1 A2B2 A1 B1 B2 A2

7

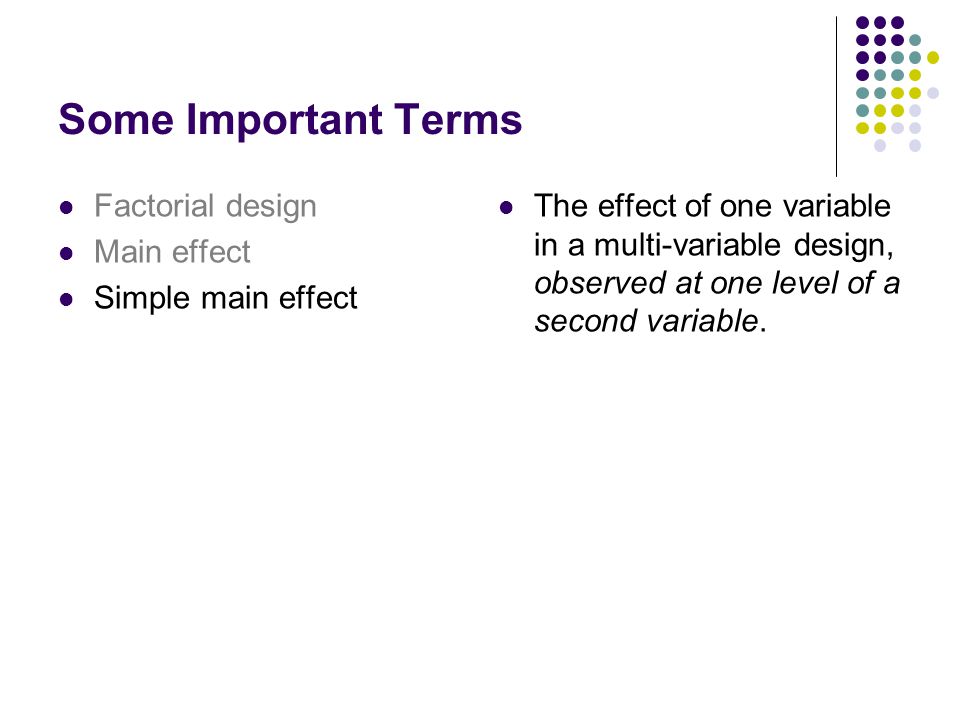

Some Important Terms Factorial design Main effect Simple main effect The effect of one variable in a multi-variable design, observed at one level of a second variable.

8

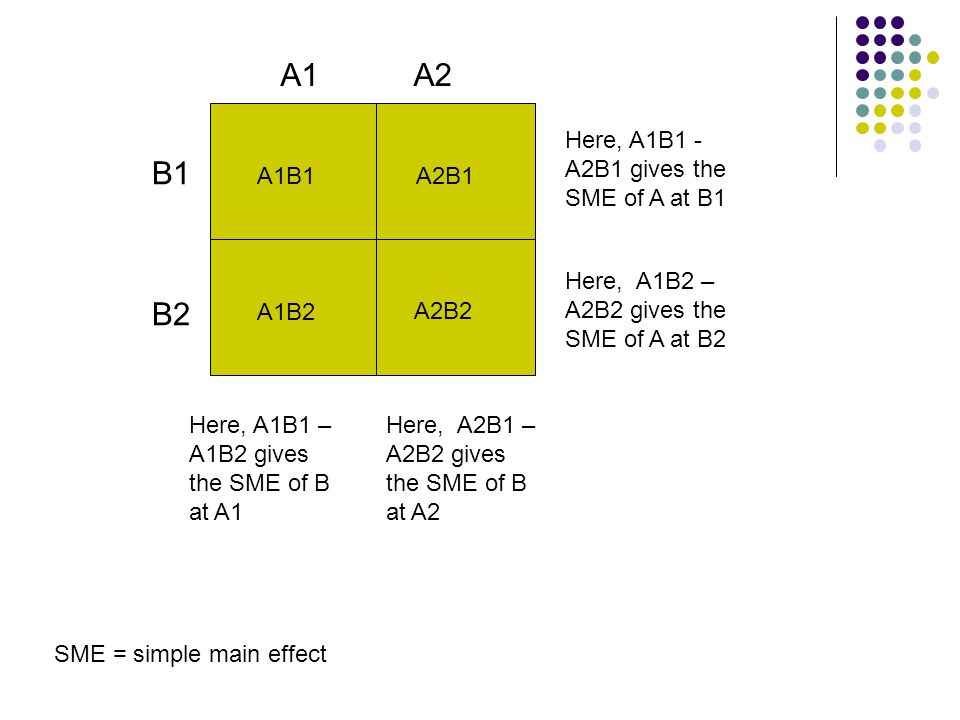

A1B1 A1B2 A2B1 A2B2 A2 B1 Here, A1B1 – A1B2 gives the SME of B at A1 Here, A2B1 – A2B2 gives the SME of B at A2 Here, A1B1 - A2B1 gives the SME of A at B1 Here, A1B2 – A2B2 gives the SME of A at B2 SME = simple main effect B2 A1

9

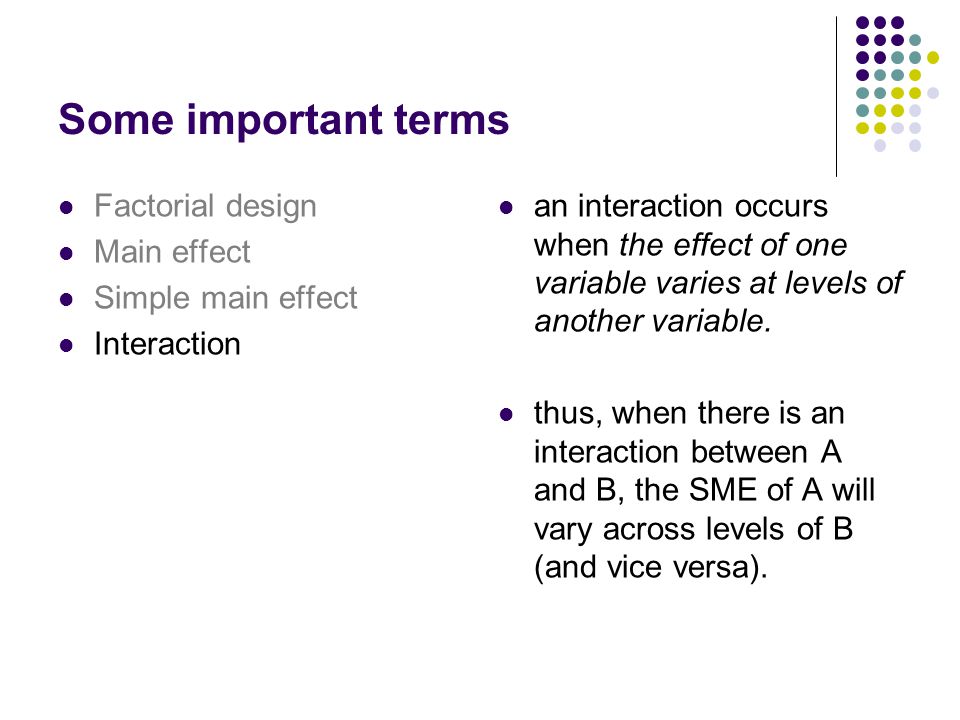

Some important terms Factorial design Main effect Simple main effect Interaction an interaction occurs when the effect of one variable varies at levels of another variable. thus, when there is an interaction between A and B, the SME of A will vary across levels of B (and vice versa).

10
400 425 500 575 A2 B1 B2 A1 25 75 The SME of B is much smaller for A1 than for A2 – that’s an interaction of variables A and B SME of B at A1 SME of B at A2

11

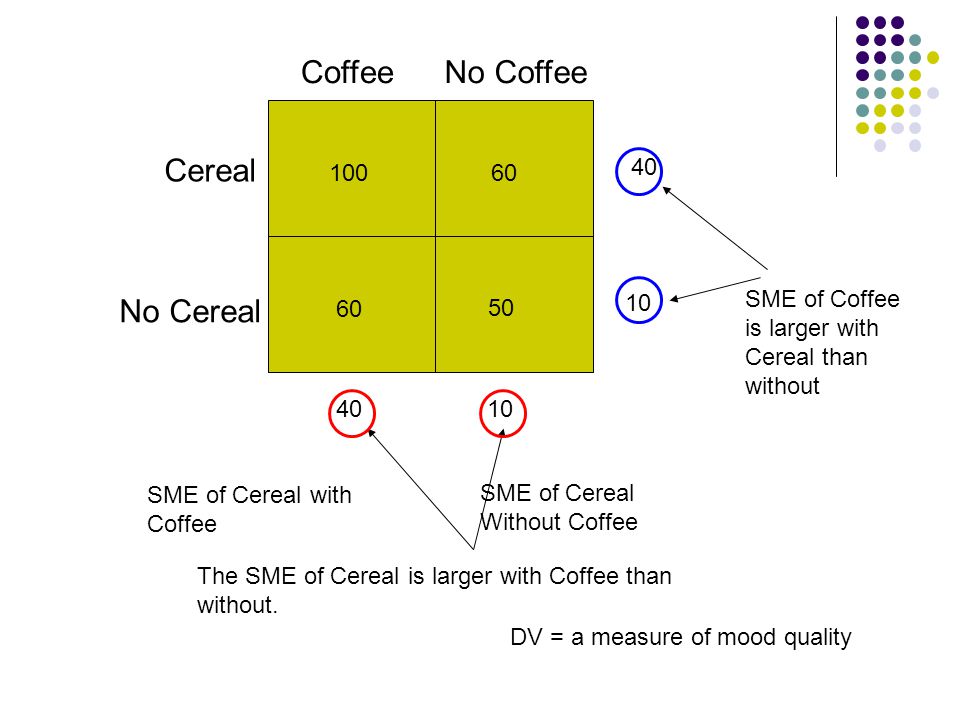

The SME of Cereal is larger with Coffee than without. SME of Cereal with Coffee SME of Cereal Without Coffee 100 60 50 No Coffee Cereal No Cereal Coffee 40 10 40 10 SME of Coffee is larger with Cereal than without DV = a measure of mood quality

12
Interaction – an example Godden & Baddeley (1975) Wanted to test context- dependent learning hypothesis Divers learned a list of words, then recalled the list. Each step could be either on land or under the water.

13
Godden & Baddeley (1975) 13.5 8.4 8.6 11.4 On deck In pool Recall Learning DV = # words recalled out of 15 Is it better to learn on deck or in the pool? It depends upon whether you will have to recall on deck or in the pool. Is it better to recall on deck or in the pool? It depends upon whether you learned on deck or in the pool.

14

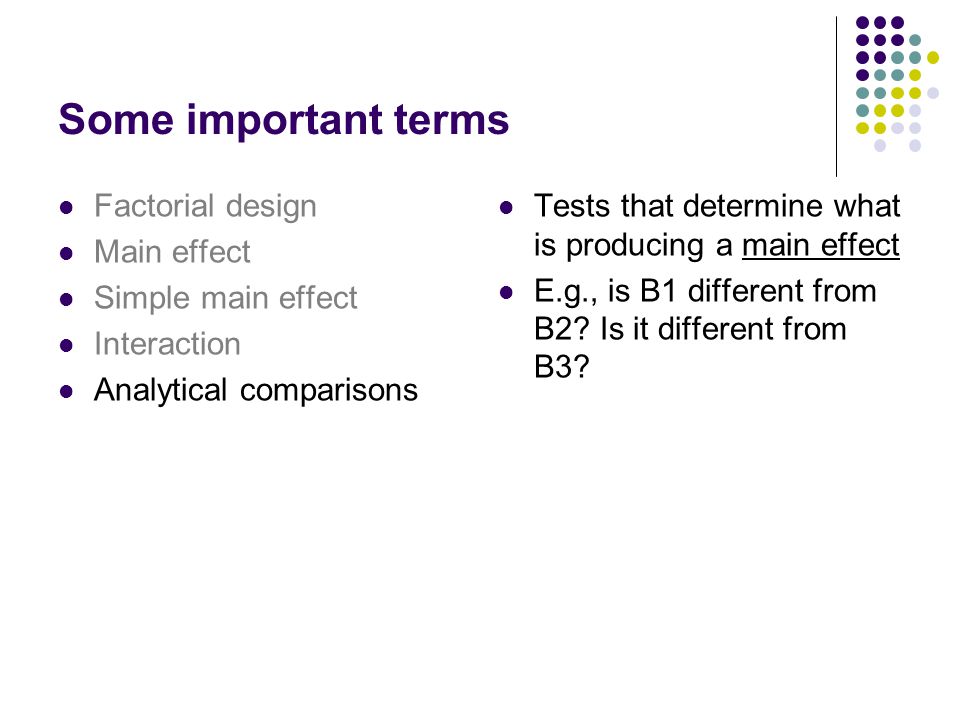

Some important terms Factorial design Main effect Simple main effect Interaction Analytical comparisons Tests that determine what is producing a main effect E.g., is B1 different from B2? Is it different from B3?

15

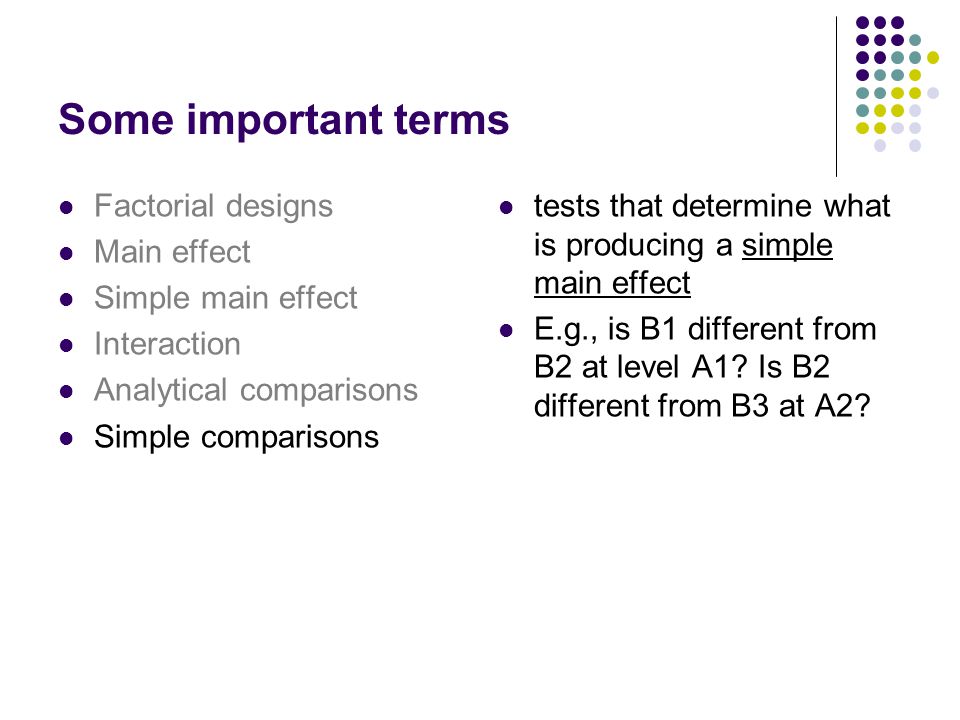

Some important terms Factorial designs Main effect Simple main effect Interaction Analytical comparisons Simple comparisons tests that determine what is producing a simple main effect E.g., is B1 different from B2 at level A1? Is B2 different from B3 at A2?

16
Some important terms Analytical comparisons: Tests that determine what is producing a main effect Simple comparisons: tests that determine what is producing a simple main effect

17

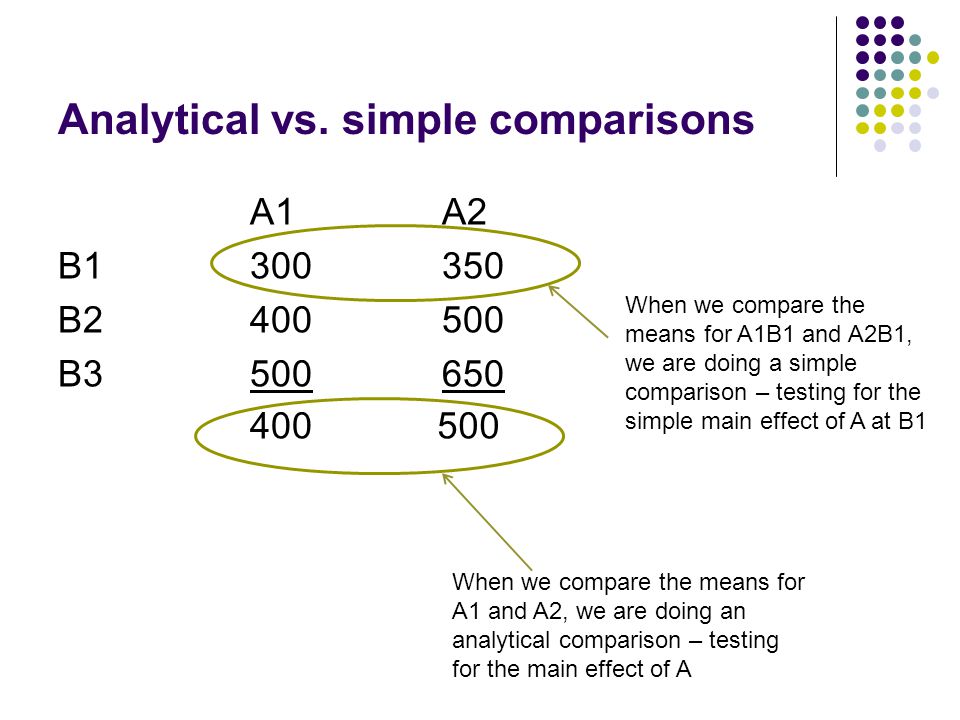

Analytical vs. simple comparisons A1A2 B1300350 B2400500 B3500650 400500 When we compare the means for A1 and A2, we are doing an analytical comparison – testing for the main effect of A When we compare the means for A1B1 and A2B1, we are doing a simple comparison – testing for the simple main effect of A at B1

18
Advantages of complex designs Testing theories Complex designs allow tests that are: more powerful more economical, and less likely to be correct by chance

19

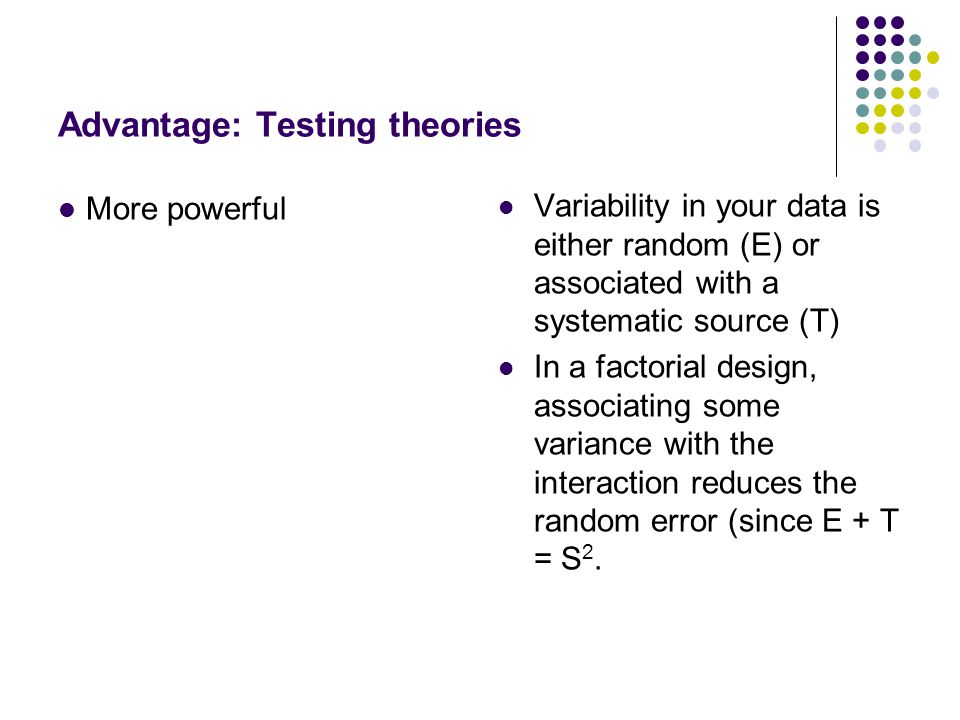

Advantage: Testing theories More powerful Variability in your data is either random (E) or associated with a systematic source (T) In a factorial design, associating some variance with the interaction reduces the random error (since E + T = S 2.

20

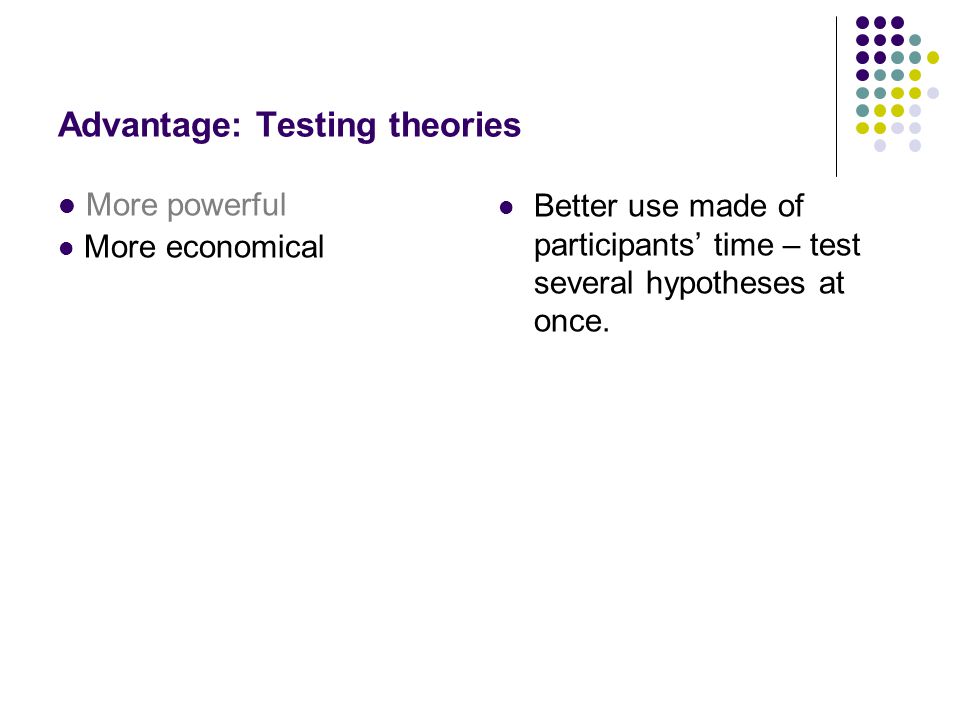

Advantage: Testing theories More powerful More economical Better use made of participants’ time – test several hypotheses at once.

21
Advantage: Testing theories More powerful More economical Less likely to be correct by chance More complex predictions are less likely to be correct by chance, since there are more ways they can go wrong.

22

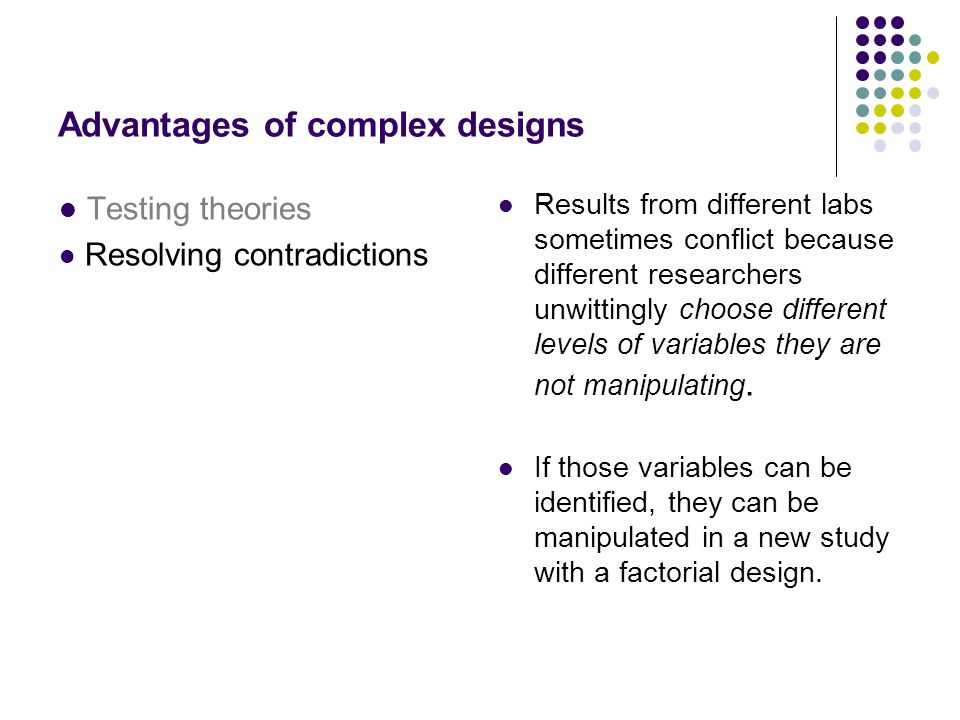

Advantages of complex designs Testing theories Resolving contradictions Results from different labs sometimes conflict because different researchers unwittingly choose different levels of variables they are not manipulating. If those variables can be identified, they can be manipulated in a new study with a factorial design.

23

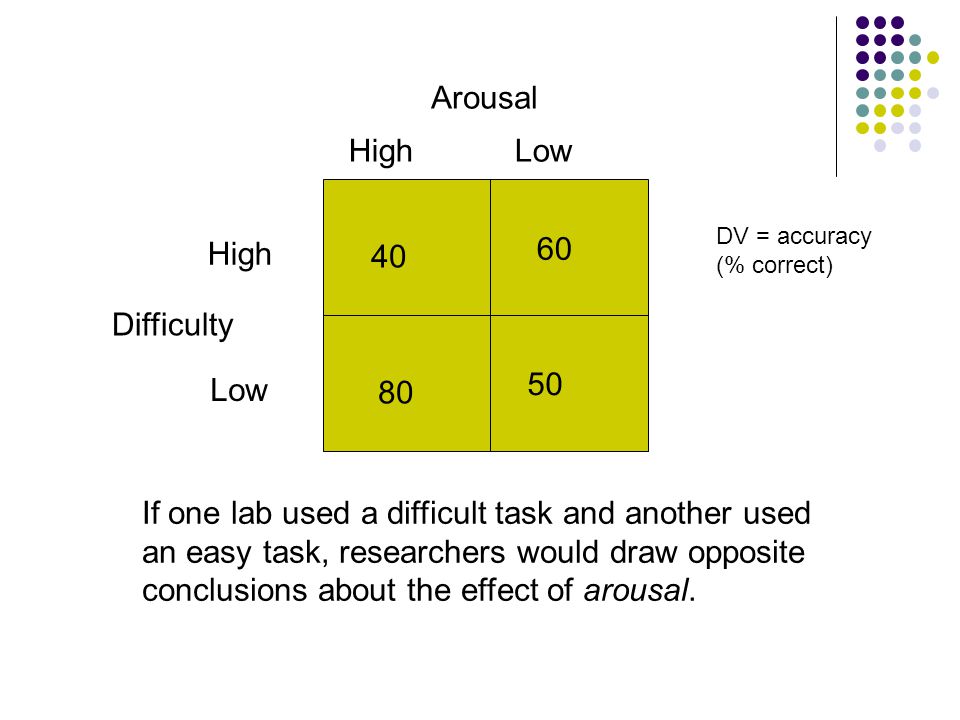

40 80 60 50 High Low Difficulty Arousal DV = accuracy (% correct) If one lab used a difficult task and another used an easy task, researchers would draw opposite conclusions about the effect of arousal.

24

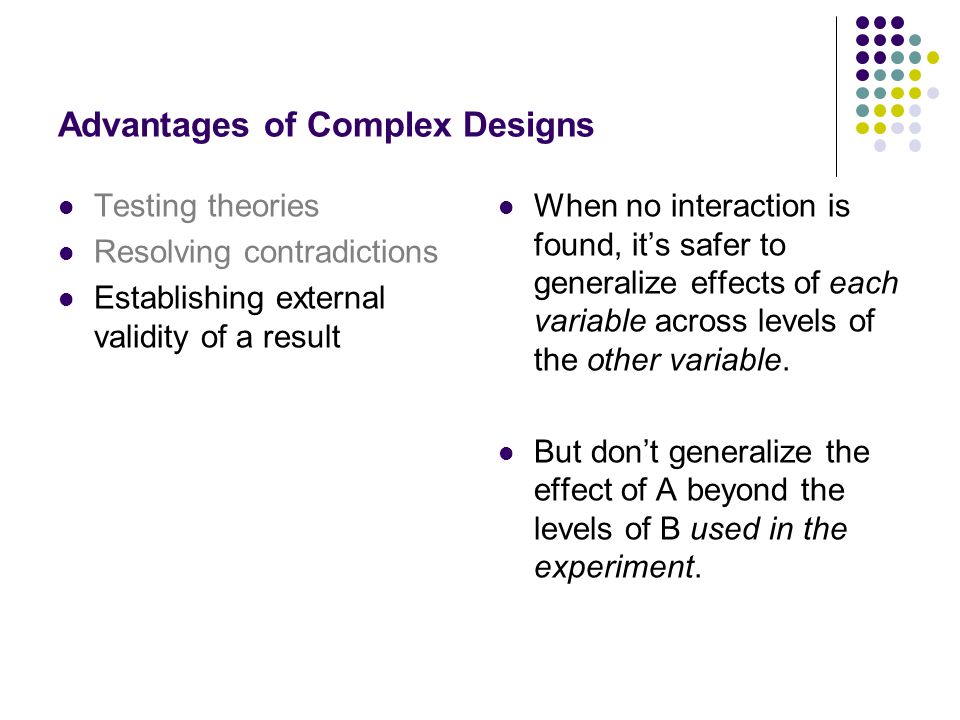

Advantages of Complex Designs Testing theories Resolving contradictions Establishing external validity of a result When no interaction is found, it’s safer to generalize effects of each variable across levels of the other variable. But don’t generalize the effect of A beyond the levels of B used in the experiment.

25
Advantages of complex designs Don’t generalize effect of A beyond levels of B. E.g., if A = stimulus quality and B = stimulus size Levels of B = 2, 4 and 10 cm No interaction – we can generalize the effect of A to 7 cm stimuli, but not to 20 cm stimuli.

26

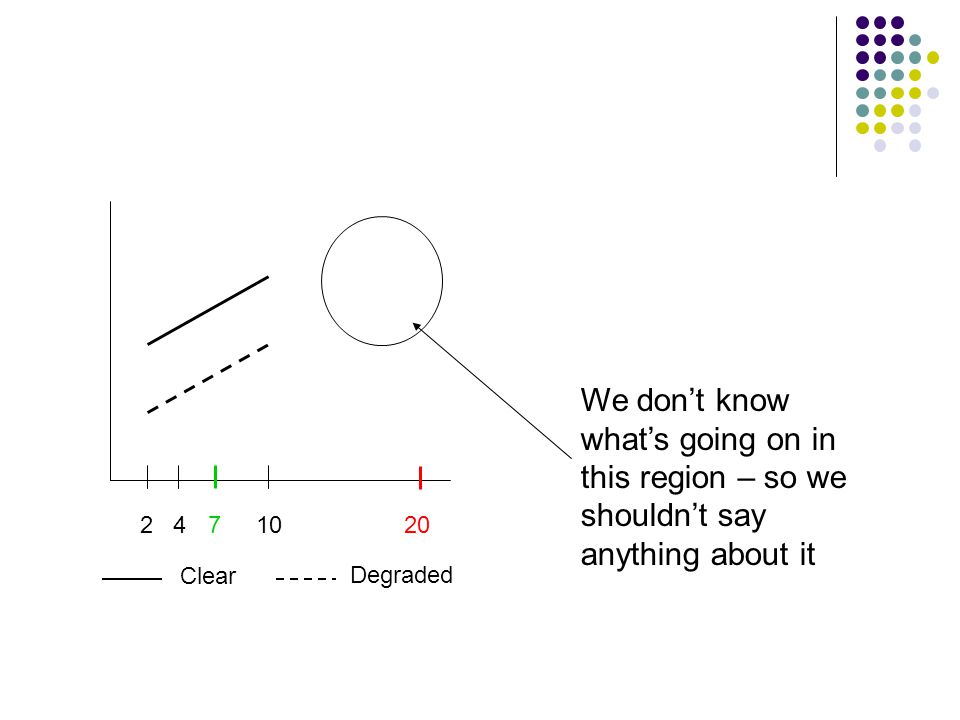

2 4 10 Clear Degraded We don’t know what’s going on in this region – so we shouldn’t say anything about it 720

27

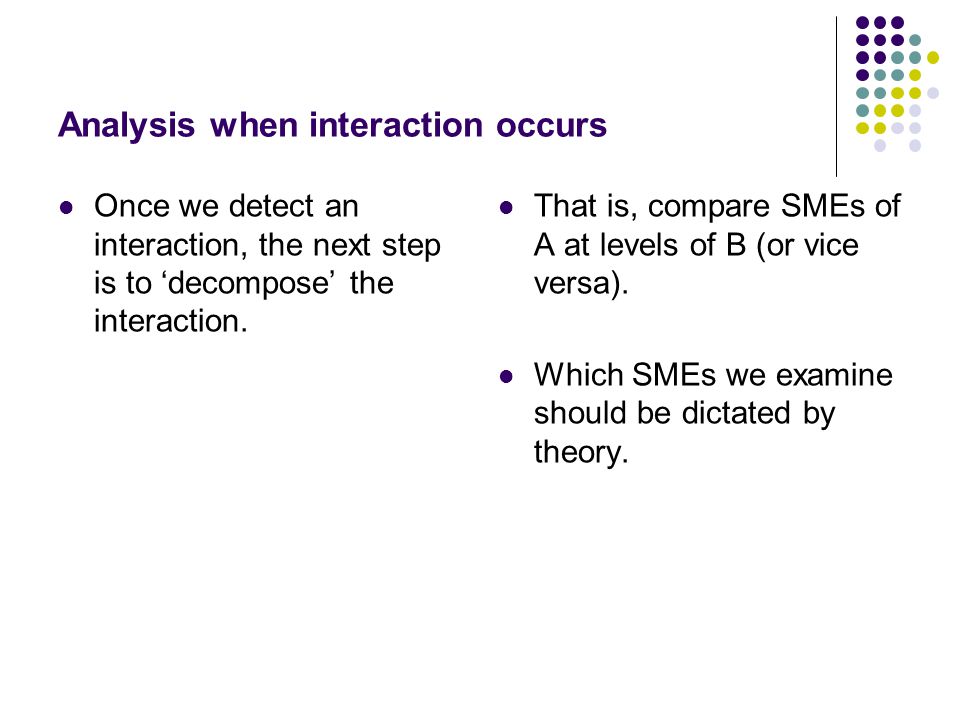

Analysis when interaction occurs Once we detect an interaction, the next step is to ‘decompose’ the interaction. That is, compare SMEs of A at levels of B (or vice versa). Which SMEs we examine should be dictated by theory.

28

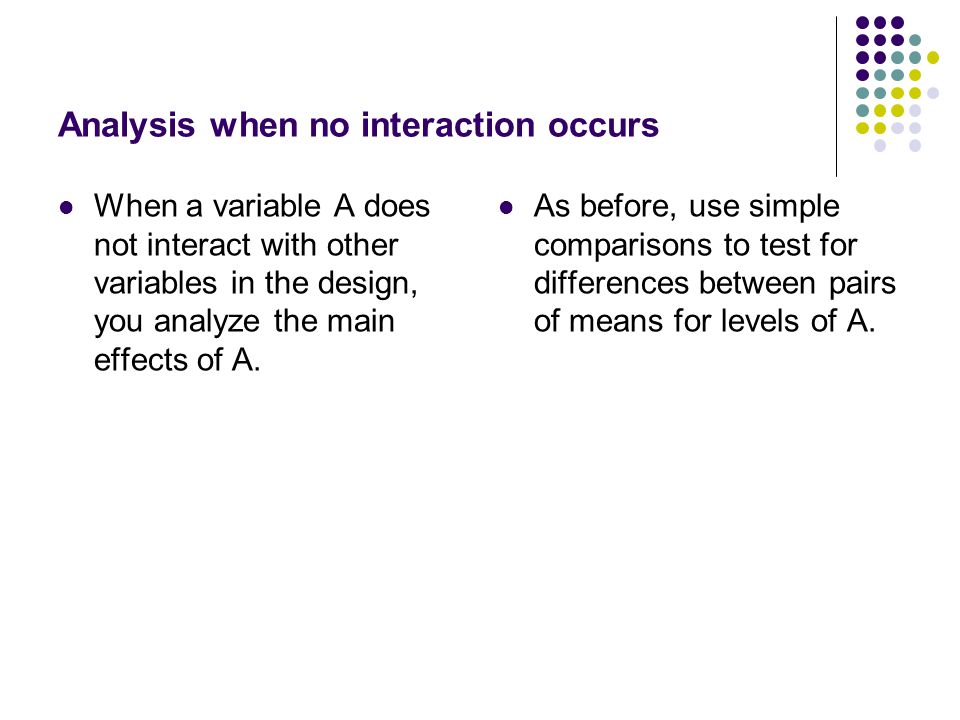

Analysis when no interaction occurs When a variable A does not interact with other variables in the design, you analyze the main effects of A. As before, use simple comparisons to test for differences between pairs of means for levels of A.

29
Does A interact with B? No Main effect of A? No Finished Yes Simple comparisons SME of A at B1? SME of A at B2? No Yes More than 2 means? A1 ≠ A2 Simple comparisons More than 2 means? Finished No Yes No

30

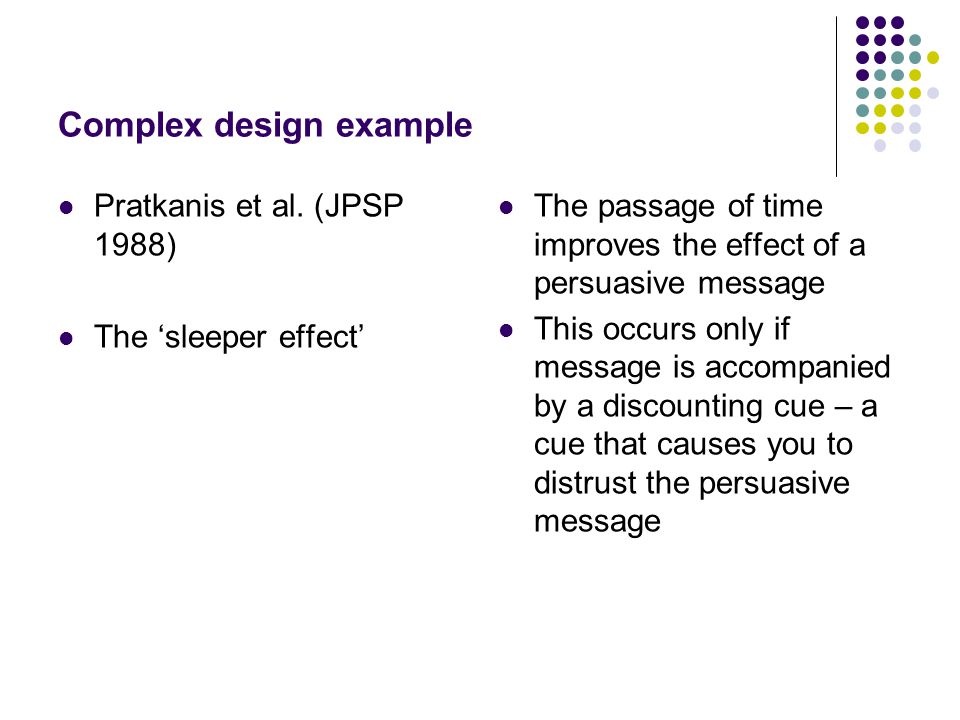

Complex design example Pratkanis et al. (JPSP 1988) The ‘sleeper effect’ The passage of time improves the effect of a persuasive message This occurs only if message is accompanied by a discounting cue – a cue that causes you to distrust the persuasive message

31

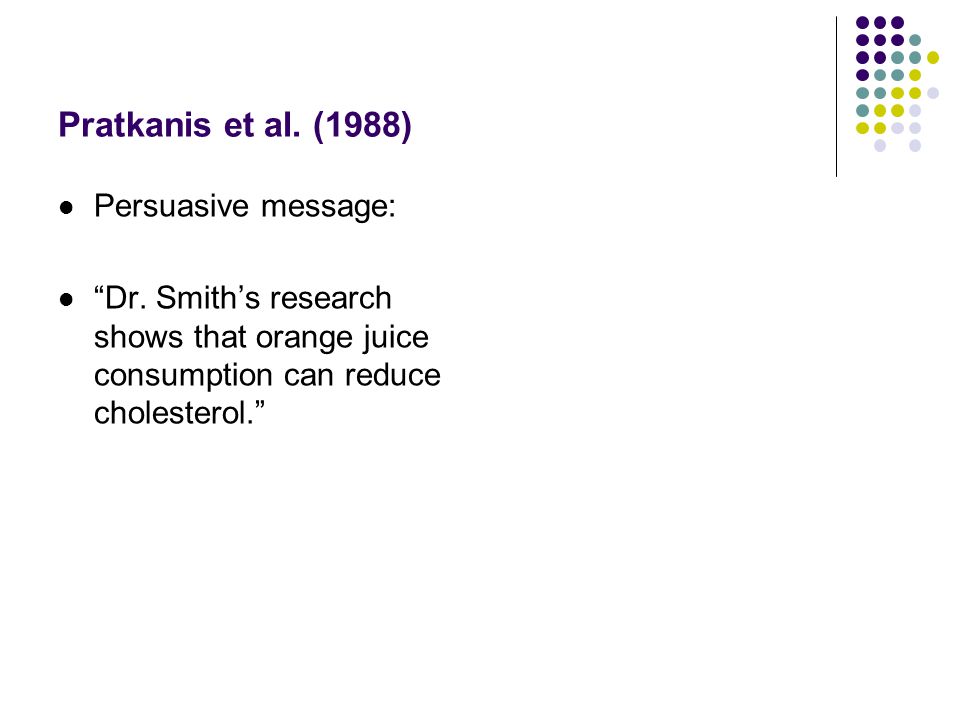

Pratkanis et al. (1988) Persuasive message: “Dr. Smith’s research shows that orange juice consumption can reduce cholesterol.” Discounting cue: “This research was funded by Tropicana.”

32

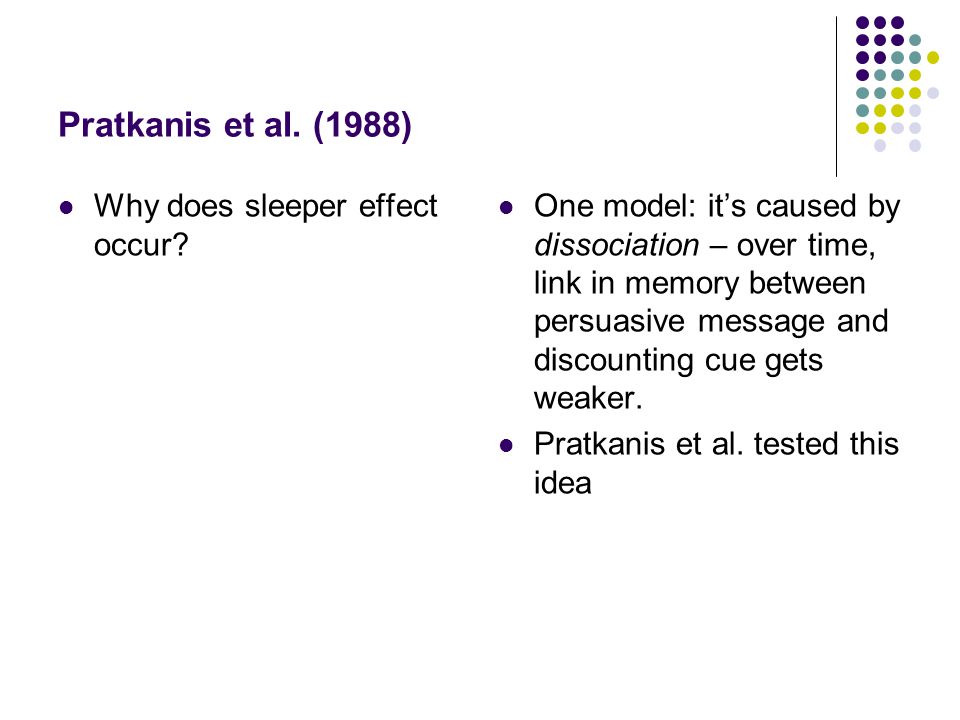

Pratkanis et al. (1988) Why does sleeper effect occur? One model: it’s caused by dissociation – over time, link in memory between persuasive message and discounting cue gets weaker. Pratkanis et al. tested this idea

33

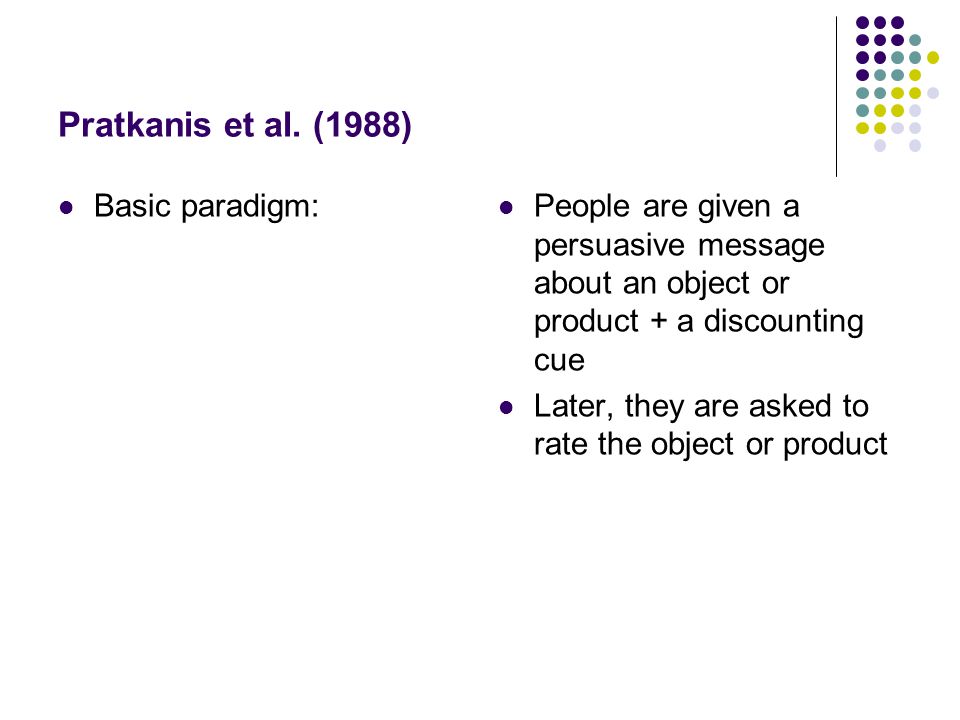

Pratkanis et al. (1988) Basic paradigm: People are given a persuasive message about an object or product + a discounting cue Later, they are asked to rate the object or product

34

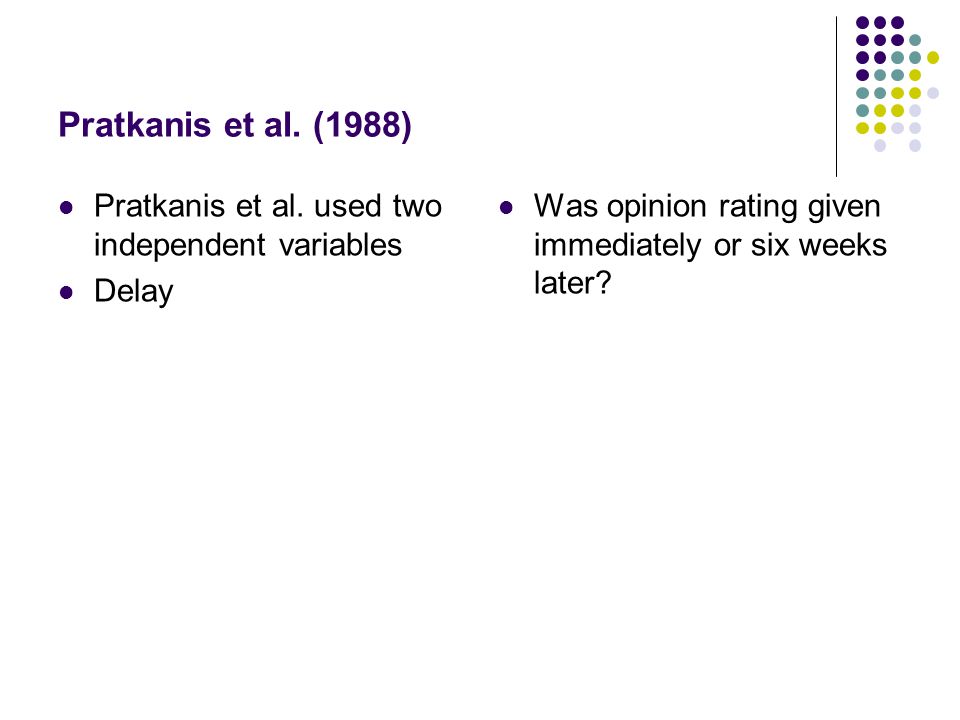

Pratkanis et al. (1988) Pratkanis et al. used two independent variables Delay Was opinion rating given immediately or six weeks later?

35
Pratkanis et al. (1988) Pratkanis et al. used two independent variables Delay Order Was discounting cue presented before or after persuasive message?

36

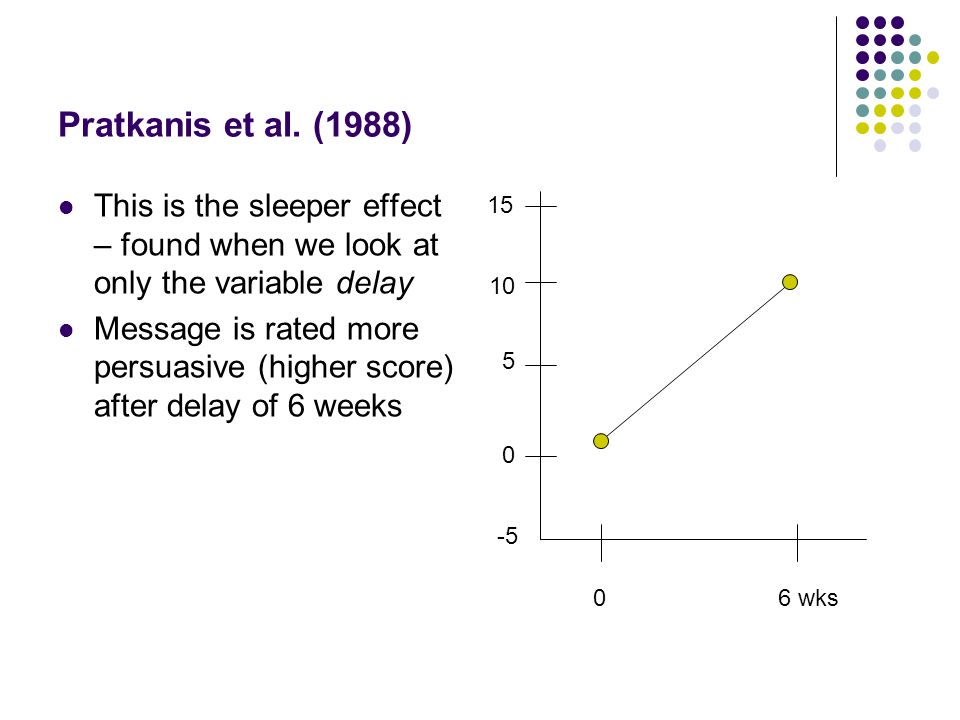

Pratkanis et al. (1988) This is the sleeper effect – found when we look at only the variable delay Message is rated more persuasive (higher score) after delay of 6 weeks 06 wks 15 10 5 0 -5

37

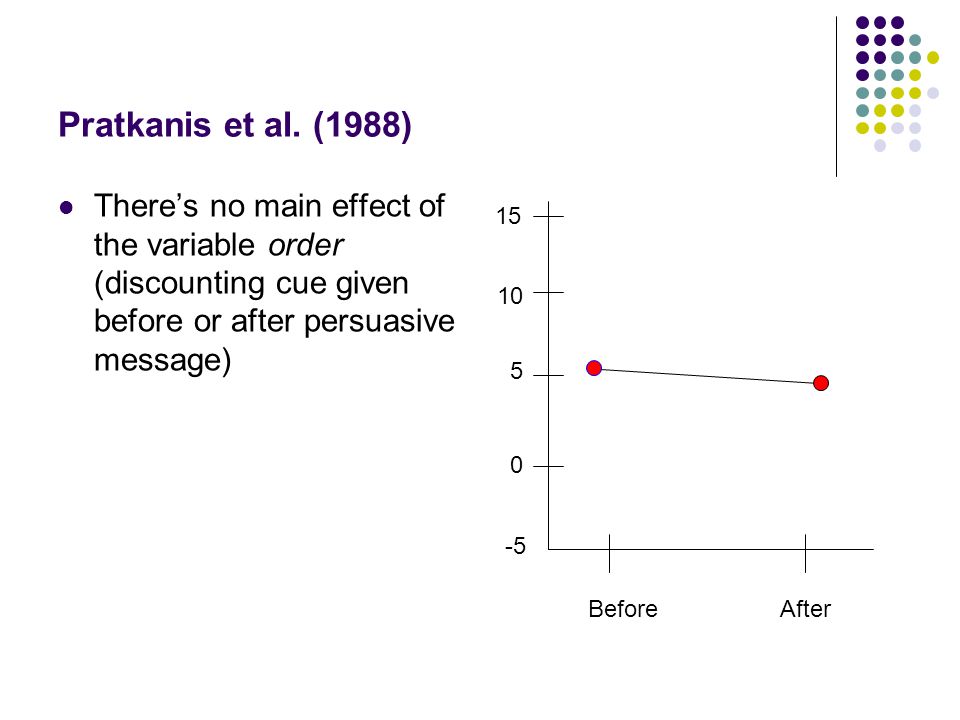

Pratkanis et al. (1988) There’s no main effect of the variable order (discounting cue given before or after persuasive message) BeforeAfter 15 10 5 0 -5

38

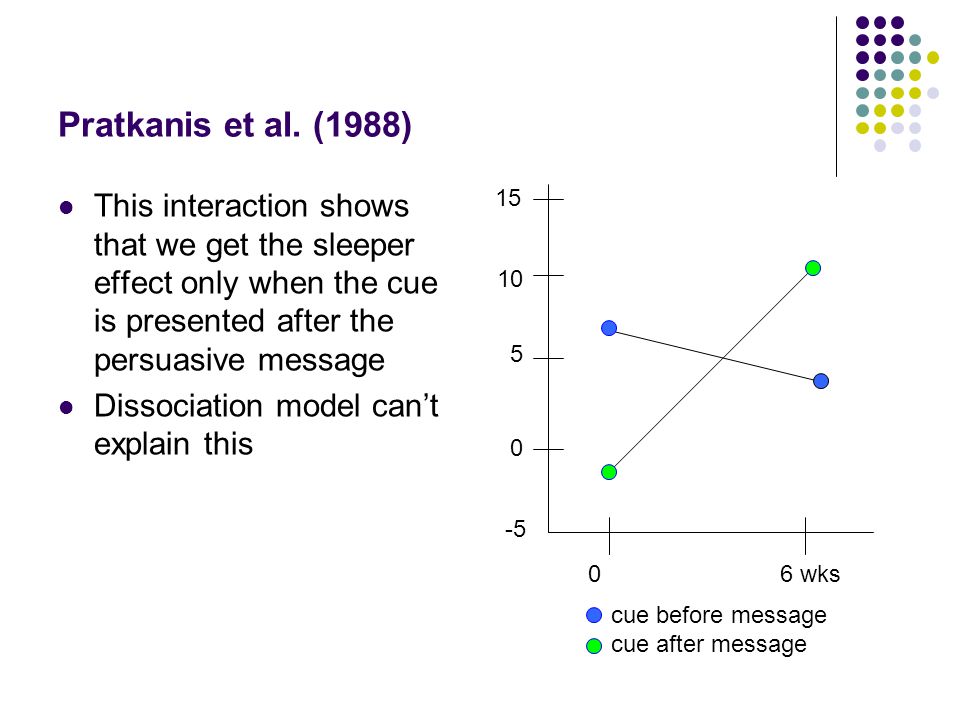

Pratkanis et al. (1988) This interaction shows that we get the sleeper effect only when the cue is presented after the persuasive message Dissociation model can’t explain this 06 wks 15 10 5 0 -5 cue before message cue after message

39

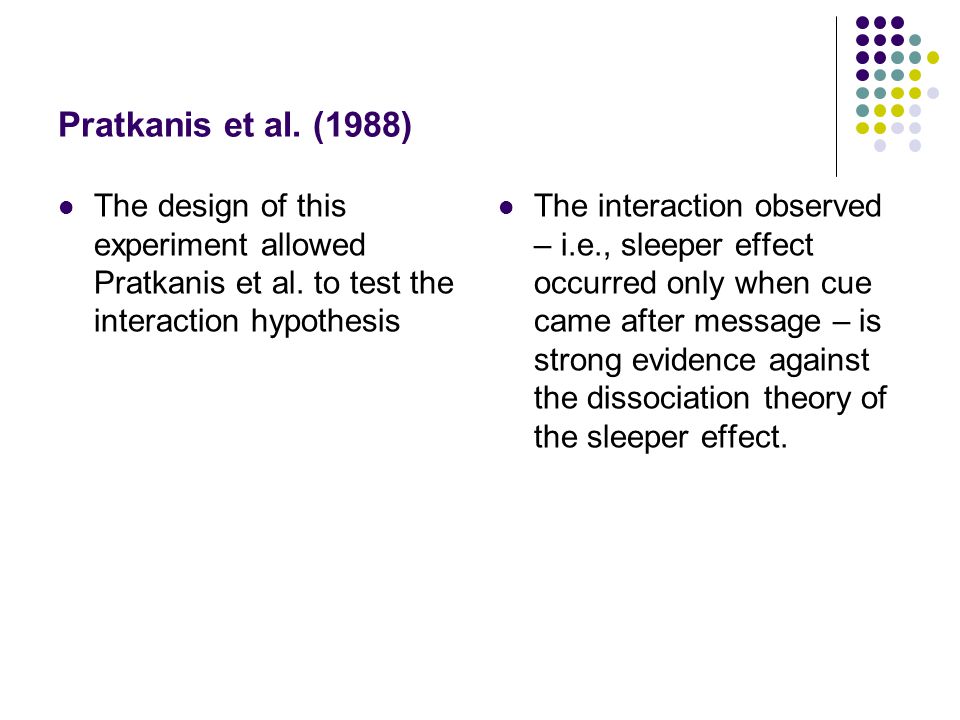

Pratkanis et al. (1988) The design of this experiment allowed Pratkanis et al. to test the interaction hypothesis The interaction observed – i.e., sleeper effect occurred only when cue came after message – is strong evidence against the dissociation theory of the sleeper effect.

40
Natural groups designs Designs in which experimenter does not assign subjects to groups Groups are naturally occurring It is very risky to draw conclusions about why such groups differ in performance on some task.

41
Natural groups designs For example: people who are mentally active into their later years are less likely than people who are not mentally active to suffer Alzheimer’s Type Dementia (ATD). Why? Having a healthy brain makes you active? Being active gives you a healthy brain?

42
Natural groups designs A natural groups design is really a correlational study, not an experiment! Thus, in the ATD case, severity of the disease is correlated with mental activity. Dividing the subjects into two groups (With and Without ATD) doesn’t change this. But you can still make an argument for cause…

43

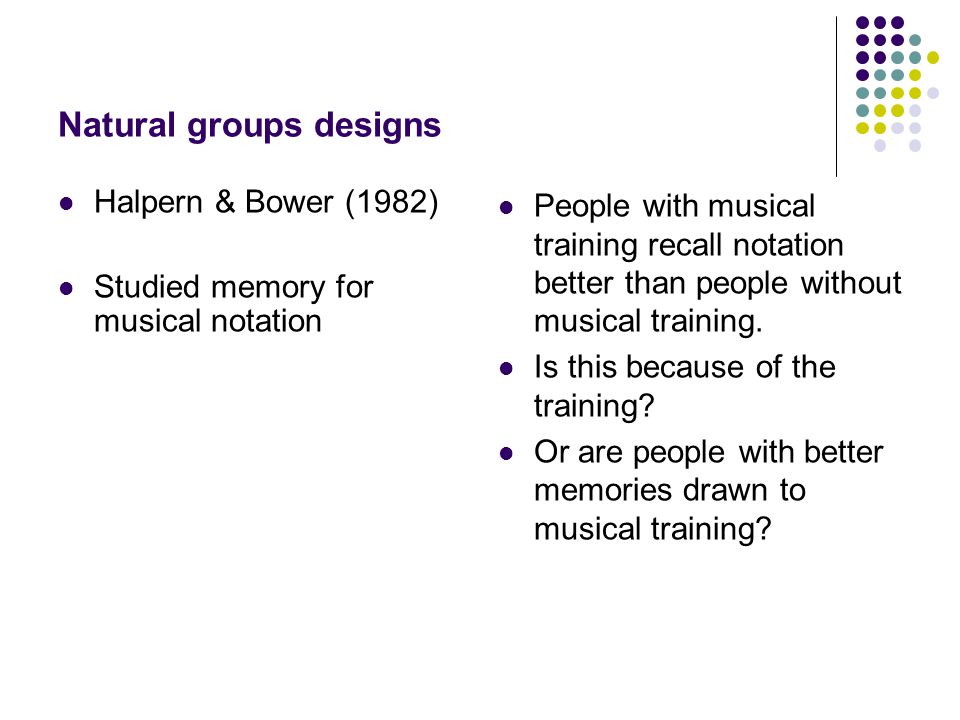

Natural groups designs Halpern & Bower (1982) Studied memory for musical notation People with musical training recall notation better than people without musical training. Is this because of the training? Or are people with better memories drawn to musical training?

44
Halpern & Bower example Theory: musical training gives musicians the ability to “chunk” notation. A chunk is a unit formed from several smaller pieces, on the basis of knowledge. Examples of “chunks:” BMW CBC IBM NHL SOA ISI JND

45
Halpern & Bower example Halpern & Bower compared natural groups: people with and without musical training used two sets of musical notation: one with structure (so notation stimuli could be chunked) one without structure

46

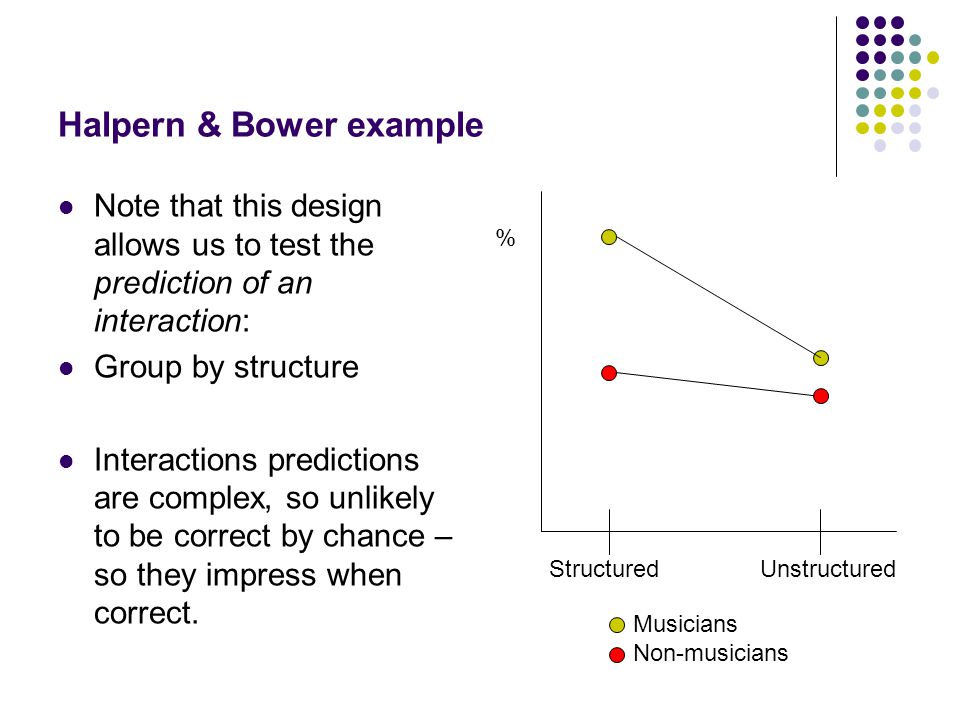

Halpern & Bower example Note that this design allows us to test the prediction of an interaction: Group by structure Interactions predictions are complex, so unlikely to be correct by chance – so they impress when correct. StructuredUnstructured Musicians Non-musicians %

47

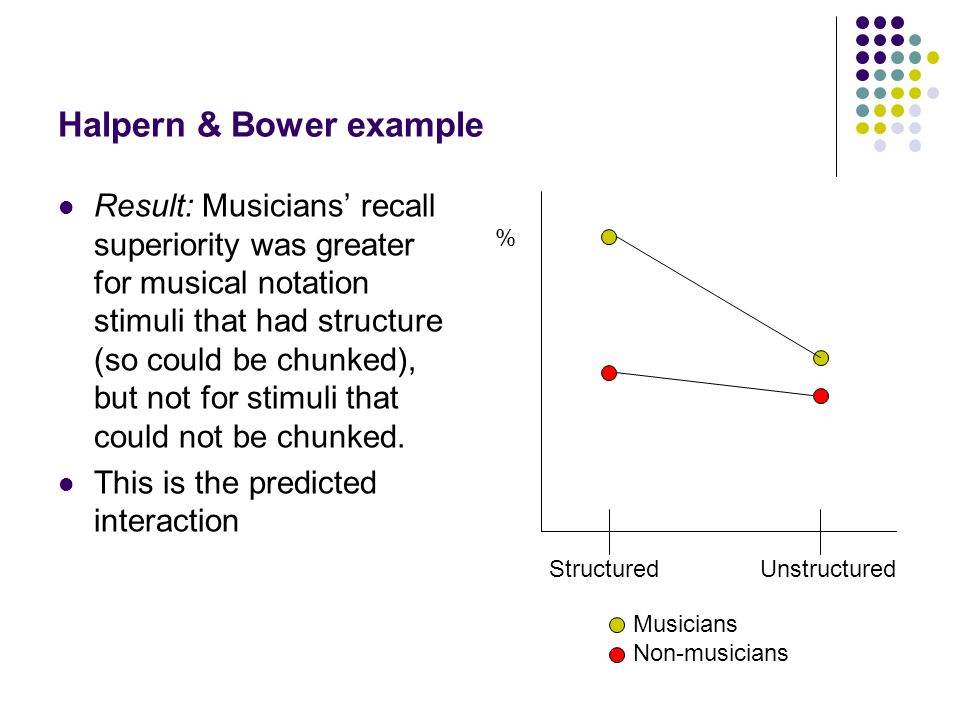

Halpern & Bower example Result: Musicians’ recall superiority was greater for musical notation stimuli that had structure (so could be chunked), but not for stimuli that could not be chunked. This is the predicted interaction StructuredUnstructured Musicians Non-musicians %

48
Halpern & Bower example Conclusion: musical training gave musicians better memory. Reasoning: other accounts don’t explain the importance of structure in producing the musicians’ advantage.

49
Halpern & Bower example Caveat: This is a sensible argument – but it is just an argument. Halpern & Bower can invite us to share their conclusion, but we don’t have to.

50
CAUTION! Ceiling & Floor Effects Some interactions are spurious. They can be produced by “ceiling” or “floor” effects. When performance reaches a theoretical maximum (e.g., 100%) or minimum (e.g., 0%) at one level of one treatment condition, subjects cannot get any better (or worse) at other levels of that condition.

51

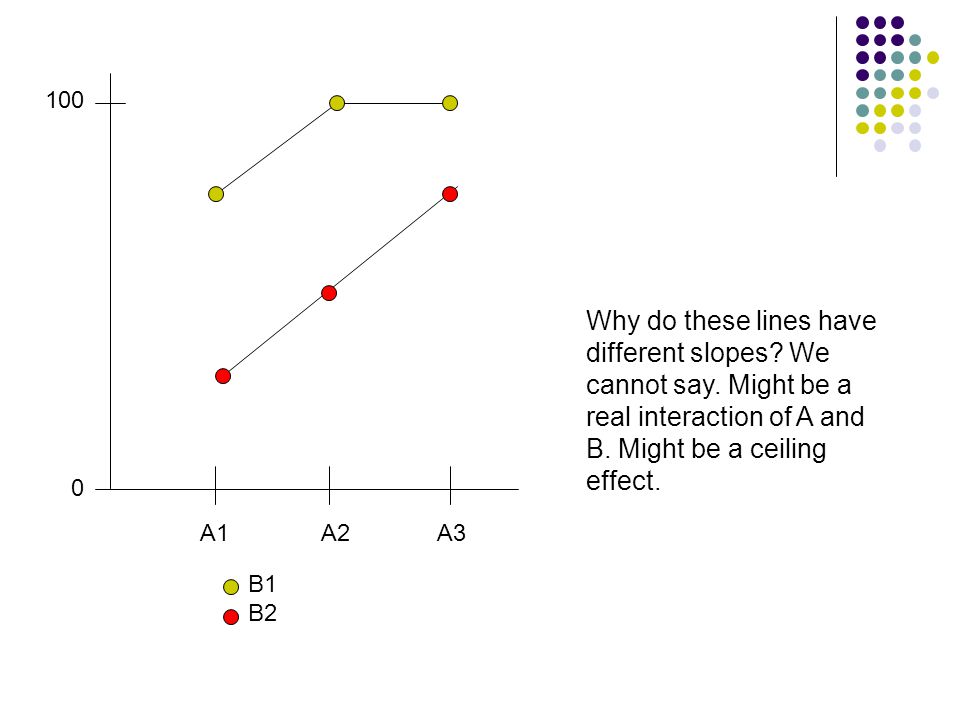

Why do these lines have different slopes? We cannot say. Might be a real interaction of A and B. Might be a ceiling effect. A1 A2 A3 100 B1 B2 0

52

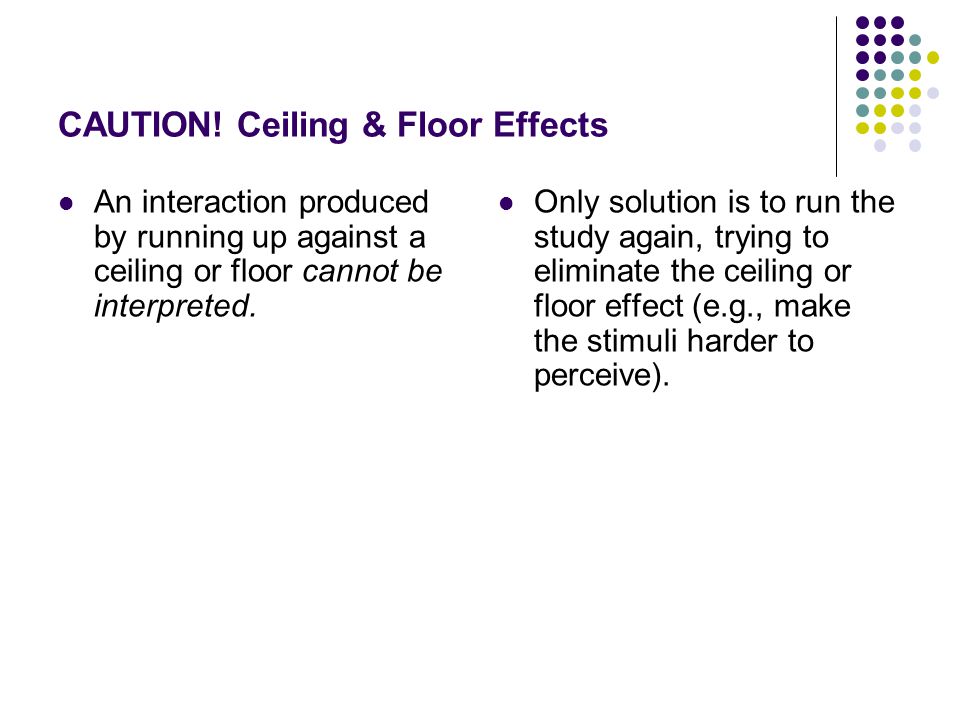

CAUTION! Ceiling & Floor Effects An interaction produced by running up against a ceiling or floor cannot be interpreted. Only solution is to run the study again, trying to eliminate the ceiling or floor effect (e.g., make the stimuli harder to perceive).

53

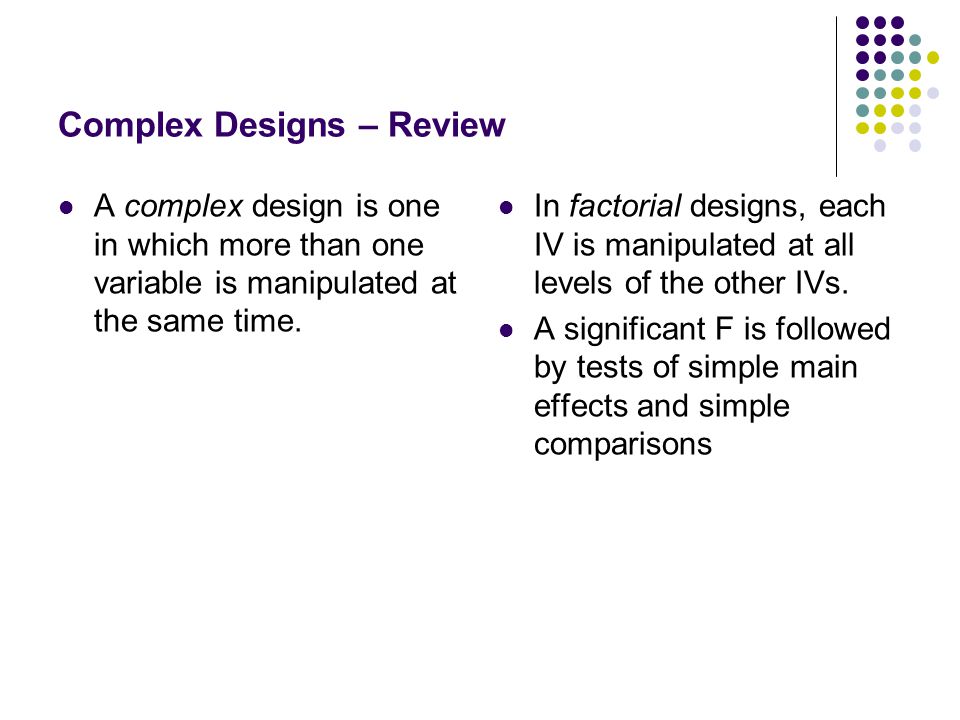

Complex Designs – Review A complex design is one in which more than one variable is manipulated at the same time. In factorial designs, each IV is manipulated at all levels of the other IVs. A significant F is followed by tests of simple main effects and simple comparisons

54

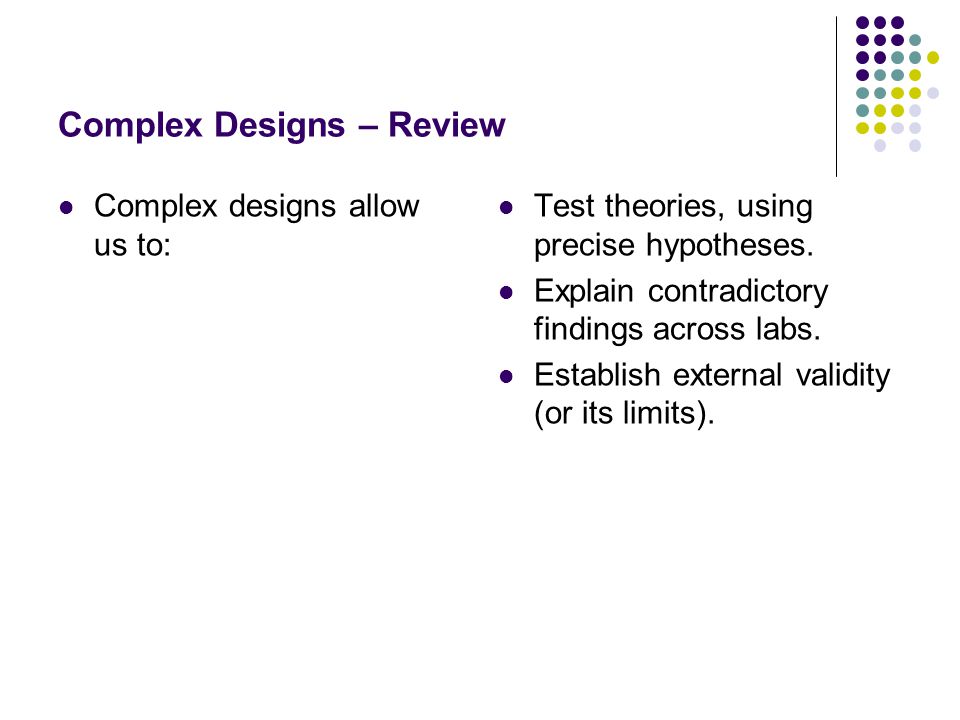

Complex Designs – Review Complex designs allow us to: Test theories, using precise hypotheses. Explain contradictory findings across labs. Establish external validity (or its limits).

55

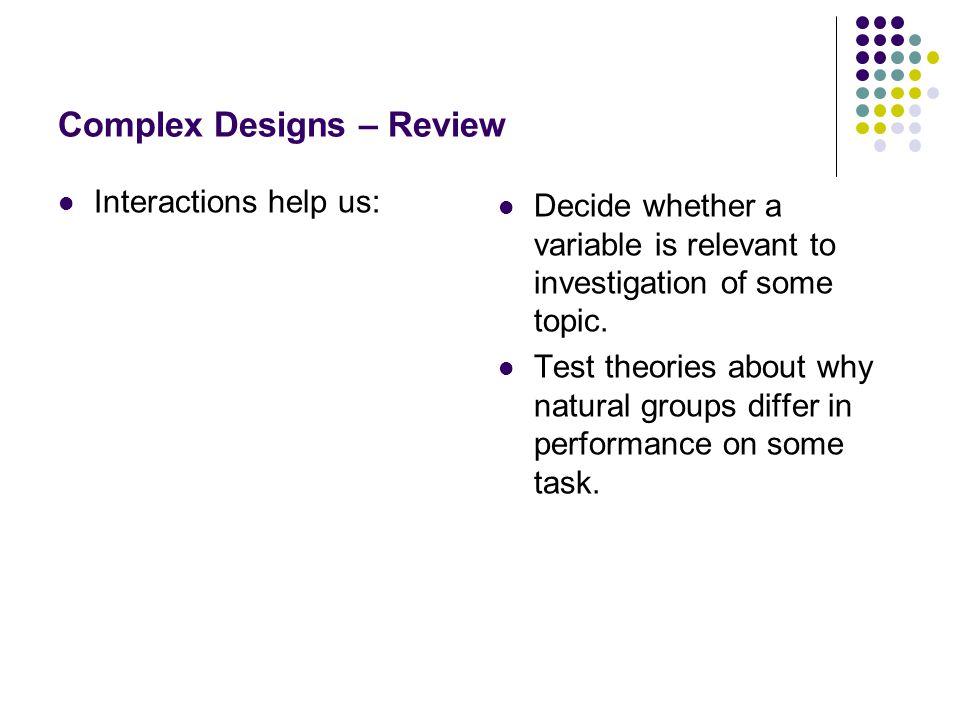

Complex Designs – Review Interactions help us: Decide whether a variable is relevant to investigation of some topic. Test theories about why natural groups differ in performance on some task.
