1 ESC 313 Remotely Troubleshooting Embedded Systems using High Quality Log Files Dave Stewart, PhD Director of Software Engineering InHand Electronics 3/28/2012

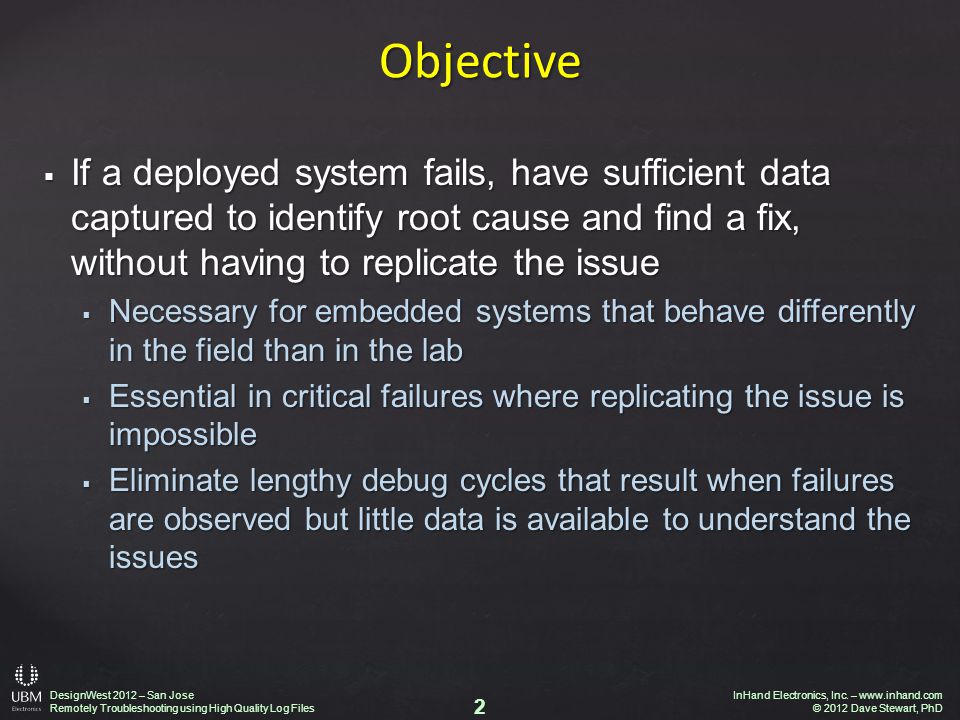

2 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhDObjective 2  If a deployed system fails, have sufficient data captured to identify root cause and find a fix, without having to replicate the issue  Necessary for embedded systems that behave differently in the field than in the lab  Essential in critical failures where replicating the issue is impossible  Eliminate lengthy debug cycles that result when failures are observed but little data is available to understand the issues

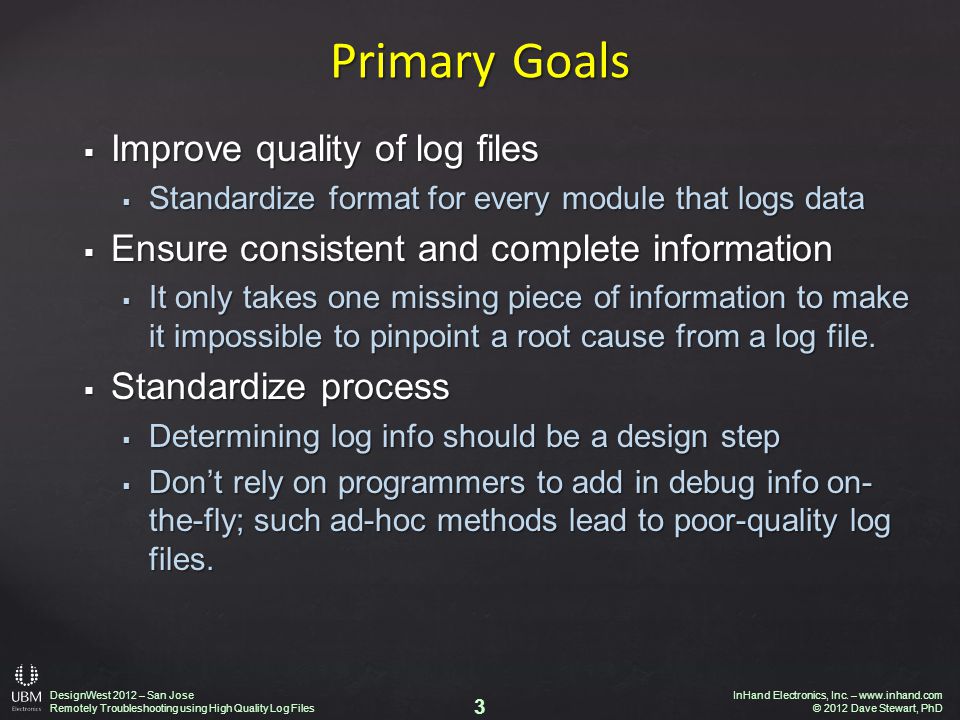

3 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Primary Goals 3  Improve quality of log files  Standardize format for every module that logs data  Ensure consistent and complete information  It only takes one missing piece of information to make it impossible to pinpoint a root cause from a log file.  Standardize process  Determining log info should be a design step  Don’t rely on programmers to add in debug info on- the-fly; such ad-hoc methods lead to poor-quality log files.

4 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Key Aspects 4  Text Logs  Capture system configuration and boot-time information  Print version numbers of every module  Binary Logs  Continually collect data about a running system  Manage limited non-volatile memory and performance  Parser  Back at the lab, automatically convert binary logs to text  Visualize data trends to spot anomalies

5 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Text Logs of Boot and Initialization 5  Most OS already provide a mechanism for printing at boot-up  However, inconsistency in the design of kernel initialization code or driver code often means only partial information is printed, and not necessarily the most important information  In this class, focus on WHAT to capture, not HOW  Use the OS mechanism  Augment with macros to standardize  Make sure key information is printed  Avoid printing wasteful info, so that boot time does not slow down due to logging

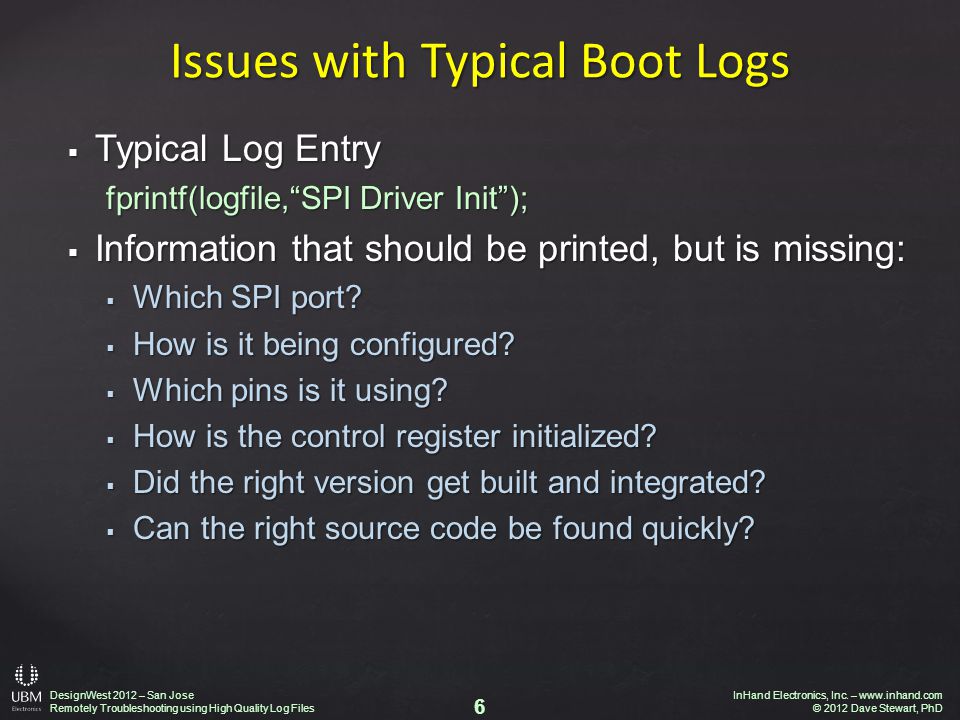

6 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Issues with Typical Boot Logs 6  Typical Log Entry fprintf(logfile,“SPI Driver Init”);  Information that should be printed, but is missing:  Which SPI port?  How is it being configured?  Which pins is it using?  How is the control register initialized?  Did the right version get built and integrated?  Can the right source code be found quickly?

7 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Use Macros to Auto-Generate Info 7  #define LOG_ENTER() \ fprintf(logfile,“[%s/%d %s] %s %s %d\n”, \ __FILE__,__LINE__,__FUNCTION__,\__DATE__,__TIME__,getpid())  Which produces and entry similar to the following in the log [file.c/87 xxx_init] Feb :33:  Simply place LOG_ENTER() as first line in every driver or module initialization function  Information such as filename, line, and date help identify exactly which module was loaded.  PID helps link thread IDs to functions, which could become useful when debugging and PID of failed thread is available.  Version is especially important if customers have ability to download patches or updates, to know precise state of the code.

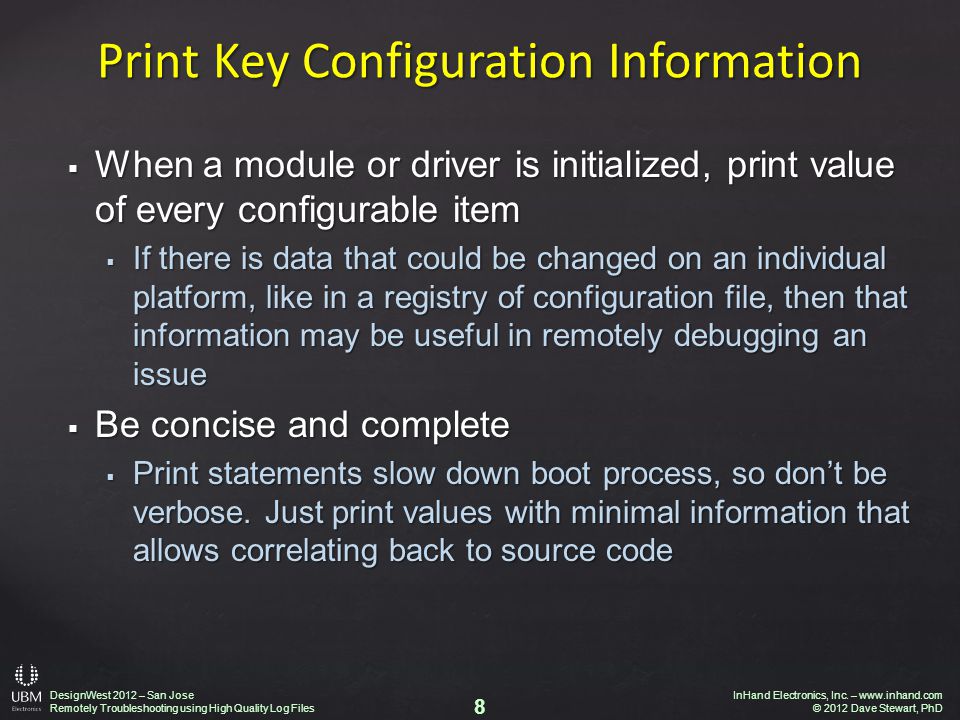

8 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Print Key Configuration Information 8  When a module or driver is initialized, print value of every configurable item  If there is data that could be changed on an individual platform, like in a registry of configuration file, then that information may be useful in remotely debugging an issue  Be concise and complete  Print statements slow down boot process, so don’t be verbose. Just print values with minimal information that allows correlating back to source code

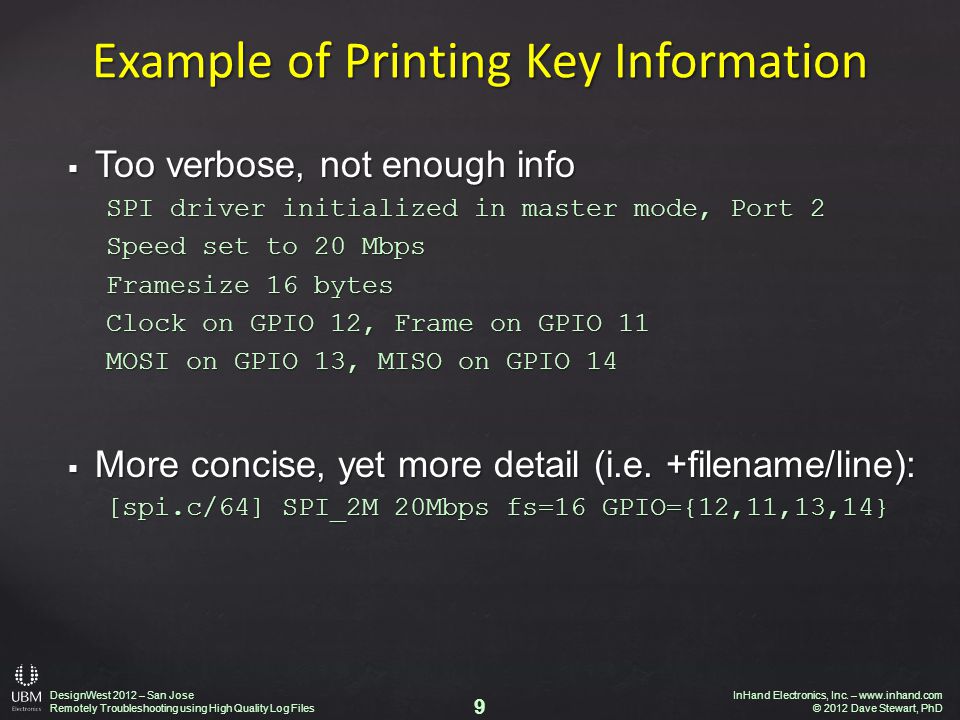

9 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Example of Printing Key Information 9  Too verbose, not enough info SPI driver initialized in master mode, Port 2 Speed set to 20 Mbps Framesize 16 bytes Clock on GPIO 12, Frame on GPIO 11 MOSI on GPIO 13, MISO on GPIO 14  More concise, yet more detail (i.e. +filename/line): [spi.c/64] SPI_2M 20Mbps fs=16 GPIO={12,11,13,14}

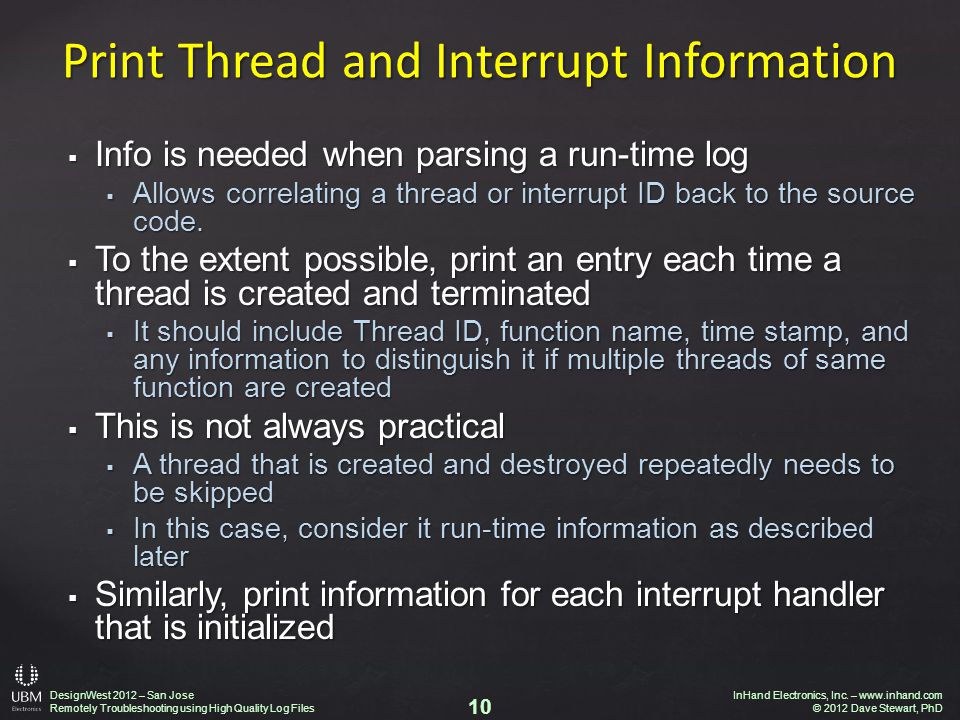

10 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Print Thread and Interrupt Information 10  Info is needed when parsing a run-time log  Allows correlating a thread or interrupt ID back to the source code.  To the extent possible, print an entry each time a thread is created and terminated  It should include Thread ID, function name, time stamp, and any information to distinguish it if multiple threads of same function are created  This is not always practical  A thread that is created and destroyed repeatedly needs to be skipped  In this case, consider it run-time information as described later  Similarly, print information for each interrupt handler that is initialized

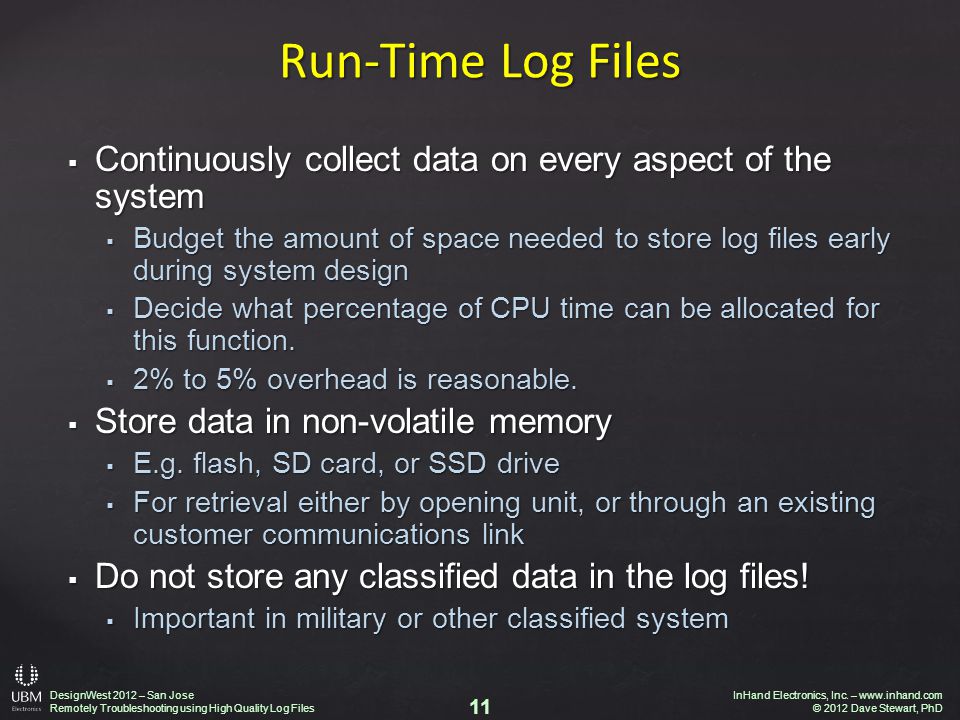

11 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Run-Time Log Files 11  Continuously collect data on every aspect of the system  Budget the amount of space needed to store log files early during system design  Decide what percentage of CPU time can be allocated for this function.  2% to 5% overhead is reasonable.  Store data in non-volatile memory  E.g. flash, SD card, or SSD drive  For retrieval either by opening unit, or through an existing customer communications link  Do not store any classified data in the log files!  Important in military or other classified system

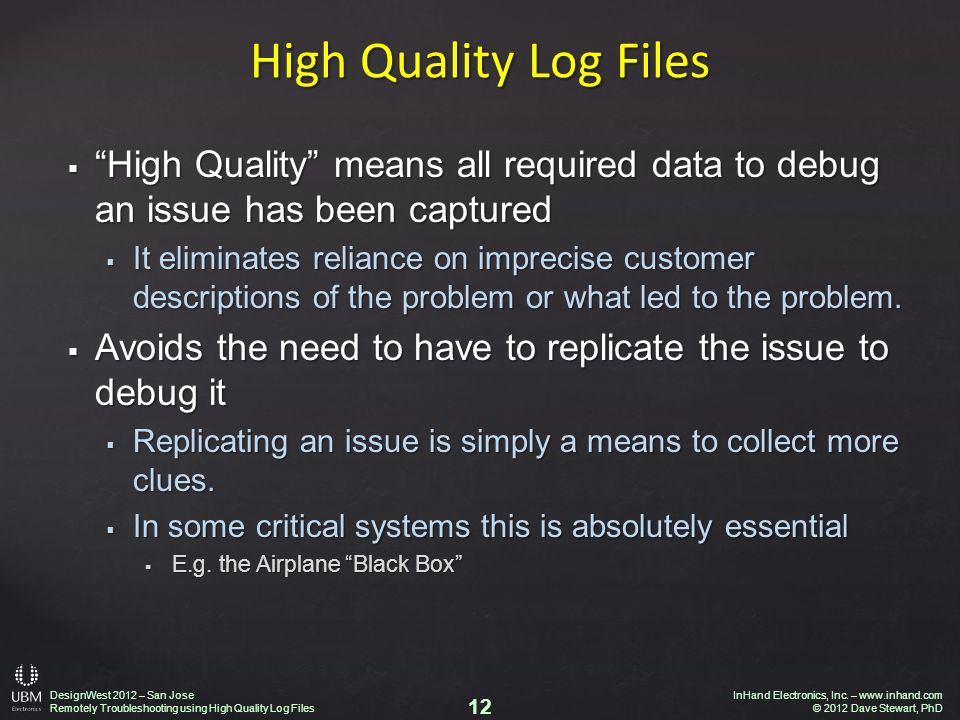

12 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD High Quality Log Files 12  “High Quality” means all required data to debug an issue has been captured  It eliminates reliance on imprecise customer descriptions of the problem or what led to the problem.  Avoids the need to have to replicate the issue to debug it  Replicating an issue is simply a means to collect more clues.  In some critical systems this is absolutely essential  E.g. the Airplane “Black Box”

13 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD High Quality Log Files 13  Provides the data needed to re-run in simulation  If debugging using traditional means is necessary to identify root cause, a high quality log file provides the data needed to re-run in simulation  Carefully review every detail that goes into the log  A log file contains poor information if it only provides minimal or partial clues to the actual problem

14 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Concise Log Files 14  Memory reserved for log files can fill up quick  Optimize memory usage as part of the design.  Be cryptic to save memory  Cryptic is fine as long as there is easy way to decipher the log file.  For example: “Average of velocity for past 30 seconds = ”  uses 40 bytes of memory “av30= ”  uses 12 bytes of memory  Both the above provide equal amount of information, but second one is more concise, and log is searchable by unique acronym “av30”

15 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Concise Log Files 15  Even more concise, store in binary: 0xaa30 0x405F8202  Uses 6 bytes of memory  16-bit number as a key allows for separate types of log entries  32-bit floating point number is only 4 bytes of data  Create code or scripts to parse data, and quickly search or filter desired data  Example provided later

16 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD What Information Must be Logged? 16  Every key item needed to “replay” what happened  Next few slides define what are those key items  Periodic Timestamps  Microsecond resolution is desirable.  Millisecond resolution is essential.  Relative time, stored as a 16-bit or 32-bit number is often acceptable  Don’t use more than 4 bytes per timestamp, or memory will fill up too quickly.  Time-of-day  If time-of-day is available, periodically log it.

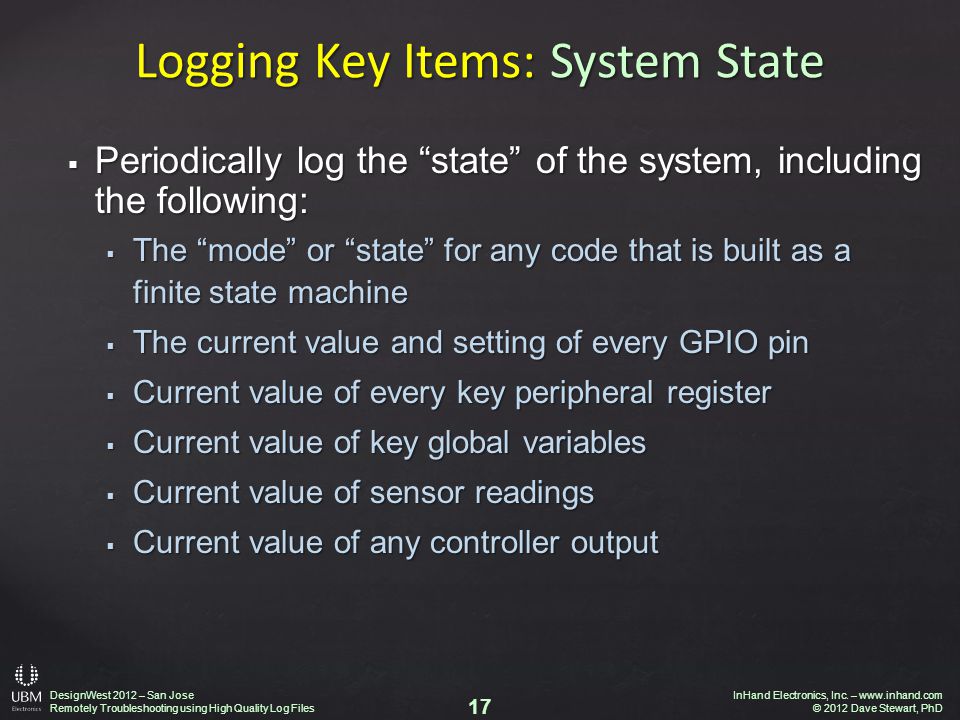

17 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Logging Key Items: System State 17  Periodically log the “state” of the system, including the following:  The “mode” or “state” for any code that is built as a finite state machine  The current value and setting of every GPIO pin  Current value of every key peripheral register  Current value of key global variables  Current value of sensor readings  Current value of any controller output

18 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Logging Key Items: Communication 18  Summary of every communication message that is sent or received:  Includes Ethernet, WiFi, USB, SPI, etc.  Save key information, such as sender or receiver, size of message, command or message type.  For short messages (i.e. a few bytes) include entire message.  For longer messages, include first few data bytes

19 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Logging Key Items: I/O 19  Every driver output  E.g. Instrument the stream interface, so that every write operation is captured  Save device, port, and value written  Inputs or reads  If state changes made based on an input, then log that input  If inputs are stored as part of the periodic state that is logged, then no need to separately log the input  Every configuration change  If a key device configuration register is changed, then log the new value written

20 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Logging Key Items: Interrupts 20  Every Interrupt  Timestamp of entry into and exit from ISR  IRQ number on entry  If this is a shared IRQ, which device was interrupting  Memory Optimization  For interrupts that occur very frequently (such as timer interrupt), skip the timestamp and use just codes, e.g. 2 bytes on entry, 2 on exit, to not fill up log memory

21 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Logging Key Items: Context Switches 21  Every Context Switch  Timestamp of entry into each thread  Thread ID  Timestamp of any entry into idle state or thread  Instrument the OS  The line of code to log this event needs to be in the operating system scheduler, right before the context switch occurs  Some OS already provide hooks at this specific spot

22 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Completeness of Logs 22  Avoid Gaps  Log files are most effective when there are no “gaps” in information  This happens when one or more modules do not log like they should  Put code to log information into kernel code  E.g. in drivers or operating system functions, where they cannot be touched or changed by applications  Logging is then enabled always for everything  Do not provide an ability to disable it.  Software can be certified with logging enabled, as long as the logging threads are part of the design documents

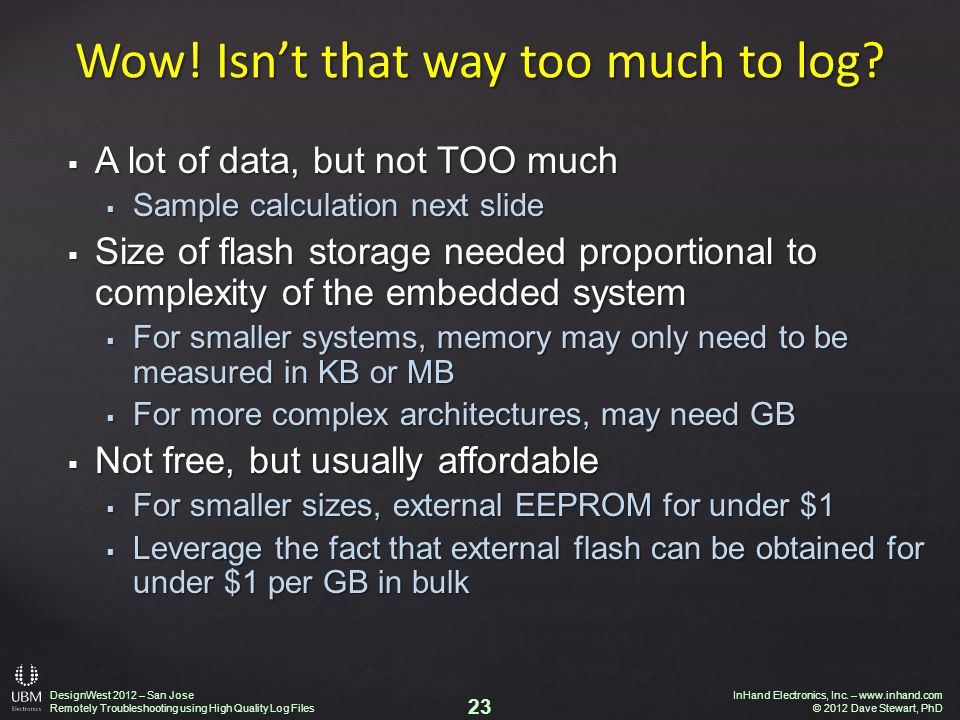

23 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Wow! Isn’t that way too much to log? 23  A lot of data, but not TOO much  Sample calculation next slide  Size of flash storage needed proportional to complexity of the embedded system  For smaller systems, memory may only need to be measured in KB or MB  For more complex architectures, may need GB  Not free, but usually affordable  For smaller sizes, external EEPROM for under $1  Leverage the fact that external flash can be obtained for under $1 per GB in bulk

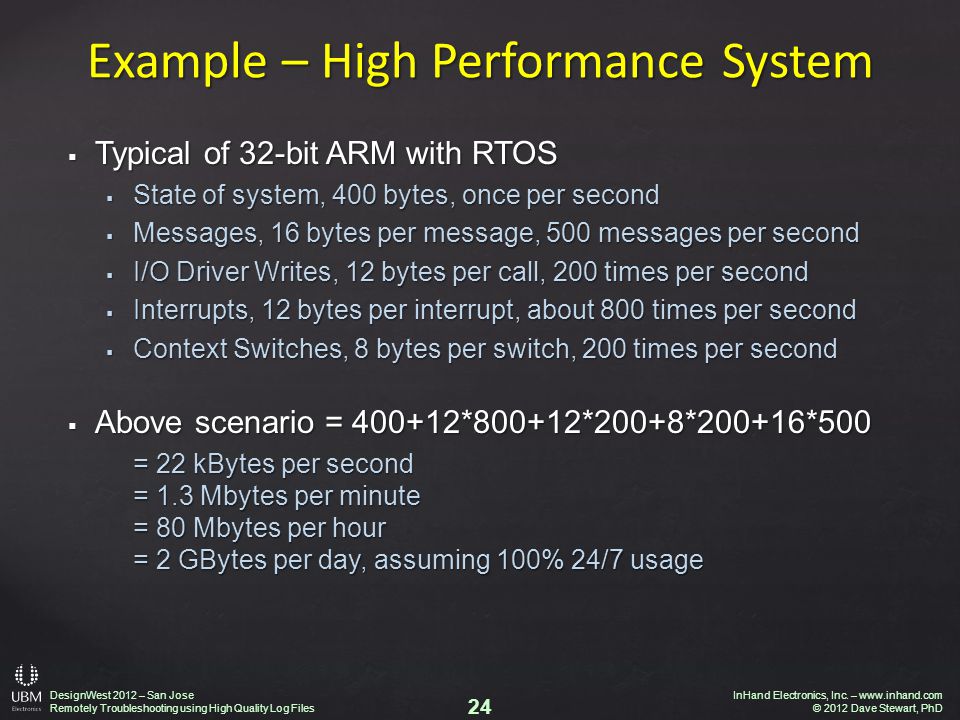

24 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Example – High Performance System 24  Typical of 32-bit ARM with RTOS  State of system, 400 bytes, once per second  Messages, 16 bytes per message, 500 messages per second  I/O Driver Writes, 12 bytes per call, 200 times per second  Interrupts, 12 bytes per interrupt, about 800 times per second  Context Switches, 8 bytes per switch, 200 times per second  Above scenario = *800+12*200+8*200+16*500 = 22 kBytes per second = 1.3 Mbytes per minute = 80 Mbytes per hour = 2 GBytes per day, assuming 100% 24/7 usage

25 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Example – Low-End System 25  Typical of an 8-bit system with only a few kbytes of RAM  State of system, 30 bytes, every 10 seconds  Messages, 4 bytes per message, 1 message per second  I/O Driver Writes, 12 bytes per call, 10 times per second  Interrupts, 4 bytes per interrupt, about 10 times per second  Context Switches, 4 bytes per switch, 5 times per second  Above scenario = *10+4*10+4*5 = 187 bytes per second = 11 kBytes per minute = 673 kBytes per hour = 16 MBytes per day, assuming 100% 24/7 usage

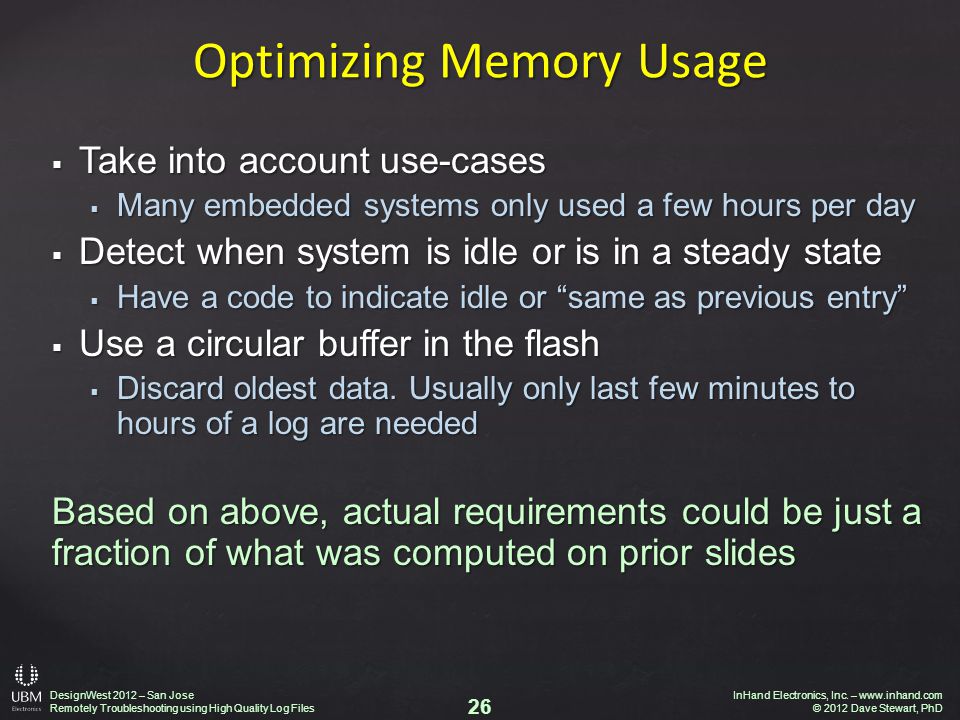

26 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Optimizing Memory Usage 26  Take into account use-cases  Many embedded systems only used a few hours per day  Detect when system is idle or is in a steady state  Have a code to indicate idle or “same as previous entry”  Use a circular buffer in the flash  Discard oldest data. Usually only last few minutes to hours of a log are needed Based on above, actual requirements could be just a fraction of what was computed on prior slides

27 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Managing Log Files 27  Store multiple small files instead of one big file.  E.g. start a new file every 5 minutes.  Makes it easier to retrieve only partial logs within specific time periods.  Use a DRAM FIFO  Most logging is done in kernel space, where file access is not available  Write to DRAM FIFO, overhead is negligible.  Periodically, have a high-priority thread read a large block of data from FIFO and write it to log file.

28 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Performance of Logging 28  Execution time to save log is minimal  With proper optimization of log code, the logged data should not use more then 2 to 5% of the processing power.  E.g. Can write SD at 1MByte/sec, 2% overhead means maximum 22KByte/sec.  “5% overhead is too much”  Only an issue on systems that are almost overloaded  Consider the cost of NOT having this data when a problem occurs in a field unit that needs to be fixed.  Trade-offs: the 5% overhead may be more valuable than another thread that uses more than that much CPU power

29 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Verifying Log before Deployment 29  Test the mechanism  Have QA team inject a fault  Run the system that captures the log  Can the software team find the problem given just the log?  Optimizing dominating log statements  If log file fills up with one piece of non-critical information because it executes very often, optimize the number of bytes needed, or reduce how often it gets logged  Boot system with and without log enabled  How much longer was boot time with logs enabled?  Rule of thumb, it should not be more than about 10% longer

30 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Parsing a Log File 30  Create code or scripts  This can’t be a manual process  Convert binary log file to text  Example of a flexible mechanism on next slide  Add filter capabilities  Include or exclude selected codes based on issue being debugged  Add analysis functions  Extra data values for certain codes and graph them  Find minimum or maximum values for certain variables

31 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhDExample 31  Next few slides show sample code:  Log format  Log macros  FIFO stream or Buffered I/O  Define codes for each log item  Instrument sources  Dump-to-file thread  Run code to produce log file  Parser  Filter

32 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Log Format 32  Create multiple data structures for each different data size. E.g. // Example Log Format 1 // Example Log Format 1 typedef struct { uint16_t code; uint16_t code; uint16_t value; // for both 8-bit and 16-bit uint16_t value; // for both 8-bit and 16-bit } log_1_t; // Example Log Format 2 // Example Log Format 2 typedef struct { uint16_t code; uint16_t code; uint16_t tstamp; uint16_t tstamp; uint32_t value; // for 32-bit values uint32_t value; // for 32-bit values } log_2_t;

33 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD FIFO Stream 33  Use a FIFO stream to write to file  FIFO needed if logging is in kernel space, but writing to file done from application space  Buffered I/O appears to provide same function, but it doesn’t! It does the writes in kernel space and as part of the process calling the log function, which could affect real-time performance!  Use real-time scheduling analysis to determine correct priority of thread writing to file.  Write a few bytes at a time to log area in memory  Structures should be kept 32-bit word aligned to minimize overhead  Write to file when log area exceeds a threshold  E.g. when file system block size is reached  Or “every 16 blocks”  Trade-off – don’t wait too long, because if there is a hard crash, anything in RAM not on disk is lost.

34 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Log Macros 34 #define LOG_ENTRY_1(_code,_val) {\ log_1_t l;\ log_1_t l;\ l.code = _code;\ l.code = _code;\ l.value=(uint16_t)_val;\ l.value=(uint16_t)_val;\ fifo_insert(&fifo,(uint8_t *)&l,sizeof(l));} fifo_insert(&fifo,(uint8_t *)&l,sizeof(l));} #define LOG_ENTRY_2(_code,_val) {\ log_2_t l;\ log_2_t l;\ l.code = _code;\ l.code = _code;\ l.value=(uint16_t)_val;\ l.value=(uint16_t)_val;\ l.tstamp = (clock() );\ l.tstamp = (clock() );\ fifo_insert(&fifo,(uint8_t *)&l,sizeof(l));} fifo_insert(&fifo,(uint8_t *)&l,sizeof(l));} #define LOG_SYNC() LOG_ENTRY_2(CODE_SYNC,CODE_SVAL)

35 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Define Codes for Each Log Item 35 #define CODE_I 1 #define CODE_X 2 #define CODE_Y 3 // SYNC Code used to insert framing // SYNC Code used to insert framing // and to recover in case of corruption // and to recover in case of corruption #define CODE_SYNC 0xCAFE #define CODE_SVAL 0xBEEF1234

36 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Instrument Sources 36  Snippet of instrumented code.  After values change, log them. x = x+i; y = y*x; LOG_SYNC(); LOG_ENTRY_1(CODE_I,i); LOG_ENTRY_1(CODE_X,x); LOG_ENTRY_2(CODE_Y,y);

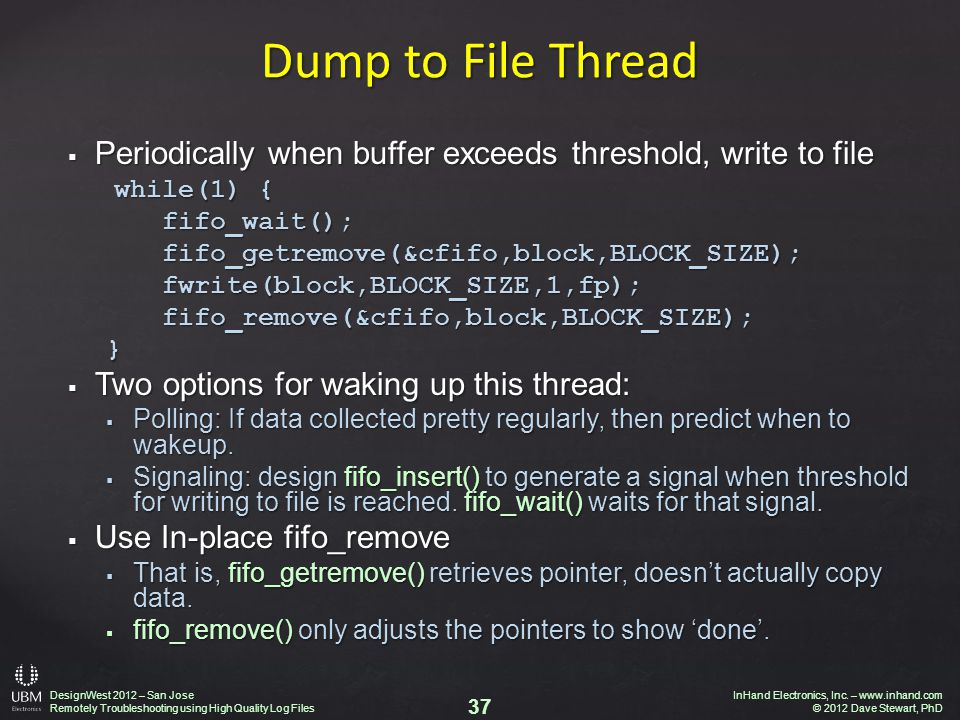

37 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Dump to File Thread 37  Periodically when buffer exceeds threshold, write to file while(1) { fifo_wait();fifo_getremove(&cfifo,block,BLOCK_SIZE);fwrite(block,BLOCK_SIZE,1,fp);fifo_remove(&cfifo,block,BLOCK_SIZE);}  Two options for waking up this thread:  Polling: If data collected pretty regularly, then predict when to wakeup.  Signaling: design fifo_insert() to generate a signal when threshold for writing to file is reached. fifo_wait() waits for that signal.  Use In-place fifo_remove  That is, fifo_getremove() retrieves pointer, doesn’t actually copy data.  fifo_remove() only adjusts the pointers to show ‘done’.

38 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Run code to produce log file 38  File produced is binary. Here is sample hexdump: fe ca b fe ca c fe ca 7a c fe ca de a fe ca a f4 06 c0 6d fe ca a f a fe ca 0a  Sync Pulses shown in yellow  Allows validating that log file not corrupted  Easily identify start of a cycle  Use to “fast forward” through a log file, since each one has a relative time-stamp on it

39 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Parser – Setup 39  Define a look-up table  Print format for each type of log entry is provided in table  E.g.: typedef struct { int code; int code; int type; int type; char *fmtstr; char *fmtstr; } log_entry_t; log_entry_t table[] = { {CODE_SYNC, 2, "Sync %d\n"}, {CODE_SYNC, 2, "Sync %d\n"}, {CODE_I, 1, "i= 0x%02X\n"}, {CODE_I, 1, "i= 0x%02X\n"}, {CODE_X, 1, "x= 0x%02X\n"}, {CODE_X, 1, "x= 0x%02X\n"}, {CODE_Y, 2, "y= %d\n"}, {CODE_Y, 2, "y= %d\n"},};

40 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Parser – Code 40  On PC, run through entire log file  Convert binary to ASCII text  E.g. p = &buffer[0]; while (!eof) { code = *(uint16_t *)p; code = *(uint16_t *)p; idx = find_idx(code); idx = find_idx(code); switch (table[idx].type) { switch (table[idx].type) { case 1: { case 1: { log_1_t *l = (log_1_t *)p; log_1_t *l = (log_1_t *)p; printf(table[idx].fmtstr,l->value); printf(table[idx].fmtstr,l->value); p += sizeof(log_1_t); p += sizeof(log_1_t); } break; } break; case 2: { case 2: { log_2_t *l = (log_2_t *)p; log_2_t *l = (log_2_t *)p; printf(table[idx].fmtstr,l->value,l->tstamp); printf(table[idx].fmtstr,l->value,l->tstamp); p += sizeof(log_2_t); p += sizeof(log_2_t); } break; } break; }}

41 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Sample Output from Parser 41 Sync 348 i = 0x00 x = 0x10 y = 356 Sync 704 i = 0x01 x = 0x11 y = 712 Sync 1062 i = 0x02 x = 0x13 y = 1068 Sync 1418 i = 0x03 x = 0x16 y = 1424

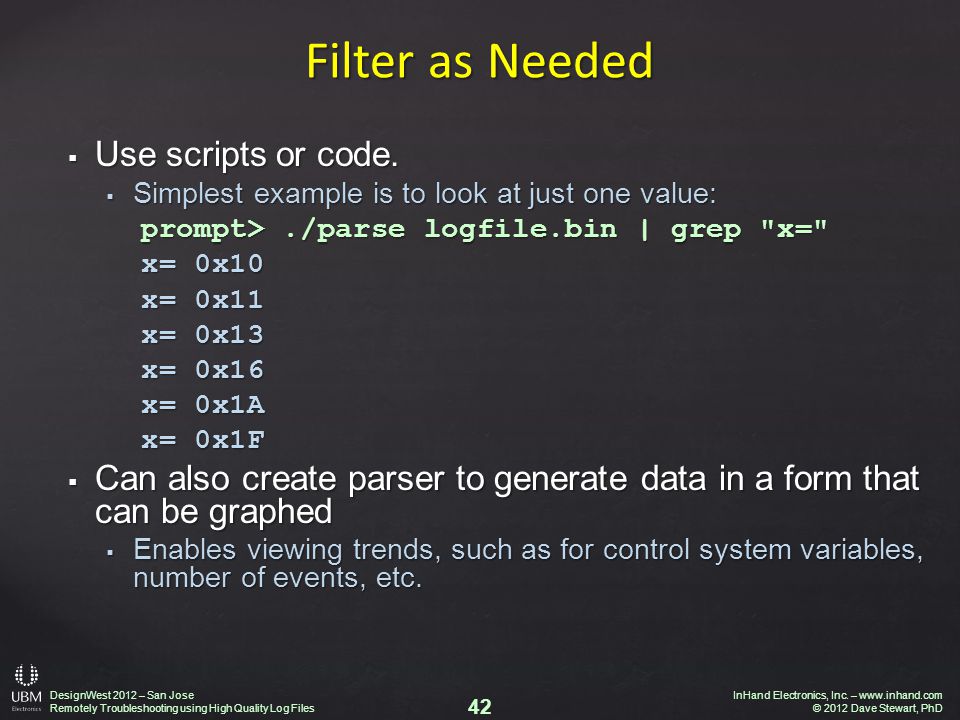

42 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhD Filter as Needed 42  Use scripts or code.  Simplest example is to look at just one value: prompt>./parse logfile.bin | grep "x=" prompt>./parse logfile.bin | grep "x=" x= 0x10 x= 0x10 x= 0x11 x= 0x11 x= 0x13 x= 0x13 x= 0x16 x= 0x16 x= 0x1A x= 0x1A x= 0x1F x= 0x1F  Can also create parser to generate data in a form that can be graphed  Enables viewing trends, such as for control system variables, number of events, etc.

43 DesignWest 2012 – San Jose Remotely Troubleshooting using High Quality Log Files InHand Electronics, Inc. – © 2012 Dave Stewart, PhDSummary 43  Objectives:  If a deployed system fails, have sufficient data captured to identify root cause and find a fix, without having to replicate the issue  Primary Goals  Improve quality of log files  Ensure consistent and complete information  Define a company-wide process  Techniques  Text logs for boot-up  Binary logs for run-time
