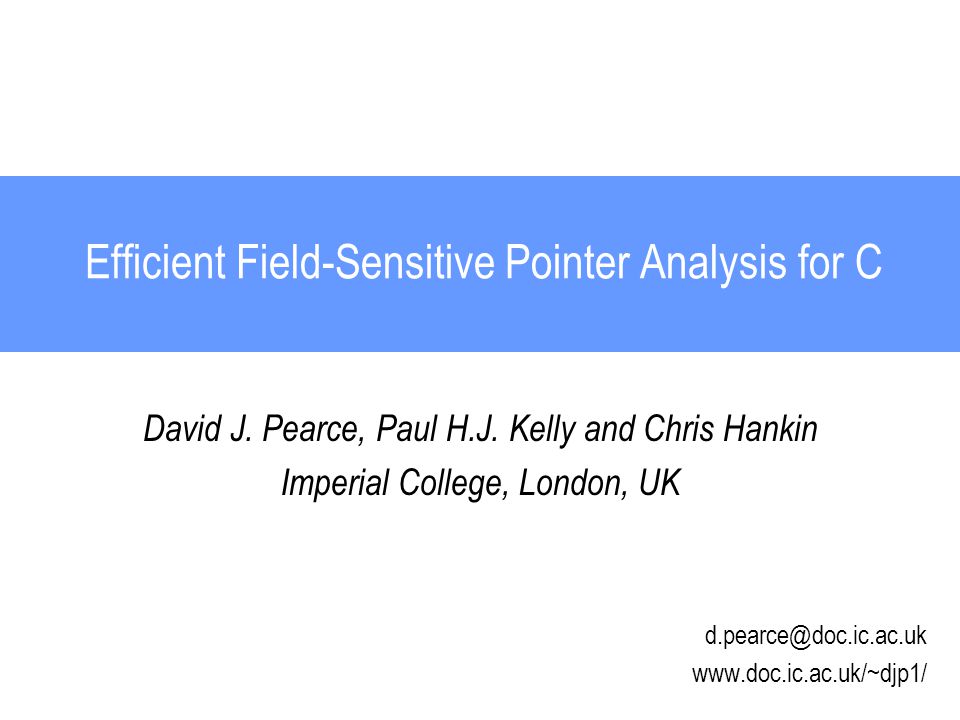

1. Efficient Field-Sensitive Pointer Analysis for C David J. Pearce, Paul H.J. Kelly and Chris Hankin Imperial College, London, UK d.pearce@doc.ic.ac.uk www.doc.ic.ac.uk/~djp1/

2. What is Pointer Analysis?  Determine pointer targets without running program  What is flow-insensitive pointer analysis? >One solution for all statements – so precision lost >This is a trade-off for efficiency over precision >This work considers flow-insensitive pointer analysis only int a,b,*p,*q = NULL; p = &a; if(…) q = p; // p  {a,b}, q  {a,NULL} p = &b;

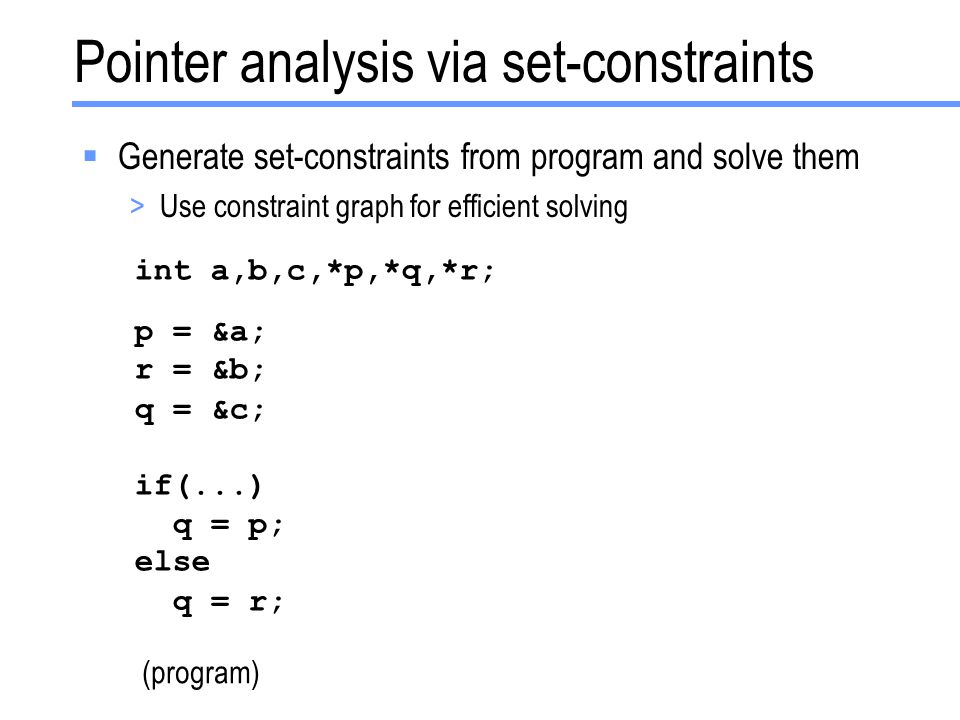

3. Pointer analysis via set-constraints  Generate set-constraints from program and solve them >Use constraint graph for efficient solving int a,b,c,*p,*q,*r; p = &a; r = &b; q = &c; if(...) q = p; else q = r; (program)

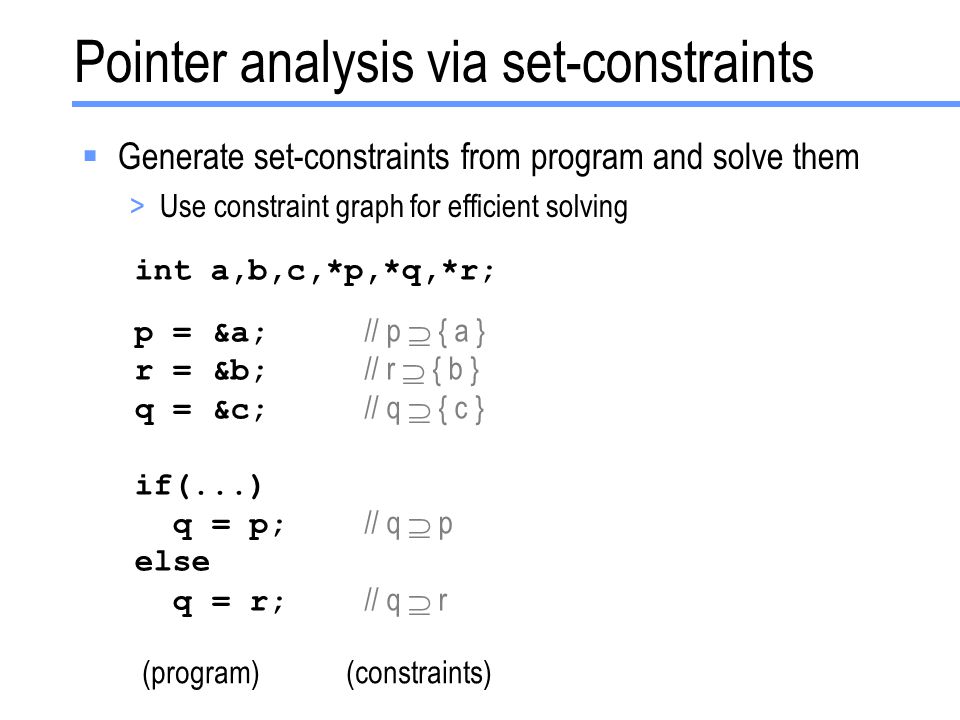

4. Pointer analysis via set-constraints int a,b,c,*p,*q,*r; p = &a; // p  { a } r = &b; // r  { b } q = &c; // q  { c } if(...) q = p; // q  p else q = r; // q  r (program)(constraints)  Generate set-constraints from program and solve them >Use constraint graph for efficient solving

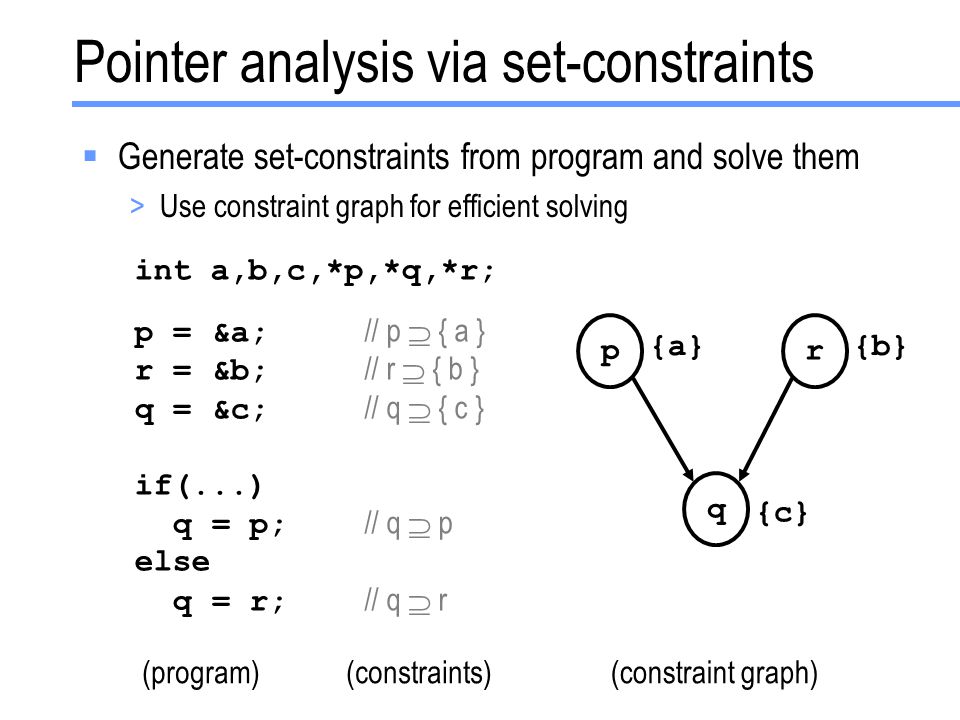

5. Pointer analysis via set-constraints int a,b,c,*p,*q,*r; p = &a; // p  { a } r = &b; // r  { b } q = &c; // q  { c } if(...) q = p; // q  p else q = r; // q  r pqr {a}{b} (program)(constraints)(constraint graph) {c}  Generate set-constraints from program and solve them >Use constraint graph for efficient solving

6. Pointer analysis via set-constraints int a,b,c,*p,*q,*r; p = &a; // p  { a } r = &b; // r  { b } q = &c; // q  { c } if(...) q = p; // q  p else q = r; // q  r pqr {a}{b} (program)(constraints)(constraint graph) {a,b,c}  Generate set-constraints from program and solve them >Use constraint graph for efficient solving

7. Field-Sensitivity  How to deal with aggregate types ? >Standard approach treats them as single variables typedef struct { int *f1; int *f2; } t1; int a,b,*p,*q,*r; t1 x; p = &a; // p  { a } q = &b; // q  { b } x.f1 = p; // x  p x.f2 = q; // x  q r = x.f1; // r  x pxq {a} {b} {} r

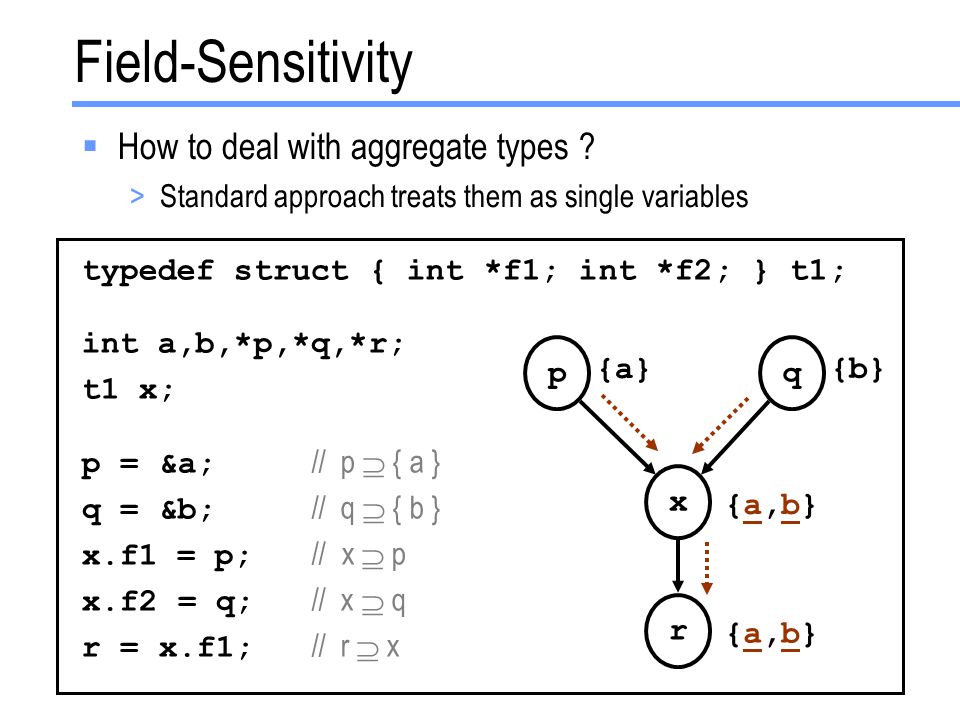

8. Field-Sensitivity  How to deal with aggregate types ? >Standard approach treats them as single variables typedef struct { int *f1; int *f2; } t1; int a,b,*p,*q,*r; t1 x; p = &a; // p  { a } q = &b; // q  { b } x.f1 = p; // x  p x.f2 = q; // x  q r = x.f1; // r  x pxq {a} {b} {a,b}{a,b} r {a,b}{a,b}

9. Field-Sensitivity – A simple solution  Use a separate node per field for each aggregate >Node “x” split in two typedef struct { int *f1; int *f2 } t1; int a,b,*p,*q,*r; t1 x; p = &a; // p  { a } q = &b; // q  { b } x.f1 = p; // x f1  p x.f2 = q; // x f2  q r = x.f1; // r  x f1 px f2 q {a} {b} {} r x f1 {}

10. Field-Sensitivity – A simple solution  Use a separate node per field for each aggregate >Node “x” split in two typedef struct { int *f1; int *f2 } t1; int a,b,*p,*q,*r; t1 x; p = &a; // p  { a } q = &b; // q  { b } x.f1 = p; // x f1  p x.f2 = q; // x f2  q r = x.f1; // r  x f1 px f2 q {a} {b} {a}{a} r {a}{a} x f1 {b}{b}

11. Problem – can take address of field in C  System thus far has no mechanism for this  First idea – use string concatenation operator || >Works well for this example typedef struct { int *f1; int *f2; } t1; int **p; t1 x,*s; s = &x; // s  { x } p = &(s->f2); // p  ? x f2 {..} x f1 {..}

12. Problem – can take address of field in C  System thus far has no mechanism for this  First idea – use string concatenation operator || >Works well for this example typedef struct { int *f1; int *f2; } t1; int **p; t1 x,*s; s = &x; // s  { x } p = &(s->f2); // p  (*s) || f2 x f2 {..} x f1 {..}

13. Problem – can take address of field in C  System thus far has no mechanism for this  First idea – use string concatenation operator || >Works well for this example typedef struct { int *f1; int *f2; } t1; int **p; t1 x,*s; s = &x; // s  { x } p = &(s->f2); // p  (*s) || f2  p  { x } || f2  p  { x f2 } x f2 {..} x f1 {..}

14. Problem – compatible types  First idea – use string concatenation operator || >Casting identical types except for field names >Derivation same as before - but,node x f2 no longer exists! typedef struct { int *f1; int *f2; } t1; typedef struct { int *f3; int *f4; } t2; int **p; t1 *s; t2 x; s = (t1*) &x; // s  { x } p = &(s->f2); // p  (*s) || f2 x f4 {..} x f3 {..}

15. Problem – compatible types  First idea – use string concatenation operator || >Casting identical types except for field names >Derivation same as before - but,node x f2 no longer exists! typedef struct { int *f1; int *f2; } t1; typedef struct { int *f3; int *f4; } t2; int **p; t1 *s; t2 x; s = (t1*) &x; // s  { x } p = &(s->f2); // p  (*s) || f2  p  { x } || f2  p  { x f2 } x f4 {..} x f3 {..}

16. Field-Sensitivity – Our Solution typedef struct { int *f1; int *f2; } t1; typedef struct { int *f3; int *f4; } t2; int **p; t1 *s; t2 x; s = (t1*) &x; // s  { x f3 } p = &(s->f2); // p  s + 1  Our solution – map variables to integers >Solution sets become integer sets >Use integer addition to model taking address of field >Address of aggregate modelled by address of its first field psx f3 x f4 0123

17. Field-Sensitivity – Our Solution typedef struct { int *f1; int *f2; } t1; typedef struct { int *f3; int *f4; } t2; int **p; t1 *s; t2 x; s = (t1*) &x; // s  { x f3 }  s  { 2 } p = &(s->f2); // p  s + 1  Our solution – map variables to integers >Solution sets become integer sets >Use integer addition to model taking address of field >Address of aggregate modelled by address of its first field psx f3 x f4 0123

18. Field-Sensitivity – Our Solution typedef struct { int *f1; int *f2; } t1; typedef struct { int *f3; int *f4; } t2; int **p; t1 *s; t2 x; s = (t1*) &x; // s  { x f3 }  s  { 2 } p = &(s->f2); // p  s + 1  p  { 2 } + 1  p  { 3 }  Our solution – map variables to integers >Solution sets become integer sets >Use integer addition to model taking address of field >Address of aggregate modelled by address of its first field psx f3 x f4 0123

19. Experimental Study Time (s)Avg Deref Size bash (55324 LOC) Field-insensitive Field-sensitive 0.51 0.53 543.0 86.7 emacs (93151 LOC) Field-insensitive Field-sensitive 0.4 0.69 79.3 5.4 sendmail (49053 LOC) Field-insensitive Field-sensitive 0.49 2.05 558.4 214.2 Named (75599 LOC) Field-insensitive Field-sensitive 30.0 129.1 2865.5 2167.7 ghostscript (159853 LOC) Field-insensitive Field-sensitive 277.4 2510.4 7703.1 7365.2

20. Conclusion  Field-sensitive Pointer Analysis >Presented new technique for C language >Elegantly copes with language features -Taking address of field -Compatible types and casting -Technique also handles function pointers without modification >Experimental evaluation over 7 common C programs -Considerable improvements in precision obtained -But, much higher solving times -And, relative gains appear to diminish with larger benchmarks

21. Constraint Graphs (continued)  What about statements involving a pointer dereference? >Cannot be represented in the constraint graph >Instead, add edges as solution of q becomes known >Thus, computation similar to dynamic transitive closure int a,*r,*s,**p,**q; p = &r; // p  { r } s = &a; // s  { a } q = p; // q  p *q = s; // *q  s pq {r} sr {} {a} (program)(constraints)(constraint graph) {}

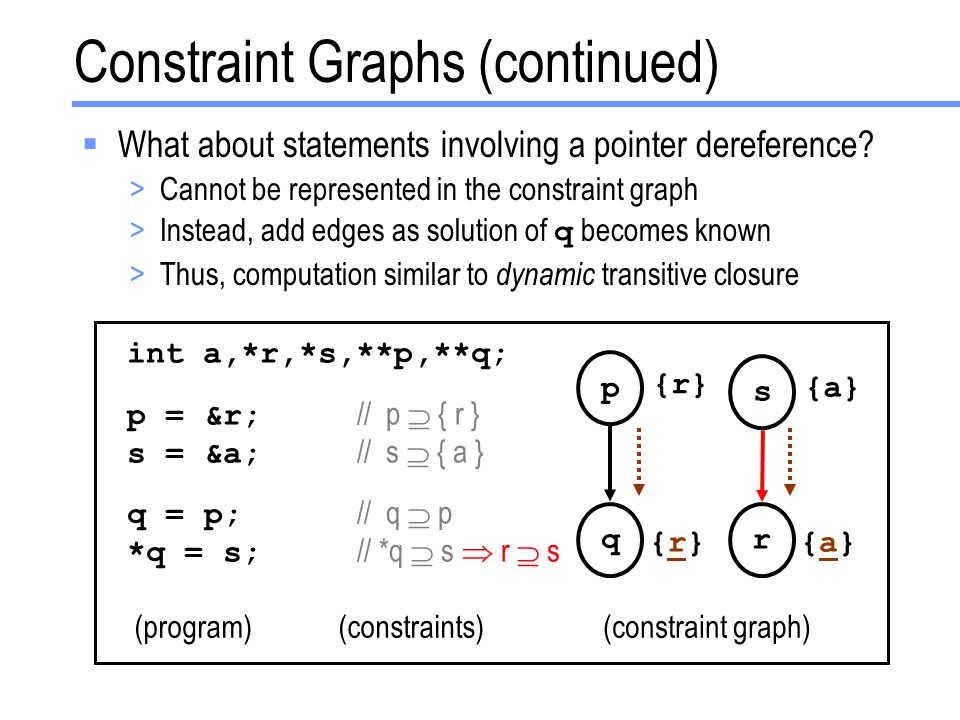

22. Constraint Graphs (continued)  What about statements involving a pointer dereference? >Cannot be represented in the constraint graph >Instead, add edges as solution of q becomes known >Thus, computation similar to dynamic transitive closure int a,*r,*s,**p,**q; p = &r; // p  { r } s = &a; // s  { a } q = p; // q  p *q = s; // *q  s  r  s pq {r} sr {} {a} (program)(constraints)(constraint graph) {r}{r}

23. Constraint Graphs (continued)  What about statements involving a pointer dereference? >Cannot be represented in the constraint graph >Instead, add edges as solution of q becomes known >Thus, computation similar to dynamic transitive closure int a,*r,*s,**p,**q; p = &r; // p  { r } s = &a; // s  { a } q = p; // q  p *q = s; // *q  s  r  s pq {r} sr {} {a} (program)(constraints)(constraint graph) {r}{r}

24. Constraint Graphs (continued)  What about statements involving a pointer dereference? >Cannot be represented in the constraint graph >Instead, add edges as solution of q becomes known >Thus, computation similar to dynamic transitive closure int a,*r,*s,**p,**q; p = &r; // p  { r } s = &a; // s  { a } q = p; // q  p *q = s; // *q  s  r  s pq {r} sr {a}{a} {a} (program)(constraints)(constraint graph) {r}{r}
