1 COMP25212 Advanced Pipelining Out of Order Processors

2 From Monday… Out-of-Order Execution with Scoreboard Centralized data structure which tracks the status of registers, FUs and instructions and creates, dynamically in hardware, the dependency graph –The centralized nature limits scalability: –Small number of FUs and small window of instructions Dependencies –RAW – stall conflicted instruction –WAW – stall the pipeline –WAR – stall WB

3 Out of Order Execution with Tomasulo

4 Tomasulo’s Algorithm Control logic for out-of-order execution is decentralized –Reservation Stations (RS) in the functional units keep instruction information –In addition RS seamlessly rename registers A Common Data Bus (CDB) broadcasts data and results to the different devices –A single instruction can finish each cycle Distributed control allows for a larger window of instructions – Dynamic scheduling

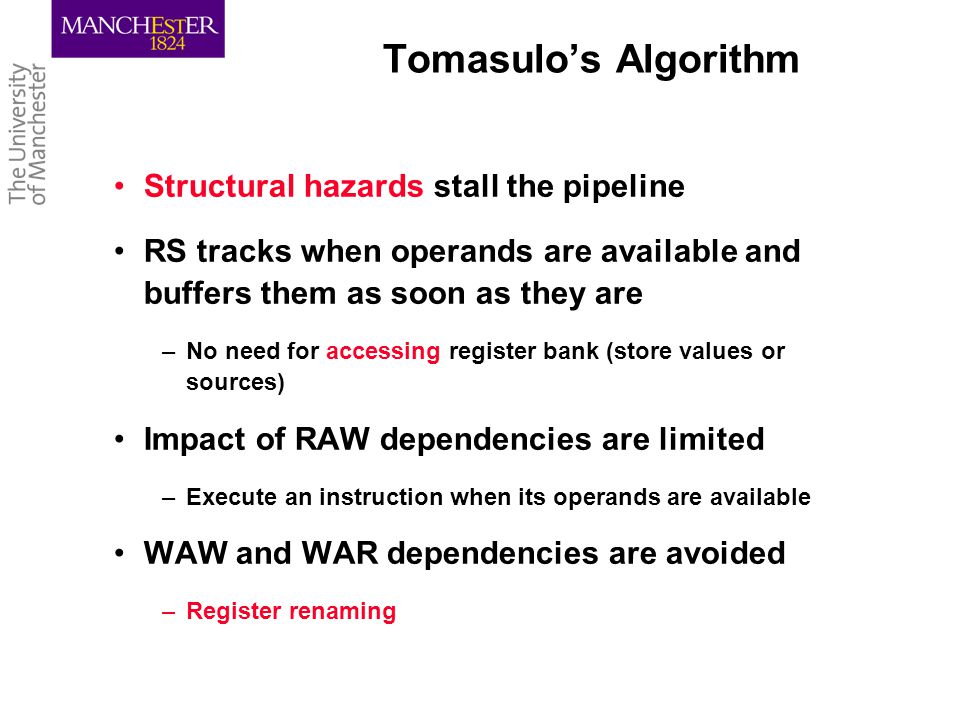

5 Tomasulo’s Algorithm Structural hazards stall the pipeline RS tracks when operands are available and buffers them as soon as they are –No need for accessing register bank (store values or sources) Impact of RAW dependencies are limited –Execute an instruction when its operands are available WAW and WAR dependencies are avoided –Register renaming

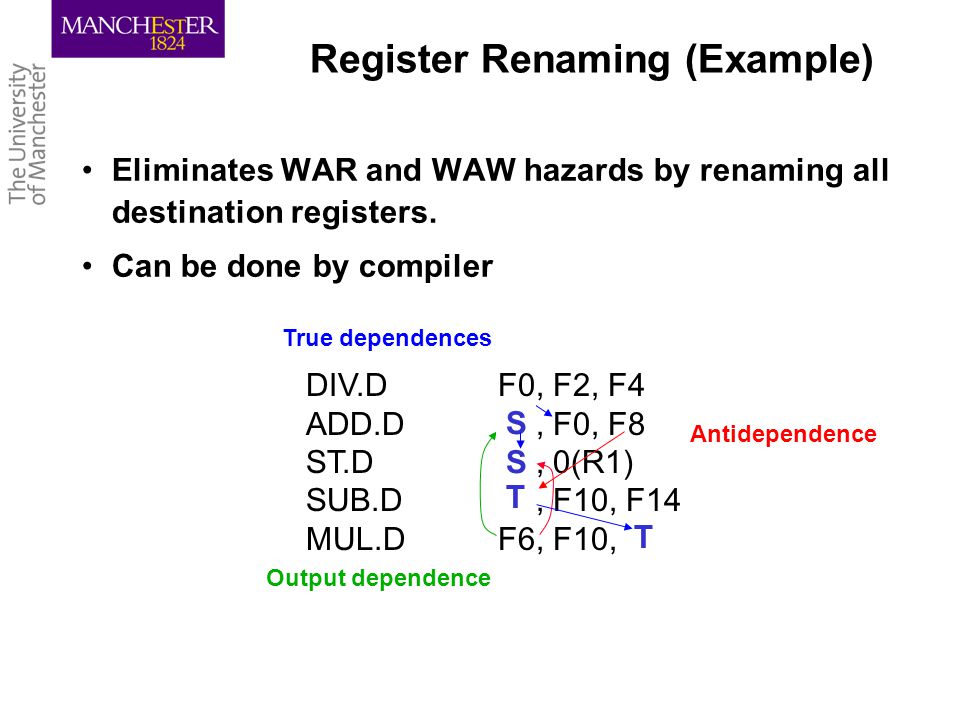

6 DIV.DF0, F2, F4 ADD.DF6, F0, F8 ST.DF6, 0(R1) SUB.DF8, F10, F14 MUL.DF6, F10, F8 Antidependence Output dependence Register Renaming (Example) Eliminates WAR and WAW hazards by renaming all destination registers. Can be done by compiler True dependences T T SSSS

7 Tomasulo Organization FP adders Add1 Add2 Add3 FP multipliers Mult1 Mult2 From Mem FP Registers Reservation Stations Common Data Bus (CDB) To Mem FP Op Queue Load Buffers Store Buffers Load1 Load2 Load3 Load4 Load5 Load6 Normal data bus: data + destination Common data bus: data + source

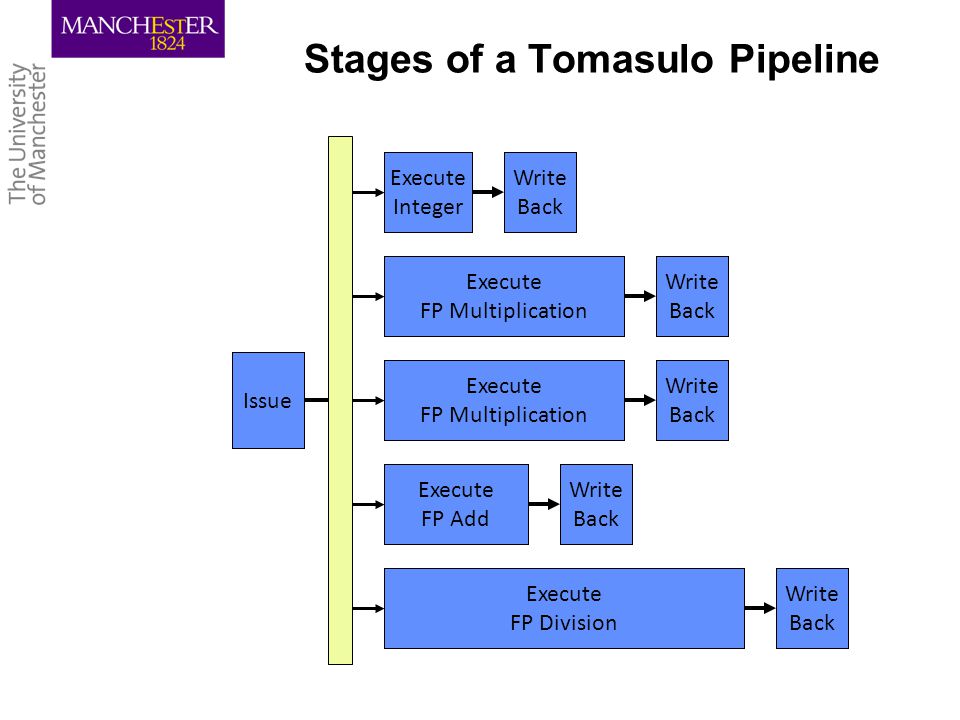

8 Issue Write Back Execute Integer Write Back Execute FP Multiplication Write Back Execute FP Add Write Back Execute FP Division Write Back Execute FP Multiplication Stages of a Tomasulo Pipeline

9 Three Stages of Tomasulo Algorithm 1.Issue—get instruction from FP Op Queue If reservation station free (no structural hazard), control issues instr & sends operands (renames registers). 2.Execute—operate on operands (EX) When both source operands are ready then execute; if not ready, watch Common Data Bus for result 3.Write result—finish execution (WB) Write on Common Data Bus to all awaiting units; mark reservation station available Normal data bus: data + destination (“go to” bus) Common data bus: data + source (“come from” bus) –64 bits of data + 4 bits of Functional Unit source address –Write if matches expected Functional Unit (produces result) –Does the broadcast

10 Reservation Station Components No information about instructions needed

11 Tomasulo Example Instruction streamInstruction status: Tomasulo does not need this info We will show the times for each stage, for convenience

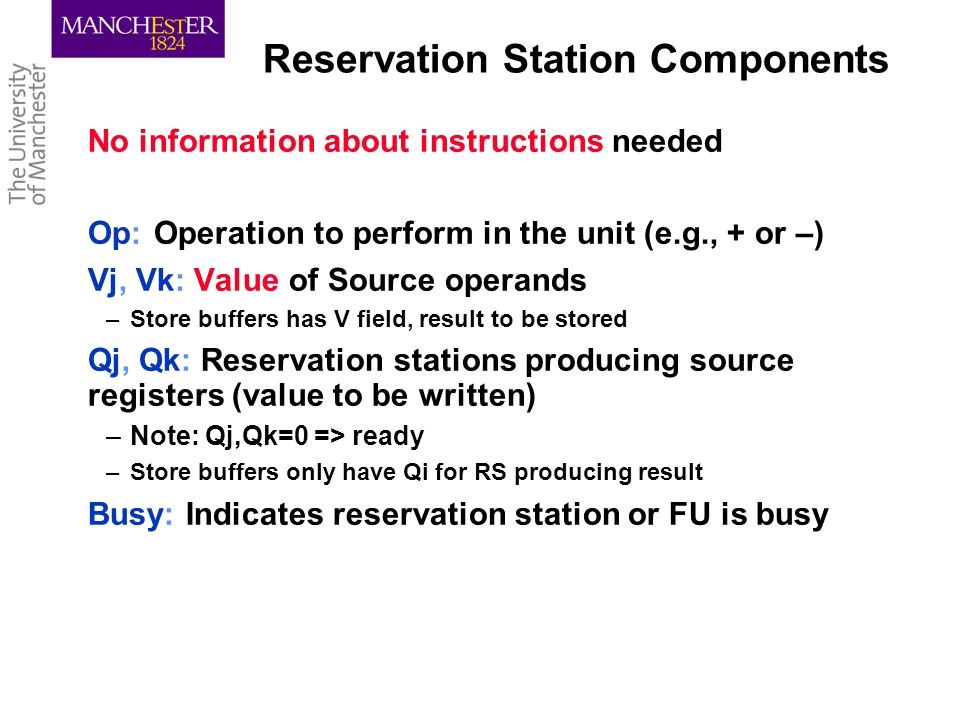

12 Reservation Station Components No information about instructions needed Op:Operation to perform in the unit (e.g., + or –) Vj, Vk: Value of Source operands –Store buffers has V field, result to be stored Qj, Qk: Reservation stations producing source registers (value to be written) –Note: Qj,Qk=0 => ready –Store buffers only have Qi for RS producing result Busy: Indicates reservation station or FU is busy

13 Tomasulo Example FU count down Source registers Which FU will produce operands Reservation Stations: 3 Adder 2 Multiplication Reservation Stations: 3 Load Buffers Source registers

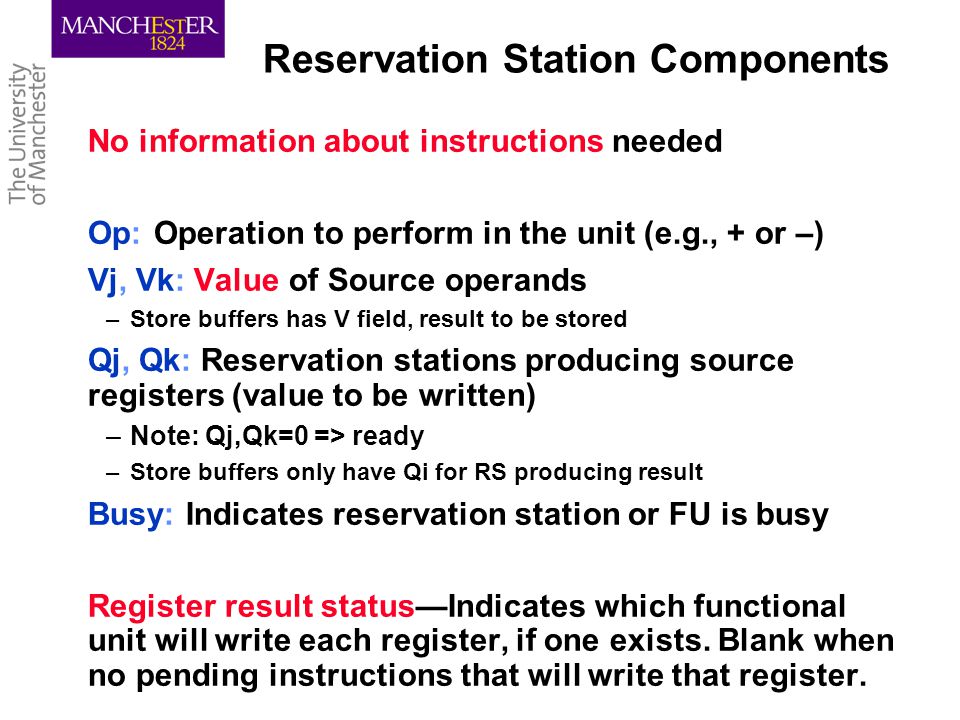

14 Reservation Station Components No information about instructions needed Op:Operation to perform in the unit (e.g., + or –) Vj, Vk: Value of Source operands –Store buffers has V field, result to be stored Qj, Qk: Reservation stations producing source registers (value to be written) –Note: Qj,Qk=0 => ready –Store buffers only have Qi for RS producing result Busy: Indicates reservation station or FU is busy Register result status—Indicates which functional unit will write each register, if one exists. Blank when no pending instructions that will write that register.

15 Tomasulo Example Clock cycle counter Which RS will write in each register?

16 A Tomasulo Example The following code is run on a Tomasulo pipeline with: L.D F6, 34(R2) L.D F2, 45(R3) MUL.D F0, F2, F4 SUB.D F8, F6, F2 DIV.D F10, F0, F6 ADD.D F6, F8, F2 Functional Unit (FU) # of FUs EX cycles FP Multiply/Division 2 10/40 FP Addition/Substraction 3 2 Mem Load 3 2 Functional units not pipelined

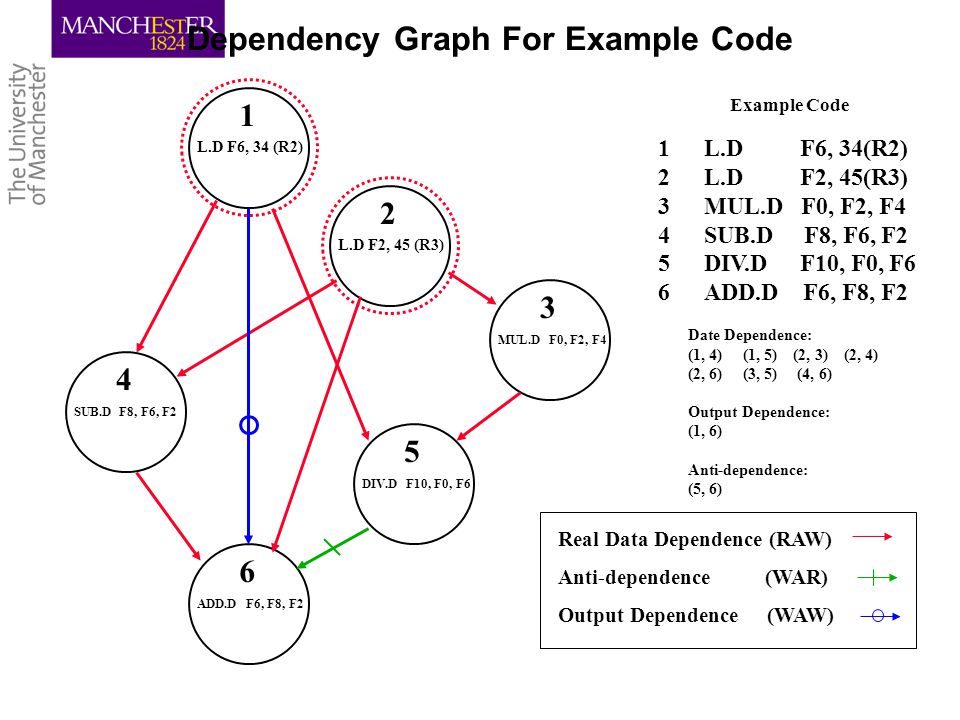

17 Dependency Graph For Example Code L.D F6, 34(R2) L.D F2, 45(R3) MUL.D F0, F2, F4 SUB.D F8, F6, F2 DIV.D F10, F0, F6 ADD.D F6, F8, F L.D F6, 34 (R2) 1 L.D F2, 45 (R3) 2 MUL.D F0, F2, F4 3 DIV.D F10, F0, F6 5 SUB.D F8, F6, F2 4 ADD.D F6, F8, F2 6 Date Dependence: (1, 4) (1, 5) (2, 3) (2, 4) (2, 6) (3, 5) (4, 6) Output Dependence: (1, 6) Anti-dependence: (5, 6) Example Code Real Data Dependence (RAW) Anti-dependence (WAR) Output Dependence (WAW)

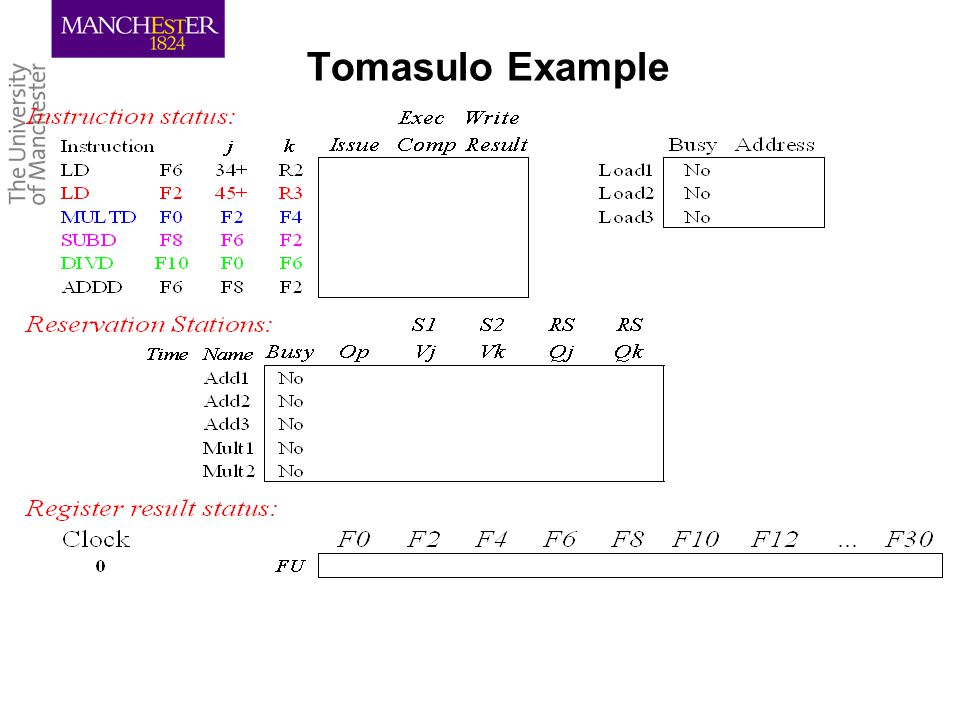

18 Tomasulo Example

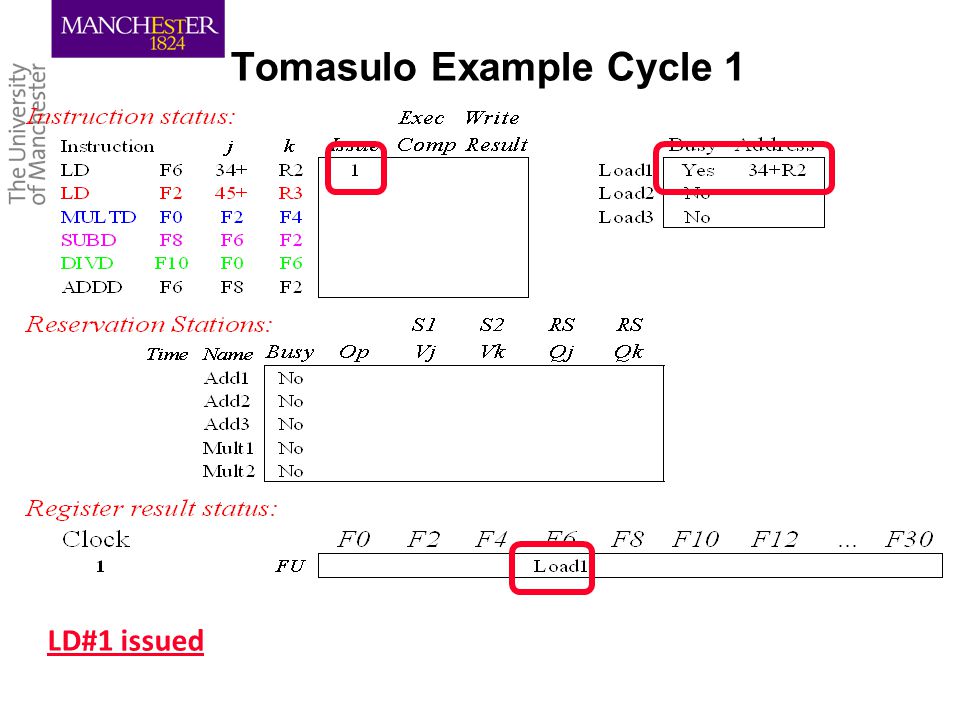

19 Tomasulo Example Cycle 1 LD#1 issued

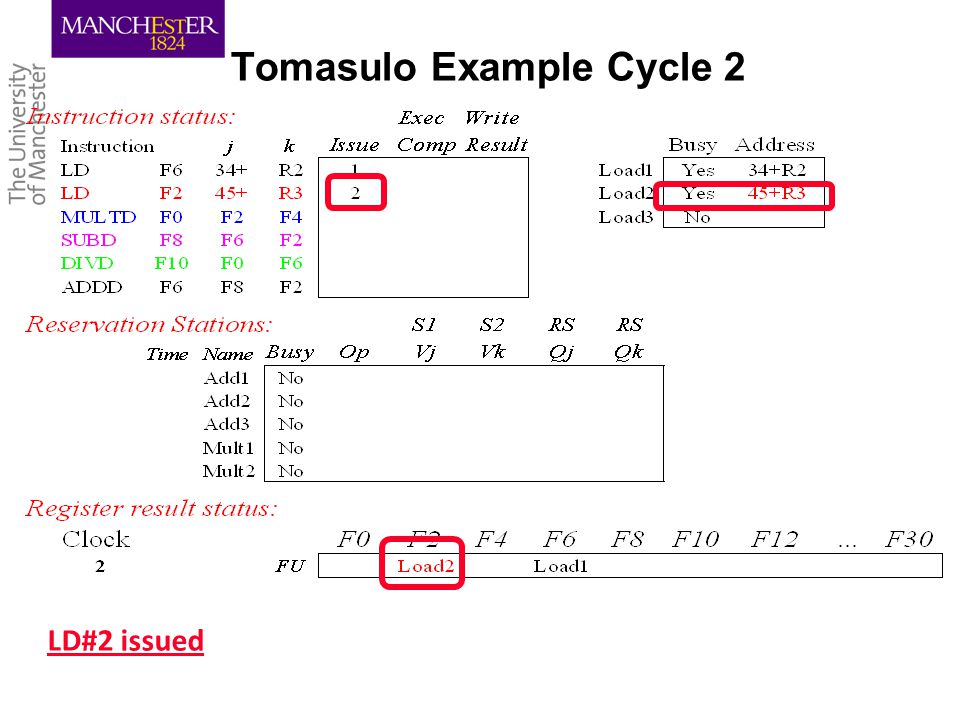

20 Tomasulo Example Cycle 2 LD#2 issued

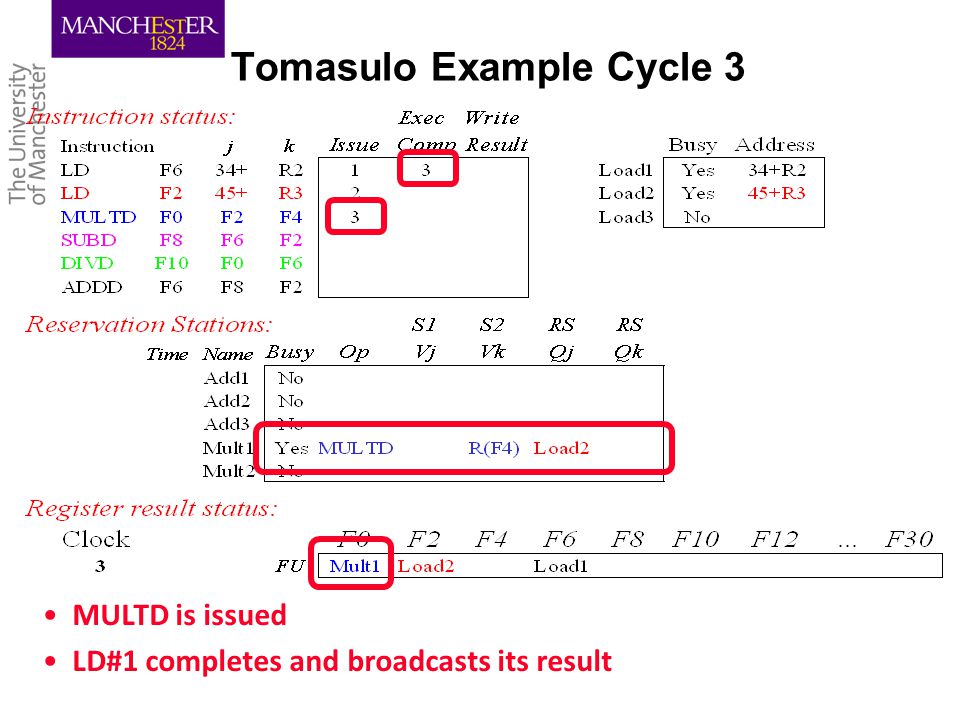

21 Tomasulo Example Cycle 3 MULTD is issued LD#1 completes and broadcasts its result

22 Tomasulo Example Cycle 4 SUBD is issued LD#1 result updates the register bank LD#2 completes, broadcasting its result

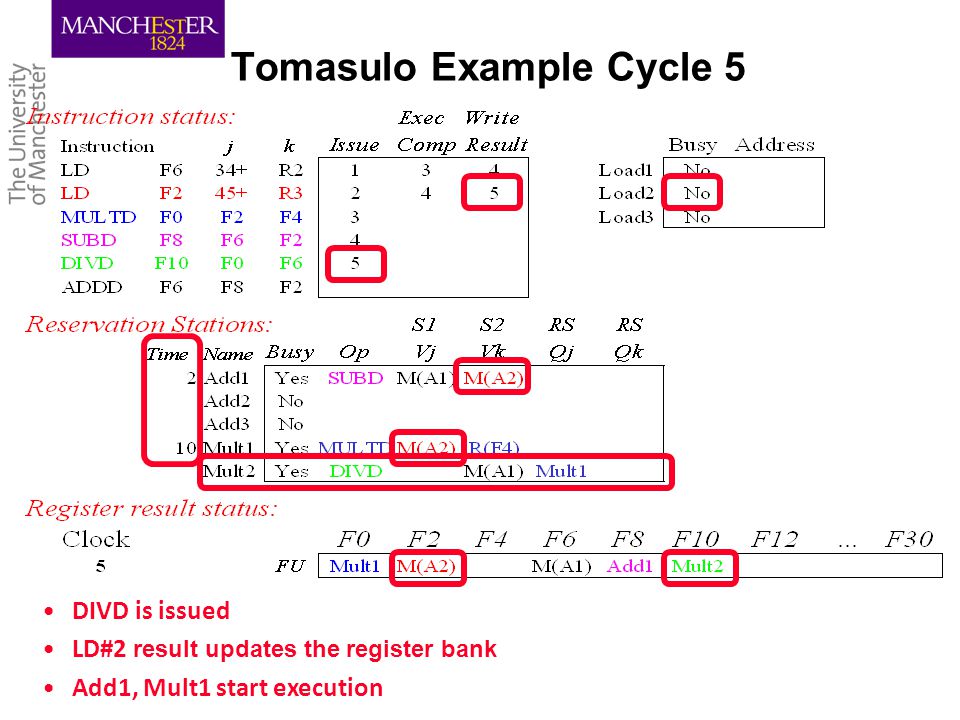

23 Tomasulo Example Cycle 5 DIVD is issued LD#2 result updates the register bank Add1, Mult1 start execution

24 Tomasulo Example Cycle 6 ADDD issued

25 Tomasulo Example Cycle 7 Add1 (SUBD) completes and broadcasts result

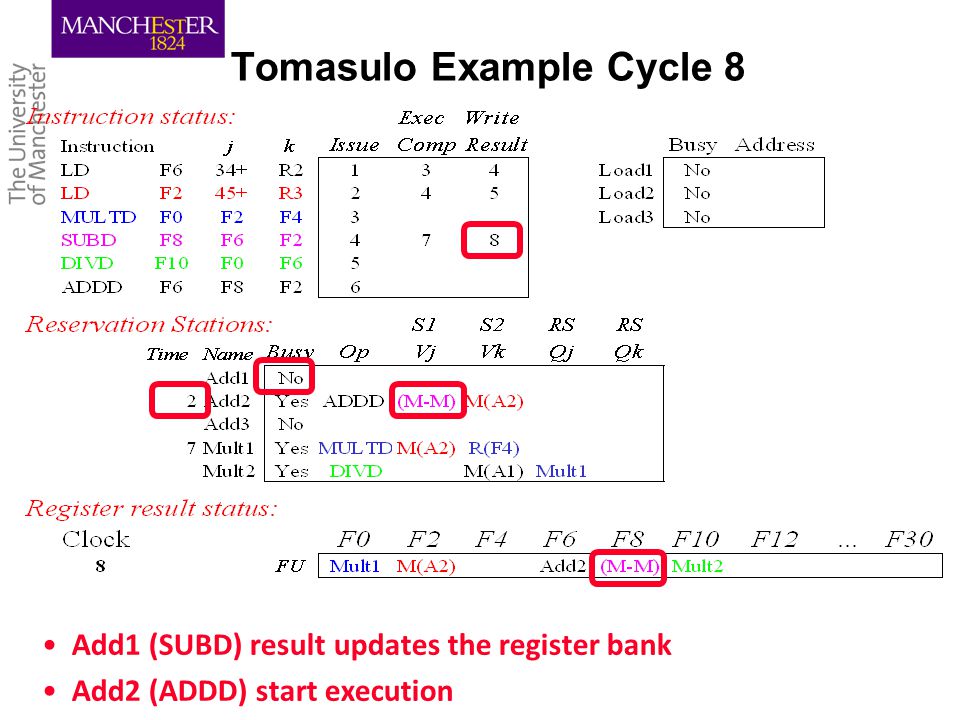

26 Tomasulo Example Cycle 8 Add1 (SUBD) result updates the register bank Add2 (ADDD) start execution

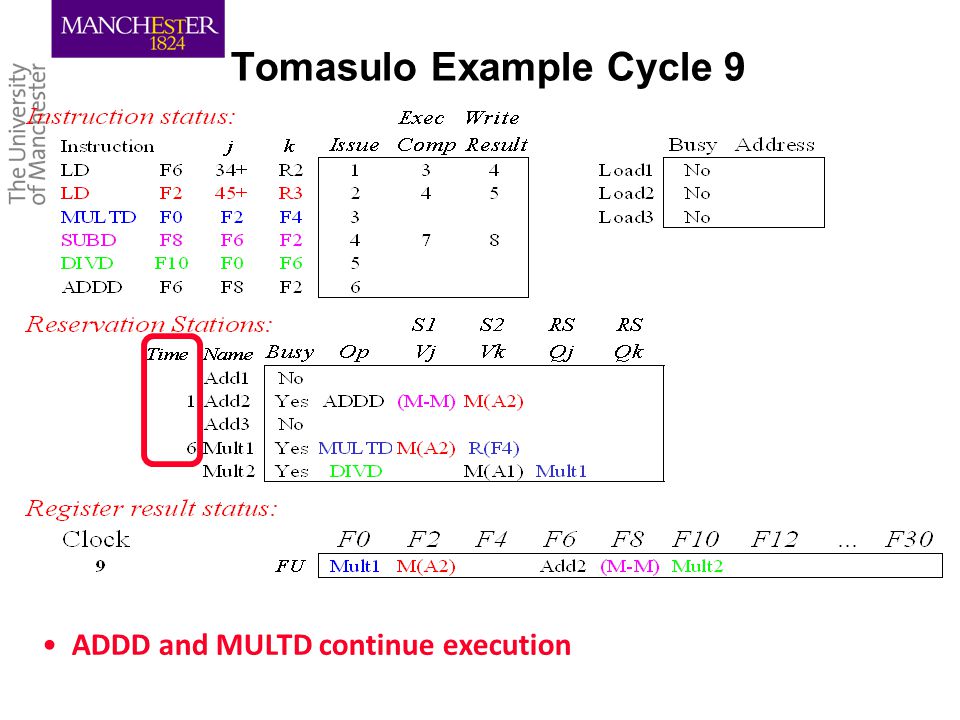

27 Tomasulo Example Cycle 9 ADDD and MULTD continue execution

28 Tomasulo Example Cycle 10 Add2 (ADDD) completes

29 Tomasulo Example Cycle 11 ADDD result updates the register bank

30 Tomasulo Example Cycle 12 MULTD continues execution

31 Tomasulo Example Cycle 13 MULTD continues execution

32 Tomasulo Example Cycle 14 MULTD continues execution

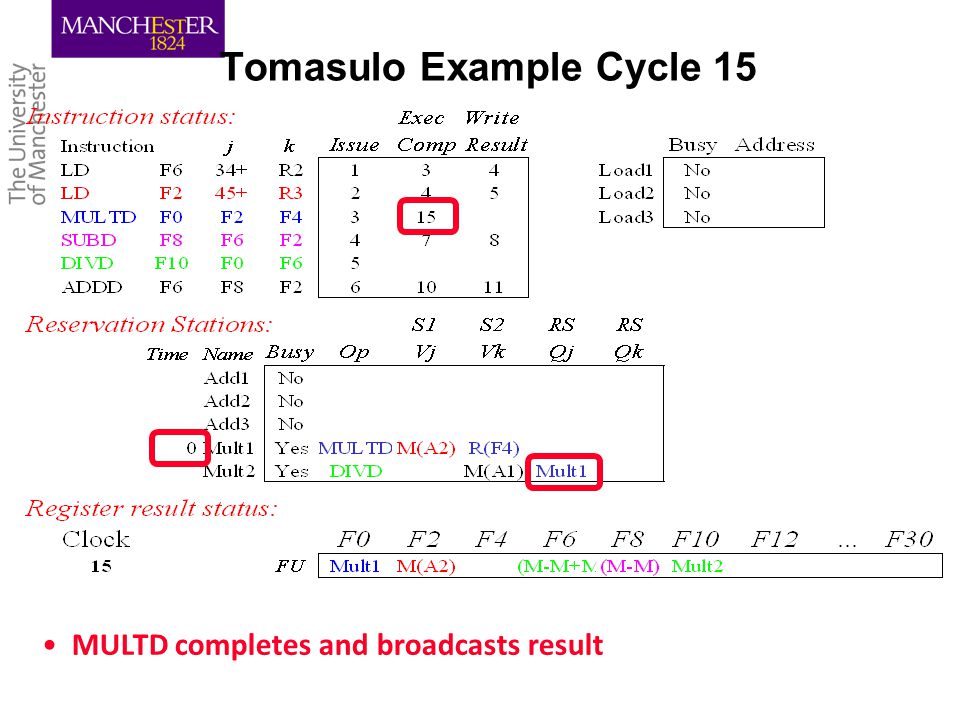

33 Tomasulo Example Cycle 15 MULTD completes and broadcasts result

34 Tomasulo Example Cycle 16 MULTD result updates the register bank DIVD starts execution

35 39 cycles later…

36 Tomasulo Example Cycle 55 DIVD is about to complete

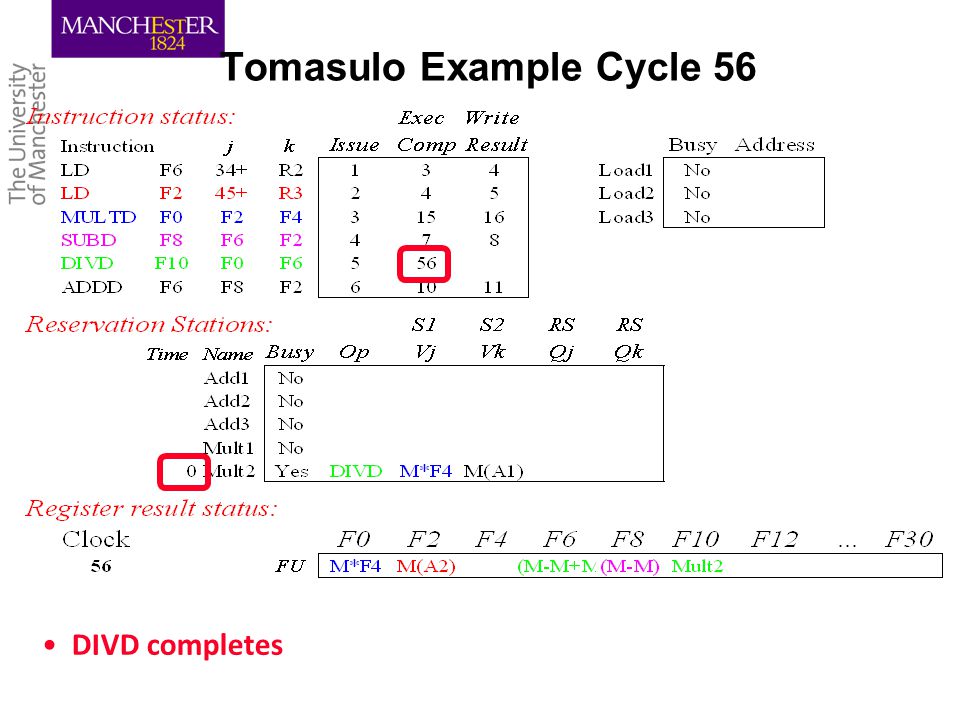

37 Tomasulo Example Cycle 56 DIVD completes

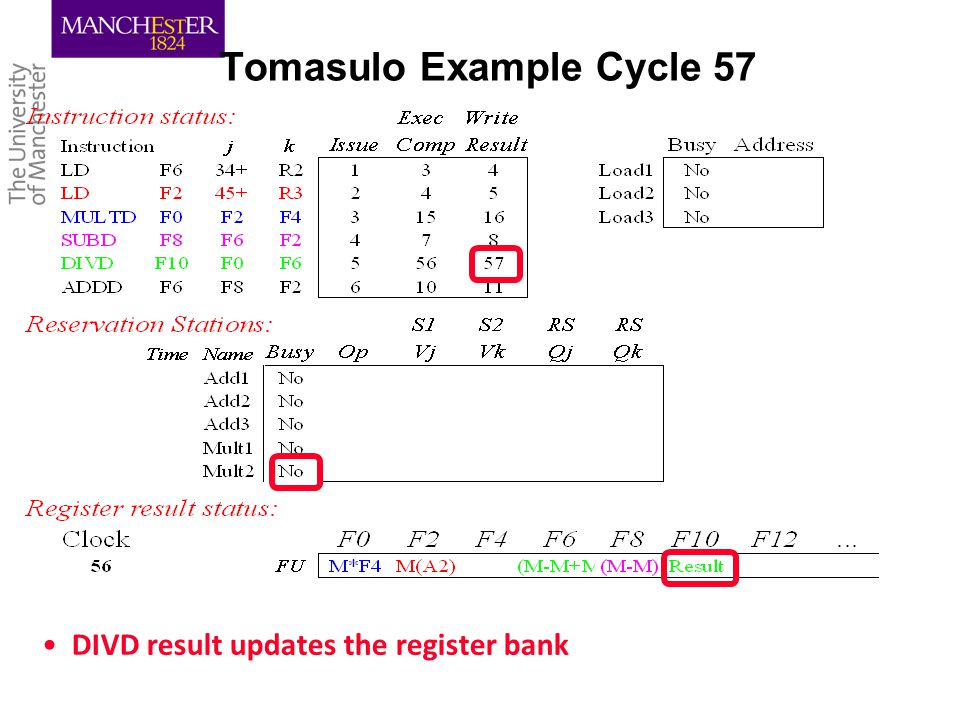

38 Tomasulo Example Cycle 57 DIVD result updates the register bank

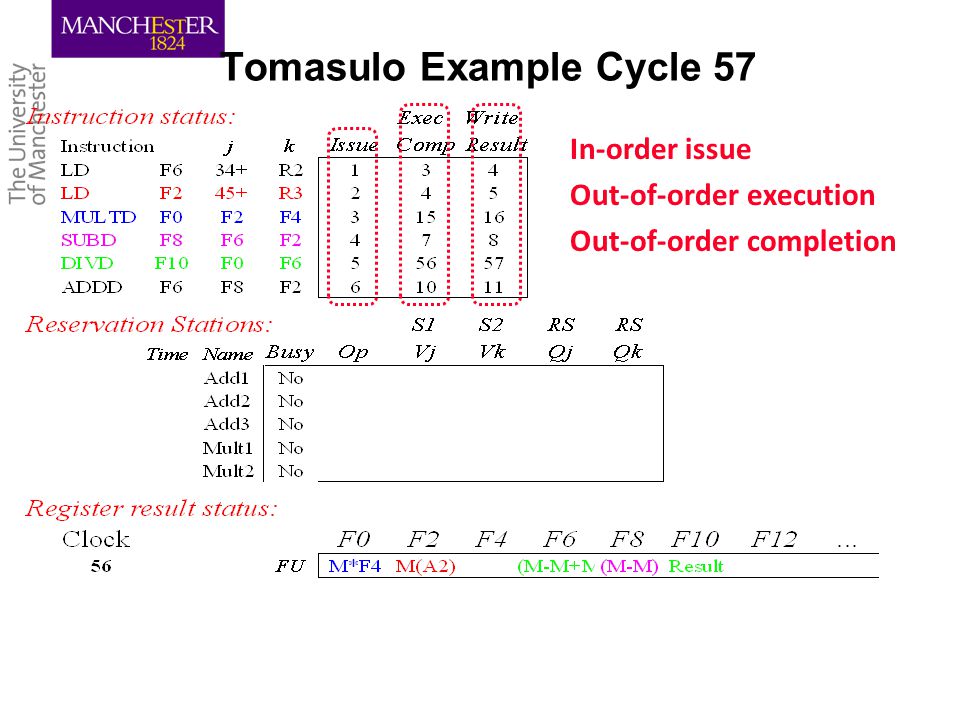

39 Tomasulo Example Cycle 57 In-order issue Out-of-order execution Out-of-order completion

40 Tomasulo’s advantages (1)Distributed hazard detection logic –distributed reservation stations and the CDB –If multiple instructions waiting on a single result, & each instruction has other operand, then instructions can be dispatched simultaneously by broadcasting on CDB –If a centralized register file were used, the units would have to read their results from the registers when register buses are available. (2) Avoids stalling due to WAW or WAR hazards

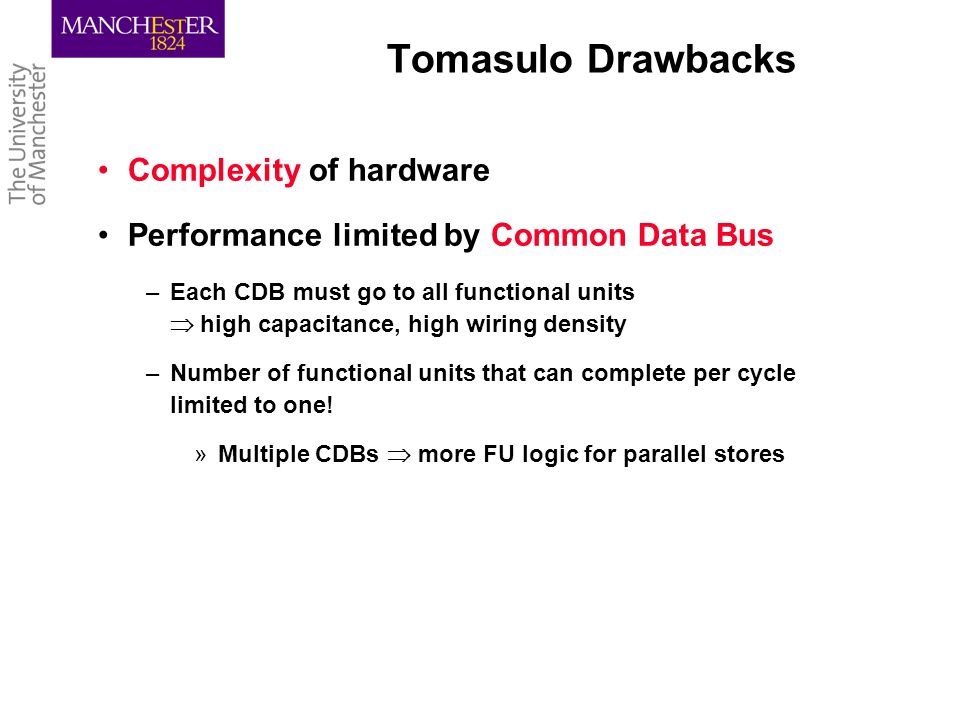

41 Tomasulo Drawbacks Complexity of hardware Performance limited by Common Data Bus –Each CDB must go to all functional units  high capacitance, high wiring density –Number of functional units that can complete per cycle limited to one! »Multiple CDBs  more FU logic for parallel stores

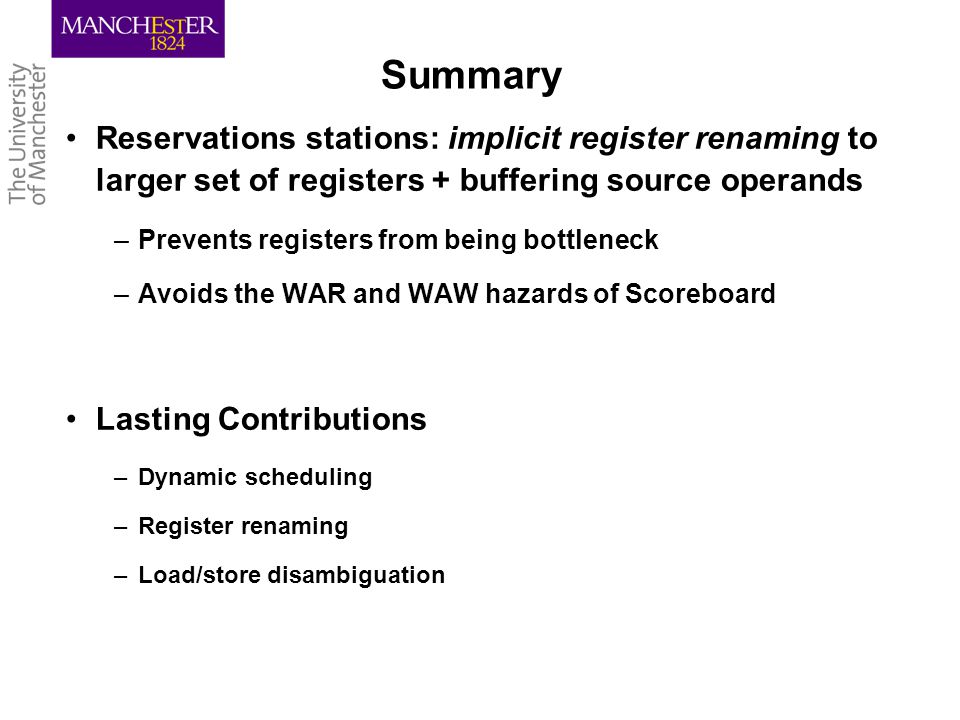

42 Summary Reservations stations: implicit register renaming to larger set of registers + buffering source operands –Prevents registers from being bottleneck –Avoids the WAR and WAW hazards of Scoreboard Lasting Contributions –Dynamic scheduling –Register renaming –Load/store disambiguation

43 Summary of Out-of-Order Processors

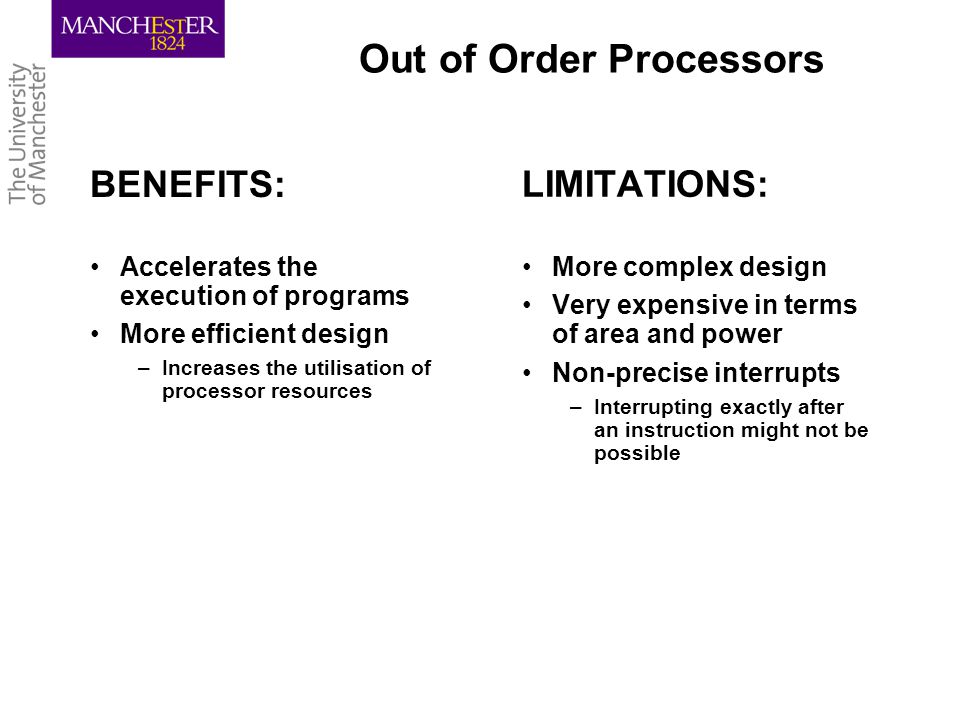

44 Out of Order Processors BENEFITS: Accelerates the execution of programs More efficient design –Increases the utilisation of processor resources LIMITATIONS: More complex design Very expensive in terms of area and power Non-precise interrupts –Interrupting exactly after an instruction might not be possible

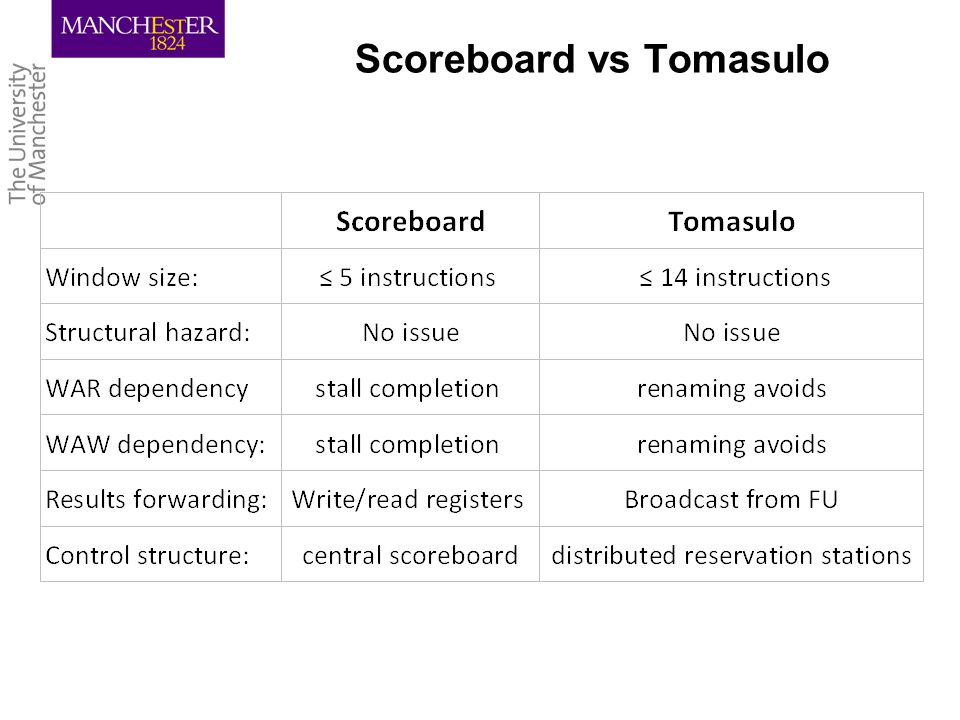

45 Scoreboard vs Tomasulo

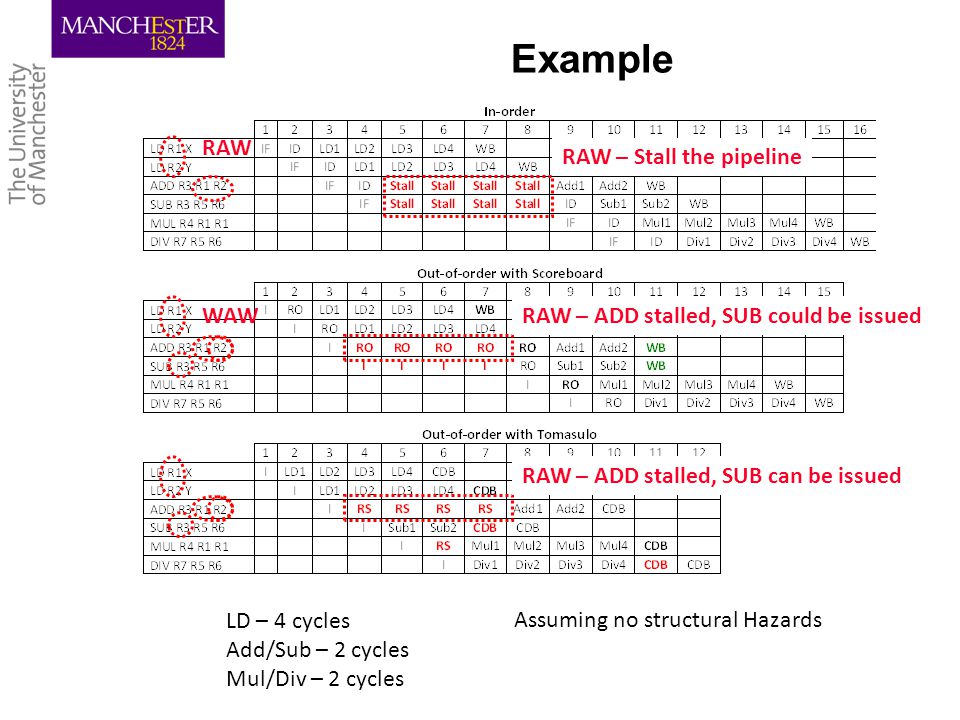

46 Example LD – 4 cycles Add/Sub – 2 cycles Mul/Div – 2 cycles Assuming no structural Hazards RAW – Stall the pipeline RAW – ADD stalled, SUB could be issued RAW – ADD stalled, SUB can be issued RAW WAW

47 Example LD – 4 cycles Add/Sub – 2 cycles Mul/Div – 2 cycles Assuming no structural Hazards WAW – Allowed by register renaming in RS WAW WAW –SUB cannot be issued Stall the pipeline

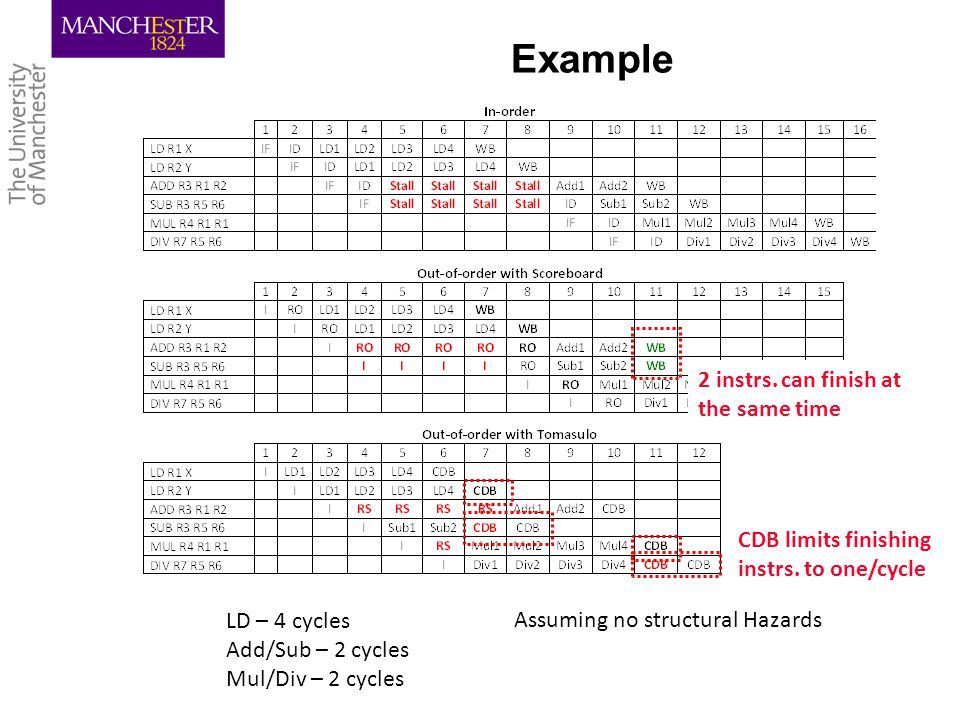

48 Example LD – 4 cycles Add/Sub – 2 cycles Mul/Div – 2 cycles Assuming no structural Hazards 2 instrs. can finish at the same time CDB limits finishing instrs. to one/cycle
