Boolean Algebra1 BOOLEAN ALGEBRA

3
Boolean Algebra2 BOOLEAN ALGEBRA -REVIEW Boolean Algebra was proposed by George Boole in 1853. Basically AND,OR NOT can be expressed as Venn Diagrams

4
Boolean Algebra3

5
4

6
5

7
6

8
7

9

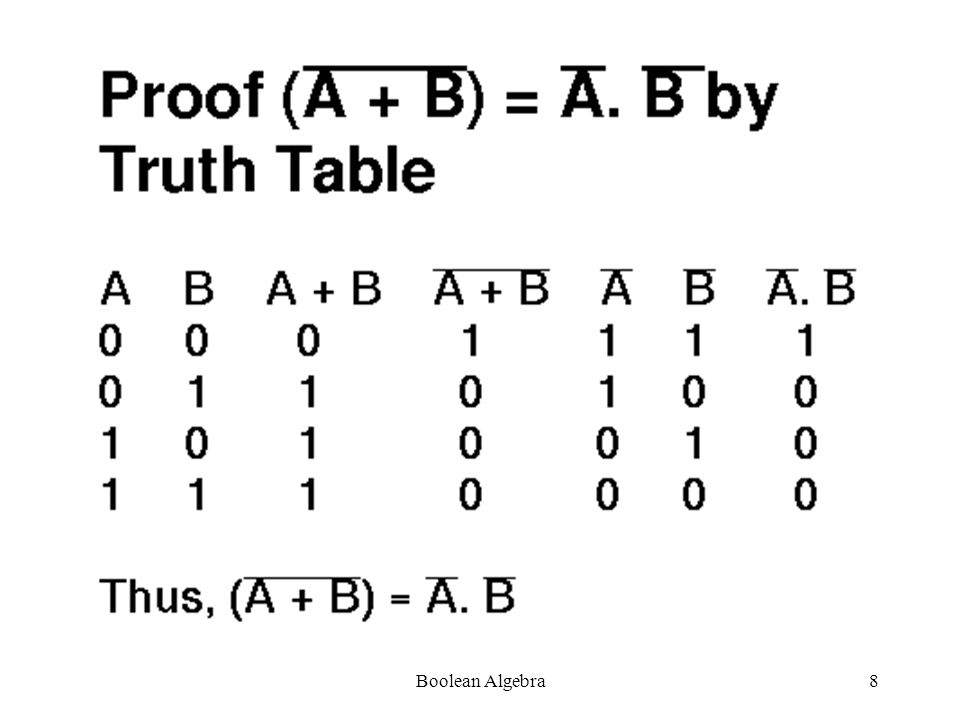

8

10
9

11
10

12
Boolean Algebra11

13
Boolean Algebra12

14
Boolean Algebra13

15
Boolean Algebra14

16
Boolean Algebra15 Min Terms and Max Terms Min Terms are those which occupy minimum area on Venn Diagram Max Terms are those which occupy maximum area on Venn diagram.

17
Boolean Algebra16

18
Boolean Algebra17

19
Boolean Algebra18

20

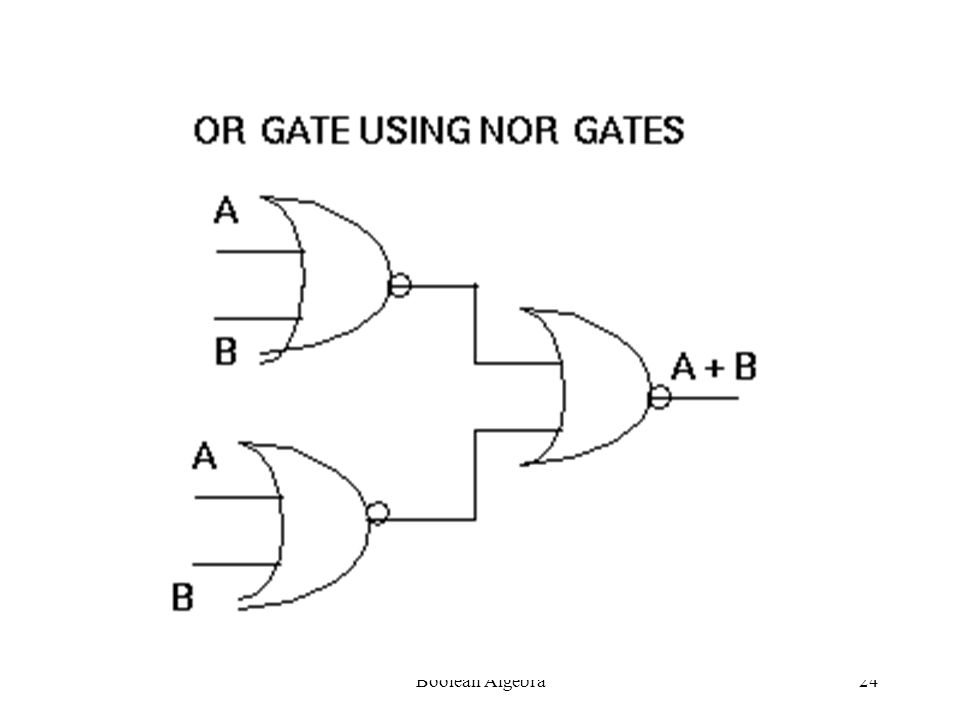

Boolean Algebra19 LOGIC GATES Nand and Nor gates are called Universal gates as any Boolean function can be realized with the help of Nand and Nor gates only

21
Boolean Algebra20 For example, NOT, OR, AND gates can be realized by only Nand gates.

22
Boolean Algebra21

23
Boolean Algebra22

24
Boolean Algebra23

25
Boolean Algebra24

26
Boolean Algebra25 SIMPLIFICATION OF BOOLEAN FUNCTIONS Algebraic Method Tabular Method K-Map Method Schienman Method

27
Boolean Algebra26 ALGEBRAIC METHOD Simplify using algebraic theorems Advantage: First Method based on Boolean Algebra theorems Disadvantage: No Suitable algorithm to apply (Trial type of method)

28
Boolean Algebra27 TABULAR METHOD Also called Quine McClusky Method Advantage: It may work for any no. of variables Disadvantage: Simplification from table is quite involved

29
Boolean Algebra28 K-MAP METHOD Karnaugh Map. Also called Vietch Karnaugh Method. Advantage: Simplest and Widely accepted Disadvantage: Applicable for only upto Six variables

30
Boolean Algebra29 SCHIENMAN METHOD Columnwise writing of minterms as decimal numbers and their simplification Advantage: Very suitable for computerization. Applicable for any number of variables. Parallel Processing Disadvantage: May not result in most simplified answer for some problems

31
Boolean Algebra30

32
Boolean Algebra31

33
Boolean Algebra32

34
Boolean Algebra33

35
Boolean Algebra34

36
Boolean Algebra35

37
Boolean Algebra36

38
Boolean Algebra37

39
Boolean Algebra38 Steps for simplification: Try to find single one’s –2 one’s –4 one’s –8 one’s Always see is a higher combination exists. If a higher combination exists, wait. Be sure that you have managed the lower combination first.

40
Boolean Algebra39

41
Boolean Algebra40

42
Boolean Algebra41

43

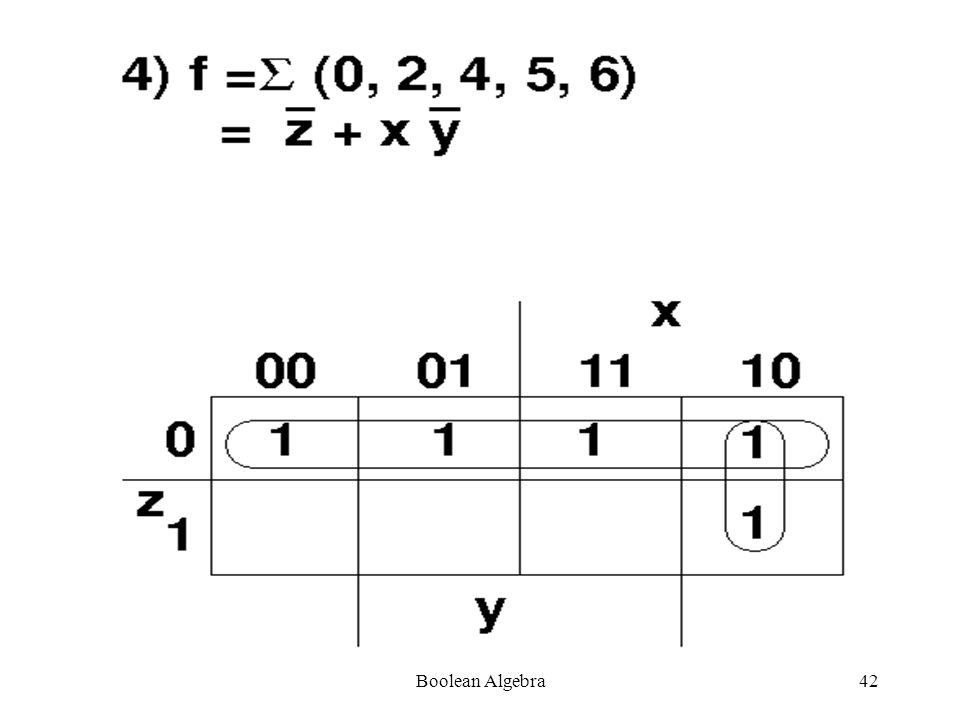

Boolean Algebra42

44
Boolean Algebra43

45
Boolean Algebra44

46
Boolean Algebra45

47
Boolean Algebra46

48
Boolean Algebra47

49
Boolean Algebra48

50
Boolean Algebra49

51
Boolean Algebra50

52
Boolean Algebra51

53
Boolean Algebra52

54
Boolean Algebra53

55
Boolean Algebra54

56
Boolean Algebra55

57
Boolean Algebra56

58
Boolean Algebra57

59
Boolean Algebra58

60
Boolean Algebra59 SYMMETRIC FUNCTIONS DEFINITION PROPERTIES IDENTIFICATION

61
Boolean Algebra60 Definition A switching function of n variables f(X1,X2….Xn) is called a symmetric (or totally symmetric), if and only if it is invariant under any permutation of its variables. It is partially symmetric in the variables Xi,Xj where {Xi,Xj} is a subset of {X1,X2…Xn} if and only if the interchange of the variables Xi,Xj leaves the function unchanged.

62
Boolean Algebra61 EXAMPLES f(x,y,z) = x’y’z+xy’z’+x’yz’ If we substitute x = y and y = x x = z and z = x y = z and z = y TOTALLY SYMMETRIC with respect to x,y,z f(x,y,z) = x’y’z + xy’z’ is Prettily Symmetric in the variables x and z. (x = z and z = x) f(x,y,z) = z’y’x + zy’x’ is a Symmetric function (x = y and y = x)

63
Boolean Algebra62 f(x,y,z) = y’x’z +yx’z’) is Not a Symmetric function This function is symmetric w.r.t x and z, but not symmetric w.r.t x and y. So Partially Symmetric f(x1,x2,x3) = x1’x2’x3’ + x1x2’x3+ x1’x2x3 is not symmetric w.r.t. the variables x1,x2,x3, but is symmetric w.r.t the variables x1,x2,x3’ >> f is not invariant under an interchange of variables x1,x3. That is, x3’x2’x1’+x3x2’x1 +x3’x2x1 != f >> But f is invariant under an interchange of variables x1,x3’ That is, x3x2’x1 + x3’x2’x1 + x3x2x1’ = f So f is symmetric w.r.t the variables x1,x2 and x3’

64
Boolean Algebra63 The variables in which a function is symmetric are called the VARIABLES OF SYMMETRY

65
Boolean Algebra64 Necessary and Sufficient condition for function f(x1,x2….xn) to be symmetric is that it may be specified by a set of numbers {a1,a2…ak} where 0

66
Boolean Algebra65 A Symmetric function is denoted by S a1,a2…ak (x1,x2….xn), where S designates the property of symmetry, the subscripts designate the a numbers, and (x1,x2….xn) designate the variables of symmetry.

67
Boolean Algebra66

68
Boolean Algebra67

69
Boolean Algebra68

70
Boolean Algebra69

71
Boolean Algebra70 IDENTIFICATION The switching function to be tested for symmetry is written as a table in which all the minterms contained in the function are listed by their binary representation

72
Boolean Algebra71 For example, the function f(x,y,z) = (1,2,4,7) is written as shown: x y z a#The arithmetic sum of each 0 0 1 1column in the table is computed 0 1 0 1written under the column. This 1 0 0 1sum is referred to as a column- 1 1 1 3sum. The number of 1’s in each 2 2 2row is written in the corresp. position in column a#. This no. is called ROW SUM.

73
Boolean Algebra72 If an n-variable function is symmetric and one of its row sums is equal to some number a, then, by definition, there must exist n!/(n-a)!a! rows which have the same row sum. If all the rows occur the required number of times, then all colums sums are identical

74
Boolean Algebra73 For the example, all column sums equal 2, and there are two row sums, 1 and 3, that must be checked for “Sufficient Occurrence”. >> 3!/(3-1)! = 3 ; 3!/(3-3)! = 1 Both row sums occur the required number of times. Therefore, the function is symmetric and can be expressed by S 1,3 (x,y,z).

75
Boolean Algebra74

76
Boolean Algebra75 The column sums are 6 4 4 6 Since the column sums are not all the same, further tests must be performed to determine if the function is symmetric, and if it is, to find its variables of symmetry. The column sums can be made the same by complementing the columns corresponding to variables x and y.

77
Boolean Algebra76

78
Boolean Algebra77 The new column sums are now computed and are found identical. The row sums are determined next and entered as a#. Each row sum is tested by the binomial co-efficient occurrence. 4!/(4-2)! = 6 ; 4! /(4-3)!3! = 4 Since, all row sums occur the required number of times, the function is symmetric,its variables of summetry are w,x’,y’,z and its a numbers are 2 and 3. ( f = S 2,3 (w,x’,y’,z))

79
Boolean Algebra78 If columns w and z are complimented, instead of x and y, the table shown below results and \ since all its row sums occur the required no. of times, f can be written as f = S 1,2 (w’,x,y,z’)

80
Boolean Algebra79

81
Boolean Algebra80 The column sums are all identical, but row sum 2 does not occur six times as required. One way to overcome this difficulty is by expanding the function about any one of its variables

82
Boolean Algebra81 The function can be expanded about w. w x y z a# Column Sums : 0 0 0 0 0x y z 0 0 1 1 21 1 2 0 1 0 1 2 The column sums can be made by complementing the columns corresponding to variables x and y.

83
Boolean Algebra82 x’ y’ z a# Column Sums: 1 1 0 2x y z 1 0 1 22 2 2 0 1 1 2 Each row is tested by the binomial coefficients for sufficient occurrence. 3!/(3-2)!2! = 3 Symmetry: S 2 (x’,y’,z)

84
Boolean Algebra83 w x y z a# 1 0 1 0 1The column sums can be made 1 1 0 0 1the same by complementing 1 1 1 1 3the columns corresponding 2 2 1to variable z. x y z’ a# 0 1 1 2Each row is tested by the 1 0 1 2binomial coefficients for 1 1 0 2sufficient occurrence. 2 2 2

85
Boolean Algebra84 3!/(3-2)! 2! = 3 Symmetry:S 2 (x,y,z’) So the function f is written as f=w’S 2 (x’,y’,z) + wS 2 (x,y,z’)

86
Boolean Algebra85 questions?
