2 UC403: Lync & Network Interaction
Lars H. Sørensen Solution Architect, Microsoft Unified Communications Atea Denmark

3 Agenda Lync & Network Interaction Call Setup Bandwidth Usage
Enemies on the Network What to do ?

4 Lars H. Sørensen Aarhus, Denmark Solution Architect 19+ years in IT
10+ years with Microsoft UC

5 Call Setup

6 Protocols Session Initiation Protocol (SIP)
Session Description Protocol (SDP) Interactive Connectivity Establishment (ICE) Session Traversal Utilities for NAT (STUN) Traversal Using Relay NAT (TURN)


8 Call Setup IP Candidate Discovery Invite & IP Candidate Exchange
Connectivity Checks Candidate Promotion

9 IP Candidate Discovery
b Allocate UDP b c c d Allocate TCP e d e

10 Invite & IP Candidate Exchange
w y z a b c d e SIP INVITE a,b,c,d,e a b c d e w y z 183 Session Progress w,y,z 200 OK w,y,z a c a b w b e c d y d e z

11 Connectivity Checks Determine all possible UDP and TCP port pairings
STUN packets sent between port pairs in order STUN packet response indicates connectivity Stop checks when candidate pair has bi-directional connectivity

12 Candidate Promotion Select highest order candidate with validated connectivity Send SIP invite, indicating only candidate is in SDP 200 OK also contains only one candidate in SDP Note there will be two candidates, one RTP and one RTCP Media is redirected to flow on optimal, validated path

13 Connectivity Checks & Candidate Promotion
w y z a b c d e SIP INVITE b û û a b c d e w y z 200 OK y û û û û û û û ü ü û û û û û û û û û ü ü û c û a û w b e ü ü û y d ü ü z

14 NAT (Home) Network Address Translation General NAT/Firewall behavior
Translates one or more internal addresses to one external address General NAT/Firewall behavior Allow connections from the private network Blocks connection from the Internet Security/usability tradeoff Blocks attackers from harming your system PROBLEM: Also blocks incoming signaling and media

15 NAT (Corporate) Though more scrutinized, goals are similar
Sharing of IP addresses Controlling data traffic from the internet Two firewalls isolate via perimeter network PROBLEM: Also blocks incoming and outgoing signaling and media

16 Why is NAT Traversal a problem ?
SIP signaling over TCP uses Access Edge UDP media flows over separate channel Pre-ICE endpoints uses local IPs & ports No media can be sent between (a) and (w) INVITE m/c = a 200OK m/c = w a w

17 Types of NAT Full Cone NAT IP Address Restricted NAT
Port Restricted NAT Symmetric NAT

18 Full Cone, IP Address Restricted & Port Restricted
STUN will be supported Type Inside Host (H1) NAT Outside Host Full Cone :1111 :2222 *:* IP Address Restricted :1111 :2222 :* IP Address Restricted :1111 :2222 :* Port Restricted :1111 :2222 :3333 Port Restricted :1111 :2222 :4444

19 Symmetri NAT Does not work with STUN, must use TURN Type
Inside Host (H1) NAT Outside Host Symmetri :1111 :1234 :3333 Symmetri :1111 :2345 :4444

20 STUN, TURN, ICE Add a Media Relay (aka A/V Edge Server)
STUN reflects NAT addresses (b) and (e) TURN relays media packets (c) (d) (x) (y) ICE exchanges candidates (cand) and determines optimal media path INVITE m/c = a 200OK m/c = w cand=a,b,c,d,e cand=w,x,y a b c w e d x y

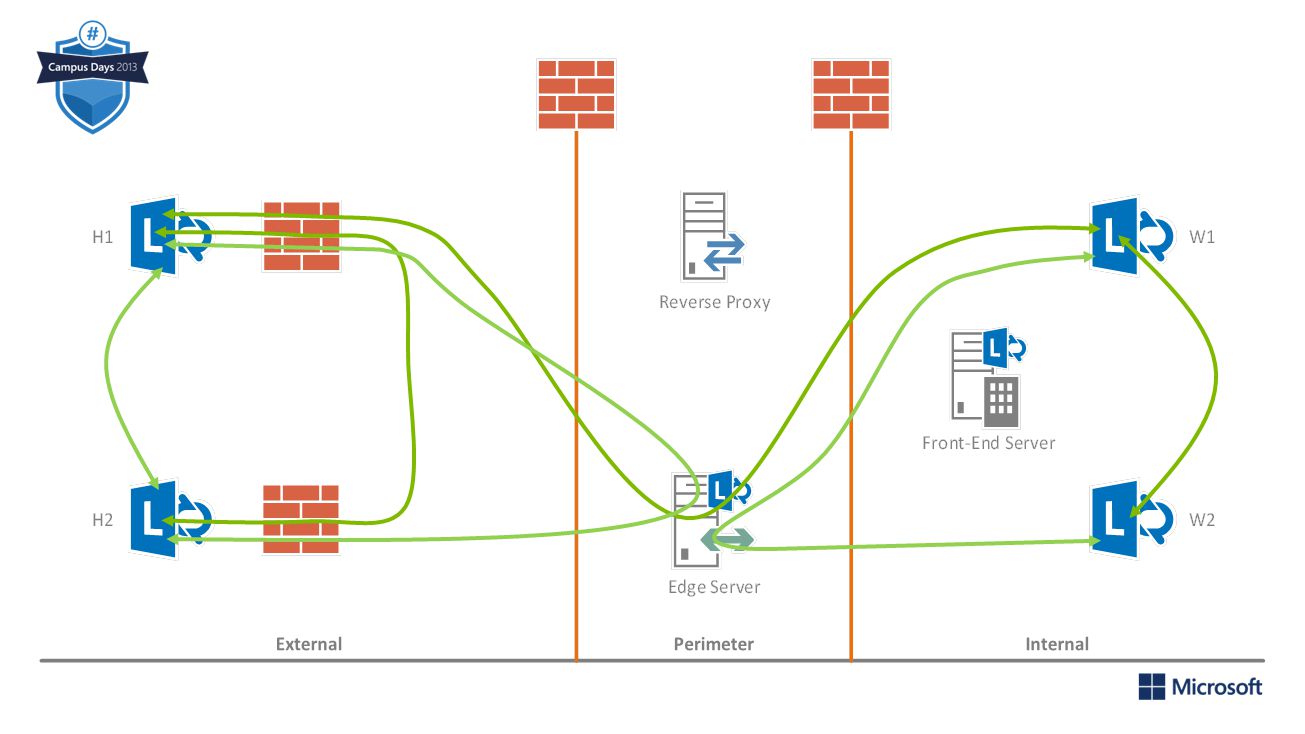

21 Internal to Internal Call
UDP 3478 TCP 443 w1 UDP/TCP 50000 . 59999 w1 w1 w2 w2 w2

22 Internal to External Call
h1 UDP 3478 TCP 443 h1 h1 w1 UDP/TCP 50000 . 59999 h1 h1 w1 w1

23 External to External Call
h1 UDP 3478 TCP 443 h1 h1 UDP/TCP 50000 . 59999 h2 h2 h2 h2 h1 h2 h1


25 Bandwidth Usage

26 P2P Call Media Codec Typical stream bandwidth (Kbps)
Audio 62 Kbps Video 4010 Kbps Media Codec Typical stream bandwidth (Kbps) Maximum stream bandwidth without FEC Maximum stream bandwidth with FEC Audio RTAudio Wideband 39.8 62 91 RTAudio Narrowband 29.3 44.8 56.6 Main video when calling Lync 2013 endpoints H.264 460 4010 (for maximum resolution of 1920x1080) Not applicable

27 Conference Call Audio Video (MultiView) 1xTx 1x101Kbps = 101Kbps
2xRx 2x101Kbps = 202Kbps Video (MultiView) Default (212x160) 3xTx 1x260Kbps = 780Kbps 3xRx 2x260Kbps = 1560Kbps PopOut (424x320) 2xTx 1x460Kbps and 3xTx 1x260Kbps = 1700Kbps 1xRx 2x460Kpbs and 2xRx 2x260Kbps = 1960Kbps

28 Enemies on the Network

29 Latency Latency vs. Round Trip Time (RTT)
Provision your network to ensure a maximum end-to-end delay (latency) of 150 milliseconds (ms) under peak load. When latency is high, users will likely hear the words, but there will be delays in sentences and words. Lync Monitoring Thresholds < 200 ms is good > 200 ms is poor > 500 ms is bad

30 Jitter Variability of packet delay. Results in a distorted or choppy experience. Jitter can increase total latency Lync Monitoring Thresholds < 20 ms is good > 30 ms is not good (but can be ‘ok’) > 45 ms is considered very bad

31 Packet Loss Represents the % of packets that did not make it to their destination. Packet loss will cause the media to be distorted or missing. Lync Monitoring Thresholds < 3% is considered good > 5% will impact audio > 7% is not good > 10% is very bad Divide by two when media is video.

32 Wi-Fi Usual built for data and fixed location Off-Channel Scanning
Handover Performance Rate Adaption and TX Retries Lack of QoS Devices / BYOD

33 What to do ?

34 Optimal Media Path Direct before relay UDP before TCP

35 Optimal Media Path Port range open Port range closed 443 TCP 3478 UDP
50,000 port range 50,000 port range 443 TCP 3478 UDP 443 TCP 3478 UDP 50,000 port range 50,000 port range

36 Quality of Service (QoS)
What is QoS? Quality of Service (QoS) is a combination of networking technologies that enables organizations to optimize the end-user experience for real time audio and video communications When is QoS needed? QoS is commonly used when network bandwidth is limited QoS is needed when there is a possibility of network congestion

37 Quality of Service (QoS)

38 Quality of Service (QoS)
Lync Server 2013 enables both defined port ranges and DSCP marking WMM-capable wireless access points translate DSCP markings into the equivalent WMM tag value Validating QoS on Lync Endpoints

39 Quality of Service (QoS)
Lync Monitoring Server and Reports is your best friend.

40 A word or two on Wi-Fi Delivering Lync 2013 Real-Time Communications over Wi-Fi:

41 Resources Lync Deep Dive: Edge Media Connectivity with ICE
Network Bandwidth Requirements for Media Traffic Lync 2010 and 2013 Bandwidth Calculator Network Planning, Monitoring, and Troubleshooting with Lync Server Delivering Lync 2013 Real-Time Communications over Wi-Fi

42 Match of technical Level
Evaluation Scale: 1 = Very bad 2 = Bad 3 = Relevant 4 = Good 5 = Very Good! Questions: Speaker Performance Relevance according to your work Match of technical level according to published level Comments Evaluation Create a Text message on your phone and send it to 1919 with the content: UC I liked it a lot Session Code Lars Performance (1 to 5) Relevance (1 to 5) Match of technical Level (1 to 5) Comments (optional)
