Signal reconstruction from multiscale edges A wavelet based algorithm

2
Author Yen-Ming Mark Lai (ylai@amsc.umd.edu)ylai@amsc.umd.edu Advisor Dr. Radu Balan rvbalan@math.umd.edu CSCAMM, MATH

3
Motivation Save edges

4
Motivation Save edge type sharp one- sided edge sharp two- sided edge “noisy” edges

5

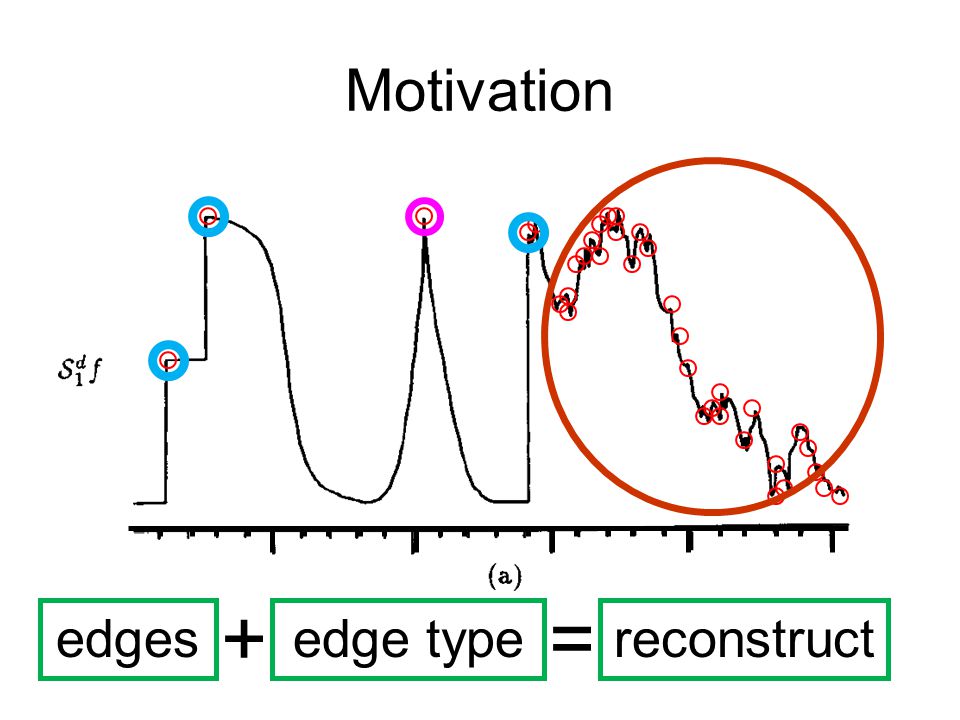

Motivation edgesedge typereconstruct +=

6
Algorithm Decomposition + Reconstruction

7

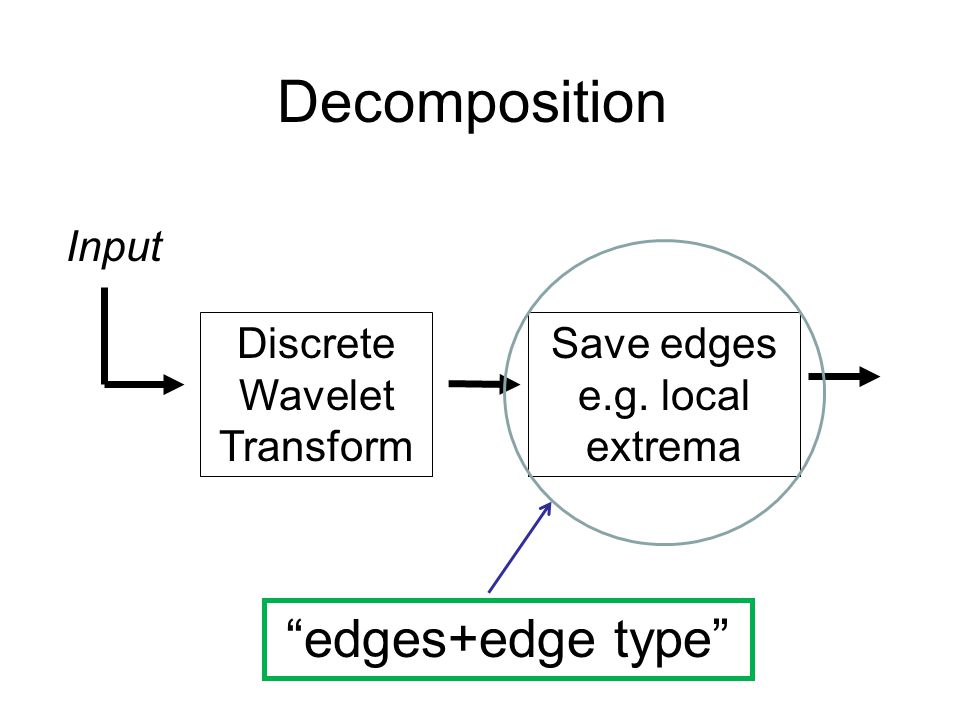

Decomposition Discrete Wavelet Transform Save edges e.g. local extrema Input “edges+edge type”

8

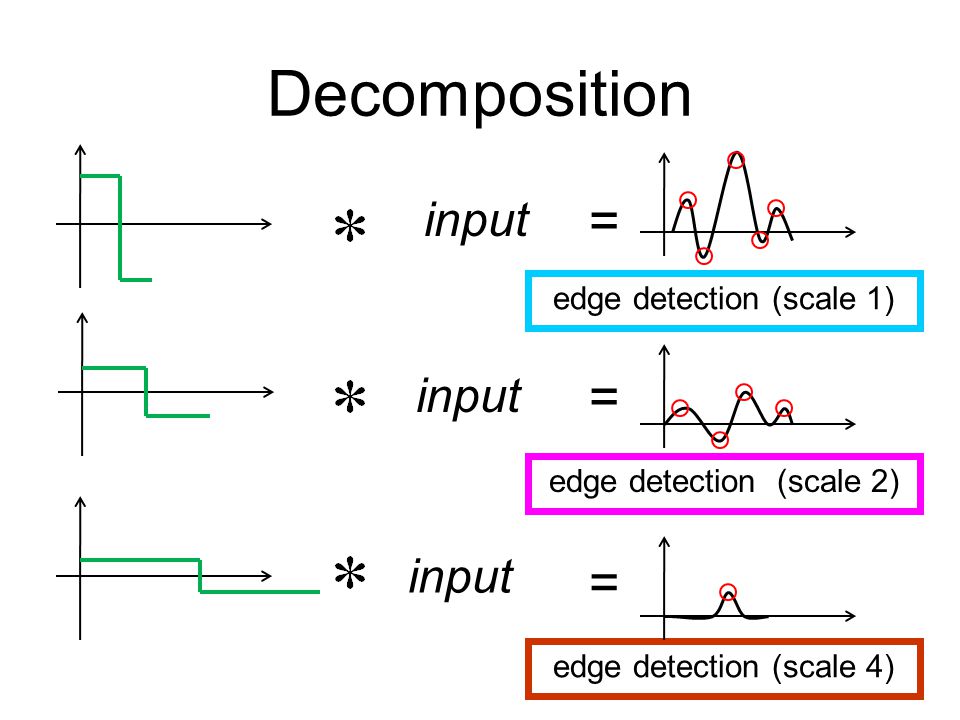

Decomposition input edge detection (scale 1) edge detection (scale 2) edge detection (scale 4) = = =

9

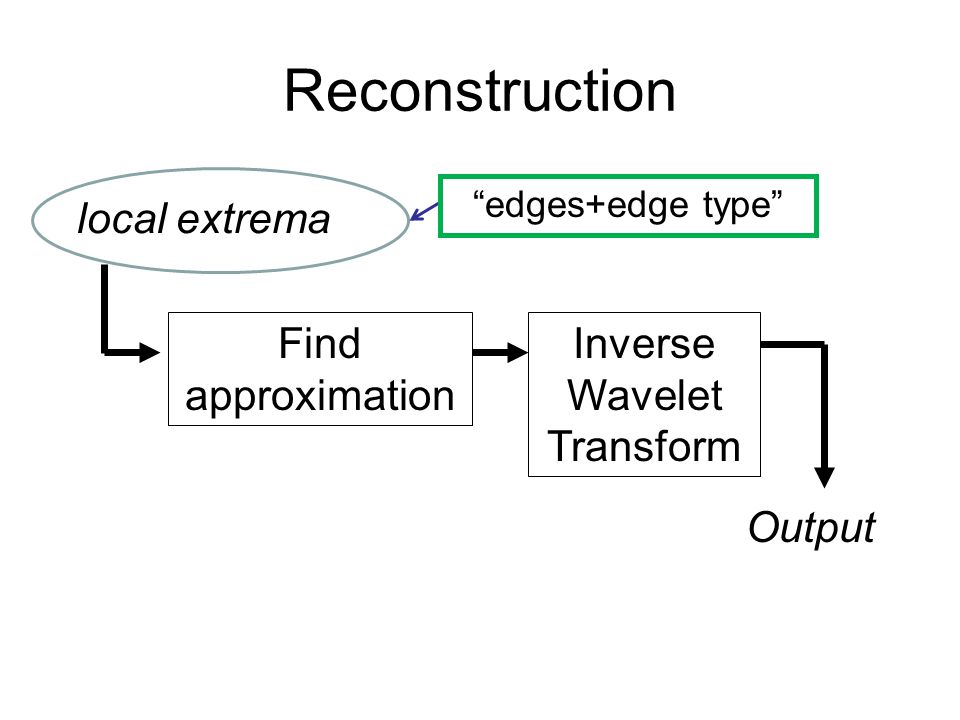

Reconstruction Find approximation Inverse Wavelet Transform Output local extrema “edges+edge type”

10
How to find approximation? Find approximation local extrema “edges+edge type”

11
Find approximation (iterative) Alternate projections between two spaces

12
Find approximation (iterative) sequences of functionswhose H1 normis finite

13

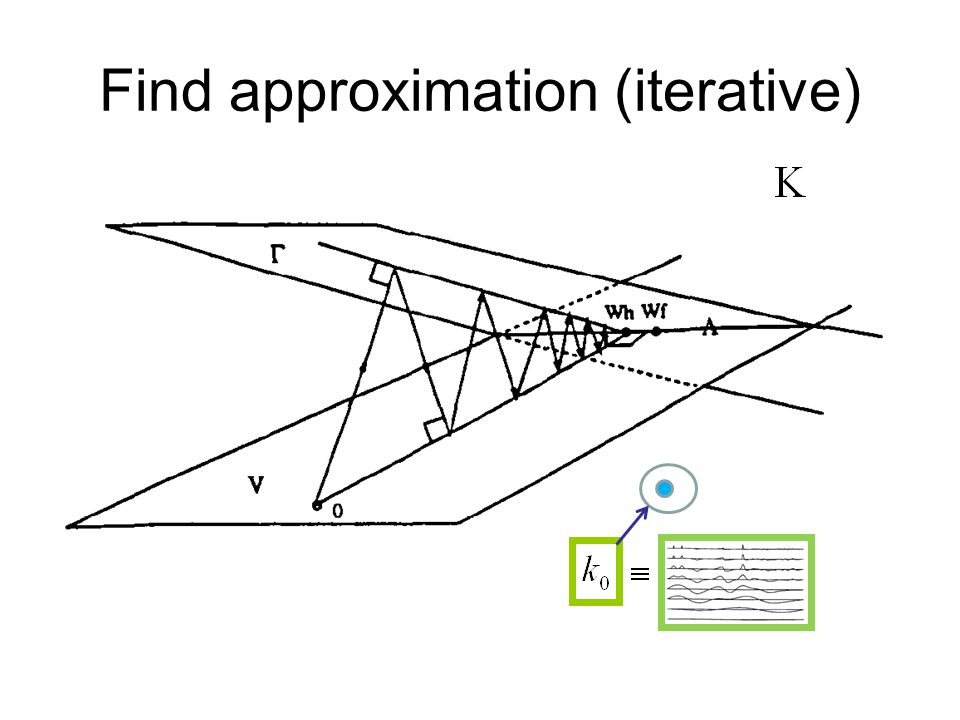

Find approximation (iterative)

14
sequences of functions: 1) interpolate input signal’s wavelet extrema 2) have minimal H1 norm

15

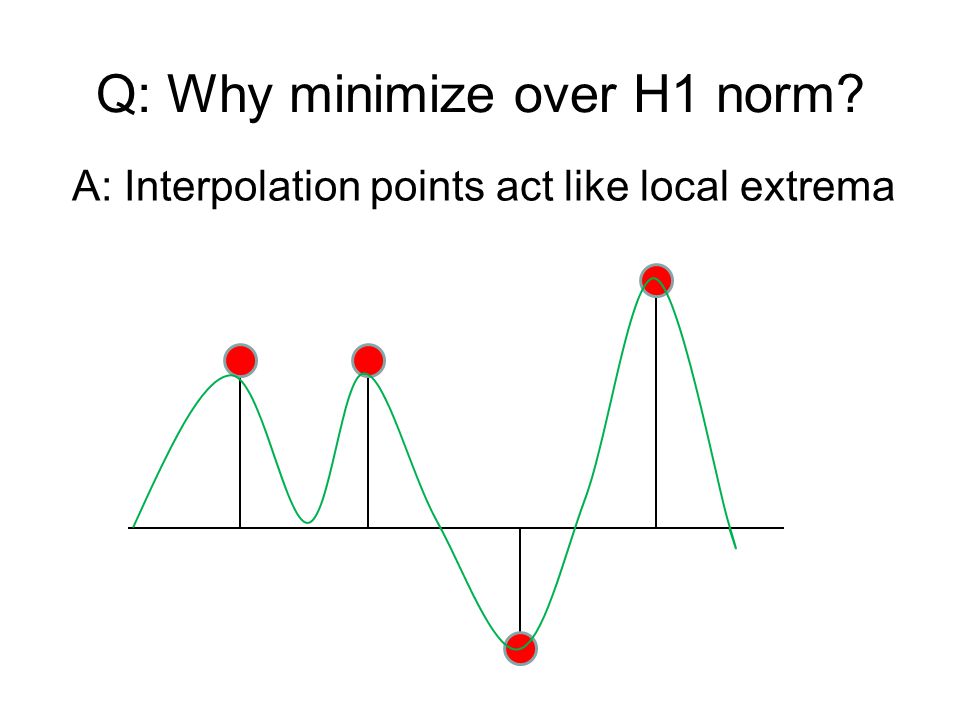

Q: Why minimize over H1 norm? A: Interpolation points act like local extrema

16
Numerical Example algorithm interpolates between points unclear what to do outside interpolation points

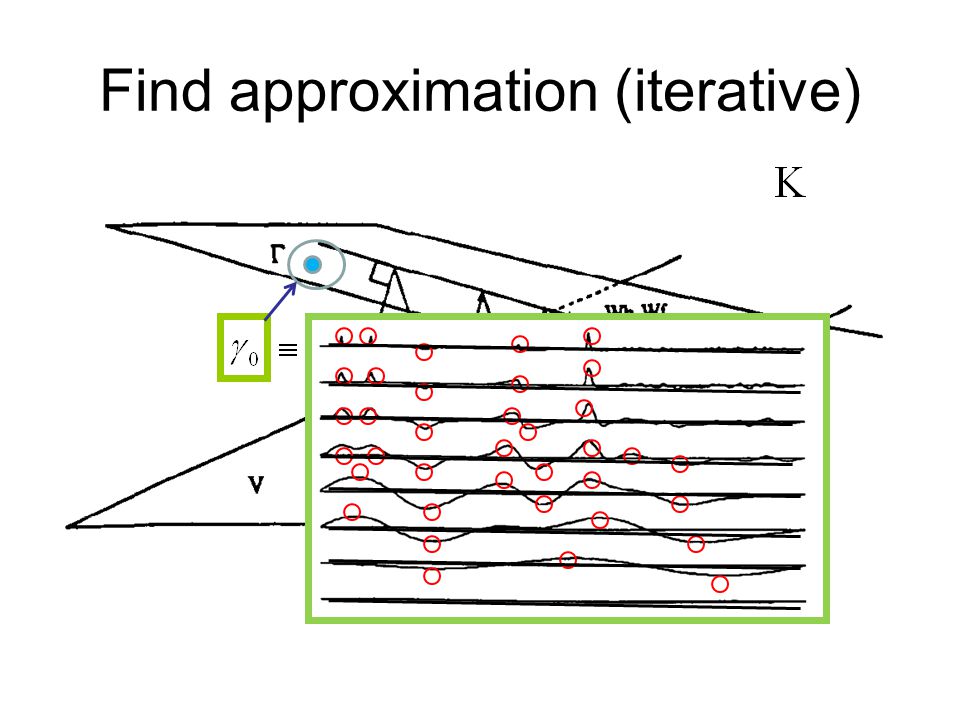

17
Find approximation (iterative)

18
dyadic wavelet transforms of L^2 functions

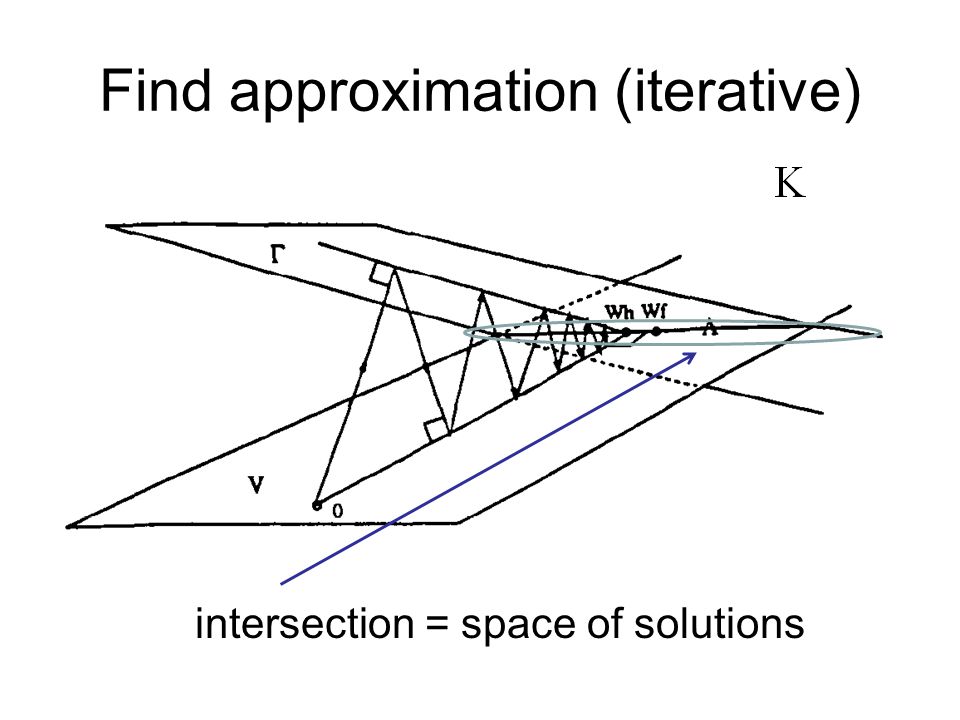

19
Find approximation (iterative) intersection = space of solutions

20

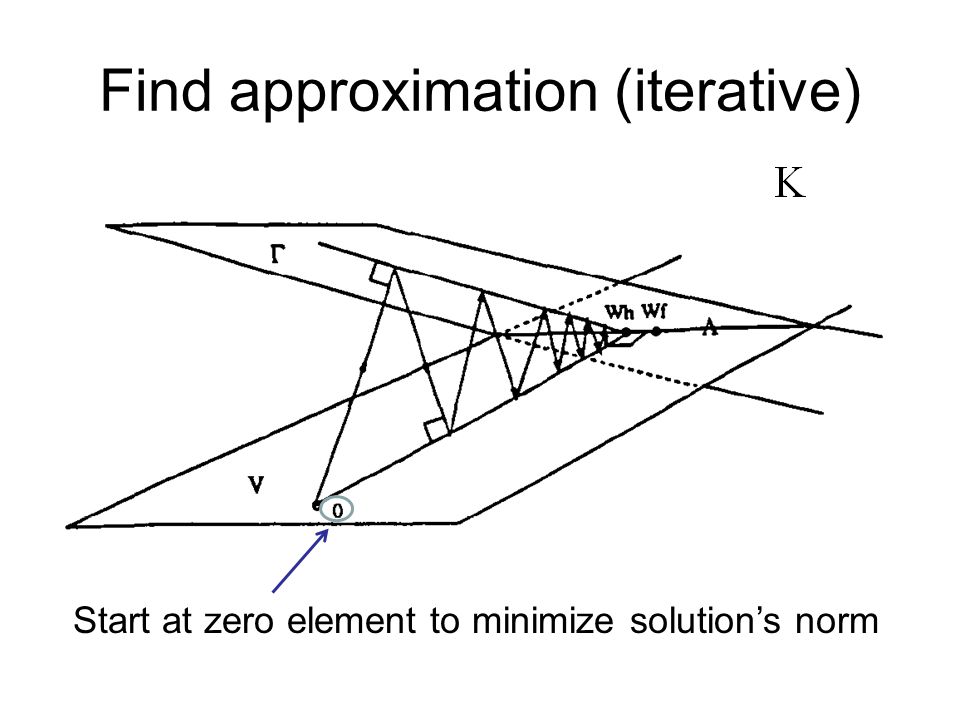

Find approximation (iterative) Start at zero element to minimize solution’s norm

21
Preliminary Results

22
Step Edge (length 8)

23

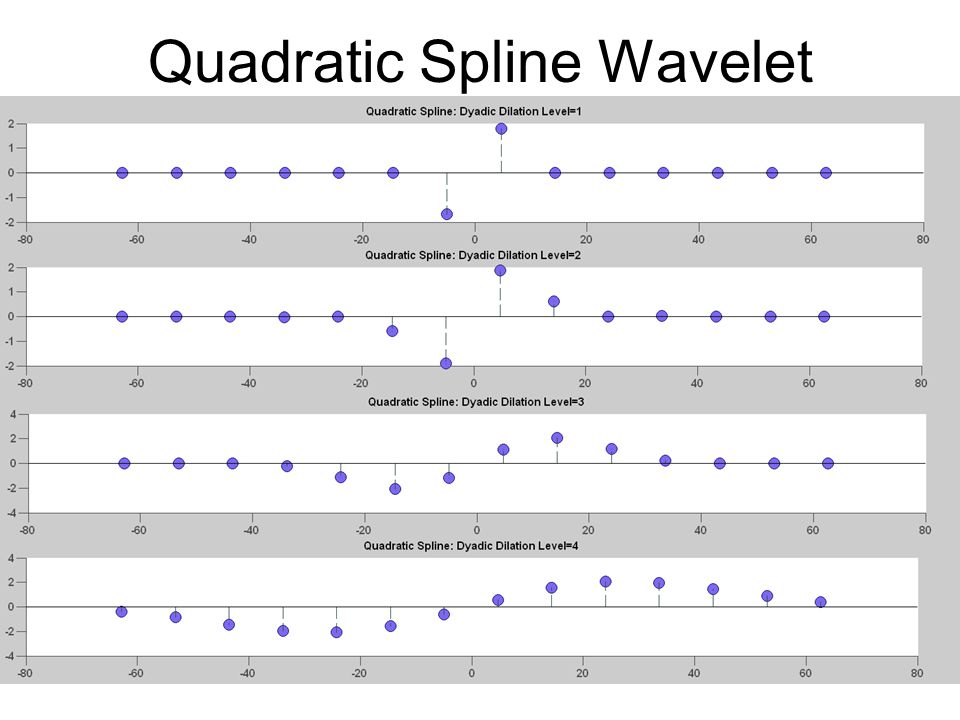

Quadratic Spline Wavelet

24

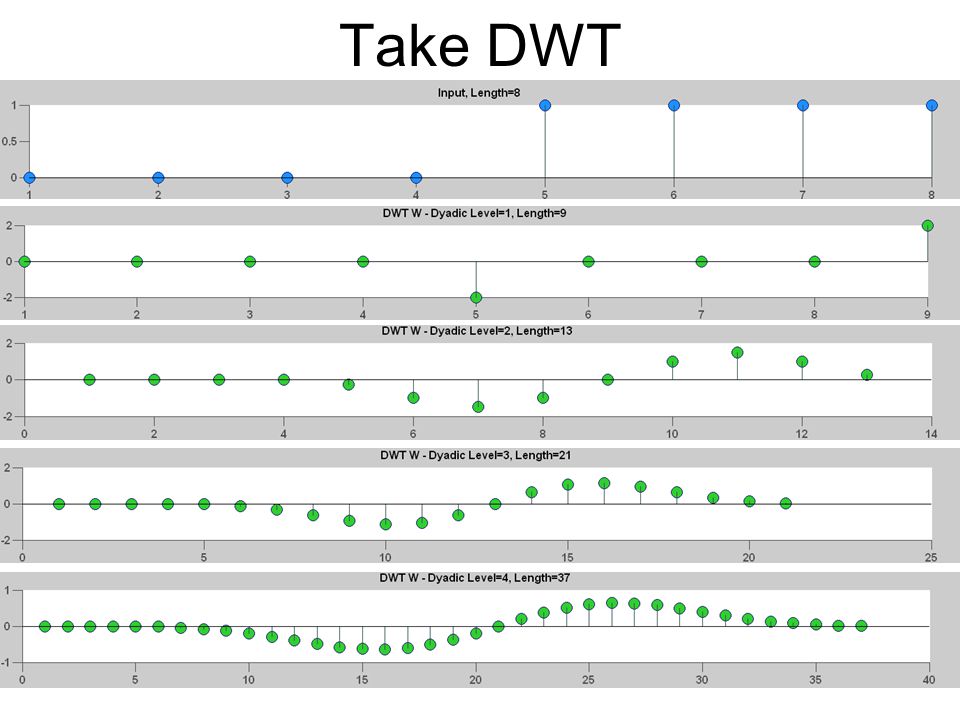

Take DWT

26
[1,-1](, Convolution in Matlab * [0,0,0,0,1,1,1,1]conv) next current +=next-current

27
* Convolution in Matlab next-current =0 next-current=-1

28

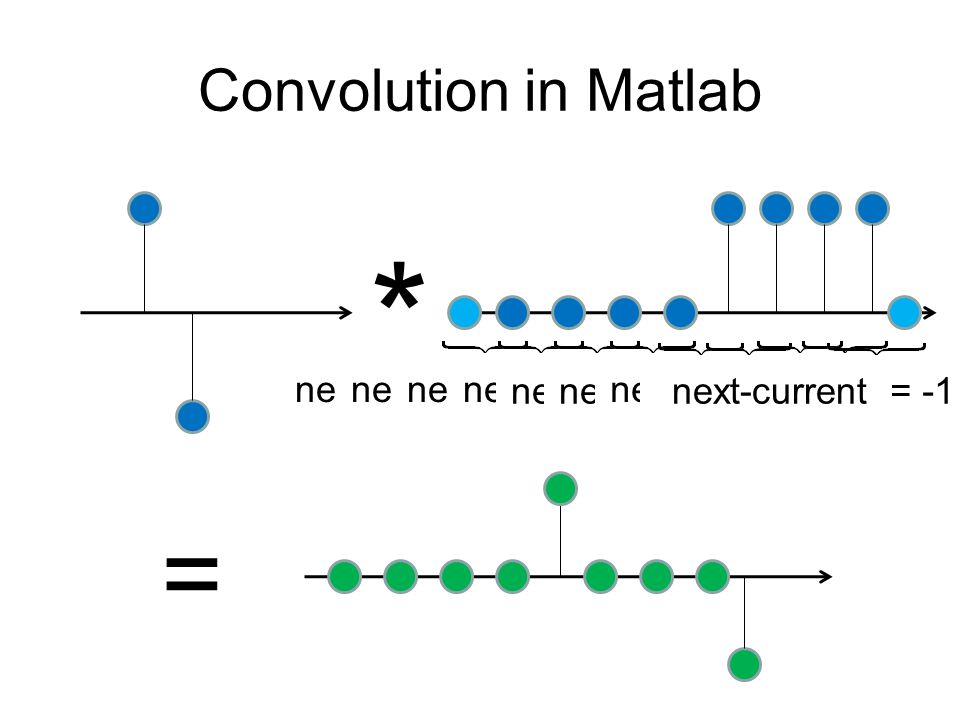

* Convolution in Matlab = next-current= 0next-current= 0next-current= 0next-current= 0next-current= 1next-current= 0next-current= 0next-current= 0 next-current= -1

29

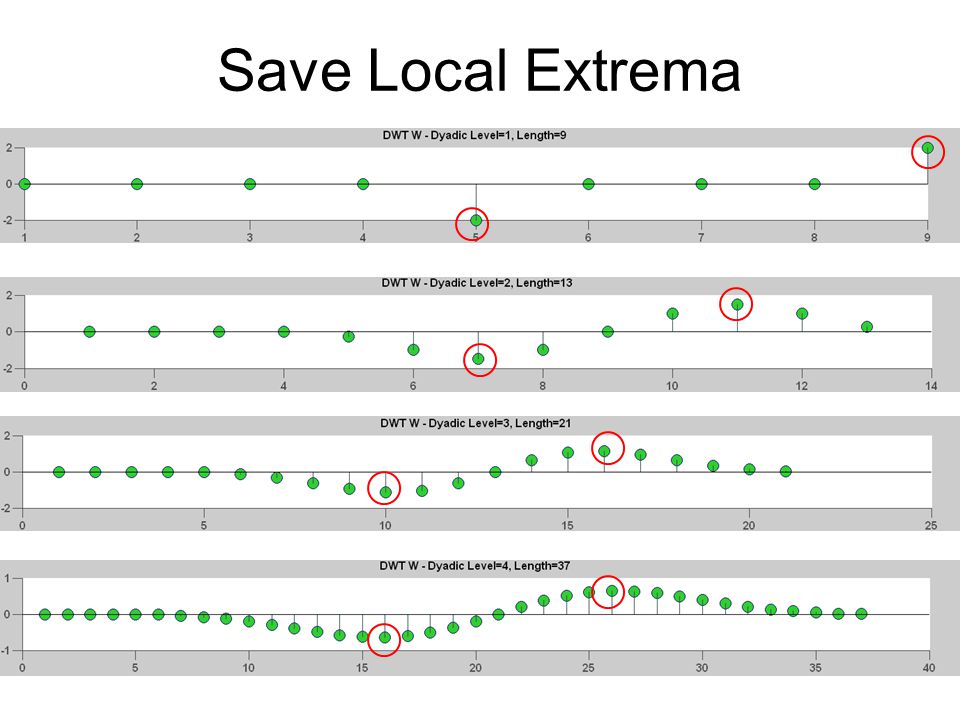

Save Local Extrema

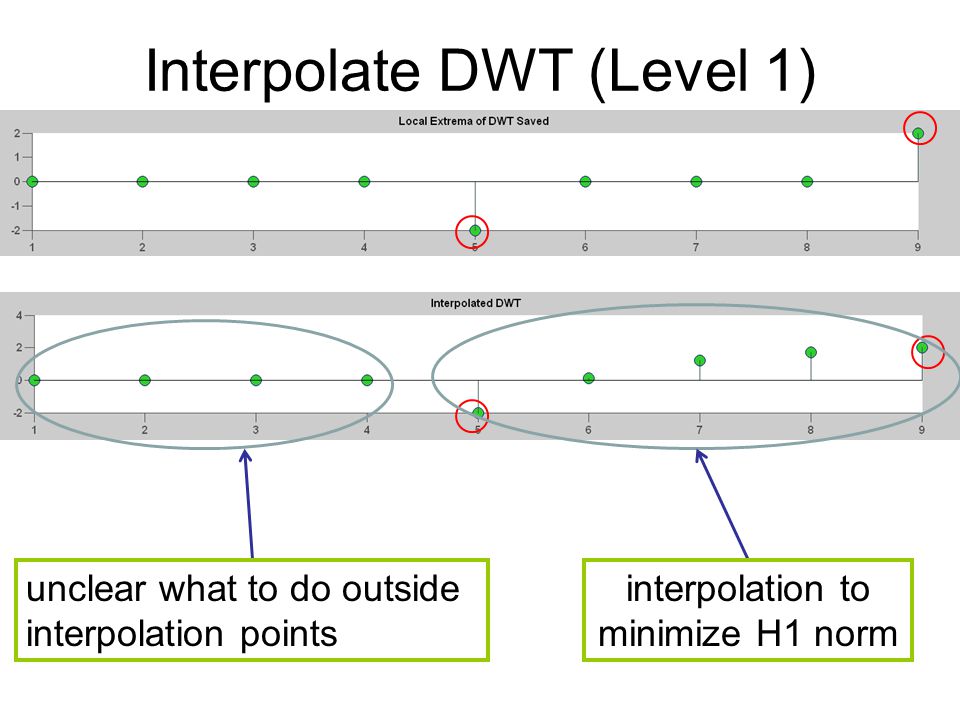

31

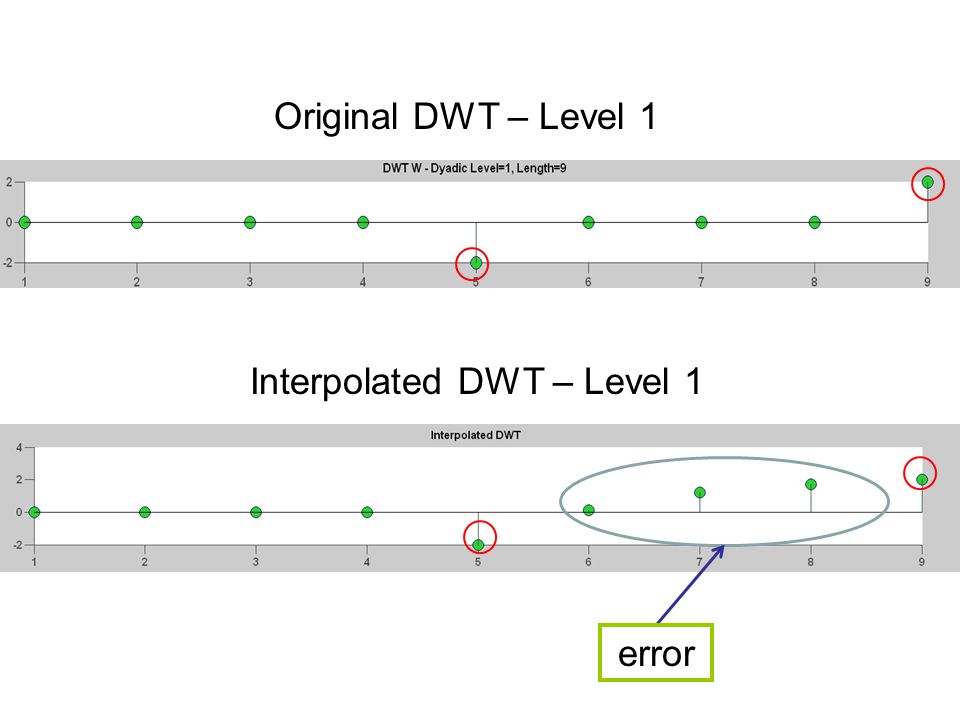

Interpolate DWT (Level 1) interpolation to minimize H1 norm unclear what to do outside interpolation points

32
error Original DWT – Level 1 Interpolated DWT – Level 1

33

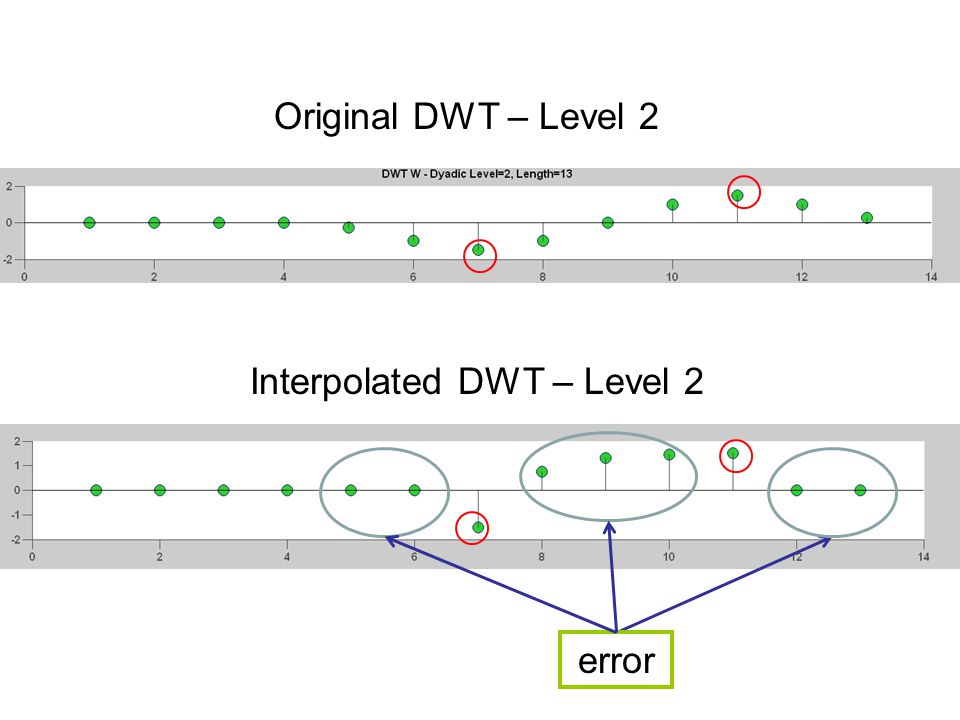

error Original DWT – Level 2 Interpolated DWT – Level 2

34

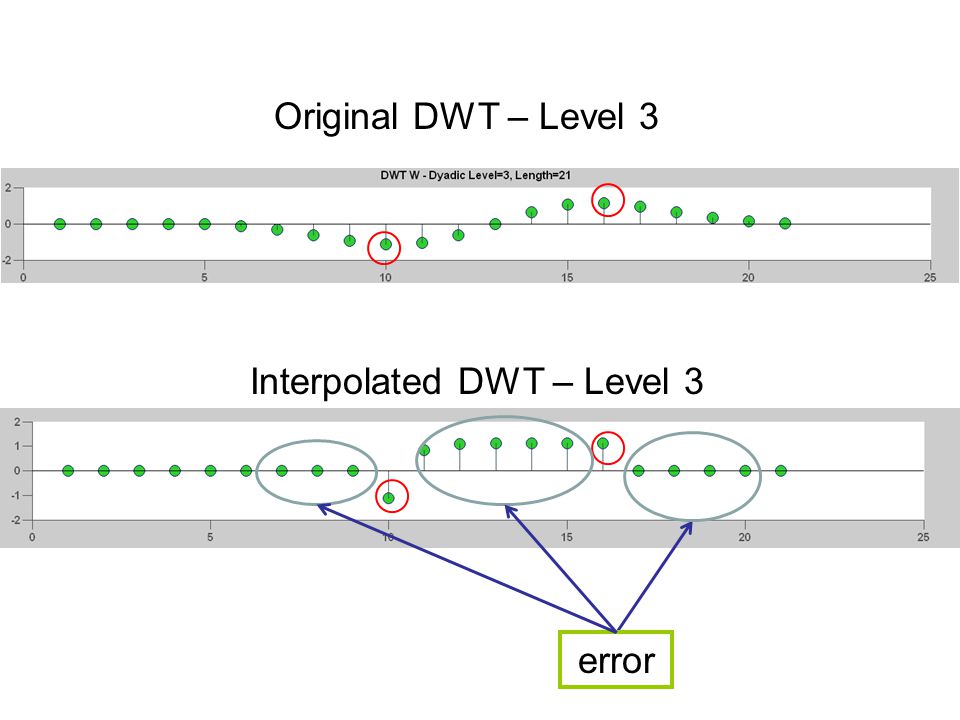

error Original DWT – Level 3 Interpolated DWT – Level 3

35

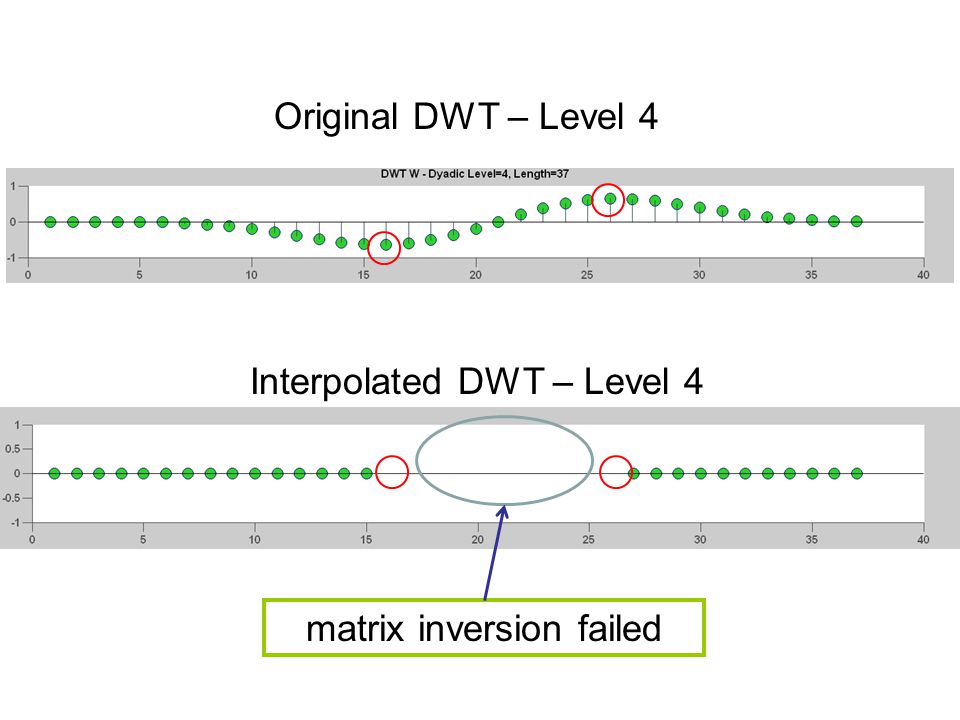

matrix inversion failed Original DWT – Level 4 Interpolated DWT – Level 4

36

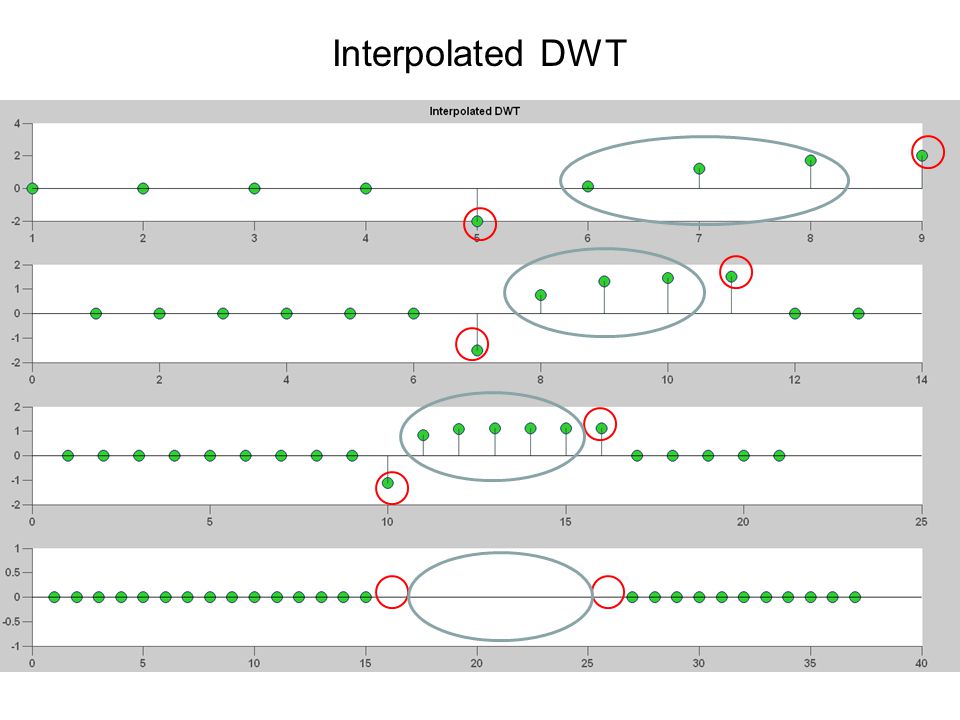

Interpolated DWT

37

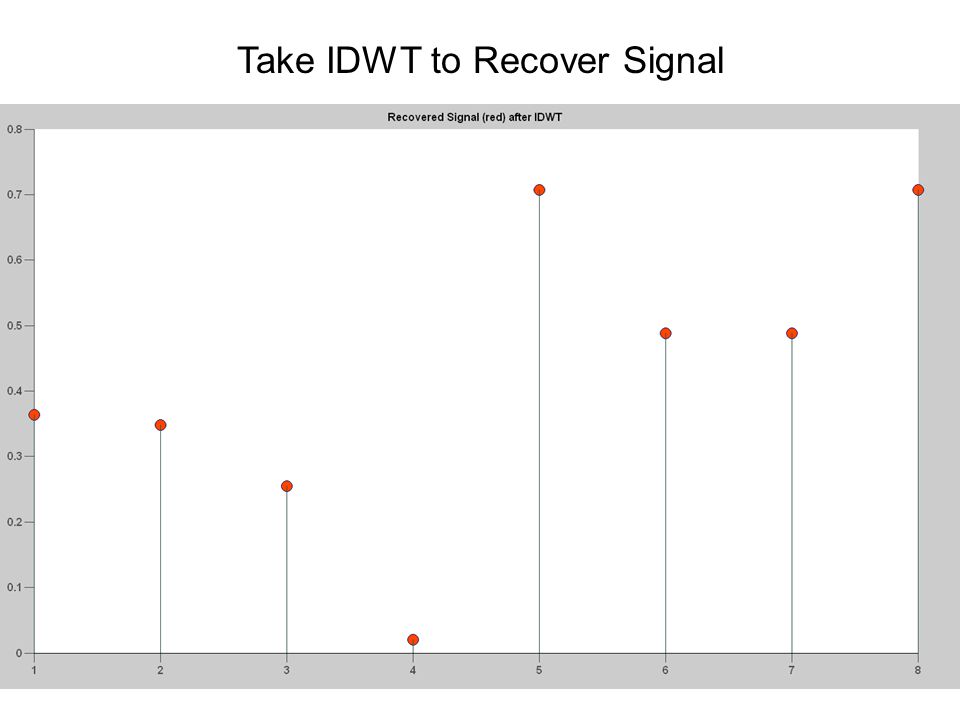

Take IDWT to Recover Signal

38

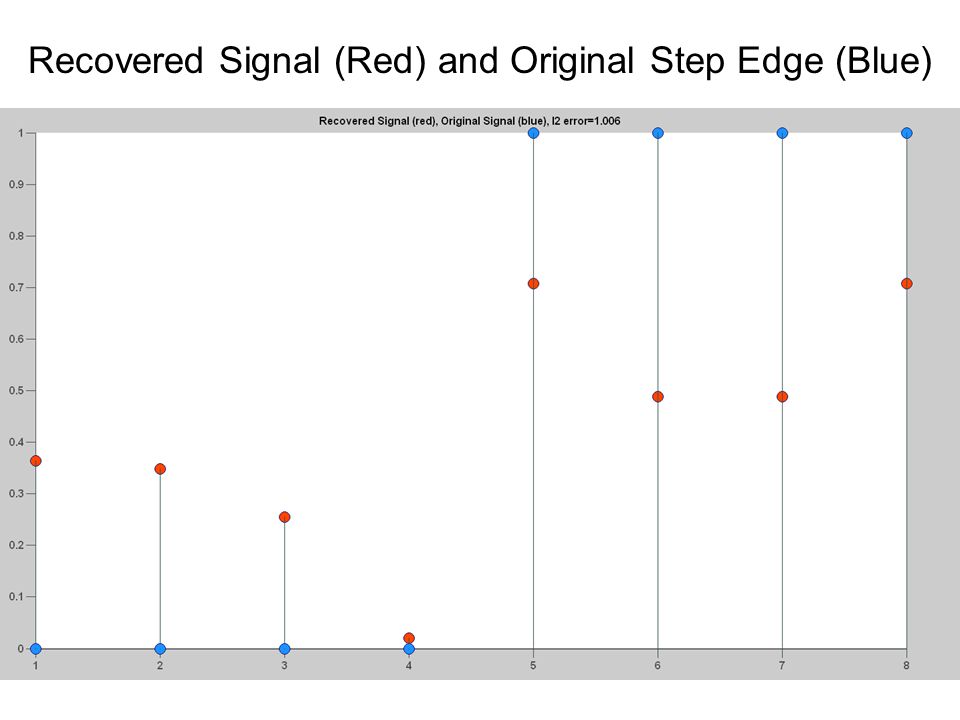

Recovered Signal (Red) and Original Step Edge (Blue)

39
Summary

40

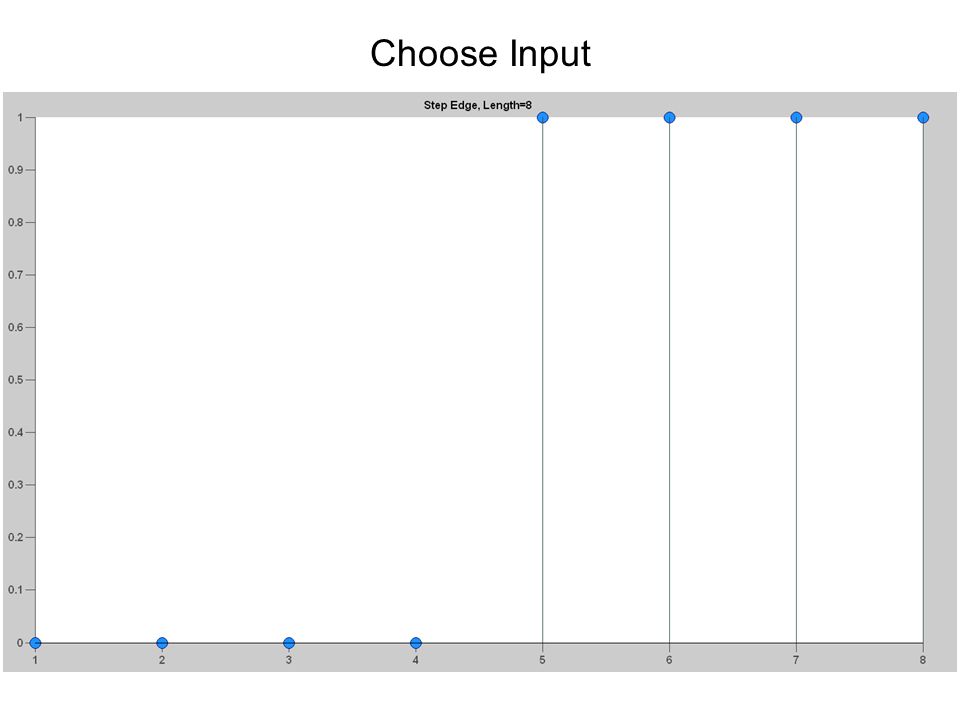

Choose Input

41

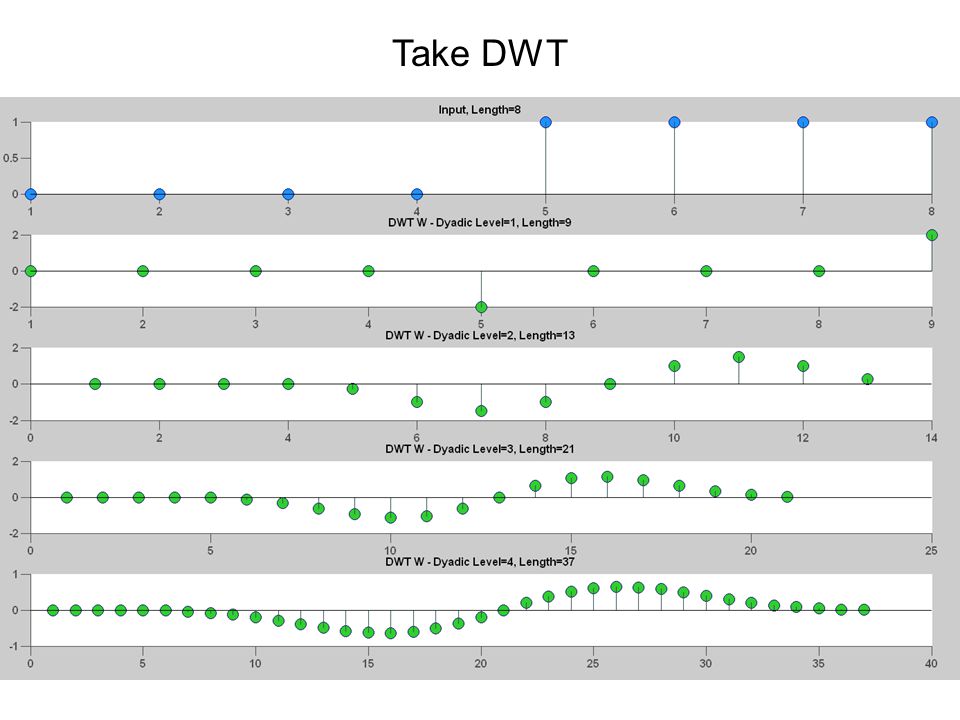

Take DWT

42
Save Local Extrema of DWT

43

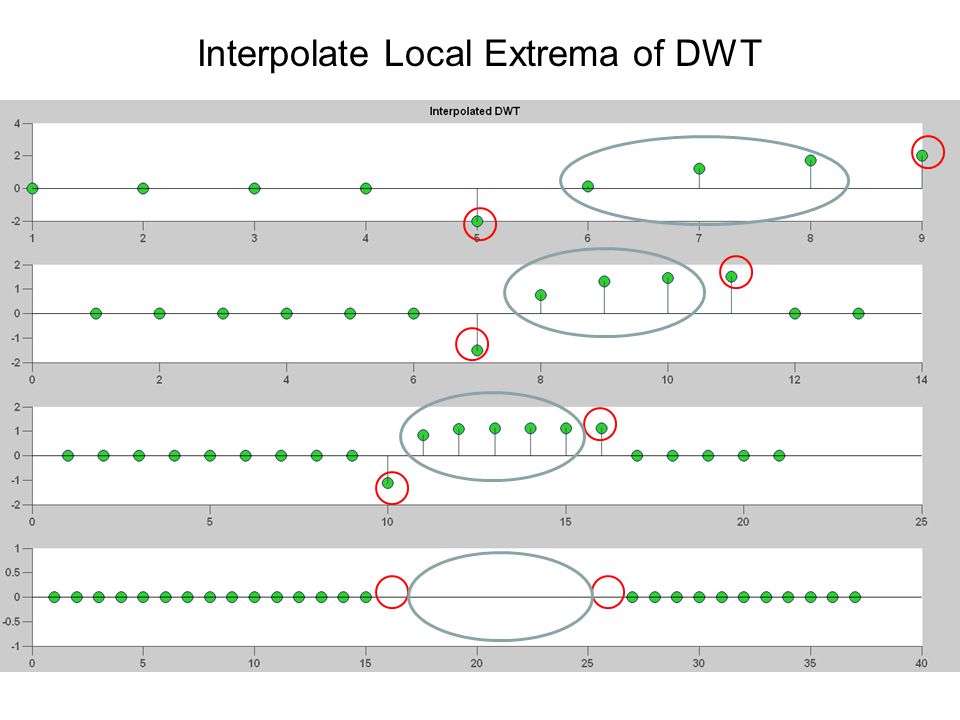

Interpolate Local Extrema of DWT

44

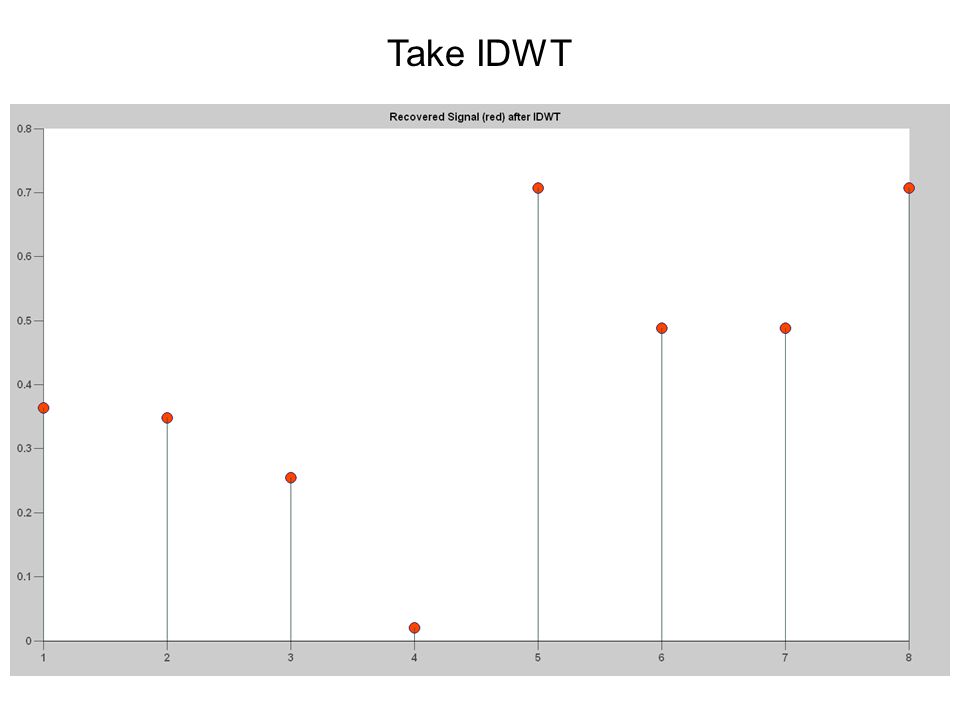

Take IDWT

45

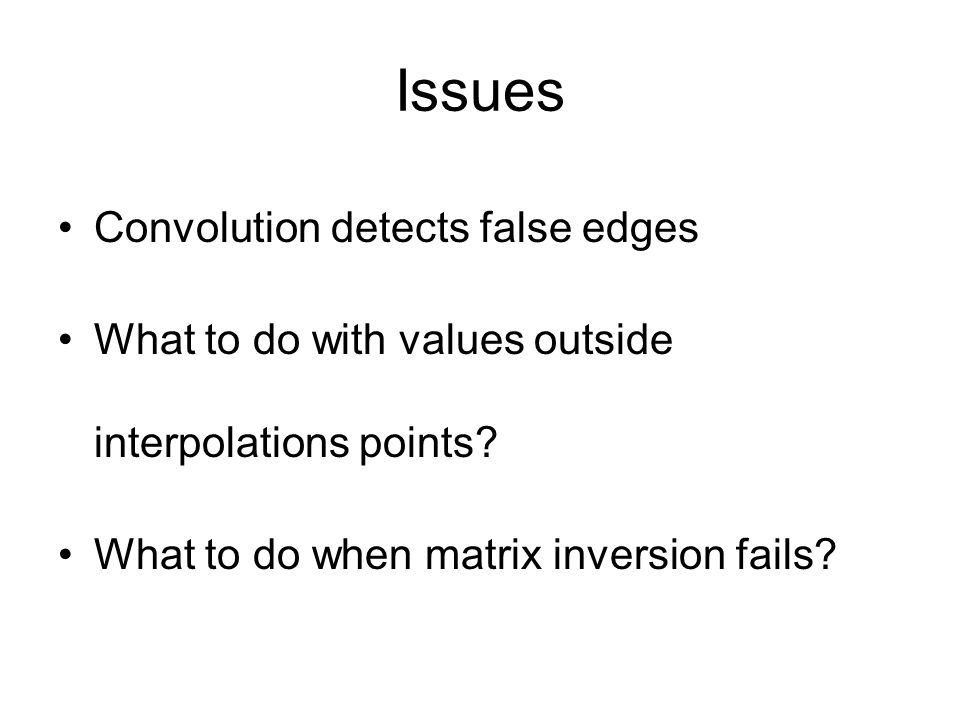

Issues Convolution detects false edges What to do with values outside interpolations points? What to do when matrix inversion fails?

46
Timeline Dec – write up mid-year report Jan– code local extrema search Oct/Nov – code Alternate Projections (90%) (85%) (100%)

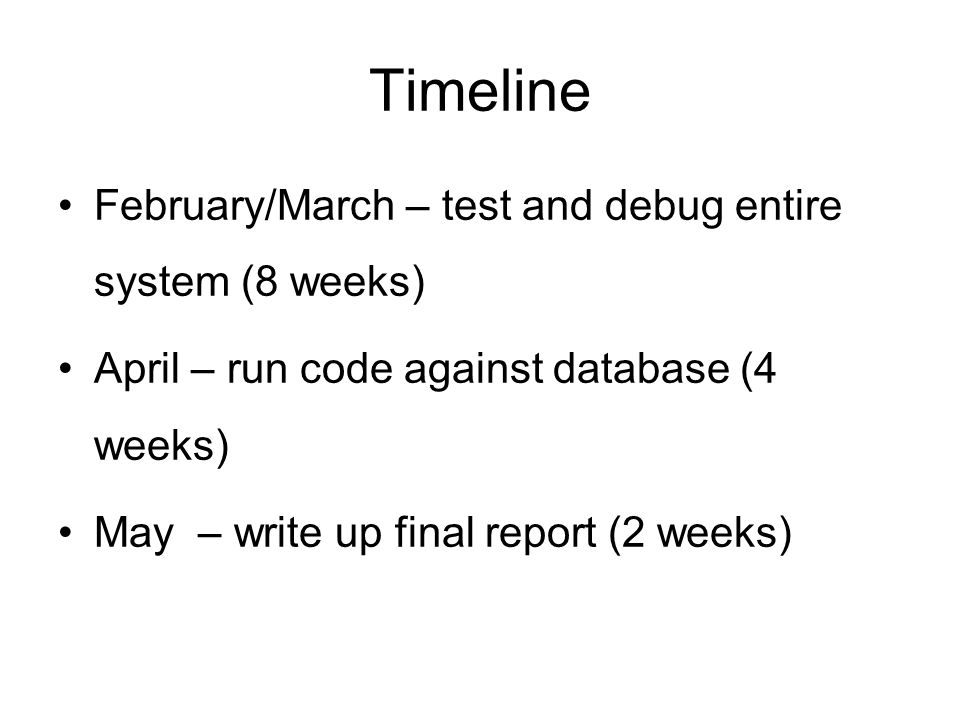

47
Timeline February/March – test and debug entire system (8 weeks) April – run code against database (4 weeks) May – write up final report (2 weeks)

48

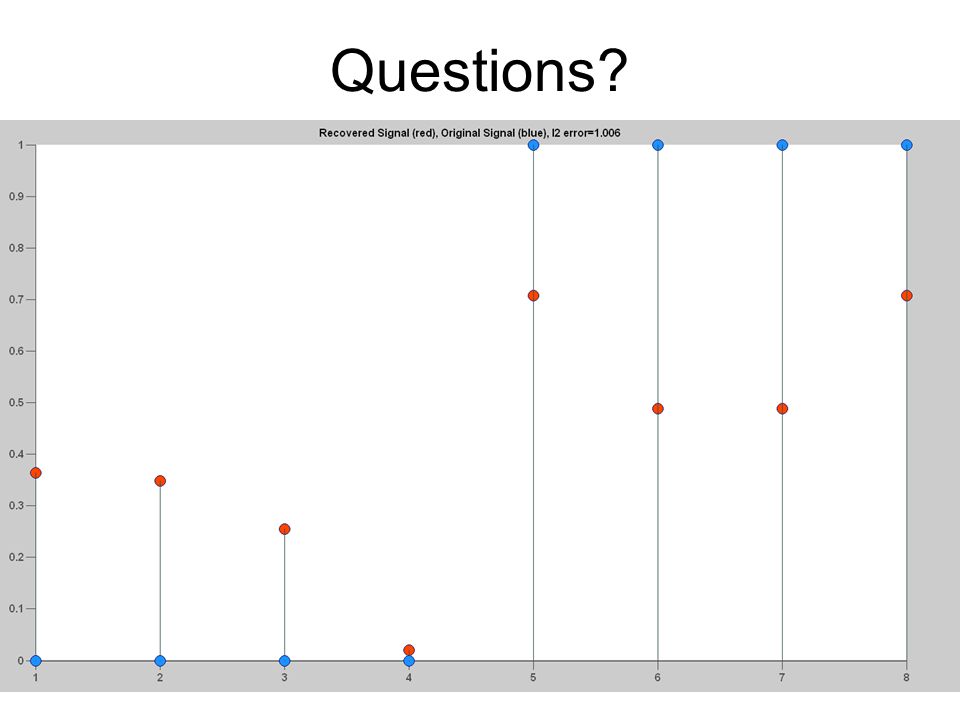

Questions?

49
Supplemental Slides

50

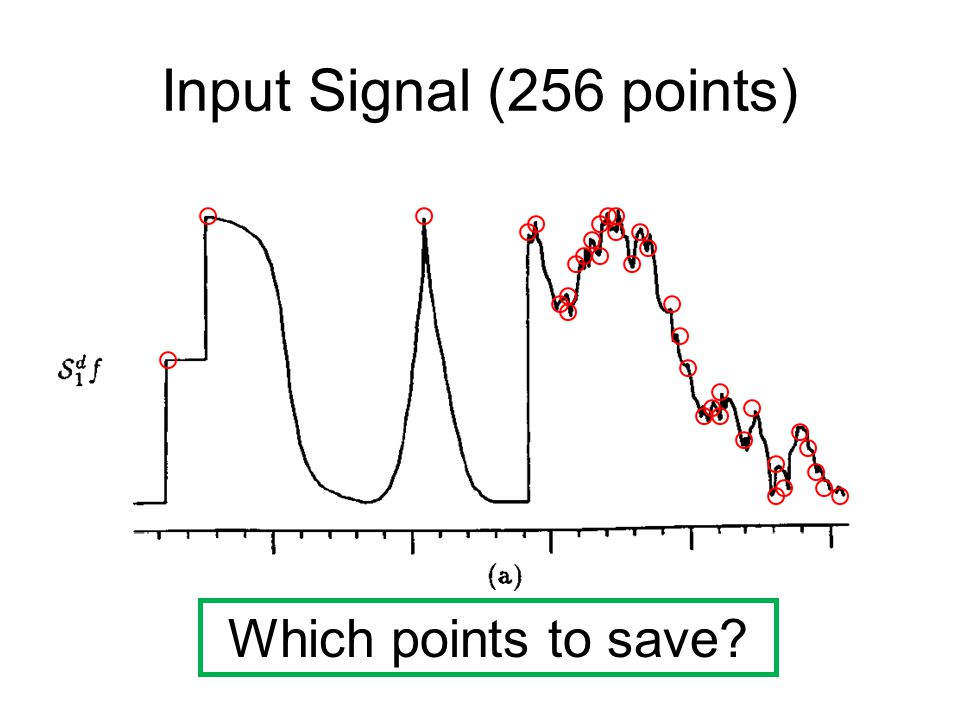

Input Signal (256 points) Which points to save?

51
Compressed Signal (37 points) What else for reconstruction?

52
Compressed Signal (37 points) sharp one-sided edge

53
Compressed Signal (37 points) sharp two-sided edge

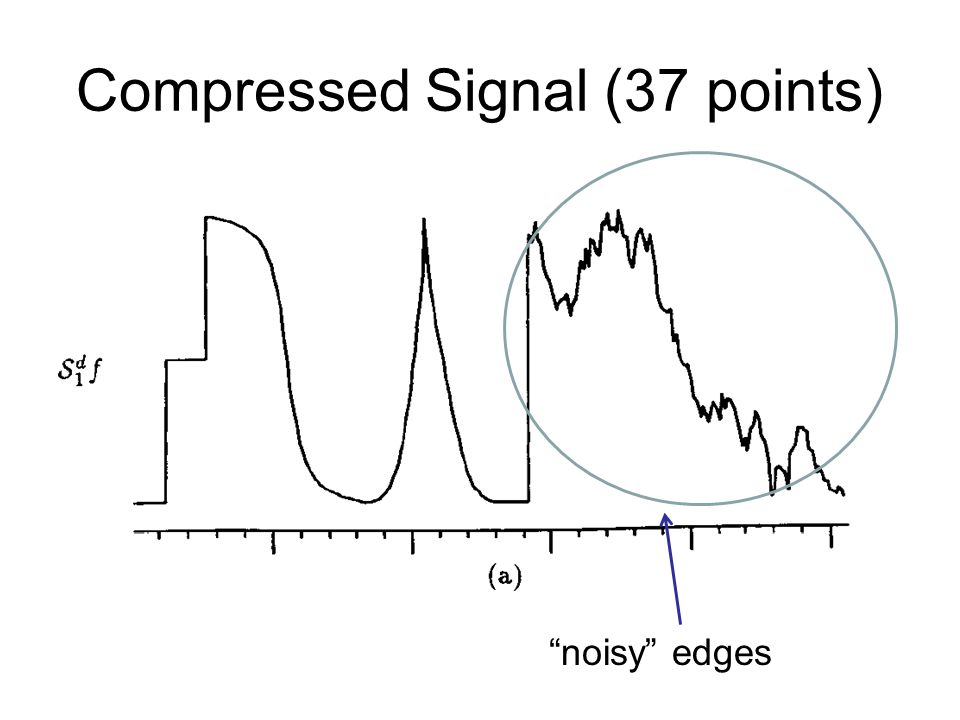

54
Compressed Signal (37 points) “noisy” edges

55

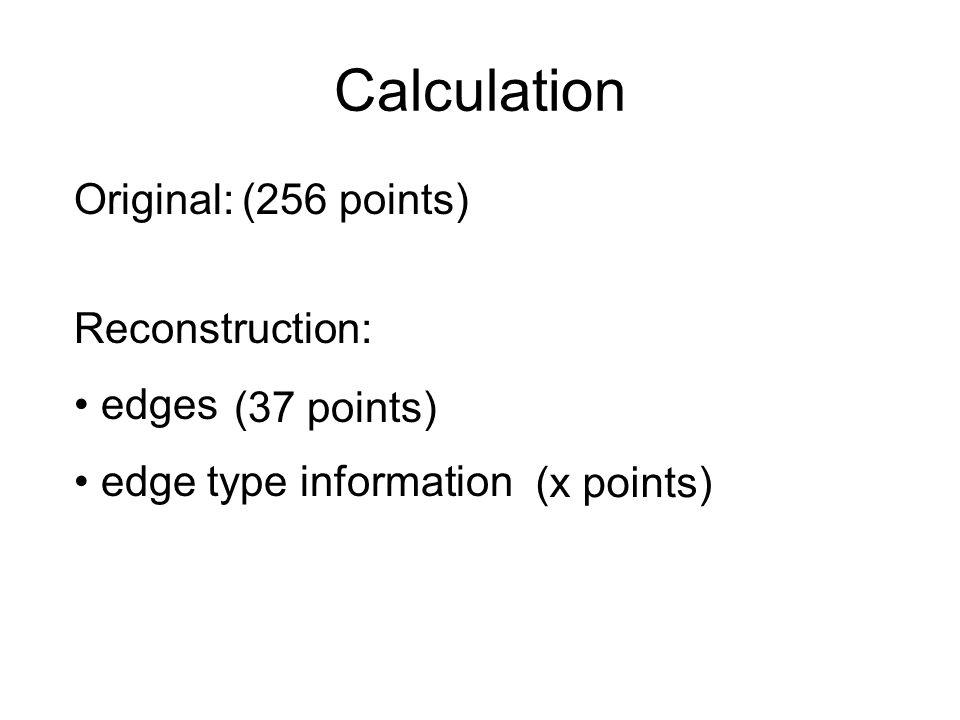

Calculation Reconstruction: edges edge type information Original:(256 points) (37 points) (x points)

56
37 Compression edges edge type + x<256

57

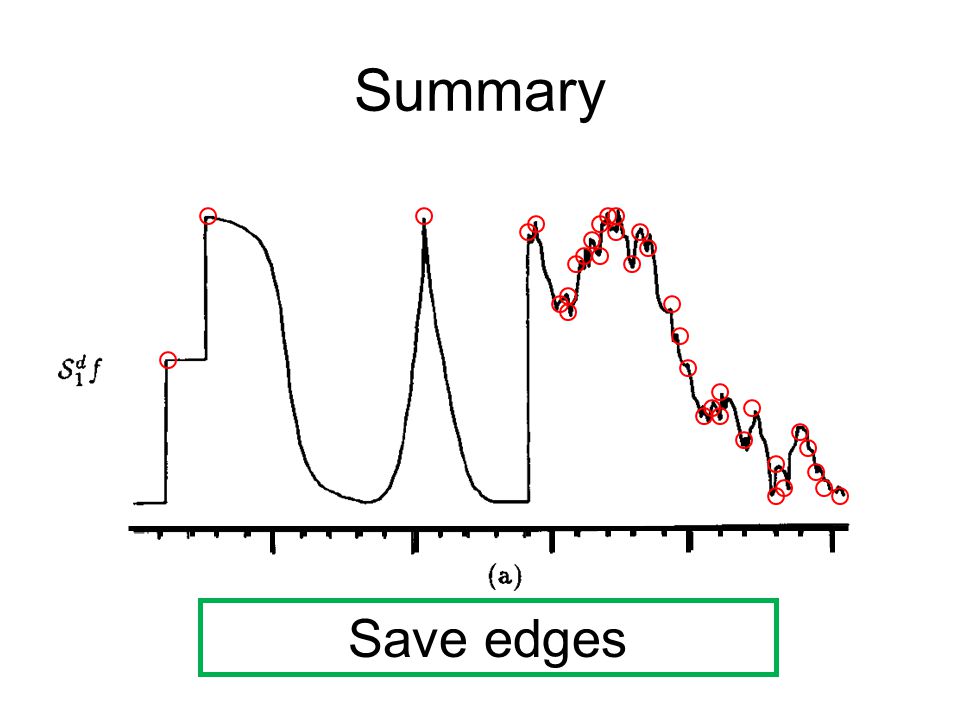

Summary Save edges

58

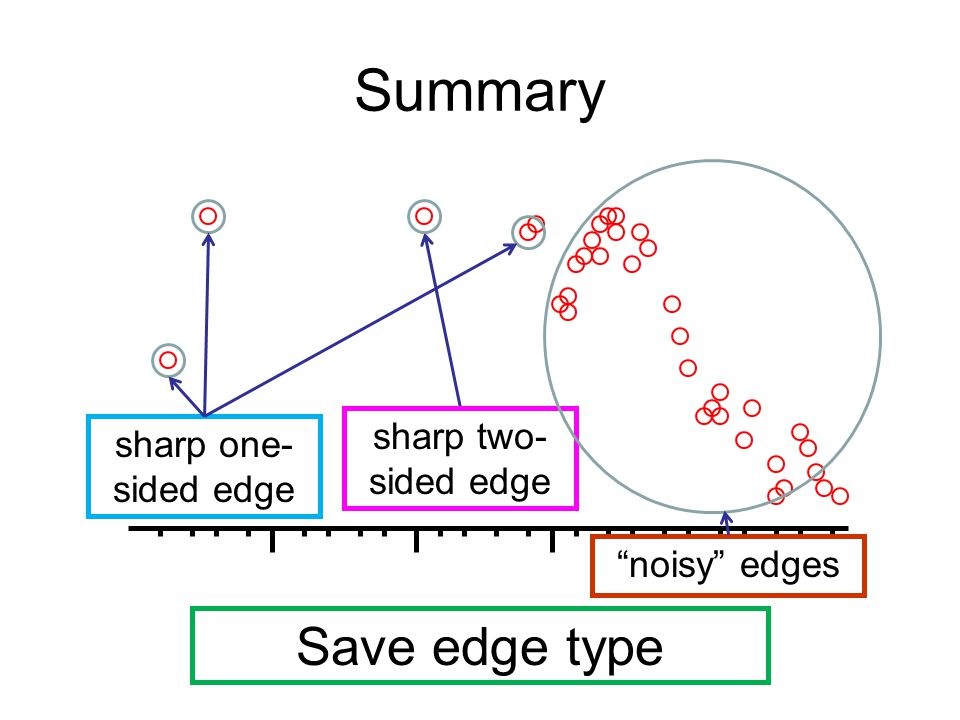

Summary Save edge type sharp one- sided edge sharp two- sided edge “noisy” edges

59

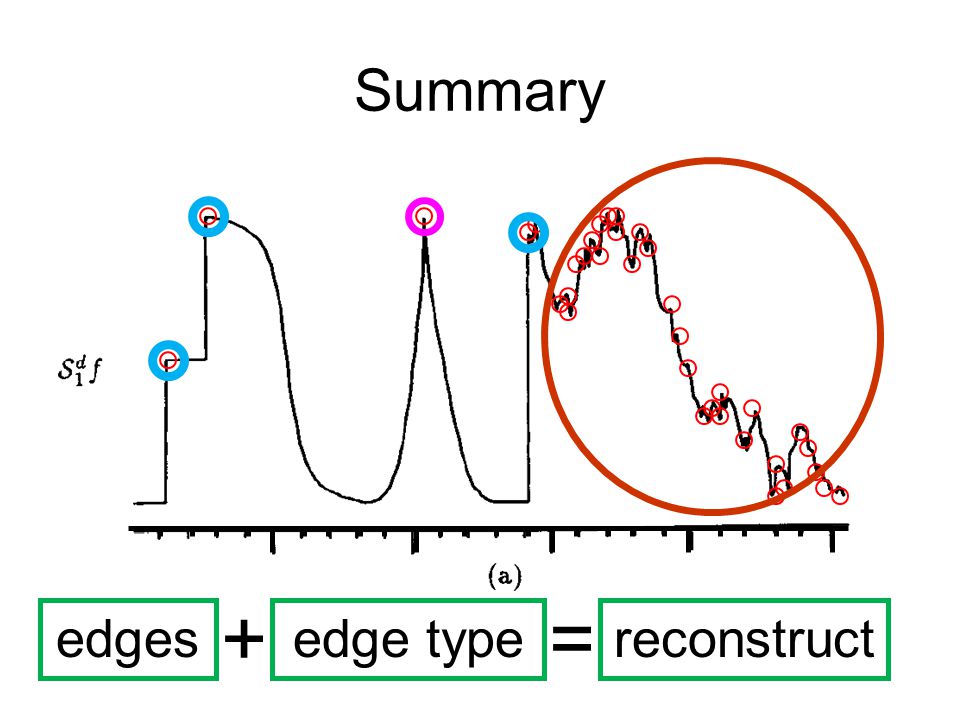

Summary edgesedge typereconstruct +=

60
Algorithm Decomposition + Reconstruction

61
Decomposition Discrete Wavelet Transform Save edges e.g. local extrema Input “edges+edge type”

62
Reconstruction Find approximation Inverse Wavelet Transform Output local extrema “edges+edge type”

63
What is Discrete Wavelet Transform? Discrete Wavelet Transform Input

64

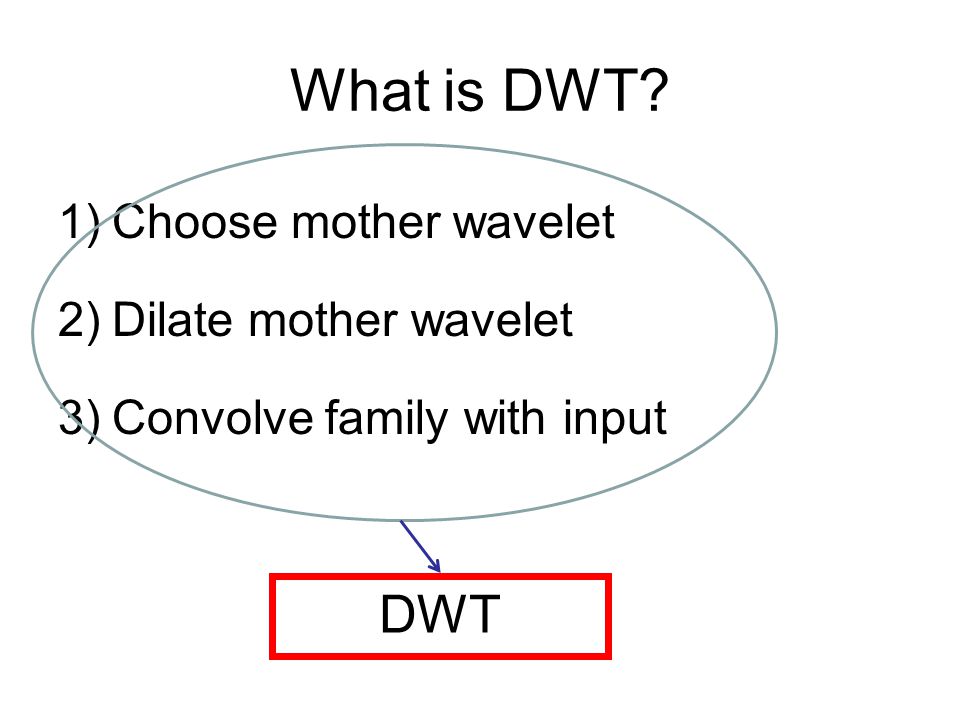

What is DWT? 1)Choose mother wavelet 2)Dilate mother wavelet 3)Convolve family with input DWT

65

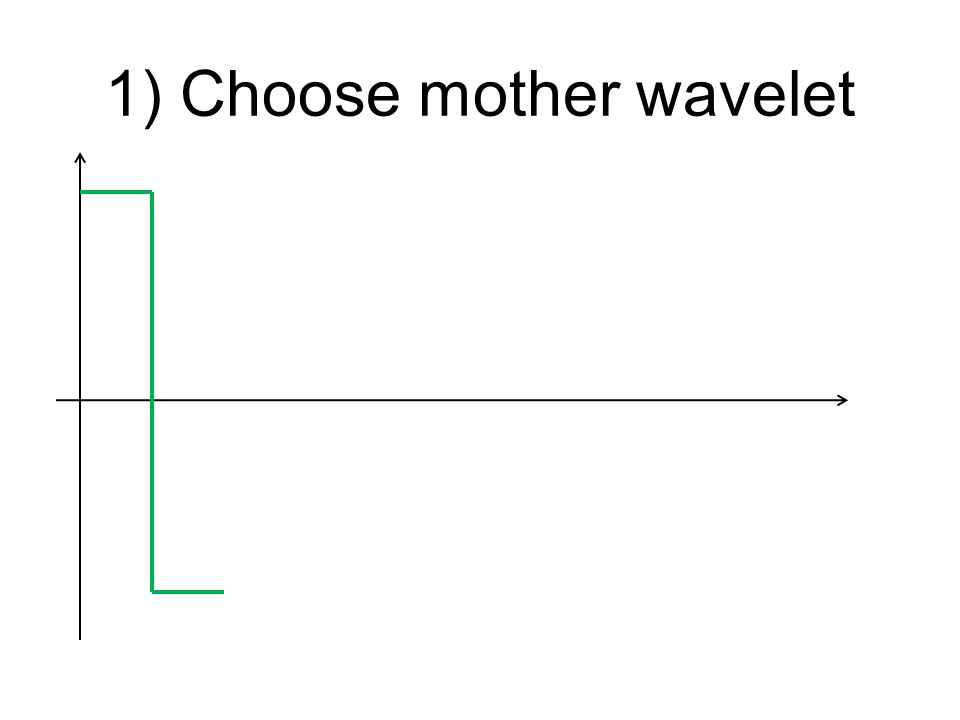

1) Choose mother wavelet

66

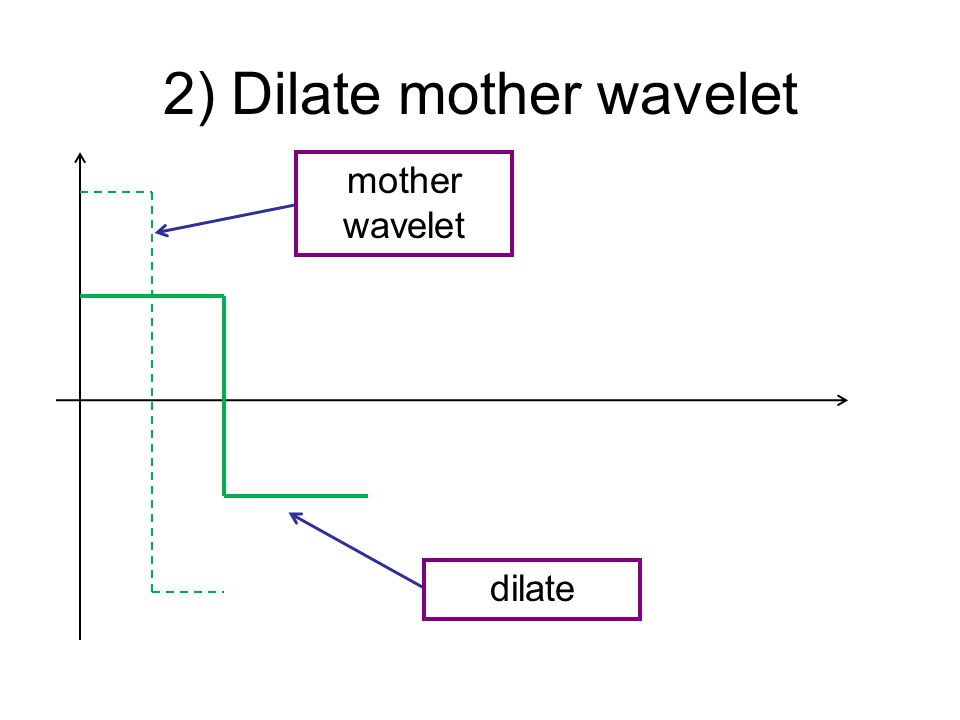

2) Dilate mother wavelet mother wavelet dilate

67

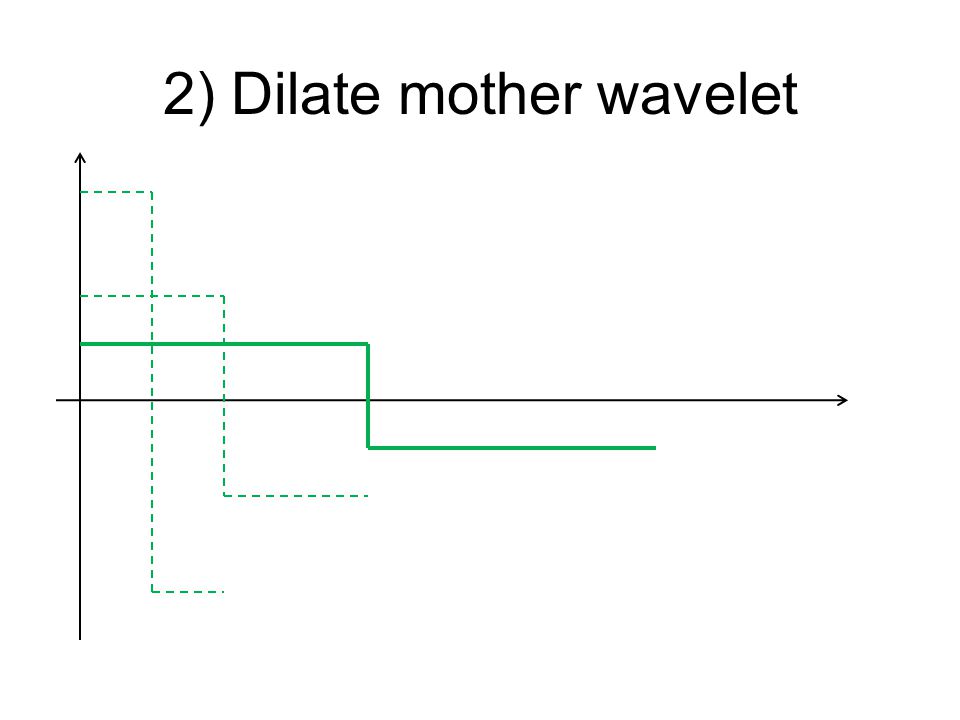

2) Dilate mother wavelet

68
Convolve family with input input wavelet scale 1 wavelet scale 2 wavelet scale 4 = = =

69

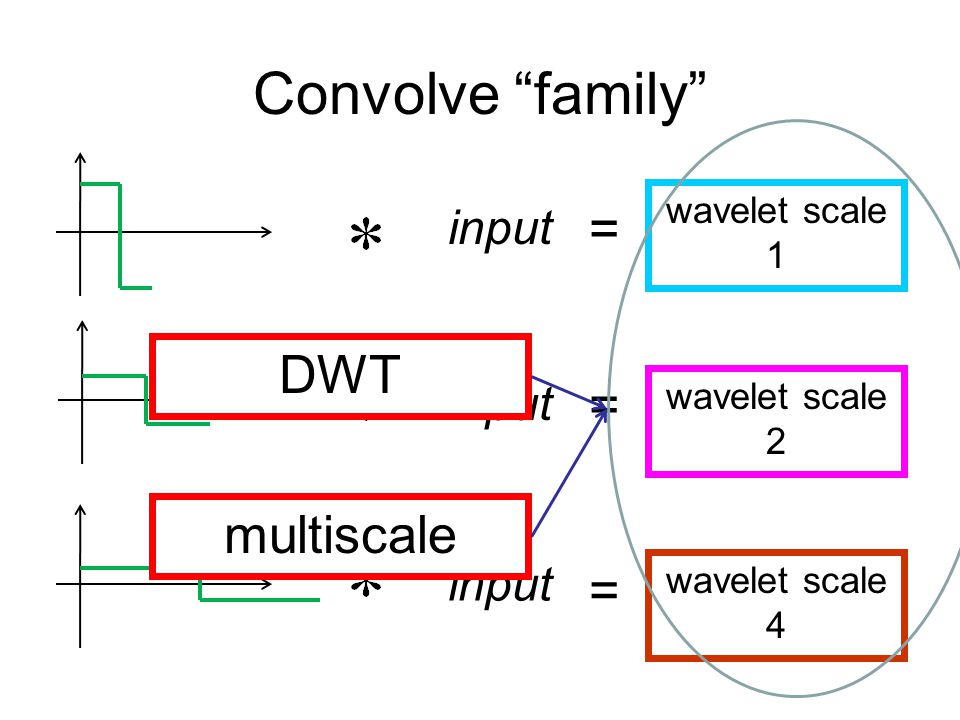

Convolve “family” input wavelet scale 1 wavelet scale 2 wavelet scale 4 = = = DWT multiscale

70
What is DWT? (mathematically)

71
How to dilate? mother wavelet

72

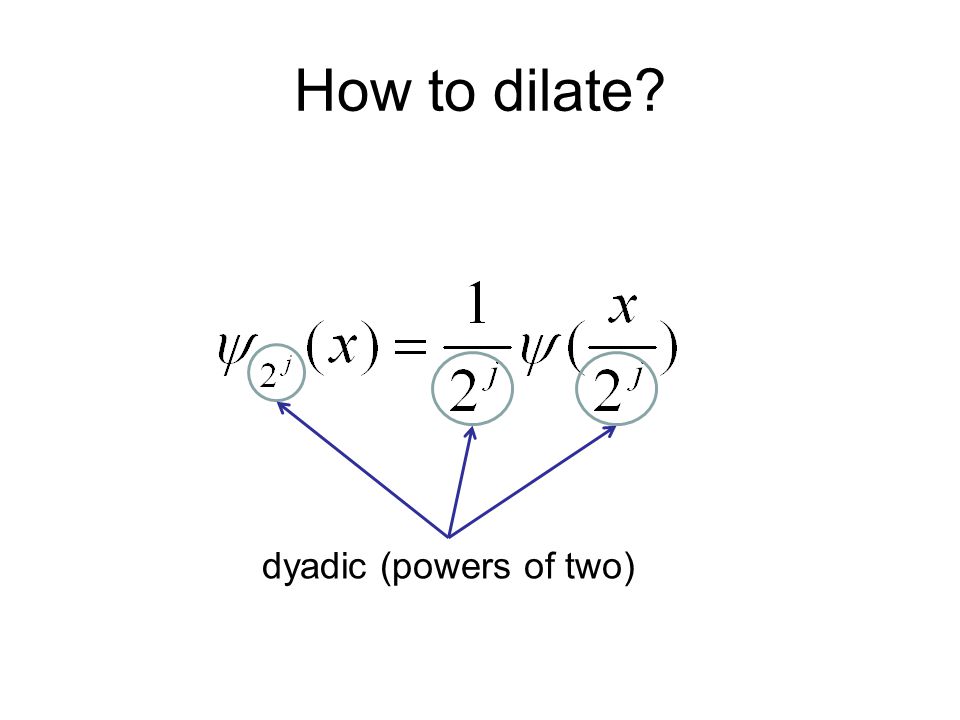

How to dilate? dyadic (powers of two)

73
How to dilate? scale

74

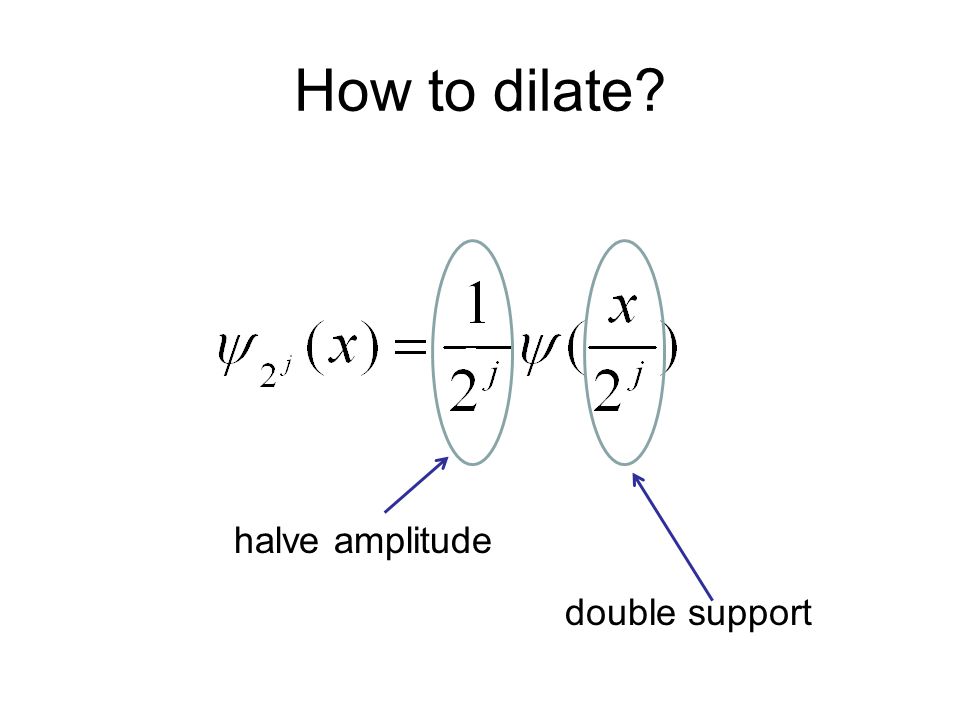

How to dilate? z halve amplitude double support

75

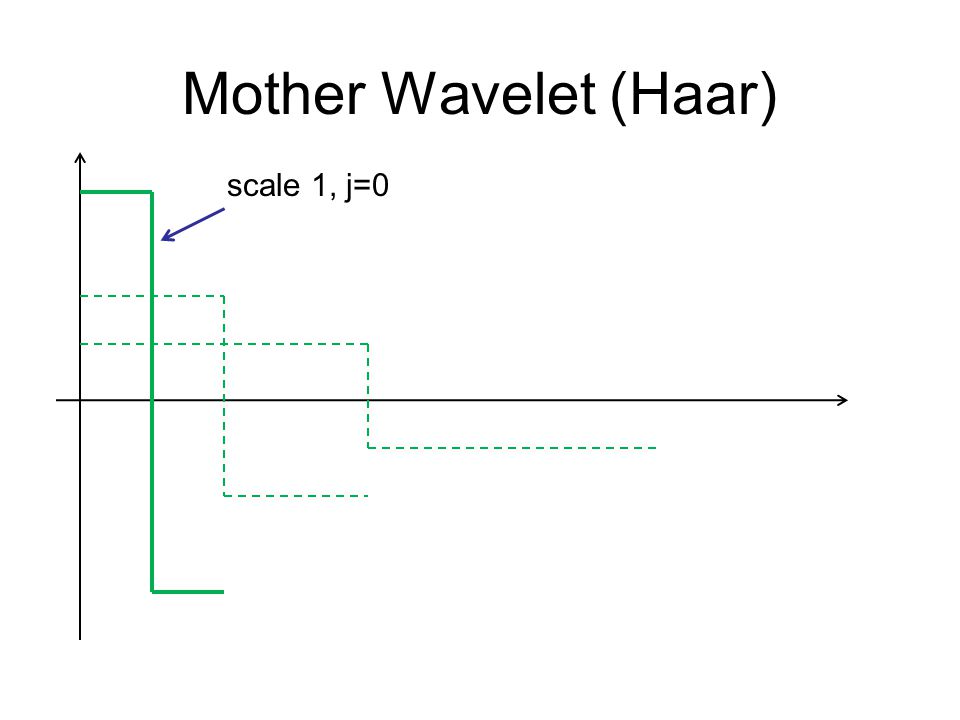

Mother Wavelet (Haar) scale 1, j=0

76
Mother Wavelet (Haar) scale 2, j=1

77

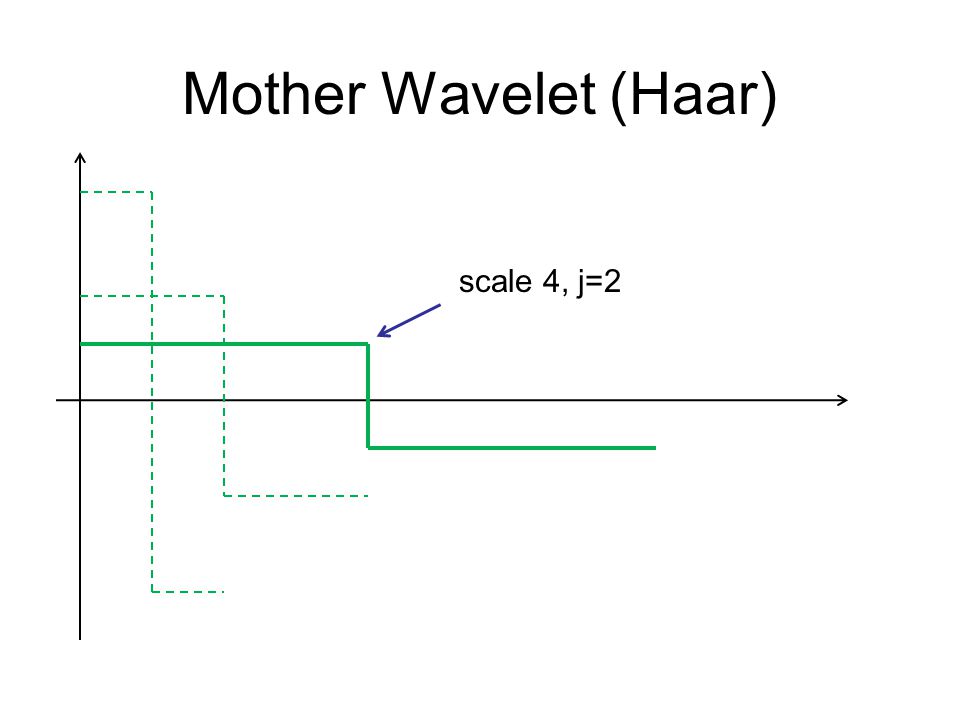

Mother Wavelet (Haar) scale 4, j=2

78
What is DWT? Convolution of dilates of mother wavelets against original signal.

79

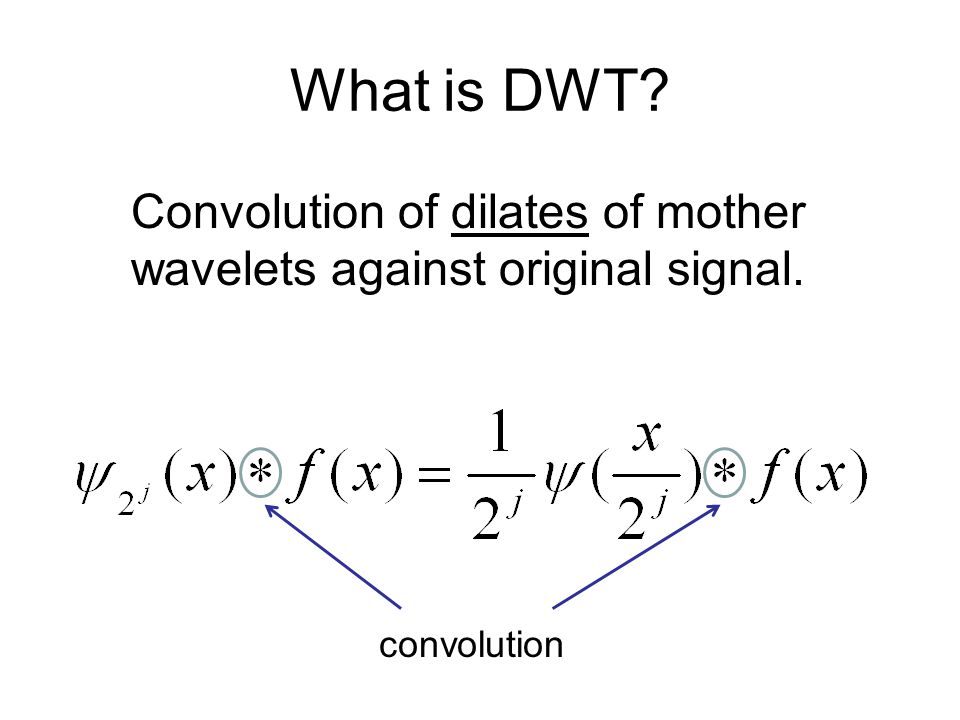

What is DWT? Convolution of dilates of mother wavelets against original signal. convolution

80
What is DWT? Convolution of dilates of mother wavelets against original signal. dilates

81
What is DWT? Convolution of dilates of mother wavelets against original signal. original signal

82

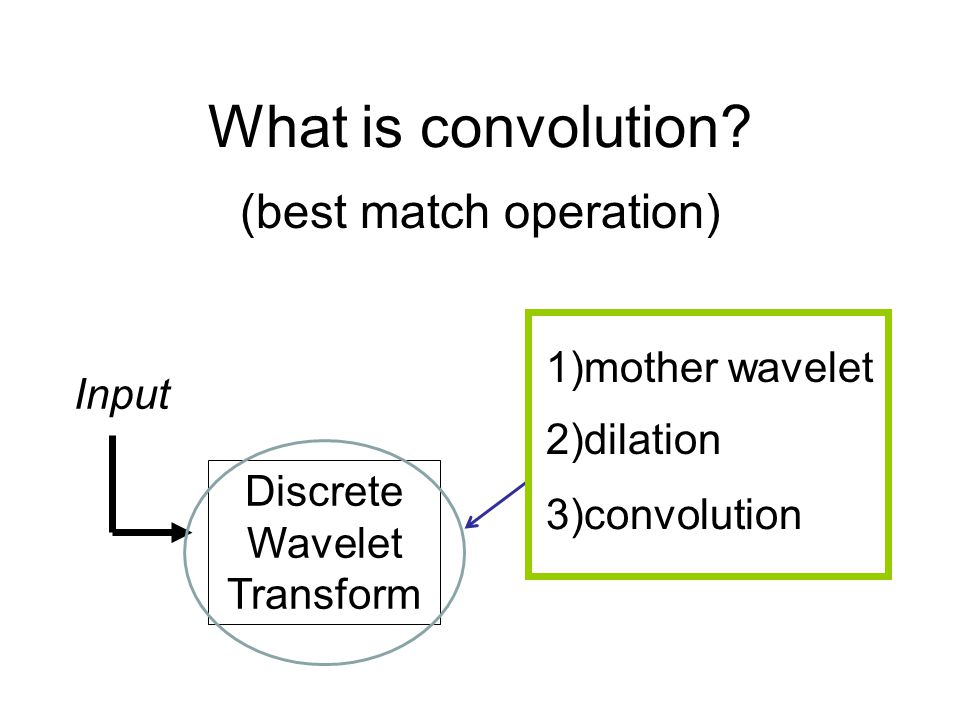

What is convolution? (best match operation) Discrete Wavelet Transform Input 1)mother wavelet 2)dilation 3)convolution

83

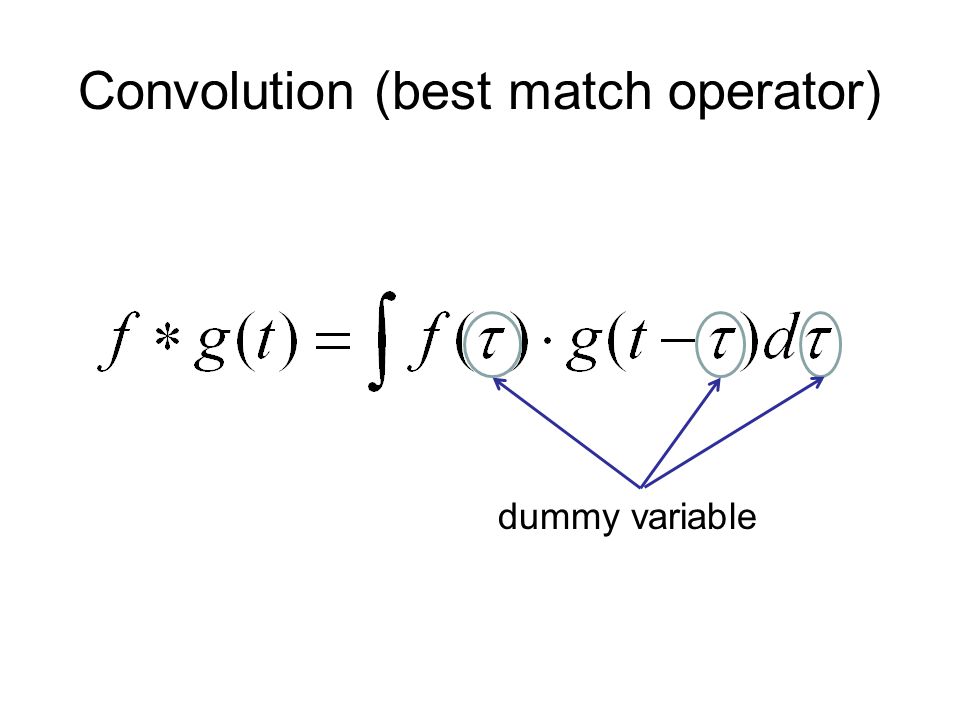

Convolution (best match operator) dummy variable

84

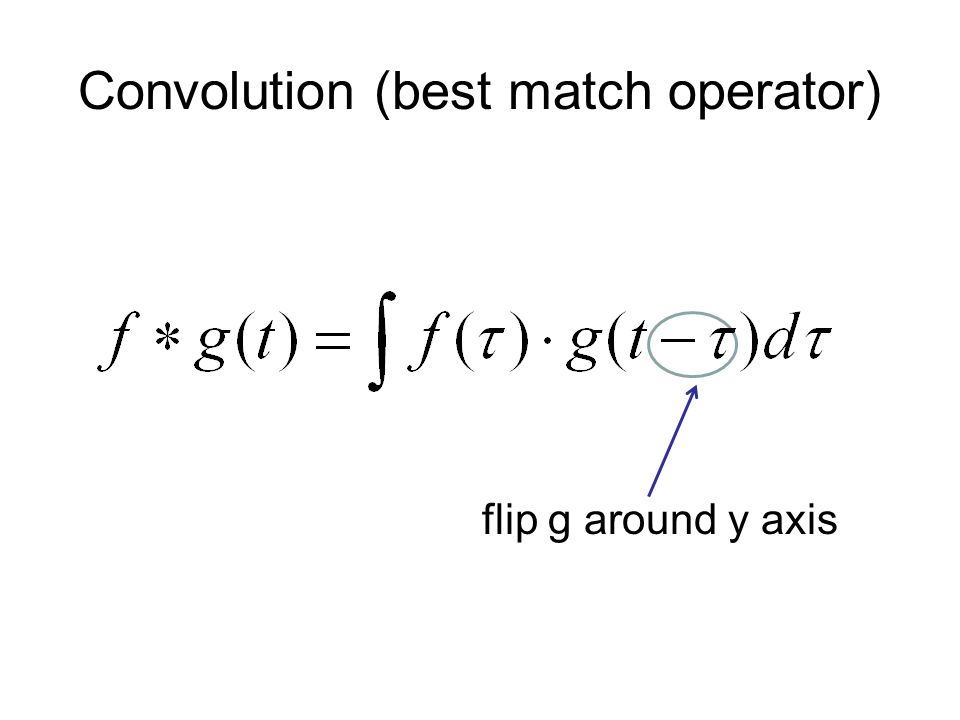

Convolution (best match operator) flip g around y axis

85
Convolution (best match operator) shifts g by t

86

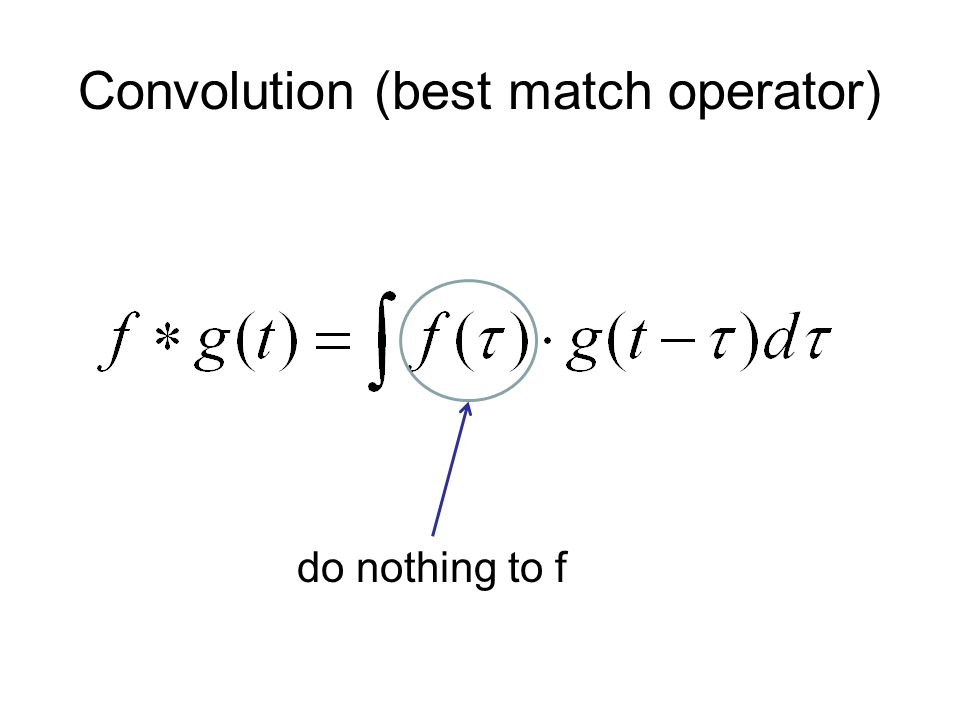

do nothing to f Convolution (best match operator)

87
pointwise multiplication

88
Convolution (best match operator) integrate over R

89

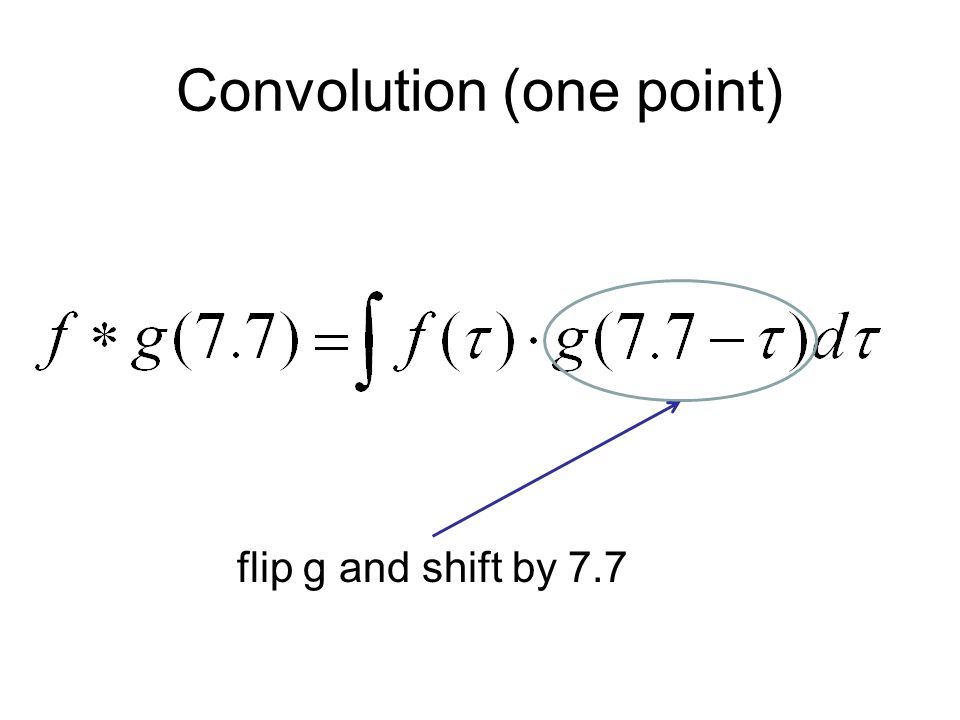

flip g and shift by 7.7 Convolution (one point)

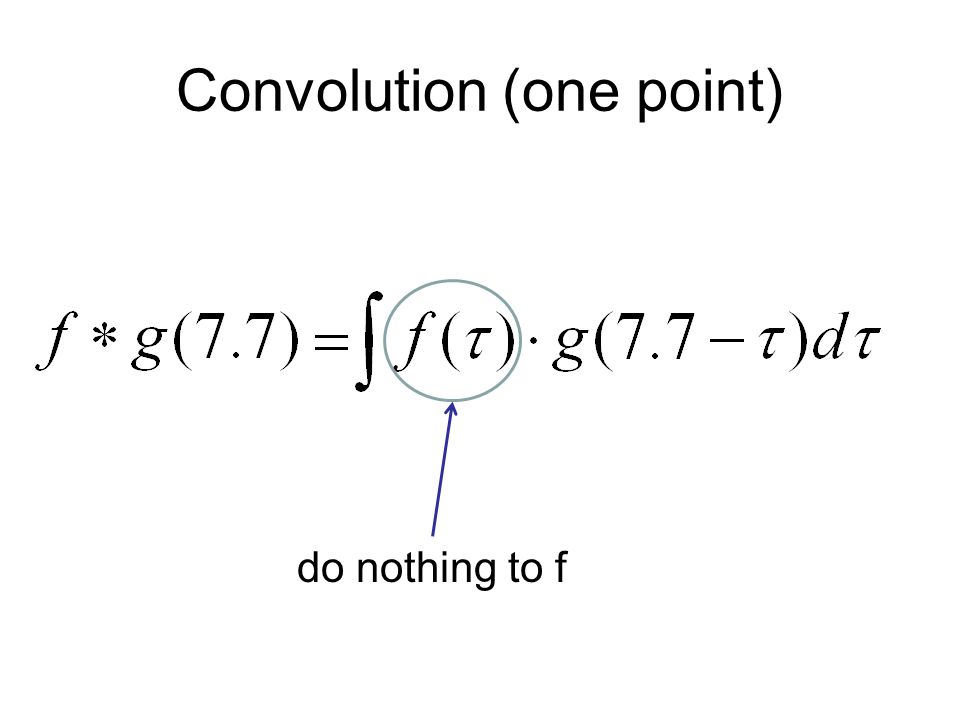

90
do nothing to f Convolution (one point)

91
multiply f and g pointwise Convolution (one point)

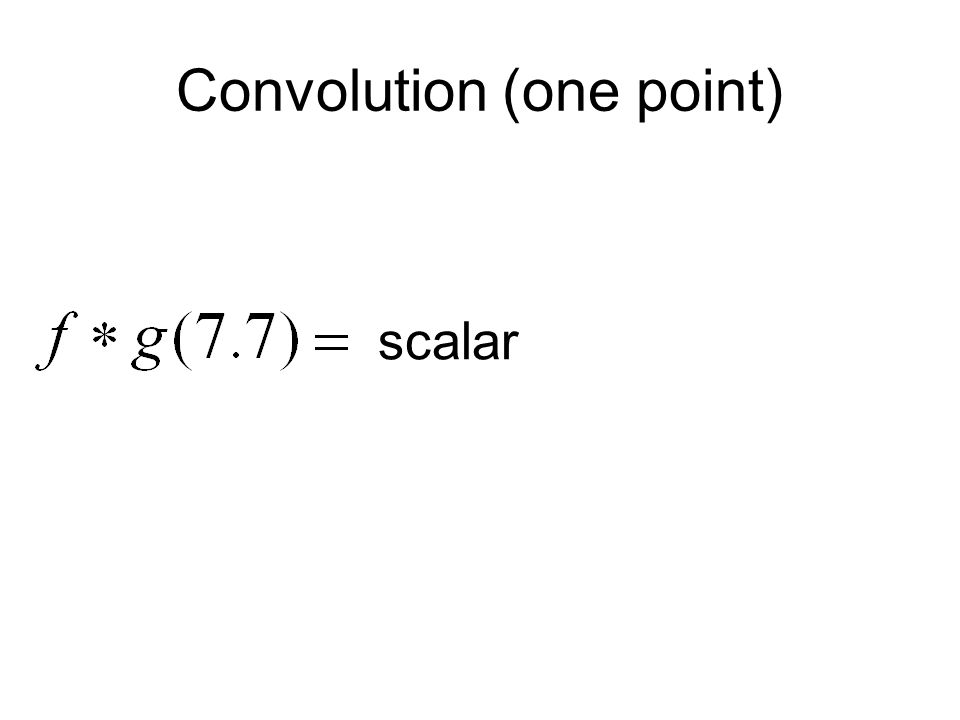

92
integrate over R Convolution (one point)

93
scalar

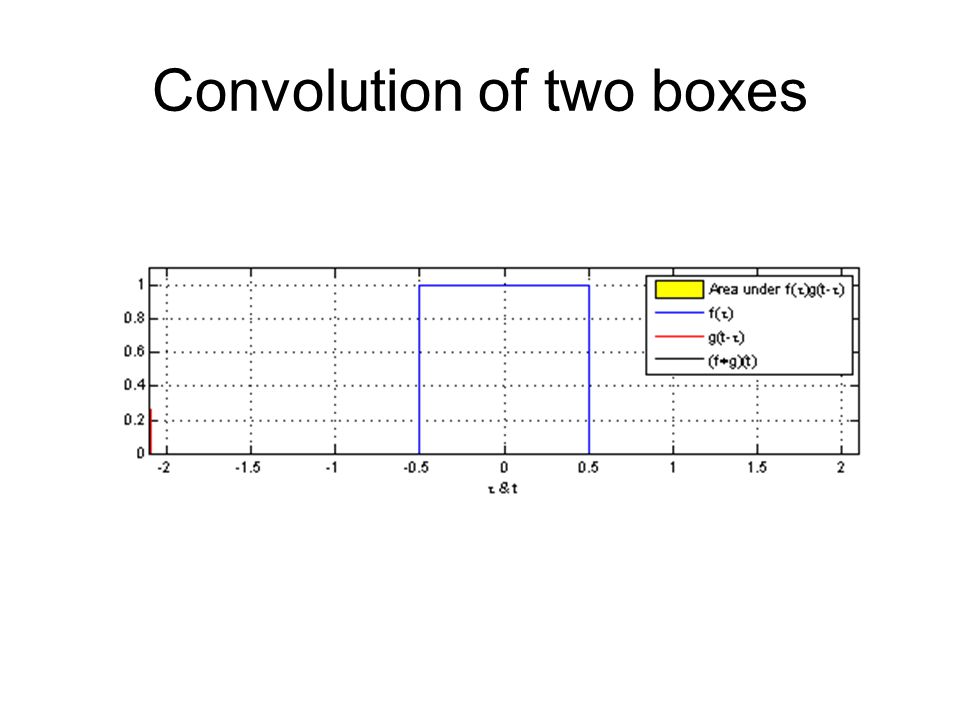

94

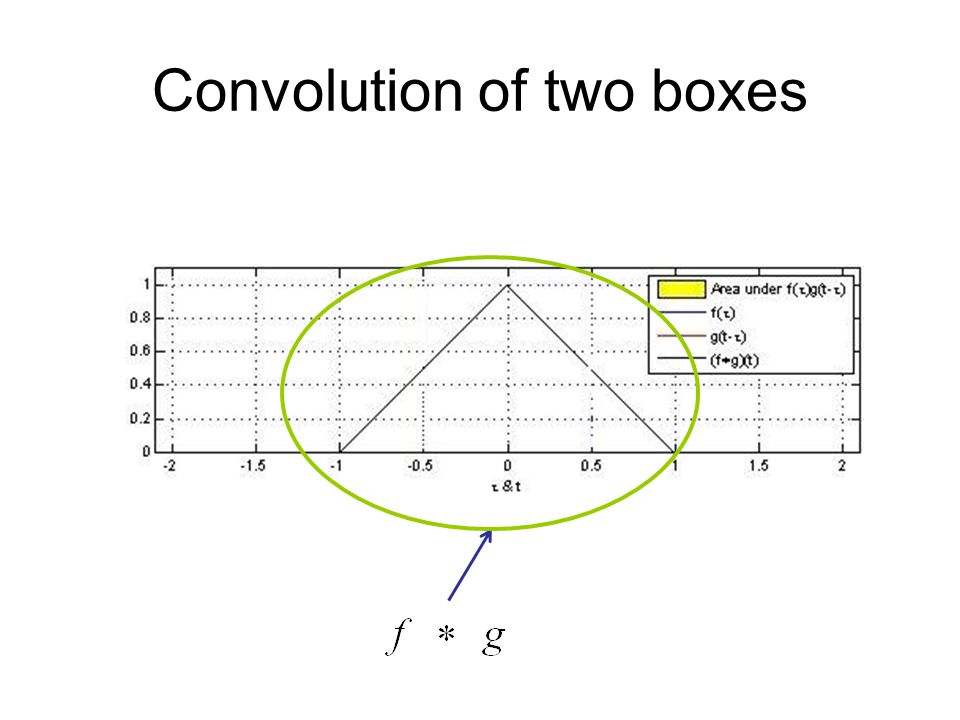

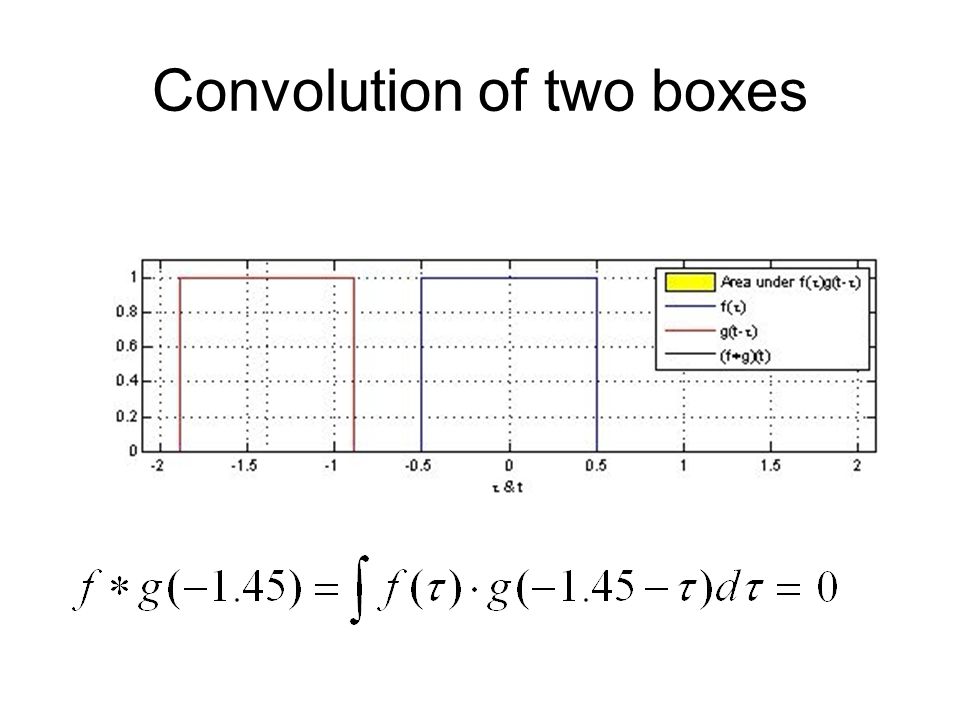

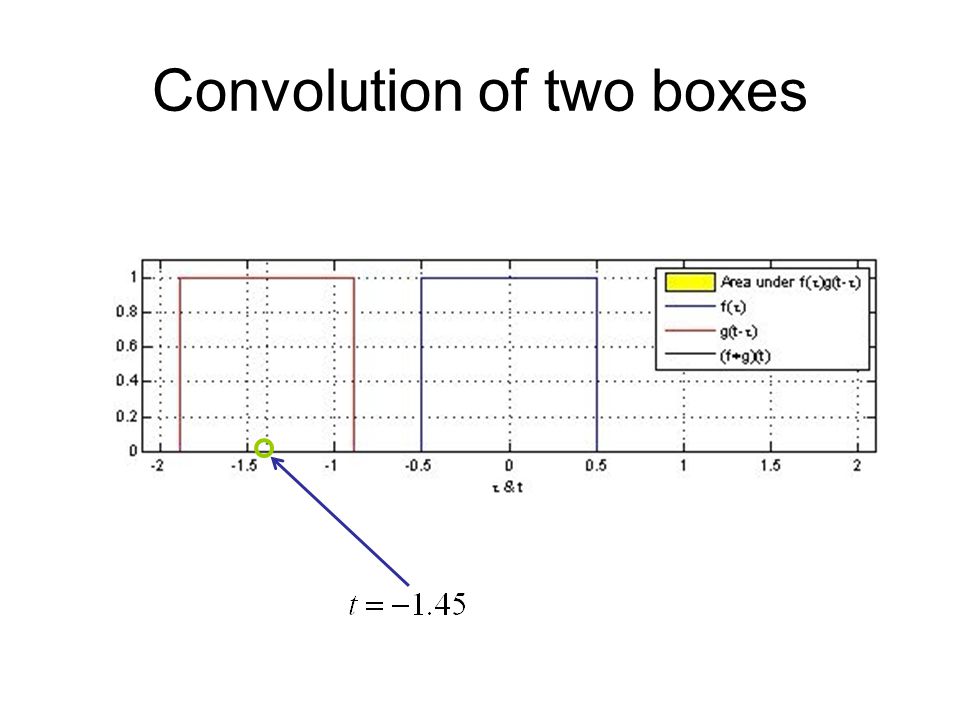

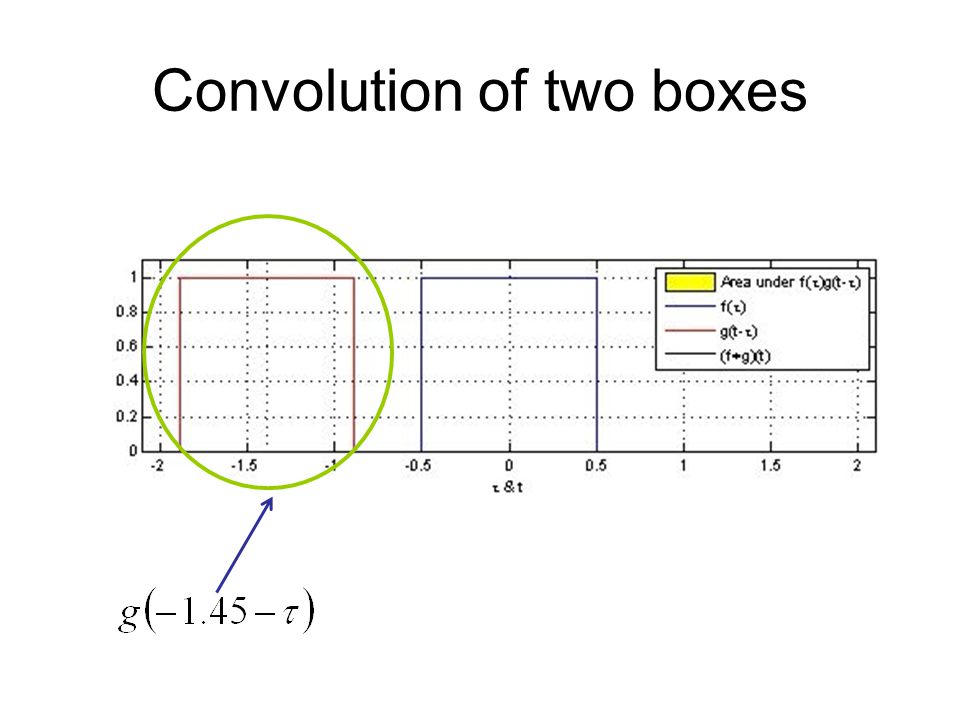

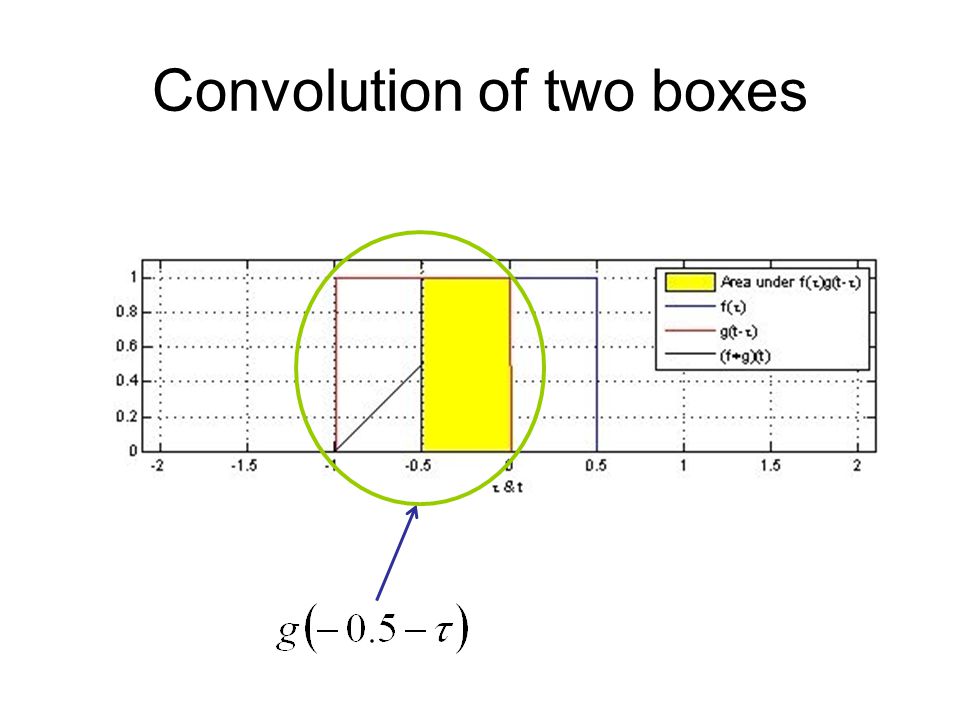

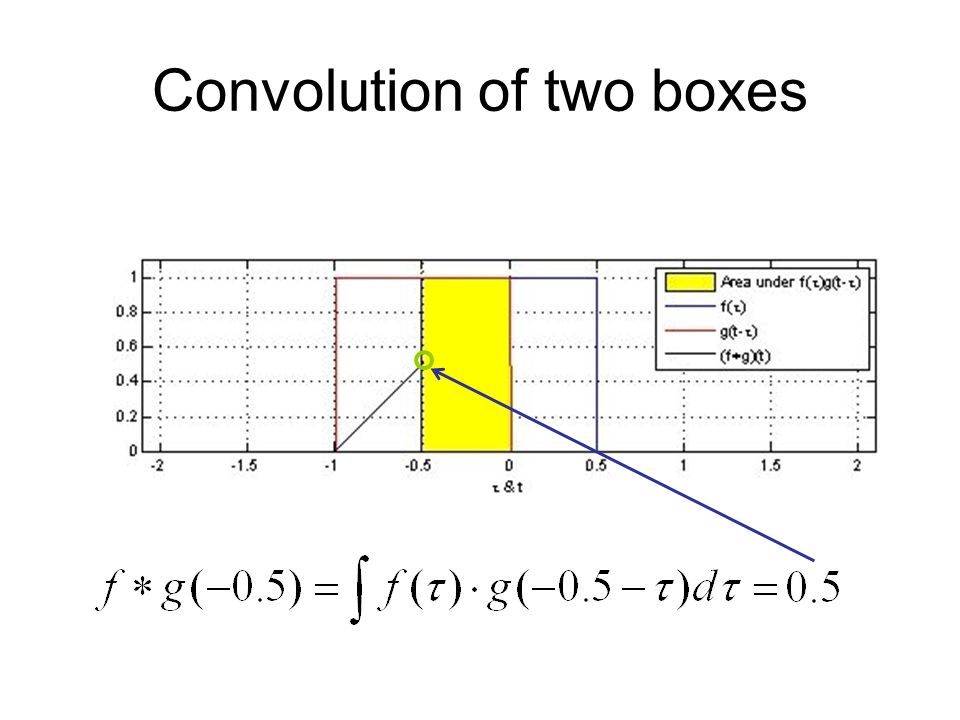

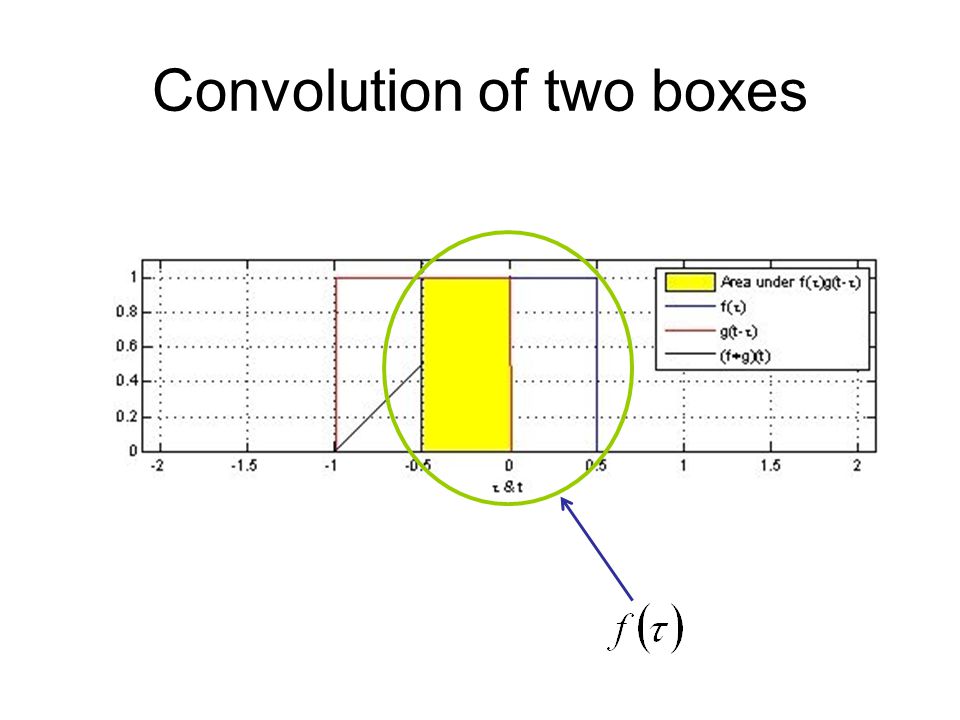

Convolution of two boxes

104
Why convolution? Location of maximum best fit

105
Where does red box most look like blue box?

106

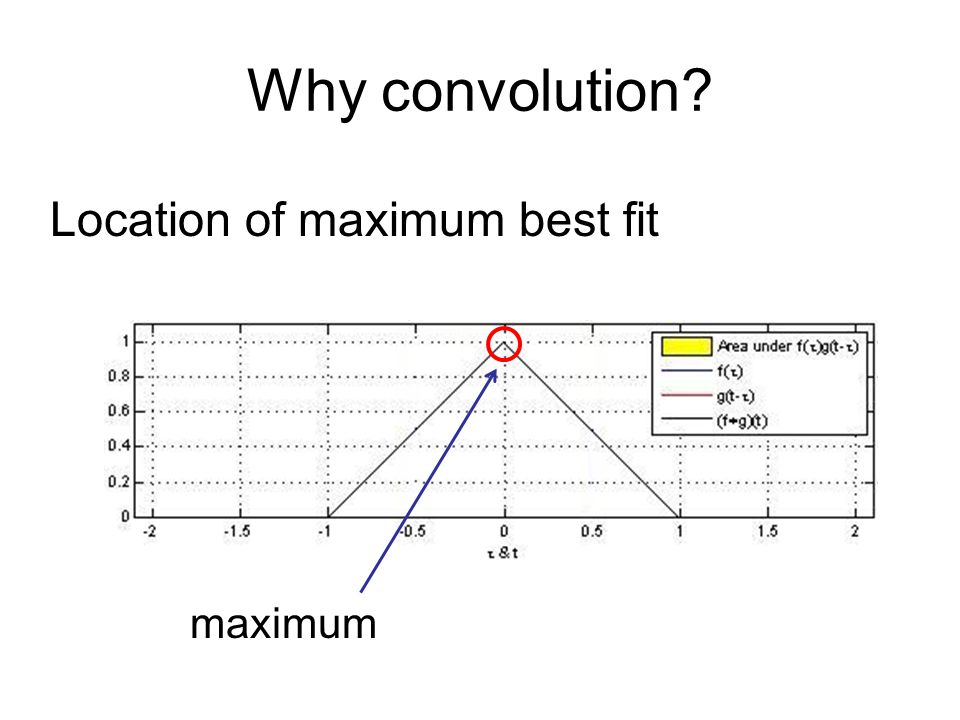

Why convolution? Location of maximum best fit maximum

107

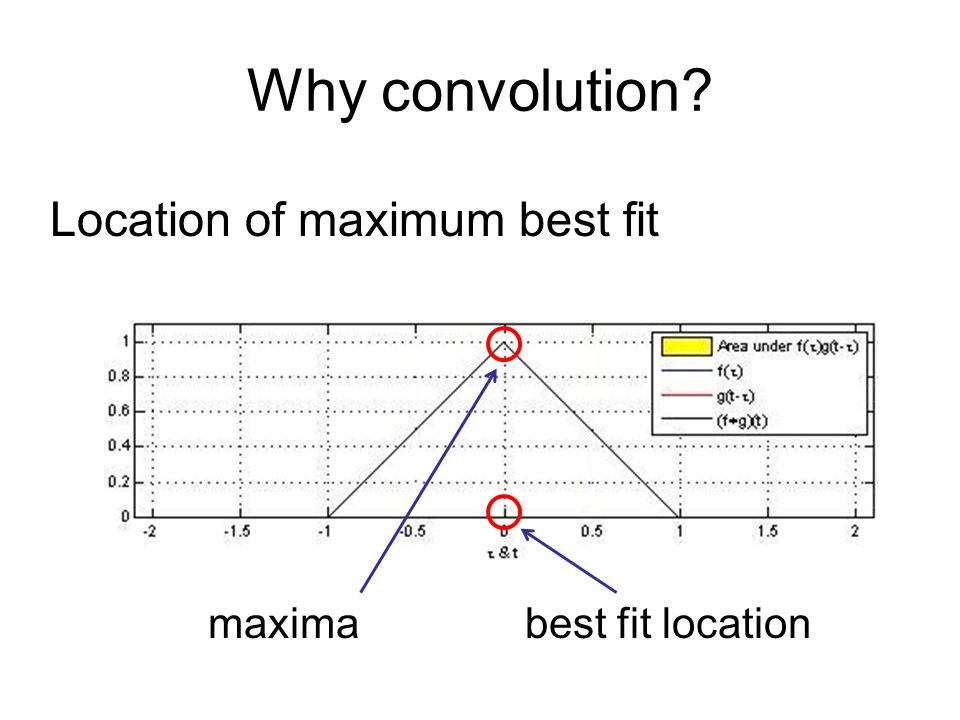

Why convolution? Location of maximum best fit maximabest fit location

108

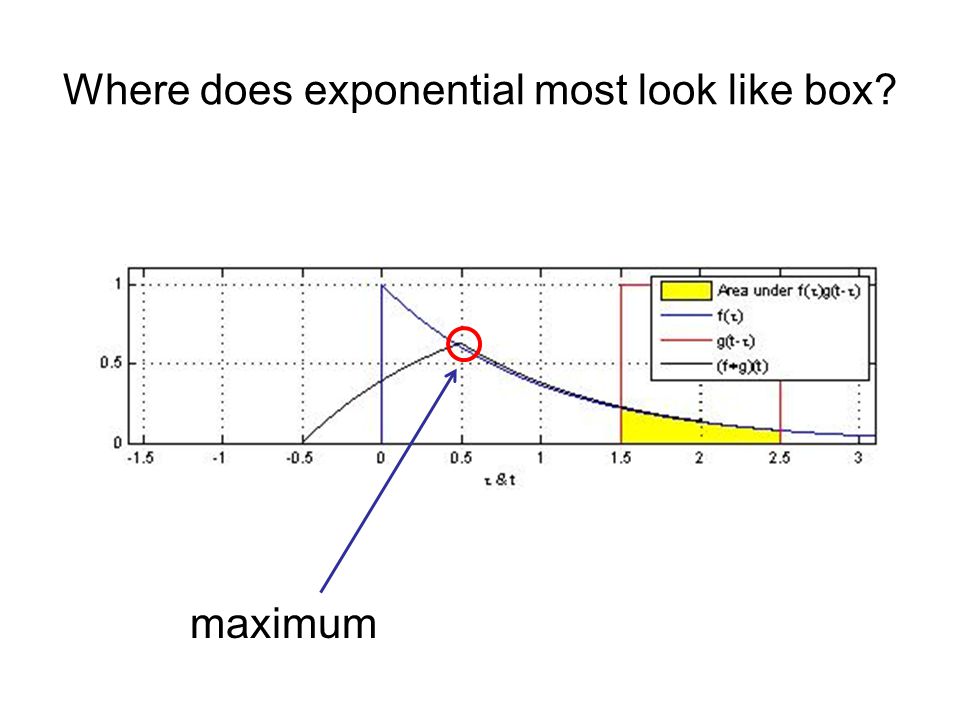

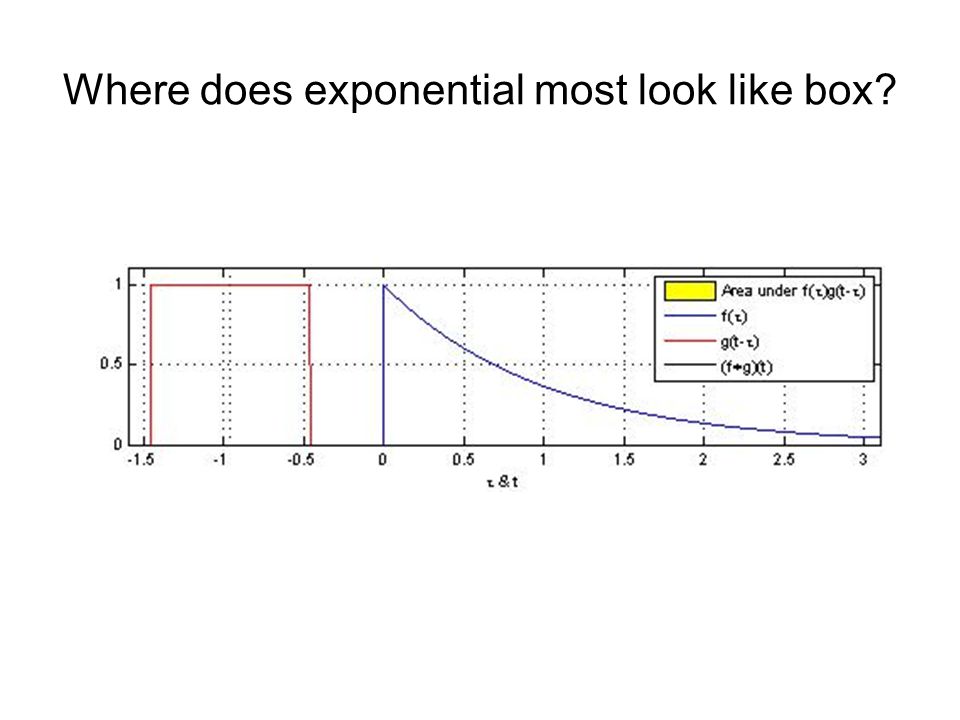

Where does exponential most look like box?

110
maximum

111

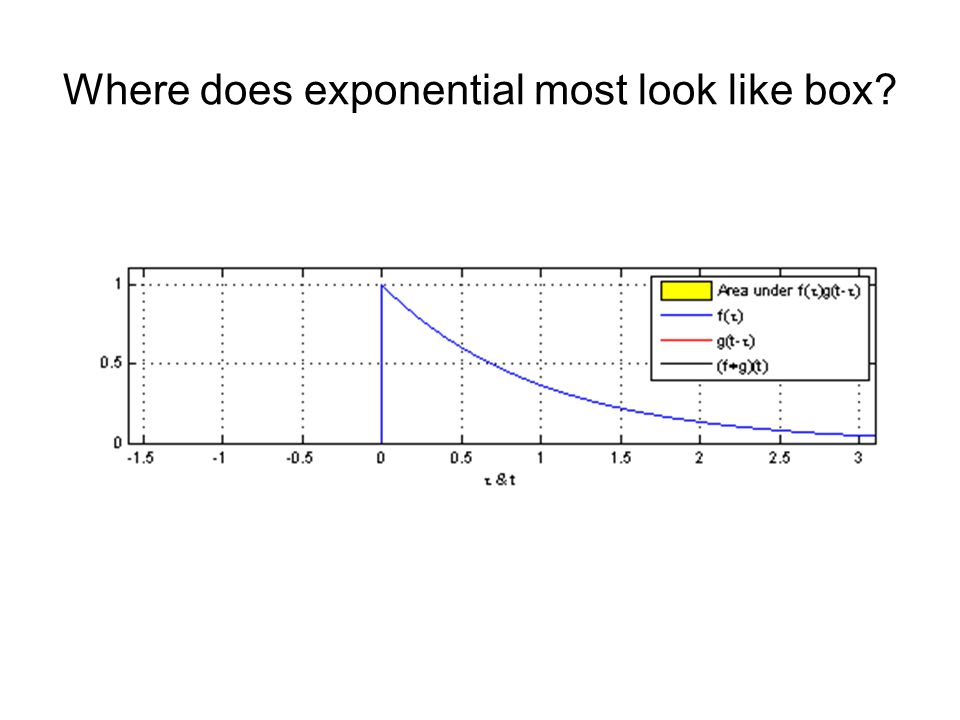

Where does exponential most look like box? maximum best fit location

112

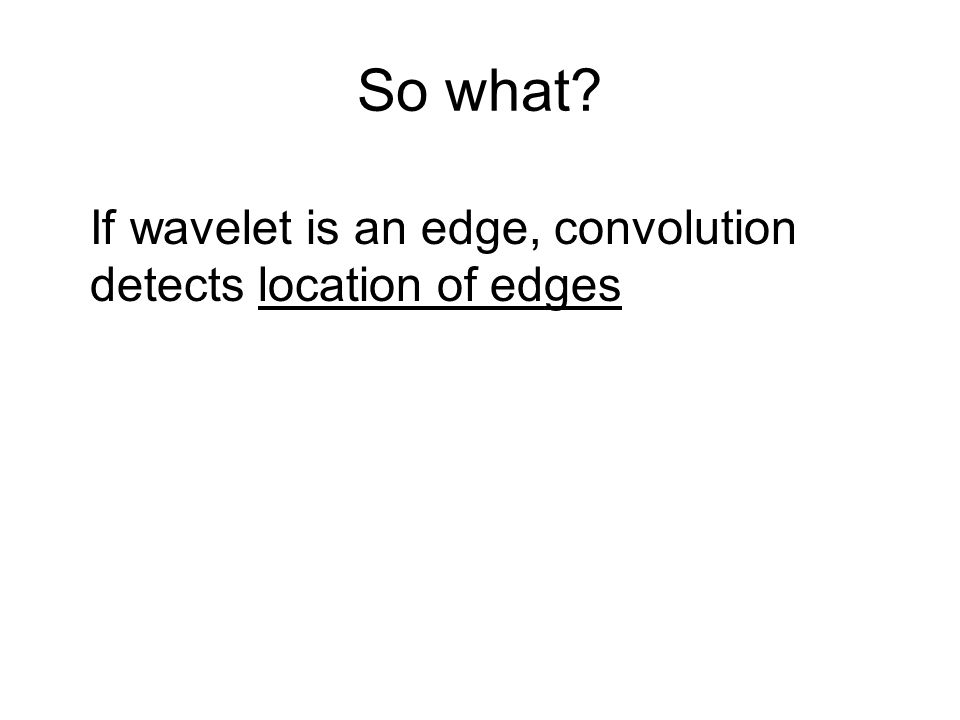

So what? If wavelet is an edge, convolution detects location of edges

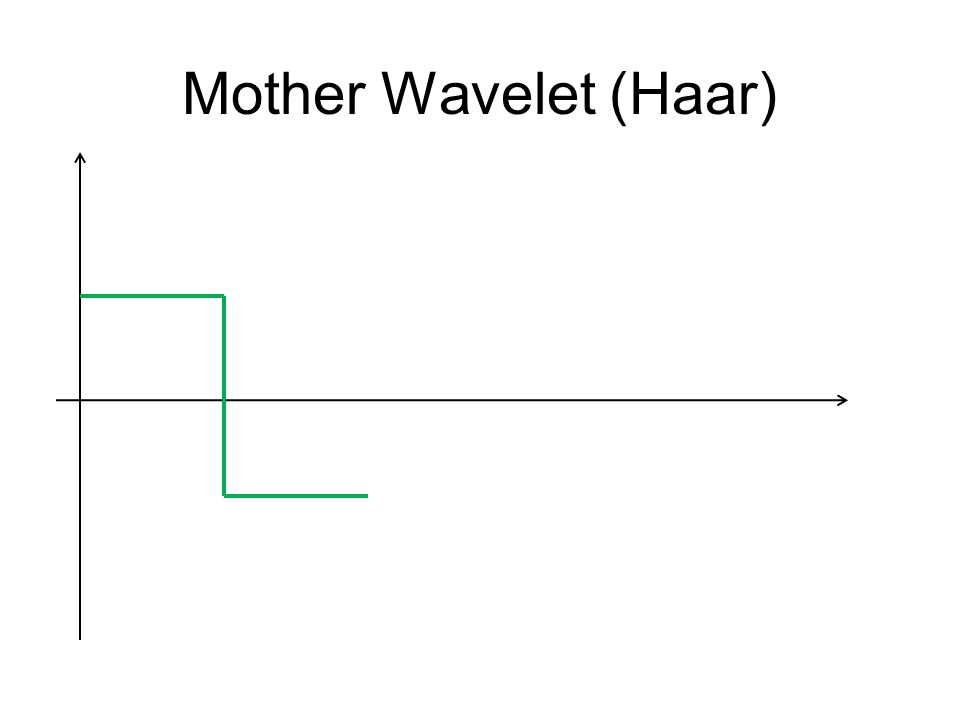

113
Mother Wavelet (Haar)

116
What is edge? Local extrema of wavelet transform

117
Summary of Decomposition Discrete Wavelet Transform Save “edges” e.g. local extrema Input “edges+edge type”

118
Summary of Decomposition input edge detection (scale 1) edge detection (scale 2) edge detection (scale 4) = = =

119

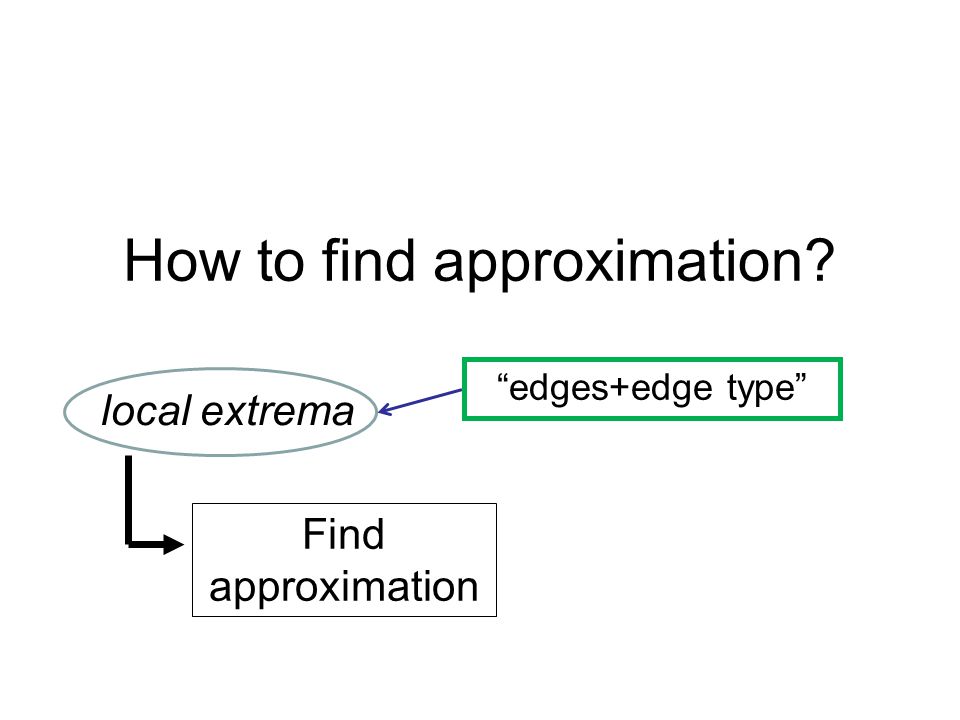

How to find approximation? Find approximation local extrema “edges+edge type”

120

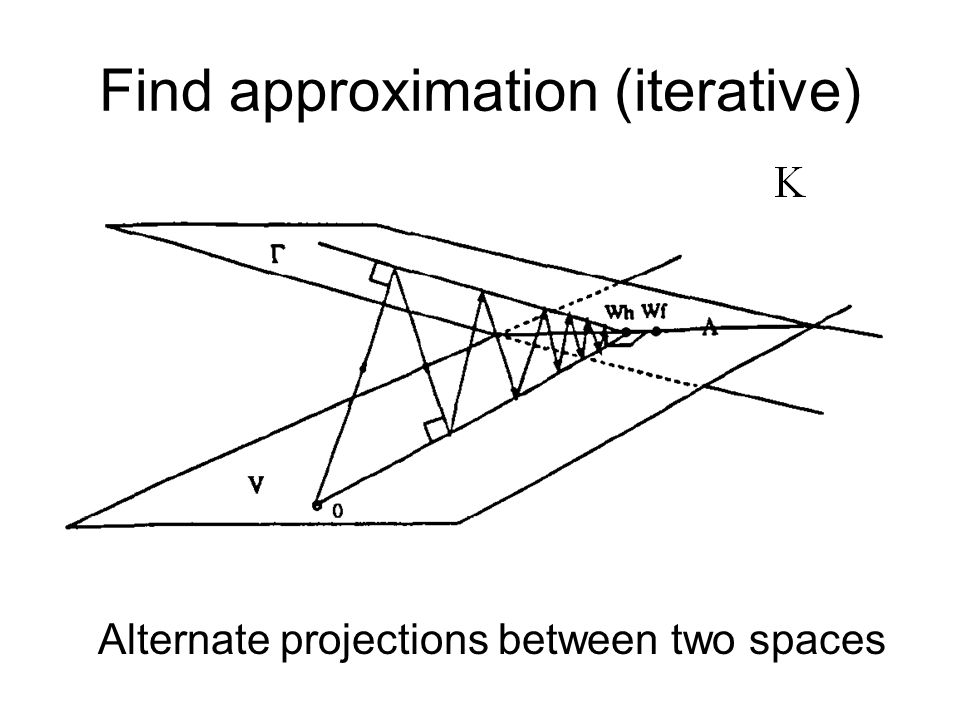

Find approximation (iterative) Alternate projections between two spaces

121
Find approximation (iterative)

122
H_1 Sobolev Norm

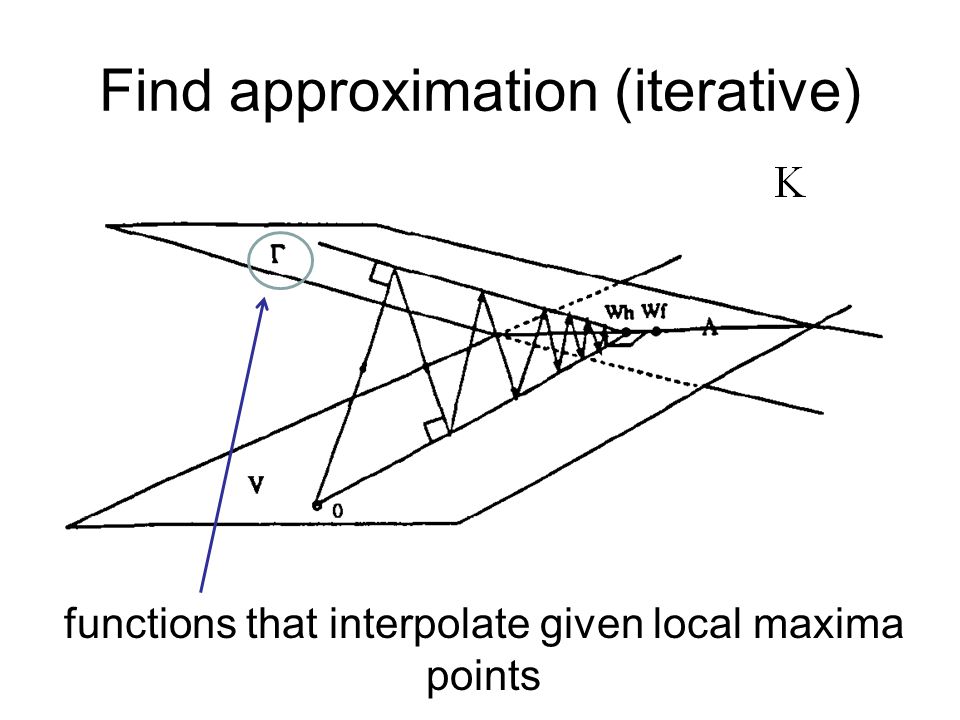

123
Find approximation (iterative) functions that interpolate given local maxima points

124

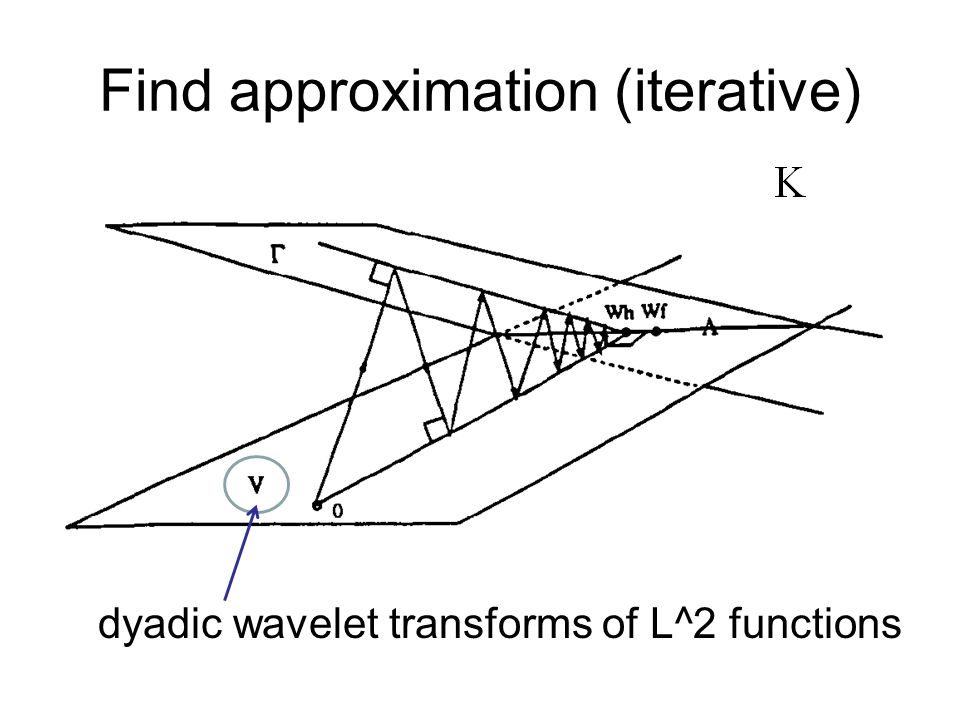

Find approximation (iterative) dyadic wavelet transforms of L^2 functions

125
Find approximation (iterative) intersection = space of solutions

126
Find approximation (iterative) Start at zero element to minimize solution’s norm

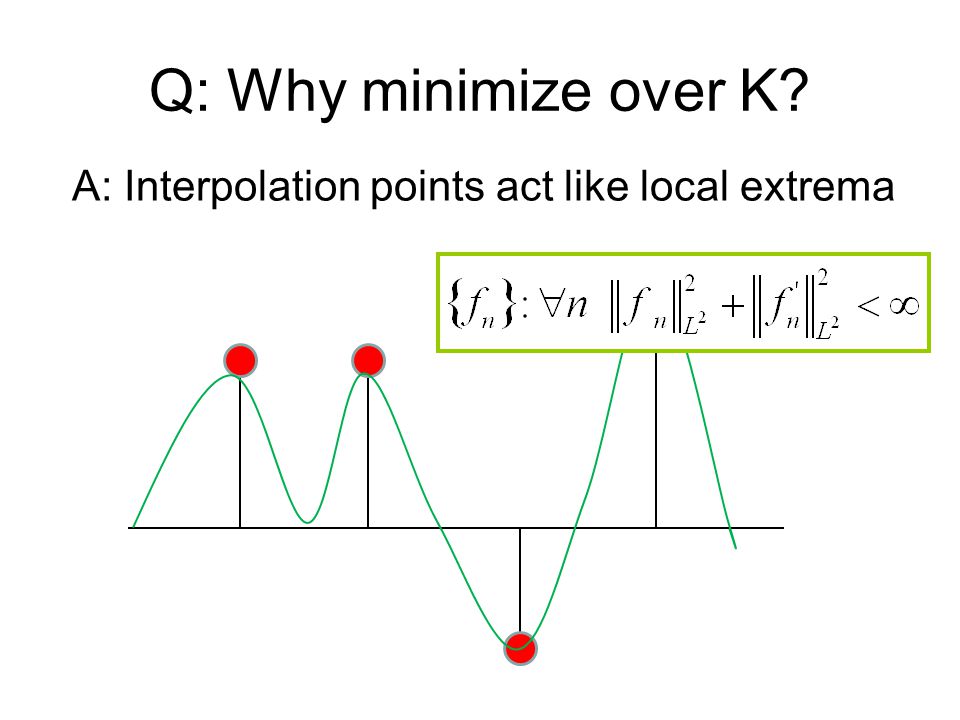

127
Q: Why minimize over K? A: Interpolation points act like local extrema

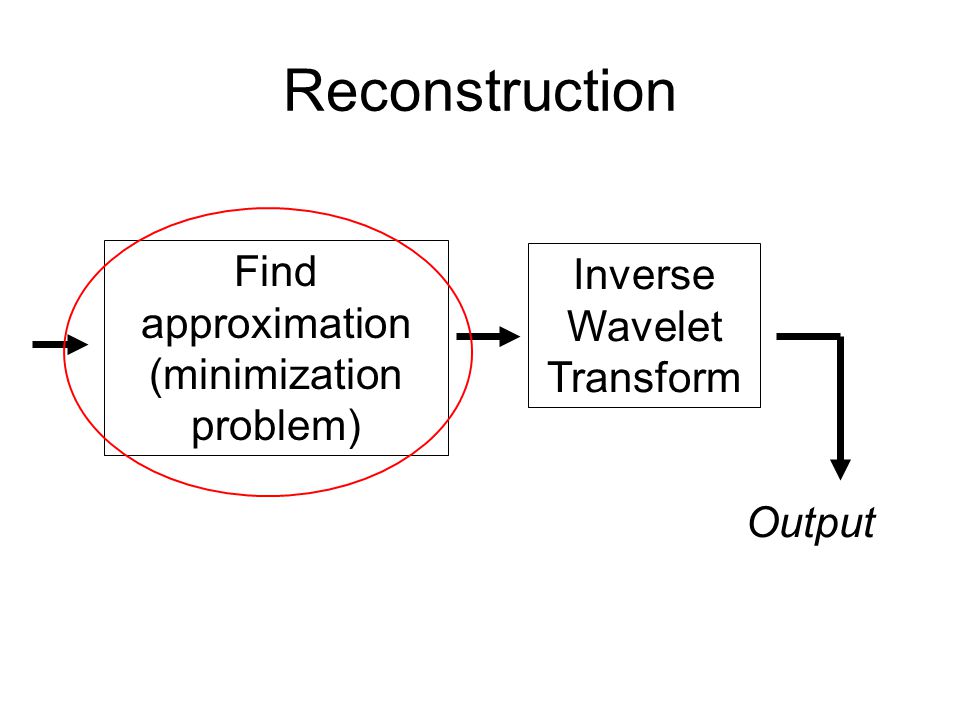

128
Reconstruction Find approximation (minimization problem) Inverse Wavelet Transform Output

129
Example Input of 256 points

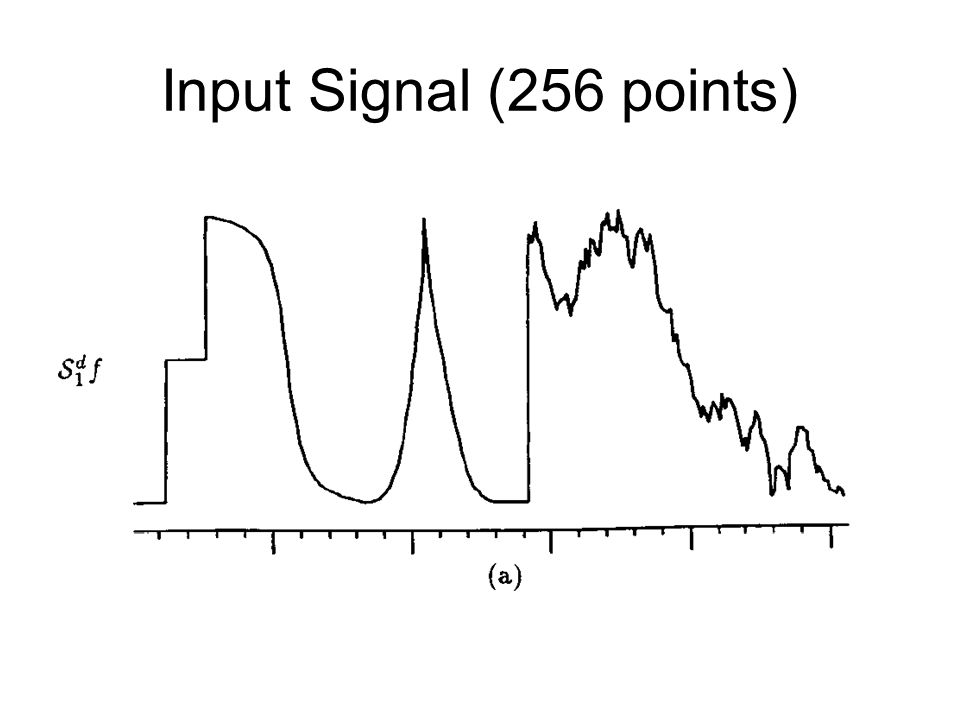

130
Input Signal (256 points)

131
major edges

132

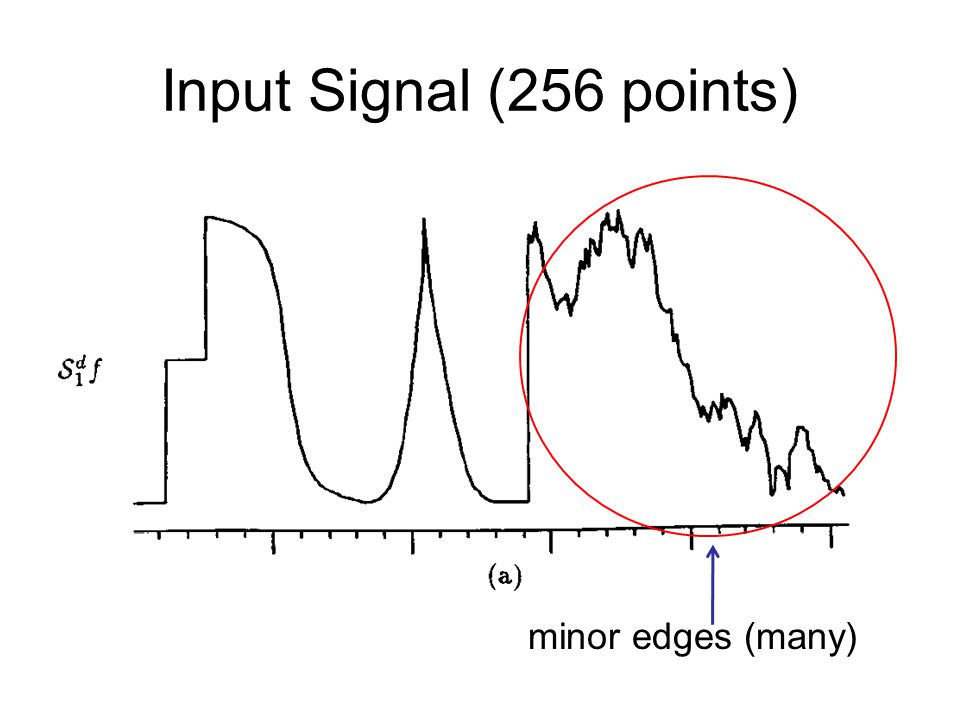

Input Signal (256 points) minor edges (many)

133
Discrete Wavelet Transform Dyadic (powers of 2) = DWT of “f” at scale 2^j

134

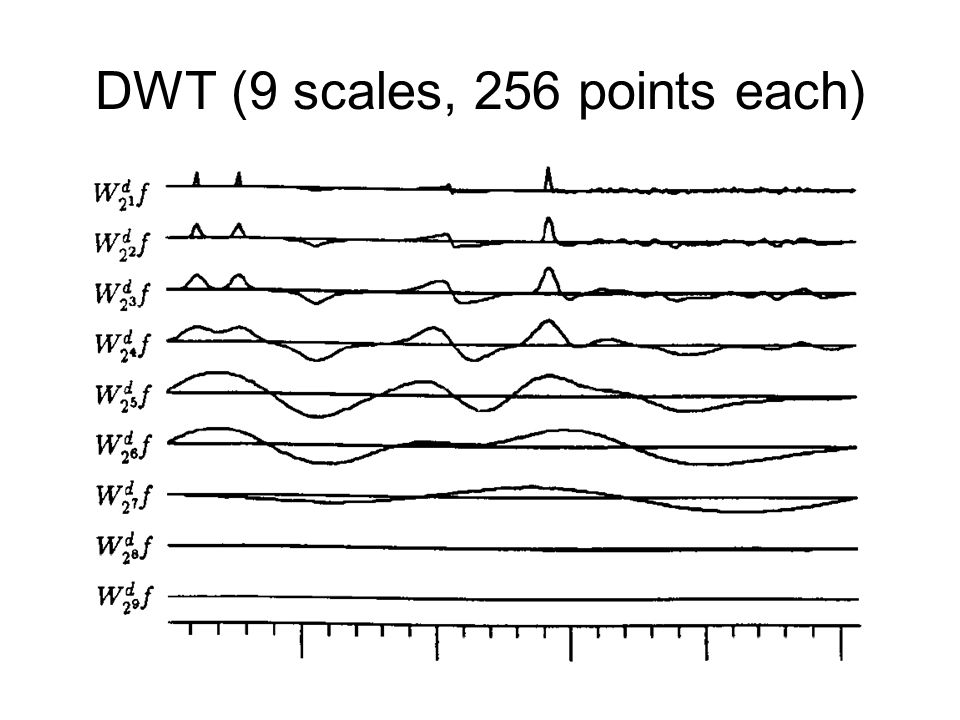

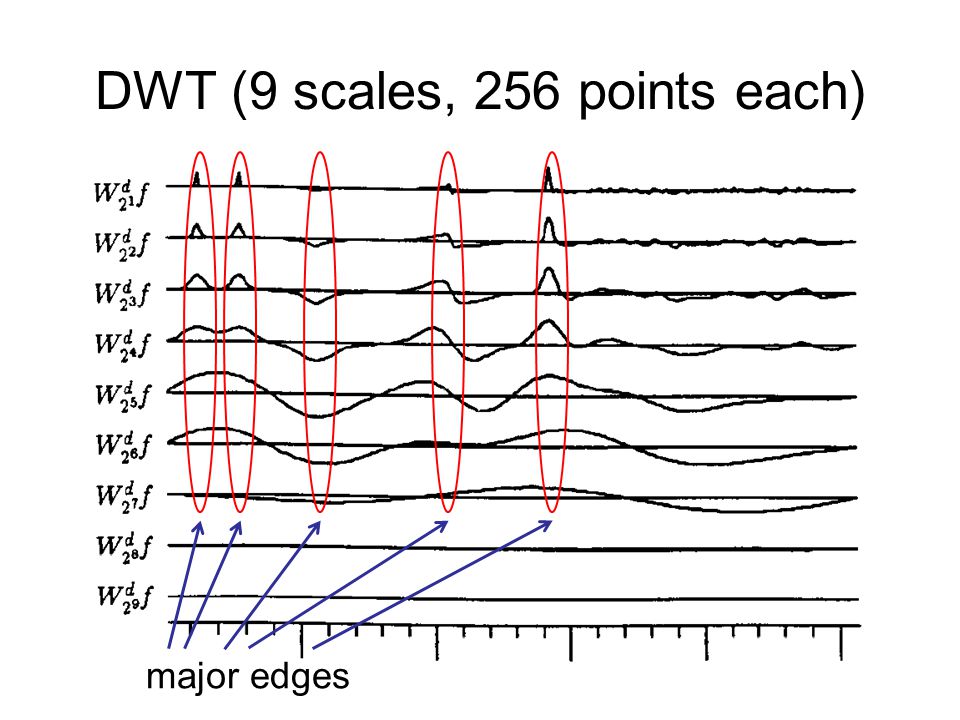

DWT (9 scales, 256 points each)

135
major edges

136
Input Signal (256 points) major edges

137
DWT (9 scales, 256 points each) minor edges (many)

138
Input Signal (256 points) minor edges (many)

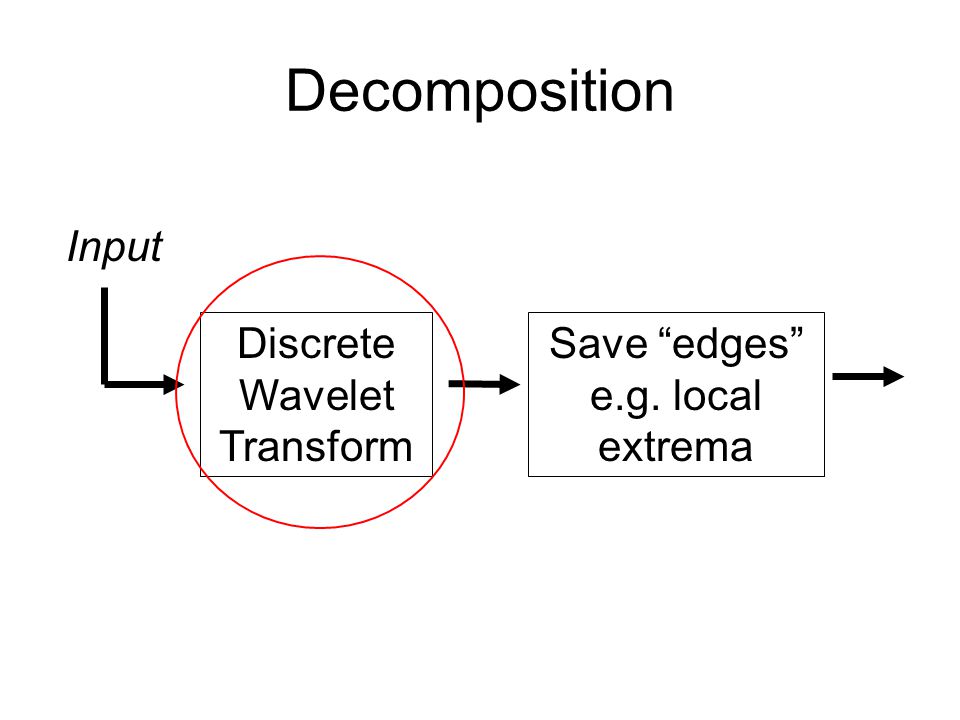

139
Decomposition Discrete Wavelet Transform Save “edges” e.g. local extrema Input

140
DWT (9 scales, 256 points each)

141
Save Local Maxima

142

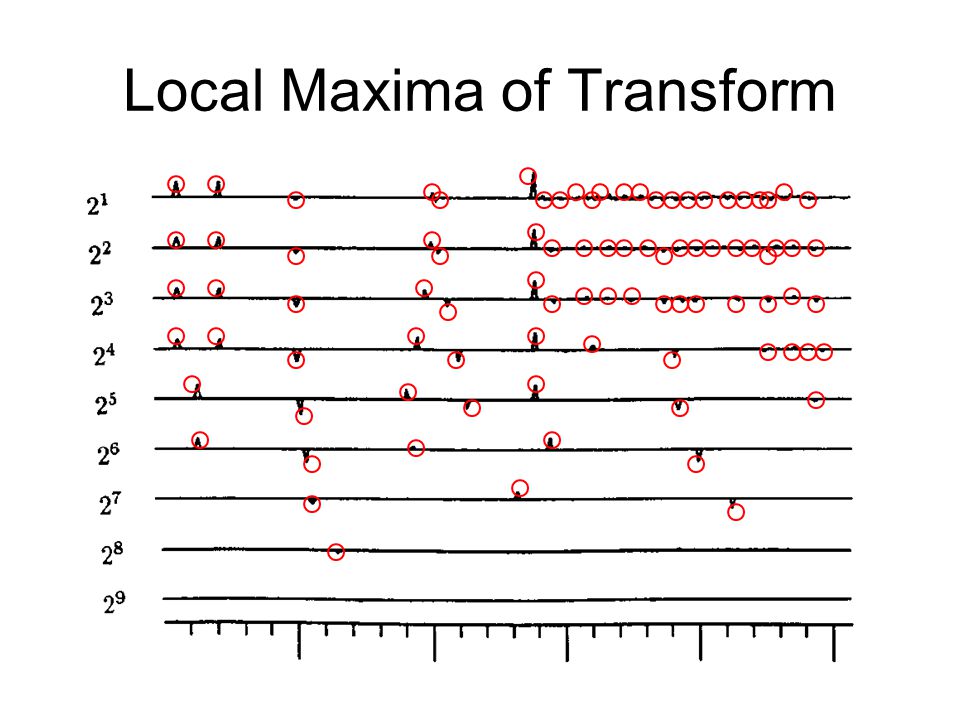

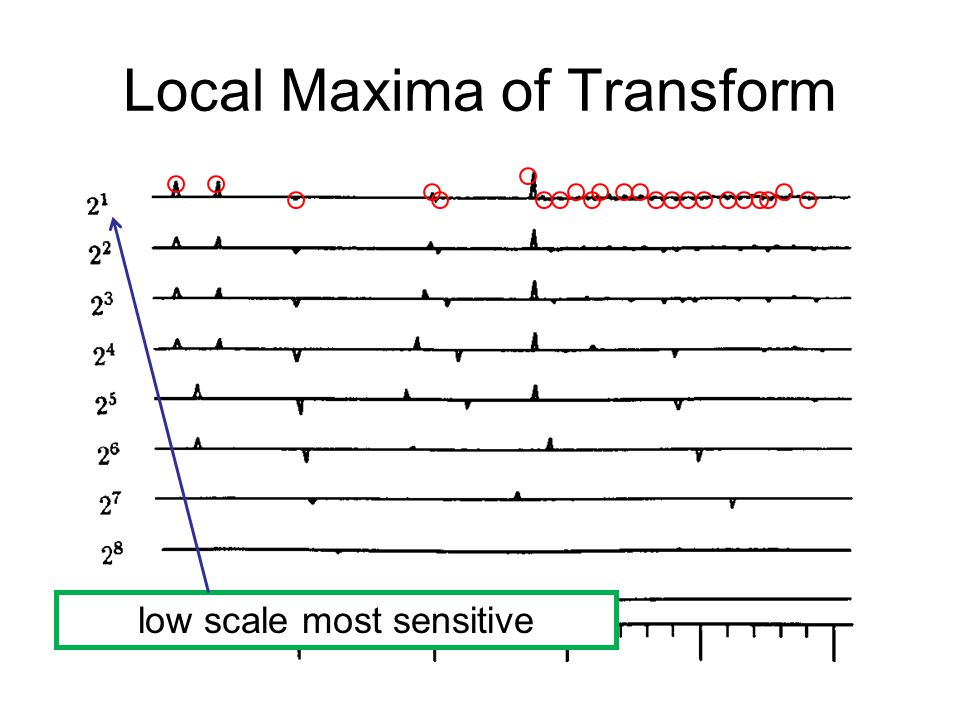

Local Maxima of Transform

143
low scale most sensitive

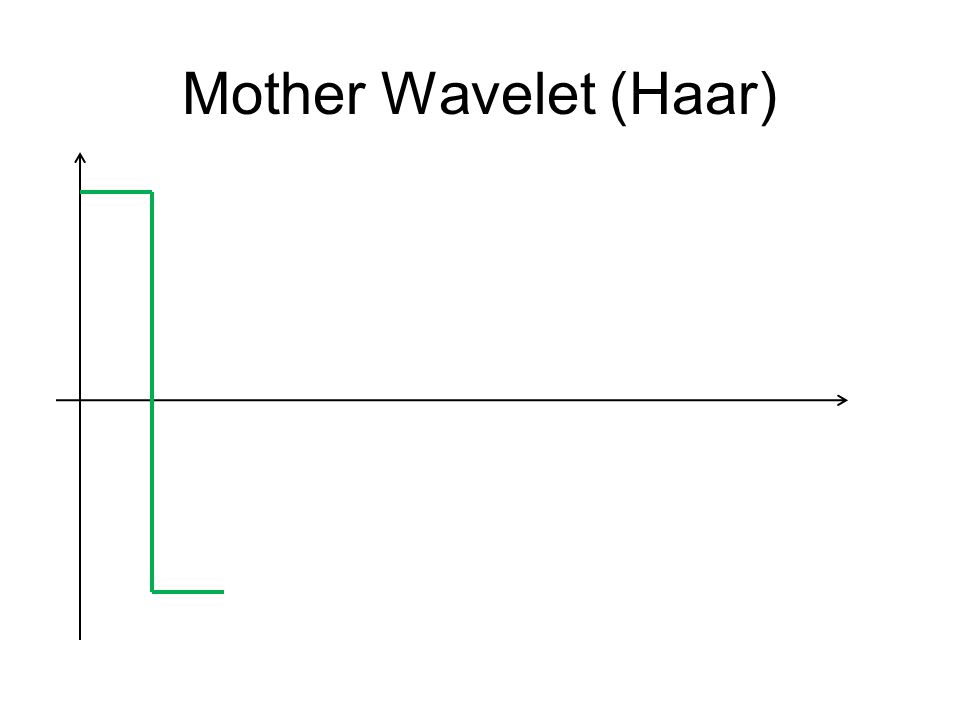

144

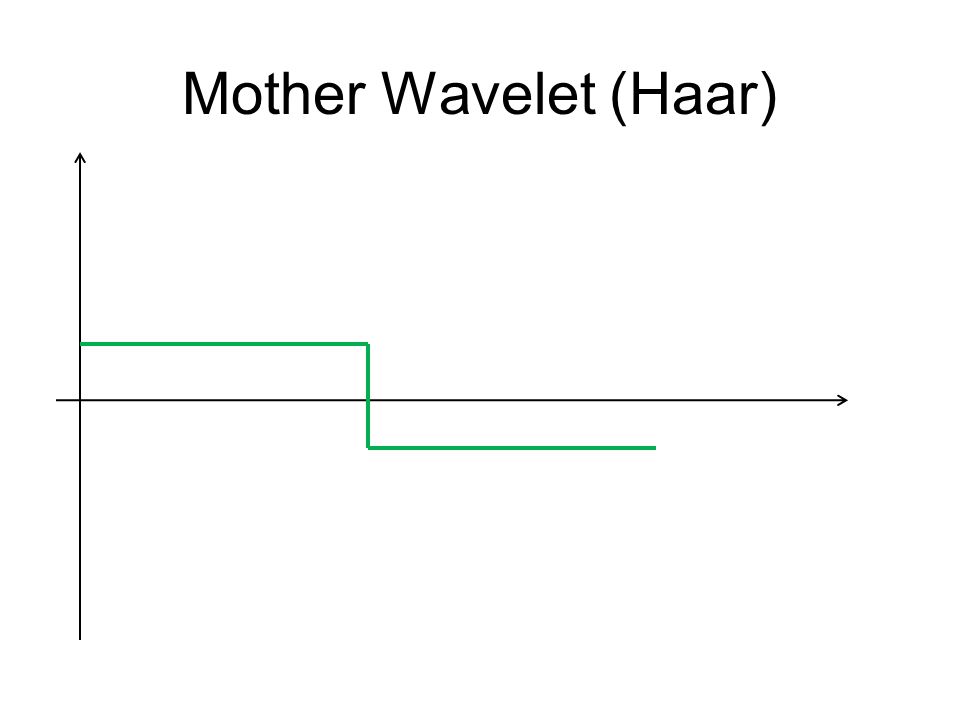

Mother Wavelet (Haar)

145
Local Maxima of Transform high scale least sensitive

146
Mother Wavelet (Haar)

147

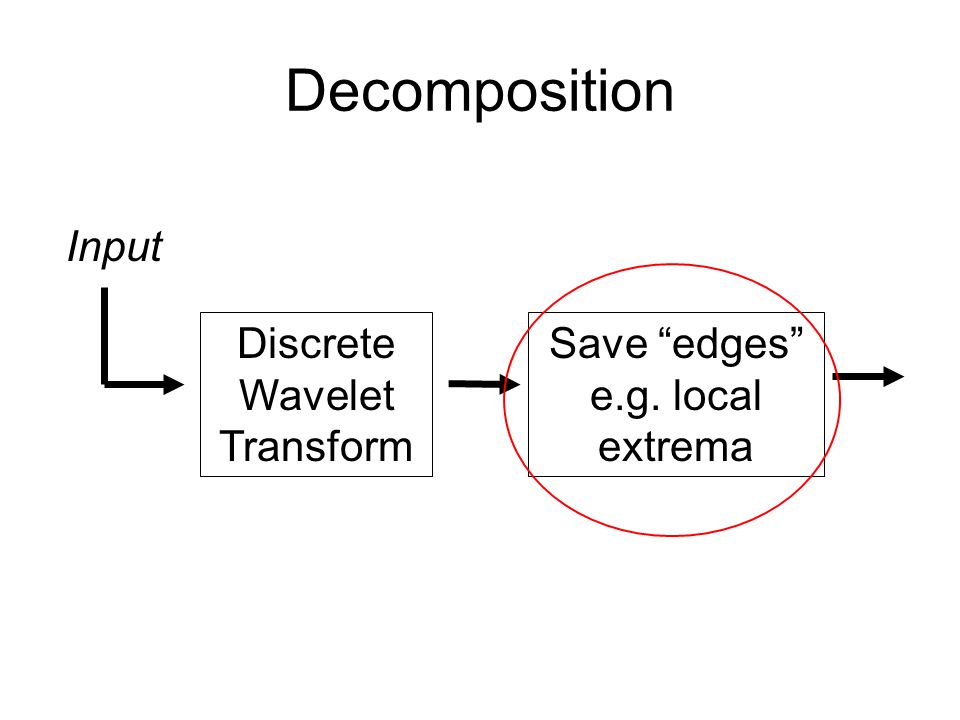

Decomposition Discrete Wavelet Transform Save “edges” e.g. local extrema Input

148
Local Maxima of Transform

149
Find approximation (iterative) Alternate projections between two spaces

150
Reconstruction Find approximation (minimization problem) Inverse Wavelet Transform Output

151

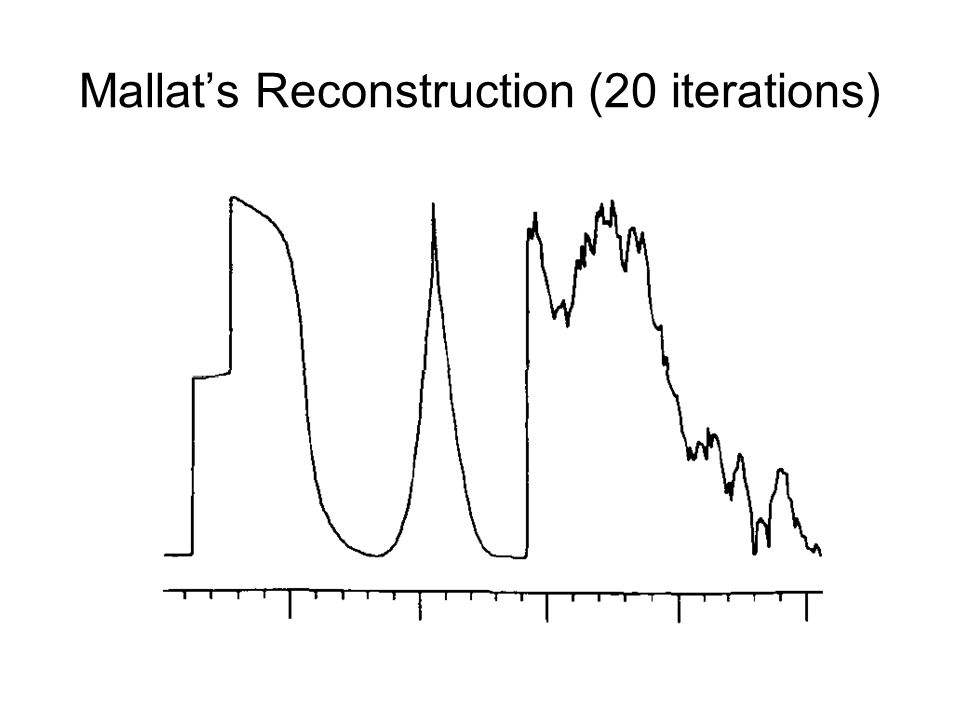

Mallat’s Reconstruction (20 iterations)

152

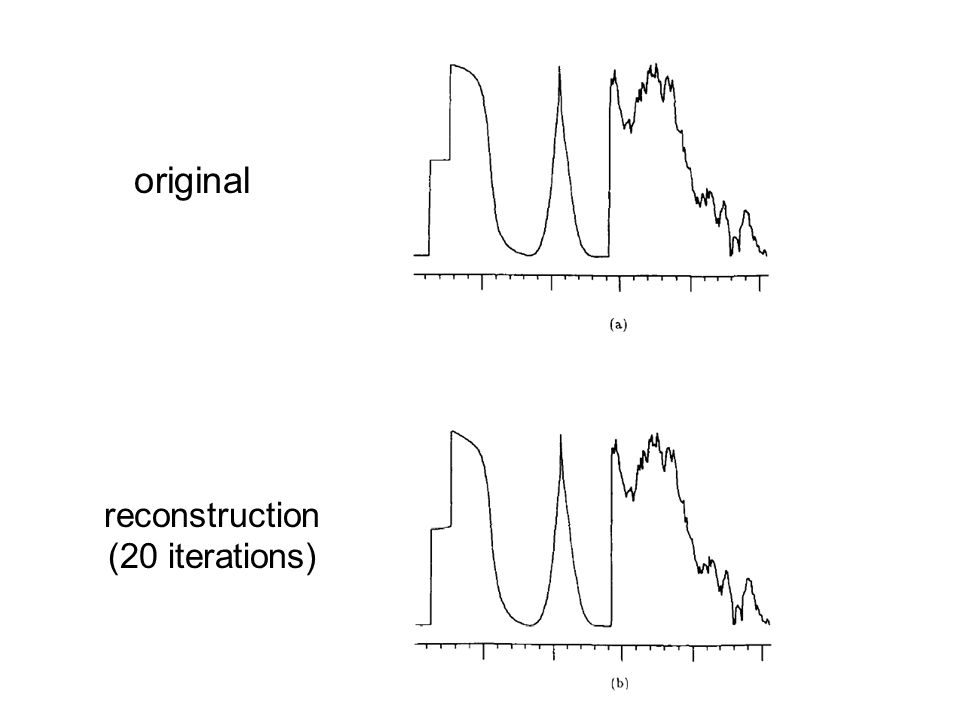

original reconstruction (20 iterations)

153
Implementation Language: MATLAB –Matlab wavelet toolbox Complexity: convergence criteria

154
Databases Baseline signals –sinusoids, Gaussians, step edges, Diracs Audio signals

155

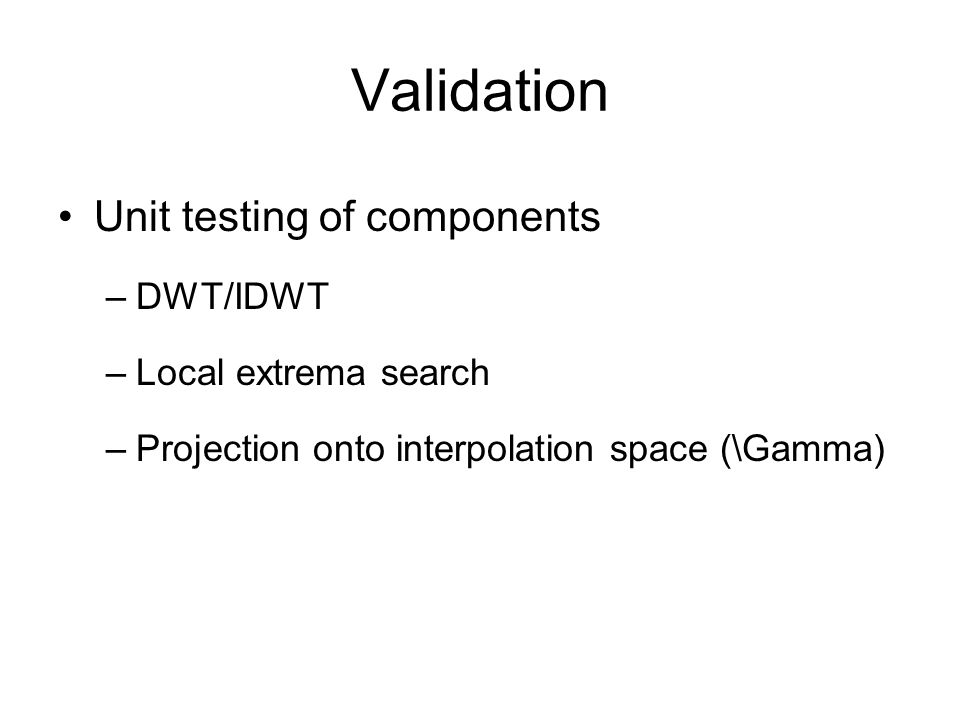

Validation Unit testing of components –DWT/IDWT –Local extrema search –Projection onto interpolation space (\Gamma)

156
Testing L2 norm of the error (sum of squares) versus iterations Saturation point in iteration (knee)

157
Schedule (Coding) October/November – code Alternate Projections (8 weeks) December – write up mid-year report (2 weeks) January – code local extrema search (1 week)

158

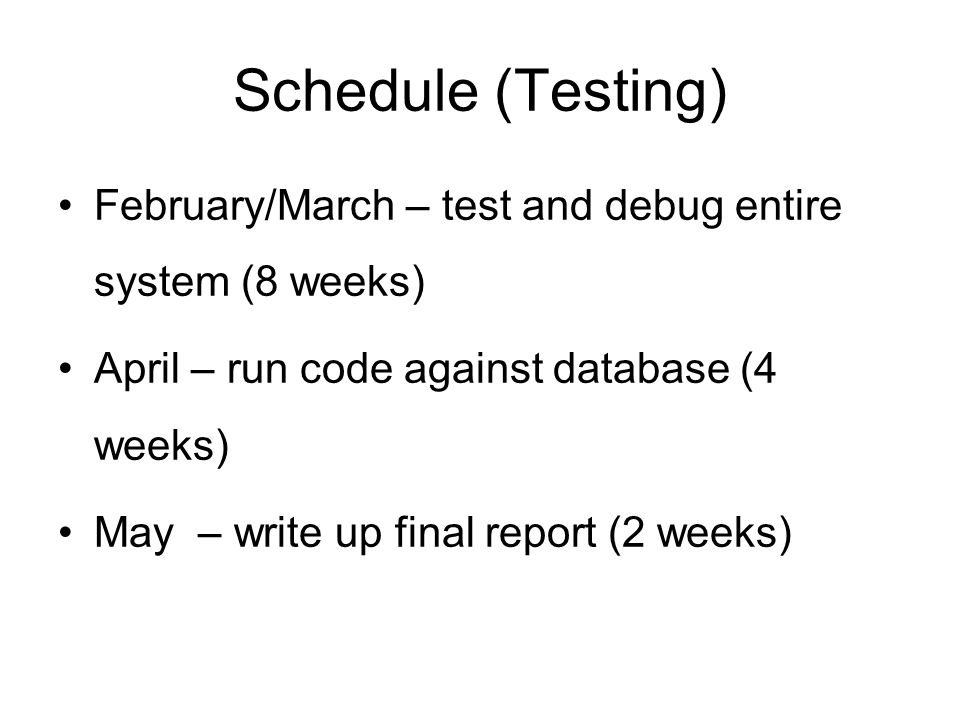

Schedule (Testing) February/March – test and debug entire system (8 weeks) April – run code against database (4 weeks) May – write up final report (2 weeks)

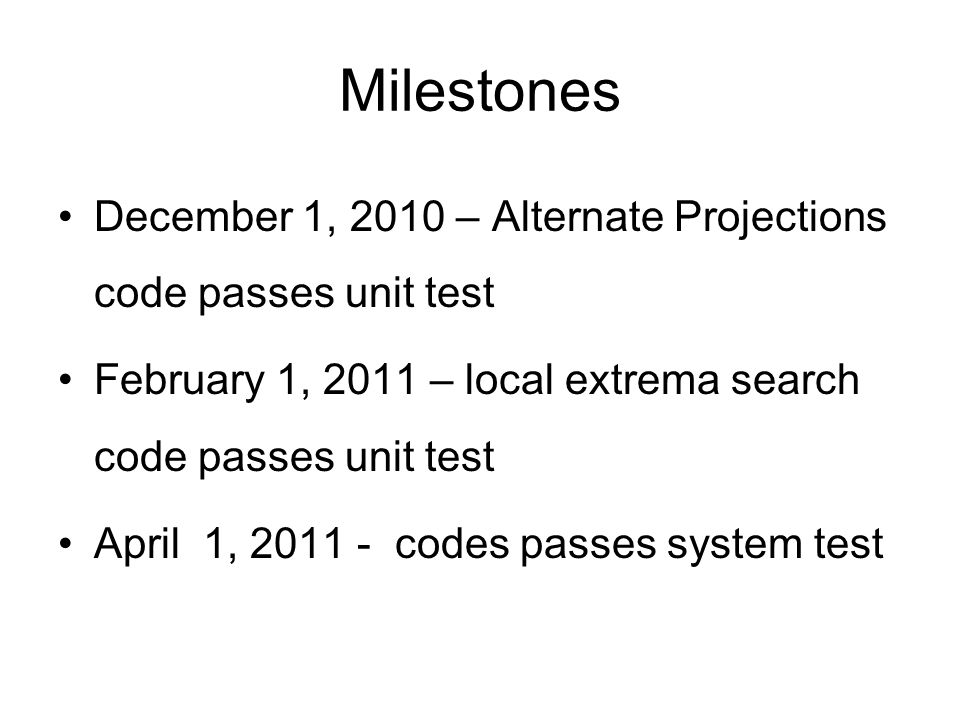

159
Milestones December 1, 2010 – Alternate Projections code passes unit test February 1, 2011 – local extrema search code passes unit test April 1, 2011 - codes passes system test

160
Deliverables Documented MATLAB code Testing results (reproducible) Mid-year report/Final report
