1 ANDREA WESTERINEN CA TECHNOLOGIES APR 28, 2011 Policy Language Overview 1

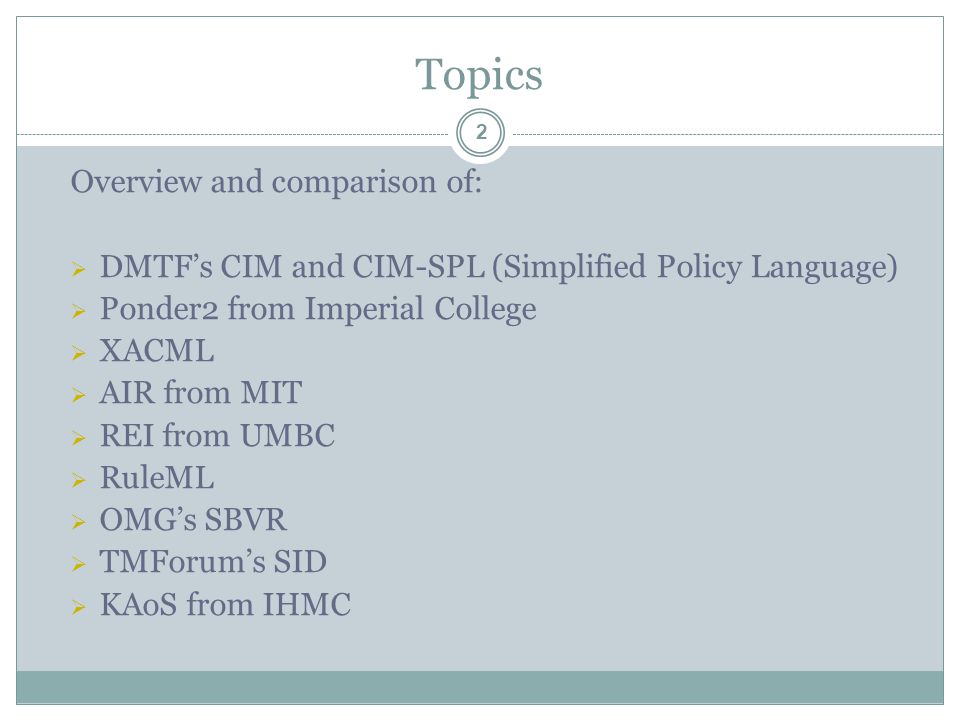

2 Topics Overview and comparison of:  DMTF’s CIM and CIM-SPL (Simplified Policy Language)  Ponder2 from Imperial College  XACML  AIR from MIT  REI from UMBC  RuleML  OMG’s SBVR  TMForum’s SID  KAoS from IHMC 2

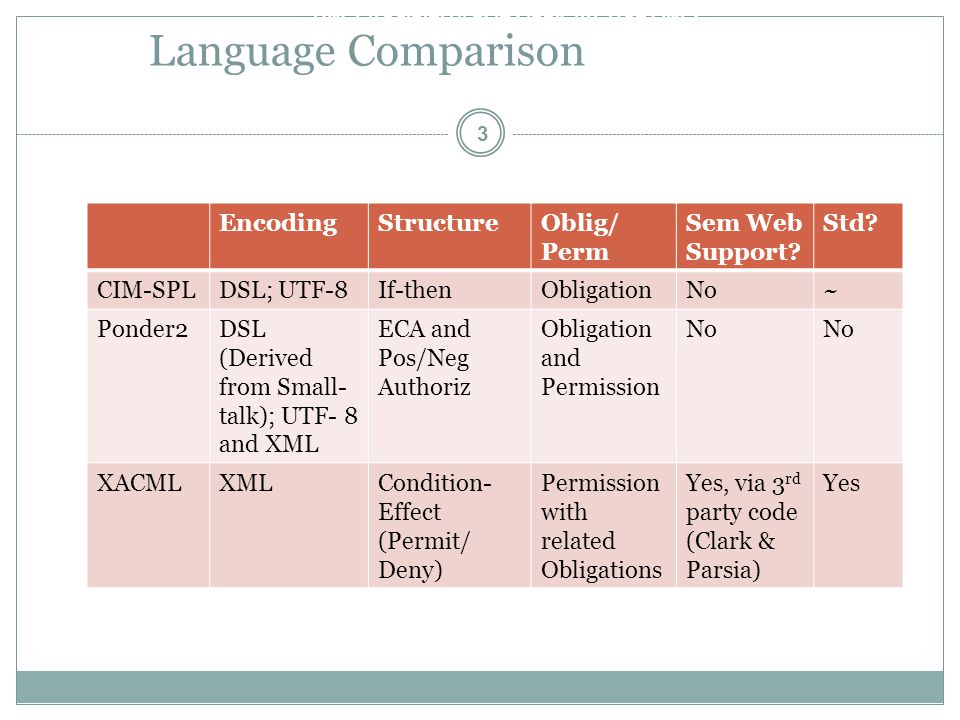

3 UNCLASSIFIED // FOR OFFICIAL USE ONLY Language Comparison EncodingStructureOblig/ Perm Sem Web Support? Std? CIM-SPLDSL; UTF-8If-thenObligationNo~ Ponder2DSL (Derived from Small- talk); UTF- 8 and XML ECA and Pos/Neg Authoriz Obligation and Permission No XACMLXMLCondition- Effect (Permit/ Deny) Permission with related Obligations Yes, via 3 rd party code (Clark & Parsia) Yes 3

4 UNCLASSIFIED // FOR OFFICIAL USE ONLY Language Comparison (Continued) EncodingStructureOblig/ Perm Sem Web Support? Std? AIR (Account- ability in RDF) TurtleCondition- Assertion ~Permission (Validation) YesNo REI (Japanese for “universal”) OWL-Lite + Variables Condition- Action with Starting and Ending Conditions Obligation and Permission YesNo 4

5 UNCLASSIFIED // FOR OFFICIAL USE ONLY Language Comparison (Continued) EncodingStructureOblig/ Perm Sem Web Support? Std? RuleMLVarious encodings (focus on interop between the encodings) Horn clauses (Head <- Body), Evolution toward event- condition-action N/AYes~Yes OMG’s SBVR XMI encoding of UML instances Instances of quantifications, atomic formulations, role bindings, fact types, … Obligation and Permission Not directly, via mapping to ISO Common Logic Yes 5

6 UNCLASSIFIED // FOR OFFICIAL USE ONLY Language Comparison (Continued) EncodingStructureOblig/ Perm Sem Web Support? Std? TMForum’s SID XMI encoding of UML instances Complex set of inter-related instances (supporting Event- Condition- Action) ObligationNo (?)Yes IHMC’s KAoS OWL/RDFSituation (event or history) -> Authorization and/or Obligations/ Actions Obligation and Permission YesNo 6

7 Language Overviews 7

8 CIM and CIM-SPL Constructs:  PolicyGroup (set of rules)  PolicyRule (set of conditions and actions)  PolicyCondition (broad set of operators defined, but extensible only as macros)  PolicyAction Supports definition of rules whose conditions consist of CIM data properties, and whose actions invoke CIM operations or function calls  Actions include operations on the CIM data repository to change properties, create an instance, etc. 8

9 PolicyGroup Structure (CIM-SPL) Import CIM_V _ _ :: : ; Strategy [Execute_All_Applicable | Execute_First_Applicable] ; Declaration { (Optional)  (Optional) } Policy { … } : Priority; … PolicyGroup:[Association Name(Property1,Property2)] { … }: Priority; … 9

10 Example (CIM-SPL) Import SAMPLE CIM_V_2_8_CIM_Core28-Final::PhysicalElement;  May further filter target instances via the specification of a condition Strategy Execute_All_Applicable; Declaration {  InstallDate="ManagedSystemElement.InstallDate";  Macro { Name = Age; Type = Long; Arguments Born:DATETIME;  Procedure = getYear(CurrentDate) – getYear(Born) } } Policy {  Condition { 4 > Age(InstallDate) AND  VendorEquipmentType == "switch“ }  Decision { Upgrade (SKU) } }:1 Target Variables and Procs Rule Priority If Multiple Policies Defined 10

11 Ponder2 Combines:  Domain Service (for managing objects)  Obligation Policy Interpreter (for handling Event-Condition-Action rules)  Command Interpreter (accepts commands written in PonderTalk to perform actions against objects registered in the Domain Service)  Authorization Enforcement (supports positive and negative authorization and conflict resolution) Constructs  Policies are sets of rules  Rules address either obligation or permission  Obligation policies consist of condition/action definitions Infrastructure resolves conflicts between policies that apply to the same (subject, target, action)-triple  Based on “more specific” rule (“more specific” type in the hierarchy) 11

12 Obligation Policy (Ponder2) template := root/factory/event create: #( "monitor" "value" ). root/event at: "monitor" put: template. policy := root/factory/ecapolicy create. policy event: root/event/monitor;  condition: [ :value | value > 100 ];  action: [ :monitor :value | root print:  "Monitor " + monitor + " has value " + value 6 ];  active: true. 12

13 Authorization Policy (Ponder2) root/tauthdom at: "a3" put: (newauthpol  subject: root/personnel/nurse/ward1/nurse1  action: "getrecord“  target: root/patient/ward1/patient1  focus:"t" ).  root/tauthdom/a3 reqneg.  root/tauthdom/a3 reqcondition:  [ :nurselevel | nurselevel < 3].  root/tauthdom/a3 repneg.  root/tauthdom/a3 repcondition:  [ :patrecord | patrecord =="[name= Harry;age= 12;symptom=BonelessArm]"]. root/tauthdom/a3 active: true. Rule name Rule Where enforced Positive/Neg Authz Additional conditions on subject/target Active (T/F) 13

14 UNCLASSIFIED // FOR OFFICIAL USE ONLY XACML 3 Concepts Permit/Deny First applicable Deny overrides Permit overrides Only one applicable … Attributes defined as name/value pairs Broad set of operators and extensible Action before or after access 14

15 Example (XACML)   SampleServer   15

16 Rule in a Policy (XACML)   login   16

17 Condition in a Rule (XACML)     09:00:00   As above, but the time is 17:00:00  17

18 Multiple Rules in a Policy (XACML) 18

19 AIR Allows control over reasoning by invoking rules according to pattern matching, dependency tracking (explanations), nesting of rules and goal direction Rule types:  Belief – forward chaining deduction  Goal – means to limit the application of rules  Hidden – not shown as step in the deduction/explanation Rule actions:  Assertions (statement added to beliefs)  Subrules  Alternatives 19

20 UNCLASSIFIED // FOR OFFICIAL USE ONLY AIR Concepts 20

21 Example :PERSON, :CITY, :STATE. :ny_neighbor_state_residency_policy a air:Policy; air:rule :non-ny-residency-rule. :non-ny-residency-rule a air:Belief-rule;  rdfs:label "Non NY residency rule";  air:pattern {:PERSON tamip:Lives_in_city :CITY.};  air:rule [ air:pattern {:CITY tamip:Has_state :NY.}; air:alt [air:rule :neighbor-state-rule] ]. :neighbor-state-rule a air:Belief-rule;  rdfs:label "neighbor state rule";  air:pattern { :CITY tamip:Has_state :STATE. :NY tamip:Neighbor_state :STATE.};  air:assert { :PERSON air:compliant-with :ny_neighbor_state_residency_policy. }. Rules in Policy Subrules in Rule 21

22 REI Supports deontic objects  Permissions, Prohibitions, Obligations, Dispensations (waiver for obligations)  Common Properties : Actor, Action, Constraint {StartingConstraint, EndingConstraint}  StartingConstraint subproperty of Constraint Uses speech acts for dynamic policy modification  Delegation, Revocation, Request, Cancel  Properties : Sender, Receiver, Content (Deontic object/Action), Conditions Focused on security and privacy Uses meta policies for conflict resolution 22

23 UNCLASSIFIED // FOR OFFICIAL USE ONLY REI Concepts 23

24 UNCLASSIFIED // FOR OFFICIAL USE ONLY REI Ontologies 24

25 Example (REI)  Constraints that define the domain Associates deontic obj Explicit/implicit permission/prohibition Whether pos/neg rules take precedence Or Priority Resource defining ruleOfGreater/LesserPriority 25

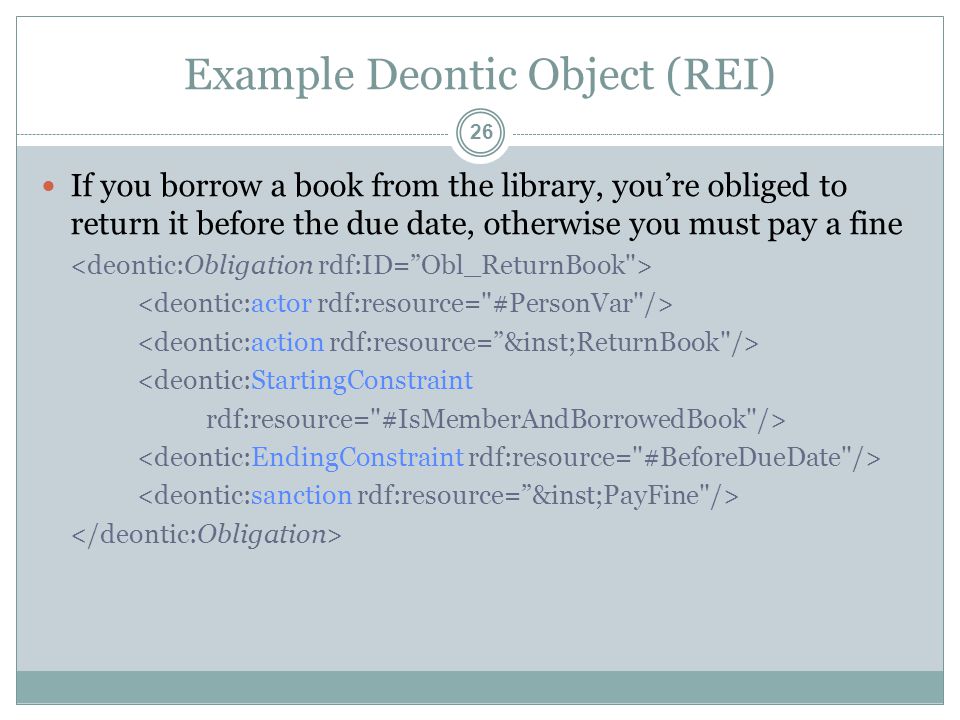

26 Example Deontic Object (REI) If you borrow a book from the library, you’re obliged to return it before the due date, otherwise you must pay a fine 26

27 Example Speech Act (REI) ’Marty' revokes the permission to use a specific action ’HP123Printing from 'George' 27

28 RuleML Concerned with rule interop “between industry standards  Such as JSR 94, SQL'99, OCL, BPMI, WSFL, XLang, XQuery, RQL, OWL, DAML-S, and ISO Prolog)  As well as established systems (CLIPS, Jess, ILOG JRules, Blaze Advisor, Versata, MQWorkFlow, BizTalk, Savvion, etc.)”  Developed a base RuleML specification and a hierarchy of rule types  Based on Datalog/Horn clauses and n-ary relations  Unary/binary form of these clauses used in OWL/SWRL Developed transformations from and to other rule standards/systems Also addressing coordinated tool development  Such as an XSLT normalizer to check syntax, add role tags and missing attributes 28

29 RuleML Rule Hierarchy Basic structure dealing with implications (head <- body), with details in relationships between variables Most work in this area 29

30 RuleML Example "A customer is premium if their spending has been min 5000 euro in the previous year.“ premium customer spending customer min 5000 euro previous year Derivation Conclusion Premises 30

31 SBVR Semantics of Business Vocabularies and Business Rules Based on semantic and first-order logic concepts Defines UML constructs to represent vocabularies & rules Assumed multi-lingual  Separates “symbols” from their concepts/semantics Defines basic vocabulary/rule exchange structure using MOF/XMI Includes approach to convert “structured English” to SBVR concepts in (non-normative) Annex C  Annex “describes one … way of using English that maps mechanically to SBVR concepts.”  “It is not meant to offer all of the variety of common English, but rather, it uses a small number of English structures and common words to provide a simple and straightforward mapping.” 31

32 UNCLASSIFIED // FOR OFFICIAL USE ONLY SBVR Details (Core Definitions to Instances) 32

33 UNCLASSIFIED // FOR OFFICIAL USE ONLY Major Areas Addressed by SBVR 33

34 UNCLASSIFIED // FOR OFFICIAL USE ONLY SBVR Community 34

35 UNCLASSIFIED // FOR OFFICIAL USE ONLY SBVR Meanings 35

36 UNCLASSIFIED // FOR OFFICIAL USE ONLY SBVR Semantic/Logical Formulations 36

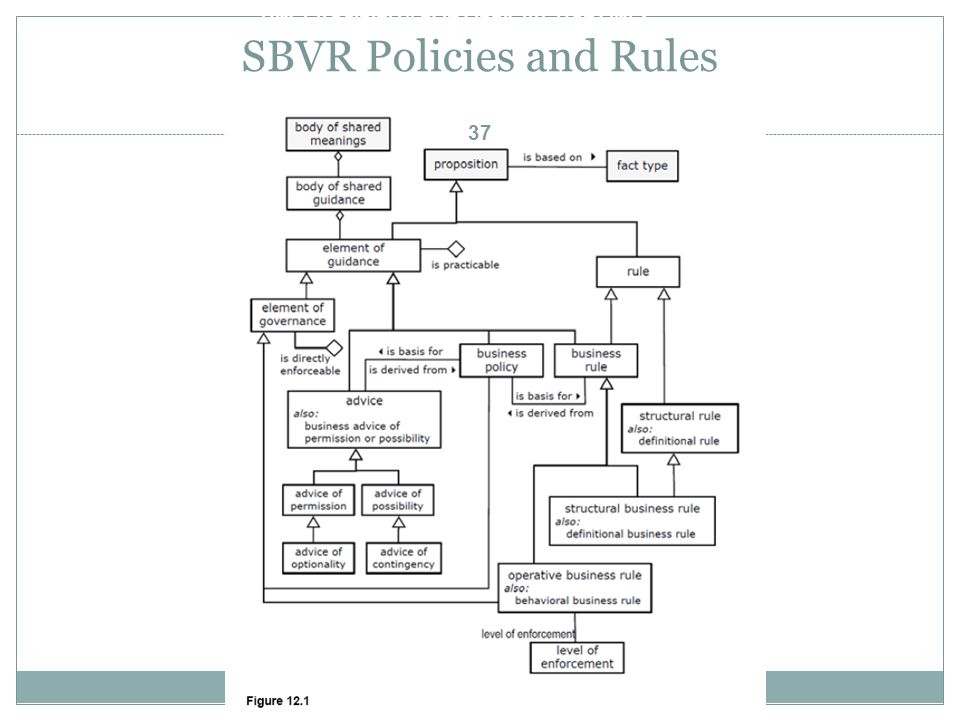

37 UNCLASSIFIED // FOR OFFICIAL USE ONLY SBVR Policies and Rules 37

38 SBVR Example Very complex instantiation, even for simple rules …  For example … Definition: the age of the driver is at least the EU-Rent Minimum Driving Age Results in a complex set of variables, quantifications, atomic formulations, role bindings, fact types, …  The definition is represented by a projection  The projection is on a first variable  The first variable ranges over the concept ‘driver’ … The first variable maps to the one role of the characteristic.  The projection is constrained by a first universal quantification …  Continued on the next slide XML formulation even more complex 38

39 SBVR Example (Continued)  The first universal quantification introduces a second variable.... The second variable ranges over the concept ‘age’.... The second variable is unitary.... The second variable is restricted by an atomic formulation..... The atomic formulation is based on the fact type ‘driver has age’..... The atomic formulation has a role binding The role binding is of the role ‘driver’ of the fact type The role binding binds to the first variable..... The atomic formulation has a second role binding The second role binding is of the role ‘age’ of the fact type The second role binding binds to the second variable.  The first universal quantification scopes over a second universal quantification.... The second universal quantification introduces a third variable..... The third variable ranges over the concept ‘EU-Rent Minimum Driving Age’..... The third variable is unitary.  The second universal quantification scopes over an atomic formulation..... The atomic formulation is based on the fact type ‘quantity1 > quantity2’ The atomic formulation has a role binding The role binding is of the role ‘quantity1’ of the fact type The role binding binds to the second variable The atomic formulation has a second role binding The second role binding is of the role ‘quantity2’ of the fact type The second role binding binds to the third variable. 39

40 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy Domains Invariant definitions Instance-specific definitions Infrastructure components 40

41 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy – Big Picture 41

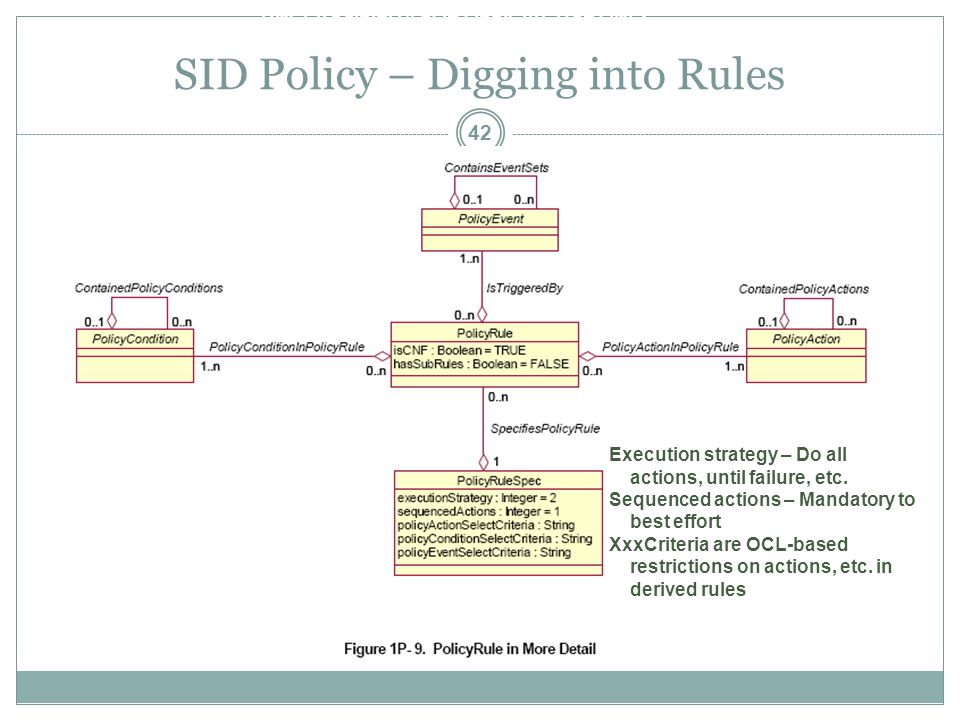

42 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy – Digging into Rules Execution strategy – Do all actions, until failure, etc. Sequenced actions – Mandatory to best effort XxxCriteria are OCL-based restrictions on actions, etc. in derived rules 42

43 SID – Policy Details SID – Shared Information/Data Model  Described in Publication GB922, NGOSS Release 4, Addendum 1-POL Constructs:  Policy – a set of rules  Policy Rule  Policy Set – a group of policies  Policy Event – an occurrence  Policy Condition – an aggregation of individual PolicyConditions; boolean expression  Policy Action – an aggregation of individual PolicyActions; “actions to be applied” 43

44 SID Policy – Related Constructs Policy Subject – set of entities that is the “focus of the policy” (as Roles) Policy Targets – set of entities that the policy will be applied to (as Roles) But not further related in the model, except that Entities have EntityRoles, and PolicyApplications also have Roles 44

45 SID Example Not Provided Cannot be compactly displayed Complex set of inter-related instances For example, …  PolicyRules have 1 or more PolicyConditions  Which ultimately have to be defined as PolicyConditionAtomics  Which are related 1-to-1 to PolicyStatements  Which have 1 or more PolicyVariables  Which are made up of 1 or more values with 1 or more operators  Most concepts include related constraints (OCL)  See detailed UML diagrams in backup In addition, domain-specific extensions require corresponding UML definitions 45

46 KAoS Overview From IHMC – Florida Institute for Human Machine Cognition Infrastructure and ontology for policy specification, analysis, disclosure and enforcement  Backing software implemented using Java Agent Services (JAS) Based on OWL-DL (OWL 1) for extensibility  Base ontology defines general policy concepts  Domain interpretations/extensions necessary for specific environments  Includes generic reasoner interface (for example, Stanford Java Theory Prover or Pellet Reasoner) Incorporates concepts of both positive/negative authorization and obligation 46

47 KAoS Architecture (3 Layer) Policies distributed to Guards Implemented by enforcers 47

48 UNCLASSIFIED // FOR OFFICIAL USE ONLY Policy Decision Point 48

49 KAoS Policies Starting from a Situation …  Where the situation has variables describing its state, and has a history  Use of history: When [the actor] has performed [an action] which has [attributes] at least [some number] of times within the last [some number] [time period], then …  Use of state: When the [situation] has [state] with [attributes], then … Evaluate a Rule: An [Actor] is [constrained] to perform [an action] which has [attributes]  Where an actor can be a specific instance, a type/class or role, or a logical union/complement/… of other instances or types (concepts all natively supported by OWL)  Where the constraint defines +/- authorization or obligation  Where the action is a type/class (such as movement)  … 49

50 KAoS Policies (Continued) Evaluate a Rule: An [Actor] is [constrained] to perform [an action] which has [attributes]  …  Where the attributes are the parameters of the action and can be:  Simple value restrictions (all/some values within a set of enumerated instances or of a certain type) – OR  A relation (equals, subset of/superset of, at least one, none) of 2 or more attributes Business logic calls KAoS Policy Service in the context of a given situation to:  Test permission to perform an action  Get obligations  Get configuration (details allowed for action to be authorized) 50

51 KAoS Concepts Entity, Attribute, Group Actor Situation Condition Action, ActionStatus, ActionHistory Event, EventHistory Place Message Policy Other concepts included by subclassing (for example, W3C time) 51

52 UNCLASSIFIED // FOR OFFICIAL USE ONLY KAoS Policy Ontology 52

53 UNCLASSIFIED // FOR OFFICIAL USE ONLY KAoS Example 53

54 UNCLASSIFIED // FOR OFFICIAL USE ONLY Addressing Policy Conflicts Found by semantic (subsumption-based) reasoning 54

55 KAoS Infrastructure De-Confliction Remove Policy  One of the overlapping policies can be completely removed Change Priority  Priorities of the policies can be modify so they either do not conflict or they alter the precedence relation Harmonize Policy  Controlled action of the selected overlapping policy can be modified using an automatic harmonization algorithm to eliminate their overlap Split Policy  Controlled action of the selected overlapping policy can be split into two parts: one part that overlaps with the other policy and the other which does not. Then the priorities of these parts can be modified independently. (The splitting algorithm is similar to the harmonization and is currently in development.) 55

56 Backup 56

57 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy Conditions 57

58 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy Statements 58

59 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy Variables 59

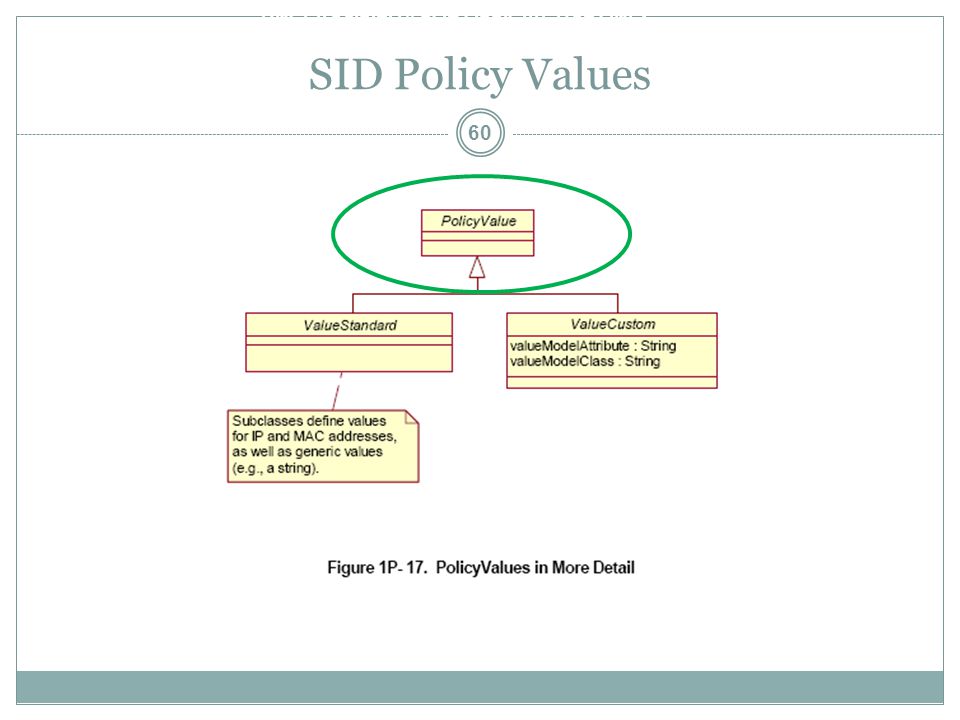

60 UNCLASSIFIED // FOR OFFICIAL USE ONLY SID Policy Values 60
