1 C Characters & Strings Character Review Character Handling Library Initialization String Conversion Functions String Handling Library Standard Input/Output Library Functions

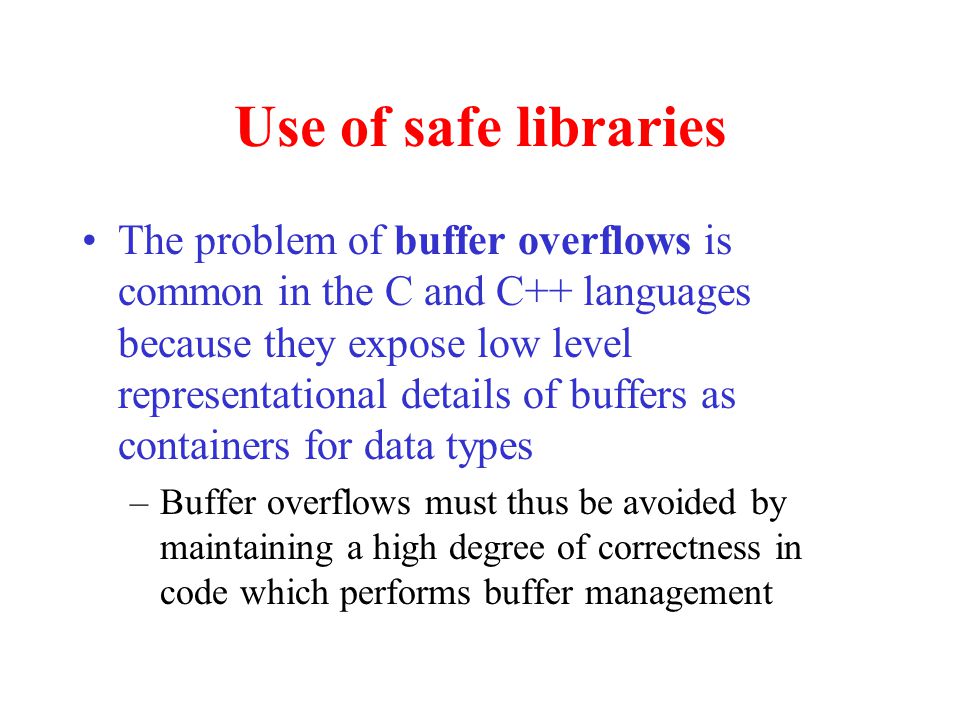

2 Use of safe libraries The problem of buffer overflows is common in the C and C++ languages because they expose low level representational details of buffers as containers for data types –Buffer overflows must thus be avoided by maintaining a high degree of correctness in code which performs buffer management

3 Use of safe libraries It has also long been recommended to avoid standard library functions which are not bounds checked, such as gets, scanf and strcpy –The Morris worm exploited a gets call in fingerd

4 Character Review Know your ASCII –'0'48 dec0x –'9'57 dec0x –'A'65 dec0x –'Z'90 dec0x5A –'a'97 dec0x –'z'122 dec0x7A

5 Character Handling Library Use #include header file Basic functions include: –Conversion between case –Test for upper or lower case –Test for letters (and digits and alphanumeric) –Test for blank spaces See example at char.cchar.c

6 Functions in Library See list on p. 312 in textbook int isdigit(char) –Is it a digit? int islower(char) –Is it lowercase letter? int isupper(char) –Is it uppercase letter? int tolower(char) –Convert to lowercase int toupper(char) –Convert to uppercase int isalpha(char) –Is it a letter? int isalnum(char) –Is it a letter or digit? int isdigit(char) –Is it a digit? int isspace(char) –Is it a space, tab, or newline? int ispunct(char) –Is it printable but not space or alphanumeric?

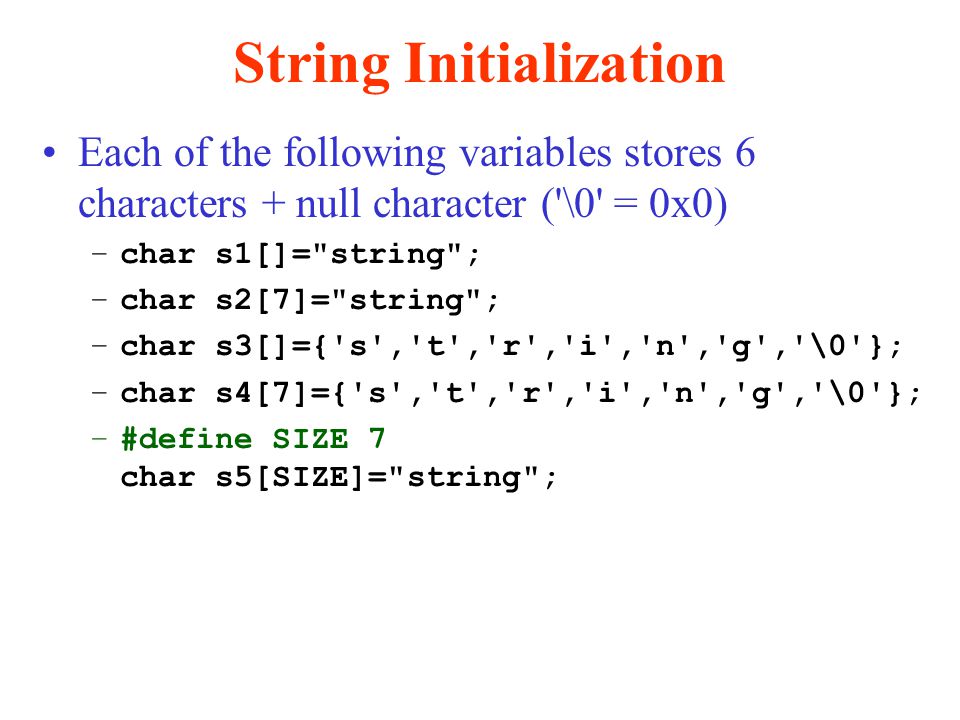

7 String Initialization Each of the following variables stores 6 characters + null character ('\0' = 0x0) –char s1[]="string"; –char s2[7]="string"; –char s3[]={'s','t','r','i','n','g','\0'}; –char s4[7]={'s','t','r','i','n','g','\0'}; –#define SIZE 7 char s5[SIZE]="string";

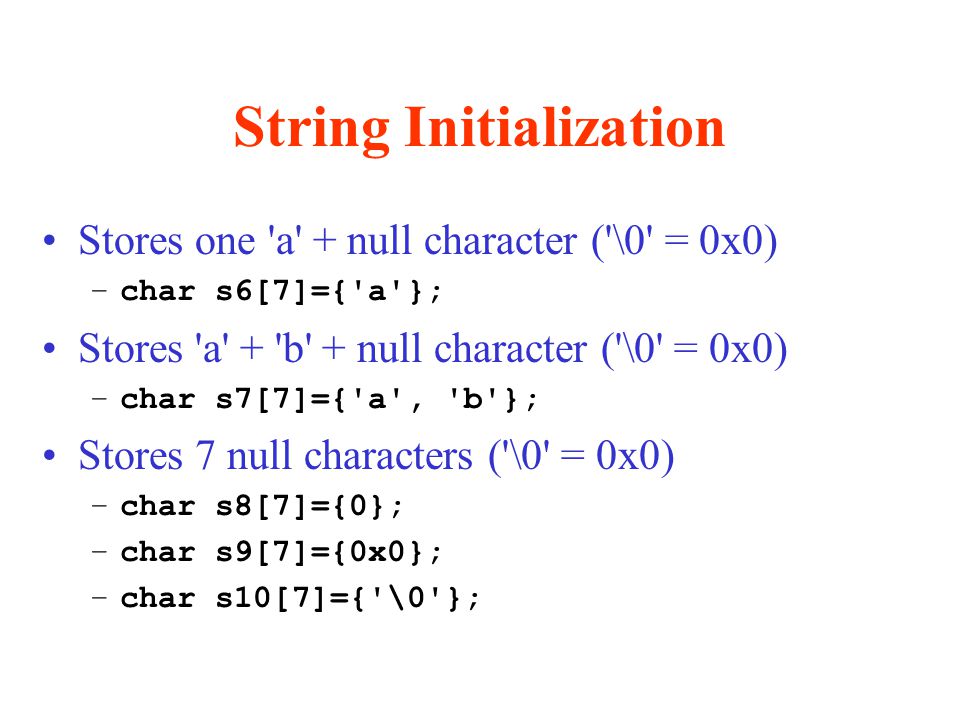

8 String Initialization Stores one 'a' + null character ('\0' = 0x0) –char s6[7]={'a'}; Stores 'a' + 'b' + null character ('\0' = 0x0) –char s7[7]={'a', 'b'}; Stores 7 null characters ('\0' = 0x0) –char s8[7]={0}; –char s9[7]={0x0}; –char s10[7]={'\0'};

9 String Initialization Creates an array of pointers to two constant character strings (See string2.c)string2.c char *c1[] = {"zero","one"}; printf("%s\n",c1[0]); /* zero */ printf("%p\n",c1[0]); /* 0x10950 */ printf("%p\n",&c1[0]); /* 0xffbffa60 */ printf("%c\n",c1[0][0]); /* z */ printf("%p\n",&c1[0][0]); /* 0x10950 */ c1[0][0]='a';/* Segmentation fault */ c1[0]=c1[1]; /* assign another address */ printf("%s\n",c1[0]); /* one */

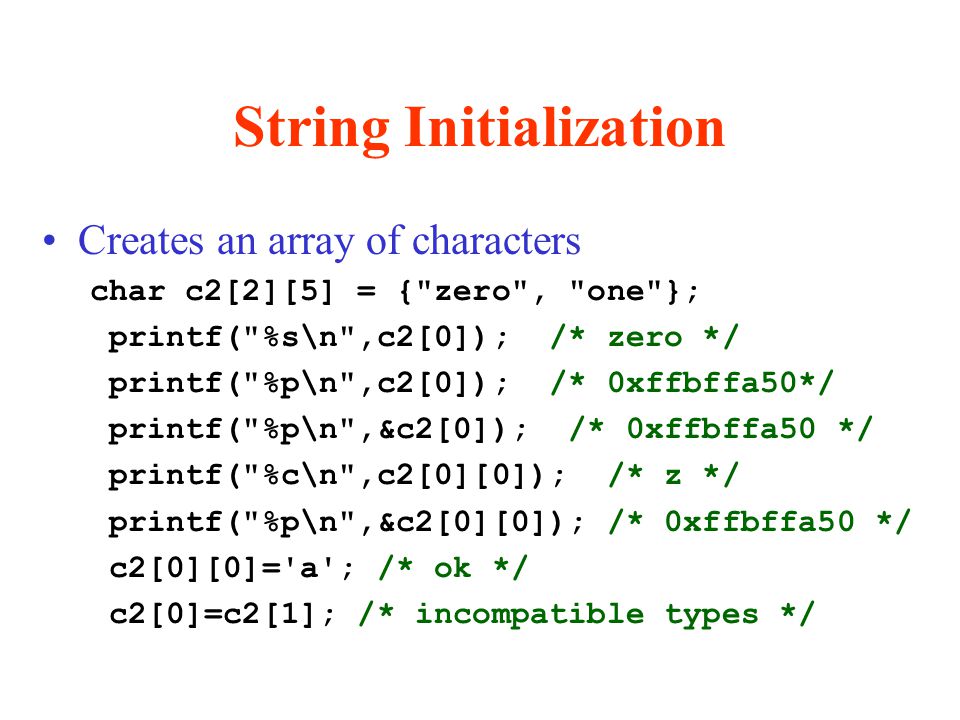

10 String Initialization Creates an array of characters char c2[2][5] = {"zero", "one"}; printf("%s\n",c2[0]); /* zero */ printf("%p\n",c2[0]); /* 0xffbffa50*/ printf("%p\n",&c2[0]); /* 0xffbffa50 */ printf("%c\n",c2[0][0]); /* z */ printf("%p\n",&c2[0][0]); /* 0xffbffa50 */ c2[0][0]='a'; /* ok */ c2[0]=c2[1]; /* incompatible types */

11 String Initialization Creates an array of characters char c3[2][5] = {'z','e','r','o','\0', 'o','n','e','\0','\0'}; printf("%s\n",c3[0]); /* zero */ printf("%p\n",c3[0]); /* 0xffbffa40*/ printf("%p\n",&c3[0]); /* 0xffbffa40 */ printf("%c\n",c3[0][0]); /* z */ printf("%p\n",&c3[0][0]); /* 0xffbffa40 */ c3[0][0]='a'; /* ok */ c3[0]=c3[1]; /* incompatible types */

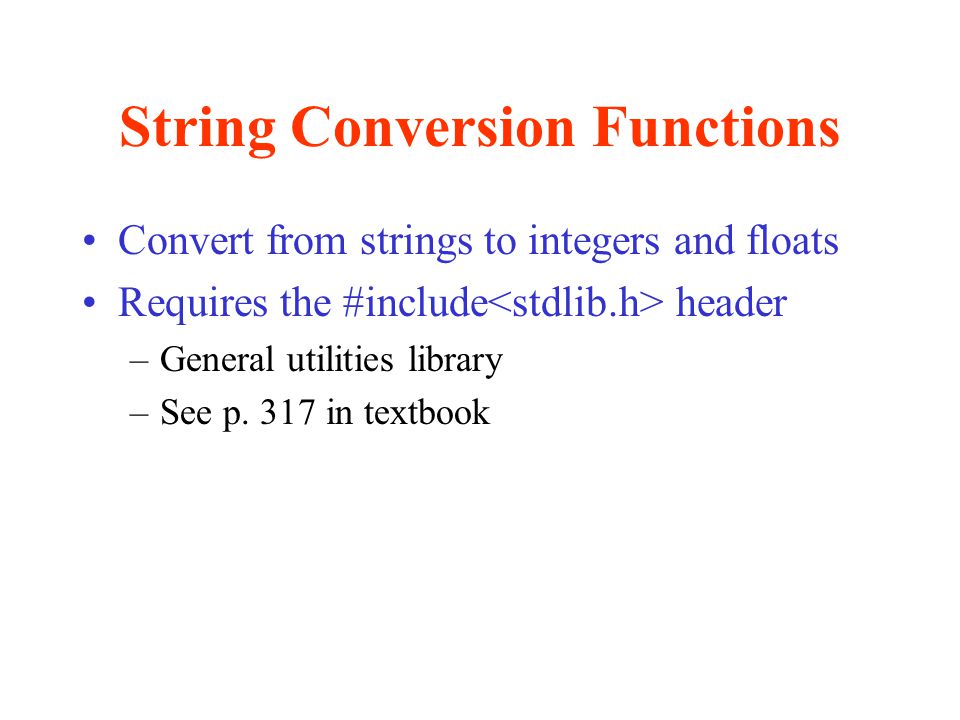

12 String Conversion Functions Convert from strings to integers and floats Requires the #include header –General utilities library –See p. 317 in textbook

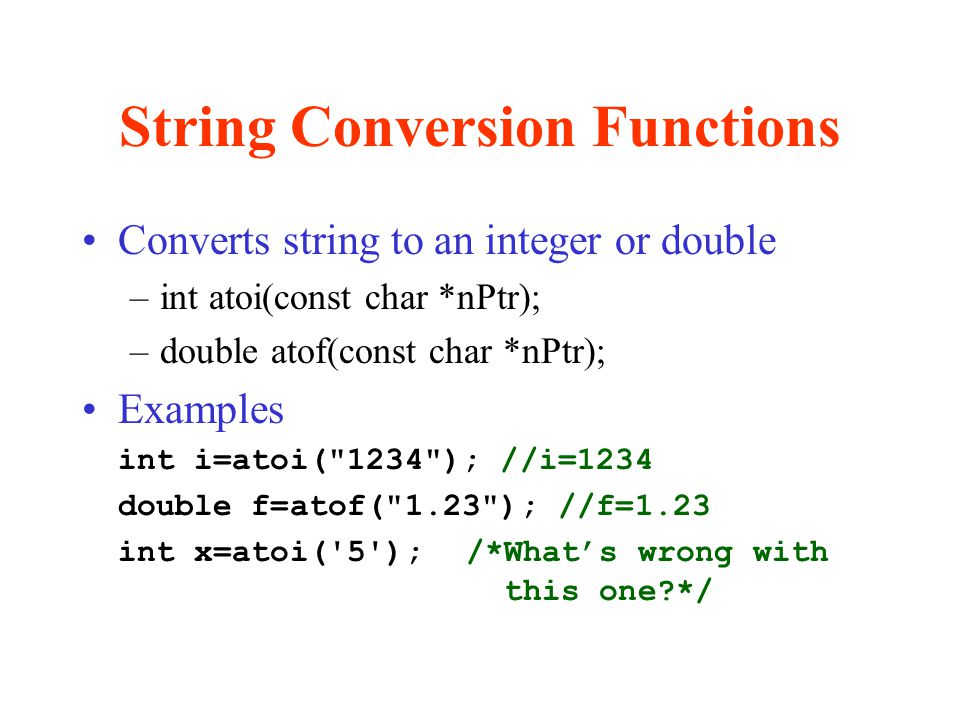

13 String Conversion Functions Converts string to an integer or double –int atoi(const char *nPtr); –double atof(const char *nPtr); Examples int i=atoi("1234"); //i=1234 double f=atof("1.23"); //f=1.23 int x=atoi('5');/*What’s wrong with this one?*/

14 String Handling Library Functions for manipulating strings Requires the #include header See textbook pp Basic functions include: –Copying strings –Comparing strings –Searching strings –Determining length of strings –Tokenizing strings

15 Copy, Append, Compare char *strcpy(char *s1, const char *s2); –Copies s2 into s1; the value of s1 is returned –Should not be used because of the potential for “buffer overflow” attack char *strcat(char *s1, const char *s2); –Appends s2 to s1; the value of s1 is returned char *strcmp(char *s1, const char *s2); –s1 > s2 returns positive number –s1 == s2 returns 0 –s1 < s2 returns negative number

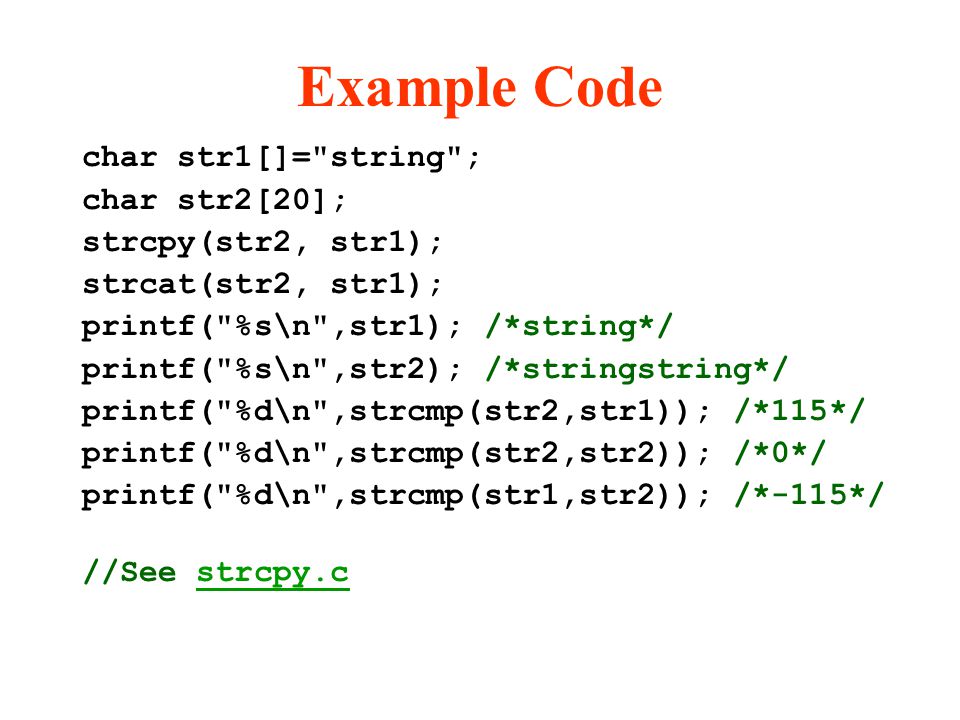

16 Example Code char str1[]="string"; char str2[20]; strcpy(str2, str1); strcat(str2, str1); printf("%s\n",str1); /*string*/ printf("%s\n",str2); /*stringstring*/ printf("%d\n",strcmp(str2,str1)); /*115*/ printf("%d\n",strcmp(str2,str2)); /*0*/ printf("%d\n",strcmp(str1,str2)); /*-115*/ //See strcpy.cstrcpy.c

17 Search Functions char *strchr(const char *s, int c); –Locates & returns a pointer to the 1 st occurrence of c in string s –Returns NULL if not found char *strstr(const char *s1, const char *s2); –Locates & returns a pointer to the 1 st occurrence of string s2 in string s1 –Returns NULL if not found

18 Example Code char str[]="string", rin[]="rin", abc[]="abc"; char i = 'i', z = 'z'; printf("%p\n",strchr(str,i)); /*0xffbefa8b*/ printf("%s\n",strchr(str,i)); /*ing*/ printf("%p\n",strchr(str,z)); /*0x0*/ printf("%p\n",strstr(str,rin)); /*0xffbefa8a*/ printf("%s\n",strstr(str,rin)); /*ring*/ printf("%p\n",strstr(str,abc)); /*0x0*/ //See strstr.cstrstr.c

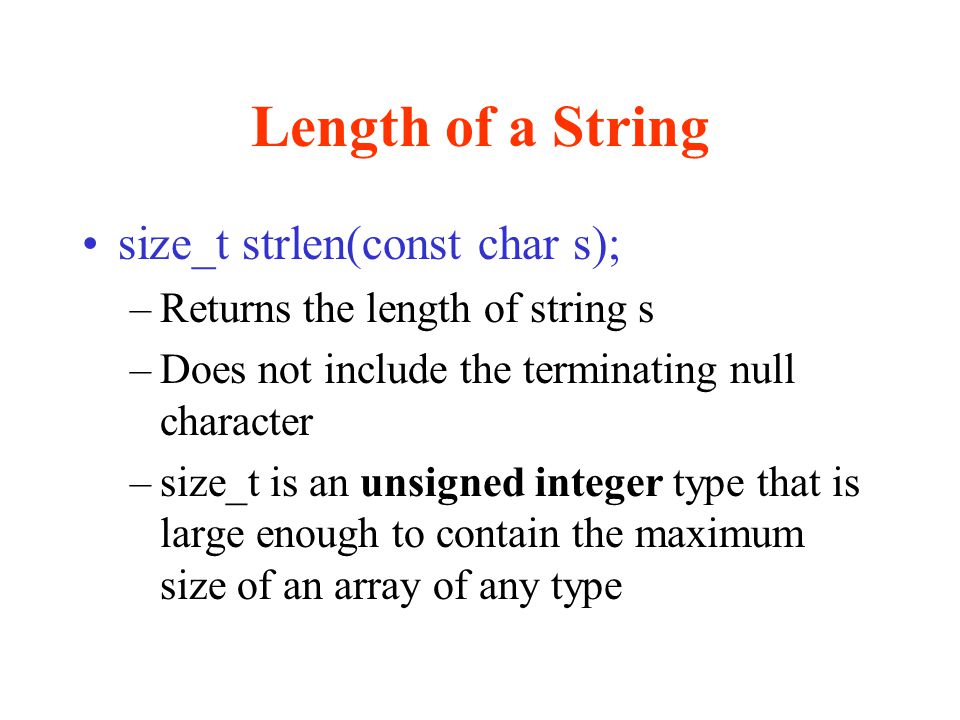

19 Length of a String size_t strlen(const char s); –Returns the length of string s –Does not include the terminating null character –size_t is an unsigned integer type that is large enough to contain the maximum size of an array of any type

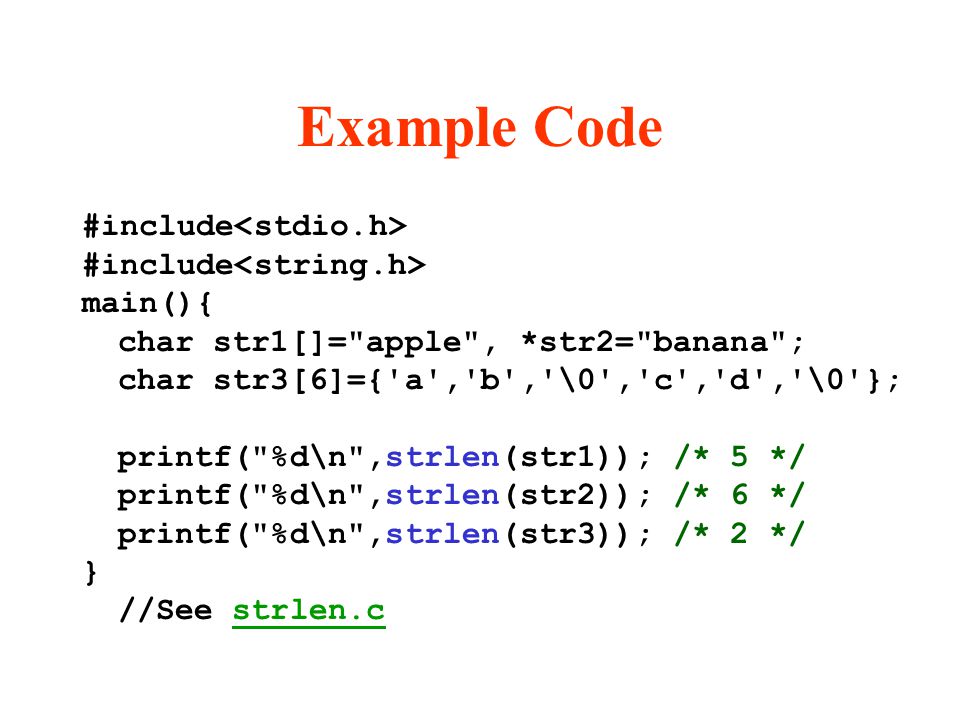

20 Example Code #include main(){ char str1[]="apple", *str2="banana"; char str3[6]={'a','b','\0','c','d','\0'}; printf("%d\n",strlen(str1)); /* 5 */ printf("%d\n",strlen(str2)); /* 6 */ printf("%d\n",strlen(str3)); /* 2 */ } //See strlen.cstrlen.c

21 String Tokenizer char *strtok(char *s1, const char *s2); –Used to break a string into tokens A sequence of characters separated by delimiting characters (usually spaces or punctuation marks) –s1 contains string to be tokenized –s2 contains the characters used to separate the tokens –1 st function call: has s1 as 1 st argument –Next function call: NULL as 1 st argument –Pointer to current token is returned

22 String Tokenizer #include int main(){ char str[]="This is a string."; char *tPtr=strtok(str," "); /*searches for s2 (space) & inserts null character ('\0') in its place*/ while(tPtr!=NULL){ printf("%s\n",tPtr); tPtr=strtok(NULL," "); /*keeps inserting '\0' in s2 (space)*/ } return 0; } //See token.ctoken.c

23 String Tokenizer Output from last slide This is a string. –Problem with strtok() is that it changes the original string by replacing s2 with the null character ( '\0' ) "This is a string." –Becomes: "This'\0'is'\0'a'\0'string."

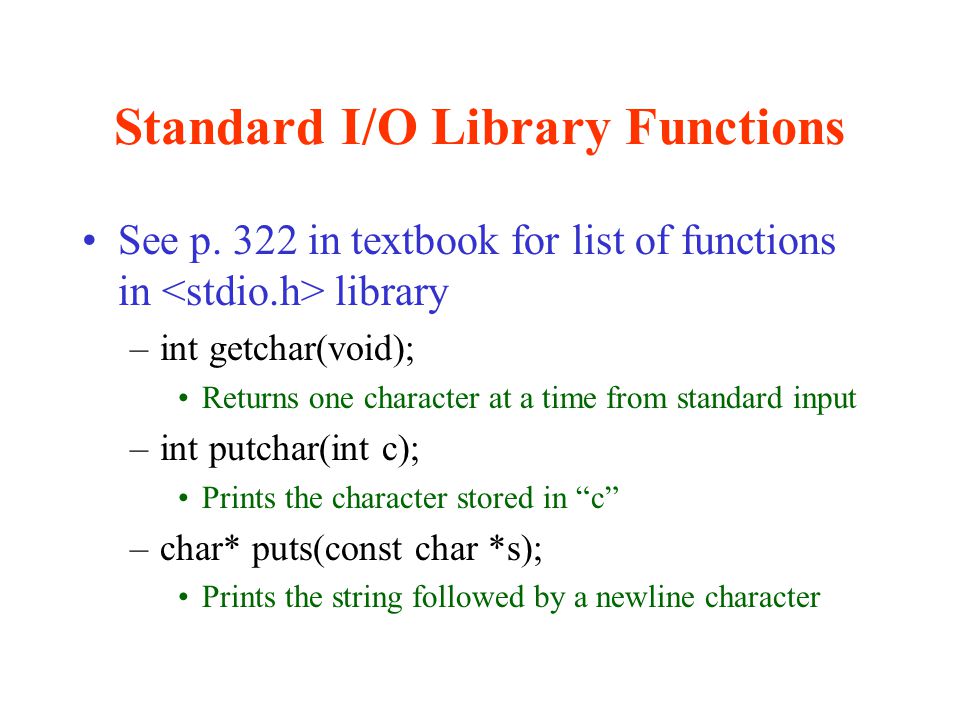

24 Standard I/O Library Functions See p. 322 in textbook for list of functions in library –int getchar(void); Returns one character at a time from standard input –int putchar(int c); Prints the character stored in “c” –char* puts(const char *s); Prints the string followed by a newline character

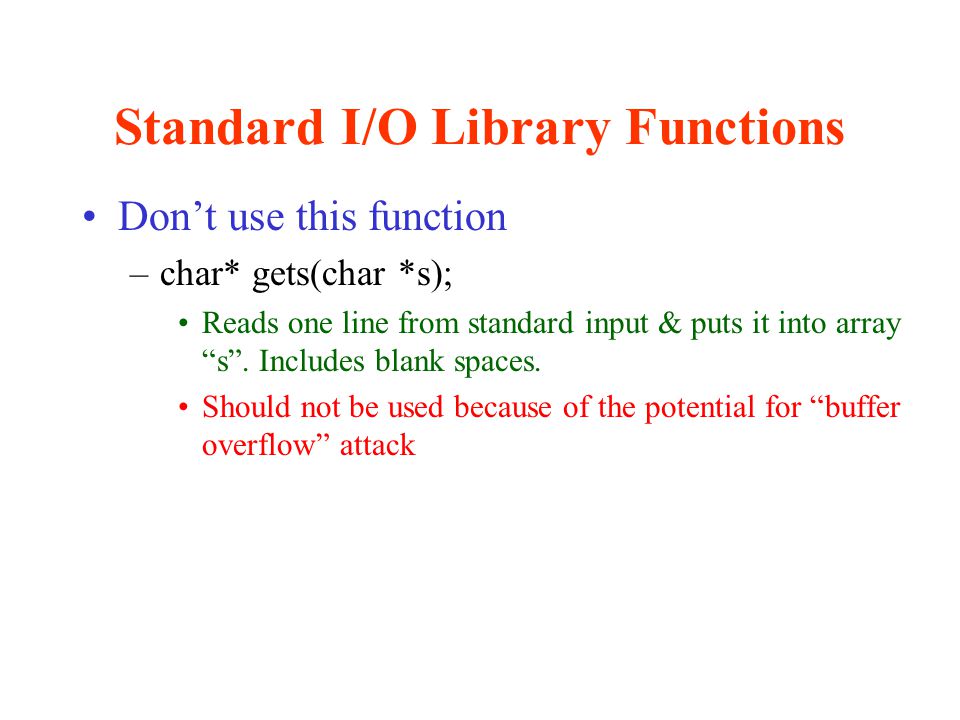

25 Standard I/O Library Functions Don’t use this function –char* gets(char *s); Reads one line from standard input & puts it into array “s”. Includes blank spaces. Should not be used because of the potential for “buffer overflow” attack
