1
Solar Imaging Radio Array (SIRA) Trajectory and Formation Analysis Flight Dynamics Analysis Branch Code 595 (572) Dave Folta 6-6082 Bo Naasz 6-3819 Frank Vaughn 6-5551 January 30, 2003
2
Solar Imaging Radio Array (SIRA) Trajectory and Formation Analysis Agenda Mission Metrics Orbit Trades Formation Control U-V Plane Stats Summary
3

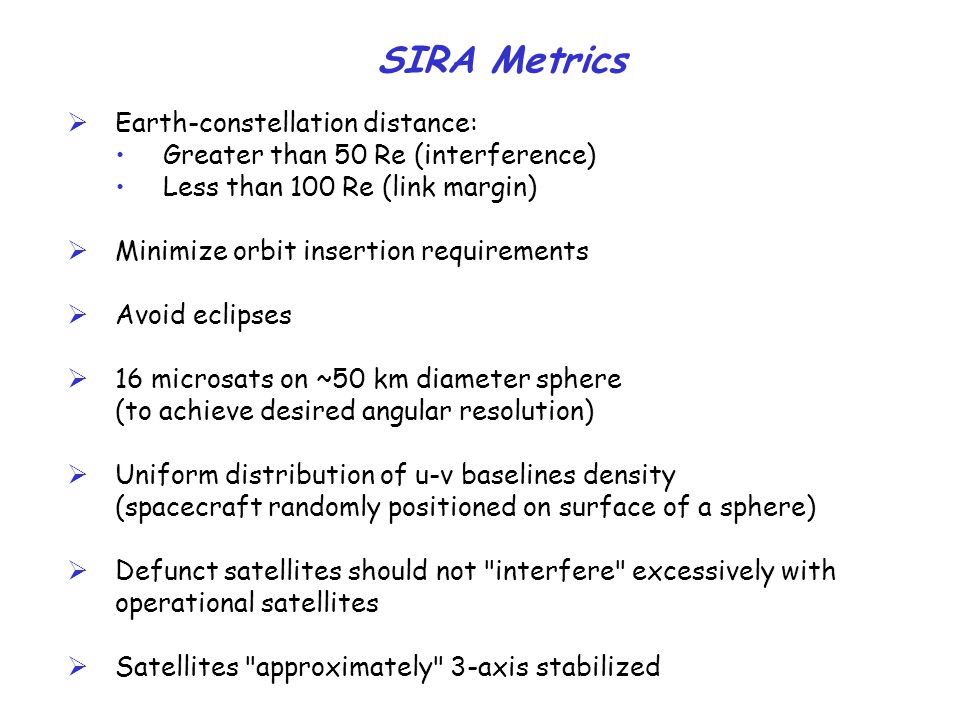

SIRA Metrics Earth-constellation distance: Greater than 50 Re (interference) Less than 100 Re (link margin) Minimize orbit insertion requirements Avoid eclipses 16 microsats on ~50 km diameter sphere (to achieve desired angular resolution) Uniform distribution of u-v baselines density (spacecraft randomly positioned on surface of a sphere) Defunct satellites should not "interfere" excessively with operational satellites Satellites "approximately" 3-axis stabilized
4

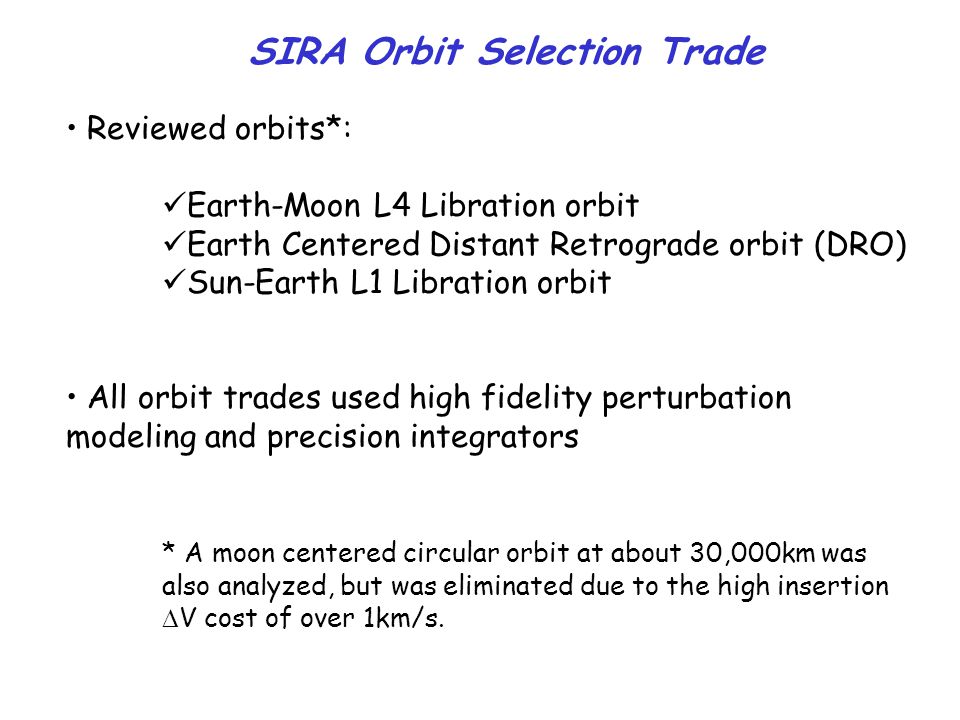

Reviewed orbits*: Earth-Moon L4 Libration orbit Earth Centered Distant Retrograde orbit (DRO) Sun-Earth L1 Libration orbit All orbit trades used high fidelity perturbation modeling and precision integrators * A moon centered circular orbit at about 30,000km was also analyzed, but was eliminated due to the high insertion V cost of over 1km/s. SIRA Orbit Selection Trade
5

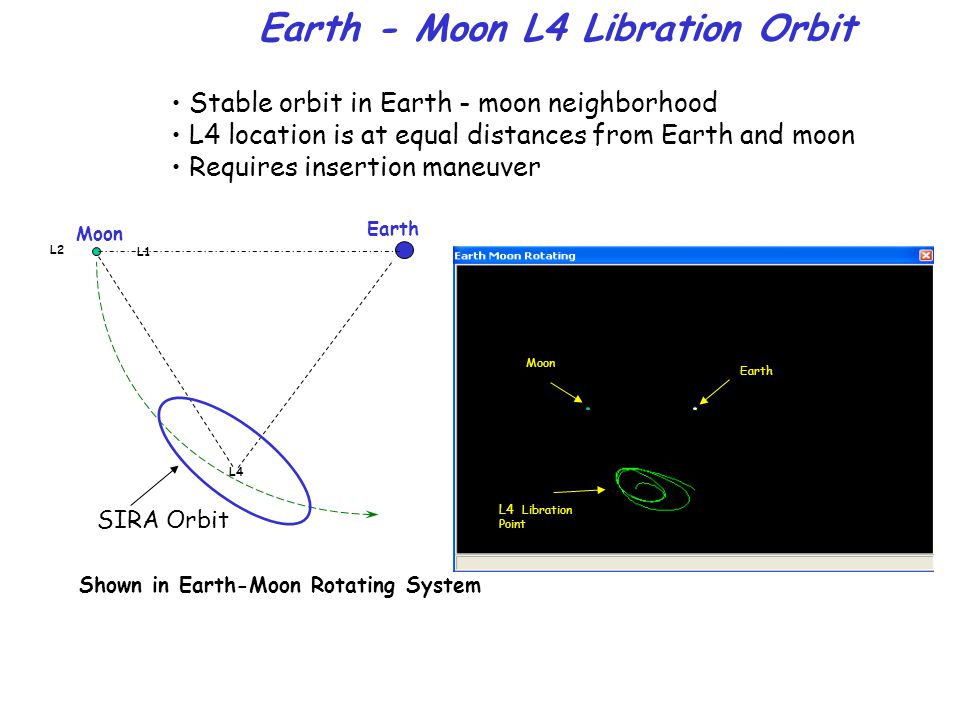

Earth - Moon L4 Libration Orbit Stable orbit in Earth - moon neighborhood L4 location is at equal distances from Earth and moon Requires insertion maneuver L1 L2 L4 Earth Moon Shown in Earth-Moon Rotating System SIRA Orbit Earth Moon L4 Libration Point
6

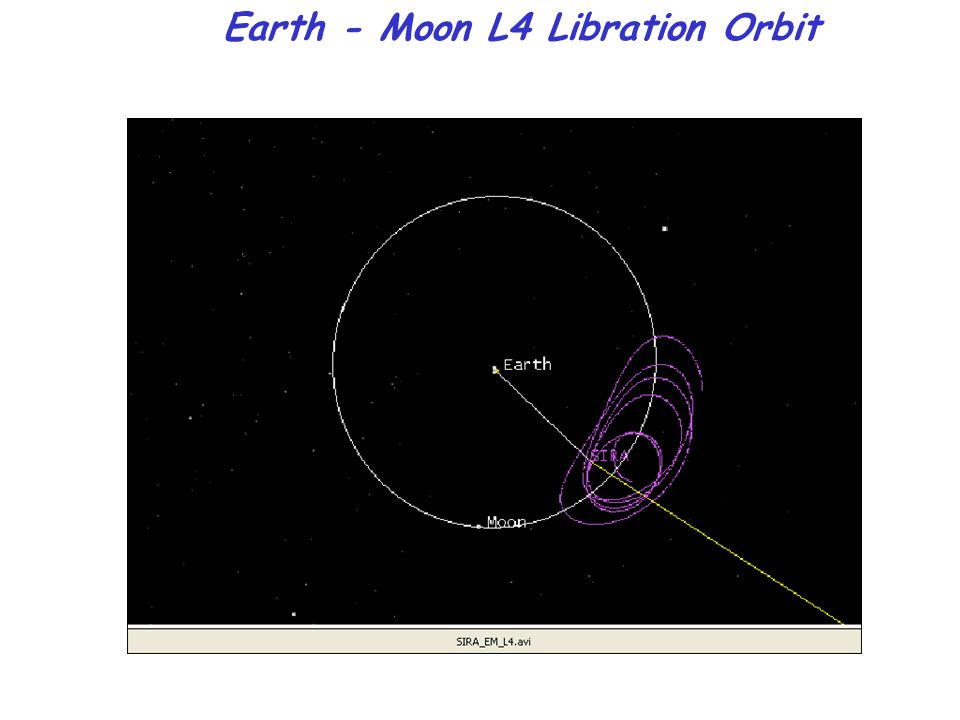

Earth - Moon L4 Libration Orbit
7
Distant Retrograde Orbit (DRO) Orbit Lunar orbit Mission orbit Transfer orbit Sun-Earth L1 Libration Point Stable, heliocentric orbit with same period as Earth, and slightly altered eccentricity Circular relative motion wrt Earth orbiting clockwise Requires insertion maneuver Dimensions ~ 1.7 x 2.0 Million km in ‘x’ and ‘y’ directions
8

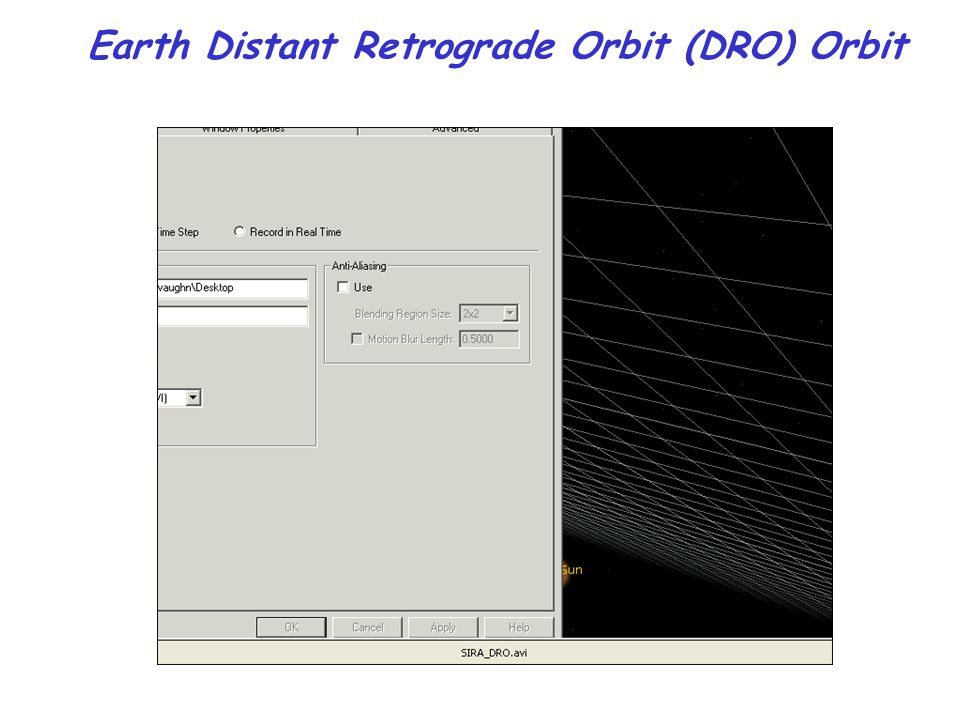

Earth Distant Retrograde Orbit (DRO) Orbit
9

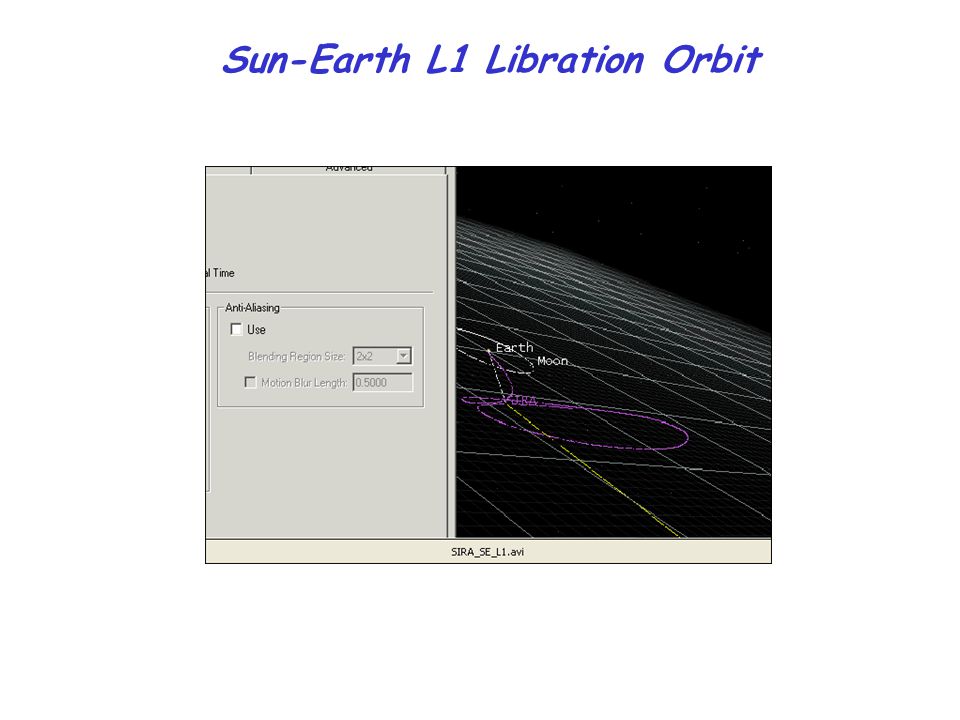

Lunar orbit Mission orbit Transfer orbit L1 Libration Point Standard libration orbit about the co-linear L1 point (ISEE, SOHO, ACE) Dimensions ~ 1.6 x 1.9 Million km in ‘x’ and ‘y’ directions Sun-Earth L1 Libration Orbit
11

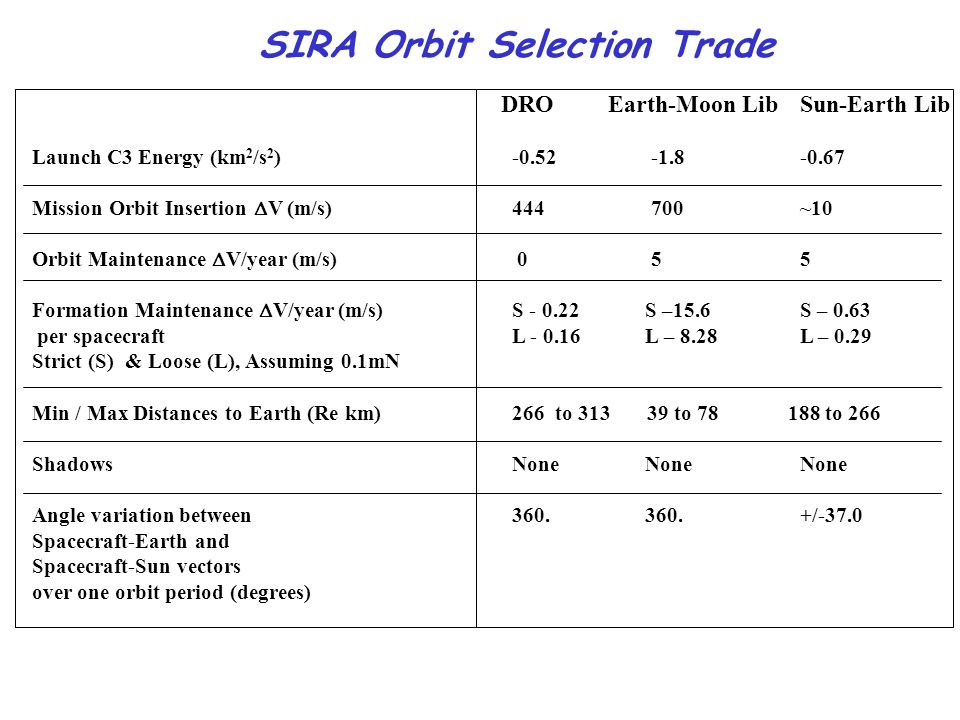

DROEarth-Moon LibSun-Earth Lib Launch C3 Energy (km 2 /s 2 )-0.52 -1.8-0.67 Mission Orbit Insertion V (m/s)444 700~10 Orbit Maintenance V/year (m/s) 0 55 Formation Maintenance V/year (m/s) S - 0.22 S –15.6S – 0.63 per spacecraftL - 0.16 L – 8.28L – 0.29 Strict (S) & Loose (L), Assuming 0.1mN Min / Max Distances to Earth (Re km)266 to 313 39 to 78 188 to 266 Shadows None NoneNone Angle variation between 360. 360. +/-37.0 Spacecraft-Earth and Spacecraft-Sun vectors over one orbit period (degrees) SIRA Orbit Selection Trade
12

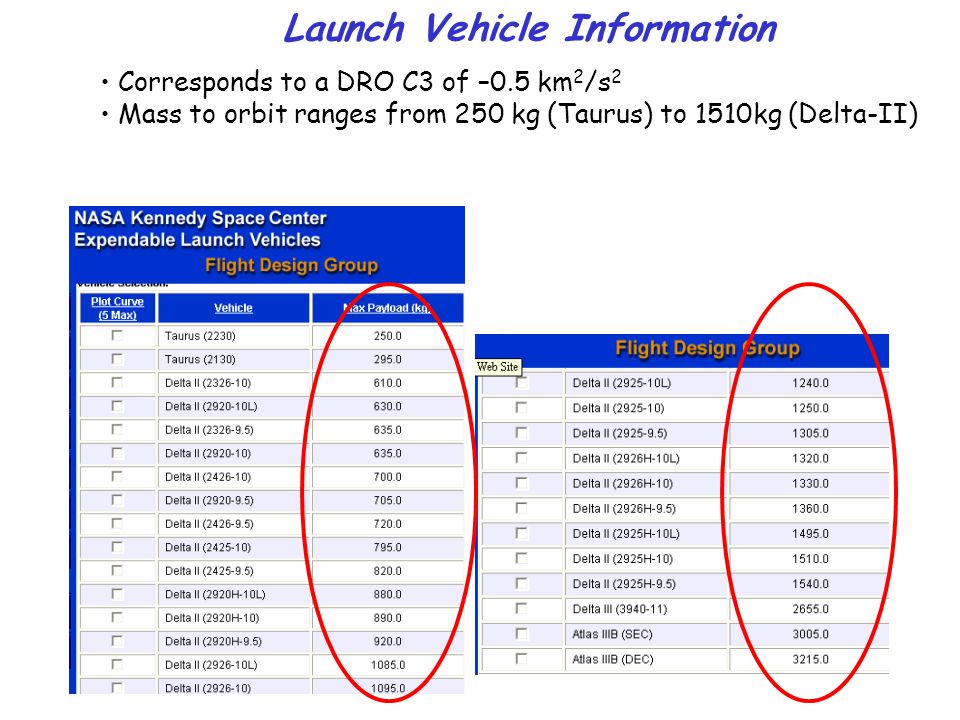

Launch Vehicle Information Corresponds to a DRO C3 of –0.5 km 2 /s 2 Mass to orbit ranges from 250 kg (Taurus) to 1510kg (Delta-II)
13
Launch Vehicle Information Corresponds to a Earth-moon L4 orbit C3 of –1.8 km 2 /s 2 Mass to orbit ranges from 260 kg(Taurus) to 1585kg (Delta-II)
14

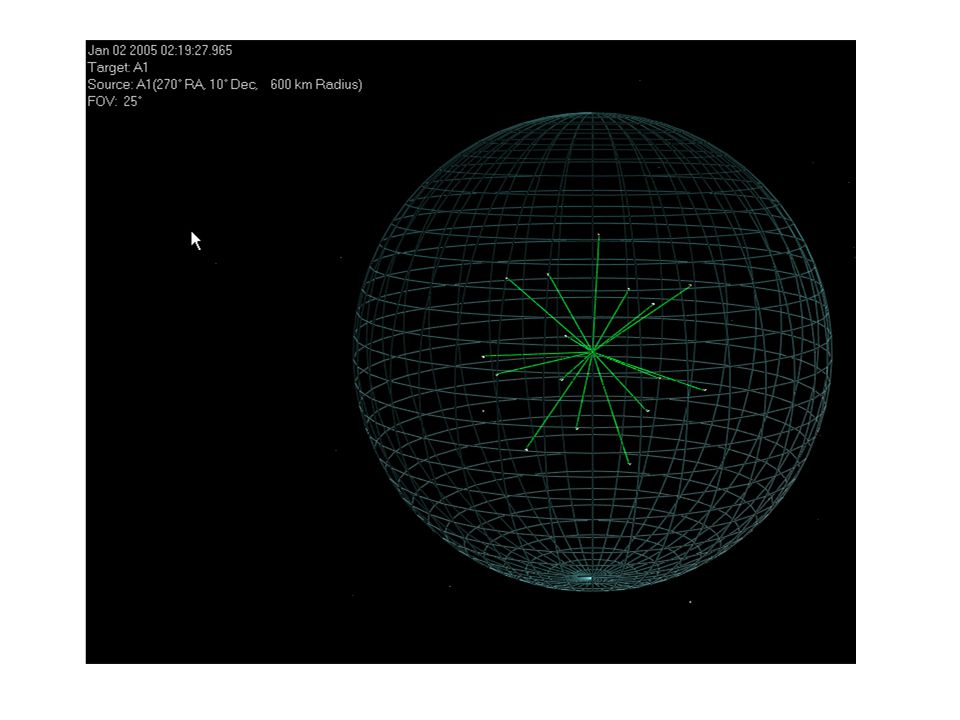

Apply control to maintain a 25km radius sphere Center of sphere follows mission orbit Simple PD controller to maintain spherical formation Assumes shared knowledge of relative states Constant low thrust control (0.1mN) Allows strict and loose control efforts SIRA Formation Analysis 3-D view SIRA spacecraft Initial placement on sphere based on “igloo” placement from: Robert Bauer's "Uniform Sampling of SO3" algorithm from 2001 Flight Mechanics Symposium"

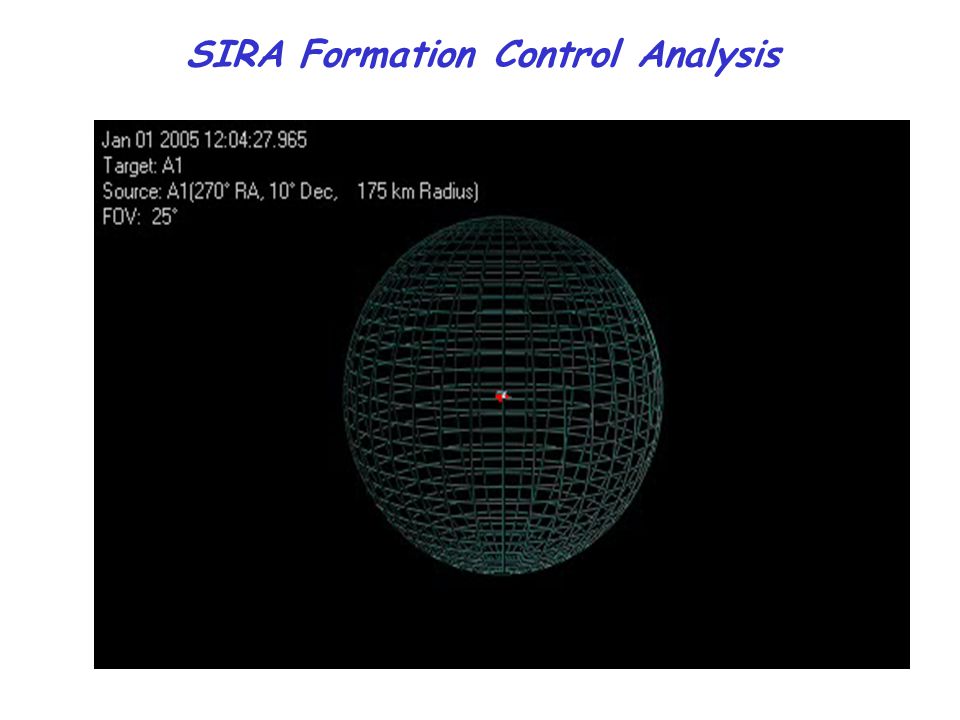

15

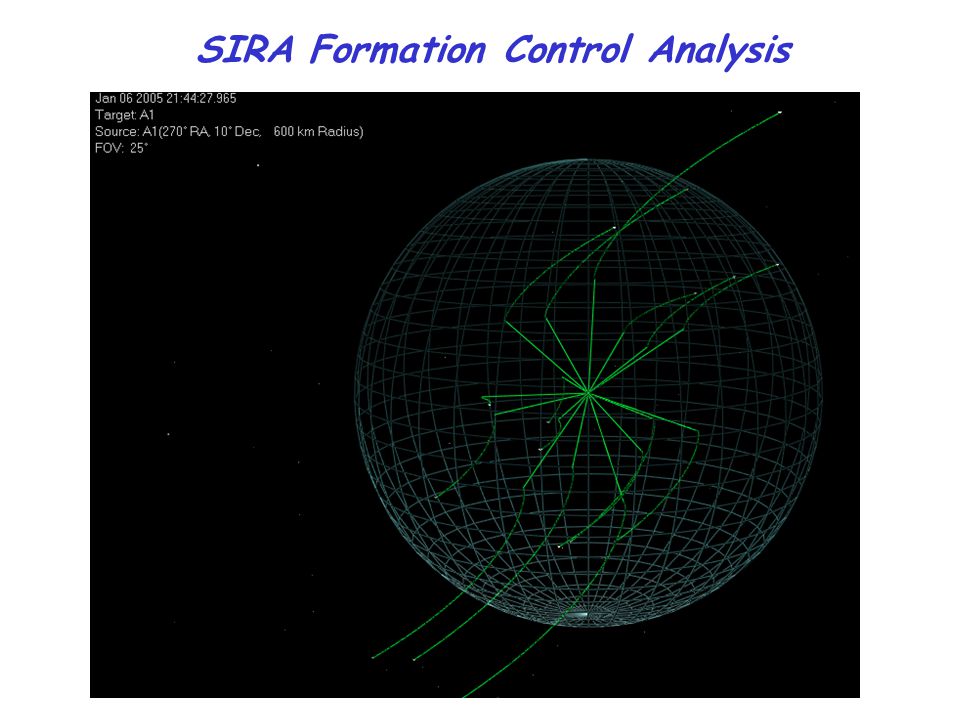

SIRA Formation Control Analysis
17

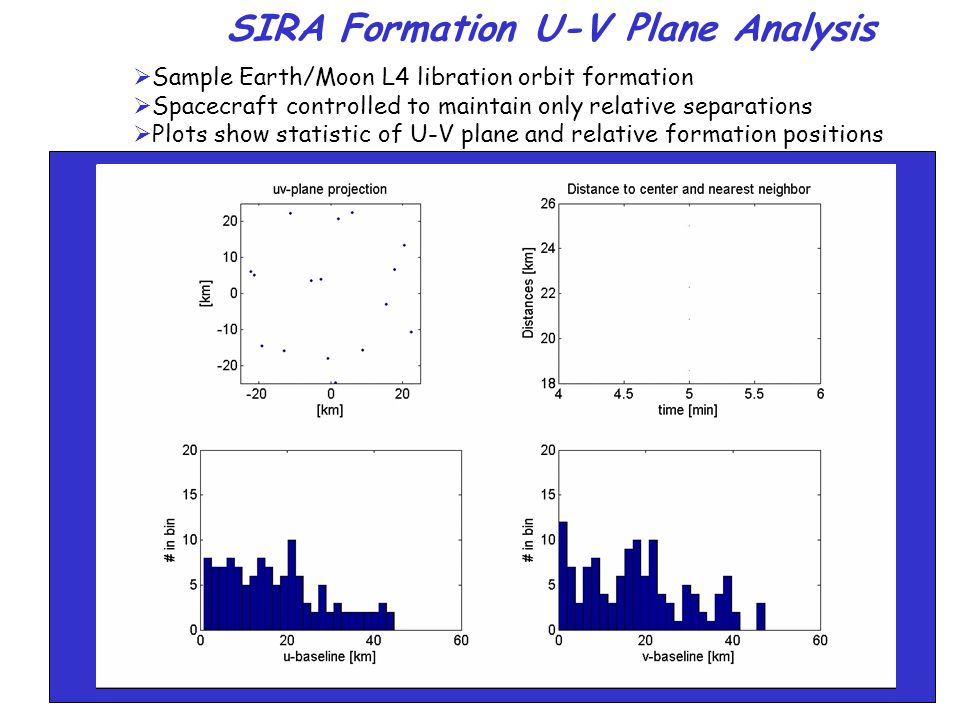

Sample Earth/Moon L4 libration orbit formation Spacecraft controlled to maintain only relative separations Plots show statistic of U-V plane and relative formation positions SIRA Formation U-V Plane Analysis
18
SIRA Trade Summary Given mission metrics and assumptions, analysis shows feasibility of SIRA mission with a spherical formation Orbit selection dependent upon mission metrics, launch mass capability, system engineering Formation maintenance V in general is not a driver V/year ~ 0.16 to 15.6 (m/s) Additional analysis required for maneuver type and system engineering aspects U-V plane statistics provided for sphere shape formation
19
Backup
23

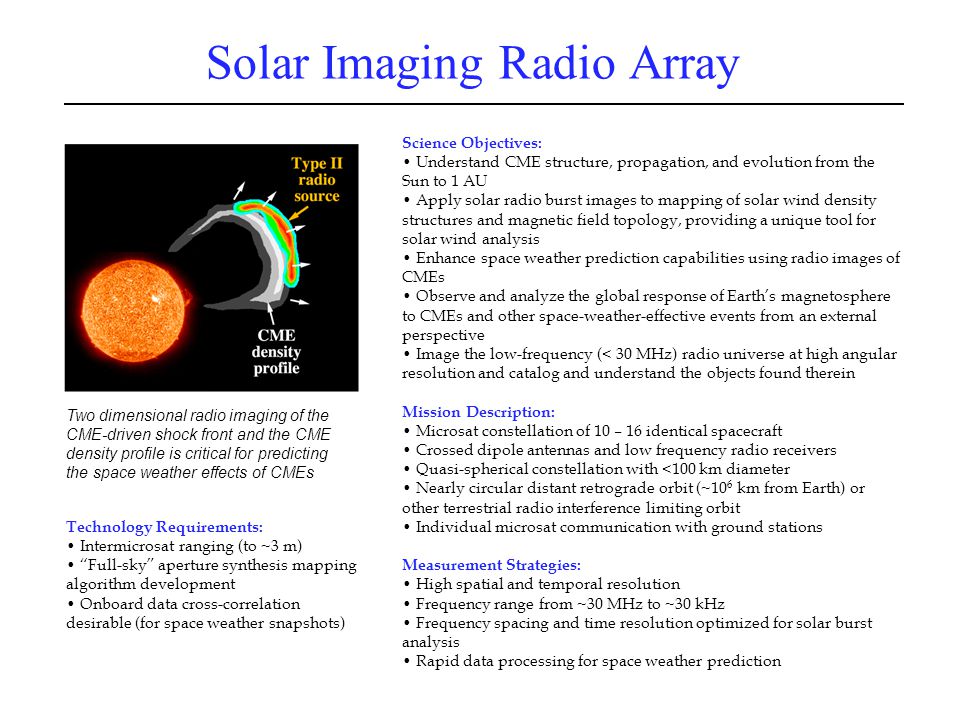

Solar Imaging Radio Array Technology Requirements: Intermicrosat ranging (to ~3 m) “Full-sky” aperture synthesis mapping algorithm development Onboard data cross-correlation desirable (for space weather snapshots) Two dimensional radio imaging of the CME-driven shock front and the CME density profile is critical for predicting the space weather effects of CMEs Science Objectives: Understand CME structure, propagation, and evolution from the Sun to 1 AU Apply solar radio burst images to mapping of solar wind density structures and magnetic field topology, providing a unique tool for solar wind analysis Enhance space weather prediction capabilities using radio images of CMEs Observe and analyze the global response of Earth’s magnetosphere to CMEs and other space-weather-effective events from an external perspective Image the low-frequency (< 30 MHz) radio universe at high angular resolution and catalog and understand the objects found therein Mission Description: Microsat constellation of 10 – 16 identical spacecraft Crossed dipole antennas and low frequency radio receivers Quasi-spherical constellation with <100 km diameter Nearly circular distant retrograde orbit (~10 6 km from Earth) or other terrestrial radio interference limiting orbit Individual microsat communication with ground stations Measurement Strategies: High spatial and temporal resolution Frequency range from ~30 MHz to ~30 kHz Frequency spacing and time resolution optimized for solar burst analysis Rapid data processing for space weather prediction
24

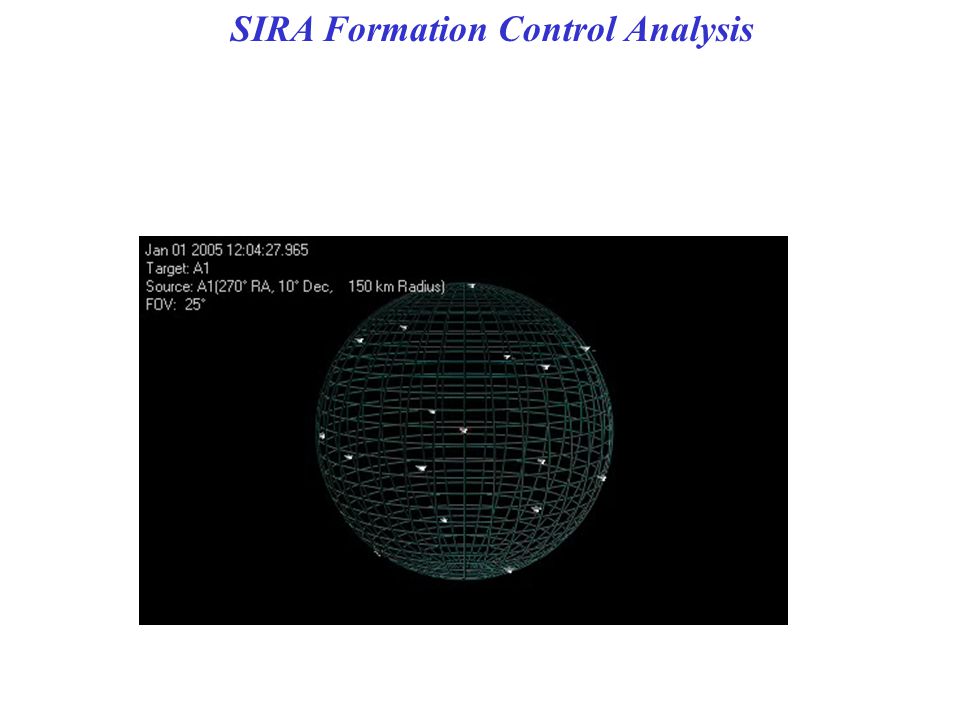

SIRA Formation Control Analysis
25
Earth/Moon L4 Libration Orbit Spacecraft controlled to maintain only relative separations Plots show formation position and drift (sphere represent 25km radius) Maneuver performed in most optimum direction based on controller ouput Impulsive Maneuver of 16 th s/c Radial Distance from Center SIRA Formation Control Analysis
