1
Anisotropy in Cosmic Ray Arrival Directions Using IceCube and IceTop Frank McNally ISCRA

2
IceCube and IceTop IceCube Rate: ~ 2 kHz Energy Range: ~100 GeV – 1 PeV Data in Data Storage and Transfer (DST) format contains limited information IceTop Rate: ~ 20 Hz Energy Range: ~100 TeV – 1EeV More information per event 2

3
Anisotropy in IceCube (Published) IC59 Relative Intensity Map Median Energy: ~20 TeV IC59 Dipole & Quadropole Fit Residuals (20 o smoothing) 3 Abbasi et al., ApJ, 740, 16, 2011 arxiv/1105.2326

4

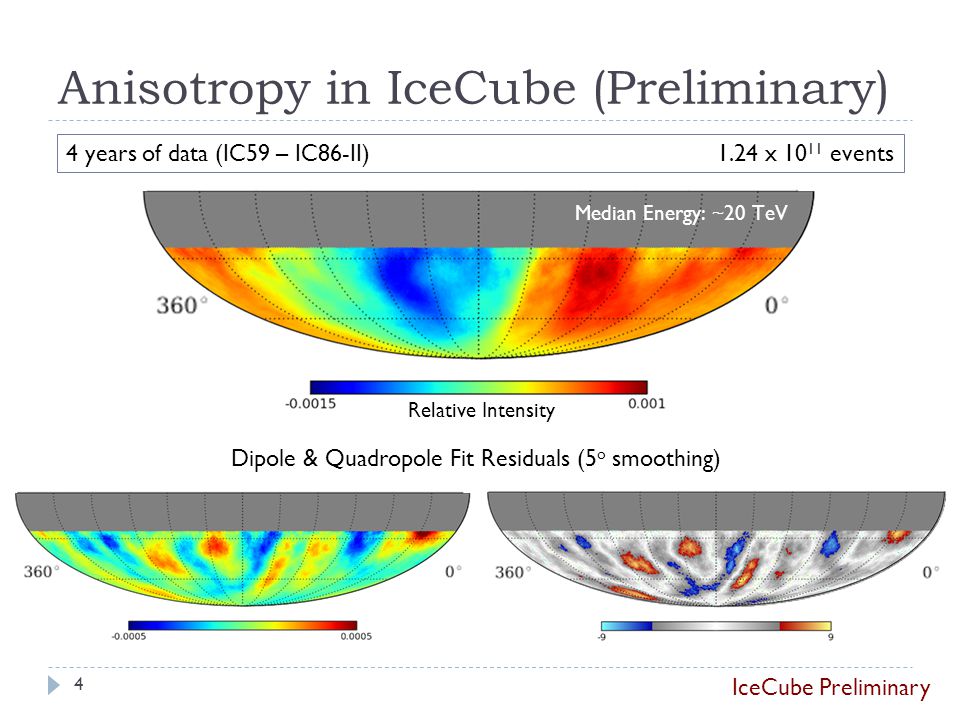

Anisotropy in IceCube (Preliminary) Median Energy: ~20 TeV Dipole & Quadropole Fit Residuals (5 o smoothing) 4 4 years of data (IC59 – IC86-II) 1.24 x 10 11 events IceCube Preliminary Relative Intensity

5
IT59 + IT73 + IT81 Anisotropy in IceTop Median energy: ~400 TeV Median energy: ~2 PeV 5 IT59 + IT73 + IT81+ IT81-II High energy IceTop Preliminary IceTop Published Aartsen et al., ApJ 765, 55, 2013 arxiv/1210.5278

6
6

7
7

8
8

9
9

10
10

11
11

12
12

13
13

14
Taking the Next Step Goal Study anisotropy as a function of energy and composition New energy estimator Use additional information provided by IceTop for more accurate energy and composition reconstruction 14

15
Likelihood-based Energy Reconstruction – Building the tables Using simulation, create histograms that store: Primary information Composition, energy, zenith, and distances from tanks to shower core Observables Charge registered at each tank Environment Snow depth at each tank Bin all information 110 Energy Bins, 4 Zenith Bins, 4 Snow Bins, 70 Distance Bins, 46 Charge Bins Normalize histograms, so a bin [C, E, Z, Q, S, D] gives the probability that… …a particle with: composition C, energy E, and zenith angle Z deposited a charge Q at a tank with snow depth S at a distance D from the shower core 15

16

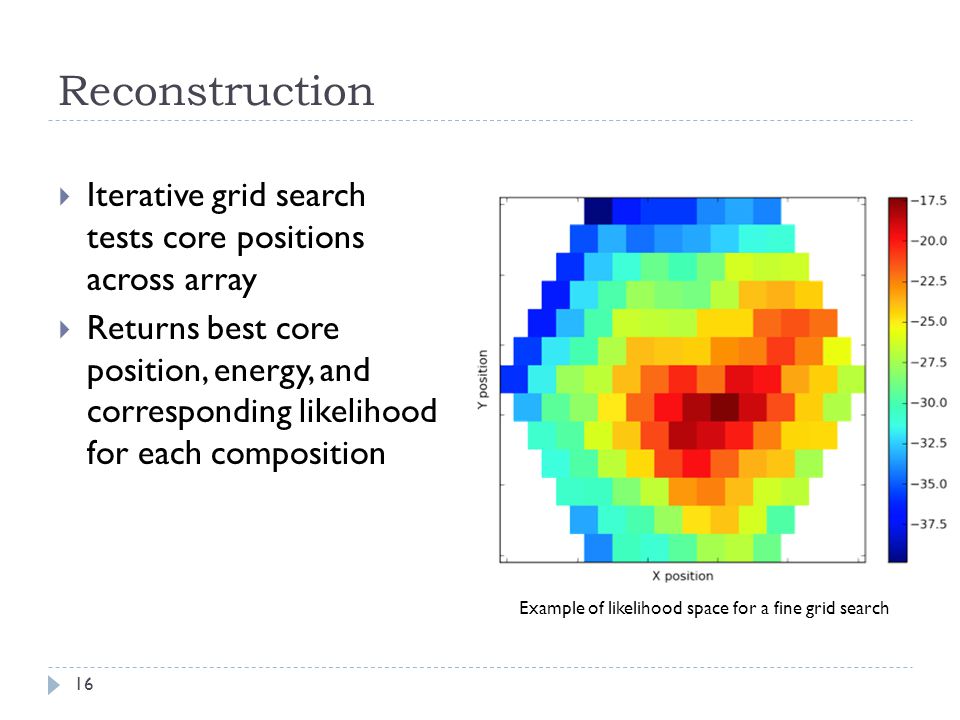

Reconstruction Iterative grid search tests core positions across array Returns best core position, energy, and corresponding likelihood for each composition Example of likelihood space for a fine grid search 16

17
Performance 17 Log 10 (E_reco / E_true (GeV)) Core_reco - Core_true (m)

18
Composition Separation 18

19
Energy Split Example (IT73+IT81): Split by NStations 3 stations 4 stations 5 stations 6 stations 7 stations 8 - 9 stations 10 - 14 stations 15 + stations 9.69x10 7 6.54x10 7 4.74x10 7 3.22x10 7 2.17x10 7 2.47x10 7 1.72x10 7 6.05x10 6 19 Relative Intensity Plots

20
Summary & Moving Forward Large Scale Anisotropy appears to change as a function of energy Small scale Significant structure visible at 5 o scale with IceCube data Future Goals More data now available: IT81-III / IC86-III New energy estimation Use likelihood-based energy reconstruction to look at anisotropy as a function of energy and potentially composition 20
