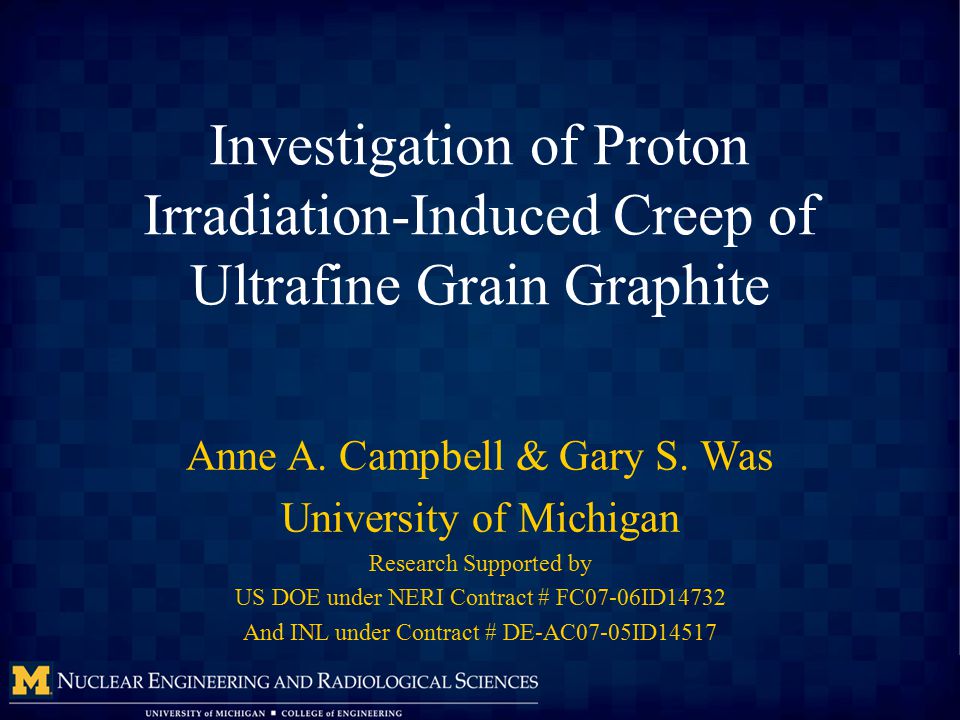

1 Investigation of Proton Irradiation-Induced Creep of Ultrafine Grain Graphite Anne A. Campbell & Gary S. Was University of Michigan Research Supported by US DOE under NERI Contract # FC07-06ID14732 And INL under Contract # DE-AC07-05ID14517

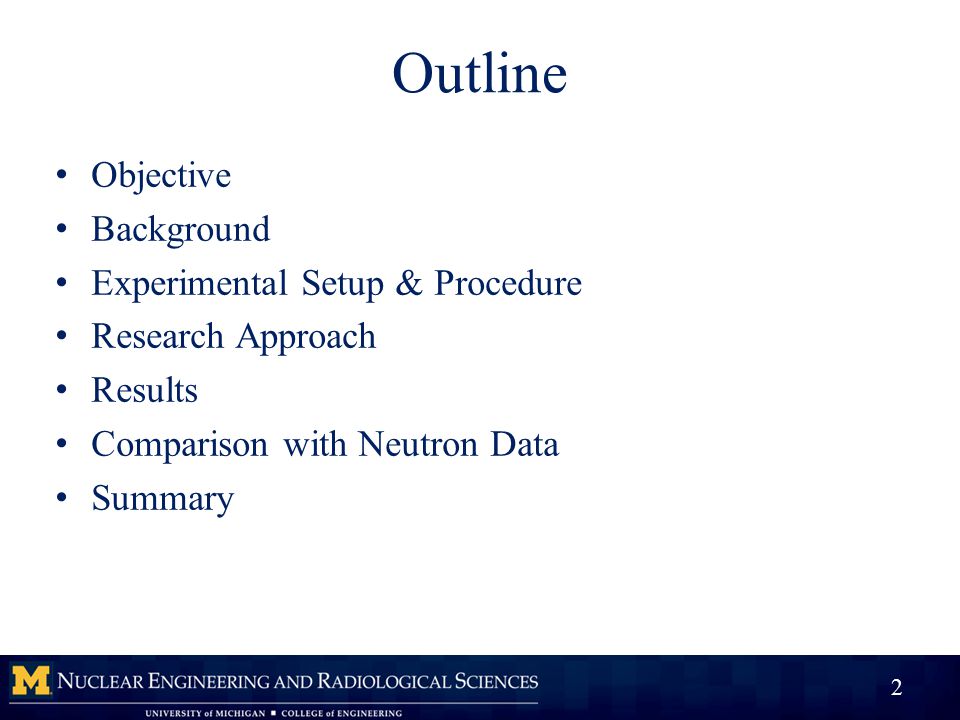

2 Outline Objective Background Experimental Setup & Procedure Research Approach Results Comparison with Neutron Data Summary 2

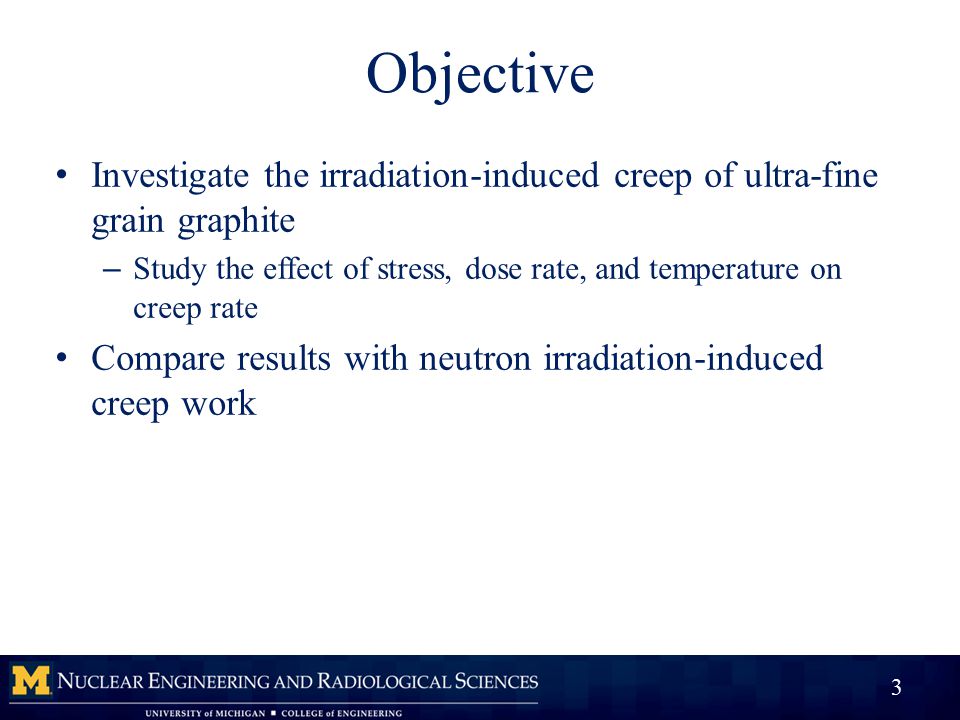

3 Objective Investigate the irradiation-induced creep of ultra-fine grain graphite – Study the effect of stress, dose rate, and temperature on creep rate Compare results with neutron irradiation-induced creep work 3

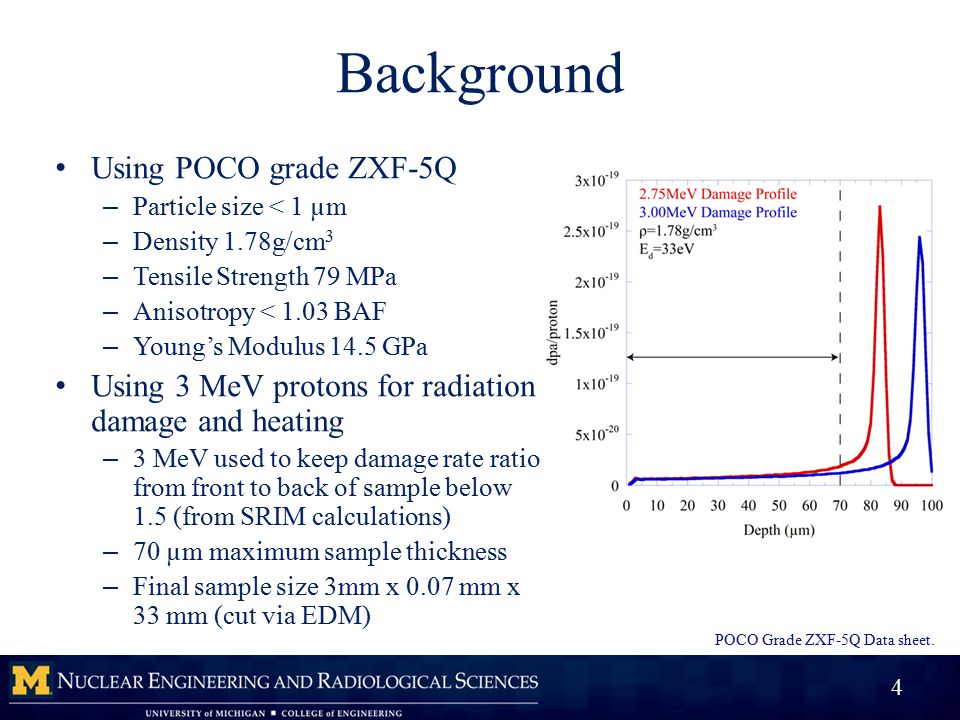

4 Background Using POCO grade ZXF-5Q – Particle size < 1 µm – Density 1.78g/cm 3 – Tensile Strength 79 MPa – Anisotropy < 1.03 BAF – Young’s Modulus 14.5 GPa Using 3 MeV protons for radiation damage and heating – 3 MeV used to keep damage rate ratio from front to back of sample below 1.5 (from SRIM calculations) – 70 µm maximum sample thickness – Final sample size 3mm x 0.07 mm x 33 mm (cut via EDM) 4 POCO Grade ZXF-5Q Data sheet.

5 Experiment – Irradiation Chamber 5 Campbell, A.A. and G. S. Was, Journal of Nuclear Materials, 433 (2013) 86-94.

6 Experiment – Irradiation Stage 6

7 Laser Speckle Extensometer (LSE) 7 Camera Laser Analysis Program Sample

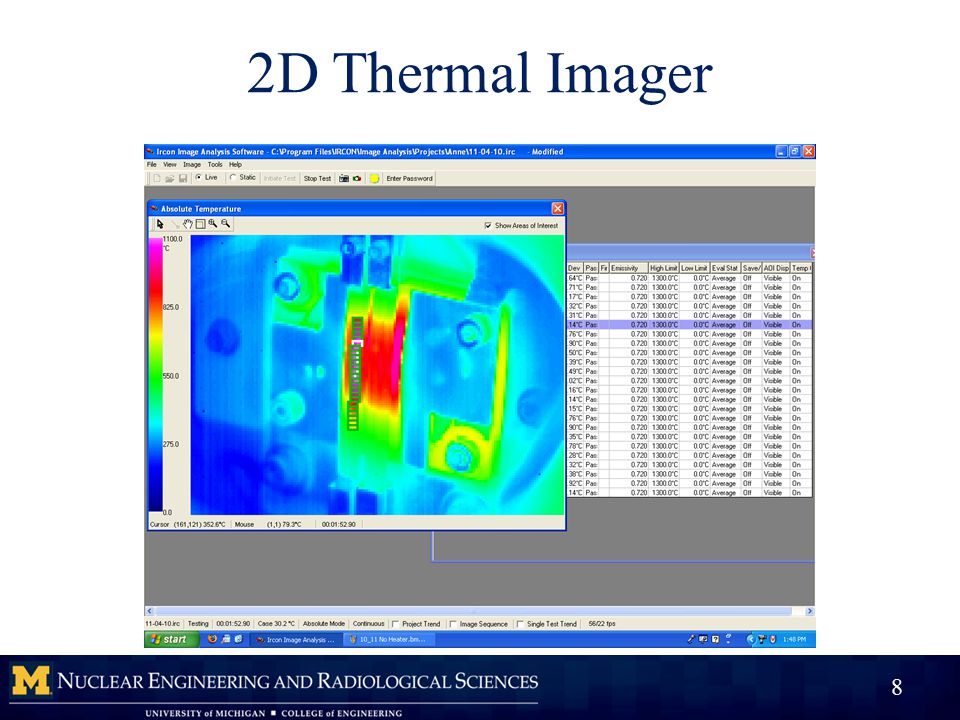

8 2D Thermal Imager 8

9 Irradiation Creep Experimental Procedure Assemble stage, test heater, mount samples, apply and remove tensile load on bench-top, align and test beam apertures Assemble chamber on beam-line, insert load, insert stage, align LSE, apply load to sample, seal top port, pump out chamber, start LSE DVRT and Stage data collection, condition vacuum, align 2D thermal imager start temperature collection Obtain desired proton current in Faraday cup, increase beam scanner to wider than necessary, apply beam to samples, balance beam one apertures, narrow scanner width until desired temperature is achieved, set alarms for temperature and dose rate monitoring and control Analyze LSE and DVRT data to determine linear fit and 95% CI of slope, continue at same conditions until 95% CI < 1% of the slope or desired final dose is achieved, change to other conditions or end experiment Insert Faraday cup, cool system to room temperature, remove stress from sample, vent vacuum chamber, remove stage, remove samples from stage, put individual samples in boxes labeled with all relevant irradiation information 9

10 Irradiation Creep Example Data 10

11 Dose Rate & Temperature Control 11

12 Irradiation Creep Experimental Conditions Applied tensile stress (1000ºC, 1.15x10 -6 dpa/s) – 5 MPa, 10 MPa, 20 MPa, 40 MPa Dose Rate (700ºC, 20MPa) – 2.95x10 -7 dpa/s to 5.51x10 -7 dpa/s Temperature (20MPa, variable dose rate) – 700ºC, 900ºC, 1000ºC, 1100ºC, 1200ºC Two samples used for each experiment, one with stress and one without stress – Residual stress from EDM machining resulted in curvature of the unstressed sample 12

13 Applied Stress Dependence 13

14 Dose Rate Dependence 14

15 Temperature Dependence 15

16 Accumulated Dose Dependence 16

17 Stress Dependence Comparison 17 Gray, Carbon, 11, (1973) 183Oku et al., JNM, 152, (1988) 225 Oku et al., JNM, 172, (1990) 77

18 Dose Rate Comparison 18 Veringa and Blackstone, Carbon, 14, (1976) 279. Oku et al., JNM, 152, (1988) 225Oku et al., JNM, 172, (1990) 77

19 Accumulated Dose Comparison 19 Neutron Data for H-451 from: Burchell, T.D., JNM, 381, (2008) 46.

20 Temperature Comparison 20 Veringa and Blackstone, Carbon, 14, (1976) 279.Burchell, T.D., JNM, 381, (2008) 46. Gray et al., Carbon, 5, (1967) 173Kelly and Burchell, Carbon, 32, (1994) 119. Mitchell et al., Nuclear Energy, 41, (2002) 63Oku et al., JNM, 152, (1988) 225 Oku et al., JNM, 172, (1990) 77Perks and Simmons, Carbon, 1, (1964) 441. Perks and Simmons, Carbon, 4, (1966) 85.

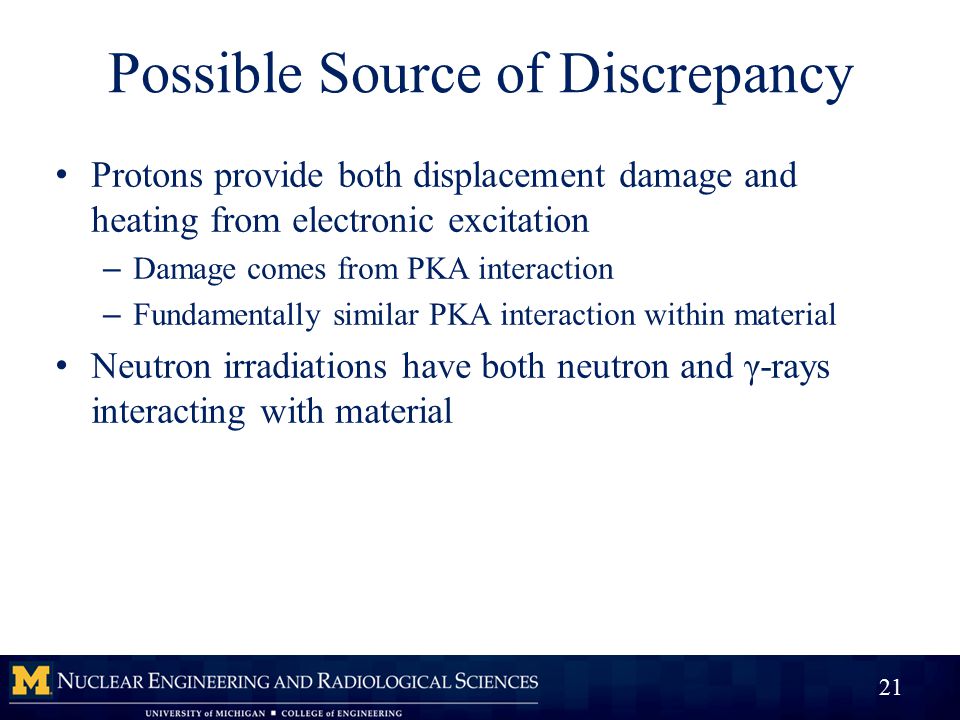

21 Possible Source of Discrepancy Protons provide both displacement damage and heating from electronic excitation – Damage comes from PKA interaction – Fundamentally similar PKA interaction within material Neutron irradiations have both neutron and γ-rays interacting with material 21

22 γ – Ray Effects Work in Russia – Examined effect of Radiation Composition Factor (RCF= ϕ n / ϕ γ ) on Turn-around dose (F crit ) Use equation to determine effective temperature (i.e. temperature without γ- rays) 22 MR (0.13) SM-2 (0.1) BOR-60 (4) Nikolaenko et al., Atomic Energy, 87, (1999) 480.

23 Burchell, T.D., "Neutron Irradiation Damage in Graphite and Its Effects on Properties", Presented at International Carbon Conference CARBON 2002, Beijing, China, September 15-20, 2002. Neutron Results – H-451 23 Temp (ºC) Fluence (n/m 2 E>0.1MeV) Fluence (n/cm 2 E>0.18MeV) RCF ϕ n / ϕ γ Equivalent Temp (ºC) ( ϕ γ =0) kE 0 (dpa) -1 6002.5x10 26 20.5x10 21 0.1569502.65 9001x10 26 8.2x10 21 0.15411004.56

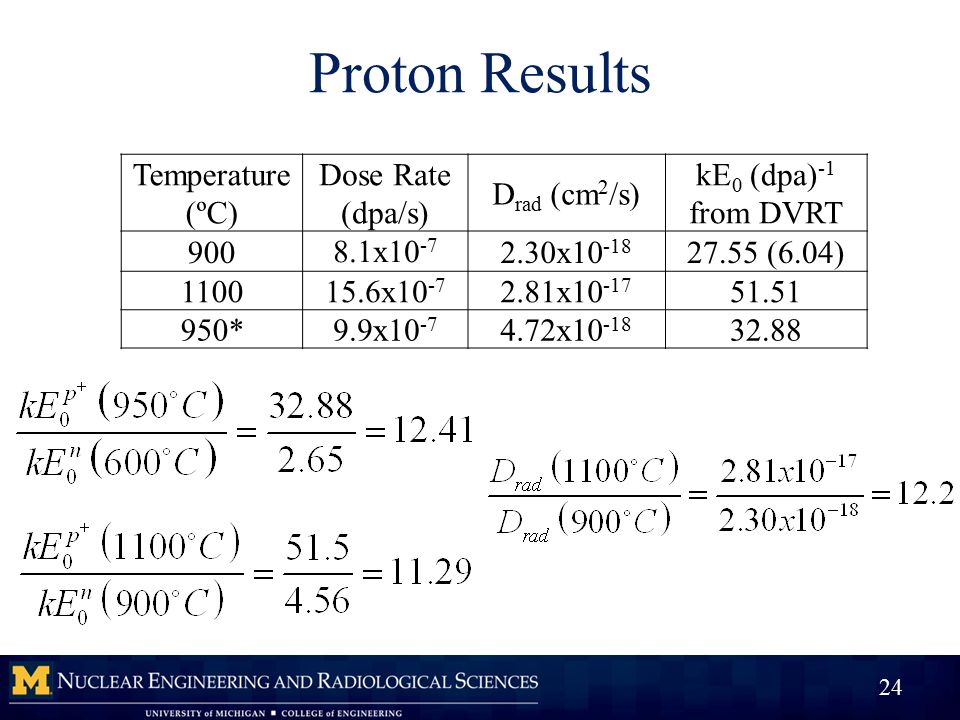

24 Proton Results 24 Temperature (ºC) Dose Rate (dpa/s) D rad (cm 2 /s) kE 0 (dpa) -1 from DVRT 900 8.1x10 -7 2.30x10 -18 27.55 (6.04) 1100 15.6x10 -7 2.81x10 -17 51.51 950* 9.9x10 -7 4.72x10 -18 32.88

25 Discussion of Analysis Russian researchers proposed that γ-rays interact and produce fast electrons that stimulate diffusion processes Recent work in China investigated the effects of γ-rays, on graphite, at room temperature – Shows that γ-rays can increase graphitization of graphite at room temperature Possible that γ-rays are annealing damage as it is being caused by neutrons in-reactor, effectively reducing the # of defects available to assist with driving creep 25 Li, B. et al., Carbon, 60, (2013) 186.Xu, Z. et al., Materials Letters, 63, (2009) 1814. γ dose (MGy)D 002 (nm)L c (002) (nm)D 002 (nm)% Graphitized 00.3372 [Li]26.4 [Li]0.3376 [Xu]75 [Xu] 0.2000.3361 [Li]31.7 [Li] 2.000.3366 [Li]31.0 [Li]0.3371 [Xu]81 [Xu]

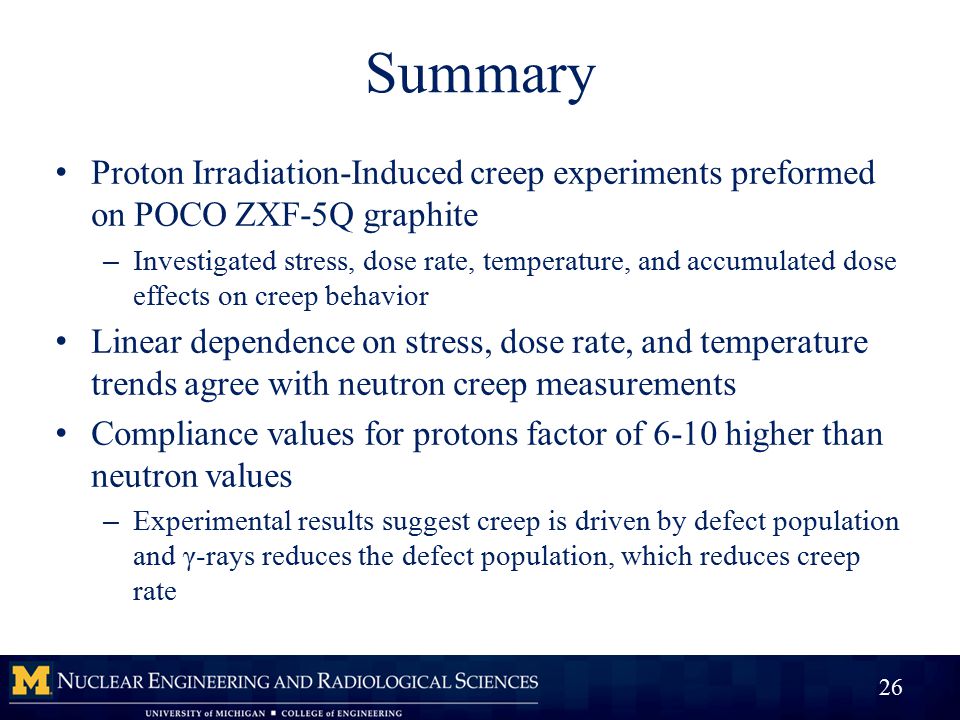

26 Summary Proton Irradiation-Induced creep experiments preformed on POCO ZXF-5Q graphite – Investigated stress, dose rate, temperature, and accumulated dose effects on creep behavior Linear dependence on stress, dose rate, and temperature trends agree with neutron creep measurements Compliance values for protons factor of 6-10 higher than neutron values – Experimental results suggest creep is driven by defect population and γ-rays reduces the defect population, which reduces creep rate 26
