The measurement model: what does it mean and what you can do with it? Presented by Michael Nering, Ph. D.

Similar presentations

Presentation on theme: "The measurement model: what does it mean and what you can do with it? Presented by Michael Nering, Ph. D."— Presentation transcript:


2 The measurement model: what does it mean and what you can do with it? Presented by Michael Nering, Ph. D.

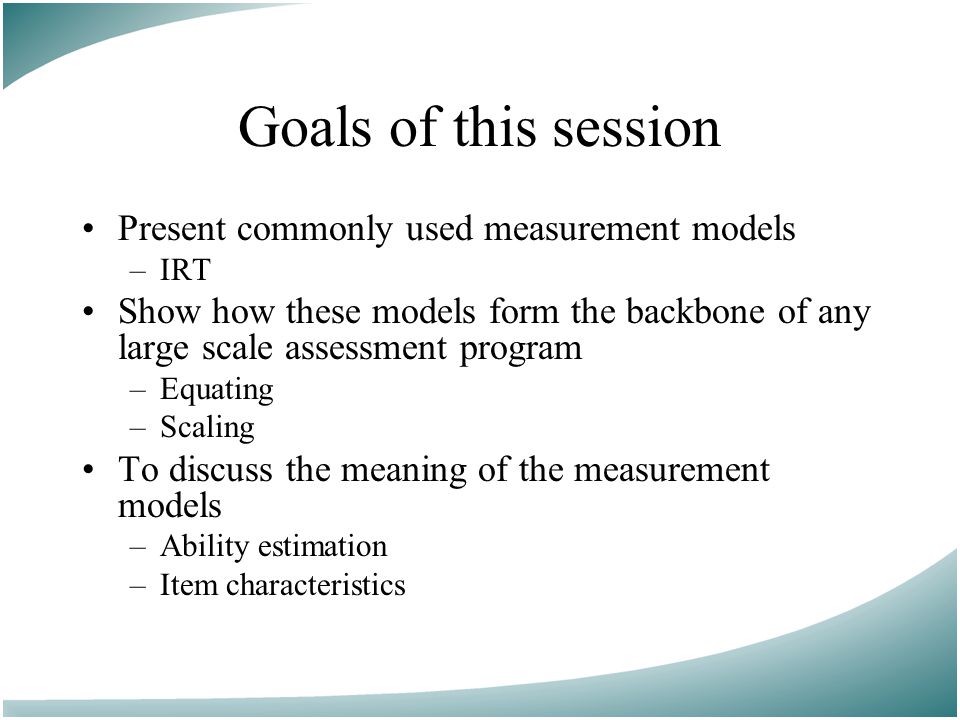

3 Goals of this session Present commonly used measurement models –IRT Show how these models form the backbone of any large scale assessment program –Equating –Scaling To discuss the meaning of the measurement models –Ability estimation –Item characteristics

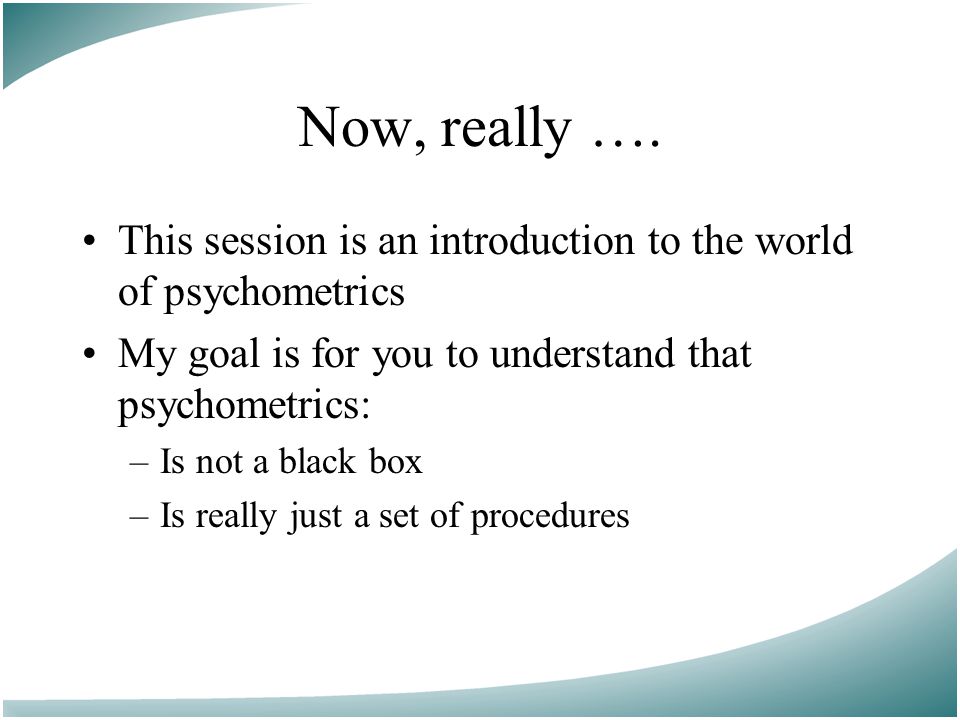

4 Now, really …. This session is an introduction to the world of psychometrics My goal is for you to understand that psychometrics: –Is not a black box –Is really just a set of procedures

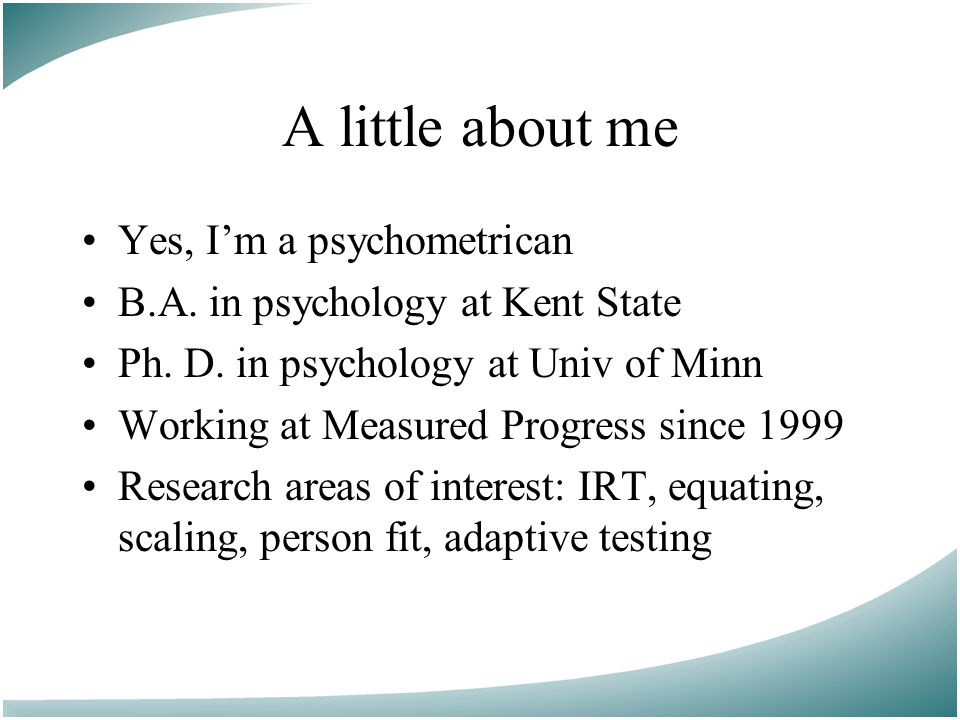

5 A little about me Yes, I’m a psychometrican B.A. in psychology at Kent State Ph. D. in psychology at Univ of Minn Working at Measured Progress since 1999 Research areas of interest: IRT, equating, scaling, person fit, adaptive testing


7 Why Psychology? Psychometricians typically come from: –Educational measurement programs –Psychometric programs –I/O programs Ultimately, we are all after the pursuit of understanding people by way of “quantification”

8 Psychometrics Defined Psychological Measurement Psycho metrics The business of measuring psychological “things”

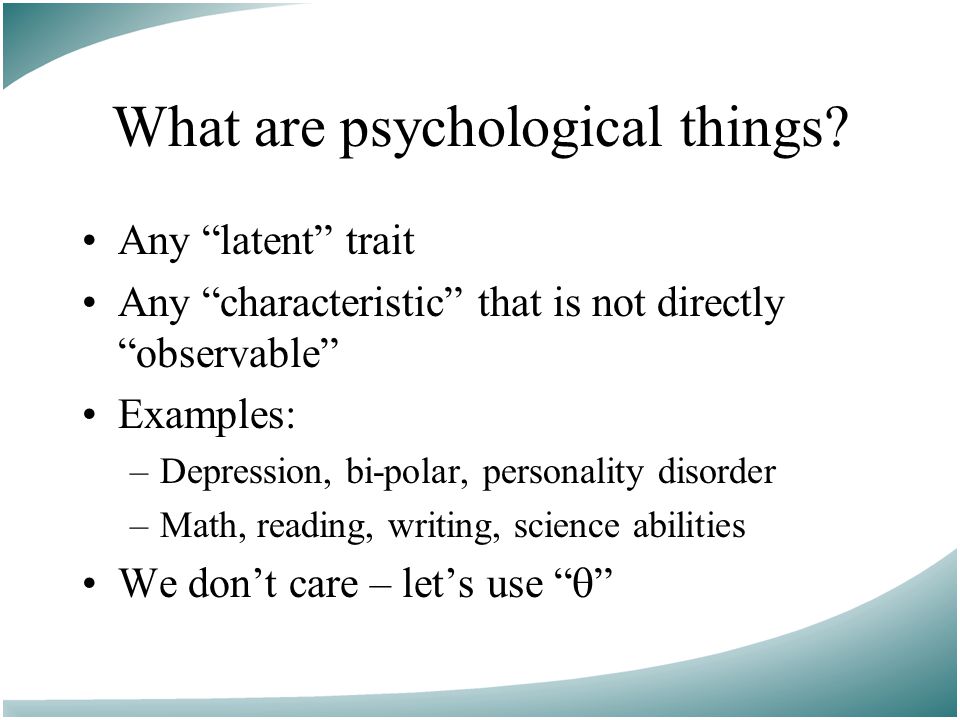

9 What are psychological things? Any “latent” trait Any “characteristic” that is not directly “observable” Examples: –Depression, bi-polar, personality disorder –Math, reading, writing, science abilities We don’t care – let’s use “  ”

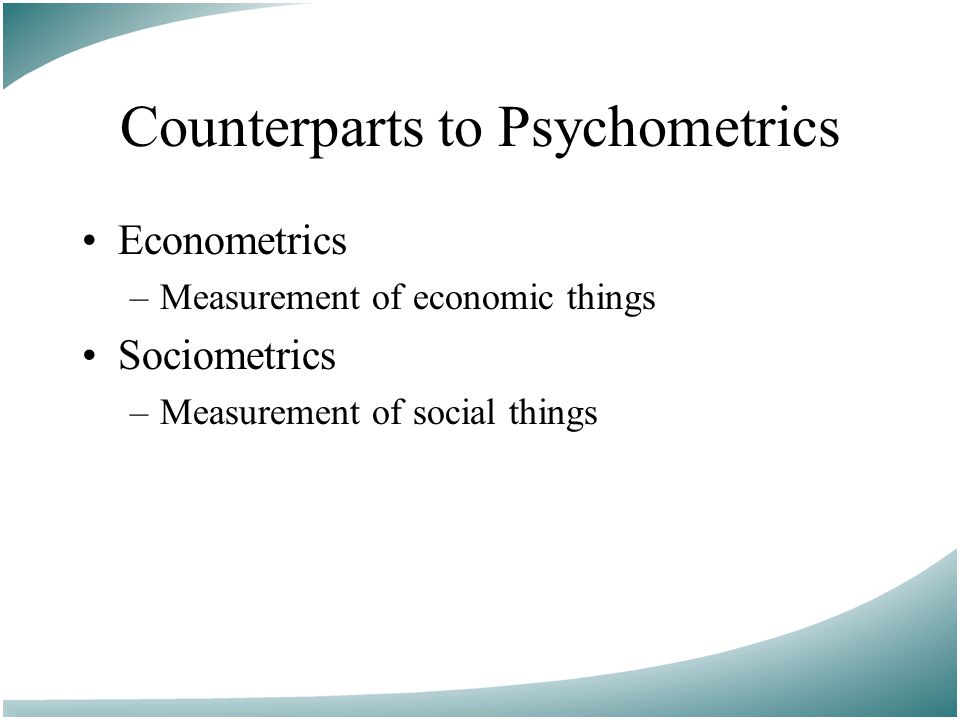

10 Counterparts to Psychometrics Econometrics –Measurement of economic things Sociometrics –Measurement of social things

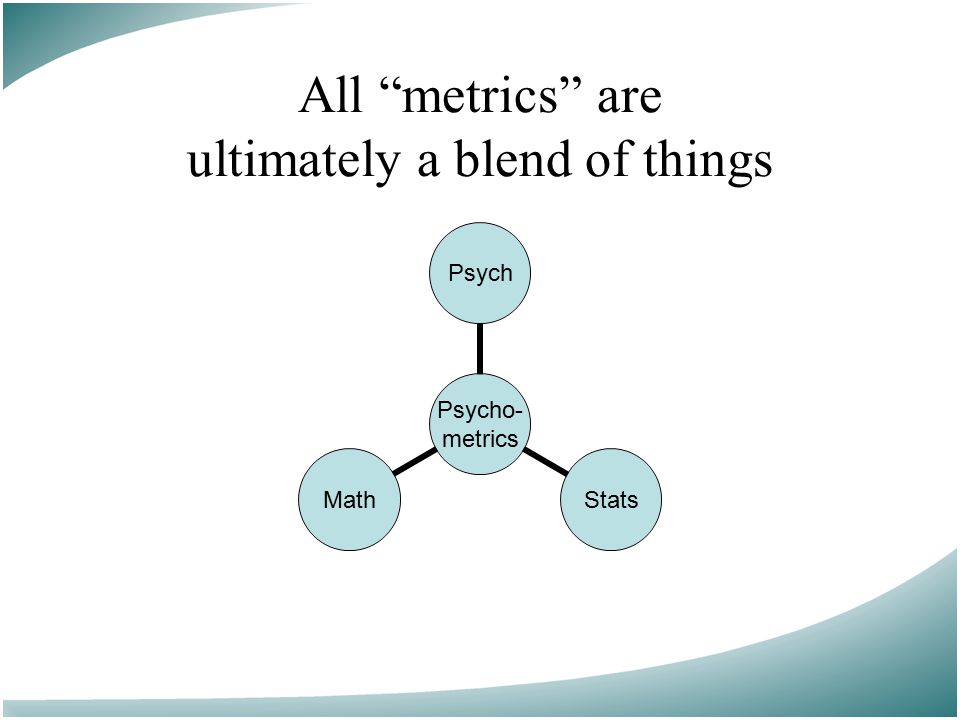

11 All “metrics” are ultimately a blend of things Psycho- metrics PsychStatsMath

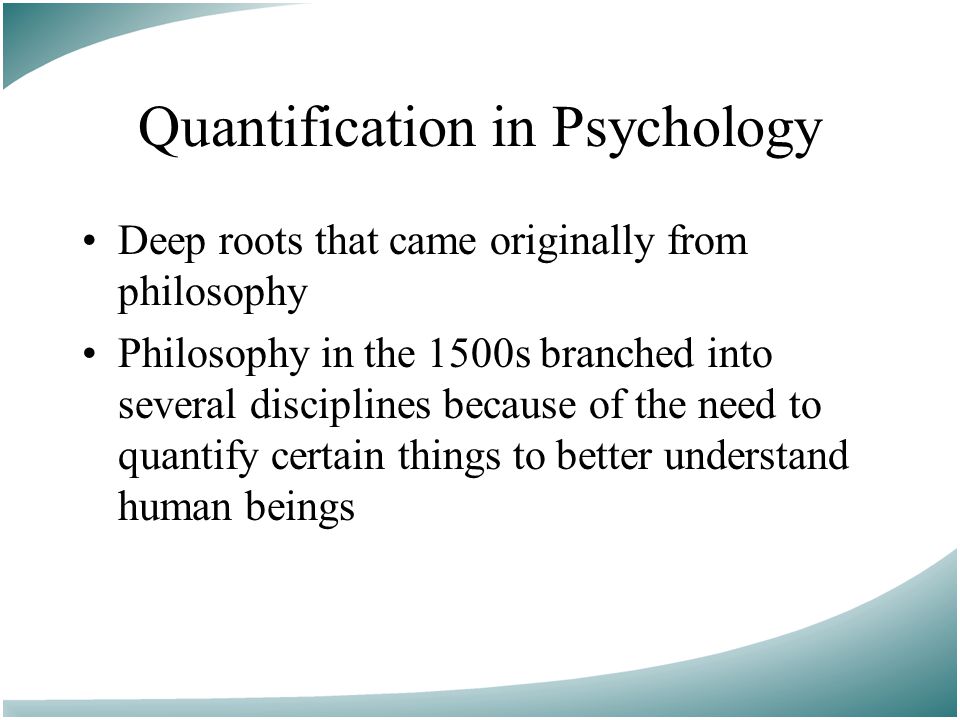

12 Quantification in Psychology Deep roots that came originally from philosophy Philosophy in the 1500s branched into several disciplines because of the need to quantify certain things to better understand human beings

13 Philosophy’s Many Branches This desire to better understand humans lead to two primary areas of study –Physiology 1543 Belgian physiologists practices the dissection of cadavers –Psychology 1524 Marco Marulik publishes The Psychology of Human Thought

14 Yes, I did just use the word “cadaver” … but trust me it’s okay

15 The last 100 years of psychometrics Classical test theory and Spearman’s 1904 contribution –True score theory –Reliability theory, p-values, point biserial coefficients Item response theory

16 Let’s talk about IRT When I say “measurement model” I really do mean some sort of IRT model Lots of historical developments Lord & Novick text of 1968 Many advantages over CTT

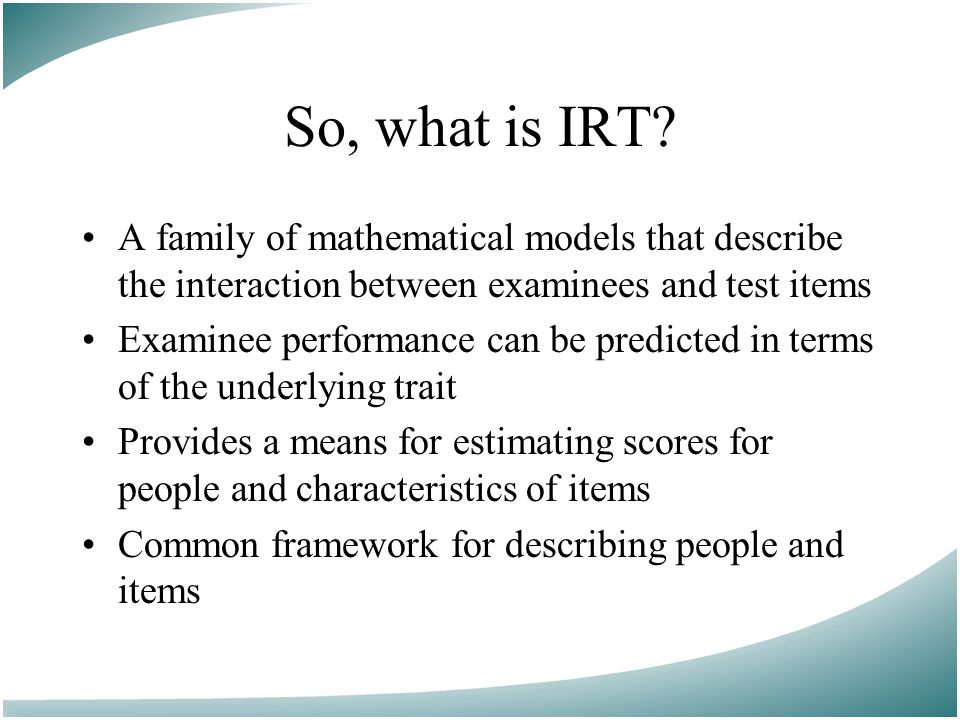

17 So, what is IRT? A family of mathematical models that describe the interaction between examinees and test items Examinee performance can be predicted in terms of the underlying trait Provides a means for estimating scores for people and characteristics of items Common framework for describing people and items

18 The ogive Natural occurring form that describes something about people Used throughout science, engineering, and the social sciences Also, used in architecture, carpentry, engineering, photograph, art, and so forth

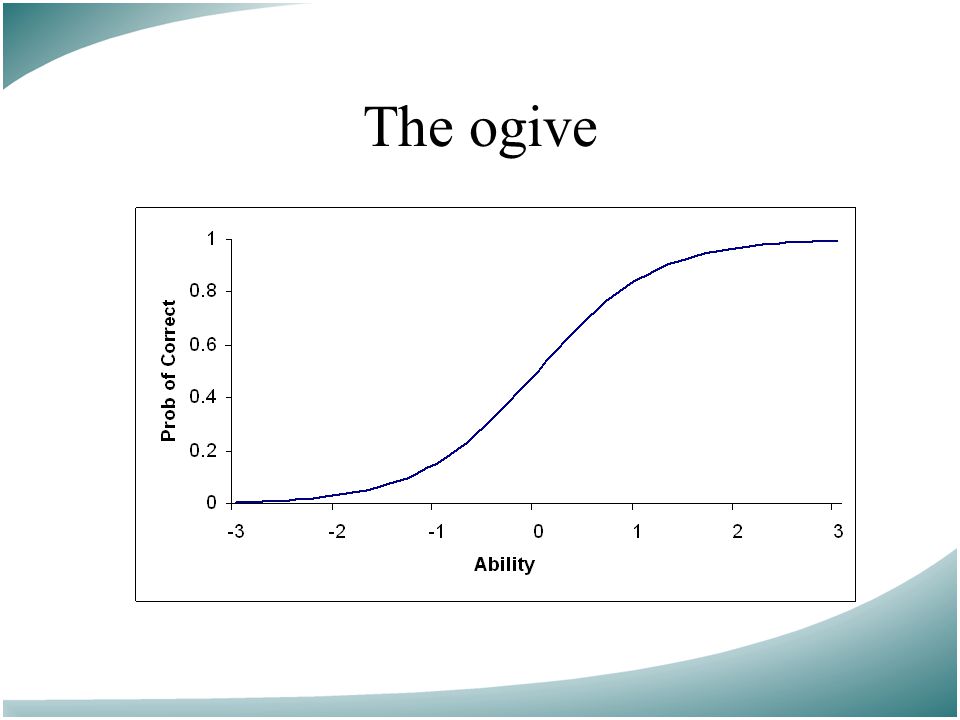

19 The ogive


21 A little jargon The item characteristic curve (ICC) Also called: –Item response function –Trace line –Etc. Stochastic: 1) involving a random variable, or 2) involving chance or probability

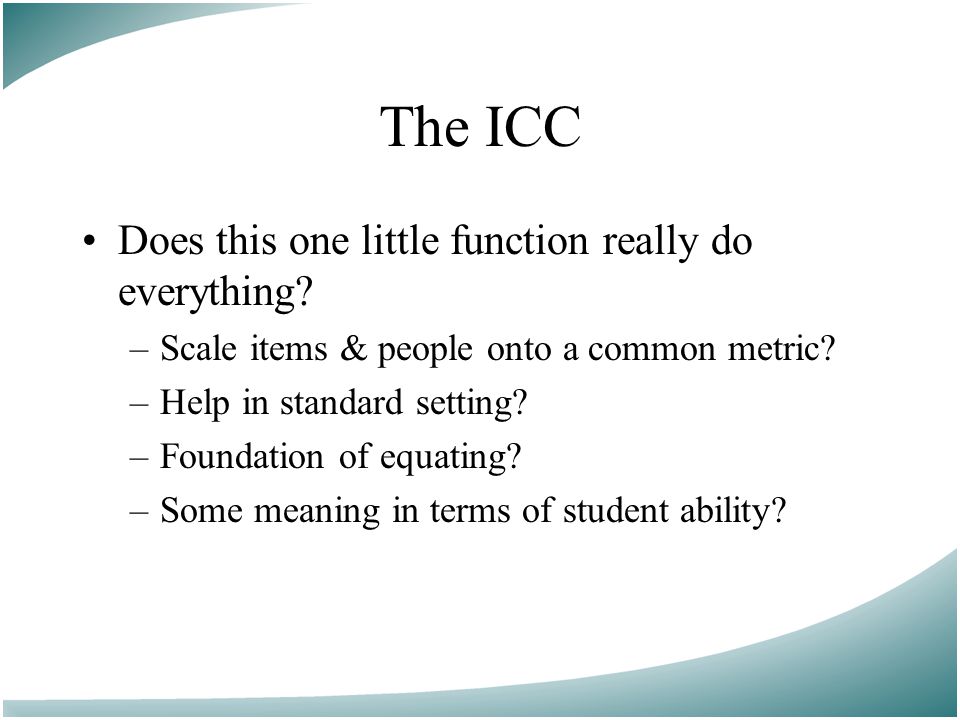

22 The ICC Does this one little function really do everything? –Scale items & people onto a common metric? –Help in standard setting? –Foundation of equating? –Some meaning in terms of student ability?

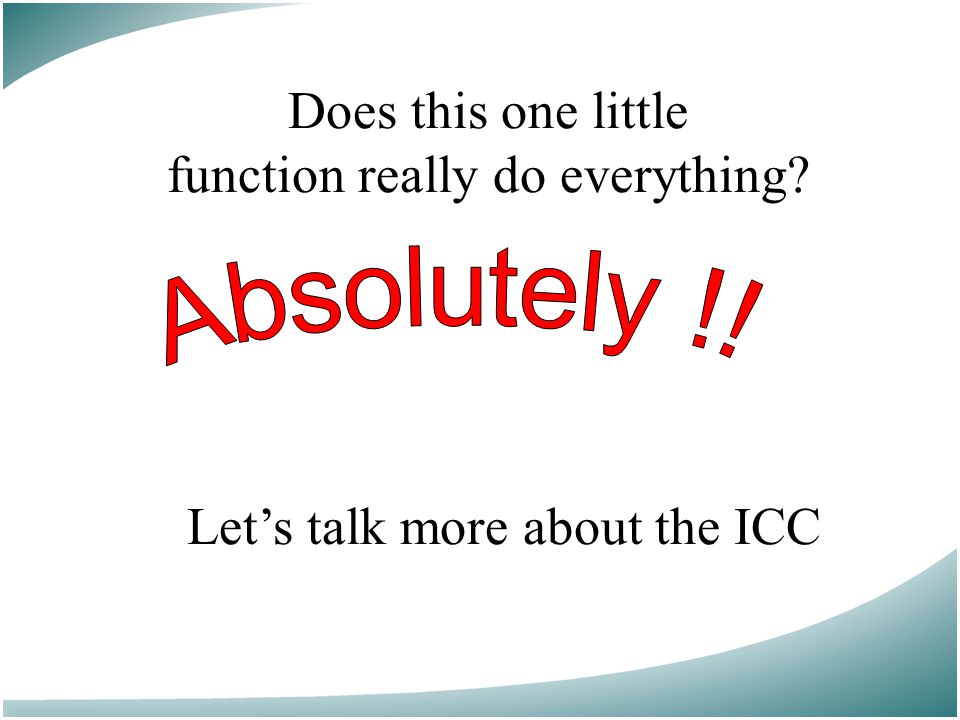

23 Does this one little function really do everything? Let’s talk more about the ICC

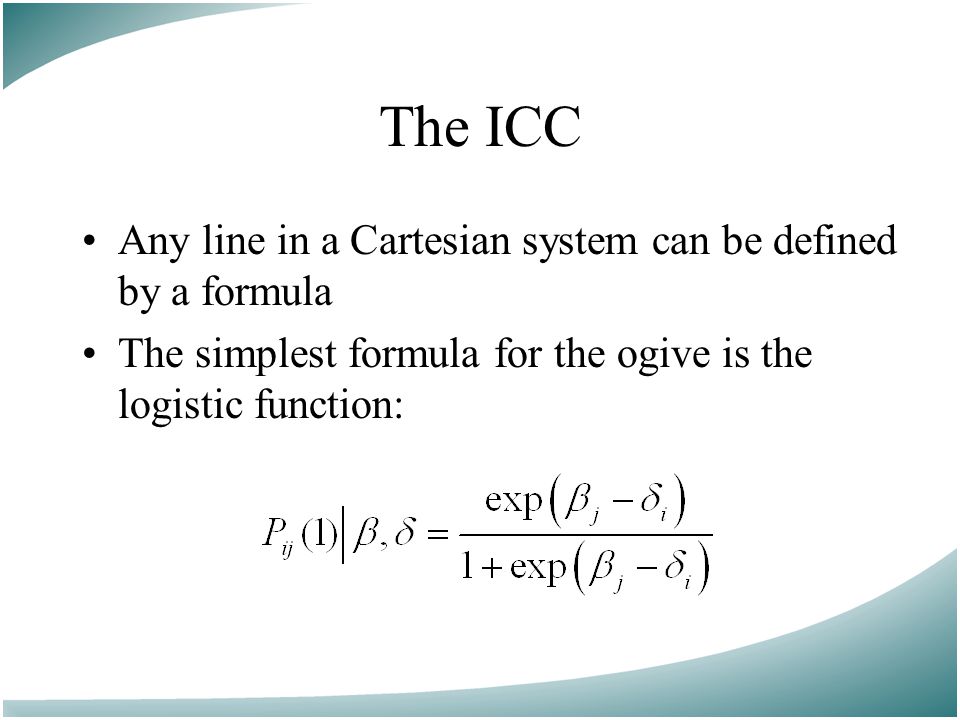

24 The ICC Any line in a Cartesian system can be defined by a formula The simplest formula for the ogive is the logistic function:

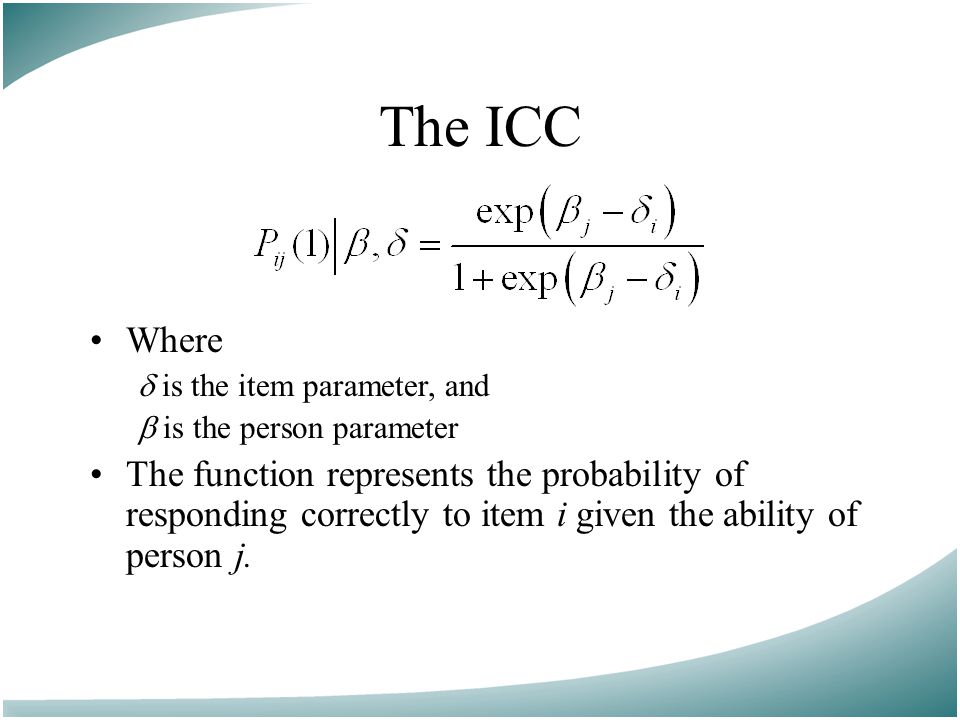

25 The ICC Where  is the item parameter, and  is the person parameter The function represents the probability of responding correctly to item i given the ability of person j.

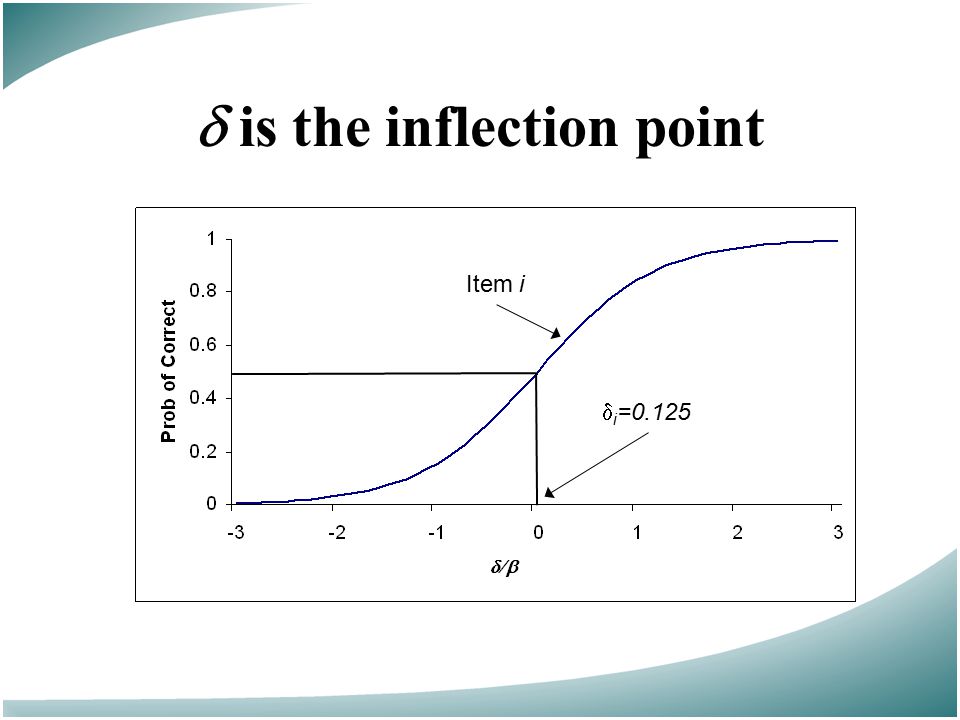

26  is the inflection point Item i  i =0.125

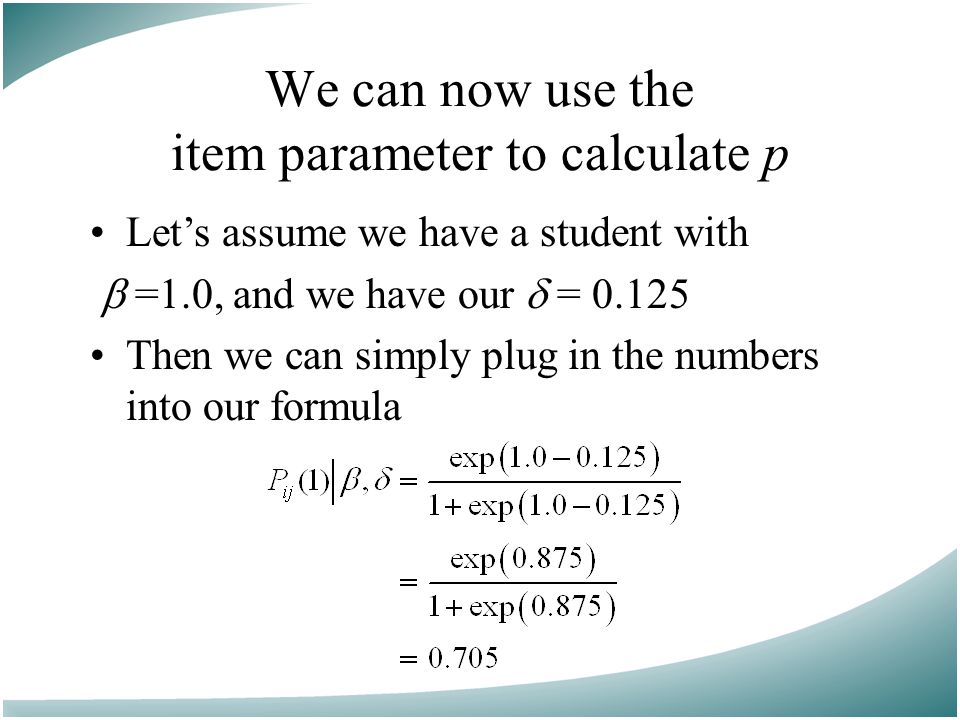

27 We can now use the item parameter to calculate p Let’s assume we have a student with  =1.0, and we have our  = 0.125 Then we can simply plug in the numbers into our formula

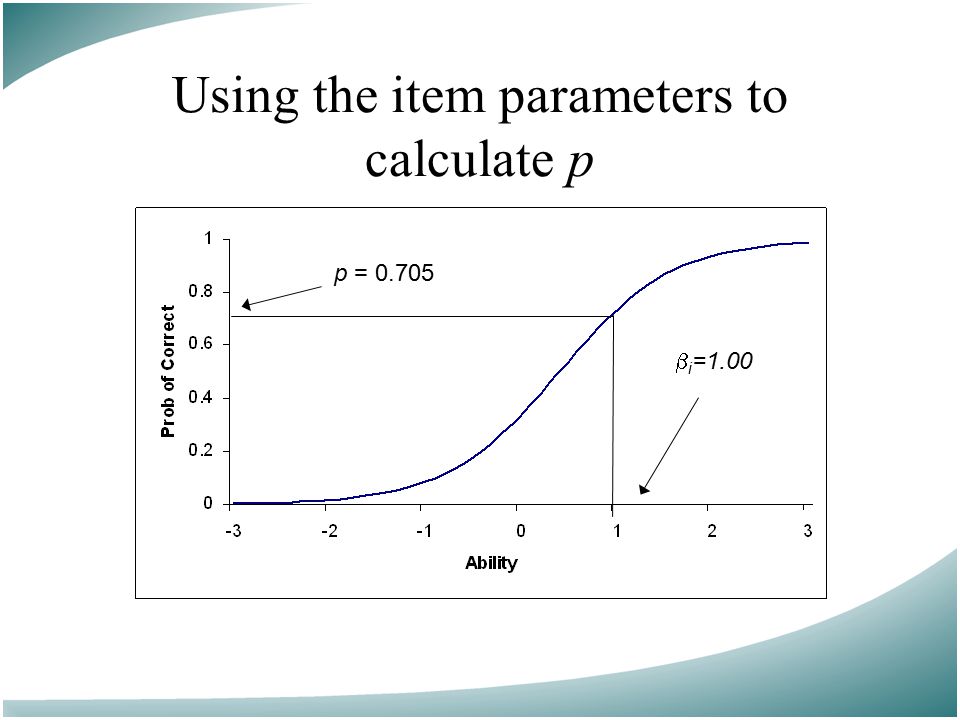

28 Using the item parameters to calculate p p = 0.705  i =1.00

29 Wait a minute What do you mean a student with an ability of 1.0?? Does an ability of 0.0 mean that a student has NO ability? What if my student has a reading ability estimate of -1.2? What in the world does that mean????

30 The ability scale Ability is on an arbitrary scale that just so happens to be centered around 0.0 We use arbitrary all the time: –Fahrenheit –Celsius –Decibels –DJIA

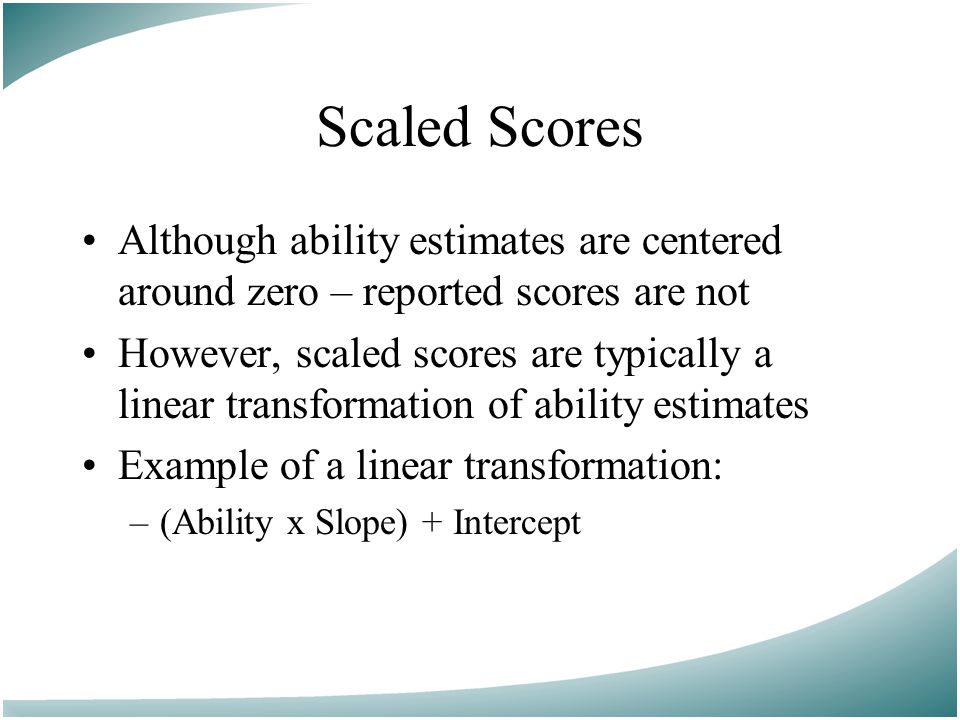

31 Scaled Scores Although ability estimates are centered around zero – reported scores are not However, scaled scores are typically a linear transformation of ability estimates Example of a linear transformation: –(Ability x Slope) + Intercept

32 The need for scaled scores ½ the kids will have negative ability estimates

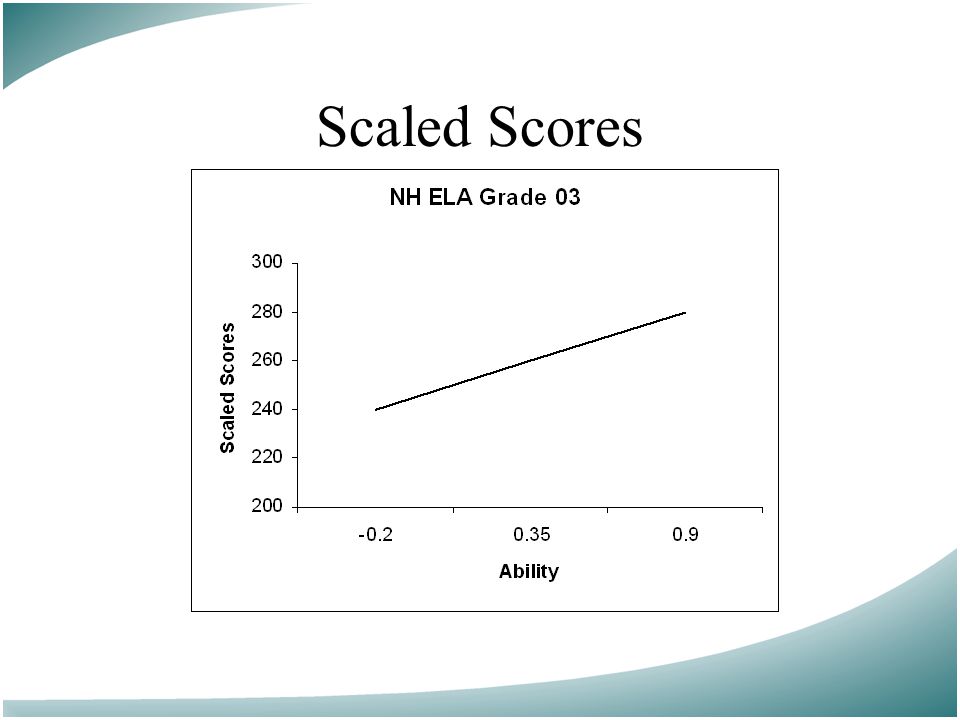

33 Scaled Scores

34 Use of scaled scores Student/parent level report School/district report Cross year comparisons Performance level categorization

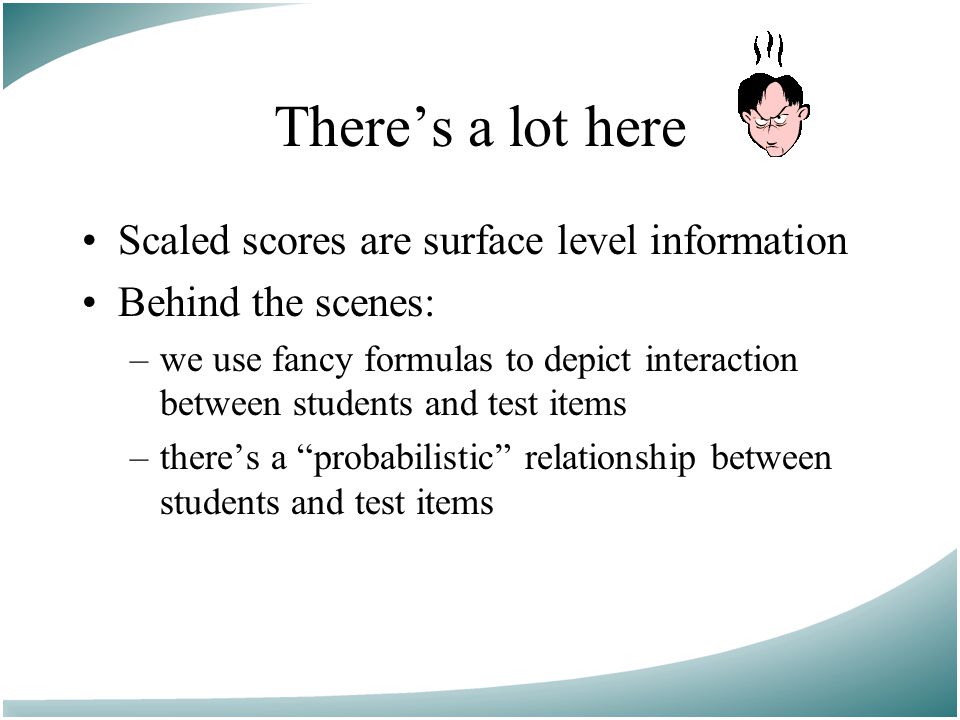

35 There’s a lot here Scaled scores are surface level information Behind the scenes: –we use fancy formulas to depict interaction between students and test items –there’s a “probabilistic” relationship between students and test items

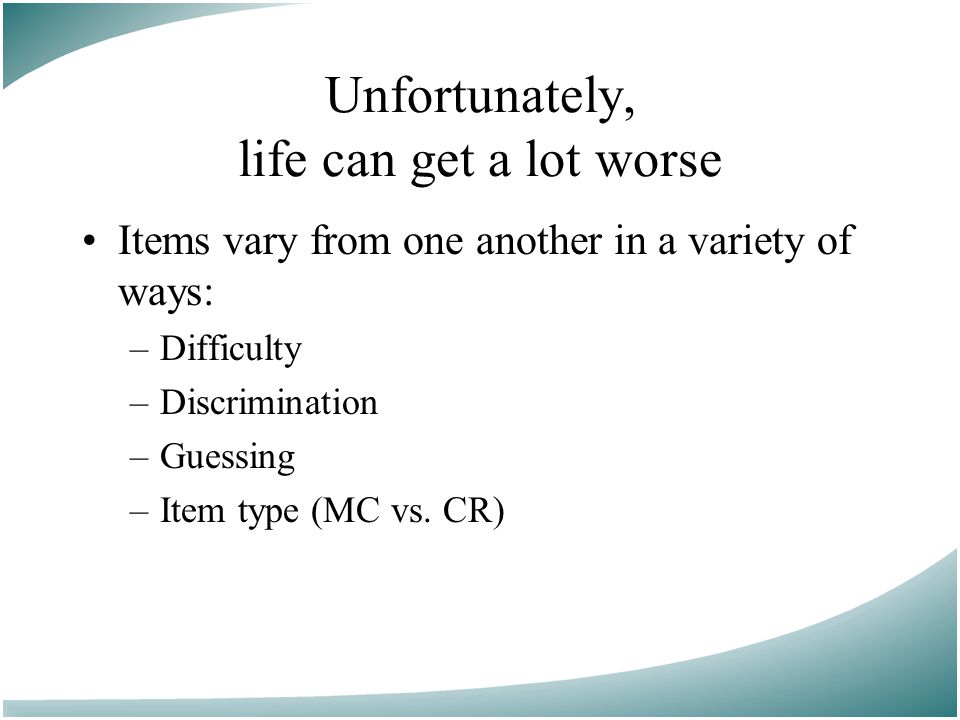

36 Unfortunately, life can get a lot worse Items vary from one another in a variety of ways: –Difficulty –Discrimination –Guessing –Item type (MC vs. CR)

37 Items can vary in terms of difficulty Ability of a student Easier item Harder item

38 Items can vary in terms of discrimination Discrimination is reflected by the “pitch” in the ICC Thus, we allow the ICCs to vary in terms of their slope

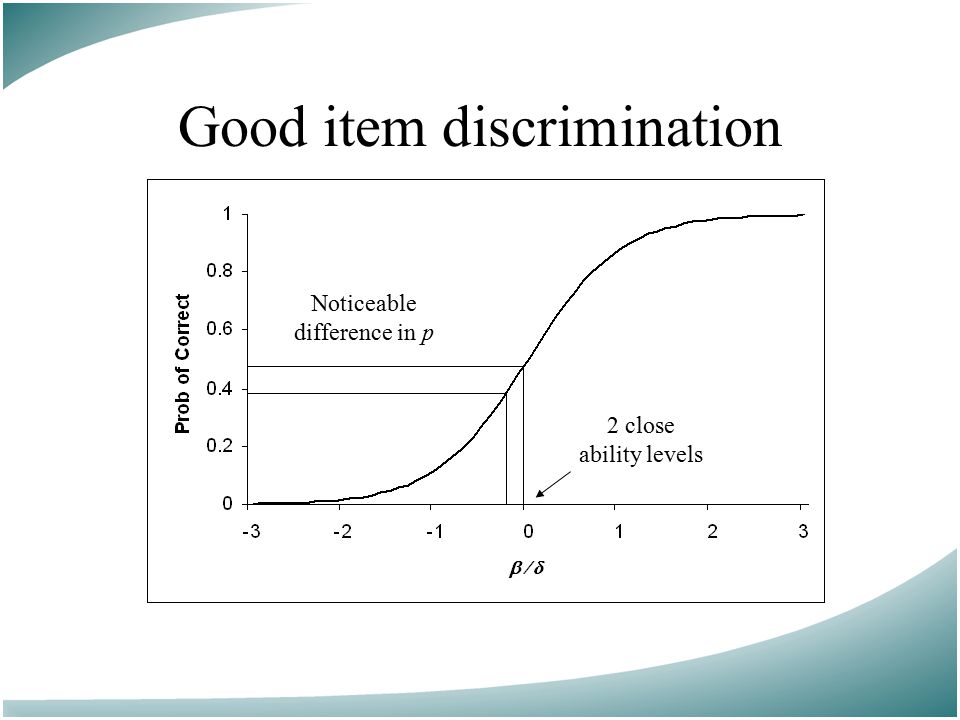

39 Good item discrimination 2 close ability levels Noticeable difference in p

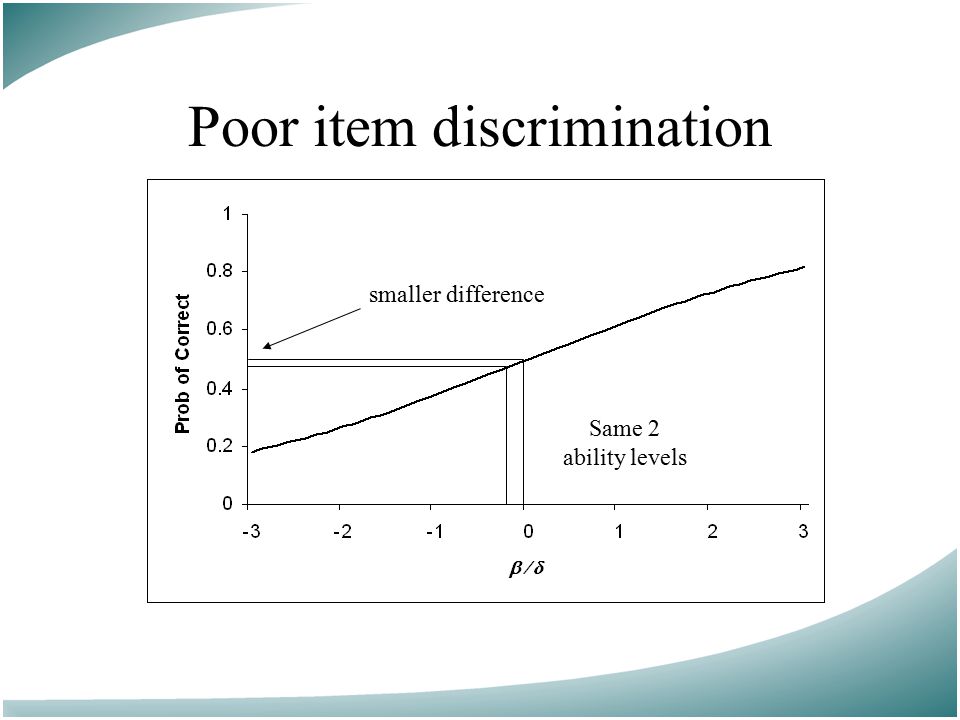

40 Poor item discrimination smaller difference Same 2 ability levels

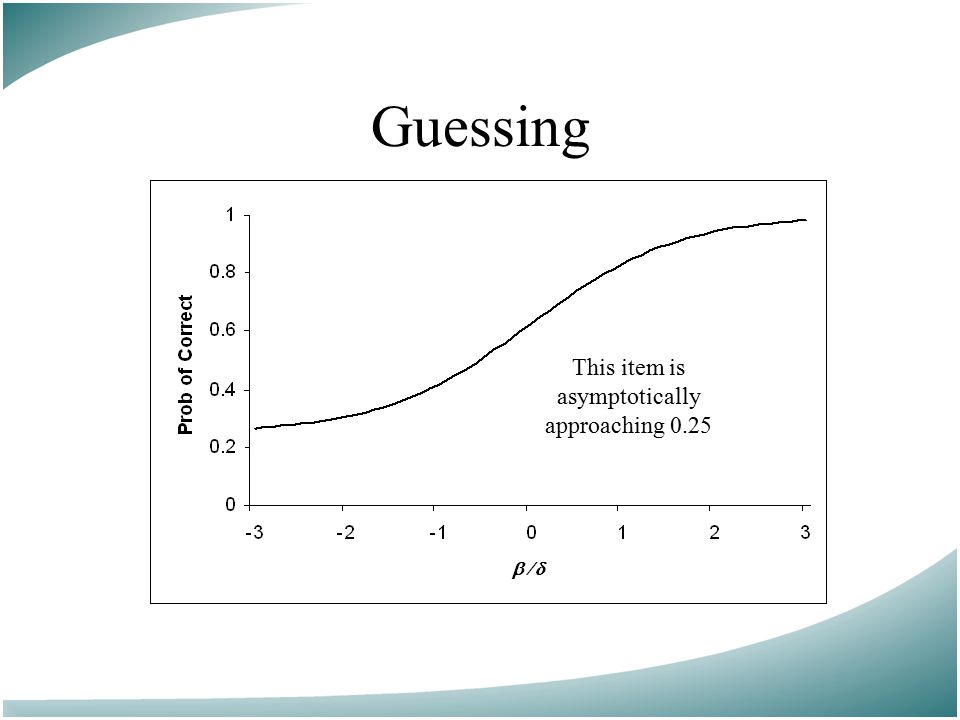

41 Guessing This item is asymptotically approaching 0.25

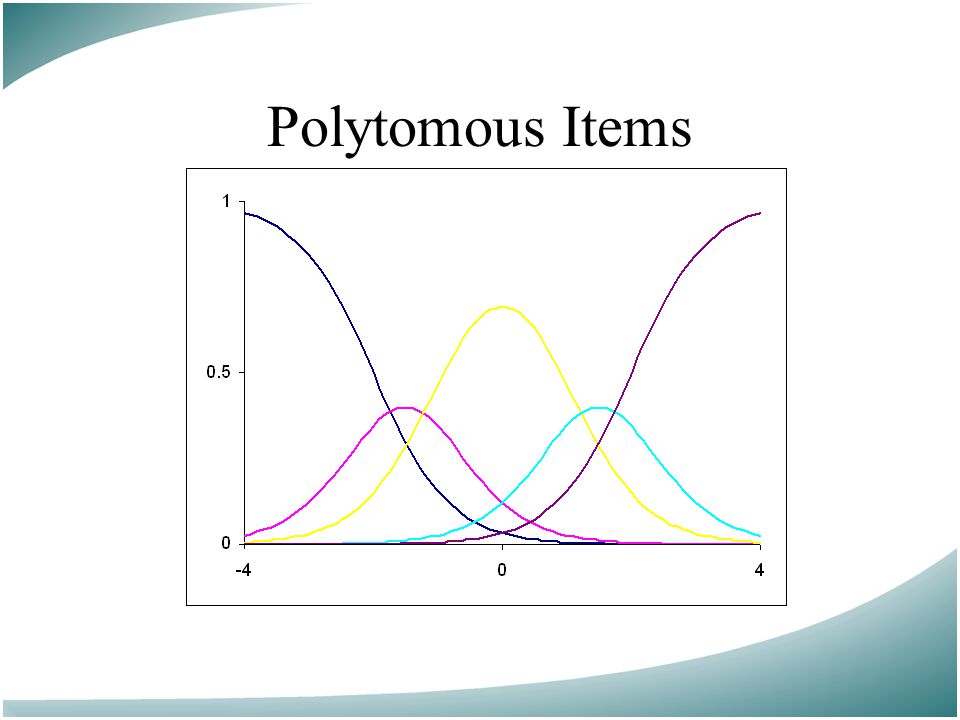

42 Polytomous Items

43 I’m sure by now you might be having a couple of thoughts How can I get up, open the door, and walk out without anybody noticing? I’m stuck in a “psycho”metric prison … help me!

44 But, trust me … I’m really trying to make a simple point

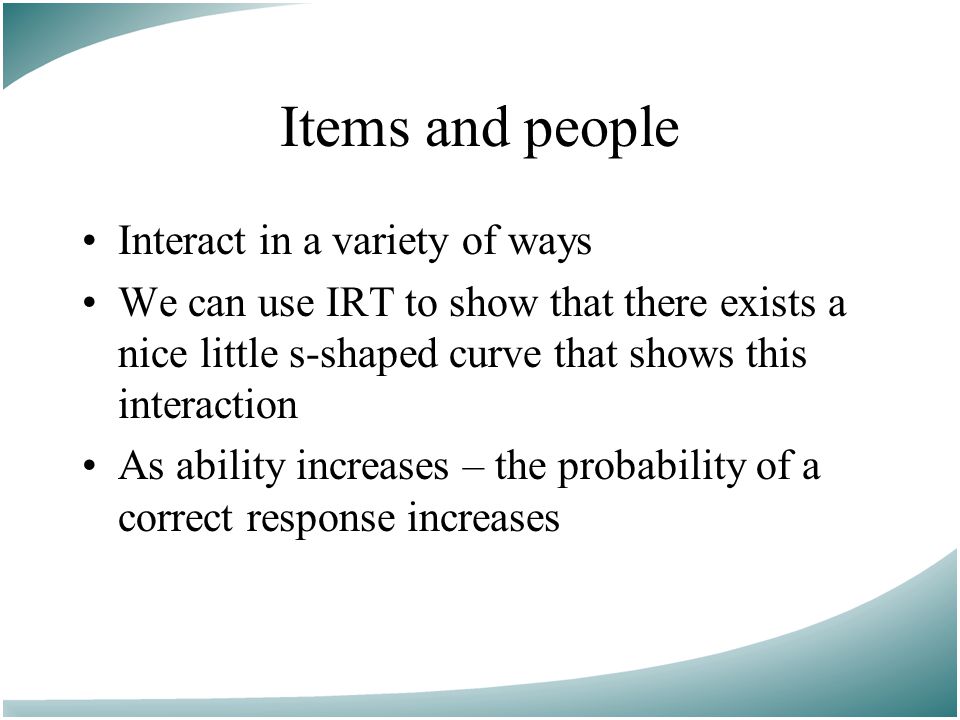

45 Items and people Interact in a variety of ways We can use IRT to show that there exists a nice little s-shaped curve that shows this interaction As ability increases – the probability of a correct response increases

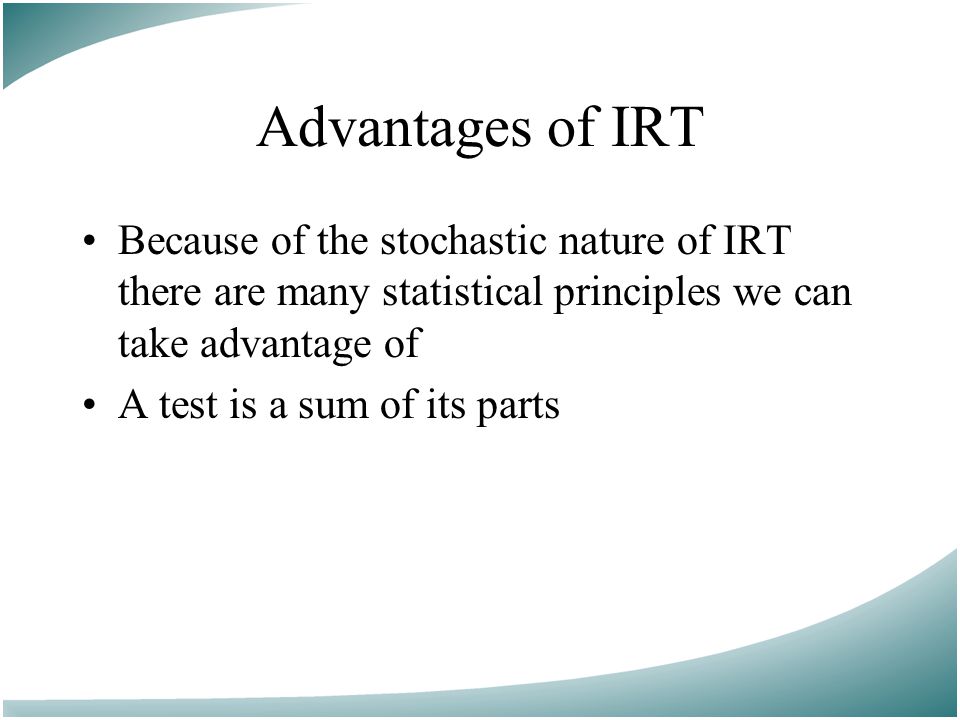

46 Advantages of IRT Because of the stochastic nature of IRT there are many statistical principles we can take advantage of A test is a sum of its parts

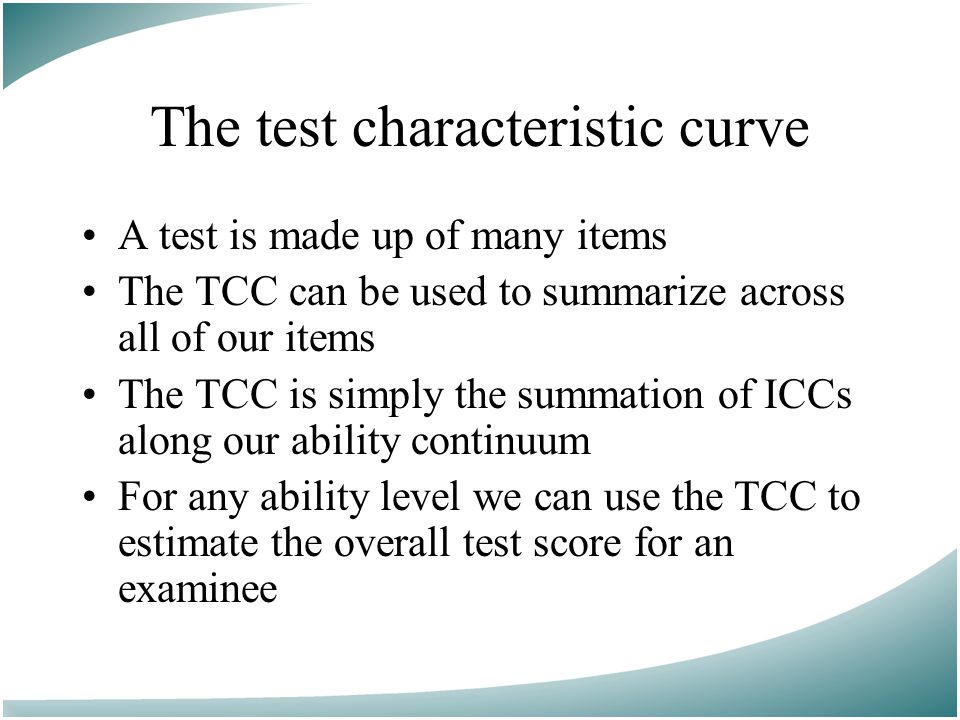

47 The test characteristic curve A test is made up of many items The TCC can be used to summarize across all of our items The TCC is simply the summation of ICCs along our ability continuum For any ability level we can use the TCC to estimate the overall test score for an examinee

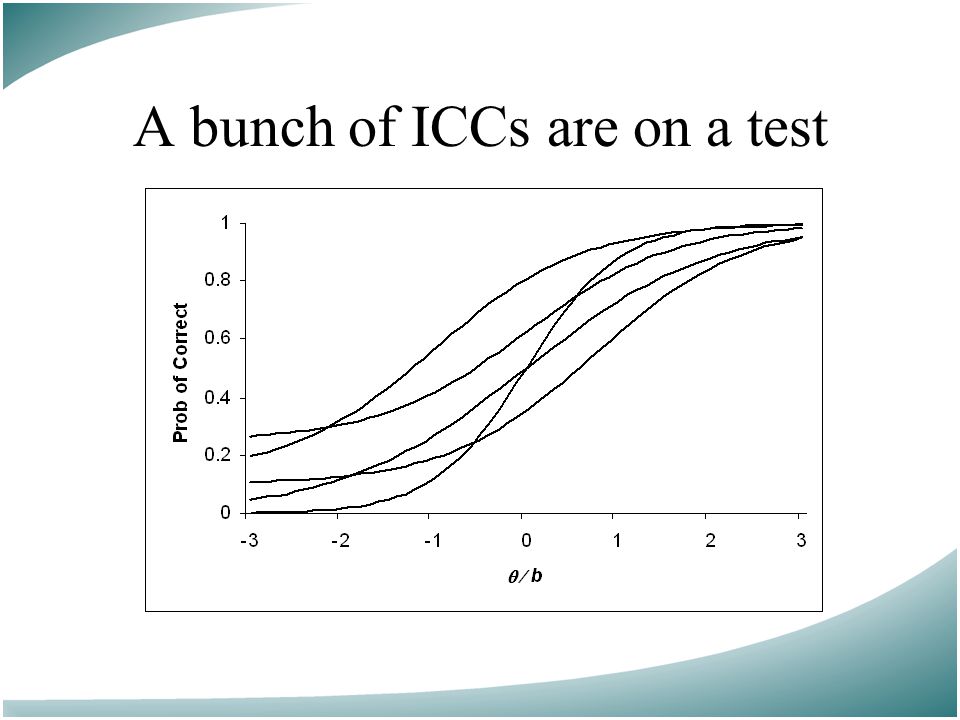

48 A bunch of ICCs are on a test

49 The test characteristic curve

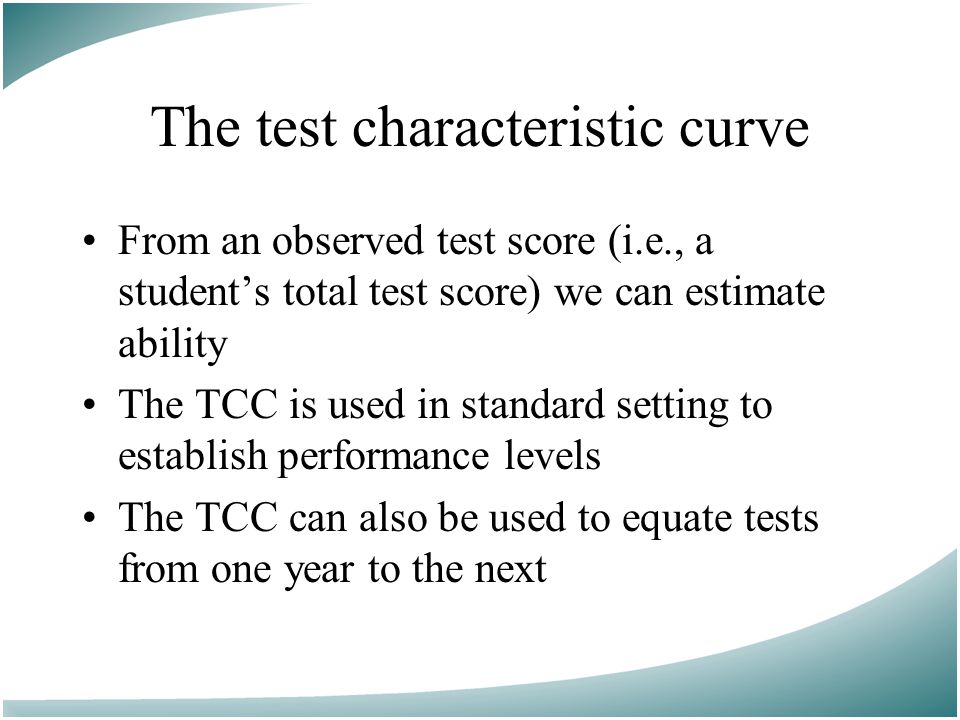

50 From an observed test score (i.e., a student’s total test score) we can estimate ability The TCC is used in standard setting to establish performance levels The TCC can also be used to equate tests from one year to the next The test characteristic curve

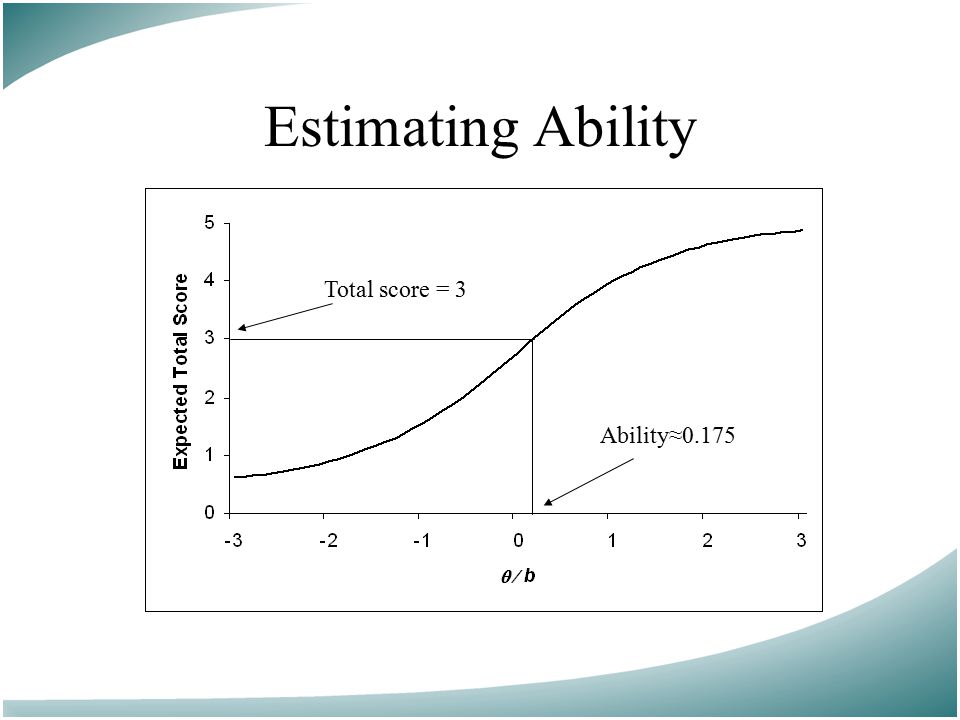

51 Estimating Ability Total score = 3 Ability≈0.175

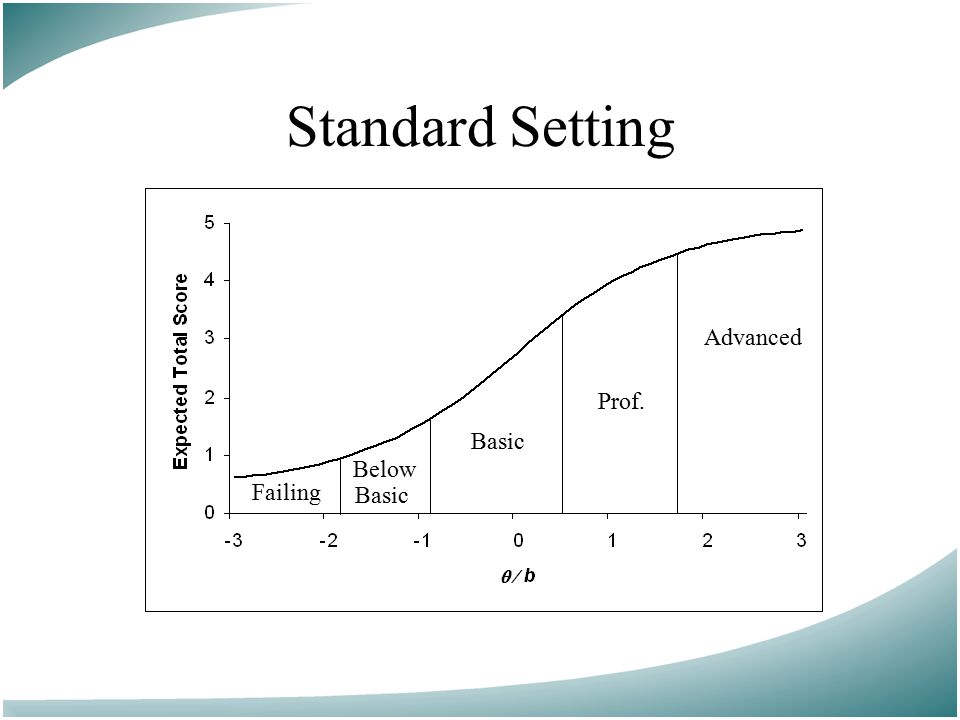

52 Standard Setting Advanced Prof. Basic Below Failing Basic

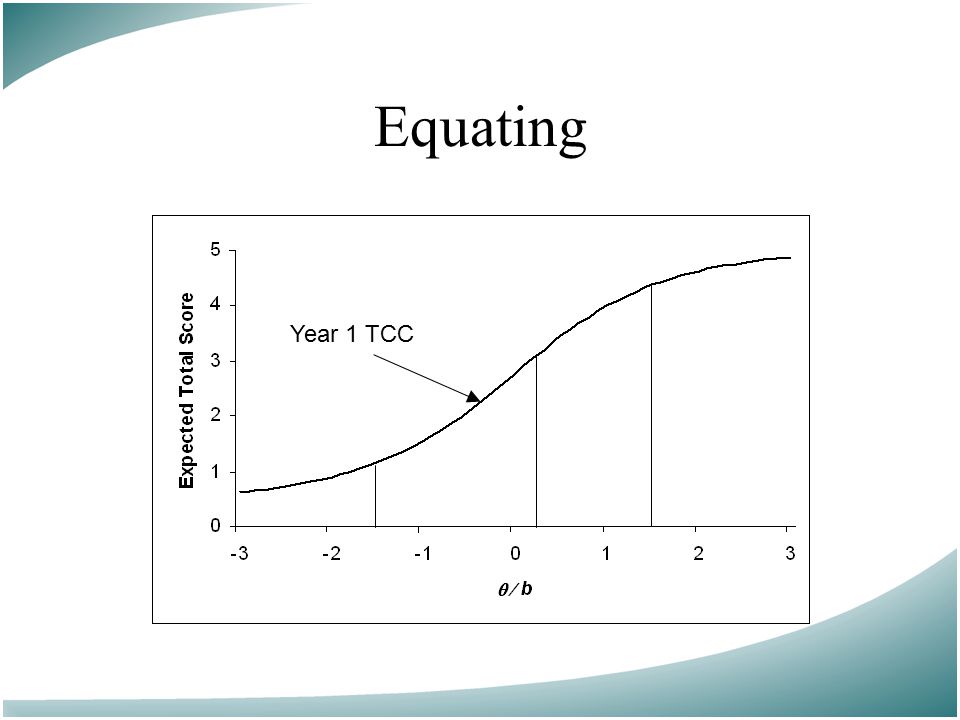

53 Equating Year 1 TCC

54 Equating -3-2 0 1 2 3 Year 2 TCC & Scale

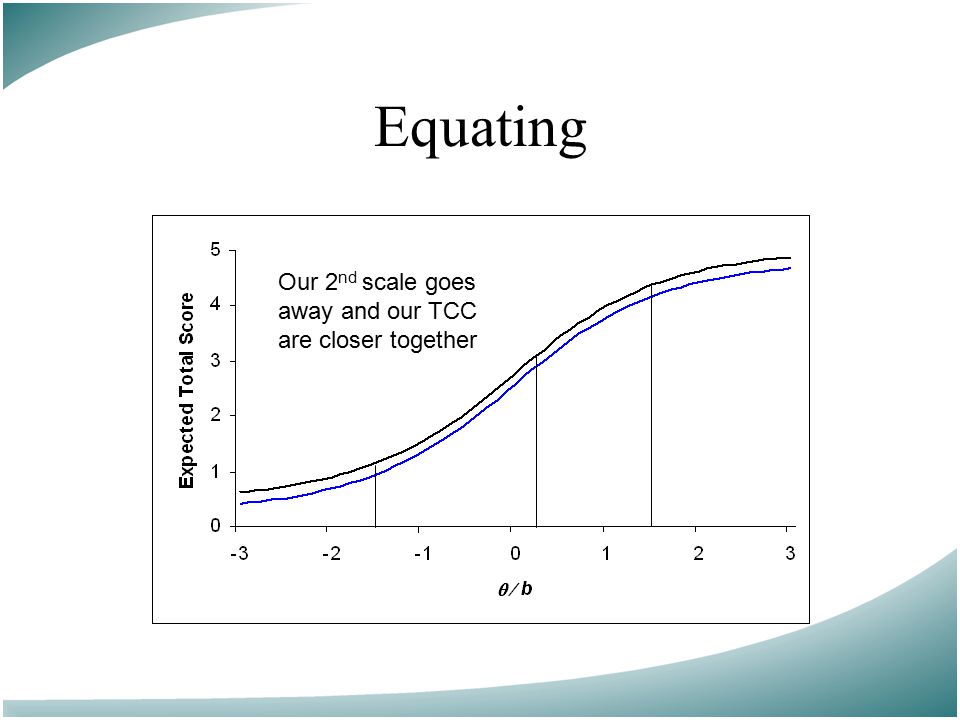

55 Equating Our 2 nd scale goes away and our TCC are closer together

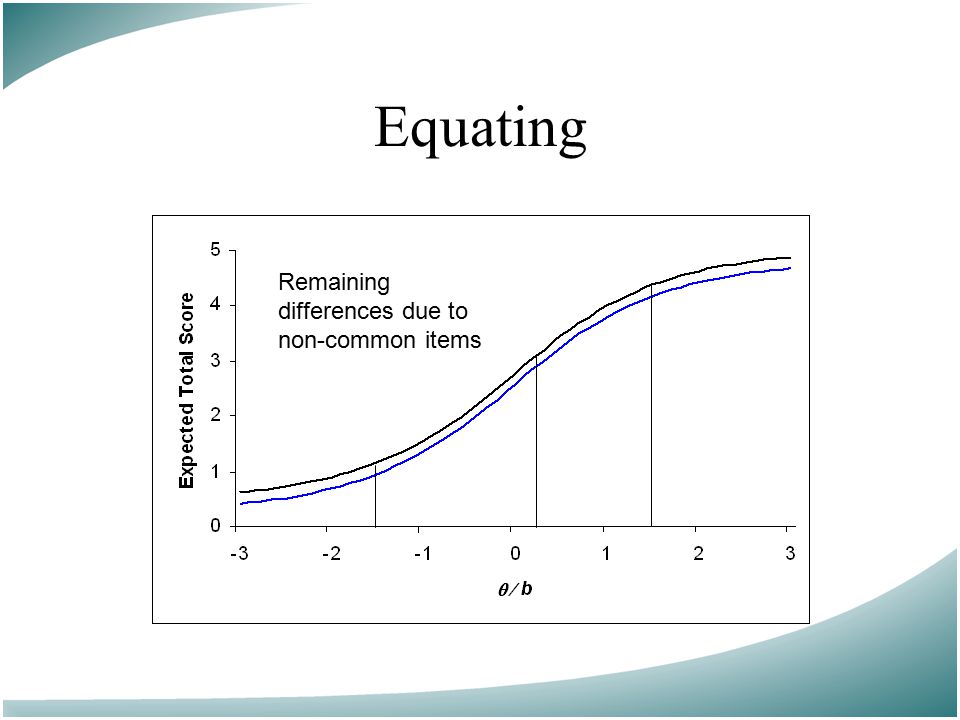

56 Equating Remaining differences due to non-common items

57 Equating The adjustment to the TCC can be done a variety of different ways Let’s take a look a one commonly used method of equating, namely the Mean Shift method

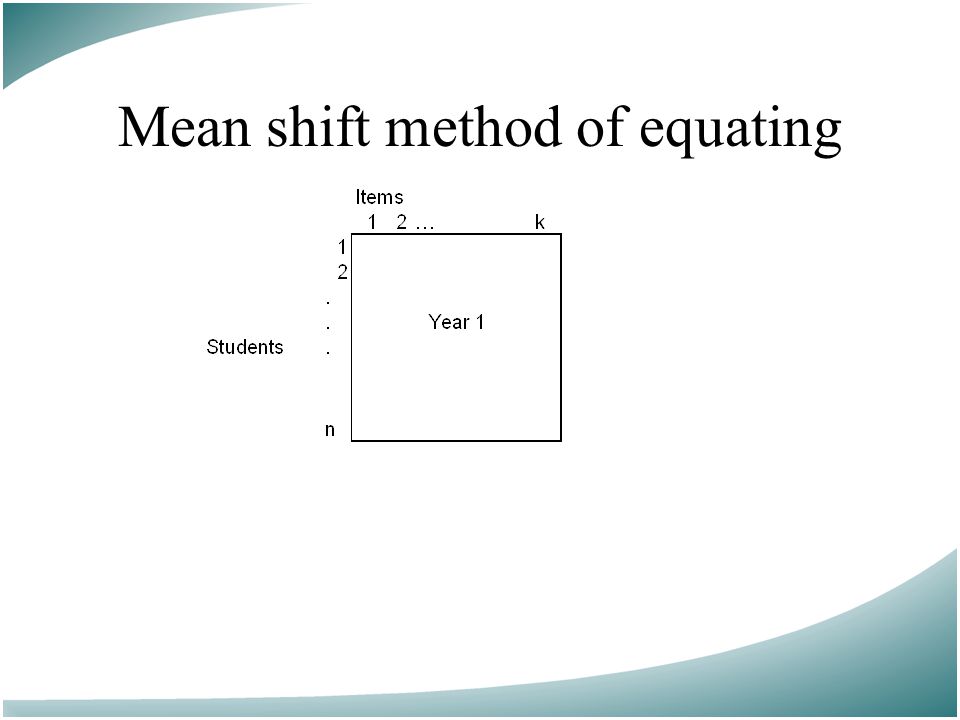

58 Mean shift method of equating

59 These items are common between the two years

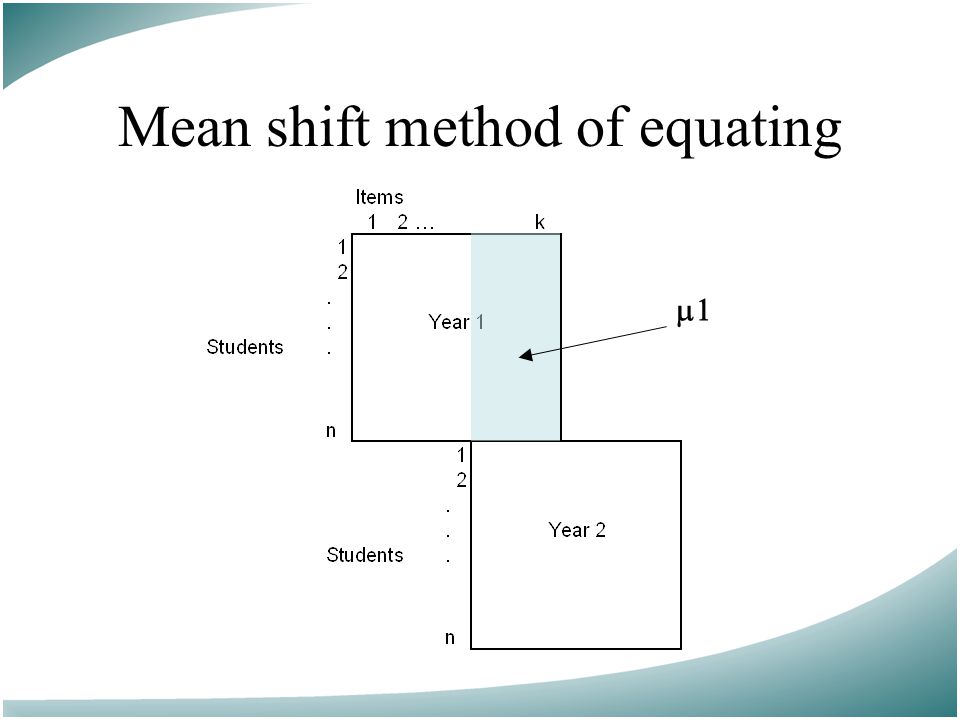

60 Mean shift method of equating 

61 Mean shift method of equating  

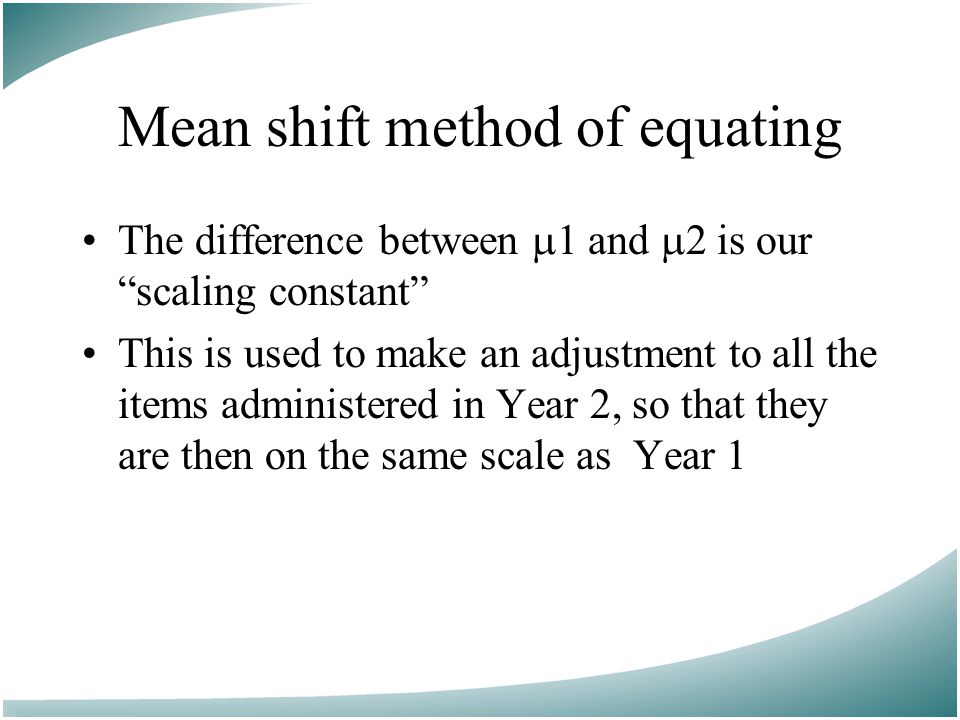

62 Mean shift method of equating The difference between  1 and  2 is our “scaling constant” This is used to make an adjustment to all the items administered in Year 2, so that they are then on the same scale as Year 1

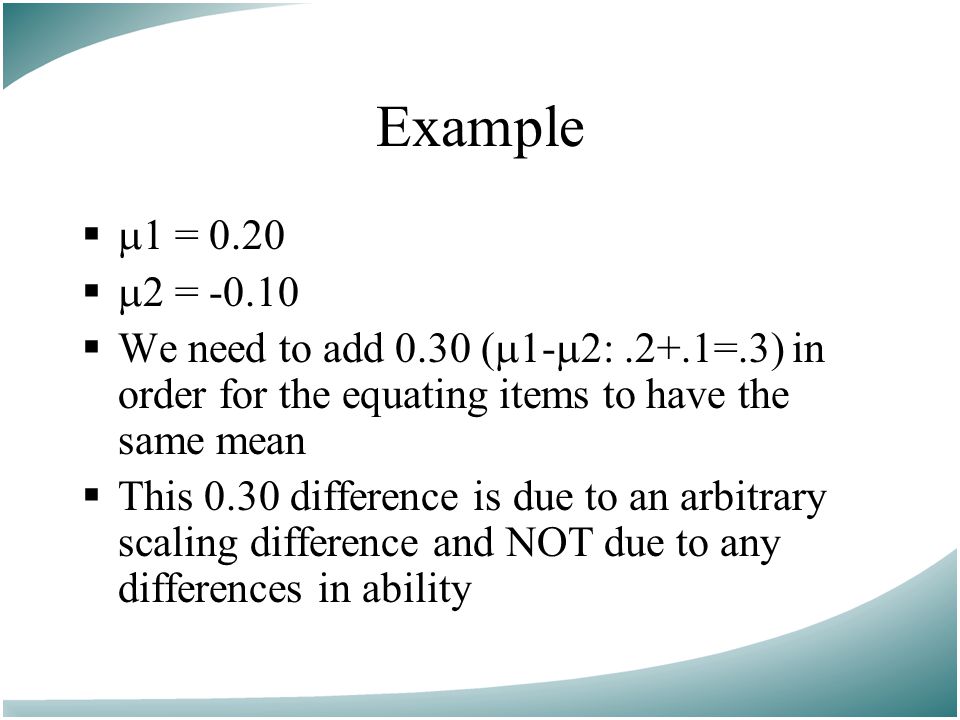

63 Example   = 0.20   2 = -0.10  We need to add 0.30 (  1-  2:.2+.1=.3) in order for the equating items to have the same mean  This 0.30 difference is due to an arbitrary scaling difference and NOT due to any differences in ability

64 Mean shift method of equating  0.30 is then added to all the item difficulty values

65 Mean shift method of equating By shifting all our item difficulties to last years scale we are ultimately putting this year’s TCC onto last year’s scale

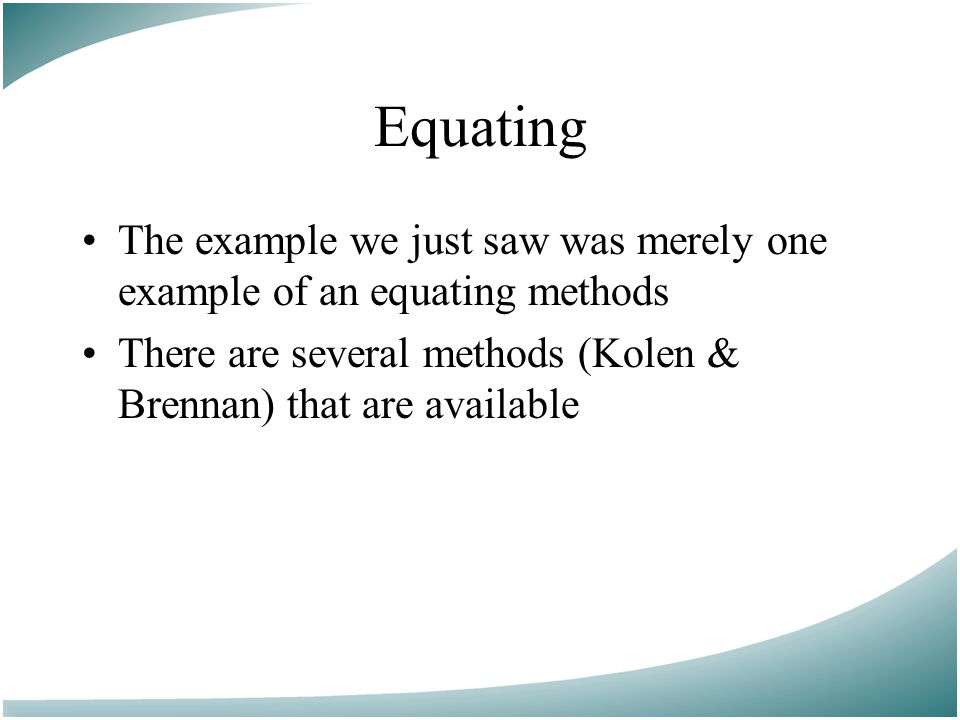

66 Equating The example we just saw was merely one example of an equating methods There are several methods (Kolen & Brennan) that are available

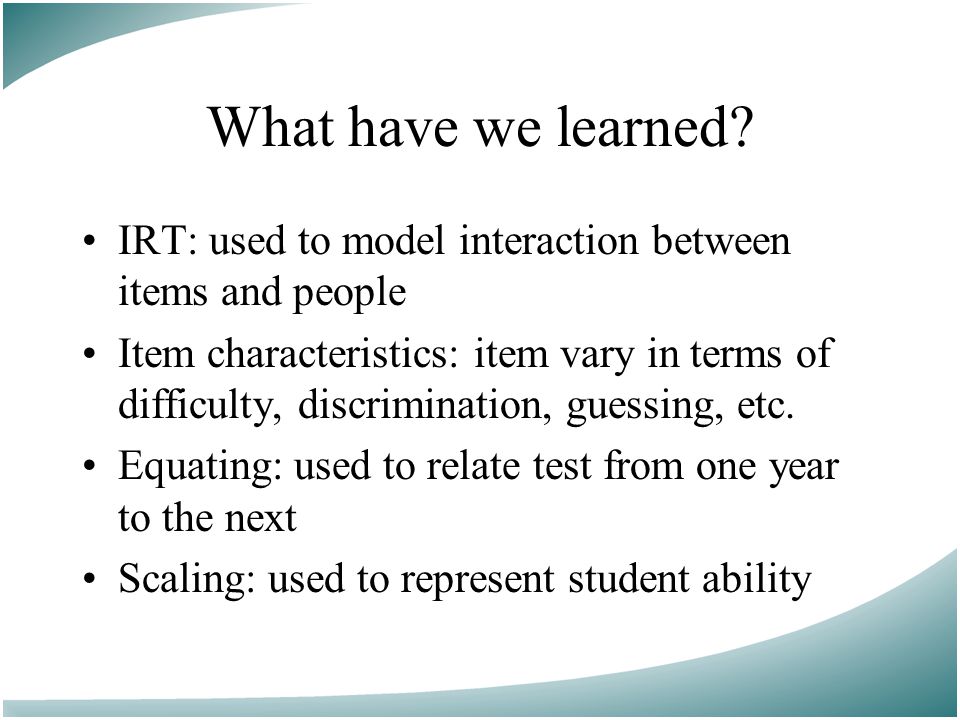

67 What have we learned? IRT: used to model interaction between items and people Item characteristics: item vary in terms of difficulty, discrimination, guessing, etc. Equating: used to relate test from one year to the next Scaling: used to represent student ability

68 The Assessment Cycle Administration ICCs & TCCs Equating Ability estimates & scaling Reporting

69 So, how is this all done?

70 Psychometricians often play the role of the magical wizard of assessments

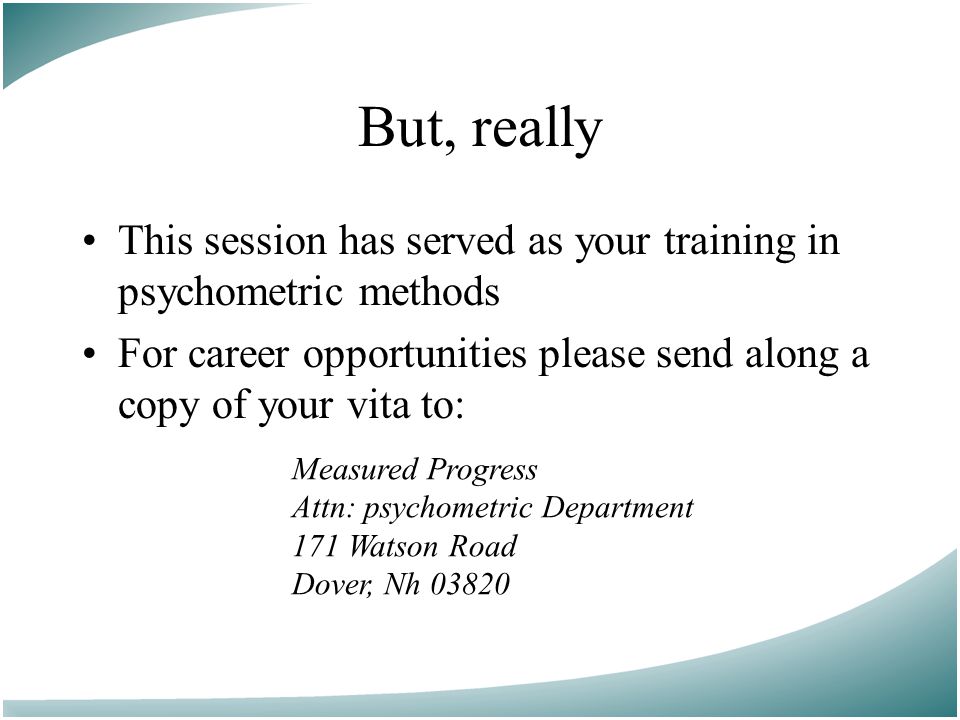

71 But, really This session has served as your training in psychometric methods For career opportunities please send along a copy of your vita to: Measured Progress Attn: psychometric Department 171 Watson Road Dover, Nh 03820
