Presentation on theme: "DIR-636L Support 10/100/1000Mbps 1WAN and 4LAN 802.11N 300Mbps Wireless Easy wizard setup Support mydlink cloud service mydlink apps (iOS/android) Support."— Presentation transcript:

1

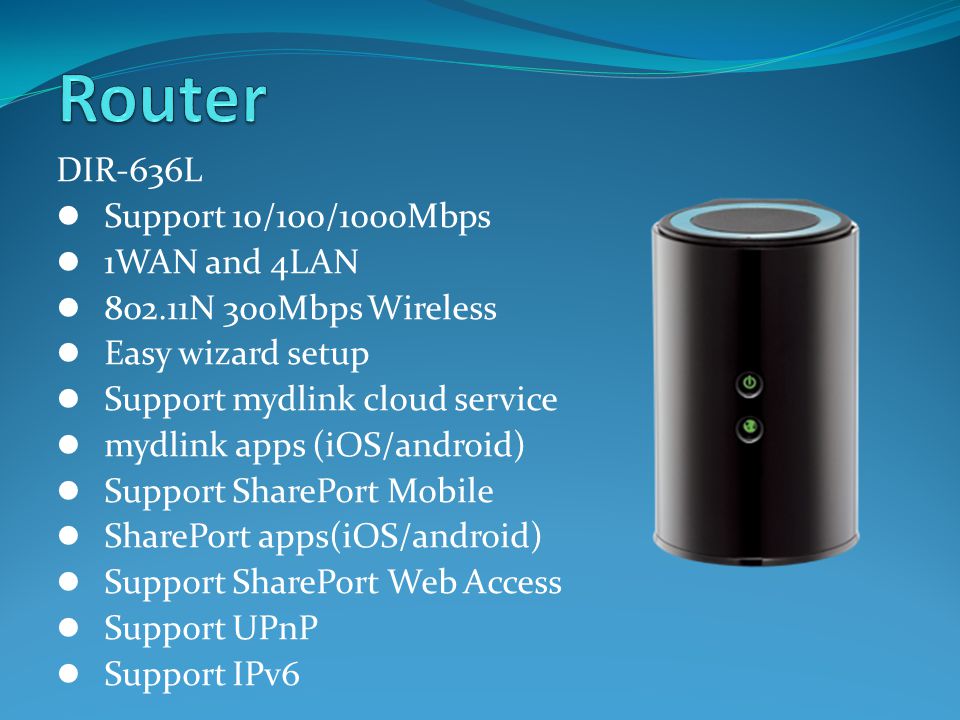

2 DIR-636L Support 10/100/1000Mbps 1WAN and 4LAN N 300Mbps Wireless Easy wizard setup Support mydlink cloud service mydlink apps (iOS/android) Support SharePort Mobile SharePort apps(iOS/android) Support SharePort Web Access Support UPnP Support IPv6

3 DIR-826L Support 10/100/1000Mbps 1WAN and 4LAN N 300Mbps 2.4GHz Wireless N 300Mbps 5GHz Wireless Concurrent 2.4GHz & 5GHz Easy wizard setup Support mydlink cloud service mydlink apps (iOS/android) Support SharePort Mobile SharePort apps(iOS/android) Support SharePort Web Access Support UPnP Support IPv6

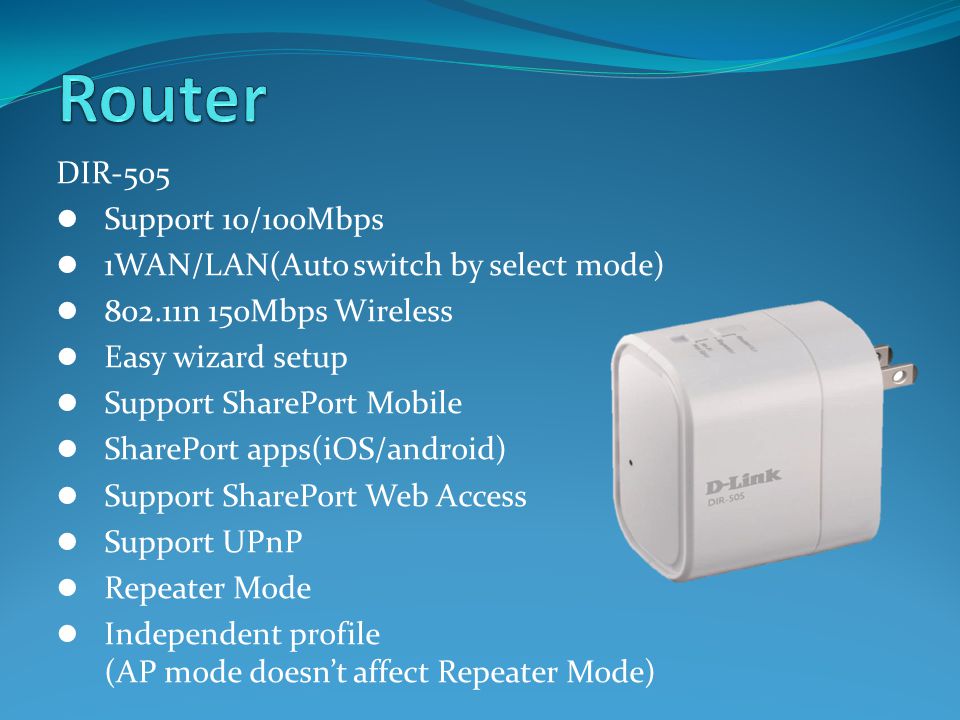

4 DIR-505 Support 10/100Mbps 1WAN/LAN(Auto switch by select mode) n 150Mbps Wireless Easy wizard setup Support SharePort Mobile SharePort apps(iOS/android) Support SharePort Web Access Support UPnP Repeater Mode Independent profile (AP mode doesn’t affect Repeater Mode)

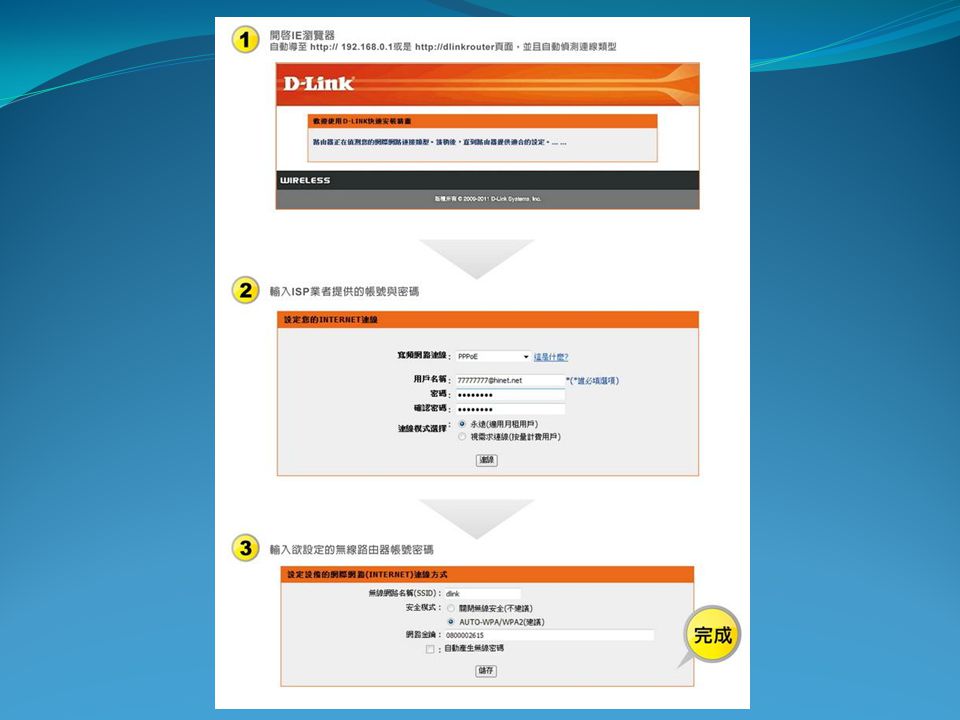

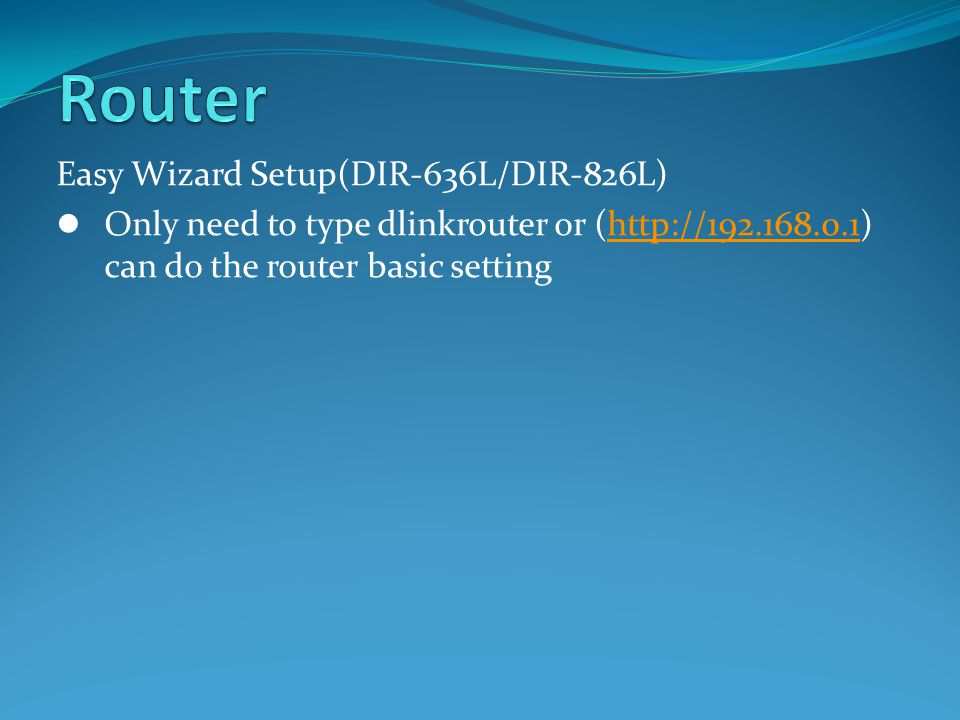

5 Easy Wizard Setup(DIR-636L/DIR-826L) Only need to type dlinkrouter or (http:// ) can do the router basic settinghttp://

6

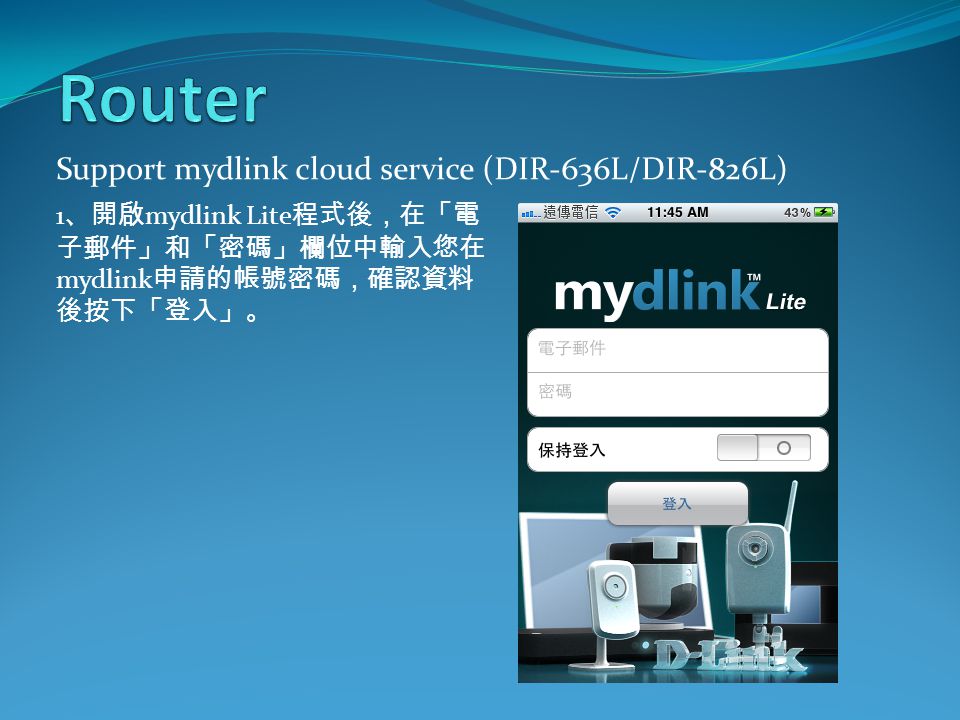

7 Support mydlink cloud service (DIR-636L/DIR-826L) 1 、開啟 mydlink Lite 程式後,在「電 子郵件」和「密碼」欄位中輸入您在 mydlink 申請的帳號密碼,確認資料 後按下「登入」。

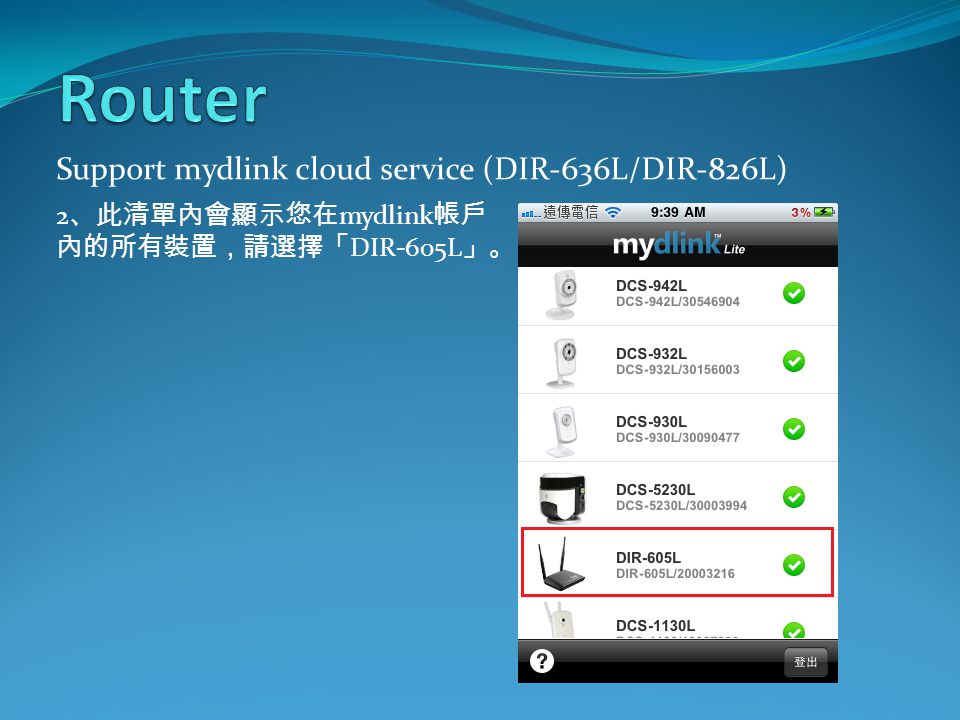

8 Support mydlink cloud service (DIR-636L/DIR-826L) 2 、此清單內會顯示您在 mydlink 帳戶 內的所有裝置,請選擇「 DIR-605L 」。

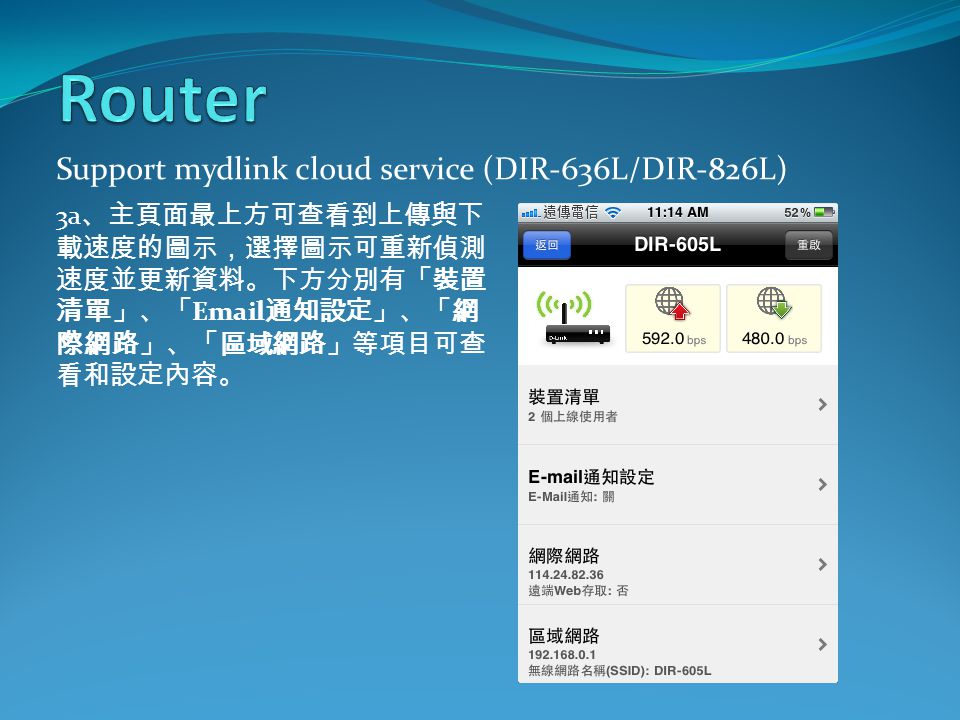

9 Support mydlink cloud service (DIR-636L/DIR-826L) 3a 、主頁面最上方可查看到上傳與下 載速度的圖示,選擇圖示可重新偵測 速度並更新資料。下方分別有「裝置 清單」、「 通知設定」、「網 際網路」、「區域網路」等項目可查 看和設定內容。

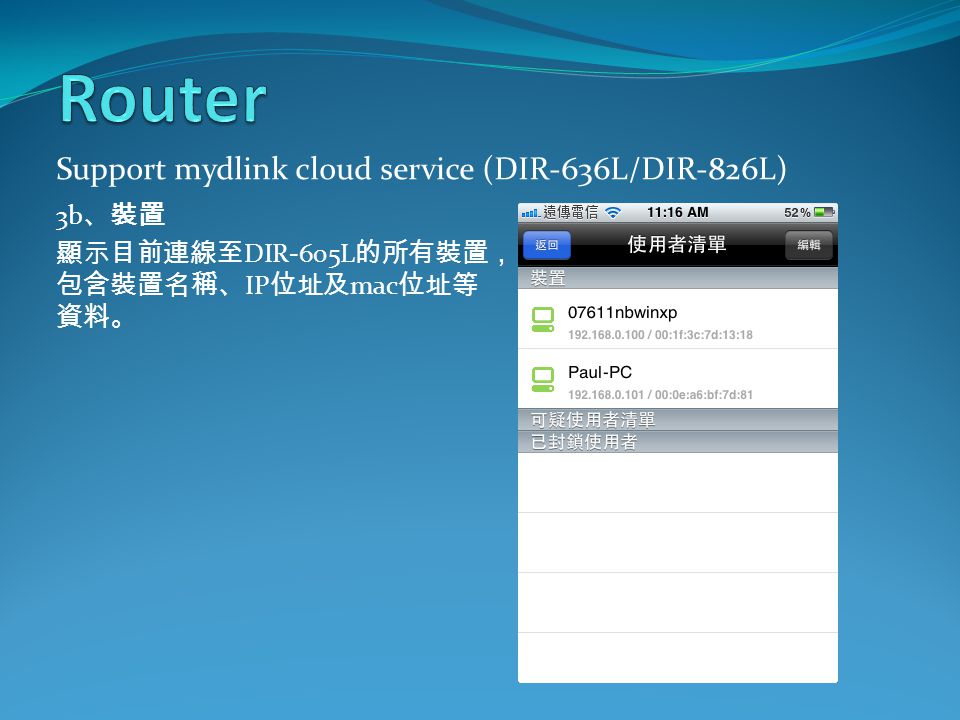

10 Support mydlink cloud service (DIR-636L/DIR-826L) 3b 、裝置 顯示目前連線至 DIR-605L 的所有裝置, 包含裝置名稱、 IP 位址及 mac 位址等 資料。

11 Support mydlink cloud service (DIR-636L/DIR-826L) 3c 、上網瀏覽記錄 點選裝置清單內的任一使用者,可查 看最新的 20 筆上網瀏覽記錄。

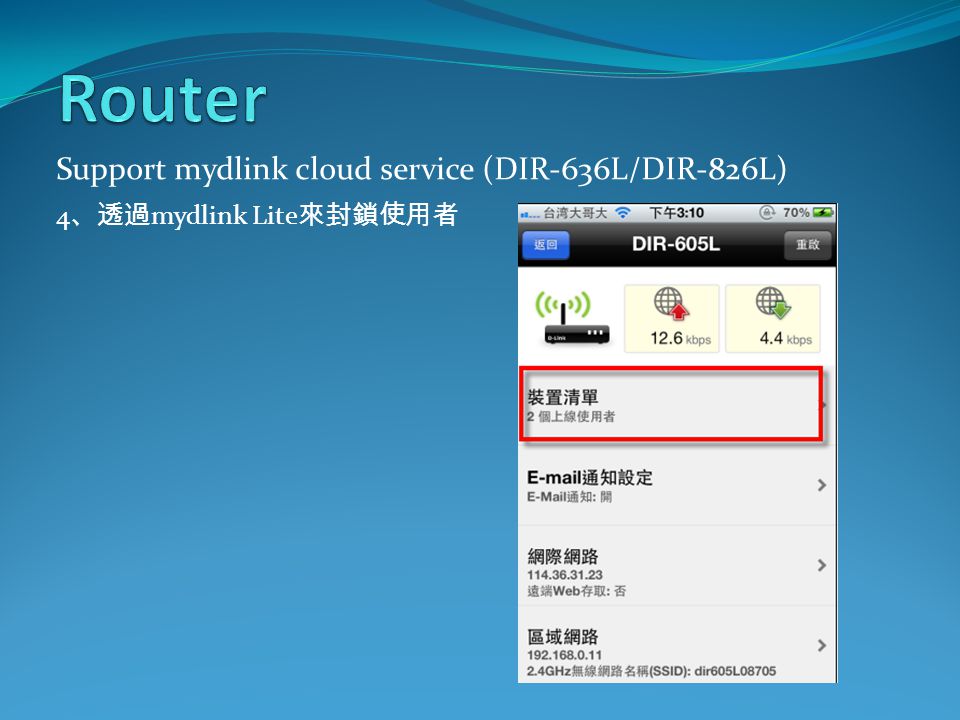

12 Support mydlink cloud service (DIR-636L/DIR-826L) 4 、透過 mydlink Lite 來封鎖使用者

13 Support mydlink cloud service (DIR-636L/DIR-826L) 4 、透過 mydlink Lite 來封鎖使用者

14 Support mydlink cloud service (DIR-636L/DIR-826L) 4 、透過 mydlink Lite 來封鎖使用者

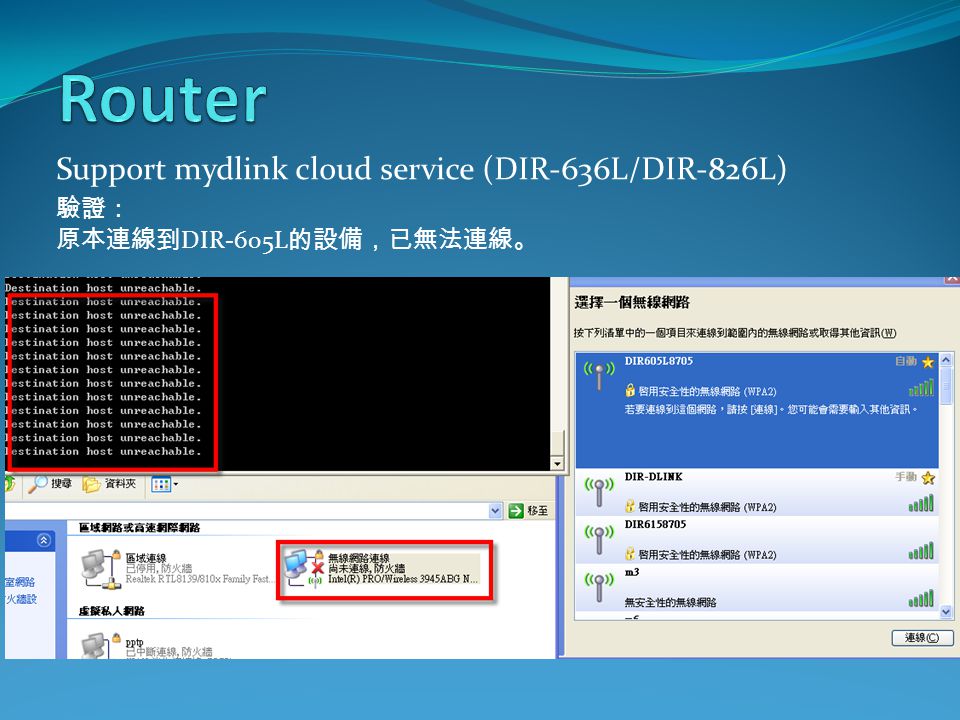

15 Support mydlink cloud service (DIR-636L/DIR-826L) 驗證: 原本連線到 DIR-605L 的設備,已無法連線。

16 Support SharePort Mobile(DIR-636L/DIR-826L)

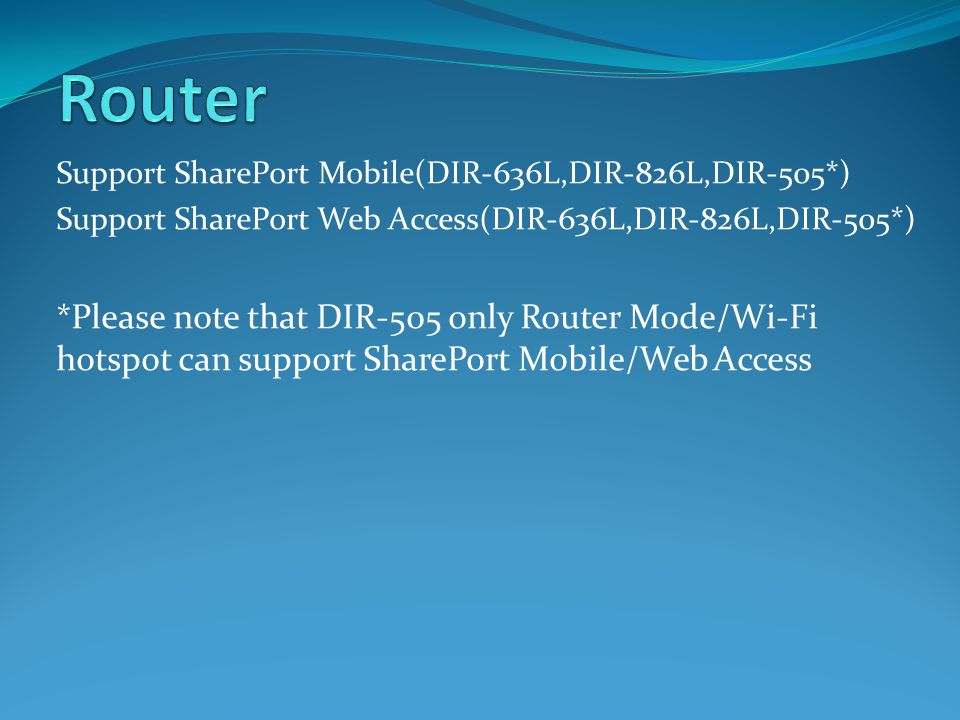

17 Support SharePort Mobile(DIR-636L,DIR-826L,DIR-505*) Support SharePort Web Access(DIR-636L,DIR-826L,DIR-505*) *Please note that DIR-505 only Router Mode/Wi-Fi hotspot can support SharePort Mobile/Web Access

18 DIR-505

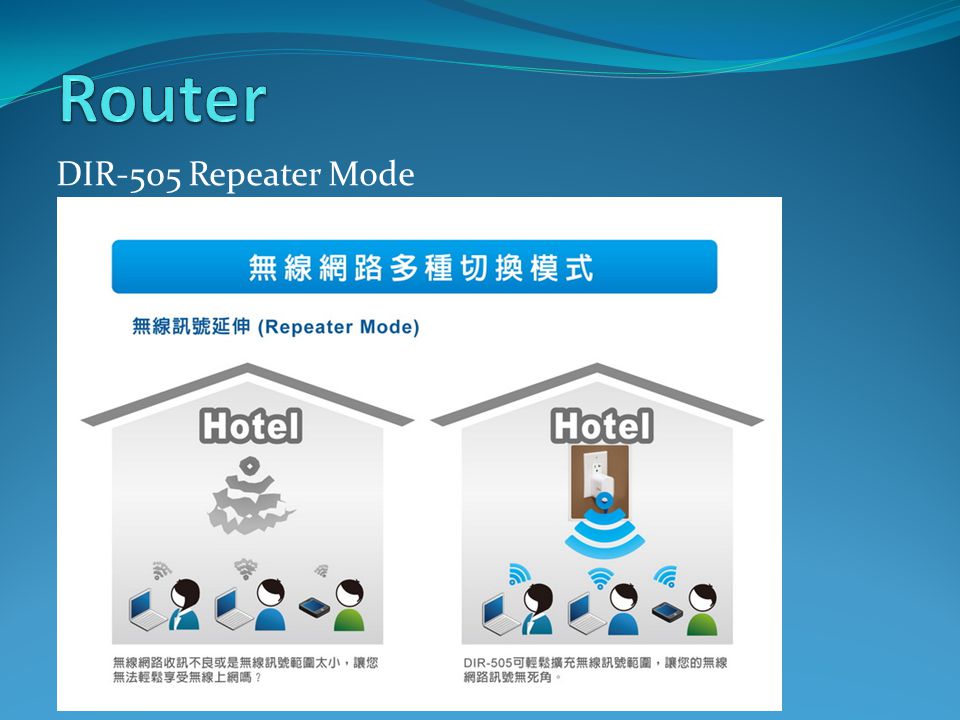

19 DIR-505 Repeater Mode

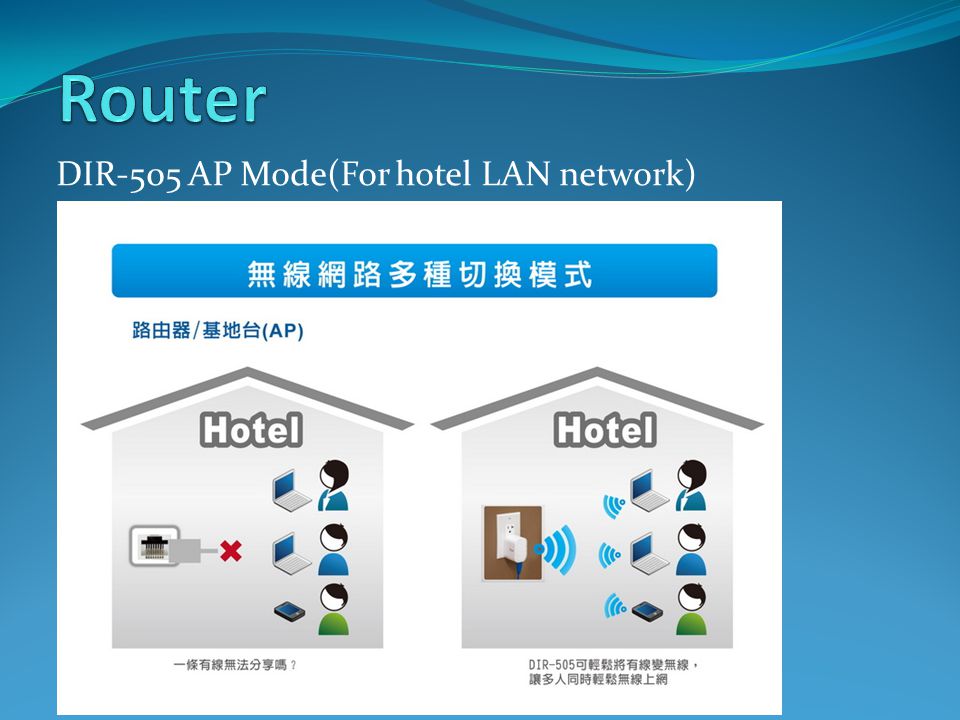

20 DIR-505 AP Mode(For hotel LAN network)

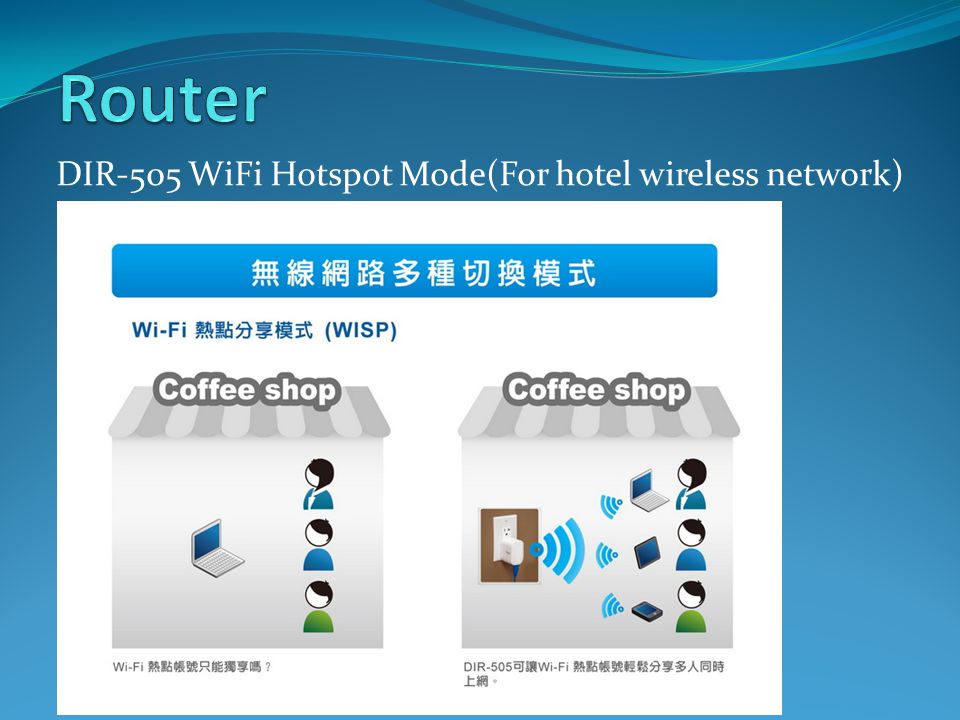

21 DIR-505 WiFi Hotspot Mode(For hotel wireless network)

22 DIR-505 USB port changer function

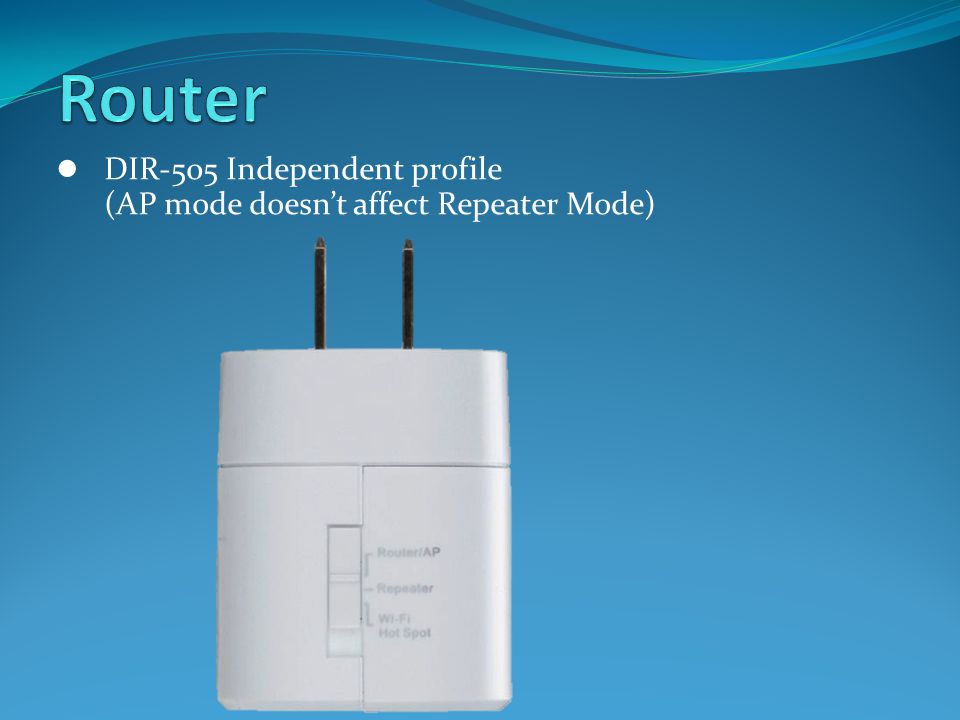

23 DIR-505 Independent profile (AP mode doesn’t affect Repeater Mode)

24 DIR-505 Repeater Mode Setting Please see the following PDF. 505/DIR-505L_A1_Repeater_QIG_HGC_v3_printout.pdf
