1 1 Mobile IPv6-Based Ad Hoc Networks: Its Development and Application Advisor: Dr. Kai-Wei Ke Speaker: Wei-Ying Huang

2 2 Outline Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

3 3 Introduction IEEE WLAN interface cards –Infrastructure mode –Ad Hoc mode Ad Hoc mode more flexible, but its aim is not to connect to the Internet

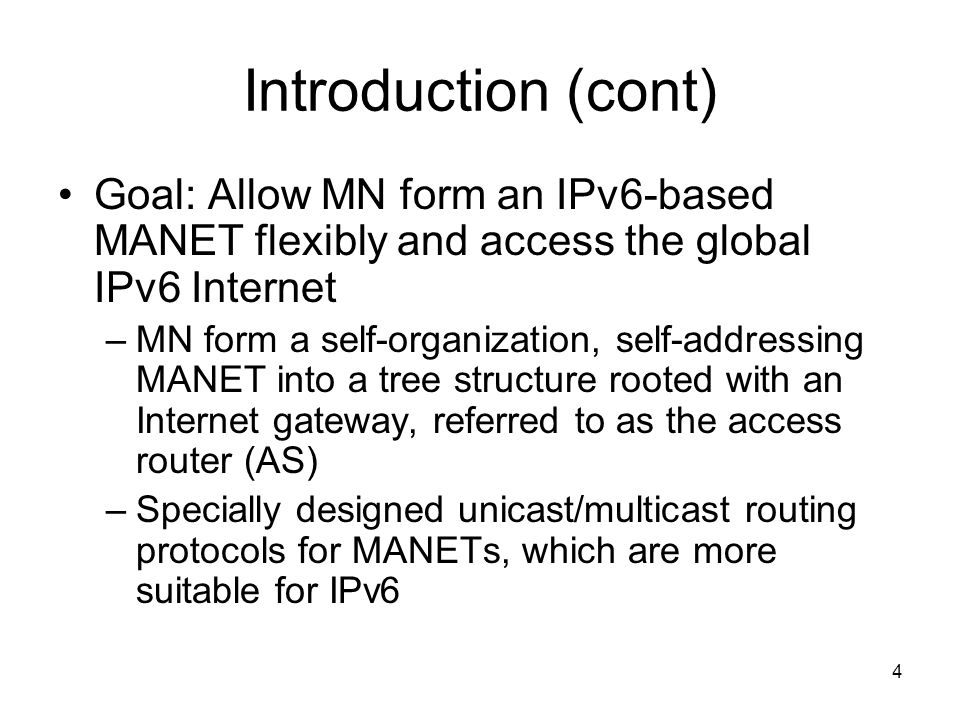

4 4 Introduction (cont) Goal: Allow MN form an IPv6-based MANET flexibly and access the global IPv6 Internet –MN form a self-organization, self-addressing MANET into a tree structure rooted with an Internet gateway, referred to as the access router (AS) –Specially designed unicast/multicast routing protocols for MANETs, which are more suitable for IPv6

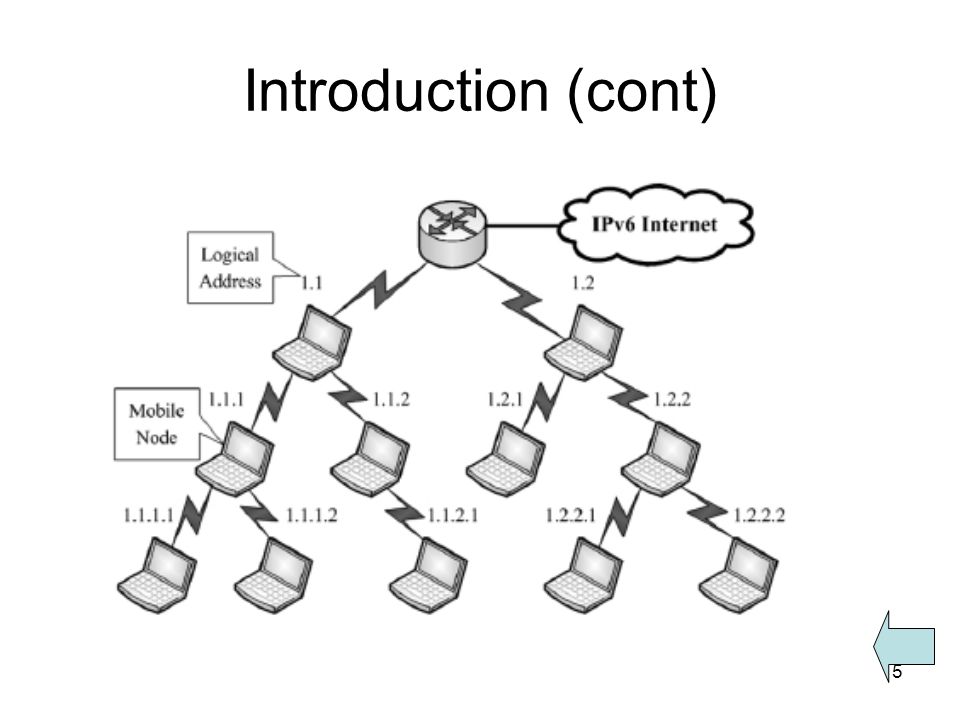

5 5 Introduction (cont)

6 6 Using many small-size MANETs connected to the global Internet via access routers (ARs) There exist several tree-based multicast routing protocols for MANET, but they consume excessive overhead to maintain a great quantity of source trees

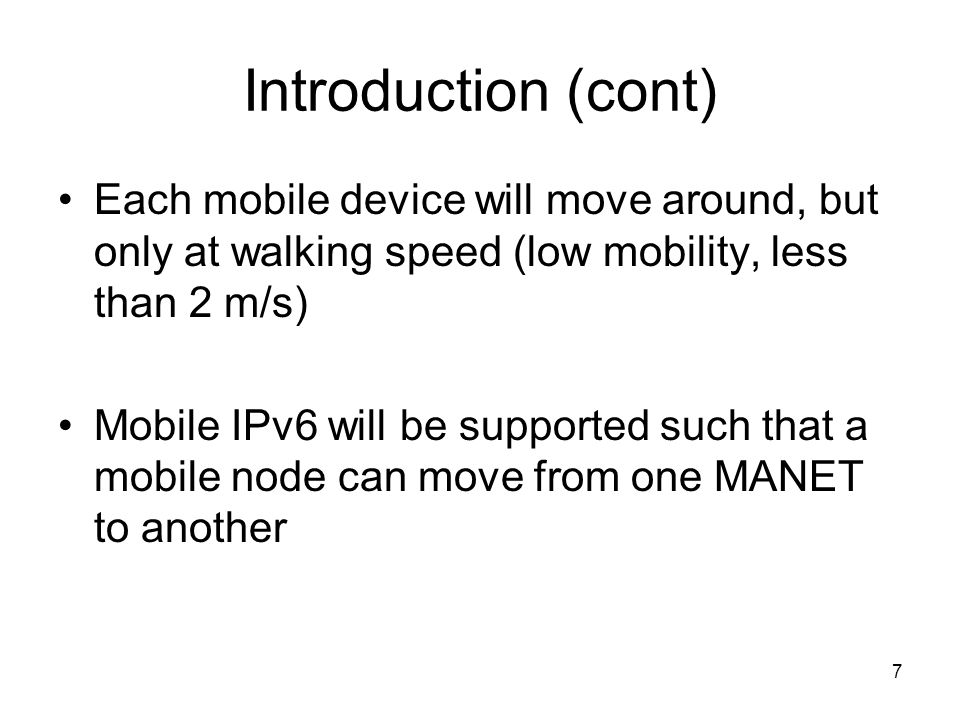

7 7 Introduction (cont) Each mobile device will move around, but only at walking speed (low mobility, less than 2 m/s) Mobile IPv6 will be supported such that a mobile node can move from one MANET to another

8 8 Introduction (cont) P2P applications are very important in the future –PDI can efficiently search files scattered over mobile devices by querying locally –ORION combines application layer query and overlay network layer route discovery to ensure accurate search and low overhead These solutions are not scalable and curtail throughput as the size of a MANET grows.

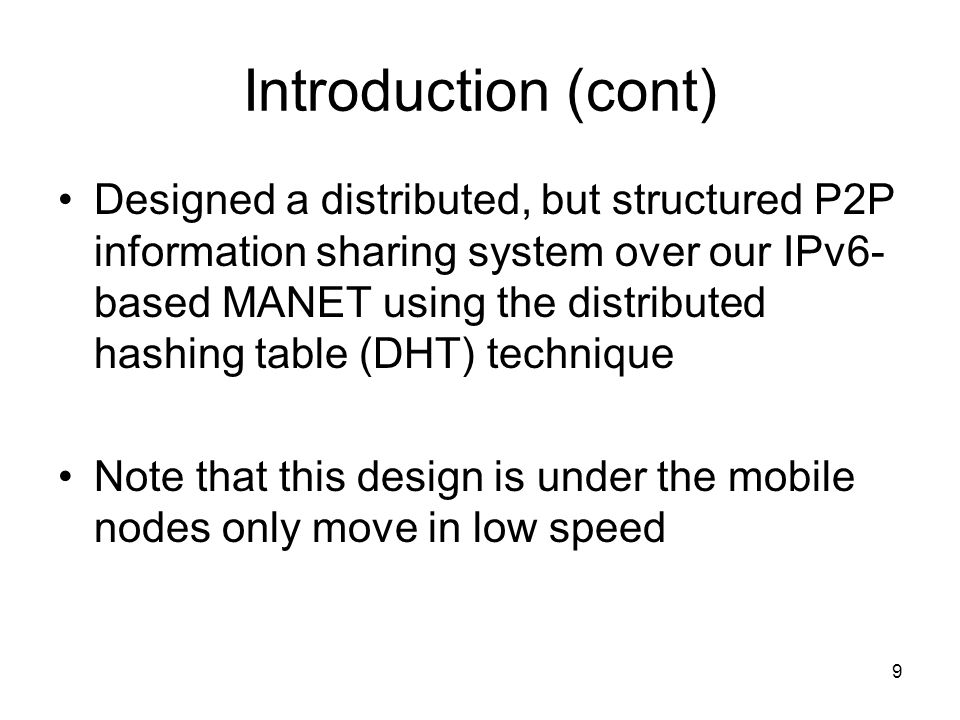

9 9 Introduction (cont) Designed a distributed, but structured P2P information sharing system over our IPv6- based MANET using the distributed hashing table (DHT) technique Note that this design is under the mobile nodes only move in low speed

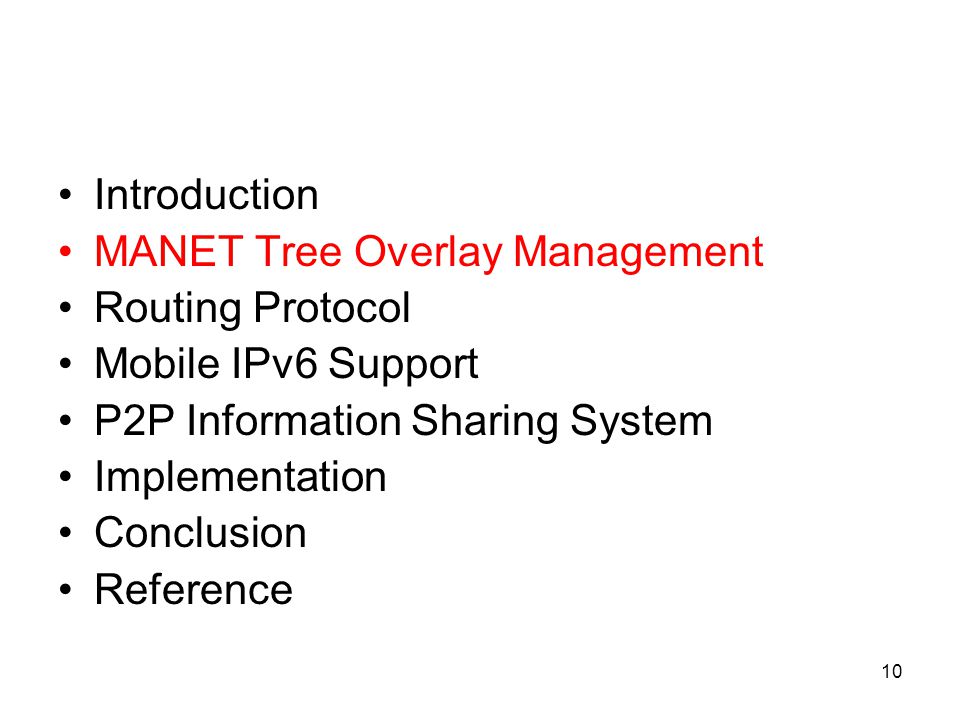

10 10 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

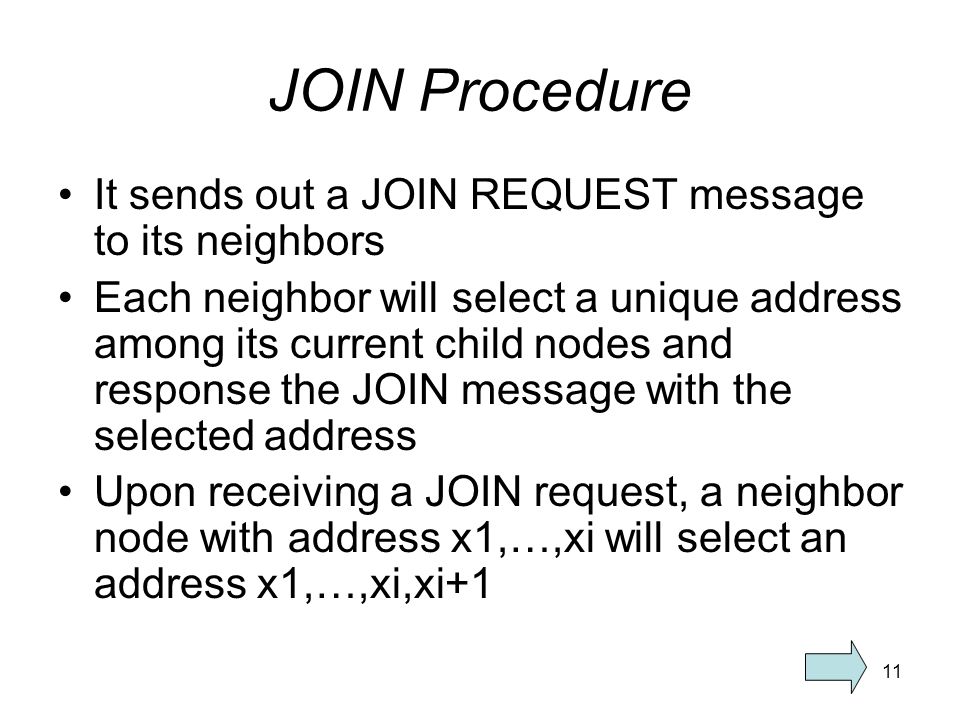

11 11 JOIN Procedure It sends out a JOIN REQUEST message to its neighbors Each neighbor will select a unique address among its current child nodes and response the JOIN message with the selected address Upon receiving a JOIN request, a neighbor node with address x1,…,xi will select an address x1,…,xi,xi+1

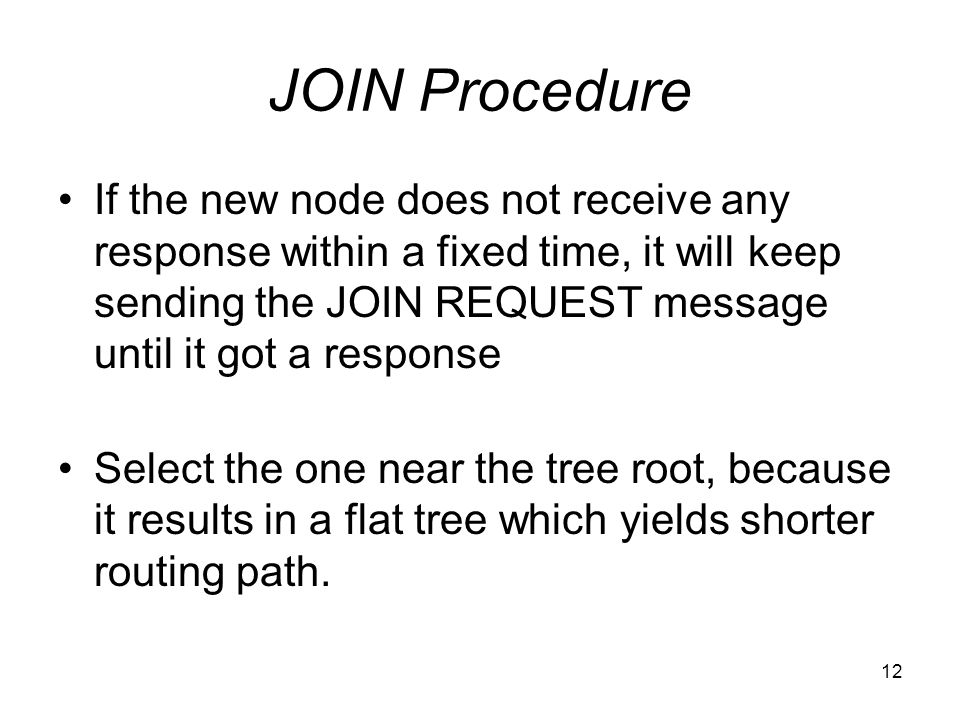

12 12 JOIN Procedure If the new node does not receive any response within a fixed time, it will keep sending the JOIN REQUEST message until it got a response Select the one near the tree root, because it results in a flat tree which yields shorter routing path.

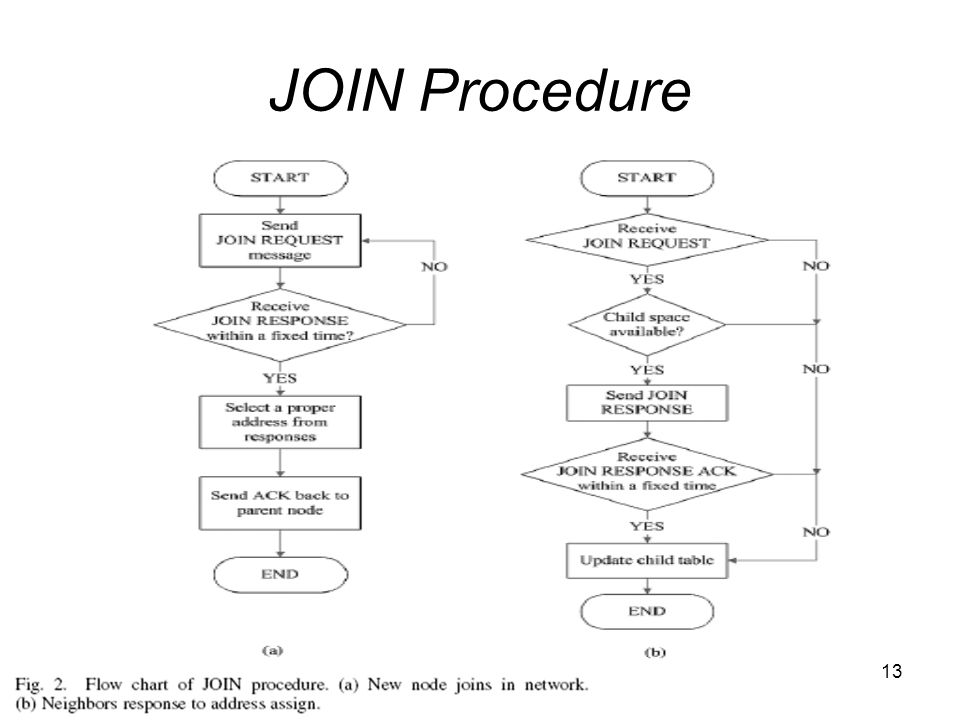

13 13 JOIN Procedure

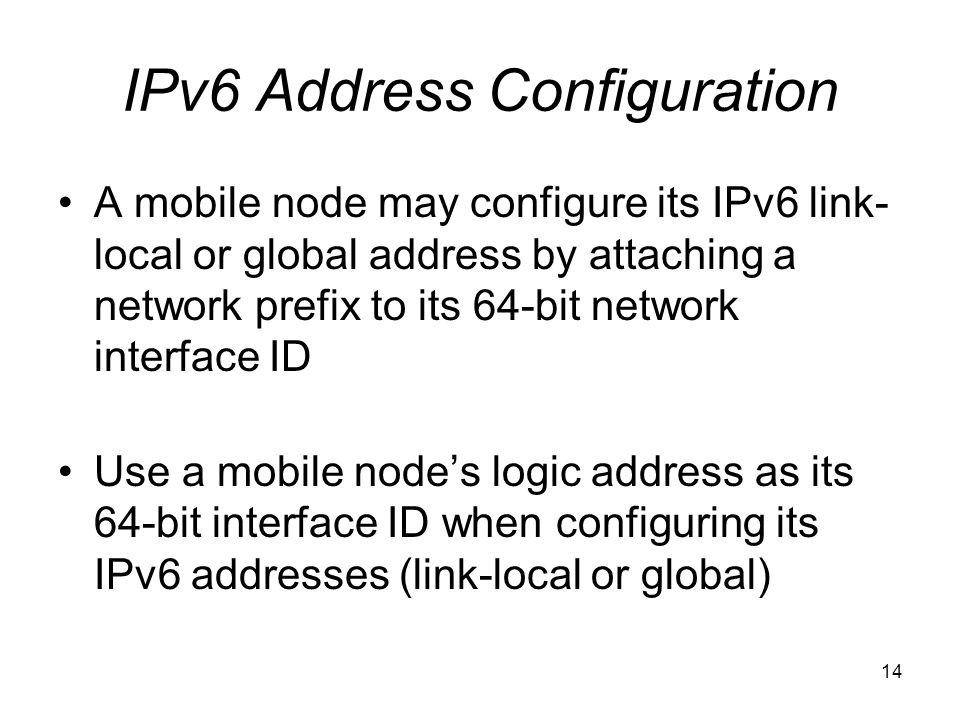

14 14 IPv6 Address Configuration A mobile node may configure its IPv6 link- local or global address by attaching a network prefix to its 64-bit network interface ID Use a mobile node’s logic address as its 64-bit interface ID when configuring its IPv6 addresses (link-local or global)

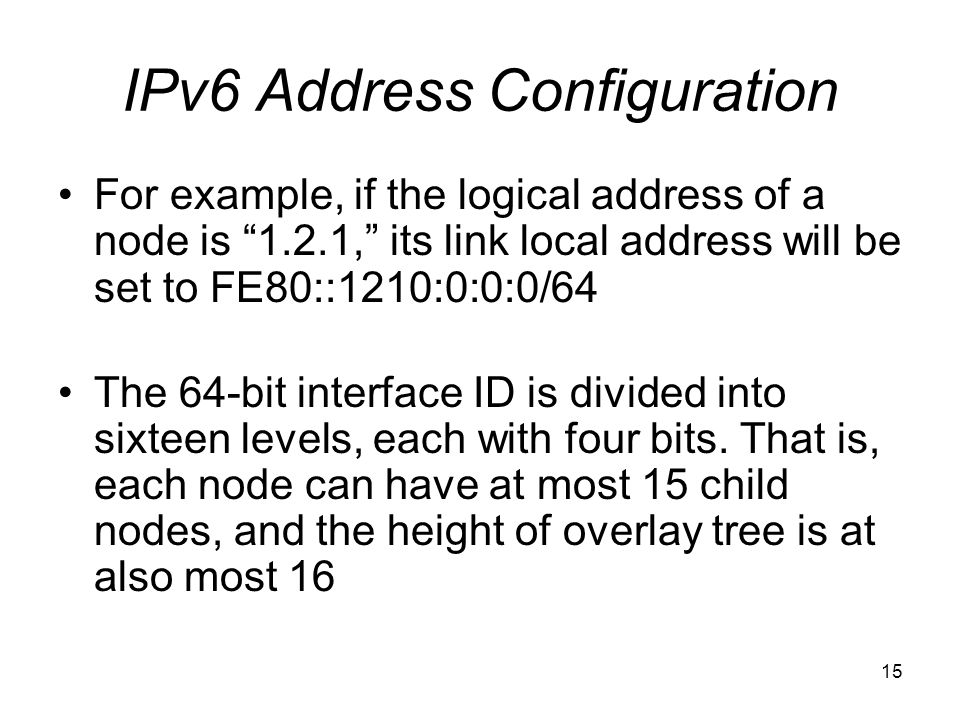

15 15 IPv6 Address Configuration For example, if the logical address of a node is “1.2.1,” its link local address will be set to FE80::1210:0:0:0/64 The 64-bit interface ID is divided into sixteen levels, each with four bits. That is, each node can have at most 15 child nodes, and the height of overlay tree is at also most 16

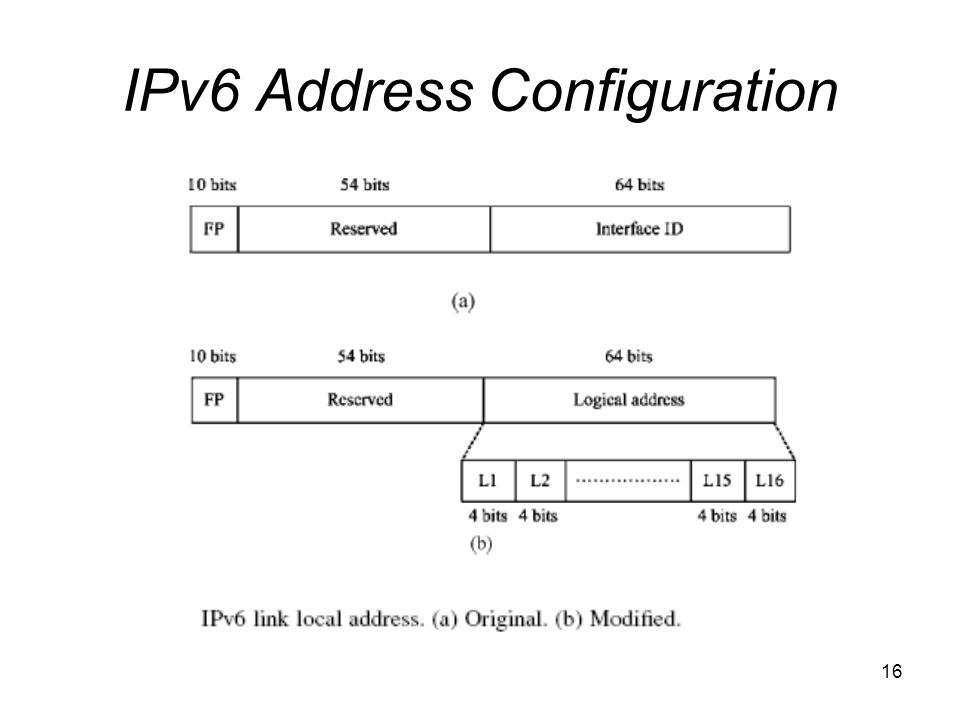

16 16 IPv6 Address Configuration

17 17 Maintain the Tree Overlay Heartbeat (for child) –Each node regularly sends a heartbeat to its parent node, and node should receive an ACK from its parent –If a child node does not receive the ACK message, it increases its heartbeat-ACK- missed counter –If the counter is larger than a certain threshold, it assumes that its parent has crashed or moved away

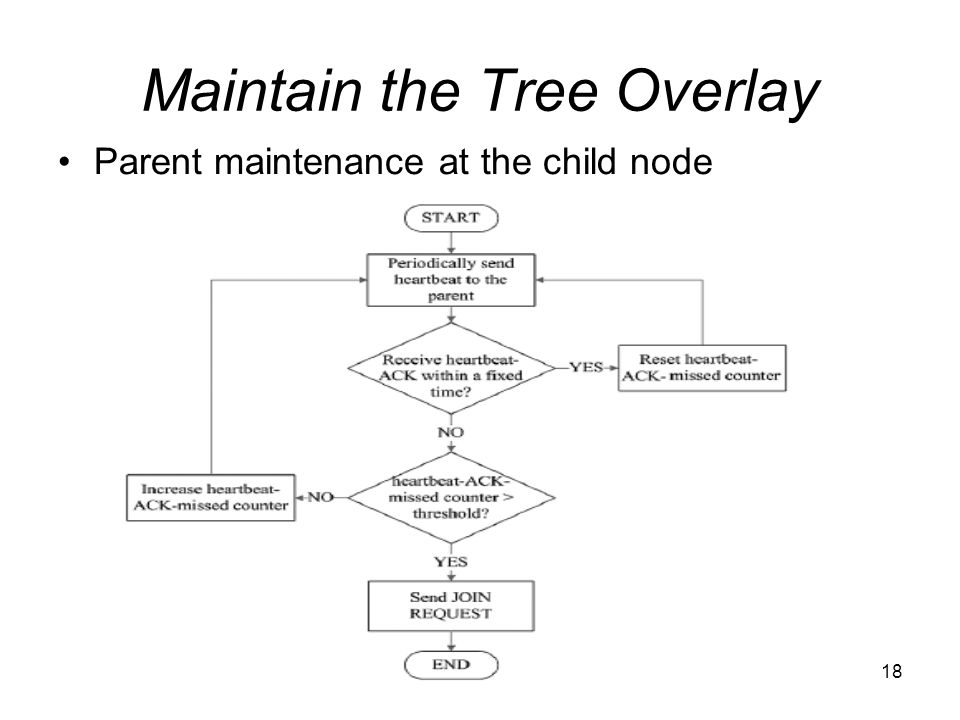

18 18 Maintain the Tree Overlay Parent maintenance at the child node

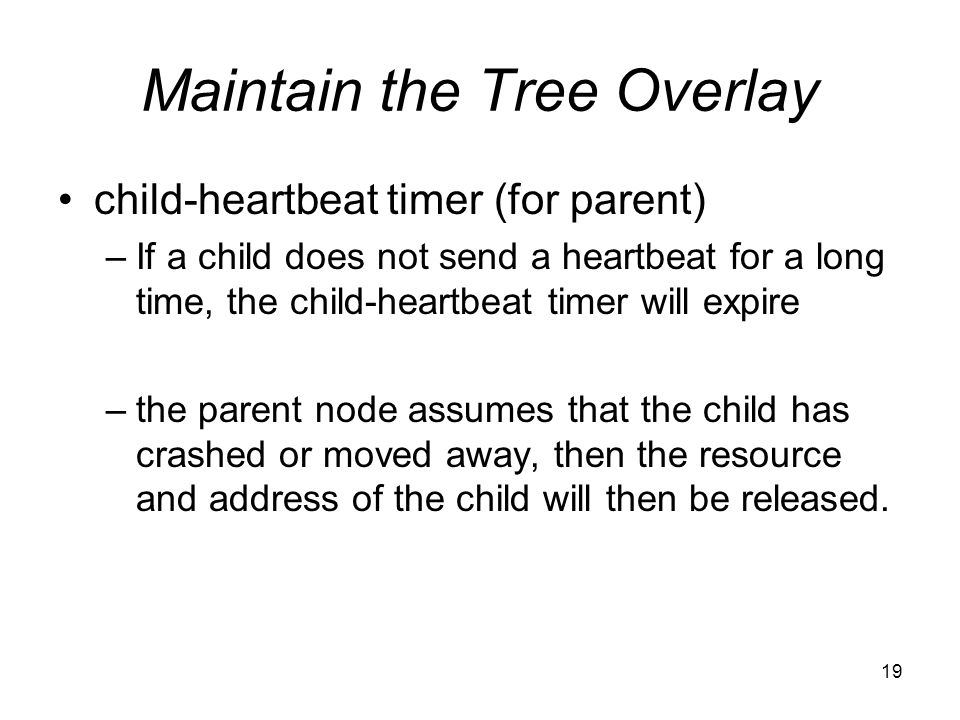

19 19 Maintain the Tree Overlay child-heartbeat timer (for parent) –If a child does not send a heartbeat for a long time, the child-heartbeat timer will expire –the parent node assumes that the child has crashed or moved away, then the resource and address of the child will then be released.

20 20 Maintain the Tree Overlay Child maintenance at the parent node

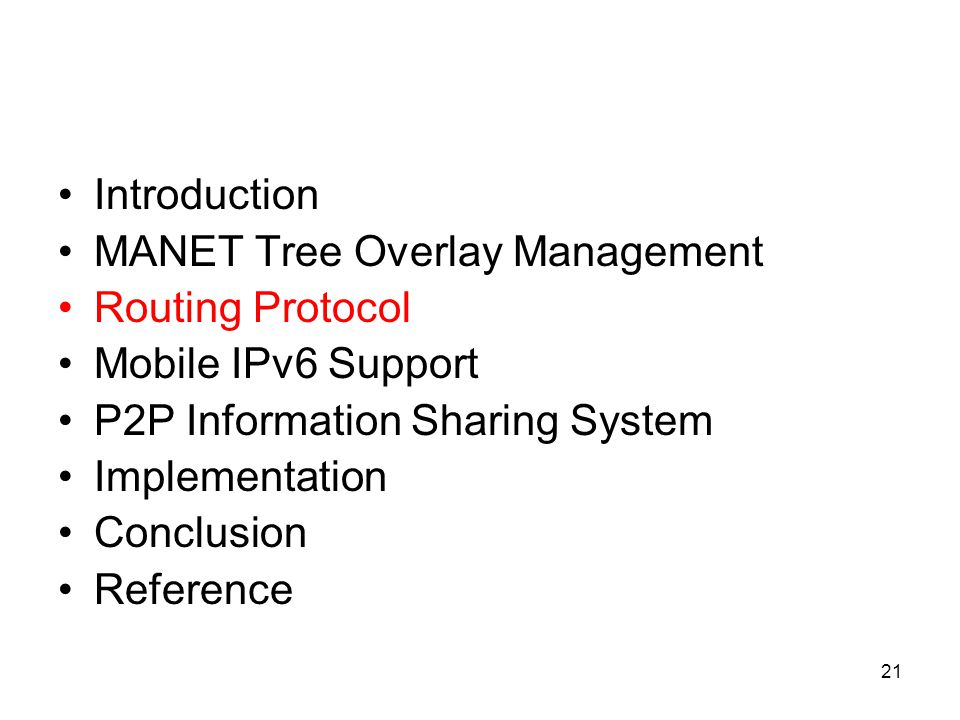

21 21 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

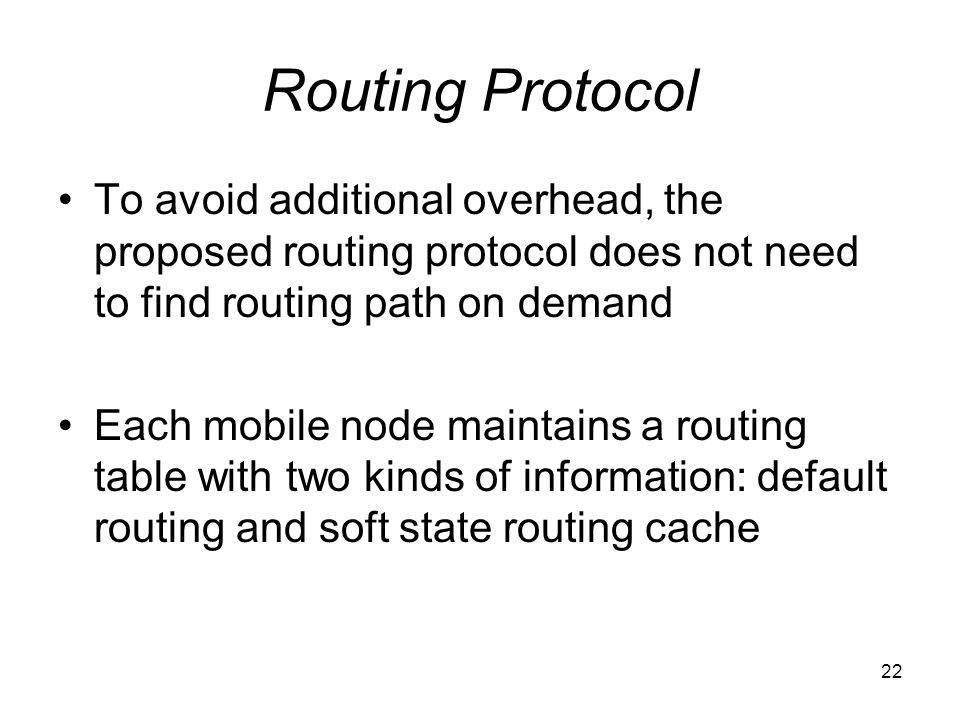

22 22 Routing Protocol To avoid additional overhead, the proposed routing protocol does not need to find routing path on demand Each mobile node maintains a routing table with two kinds of information: default routing and soft state routing cache

23 23 Unicast Routing Protocol default routing –Longest prefix matching is used to determine how to forward a packet to its destination soft state routing cache –mobile node can improve the routing efficiency by adding its neighbor information into the routing cache

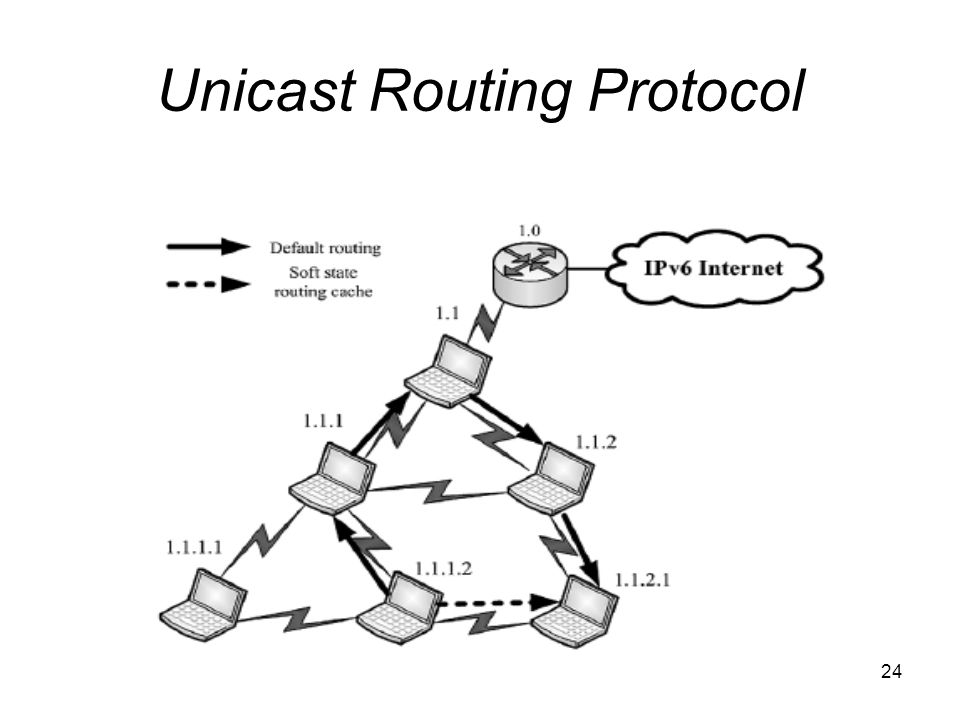

24 24 Unicast Routing Protocol

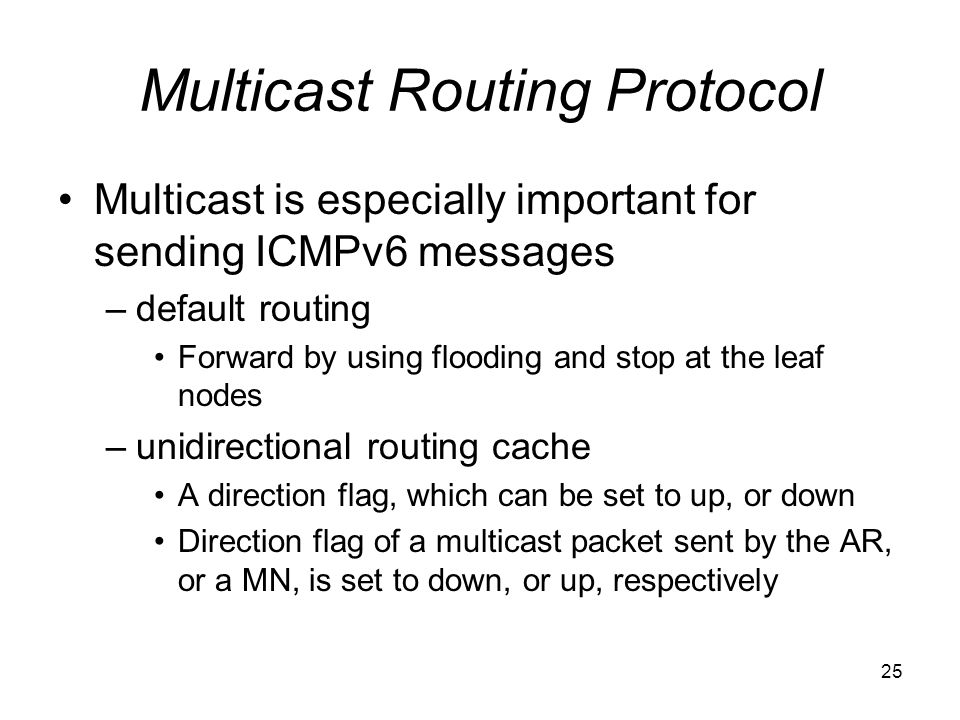

25 25 Multicast Routing Protocol Multicast is especially important for sending ICMPv6 messages –default routing Forward by using flooding and stop at the leaf nodes –unidirectional routing cache A direction flag, which can be set to up, or down Direction flag of a multicast packet sent by the AR, or a MN, is set to down, or up, respectively

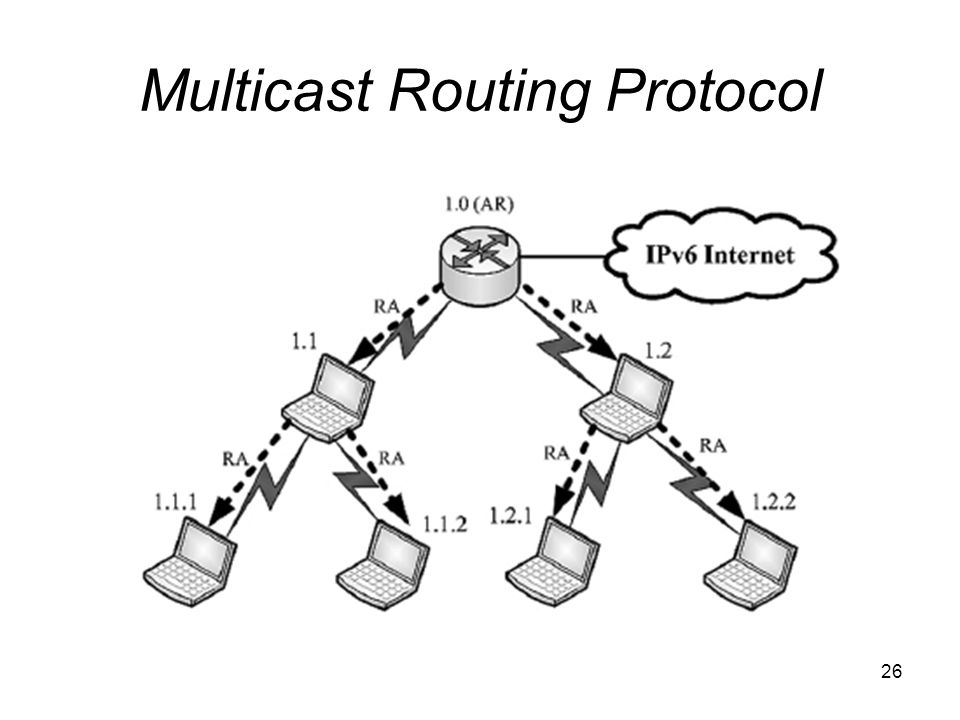

26 26 Multicast Routing Protocol

27 27 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

28 28 Mobile IPv6 Support MN joins a MANET and gets a global IPv6 address at first MN moves to another MANET where it will perform the JOIN procedure again to join the new MANET After joined the new MANET, it will receive a new global prefix and form its new global IPv6 address, which will become its CoA Then send binding update to original home agent and corresponding nodes

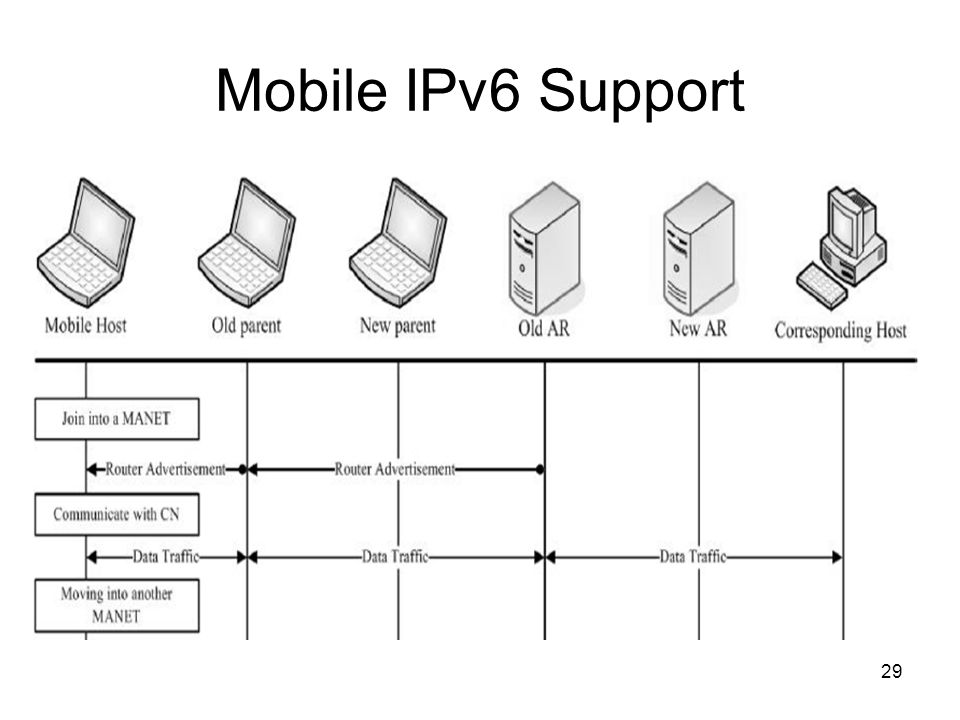

29 29 Mobile IPv6 Support

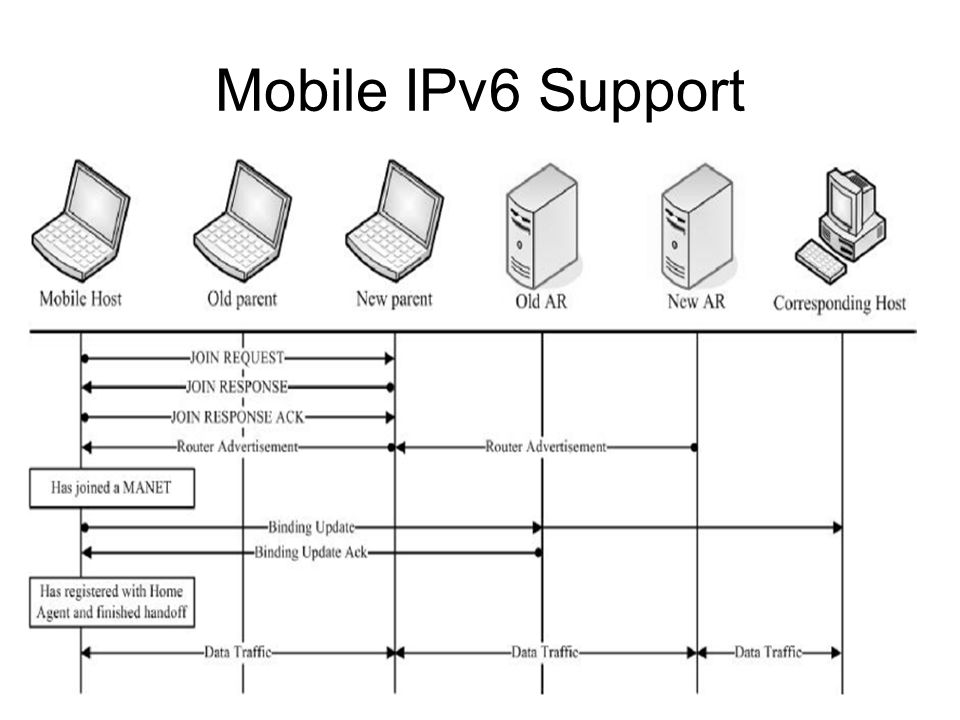

30 30 Mobile IPv6 Support

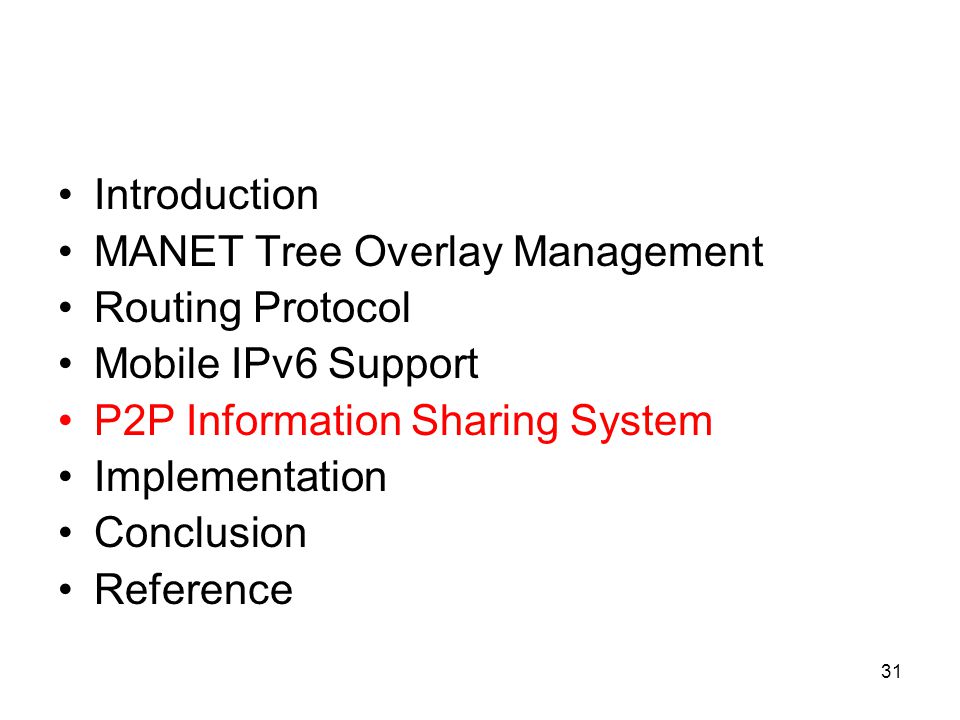

31 31 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

32 32 distributed hashing table (DHT) Logic address is used as the node id (key) of the P2P system a node uses the filename or some keywords as the input to a hash function output of the hash function, called a key, will correspond to the logic address of a mobile node which will be responsible for storing the information of the shared object

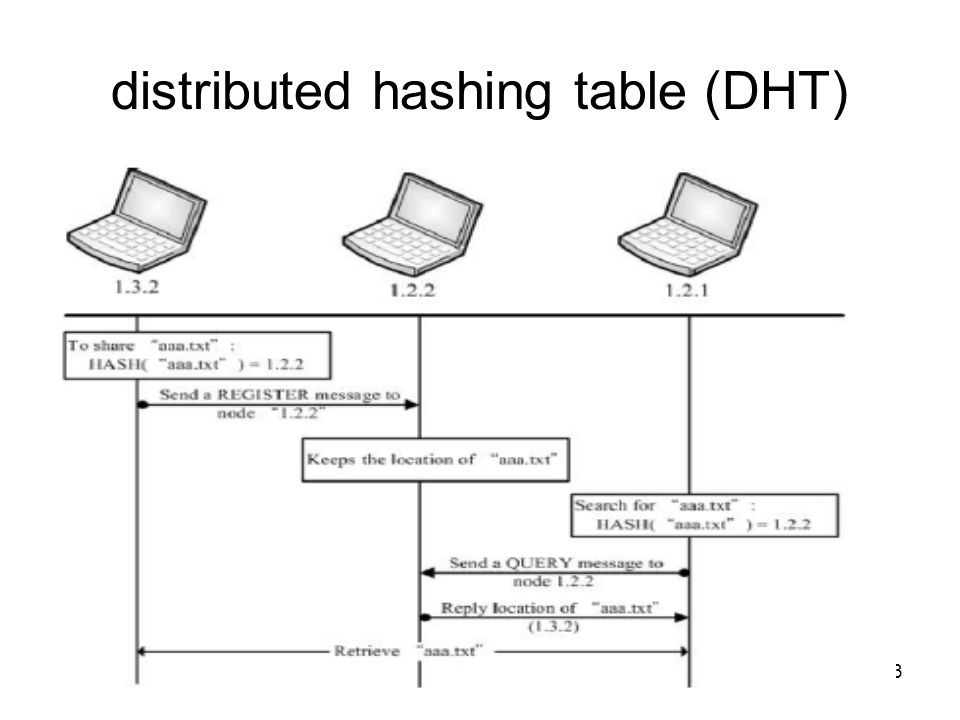

33 33 distributed hashing table (DHT)

34 34 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

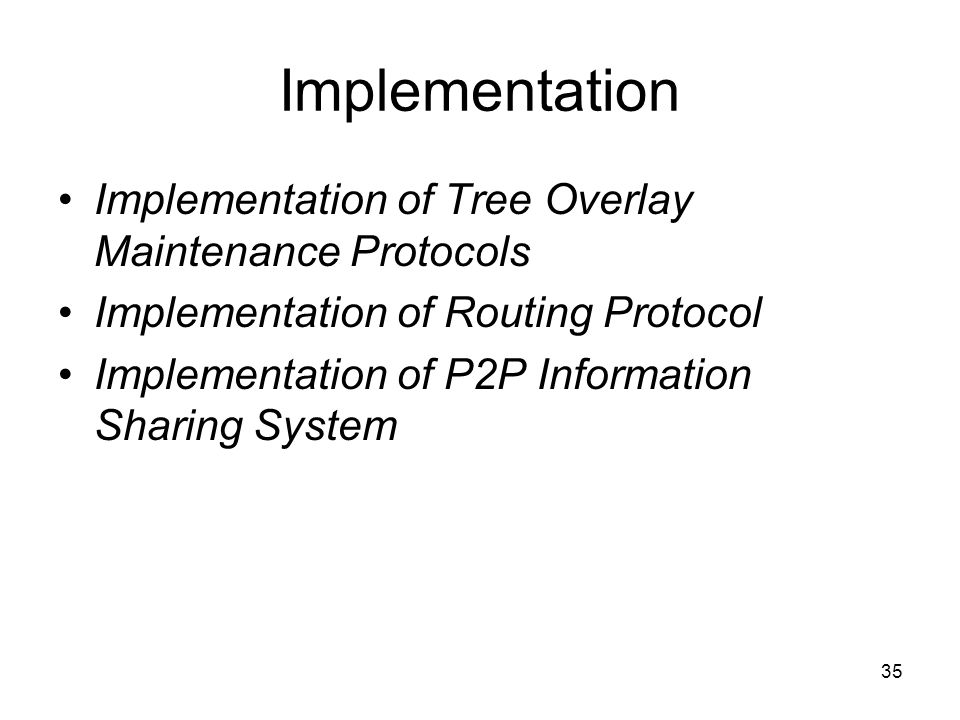

35 35 Implementation Implementation of Tree Overlay Maintenance Protocols Implementation of Routing Protocol Implementation of P2P Information Sharing System

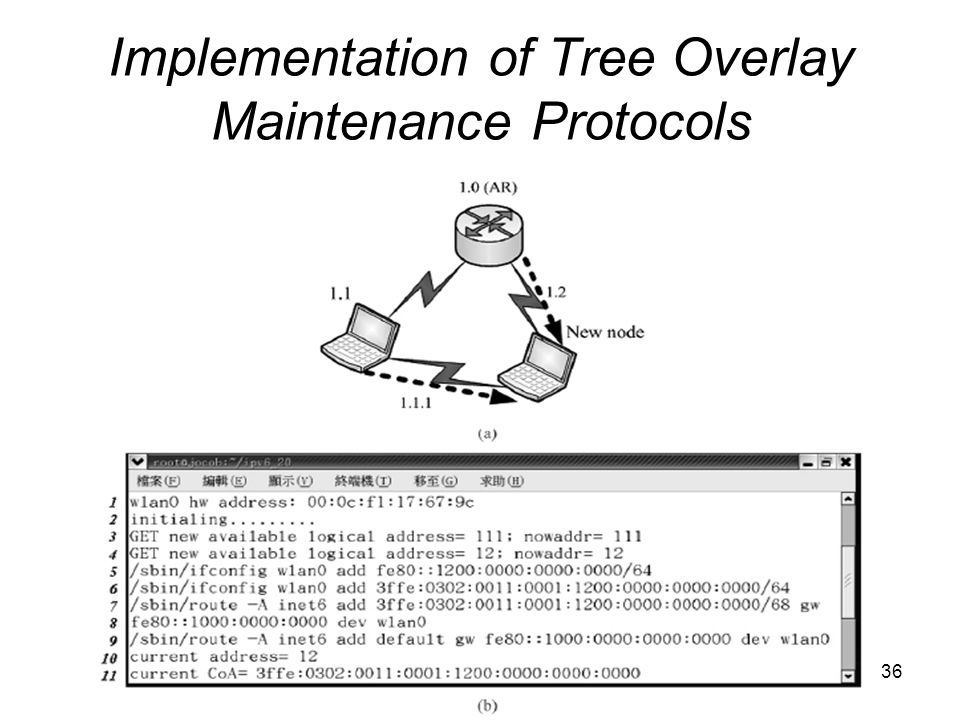

36 36 Implementation of Tree Overlay Maintenance Protocols

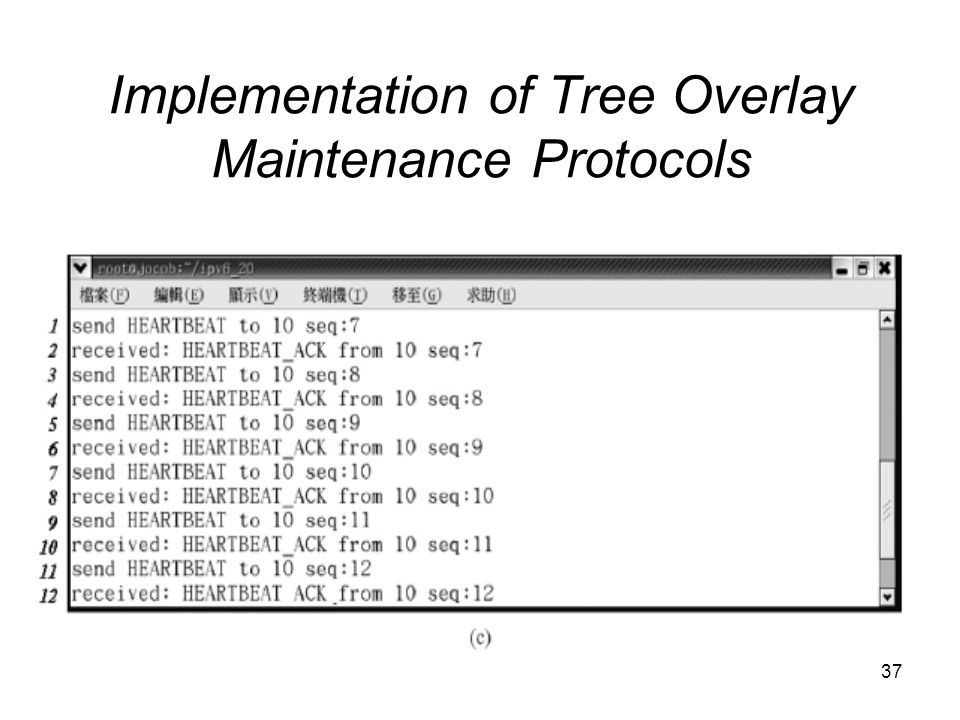

37 37 Implementation of Tree Overlay Maintenance Protocols

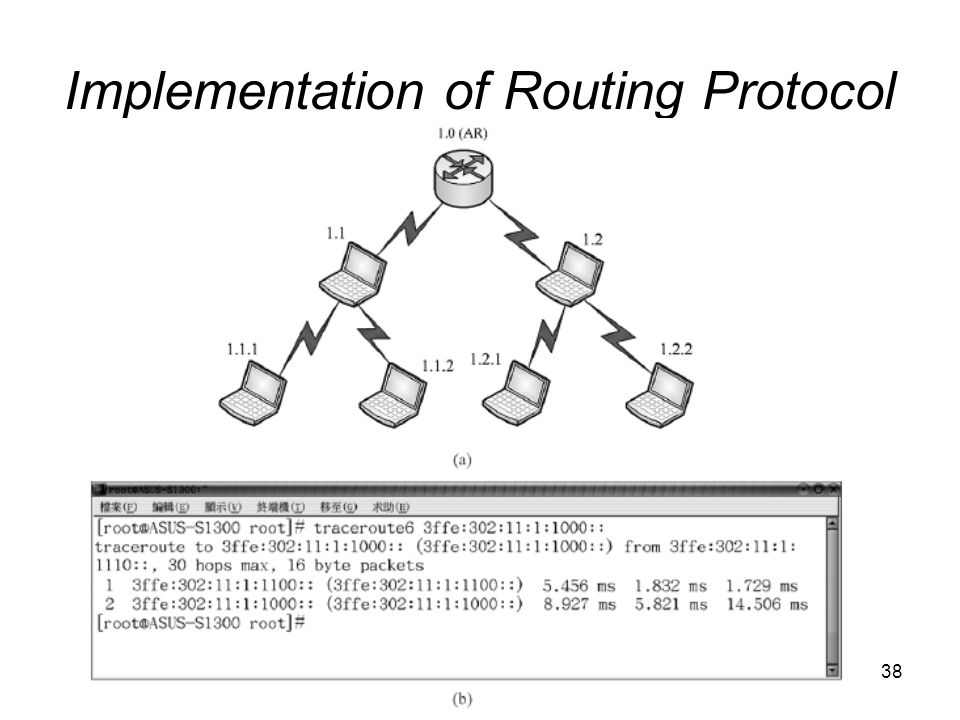

38 38 Implementation of Routing Protocol

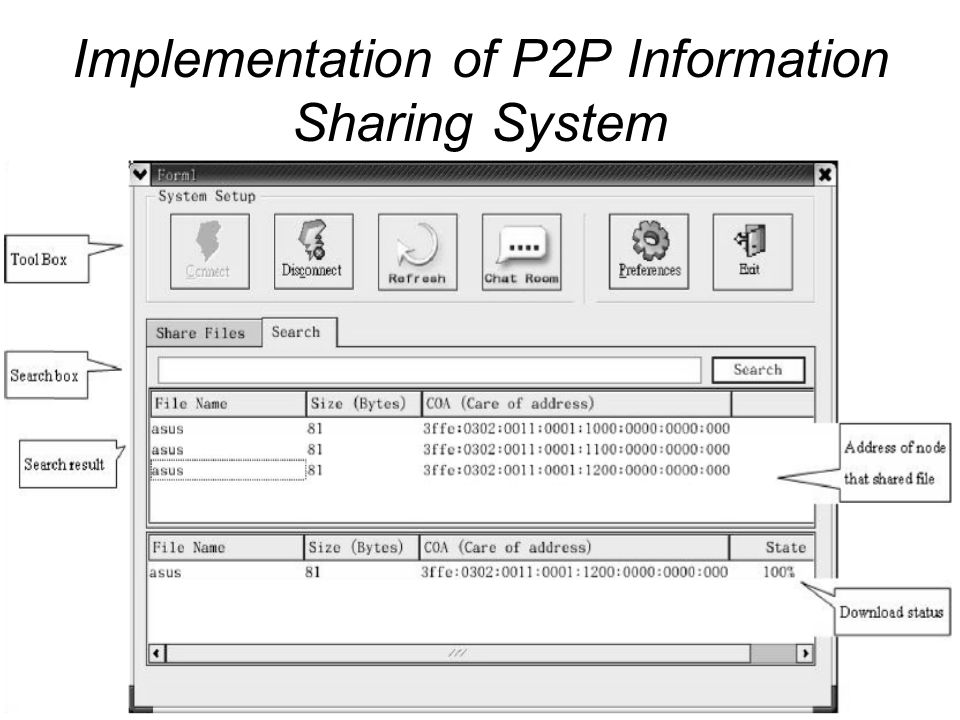

39 39 Implementation of P2P Information Sharing System

40 40 Performance Evaluation Unicast –Control Message Overhead –Delivery Ratio = the number of data packets actually received by receivers over the number of data packets sent by sources Multicast –Number of Nodes –Delivery Ratio = the number of nonduplicated data packets actually received by receivers over the number of packets supposed to be received by receivers.

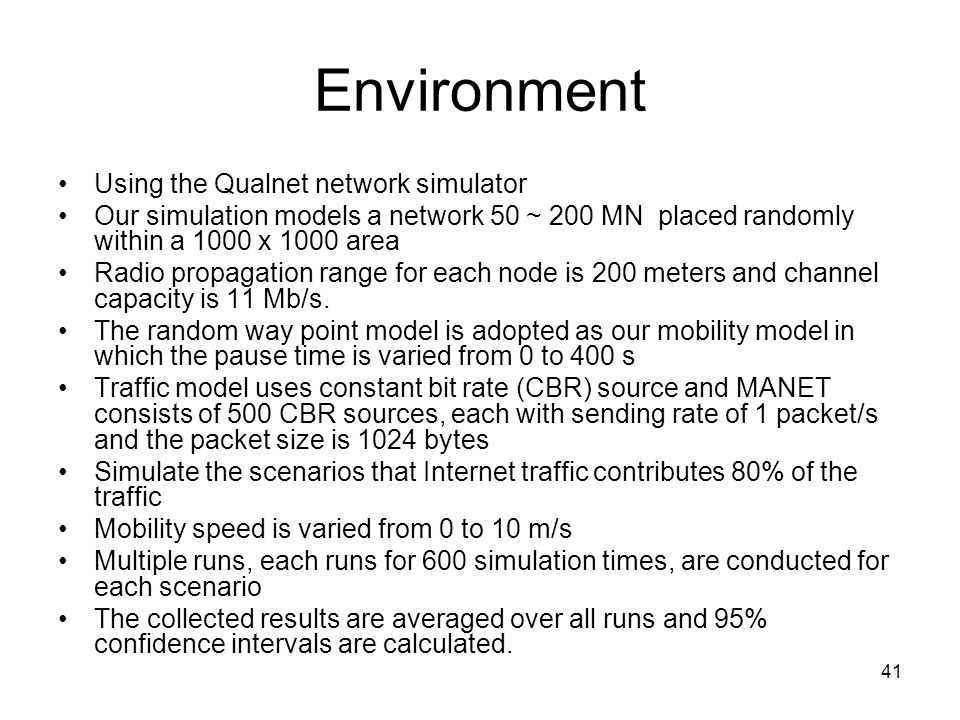

41 41 Environment Using the Qualnet network simulator Our simulation models a network 50 ~ 200 MN placed randomly within a 1000 x 1000 area Radio propagation range for each node is 200 meters and channel capacity is 11 Mb/s. The random way point model is adopted as our mobility model in which the pause time is varied from 0 to 400 s Traffic model uses constant bit rate (CBR) source and MANET consists of 500 CBR sources, each with sending rate of 1 packet/s and the packet size is 1024 bytes Simulate the scenarios that Internet traffic contributes 80% of the traffic Mobility speed is varied from 0 to 10 m/s Multiple runs, each runs for 600 simulation times, are conducted for each scenario The collected results are averaged over all runs and 95% confidence intervals are calculated.

42 42 Unicast

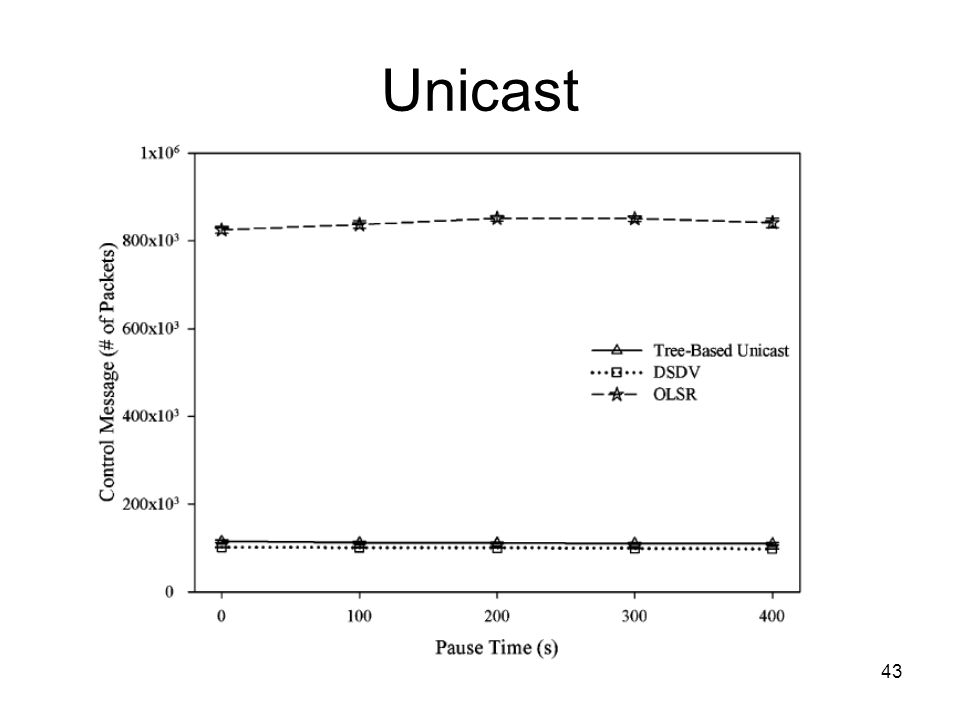

43 43 Unicast

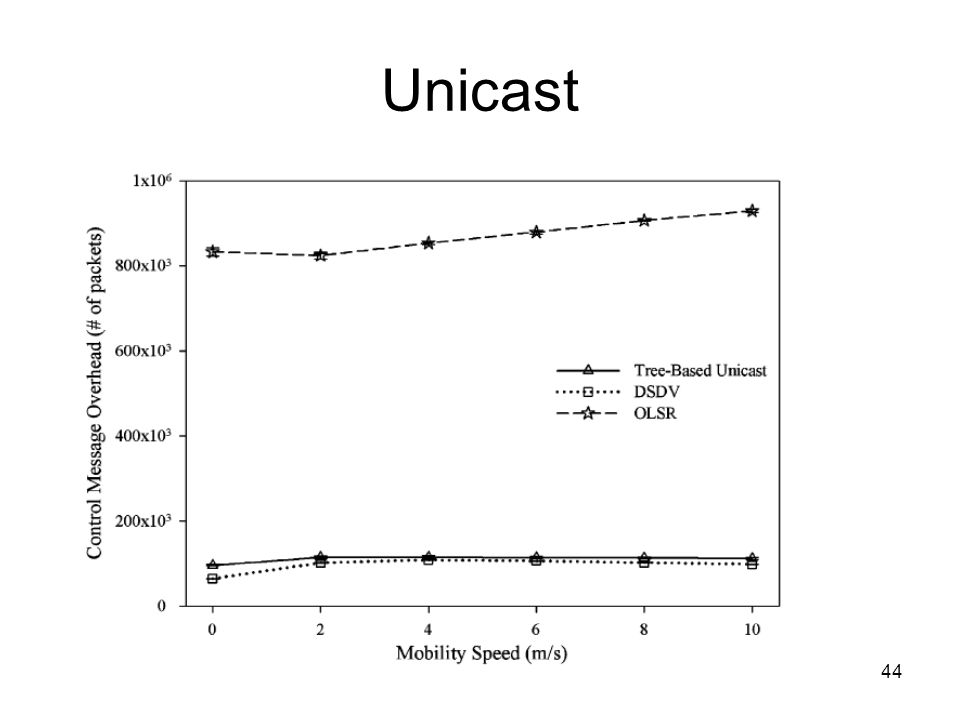

44 44 Unicast

45 45 Unicast

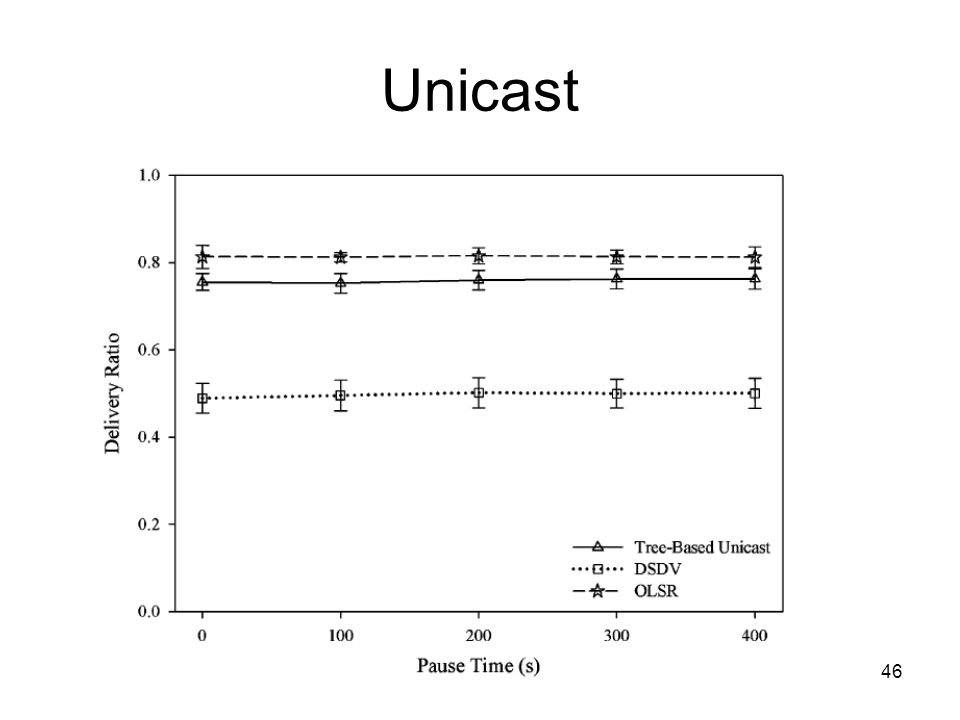

46 46 Unicast

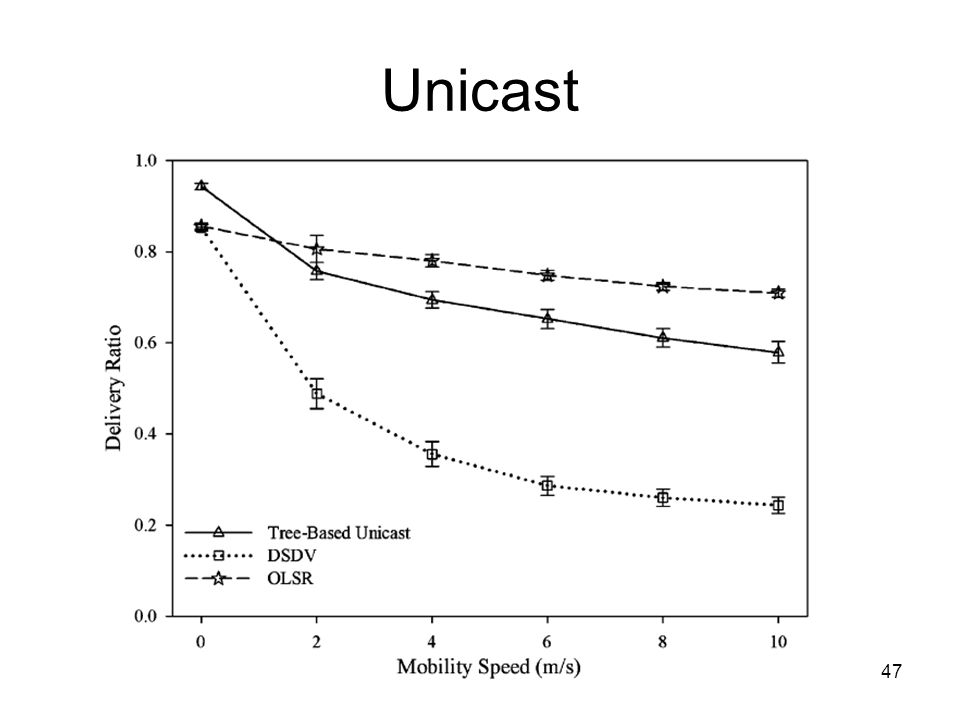

47 47 Unicast

48 48 Multicast

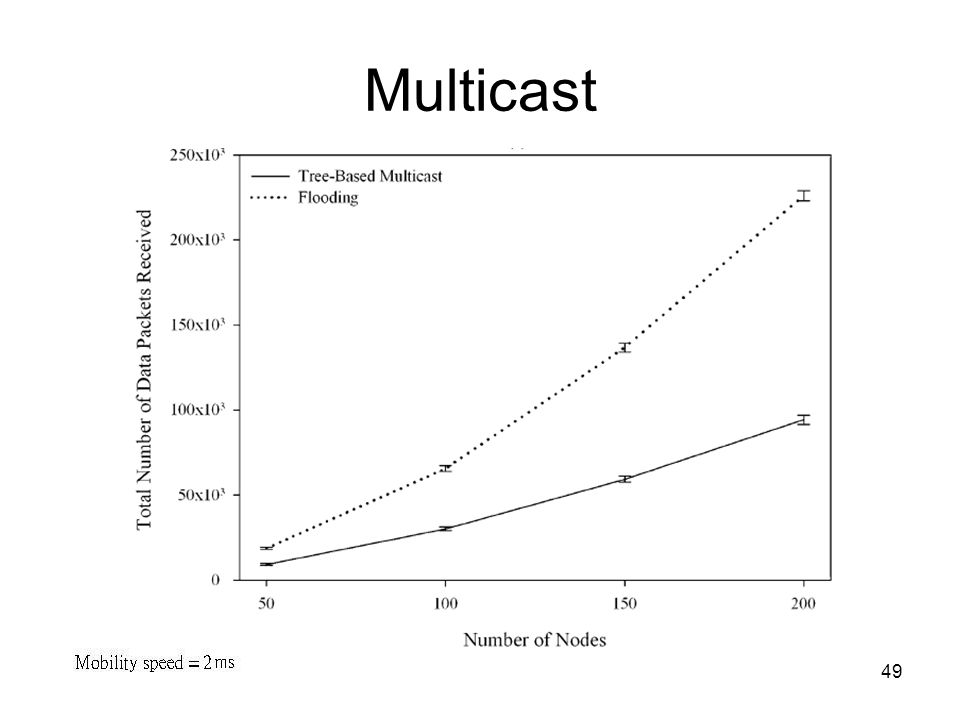

49 49 Multicast

50 50 Multicast

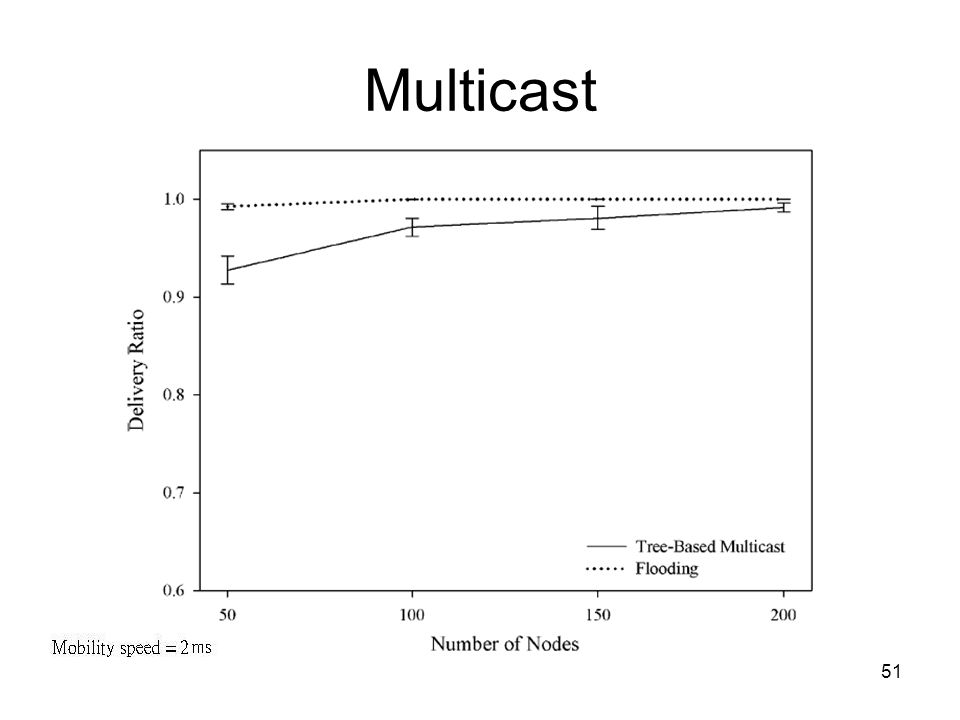

51 51 Multicast

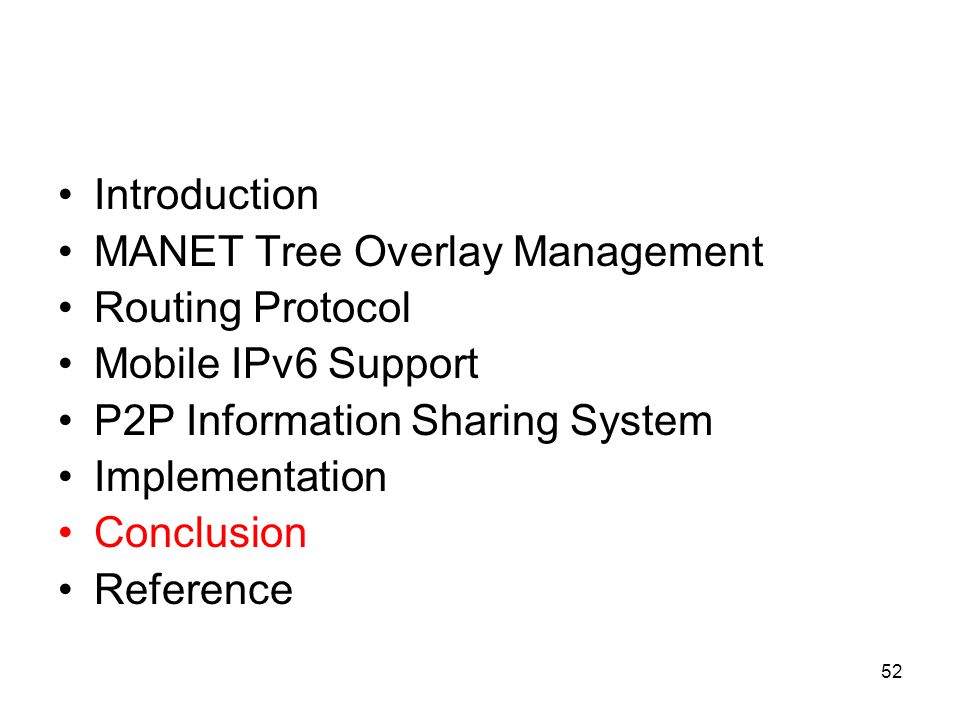

52 52 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

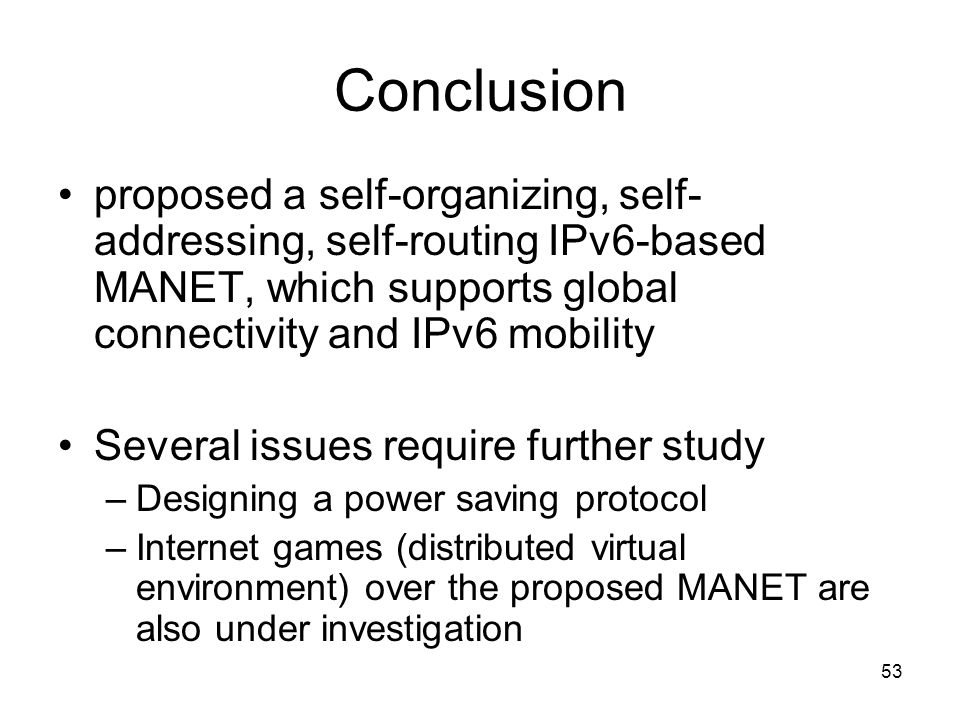

53 53 Conclusion proposed a self-organizing, self- addressing, self-routing IPv6-based MANET, which supports global connectivity and IPv6 mobility Several issues require further study –Designing a power saving protocol –Internet games (distributed virtual environment) over the proposed MANET are also under investigation

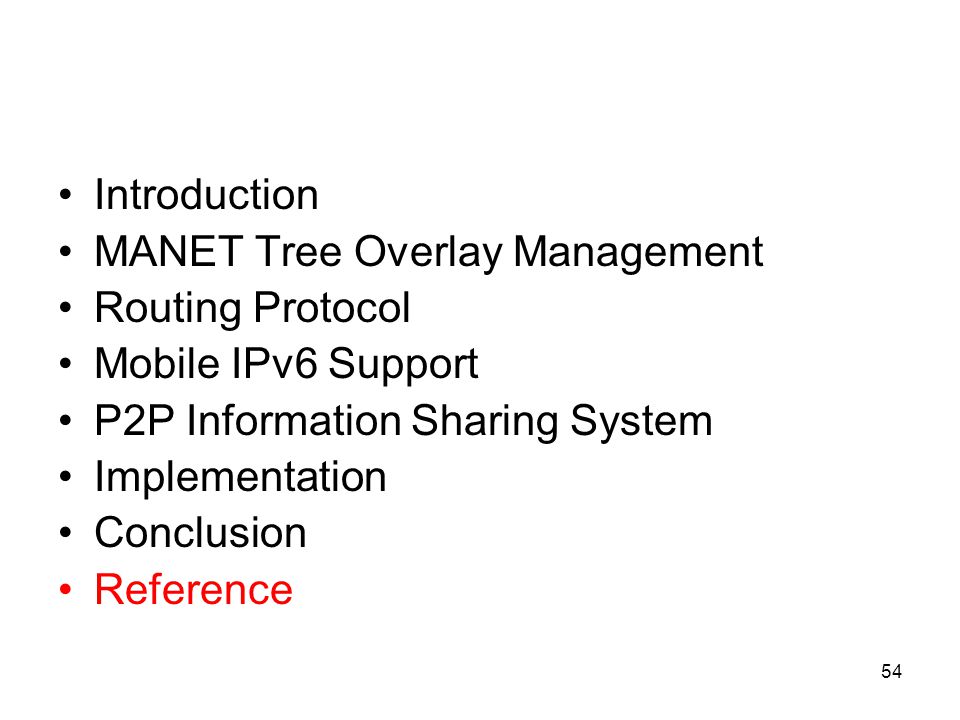

54 54 Introduction MANET Tree Overlay Management Routing Protocol Mobile IPv6 Support P2P Information Sharing System Implementation Conclusion Reference

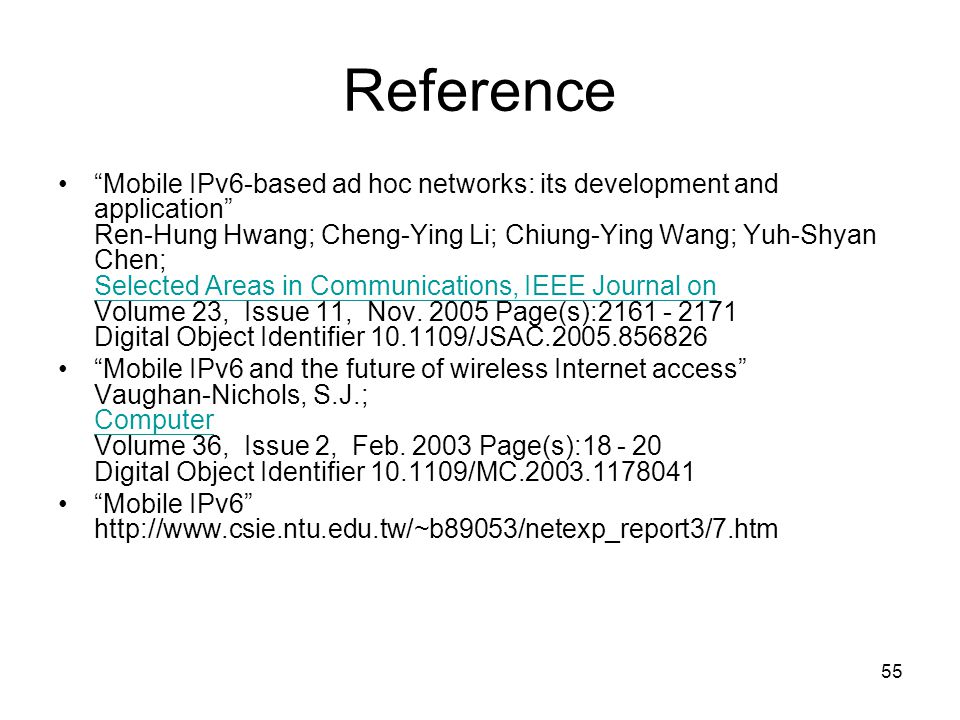

55 55 Reference “Mobile IPv6-based ad hoc networks: its development and application” Ren-Hung Hwang; Cheng-Ying Li; Chiung-Ying Wang; Yuh-Shyan Chen; Selected Areas in Communications, IEEE Journal on Volume 23, Issue 11, Nov Page(s): Digital Object Identifier /JSAC Selected Areas in Communications, IEEE Journal on “Mobile IPv6 and the future of wireless Internet access” Vaughan-Nichols, S.J.; Computer Volume 36, Issue 2, Feb Page(s): Digital Object Identifier /MC Computer “Mobile IPv6”
