Hinode/EIS Data Products and Archive Access Jian Sun (MSSL)

Similar presentations


Presentation on theme: "Hinode/EIS Data Products and Archive Access Jian Sun (MSSL)"— Presentation transcript:

1 Hinode/EIS Data Products and Archive Access Jian Sun (MSSL)

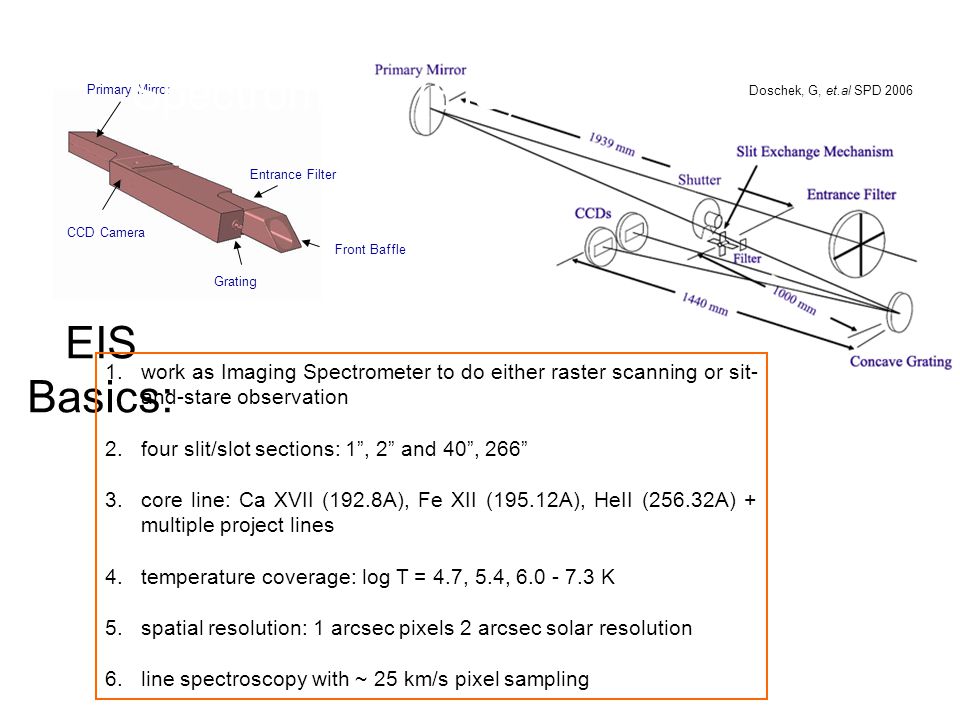

2 EIS Basics: 1.work as Imaging Spectrometer to do either raster scanning or sit- and-stare observation 2.four slit/slot sections: 1”, 2” and 40”, 266” 3.core line: Ca XVII (192.8A), Fe XII (195.12A), HeII (256.32A) + multiple project lines 4.temperature coverage: log T = 4.7, 5.4, K 5.spatial resolution: 1 arcsec pixels 2 arcsec solar resolution 6.line spectroscopy with ~ 25 km/s pixel sampling Doschek, G, et.al SPD 2006 Grating Front Baffle Entrance Filter Primary Mirror CCD Camera Extreme ultraviolet Imaging Spectrometer (EIS)

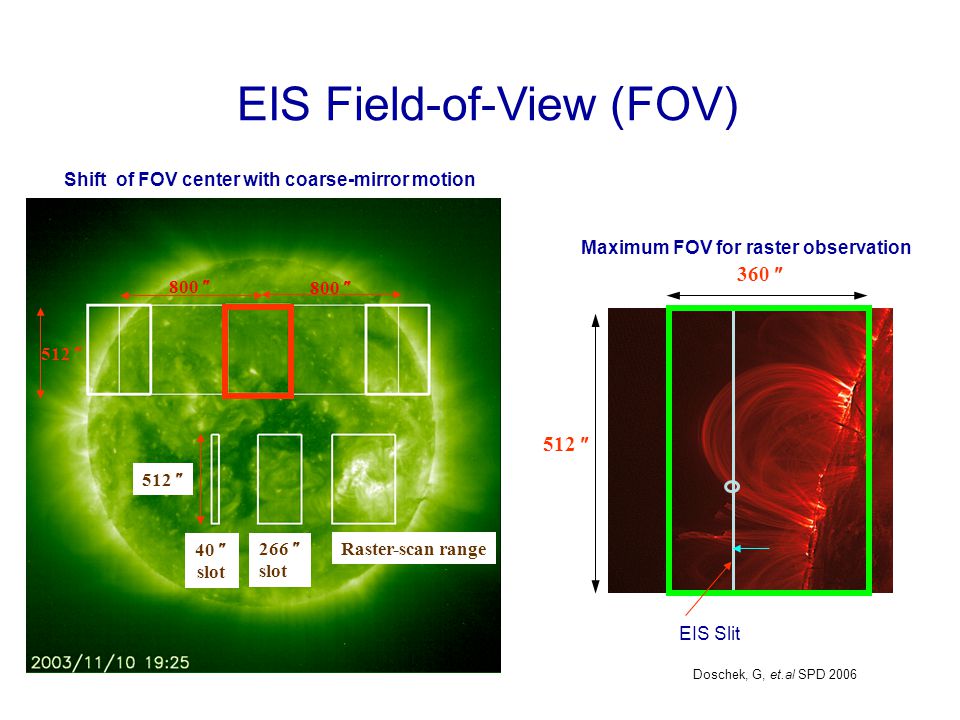

3 EIS Field-of-View (FOV) 360  512  EIS Slit Maximum FOV for raster observation 512  800  Raster-scan range Shift of FOV center with coarse-mirror motion 266  slot 40  slot 512  Doschek, G, et.al SPD 2006

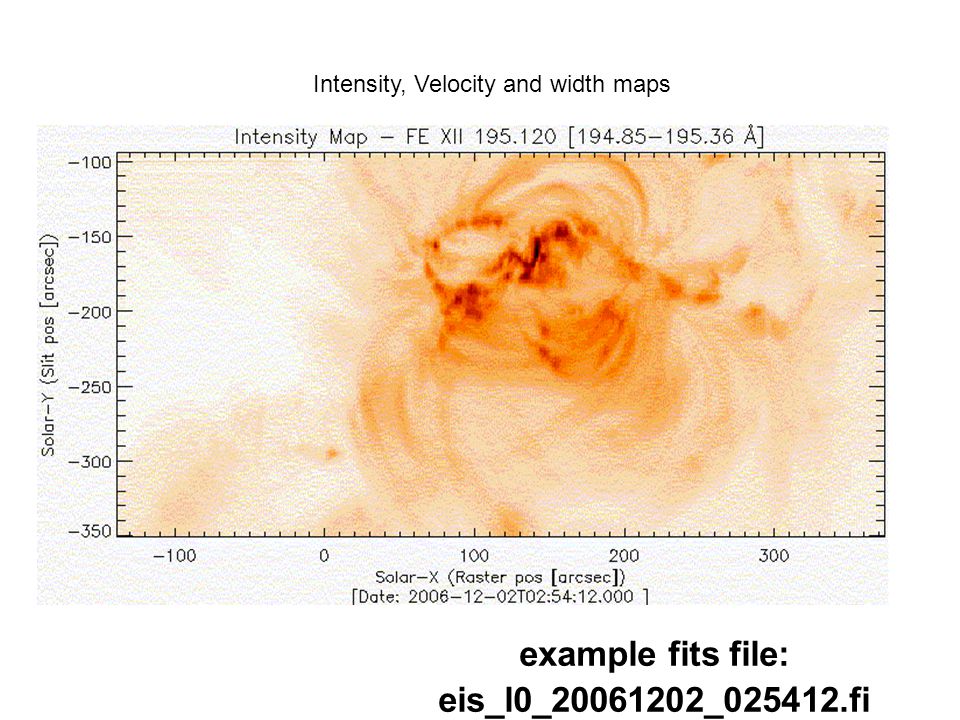

4 Data products from EIS example fits file: eis_l0_ _ fi ts Intensity, Velocity and width maps

5 Velocity map (cont.) width map (cont.)

6 CCD spectra example fits file: eis_l0_ _ fits

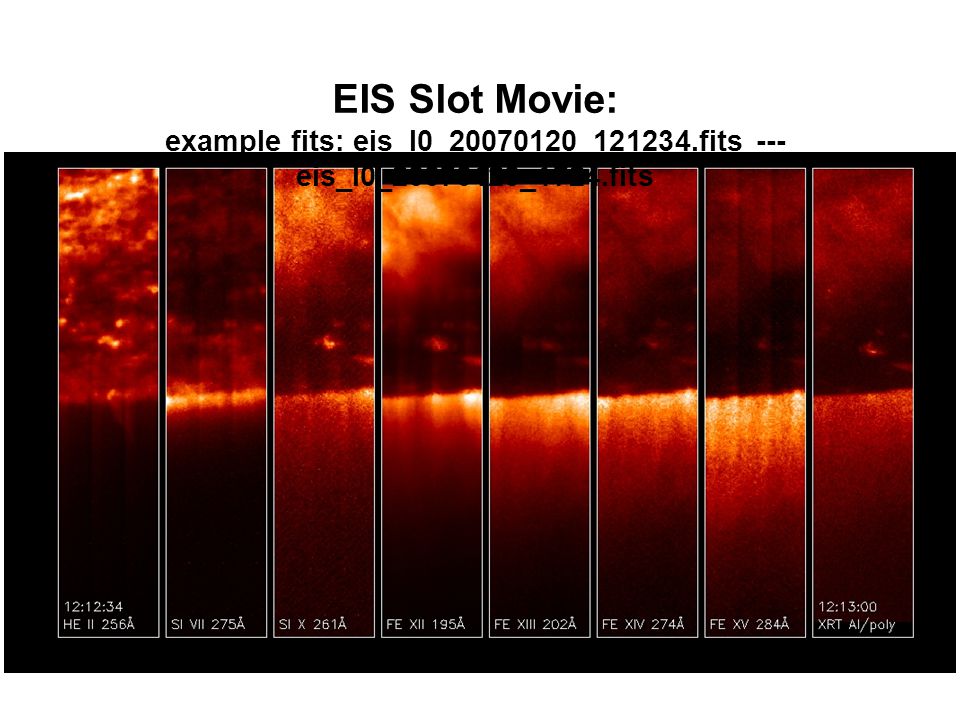

7 EIS Slot Movie: example fits: eis_l0_ _ fits --- eis_l0_ _1724.fits

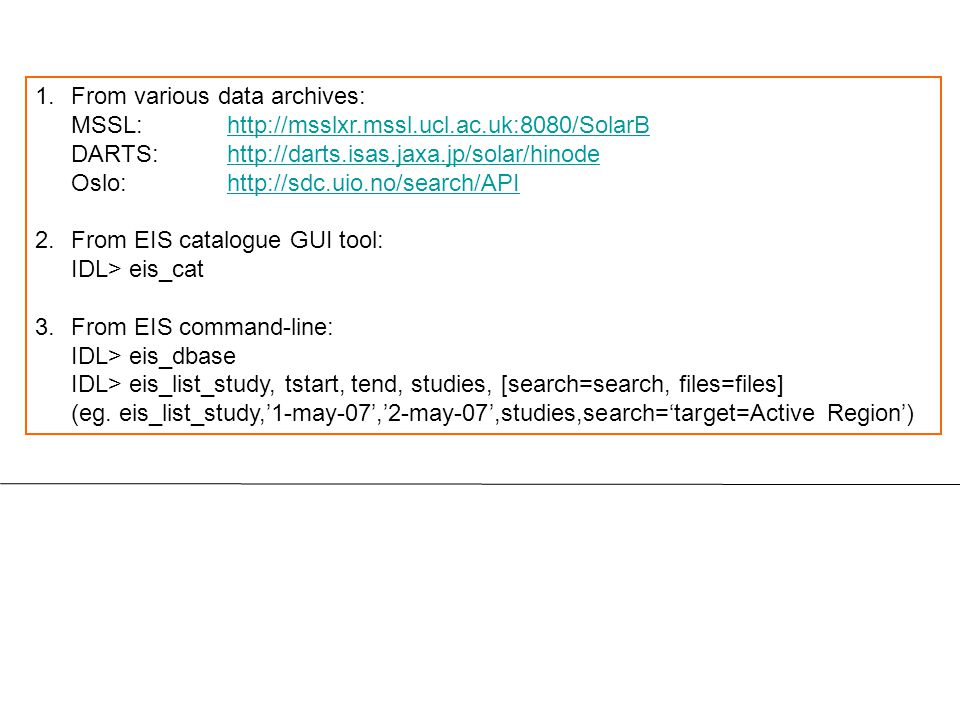

8 1.From various data archives: MSSL:http://msslxr.mssl.ucl.ac.uk:8080/SolarBhttp://msslxr.mssl.ucl.ac.uk:8080/SolarB DARTS:http://darts.isas.jaxa.jp/solar/hinodehttp://darts.isas.jaxa.jp/solar/hinode Oslo:http://sdc.uio.no/search/APIhttp://sdc.uio.no/search/API 2.From EIS catalogue GUI tool: IDL> eis_cat 3.From EIS command-line: IDL> eis_dbase IDL> eis_list_study, tstart, tend, studies, [search=search, files=files] (eg. eis_list_study,’1-may-07’,’2-may-07’,studies,search=‘target=Active Region’) Access to EIS data:

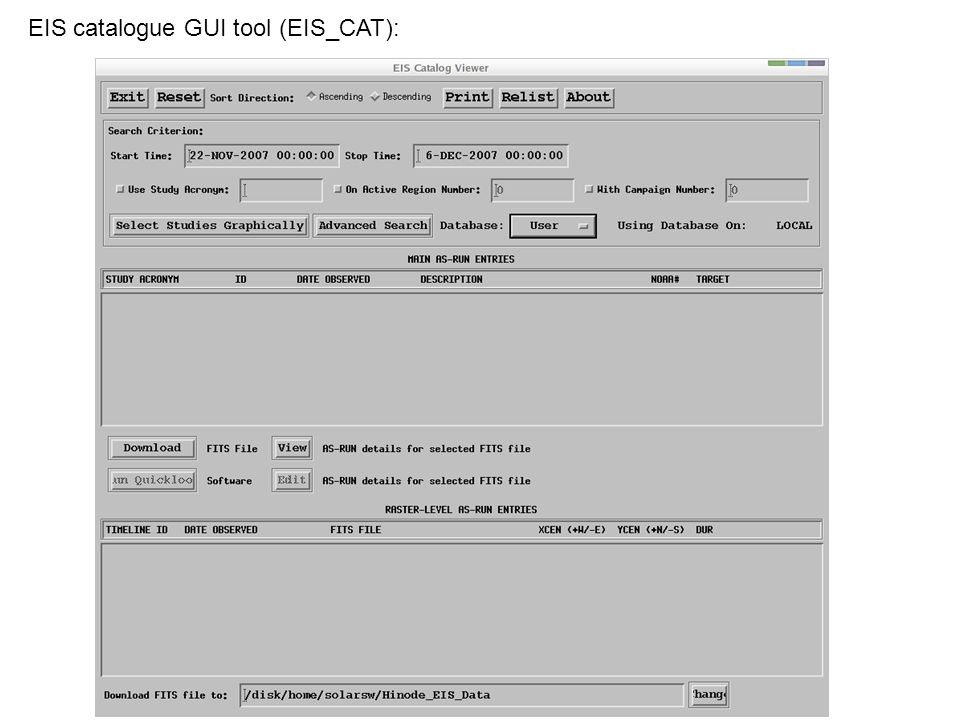

9 EIS catalogue GUI tool (EIS_CAT):

10 ISAS - DARTS DB MSSL – Hinode SDC Hinode data (e.g. level-0 EIS data) Data processing pipeline MSSL – Website Users Info. about Hinode, EIS, etc. EIS level-0 & 2 data Thumbnails XRT & SOT data Visits & requests Hinode obs. Data (CCSDS fmt.) EIS level-0 & 2 data EIS thumbnails Hinode/EIS Data Access: from Satellite to Users: MSSL Hinode/EIS Data Archive (webpage: )

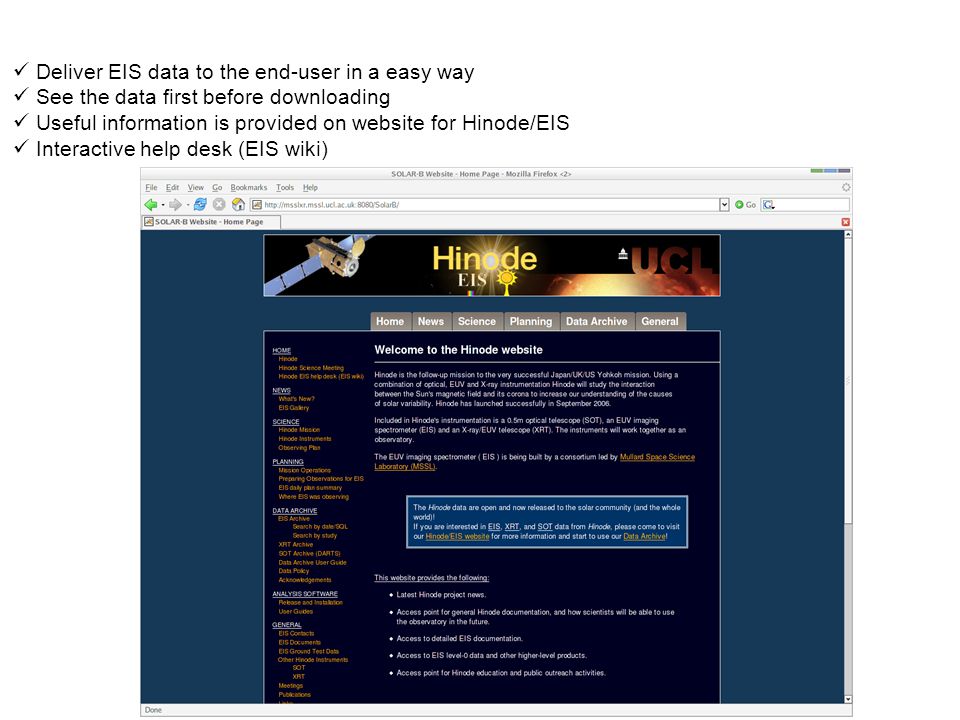

11 Deliver EIS data to the end-user in a easy way See the data first before downloading Useful information is provided on website for Hinode/EIS Interactive help desk (EIS wiki)

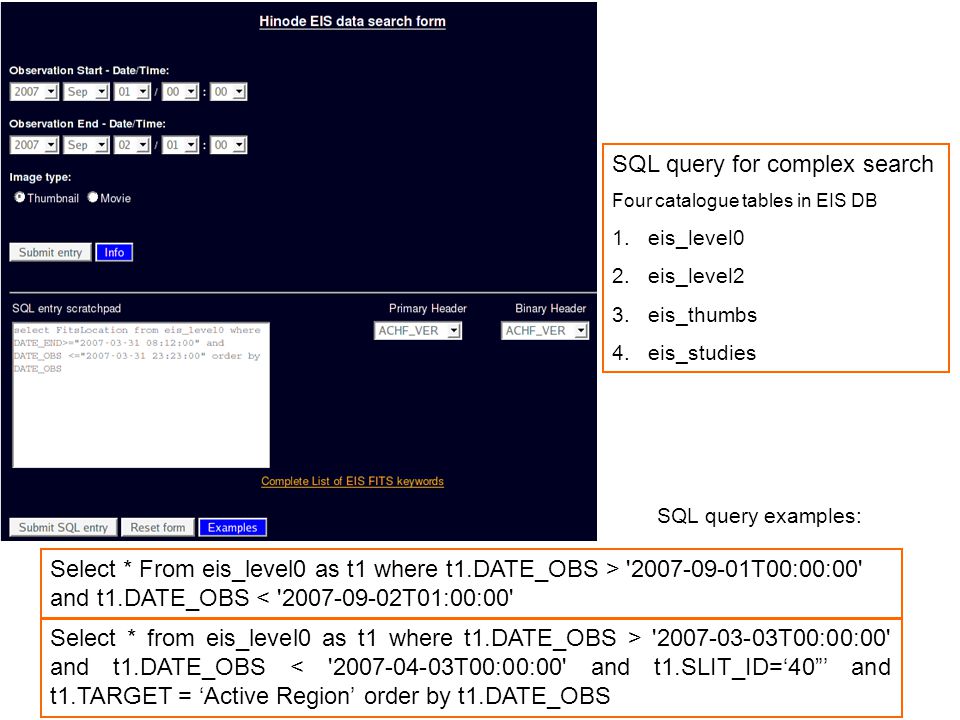

12 Select * from eis_level0 as t1 where t1.DATE_OBS > ' T00:00:00' and t1.DATE_OBS < ' T00:00:00' and t1.SLIT_ID=‘40”’ and t1.TARGET = ‘Active Region’ order by t1.DATE_OBS SQL query for complex search Four catalogue tables in EIS DB 1.eis_level0 2.eis_level2 3.eis_thumbs 4.eis_studies Select * From eis_level0 as t1 where t1.DATE_OBS > ' T00:00:00' and t1.DATE_OBS < ' T01:00:00' SQL query examples:

13 EIS Data Archive User’s Guide: EIS thumbnails introduction: How to EIS level-2 data:

14

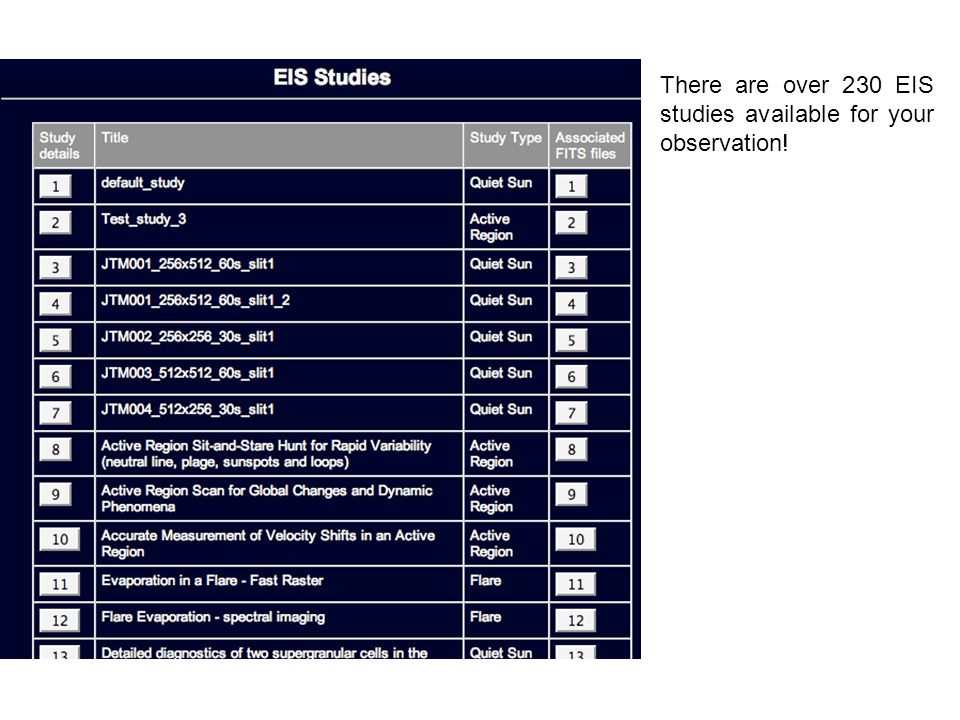

15 There are over 230 EIS studies available for your observation!

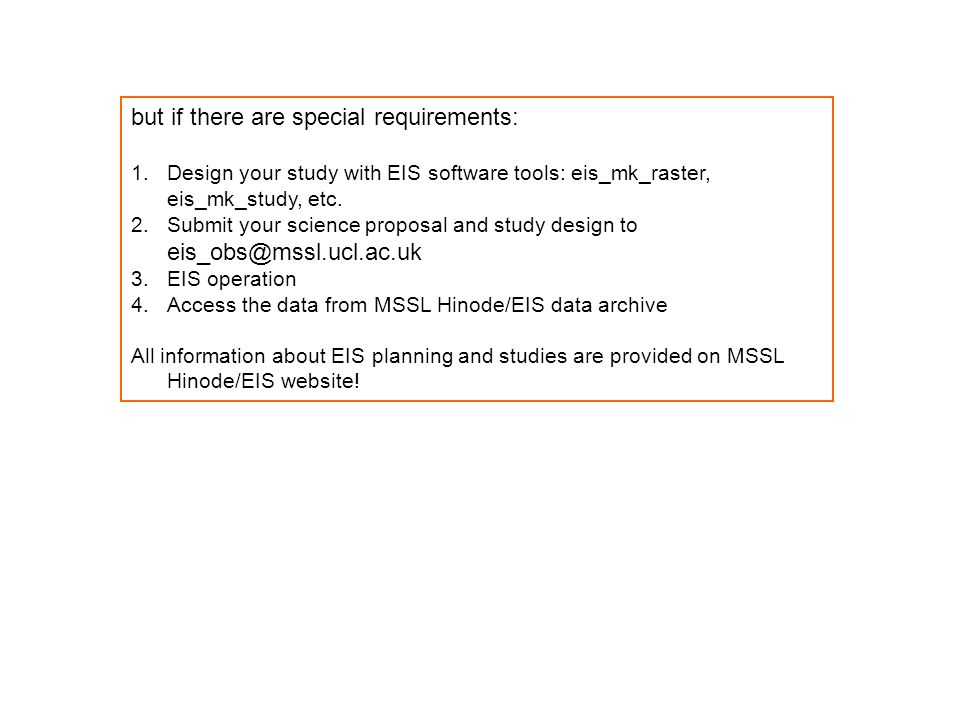

16 but if there are special requirements: 1.Design your study with EIS software tools: eis_mk_raster, eis_mk_study, etc. 2.Submit your science proposal and study design to 3.EIS operation 4.Access the data from MSSL Hinode/EIS data archive All information about EIS planning and studies are provided on MSSL Hinode/EIS website!

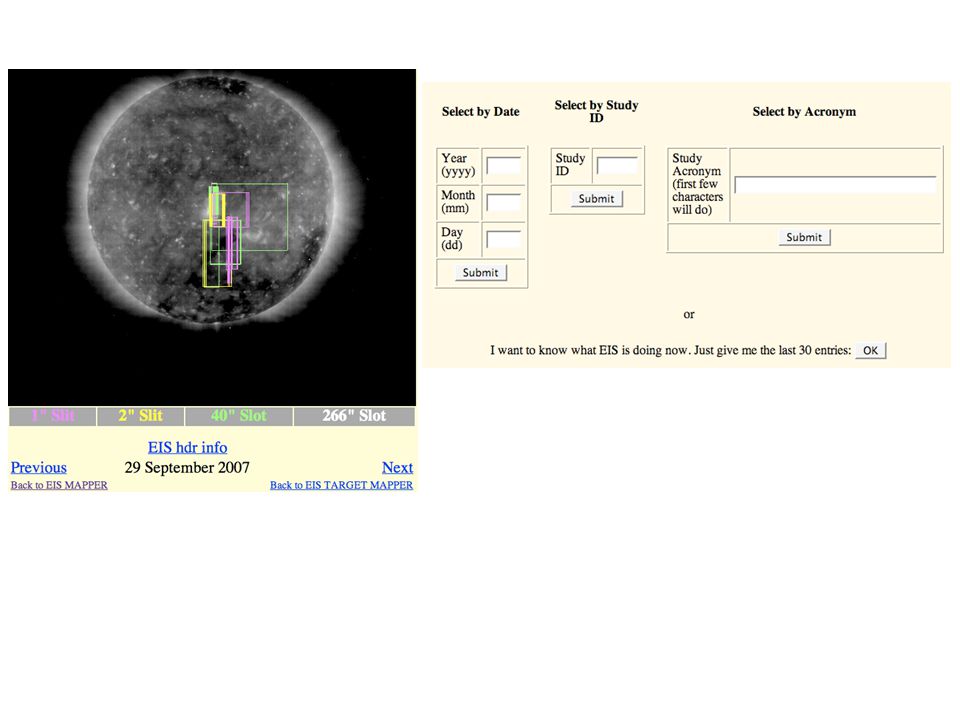

17 Other useful resources: 1.EIS Mapper:http://www.scs.gmu.edu/~kdere/eis_mapper.htmlhttp://www.scs.gmu.edu/~kdere/eis_mapper.html 2.EIS Observing Timeline Database: 3.EIS Wiki (Help Desk):

18
