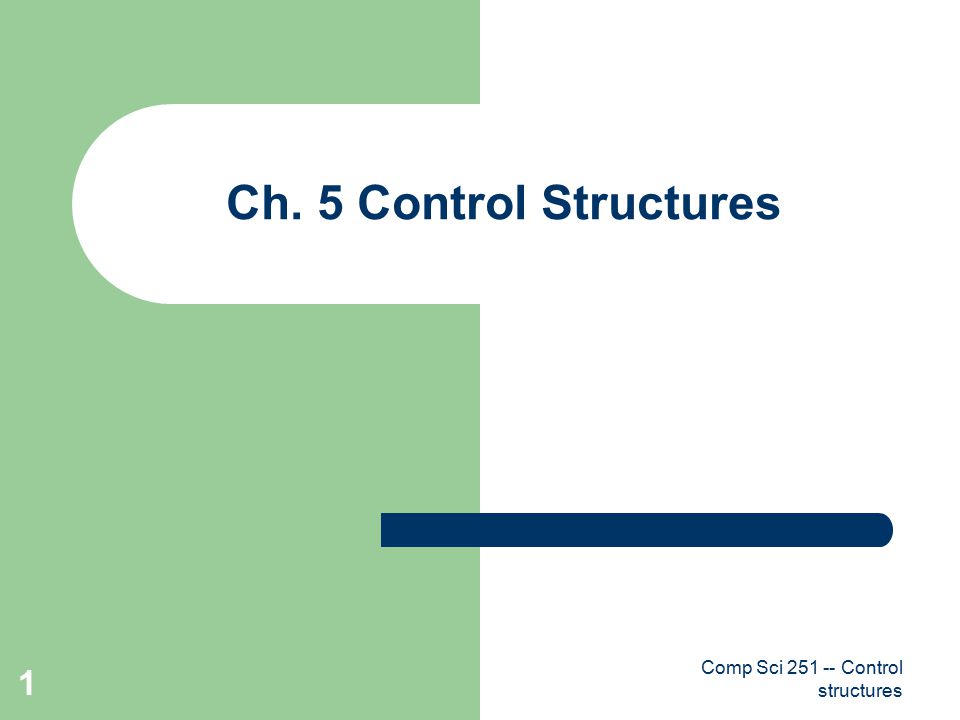

Comp Sci 251 -- Control structures 1 Ch. 5 Control Structures

Comp Sci 251 -- Control structures 2 Control structures Assembly language implementation of Selection (if, if-else, switch) Iteration (while, do-while, for)

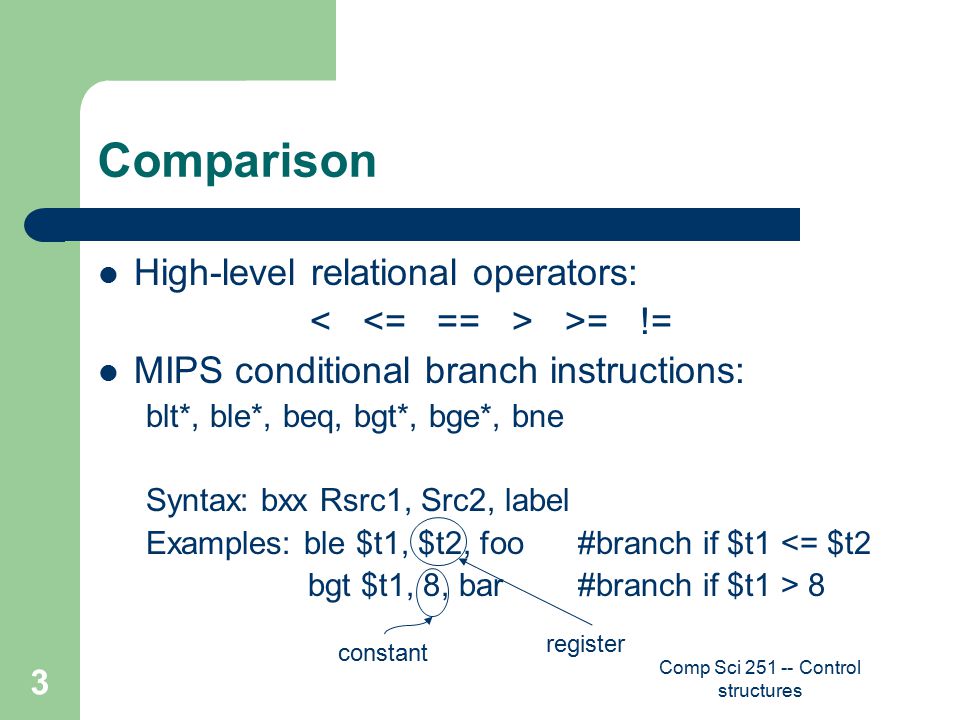

Comp Sci 251 -- Control structures 3 Comparison High-level relational operators: >= != MIPS conditional branch instructions: blt*, ble*, beq, bgt*, bge*, bne Syntax: bxx Rsrc1, Src2, label Examples: ble \$t1, \$t2, foo#branch if \$t1 <= \$t2 bgt \$t1, 8, bar#branch if \$t1 > 8 register constant

Comp Sci 251 -- Control structures 4 If (without else clause) if(x < y) x = 0; if1 X = 0; < >=

Comp Sci 251 -- Control structures 5 If (without else clause) if(x < y) x = 0; endif: lw \$t0, x lw \$t1, y bge \$t0, \$t1, endif li \$t0, 0 sw \$t0, x endif: Branch if greater or equal

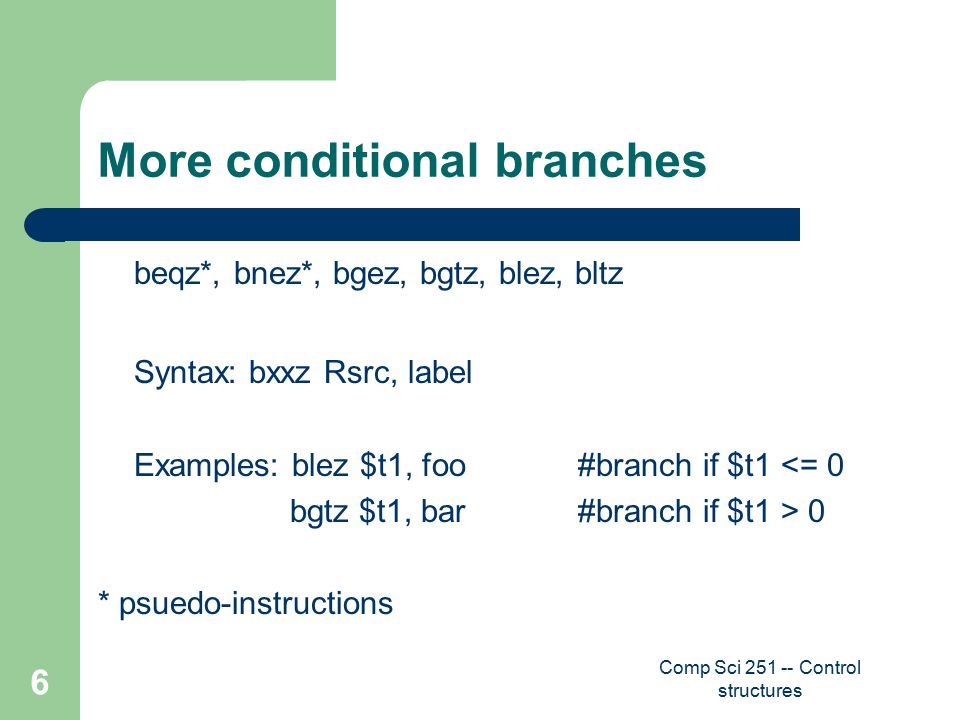

Comp Sci 251 -- Control structures 6 More conditional branches beqz*, bnez*, bgez, bgtz, blez, bltz Syntax: bxxz Rsrc, label Examples: blez \$t1, foo#branch if \$t1 <= 0 bgtz \$t1, bar#branch if \$t1 > 0 * psuedo-instructions

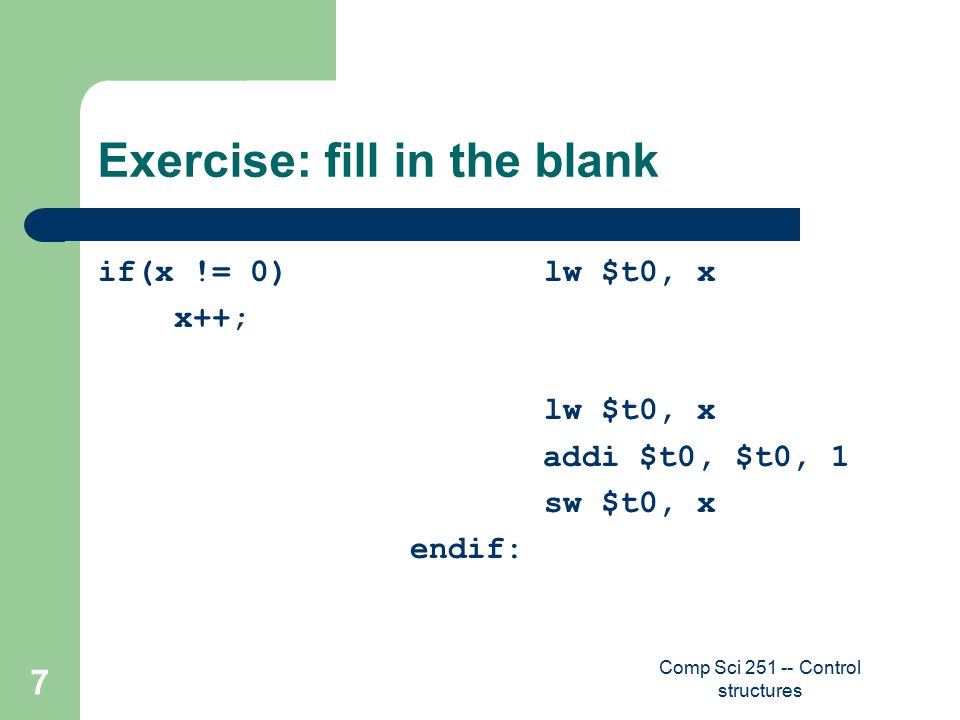

Comp Sci 251 -- Control structures 7 Exercise: fill in the blank if(x != 0) x++; lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x endif:

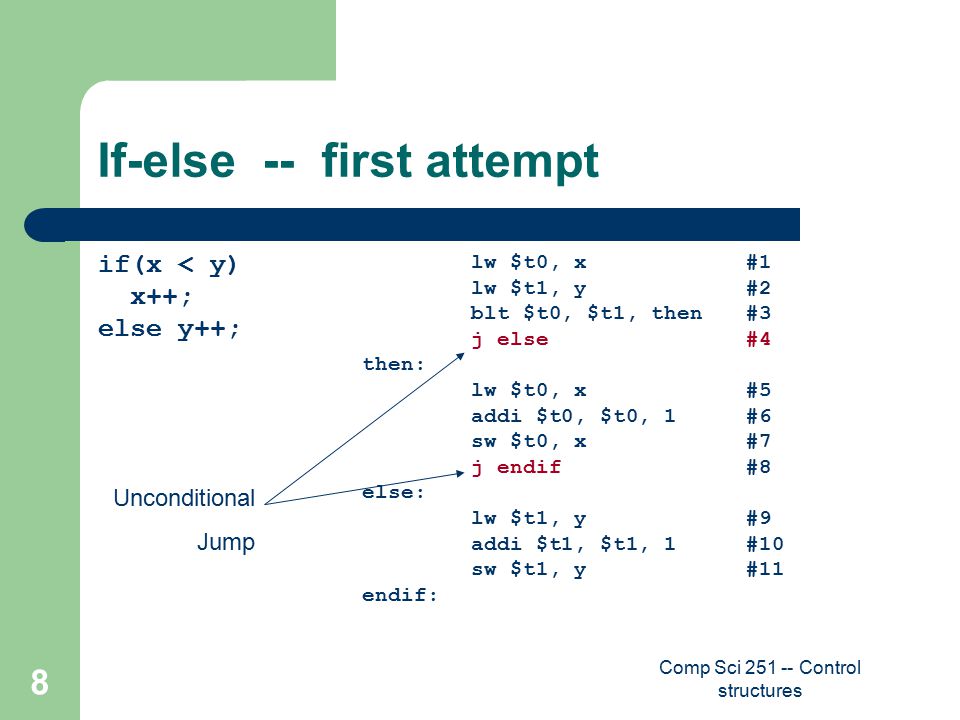

Comp Sci 251 -- Control structures 8 If-else -- first attempt if(x < y) x++; else y++; lw \$t0, x#1 lw \$t1, y#2 blt \$t0, \$t1, then#3 j else#4 then: lw \$t0, x#5 addi \$t0, \$t0, 1#6 sw \$t0, x#7 j endif #8 else: lw \$t1, y#9 addi \$t1, \$t1, 1#10 sw \$t1, y#11 endif: Unconditional Jump

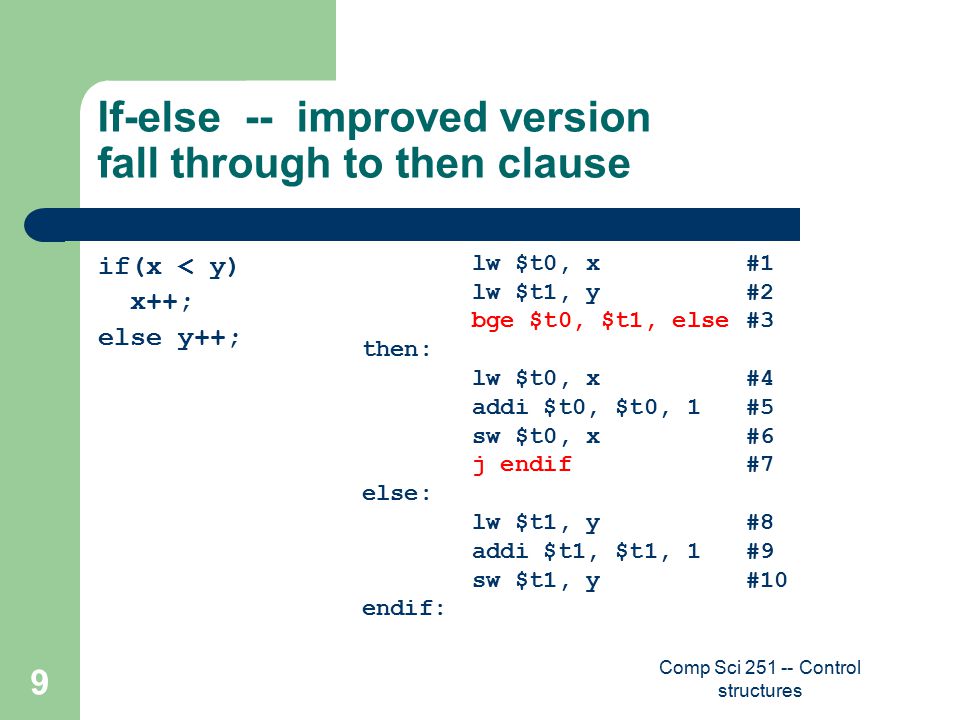

Comp Sci 251 -- Control structures 9 If-else -- improved version fall through to then clause if(x < y) x++; else y++; lw \$t0, x#1 lw \$t1, y#2 bge \$t0, \$t1, else#3 then: lw \$t0, x#4 addi \$t0, \$t0, 1#5 sw \$t0, x#6 j endif #7 else: lw \$t1, y#8 addi \$t1, \$t1, 1#9 sw \$t1, y#10 endif:

Comp Sci 251 -- Control structures 10 If-else -- code the else clause first if(x < y) x++; else y++; lw \$t0, x lw \$t1, y else: lw \$t0, \$t0, y addi \$t0, \$t0, 1 sw \$t0, y j endif then: lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x endif: blt \$t0, \$t1, then

Comp Sci 251 -- Control structures 11 Boolean operators and short-circuiting Stop evaluating Boolean expression as soon as possible AND: stop as soon as an operand is False OR: stop as soon as an operand is True

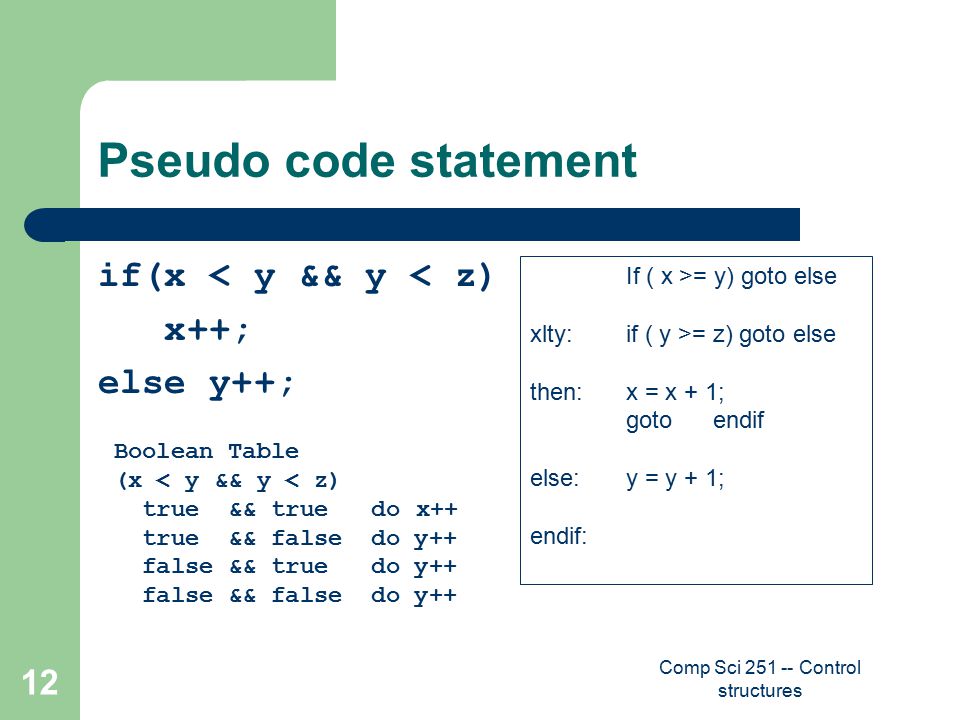

Comp Sci 251 -- Control structures 12 Pseudo code statement if(x < y && y < z) x++; else y++; If ( x >= y) goto else xlty:if ( y >= z) goto else then:x = x + 1; goto endif else:y = y + 1; endif: Boolean Table (x < y && y < z) true && true do x++ true && false do y++ false && true do y++ false && false do y++

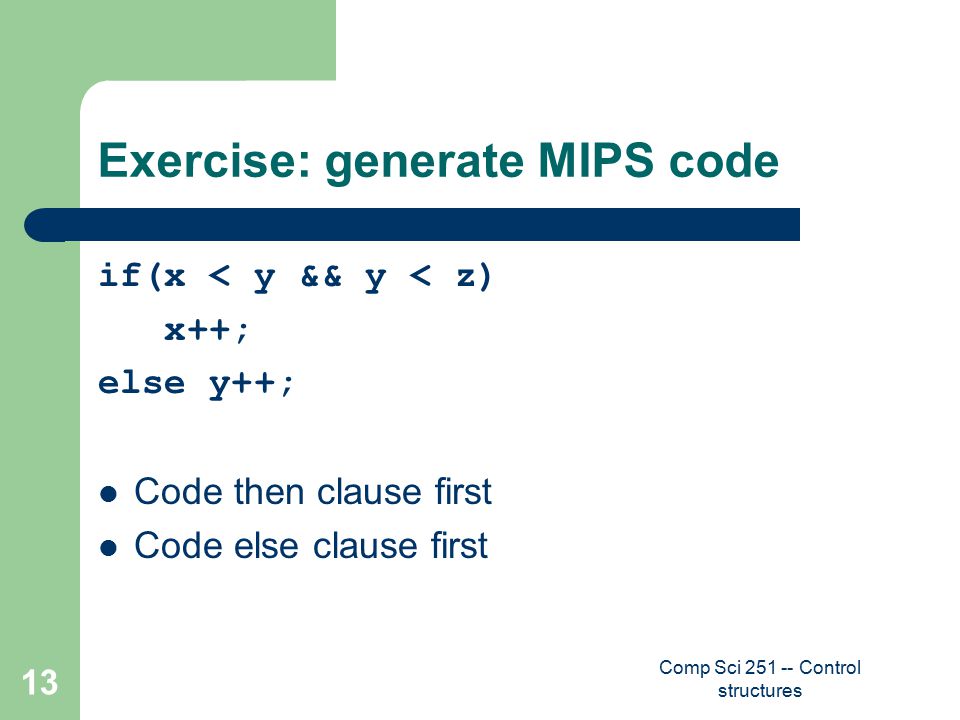

Comp Sci 251 -- Control structures 13 Exercise: generate MIPS code if(x < y && y < z) x++; else y++; Code then clause first Code else clause first

Comp Sci 251 -- Control structures 14 Another Exercise: generate MIPS code if(x < y || y < z) x++; else y++; Code then clause first Code else clause first

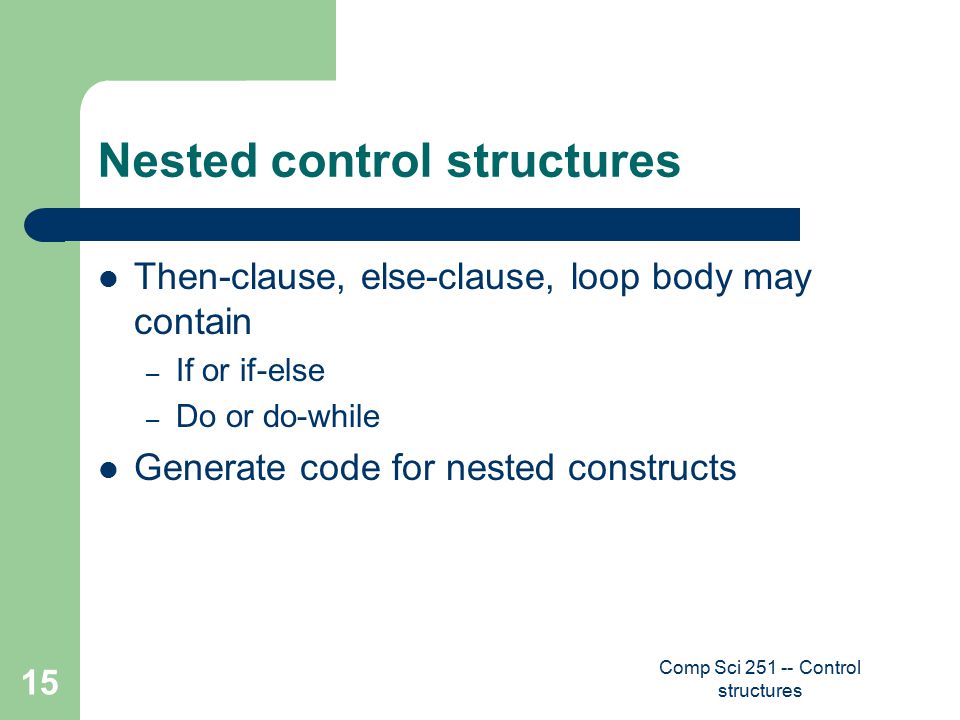

Comp Sci 251 -- Control structures 15 Nested control structures Then-clause, else-clause, loop body may contain – If or if-else – Do or do-while Generate code for nested constructs

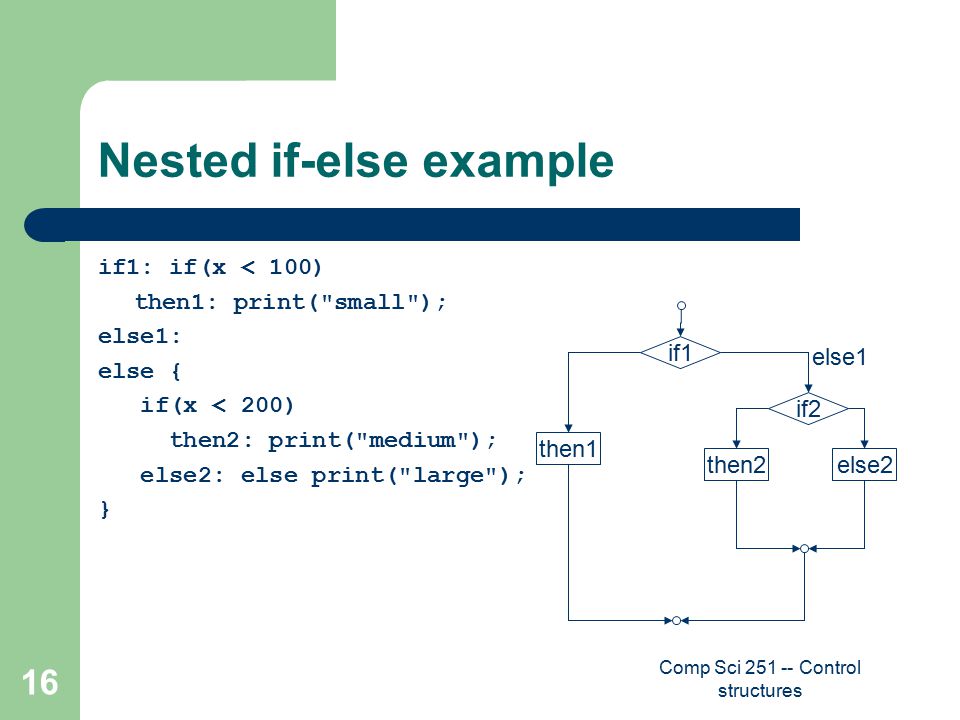

Comp Sci 251 -- Control structures 16 Nested if-else example if1: if(x < 100) then1: print("small"); else1: else { if(x < 200) then2: print("medium"); else2: else print("large"); } if1 if2 then1 then2else2 else1

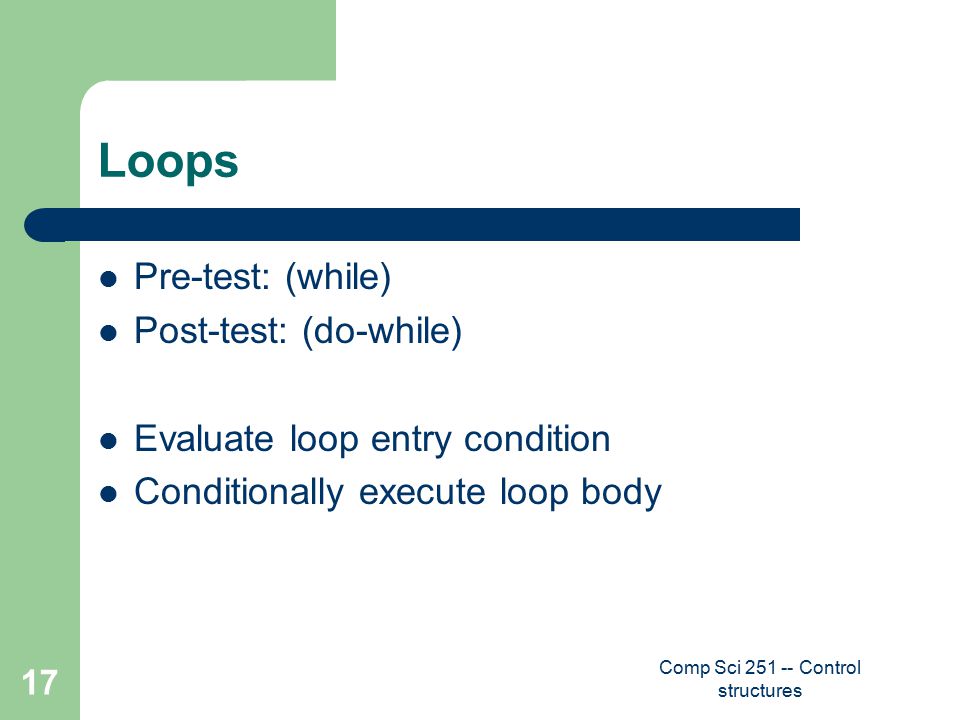

Comp Sci 251 -- Control structures 17 Loops Pre-test: (while) Post-test: (do-while) Evaluate loop entry condition Conditionally execute loop body

Comp Sci 251 -- Control structures 18 Pre-test loop example while(x < y) x++; endloop: Top: if ( x >= y) goto endloop; x = x + 1; goto Top: endloop: top: lw \$t0, x lw \$t1, y bge \$t0, \$t1 endloop lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x j top endloop:

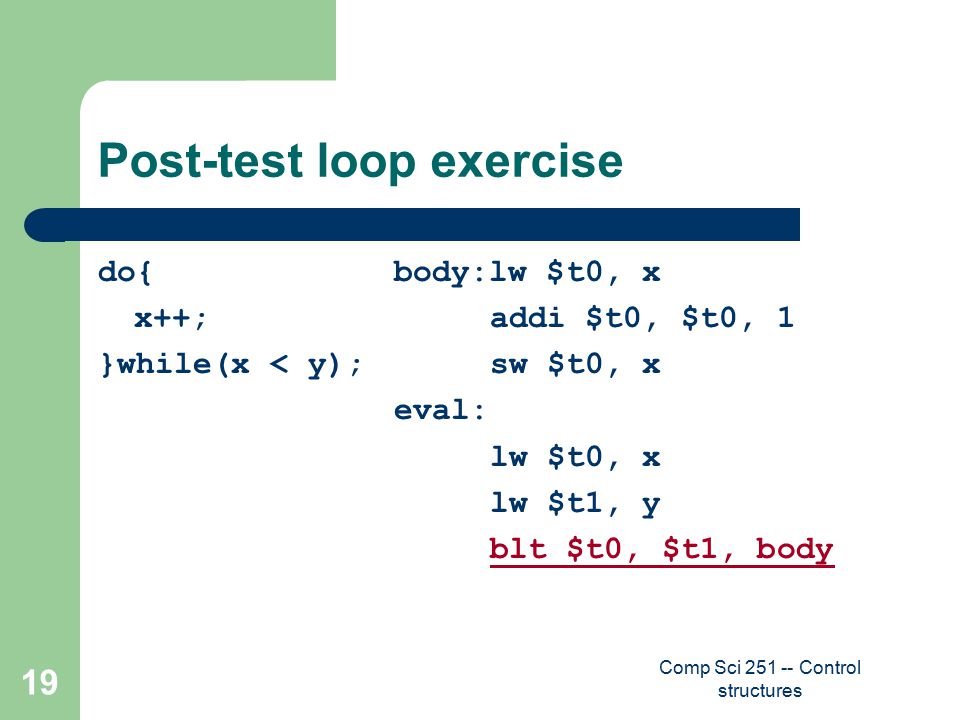

Comp Sci 251 -- Control structures 19 Post-test loop exercise do{ x++; }while(x < y); body:lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x eval: lw \$t0, x lw \$t1, y blt \$t0, \$t1, body

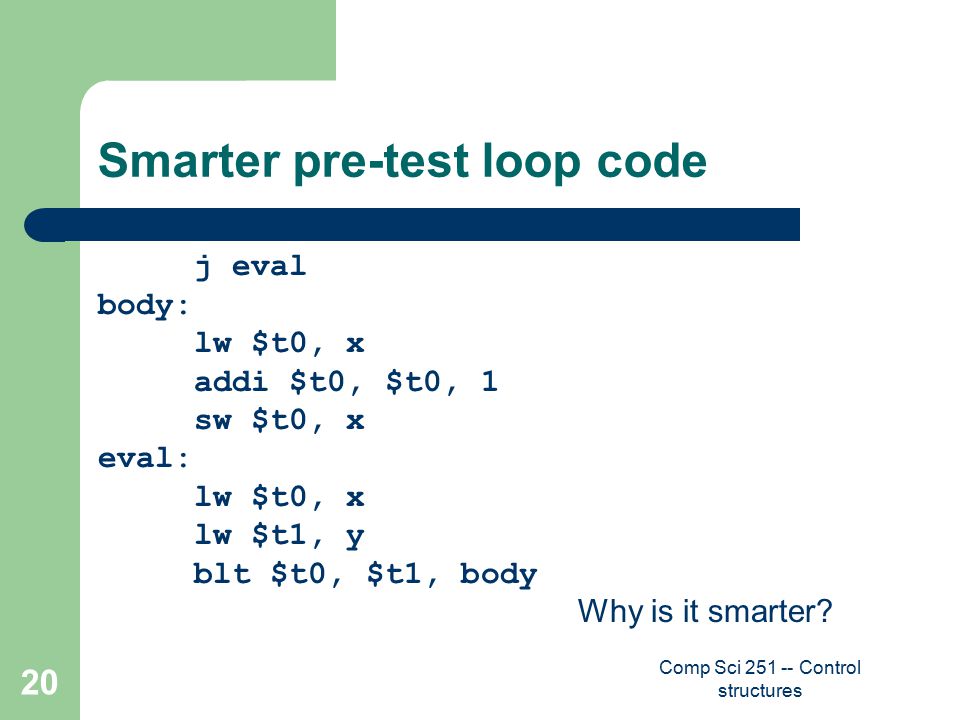

Comp Sci 251 -- Control structures 20 Smarter pre-test loop code j eval body: lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x eval: lw \$t0, x lw \$t1, y blt \$t0, \$t1, body Why is it smarter?

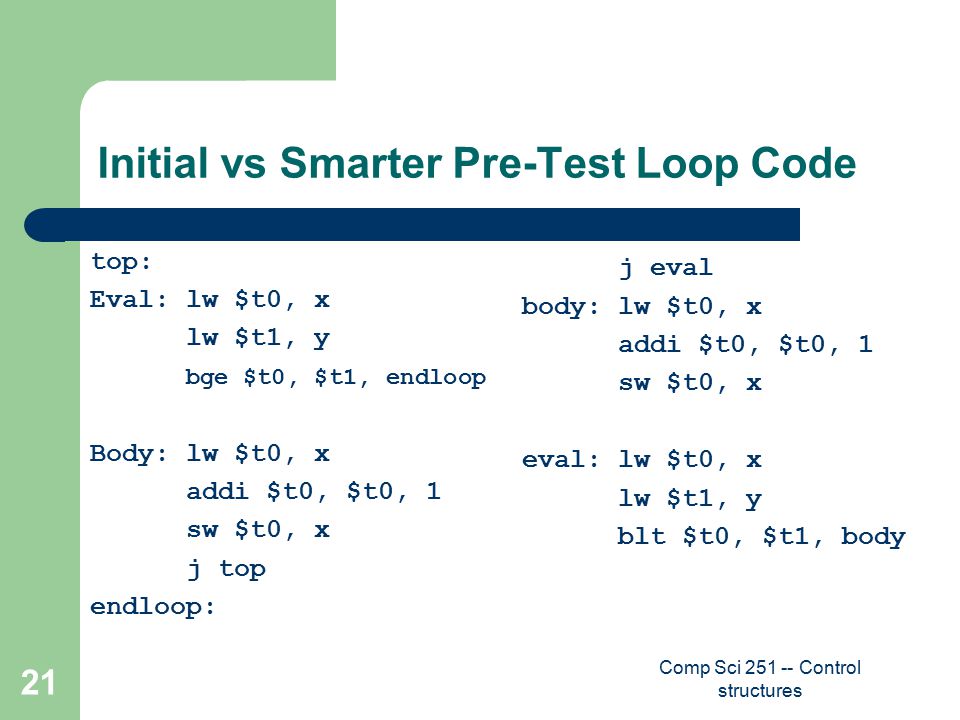

Comp Sci 251 -- Control structures 21 Initial vs Smarter Pre-Test Loop Code top: Eval:lw \$t0, x lw \$t1, y bge \$t0, \$t1, endloop Body:lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x j top endloop: j eval body:lw \$t0, x addi \$t0, \$t0, 1 sw \$t0, x eval: lw \$t0, x lw \$t1, y blt \$t0, \$t1, body

Comp Sci 251 -- Control structures 22 Loop summary Always code loop body first, entry condition last Pre-test: jump to entry condition before body Post-test: no jump before body

Comp Sci 251 -- Control structures 23 For statement Equivalent to Pre-test while for (int i = 0; i < 10; i++) { //body;} Int i = 0; while ( i < 10) {// body; i ++; } Endwhile: Int I = 0; Begin: if ( I >= 10) goto Endwhile; { // body i++; goto Begin; } Endwhile:

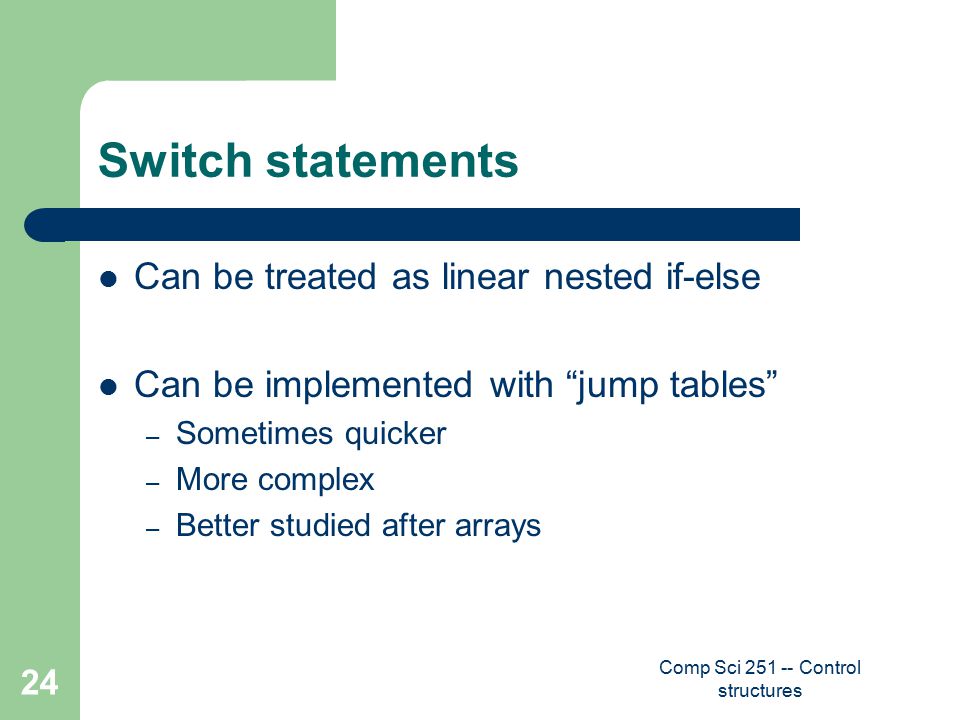

Comp Sci 251 -- Control structures 24 Switch statements Can be treated as linear nested if-else Can be implemented with “jump tables” – Sometimes quicker – More complex – Better studied after arrays
