Waves and Transmission Lines Wang C. Ng

2

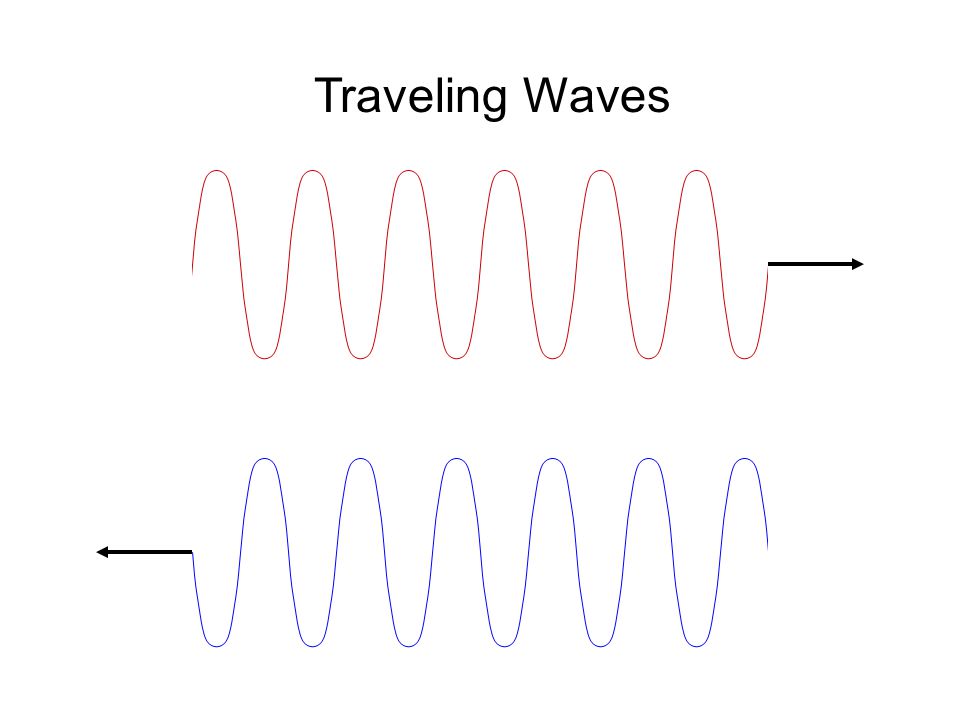

Traveling Waves

3

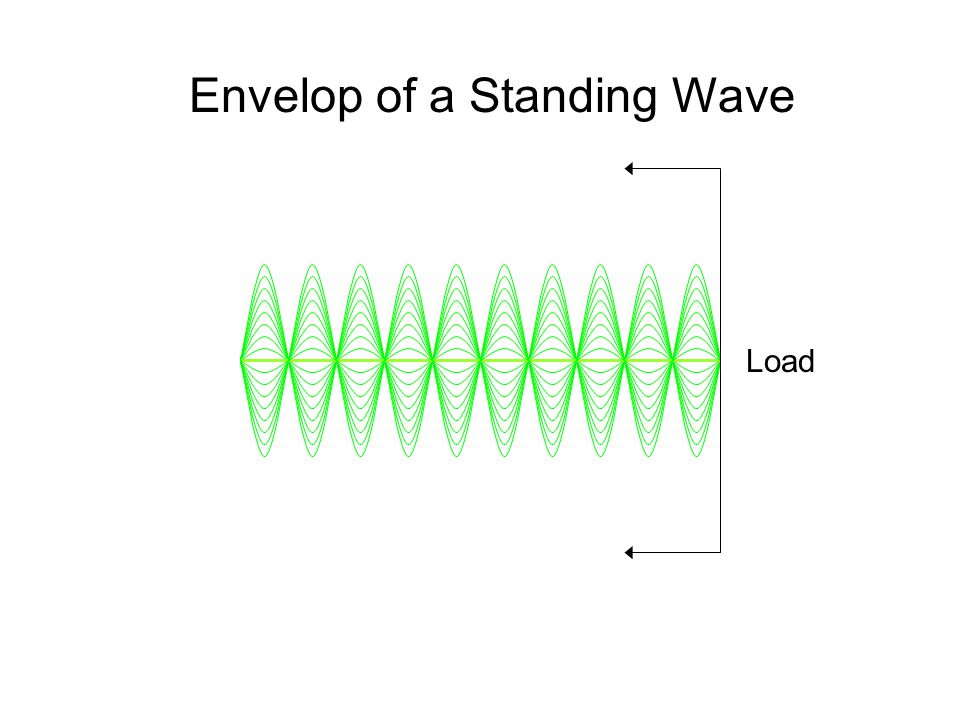

Load Envelop of a Standing Wave

4

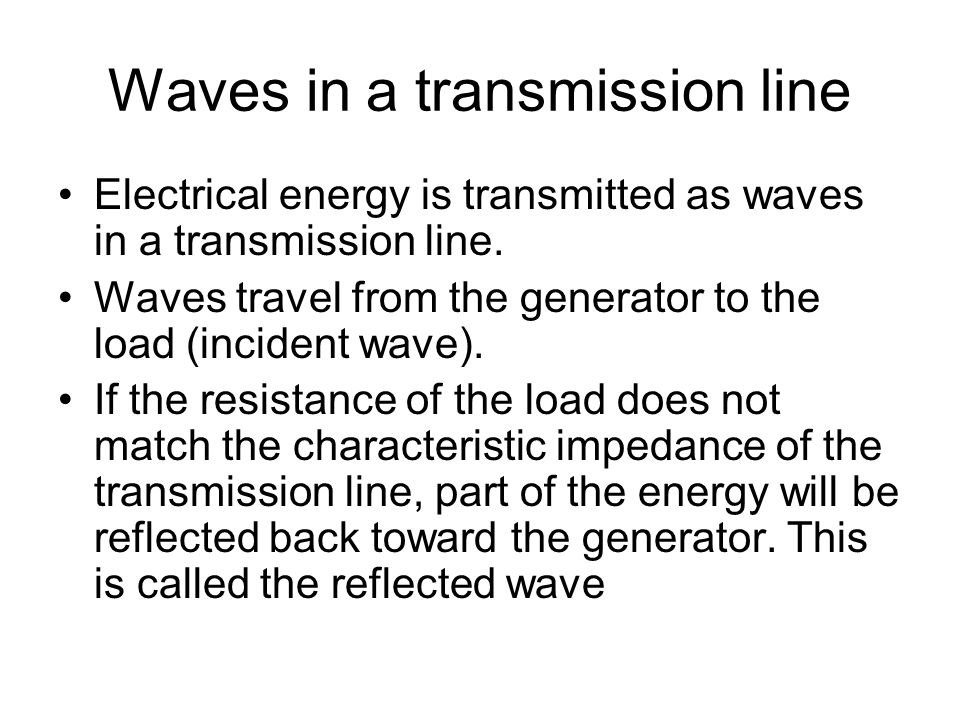

Waves in a transmission line Electrical energy is transmitted as waves in a transmission line. Waves travel from the generator to the load (incident wave). If the resistance of the load does not match the characteristic impedance of the transmission line, part of the energy will be reflected back toward the generator. This is called the reflected wave

5
Reflection coefficient The ratio of the amplitude of the incident wave (v + ) and the amplitude the reflective wave (v - ) is called the reflection coefficient:

6

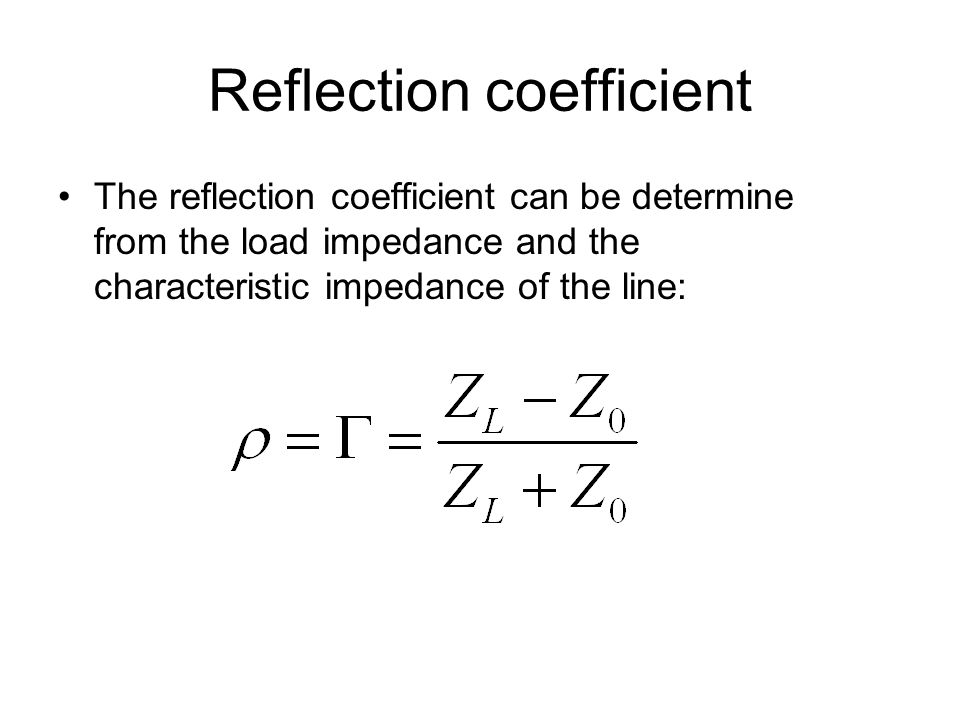

Reflection coefficient The reflection coefficient can be determine from the load impedance and the characteristic impedance of the line:

7

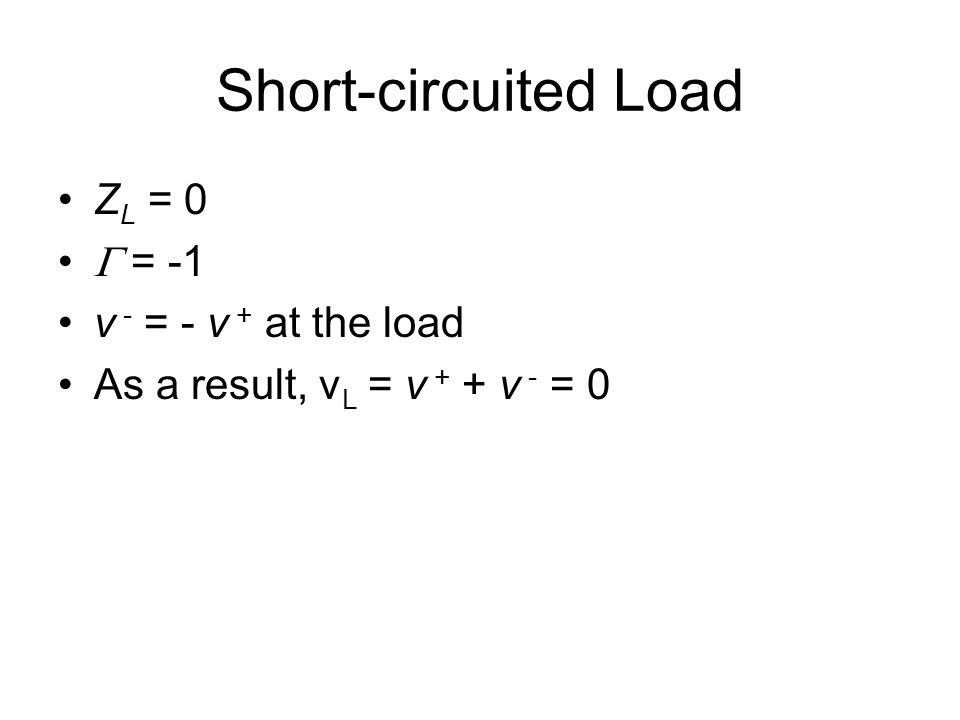

Short-circuited Load Z L = 0 = -1 v - = - v + at the load As a result, v L = v + + v - = 0

8

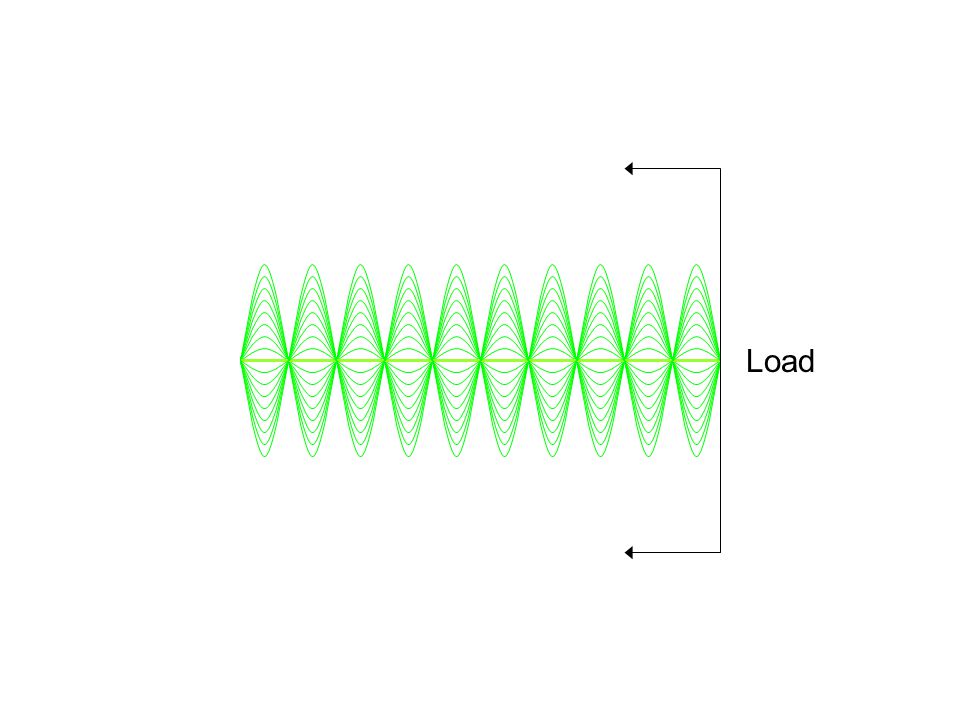

Load

9

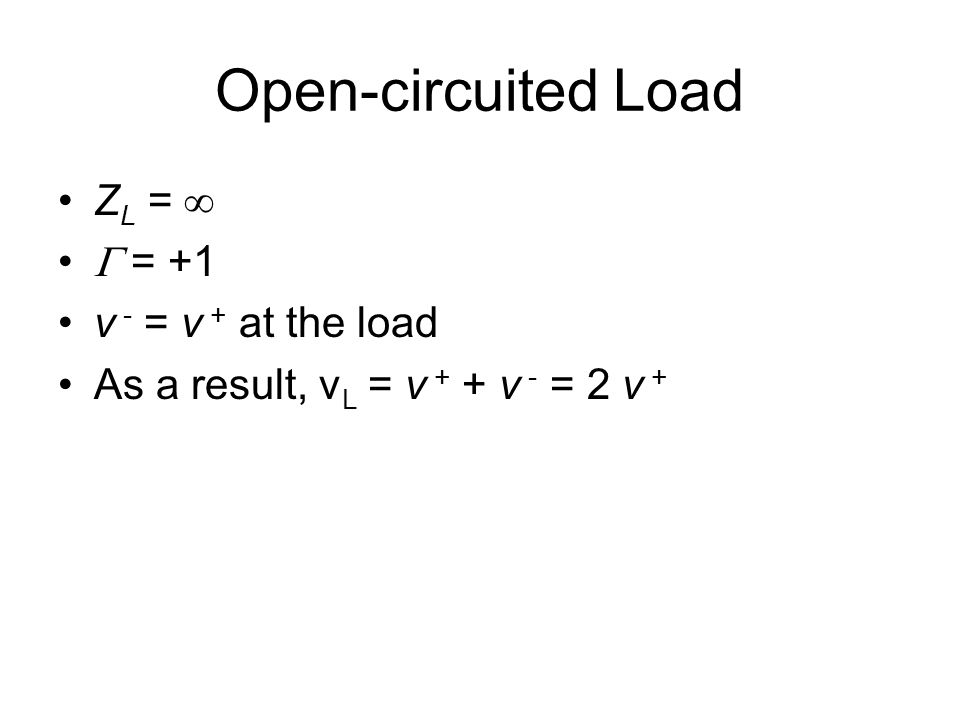

Open-circuited Load Z L = = +1 v - = v + at the load As a result, v L = v + + v - = 2 v +

10
Load

11

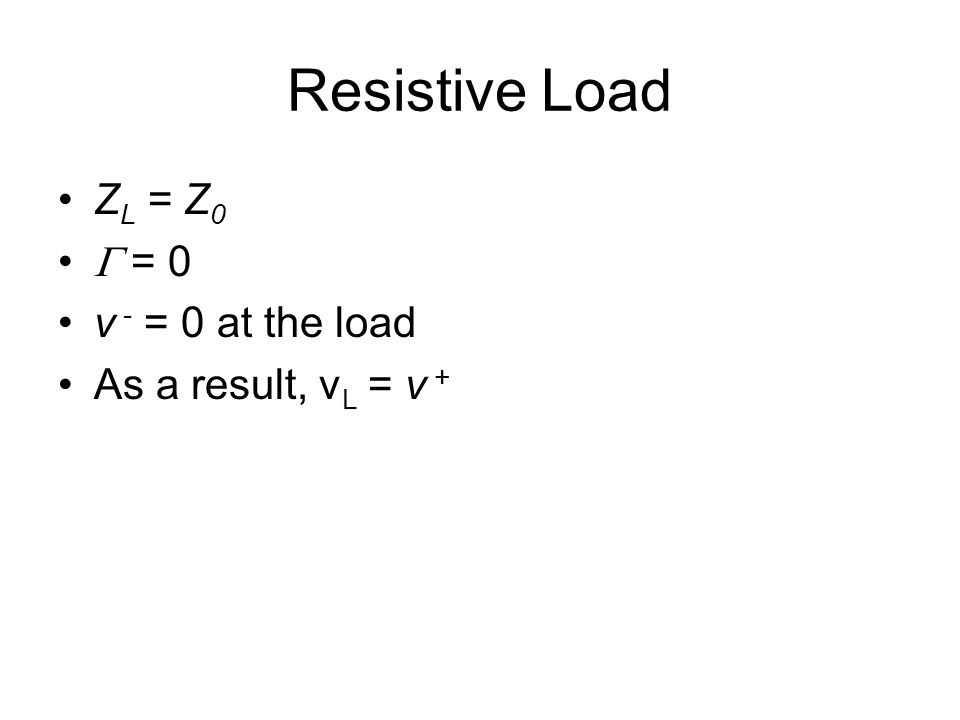

Resistive Load Z L = Z 0 = 0 v - = 0 at the load As a result, v L = v +

12
Traveling Waves Load

13
Resistive Load Z L = 0.5 Z 0 = - 1/3 v - = -0.333 v + at the load As a result, v L = v + + v - = 0.667 v +

14
Composite Waves Load

15

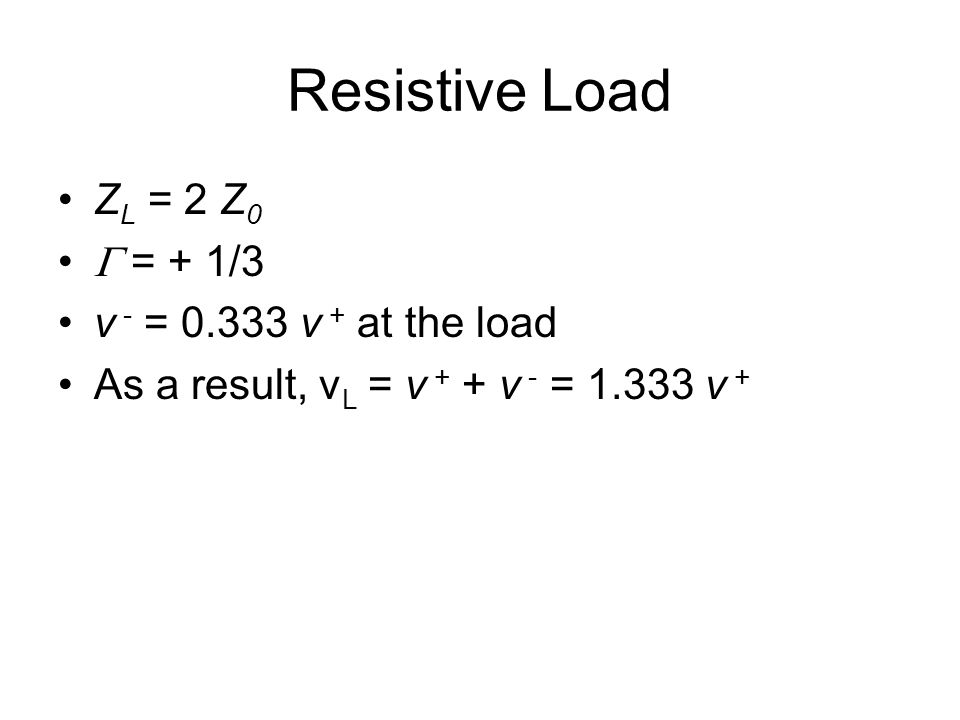

Resistive Load Z L = 2 Z 0 = + 1/3 v - = 0.333 v + at the load As a result, v L = v + + v - = 1.333 v +

16
Composite Waves Load

17

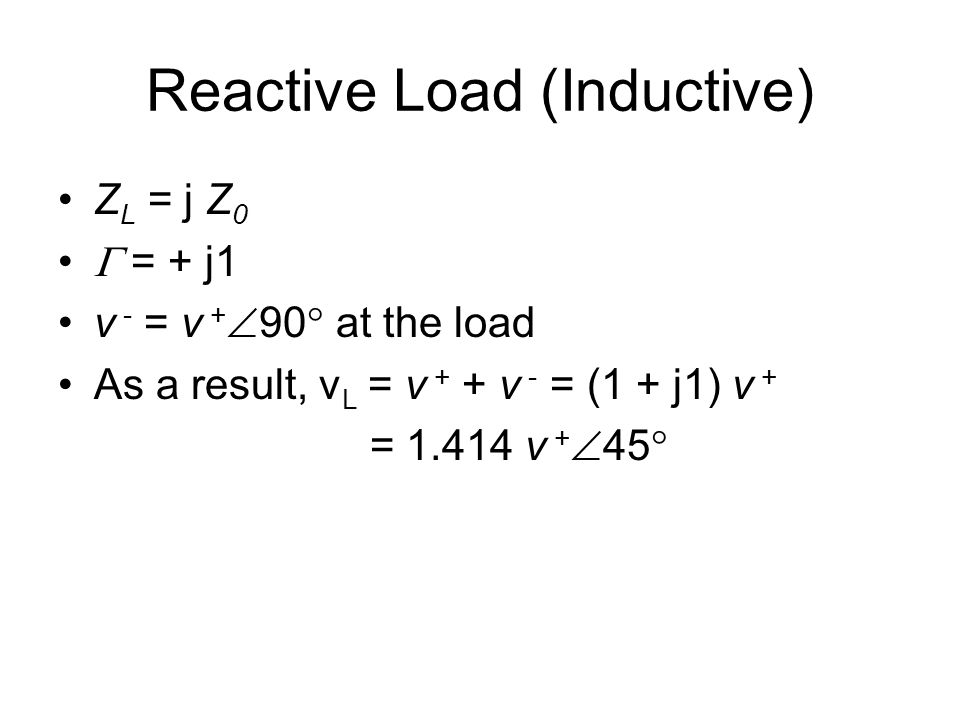

Reactive Load (Inductive) Z L = j Z 0 = + j1 v - = v + 90 at the load As a result, v L = v + + v - = (1 + j1) v + = 1.414 v + 45

18
Composite Waves Load

19

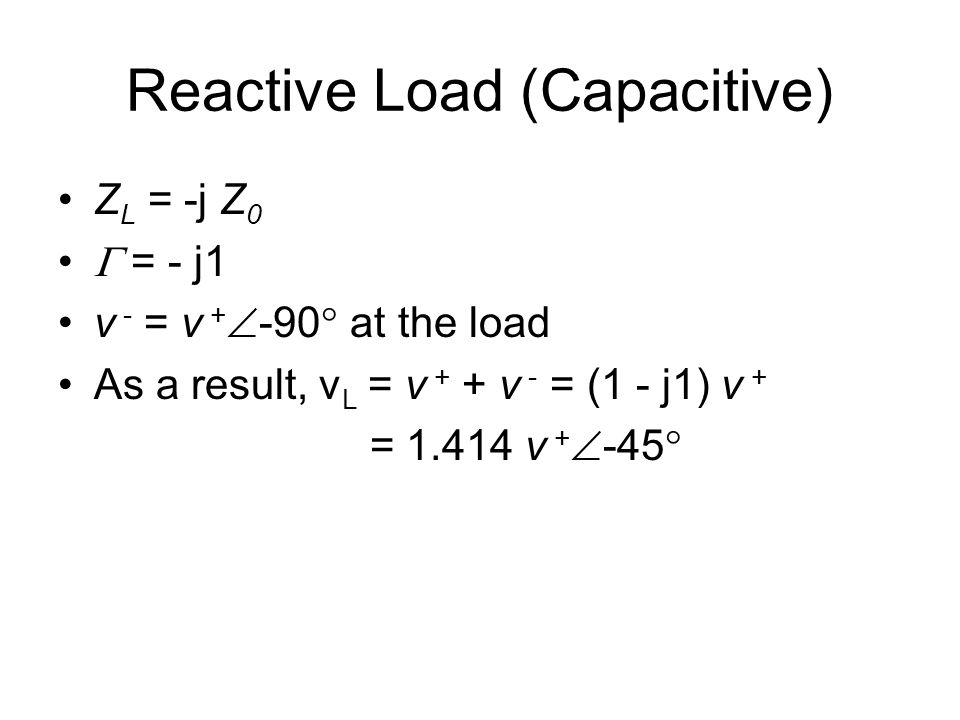

Reactive Load (Capacitive) Z L = -j Z 0 = - j1 v - = v + -90 at the load As a result, v L = v + + v - = (1 - j1) v + = 1.414 v + -45

20
Composite Waves Load

21
Smith Chart Transmission Line Calculator

22

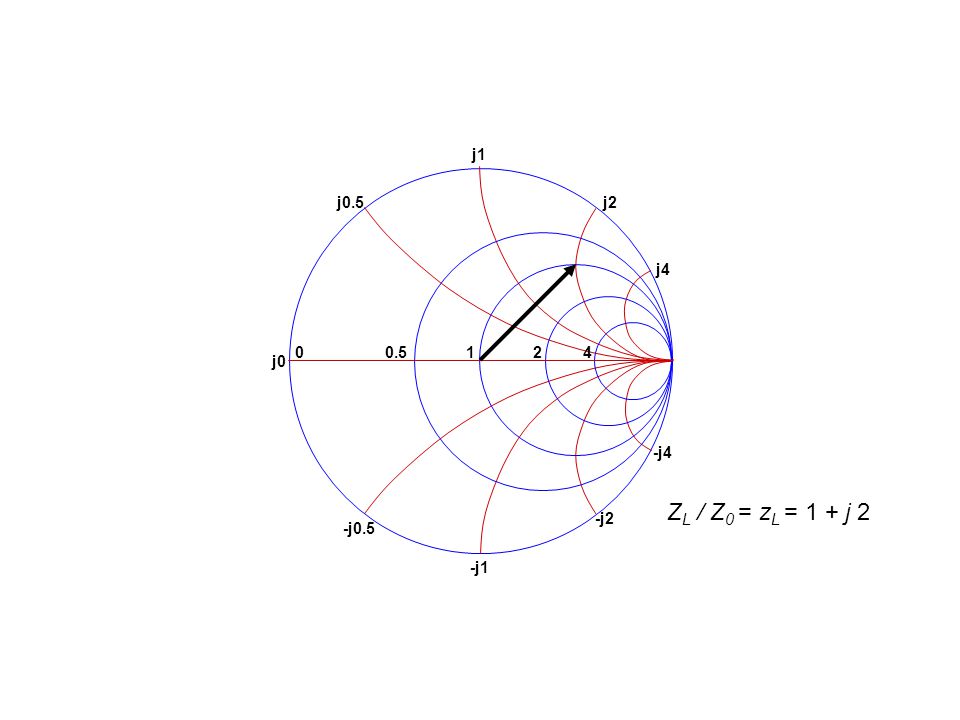

-j2 -j4 -j1 -j0.5 j0.5 j1 j4 j2 j0 0 0.5 1 2 4 Z L / Z 0 = z L = 1 + j 2

23

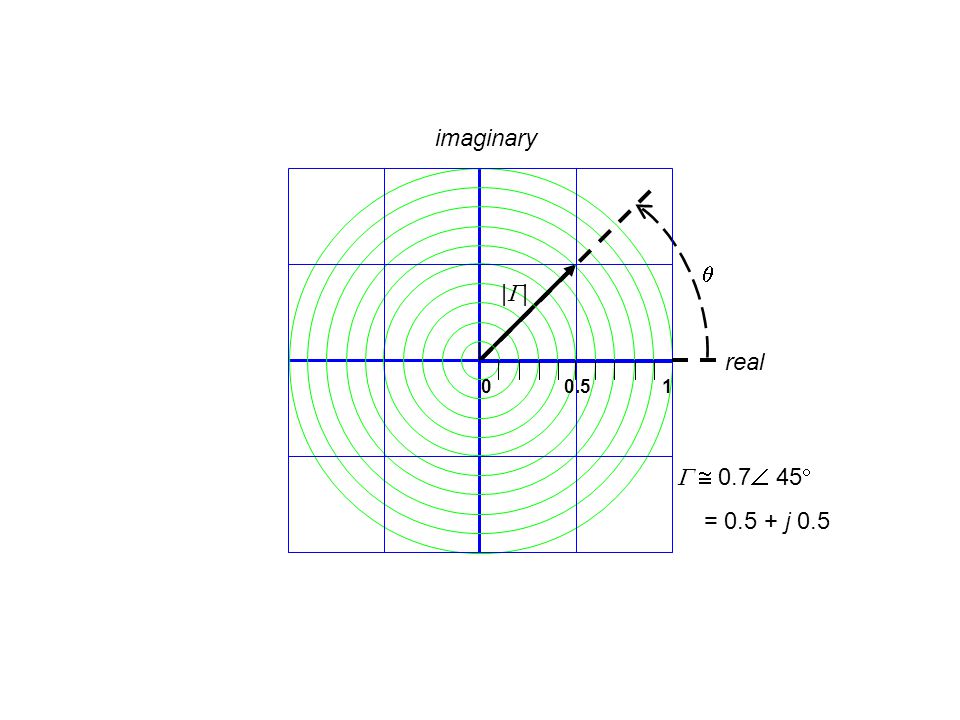

0 0.5 1 0.7 45 = 0.5 + j 0.5 real imaginary ||||

24

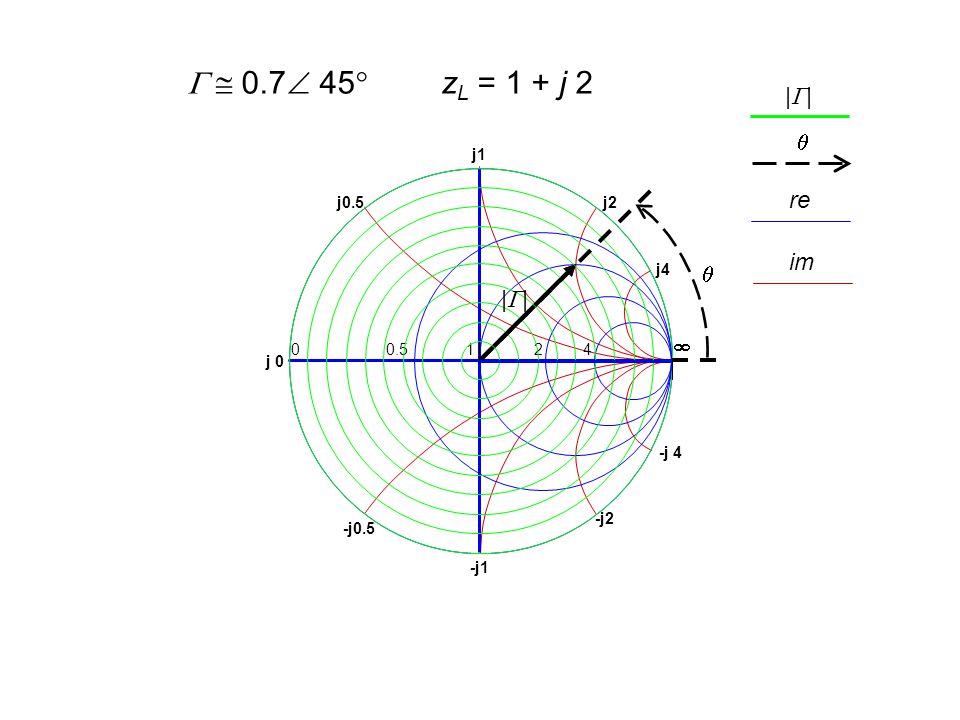

-j2 -j 4 -j1 -j0.5 j0.5 j1 j4 j2 j 0 0 0.5 1 2 4 z L = 1 + j 2 0.7 45 |||| |||| re im

25
-j2 -j4 -j1 -j0.5 j0.5 j1 j4 j2 j0 0 0.5 1 2 4 z L = 1 + j 2 0.7 45 45 0 135 90 180 225 270 315

26

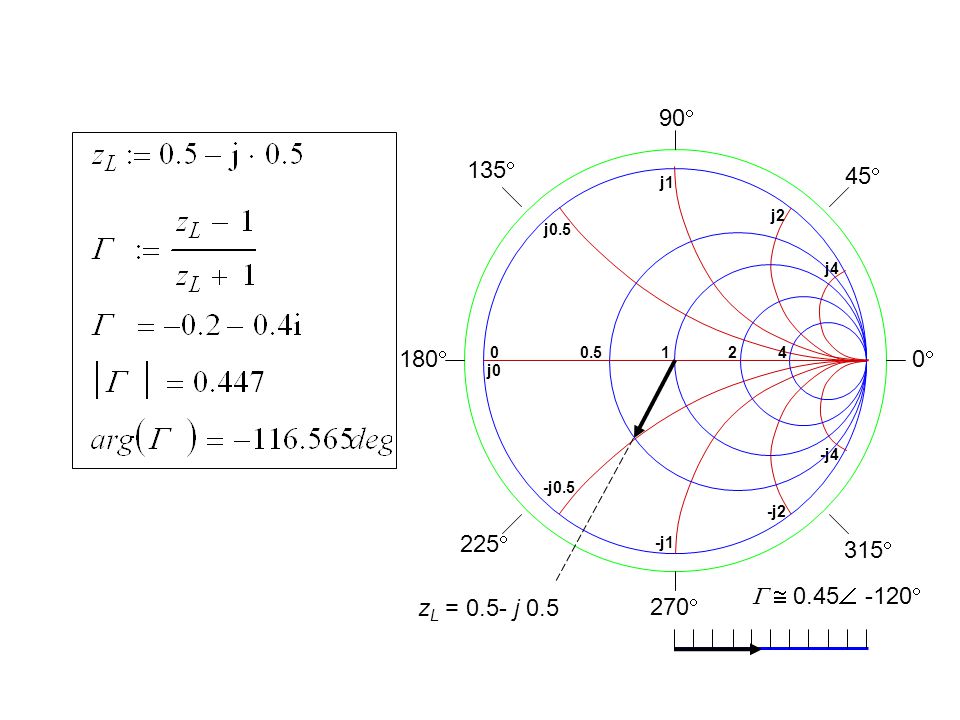

-j2 -j4 -j1 -j0.5 j0.5 j1 j4 j2 j0 0 0.5 1 2 4 z L = 0.5- j 0.5 0.45 -120 45 0 135 90 180 225 270 315

27
| | 0 0.5 1 -j2 -j4 -j1 -j0.5 j0.5 j1 j4 j2 j0 0 0.5 1 2 4 45 0 135 90 180 225 270 315 D C B E A F G
