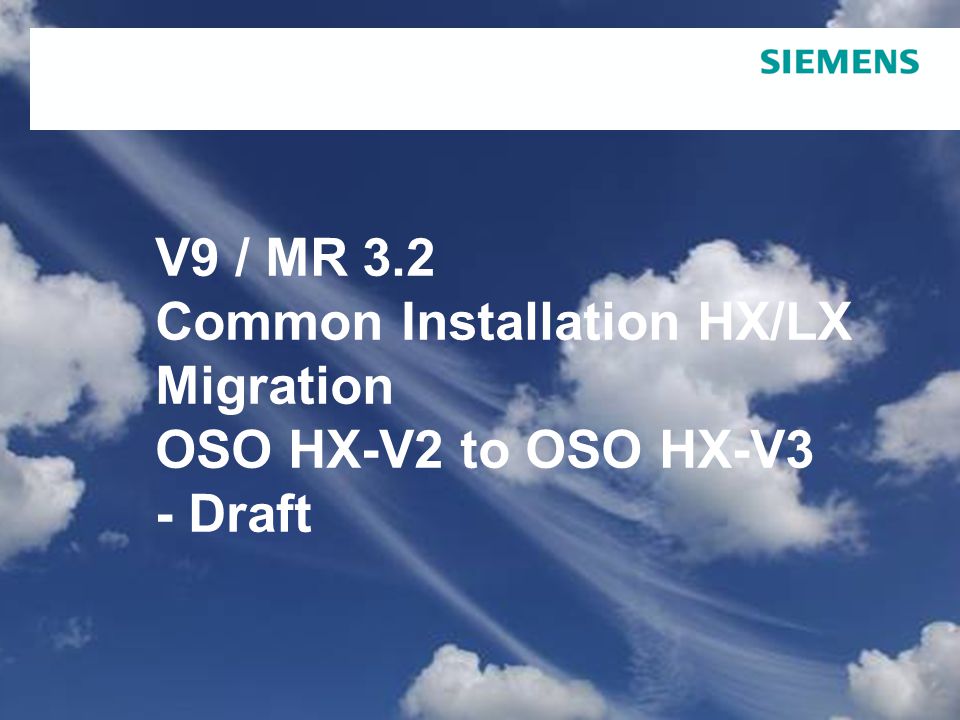

1. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG Start V9 / MR 3.2 Common Installation HX/LX Migration OSO HX-V2 to OSO HX-V3 - Draft

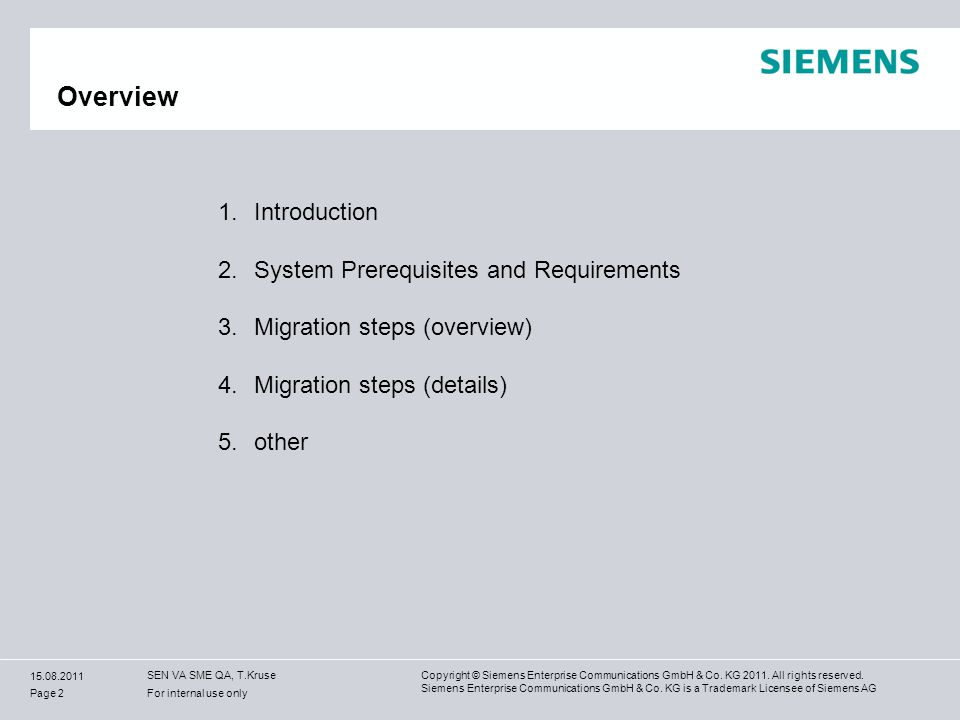

2. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 2 15.08.2011 Overview 1.Introduction 2.System Prerequisites and Requirements 3.Migration steps (overview) 4.Migration steps (details) 5.other

3. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 3 15.08.2011 Introduction Today sepreate APS Lines for OSO HX and LX different OS (SLES 10 / 11) OSO HX is a subset of OSO LX New: - one software for installation HX/LX - one software for update HX/LX/MX - RL 5 graphical interface for installation HX - SLES-RPM packages are no longer distributed on OSO DVD - automatic installation (without further actions) - one status tool for HX/MX/LX - SW-raid - USB-device as installation medium

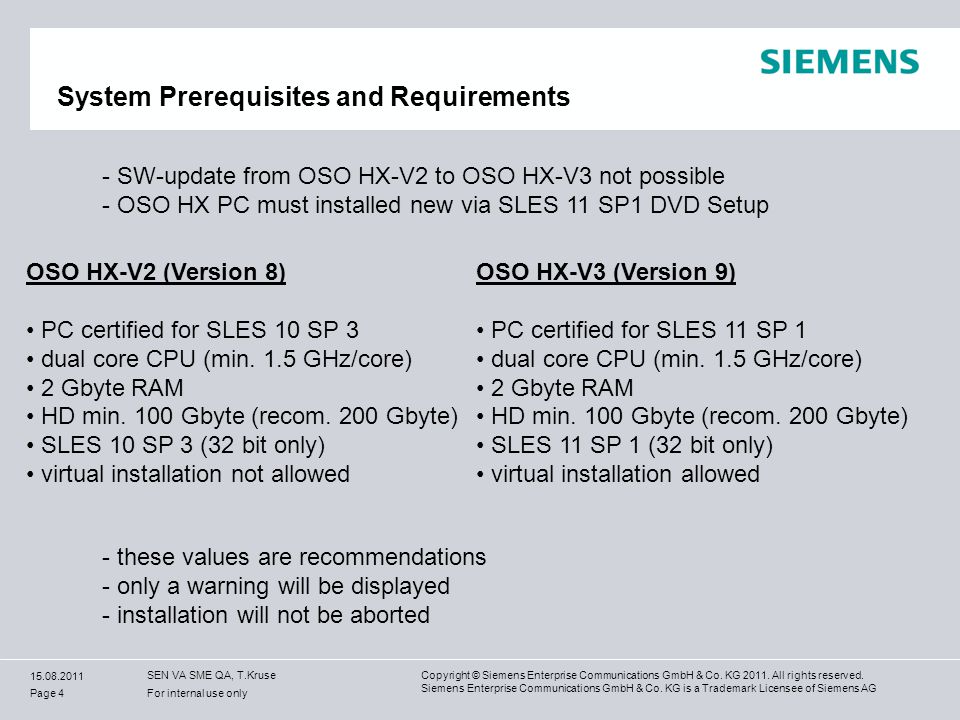

4. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 4 15.08.2011 System Prerequisites and Requirements OSO HX-V2 (Version 8) PC certified for SLES 10 SP 3 dual core CPU (min. 1.5 GHz/core) 2 Gbyte RAM HD min. 100 Gbyte (recom. 200 Gbyte) SLES 10 SP 3 (32 bit only) virtual installation not allowed OSO HX-V3 (Version 9) PC certified for SLES 11 SP 1 dual core CPU (min. 1.5 GHz/core) 2 Gbyte RAM HD min. 100 Gbyte (recom. 200 Gbyte) SLES 11 SP 1 (32 bit only) virtual installation allowed - SW-update from OSO HX-V2 to OSO HX-V3 not possible - OSO HX PC must installed new via SLES 11 SP1 DVD Setup - these values ​​ are recommendations - only a warning will be displayed - installation will not be aborted

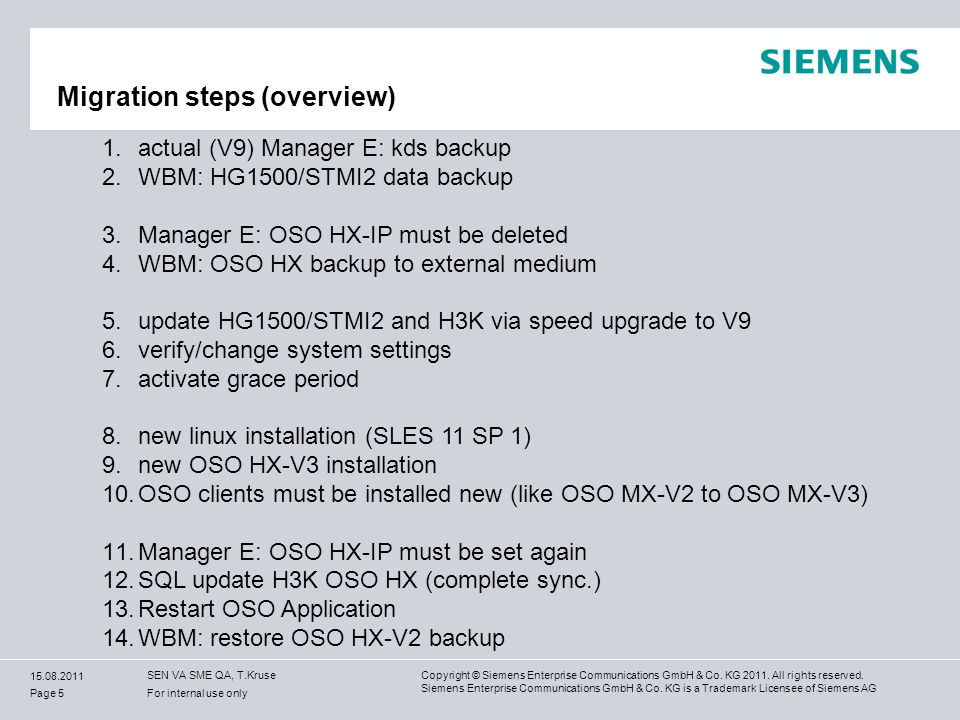

5. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 5 15.08.2011 Migration steps (overview) 1.actual (V9) Manager E: kds backup 2.WBM: HG1500/STMI2 data backup 3.Manager E: OSO HX-IP must be deleted 4.WBM: OSO HX backup to external medium 5.update HG1500/STMI2 and H3K via speed upgrade to V9 6.verify/change system settings 7.activate grace period 8.new linux installation (SLES 11 SP 1) 9.new OSO HX-V3 installation 10.OSO clients must be installed new (like OSO MX-V2 to OSO MX-V3) 11.Manager E: OSO HX-IP must be set again 12.SQL update H3K OSO HX (complete sync.) 13.Restart OSO Application 14.WBM: restore OSO HX-V2 backup

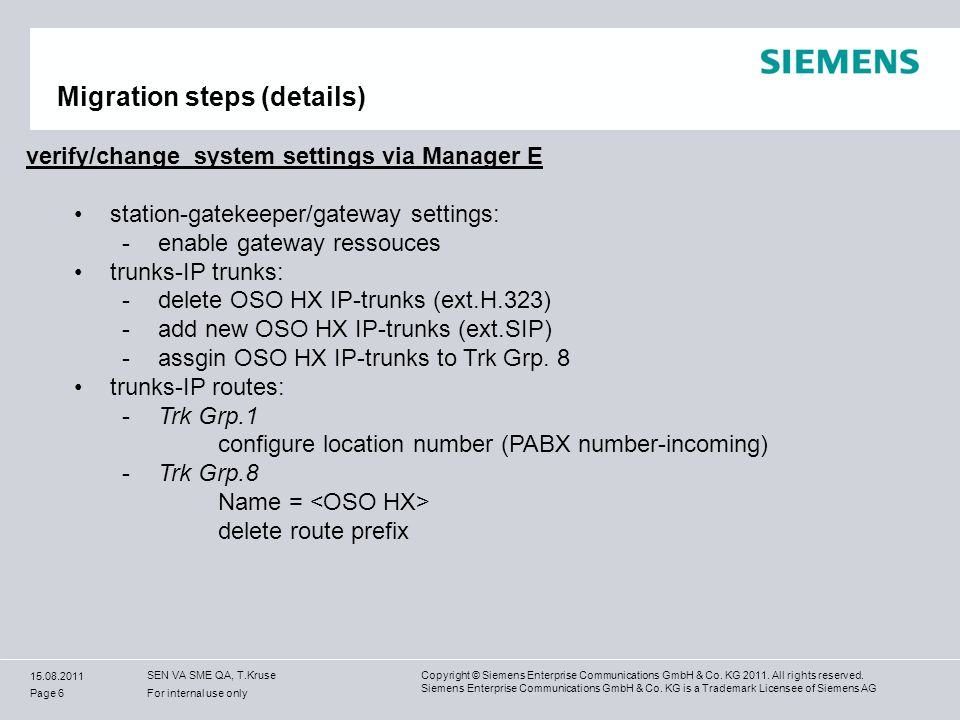

6. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 6 15.08.2011 Migration steps (details) verify/change system settings via Manager E station-gatekeeper/gateway settings: -enable gateway ressouces trunks-IP trunks: -delete OSO HX IP-trunks (ext.H.323) -add new OSO HX IP-trunks (ext.SIP) -assgin OSO HX IP-trunks to Trk Grp. 8 trunks-IP routes: -Trk Grp.1 configure location number (PABX number-incoming) -Trk Grp.8 Name = delete route prefix

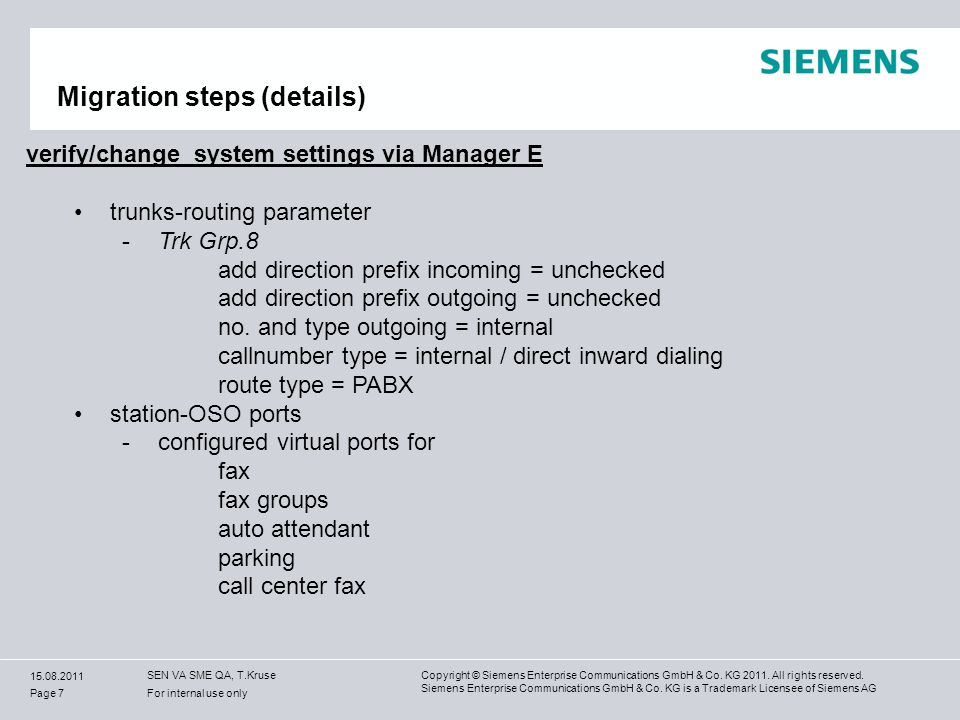

7. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 7 15.08.2011 Migration steps (details) verify/change system settings via Manager E trunks-routing parameter -Trk Grp.8 add direction prefix incoming = unchecked add direction prefix outgoing = unchecked no. and type outgoing = internal callnumber type = internal / direct inward dialing route type = PABX station-OSO ports -configured virtual ports for fax fax groups auto attendant parking call center fax

8. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 8 15.08.2011 Migration steps (details) verify/change system settings via Manager E network-basic settings -OSO IP address will be configured later, if the verify is done ext.H.323 configuration must be deleted ext.SIP operate with external SIP registrar = checked enviroment = H4K/OSO HX IP-address = port = 5060 system parameter-system settings -OSO access callnumber route = callnumber =

9. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 9 15.08.2011 Migration steps (details) verify/change system settings via Manager E system parameter-system settings -flags E.164 numbering scheme = checked -plus product flags CSTA application active = checked openscape contact center = unchecked direction prefix send via CSTA = checked enhaced CSTA-cause handling = checked CSTA via CSP = checked blind transfer = unchecked mulap monitoring = checked networked CTI domain = unchecked -CSTA park monitor Callnumber = <>

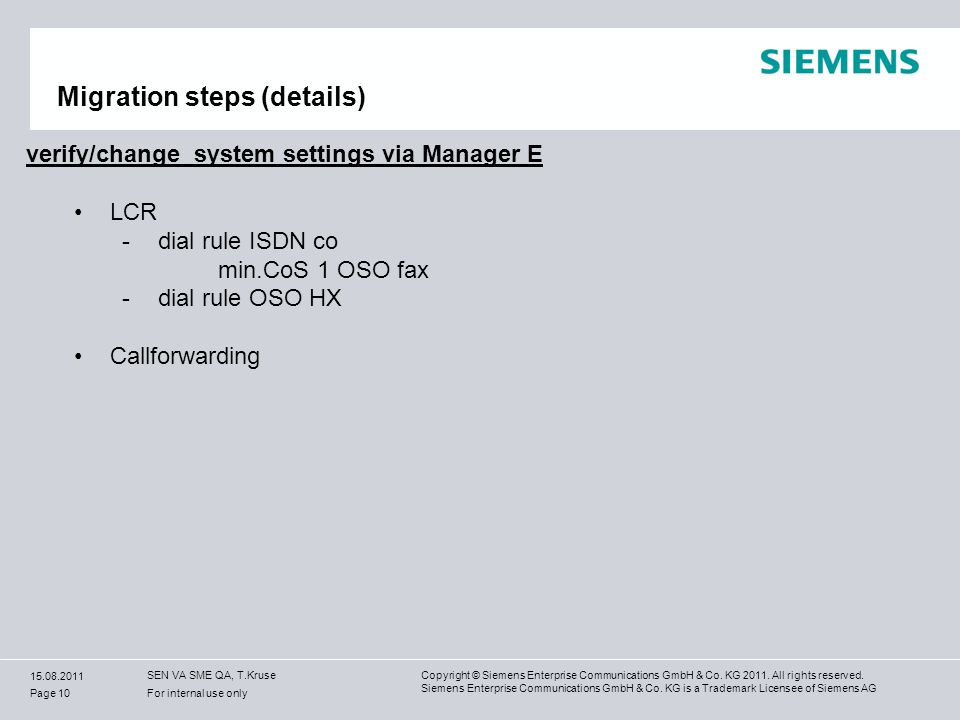

10. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 10 15.08.2011 Migration steps (details) verify/change system settings via Manager E LCR -dial rule ISDN co min.CoS 1 OSO fax -dial rule OSO HX Callforwarding

11. Copyright © Siemens Enterprise Communications GmbH & Co. KG 2011. All rights reserved. Siemens Enterprise Communications GmbH & Co. KG is a Trademark Licensee of Siemens AG SEN VA SME QA, T.Kruse For internal use only Page 11 15.08.2011 other OSO status tool OsoObserver.jar -service center-download -minimize to taskbar (led function) -supported HX/LX/MX -function: led IP-address sw version used HD space in % (home partition) system type os version Used RAM in % If configured SW-raid
