PKCS #9 v2.0 Magnus Nyström RSA Laboratories PKCS Workshop, 1999.

Similar presentations


Presentation on theme: "PKCS #9 v2.0 Magnus Nyström RSA Laboratories PKCS Workshop, 1999."— Presentation transcript:

1 PKCS #9 v2.0 Magnus Nyström RSA Laboratories PKCS Workshop, 1999

2 Background Historically, PKCS #9 has specified selected attributes They have been used in PKCS #6, PKCS #7 and PKCS #10 With increasing popularity for LDAP-accessible directories, more attributes (and a supporting object class) were needed

3 Overview of differences from v1: Two new (auxiliary) object classes: –pkcsEntity –naturalPerson New attributes for use with these classes (e.g. “pseudonym”) Some other new attributes: –Random nonce –Sequence number

4 Overview of differences, cont.. Some older attributes have been updated (DirectoryString, internationalization) “Compilable” ASN.1 module included Collected undocumented OIDs and attributes defined elsewhere BNF Schema summary included for easier integration in LDAP services

5 The pkcsEntity object class pkcsEntity OBJECT-CLASS ::= { SUBCLASS OF {top} KIND auxiliary MAY CONTAIN {PKCS9AttributeSet} ID pkcs-9-oc-pkcsEntity }

6 The PKCS9AttributeSet PKCS9AttributeSet ATTRIBUTE ::= { userPKCS12 | pKCS15Token | encryptedPrivateKeyInfo, …}

7 The userPKCS12Attribute Intended to store PKCS #12 PFX PDUs in directories Multi-valued

8 The pKCS15Token attribute Intended for storage of PKCS #15 soft-tokens in directories (once such tokens are defined in PKCS #15…) Multi-valued

9 The encryptedPrivateKeyInfo attribute Intended for storage of simple encrypted private keys in directories Note: No (explicit) integrity check! Multi-valued

10 The naturalPerson object class naturalPerson OBJECT-CLASS ::= { SUBCLASS OF {top} KIND auxiliary MAY CONTAIN {NaturalPersonAttributeSet} ID pkcs-9-oc-naturalPerson }

11 The NaturalPersonAttributeSet NaturalPersonAttributeSet ATTRIBUTE ::= { Address | unstructuredName | unstructuredAddress | pseudonym | dateOfBirth | placeOfBirth | gender | countryOfCitizenship | countryOfResidence, …}

12 The pseudonym attribute Useful attribute in distinguished names for anonymous (at least in some sense) certificates Intended to be used in IETF’s qualified certificates Multi-valued (?)

13 The dateOfBirth attribute Specifies the date of birth Intended to be used in IETF’s qualified certificates Single-valued...

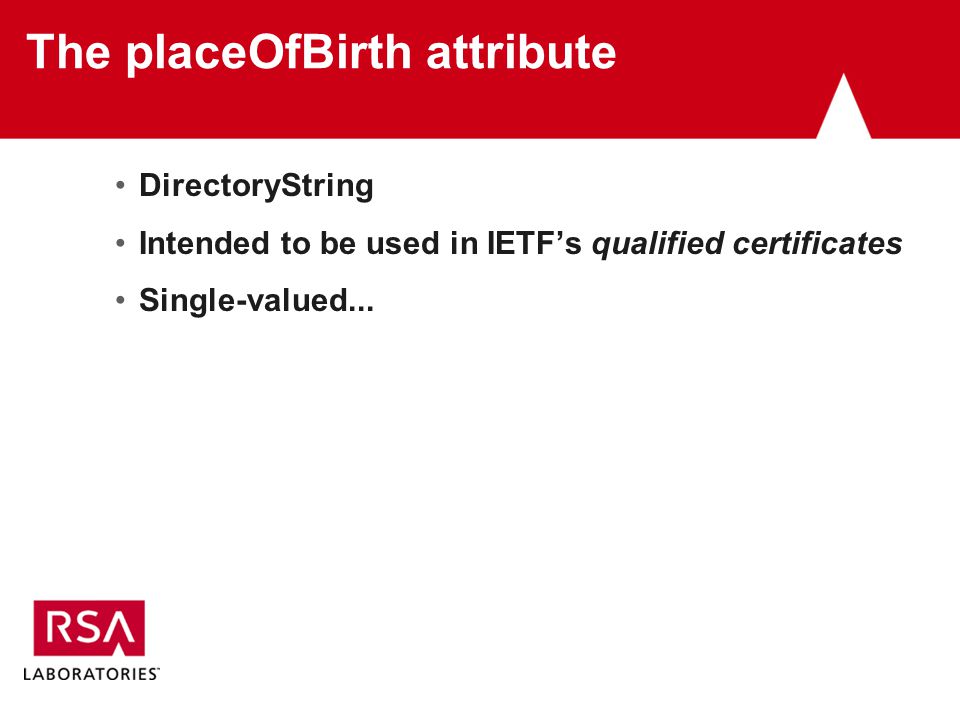

14 The placeOfBirth attribute DirectoryString Intended to be used in IETF’s qualified certificates Single-valued...

15 The gender attribute Printable string (‘M’ or ‘F’) Intended to be used in IETF’s qualified certificates Single-valued

16 The countryOfCitizenship and countryOfResidence attributes Printable strings (ISO 3166) Intended to be used in IETF’s qualified certificates Multi-valued

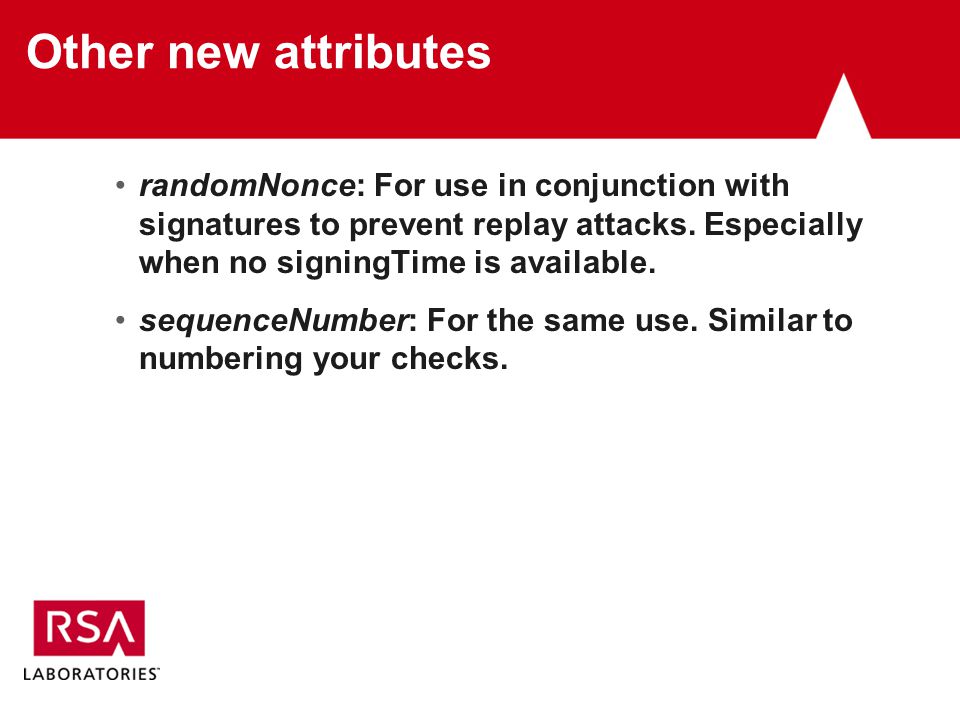

17 Other new attributes randomNonce: For use in conjunction with signatures to prevent replay attacks. Especially when no signingTime is available. sequenceNumber: For the same use. Similar to numbering your checks.

18 Modified (extended) old attributes unstructuredName, unstructuredAddress, challengePassword, signingDescription: Syntax now extended to allow internationalization (implementations SHOULD use old syntax if possible) signingTime: updated to be in accordance with S/MIME

19 Time schedule If you have any comments - please give them on or before October 25th. Expect third draft early in November, for a short (2 w) review period (unless major changes) v2.0 to be published in late November /early December 1999.

20 Comments & Suggestions Please send comments to or
