1 Log Stacker technical information

2 PROCESS MACHINE  Operation often 7 days a week, 20 h/day => 600 h /month

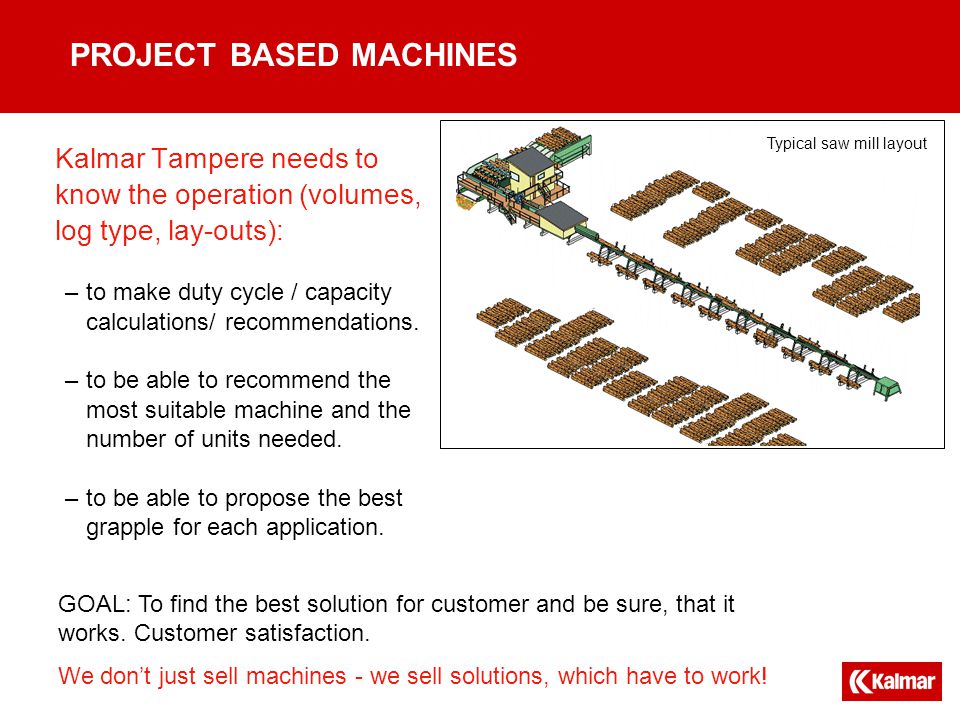

3 PROJECT BASED MACHINES Kalmar Tampere needs to know the operation (volumes, log type, lay-outs): –to make duty cycle / capacity calculations/ recommendations. –to be able to recommend the most suitable machine and the number of units needed. –to be able to propose the best grapple for each application. GOAL: To find the best solution for customer and be sure, that it works. Customer satisfaction. We don’t just sell machines - we sell solutions, which have to work! Typical saw mill layout

4 Technical information of machines

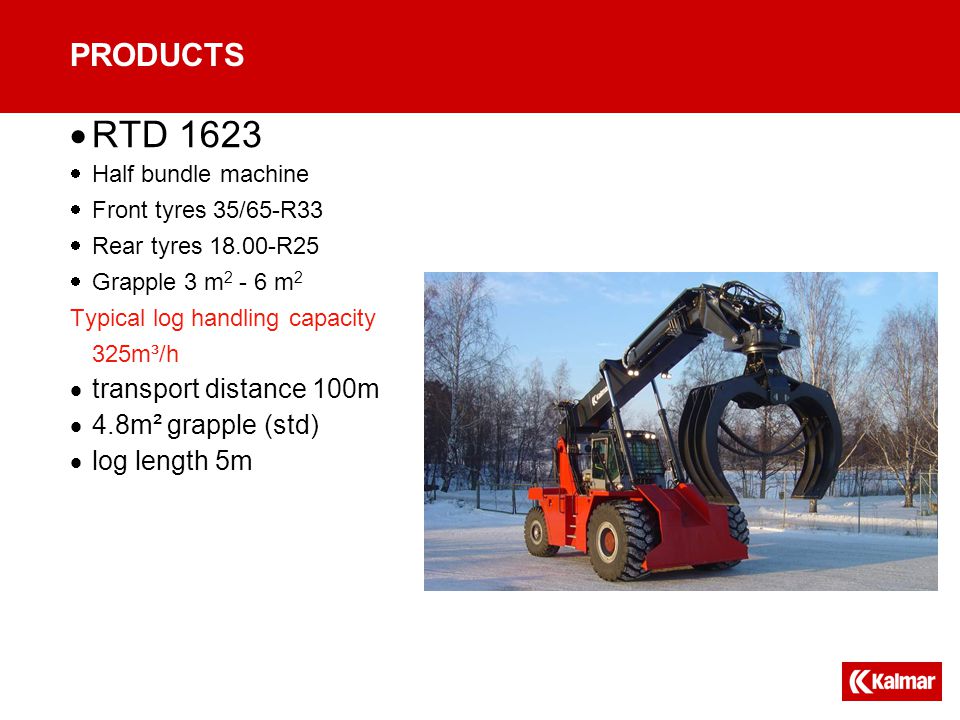

5 PRODUCTS  RTD 1623  Half bundle machine  Front tyres 35/65-R33  Rear tyres R25  Grapple 3 m m 2 Typical log handling capacity 325m³/h  transport distance 100m  4.8m² grapple (std)  log length 5m

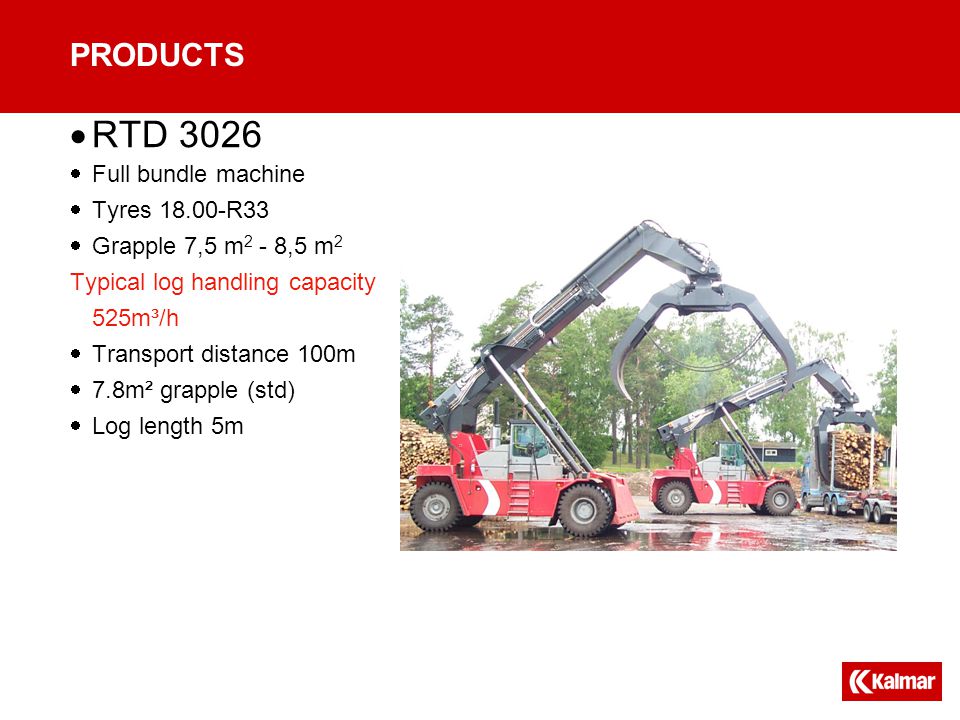

6 PRODUCTS  RTD 3026  Full bundle machine  Tyres R33  Grapple 7,5 m 2 - 8,5 m 2 Typical log handling capacity 525m³/h  Transport distance 100m  7.8m² grapple (std)  Log length 5m

7 PRODUCTS RTD 2626  Basicly same as RTD3026  Tyres R25  Grapple 6m 2 - 7,5 m 2 Typical log handling capacity 440m³/h  Transport distance 100m  6.5m² grapple (std)  Log length 5m

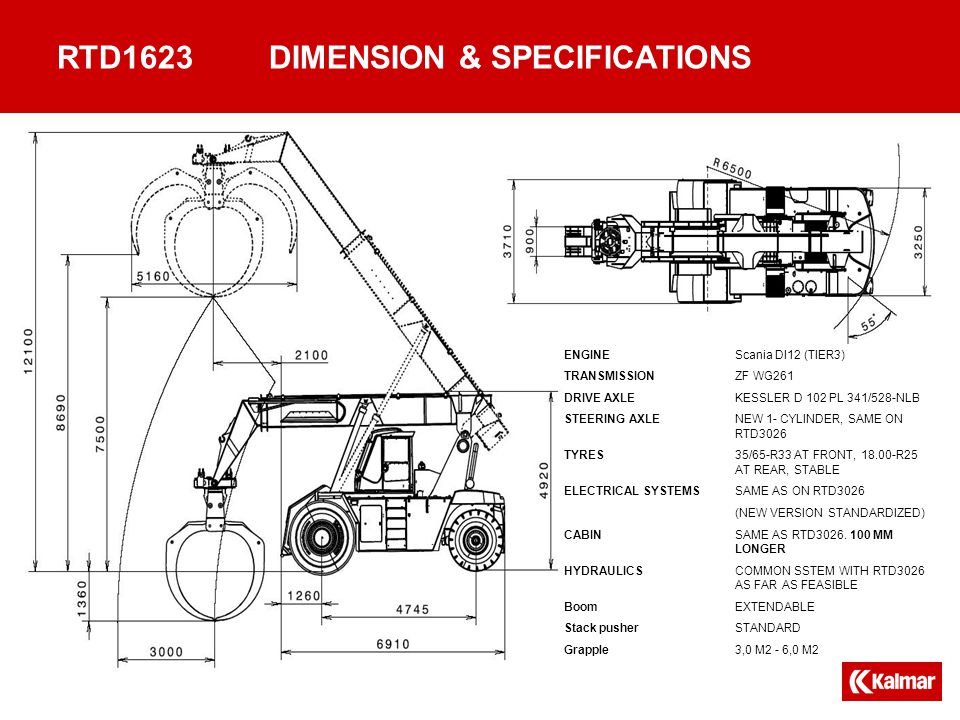

8 RTD1623 DIMENSION & SPECIFICATIONS ENGINEScania DI12 (TIER3) TRANSMISSIONZF WG261 DRIVE AXLEKESSLER D 102 PL 341/528-NLB STEERING AXLENEW 1- CYLINDER, SAME ON RTD3026 TYRES35/65-R33 AT FRONT, R25 AT REAR, STABLE ELECTRICAL SYSTEMSSAME AS ON RTD3026 (NEW VERSION STANDARDIZED) CABINSAME AS RTD MM LONGER HYDRAULICSCOMMON SSTEM WITH RTD3026 AS FAR AS FEASIBLE BoomEXTENDABLE Stack pusherSTANDARD Grapple3,0 M2 - 6,0 M2

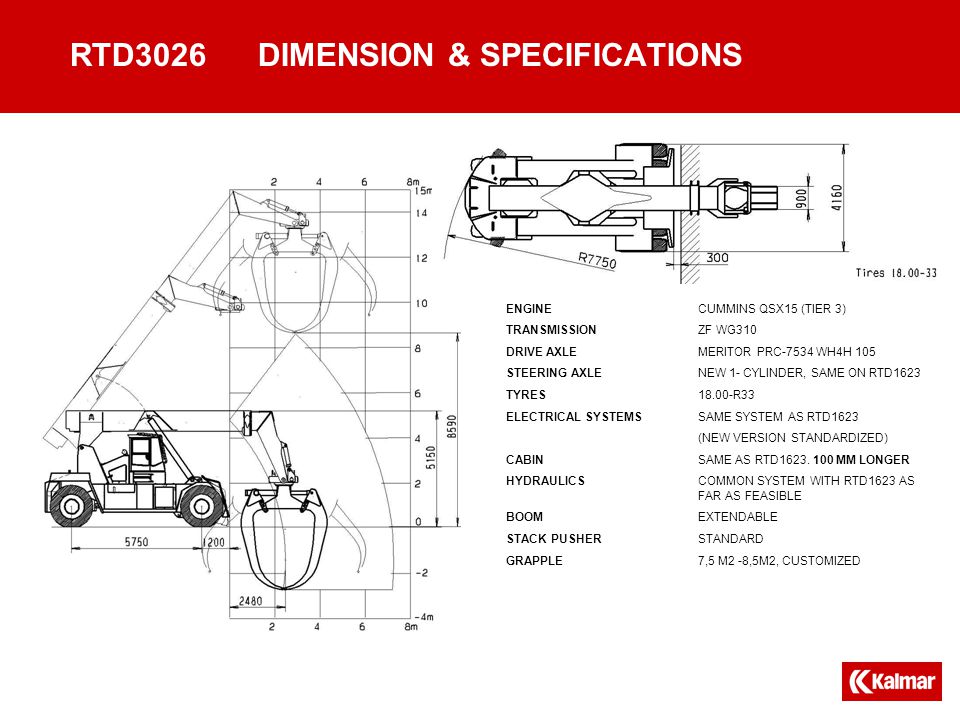

9 ENGINECUMMINS QSX15 (TIER 3) TRANSMISSIONZF WG310 DRIVE AXLEMERITOR PRC-7534 WH4H 105 STEERING AXLENEW 1- CYLINDER, SAME ON RTD1623 TYRES18.00-R33 ELECTRICAL SYSTEMSSAME SYSTEM AS RTD1623 (NEW VERSION STANDARDIZED) CABINSAME AS RTD MM LONGER HYDRAULICSCOMMON SYSTEM WITH RTD1623 AS FAR AS FEASIBLE BOOMEXTENDABLE STACK PUSHERSTANDARD GRAPPLE7,5 M2 -8,5M2, CUSTOMIZED RTD3026 DIMENSION & SPECIFICATIONS

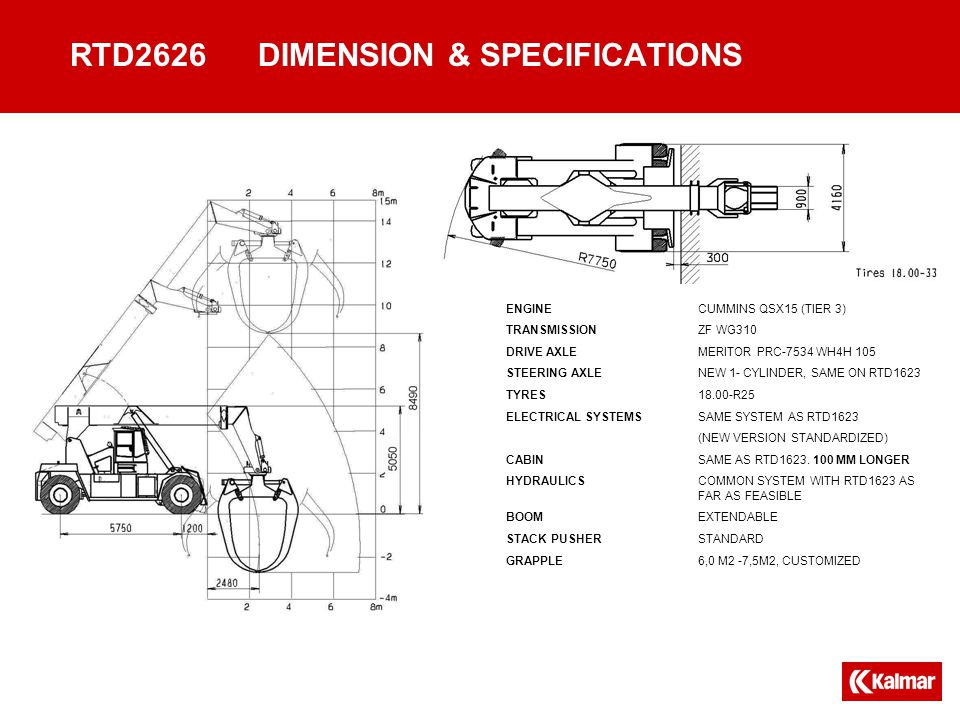

10 ENGINECUMMINS QSX15 (TIER 3) TRANSMISSIONZF WG310 DRIVE AXLEMERITOR PRC-7534 WH4H 105 STEERING AXLENEW 1- CYLINDER, SAME ON RTD1623 TYRES18.00-R25 ELECTRICAL SYSTEMSSAME SYSTEM AS RTD1623 (NEW VERSION STANDARDIZED) CABINSAME AS RTD MM LONGER HYDRAULICSCOMMON SYSTEM WITH RTD1623 AS FAR AS FEASIBLE BOOMEXTENDABLE STACK PUSHERSTANDARD GRAPPLE6,0 M2 -7,5M2, CUSTOMIZED RTD2626 DIMENSION & SPECIFICATIONS

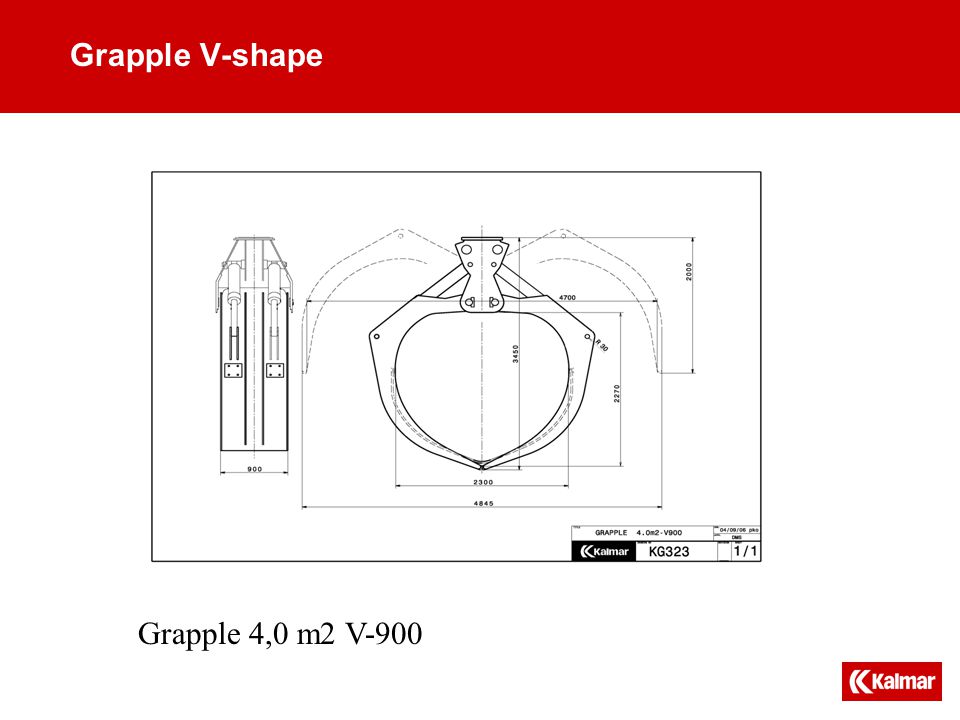

11 Grapple V-shape Grapple 4,0 m2 V-900

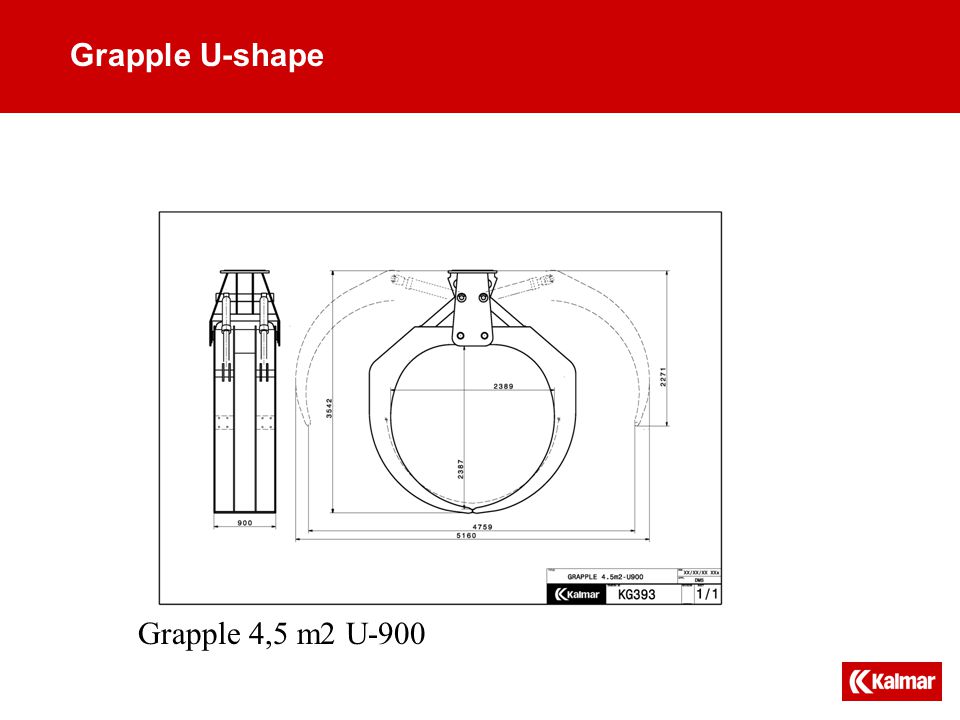

12 Grapple U-shape Grapple 4,5 m2 U-900

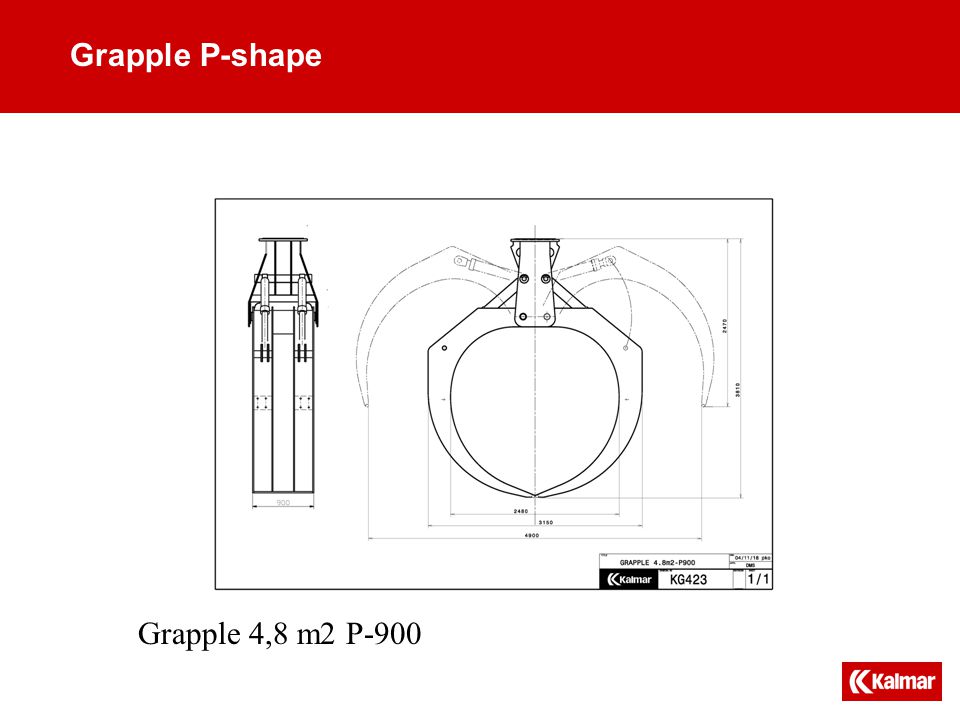

13 Grapple P-shape Grapple 4,8 m2 P-900
