“Enerpak” Units » Propeller Type Fan » Size 100 – 400 MBH » 80% Thermal Efficiency » Natural or LP Gas » 10 Year Warranty on Heat Exchanger, Burners,

Similar presentations


Presentation on theme: "“Enerpak” Units » Propeller Type Fan » Size 100 – 400 MBH » 80% Thermal Efficiency » Natural or LP Gas » 10 Year Warranty on Heat Exchanger, Burners,"— Presentation transcript:

1

2

3

4 “Enerpak” Units

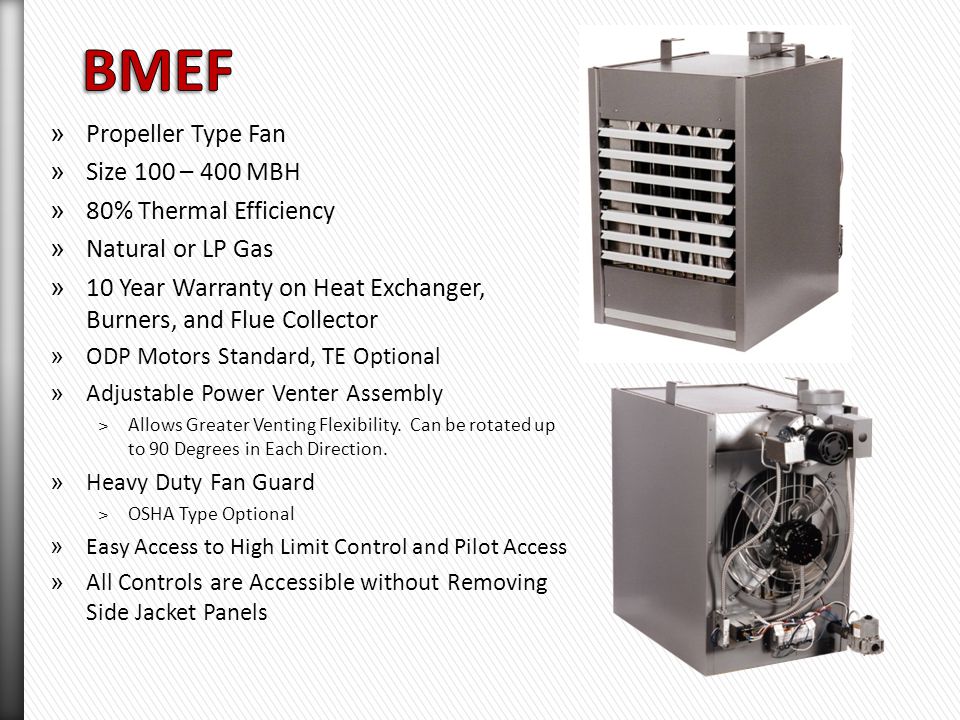

5 » Propeller Type Fan » Size 100 – 400 MBH » 80% Thermal Efficiency » Natural or LP Gas » 10 Year Warranty on Heat Exchanger, Burners, and Flue Collector » ODP Motors Standard, TE Optional » Adjustable Power Venter Assembly ˃Allows Greater Venting Flexibility. Can be rotated up to 90 Degrees in Each Direction. » Heavy Duty Fan Guard ˃OSHA Type Optional » Easy Access to High Limit Control and Pilot Access » All Controls are Accessible without Removing Side Jacket Panels

6 » Same Components as the BMEF Except the Propeller Assembly is Replaced with a Centrifugal Blower Assembly » Size MBH » 80% Thermal Efficiency » Belt Guard is Standard » Double Blowers with Single Shaft Utilized on Units Size MBH » 4 Point Suspension » Blower Allows Unit to Handle Greater Static » Lower Operating Noise

7 Separated Combustion Units

8 » Designed for Dusty, Dirty, Mildly Corrosive Environments and Areas of High Humidity and Slight Negative Pressures » Separates the Unit’s Combustion Process from the Environment in Which the Unit is Installed by Taking Combustion Air from Outside the Contaminated Space » Sizes Ranging from MBH » 80% Thermal Efficiency » 1 Year Warranty on Heat Exchangers, Burners and Flue Collectors » Power Venter Assembly Draws in the Outside Combustion Air and Discharges Flue Gas » Hinged Bottom Door Allows for Complete Access to Burners and Controls

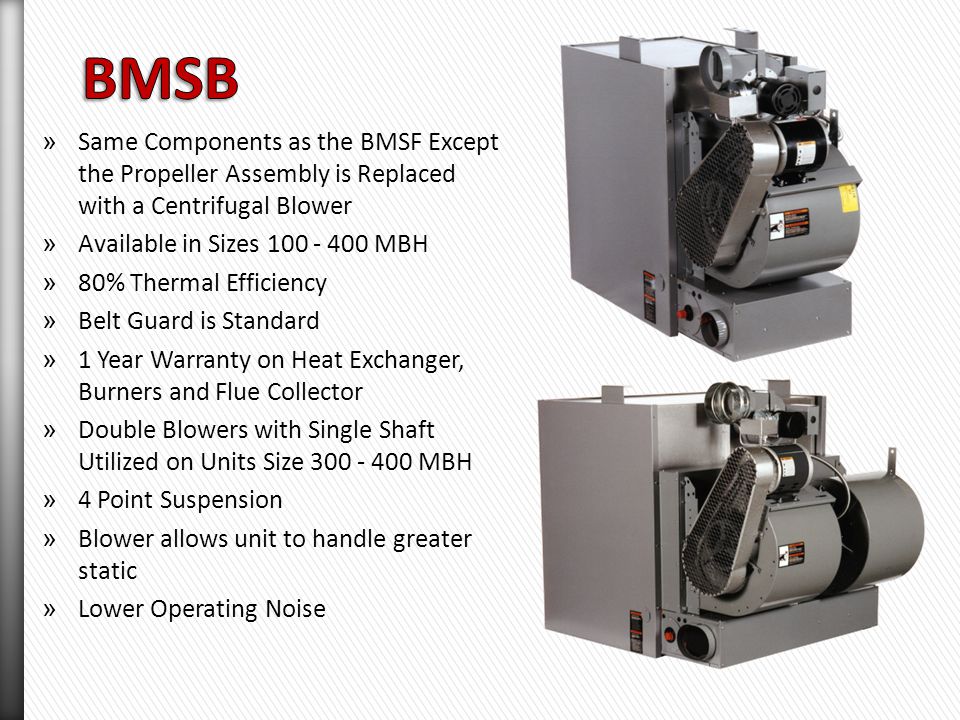

9 » Same Components as the BMSF Except the Propeller Assembly is Replaced with a Centrifugal Blower » Available in Sizes MBH » 80% Thermal Efficiency » Belt Guard is Standard » 1 Year Warranty on Heat Exchanger, Burners and Flue Collector » Double Blowers with Single Shaft Utilized on Units Size MBH » 4 Point Suspension » Blower allows unit to handle greater static » Lower Operating Noise

10 Indoor Duct Furnaces

11 » Side Access Burner Drawer » Sizes Ranging from MBH » ° F Temperature Rise » 80% Thermal Efficiency » 409 Stainless Steel Heat Exchanger Recommended when Installed Downstream of Cooling Coil » High Limit Accessible Through Side of Unit. Located Below 4x4 Junction Box » 1 Year Warranty on Heat Exchanger, Burners, and Draft Diverter

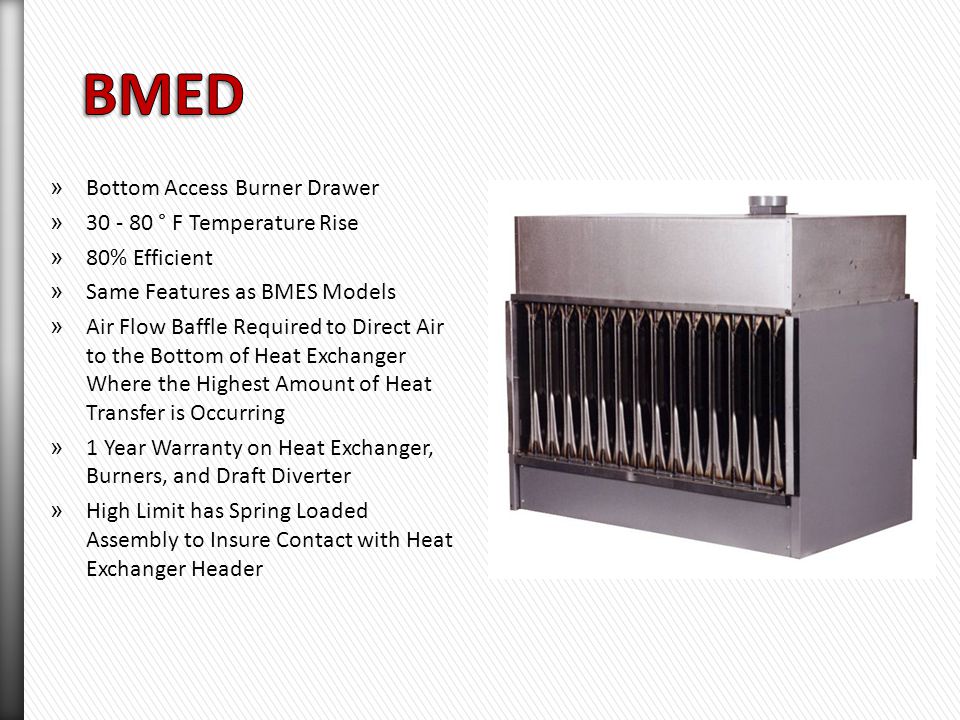

12 » Bottom Access Burner Drawer » ° F Temperature Rise » 80% Efficient » Same Features as BMES Models » Air Flow Baffle Required to Direct Air to the Bottom of Heat Exchanger Where the Highest Amount of Heat Transfer is Occurring » 1 Year Warranty on Heat Exchanger, Burners, and Draft Diverter » High Limit has Spring Loaded Assembly to Insure Contact with Heat Exchanger Header

13 » Same Components as the BMSF Except the Supply Air Fan is Removed from the Unit » Sizes Ranging from 100 to 400 MBH » ° F Temperature Rise » 80% Thermal Efficiency. » 1 Year Warranty on Heat Exchanger, Burners, and Flue Collectors » 4 Point Suspension » Bottom Access Only to Burner Drawer

14

15 » Designed to Operate on Number 1 & 2 Fuel Oils » Available in 8 Sizes Ranging from 70 to 560 MBH (.50 to 4.00 GPH) » Heavy Duty 18 Gauge Heat Exchanger » Energy Efficient Flame Retention Beckett ® Burner » Adjustable Discharge Louvers » Fan/Limit Control » Four Point Suspension » CAD Cell Burner Safeguard Control » 5 Year Prorated Warranty on Heat Exchanger, Burners, and Flue Collector

16

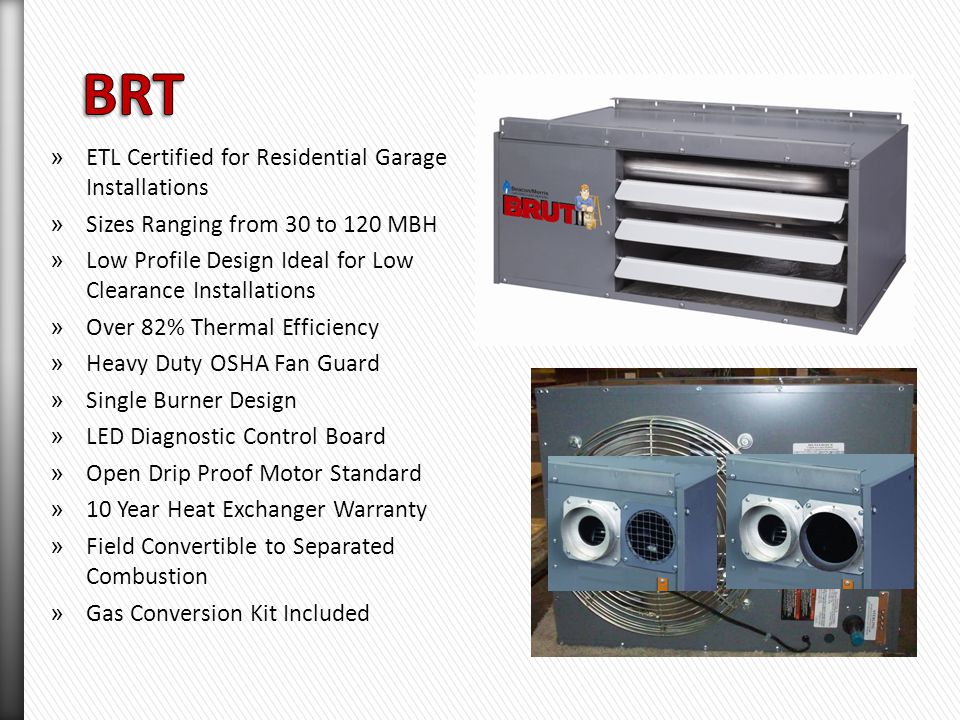

17 » ETL Certified for Residential Garage Installations » Sizes Ranging from 30 to 120 MBH » Low Profile Design Ideal for Low Clearance Installations » Over 82% Thermal Efficiency » Heavy Duty OSHA Fan Guard » Single Burner Design » LED Diagnostic Control Board » Open Drip Proof Motor Standard » 10 Year Heat Exchanger Warranty » Field Convertible to Separated Combustion » Gas Conversion Kit Included

18 BRT 90 BRT 105* BRT 120* BRT 45* BRT 60 BRT 30 BRT 75* AS-X7-4AS-X7-5 7 Natural Gas Unit Heaters 7 LP Unit Heaters 7 Separated Combustion Unit Heaters 21 SKU’s! *Recommended Stocking Models

19 » Sizes from 100 to 400 MBH » 83% Thermal efficiency » Interior Baffles Aid in Heat Transfer and Increase Outlet Velocity for Increased Throw Delivery » Isolated Control Panel for Service Convenience » Multiple In-Shot Burner Design » Direct Spark Ignition » Thermostat wires to an exterior terminal strip located under the control cabinet access door for ease of installation » Tubular Heat Exchanger for Long Life. » 10 Year Heat Exchanger Warranty

20 » Sizes from 100 to 400 MBH » 82+% Thermal efficiency » Belt Guard is standard » Blower Allows Unit to Handler Greater Static » Lower Operating Noise » Multiple In-Shot Burner Design » Direct Spark Ignition » Thermostat wires to an exterior terminal strip located under the control cabinet access door for ease of installation » Tubular Heat Exchanger for Long Life » 4 Point Suspension » 10 Year Heat Exchanger Warranty

21

22 » (19) Sizes MBH » OSHA Fan Guard Standard on 18 – 48 MBH » Residential Certified » Available for use with Steam or Hot Water » Coil Connections on Top and Bottom of Unit » Coil Constructed of Copper Tubes with Aluminum Fins » Factory Tested at 200 PSI » Totally Enclosed Fan Motor Standard, Explosion Proof Motor Optional » 1 Year Warranty

23 »(4) Sizes MBH »Hot Water Only »Coil Connections on Side of Unit »OSHA Fan Guard is Standard »Residential Certified »Coil Constructed of Copper Tubes with Aluminum Fins »Factory Tested at 200 PSI »Totally Enclosed Fan Motor Standard, Explosion Proof Motor Optional »1 Year Warranty

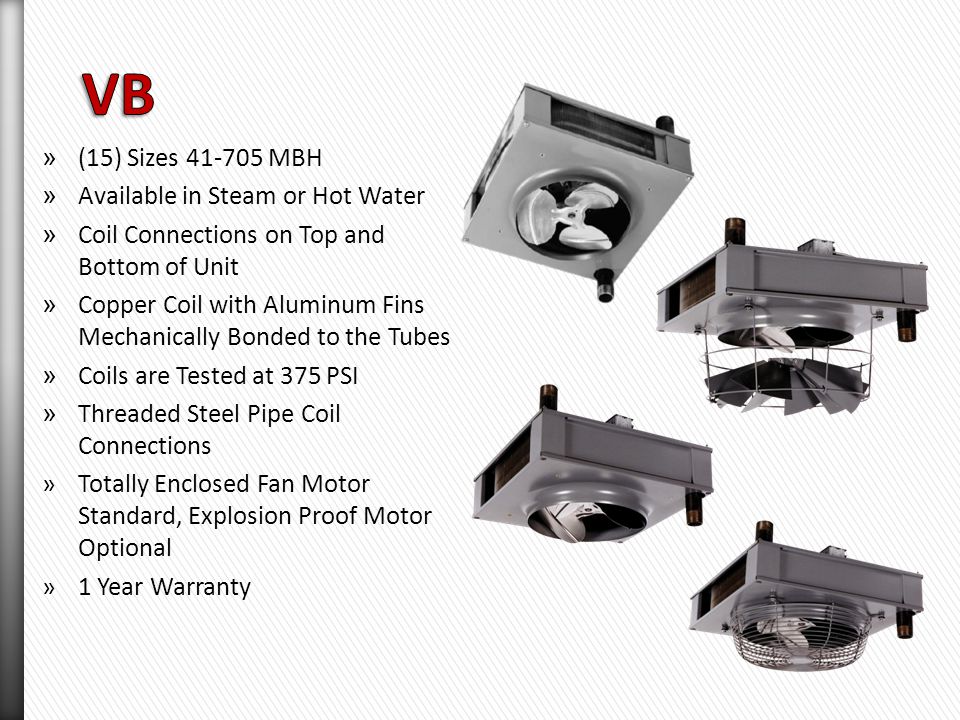

24 » (15) Sizes MBH » Available in Steam or Hot Water » Coil Connections on Top and Bottom of Unit » Copper Coil with Aluminum Fins Mechanically Bonded to the Tubes » Coils are Tested at 375 PSI » Threaded Steel Pipe Coil Connections »Totally Enclosed Fan Motor Standard, Explosion Proof Motor Optional »1 Year Warranty
