1
Waves – Topic 4 Chapters 26 Reflection & Refraction Reflection & Refraction Reflection & Refraction

2

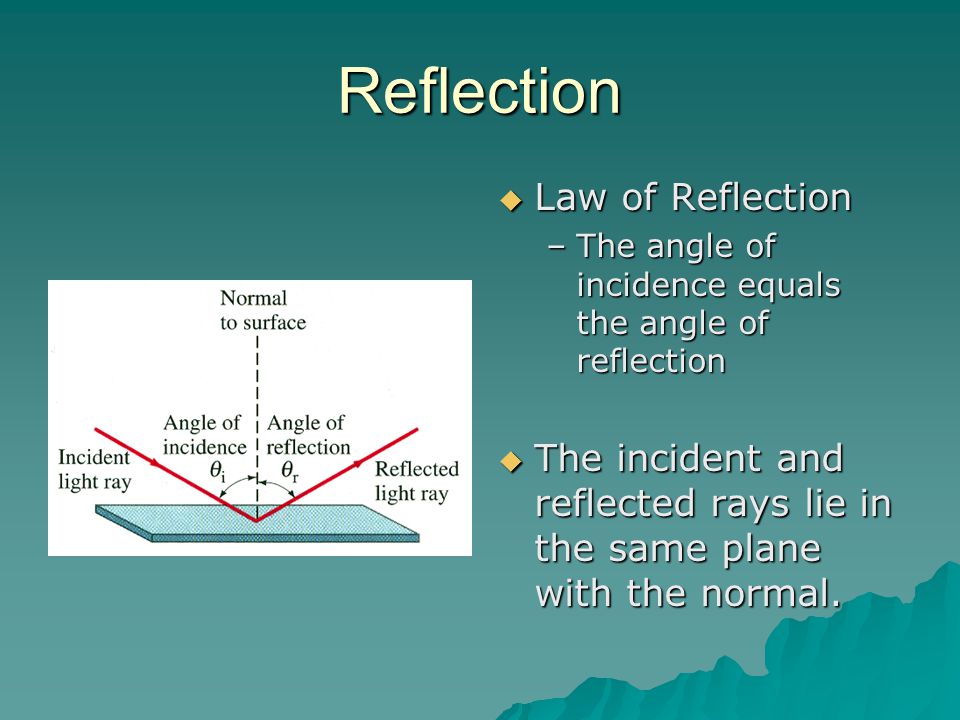

Reflection Law of Reflection –The angle of incidence equals the angle of reflection The incident and reflected rays lie in the same plane with the normal.

3
Image position Image position You think in straight lines! The image is located behind the mirror.

4

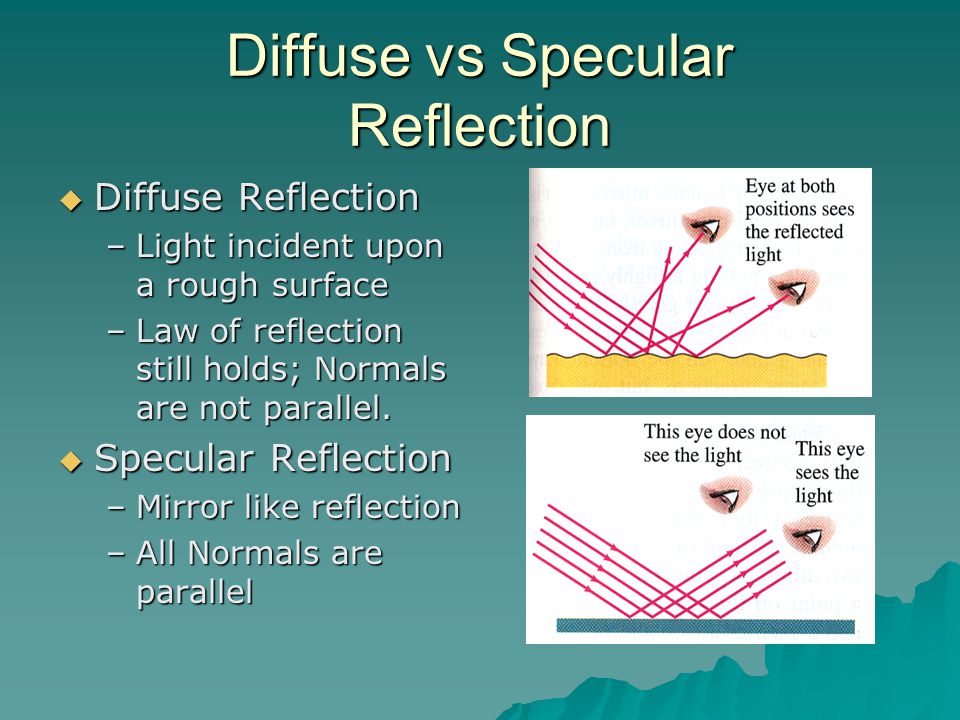

Diffuse vs Specular Reflection Diffuse Reflection –Light incident upon a rough surface –Law of reflection still holds; Normals are not parallel. Specular Reflection –Mirror like reflection –All Normals are parallel

5

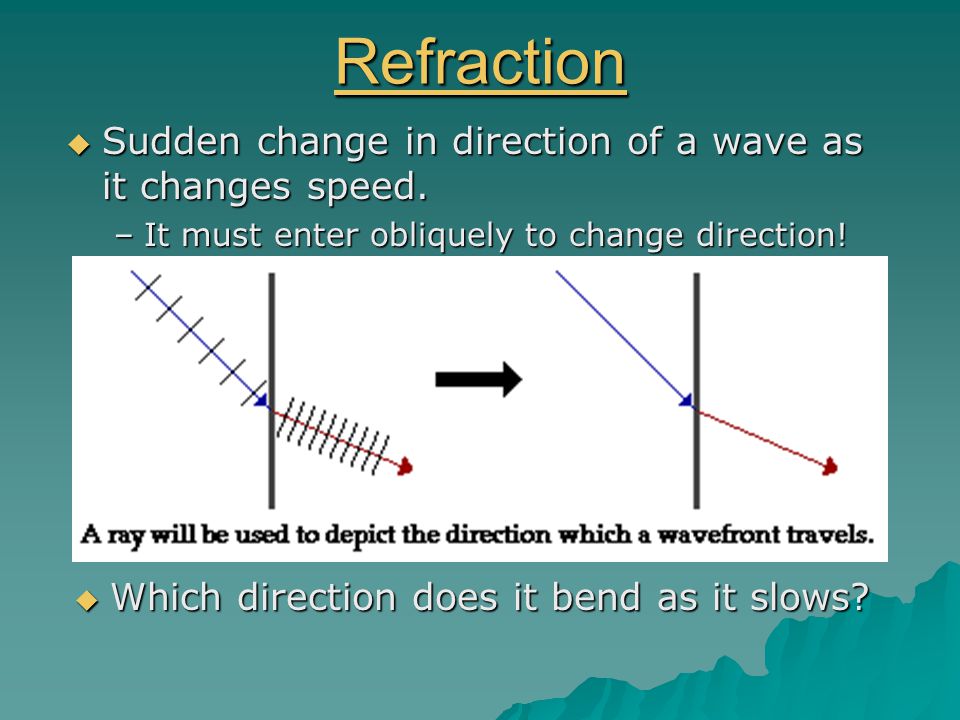

Refraction Sudden change in direction of a wave as it changes speed. –It must enter obliquely to change direction! Which direction does it bend as it slows?

6
Refraction In both cases the speed of the wave has decreased. This is indicated by the decrease in wavelength!

7
Refraction In which medium does light travel faster? (glass rod appears bent)

8

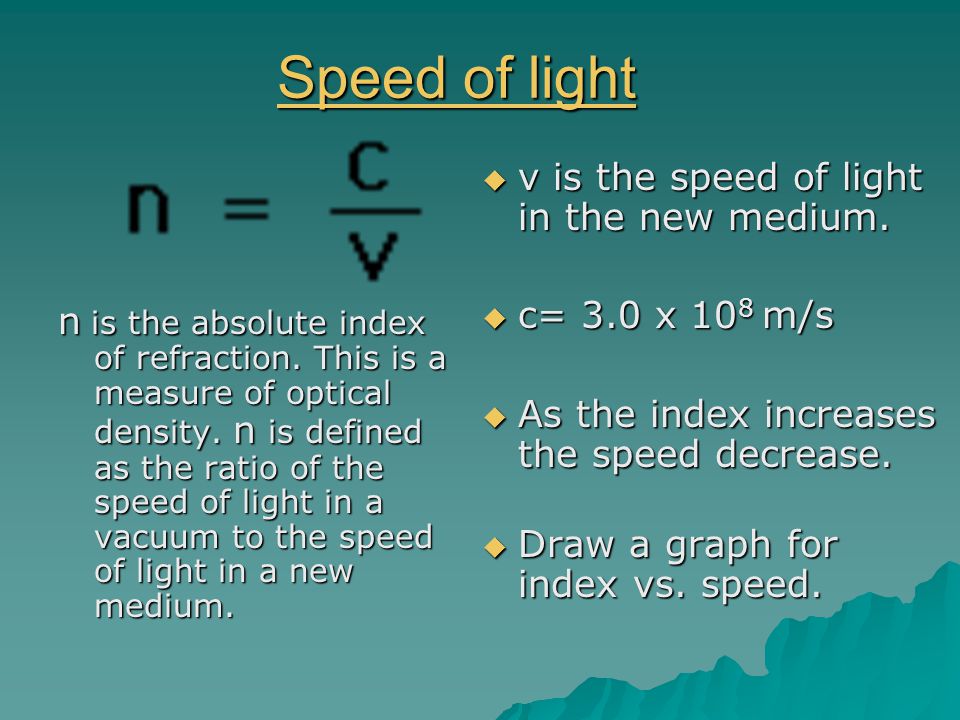

Speed of light Speed of light v is the speed of light in the new medium. c= 3.0 x 10 8 m/s As the index increases the speed decrease. Draw a graph for index vs. speed. n is the absolute index of refraction. This is a measure of optical density. n is defined as the ratio of the speed of light in a vacuum to the speed of light in a new medium.

9

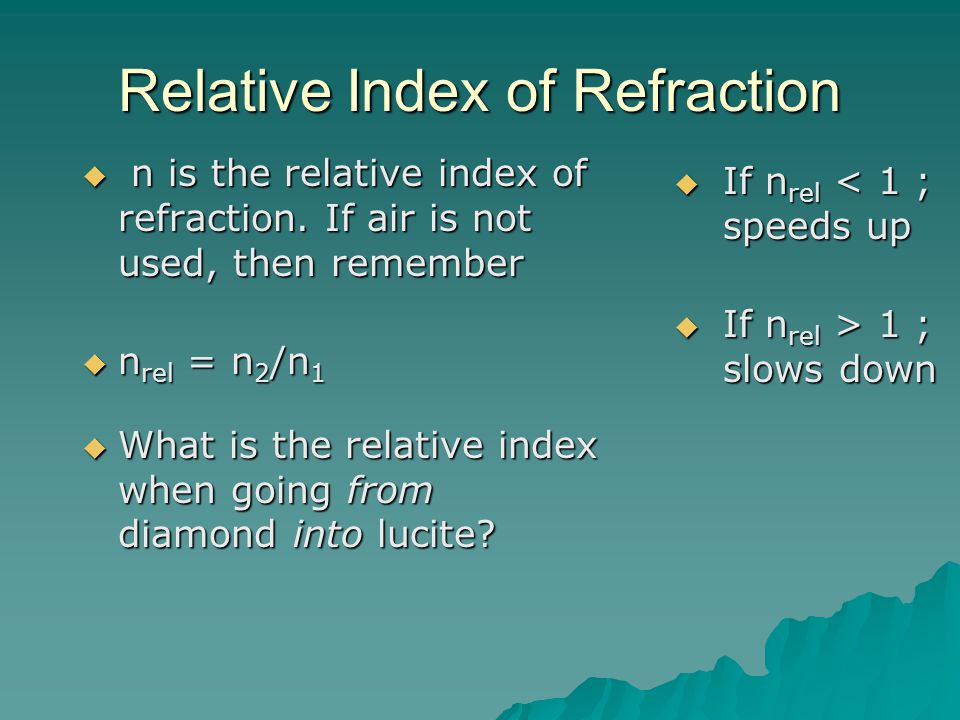

Relative Index of Refraction n is the relative index of refraction. If air is not used, then remember n rel = n 2 /n 1 What is the relative index when going from diamond into lucite? If n rel < 1 ; speeds up If n rel > 1 ; slows down

10

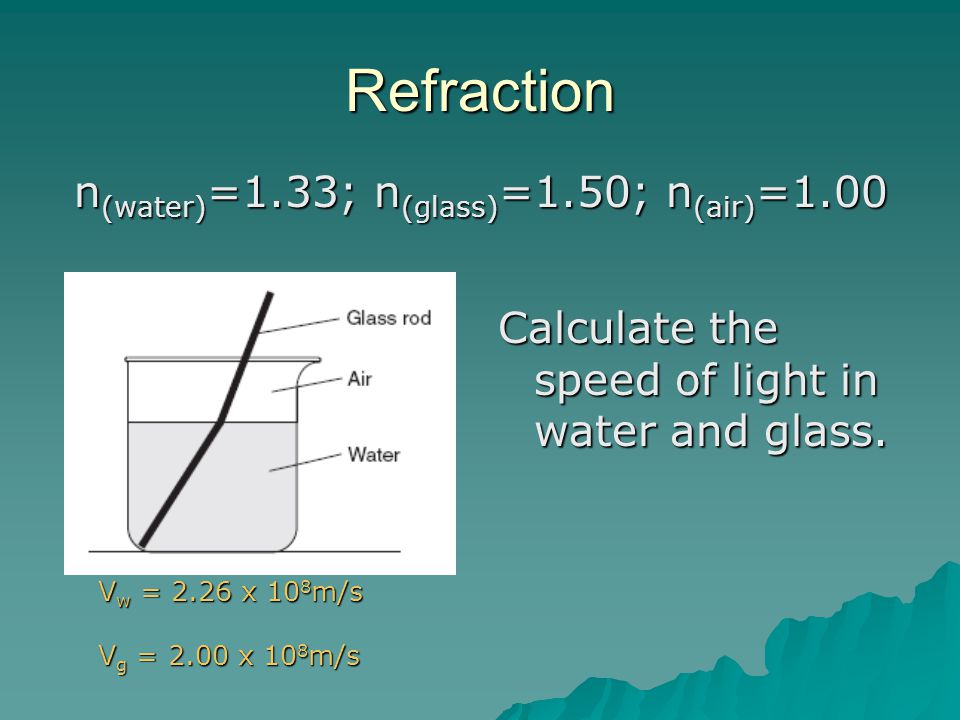

Refraction V w = 2.26 x 10 8 m/s V g = 2.00 x 10 8 m/s Calculate the speed of light in water and glass. n (water) =1.33; n (glass) =1.50; n (air) =1.00

11
Refraction When a wave slows down it bends closer to the normal. {less to more – toward} n2>n1 When a wave speed up it bends away from the normal. {BLA – Big ―› Little – Away} n2

12
Refraction If light rays bend closer to the normal when slowing down, why does the glass rod seem to bend away form the normal?

13

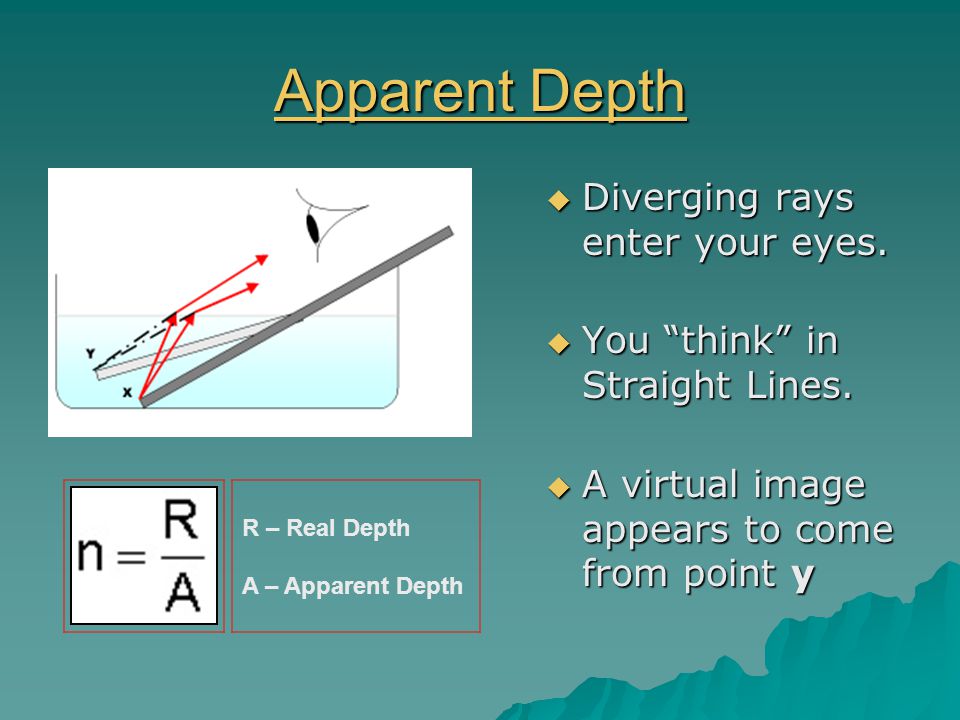

Apparent Depth Apparent Depth Diverging rays enter your eyes. Diverging rays enter your eyes. You “think” in Straight Lines. A virtual image appears to come from point y R – Real Depth A – Apparent Depth

14

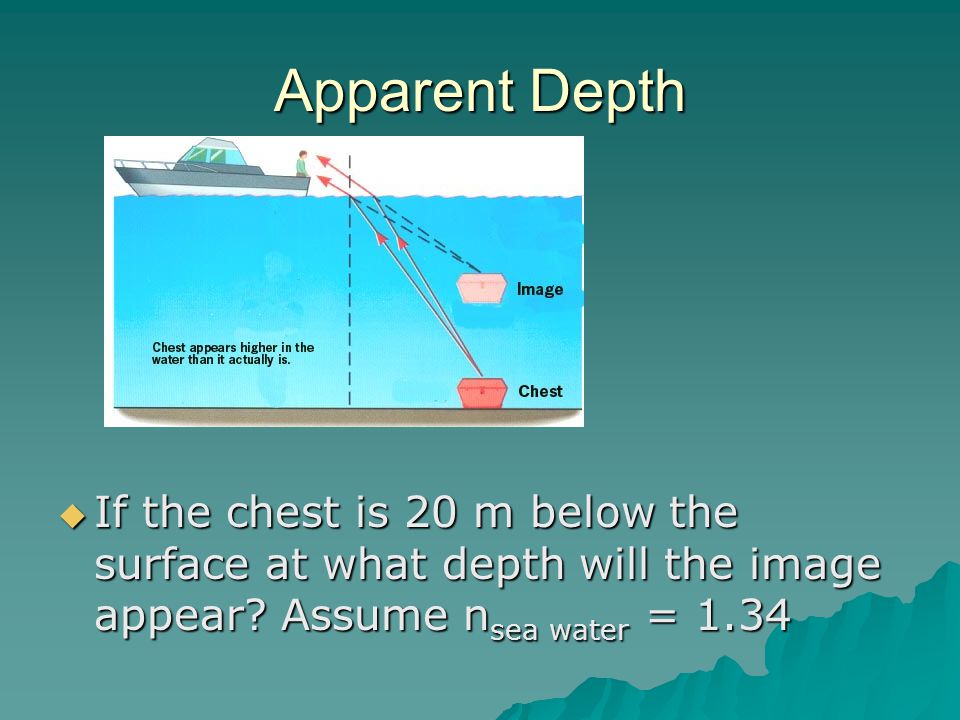

Apparent Depth If the chest is 20 m below the surface at what depth will the image appear? Assume n sea water = 1.34

15

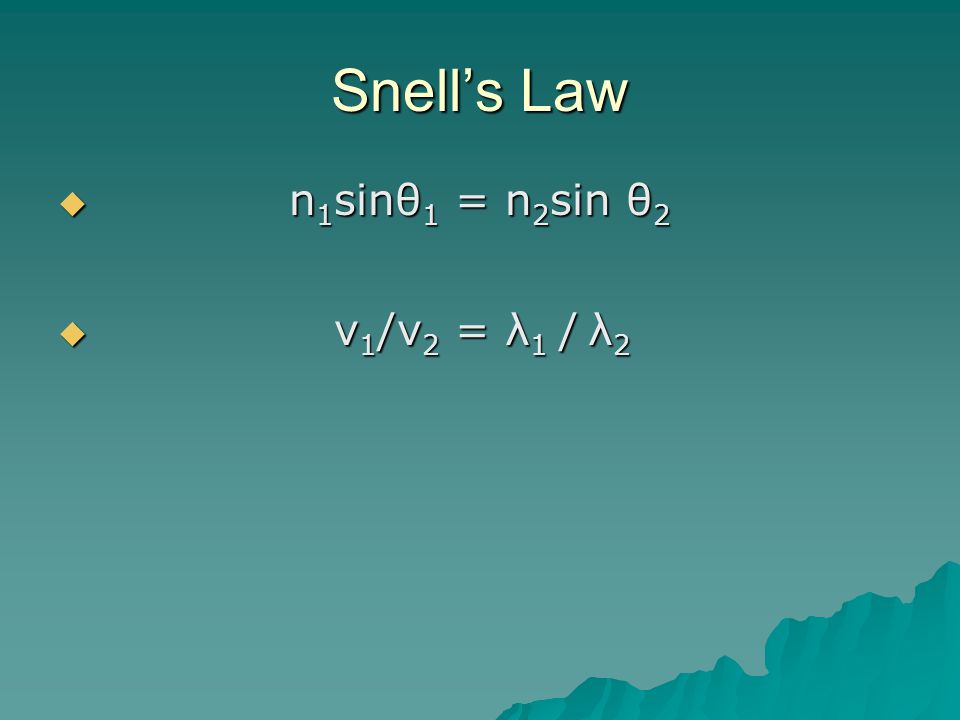

Snell’s Law n 1 sinθ 1 = n 2 sin θ 2 v 1 /v 2 = λ 1 / λ 2

16

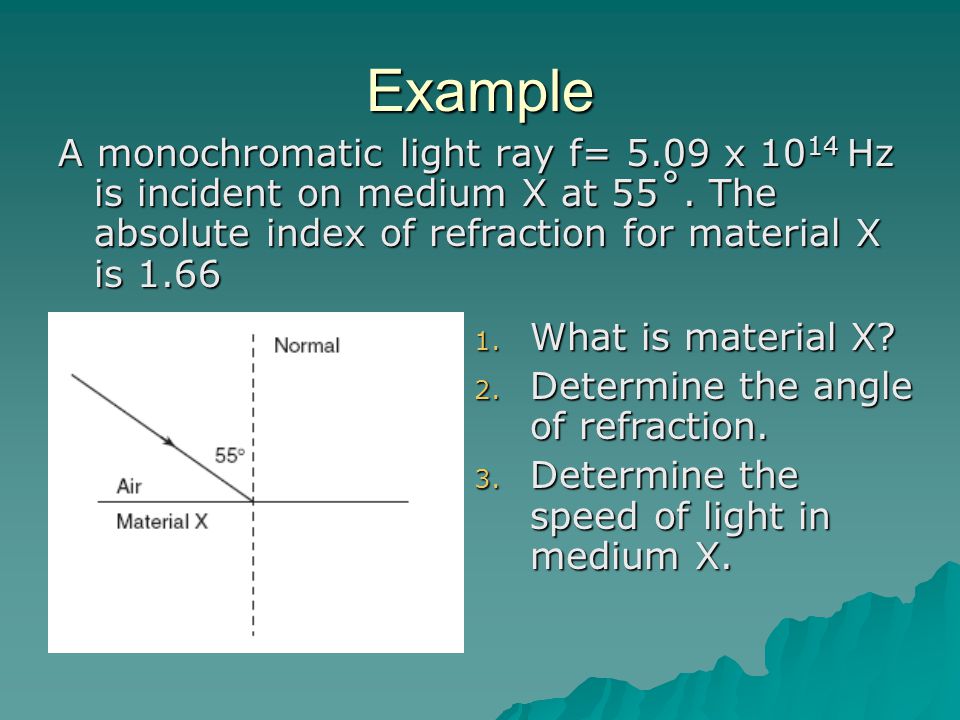

Example A monochromatic light ray f= 5.09 x 10 14 Hz is incident on medium X at 55˚. The absolute index of refraction for material X is 1.66 1. What is material X? 2. Determine the angle of refraction. 3. Determine the speed of light in medium X.

17
Ex: Solution The index of 1.66 is Flint Glass To find the angle of refraction use Snell’s Law. θ 2 = 30˚ To find the speed use n=c/v. v = 1.8 x 10 8 m/s v = 1.8 x 10 8 m/s

18
Dispersion The breaking up of white light into its component frequencies.

19
Refractive & Frequency Refractive & Frequency The refractive index depends on the medium & the frequency of light. Each frequency “color” propagates at a different speed and bends a different amount.

20

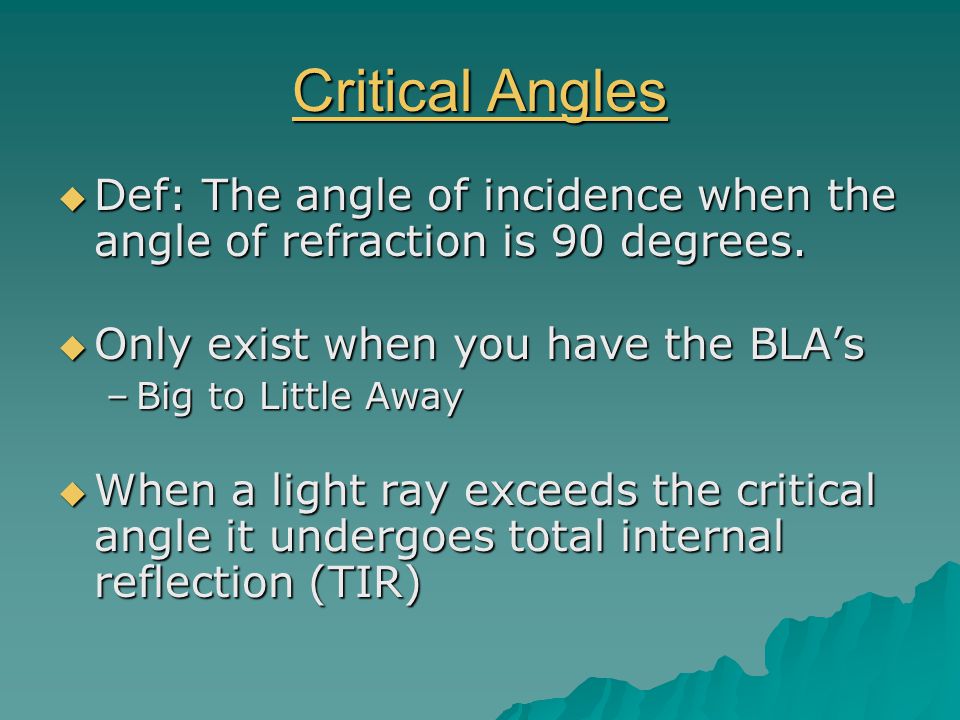

Critical Angles Critical Angles Def: The angle of incidence when the angle of refraction is 90 degrees. Only exist when you have the BLA’s –Big to Little Away When a light ray exceeds the critical angle it undergoes total internal reflection (TIR)

21

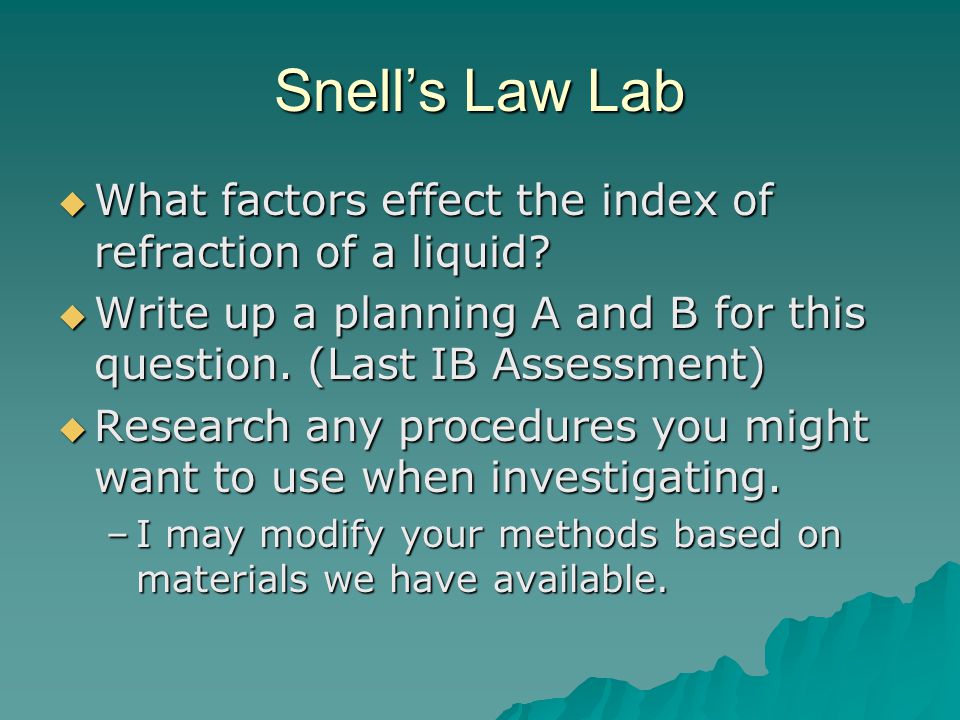

Snell’s Law Lab What factors effect the index of refraction of a liquid? Write up a planning A and B for this question. (Last IB Assessment) Research any procedures you might want to use when investigating. –I may modify your methods based on materials we have available.
