© Wesner, M. F. Nonperceptual pathways: Retinotectal (retina to superior colliculus) Retinotectal (retina to superior colliculus) A perceptual pathway:

Similar presentations


Presentation on theme: "© Wesner, M. F. Nonperceptual pathways: Retinotectal (retina to superior colliculus) Retinotectal (retina to superior colliculus) A perceptual pathway:"— Presentation transcript:

1

2 © Wesner, M. F.

3 Nonperceptual pathways: Retinotectal (retina to superior colliculus) Retinotectal (retina to superior colliculus) A perceptual pathway: Retinogeniculostriate (retina - thalamus - cortex) V1 or striate cortex Retinohypothalamic (retina - hypothalamus - pineal)

4

5 Retinogeniculate and retinotectal projections

6 “Retinogeniculocortical” or “retinogeniculostriate” pathway - mediates conscious visual perception

7

8 On-Center; Off-Surround Cell in LGN Historic movie footage of early single-cell recording in the cat visual system by David Hubel and Torsten Wiesel.

9

10

11

12

13 ipsilateral contralateral

14 The projections of the small ganglion (PC cells) and large ganglion (MC cells) cells to the parvocellular and magnocellular layers of the LGN: Acknowledgement: Image from Webvision by Kolb, Fernandez and Nelson, courtesy of Matthew Schmolesky at Erasmus University, Rotterdam.

15

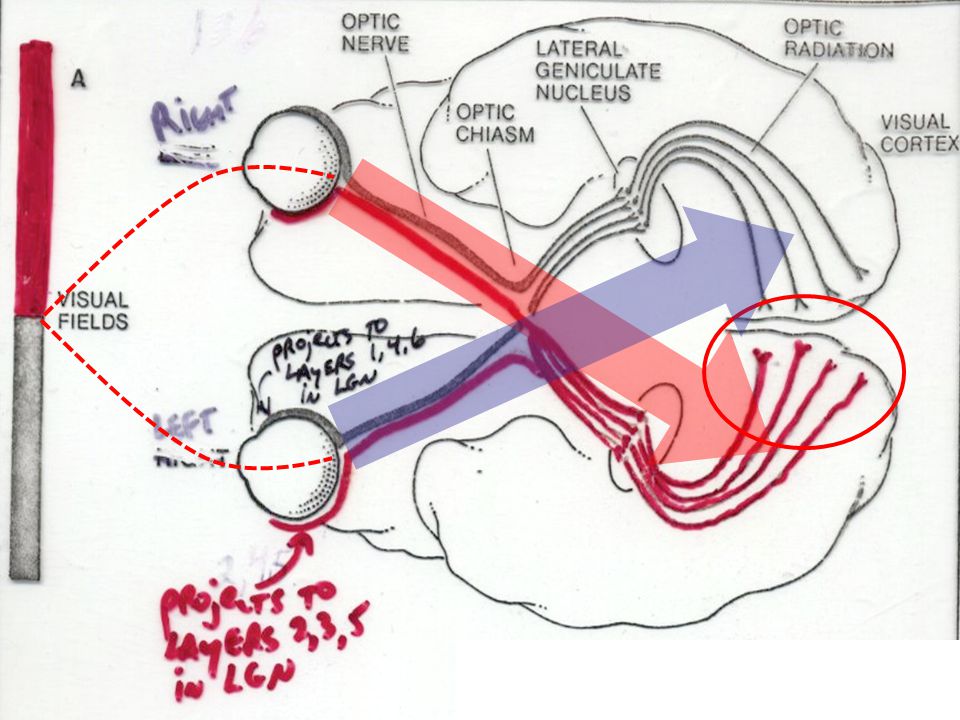

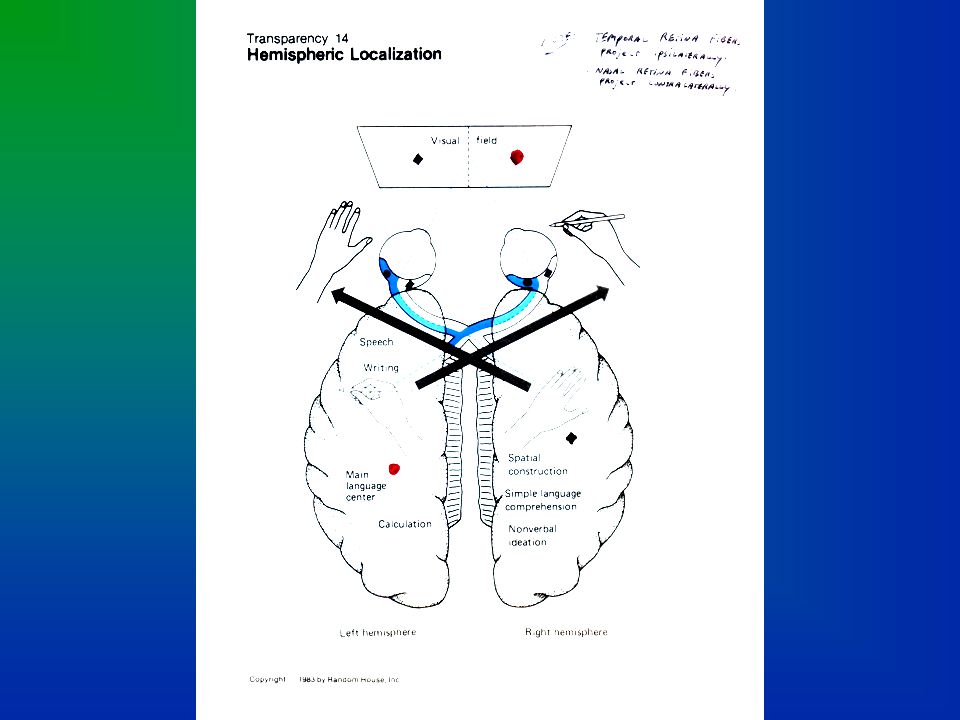

16 This means that all information in the right (left) visual field projects to the left (right) cortex. This means ViSUAL INFORMATION is contralaterally represented.

17

18

19 Ocular Dominance

20

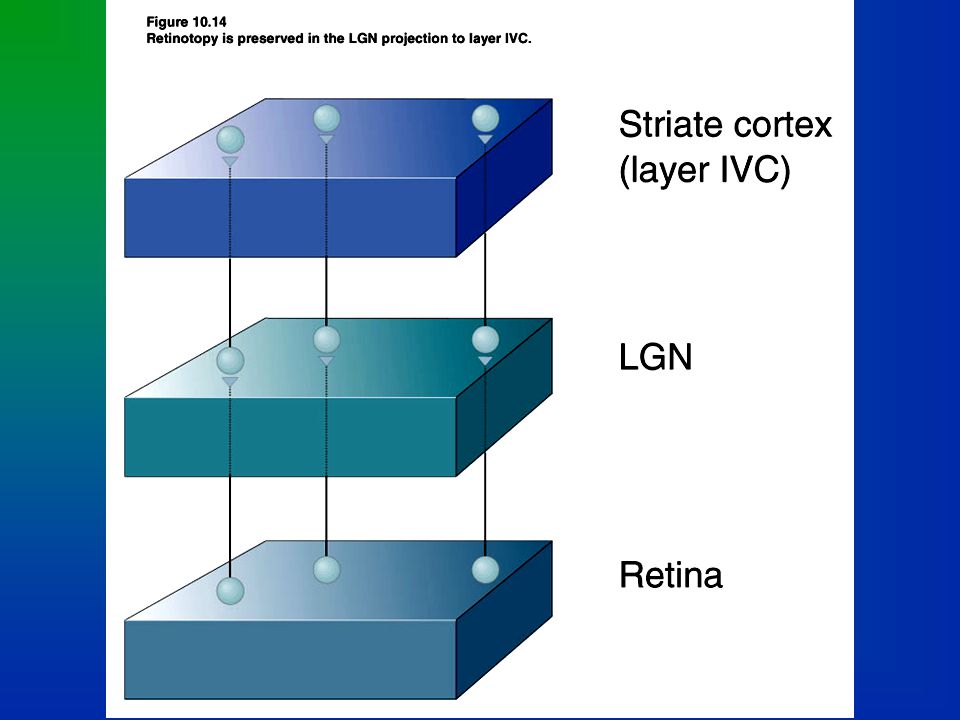

21 This begins to establish a retinotopic organization to the cortex.

22

23 A recently recognized, anatomically & functionally distinct third subdivision of the visual pathway, called the koniocellular (KC) pathway.

24 The properties of koniocellular cells have only recently been studied in anthropoid primates, and their importance for human vision is only now becoming understood, particularly with respect to S-cone operations.

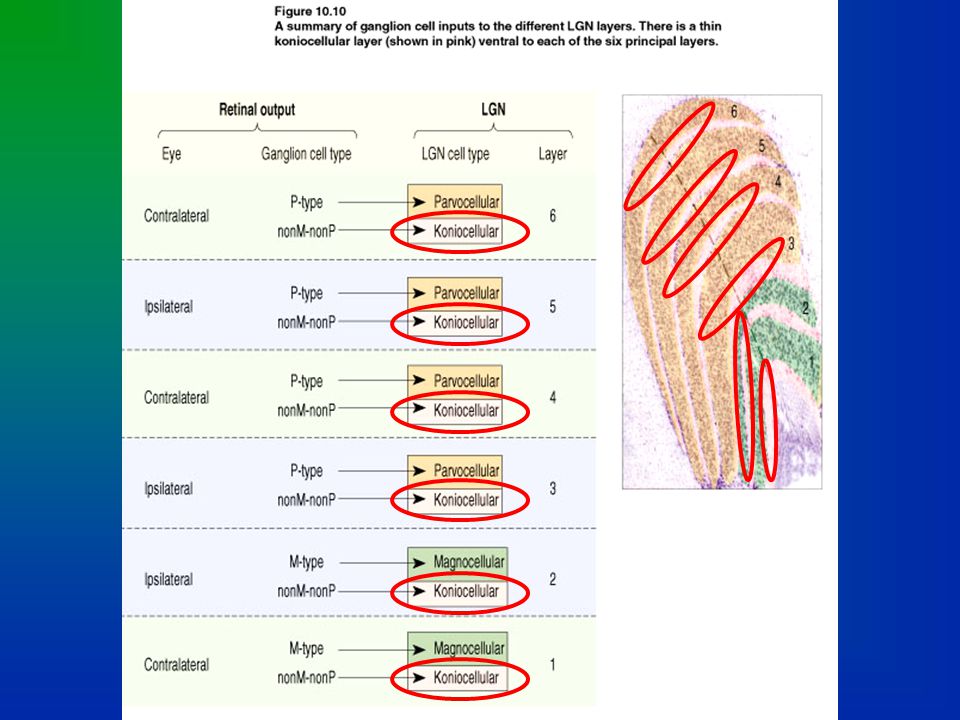

25 KC cells form thin layers that lie between the M and P layers..formally referred to as “intercalated layers”.

26

27 Generally, the spatial and temporal properties of the KC cells in primates fall between the parvocellular and magnocellular spatiotemporal properties..

28 Spatially, the KC cells are species specific. Generally, however, they are tuned to spatial frequencies that are lower than the PC system but higher than the MC system. Similarly, the temporal modulation (i.e., “timing”) sensitivity of KC cells are higher than PC but lower than MC cells.

29 The projections of the koniocellular cells to the primary visual cortex (V1) appear to be towards the cytochrome oxidase (CO) cortical blobs (i.e., cortical areas responsive to chromatic changes). KC cells are particularly responsive to “blue-yellow” differences (S-cone ON mediated).

30 V1 The projections of the koniocellular cells to the primary visual cortex (V1) appear to be towards the cytochrome oxidase (CO) cortical blobs (i.e., cortical areas responsive to chromatic changes). KC cells are particularly responsive to “blue-yellow” differences (S-cone ON mediated).

31 Primary visual cortex (V1)Primary visual cortex (V1) Brodmann 17Brodmann 17 Striate cortexStriate cortex

32 The retinotopic organization of V1 (striate cortex) using 2-dg autoradiography

33 This begins to establish a retinotopic organization to the cortex.

34

35

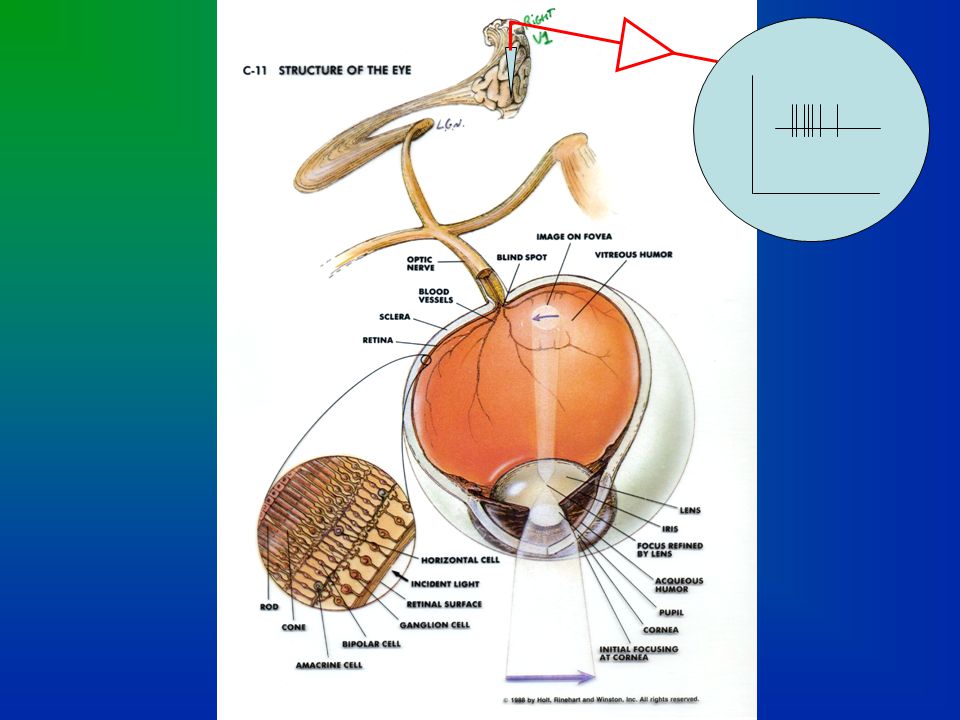

36 Note: A retinotopic map can also be found in the superior colliculus of the mesencephalon, but more distorted than at the cortex.

37

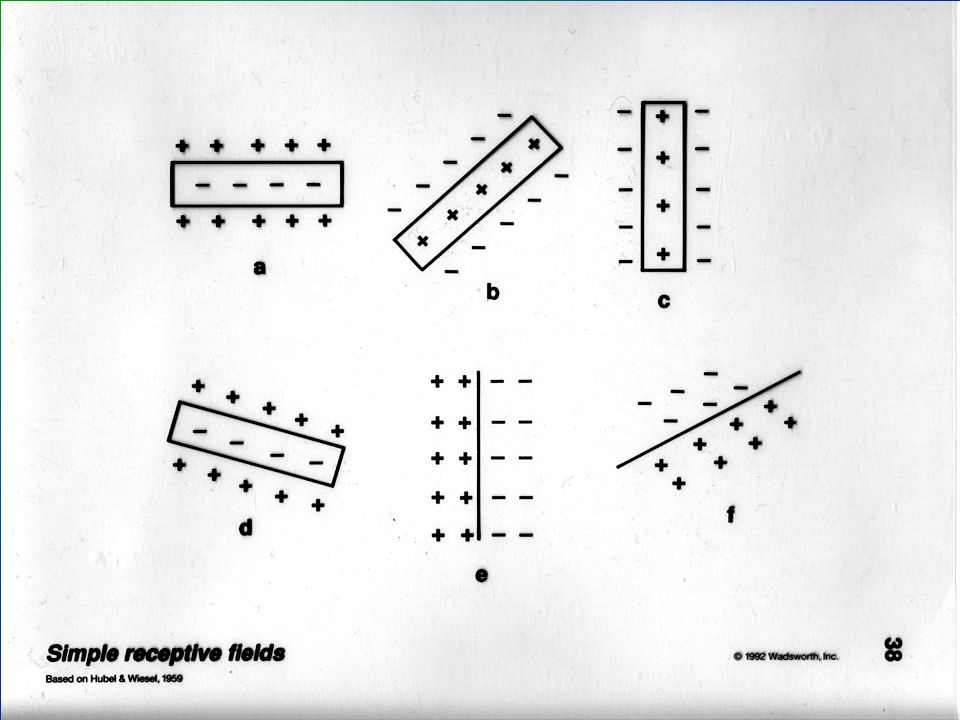

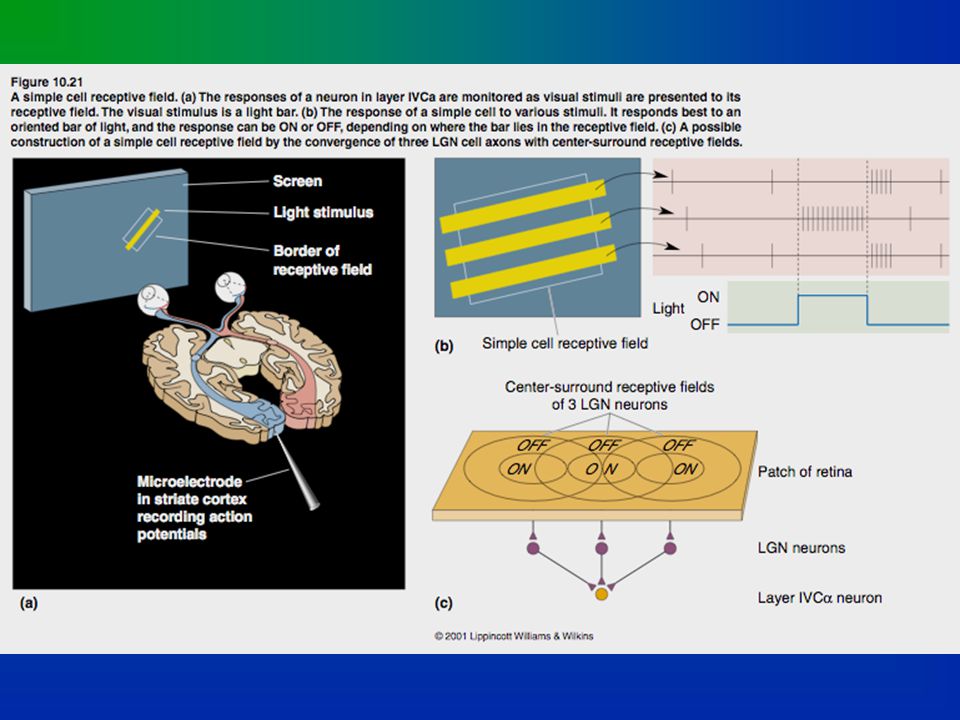

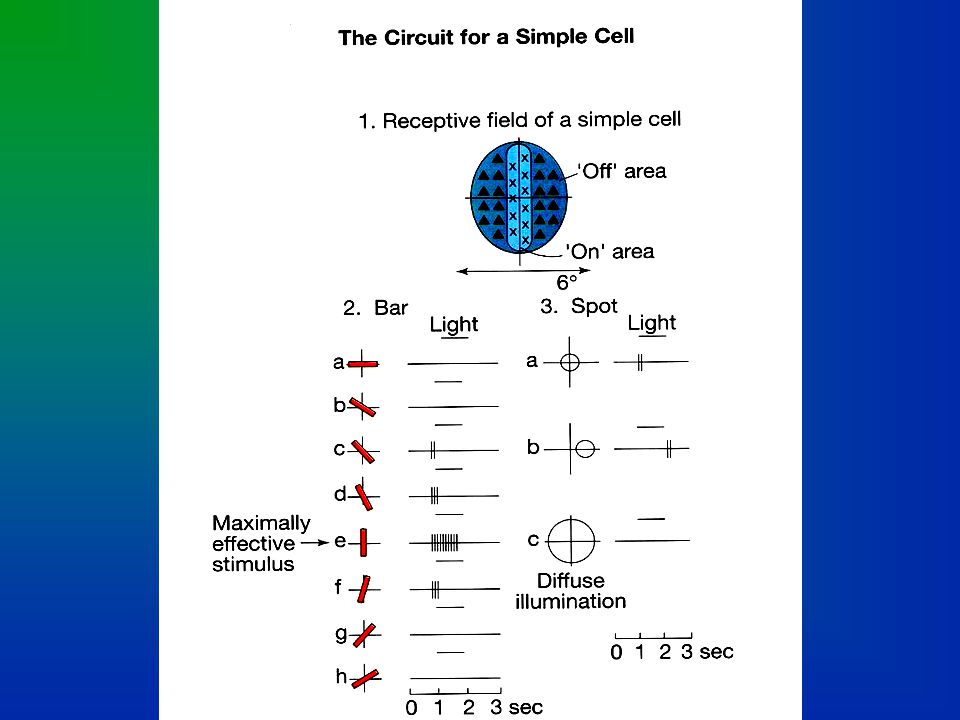

38 CORTEX: Simple Cells

39

40

41

42

43

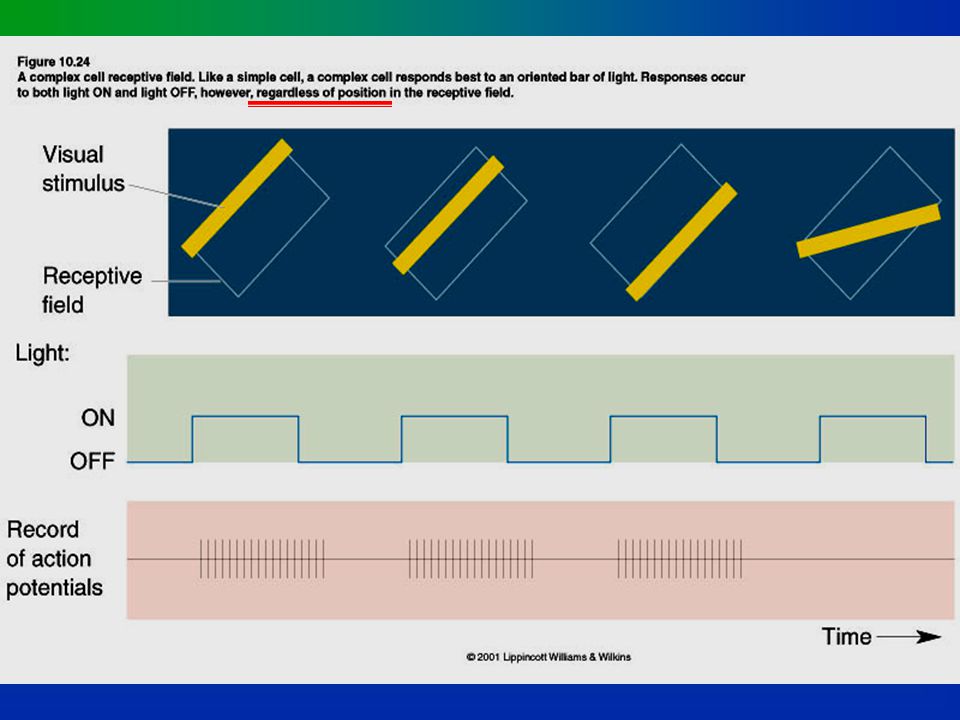

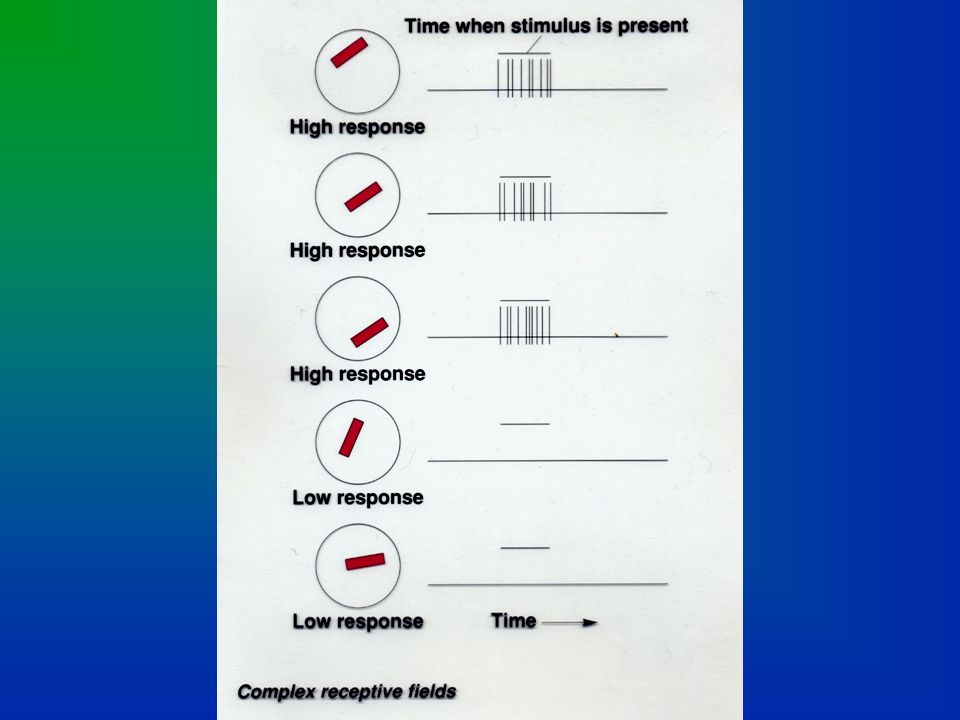

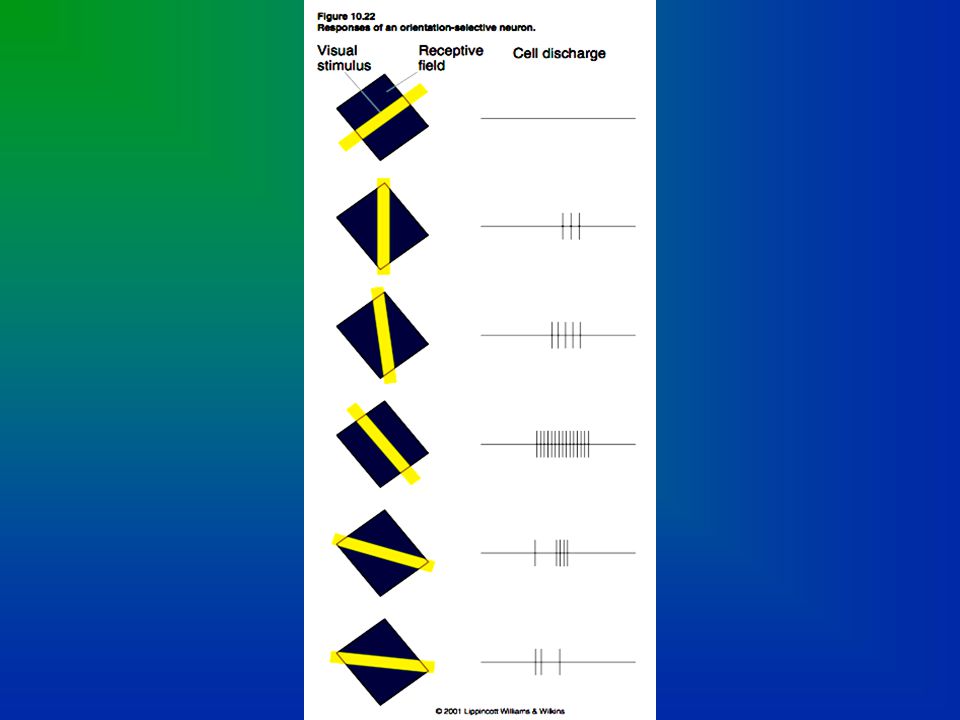

44 CORTEX: Complex Cells

45

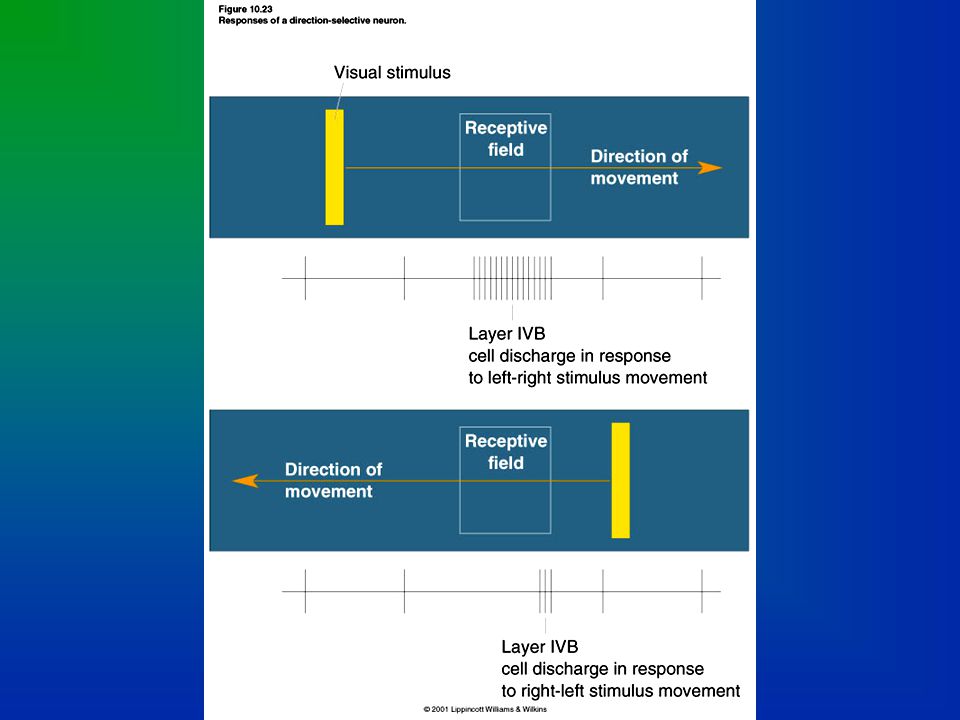

46

47

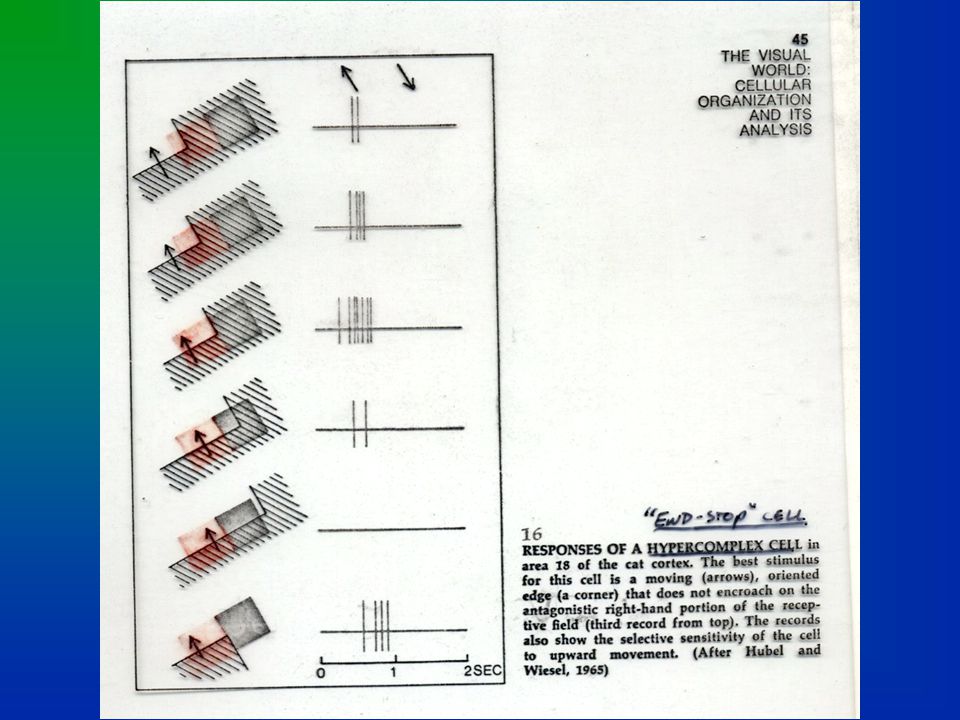

48 CORTEX (beyond V1): Hypercomplex or End-Stop Cells ?

49

50 Slit Length (deg visual angle) Complex Cell End-Stop Cell

51 Possible circuit for an end-stop cell converging complex cells.

52 V1 (primary visual cortex): Orientation columns Orientation columns

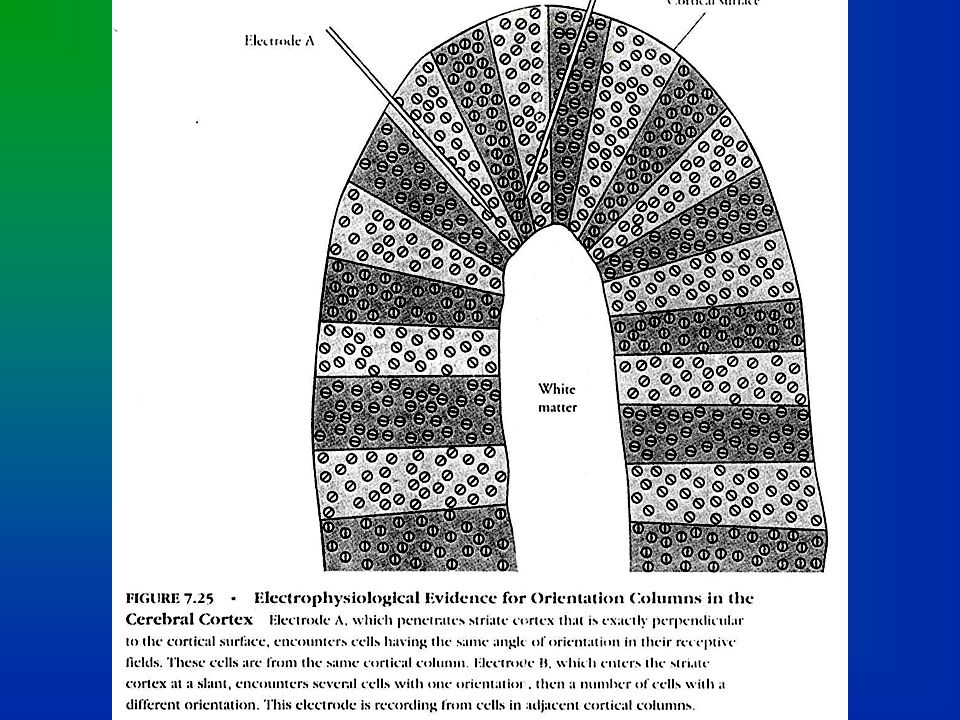

53 V1 Look at a gyrus of the primary visual cortex (Area #17) or V1 or striate cortex.

54

55

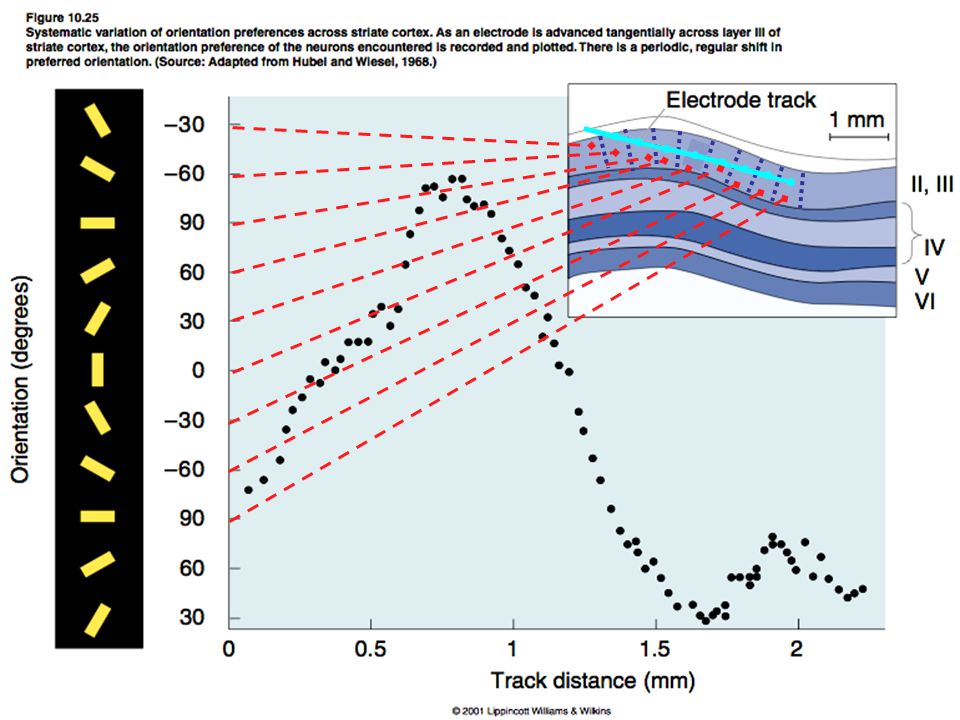

56 2-dg treated Orientation Columns

57 V1 (primary visual cortex): ocular dominance columns ocular dominance columns

58 Radioactive proline injected into the eye. OCULAR DOMINANCE COLUMNS PRO* treated

59

60 Margaret Wong-Riley (1979) coined the term blobs. Introduced labeled cytochrome oxidase (an enzyme used in cellular metabolism) and measured its migration to V1. Prominent blobs found in layer III of V1 cortex.

61

62

63 GranularAgranular

64

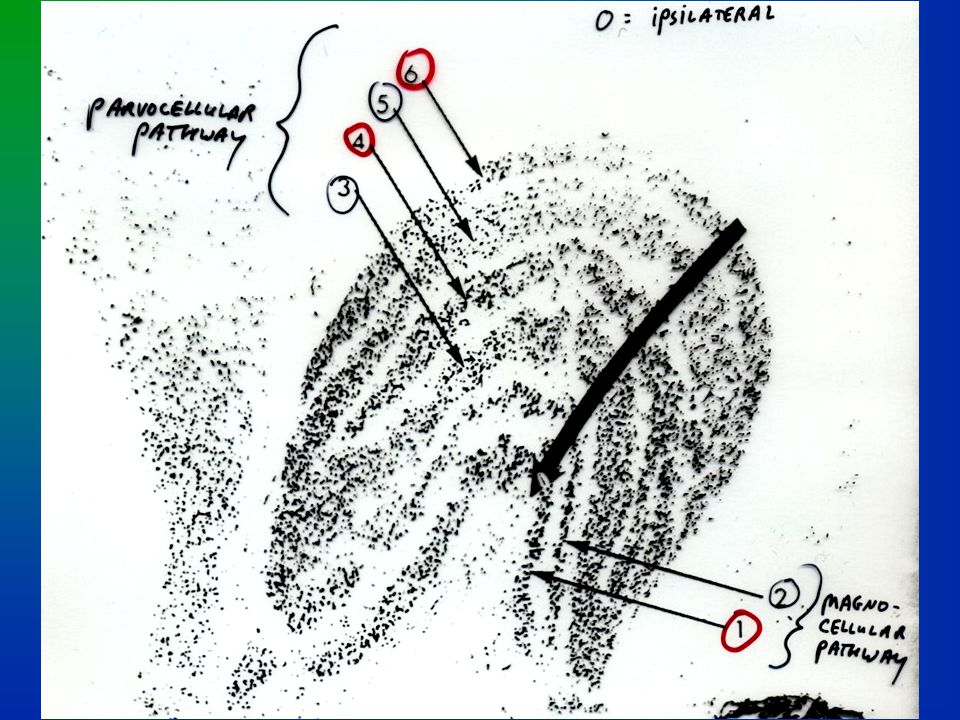

65 Six Layers of the Striate Cortex (V1): 1.Layer devoid of nuclei 2.Orientation, ocular dominance columns & (inter)blobs (input from 4A & 4C  - PARVO) 3.Orientation, ocular dominance columns & (inter)blobs (input from 4A & 4C  - PARVO) 4.Afferent Input - big sensory layer A.Input from PARVO & 4C  B.Input from 4C  C.Afferent Input ..from MAGNO (M x & M y cells) ..from PARVO (P cells: foveal chromatic & luminance signals) 5.Feedback to superior colliculus (visual motor) 6.Feedback to LGN (visual motor) To V2 (thin stripes & pale stripes) & V4

66 (Layers 3, 4,5, 6) ventral dorsal

67 Six Layers of the Striate Cortex (V1): 1.Layer devoid of nuclei 2.Orientation, ocular dominance columns & blobs (input from 4A & 4C  - PARVO) 3.Orientation, ocular dominance columns & blobs (input from 4A & 4C  - PARVO) 4.Afferent Input - big sensory layer A.Input from PARVO & 4C  B.Input from 4C  C.Afferent Input ..from MAGNO (M x & M y cells) ..from PARVO (P cells: foveal chromatic & luminance signals) 5.Feedback to superior colliculus (visual motor) 6.Feedback to LGN (visual motor) To V2 (thick stripes), V3 & MT (V5)

68 (Layers 1,2) ventral dorsal

69 luminance Chromatic Chromatic or luminance responsive luminance responsive IVA

70 V2 (thin stipes) interblobs V2 (pale stipes)

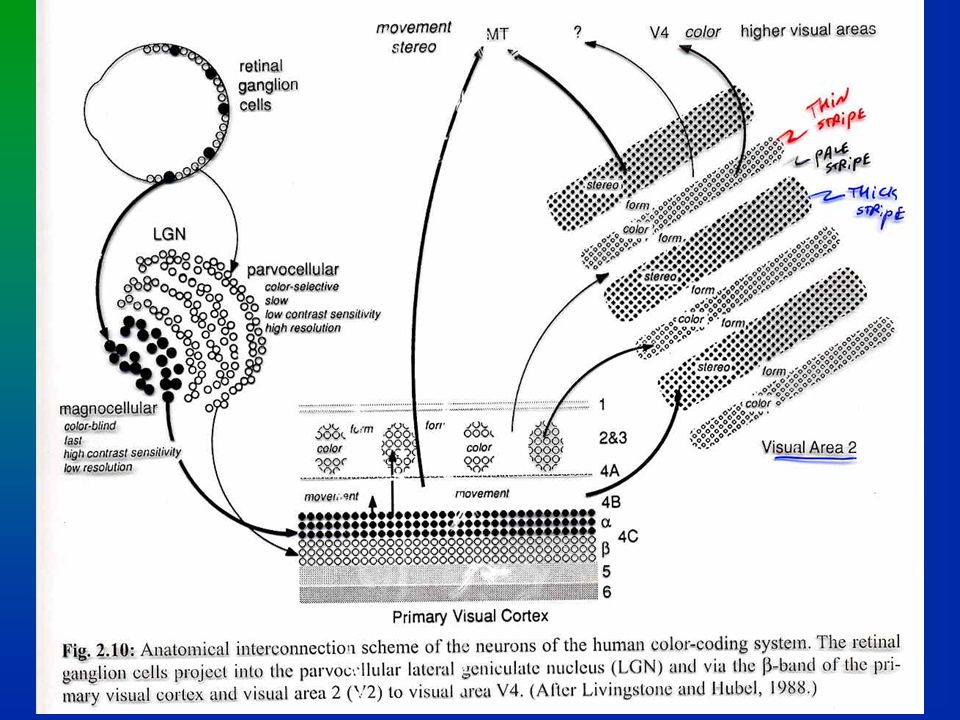

71 ipsilateral Magno (MC) & Parvo (PC) projections V3 (movement, orientation, depth) V5 (MT) (movement, dynamic form) RIGHT LGN LEFT RIGHT V4 (form, color, constancies) Inferotemporal (high form) contralateral

72

73 Parvocellular (PC) stream  LGN Layers: 3, 4, 5, 6  V1: IVC , IVA  V1 (layers II & III): blobs (chromatic) & interblobs (luminance) & orientation & some ocular dominance columns.  V2: thin stripes (chromatic) & pale stripes (luminance)  V4: (color, color constancy & form)  Inferotemporal: (form & color) A quick down & dirty: extrastriate

74 Koniocellular (KC) stream  LGN Layers: intermediate (intercalated between all layers: 1, 2, 3, 4, 5, 6)  V1: Straight into layers II & III blobs (chromatic).  V2: thin stripes (chromatic)  V4: (color, color constancy & form) and..  V5 (MT): (motion, dynamic form)  Inferotemporal: (form & color) and..  Dorsal (movement) A quick down & dirty (cont.): extrastriate

75 Magnocellular (MC) stream  LGN Layers: 1, 2  V1: IVC , IVB  V2: thick stripes (luminance only)  V3: (motion, orientation, depth)  V5 (MT): (motion, dynamic form)  Dorsal (MST) (movement) A quick down & dirty (cont.): extrastriate

76 (Layers 3,4,5,6)

77

78 Extrastriate or

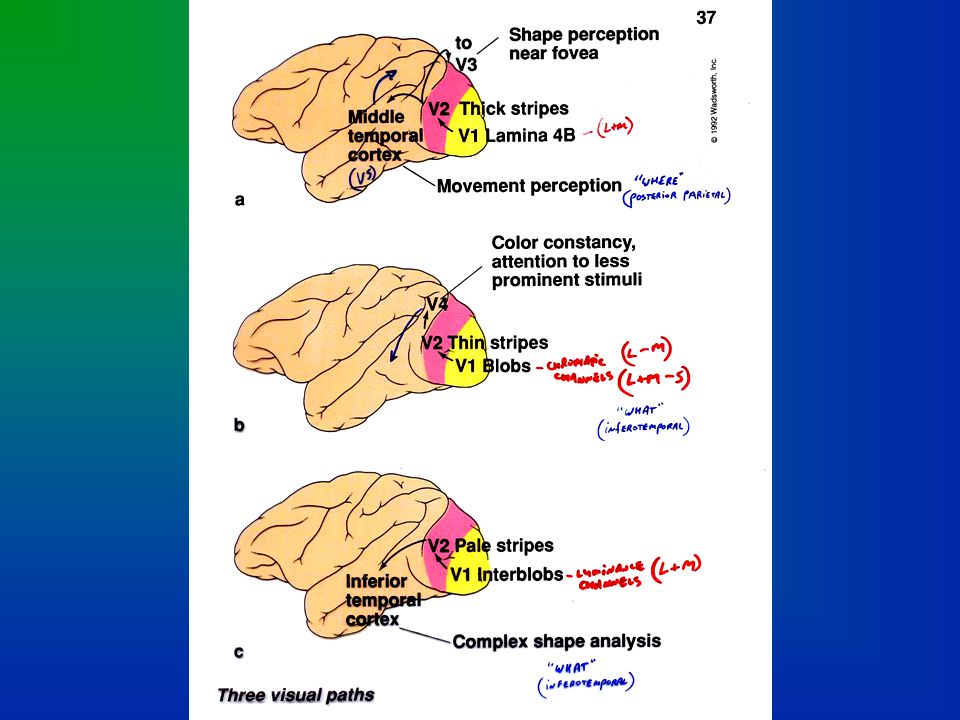

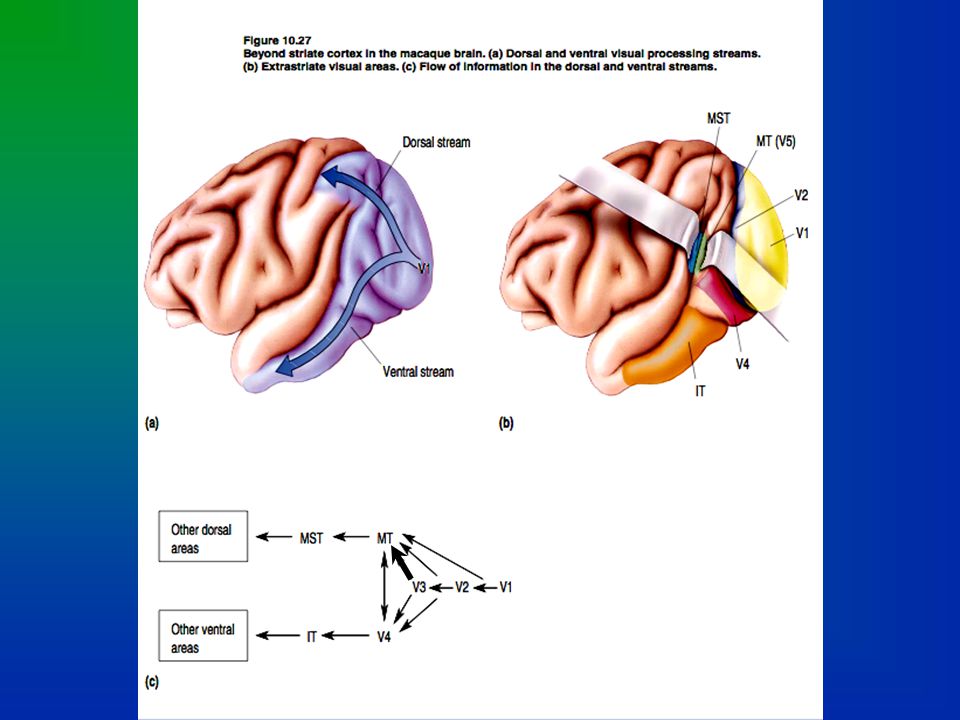

79 V1 #17 “WHERE” “WHAT” 2 major visual streams:

80 Cortical damage here: Akinetopsia Achromatopsia Cortical damage (occipitotemporal): Apperceptive Agnosia Cortical damage here: Blindness Cortical damage (fusiform gyrus): Apperceptive Prosopagnosia

81

82 Do sensory pathways always involve such anatomical divisions of labor? NO Multisensory operations generally occur at high- level associative cortical sites in the processing heirarchy.

83 Modular processing The general cortical architecture of sensory processing, according to the modularity theory. Specialized processing systems are dedicated to different sensory modalities; vision (red), audition (blue), and somatosensation (green). In each system information flow divides into two streams, one carrying “what” information and the other carrying “where” information. Multisensory processing occurs relatively late in the processing hierarchy, in the intraparietal sulcus (IP) and the superior temporal polysensory area (STP), both shown in multiple colors. Re-drawn from Schroeder, Smiley, Fu, McGinnis, O’Connell, and Hackett (2003), Figure 1. Copyright © Elsevier. Reproduced with permission.

84 Modular processing Modular processing architecture has a number of virtues. –For example, each module can be optimized for its specific function, operating with maximum speed and efficiency rather than compromised to serve several functions at once. –Errors remain confined to one function, rather the propagated widely. –New functions can be created by adding new modules.
