Unbinding of biopolymers: statistical physics of interacting loops David Mukamel

2
unbinding phenomena DNA denaturation (melting) RNA melting Conformational changes in RNA DNA unzipping by external force Unpinning of vortex lines in type II superconductors Wetting phenomena

3
DNA denaturation TT double stranded single strands Helix to Coil transition …AATCGGTTTCCCC… …TTAGCCAAAGGGG…

4
Single strand conformations: RNA folding

5
conformation changes in RNA Schultes, Bartel (2000)

6
Unzipping of DNA by an external force Bockelmann et al PRL 79, 4489 (1997)

7
Unpinning of vortex lines from columnar defects In type II superconductors Defects are produced by irradiation with heavy ions with high energy to produce tracks of damaged material.

8
Wetting transition substrate interface 3d 2d gas liquid At the wetting transition

9
One is interested in features like Loop size distribution Order of the denaturation transition Inter-strand distance distribution Effect of heterogeneity of the chain

10
outline Review of experimental results for DNA denaturation Modeling: loop entropy in a self avoiding molecule Loop size distribution Denaturation transition Distance distribution Heterogeneous chains

11
Persistence length lp double strands lp ~ 100-200 bp Single strands lp ~ 10 bp fluctuating DNA DNA denaturation

12
Schematic melting curve = fraction of bound pairs Melting curve is measured directly by optical means absorption of uv line 268nm T 1

13
O. Gotoh, Adv. Biophys. 16, 1 (1983) Linearized Plasmid pNT1 3.83 Kbp

14
Melting curve of yeast DNA 12 Mbp long Bizzaro et al, Mat. Res. Soc. Proc. 489, 73 (1998) Linearized Plasmid pNT1 3.83 Kbp

15
GA T C C A A C T G G T Nucleotides: A, T,C, G A – T ~ 320 K C – G ~ 360 K High concentration of C-G High concentration of A-T

16
TT

17
Experiments: steps are steep each step represents the melting of a finite region, hence smoothened by finite size effect.. Sharp (first order) melting transition

18
Recent approaches using single molecule experiments yield more detailed microscopic information on the statistics and dynamics of DNA configurations Bockelmann et al (1997) unzipping by external force fluorescence correlation spectroscopy (FCS) time scales of loop dynamics, and loop size distribution Libchaber et al (1998, 2002)

19
Theoretical Approach fluctuating microscopic configurations

20
Basic Model (Poland & Scheraga, 1966) Energy –E per bond (complementary bp) Bound segment: homopolymers Loops: Degeneracy s - geometrical factor c=d/2 in d dimensions

21
S=4 for d=2 S=6 for d=3 chain - no. of configurations

22
loop C=d/2 R

23
Results: nature of the transition depends on c no transition continuous transition first order transition c=d/2

24
Loop-size distribution

25
Outline of the derivation of the partition sum l1 l3 l5 l2 l4 typical configuration

26
Grand partition sum (GPS) z - fugacity GPS of a segment GPS of a loop

27
Thermodynamic potential z(w) Order parameter

28
Non-interacting, self avoiding loops (Fisher, 1966) Loop entropy: Random self avoiding loop no loop-loop interaction Degeneracy of a self avoiding loop Correlation length exponent = 3/4 for d=2 = 0.588 for d=3

29
0.25 (Fisher) d=3: =1 (PS) Thus for the self avoiding loop model one has c=1.76 and the transition is continuous. The order-parameter critical exponent satisfies

30
In these approaches the interaction (repulsive, self avoiding) between loops is ignored. Question: what is the entropy of a loop embedded in a line composed of a sequence of loops?

31
What is the entropy of a loop embedded in a chain? (ignore the loop-structure of the chain) rather than:

32
L/2 l l Total length : L+l l/L << 1 Interacting loops (Kafri, Mukamel, Peliti, 2000) Mutually self-avoiding configurations of a loop and the rest of the chain Neglect the internal structure of the rest of the chain Loop embedded in a chain

33
depends only on the topology! Polymer network with arbitrary topology (B. Duplantier, 1986) Example:

34
no. of k-vertices no. of loops for example:

35
d=2 d=4-

36
L/2 l l Total length: L+l l/L << 1

37
L/2 l l Total length: L+l l/L << 1 For l/L<<1 for x<<1 hence

38
with

39
For the configuration C>2 in d=2 and above. First order transition.

40
Random chainSelf-avoiding (SA) loop SA loop embedded in a chain 3/2 1.76 2.1 In summary Loop degeneracy:

41
Results: for a loop embedded in a chain c =2.11 sharp, first order transition. loop-size distribution:

42
line Loop-line structure “Rest of the chain” extreme case: macroscopic loop

43
C>2 (larger than the case )

44
Numerical simulations: Causo, Coluzzi, Grassberger, PRE 63, 3958 (2000) (first order melting) Carlon, Orlandini, Stella, PRL 88, 198101 (2002) loop size distribution c = 2.10(2)

45
length distribution of the end segment

46
Inter-strand distance distribution: Baiesi, Carlon,Kafri, Mukamel, Orlandini, Stella (2002) r where at criticality

47
In the bound phase (off criticality): averaging over the loop-size distribution

50
More realistic modeling of DNA melting Stacking energy: A-T T-A A-T C-G … A-T A-T C-G G-C … 10 energy parameters altogether Cooperativity parameter Weight of initiation of a loop in the chain Loop entropy parameter c

51
Blake et al, Bioinformatics, 15, 370 (1999)

52
MELTSIM simulations Blake et al Bioinformatics 15, 370 (1999). 4662 bp long molecule C=1.7 Small cooperativity parameter is needed to make a continuous transition look sharp. It is thus expected that taking c=2.1 should result in a larger cooperativity parameter Indeed it was found that the cooperativity parameter should be larger by an order of magnitude Blossey and Carlon, PRE 68, 061911 (2003)

53
F Q Recent single molecule experiments fluorescence correlation spectroscopy (FCS) G. Bonnet, A. Libchaber and O. Krichevsky (preprint) F - fluorophore Q - quencher

54
18 base-pair long A-T chain

55
Heteropolymers Question: what is the nature of the unbinding transition in long disordered chains? Weak disorder Harris criterion : the nature of the transition remains unchanged if the specific heat exponent is negative.

56
Strong disorder Y. Kafri, D. Mukamel, cond-mat/0211473 consider a model with a bond energy distribution: Phase diagram: denaturatedbound Griffiths singularity

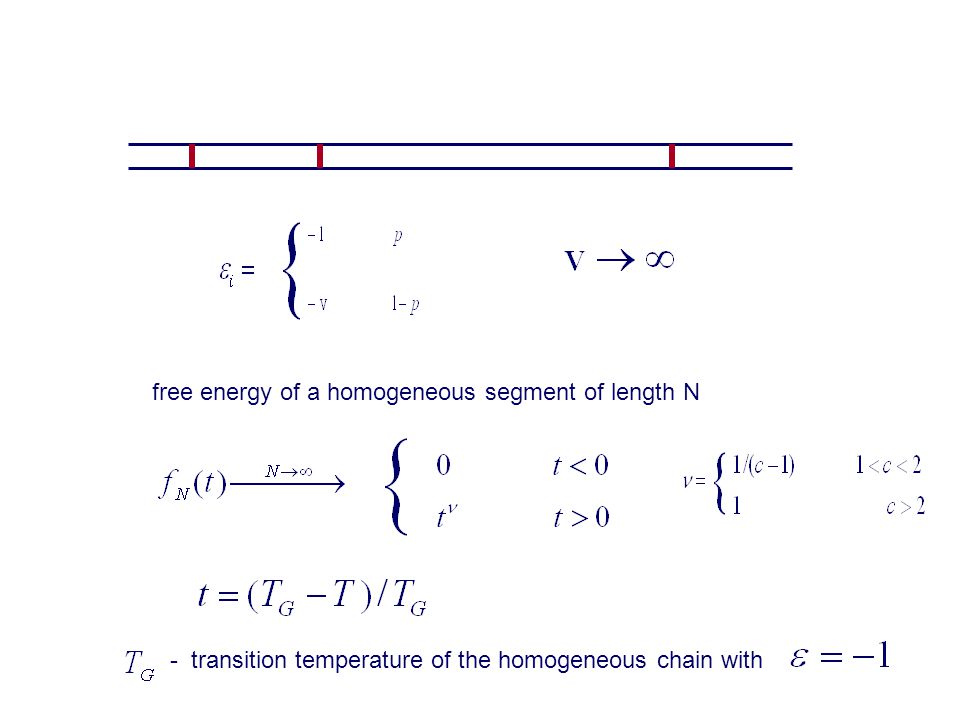

57
free energy of a homogeneous segment of length N - transition temperature of the homogeneous chain with

58
the free energy of the heterogeneous chain This is a typical situation where Griffiths singularities in the free energy F could develop.

59
Lee-Yang analysis of the partition sum

60
For c>2 To leading order

61
If, for simplicity, one considers only the closest zero to evaluate the free energy, one has (for, say, c>2) using Singular at t=0 with finite derivatives to all orders. Griffiths type singularity.

62
Summary Scaling approach may be applied to account for loop-loop interaction. For a loop embedded in a chain The interacting loops model yields first order melting transition. Broad loop-size distribution at the melting point Inter-strand distance distribution Larger cooperativity parameter Future directions: dynamics of loops, RNA melting etc.
