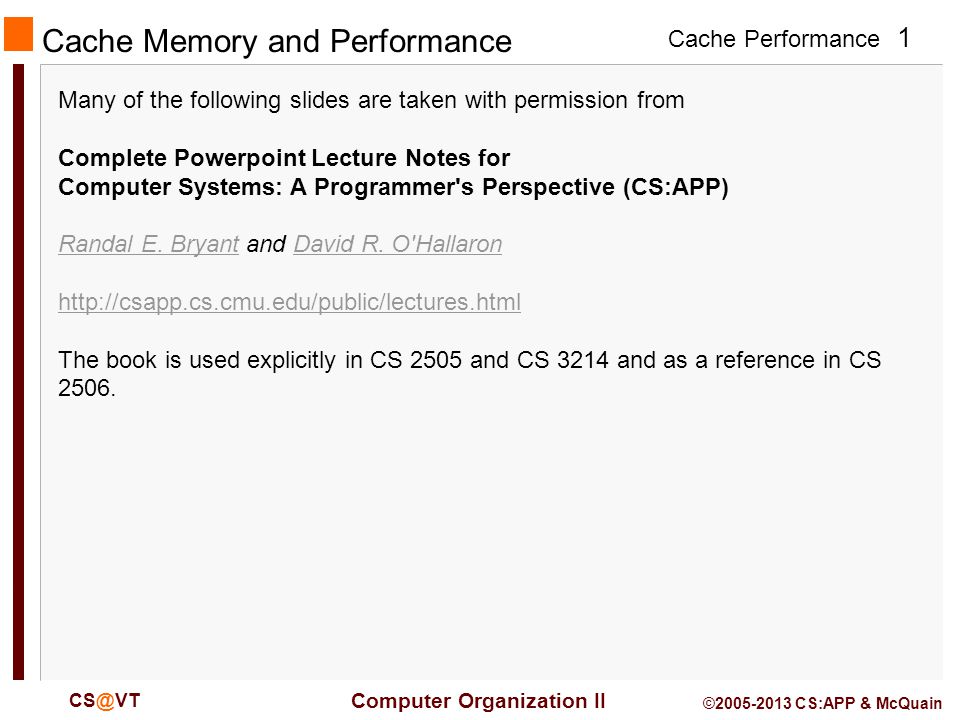

Cache Performance 1 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Cache Memory and Performance Many of the following slides are taken with permission from Complete Powerpoint Lecture Notes for Computer Systems: A Programmer's Perspective (CS:APP) Randal E. BryantRandal E. Bryant and David R. O'HallaronDavid R. O'Hallaron http://csapp.cs.cmu.edu/public/lectures.html The book is used explicitly in CS 2505 and CS 3214 and as a reference in CS 2506.
Cache Performance 2 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Cache Memories Cache memories are small, fast SRAM-based memories managed automatically in hardware. – Hold frequently accessed blocks of main memory CPU looks first for data in caches (e.g., L1, L2, and L3), then in main memory. Typical system structure: Main memory I/O bridge Bus interface ALU Register file CPU chip System busMemory bus Cache memories
Cache Performance 3 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain General Cache Organization (S, E, B) E = 2 e lines (blocks) per set S = 2 s sets set line (block) Cache size: C = S x E x B data bytes 012 B-1 tag v B = 2 b bytes per cache block (the data) valid bit 0 1 2 3 2 s -1 0 1 2 e -1
Cache Performance 4 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Cache Organization Types The "geometry" of the cache is defined by: S = 2 s the number of sets in the cache E = 2 e the number of lines (blocks) in a set B = 2 b the number of bytes in a line (block) E = 1 ( e = 0 )direct-mapped cache only one possible location in cache for each DRAM block S > 1 E = K > 1K -way associative cache K possible locations (in same cache set) for each DRAM block S = 1 (only one set)fully-associative cache E = # of cache blockseach DRAM block can be at any location in the cache

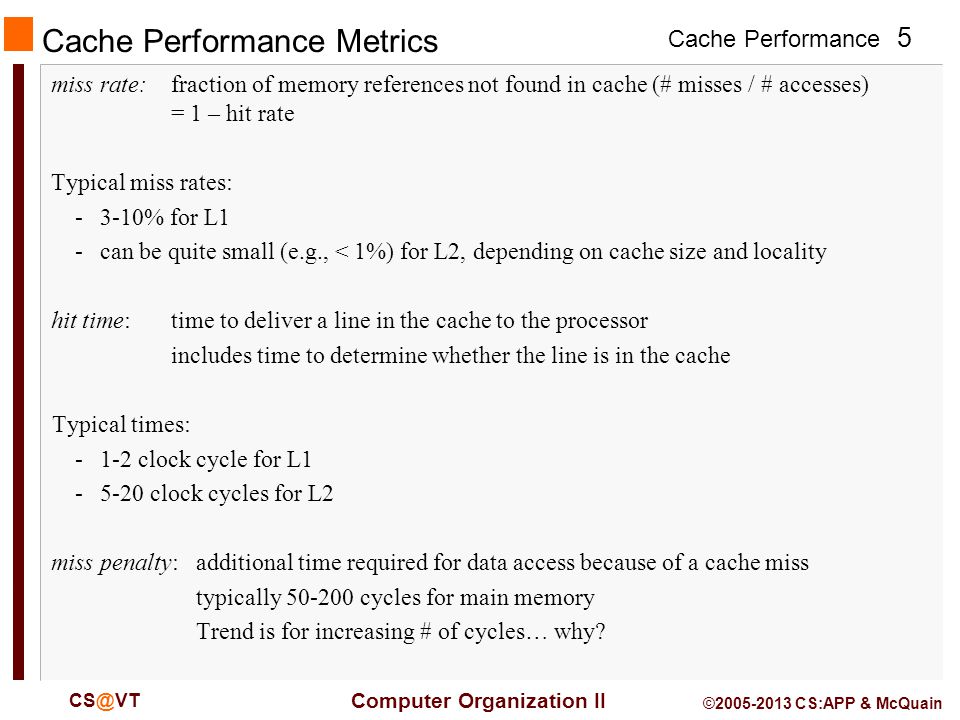

Cache Performance 5 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Cache Performance Metrics miss rate:fraction of memory references not found in cache (# misses / # accesses) = 1 – hit rate Typical miss rates: -3-10% for L1 -can be quite small (e.g., < 1%) for L2, depending on cache size and locality hit time:time to deliver a line in the cache to the processor includes time to determine whether the line is in the cache Typical times: -1-2 clock cycle for L1 -5-20 clock cycles for L2 miss penalty:additional time required for data access because of a cache miss typically 50-200 cycles for main memory Trend is for increasing # of cycles… why?

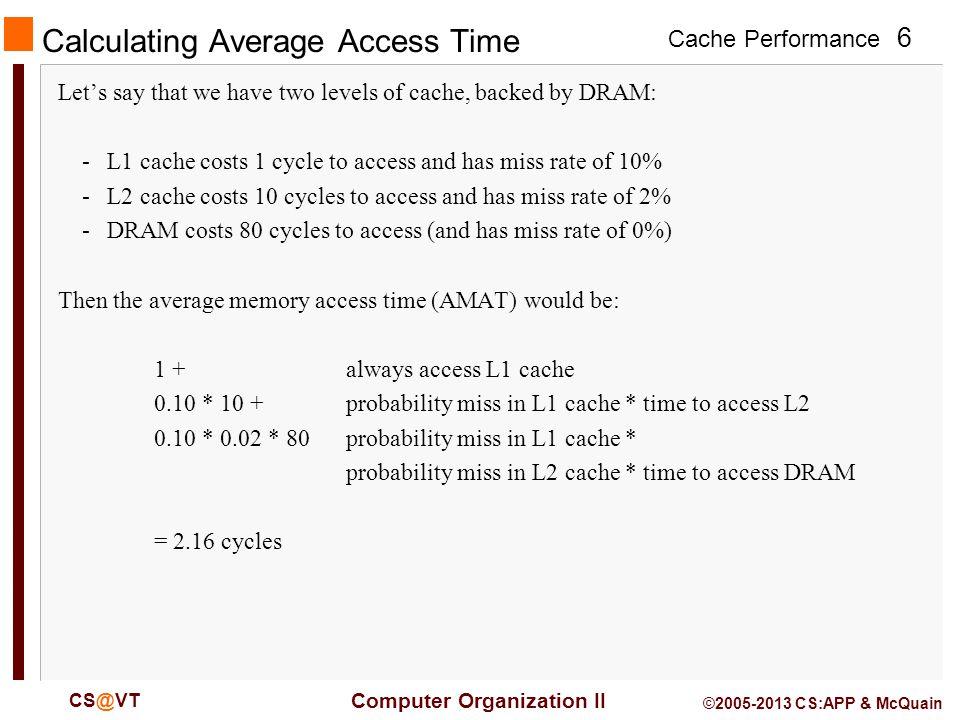

Cache Performance 6 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Calculating Average Access Time Let’s say that we have two levels of cache, backed by DRAM: -L1 cache costs 1 cycle to access and has miss rate of 10% -L2 cache costs 10 cycles to access and has miss rate of 2% -DRAM costs 80 cycles to access (and has miss rate of 0%) Then the average memory access time (AMAT) would be: 1 +always access L1 cache 0.10 * 10 +probability miss in L1 cache * time to access L2 0.10 * 0.02 * 80probability miss in L1 cache * probability miss in L2 cache * time to access DRAM = 2.16 cycles

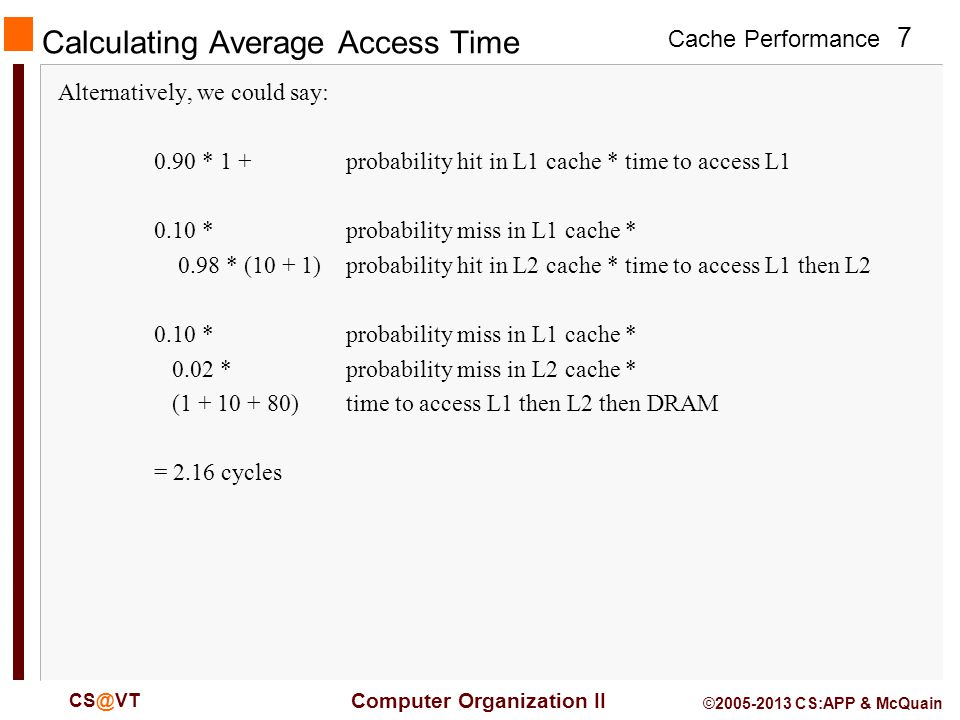

Cache Performance 7 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Calculating Average Access Time Alternatively, we could say: 0.90 * 1 +probability hit in L1 cache * time to access L1 0.10 * probability miss in L1 cache * 0.98 * (10 + 1)probability hit in L2 cache * time to access L1 then L2 0.10 * probability miss in L1 cache * 0.02 * probability miss in L2 cache * (1 + 10 + 80)time to access L1 then L2 then DRAM = 2.16 cycles

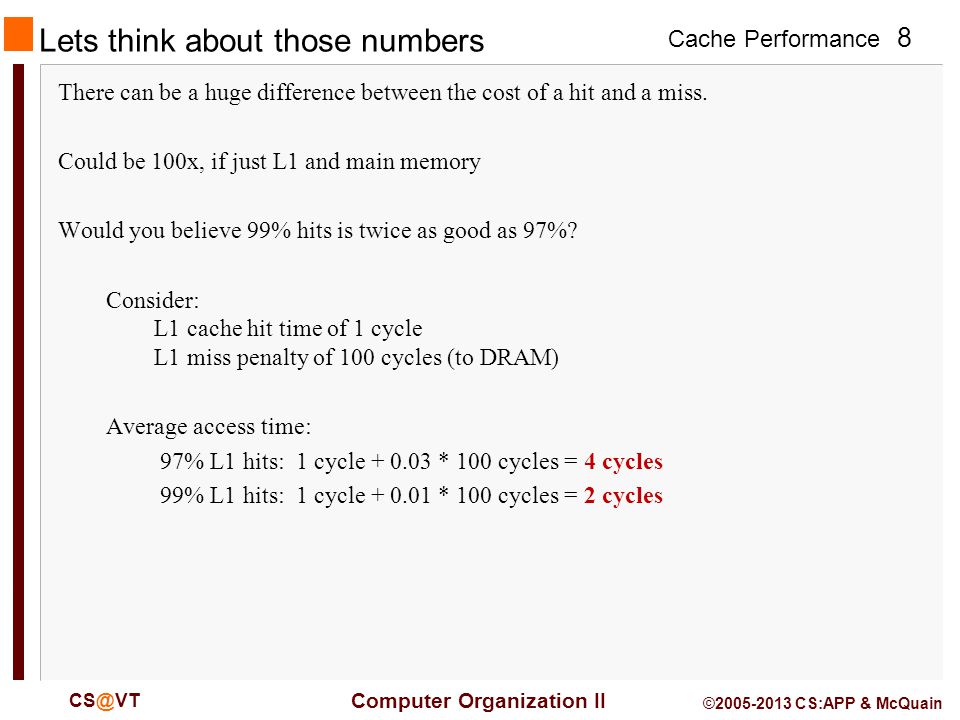

Cache Performance 8 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Lets think about those numbers There can be a huge difference between the cost of a hit and a miss. Could be 100x, if just L1 and main memory Would you believe 99% hits is twice as good as 97%? Consider: L1 cache hit time of 1 cycle L1 miss penalty of 100 cycles (to DRAM) Average access time: 97% L1 hits: 1 cycle + 0.03 * 100 cycles = 4 cycles 99% L1 hits: 1 cycle + 0.01 * 100 cycles = 2 cycles

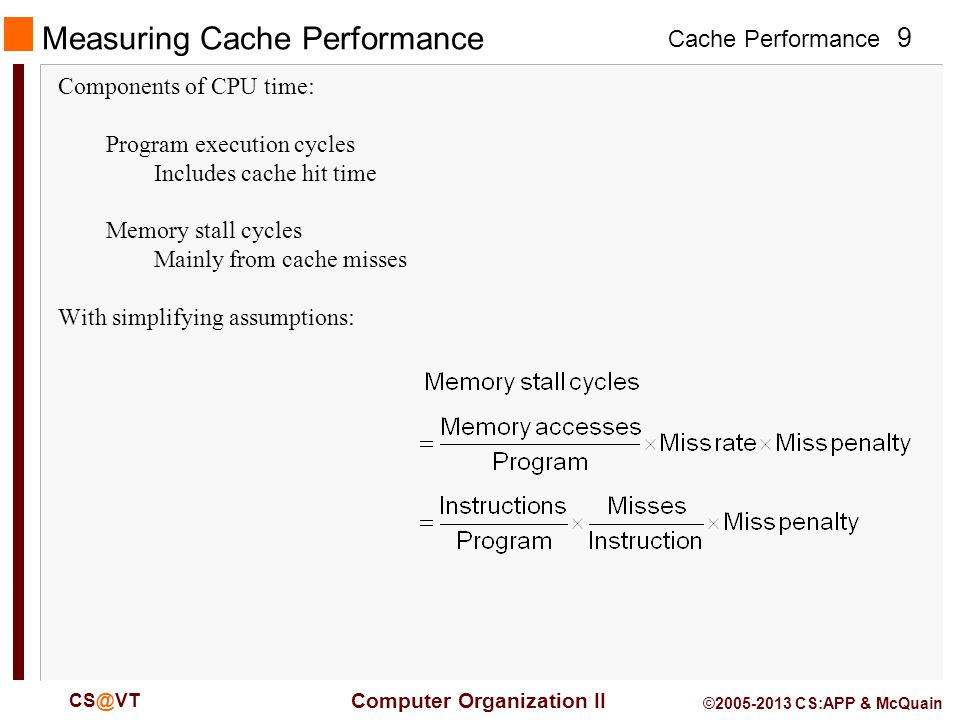

Cache Performance 9 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Measuring Cache Performance Components of CPU time: Program execution cycles Includes cache hit time Memory stall cycles Mainly from cache misses With simplifying assumptions:
Cache Performance 10 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Cache Performance Example Given -Instruction-cache miss rate = 2% -Data-cache miss rate = 4% -Miss penalty = 100 cycles -Base CPI (with ideal cache performance) = 2 -Load & stores are 36% of instructions Miss cycles per instruction -Instruction-cache: 0.02 × 100 = 2 -Data-cache: 0.36 × 0.04 × 100 = 1.44 Actual CPI = 2 + 2 + 1.44 = 5.44 -Ideal CPU is 5.44/2 =2.72 times faster -We spend 3.44/5.44 = 63% of our execution time on memory stalls!

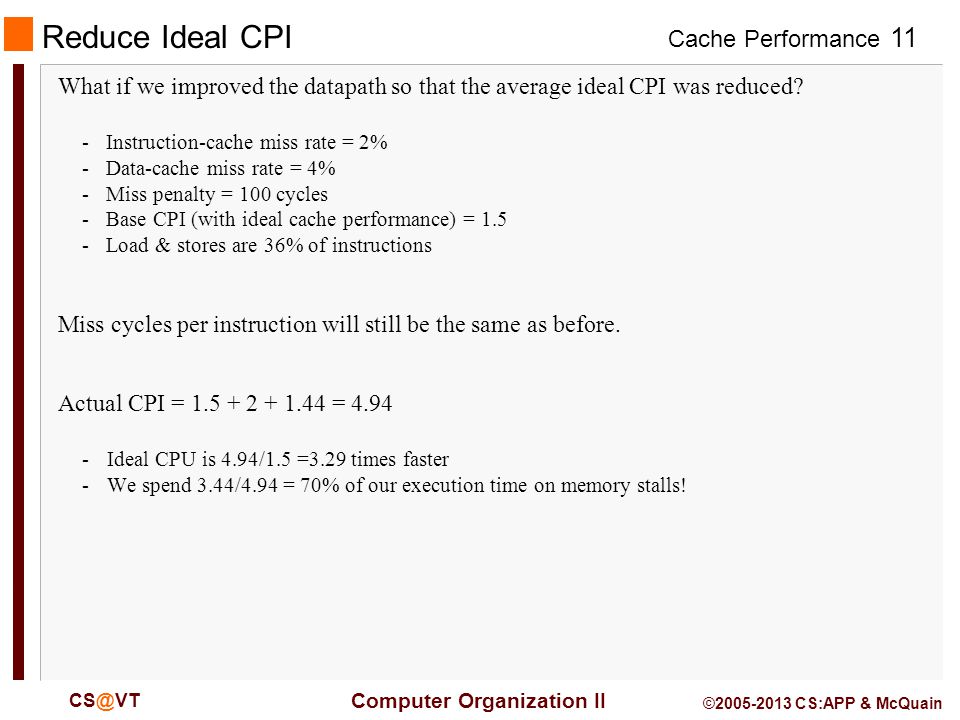

Cache Performance 11 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Reduce Ideal CPI What if we improved the datapath so that the average ideal CPI was reduced? -Instruction-cache miss rate = 2% -Data-cache miss rate = 4% -Miss penalty = 100 cycles -Base CPI (with ideal cache performance) = 1.5 -Load & stores are 36% of instructions Miss cycles per instruction will still be the same as before. Actual CPI = 1.5 + 2 + 1.44 = 4.94 -Ideal CPU is 4.94/1.5 =3.29 times faster -We spend 3.44/4.94 = 70% of our execution time on memory stalls!

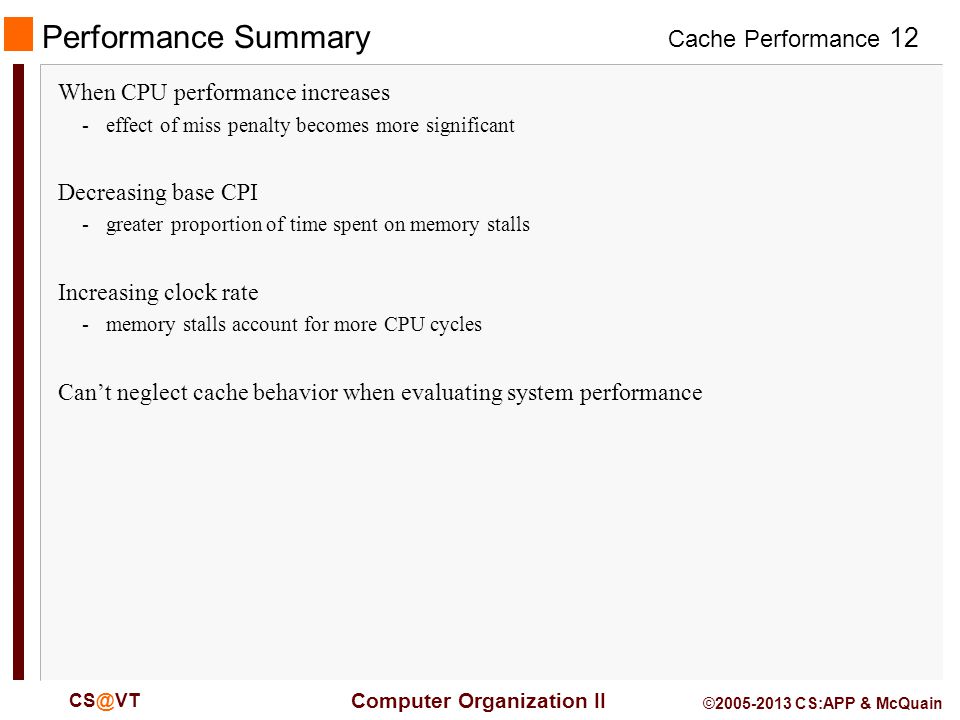

Cache Performance 12 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Performance Summary When CPU performance increases -effect of miss penalty becomes more significant Decreasing base CPI -greater proportion of time spent on memory stalls Increasing clock rate -memory stalls account for more CPU cycles Can’t neglect cache behavior when evaluating system performance
Cache Performance 13 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Multilevel Cache Considerations Primary cache – Focus on minimal hit time L-2 cache – Focus on low miss rate to avoid main memory access – Hit time has less overall impact Results – L-1 cache usually smaller than a single cache – L-1 block size smaller than L-2 block size

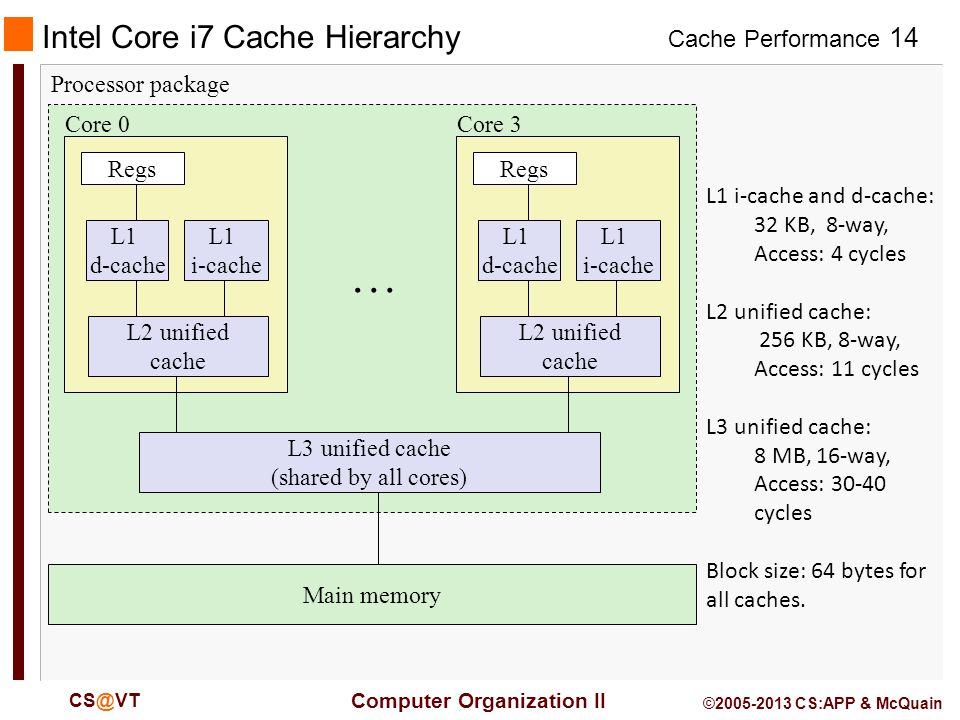

Cache Performance 14 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain Intel Core i7 Cache Hierarchy Regs L1 d-cache L1 i-cache L2 unified cache Core 0 Regs L1 d-cache L1 i-cache L2 unified cache Core 3 … L3 unified cache (shared by all cores) Main memory Processor package L1 i-cache and d-cache: 32 KB, 8-way, Access: 4 cycles L2 unified cache: 256 KB, 8-way, Access: 11 cycles L3 unified cache: 8 MB, 16-way, Access: 30-40 cycles Block size: 64 bytes for all caches.
Cache Performance 15 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain I-7 Sandybridge
Cache Performance 16 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain What about writes? Multiple copies of data may exist: -L1 -L2 -DRAM -Disk Remember: each level of the hierarchy is a subset of the one below it. Suppose we write to a data block that's in L1. If we update only the copy in L1, then we will have multiple, inconsistent versions! If we update all the copies, we'll incur a substantial time penalty! And what if we write to a data block that's not in L1?
Cache Performance 17 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain What about writes? What to do on a write-hit? Write-through (write immediately to memory) Write-back (defer write to memory until replacement of line) Need a dirty bit (line different from memory or not)
Cache Performance 18 Computer Organization II CS@VT ©2005-2013 CS:APP & McQuain What about writes? What to do on a write-miss? Write-allocate (load into cache, update line in cache) Good if more writes to the location follow No-write-allocate (writes immediately to memory) Typical combinations: Write-through + No-write-allocate Write-back + Write-allocate
