All Rights Reserved © Alcatel-Lucent 2006, ##### Scalability of IP/MPLS networks Lieven Levrau 30 th April, 2008 France Telecom, Cisco Systems, uawei Technologies, Telekomunikacja Polska S.A. ECI Telecom, Alcatel-Lucent dsl ppt Benchmarking Carrier Ethernet Technologies Workshop Session AII.1: PW/MPLS Krakow, Poland

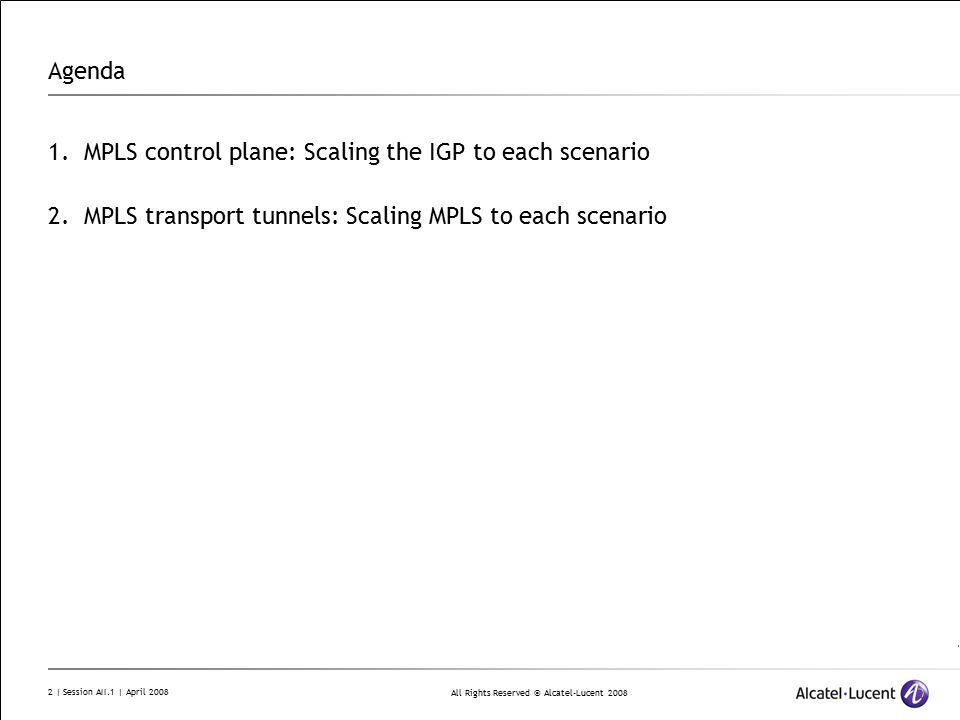

All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Agenda 1.MPLS control plane: Scaling the IGP to each scenario 2.MPLS transport tunnels: Scaling MPLS to each scenario

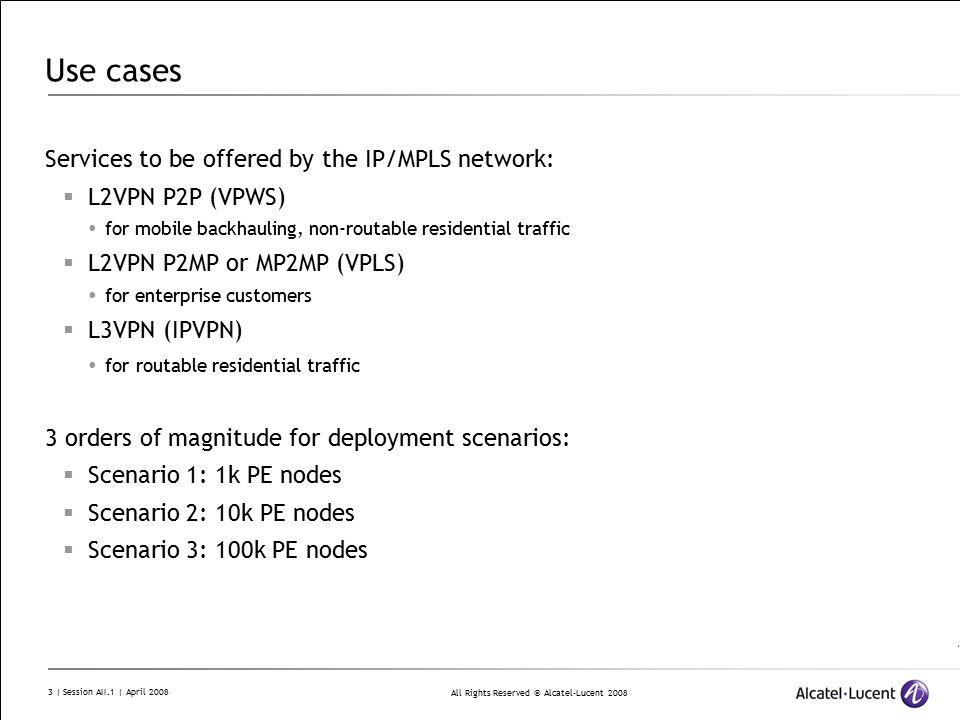

All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Use cases Services to be offered by the IP/MPLS network: L2VPN P2P (VPWS) for mobile backhauling, non-routable residential traffic L2VPN P2MP or MP2MP (VPLS) for enterprise customers L3VPN (IPVPN) for routable residential traffic 3 orders of magnitude for deployment scenarios: Scenario 1: 1k PE nodes Scenario 2: 10k PE nodes Scenario 3: 100k PE nodes
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April MPLS control plane: Scaling the IGP to each scenario
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 IGP scalability with 1k nodes A single area is sufficient for the IGP ISIS or OSPF are eligible Routing ISIS or OSPF PE P ISIS or OSPF P L2 ISIS IP/MPLS L2 ISIS area
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 IGP scalability with 10k nodes IP/MPLS L2 ISIS area IP/MPLS L1 ISIS area Multiple areas are required for the IGP ISIS or OSPF are eligible Area Border Routers are required to control redistribution between areas Routes are aggregated Only Loopback addresses from one area are redistributed into other areas IP/MPLS L1 ISIS area IP/MPLS L1 ISIS area ABR Routing ISIS PE P P ISIS L1 ISIS P ISIS L2 ISISL1 ISIS PPP
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 IGP scalability with 100k nodes IGP discontinuity is required: Different instances of a single IGP or different IGPs or different AS IP/MPLS L2 ISIS area IP/MPLS L1 ISIS area IP/MPLS L1 ISIS area IP/MPLS L1 ISIS area ABR Routing ISIS PE P P ISIS L1 ISIS P ISIS L2 ISISL1 ISIS PPP PE IGP RIP IP/MPLS
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April MPLS transport tunnels: Scaling MPLS to each scenario
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 CAC and sub-100ms resiliency require MPLS traffic engineering: TE-LSPs (RSVP-TE signaled LSP) as the technology for MPLS transport tunnels Otherwise : LDP-LSPs (LDP signaled LSP) as the technology for MPLS transport tunnels For each network segment, either TE-LSP or LDP-LSP need to be chosen. Needs for QoS and resiliency drive the choice for the LSP technology
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 For LDP-LSPs, a flat VPN model is sufficient (RFC 5036) For TE-LSPs, the use of hierarchical MPLS-TE is required (RFC 4206) For L3VPN, BGP Route Reflectors are required (RFC 4364) Scaling up to 1k Provider Edge nodes Routing LSP label allocation ISIS or OSPF PE P PW label allocation targeted LDP ISIS or OSPF P LDP or RSVP-TE L3VPN label allocation and route distribution IP/MPLS L2 ISIS area RR MP-BGP

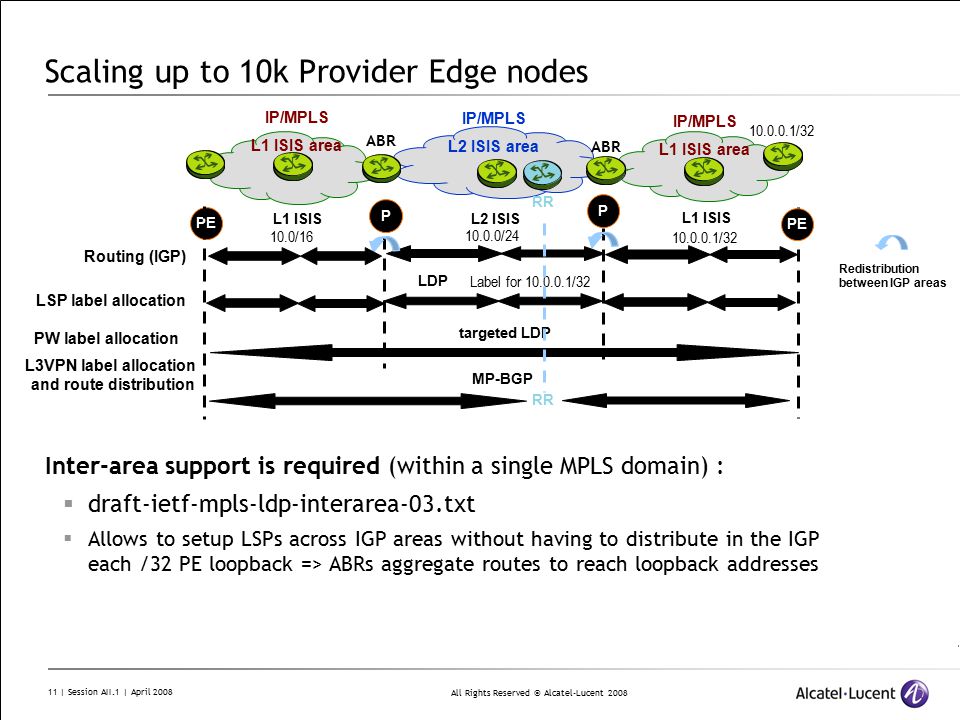

All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Scaling up to 10k Provider Edge nodes Inter-area support is required (within a single MPLS domain) : draft-ietf-mpls-ldp-interarea-03.txt Allows to setup LSPs across IGP areas without having to distribute in the IGP each /32 PE loopback => ABRs aggregate routes to reach loopback addresses IP/MPLS L2 ISIS area ABR Routing (IGP) PE L1 ISIS L2 ISIS P P LSP label allocation PW label allocation targeted LDP LDP L3VPN label allocation and route distribution / / /16 Redistribution between IGP areas Label for /32 RR MP-BGP RR IP/MPLS L1 ISIS area IP/MPLS L1 ISIS area

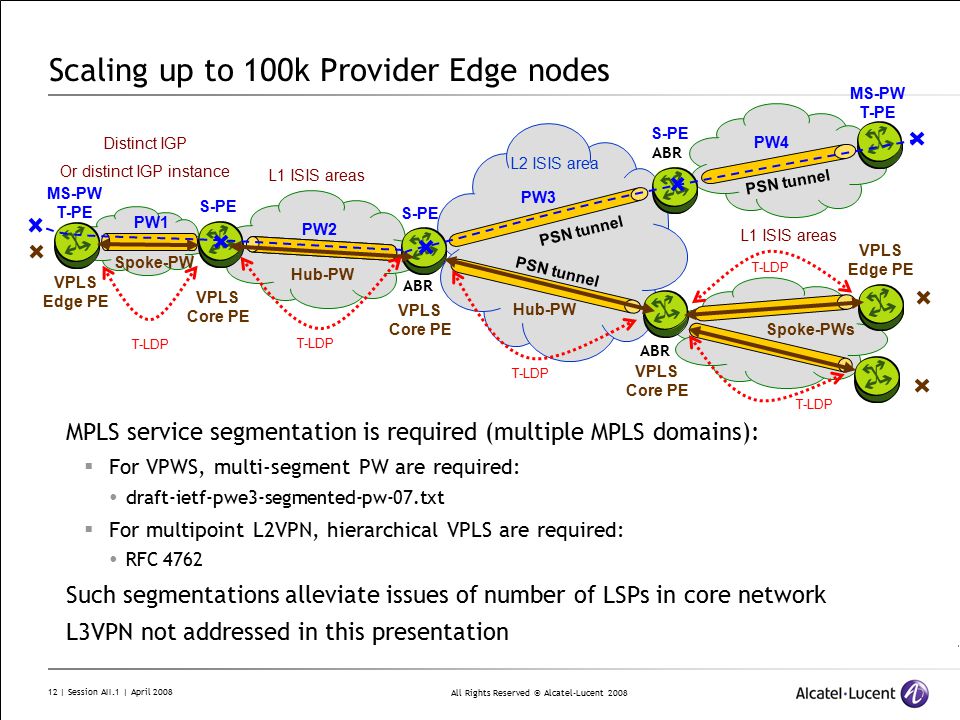

All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Scaling up to 100k Provider Edge nodes L2 ISIS area L1 ISIS areas ABR PSN tunnel MPLS service segmentation is required (multiple MPLS domains): For VPWS, multi-segment PW are required: draft-ietf-pwe3-segmented-pw-07.txt For multipoint L2VPN, hierarchical VPLS are required: RFC 4762 Such segmentations alleviate issues of number of LSPs in core network L3VPN not addressed in this presentation PW2 PW3 PW4 MS-PW T-PE MS-PW T-PE S-PE Hub-PW Spoke-PW Spoke-PWs VPLS Core PE VPLS Core PE VPLS Edge PE VPLS Edge PE T-LDP S-PE Distinct IGP Or distinct IGP instance PW1 VPLS Core PE Hub-PW T-LDP L1 ISIS areas
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Proposition for WT-145 To enable the IP/MPLS network to scale up to 1k/10k/100k PE nodes, the following requirements are proposed to be added into WT-145 modules: IP Routing Module (IRM) IGP (ISIS or OSPF) supporting multiple areas and multiple instances Area border routers if the node is between two IGP areas MPLS LSP module (MLM) TE-LSP (with RSVP-TE signaling: RFC 3209 if CAC and sub-100ms resiliency is required) with RFC 4206 LDP-LSP (RFC 5036) with draft-ietf-mpls-ldp-interarea-03.txt MPLS L2VPN service module (M2M) RFC 4446 and 4447 for point to point L2VPN draft-ietf-pwe3-segmented-pw-07.txt, for P2P L2VPN RFC 4762, for multipoint L2VPN MPLS L3VPN service module (M3M) RFC 4364: MP-BGP and route reflectors
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Thank you
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Backup Material
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Solutions' family for scaling MPLS Single MPLS domain solution Flat VPN architecture: end-to-end PSN tunnels, PEs at the MPLS edges Multiple MPLS domain solutions Network segmentation with the intervention of border routers (ASBRs or ABRs) in MPLS label exchange and MPLS traffic forwarding Still PSN tunnels between ultimate PEs (Flat VPN architecture), but segmented on the infrastructure level Service segmentation with the introduction of intermediate PEs PSN tunnels between ultimate PEs and intermediate PEs Several solutions Each solution solves a set of issues All these solutions can coexist

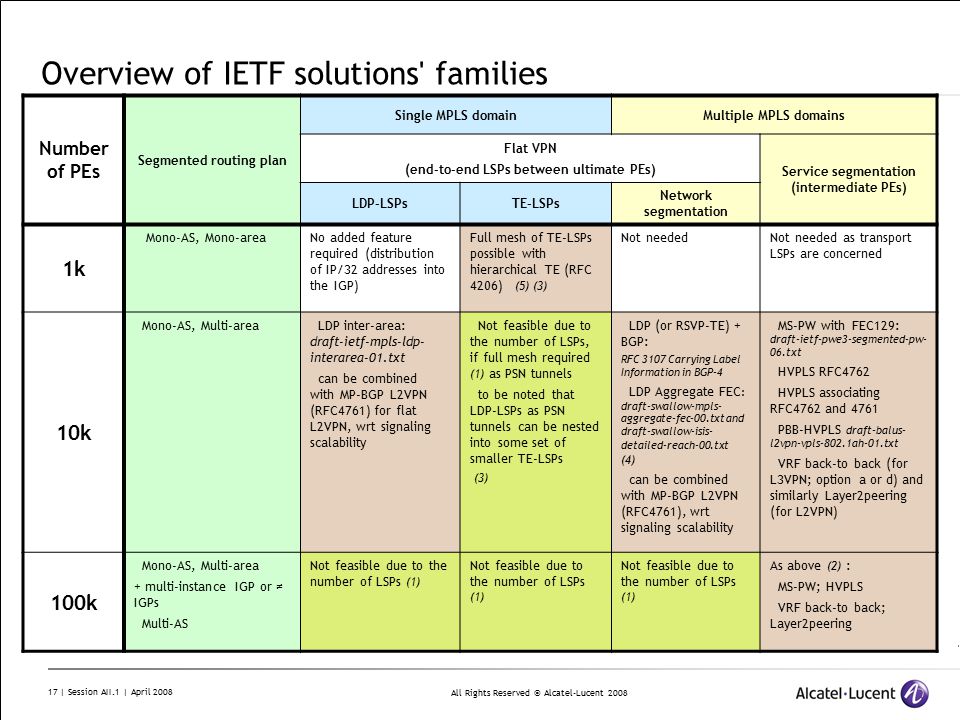

All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Overview of IETF solutions' families Number of PEs Segmented routing plan Single MPLS domainMultiple MPLS domains Flat VPN (end-to-end LSPs between ultimate PEs) Service segmentation (intermediate PEs) LDP-LSPsTE-LSPs Network segmentation 1k Mono-AS, Mono-areaNo added feature required (distribution of IP/32 addresses into the IGP) Full mesh of TE-LSPs possible with hierarchical TE (RFC 4206) (5) (3) Not neededNot needed as transport LSPs are concerned 10k Mono-AS, Multi-area LDP inter-area: draft-ietf-mpls-ldp- interarea-01.txt can be combined with MP-BGP L2VPN (RFC4761) for flat L2VPN, wrt signaling scalability Not feasible due to the number of LSPs, if full mesh required (1) as PSN tunnels to be noted that LDP-LSPs as PSN tunnels can be nested into some set of smaller TE-LSPs (3) LDP (or RSVP-TE) + BGP: RFC 3107 Carrying Label Information in BGP-4 LDP Aggregate FEC : draft-swallow-mpls- aggregate-fec-00.txt and draft-swallow-isis- detailed-reach-00.txt (4) can be combined with MP-BGP L2VPN (RFC4761), wrt signaling scalability MS-PW with FEC129: draft-ietf-pwe3-segmented-pw- 06.txt HVPLS RFC4762 HVPLS associating RFC4762 and 4761 PBB-HVPLS draft-balus- l2vpn-vpls-802.1ah-01.txt VRF back-to back (for L3VPN; option a or d) and similarly Layer2peering (for L2VPN) 100k Mono-AS, Multi-area + multi-instance IGP or ≠ IGPs Multi-AS Not feasible due to the number of LSPs (1) As above (2) : MS-PW; HVPLS VRF back-to back; Layer2peering
All Rights Reserved © Alcatel-Lucent | Session AII.1 | April 2008 Overview of IETF solutions' families If we assume that Max number of LSP = few 10k => justification of the non-feasibility In addition in case of 100k PEs, "flat VPN" solutions that were proposed for the 10k case are applicable to some VPN segments MP2P TE-LSP still under study at IETF (Juniper's) Hierarchical LDP: not proposed yet at the IETF RFC 4206: several TE-LSPs from PE to PE imbedded/nested into a single and smaller TE-LSP PBB-VPLS (VSI Scaling): using PBB in HVPLS enables to hide MAC space from PEs in core (alleviates the amount of VSIs by using N:1 multiplexing)
