16.362 Signal and System I The inverse z-transform Any path in the ROC to make the integral converge Example ROC |z|>1/3

2
16.362 Signal and System I The inverse z-transform Example ROC 1/4 <|z|<1/3 Example ROC |z|<1/4

3

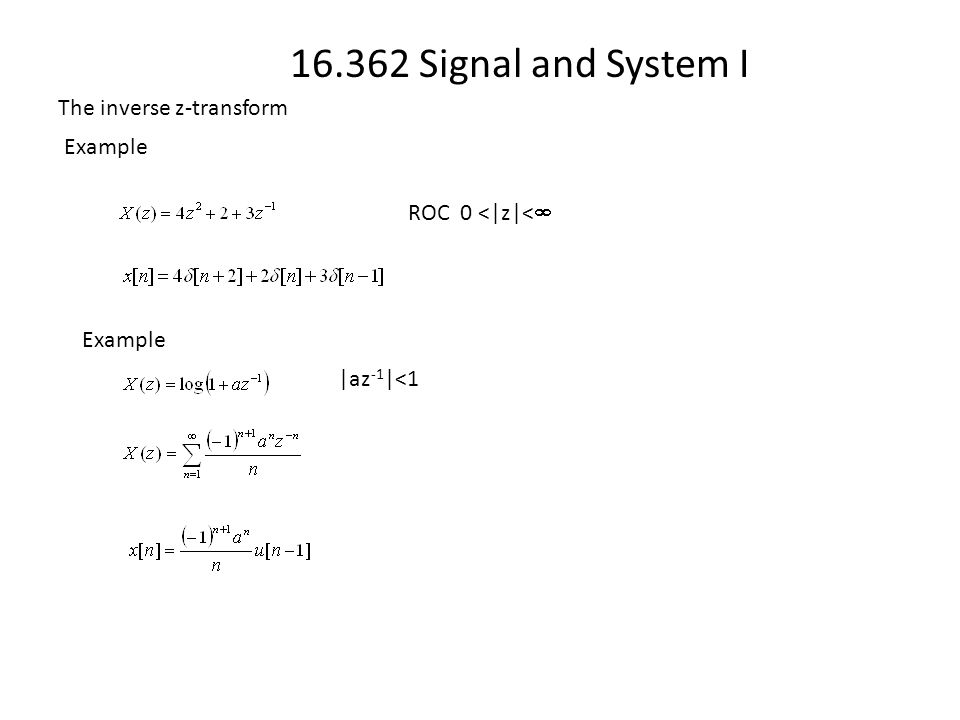

16.362 Signal and System I The inverse z-transform Example ROC 0 <|z|< Example |az -1 |<1

4

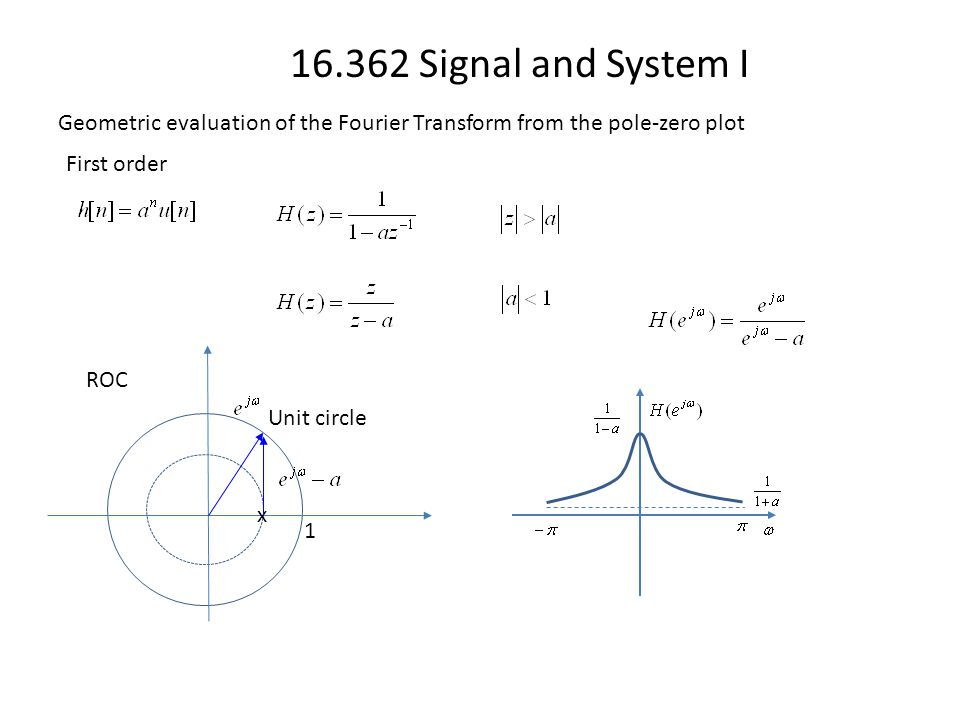

16.362 Signal and System I Geometric evaluation of the Fourier Transform from the pole-zero plot ROC 1 Unit circle x First order

5

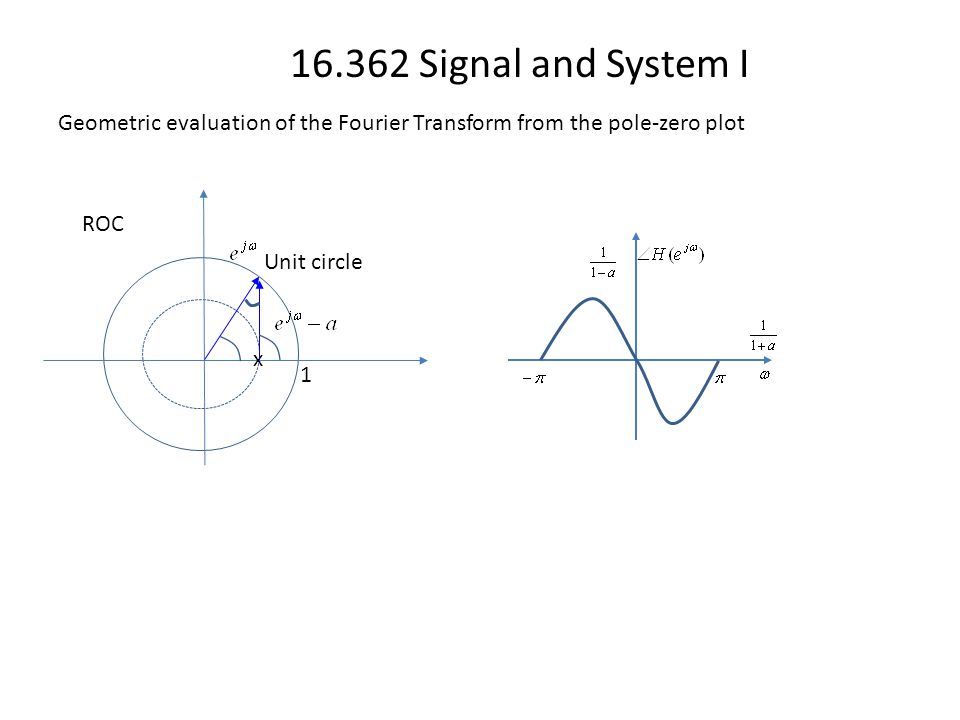

16.362 Signal and System I Geometric evaluation of the Fourier Transform from the pole-zero plot ROC 1 Unit circle x

6
16.362 Signal and System I Geometric evaluation of the Fourier Transform from the pole-zero plot ROC 1 Unit circle x 2 nd order x

7
16.362 Signal and System I Properties of z-transform (1) Linearity with ROC containing with ROC R1 with ROC R2

8
16.362 Signal and System I (2) Time shifting with ROC R1 with ROC R1 with addition or deletion of poles at z=0 or infinite (3) Scaling in the z-domain with ROC |z0|R1 with ROC R1 with addition or deletion of poles at z=0 or infinite

9
16.362 Signal and System I (3) Scaling in the z-domain with ROC |z0|R1 with ROC R1 with addition or deletion of poles at z=0 or infinite x x

10
16.362 Signal and System I (4) Time reversal with ROC R1 with ROC 1/R1

11
16.362 Signal and System I (5) Time expansion if n is a multiple of k otherwise with ROC (R) 1/k (6) Conjugation with ROC R real with ROC R

12

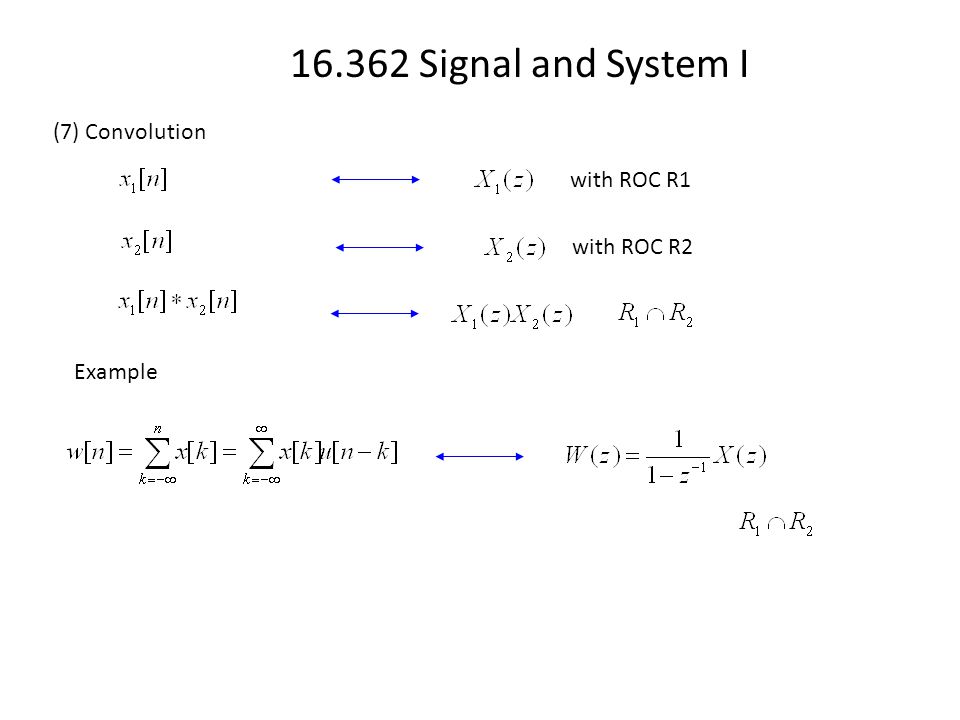

16.362 Signal and System I (7) Convolution with ROC R1 with ROC R2 Example

13
16.362 Signal and System I Differentiation in z-domain with ROC R1 Example

14

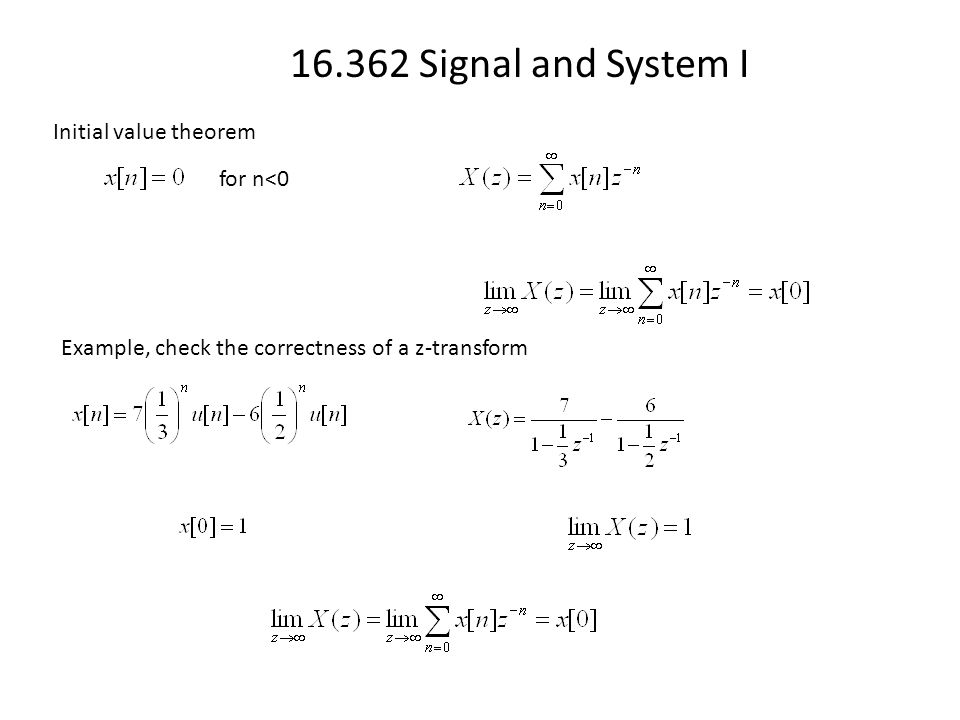

16.362 Signal and System I Initial value theorem for n<0 Example, check the correctness of a z-transform
