1 Chris Whiting & Keddy Malcolm

2  555 Timer Pin Layout  555 Timer Configuration  555 Timer – Other Applications  Malcolm Results  Whiting Results  Conclusion  Sources

3 2TRIG OUT rises, and interval starts, when this input falls below 1/3 V CC. 6THR The interval ends when the voltage at THR is greater than at 2/3 Vcc. 4RESET A timing interval may be reset by driving this input to GND, but the timing does not begin again until RESET rises above approximately 0.7 volts. 5CTRL "Control" access to the internal voltage divider (by default, 2/3 V CC ). 7DIS Open collector output; may discharge a capacitor between intervals. In phase with output. 3OUT This output is driven to approximately 1.7V below +Vcc or GND.

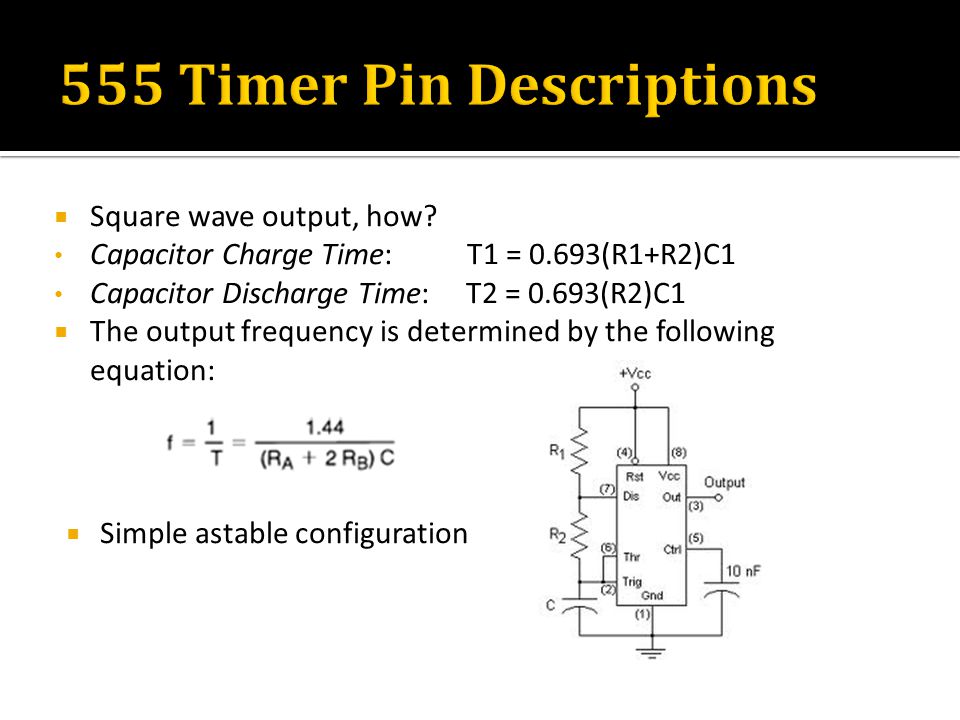

4  Square wave output, how? Capacitor Charge Time: T1 = 0.693(R1+R2)C1 Capacitor Discharge Time: T2 = 0.693(R2)C1  The output frequency is determined by the following equation:  Simple astable configuration

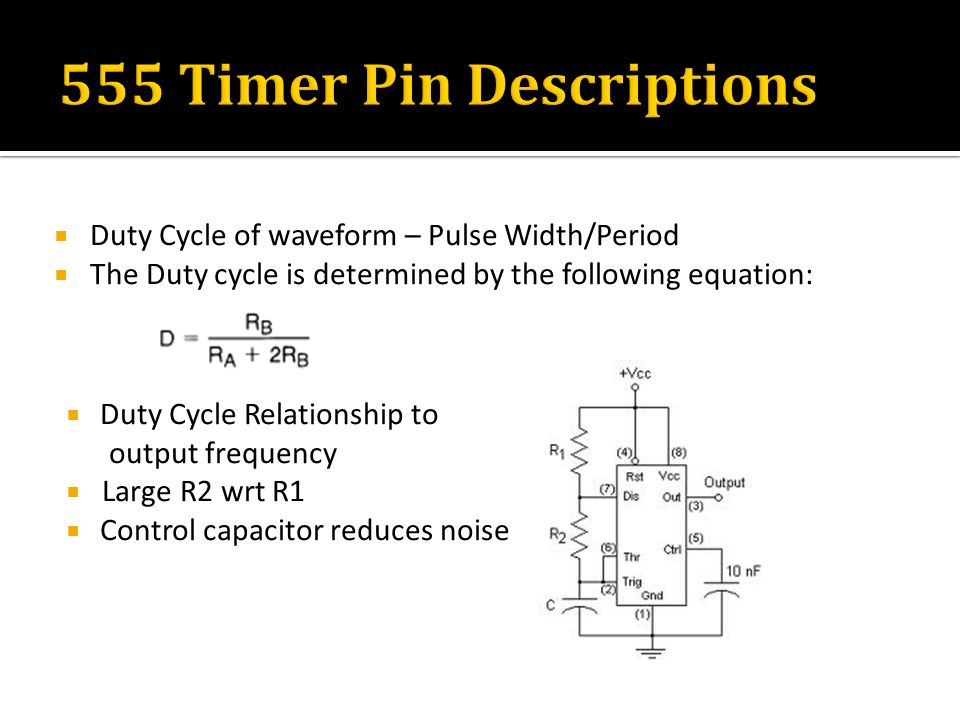

5  Duty Cycle of waveform – Pulse Width/Period  The Duty cycle is determined by the following equation:  Duty Cycle Relationship to output frequency  Large R2 wrt R1  Control capacitor reduces noise

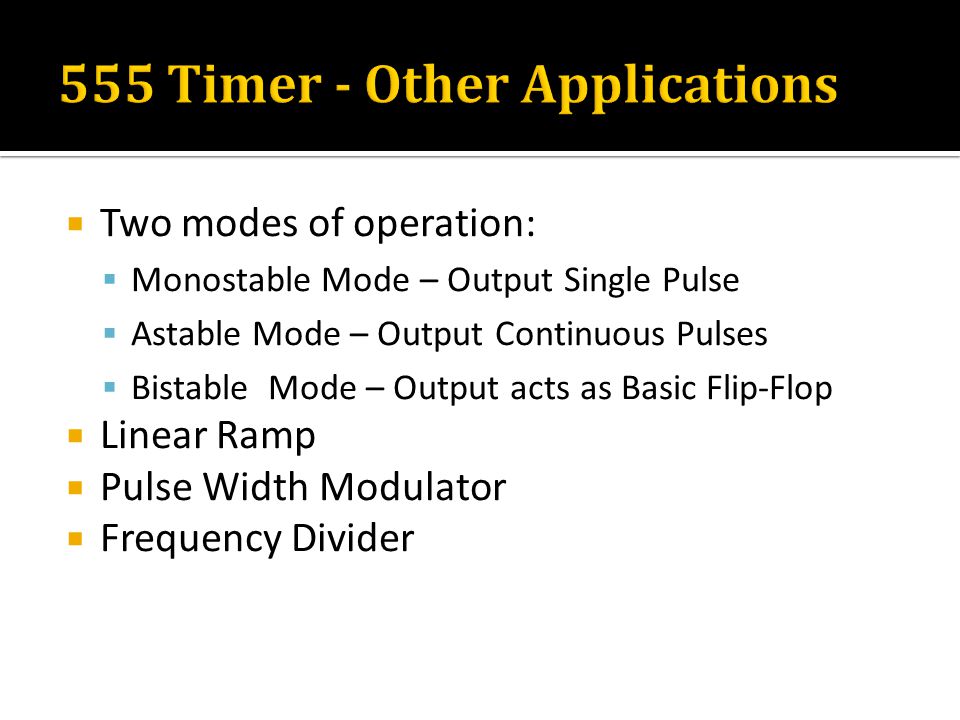

6  Two modes of operation:  Monostable Mode – Output Single Pulse  Astable Mode – Output Continuous Pulses  Bistable Mode – Output acts as Basic Flip-Flop  Linear Ramp  Pulse Width Modulator  Frequency Divider

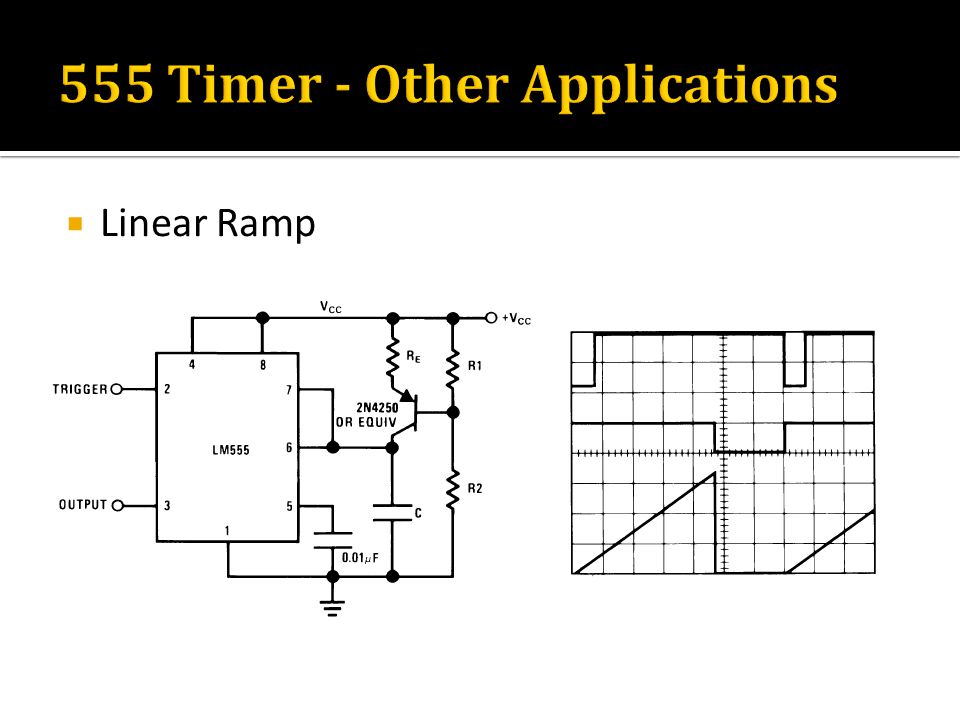

7  Linear Ramp

8  Pulse Width Modulator

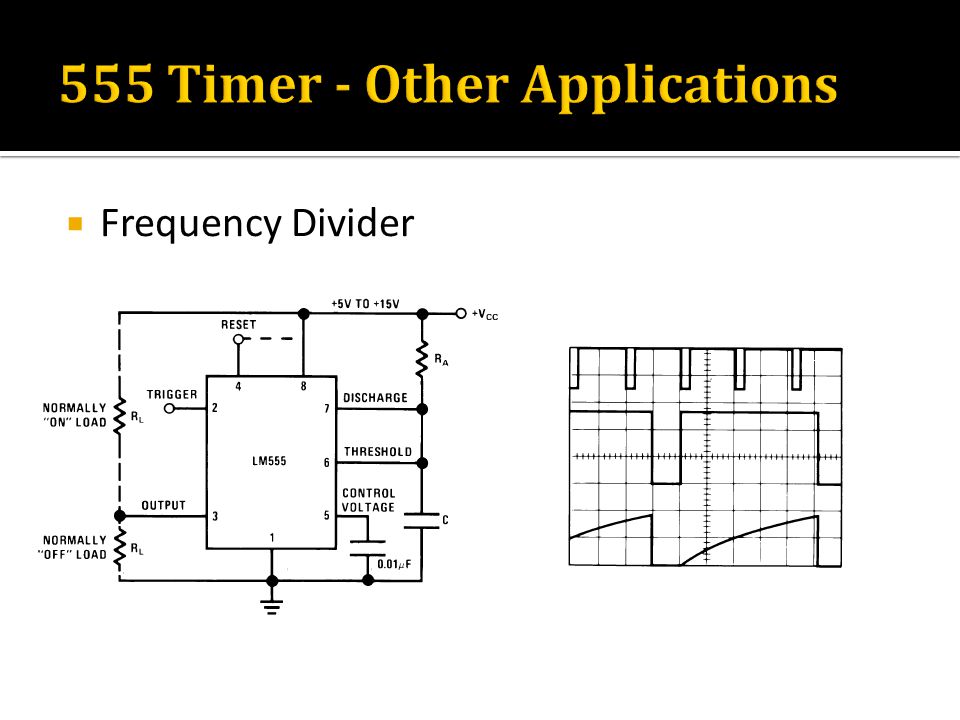

9  Frequency Divider

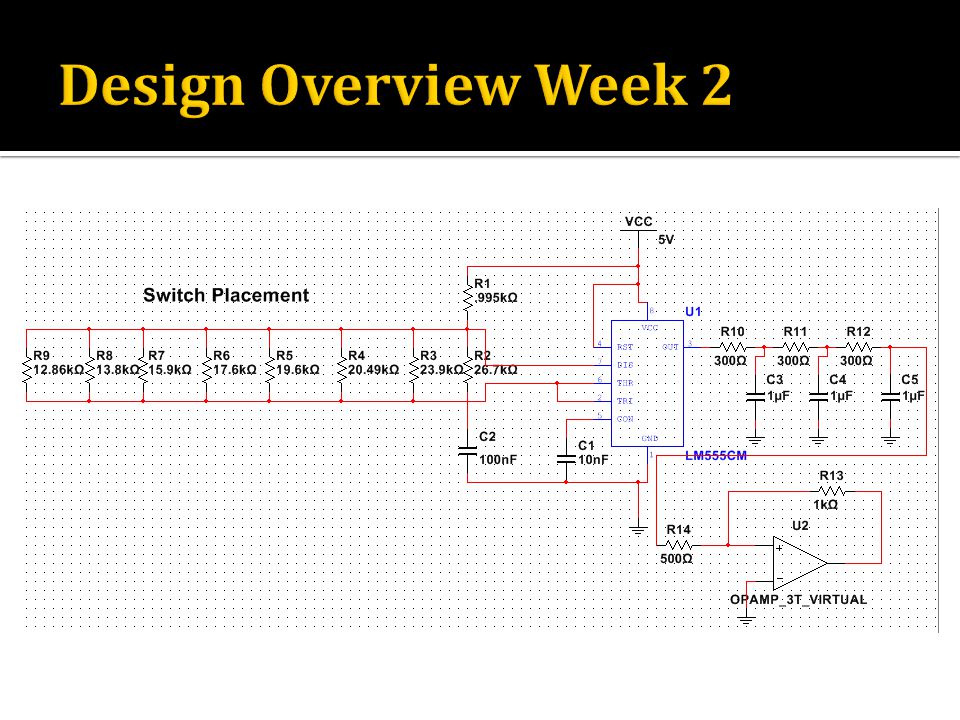

10 Switch Placement

11

12 Week One: Change resistors to get frequencies correct Mistakes in wiring Week Two: Problems with wiring Balance between volume and waveform output Component Precision

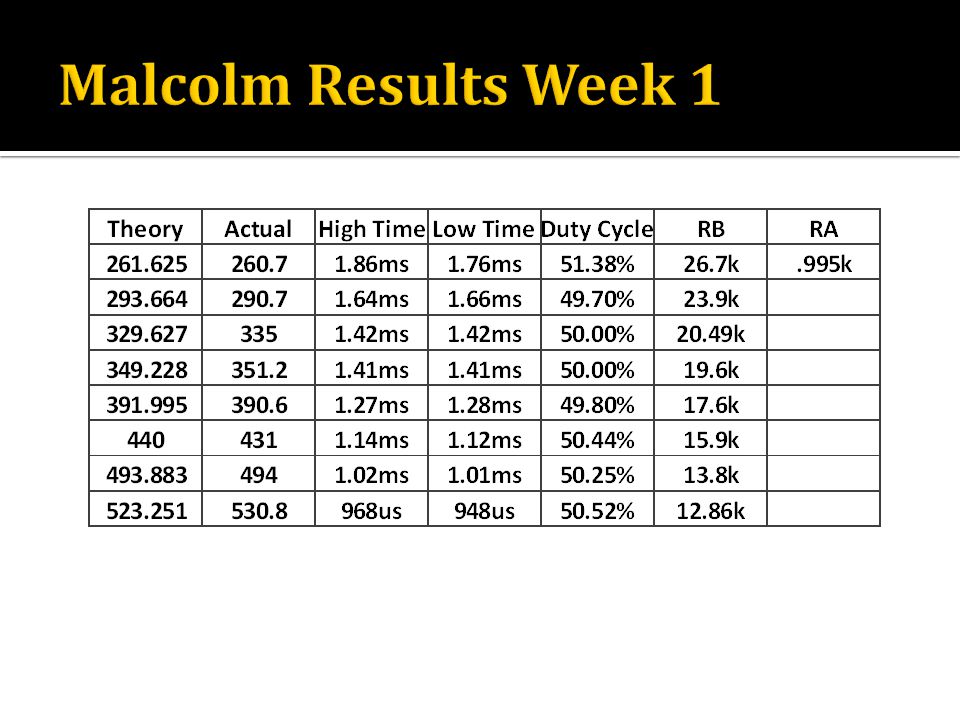

13

14 Rise time: 1.86 ms Fall time: 1.76 ms Duty Cycle: 51.38%

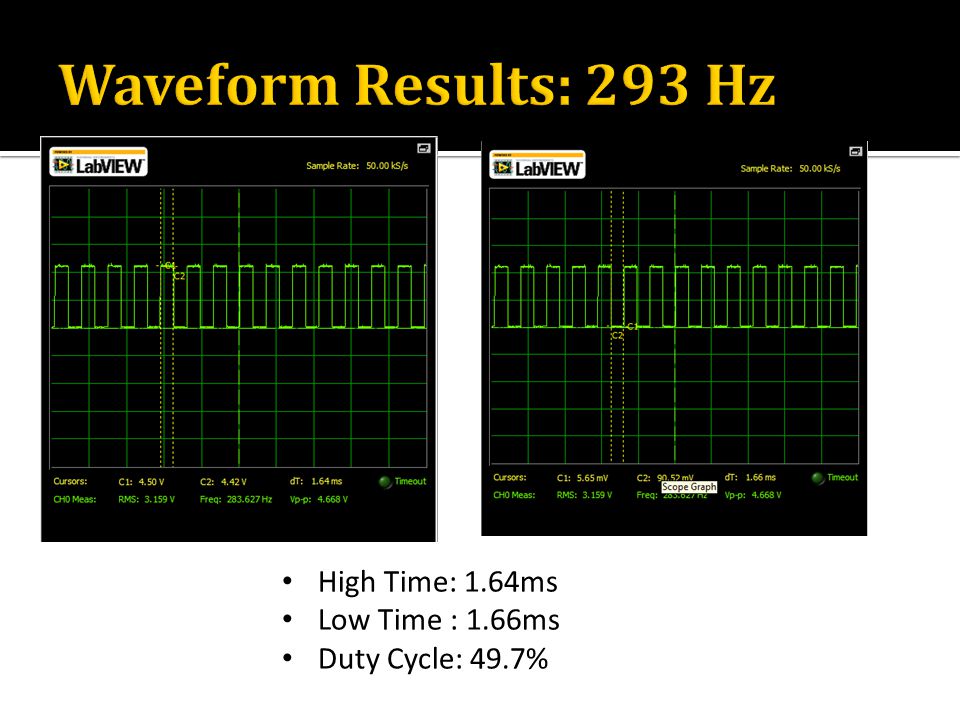

15 High Time: 1.64ms Low Time : 1.66ms Duty Cycle: 49.7%

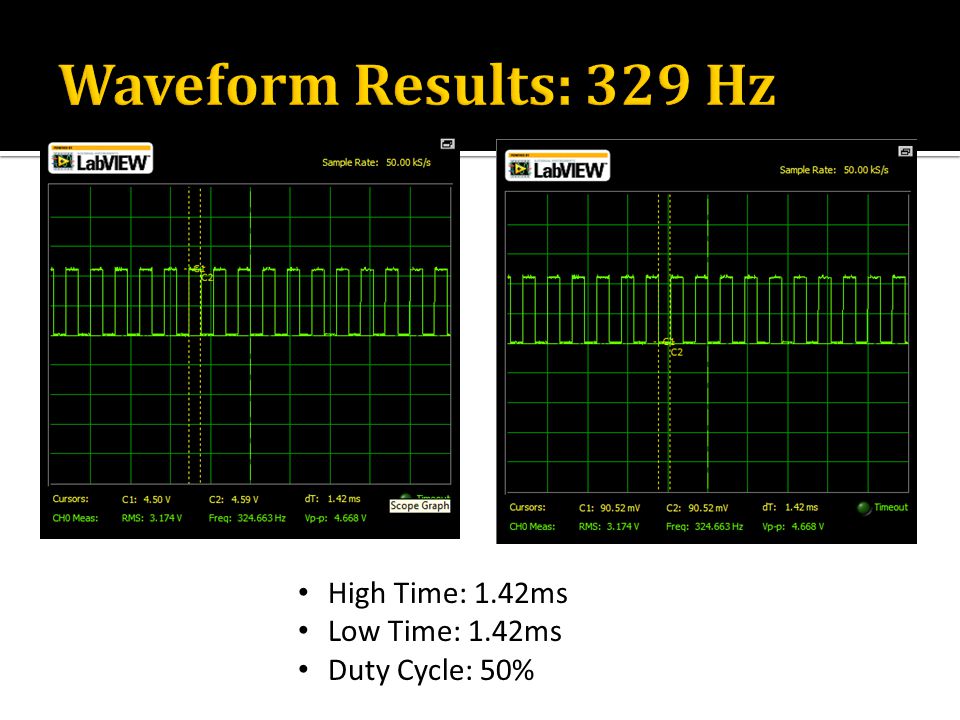

16 High Time: 1.42ms Low Time: 1.42ms Duty Cycle: 50%

17 High Time: 1.41ms Low Time: 1.41ms Duty Cycle: 50%

18 High Time: 1.27ms Low Time: 1.28ms Duty Cycle: 49.80%

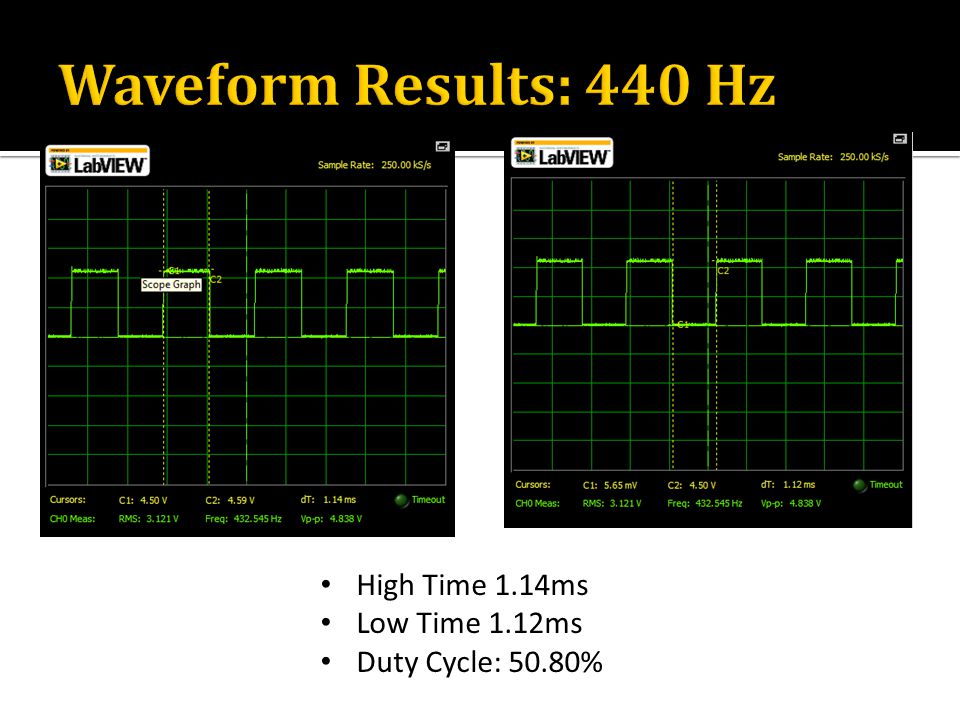

19 High Time 1.14ms Low Time 1.12ms Duty Cycle: 50.80%

20 High Time: 1.02ms Low Time: 1.01ms Duty Cycle: 50.44%

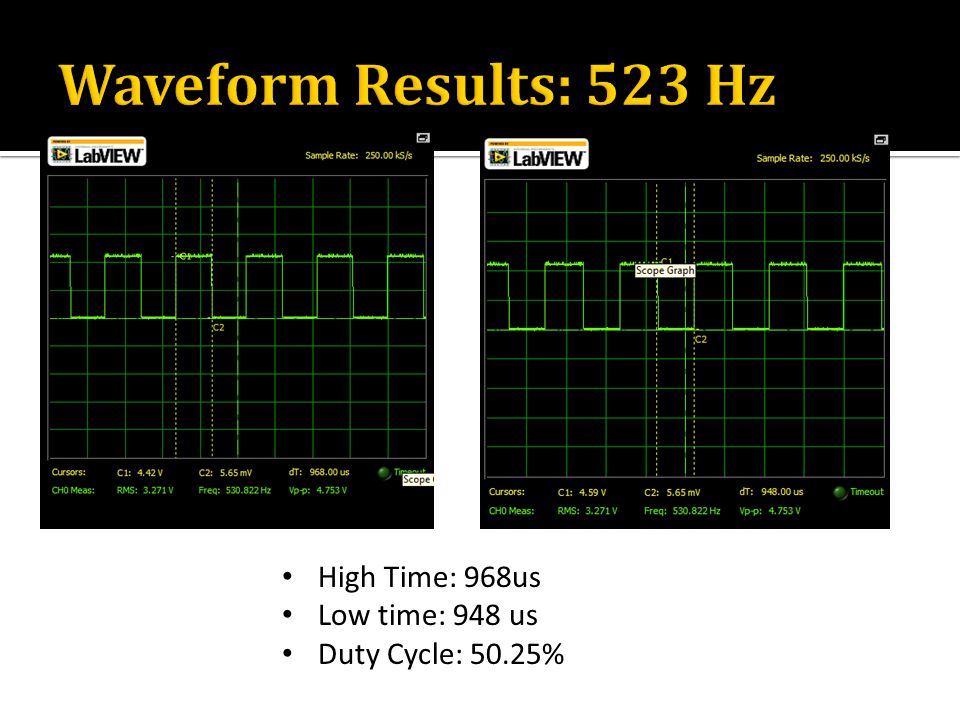

21 High Time: 968us Low time: 948 us Duty Cycle: 50.25%

22

23

24

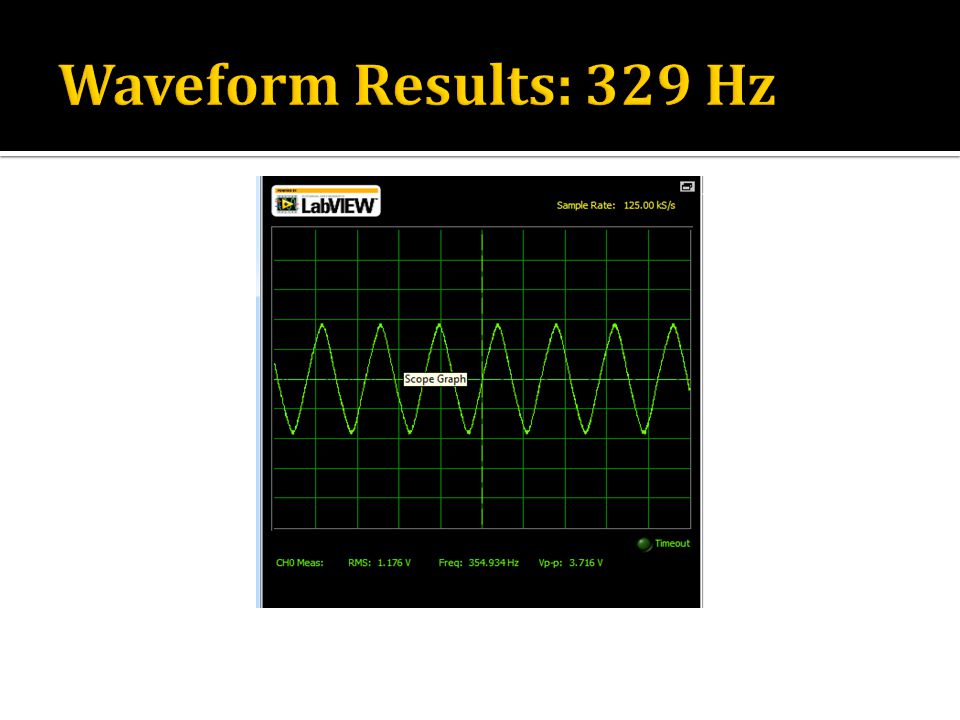

25

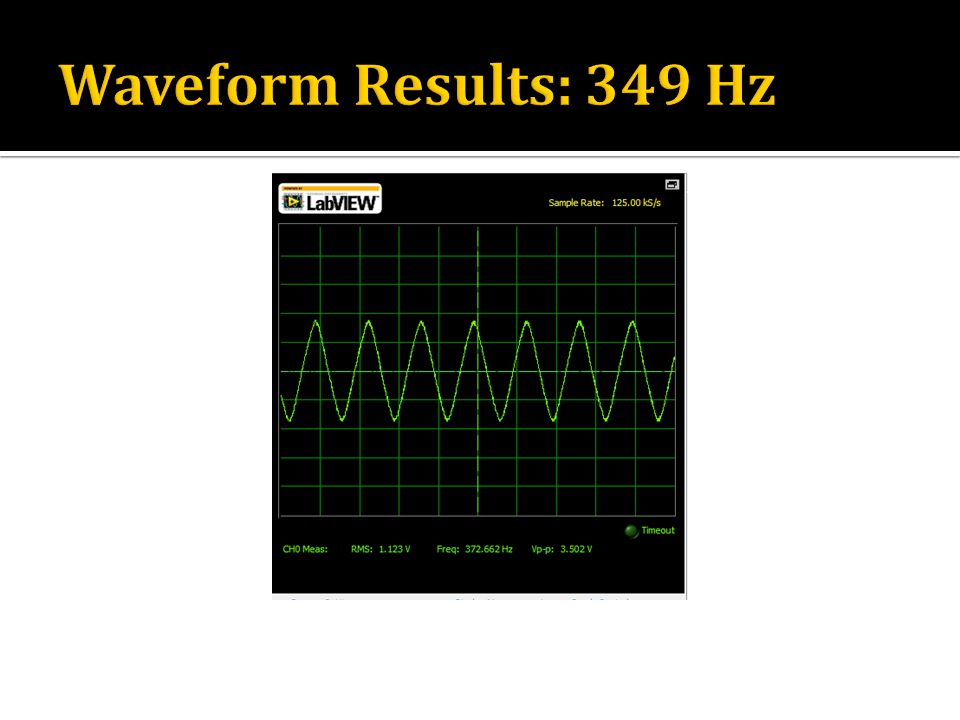

26

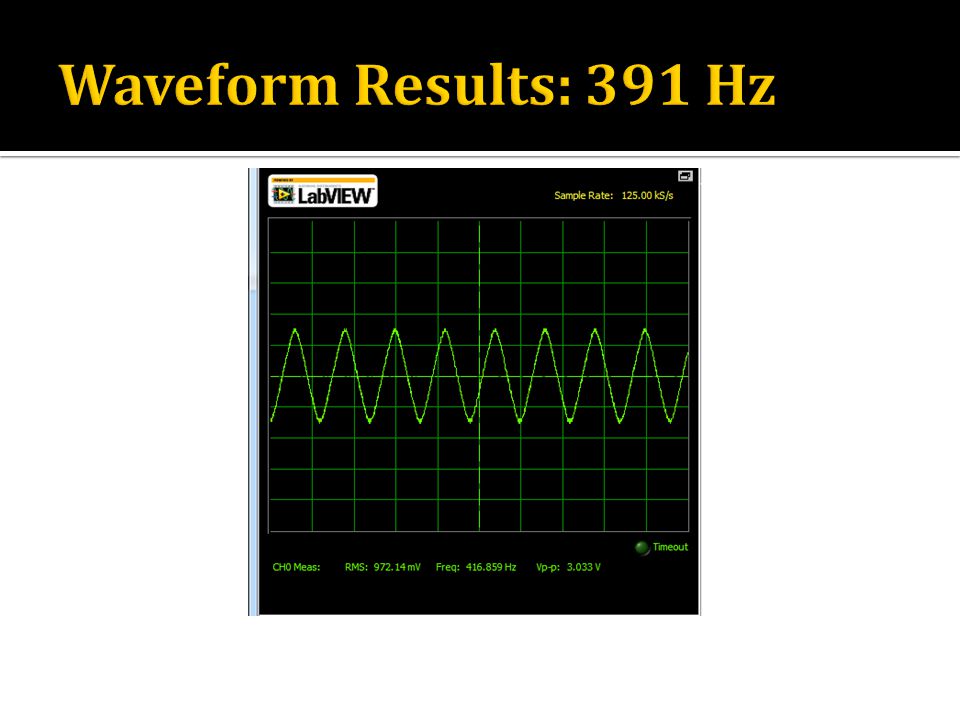

27

28

29

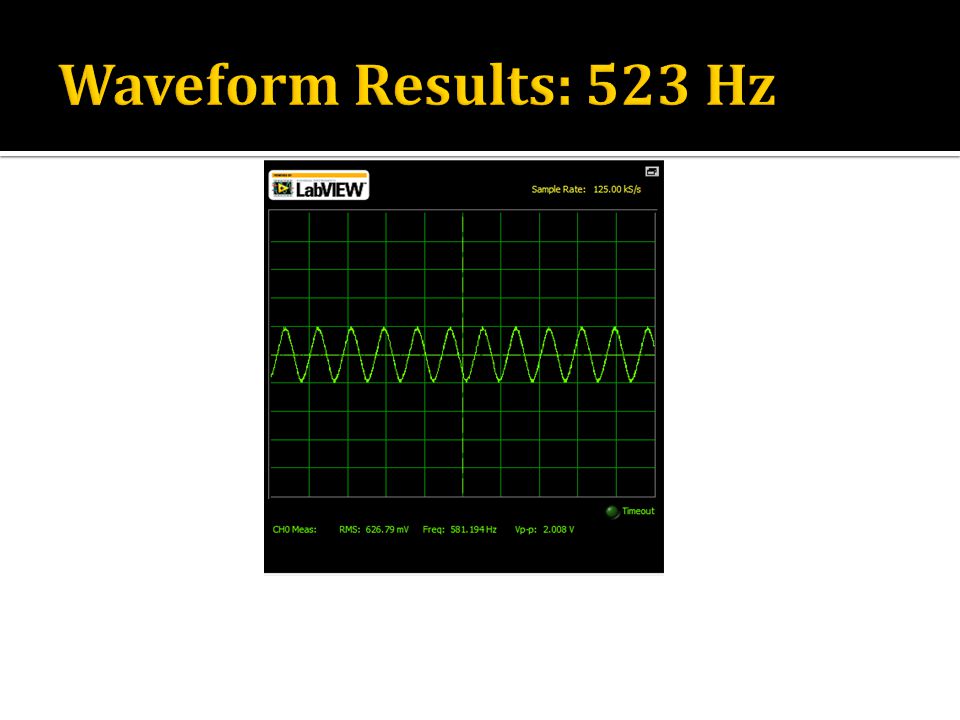

30

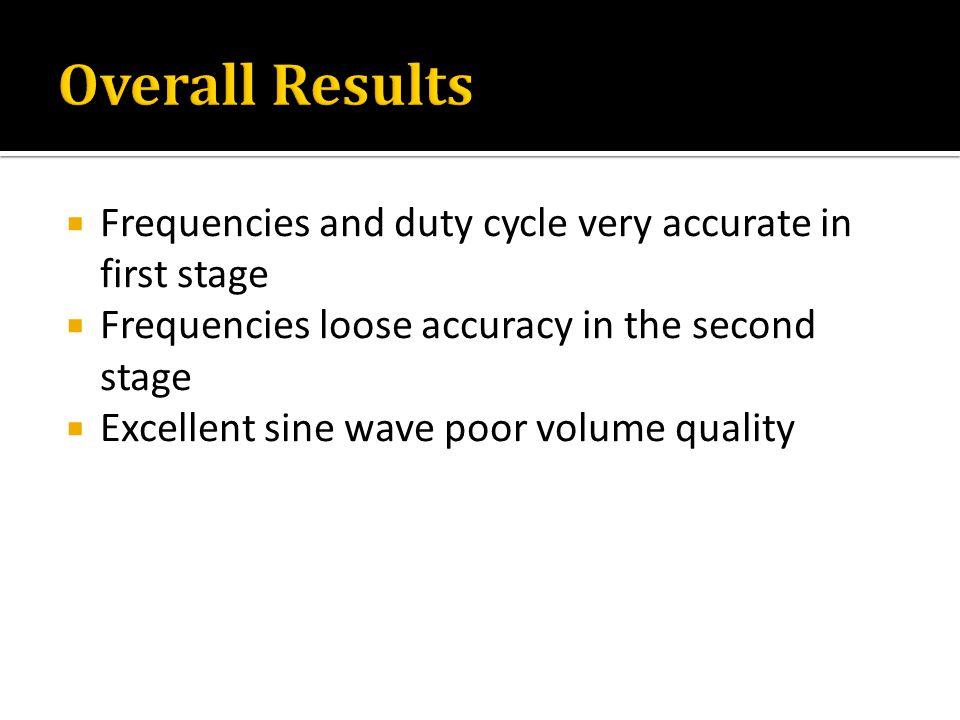

31  Frequencies and duty cycle very accurate in first stage  Frequencies loose accuracy in the second stage  Excellent sine wave poor volume quality

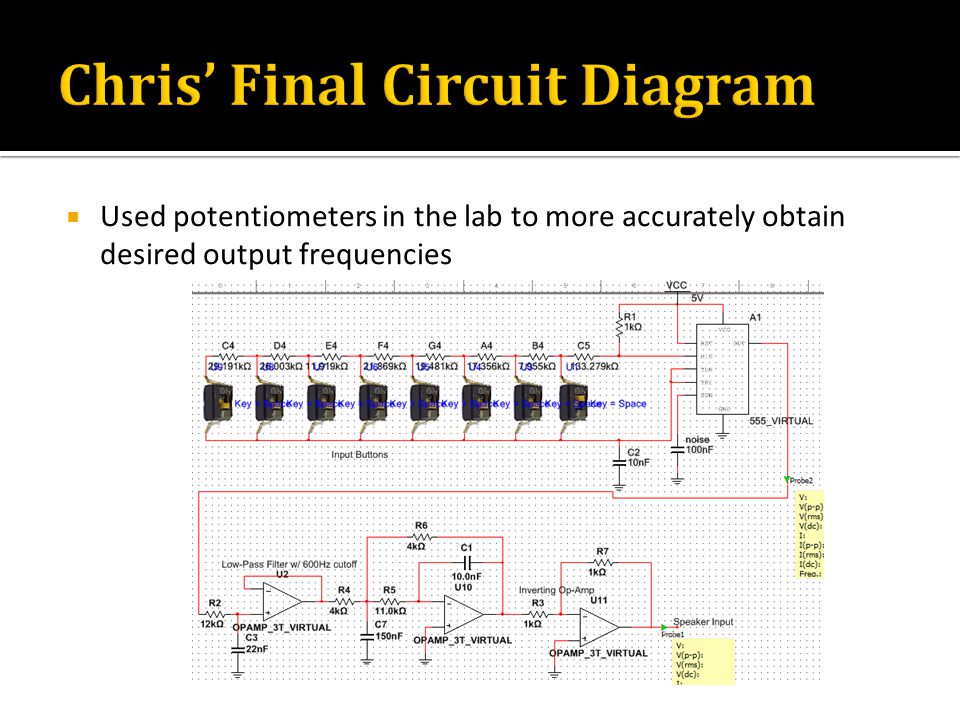

32  Used potentiometers in the lab to more accurately obtain desired output frequencies

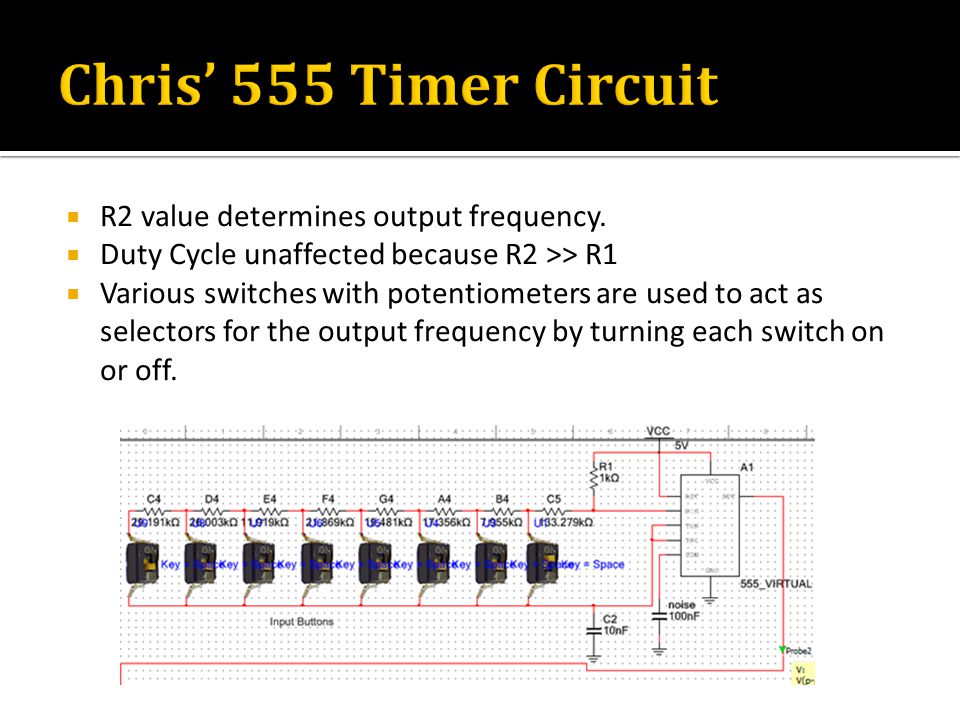

33  R2 value determines output frequency.  Duty Cycle unaffected because R2 >> R1  Various switches with potentiometers are used to act as selectors for the output frequency by turning each switch on or off.

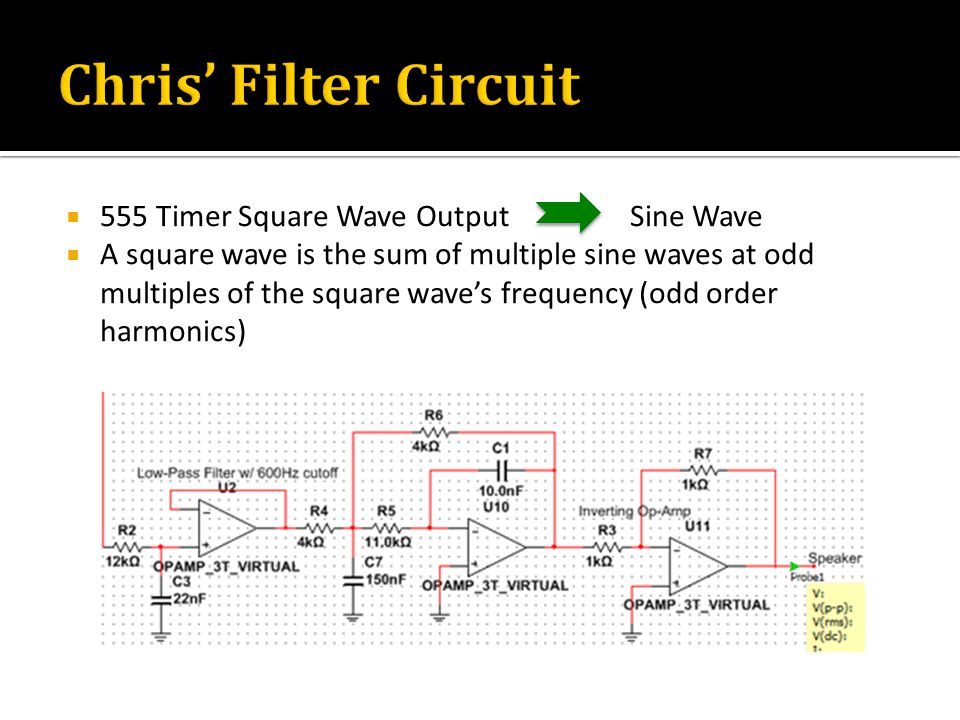

34  555 Timer Square Wave Output Sine Wave  A square wave is the sum of multiple sine waves at odd multiples of the square wave’s frequency (odd order harmonics)

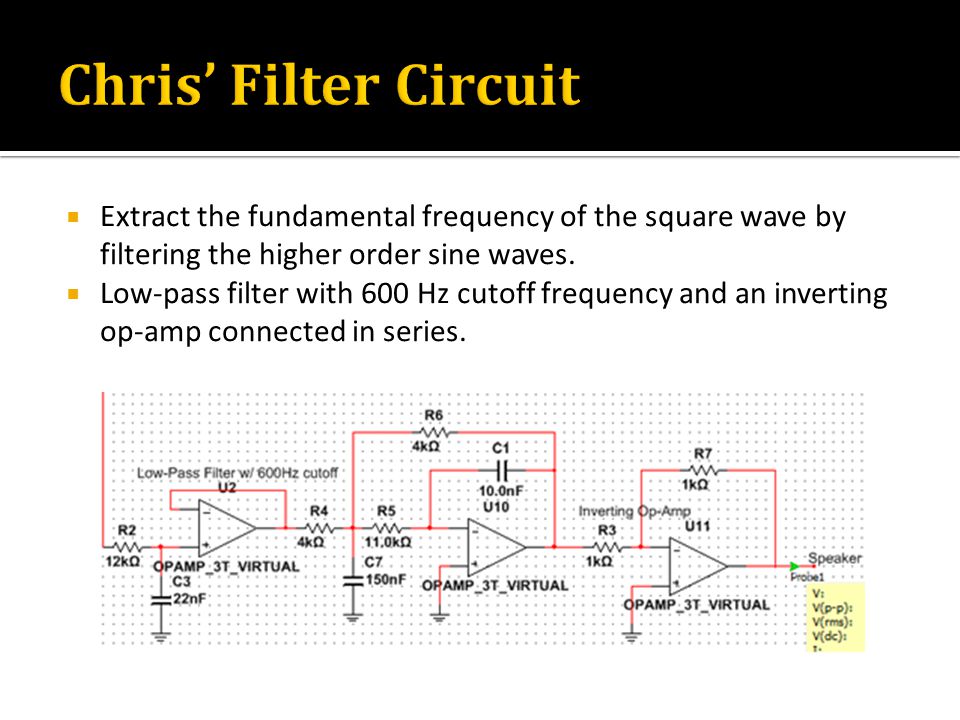

35  Extract the fundamental frequency of the square wave by filtering the higher order sine waves.  Low-pass filter with 600 Hz cutoff frequency and an inverting op-amp connected in series.

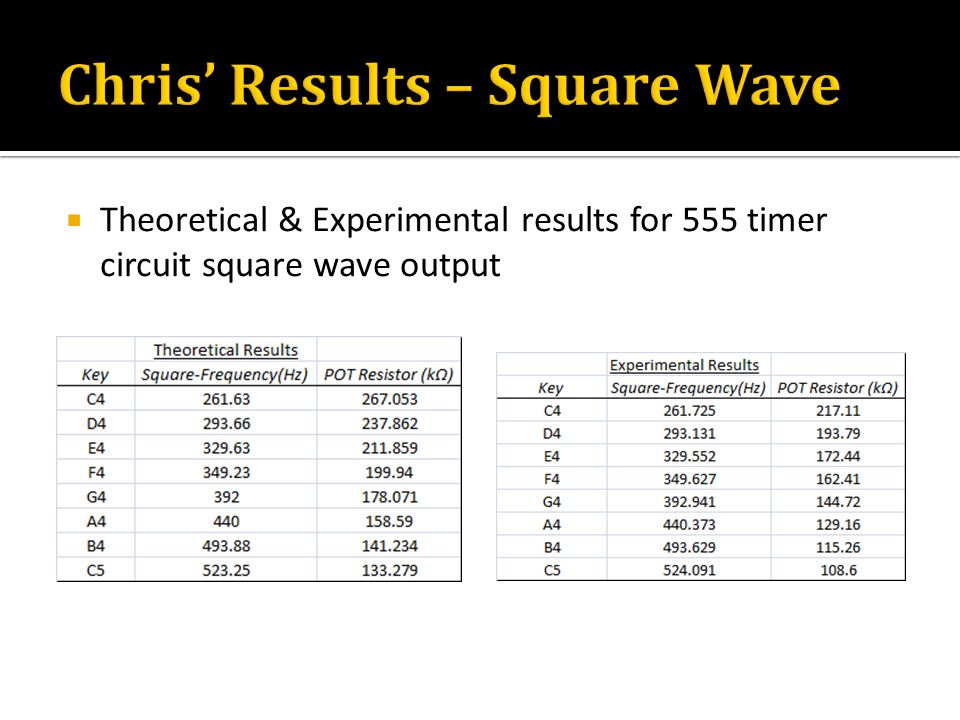

36  Theoretical & Experimental results for 555 timer circuit square wave output

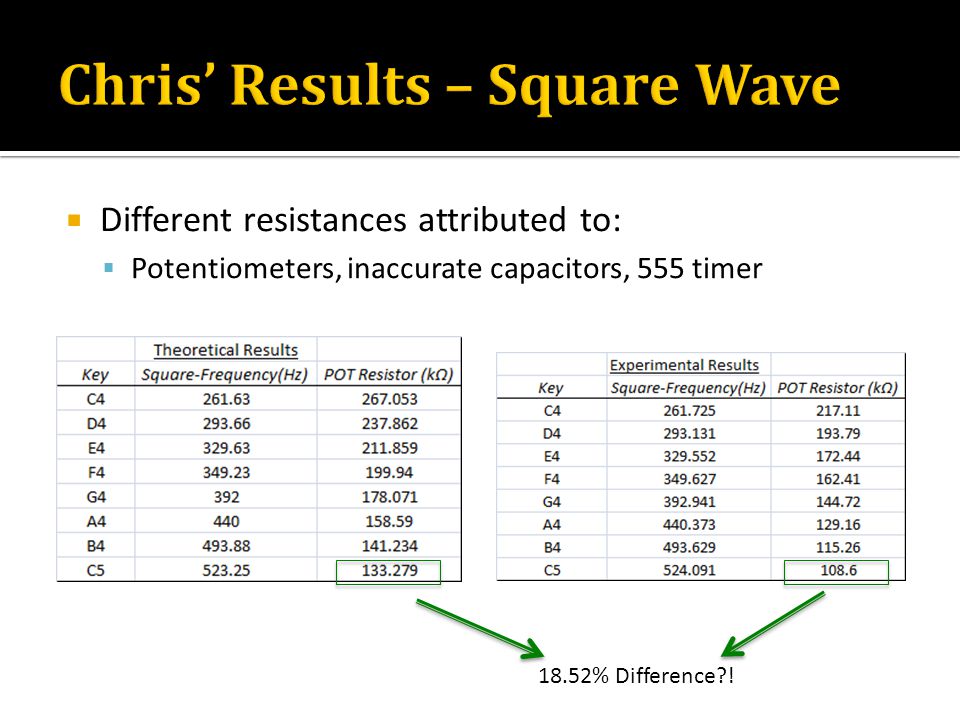

37  Different resistances attributed to:  Potentiometers, inaccurate capacitors, 555 timer 18.52% Difference?!

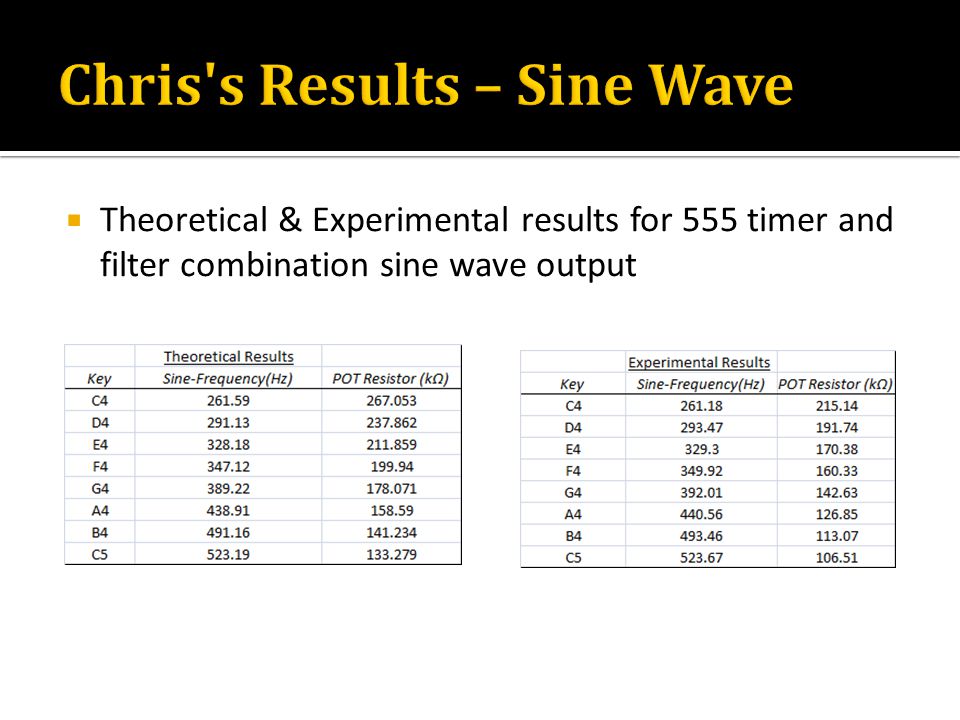

38  Theoretical & Experimental results for 555 timer and filter combination sine wave output

39  Different resistances attributed to:  Potentiometers, inaccurate capacitors, 555 timer 20.08% Difference?!

40  Square wave to Sine Wave conversion  Duty Cycle = 50.0%  0.2% error on average

41  Square wave to Sine Wave conversion  Duty Cycle = 50.0%  0.2% error on average Hz Hz

42  555 Timer Pin Layout  555 Timer Configuration  555 Timer – Other Applications  Malcolm Results  Whiting Results

43  to-guitar-hero-autowh/ to-guitar-hero-autowh/  555.htm 555.htm  3651_spring/docs/LM555.pdf 3651_spring/docs/LM555.pdf  ml ml

44
