1
Lecture Chapter 4C Thevenin Equivalent Circuits

2

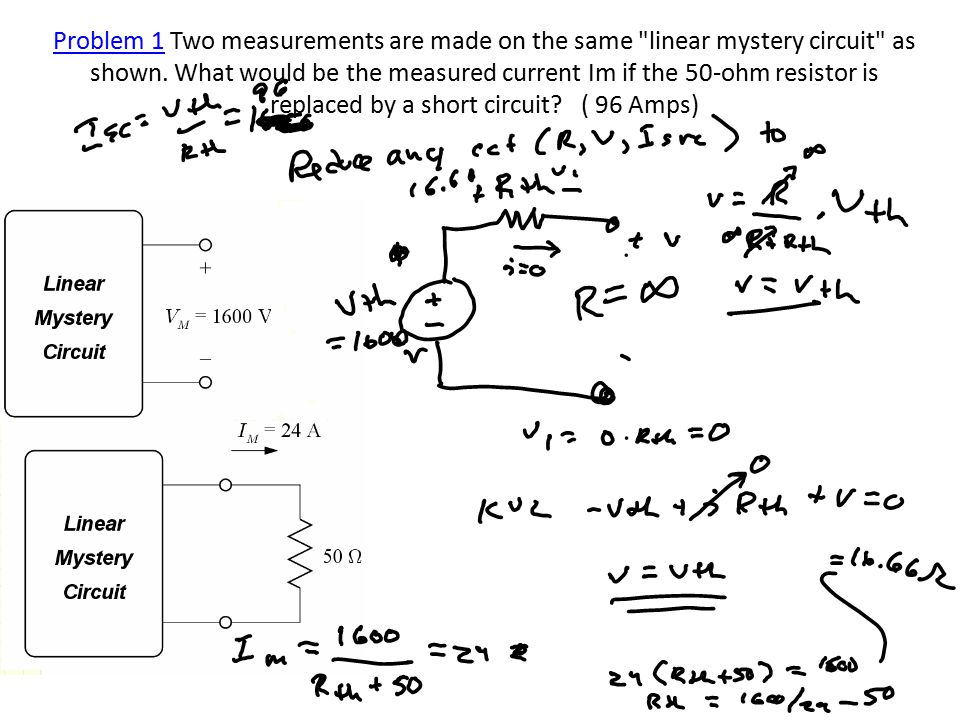

Problem 1Problem 1 Two measurements are made on the same "linear mystery circuit" as shown. What would be the measured current Im if the 50-ohm resistor is replaced by a short circuit? ( 96 Amps)

3

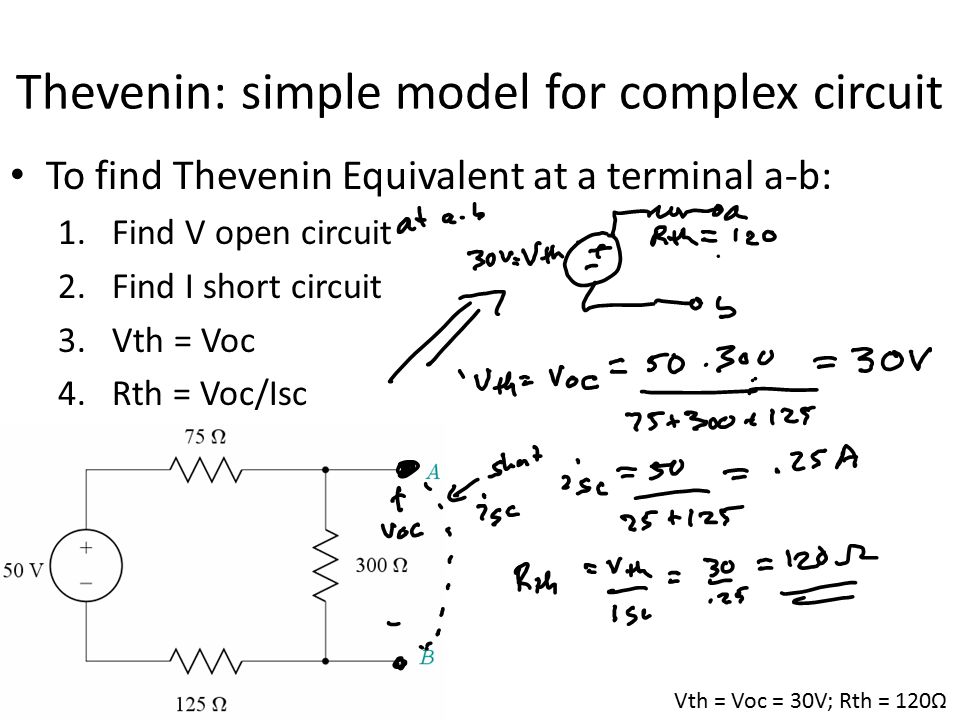

Thevenin: simple model for complex circuit To find Thevenin Equivalent at a terminal a-b: 1.Find V open circuit 2.Find I short circuit 3.Vth = Voc 4.Rth = Voc/Isc Vth = Voc = 30V; Rth = 120Ω

4

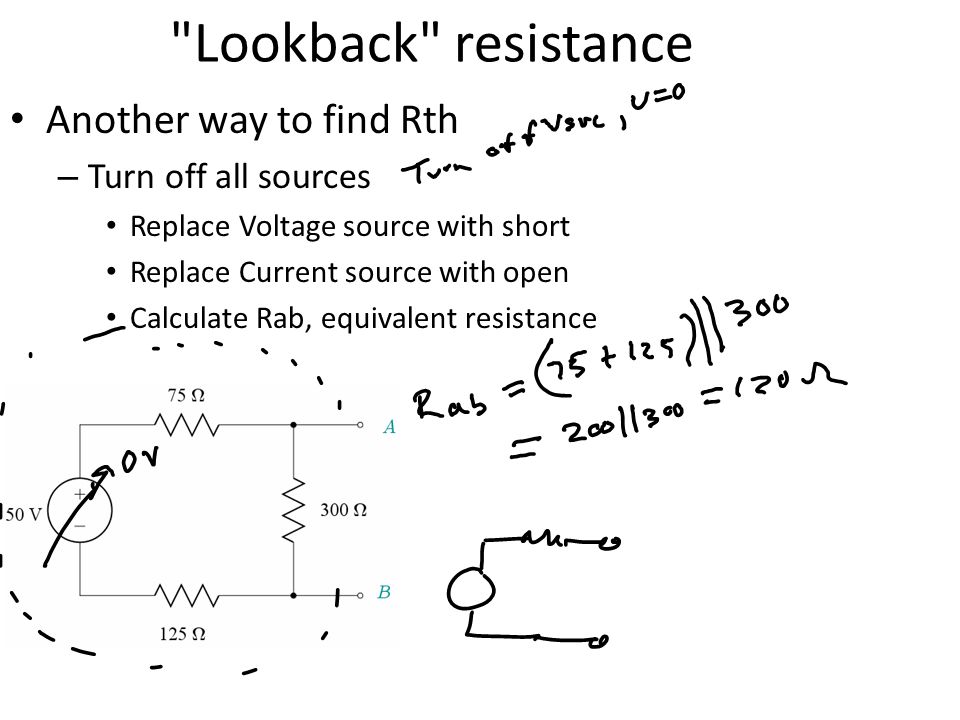

"Lookback" resistance Another way to find Rth – Turn off all sources Replace Voltage source with short Replace Current source with open Calculate Rab, equivalent resistance

5

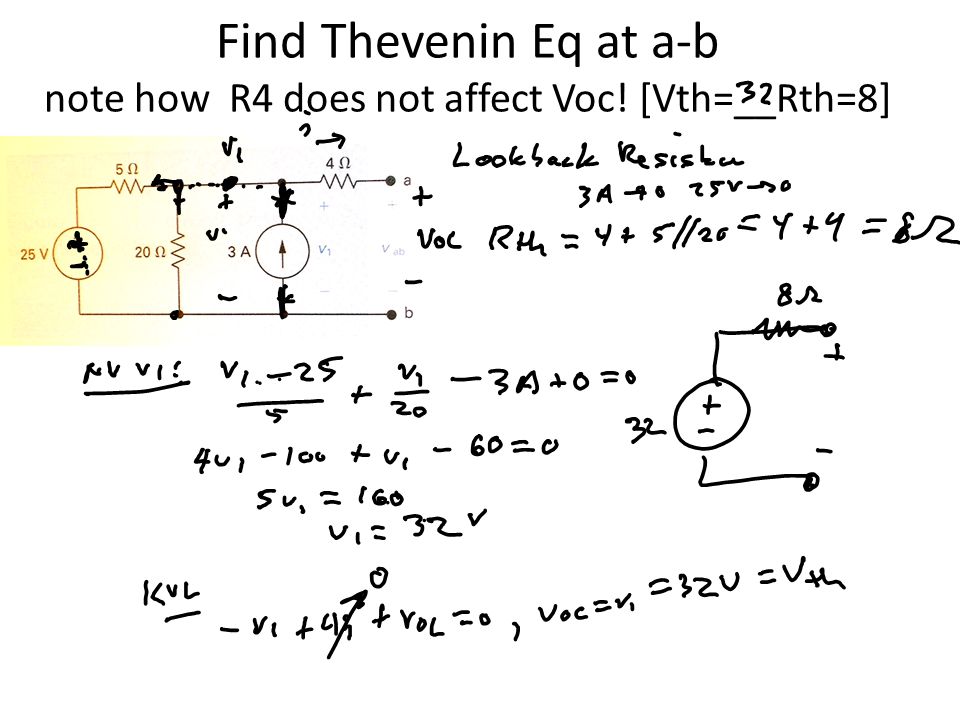

Find Thevenin Eq at a-b note how R4 does not affect Voc! [Vth=__Rth=8]

6
Problem 3Problem 3 Find the Thèvenin equivalent circuit at the terminals A-B. Rt = 25Ω;Vt = 160V

7

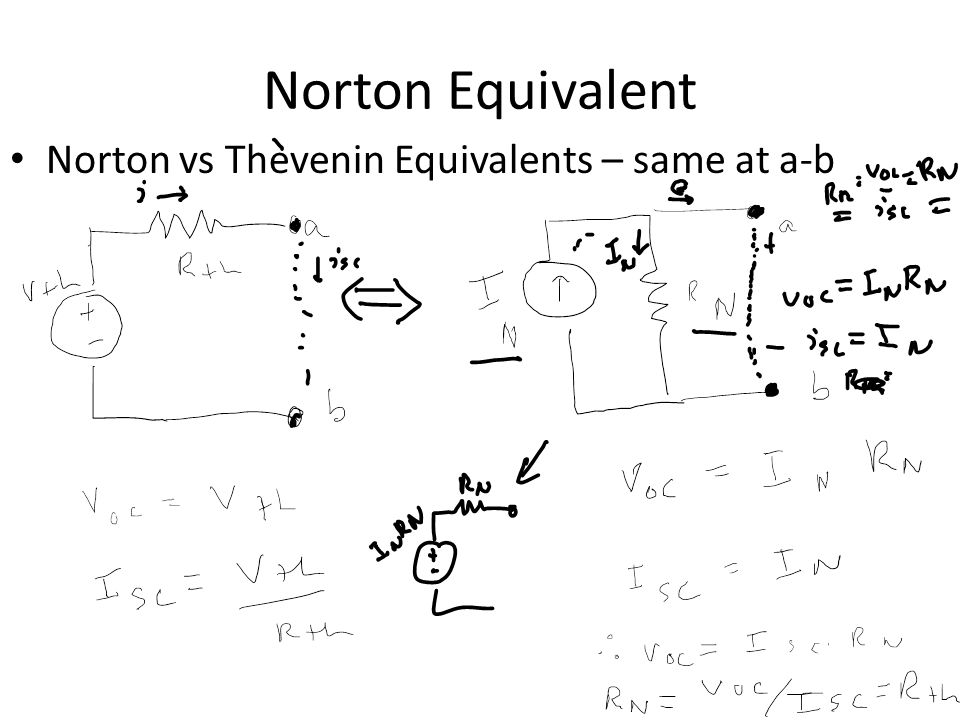

Norton Equivalent Norton vs Thevenin Equivalents – same at a-b

8

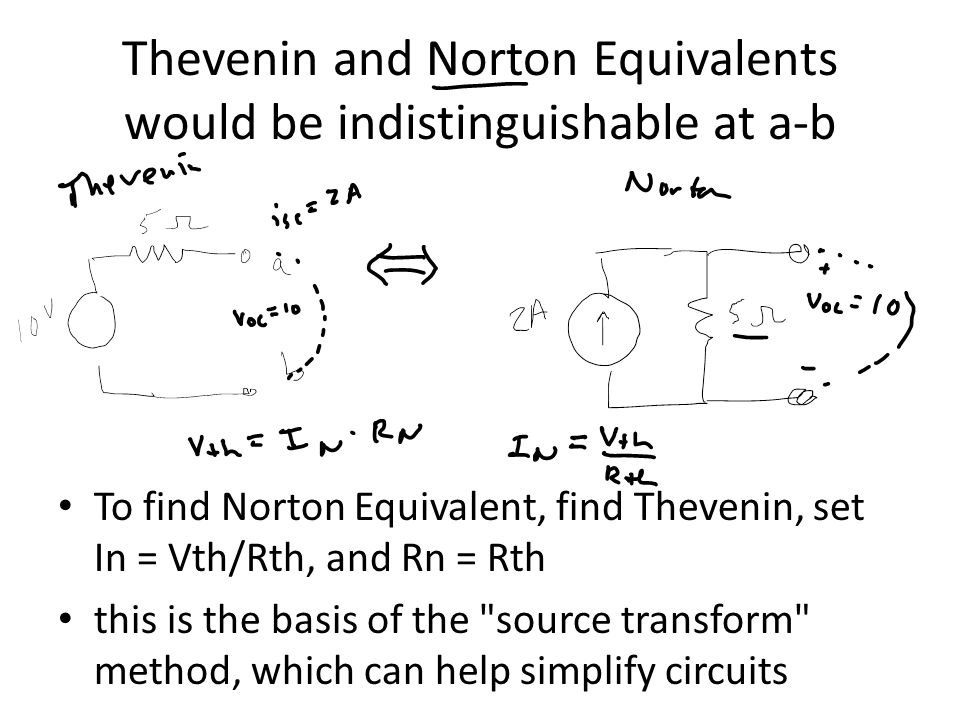

Thevenin and Norton Equivalents would be indistinguishable at a-b To find Norton Equivalent, find Thevenin, set In = Vth/Rth, and Rn = Rth this is the basis of the "source transform" method, which can help simplify circuits

9
Given Thevenin Equivalent, What is the Norton Equivalent?

10
Find Thevenin by "Source Transform"

11

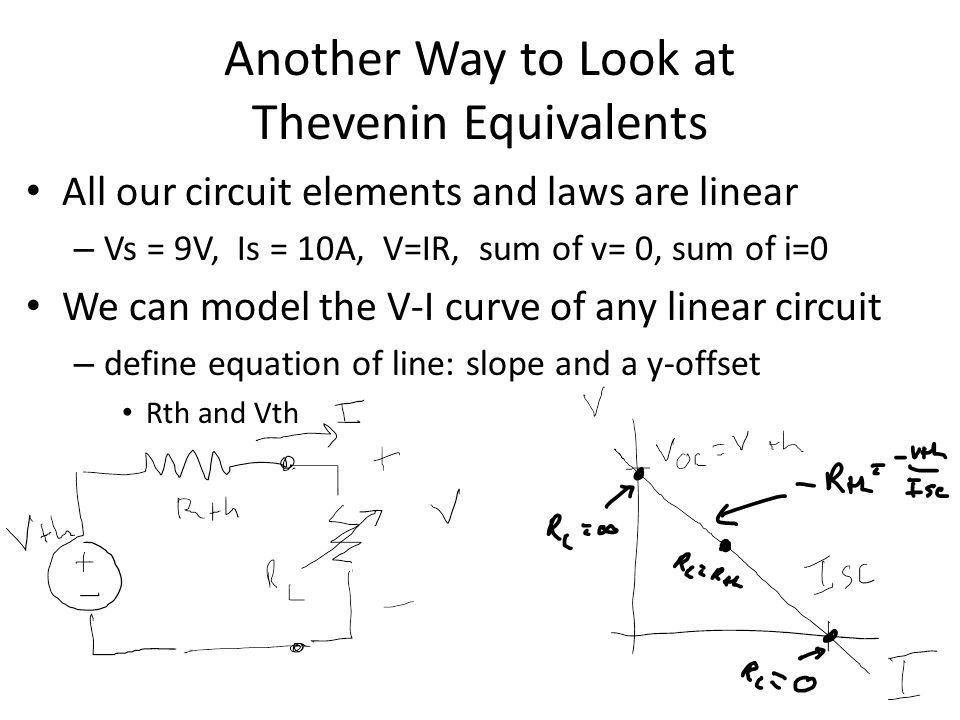

Another Way to Look at Thevenin Equivalents All our circuit elements and laws are linear – Vs = 9V, Is = 10A, V=IR, sum of v= 0, sum of i=0 We can model the V-I curve of any linear circuit – define equation of line: slope and a y-offset Rth and Vth

12
Do Handouts Problem 1/2

13

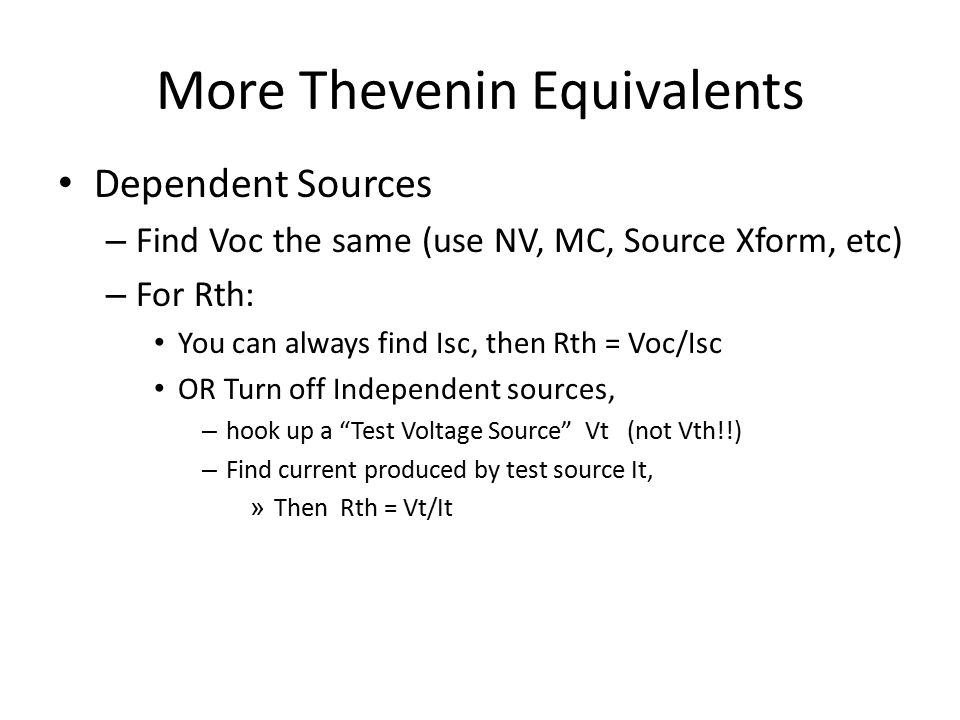

More Thevenin Equivalents Dependent Sources – Find Voc the same (use NV, MC, Source Xform, etc) – For Rth: You can always find Isc, then Rth = Voc/Isc OR Turn off Independent sources, – hook up a “Test Voltage Source” Vt (not Vth!!) – Find current produced by test source It, » Then Rth = Vt/It

14

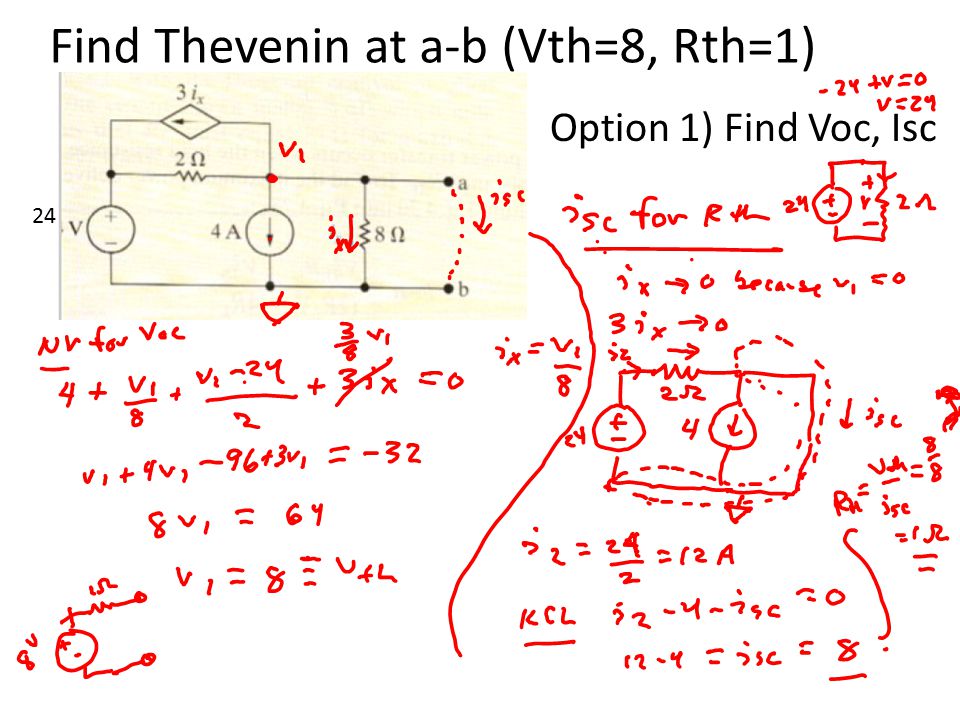

Find Thevenin at a-b (Vth=8, Rth=1) Option 1) Find Voc, Isc 24

15

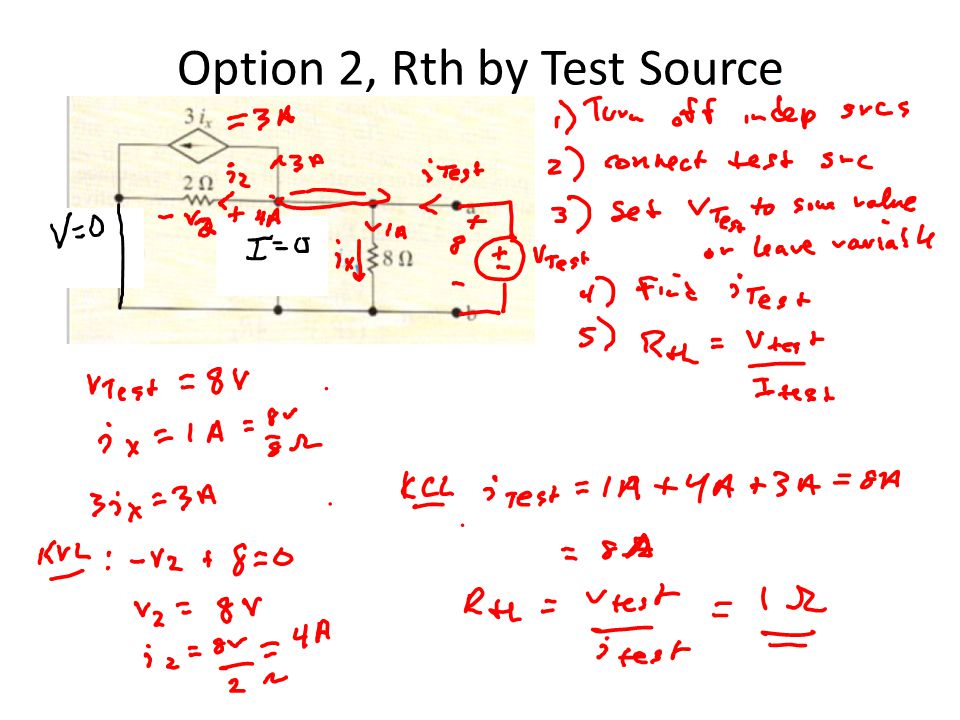

Option 2, Rth by Test Source 24

16

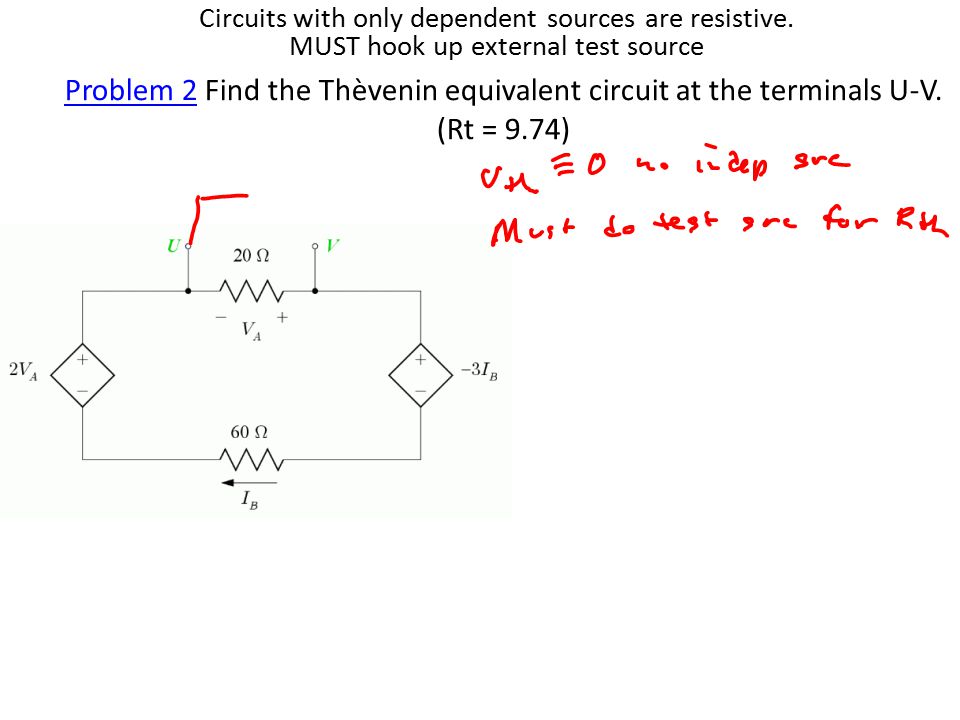

Problem 2Problem 2 Find the Thèvenin equivalent circuit at the terminals U-V. (Rt = 9.74) Circuits with only dependent sources are resistive. MUST hook up external test source

18

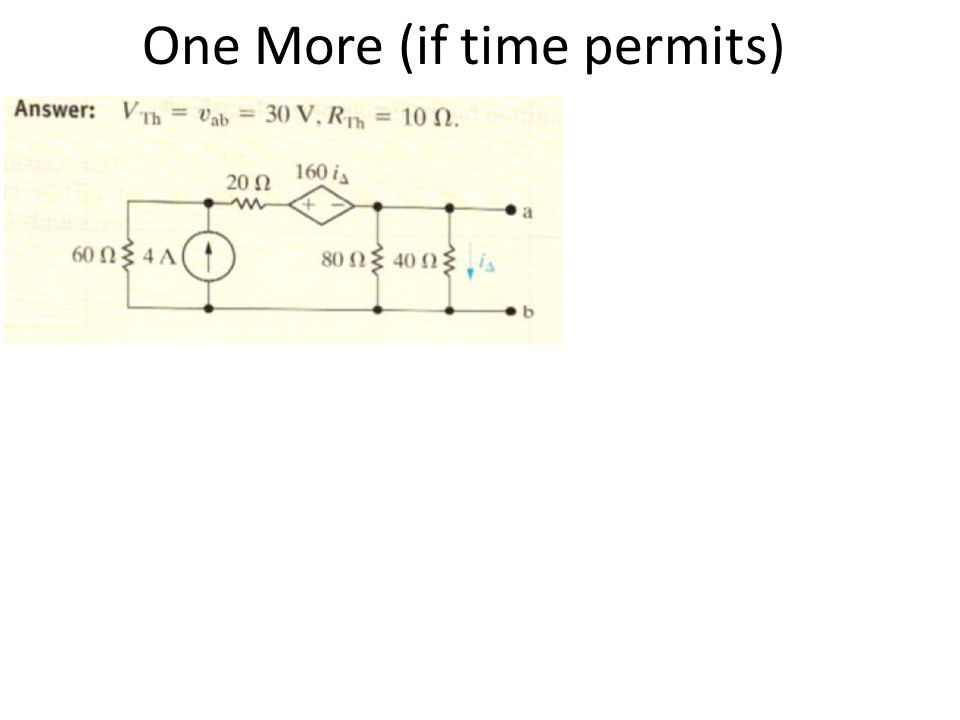

One More (if time permits)

20

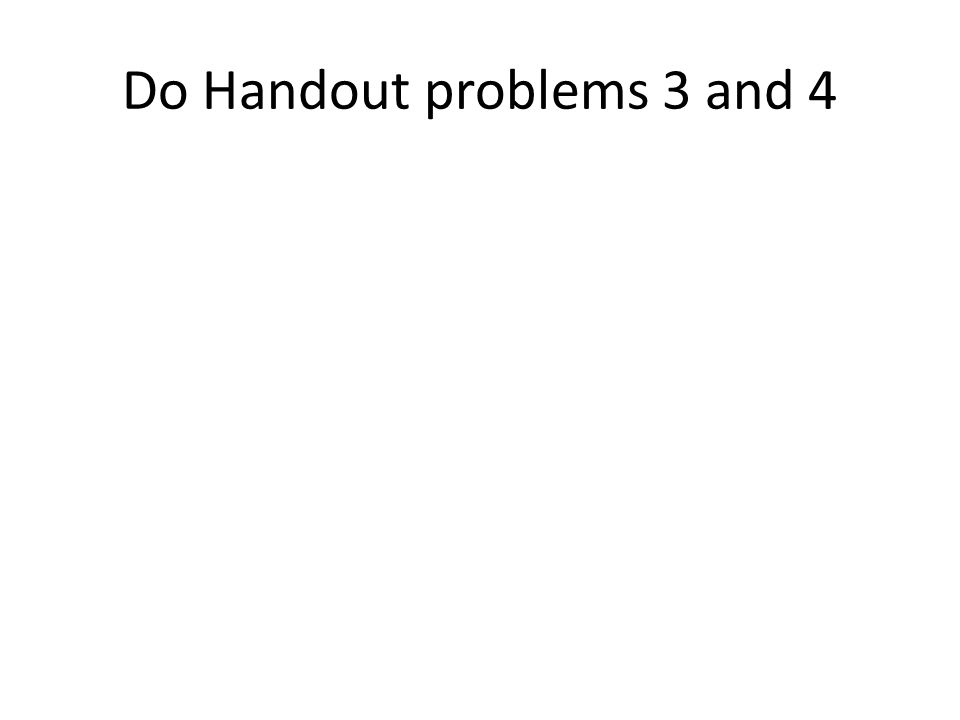

Do Handout problems 3 and 4

21

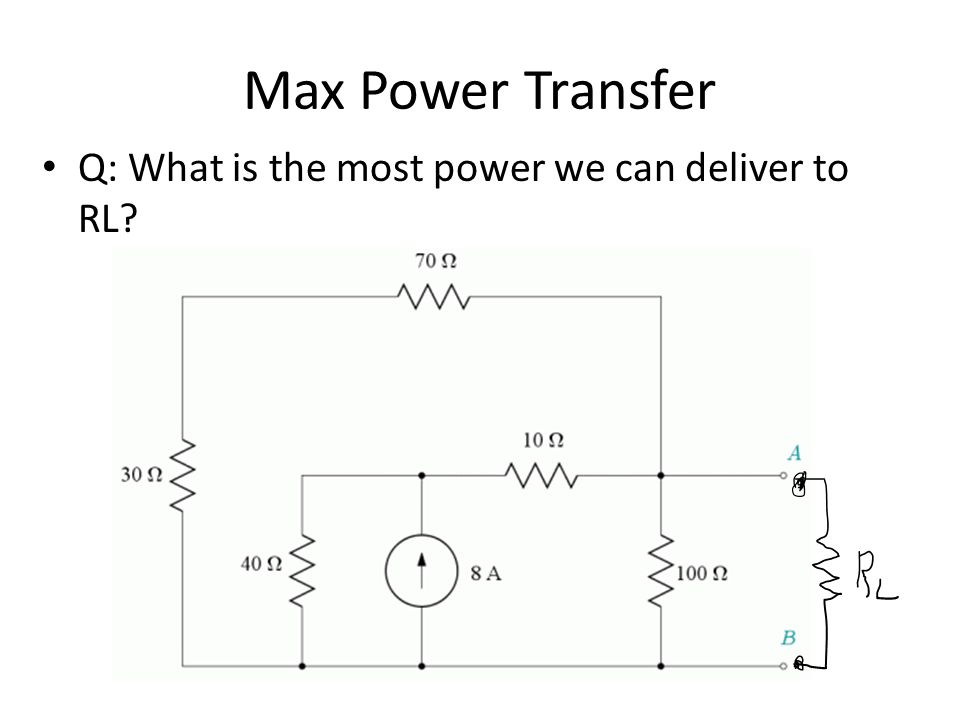

Max Power Transfer Q: What is the most power we can deliver to RL?

22

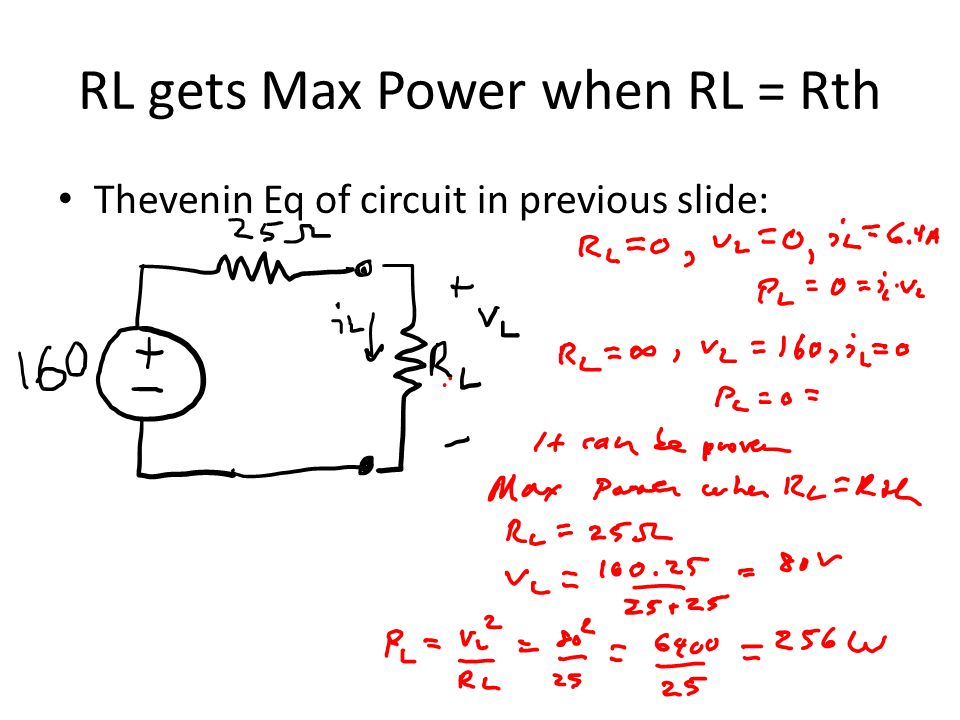

RL gets Max Power when RL = Rth Thevenin Eq of circuit in previous slide:

23

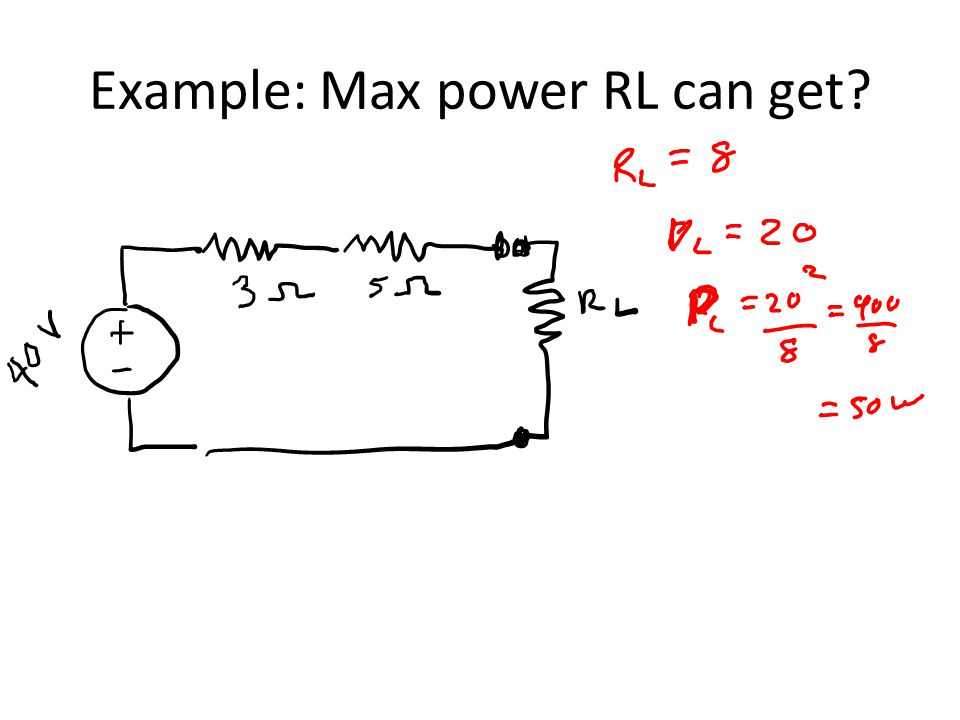

Example: Max power RL can get?

24

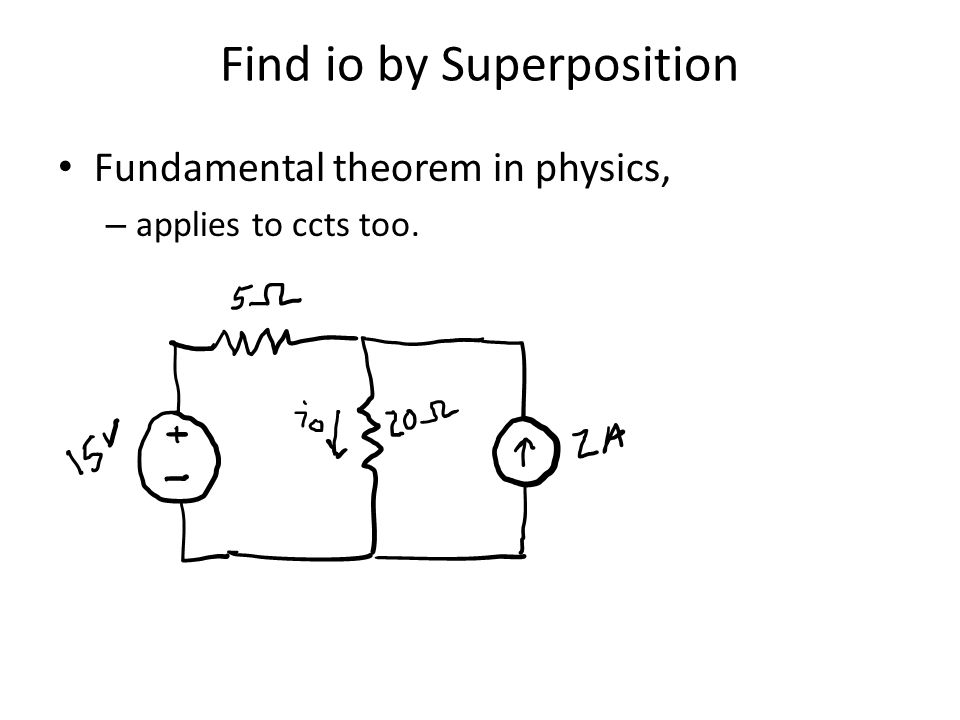

Find io by Superposition Fundamental theorem in physics, – applies to ccts too.

25

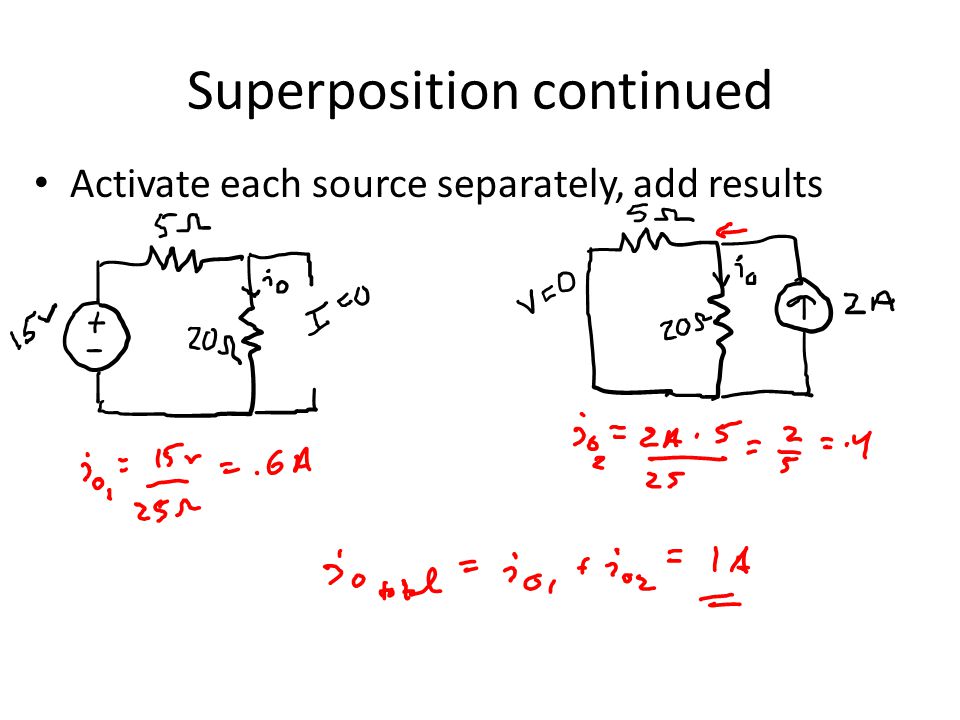

Superposition continued Activate each source separately, add results

26

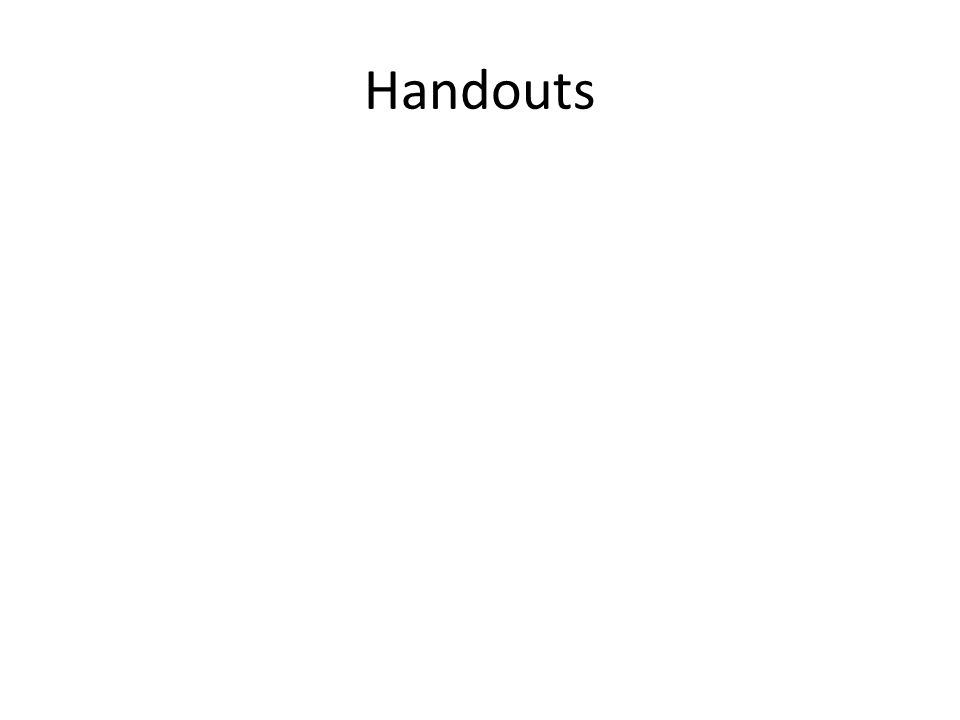

Handouts

27

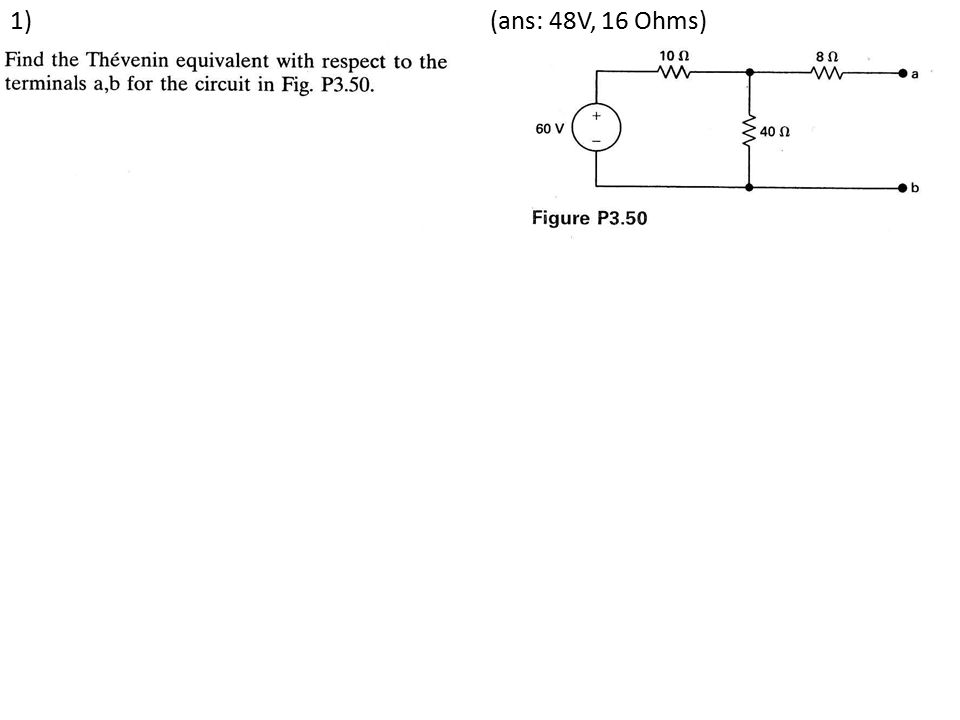

1) (ans: 48V, 16 Ohms)

28
2) Find Thevenin Equivalent to left of 8 ohm R This can be simplified with Source Xform, OR Solved with NV [72V, 4 Ohm]

29

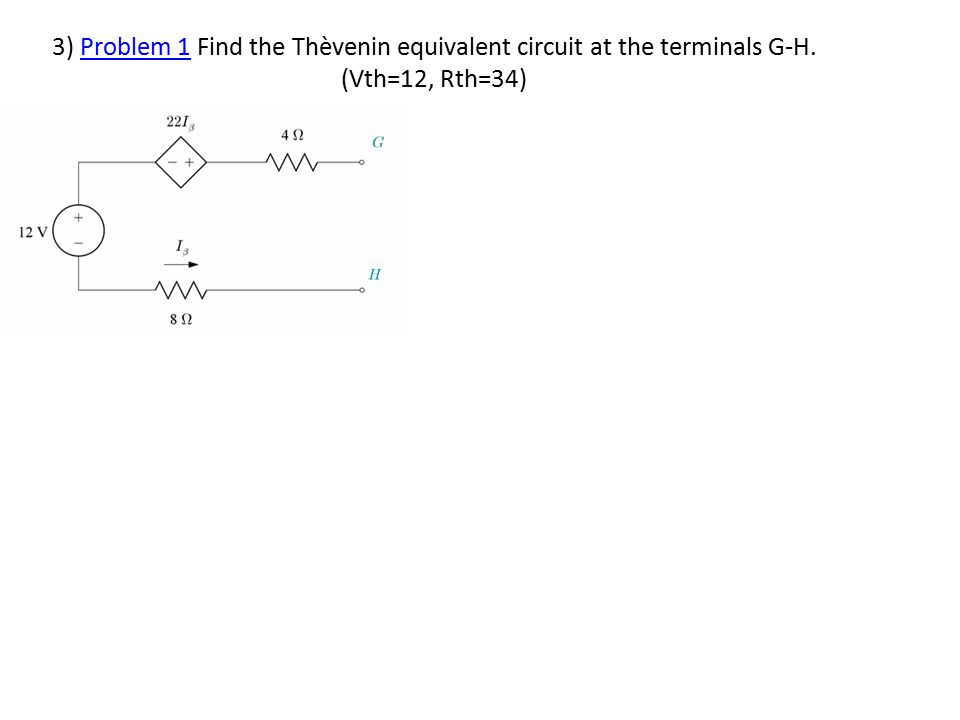

3) Problem 1 Find the Thèvenin equivalent circuit at the terminals G-H. (Vth=12, Rth=34)Problem 1

30

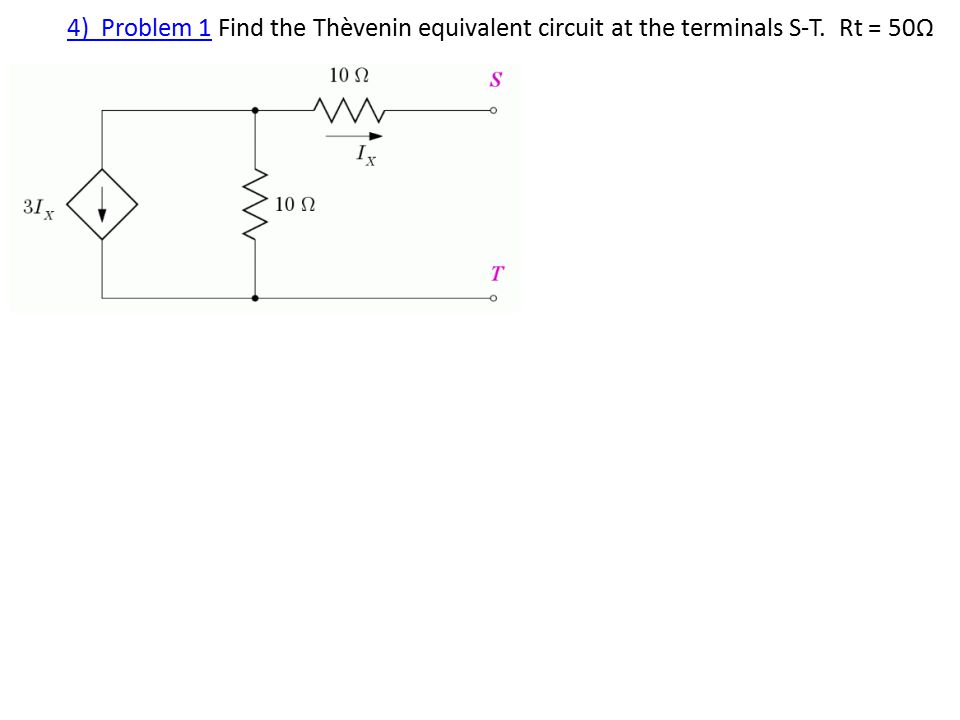

4) Problem 14) Problem 1 Find the Thèvenin equivalent circuit at the terminals S-T. Rt = 50Ω

32

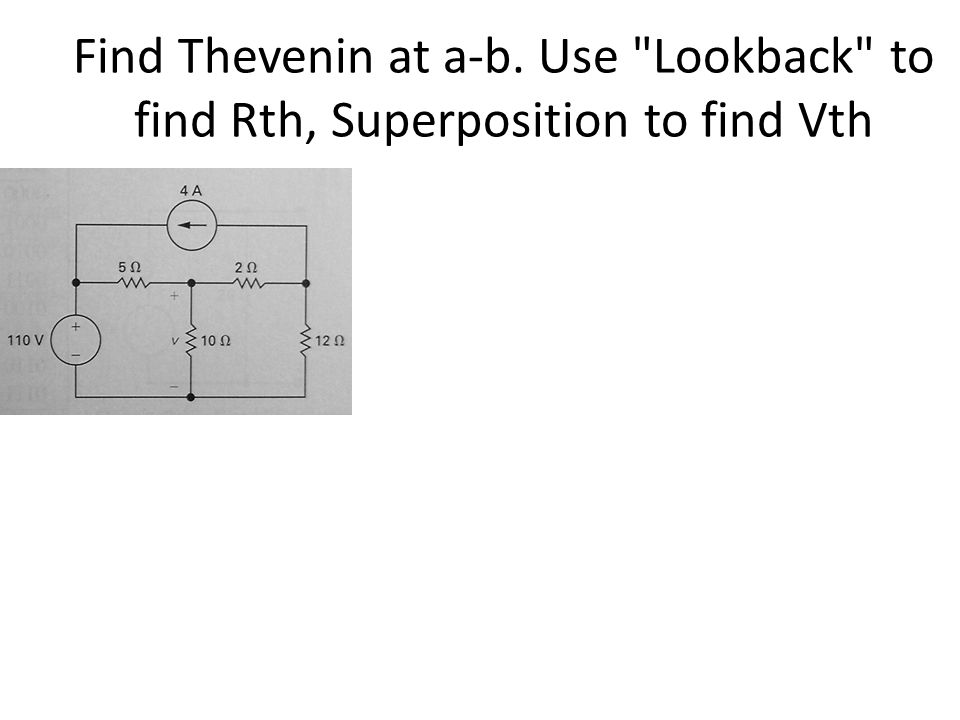

Find Thevenin at a-b. Use "Lookback" to find Rth, Superposition to find Vth

33
Problem 2Problem 2 Find the Thèvenin equivalent circuit to the left of the terminals A-B. (1V, 0 Ohm)

34
Find Thevenin at a-b (Vth=8, Rth=1) Option 1) Find Voc, Isc 24

35
Option 2, Rth by Test Source 24

36
Problem 2Problem 2 Find the Thèvenin equivalent circuit at the terminals U-V. (Rt = 9.74) Circuits with only dependent sources are resistive. MUST hook up external test source

38
One More (if time permits)

40
Do Handout problems 3 and 4

41
Max Power Transfer Q: What is the most power we can deliver to RL?

42
RL gets Max Power when RL = Rth Thevenin Eq of circuit in previous slide:

43
Example: Max power RL can get?

44
Find io by Superposition Fundamental theorem in physics, – applies to ccts too.

45
Superposition continued Activate each source separately, add results

46
Handouts

47
1) (ans: 48V, 16 Ohms)

48
2) Find Thevenin Equivalent to left of 8 ohm R This can be simplified with Source Xform, OR Solved with NV [72V, 4 Ohm]

49
3) Problem 1 Find the Thèvenin equivalent circuit at the terminals G-H. (Vth=12, Rth=34)Problem 1

50
4) Problem 14) Problem 1 Find the Thèvenin equivalent circuit at the terminals S-T. Rt = 50Ω

52
Find Thevenin at a-b. Use "Lookback" to find Rth, Superposition to find Vth

53
Problem 2Problem 2 Find the Thèvenin equivalent circuit to the left of the terminals A-B. (1V, 0 Ohm)
