1 802.3at PoE 24-Port Gigabit 802.3at PoE Managed Stackable Switch SGSW-24040HP

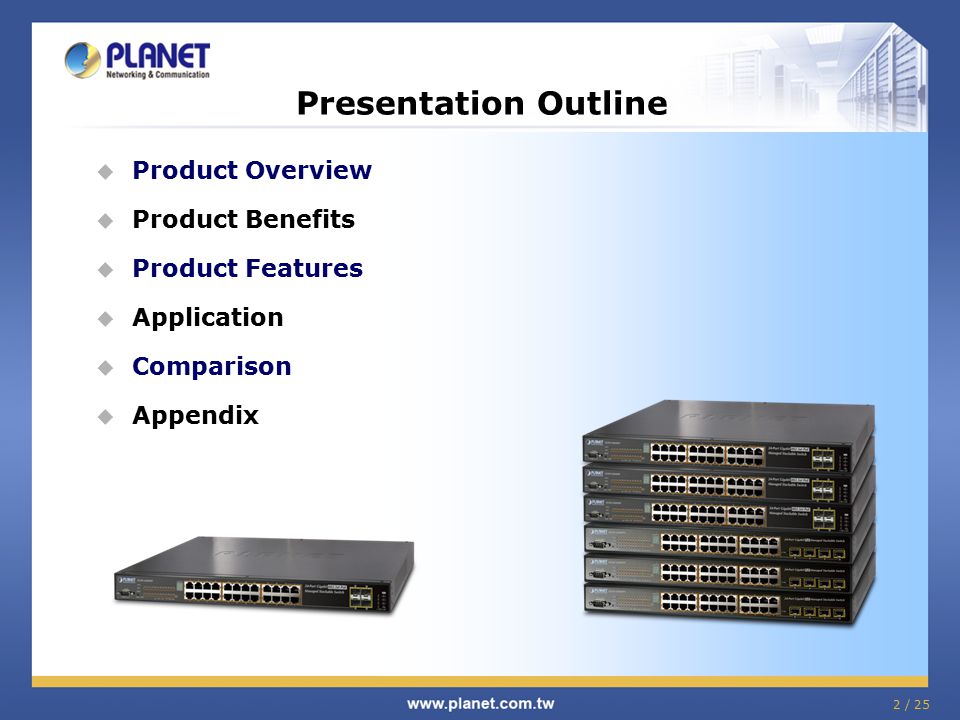

2 2 / 25 Presentation Outline  Product Overview  Product Benefits  Product Features  Application  Comparison  Appendix

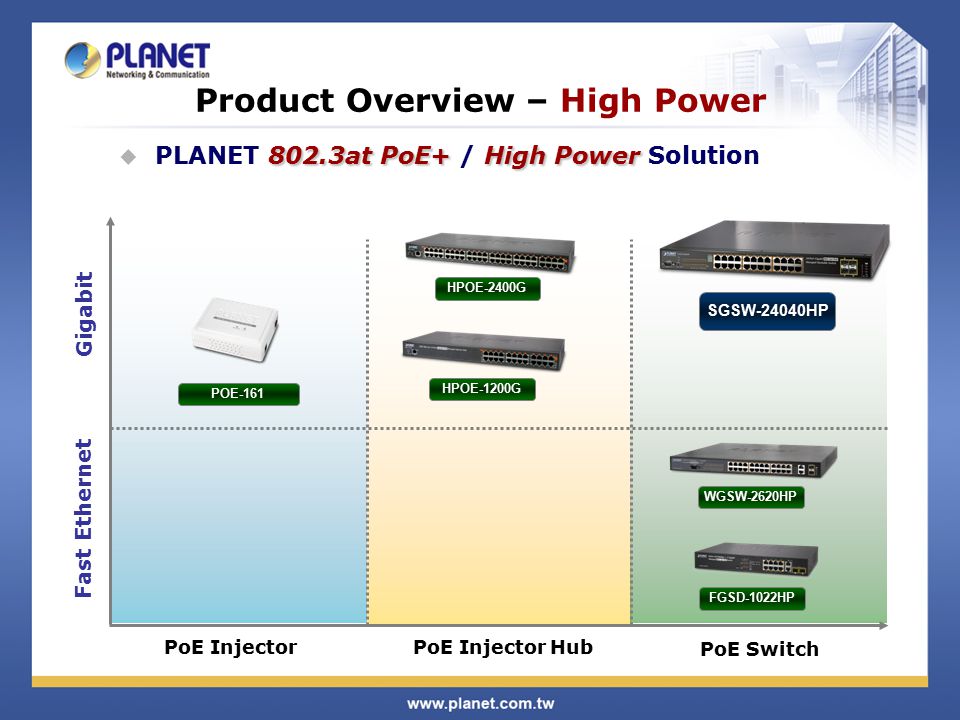

3 Product Overview – High Power 802.3at PoE+High Power  PLANET 802.3at PoE+ / High Power Solution PoE InjectorPoE Injector Hub PoE Switch HPOE-1200G SGSW-24040HP POE-161 HPOE-2400G WGSW-2620HP FGSD-1022HP Gigabit Fast Ethernet

4 Product Overview – SGSW Family All series IPv6 Upgrade SGSW-24040HP 2008200920102011 SGSW Series  PLANET SGSW Series Stackable Switch Family SGSW-24040 SGSW-24040R SGSW-24040P SGSW-24040P4 SGSW-24240 SGSW-24240R October May August June April

5 Product Overview – SGSW Family SGSW-24040 SGSW-24040R SGSW-24240 SGSW-24240R SGSW-24040PSGSW-24040P4SGSW-24040HP Interface 10/100/1000T 248 1000SX/LX 424444 100FX Compatible Stacking 2 x 5Gbps / HDMI-Like PoE Stardard -- 802.3af 802.3at 802.3af PoE Output -- 48V / 15.4W 52V / 30W PoE Budget -- 220W380W 360W No. of Class 2 -- 24 No. of Class 3 -- 1424 No. of Class 4 -- 12 Redundant Power -- / -48VDC -- Stack Capability Hardware Stack, up to 16 units, 384 ports  SGSW - Stackable Gigabit Switch Family

6 6 / 25 Product Overview  What is different between IEEE 802.3af and IEEE 802.3at? IEEE 802.3af offers 15.4 Watts maximum. IEEE 802.3at offers more power than IEEE 802.3af up to 30 Watts and can drives high power consumption PoE device, such as PTZ / Speed Dome camera. 30W SGSW-24040HP

7 Product Key Features SGSW-24040HP PoE Event Alarm Stacking Management 802.3at PoE (30W) IGMP Snooping IPv6 Management L2 / L3 / L4 ACL SSH / SSL / SNMPv3

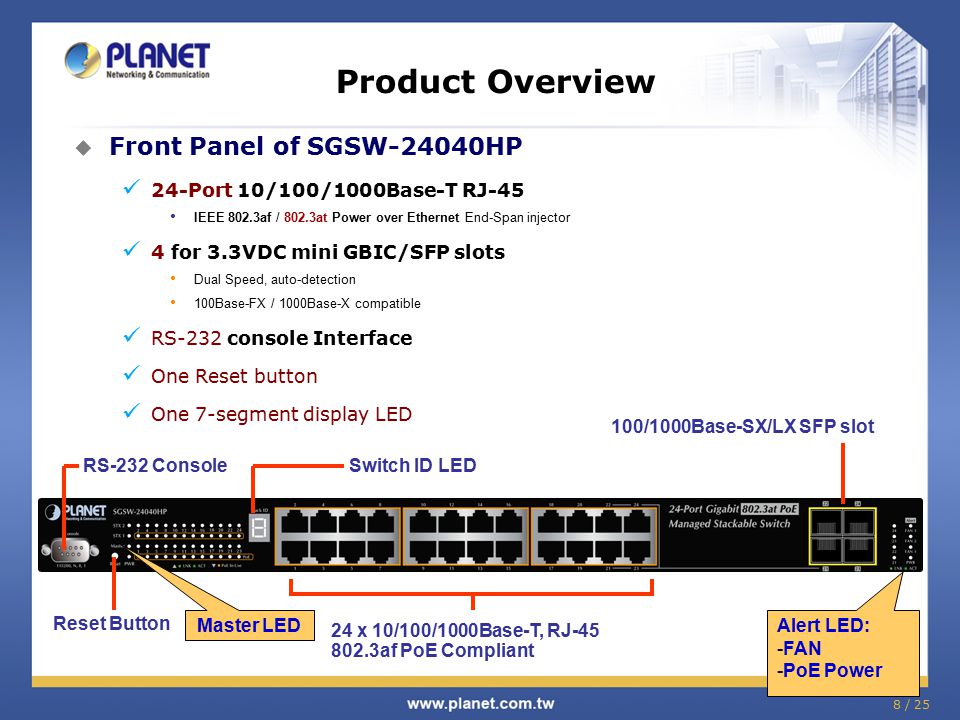

8 8 / 25 Product Overview  Front Panel of SGSW-24040HP 24-Port 10/100/1000Base-T RJ-45 IEEE 802.3af / 802.3at Power over Ethernet End-Span injector 4 for 3.3VDC mini GBIC/SFP slots Dual Speed, auto-detection 100Base-FX / 1000Base-X compatible RS-232 console Interface One Reset button One 7-segment display LED Reset Button RS-232 Console 24 x 10/100/1000Base-T, RJ-45 802.3af PoE Compliant Switch ID LED Master LED Alert LED: -FAN -PoE Power 100/1000Base-SX/LX SFP slot

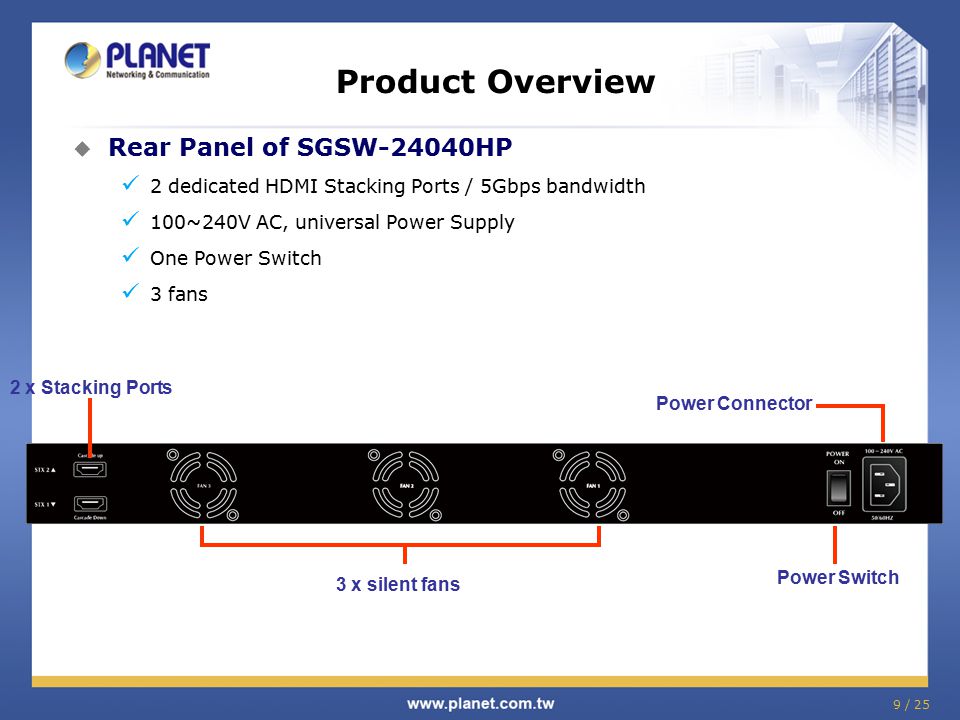

9 9 / 25 Product Overview  Rear Panel of SGSW-24040HP 2 dedicated HDMI Stacking Ports / 5Gbps bandwidth 100~240V AC, universal Power Supply One Power Switch 3 fans Power Switch 2 x Stacking Ports 3 x silent fans Power Connector

10 Product Benefits  30W IEEE 802.3at PoE support  Total 360W PoE budget  Layer 2 / Layer 4 Managed Stackable / Gigabit Switch  IPv6 Management  SSH / SSL Secure Management  Single IP management Up to 384 Gigabit PDs can be managed via one IP address  Integrate Security and QoS for PoE PD operating: QoS function ensure PoE IP Phone’s quality of conversation ACL (Access Control List) protect monitoring security and accessing of PoE IP Camera Prevent IP Cam be invaded by hacker MAC-Based Authentication helps PoE Wireless AP to handle user login  PoE Power management PoE Port power limit / Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices

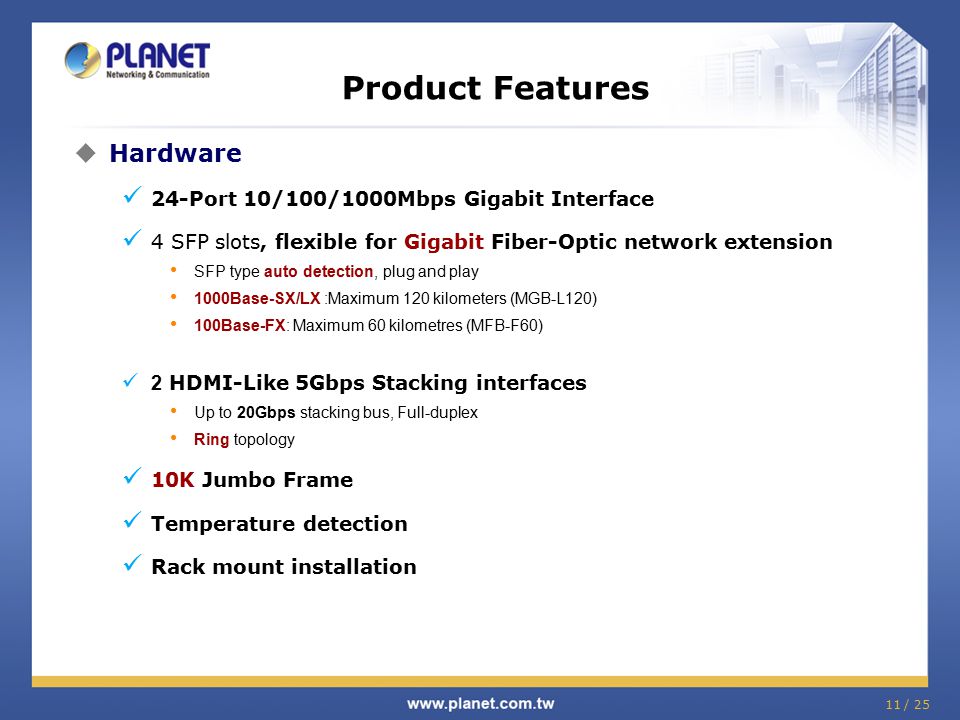

11 11 / 25 Product Features  Hardware 24-Port 10/100/1000Mbps Gigabit Interface 4 SFP slots, flexible for Gigabit Fiber-Optic network extension SFP type auto detection, plug and play 1000Base-SX/LX :Maximum 120 kilometers (MGB-L120) 100Base-FX: Maximum 60 kilometres (MFB-F60) ‏ 2 HDMI-Like 5Gbps Stacking interfaces Up to 20Gbps stacking bus, Full-duplex Ring topology 10K Jumbo Frame Temperature detection Rack mount installation

12 12 / 25 Product Features  Power over Ethernet Comply with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE 24 10/100/1000Mbps copper ports with PoE injector built-in Supports up to 30watts PoE power output to 12 IEEE 802.3at compliant Powered Devices Supports up to 15watts PoE power output to 24 IEEE 802.3af compliant Powered Devices PoE Power Budget – up to 360Watts Circuit protection to prevent power interference between ports ModelSGSW-24040HP PoE Budget360 Watts PoE Ability Number of Class 2 PD @ 7.3Watts24 Number of class 3 PD @ 15.4Watts24 Number of class 0, 4 PD @ 30Watts12 Input Power100~240V AC

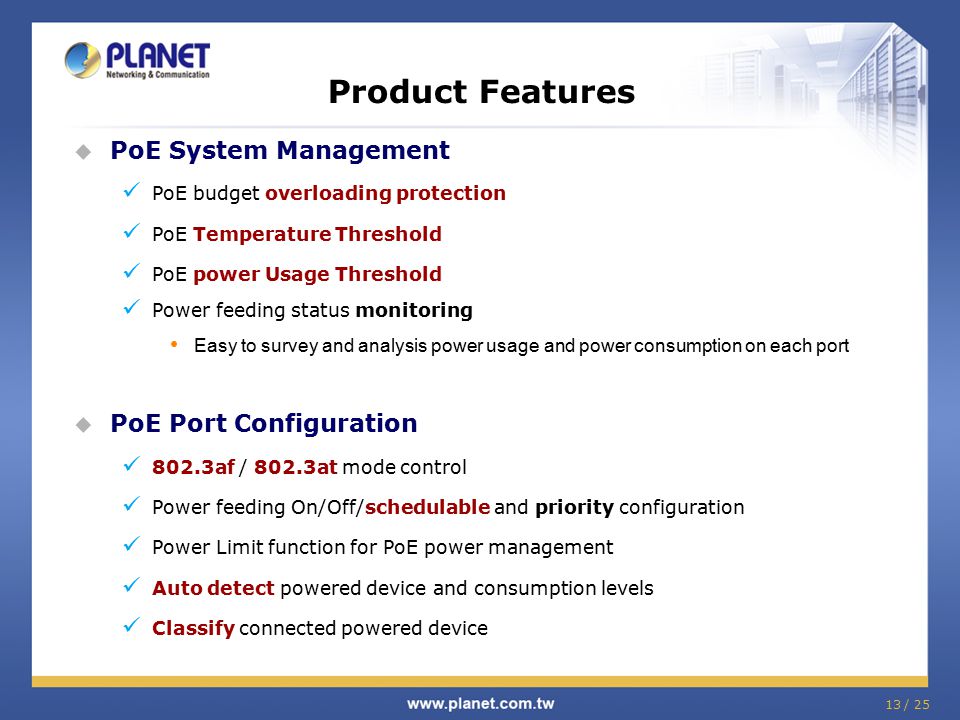

13 13 / 25  PoE System Management PoE budget overloading protection PoE Temperature Threshold PoE power Usage Threshold Power feeding status monitoring Easy to survey and analysis power usage and power consumption on each port  PoE Port Configuration 802.3af / 802.3at mode control Power feeding On/Off/schedulable and priority configuration Power Limit function for PoE power management Auto detect powered device and consumption levels Classify connected powered device Product Features

14 Turn on / off PoE Function Temperature Threshold Power Management Mode PoE Usage threshold Power Mode Option 802.3at/802.3af Total Power Budget PoE Mode Option On / Off / Schedule  PoE Configuration / Port Configuration

15 Product Features  PoE Status Current Temperature Total Power Consumption Per Port PoE Consumption

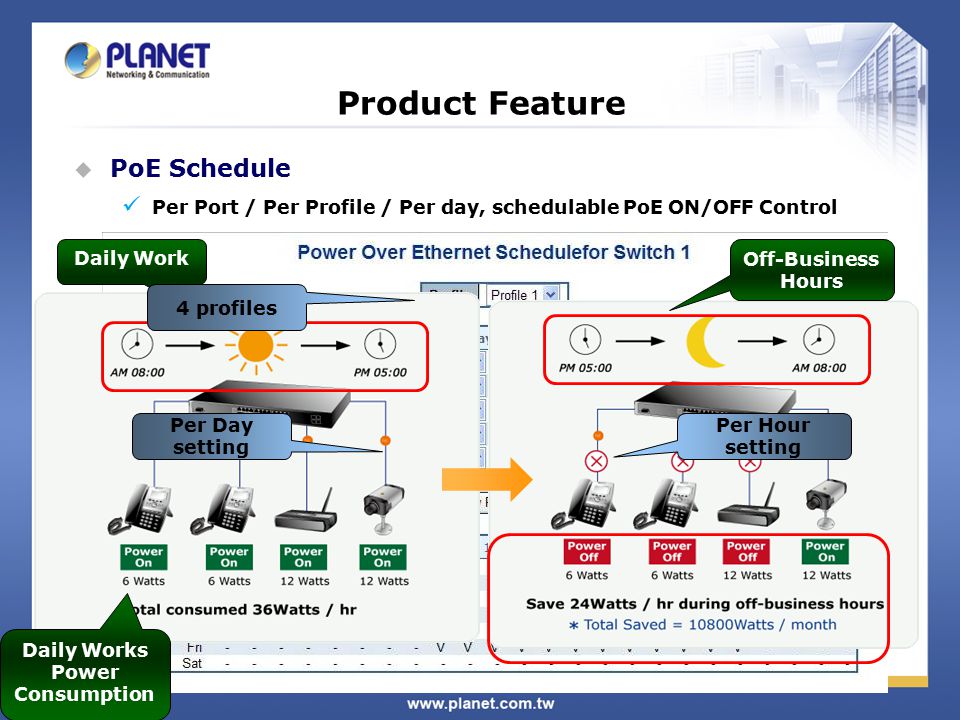

16 Product Feature  PoE Schedule Per Port / Per Profile / Per day, schedulable PoE ON/OFF Control Daily Work Daily Works Power Consumption Off-Business Hours 4 profiles Per Day setting Per Hour setting

17 Product Features  Stacking Hardware stack up to 16 units and 384 Gigabit ports Single IP address stack management Stacking architecture supports Chain and Ring mode Plug and Play connectivity Mirror across stack Master switch backup Link Aggregation groups spanning multiple switches in a stack Hardware learning with MAC table synchronization across stack

18 Product Features UP to 16 units, 384 x 10/100/1000Mbps PoE Ports, 64 x 1000Mbps SFP Slots Master One WEB Interface with single Management IP Address  Hardware Stack

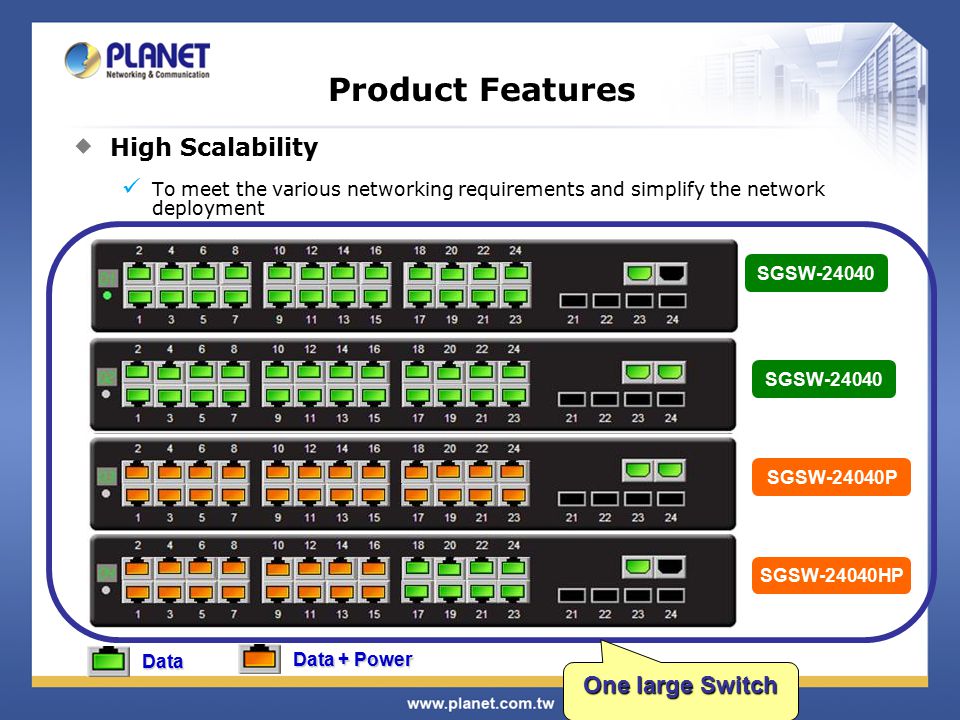

19 Product Features  High Scalability To meet the various networking requirements and simplify the network deployment Data + Power SGSW-24040 SGSW-24040PSGSW-24040HP One large Switch Data

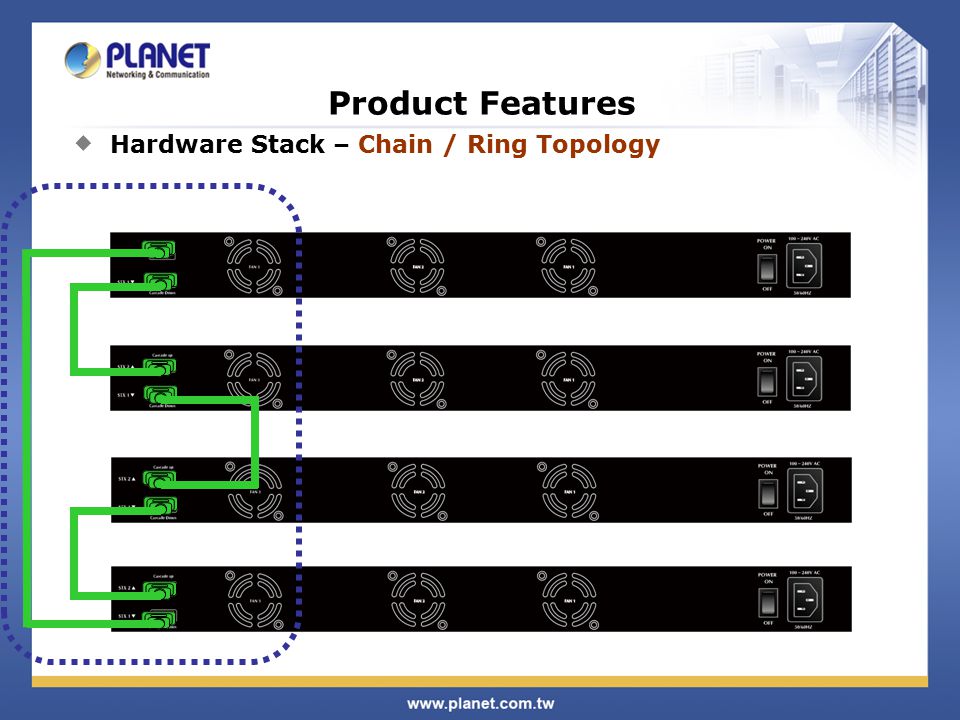

20 Product Features  Hardware Stack – Chain / Ring Topology

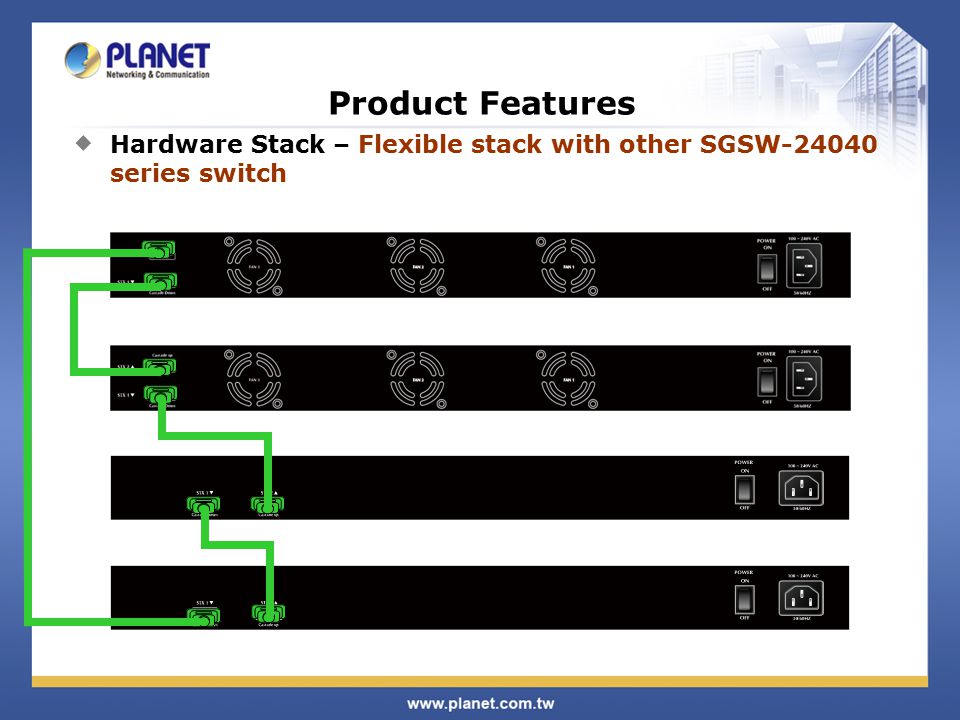

21 Product Features  Hardware Stack – Flexible stack with other SGSW-24040 series switch

22 Product Features  VLAN IEEE 802.1Q Tagged VLAN Up to 255 VLANs groups, out of 4041 VLAN IDs Provider Bridging (VLAN Q-in-Q ) support (IEEE 802.1ad) Private VLAN Edge (PVE)  Spanning Tree Protocol STP, IEEE 802.1d (Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s Multiple Spanning Tree Protocol BPDU Guard and BPDU Filtering enhances switch network reliability, manageability, and security  Link Aggregation 802.3ad Link Aggregation Control Protocol ( LACP ) Cisco ether-channel (Static Trunk) Maximum 12 trunk groups, up to 16 ports per trunk group Up to 32Gbps bandwidth(Duplex Mode)

23 Product Features  Quality of Service Traffic Classification by: 802.1p CoS IP TOS / DSCP / Precedence of IPv4 / IPv6 packets IP TCP/UDP port number Ingress Shaper and Egress Rate Limit per port bandwidth control Traffic-policing policies on the switch port QoS Control List Wizard makes QoS creation and configuration easier and more quickly DSCP remarking  Multicast Supports IGMP Snooping v1, v2 and v3 Querier mode support IGMP Snooping filtering MVR ( Multicast VLAN Registration)

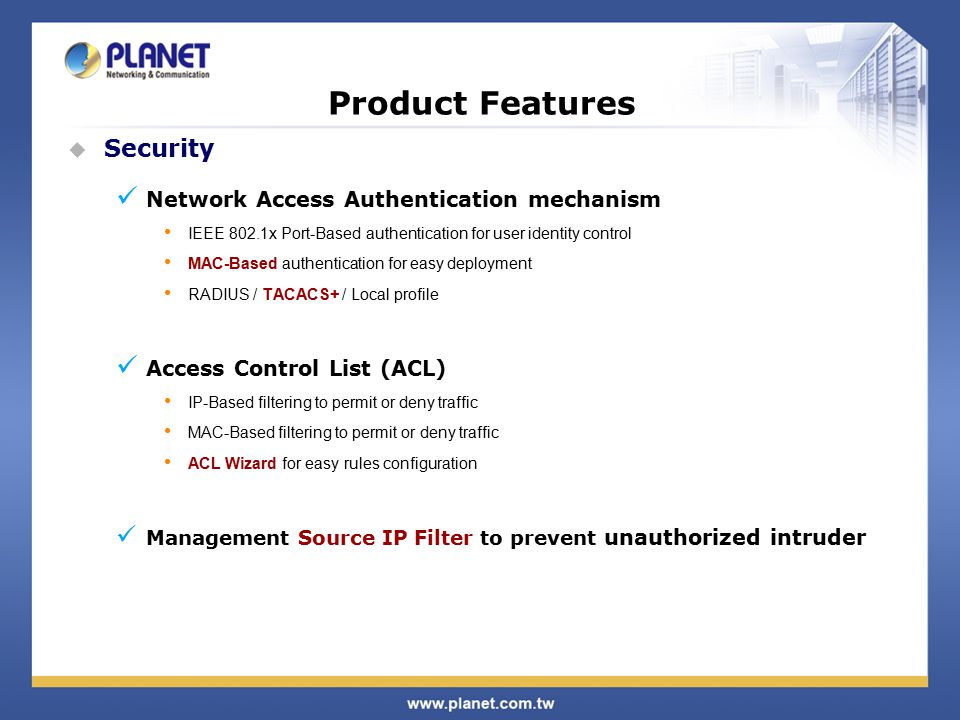

24 Product Features  Security Network Access Authentication mechanism IEEE 802.1x Port-Based authentication for user identity control MAC-Based authentication for easy deployment RADIUS / TACACS+ / Local profile Access Control List (ACL) IP-Based filtering to permit or deny traffic MAC-Based filtering to permit or deny traffic ACL Wizard for easy rules configuration Management Source IP Filter to prevent unauthorized intruder

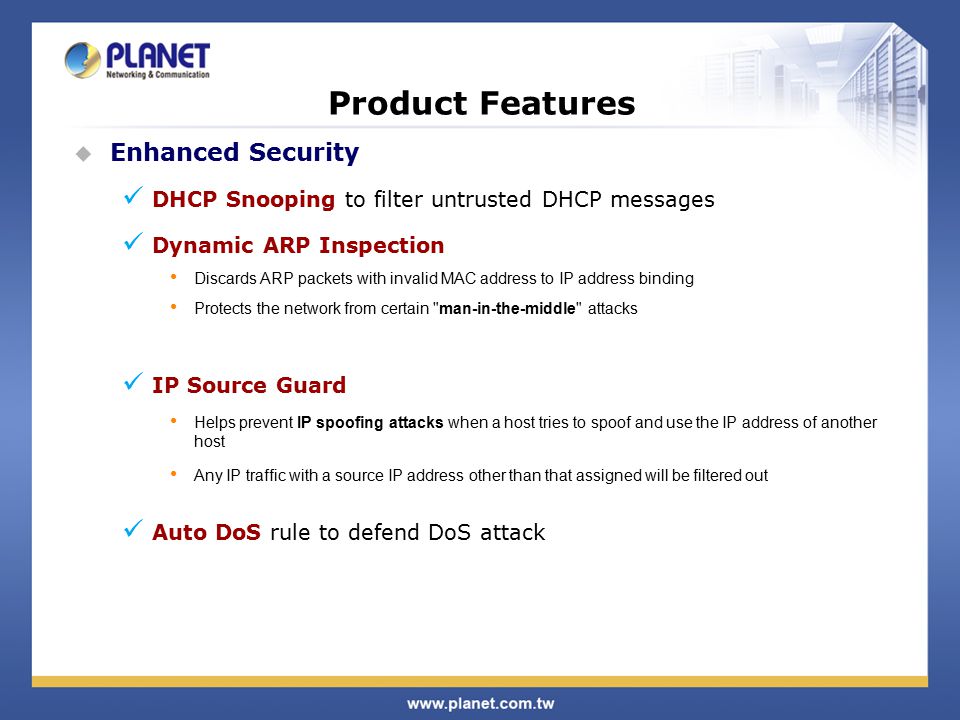

25 Product Features  Enhanced Security DHCP Snooping to filter untrusted DHCP messages Dynamic ARP Inspection Discards ARP packets with invalid MAC address to IP address binding Protects the network from certain "man-in-the-middle" attacks IP Source Guard Helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host Any IP traffic with a source IP address other than that assigned will be filtered out Auto DoS rule to defend DoS attack

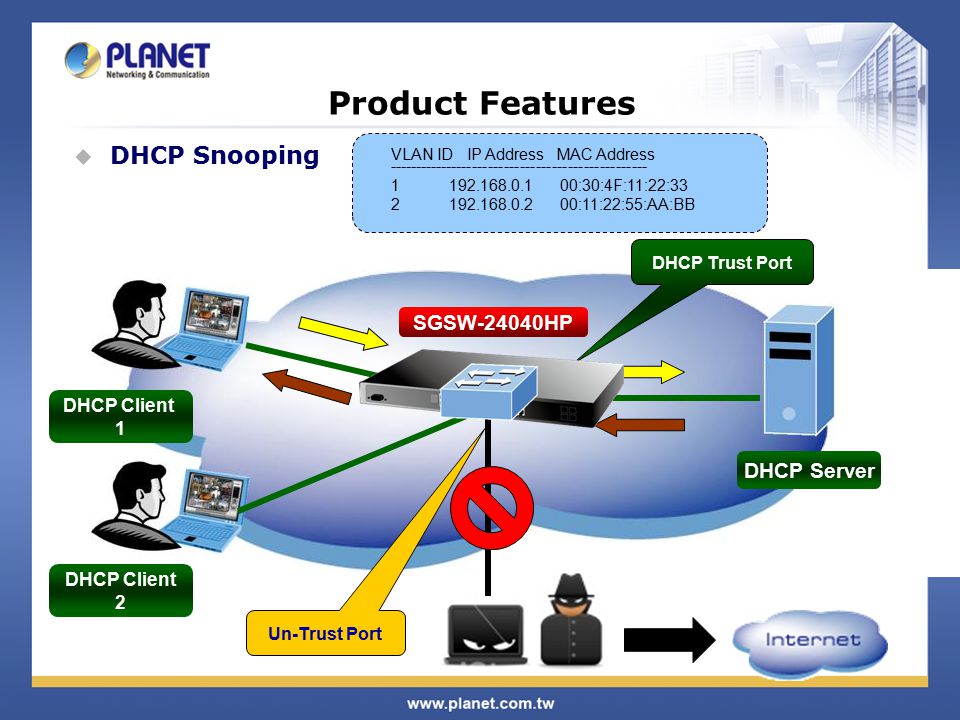

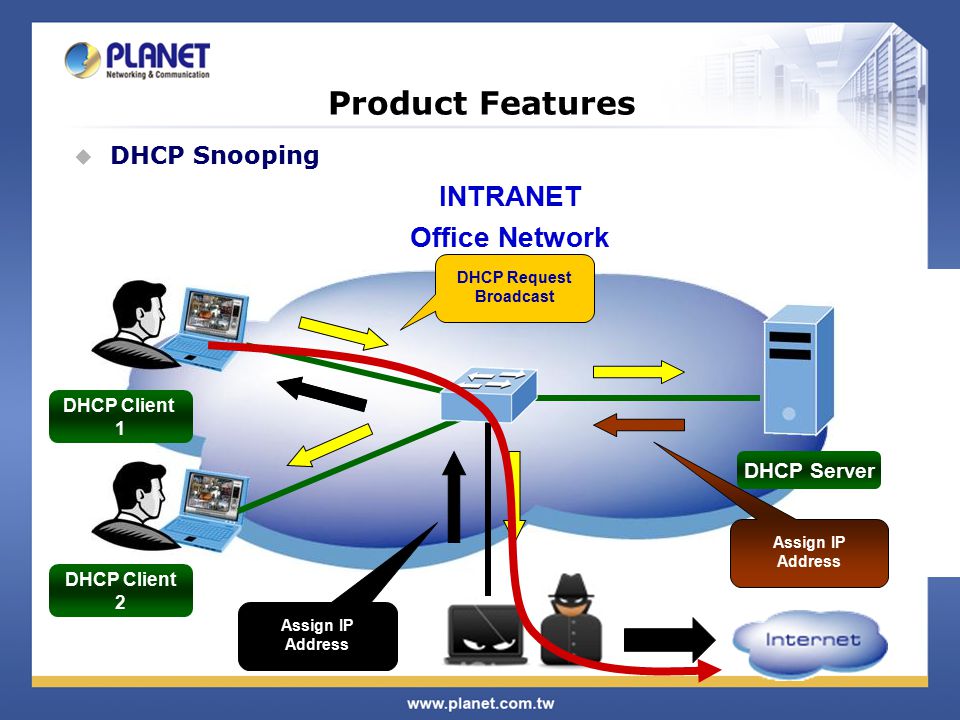

26 Product Features  DHCP Snooping DHCP Server DHCP Request Broadcast Assign IP Address DHCP Client 1 DHCP Client 2 INTRANET Office Network Assign IP Address

27 Product Features  DHCP Snooping DHCP Server DHCP Trust Port DHCP Client 1 DHCP Client 2 Un-Trust Port VLAN ID IP Address MAC Address ------------------------------------------------- 1 00:30:4F:11:22:33 2 00:11:22:55:AA:BB SGSW-24040HP

28 28 / 25 Product Features  Full Management IPv4 / IPv6 Dual Stack IPv6 IP Address / NTP / DNS management Standard-based Management WEB-based Telnet SNMP v1 and v2c Console Command Line Security Authentication for secure management SSH SSL SNMPv3 SNMP RMON 1, 2, 3 and 9 for In/out network traffic and event monitoring SNMP trap for device Link Up / Link Down status monitoring User Privilege levels control

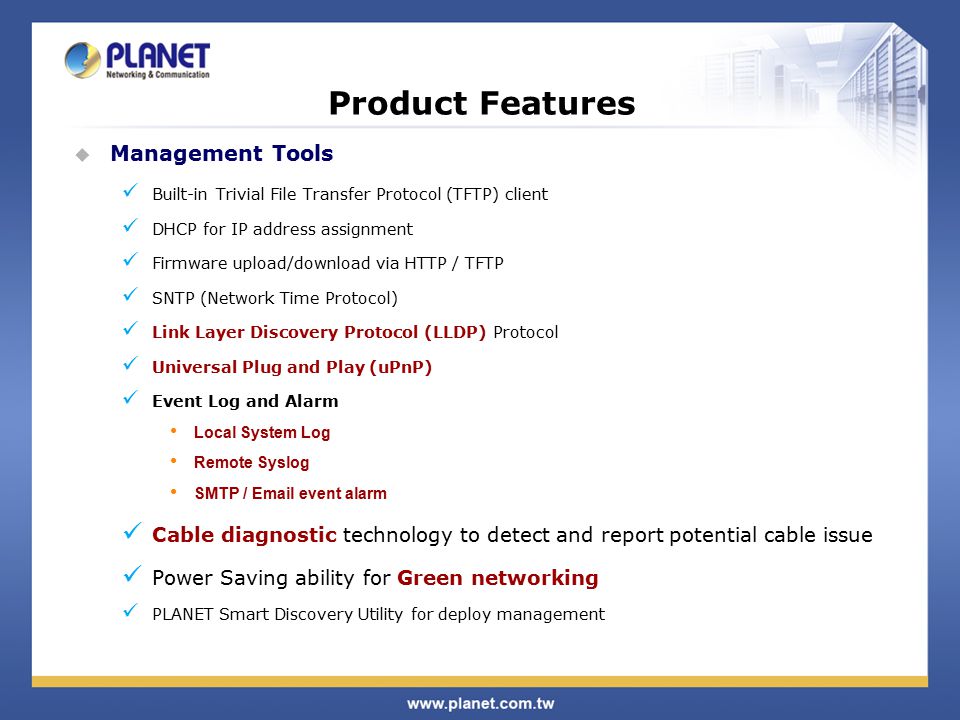

29 Product Features  Management Tools Built-in Trivial File Transfer Protocol (TFTP) client DHCP for IP address assignment Firmware upload/download via HTTP / TFTP SNTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) Protocol Universal Plug and Play (uPnP) Event Log and Alarm Local System Log Remote Syslog SMTP / Email event alarm Cable diagnostic technology to detect and report potential cable issue Power Saving ability for Green networking PLANET Smart Discovery Utility for deploy management

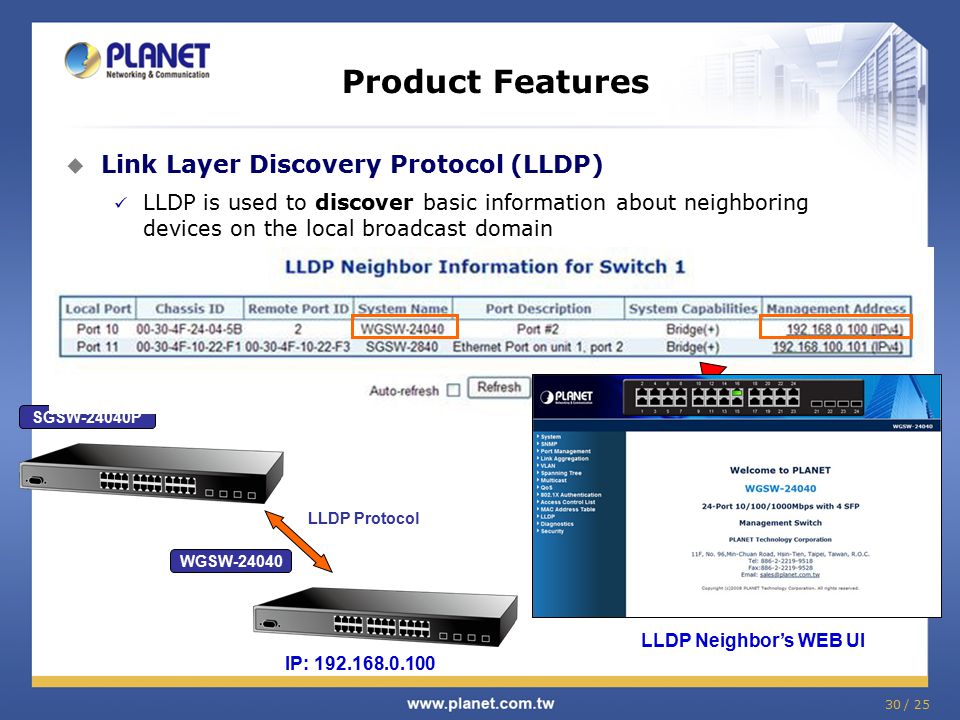

30 30 / 25 Product Features  Link Layer Discovery Protocol (LLDP) LLDP is used to discover basic information about neighboring devices on the local broadcast domain LLDP Protocol WGSW-24040 SGSW-24040P IP: LLDP Neighbor’s WEB UI

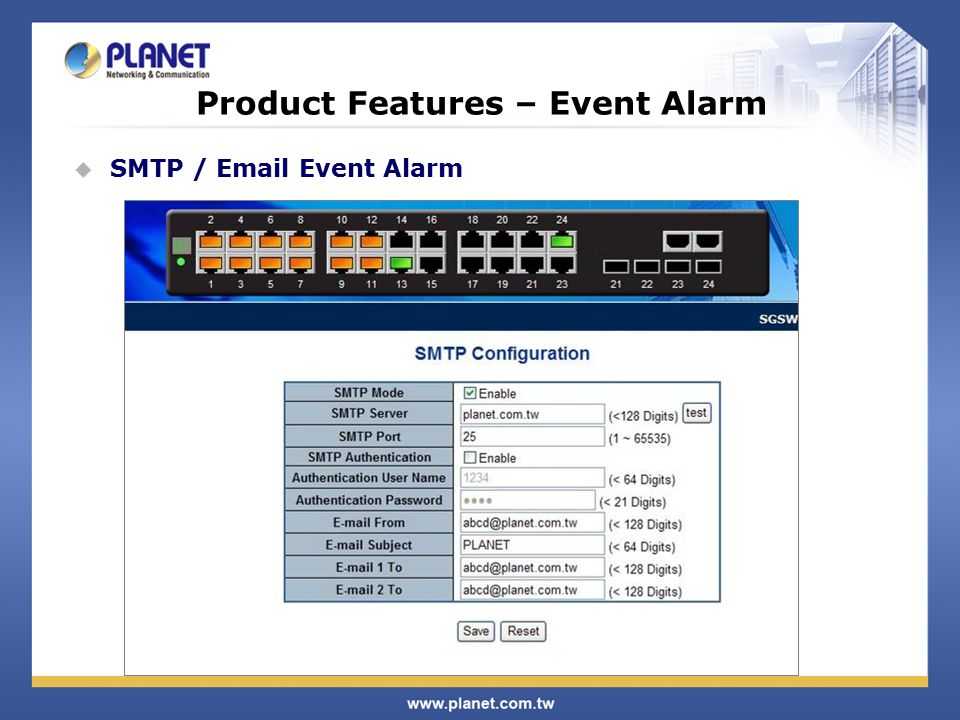

31 Product Features – Event Alarm  SMTP / Email Event Alarm

32  Real-Time Alarm SNMP Trap / Syslog / Email PoE Port Link Fault Alarm PoE Usage / Temperature Threshold Alarm Product Features – Event Alarm SNMP Trap Receiver SGSW-24040HP Syslog Serveremail Server PoE IP Surveillance Warning Link FAIL 300

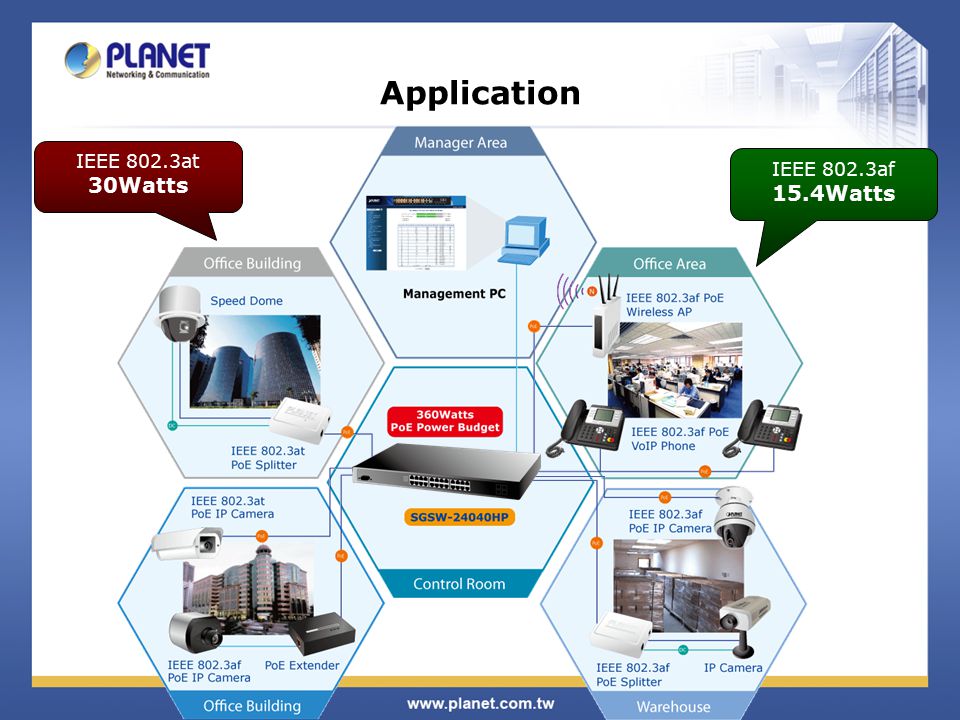

33 Application  Department / Workgroup High-power PoE Switch Providing up to 24-Port Gigabit High-power PoE, in-line power interface, the SGSW-24040HP High-Power PoE Switch can easily build a central- controlled power network with wireless Gigabit AP, IP phone system, or Speed Dome IP Camera system group for the enterprises. For instance, 24 IP cameras and wireless APs can be easily installed around the corner in the company for surveillance demands or a wireless roaming environment in the office. Without the power-socket limitation, the stackable PoE Switch makes the deployment of IP cameras or WLAN AP more easily and efficiently.

34 Application Gigabit Data speed + Power Single IP Management

35 Application  IP Surveillance High-power PoE Switch While video surveillance system becomes more and more important for visible security in the factory, warehouse, and public places, the IP cameras with PoE function would be a lot helpful for the surveillance deployment when the power outlet not easily found in the ceiling or in the outdoor. For example, in the factory operation or in the warehouse storage security, the PoE IP camera can be installed anywhere regardless of the restrictions of power outlet location. With the PoE Switch. SGSW-24040HP, as the central control manager and offering remote power monitoring via Web interface or SNMP trap, syslog, email alarm and SNMP monitoring, the manager can get the PoE devices status and alert immediately. The PoE IP cameras could also be controlled remotely, which increases the administrator management efficiency and improve the productivity.

36 Application IEEE 802.3at 30Watts IEEE 802.3af 15.4Watts

37 Application  High Performance, High-Density, High Reliable PoE Switch for large scale of network The SGSW-24040HP Gigabit PoE Switch is ideally applicable for large scale of network deployment in the communities, Telecoms or campus. Up to 16 units, 384 high-density Gigabit PoE ports can be managed by a stacking group with a single IP address. Dedicated stacking features built into SGSW-24040HP switch makes all devices in the stack operate together as a one much larger switch providing multiple high performance Gigabit Ethernet network for backbone of enterprise or Telecoms. The Gigabit PoE Switch also eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

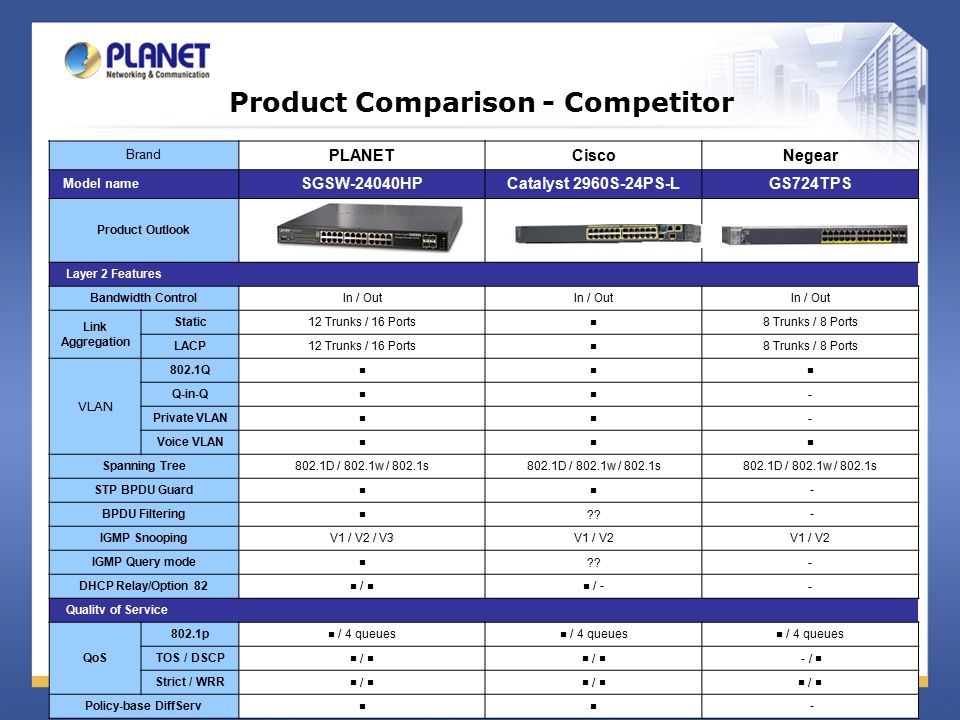

38 Product Comparison - Competitor Brand PLANETCiscoNegear Model name SGSW-24040HPCatalyst 2960S-24PS-LGS724TPS Product Outlook Features Full Managed L2 / L4 Managed Interface Switching Capacity68Gbps76Gbps68Gbps 10/100/1000Base-T24 SFP / mini-GBIC4 (Combo), 100FX support4 ConsoleDB9 / RS-232USB & RJ-45 - Stack Interface2 x 5Gbps (HDMI) 1 FlexStack module with 2 x 5Gbps port 2 x 5Gbps (HDMI) Max. Unit1648 Max. Port38496144 Power over Ethernet PoE Standard802.3af / 802.3at Max. Power Output15.4W / 30.8W15.4W / 30W PoE Power Budget360 Wattes370 Watts192 Watts Advanced PoE Power Control Classification / Allocation / Consumption / Priority ??- Max. NO. of Class 3 PD24 12 Max. NO. of Class 4 PD12 4 (Port 1 ~ Port 4 only)

39 Product Comparison - Competitor Brand PLANETCiscoNegear Model name SGSW-24040HPCatalyst 2960S-24PS-LGS724TPS Product Outlook Layer 2 Features Bandwidth ControlIn / Out Link Aggregation Static12 Trunks / 16 Ports ■ 8 Trunks / 8 Ports LACP12 Trunks / 16 Ports ■ 8 Trunks / 8 Ports VLAN 802.1Q ■■■ Q-in-Q ■■ - Private VLAN ■■ - Voice VLAN ■■■ Spanning Tree802.1D / 802.1w / 802.1s STP BPDU Guard ■■ - BPDU Filtering ■ ?? - IGMP SnoopingV1 / V2 / V3V1 / V2 IGMP Query mode ■ ??- DHCP Relay/Option 82 ■ / ■■ / - - Qualitv of Service QoS 802.1p ■ / 4 queues TOS / DSCP ■ / ■ - / ■ Strict / WRR ■ / ■ Policy-base DiffServ ■■ -

40 Product Comparison - Competitor Brand PLANETCiscoNegear Model name SGSW-24040HPCatalyst 2960S-24PS-LGS724TPS Security 802.1X Port Based ■■■ MAC Based ■■ - ACLL2 / L3 / L4 L2 / L3 RADIUS / TACACS+ ■ / ■ ■ / - DHCP Snooping ■■ - IP Source Guard ■■ - ARP Inspection ■■ - Port Security (MAC Limit) ■■■ IP / MAC Security ■ - - Management SNMP V1, V2c ■■■ V3 ■■■ Trap ■■■ RMON ■■■ System Log / Syslog / SMTP ■ / ■ / ■ - / ■ / - - / - ManagementWEB, Telnet, ConsoleTelnet, ConsoleWEB SSH / SSL ■ / ■■ / - - / - StackingHardware stacking up to 16 unitsHardware stacking up to 4 unitsHardware stacking up to 6 units IPv6 Management ■■ - Other ManagementLLDP / NTPNTPLLDP / SNTP

41 41 / 25 Appendix  Accessories Stacking Cable CB-STX200 2M Crossed-HDMI stacking cable CB-STX50 0.5M Crossed-HDMI stacking cable

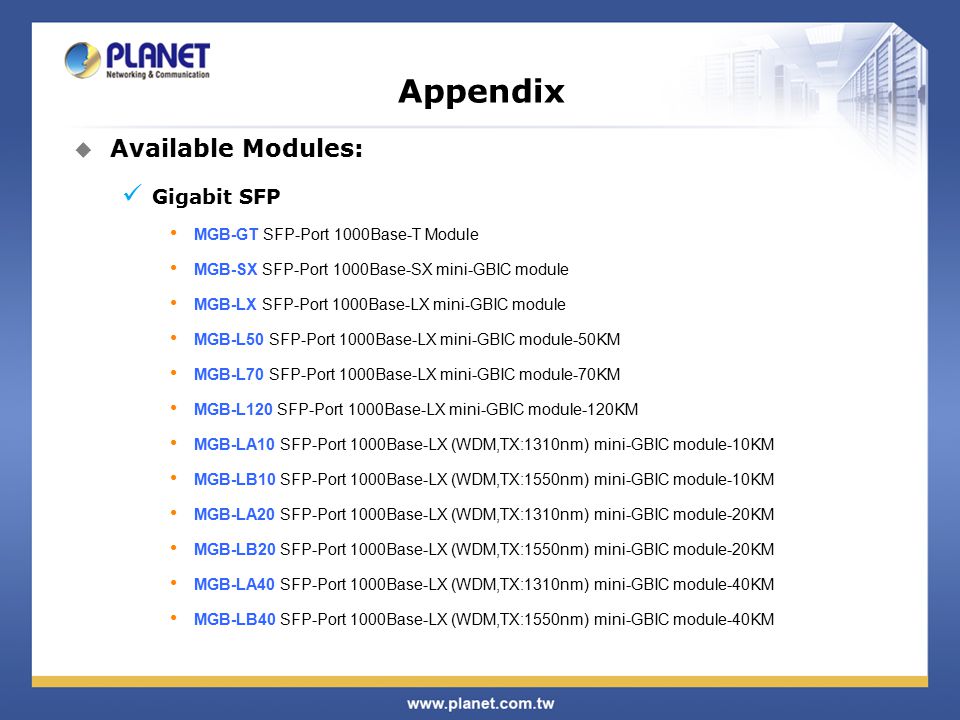

42 Appendix  Available Modules: Gigabit SFP MGB-GT SFP-Port 1000Base-T Module MGB-SX SFP-Port 1000Base-SX mini-GBIC module MGB-LX SFP-Port 1000Base-LX mini-GBIC module MGB-L50 SFP-Port 1000Base-LX mini-GBIC module-50KM MGB-L70 SFP-Port 1000Base-LX mini-GBIC module-70KM MGB-L120 SFP-Port 1000Base-LX mini-GBIC module-120KM MGB-LA10 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10KM MGB-LB10 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10KM MGB-LA20 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20KM MGB-LB20 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20KM MGB-LA40 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40KM MGB-LB40 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40KM

43 43 / 25 Appendix  Available Modules: 100Base-FX SFP MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) -2km MFB-F20 SFP-Port 100Base-FX Transceiver (1310nm) – 20km MFB-F60 SFP-Port 100Base-FX Transceiver (1310nm) – 60km MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM,TX:1310nm) -20km MFB-FB20 SFP-Port 100Base-BX Transceiver (WDM,TX:1550nm) -20km

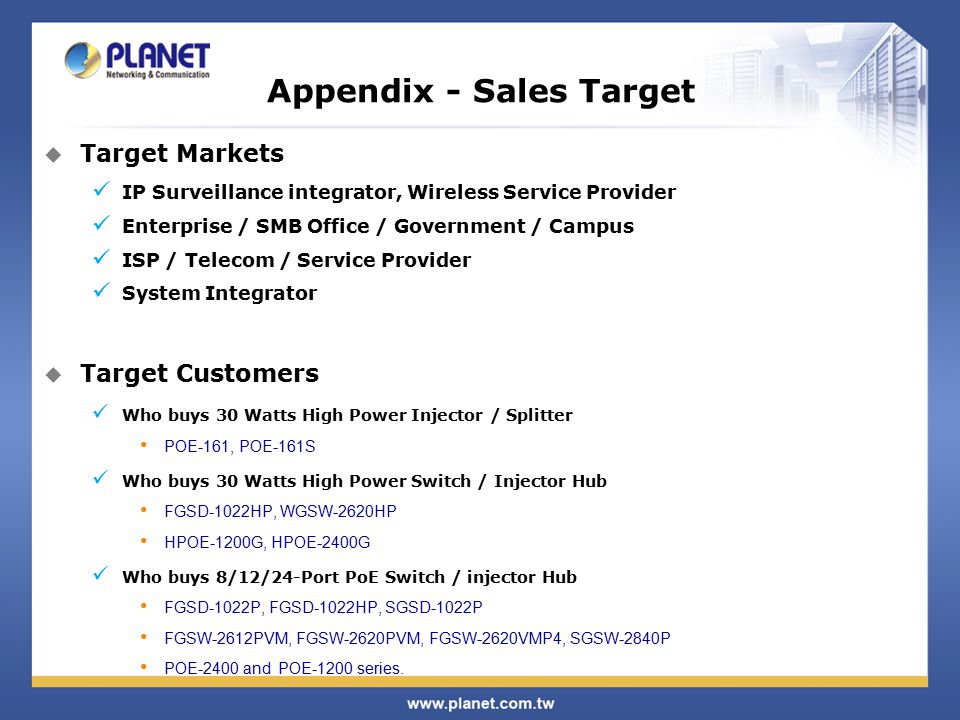

44  Target Markets IP Surveillance integrator, Wireless Service Provider Enterprise / SMB Office / Government / Campus ISP / Telecom / Service Provider System Integrator  Target Customers Who buys 30 Watts High Power Injector / Splitter POE-161, POE-161S Who buys 30 Watts High Power Switch / Injector Hub FGSD-1022HP, WGSW-2620HP HPOE-1200G, HPOE-2400G Who buys 8/12/24-Port PoE Switch / injector Hub FGSD-1022P, FGSD-1022HP, SGSD-1022P FGSW-2612PVM, FGSW-2620PVM, FGSW-2620VMP4, SGSW-2840P POE-2400 and POE-1200 series. Appendix - Sales Target

45 45 / 25

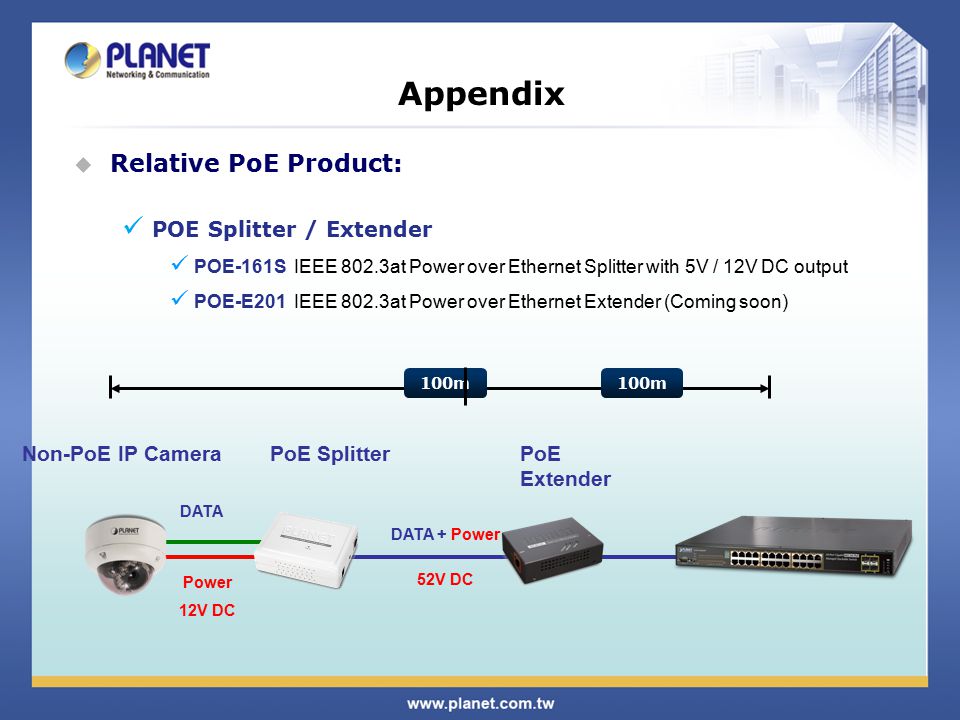

46 Appendix  Relative PoE Product: POE Splitter / Extender POE-161S IEEE 802.3at Power over Ethernet Splitter with 5V / 12V DC output POE-E201 IEEE 802.3at Power over Ethernet Extender (Coming soon) Non-PoE IP CameraPoE Splitter DATA + Power 52V DC DATA Power 12V DC 100m PoE Extender

47  Relative PoE Products: IP Surveillance ICA-H312 H.264 25-meter IR Internet Camera ICA-HM125 2 Mega-Pixel H.264 Box IP Camera ICA-HM126R H.264 Full HD Box IP Camera ICA-HM135 H.264 Mega-Pixel 20M IR Vandal Proof Dome IP Camera ICA-HM240 H.264 Mega-Pixel Vandal Proof Pan/Tilt IP Camera ICA-HM830 H.264 2Mega-Pixel Fish-Eye Panorama IP Camera Appendix

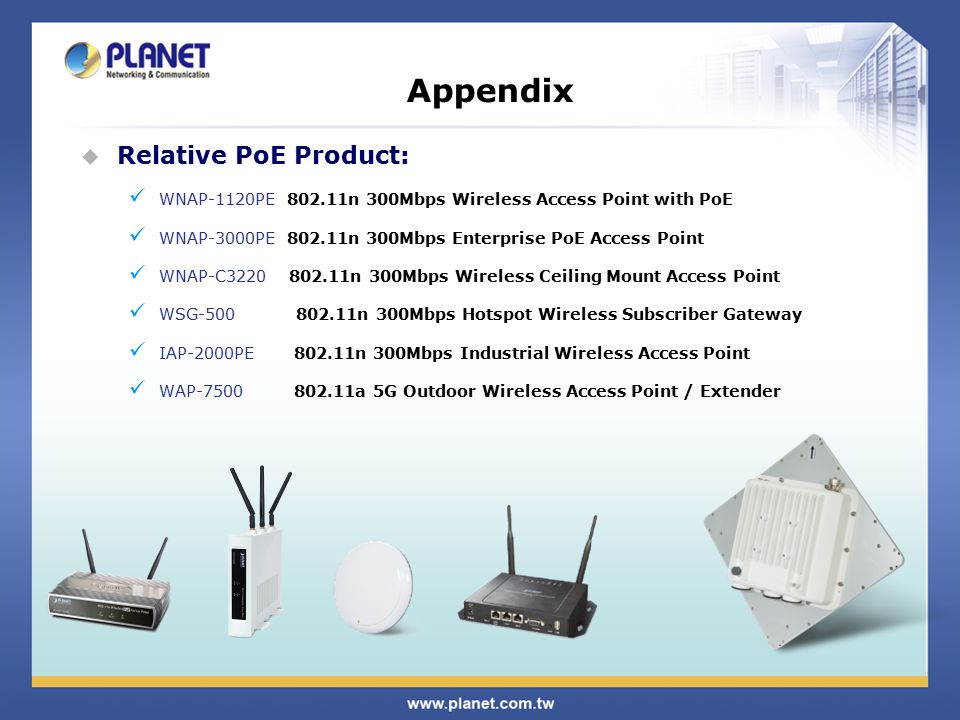

48  Relative PoE Product: WNAP-1120PE 802.11n 300Mbps Wireless Access Point with PoE WNAP-3000PE 802.11n 300Mbps Enterprise PoE Access Point WNAP-C3220 802.11n 300Mbps Wireless Ceiling Mount Access Point WSG-500 802.11n 300Mbps Hotspot Wireless Subscriber Gateway IAP-2000PE 802.11n 300Mbps Industrial Wireless Access Point WAP-7500 802.11a 5G Outdoor Wireless Access Point / Extender Appendix

49 Reference - What is IPv6 ?  Internet Protocol version 6 (IPv6) IPv6 is the next-generation Internet Protocol version designated as the successor to IPv4, the first implementation used in the Internet that is still in dominant use currently. It is an Internet Layer protocol for packet-switched internetworks. The main driving force for the redesign of Internet Protocol was the foreseeable IPv4 address exhaustion. IPv6 was defined in December 1998 by the Internet Engineering Task Force (IETF) with the publication of an Internet standard specification, RFC 2460. IPv6 has a vastly larger address space than IPv4. This results from the use of a 128-bit address, whereas IPv4 uses only 32 bits.

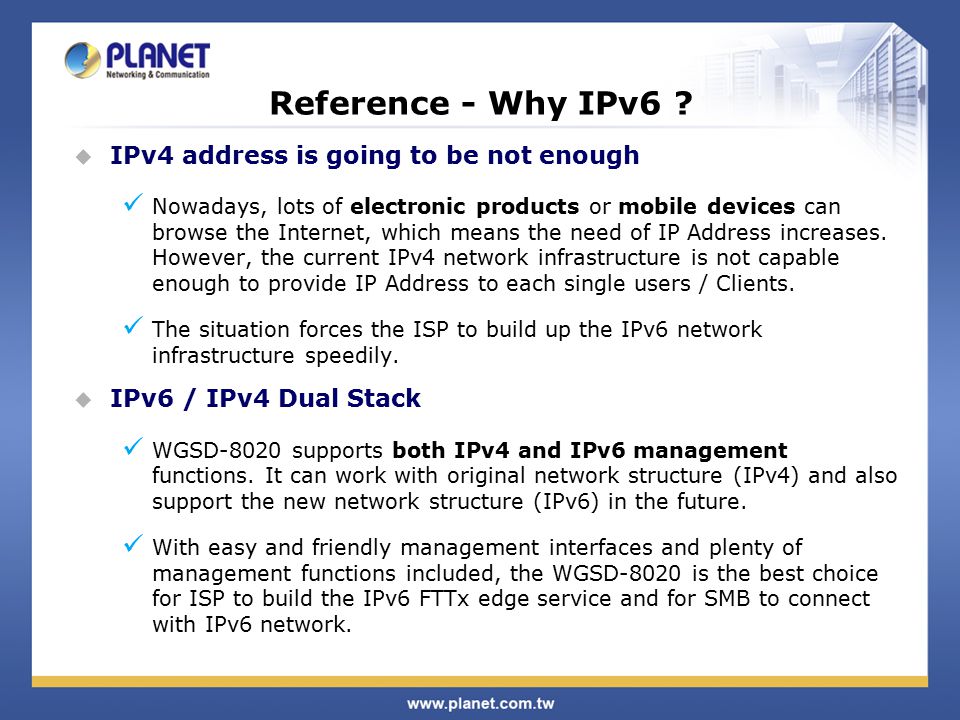

50 Reference - Why IPv6 ?  IPv4 address is going to be not enough Nowadays, lots of electronic products or mobile devices can browse the Internet, which means the need of IP Address increases. However, the current IPv4 network infrastructure is not capable enough to provide IP Address to each single users / Clients. The situation forces the ISP to build up the IPv6 network infrastructure speedily.  IPv6 / IPv4 Dual Stack WGSD-8020 supports both IPv4 and IPv6 management functions. It can work with original network structure (IPv4) and also support the new network structure (IPv6) in the future. With easy and friendly management interfaces and plenty of management functions included, the WGSD-8020 is the best choice for ISP to build the IPv6 FTTx edge service and for SMB to connect with IPv6 network.
