1 1 Cache and Caching David Sands CS 147 Spring 08 Dr. Sin-Min Lee

2 2 The Cache  Faster memory access times.  Remembering frequently accessed data.  Block of memory for temporary storage or indexing.

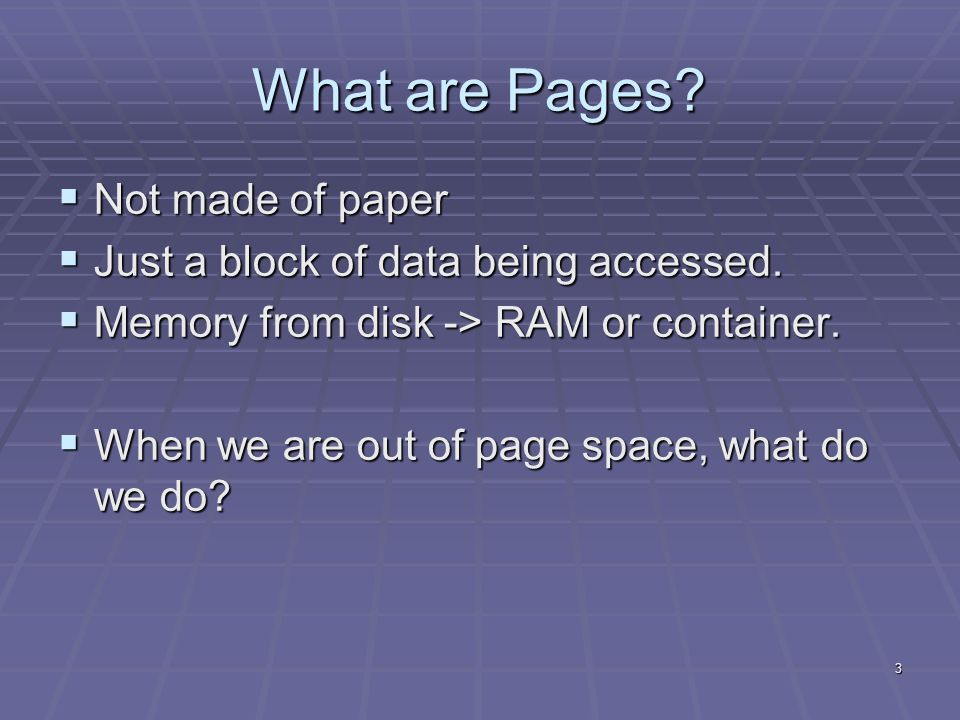

3 3 What are Pages?  Not made of paper  Just a block of data being accessed.  Memory from disk -> RAM or container.  When we are out of page space, what do we do?

4 4 Page Replacement Algorithms  Optimal Page Replacement -- swap page that will not be used for a while with a page that is about to be used.  First in, First out (FIFO) -- queue  Second-Chance -- circular queue. If reference bit is set, put at last place. If not set, cache it.  ‘Clock’ -- just like second-chance, but uses a ‘hand iterator’ instead of putting at back of queue.

5 5 More Algorithms  Not Recently Used -- favors keeping page in cache that are recent (keep track of referenced / modified)  Least Recently Used -- assumes new pages in cache will be used again in near future. Hard to implement.  Random -- swaps random pages – compare to FIFO and LRU - fast  Not Frequently Used -- counter variable for # uses of a page. Swaps out the underutilized pages.  Aging -- Favoritism for recently referenced pages. Priority. Swaps out old pages first. woot

6 6 Primitive Example -- Fetch D then C then B then A from the tree memory. -- What we access is chained above the tree into tree-like cache. -- If we do FIFO algorithm, we replace D if there’s no cache space left.

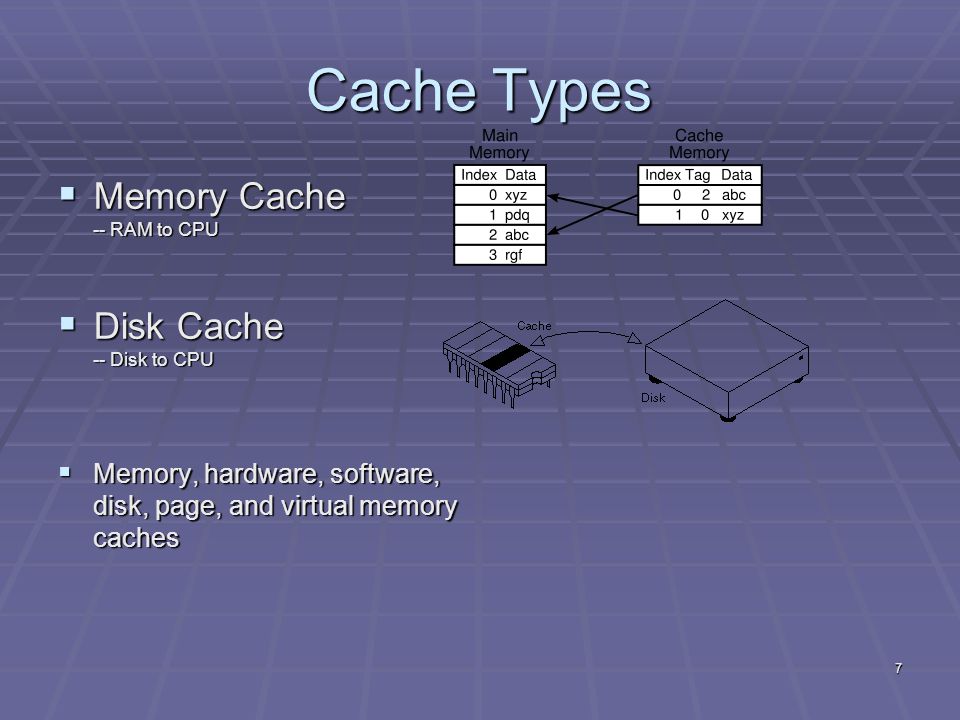

7 7 Cache Types  Memory Cache -- RAM to CPU  Disk Cache -- Disk to CPU  Memory, hardware, software, disk, page, and virtual memory caches

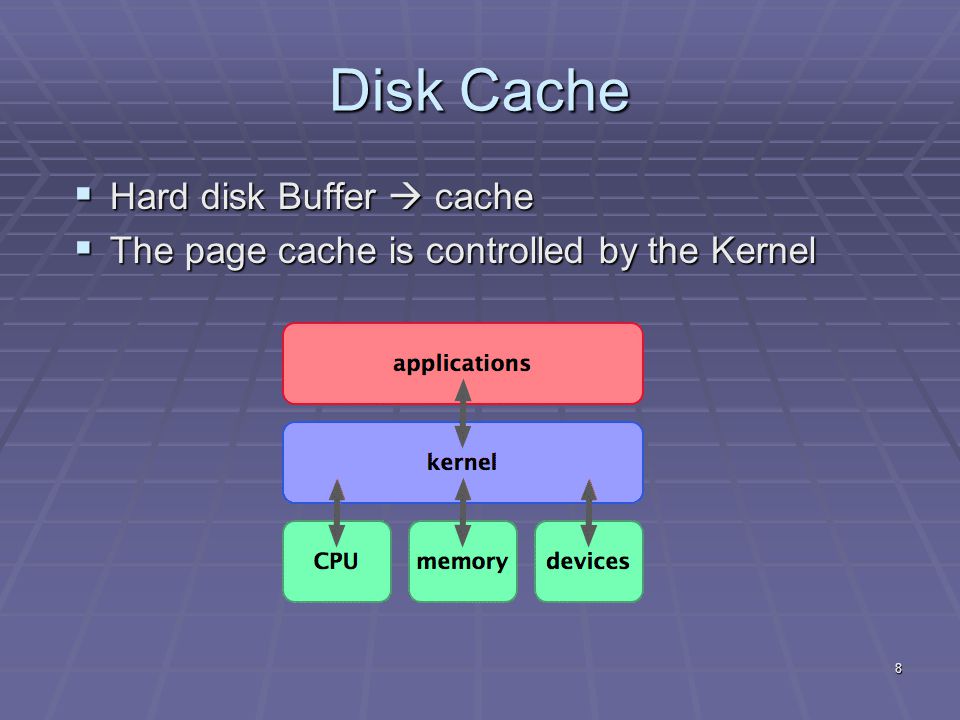

8 8 Disk Cache  Hard disk Buffer  cache  The page cache is controlled by the Kernel

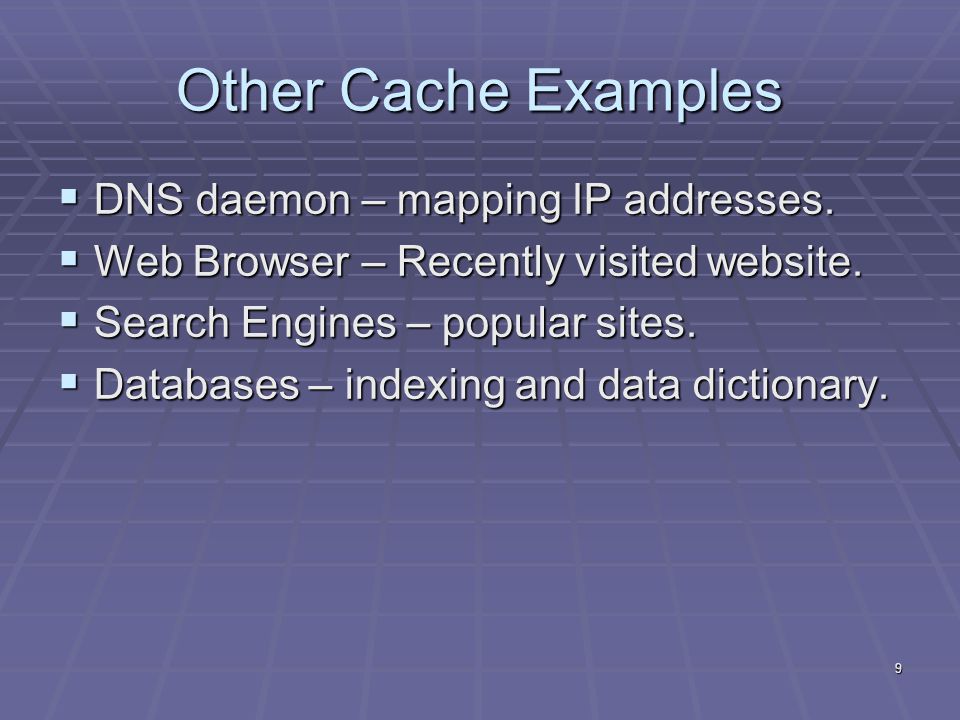

9 9 Other Cache Examples  DNS daemon – mapping IP addresses.  Web Browser – Recently visited website.  Search Engines – popular sites.  Databases – indexing and data dictionary.

10 10 L1, L2, L3 Cache  Provides tiers of cache memory  As memory size and distance from CPU increases, access time becomes longer.  Cost-benefit problem.  L3 Cache not required, but has larger storage, so we like it.

11 11 L1, L2, L3 Cache (cont.)  L1 Inside processor chip (like registers)  L2 Outside processor (can be on motherboard)  L3 between L2 and main memory

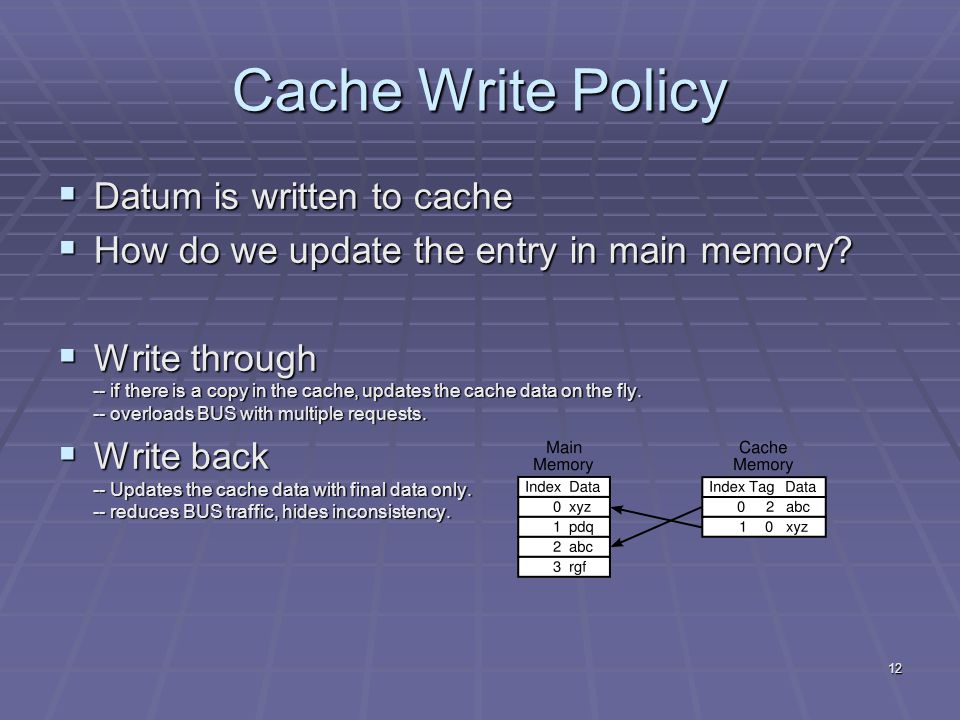

12 12 Cache Write Policy  Datum is written to cache  How do we update the entry in main memory?  Write through -- if there is a copy in the cache, updates the cache data on the fly. -- overloads BUS with multiple requests.  Write back -- Updates the cache data with final data only. -- reduces BUS traffic, hides inconsistency.

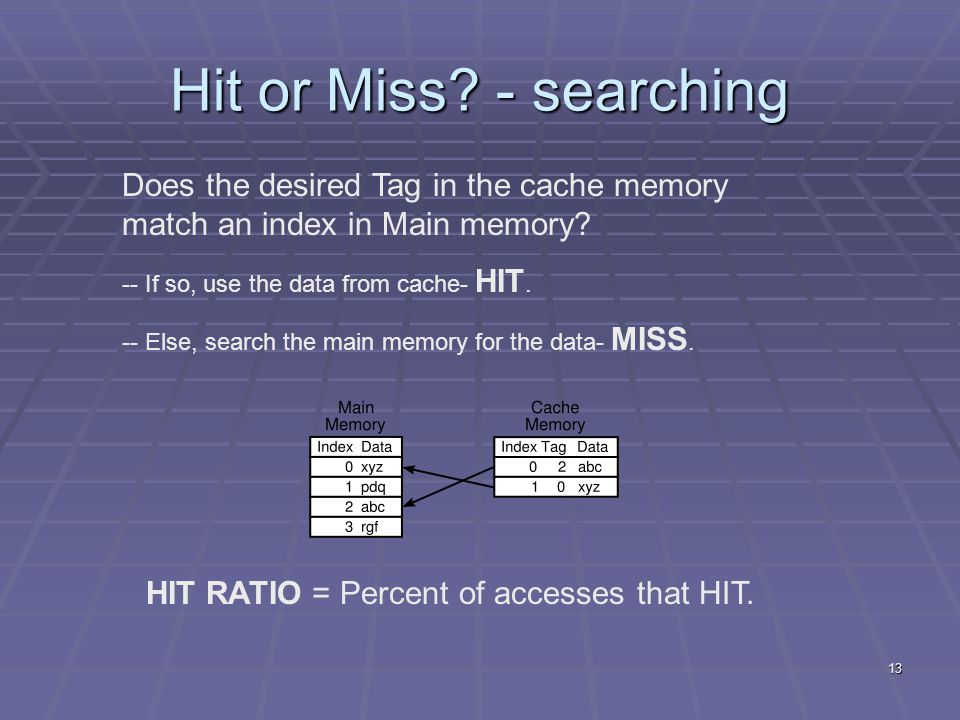

13 13 Hit or Miss? - searching Does the desired Tag in the cache memory match an index in Main memory? -- If so, use the data from cache- HIT. -- Else, search the main memory for the data- MISS. HIT RATIO = Percent of accesses that HIT.

14 14 Miss Rate vs. Cache Size  1.00 - Hit = Miss Method of cache mapping to data elements

15 15 Time Analysis for One L1 Cache   L1 Cache Avg. Cost = rC h + (1-r)C m r = hit ratio C h = L1 cache access time C m = memory access time This is a probability distribution function.

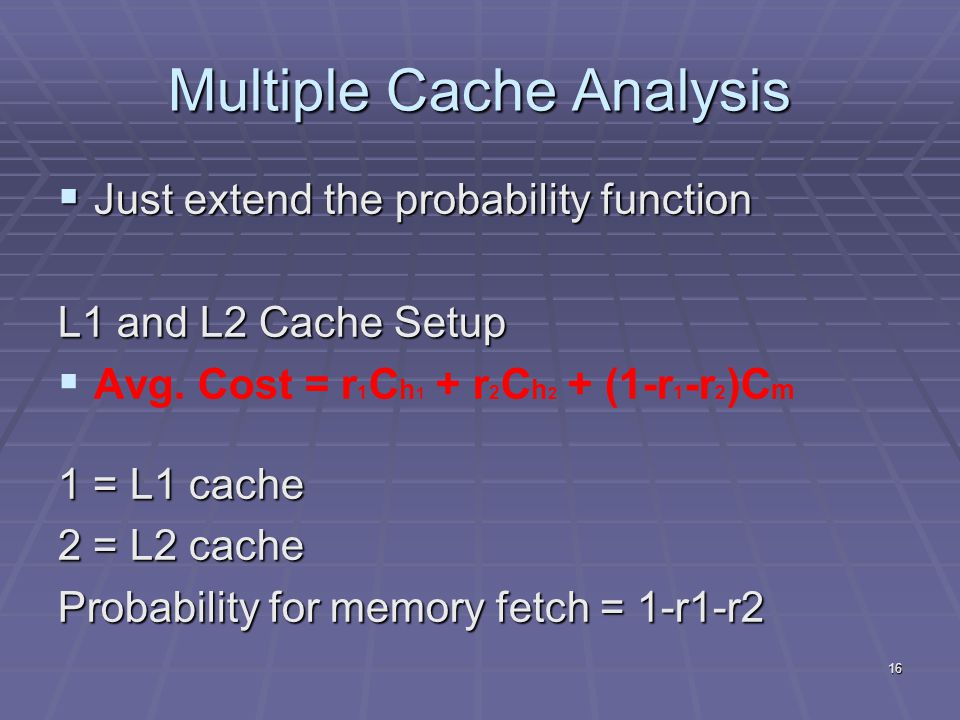

16 16 Multiple Cache Analysis  Just extend the probability function L1 and L2 Cache Setup   Avg. Cost = r 1 C h 1 + r 2 C h 2 + (1-r 1 -r 2 )C m 1 = L1 cache 2 = L2 cache Probability for memory fetch = 1-r1-r2

17 17 ?

18 18 References ent_algorithm ent_algorithm
