2 The Pad Projector Traditional projectors are inconvenient to carry around, can only be used indoors Tablets lack of interaction and sharingThe Pad Projector solves all these issues
3
3 The Pad Projector Sales People Meetings Conferences Where can it be used?
4
4 The Pad Projector Schools MedicalHome Theatre Where can it be used?
5

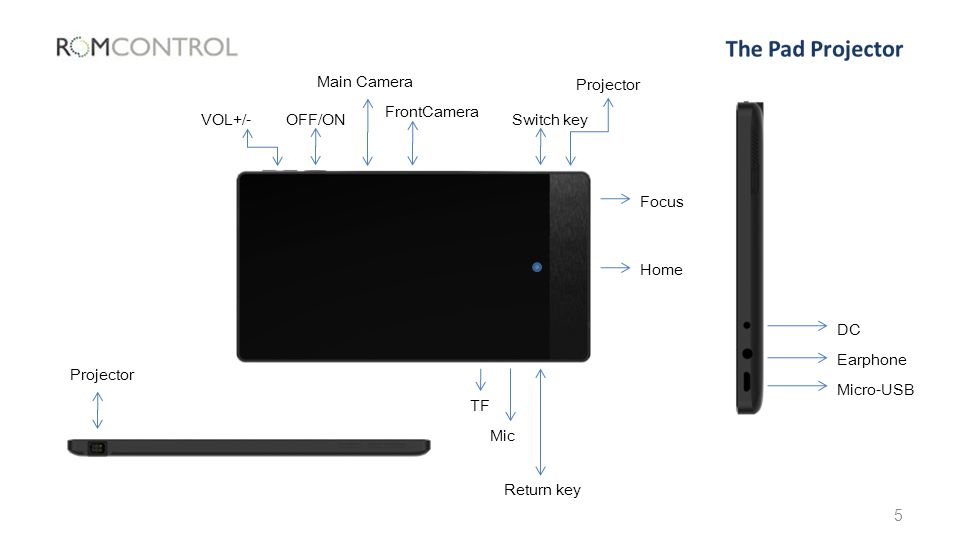

5 VOL+/-OFF/ON Projector Micro-USB Earphone DC Home Focus TF Mic Switch key Return key Main Camera FrontCamera Projector
6

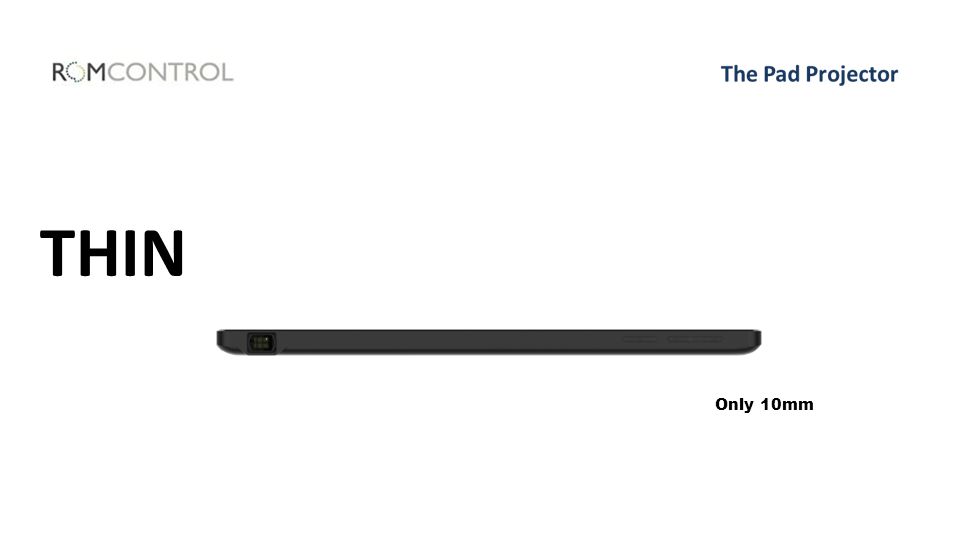

THIN Only 10mm
7

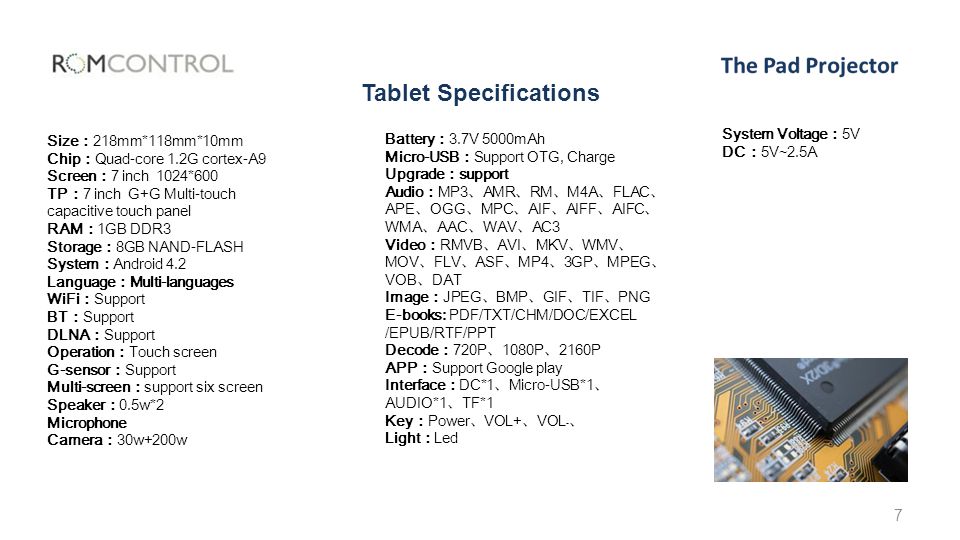

7 Tablet Specifications Size : 218mm*118mm*10mm Chip : Quad-core 1.2G cortex-A9 Screen : 7 inch 1024*600 TP : 7 inch G+G Multi-touch capacitive touch panel RAM : 1GB DDR3 Storage : 8GB NAND-FLASH System : Android 4.2 Language : Multi-languages WiFi : Support BT : Support DLNA : Support Operation : Touch screen G-sensor : Support Multi-screen : support six screen Speaker : 0.5w*2 Microphone Camera : 30w+200w Battery : 3.7V 5000mAh Micro-USB : Support OTG, Charge Upgrade : support Audio : MP3 、 AMR 、 RM 、 M4A 、 FLAC 、 APE 、 OGG 、 MPC 、 AIF 、 AIFF 、 AIFC 、 WMA 、 AAC 、 WAV 、 AC3 Video : RMVB 、 AVI 、 MKV 、 WMV 、 MOV 、 FLV 、 ASF 、 MP4 、 3GP 、 MPEG 、 VOB 、 DAT Image : JPEG 、 BMP 、 GIF 、 TIF 、 PNG E-books: PDF/TXT/CHM/DOC/EXCEL /EPUB/RTF/PPT Decode : 720P 、 1080P 、 2160P APP : Support Google play Interface : DC*1 、 Micro-USB*1 、 AUDIO*1 、 TF*1 Key : Power 、 VOL+ 、 VOL ﹣、 Light : Led System Voltage : 5V DC : 5V~2.5A
8

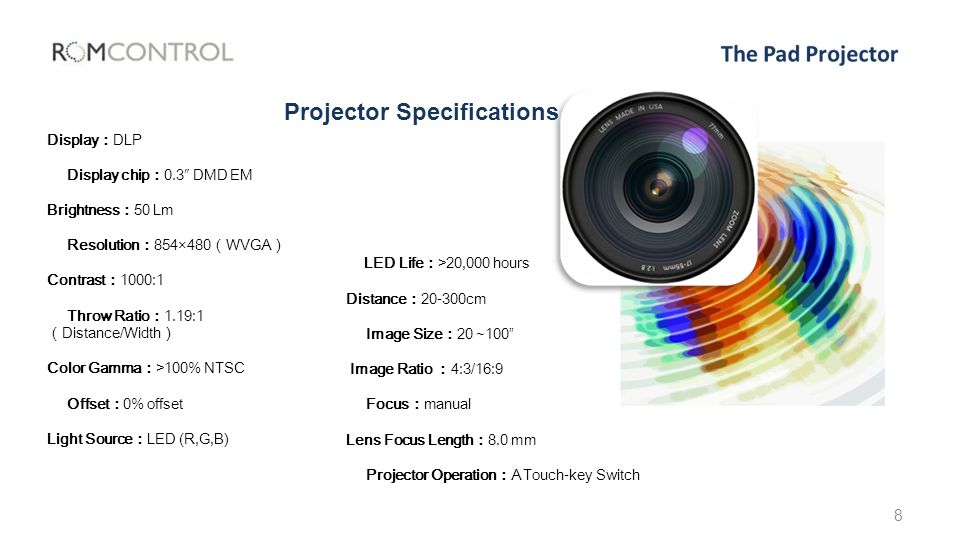

8 Display : DLP Display chip : 0.3″ DMD EM Brightness : 50 Lm Resolution : 854×480 ( WVGA ) Contrast : 1000:1 Throw Ratio : 1.19:1 ( Distance/Width ) Color Gamma : >100% NTSC Offset : 0% offset Light Source : LED (R,G,B) LED Life : >20,000 hours Distance : 20-300cm Image Size : 20 ~100” Image Ratio : 4:3/16:9 Focus : manual Lens Focus Length : 8.0 mm Projector Operation : A Touch-key Switch Projector Specifications
