1
FLOWSHEETS Zinc Plant Flowsheet (SOMINCOR) http://www.sec.gov/Archives/edgar/containers/fix270/1377085/000120445907001642/lundintechrep.htm

2
Analysis of flowsheets SIMPLE CASE final concentrate final tailing

3

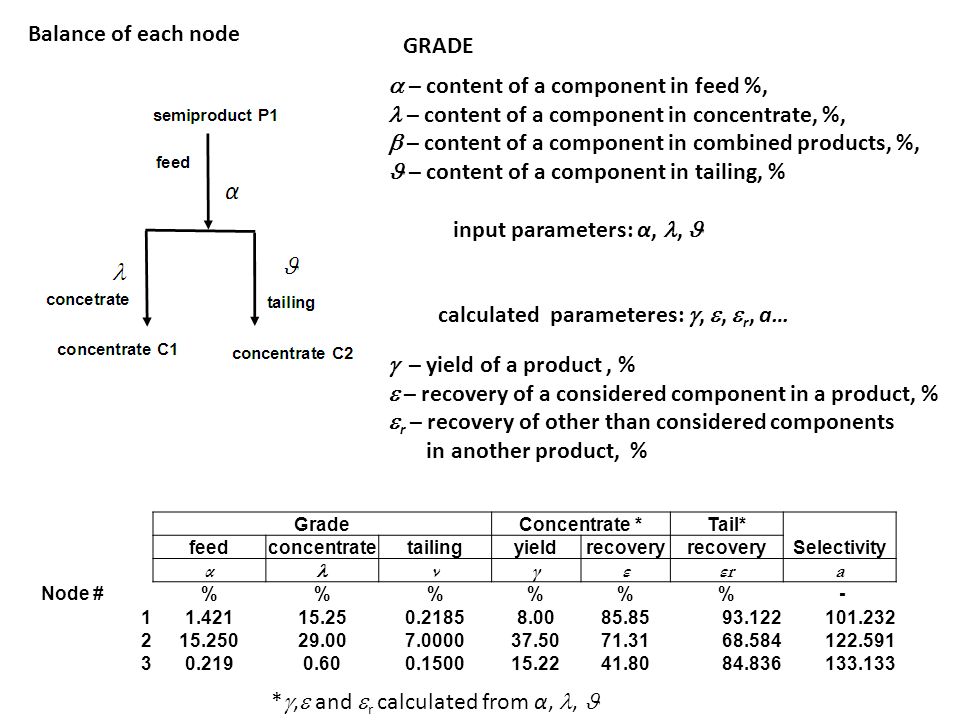

Balance of each node input parameters: α,, Input data concentrate C1 semiproduct P1 concentrate C2 α feed concetrate tailing calculated parameteres: , , r, a… – content of a component in feed %, – content of a component in concentrate, %, – content of a component in combined products, %, – content of a component in tailing, % GRADE – yield of a product, % – recovery of a considered component in a product, % r – recovery of other than considered components in another product, % Grade Concentrate *Tail* Selectivity feedconcentratetailingyieldrecovery α νγεεrεra Node #%%% - 11.42115.250.21858.0085.8593.122101.232 215.25029.007.000037.5071.3168.584122.591 30.2190.600.150015.2241.8084.836133.133 * , and r calculated from α,,

4
EQUATIONS (%) (-) a = 100 ideal separation, a ~ 1000 no separation

5

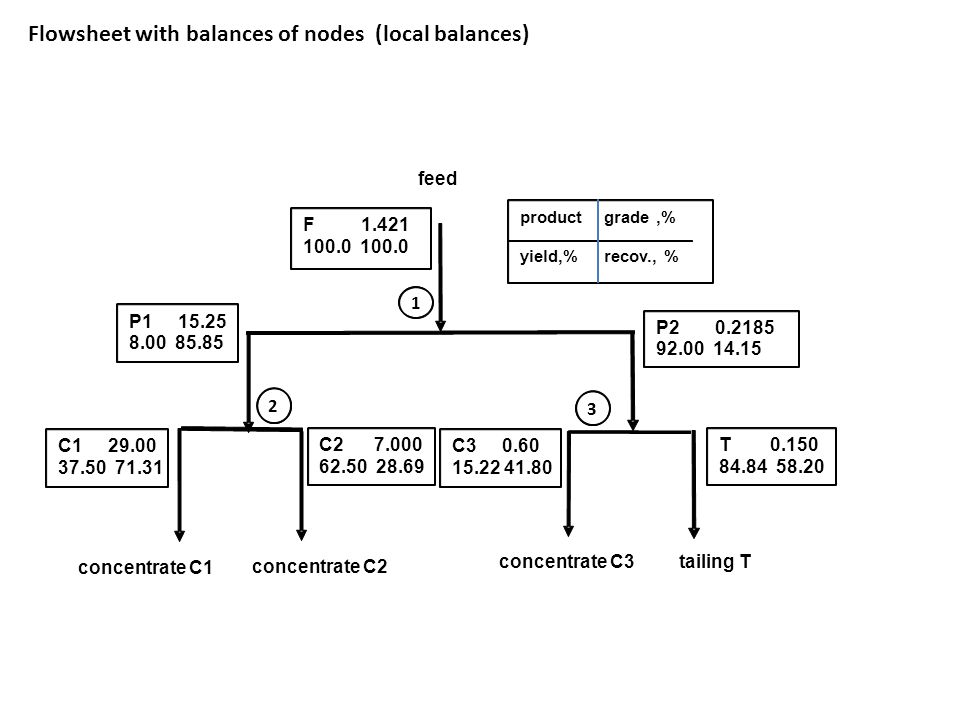

Flowsheet with balances of nodes (local balances) 1 2 3 product grade,% yield,% recov., % C1 29.00 37.50 71.31 feed tailing T concentrate C1 concentrate C2 concentrate C3 F 1.421 100.0 P2 0.2185 92.00 14.15 P1 15.25 8.00 85.85 C2 7.000 62.50 28.69 C3 0.60 15.22 41.80 T0.150 84.84 58.20

6
Upgrading curves for nodes using local balances conclusion: separation is best in node 1 (a=101.30 and worse in nodes 2 and 3, a=~125)

7

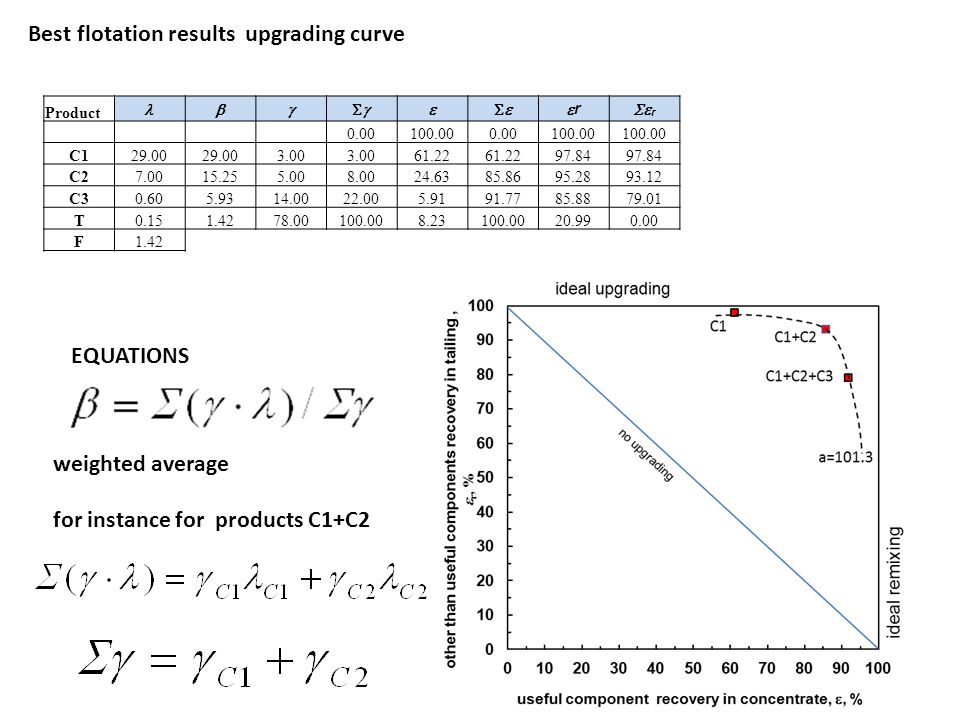

Best flotation results upgrading curve EQUATIONS for instance for products C1+C2 Product rr r 0.00100.000.00100.00 C129.00 3.00 61.22 97.84 C27.0015.255.008.0024.6385.8695.2893.12 C30.605.9314.0022.005.9191.7785.8879.01 T0.151.4278.00100.008.23100.0020.990.00 F1.42 weighted average

8

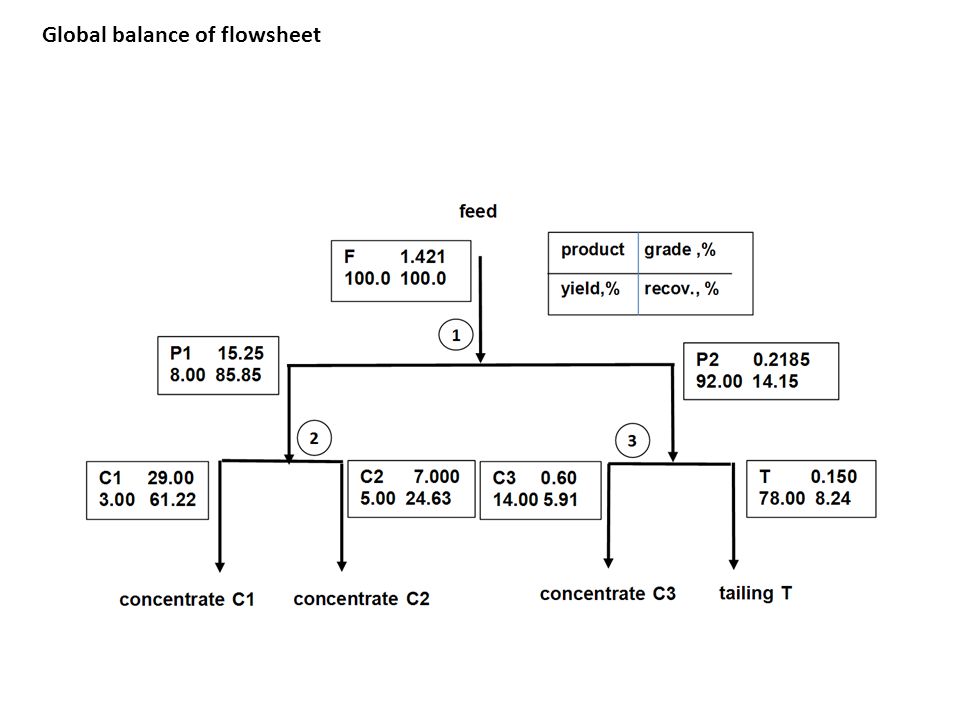

Global balance of flowsheet

10
Options of industrial flowsheet 1 2 3 Feed tailing T final concentrate C f semiproduct P1 semiproduct P2 concentrate C2 concentrate C3 final tailing T f concentrate C1 4

11

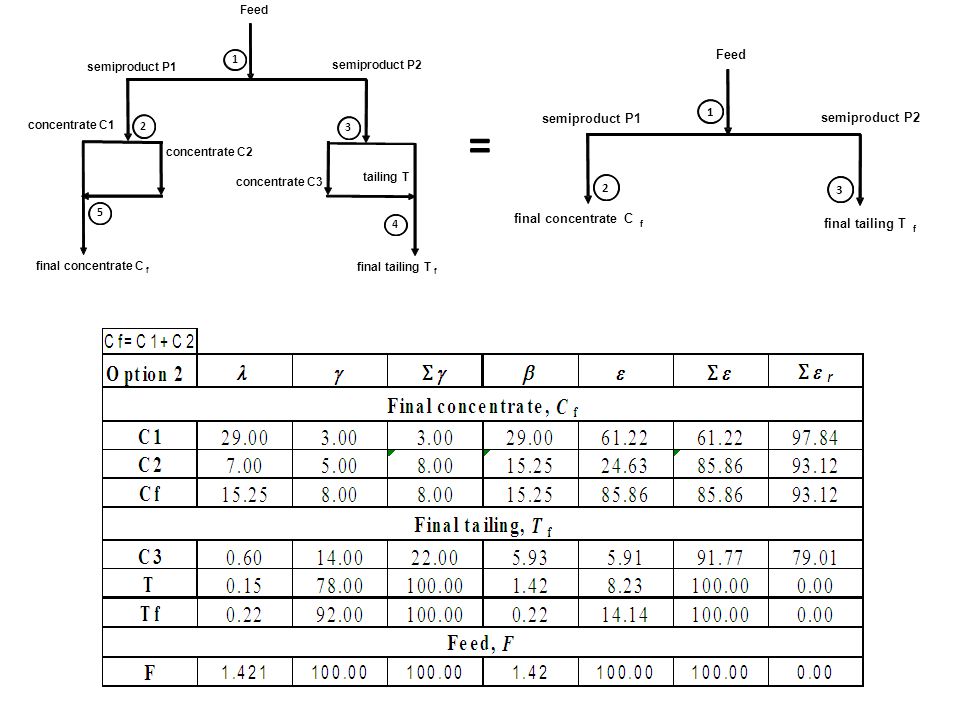

= 1 2 3 Feed tailing T final concentrate C f semiproduct P1 semiproduct P2 concentrate C2 concentrate C3 final tailing T f concentrate C1 4 5 1 2 3 Feed final concentrate C f semiproduct P1 semiproduct P2 final tailing T f =

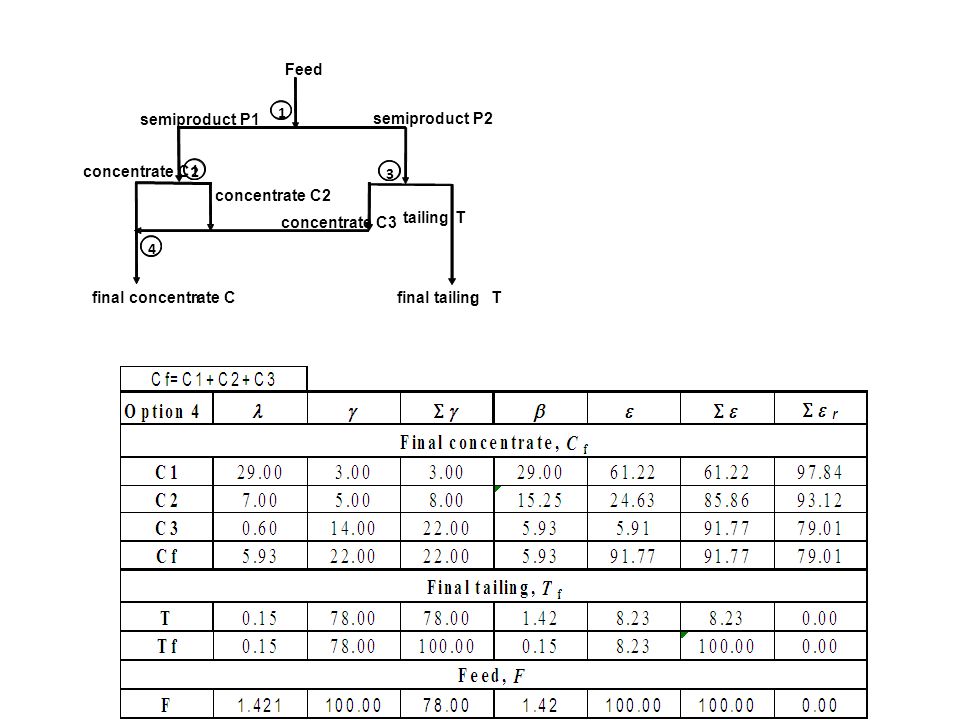

12
1 2 3 Feed tailing T final concentrate C f semiproduct P1 semiproduct P2 concentrate C2 concentrate C3 final tailing T f concentrate C1 4

13
1 2 3 Feed tailing T final concentrate C f semiproduct P1 semiproduct P2 concentrate C2 concentrate C3 final tailing T f concentrate C1 4 5

14
1 2 3 Feed tailing T final concentrate C f semiproduct P1 semiproduct P2 concentrate C2 concentrate C3 final tailing T f concentrate C1 4

15

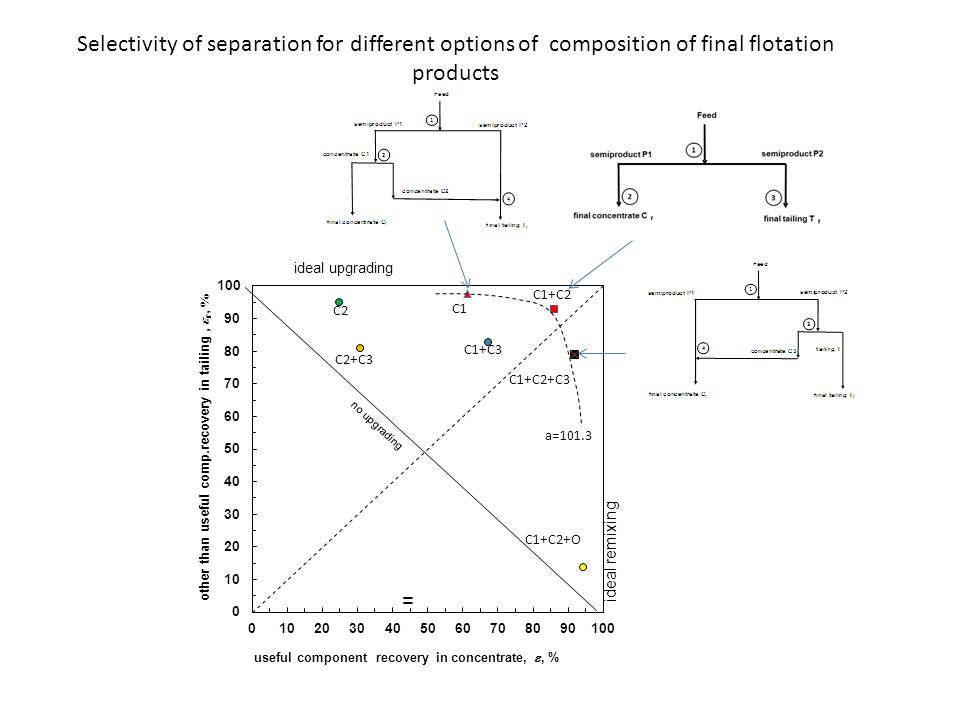

Selectivity of separation for different options of composition of final flotation products =

16

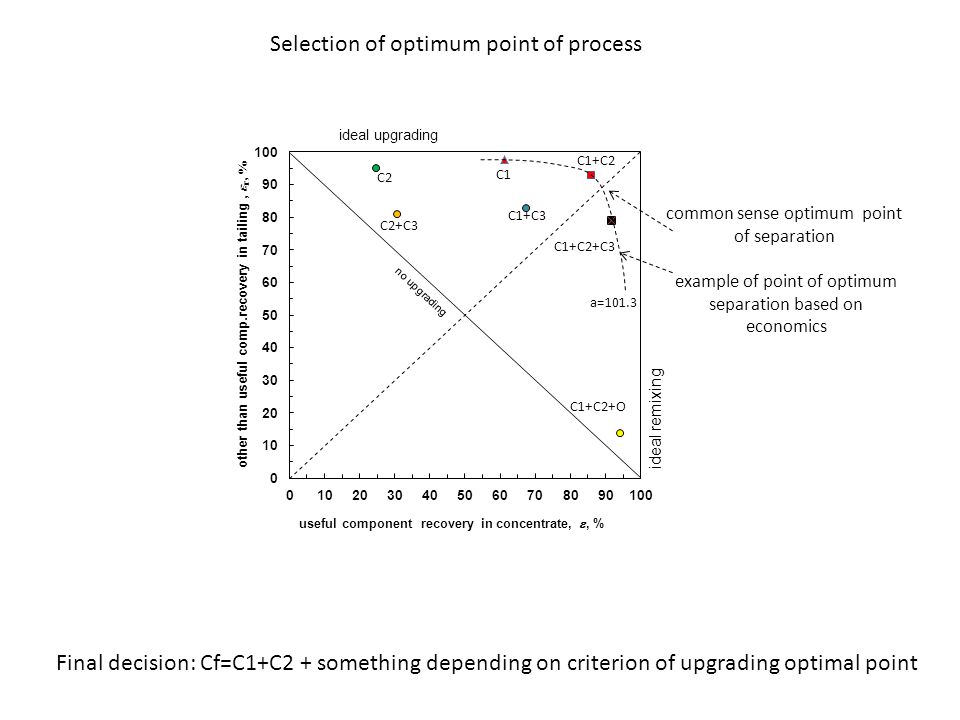

Selection of optimum point of process common sense optimum point of separation example of point of optimum separation based on economics Final decision: Cf=C1+C2 + something depending on criterion of upgrading optimal point

17

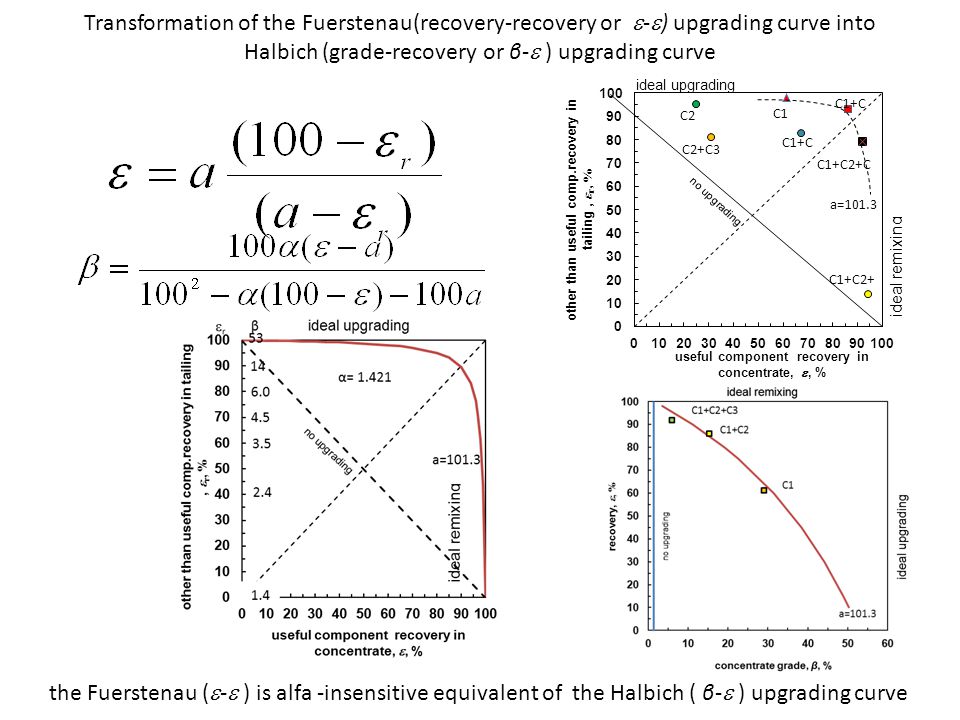

Transformation of the Fuerstenau(recovery-recovery or - ) upgrading curve into Halbich (grade-recovery or β- ) upgrading curve the Fuerstenau ( - ) is alfa -insensitive equivalent of the Halbich ( β- ) upgrading curve

18
FLOWSHEET WITH A RECYCLE STREAM

19
Flowsheet with balance of nodes (local balances) input parameters: α,,

20

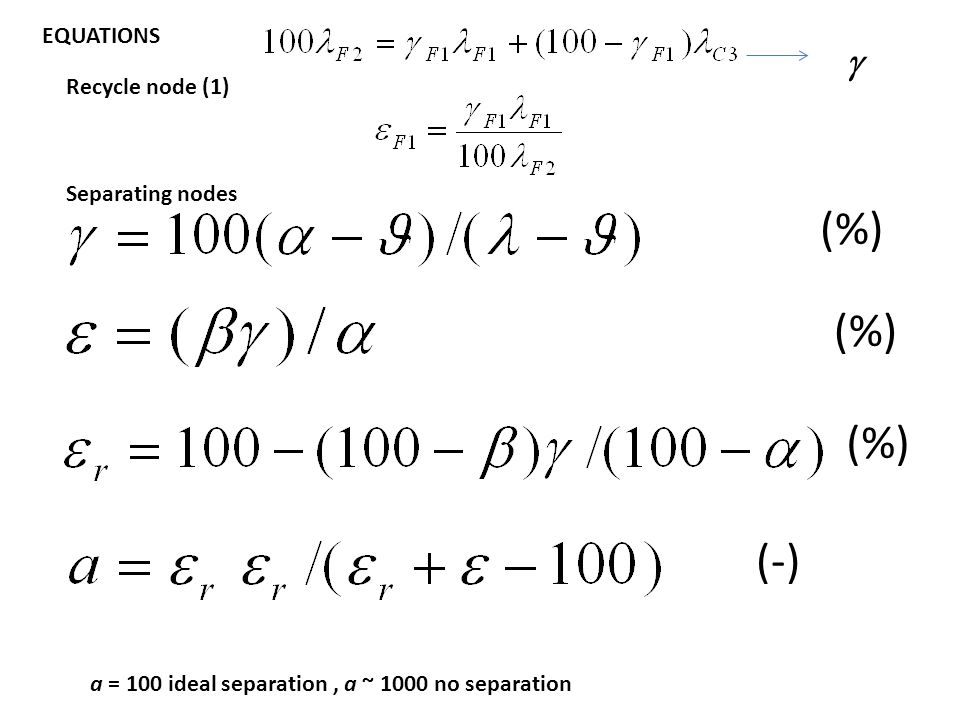

EQUATIONS (%) (-) a = 100 ideal separation, a ~ 1000 no separation Recycle node (1) Separating nodes

21
node 2 r 0,00 100,00 25,000,89 28,40 99,33 0,5799,11100,0071,60100,000,00 0,78 4 r 0,00 100,00 25,0011,76 52,63 90,65 3,0088,24100,0047,37100,000,00 5,59 5 r 0,00 100,00 0,6078,48 83,30 21,55 0,4421,52100,0016,70100,000,00 0,57

22

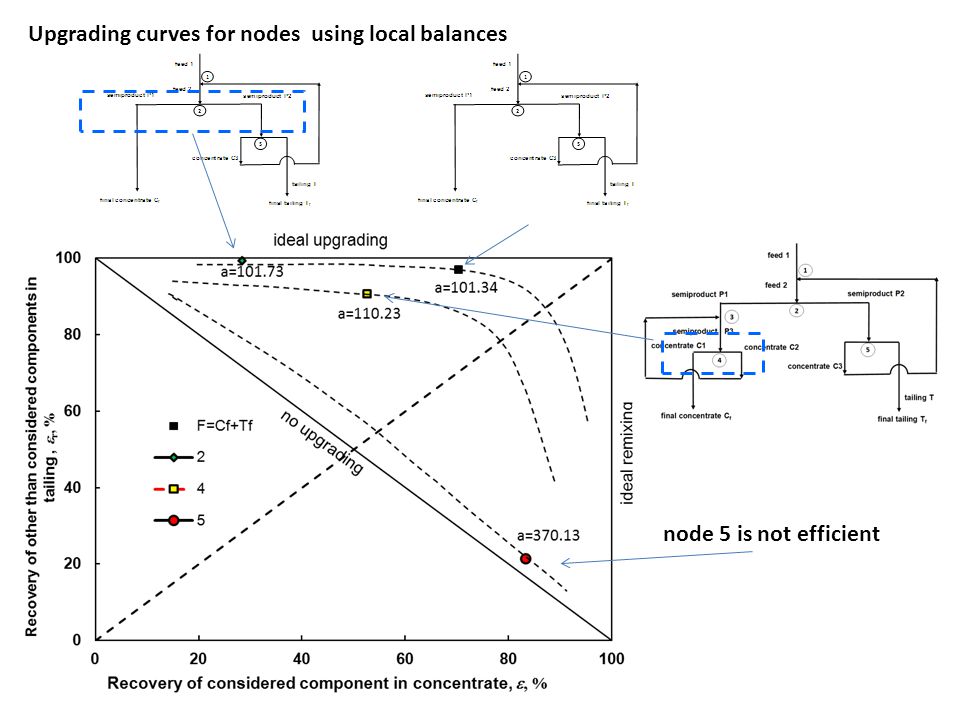

Upgrading curves for nodes using local balances node 5 is not efficient

23

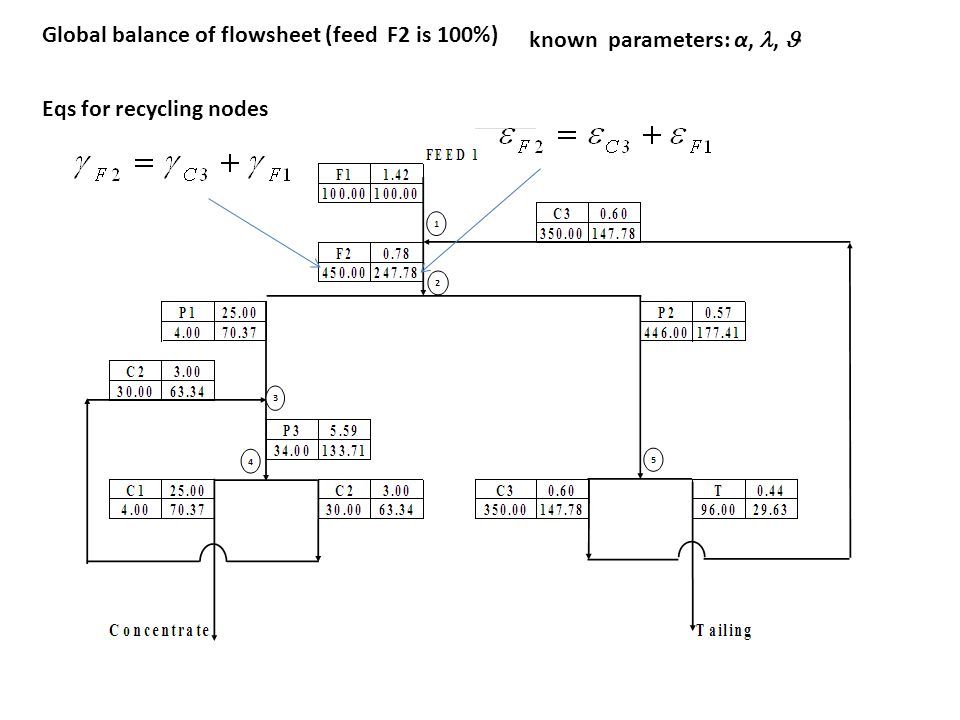

Global balance of flowsheet (feed F2 is 100%) Eqs for recycling nodes known parameters: α,,

24
Calculations Feed 1: grades are known, G and G are equal to 100% Node 1 Grades are known, local and for F1 are known ( =21.95%) (for C3 is 100- 21.95 =78.05%) or can be calculated from grades of products Calculation of global for F2 Q) How large is for C3 when for F1 is 100%? A) When F1 =100%, C3 =(100/21.95)x 78.05= 350%. Then F2 = F1 + C3 = 100+350=450%

25
Calculation of for recycling node (here F2):

26

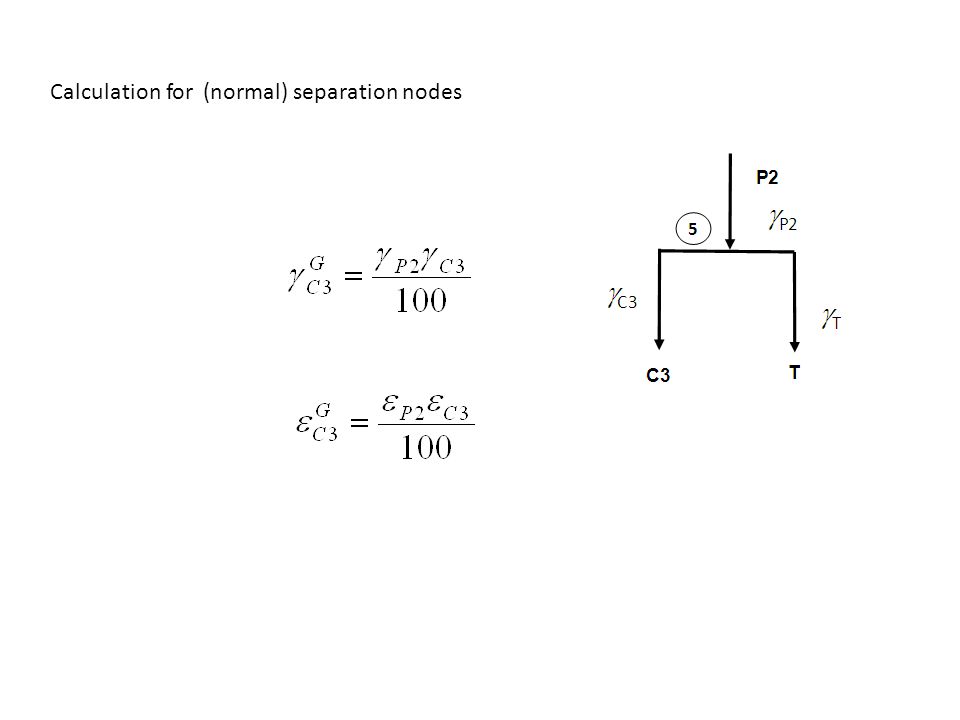

Calculation for (normal) separation nodes

27
Graphical representation of separation data (not very useful, recoveries greater than 100%) Grade –recovery curve for Pb, Cu and Zn circuits within the Eureka Concentrator (based on Ch. Greet, Spectrum Series, 2010)

29

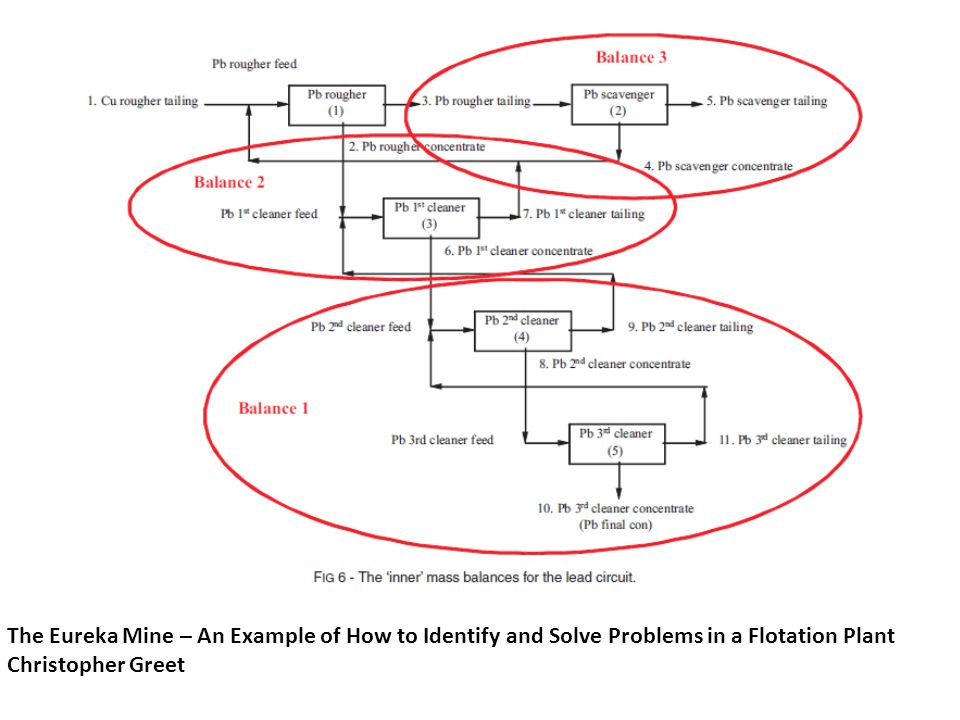

Some flowsheets can be complex

30
The Eureka Mine – An Example of How to Identify and Solve Problems in a Flotation Plant Christopher Greet

31
PublicationsPublications : Spectrum SeriesSpectrum Series Flotation Plant Optimisation: A Metallurgical Guide to Identifying and Solving Problems in Flotation Plants Spectrum Series 16 Published in 2010 The Eureka Mine – An Example of How to Identify and Solve Problems in a Flotation Plant Christopher Greet Useful literature

32

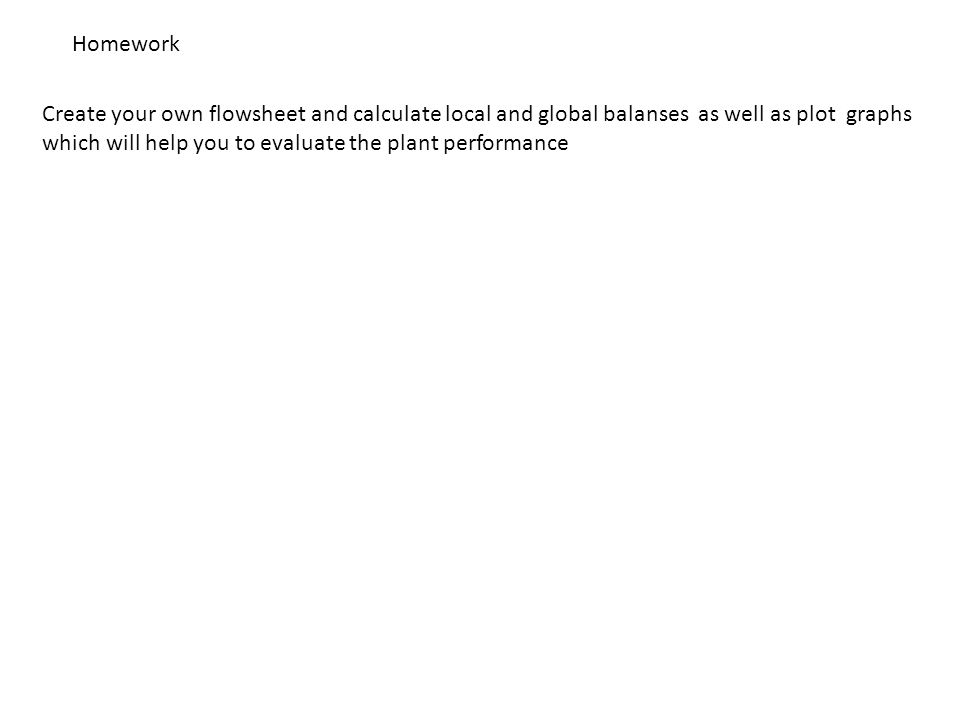

Homework Create your own flowsheet and calculate local and global balanses as well as plot graphs which will help you to evaluate the plant performance
