1 HWg-PDMS: New software Poseidon & Damocles Monitoring System 1 Included on every HWg DVD since September 2009

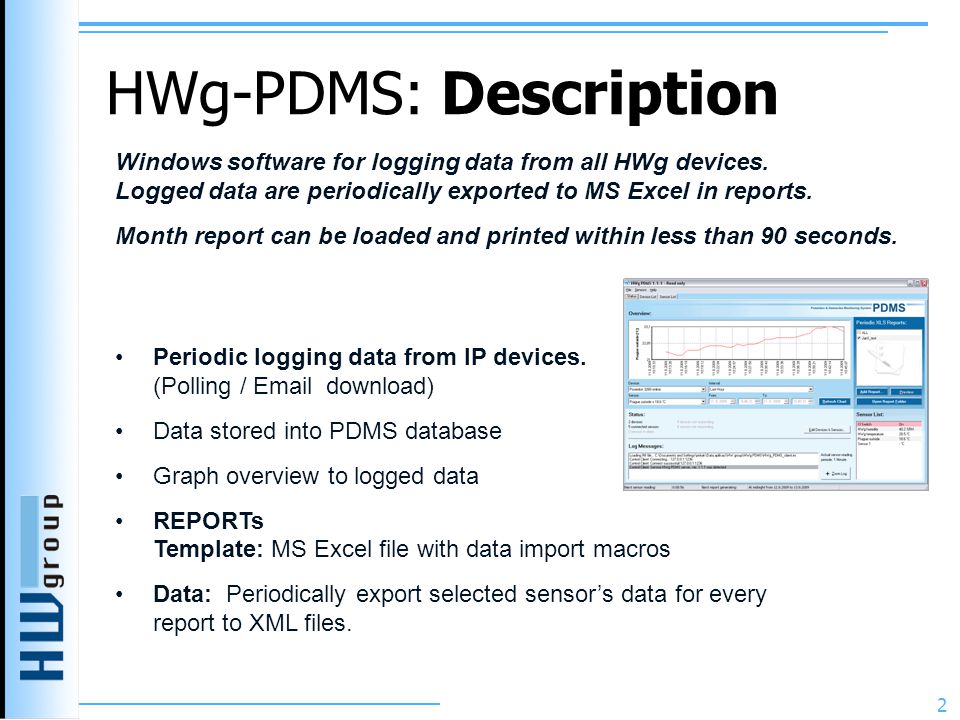

2 HWg-PDMS: Description 2 Periodic logging data from IP devices. (Polling / download) Data stored into PDMS database Graph overview to logged data REPORTs Template: MS Excel file with data import macros Data: Periodically export selected sensor’s data for every report to XML files. Windows software for logging data from all HWg devices. Logged data are periodically exported to MS Excel in reports. Month report can be loaded and printed within less than 90 seconds.

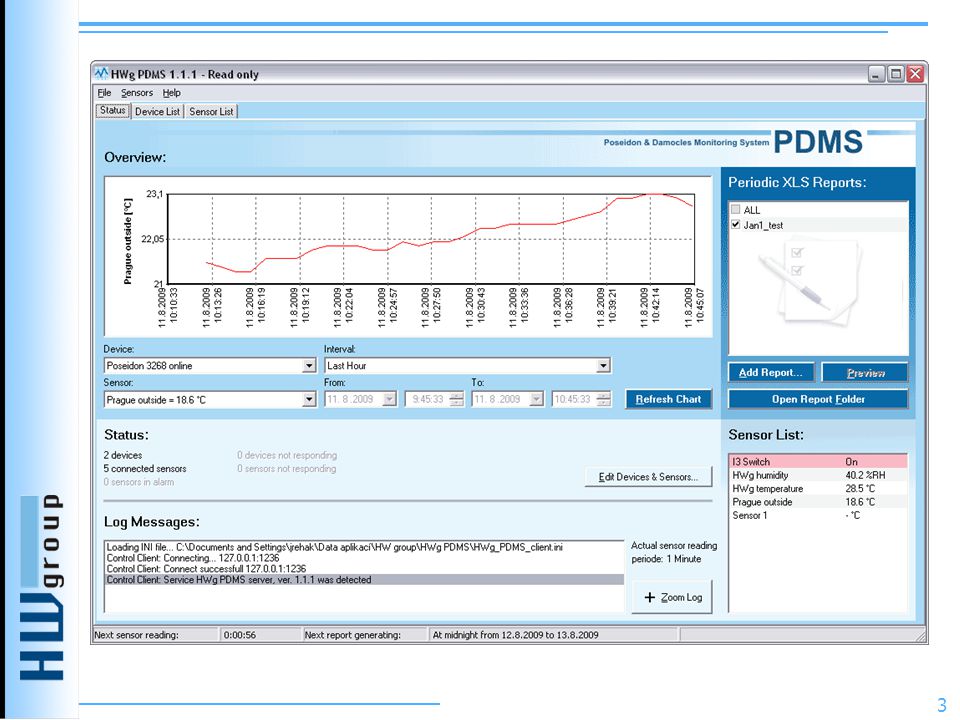

3 3

4 HWg-PDMS: Overview 4 Devices & sensors Logged data graph overview Periodic data export to MS Excel templates

5 Who is the User? Typical PDMS user needs simple application. Nagios or other SNMP software is too big and complicated Typical usage History values archive with manual Excel export Services quality monitoring & reporting Audit reports generator Other usage 5

6 HWg-PDMS: Features MS Windows application NT Service (Works on background) Compatible with: Poseidon XXXX, Damocles XXXX, HWg-STE Data input modes Periodic polling via HTTP (definable period) Downloading data from the Pop3 account. (Supported by Poseidon 2251 with internal logger) Support up to 250 sensors from 100 devices Graph data overview MS Excel data export manually or periodical Free trial for 3 sensors Included in HWg-STE installation & standard HWg DVD Registered version is free up to 1 year 6

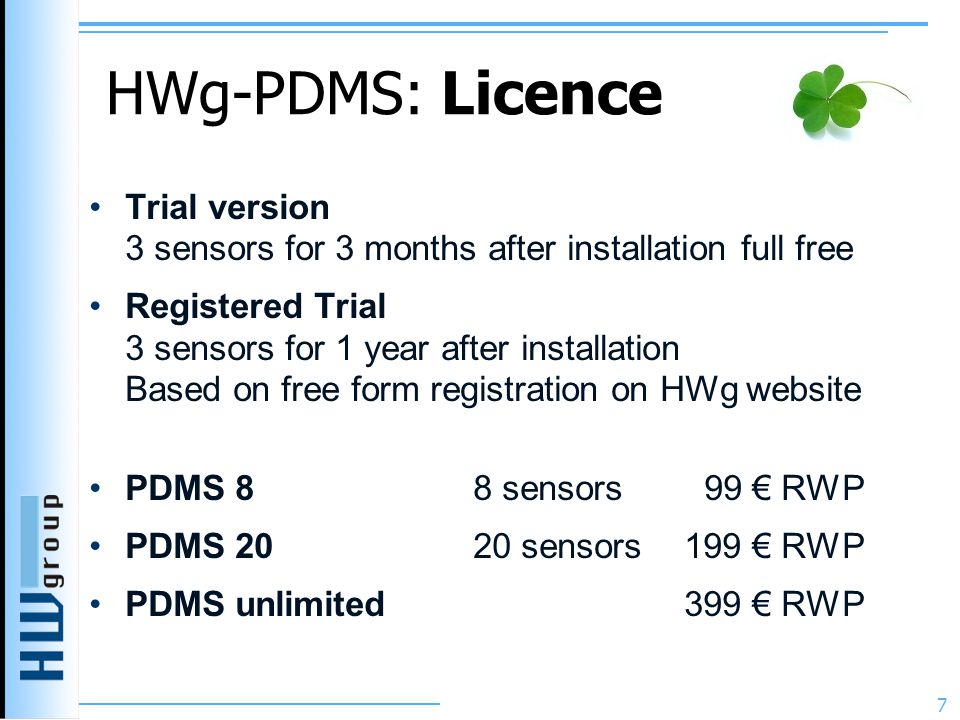

7 HWg-PDMS: Licence Trial version 3 sensors for 3 months after installation full free Registered Trial 3 sensors for 1 year after installation Based on free form registration on HWg website PDMS 8 8 sensors 99 € RWP PDMS 2020 sensors 199 € RWP PDMS unlimited 399 € RWP 7

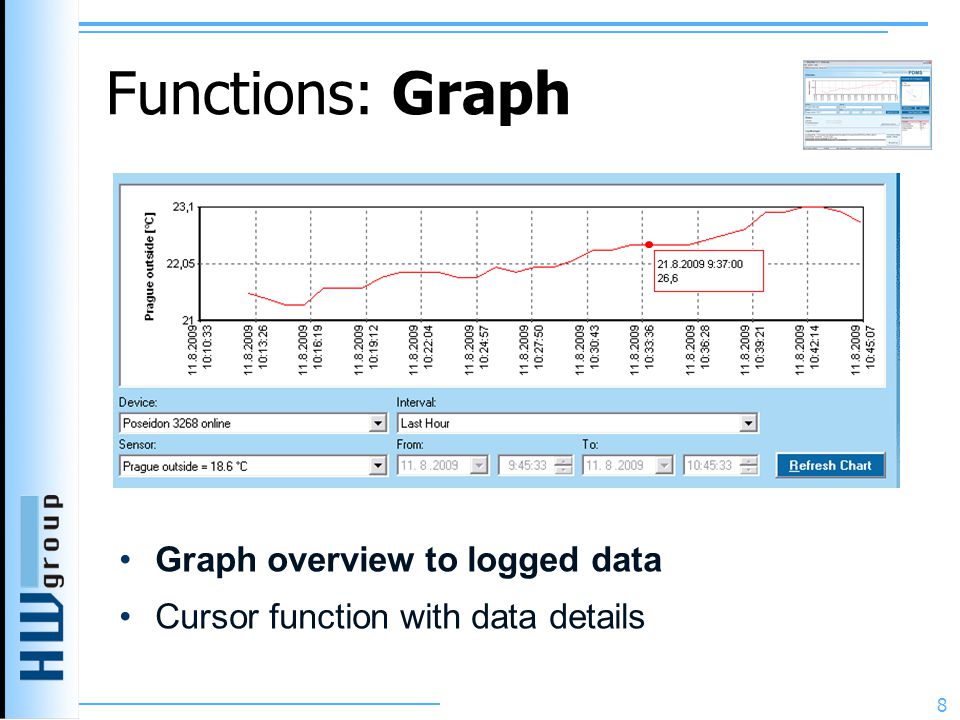

8 Functions: Graph 8 Graph overview to logged data Cursor function with data details

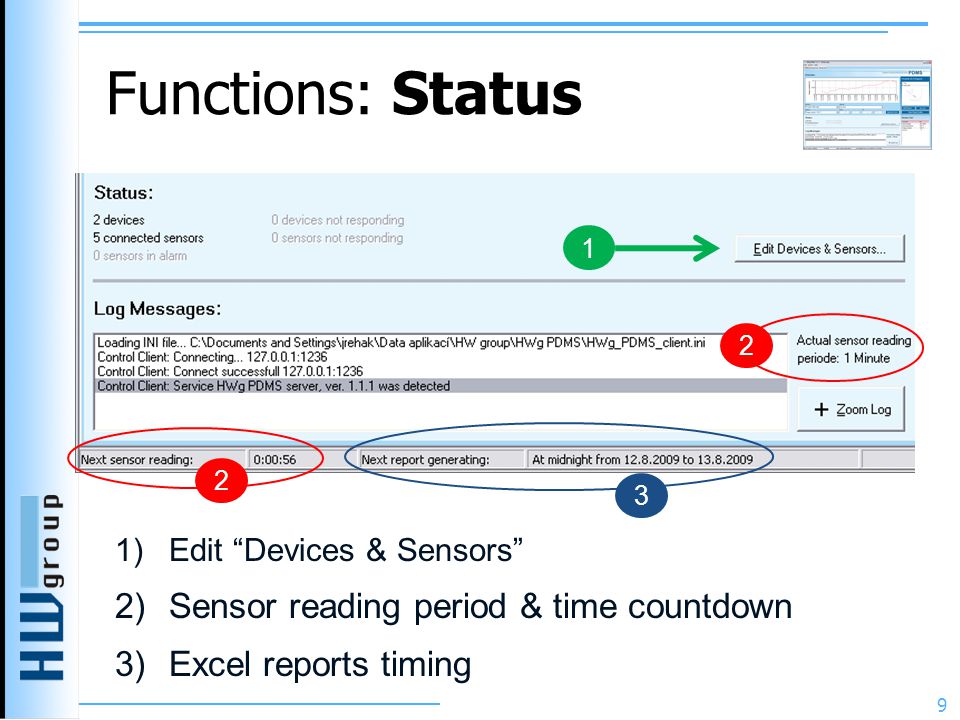

9 Functions: Status 9 1)Edit “Devices & Sensors” 2)Sensor reading period & time countdown 3)Excel reports timing

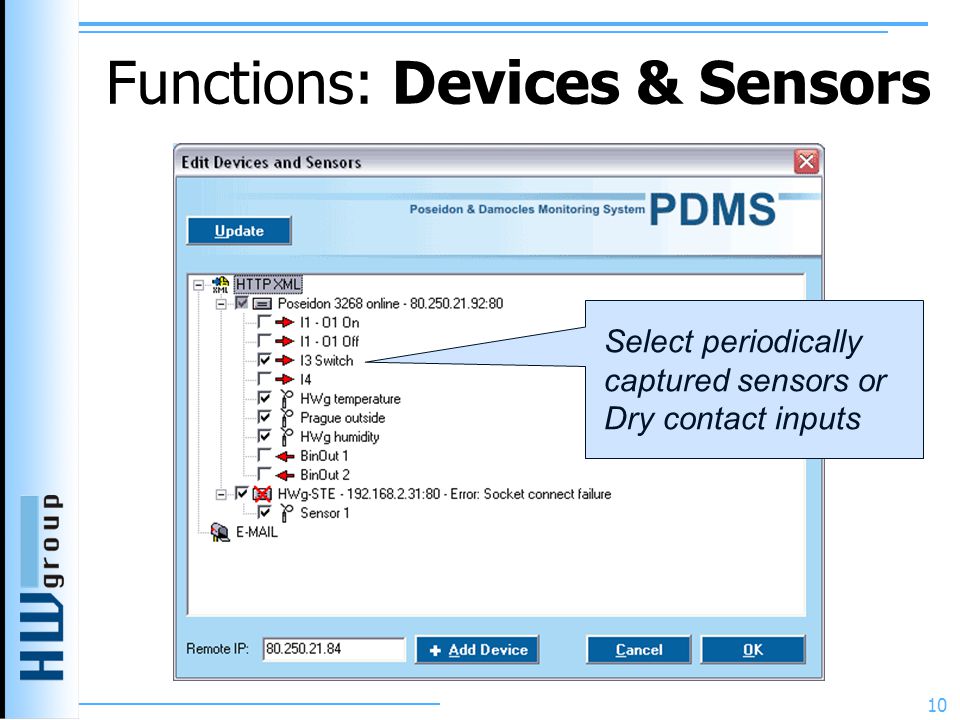

10 Functions: Devices & Sensors 10 Select periodically captured sensors or Dry contact inputs

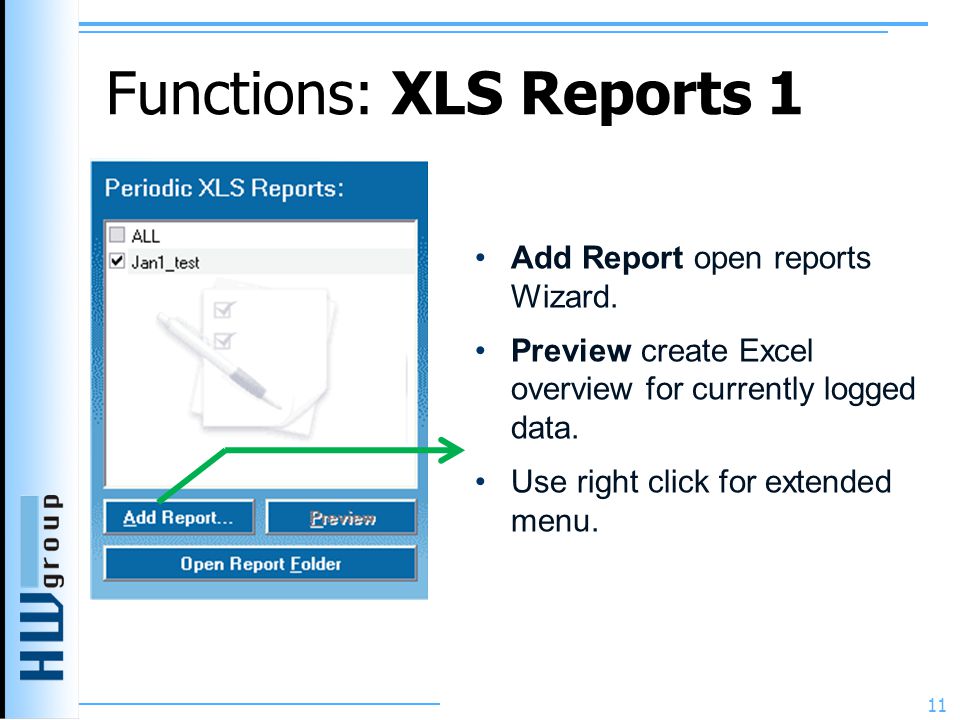

11 Functions: XLS Reports 1 11 Add Report open reports Wizard. Preview create Excel overview for currently logged data. Use right click for extended menu.

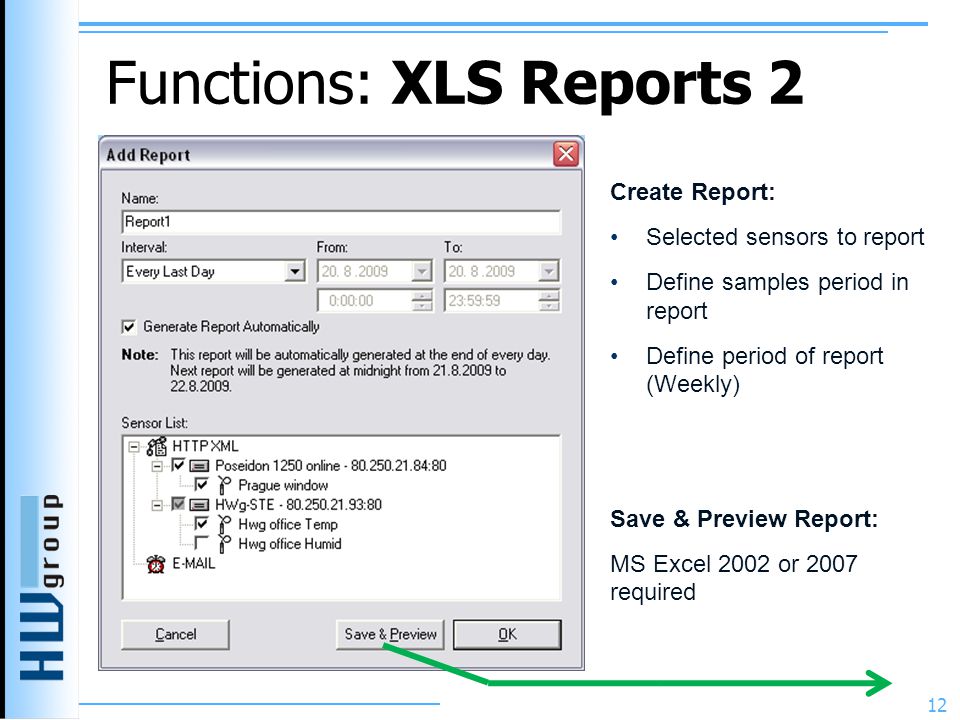

12 Functions: XLS Reports 2 12 Create Report: Selected sensors to report Define samples period in report Define period of report (Weekly) Save & Preview Report: MS Excel 2002 or 2007 required

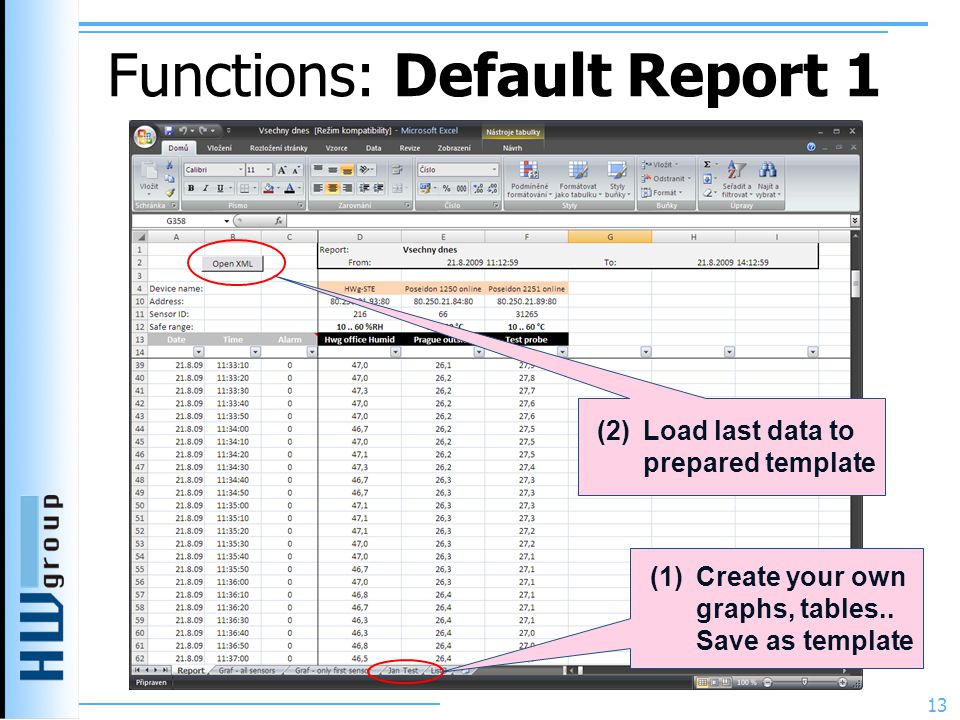

13 Functions: Default Report 1 13 (1) Create your own graphs, tables.. Save as template (2) Load last data to prepared template

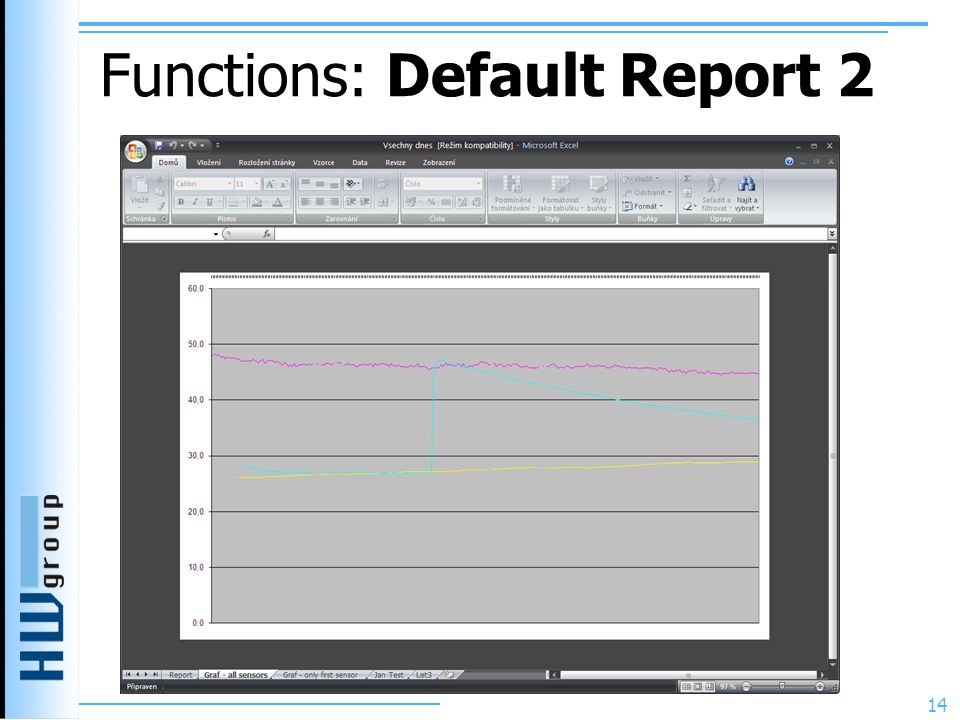

14 Functions: Default Report 2 14

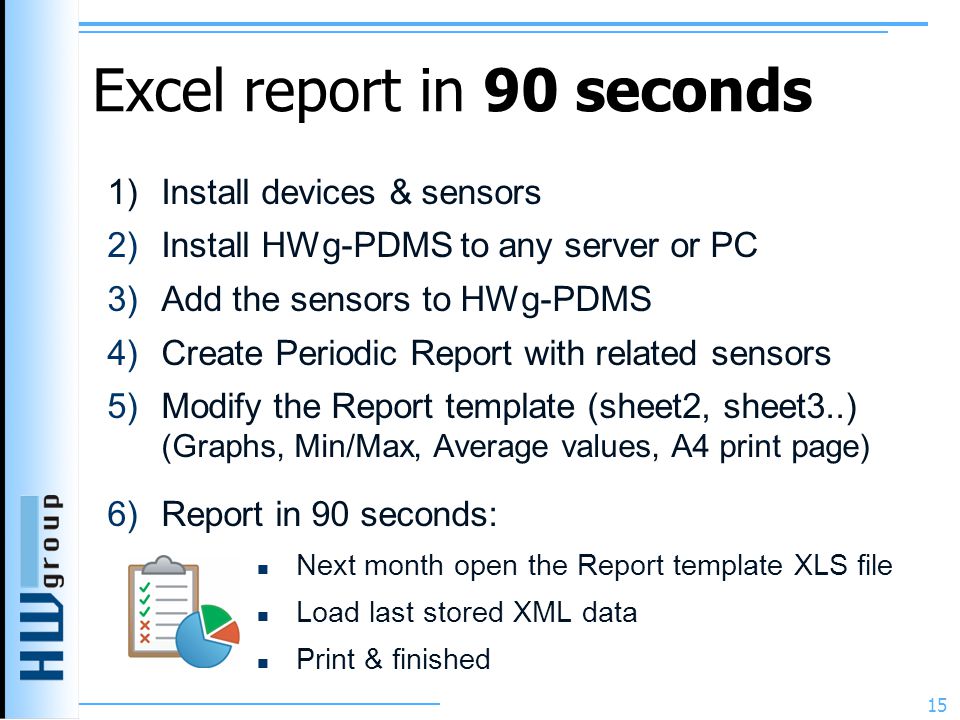

15 Excel report in 90 seconds 15 1)Install devices & sensors 2)Install HWg-PDMS to any server or PC 3)Add the sensors to HWg-PDMS 4)Create Periodic Report with related sensors 5)Modify the Report template (sheet2, sheet3..) (Graphs, Min/Max, Average values, A4 print page) 6)Report in 90 seconds: Next month open the Report template XLS file Load last stored XML data Print & finished

16 Your own Report 16

17 HWg-PDMS: Smart Excel Reporting Devices & sensors HWg-PDMS: Excel report in 90 seconds every month.
