1 EE 3120 Microelectronics II Suketu Naik Chapter 7 Building Blocks of Integrated Circuit Amplifiers: Examples (expl), Problems(p), Exercises(ex)

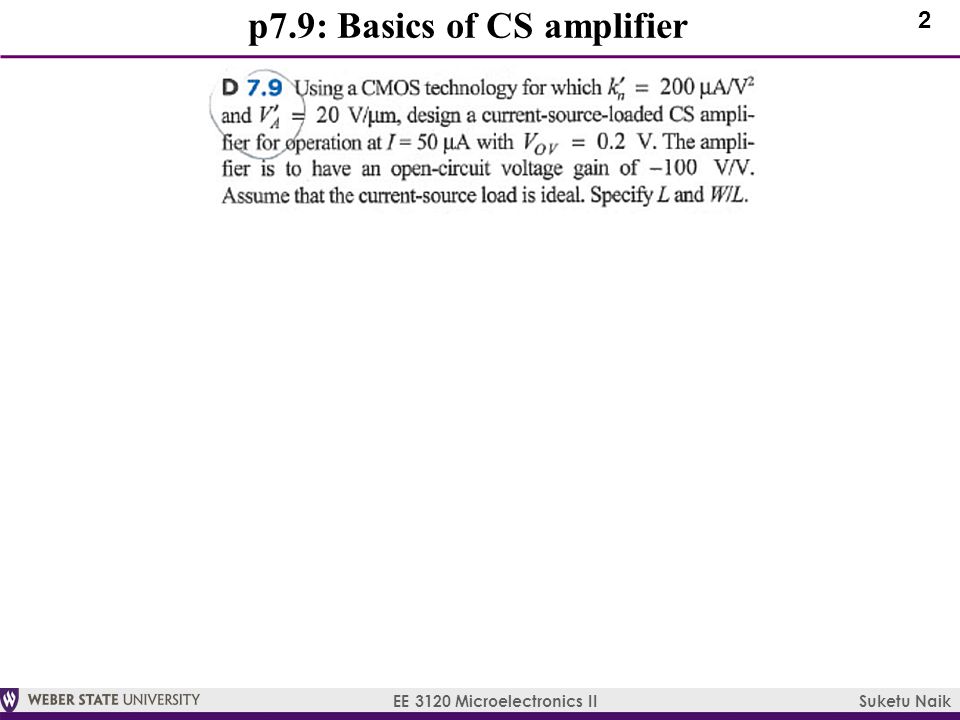

2 EE 3120 Microelectronics II Suketu Naik p7.9: Basics of CS amplifier

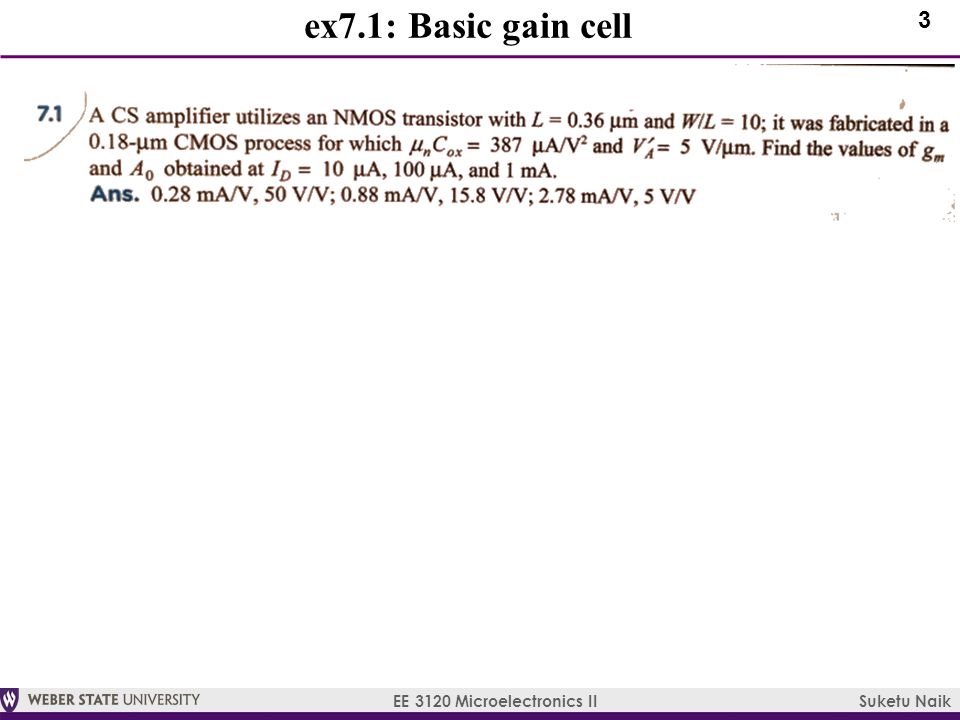

3 EE 3120 Microelectronics II Suketu Naik ex7.1: Basic gain cell

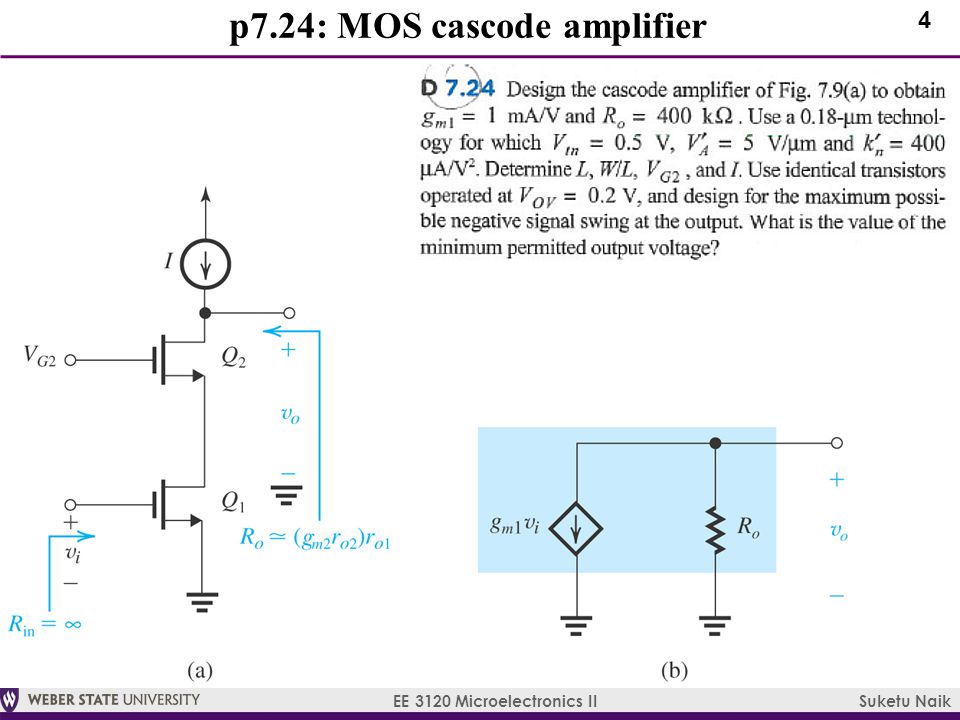

4 EE 3120 Microelectronics II Suketu Naik p7.24: MOS cascode amplifier

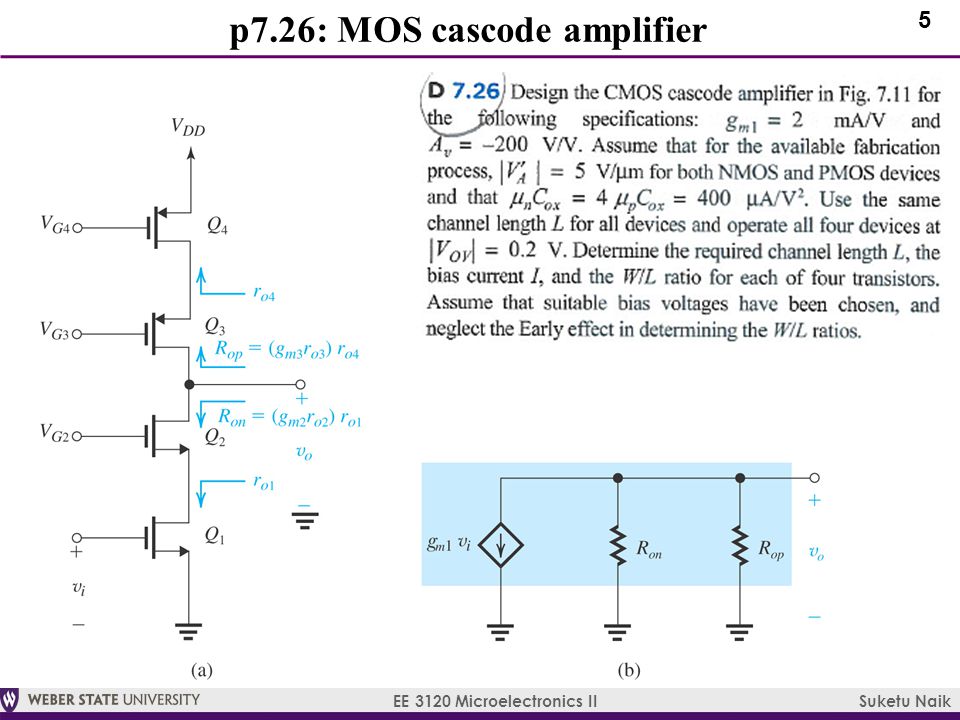

5 EE 3120 Microelectronics II Suketu Naik p7.26: MOS cascode amplifier
6 EE 3120 Microelectronics II Suketu Naik ex7.12: BJT cascode amplifier
7 EE 3120 Microelectronics II Suketu Naik expl7.5: MOS Current Mirror

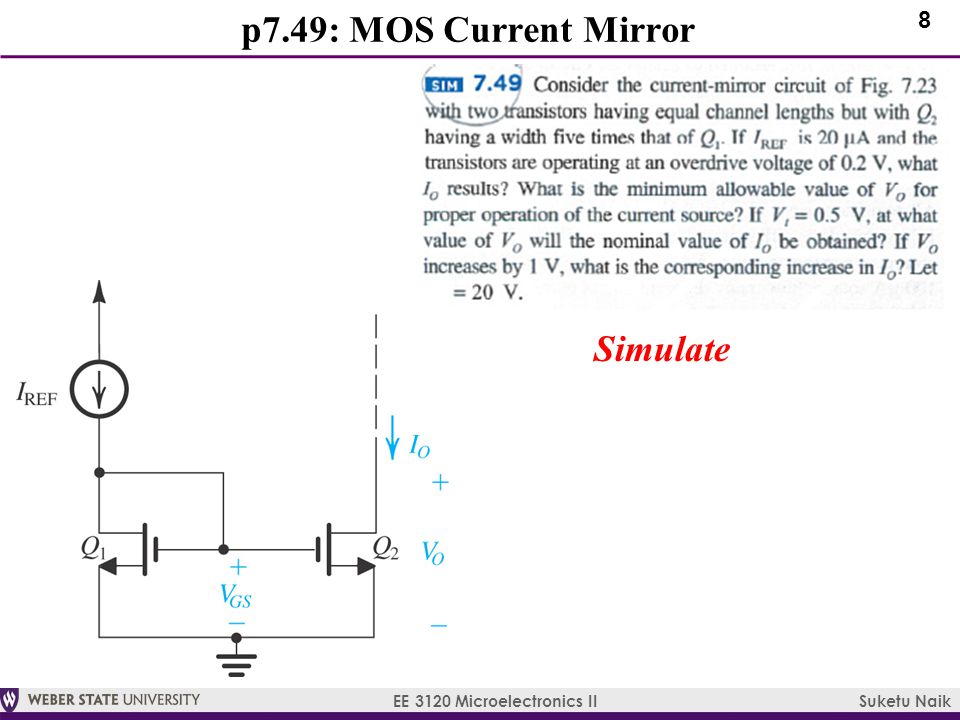

8 EE 3120 Microelectronics II Suketu Naik p7.49: MOS Current Mirror Simulate

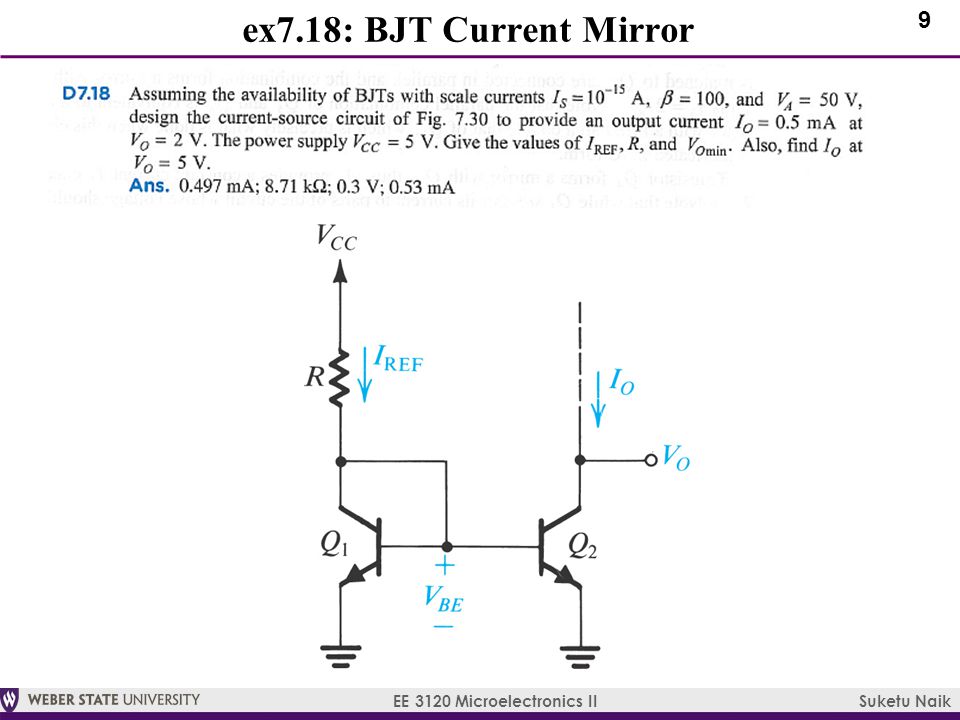

9 EE 3120 Microelectronics II Suketu Naik ex7.18: BJT Current Mirror

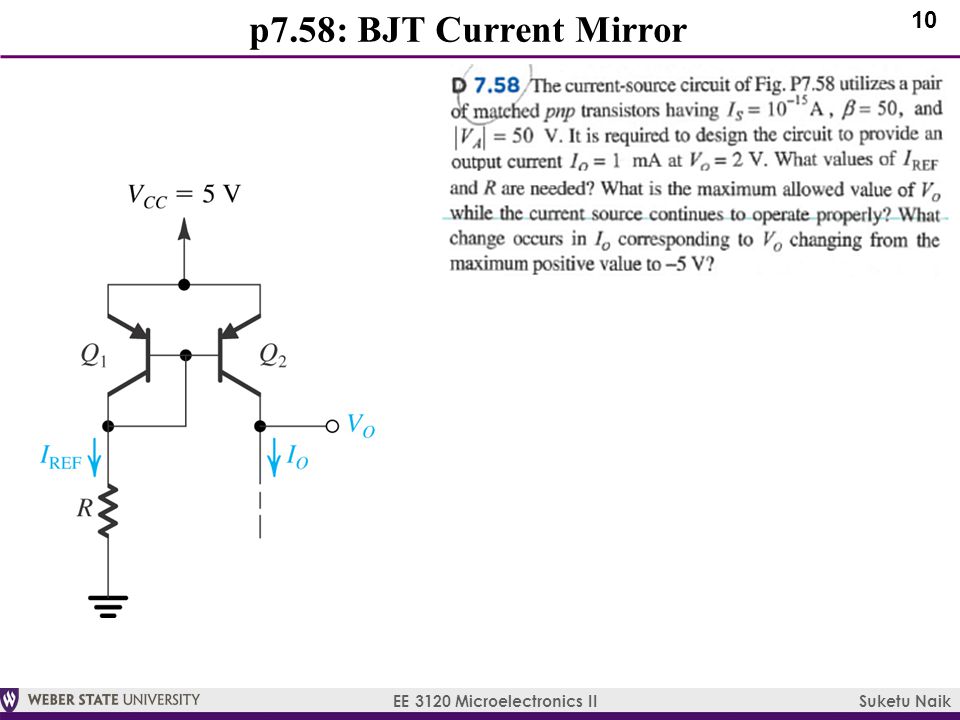

10 EE 3120 Microelectronics II Suketu Naik p7.58: BJT Current Mirror

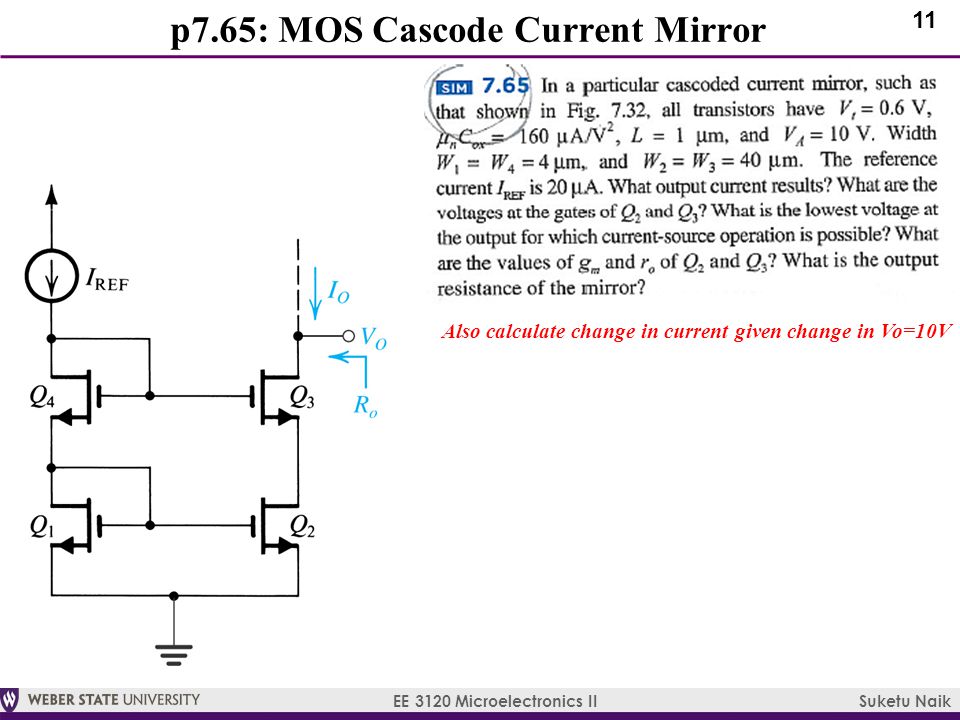

11 EE 3120 Microelectronics II Suketu Naik p7.65: MOS Cascode Current Mirror Also calculate change in current given change in Vo=10V

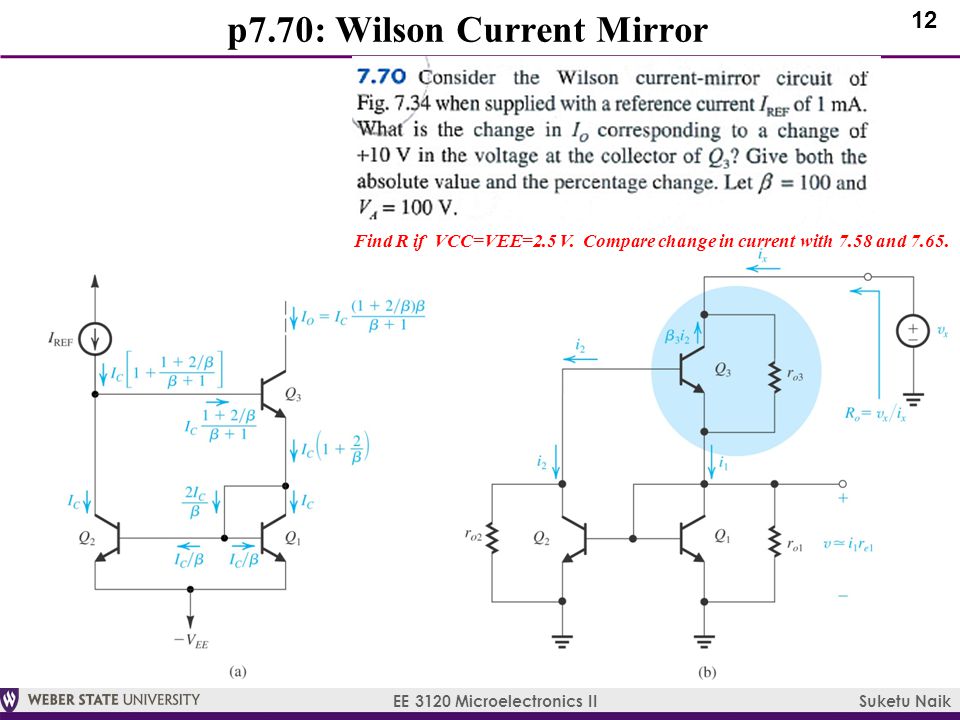

12 EE 3120 Microelectronics II Suketu Naik p7.70: Wilson Current Mirror Find R if VCC=VEE=2.5 V. Compare change in current with 7.58 and 7.65.
13 EE 3120 Microelectronics II Suketu Naik p7.72: Wilson Current Mirror Use VCESAT=0.3 V to calculate Vomax (solution manual uses VCESAT=0.2 V)
14 EE 3120 Microelectronics II Suketu Naik expl7.6 & ex7.22: Widlar Current Mirror

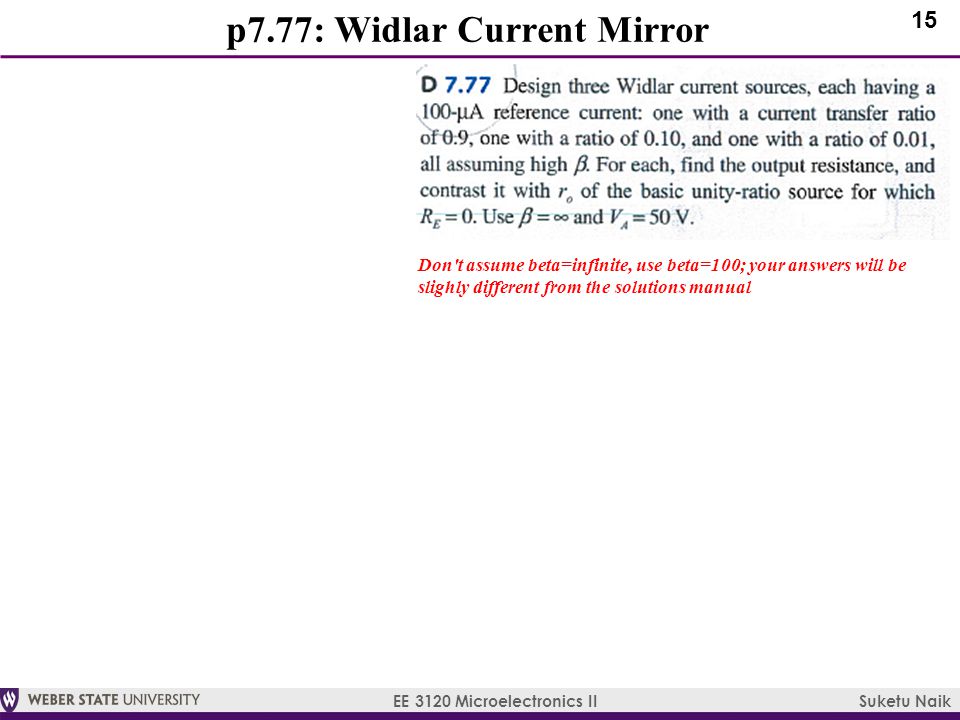

15 EE 3120 Microelectronics II Suketu Naik p7.77: Widlar Current Mirror Don't assume beta=infinite, use beta=100; your answers will be slighly different from the solutions manual
