CHARLES UNIVERSITY IN PRAGUE faculty of mathematics and physics Principles of Computers 19 th Lecture Pavel Ježek, Ph.D.

Similar presentations


Presentation on theme: "CHARLES UNIVERSITY IN PRAGUE faculty of mathematics and physics Principles of Computers 19 th Lecture Pavel Ježek, Ph.D."— Presentation transcript:

1 CHARLES UNIVERSITY IN PRAGUE faculty of mathematics and physics Principles of Computers 19 th Lecture Pavel Ježek, Ph.D.

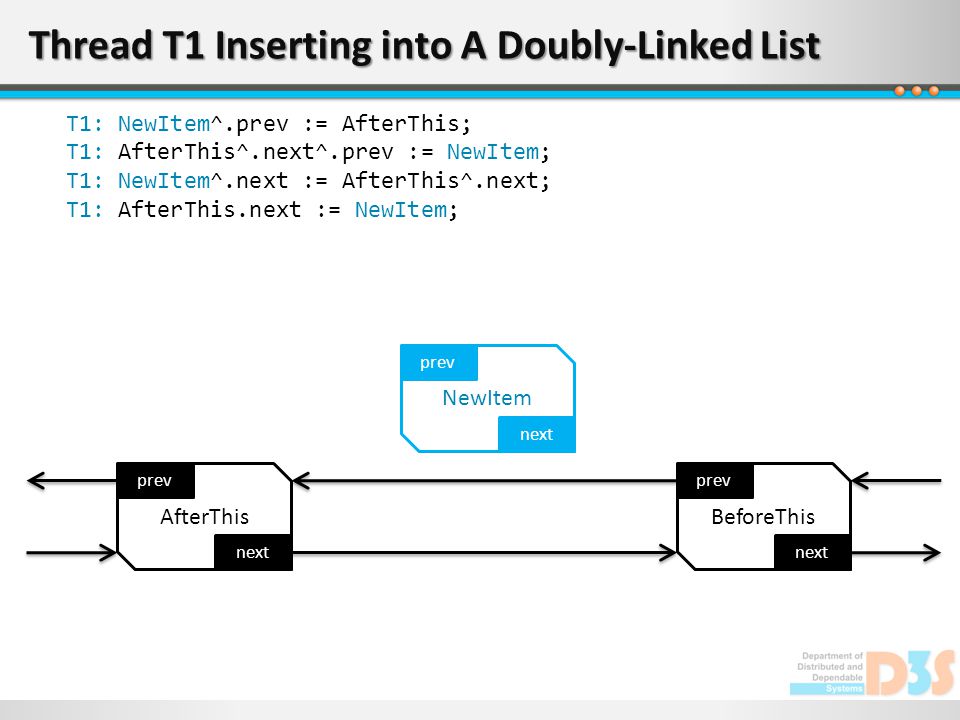

2 Thread T1 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

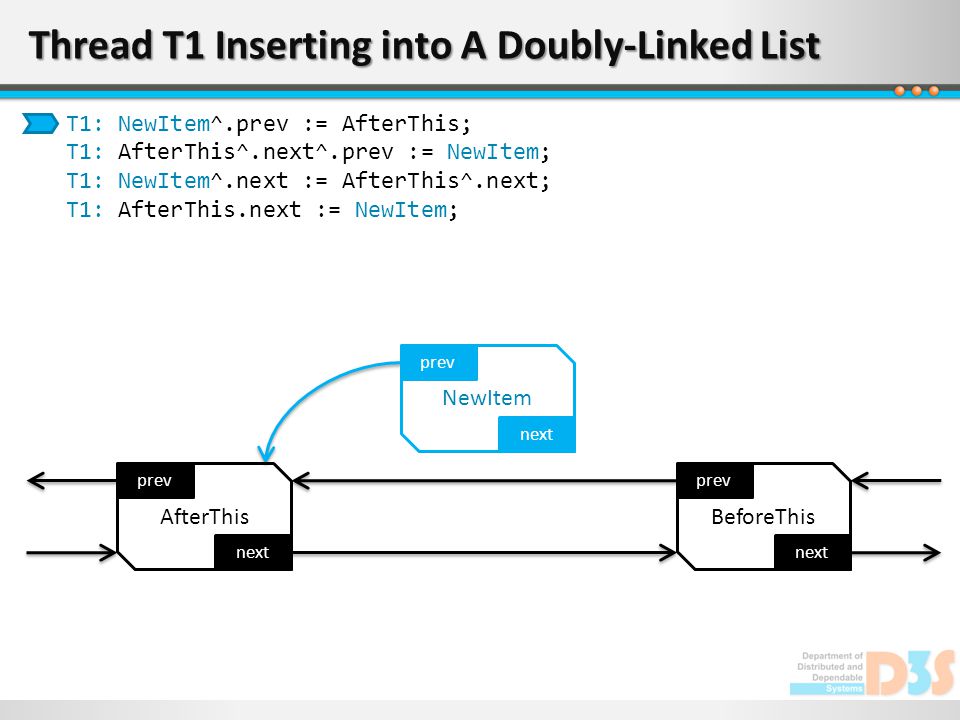

3 Thread T1 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

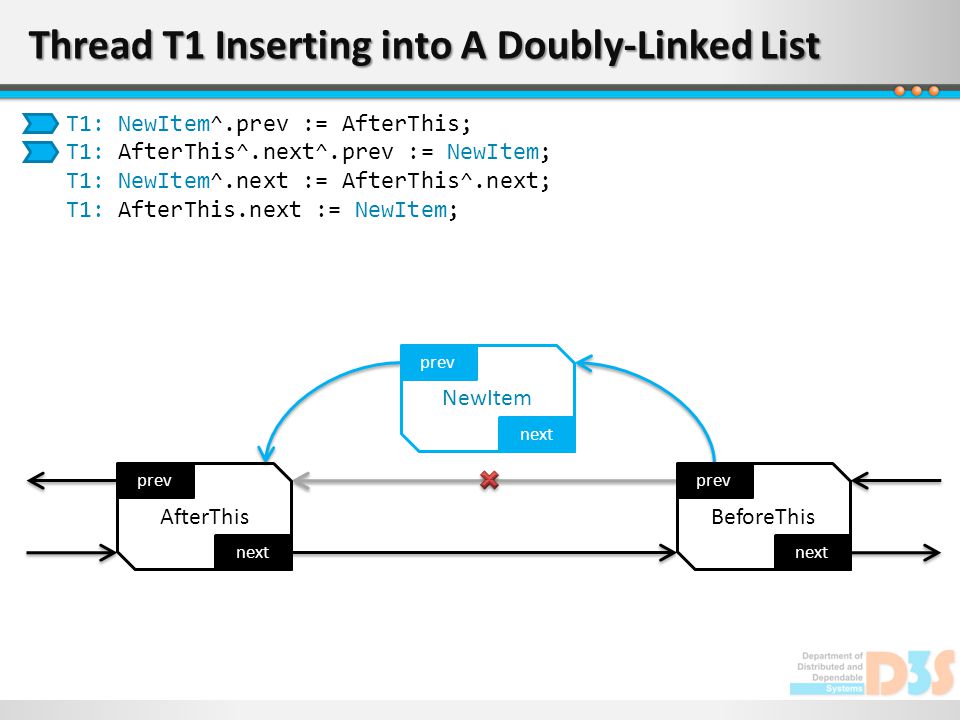

4 Thread T1 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

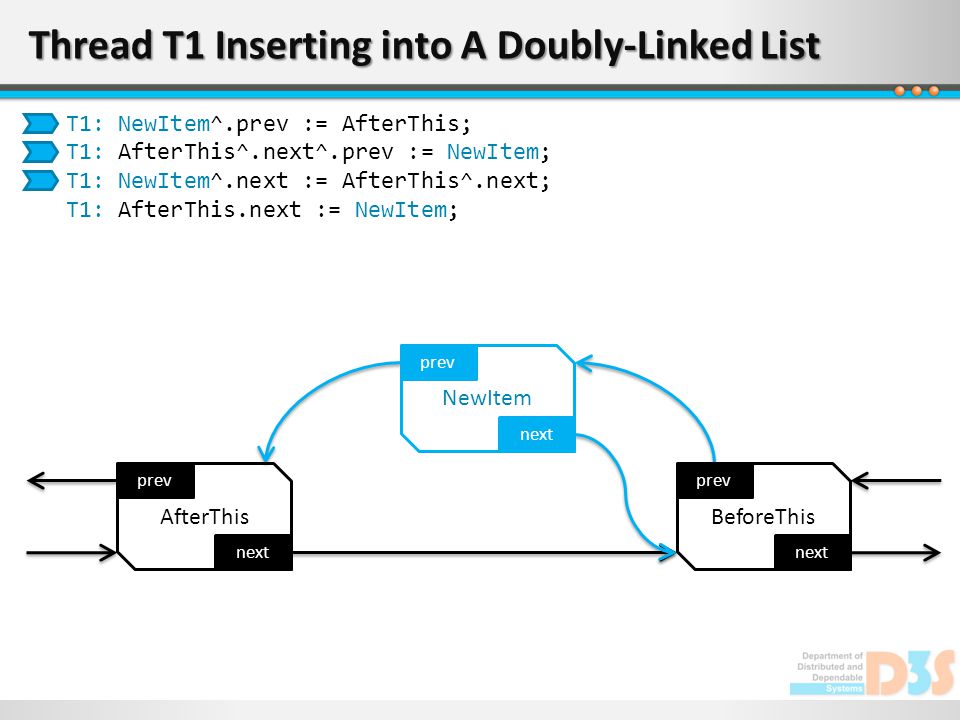

5 Thread T1 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

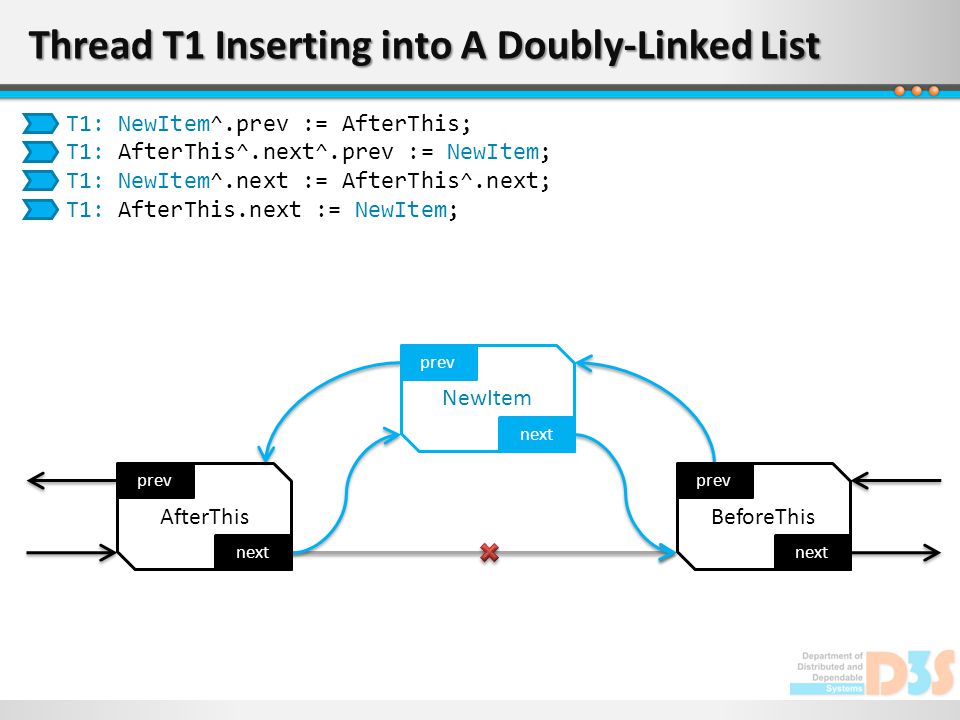

6 Thread T1 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

7 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

8 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

9 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem;

10 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; Context Switch

11 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; Context Switch next prev OtherItem

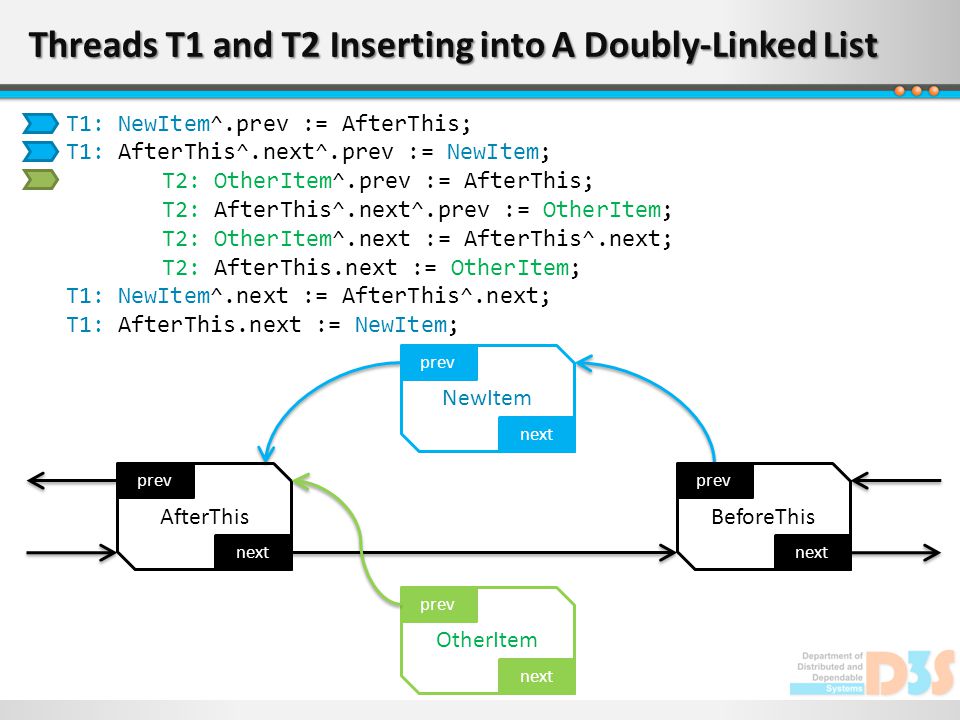

12 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

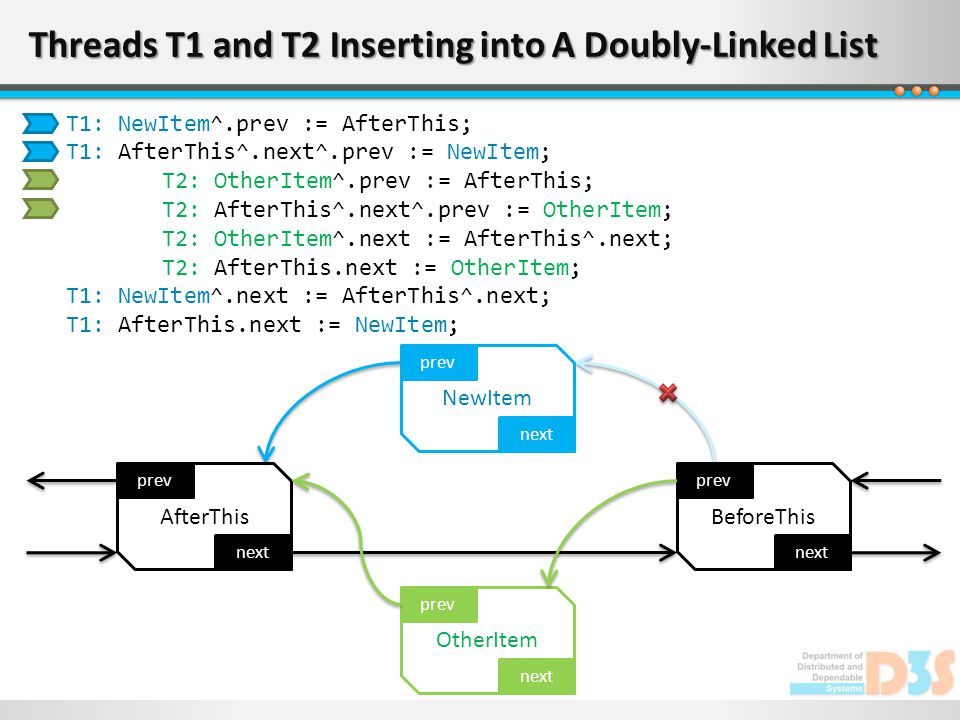

13 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

14 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

15 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

16 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; Context Switch next prev OtherItem Still a valid doubly-linked list

17 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

18 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

19 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

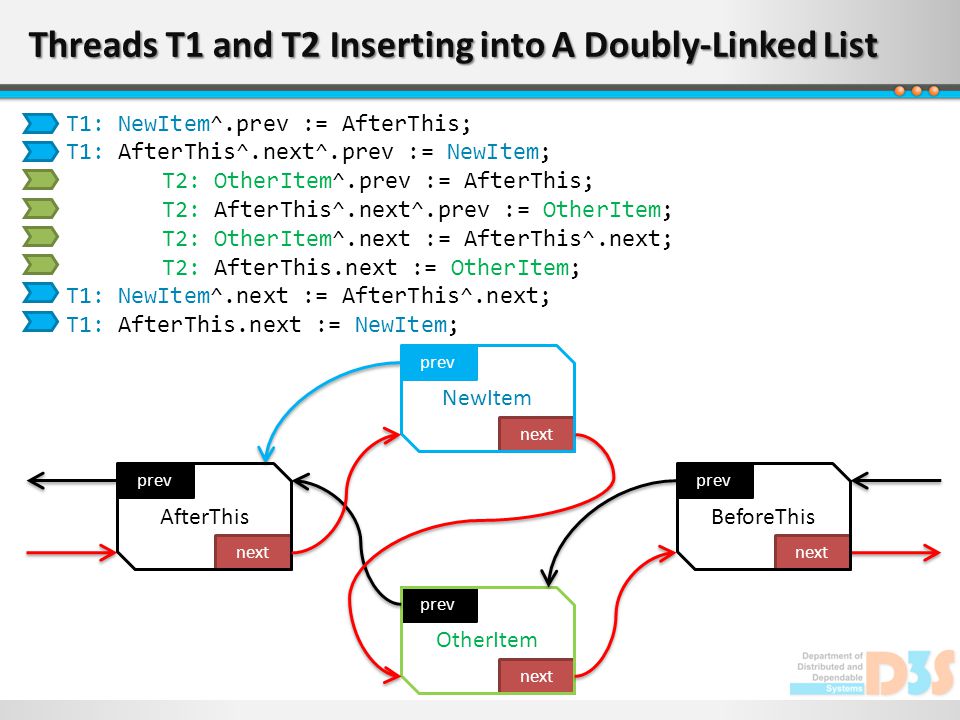

20 Threads T1 and T2 Inserting into A Doubly-Linked List next prev AfterThis next prev NewItem next prev BeforeThis T1: NewItem^.prev := AfterThis; T1: AfterThis^.next^.prev := NewItem; T2: OtherItem^.prev := AfterThis; T2: AfterThis^.next^.prev := OtherItem; T2: OtherItem^.next := AfterThis^.next; T2: AfterThis.next := OtherItem; T1: NewItem^.next := AfterThis^.next; T1: AfterThis.next := NewItem; next prev OtherItem

21 Is It Thread Safe? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; end;

22 Is It Thread Safe? In Cooperative Multitasking? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin Yield; { allowed here } NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; no Yield here! NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; Yield; { allowed here } end;

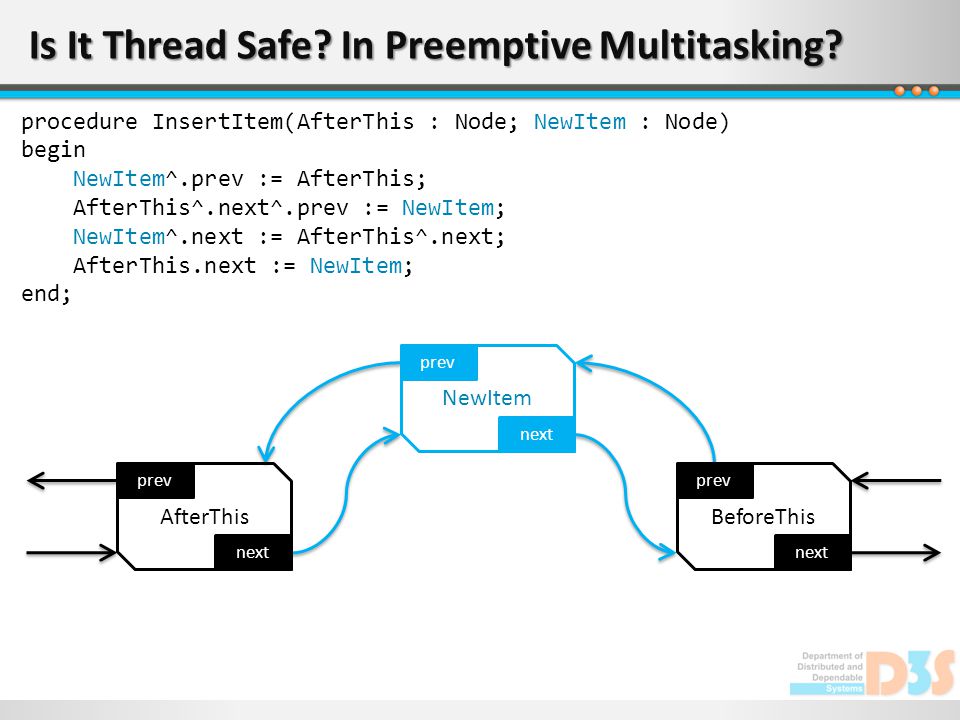

23 Is It Thread Safe? In Preemptive Multitasking? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; end;

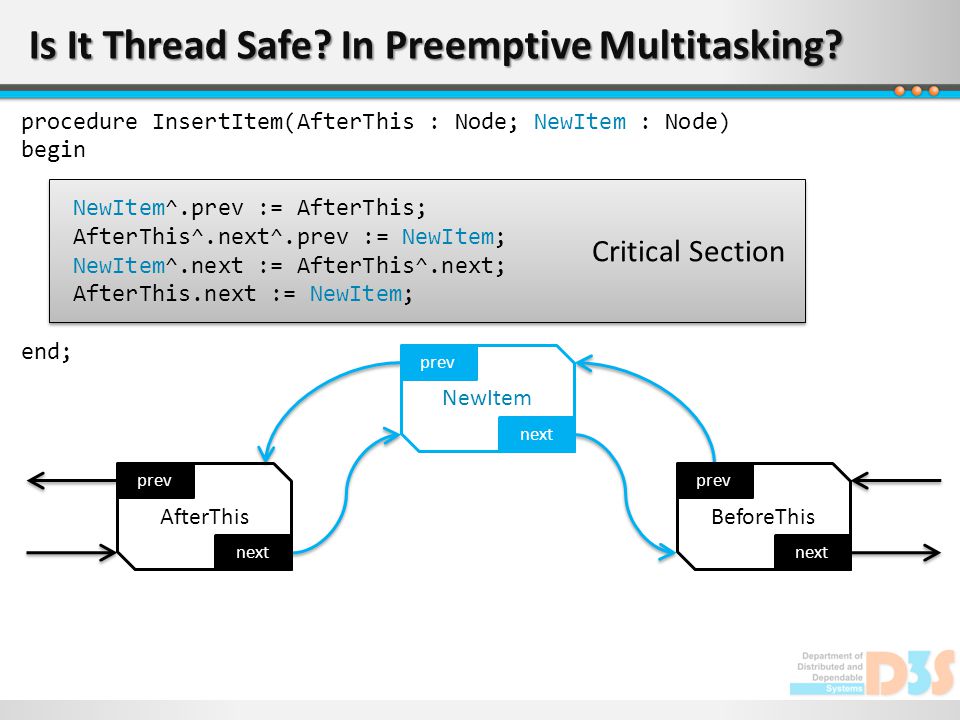

24 Critical Section Is It Thread Safe? In Preemptive Multitasking? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; end;

25 Is It Thread Safe? In Preemptive Multitasking? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin asm cli; NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; asm sti; end;

26 Critical Section Is It Thread Safe? In Preemptive Multitasking? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; end;

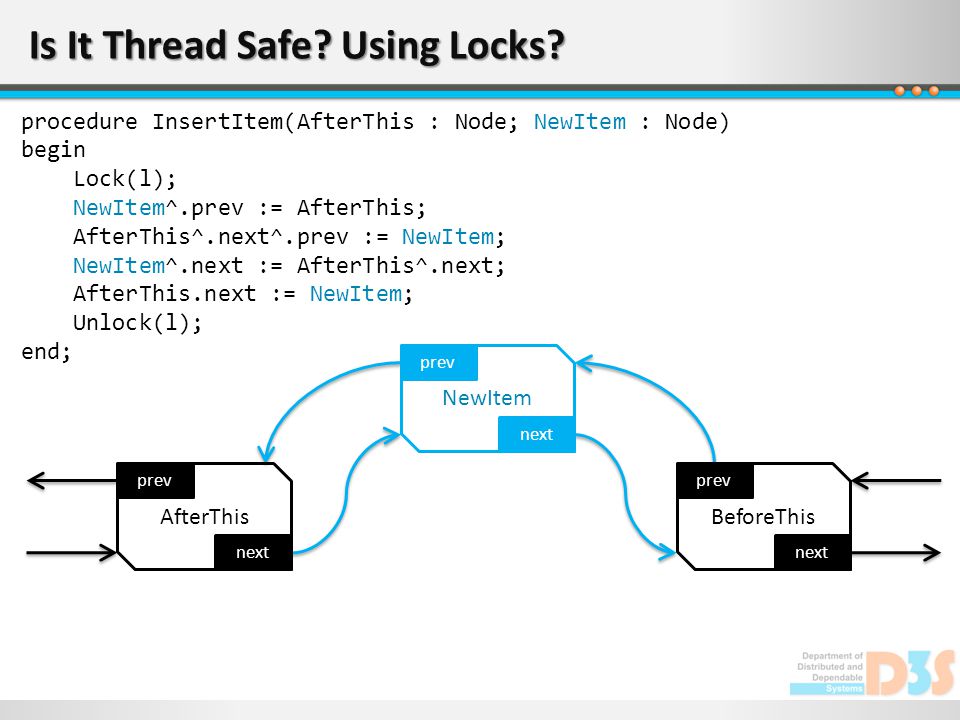

27 Is It Thread Safe? Using Locks? next prev AfterThis next prev NewItem next prev BeforeThis procedure InsertItem(AfterThis : Node; NewItem : Node) begin Lock(l); NewItem^.prev := AfterThis; AfterThis^.next^.prev := NewItem; NewItem^.next := AfterThis^.next; AfterThis.next := NewItem; Unlock(l); end;

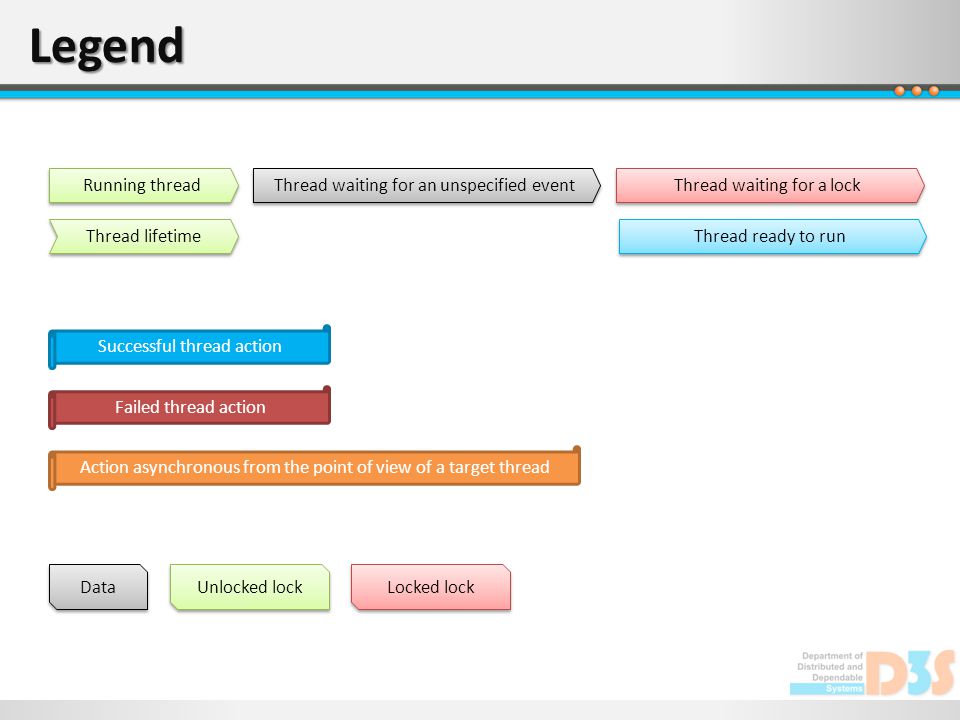

28 Legend Data Thread lifetime Running thread Thread waiting for an unspecified event Thread waiting for a lock Thread ready to run Successful thread action Failed thread action Action asynchronous from the point of view of a target thread Unlocked lock Locked lock

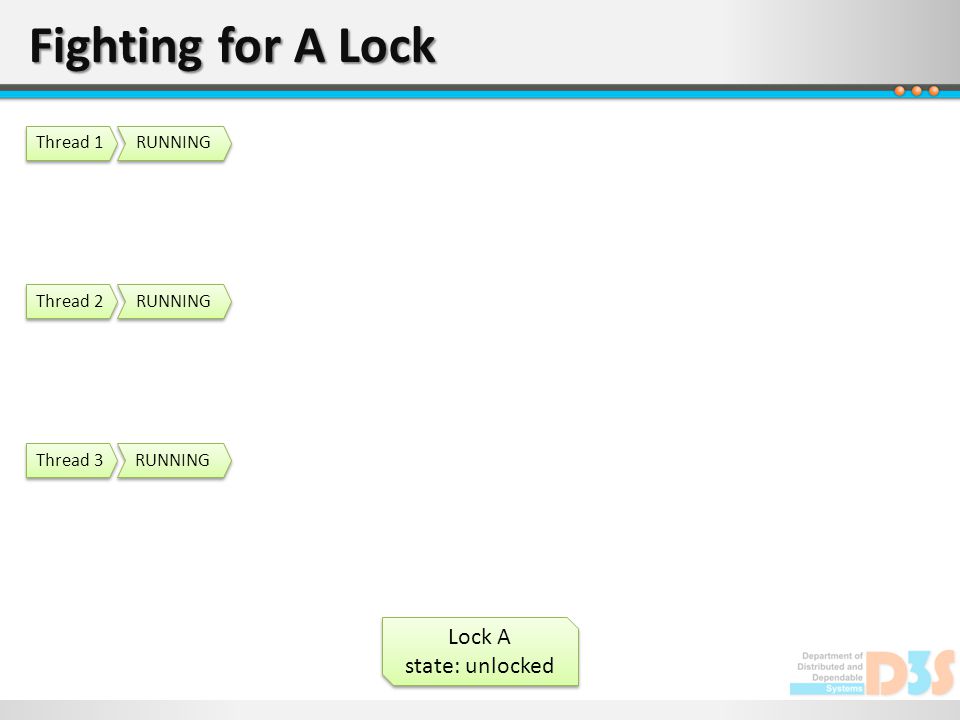

29 Fighting for A Lock Lock A state: unlocked Lock A state: unlocked RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3

30 Fighting for A Lock Lock A state: unlocked Lock A state: unlocked RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A

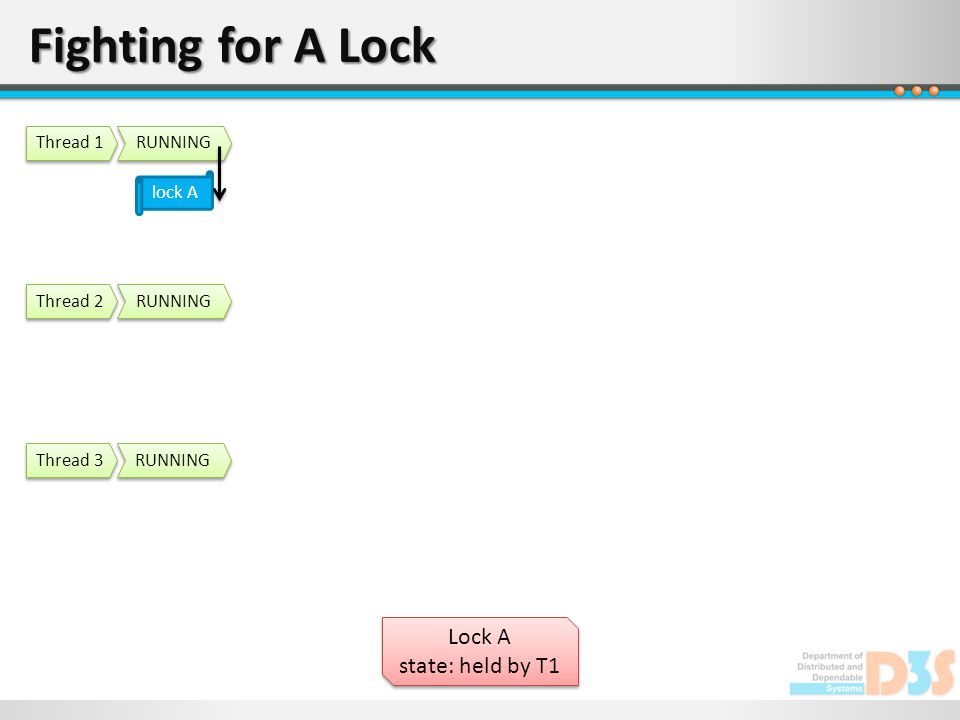

31 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A

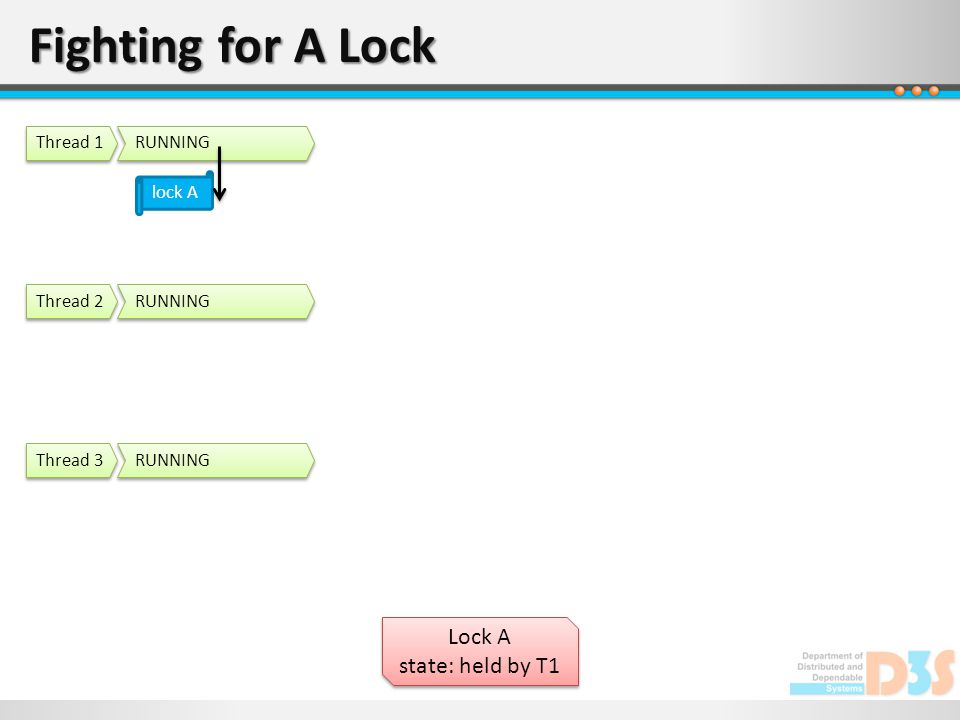

32 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A

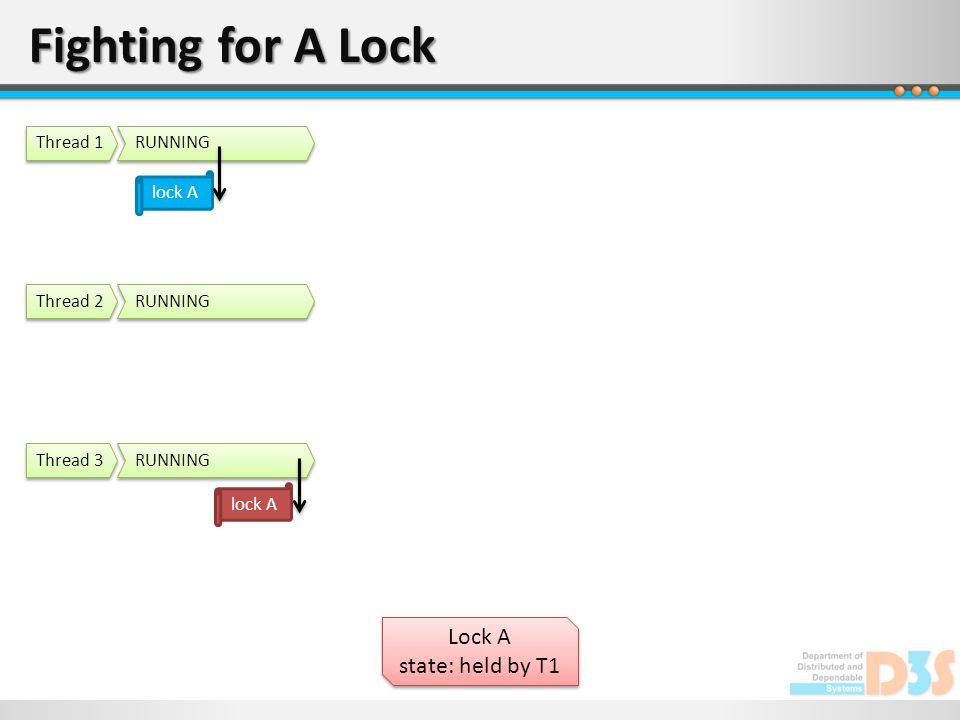

33 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A

34 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A

35 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A

36 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A

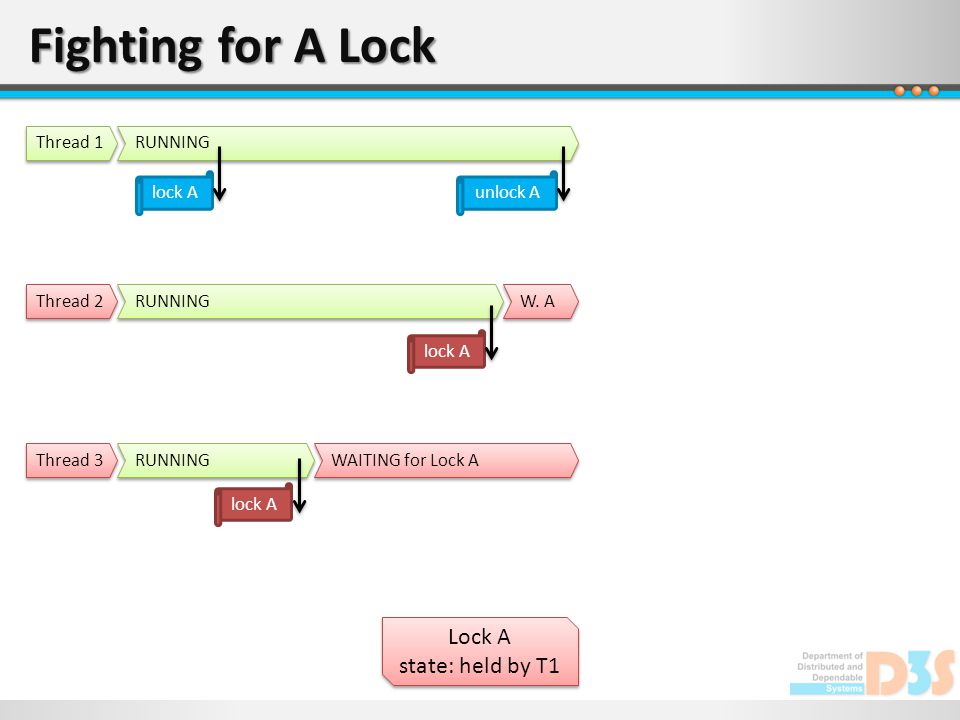

37 Fighting for A Lock Lock A state: held by T1 Lock A state: held by T1 RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A

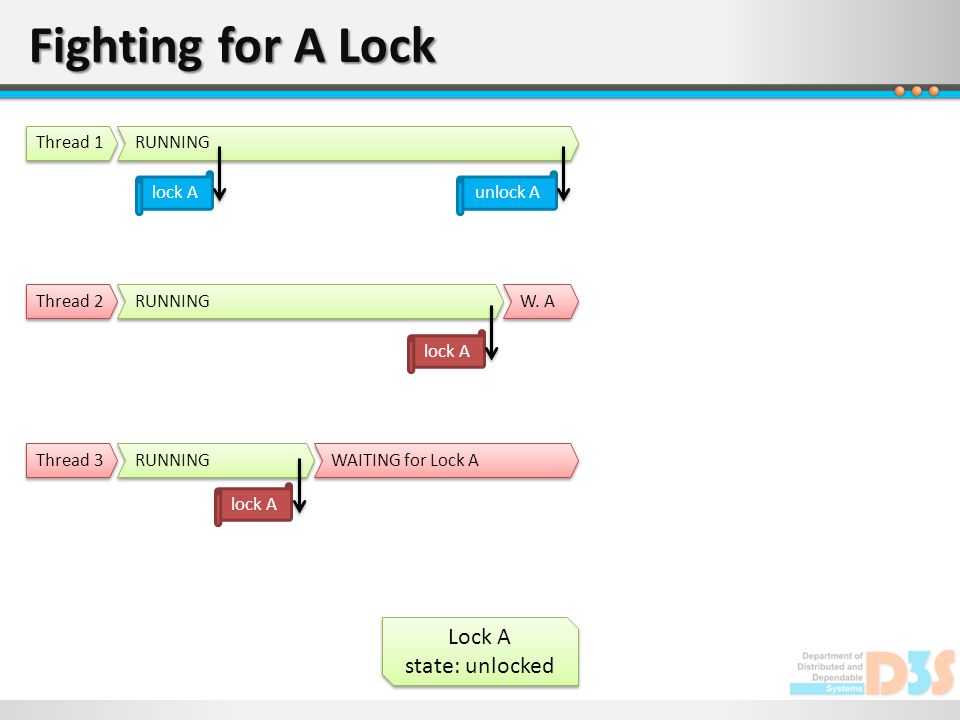

38 Fighting for A Lock Lock A state: unlocked Lock A state: unlocked RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A

39 Fighting for A Lock Lock A state: unlocked Lock A state: unlocked RUNNING Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up

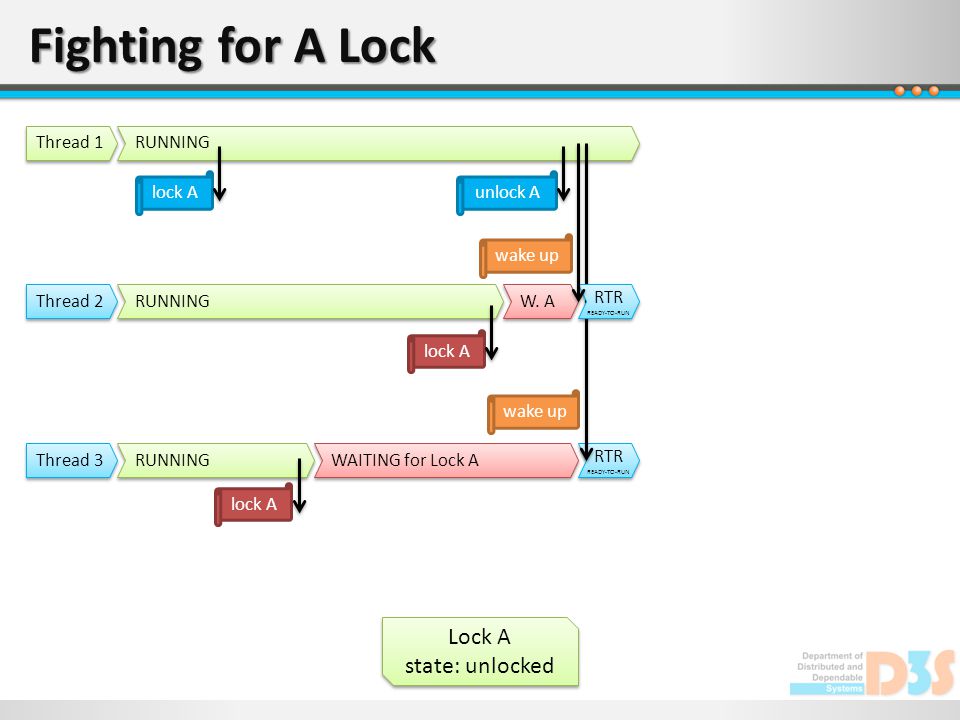

40 RUNNING RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN Fighting for A Lock Lock A state: unlocked Lock A state: unlocked Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up

41 RUNNING RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN Fighting for A Lock Lock A state: unlocked Lock A state: unlocked Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up RUN lock A

42 RUNNING RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN RTR READY-TO-RUN Fighting for A Lock Lock A state: held by T2 Lock A state: held by T2 Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up RUN lock A

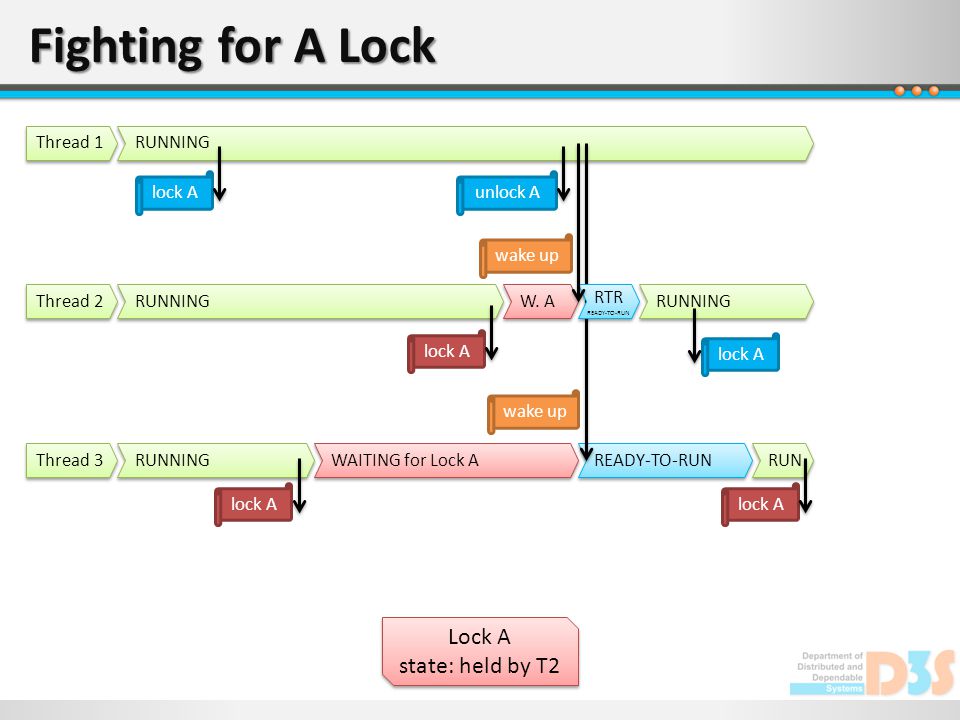

43 READY-TO-RUN RUNNING RTR READY-TO-RUN RTR READY-TO-RUN Fighting for A Lock Lock A state: held by T2 Lock A state: held by T2 Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up lock A RUNNING RUN lock A

44 READY-TO-RUN RUNNING RTR READY-TO-RUN RTR READY-TO-RUN Fighting for A Lock Lock A state: held by T2 Lock A state: held by T2 Thread 1 RUNNING Thread 2 RUNNING Thread 3 lock A WAITING for Lock A lock A W. A unlock A wake up lock A RUNNING RUN lock A WAITING for A

45 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3

46 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A

47 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A

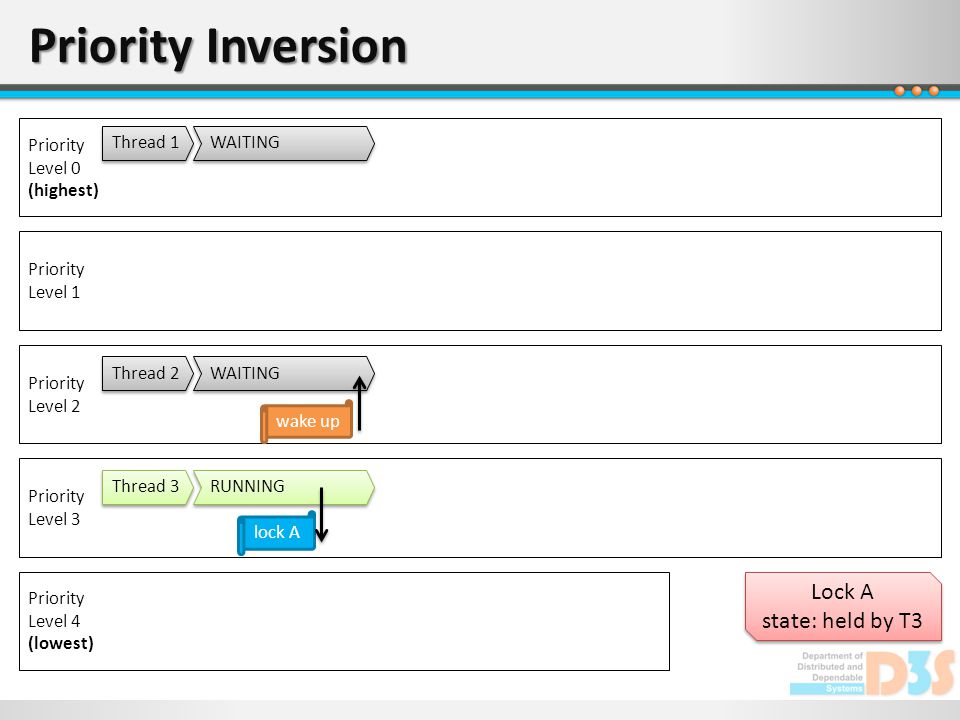

48 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up

49 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN preemption (forced context switch)

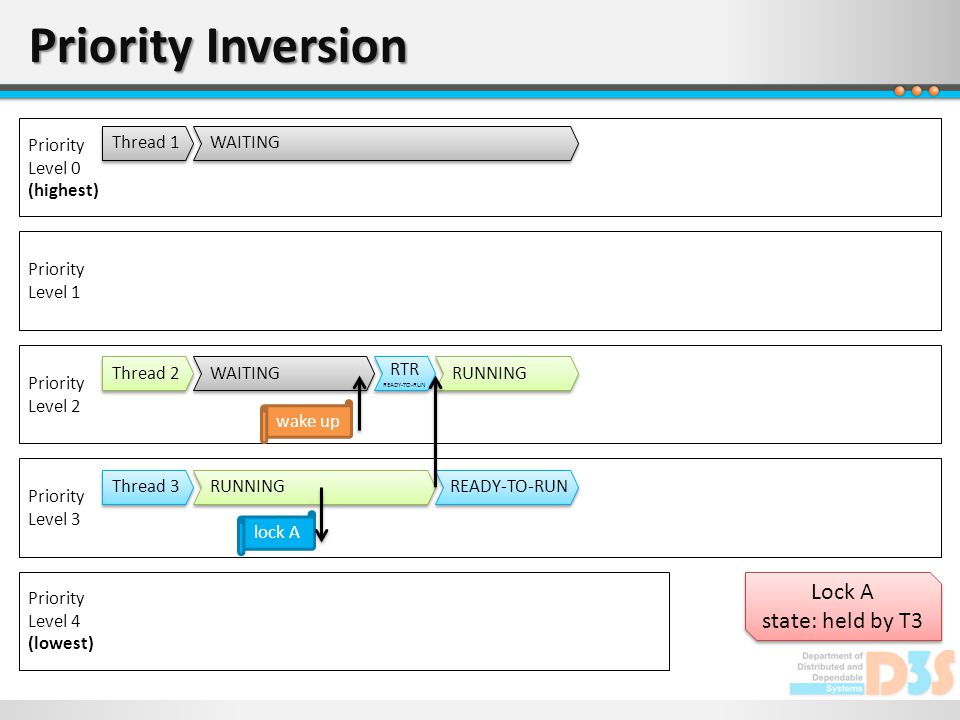

50 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING

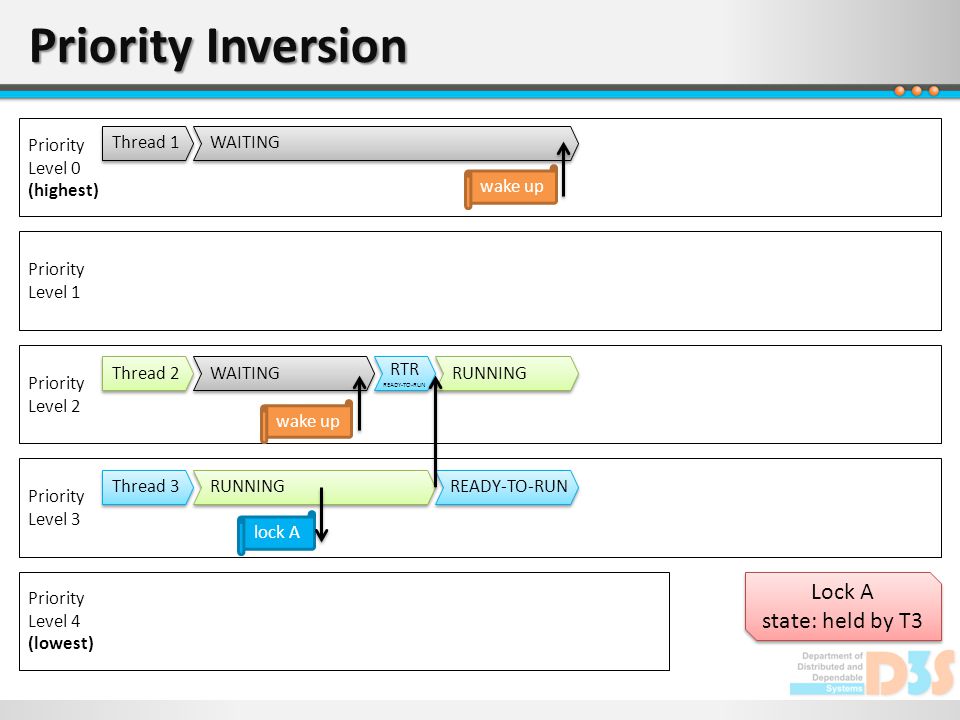

51 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING wake up

52 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING wake up RTR READY-TO-RUN RTR READY-TO-RUN preemption (forced context switch)

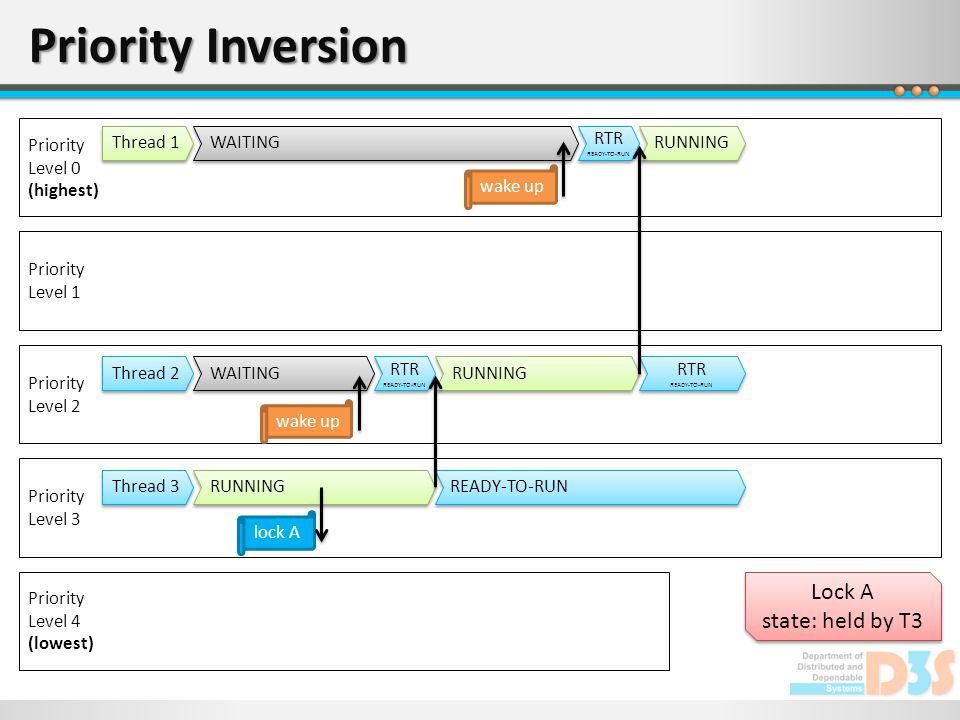

53 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING RTR READY-TO-RUN RTR READY-TO-RUN

54 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING RTR READY-TO-RUN RTR READY-TO-RUN lock A

55 Priority Inversion Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 WAITING Thread 1 WAITING Thread 2 RUNNING Thread 3 lock A wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING wake up RTR READY-TO-RUN RTR READY-TO-RUN RUNNING RTR READY-TO-RUN RTR READY-TO-RUN lock A WAITING for Lock A RUNNING context switch

56 Priority Inversion: Solution? Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN

57 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAIT priority boost RTR READY-TO-RUN RTR READY-TO-RUN

58 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING

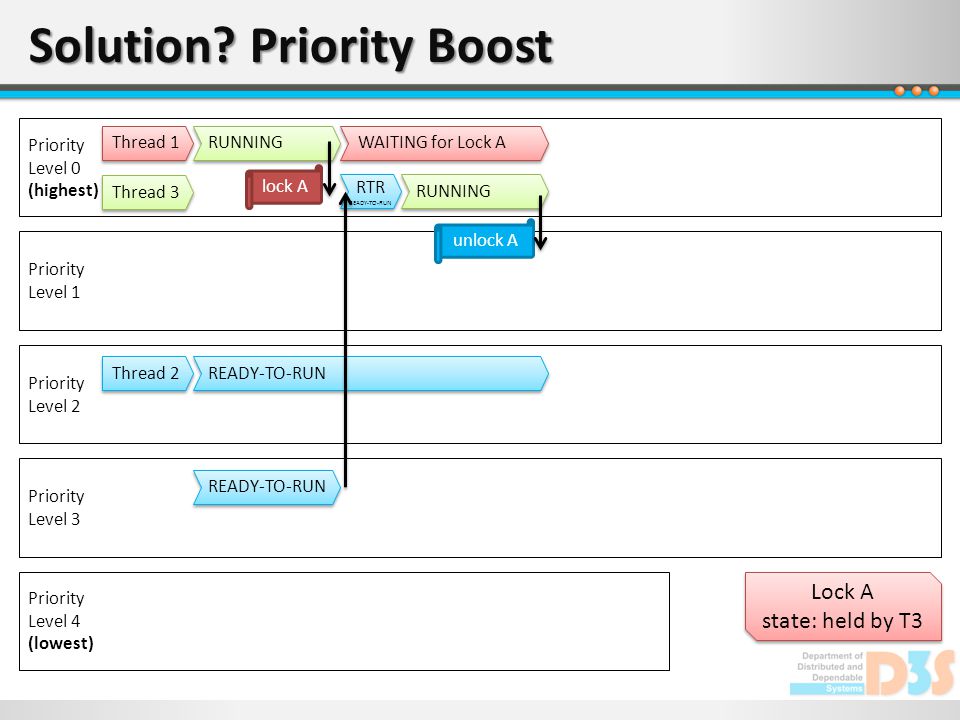

59 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T3 Lock A state: held by T3 Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A

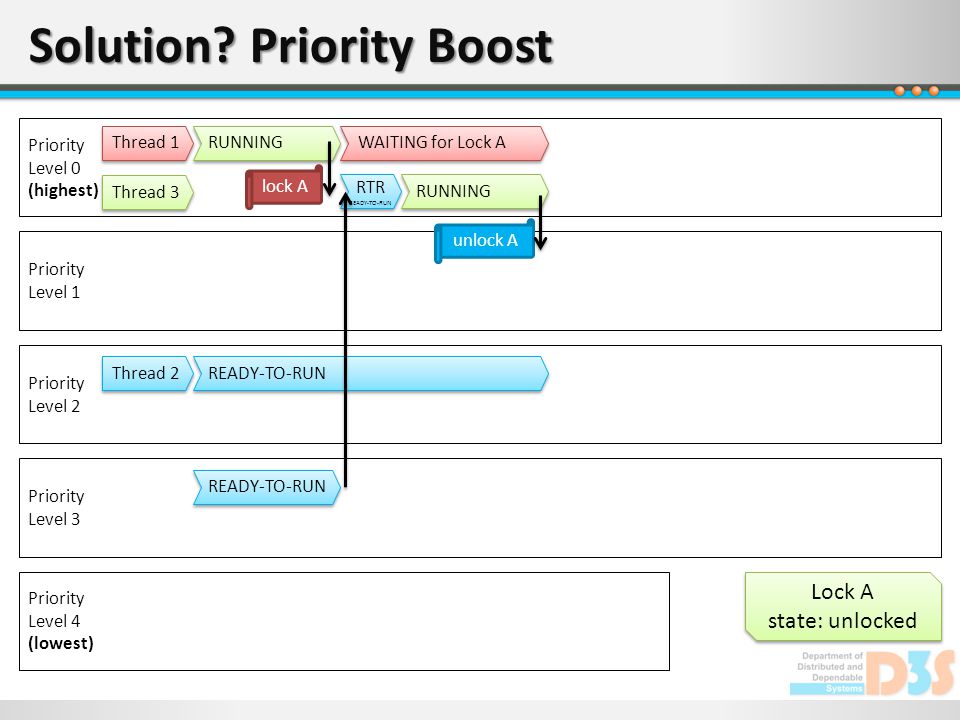

60 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A

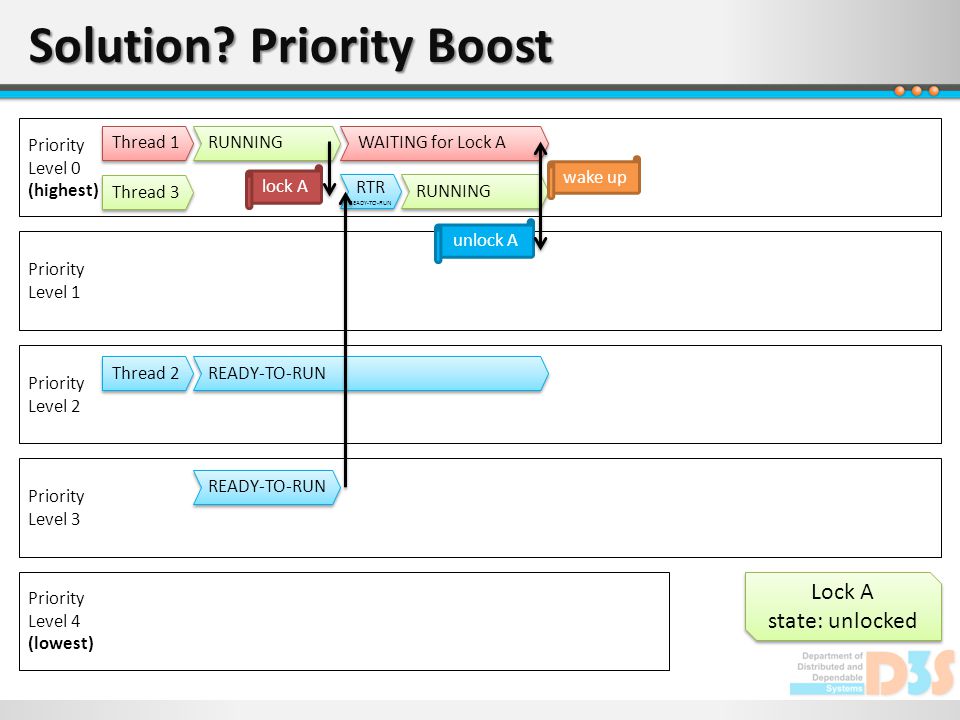

61 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A wake up

62 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A RUN restore old priority RTR READY-TO-RUN RTR READY-TO-RUN

63 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A RUN RTR READY-TO-RUN RTR READY-TO-RUN preemption (forced context switch) RUN RTR READY-TO-RUN RTR READY-TO-RUN

64 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: unlocked Lock A state: unlocked Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A RUN RTR READY-TO-RUN RTR READY-TO-RUN RUN RTR READY-TO-RUN RTR READY-TO-RUN lock A

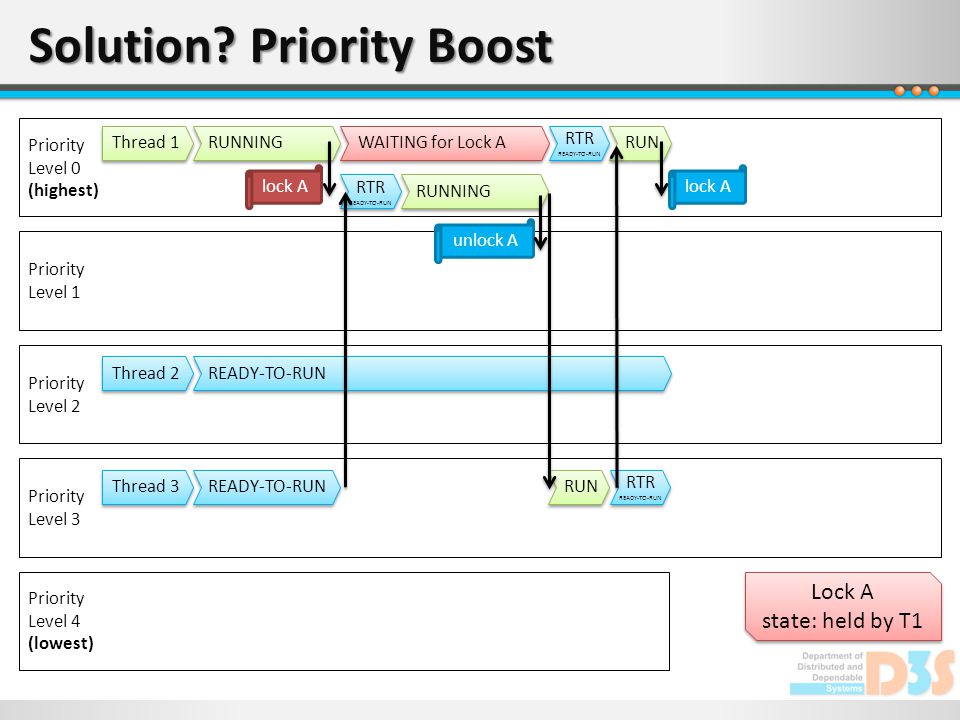

65 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Lock A state: held by T1 Lock A state: held by T1 Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A RUN RTR READY-TO-RUN RTR READY-TO-RUN RUN RTR READY-TO-RUN RTR READY-TO-RUN lock A

66 Solution? Priority Boost Priority Level 0 (highest) Priority Level 1 Priority Level 2 Priority Level 3 Priority Level 4 (lowest) Thread 1 Thread 2 Thread 3 READY-TO-RUN RUNNING lock A READY-TO-RUN WAITING for Lock A RTR READY-TO-RUN RTR READY-TO-RUN RUNNING unlock A RUN RTR READY-TO-RUN RTR READY-TO-RUN RUNNING READY-TO-RUN Lock A state: held by T1 Lock A state: held by T1 lock A
